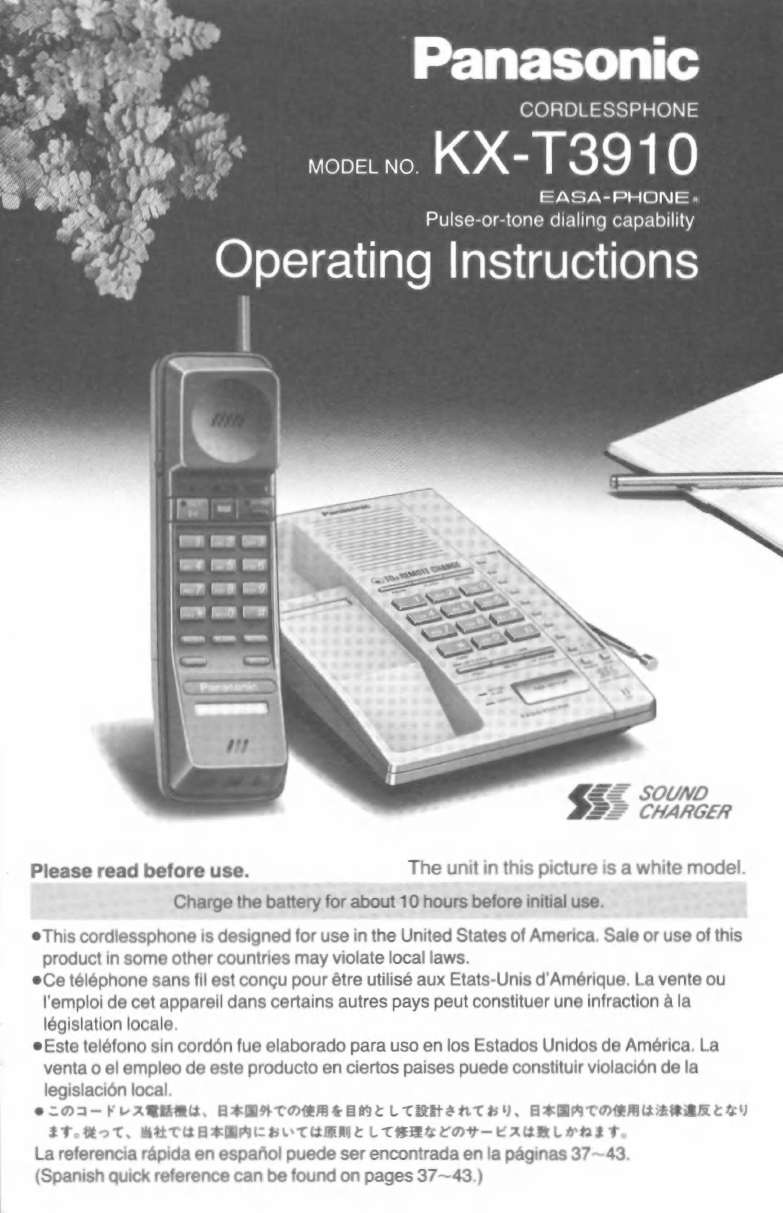

Panasonic Easa-Phone KX-T3910 User manual

Panasonic
CORDLESSPHONE
MODEL NO. KX-1391 0
EASA-PHONE «
Pulse-or-tone dialing capability
Operating Instructions
|
SES arce
Please read before use. The unit in this picture is a white model.
Charge the battery for about 10 hours before initial use.
eThis cordlessphone is designed for use in the United States of America. Sale or use of this
product in some other countries may violate local laws.
eCe téléphone sans fil est concu pour étre utilisé aux Etats-Unis d'Amérique. La vente ou
l'emploi de cet appareil dans certains autres pays peut constituer une infraction à la
législation locale.
eEste teléfono sin cordón fue elaborado para uso en los Estados Unidos de América. La
venta o el empleo de este producto en ciertos paises puede constituir violación de la
legislación local.
e-oa-kFvAWM"G. BIA COSREBRHLLCEHERE8mnCBU. BEXINACOSRGUGRS LA
IIS, MH CU BINA STERN LTEBEOOY-EAZBRLYRSET
La referencia rápida en espanol puede ser encontrada en la páginas 37 —43
(Spanish quick reference can be found on pages 37~43.)

Please read IMPORTANT SAFETY
INSTRUCTIONS on page 44 before use.
Read and understand all instructions.
Introduction
Thank you for purchasing the Panasonic Cordlessphone.
The KX-T3910 features include:
Sound Charger™ Technology
designed to filter out background noise and enhance the sound qualily
when using the portable unit.
Dual Dialing Pads
for making and receiving phone calls either at the base unil or at the
portable unil.

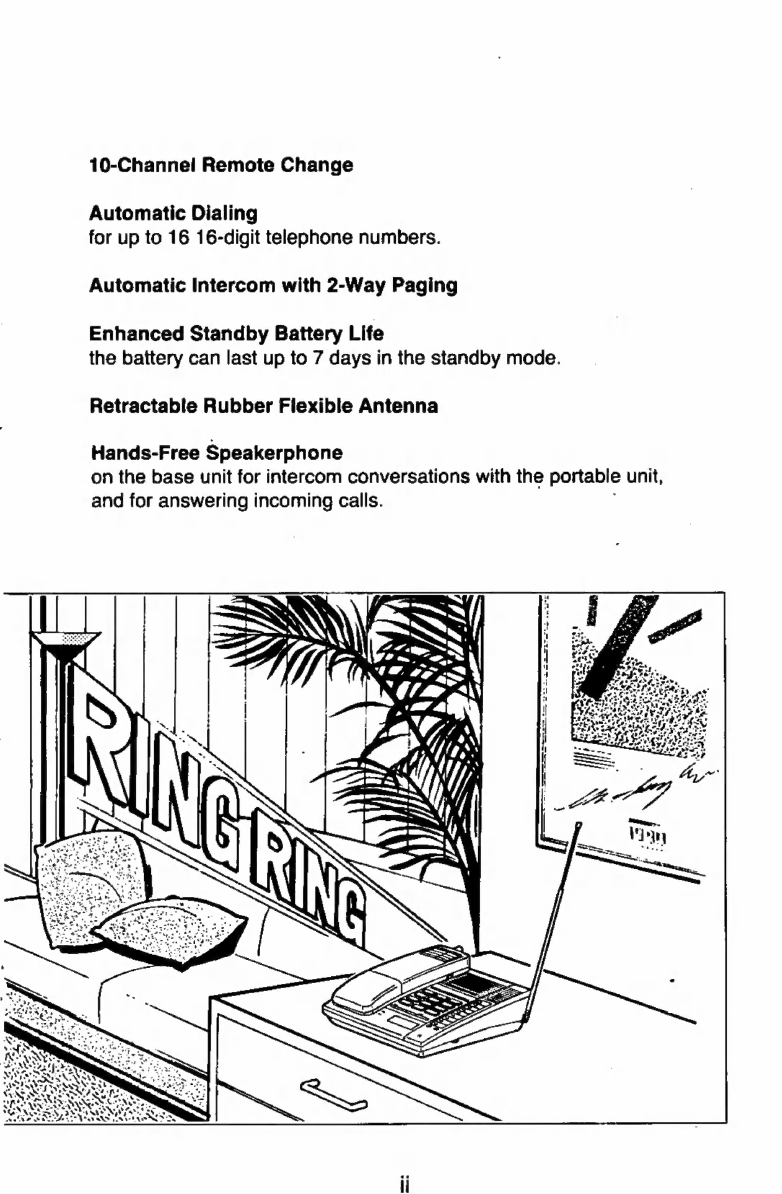

10-Channel Remote Change
Automatic Dialing
for up to 16 16-digit telephone numbers.
Automatic Intercom with 2-Way Paging
Enhanced Standby Battery Life
the battery can last up to 7 days in the standby mode.
Retractable Rubber Flexible Antenna
Hands-Free Speakerphone
on the base unit for intercom conversations with the portable unit,
and for answering incoming calls.

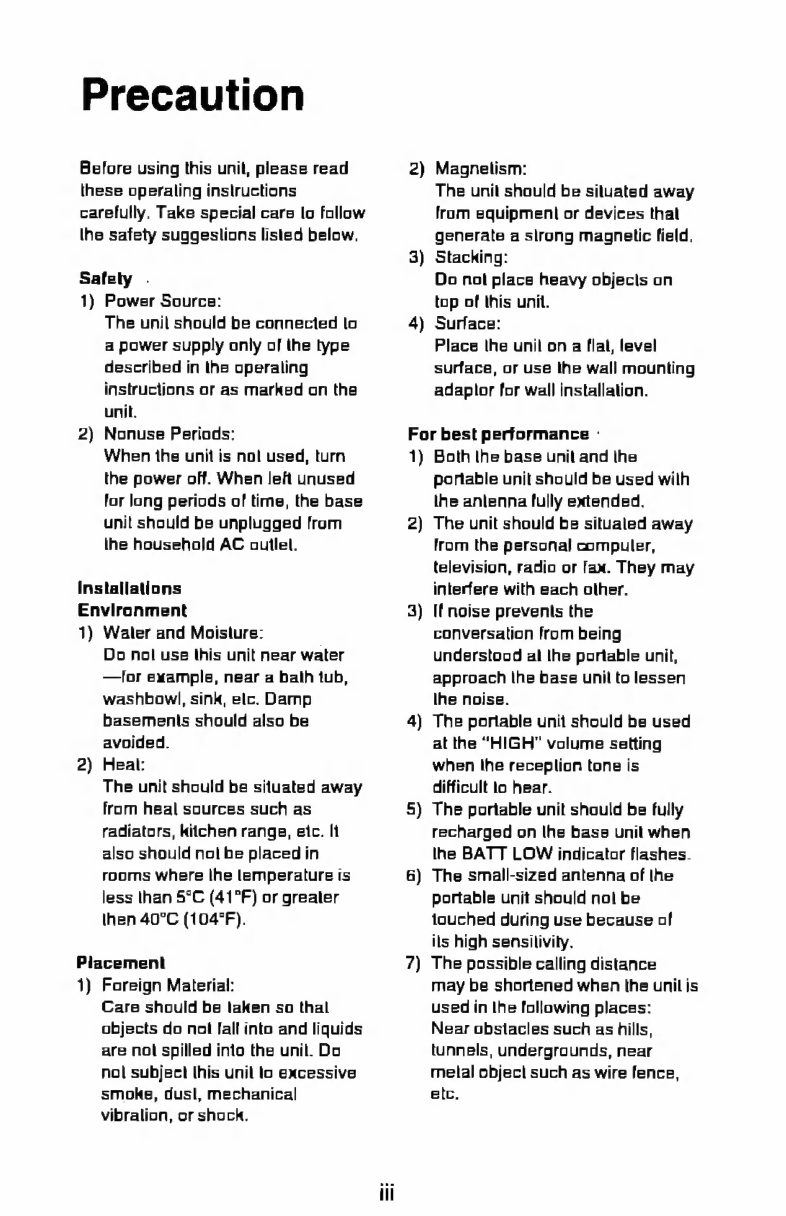

Precaution
Before using this unil, please read
these operaling instructions
carefully. Take special care lo follow
Ihe safety suggeslions listed below.
Safely .
1) Power Source:
The unil should be connected lo
a power supply only of the type
described in the operaling
instructions or as marked on the
unit.
Nonuse Periods:
When the unit is nol used, turn
the power off. When lefi unused
for long periods of time, the base
unit should be unplugged from
Ihe household AC ouilel.
2
—
Installations
Environment
1) Waler and Moisture:
Do nol use this unit near water
—for example, near a balh tub,
washbowl, sink, elc. Damp
basements should also be
avoided.
2) Heal:
The unit should be situated away
from heal sources such as
radiators, kitchen range, etc. li
also should nol be placed in
rooms where Ihe lemperature is
less than 5°C (41°F) or greater
Ihen 40°C (104°F).
Placement
1) Foreign Material:
Care should be laken so thal
objects do nol fall into and liquids
are nol spilled into the unil. Do
nol subject this unil lo excessive
smoke, dusl, mechanical
vibralion, or shock.
2) Magnetism:
The unil should be siluated away
from equipment or devices thal
generate a slrong magnetic field,
Stacking:
Do nol place heavy objecls on
top of this unit.
4) Surface:
Place the unil on a flal, level
surface, or use the wall mounting
adaplor for wall installation.
3
—
For best performance :
1) Both the base unit and the
portable unit should be used wilh
Ihe anlenna fully extended.
The unit should be situaled away
from the personal compuler,
television, radio or fax. They may
interfere with each olher.
If noise prevents the
conversation from being
understood al Ihe portable unit,
approach the base unil to lessen
lhe noise.
The ponable unit should be used
at Ihe "HIGH" volume setting
when Ihe receplion tona is
difficult to hear.
The portable unil shauld be fully
recharged on the base unil when
Ihe BATT LOW indicator flashes.
The small-sized antenna of Ihe
portable unit should nol be
touched during use because of
ils high sensilivily.
The possible calling distance
may be shortened when the unilis
used in Ihe following places:
Near obstacles such as hills,
tunnels, undergrounds, near
melal objecl such as wire fence,
etc.
2
—
3
—
4
—
5
—
—
7
—

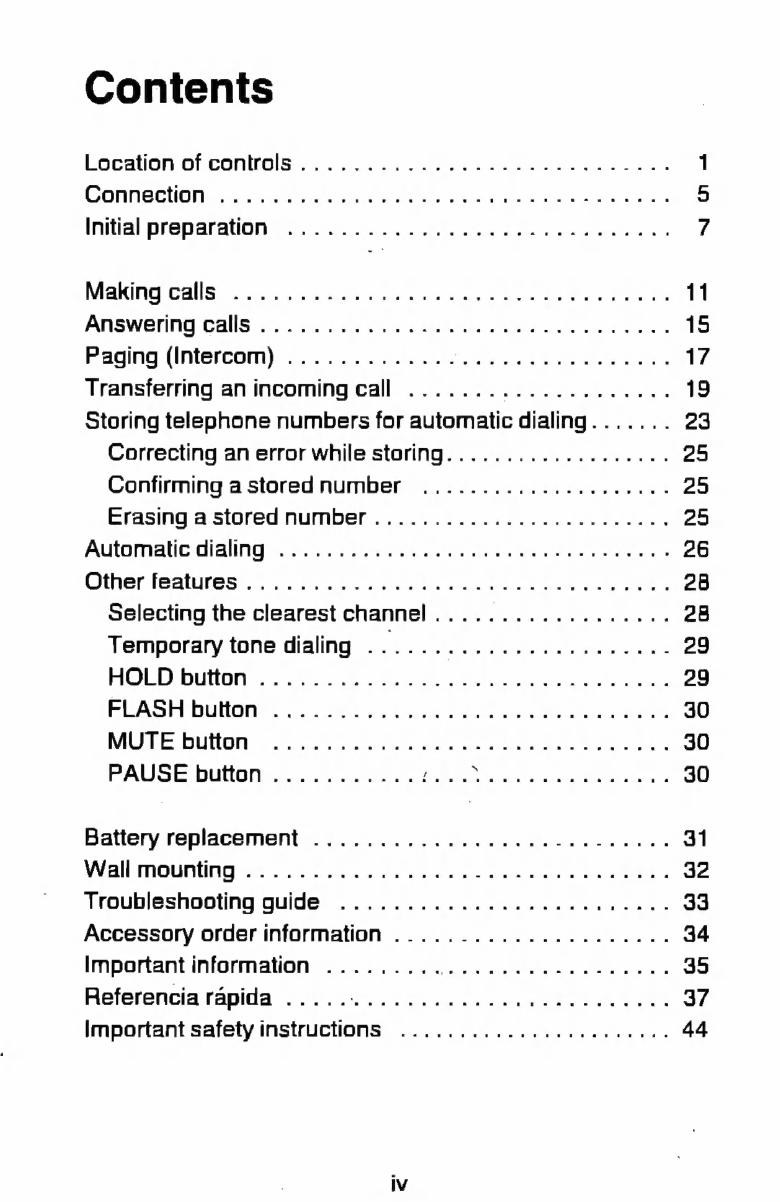

Contents
Location ef-eonlrels.. ivo pk COVER 1
Connadh s s uenti A 5
Initial preparation ....... 2.20... 0. cece ees 7
Making:callS x35 et inate a dida Pe 11
Answering calls .................oo.oooomo mmm... 15
Paging (Intercom) ............. aa eee bak Res 17
Transferring an incoming call ....... NOT ab mesg ate e 19
Storing telephone numbers for automatic dialing....... 23
Correcting an error while storing................... 25
Confirming a stored number .................... . 25
Erasing a stored number ......................... 25
Automatic dialing iii ee ewes . 26
Other features .............oooooooooooorooo oo». 2B
Selecting the clearest channel ..... Cb a eos Wee aie 28
Temporary tone dialing ......................- 29
HOLD Dutton casi 29
FLASH BURON o oe een OA wo tre ow eR rs 30
MUTE button ocios den diia 30
PAUSE DURON i pe xx otr data Ses C ee 30
Battery replacement ............ 00000 e cece ees 31
Wall mounting. ossosa rv E 32
Troubleshooting guide ......................... 33
Accessory order information ._...-............45. 34
Important information ......... tad UE 35
Referencia rápida ..... CM cin ONG Nenad SO NOE 37
Important safety instructions ..................o.oo... 44

Location of controls

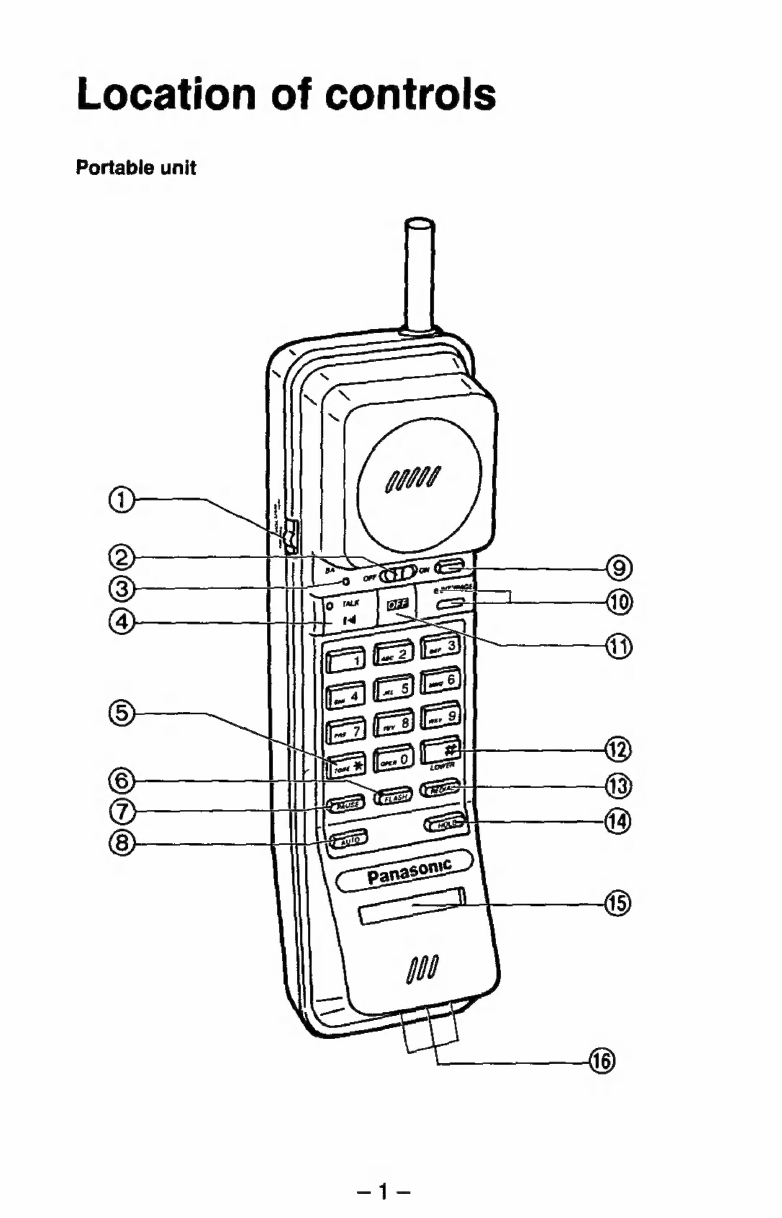

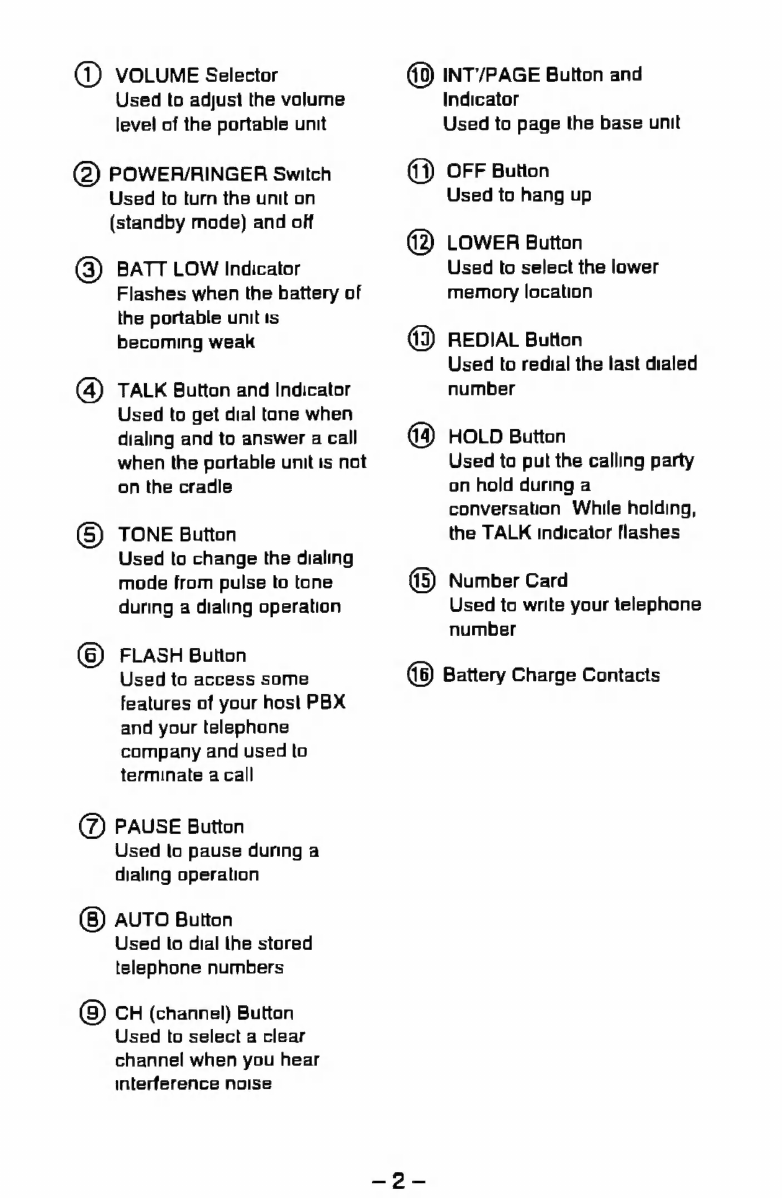

Portable unit
SOU ©
DIA ©
Sea
Gee

(1) VOLUME Selector
Used to adjust the volume
level cf the portable unit
(2) POWER/RINGER Switch
Used to turn the unit on
(standby mode) and off
(3) BATT LOW Indicator
Flashes when the battery of
the portable unit ts
becoming weak
(4) TALK Button and Indicator
Used to get dial tone when
dialing and to answer a call
when the portable unit ts not
on the cradle
(5) TONE Button
Used to change the dialing
mode from pulse to tone
during a dialing operation
(6) FLASH Button
Used to access some
features of your host PBX
and your telephone
company and used to
terminate a call
(7) PAUSE Button
Used lo pause during a
dialing operation
AUTO Bulton
Used lo dial the stored
telephone numbers
(8) CH (channel) Button
Used to select a clear
channel when you hear
interference noise
INT/PAGE Button and
Indicator
Used to page the base unit
(19 OFF Button
Used to hang up
(2) LOWER Button
Used to select the lower
memory location
(3 REDIAL Button
Used to redial the last dialed
number
HOLD Button
Used to put the calling party
on hold during a
conversation While holding,
the TALK indicator flashes
(5) Number Card
Used tc write your telephone
number
Battery Charge Contacts

Location of controls

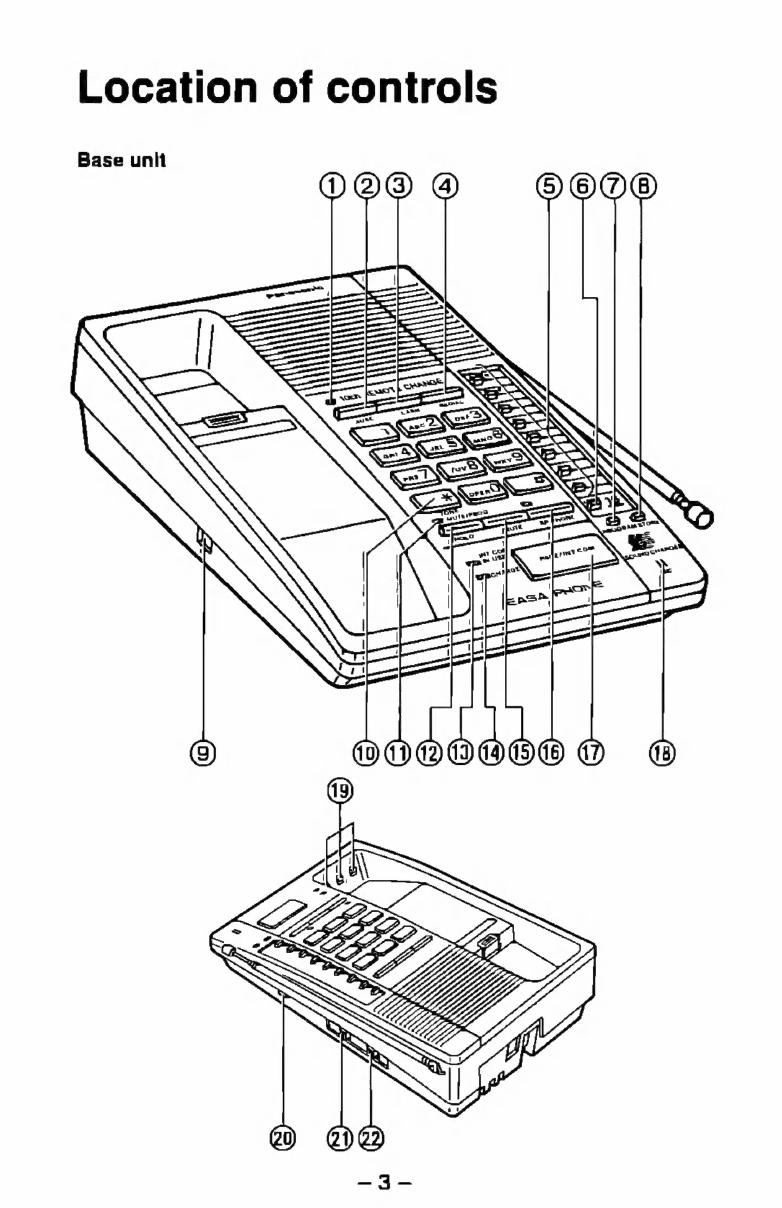

Base unit

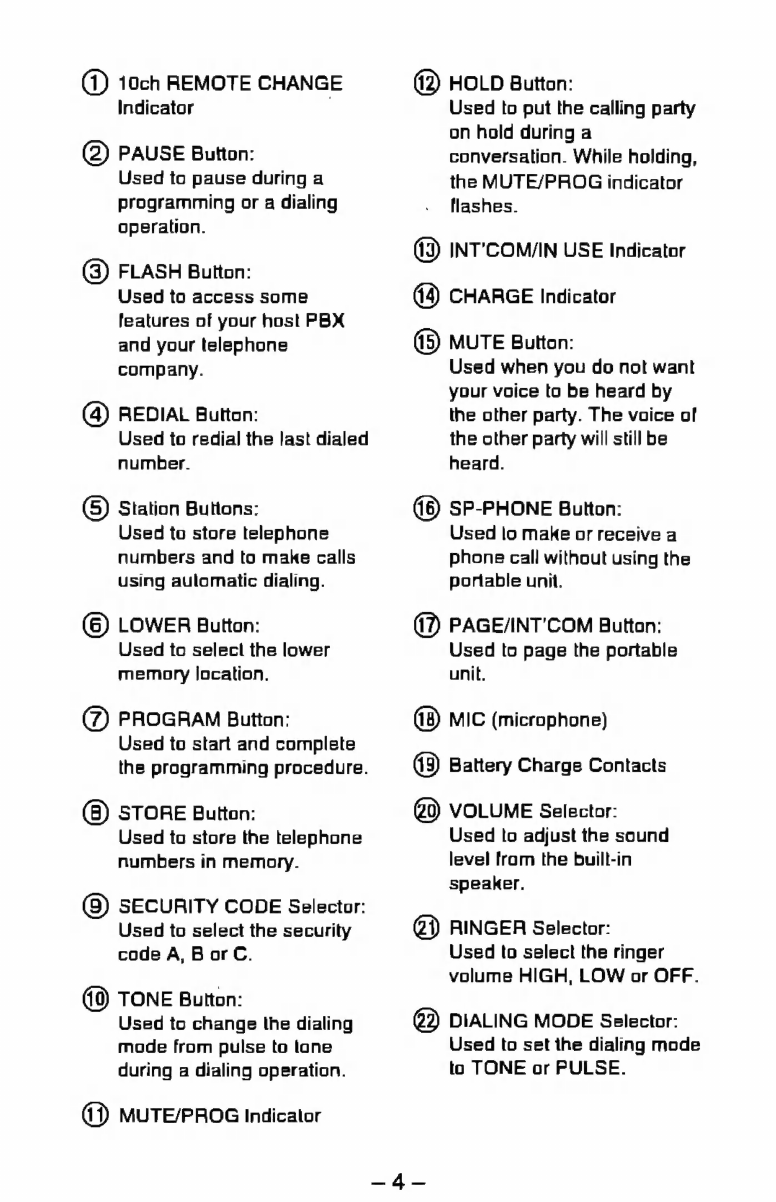

(1) 10ch REMOTE CHANGE
Indicator .
(2) PAUSE Button:
Used to pause during a
programming or a dialing
operation.
(3) FLASH Button:
Used to access some
features of your host PBX
and your telephone
company.
(4) REDIAL Button:
Used to redial the last dialed
number.
(5) Station Buttons:
Used to store telephone
numbers and to make calls
using aulomatic dialing.
(6) LOWER Button:
Used to select the lower
memory location.
(7) PROGRAM Button:
Used to start and complete
the programming procedure.
STORE Button:
Used to store the telephone
numbers in memory.
(9) SECURITY CODE Selector:
Used to select the security
code A, B or C.
TONE Button:
Used to change the dialing
mode from pulse to lane
during a dialing operation.
(1) MUTE/PROG Indicator
(12) HOLD Button:
Used to put the calling party
on hold during a
conversalion. While holding,
the MUTE/PROG indicator
flashes.
(i3) INT'COM/IN USE Indicator
CHARGE Indicator
45) MUTE Button:
Used when you do not want
your voice to be heard by
the other party. The voice of
the other party will still be
heard.
SP-PHONE Button:
Used lo make or receive a
Phone call without using the
portable unit.
(17) PAGE/INT'COM Button:
Used lo page the portable
unit.
MIC (microphone)
Baltery Charge Contacts
(20) VOLUME Selector:
Used to adjust the sound
level from the built-in
speaker.
@1) RINGER Selector:
Used to select the ringer
volume HIGH, LOW or OFF.
@2) DIALING MODE Selector:
Used to set the dialing mode
to TONE or PULSE.

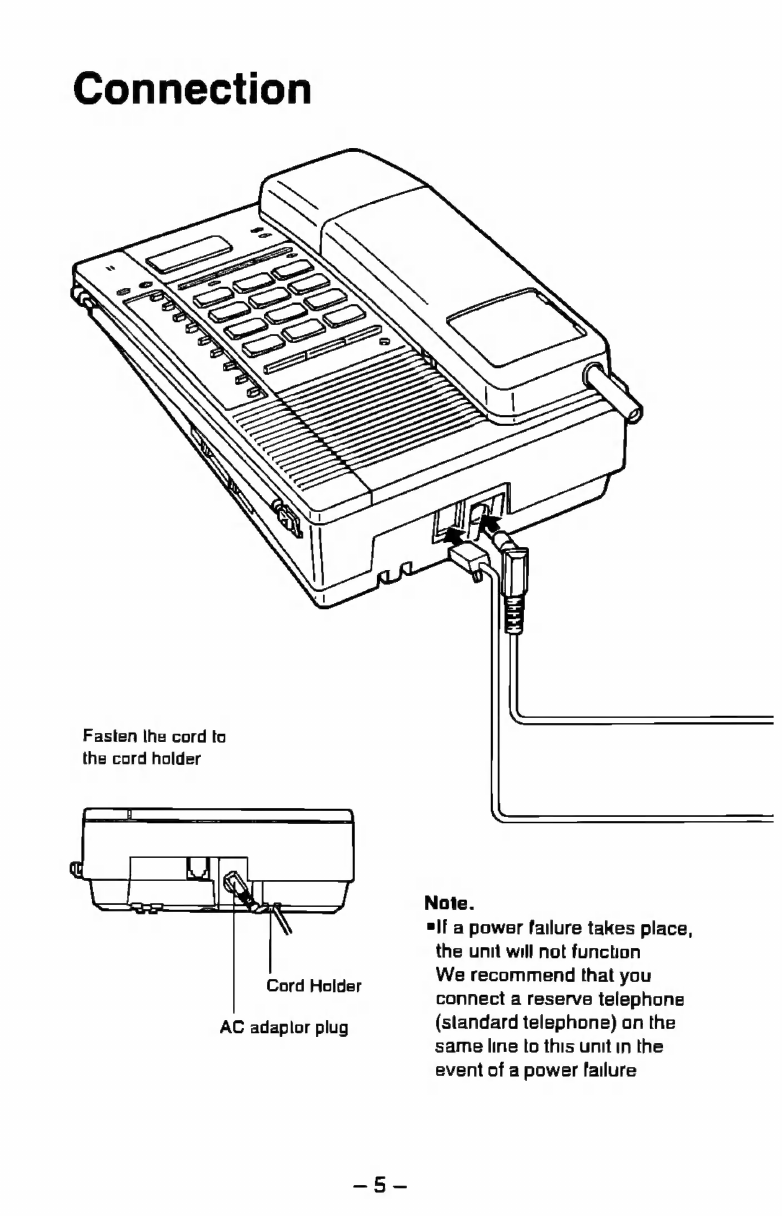

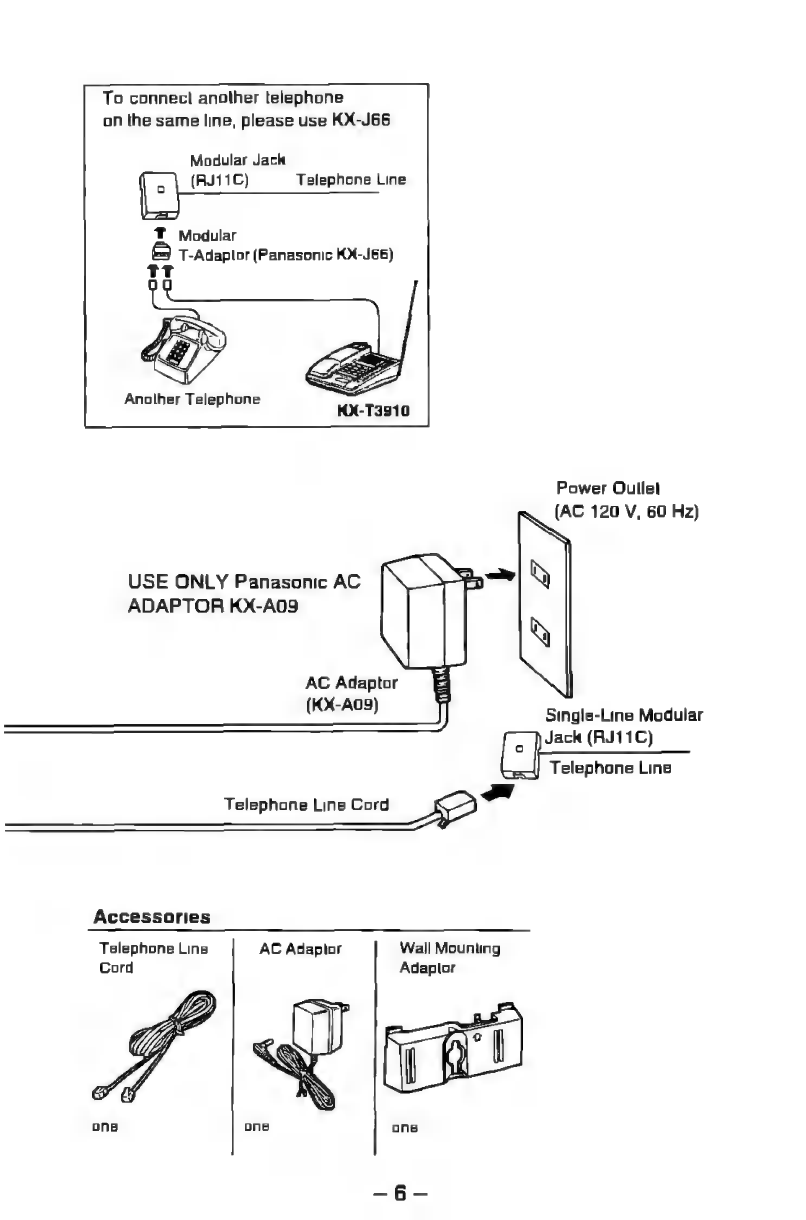

Connection
Fasten lhe cord to
the cord holder
Note.
®|f a power failure takes place,
the unit will not function
We recommend that you
connect a reserva telephone
AC adaplor plug (standard telephone) an the
same line to this unit in the
event of a power failure
Cord Holder

To connecl another telephone
on the same line, please use AX-J66
Modular Jack
a (RJ11C) Telephone Line
T Modular
T-Adaplor (Panasonic KM-J66)
T
Power Oullel
(AC 120 V, 60 Hz)
bw
=|
N
USE ONLY Panasonic AC
ADAPTOR KX-A09
AC Adaptor
(KX-A09)
Single-Line
Modular
=} Jack (AJ11C)
ES)
Telephone
Line
Accessories
Telephone Ling AC Adaplor Wall Mounting
Cord Adaplor

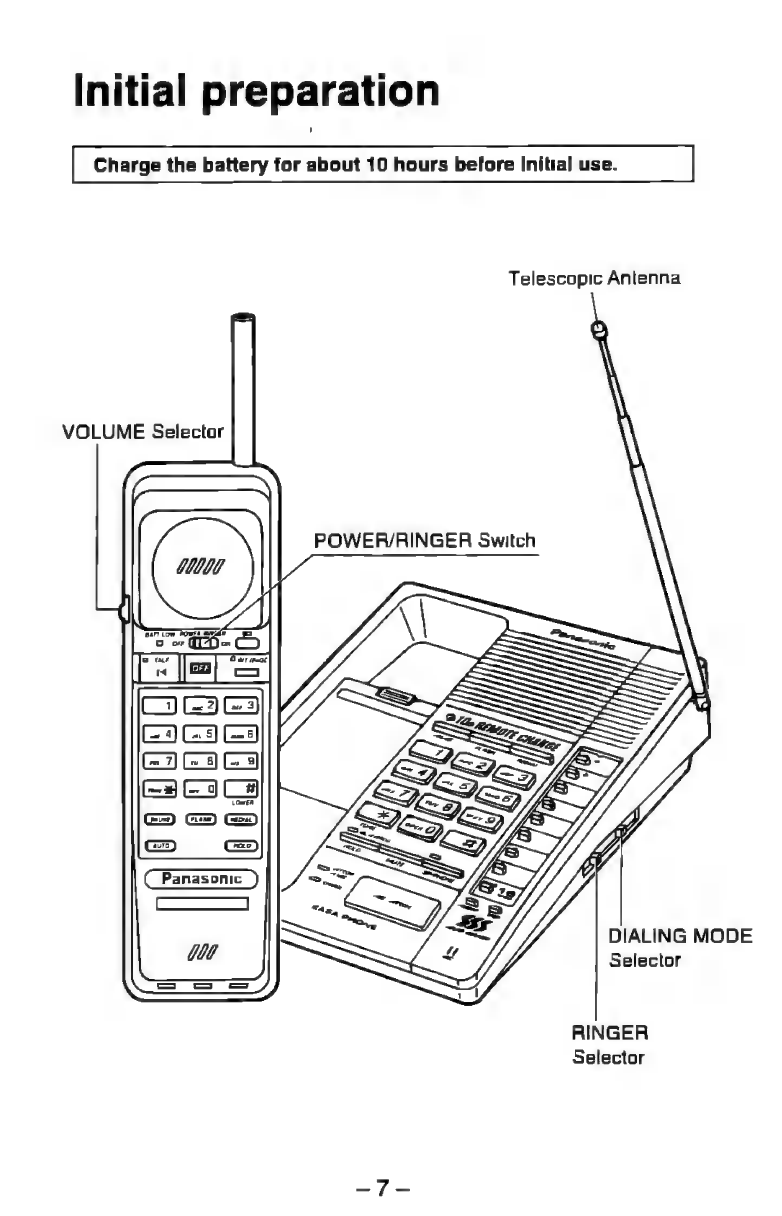

Initial preparation
Charge the battery for about 10 hours before Initial use.
Telescopic Anienna
\
VOLUME
Selector
N
POWER/RINGER Switch
Zn al
Co)
DIALING MODE
Selector
Ud
RINGER
Selector

VOLUME
NORMAL - = HIGH
4
POWEA/RINGER
orF(C_D) ON
ap
-—
DIALING MODE
PULSE** TONE

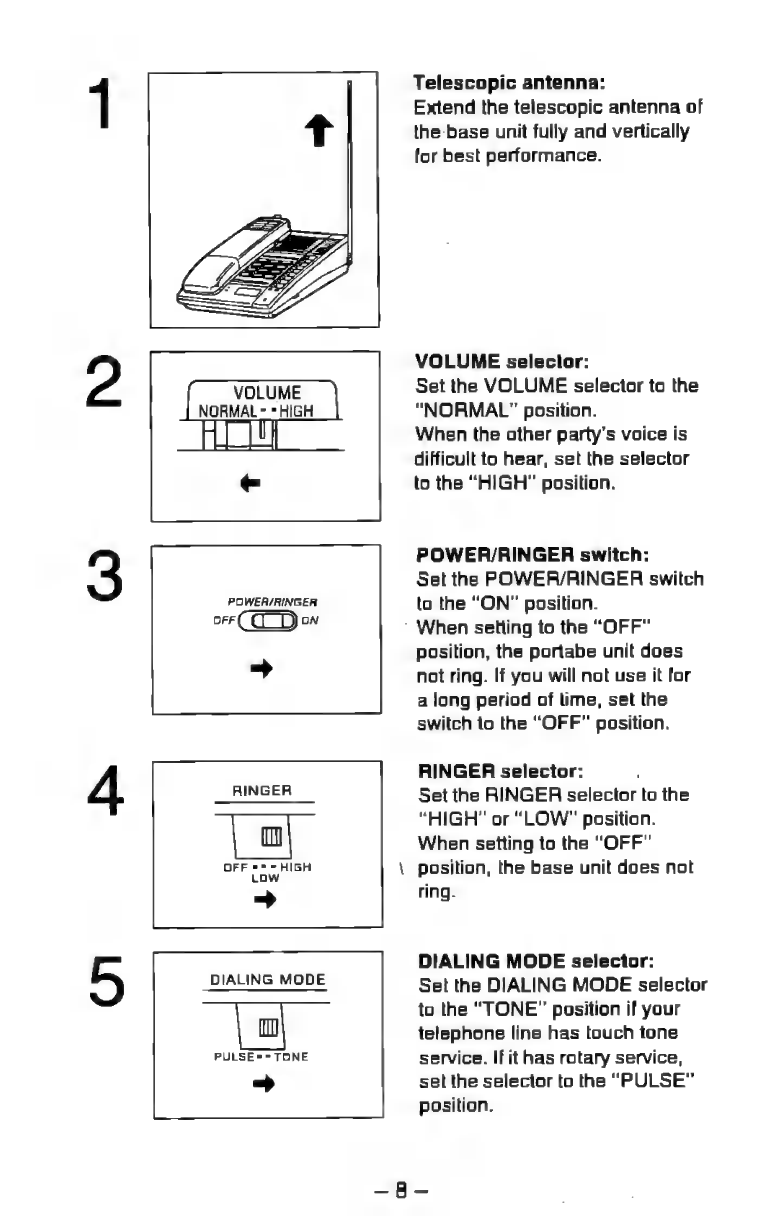

Telescopic antenna:
Extend the telescopic antenna of
the base unit fully and vertically
for best performance.
VOLUME selector:
Set the VOLUME selector to the
“NORMAL” position.
When the other party’s voice is
difficult to hear, set the selector
to the “HIGH” position.
POWER/RINGER switch:
Set the POWER/RINGER switch
to the "ON" position.
- When setting to the "OFF"
position, the portabe unit does
not ring. If you will not use it for
a long period af lime, set the
switch to the “OFF” position.
RINGER selector:
Set the RINGER selector to the
"HIGH" or "LOW" position.
When setting to the “OFF”
position, the base unit does not
ring.
DIALING MODE selector:
Set the DIALING MODE selector
to the “TONE” position if your
telephone line has touch tone
service. If it has rotary service,
sel the selector to the “PULSE”
position.

Setting the security code
The unitis equipped with 3-user selectable codes
This security code helps to avoid unauthorized use of your telephone
line by another cordless phone in your area
Set the SECURITY CODE
selector on the base unit to the
1 SECURITY CODE
AT. "B" gr "C" position
Place the portable unit on the
cradle for over 10 seconds
The security code in the base
unit and the portable unit is
changed into the new code
Noie-
s When you want to change the security code, repeat the above
procedure again
elf
a
power
failure
takes
place
or
the
AC
adaptor
is
disconnected,
the
security
code
slored
in
the
base
unit
may
be
lost
Be
sure
to
place
the
portable
unit
on
the
cradle
to
restore
the
security
code
after
the
power
Is
resumed

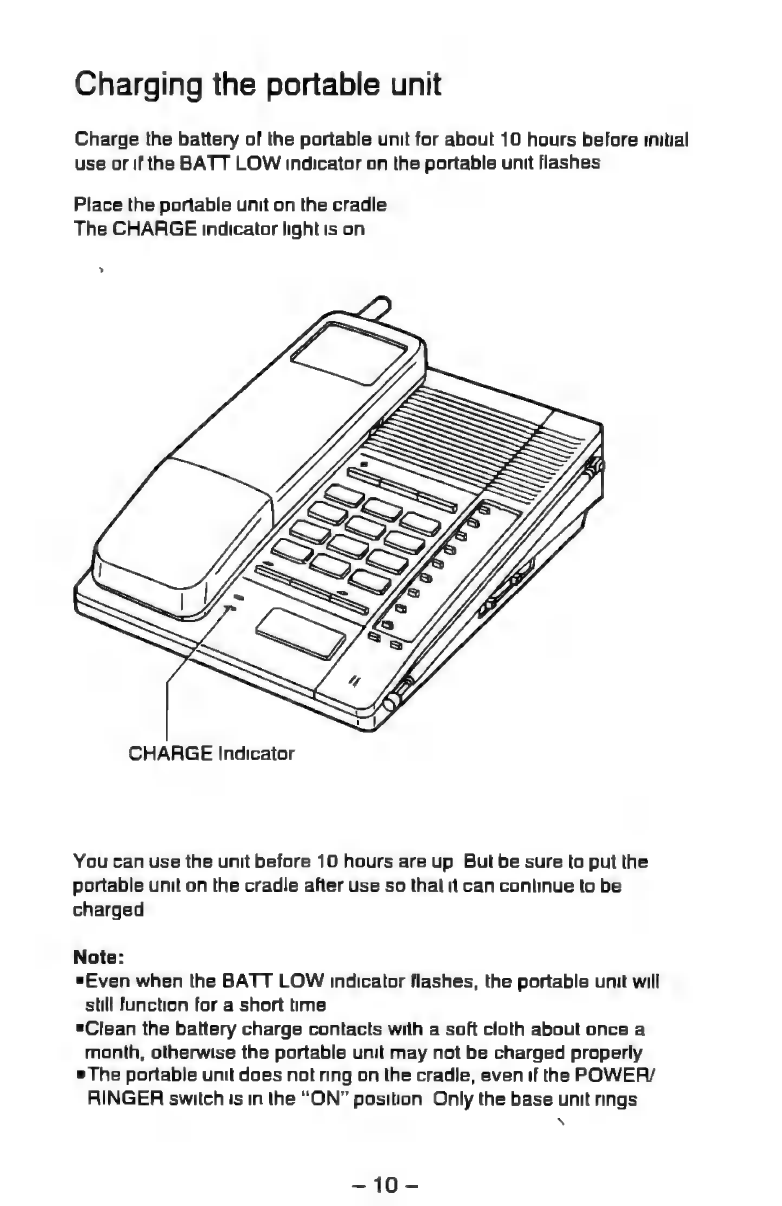

Charging the portable unit
Charge the battery of the portable unit for about 10 hours before mitial
use or if the BATT LOW indicator on the portable unit flashes
Place the portable unit on the cradle
The CHARGE indicator light is on
»
CHARGE Indicator
You can use the unit before 10 hours are up Bul be sure to put the
portable unit on the cradle after use so thal it can continue to be
charged
Note:
“Even when the BATT LOW indicator flashes, the portable unit will
still function for a short time
"Clean the battery charge contacts with a soft cloth about once a
month, otherwise the portable unit may not be charged properly
s The portable unit does not ring on the cradle, even if the POWER/
RINGER switch is in the “ON” position Only the base unit rings
N
-10-

Making calls

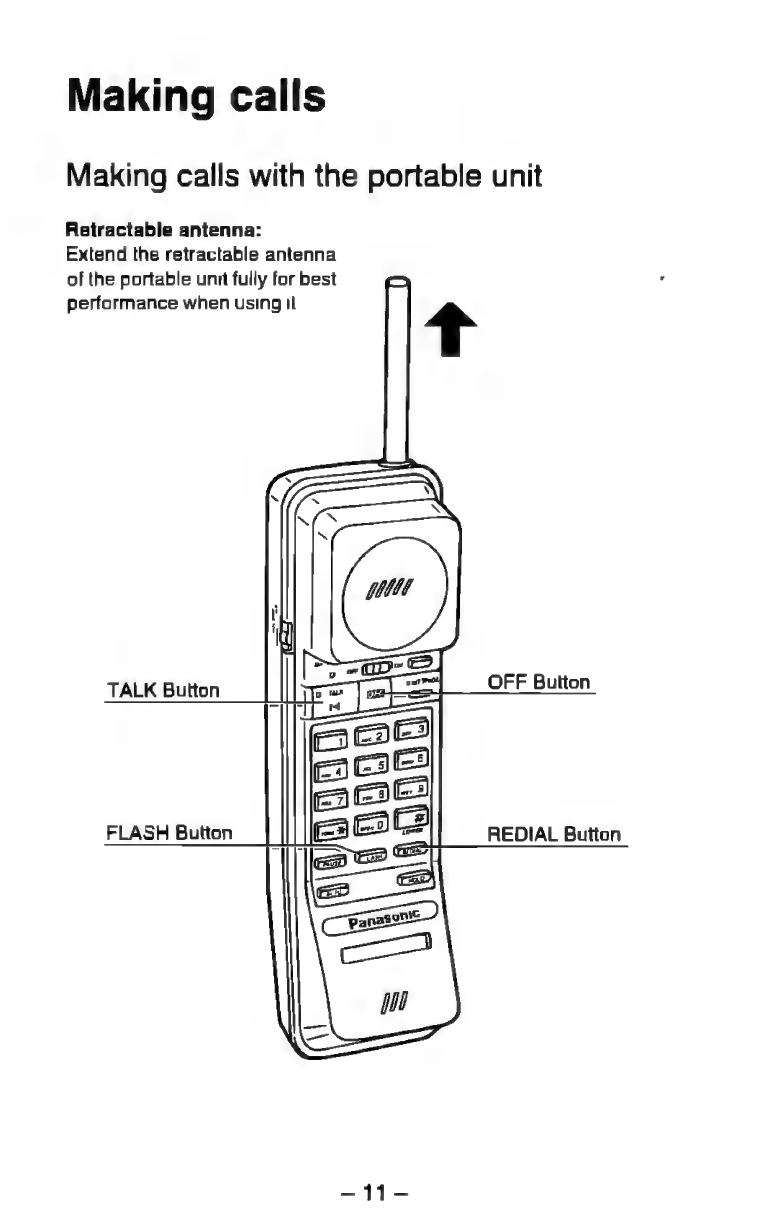

Making calls with the portable unit
Retractable antenna:
Extend the retractable antenna
of the portable unn fully for best =
performance when using il i
`
d
TALK Button a
ABER
10
RRNA
FLASH Button
MPRI
ENR
8
\\
OFF Button
REDIAL Button

Be sure that the POWER/RINGER switch on the portable unit is set to
the “ON” position

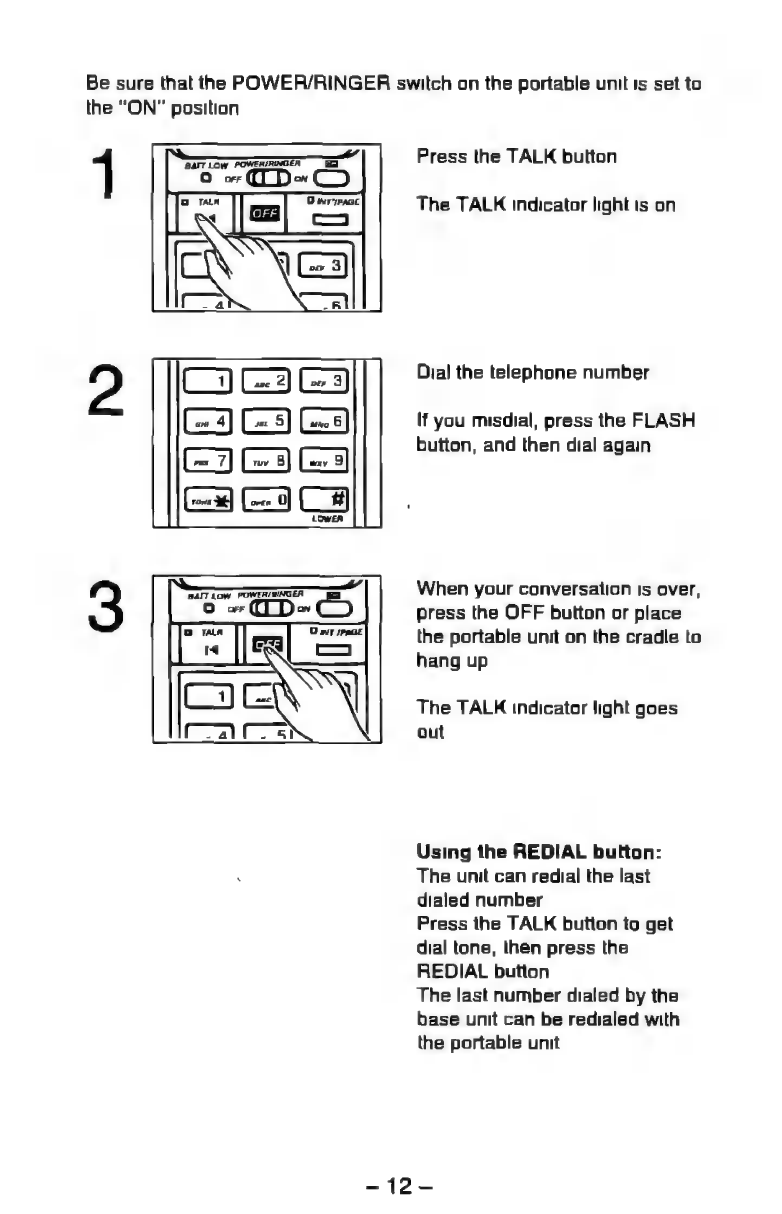

Press the TALK button
"B LOW POWERSRINGEA
= n=
The TALK indicator light ts on
Dial the telephone number
If you misdial, press the FLASH
button, and then dial again
When your conversation is over,
press the OFF button or place
the portable unit on the cradle to
hang up
The TALK indicator light goes
out
Using ihe REDIAL button:
The unit can redial the last
dialed number
Press the TALK button to get
dial tone, Ihen press the
REDIAL button
The last number dialed by the
base unit can be redialed with
the portable unit
ain

Making calls with the base unit
(speakerphone)
Dial Keypads
FLASH Button
REDIAL Button
'
m
NX
ASE
/ ESSN
/ NN
[|
ISO
SP-PHONE Bution
nd

Press the SP-PHONE button
The SP-PHONE indicator light ts
on
Dial the telephone numher
If you misdial, press the FLASH
button, and then dial again
When the other party answers,
speak toward the MIC
If the portable unit is on the
cradie wilh Ihe POWER/
RINGER switch being set to the
"ON" posilion, you can switch to
the portable unit al any time by
simply lifting the portable unit
When your conversation is over,
press the SP-PHONE button
again to hang up
Using the REDIAL bution.
The unit can redial the last
dialed number
Press the SP-PHONE bulton to
gel a dial tone, then press the
REDIAL button
The last number dialed by the
portable unit can be redialed
with the base unil
— 14—

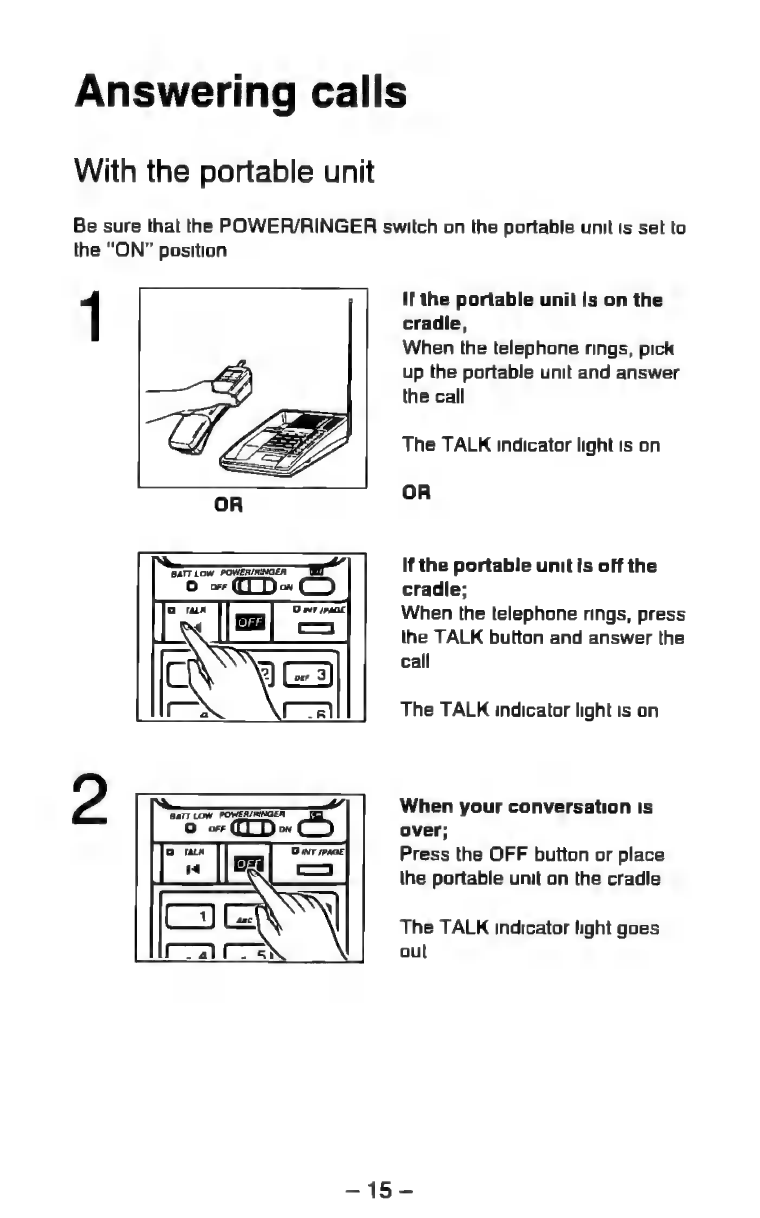

Answering calls
With the portable unit
Be sure thal the POWER/RINGER switch on the portable unil ts set to
the "ON" position
If the portable unil is on the
cradle,
When the telephone rings, pick
up the portable unit and answer
the call
The TALK indicator light is on
OR
SITIO POWER/RINGER W If the portable unit is off the
o »«(IDCO cradle;
When the lelephone rings, press
the TALK button and answer the
call
The TALK indicator light is an
When your conversation Is
"o e (Do over;
Press the OFF button or place
Ihe portable unit on the cradle
The TALK indicator light goes
oul
ño,
