Installation Manual
Additional Digital Cordless Handset
Model No. KX-TGA930
DECT
6.0
1111 11111111 1111
*TGA930*
Thank you for purchasing aPanasonic digital cordless phone.
This unit is an additional handset compatible with the following
series
of Panasonic Digital Cordless Phones:
KX-TG6311/KX-TG6321/KX-TG9331/KX-TG9341/
KX-TG9361/KX-TG9371/KX-TH1211
You must registerthis handsetwith your base unit before it can
be used. This installation manual describes only the steps
needed
to register and begin using the handset. Please read
the base unit's operating instructions for further details.
Charge the bcatteriesforabout7hours before initial use.
Please read this installation manual before using the unit and
save it for future reference.
For assistance, visit our website:
http://www.panasonic.com/help
for customers in the U.S.A. or
Puerto Rico.
PNQX1006ZA DM0208PYO

Supplied accessories
Acce$f"'~iiemlprd~r l'I~m"r< ..•..••••.••.•••..
Charger/PNlC1004ZB
AC adaptor for charger/PQl V209T
Rechargeable batteries
*1
Handset cover*2/PNYNTGA430BR
Belt c1ip/PNKE1 004Z1
. .. Qoantity
...< ... .....
1
1
2
1
1
*1 Please read the base unit's operating instructions for replacement
battery information.
*2
The handset cover comes attached to the handset.
Note:
•Please read the base unit's operating instructions for additional!
replacement accessories.
Sales and support information
• To order additional/replacement accessories, call 1-800-332-5368.
•
TTY users (hearing or speech impaired users) can call 1-866-605-
1277.
Connection
,-------------------------_.
W
.. (120VAC,
60 Hz)
'==::10
Hooks
Note:
•Use only the supplied Panasonic AC adaptor PQlV209.
2For assistance, please visit http://www.panasonic.com/help

•The AC adaptor must remain connected at all times. (It is normal for
the adaptor to feel warm during use.)
Battery installation and battery charge
Important:
•Use the supplied rechargeable batteries (Part No. HHR-65AAABU).
•When installing the batteries:
-Wipe the battery ends
(~, 8) with adry cloth.
-Avoid touching the battery ends
(~, 8) or the unit contacts.
-Ensure correct polarities
(~, 8).
•When replacing the batteries:
-USE ONLY rechargeable Ni-MH batteries AAA (R03) size.
-Do NOT use Alkaline/Manganese/Ni-Cd batteries.
-We recommend using the Panasonic rechargeable batteries noted
in the base unit's operating instructions for replacement battery
information.
1Press the notch on the handset cover firmly, and slide it in the
direction
of the arrow.
2Insert the batteries negative (8) end first. Close the handset cover.
3Place the handseton the charger for about 7 hours before initial
use.
-.~ .•.... ) ....•...•...•.•••..••.....•.•.••...•..•..............
..... :"
.--,---.'-".: g
",
)~F.
.- : .. >
,- - .
Q ..••.................... :: .......•.....•....•.••.•..
..... -.: "
.-.:.:.:.::::::,.:.:-_.
Note:
•If the batteries are fully charged, but the operating time seems to be
shorter, clean the battery ends (~, 8) and the charge contacts with a
dry cloth.
For assistance, please visit http://www.panasonic.com/help 3

Attention:
Anickel metal hydride battery that is
recyclable powers the product you
have purchased.
Please call 1-800-8-BATTERY (1-
800-822-8837) for information on how
to recycle this battery.
t!
Registering ahandset to abase unit
1Base unit:
KX-TG6311/KX-TG9361/KX-TH1211
Press and hold [LOCATOR] for 4seconds. (No registration tone)
KX-TG6321/KX-TG9331/KX-TG9341/KX-TG9371
Press and hold [LOCATOR] for 4seconds until the registration tone
sounds.
•If all registered handsets start ringing, press the same button to
stop. Then repeat this step.
•The next step should be completed within 90 seconds.
2Handset:
Press [OK], then wait until along beep sounds.
Note:
-While registering, "Base registering" is displayed on all
registered handsets.
-If "Error! !" is displayed while registering, press [OFF] and register
the handset again.
Display language
1
(MENU] ~ [0][1][1][0]
2 r, ]/[ ~]: Select the desired setting.
3Press the right soft key to save. ~ rOFF]
4For assistance, please visit http://www.panasonic.com/help

Wall mounting
1Drive the screws (not included) into the wall.
2Mount the charger (0), then slide it down (f}) and to the right ($)
until it is secure.
l ..... (120 VAC, 60 Hz)
Belt clip
You can hang the handset on your belt or pocket using the supplied belt
clip.
•
To attach the belt clip • To remove the belt clip
For assistance, please visit http://www.panasonic.com/help 5

For your safety
To prevent severe injury and loss of life/property, read this section
carefully before using the productto ensure proper and safe operation
of
your product.
WARNING
Power connection
•Completely insert the AC adaptor/power plug into the power outlet.
Failure to do so may cause electric shock and/or excessive heat
resulting
in afire.
•Regularly remove any dust, etc. from the AC adaptor/power plug by
pulling it from the power outlet, then wiping with adry cloth.
Accumulated dust may cause
an insulation defect from moisture, etc.
resulting
in afire.
•Unplug the product from power outlets if it emits smoke,
an abnormal
smell, or makes an unusual noise. These conditions can cause fire
or
electric shock. Confirm that smoke has stopped emitting and contact
the Panasonic Call Center at 1-800-211- PANA (1-800-211-7262).
Installation
•
To preventthe risk offire orelectrical shock, do not expose the product
to rain or any type of moisture.
•
Do not place or use this product near automatically controlled devices
such as automatic doors and fire alarms. Radio waves emitted from
this product may cause such devices to malfunction resulting
in an
accident.
CAUTION
Installation and relocation
•The AC adaptor is used as the main disconnect device. Ensure that
the AC outlet
is installed near the product and is easily accessible.
6For assistance, please visit http://www.panasonic.com/help

Battery
•We recommend using the supplied batteries oradditional/replacement
batteries noted
in the base unit's operating instructions for
replacement battery information. USE ONLY rechargeable Ni-MH
batteries
AAA (R03) size.
•Do not mix old and new batteries.
•Do not open
or mutilate the batteries. Released electrolyte from the
batteries is corrosive and maycause burns or injury to the eyes orskin.
The electrolyte may be toxic if swallowed.
•Exercise care when handling the batteries. Do not allow conductive
materials such as rings, bracelets or keys to touch the batteries,
otherwise ashortcircuit maycause the batteries and/orthe conductive
material to overheat and cause burns.
•Charge the batteries provided with or identified for use with this
product only,
in accordance with the instructions and limitations
specified
in this manual.
•Only use acompatible base unit (or charger) to charge the batteries.
Do not tamper with the base unit (or charger). Failure to follow these
instructions may cause the batteries to swell or explode.
Other information
•Operating the product near electrical appliances may cause
interference. Move away from the electrical appliances.
•Use only the power cord and batteries indicated
in this manual. Do not
dispose
of batteries in afire. They may explode. Check with local
codes for possible special disposal instructions.
Routine care
•Wipe the
outer surface of the product with a soft moist cloth.
•Do not use benzine, thinner, or any abrasive powder.
For assistance, please visit http://www.panasonic.com/help 7

Notice for product disposal, transfer, or return
•This product can store your private/confidential information.
To protect
your privacy/confidentiality, we recommend that you erase the
information such as phonebook or caller list entries from the memory
before you dispose of, transfer,
or return the product.
FCC and other information
This equipment is hearing aid compatible as defined by the FCC in 47
CFR Section 68.316.
When you hold the phone to your ear, noise might be heard
in your
Hearing Aid. Some Hearing Aids are not adequately shielded from
external RF (radio frequency) energy. If noise occurs, use
an optional
headset accessory
or the speakerphone option (if applicable) when
using this phone. Consult with your audiologist or Hearing Aid
manufacturer about the availability of Hearing Aids which provide
adequate shielding to RF energy commonly emitted by digital devices.
WHEN PROGRAMMING EMERGENCYNUMBERSAND(OR) MAKING
TEST CALLS TO EMERGENCY NUMBERS:
1) Remain on the line and briefly explain to the dispatcherthe reason for
the call.
2) Perform such activities in the off-peak hours, such as early morning or
late evenings.
This device complies with Part 15
of the FCC Rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may
cause undesired operation.
Privacy
of communications may not be ensured when using this phone.
CAUTION:
8For assistance, please visit http://www.panasonic.com/help

IMPORTANT!
If your product is not
working properly
...
1Read the Operating Instructions
•If lost, you can download your Operating Instructions at
http://www.panasonic.com/help
2Visit our website:
http://www.panasonic.com/help
•FAQs and troubleshooting hints are available.
3Contact us via the web at:
http://www.panasonic.com/contactinfo
4Call us at:
1-800-211-PANA (1-800-211-7262)
•Monday -Friday 9:00am -9:00pm (EST),
Saturday/Sunday 10:00am -7:00pm (EST)
To order areplacement battery,
please call: 1-800-332-5368
Or visit: http://www.panasonic.com/batterystore
PQQW15385ZA DM0106SH1126

PANASONIC PUERTO RICO, INC.
San Gabriel Industrial Park,
Ave. 65 de Infanteria, Km. 9.5,
Carolina, Puerto Rico 00985
PANASONIC CONSUMER
ELECTRONICS COMPANY, DIVISION
OF PANASONIC CORPORATION OF
NORTH AMERICA
One Panasonic Way,
Secaucus, New Jersey 07094
Panasonic Telephone Products

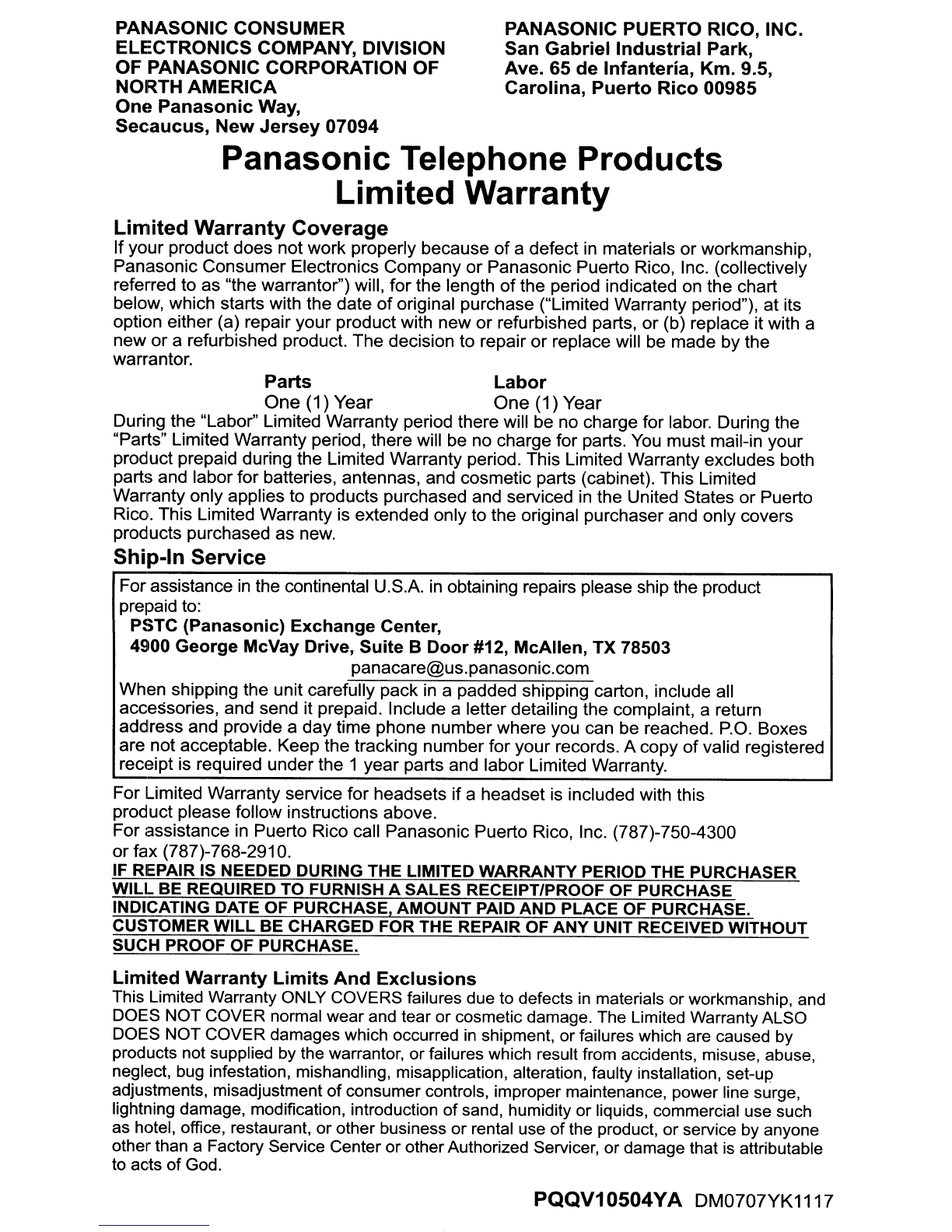

Limited Warranty
Limited Warranty Coverage
If your product does not work properly because of adefect in materials or workmanship,
Panasonic Consumer Electronics Company
or Panasonic Puerto Rico, Inc. (collectively
referred to as "the warrantor") will, for the length
of the period indicated on the chart
below, which starts with the date
of original purchase ("Limited Warranty period"), at its
option either (a) repair
your product with new or refurbished parts, or (b) replace it with a
new
or arefurbished product. The decision to repair or replace will be made by the
warrantor. Parts Labor
One (1) Year One (1) Year
During the "Labor" Limited Warranty period there will be no charge for labor. During the
"Parts" Limited Warranty period, there will be no charge for parts. You must mail-in your
product prepaid during the Limited Warranty period. This Limited Warranty excludes both
parts and labor for batteries, antennas, and cosmetic parts (cabinet). This Limited
Warranty only applies to products purchased and serviced
in the United States or Puerto
Rico. This Limited Warranty is extended only to the original purchaser and only covers
products purchased as new.
Ship-In Service
For assistance in the continental U.S.A. in obtaining repairs please ship the product
prepaid to:
PSTC (Panasonic) Exchange Center,
4900 George McVay Drive, Suite 8Door #12, McAllen, TX 78503
[email protected]
When shipping the unit carefully pack in apadded shipping carton, include all
accessories, and send it prepaid. Include aletter detailing the complaint, areturn
address and provide a
day time phone number where you can be reached. P.O. Boxes
are not acceptable. Keep the tracking number for your records. Acopy
of valid registered
recl3ipt is required under the 1
year parts and labor Limited Warranty.
For Limited Warranty service for headsets
if aheadset is included with this
product please follow instructions above.
For assistance in Puerto Rico call Panasonic Puerto Rico, Inc. (787)-750-4300
or fax [phone].
IF REPAIR IS NEEDED DURING THE LIMITED WARRANTY PERIOD THE PURCHASER
WILL BE REQUIRED TO FURNISH ASALES RECEIPT/PROOF OF PURCHASE
INDICATING DATE OF PURCHASE, AMOUNT PAID AND PLACE OF PURCHASE.
CUSTOMER WILL BE CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT
SUCH PROOF OF PURCHASE.
Limited Warranty Limits And Exclusions
This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and
DOES NOT COVER normal wear and tear or cosmetic damage. The Limited Warranty ALSO
DOES NOT COVER damages which occurred in shipment, or failures which are caused by
products not supplied by the warrantor, or failures which result from accidents, misuse, abuse,
neglect, bug infestation, mishandling, misapplication, alteration, faulty installation, set-up
adjustments, misadjustment of consumer controls, improper maintenance, power line surge,
lightning damage, modification, introduction of sand, humidity or liquids, commercial use such
as hotel, office, restaurant, or other business or rental use of the product, or service by anyone
other than aFactory Service Center or otherAuthorized Servicer, or damage that
is attributable
to acts of God.
PQQV10504YA DM0707YK1117

THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER "LIMITED
WARRANTY COVERAGE". THE WARRANTOR IS NOT
LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR
ARISING OUT OF
ANY BREACH OF THIS LIMITED WARRANTY. (As examples, this
excludes damages for lost time, lost calls or messages, cost of having someone remove or
re-install an installed unit if applicable, travel to and from the servicer. The items listed are
not exclusive, but are for illustration only.)
ALL EXPRESS AND IMPLIED WARRANTIES,
INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF
THE LIMITED WARRANTY.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or
limitations on how long an implied warranty lasts, so the exclusions may not apply to you.
This Limited Warranty gives you specific legal rights and you may also have other rights which
vary from state to state. Ifaproblem with this product develops during or after the Limited
Warranty period, you may contact your dealer or Service Center. Ifthe problem is not
handled to your satisfaction, then write to the warrantor's ConsumerAffairs Department at the
addresses listed for the warrantor.
PARTS
AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE
YOUR RESPONSIBILITY.
Customer Services Directory
Obtain Product Information and Operating Assistance; locate your nearest
Dealer
or Service Center; purchase Parts and Accessories; or make
Customer Service and Literature requests by visiting our Web Site at:
http://www.panasonic.com/help
or, contact us via the web at:
http://www.panasonic.com/contactinfo
You may also contact us directly at: 1-800-211-PANA (1-800-211-7262),
Monday-Friday 9am
to 9pm; Saturday-Sunday 10 am to 7pm, EST.
ITTY users (hearing or speech impaired users) can call 1-877-833-8855.
Accessory Purchases
Purchase Parts, Accessories and Instruction Books online for all Panasonic
Products by visiting our Web Site at:
http://WWW.pstc.panasonic.com
or, send your request by E-mail to:
[email protected]
You may also contact us directly at:
1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only)
(Monday -Friday 9am
to 9pm, EST.)
Panasonic Service and
Technology Company
20421 84th Avenue South, Kent, WA 98032
(We Accept Visa, MasterCard, Discover Card, American Express, and Personal Checks.)
ITTY users (hearing or speech impaired users) can call 1-866-605-1277.
Service in Puerto Rico
Panasonic Puerto Rico, Inc.
San Gabriel Industrial Park, Ave. 65 de Infanteria, Km. 9.5,
Carolina, Puerto Rico 00985
Phone [phone], Fax [phone]
