Read Me First
●If the user has logged on without the administrator authority, some functions may not be
executable, and some screens may not be displayed as shown in this manual. If this
happens, log on with the administrator authority to enable these functions.
●This manual covers two types of models, as distinguished by the type of LCD screen
(models with touchscreen and models without touchscreen).
●Confirm the latest information on optional products in catalogs, etc.
NOTE : NOTE provides a useful fact or helpful information.
CAUTION : CAUTION indicates a condition that may result in
minor or moderate injury.
WARNING : WARNING indicates a hazard that may result in
moderate or serious injury.
Windows 2000
Windows 2000Windows 2000
Windows 2000 :Information for Microsoft Windows 2000
Professional users.
Windows XP
Windows XPWindows XP
Windows XP :Information for Microsoft Windows XP
Professional users.
Enter :This illustration means to press [Enter] key.
Fn + F5 :This illustration means to press and hold [Fn] key,
then press [F5] key.
[Start]* - [Run] : This illustration means to select [Start]*, then to
select [Run].
For some applications, you may need to select.
*Windows XP
Windows XPWindows XP
Windows XP : [start]
For U.S.A. and Canada
For U.S.A. and CanadaFor U.S.A. and Canada
For U.S.A. and Canada :Information for CF-T1RxxxxxM users.
For Hong Kong
For Hong KongFor Hong Kong
For Hong Kong :Information for CF-T1RxxxxxH users.
:This illustration means to refer to the Operating
Instructions.
●Windows 2000 screens are used in this manual when no specific OS notes are
required.
●Some of the illustrations in this manual may differ slightly in shape from the actual items
in order to make the explanation easier to understand.
●About the terminology used in this manual and the Setup Utility concerning the internal
LCD and an external display
* Windows 2000 : Select
[Start] - [Settings] - [Control Panel] - [Intel ® Extreme Graphics].
Windows XP : Select [start] - [ Control Panel ] - [ Other Control Panel Options ] - [Intel®
Extreme Graphics].
Illustrations and Terminology in this Reference Manual
This manual and the
Setup Utility
[Intel(R) 82830M Graphics
Controller Properties]*
To display the same screen on
both the internal LCD and exter-
nal display
Simultaneous display Intel(R) Dual Display Clone
®®
®®

3
Key Combinations
CAUTION
●Do not press the following key combinations while using the touch pad (external mouse), touchscreen (only for mod-
els with touchscreen) or other keys.
NOTE
●Do not press the following key combinations until you log on to Windows and the hard disk drive indicator turns off.
Note, however, that the key combinations
Fn + F1 , Fn + F2 and Fn + F3 are operable in the Setup Utility.
●The key combinations below may not work while some applications are running. Besides, the popup window may not
be displayed depending on the state of the application you are using (e.g., when [Command Prompt] screen is set to
“Full Screen”).
Key Functions Function Descriptions
Popup Window
(Displayed after logging on to
Windows)
Fn + F1
Fn + F2
LCD brightness control
(down)
LCD brightness control
(up)
Pressing this key combination adjusts the
brightness of LCD. The brightness setting is
stored in memory separately under the condi-
tion the AC adaptor is connected and under the
condition the AC adaptor is not connected.
Fn + F3
Display change By pressing this key combination, you can
select either an external display, LCD or
simultaneous. (page 45)
This combination does not work when
[Command Prompt] screen is set to “Full
Screen”.
CAUTION
●Do not press another key until the dis-
play destination has been completely
switched.
●Do not press this key combination while
MPEG files are playing.
NOTE
●Windows XP
When switching to a different user with
the Fast User Switching function, this key
combination may not work. In this case,
log on with the administrator authority
again, not using the Fast User Switching
function, and try the operation once
more.

4
Key Combinations
Fn + F4
Speaker on/off switch Pressing this key combination turns on/off
audio from the internal speaker and headphone
jack.
NOTE
●Disabling the speaker will also disable
the warning beep.
●Speakers connected to the USB port
cannot be muted.
OFF (MUTE)
ON
Fn + F5
Fn + F6
Volume control (down)
Volume control (up)
Pressing this key combination adjusts the
volume of the internal speaker and headphone
jack.
NOTE
●This key combination cannot be used to
adjust the volume of the warning beep or
speakers connected to the USB port.
Fn + F7
Power off using the
standby function
Pressing this key combination causes the
current status of the computer to be saved to
memory, and powers off the computer.
(page 15)
Fn + F9
Remaining capacity of the
battery pack
Pressing this key combination displays the
remaining battery capacity on the screen.
(page 26)
Remaining capacity (%)
display.
Battery pack is not
inserted.
Fn + F 10 Power off using the
hibernation function
Pressing this key combination causes the
current status of the computer to be saved to
the hard disk, and powers off the computer.
( page 15)
Key Functions Function Descriptions
Popup Window
(Displayed after logging on to
Windows)

5
Key Combinations
There are two Fn key functions as follows:
●Fn key lock function
After
Fn is pressed once, it stays in the “pressed”position until another key is pressed.
This is convenient when it is difficult to press two buttons simultaneously.
●Popup windows display ON/OFF

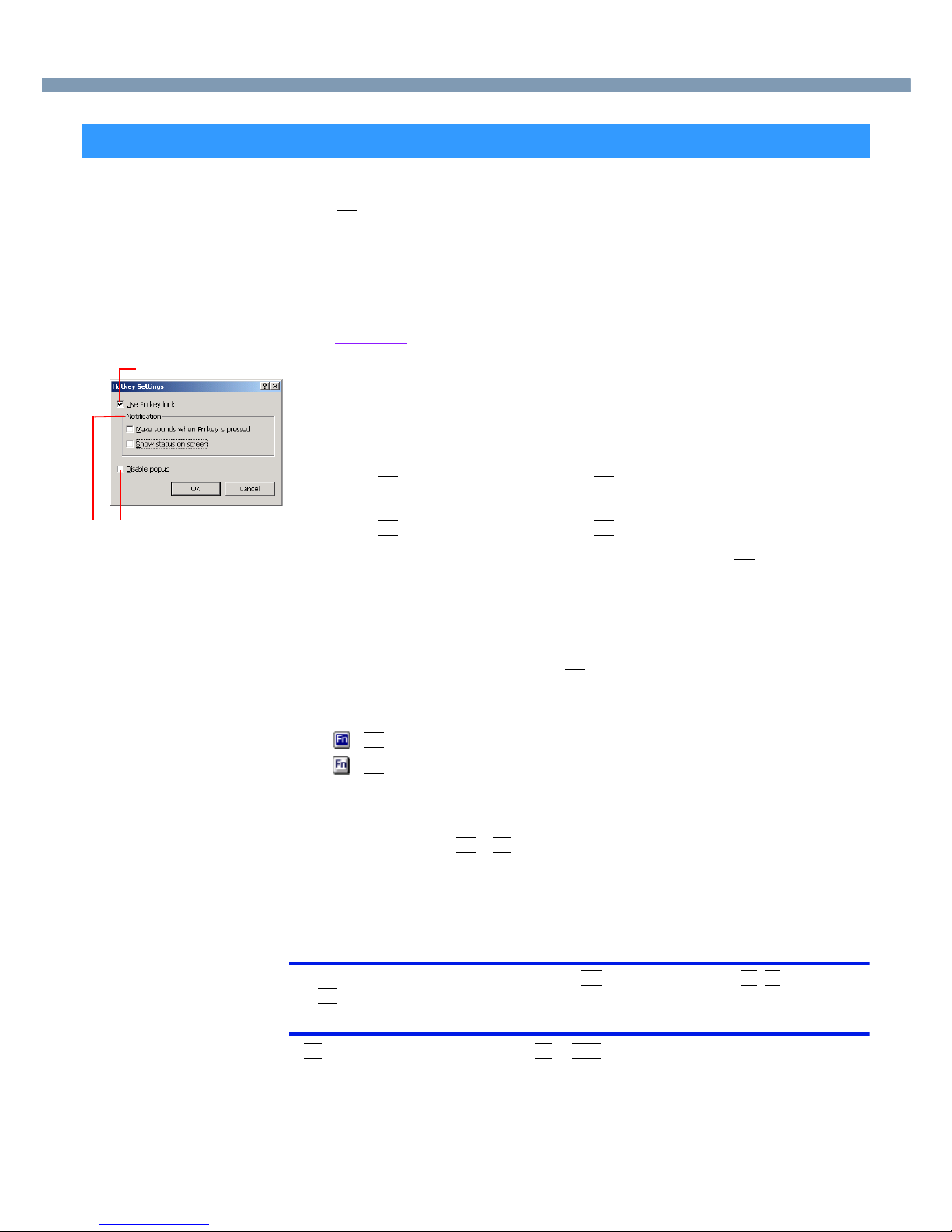

1Run the Hotkey Settings.
Windows 2000 : Select [Start] - [Programs] - [Panasonic] - [Hotkey Settings].
Windows XP : Select [start] - [All Programs] - [Panasonic] - [Hotkey Settings].
2Set the parameters.
A.Use Fn key lock
Add the check mark if you want to enable the Fn key lock function.
The following Fn key lock function will then be enabled.
To use
Fn only once: 1Press Fn once. (Locked)
2Press another key for combination.
(Lock released)
To use
Fn successively: 1Press Fn twice. (Locked)
2Press another key for combination.
Fn key remains locked until
Fn is pressed once
more.
B.Notification
This setting is only available when [Use Fn key lock] is checked.
[Make sounds when Fn key is pressed]*:
Notifies the user with a sound when
Fn is pressed, locked, or released.
*(If MUTE is set, you will not hear a beep.)
[Show status on screen]:
Displays the Fn key status on the taskbar.
:
Fn is locked
:
Fn is not locked
C.Disable popup
Add the check mark if you want to turn the popup window display function OFF.
The full-screen display of [Command Prompt] screen or MPEG files may change to
a window display if
Fn + Fx * are pressed. To prevent this, turn the popup window
display function OFF.
3Select [OK].
NOTE
●The Fn key lock function also works with Fn and other keys (e.g., Í, Î) aside from
Fx *.
●Each user can select separate settings for whether or not to use the Hotkey settings.
* “
Fx ”indicates any function key from F1 to F10 .
Hotkey Settings
A
BC

6
LED Indicators

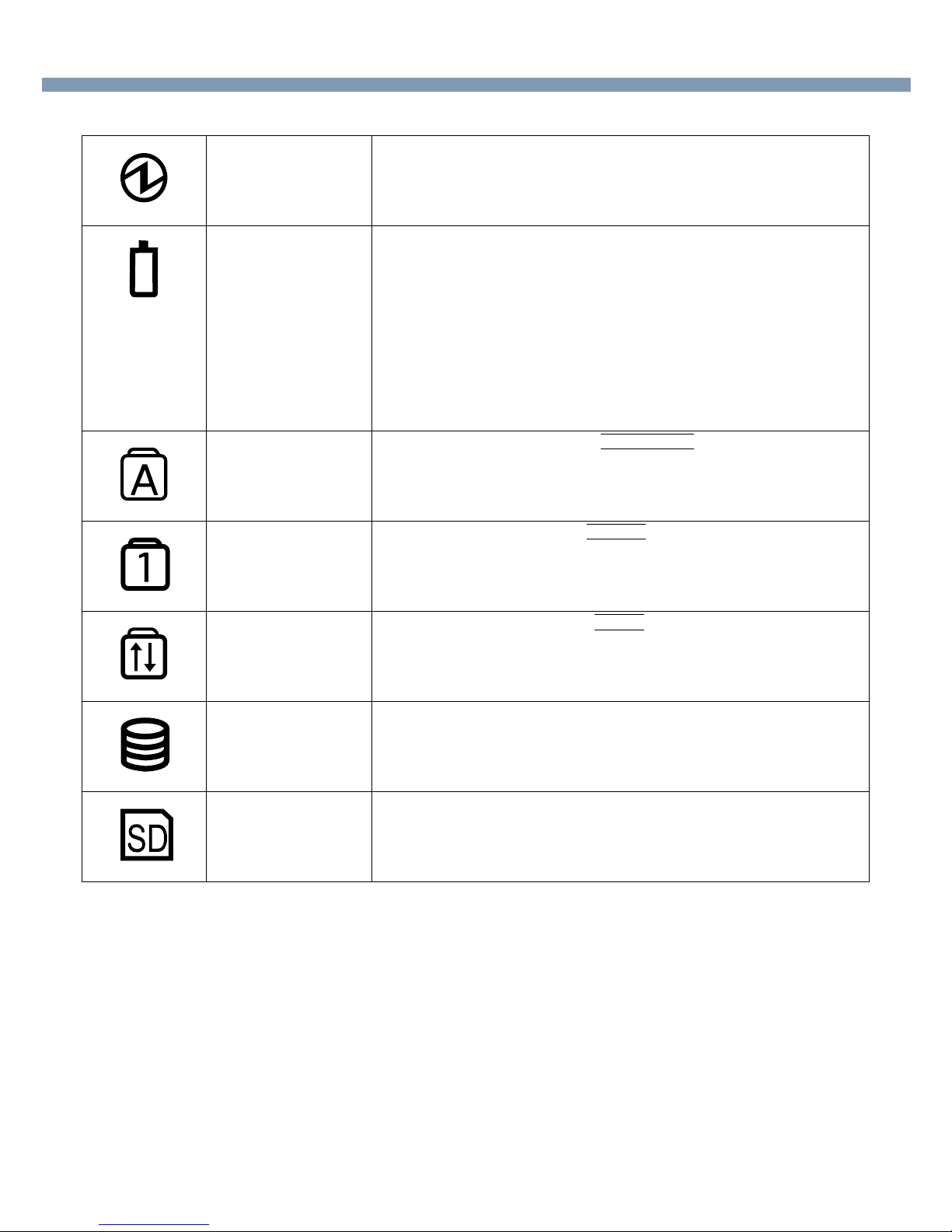

Power status Not lit : Power off / Hibernation mode
Green●: Power on
Blinking green●: Standby mode
Battery pack status Not lit
Orange●*
Green●*
Red●
Blinking red●*
Blinking orange●*
Caps Lock This indicator lights green when
Caps Lock is pressed. Subsequent
non-shifted input is capitalized.
NumLk (Numeric key) This indicator lights green when
NumLk is pressed. This causes a portion
of the keyboard to function as a numeric keypad. [Enter] key functions
differently depending on the application.
ScrLk (Scroll lock) This indicator lights green when
ScrLk is pressed. Scroll lock functions
differently depending on the application.
Hard disk drive status This indicator lights when the hard disk drive is accessed.
SD memory card sta-
tus
This indicator lights when the SD memory card or MultiMedia Card is
accessed.
* When the AC adaptor is connected.
: AC adaptor not connected or charging not being
performed.
: Charging in progress.
: Charging finished.
: Battery is low.
(remaining battery capacity is approx. 9% or less).
: Battery pack or charging malfunction.
: Unable to recharge due to violation of temperature
limits. The ambient temperature is outside the
allowable range. Once the allowable range requirement
is satisfied, charging begins automatically.

7
Touch Pad

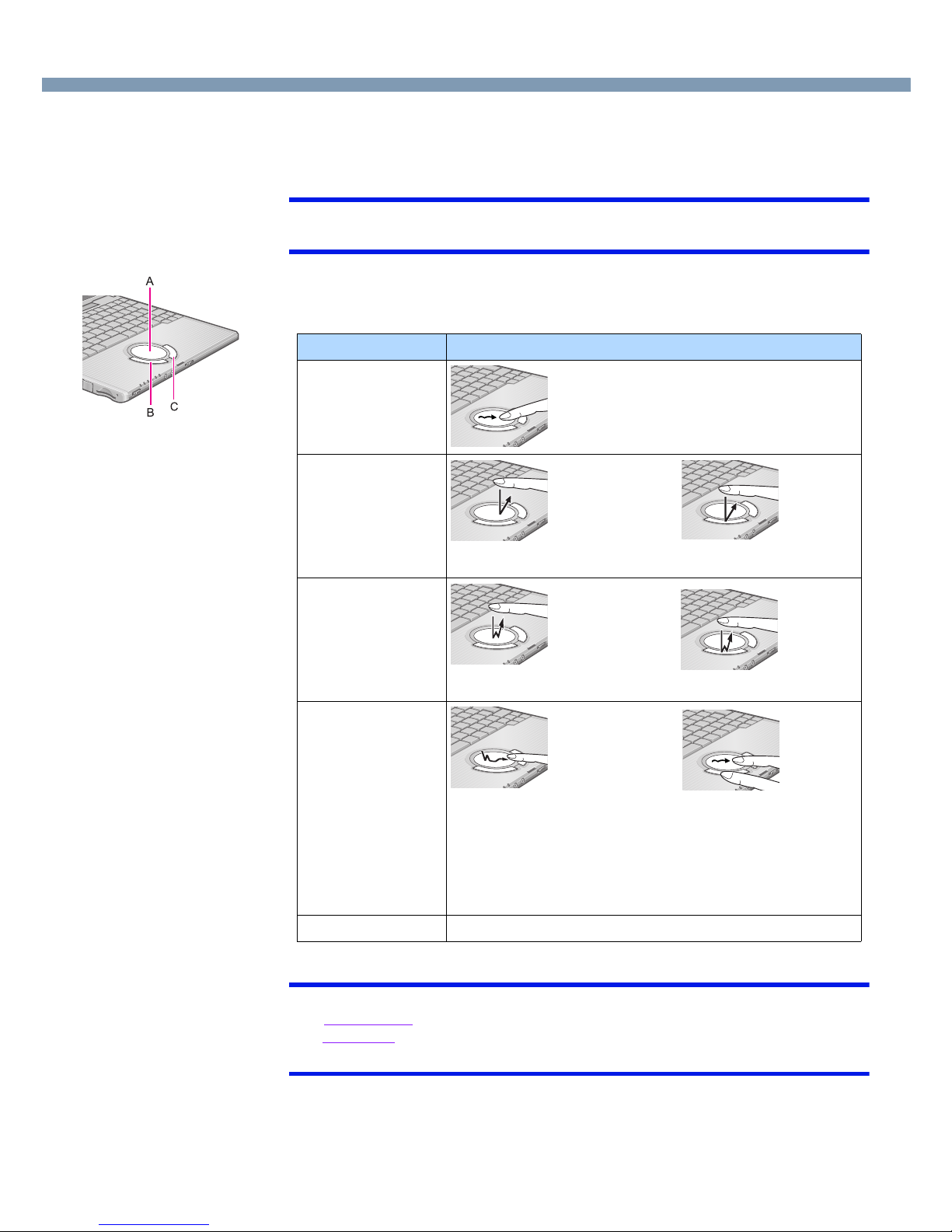

Use the touch pad to move the cursor on the display and perform normal computer
operations.
NOTE
●By design the touch pad is to be used with a finger tip only. Therefore, do not use
any implement which causes damage on the work surface.
A.Work Surface (Touch Pad)
B.Left Button
C.Right Button
NOTE

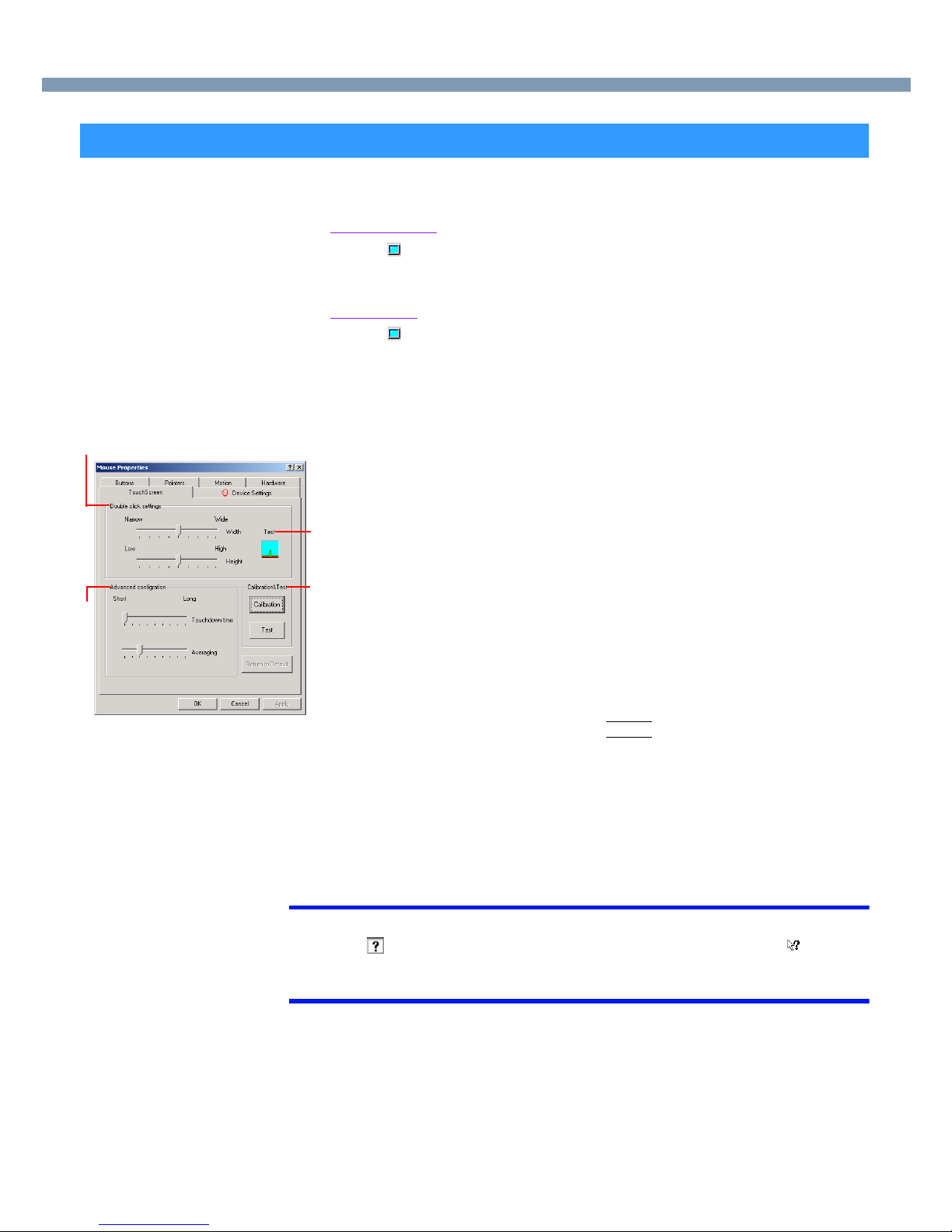

● Refer to [Mouse Properties]* for information on basic operations other than the above.
* Windows 2000 : Select [Start] - [Settings] - [Control Panel] - [Mouse].
Windows XP : Select [start] - [Control Panel] - [Printers and Other Hardware] -
[Mouse].
Function Operation
Moving the Cursor
Move the tip of your finger lightly over the
work surface.
Tapping/Clicking
Double-Tapping/
Double-Clicking
Dragging
Scroll page 8
tapping or clicking
double-tapping or double-clicking
Two quick taps, but
on the second tap
leaving your finger
down (applying
pressure) and mov-
ing it on the work
surface.
While holding down
the button, moving
your finger on the
work surface.
or

8
Touch Pad

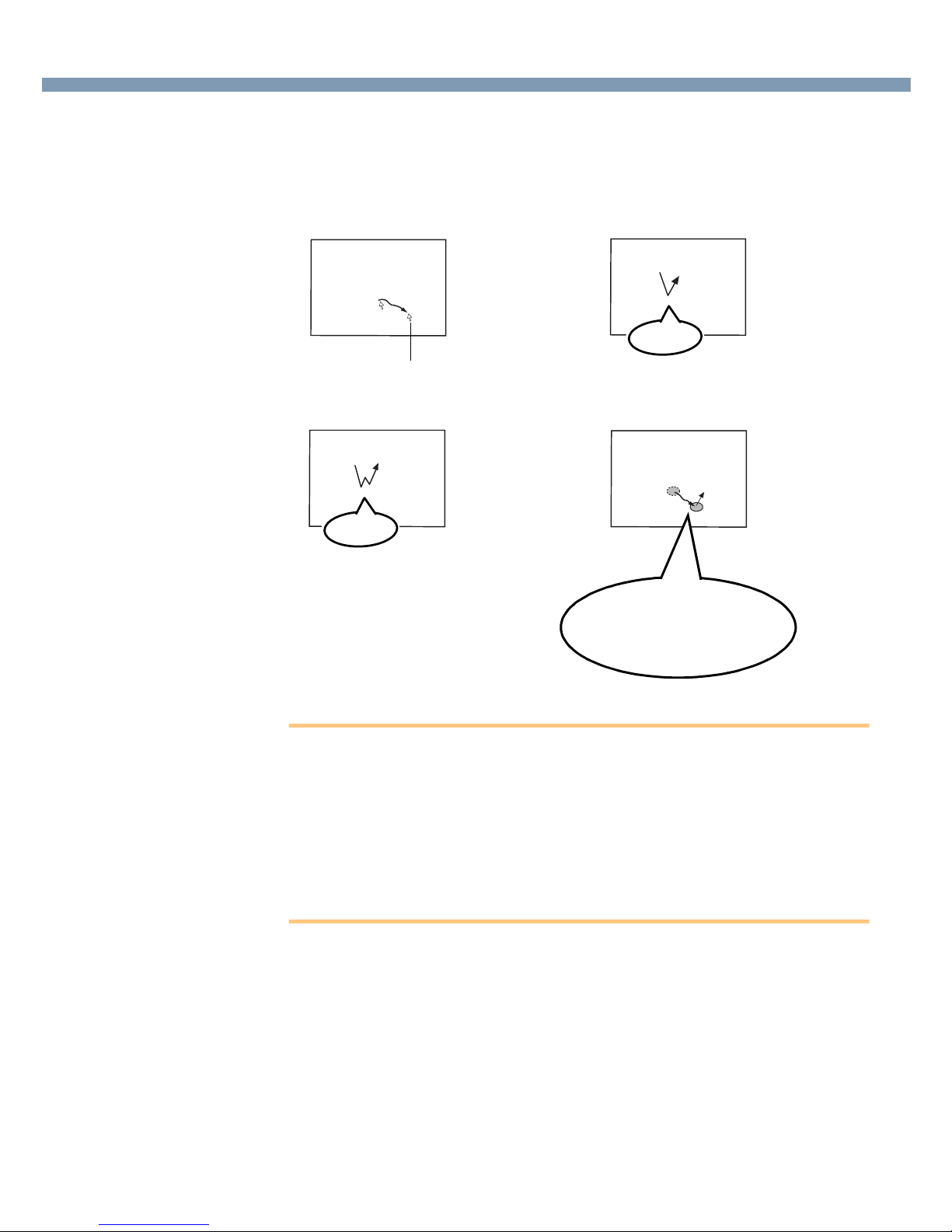

The Touch Pad Utility enables you to scroll easily by tracing a circle around the touch pad.
NOTE
●Depending on the application software, the scroll operation may differ, or the scroll
function may not operate properly.
How to Scroll
1Select the screen you want to scroll.
2Position the cursor over the area you want to scroll.
3Trace a circle around the edge of the touch pad as indicated in
the following diagrams.
To scroll down (trace clockwise)
To scroll up (trace counter-clockwise)
Scrolling will begin more easily if you start from the position marked by the and
trace as indicated by the arrow.
4Once scrolling has begun, continue to trace a circle on the touch
pad without removing your finger from the pad.
●As long as you are tracing a circle, you can continue scrolling using any position
on the touch pad. It is not necessary to trace a circle around the edge of the pad.
●To scroll in the opposite direction, trace a circle in the opposite direction without
removing your finger from the touch pad.
5When you are finished scrolling, remove your finger from the
touch pad.
Hints for Easier Touch Pad Operation
●You can change various touch pad settings using the following procedure:
Windows 2000:
[Start] - [Programs] - [Panasonic] - [Touch Pad Utility Setting]
Windows XP:
[start] - [All Programs] - [Panasonic] - [Touch Pad Utility Setting]
Settings can be changed for the following functions:
• Use Touch Pad function (On/Off)
• Display icon in task tray (On/Off)
• Animated icon in task tray (On/Off)
• Rotate icon when wheel is operated (On/Off)
Using the Touch Pad Utility

9
Touch Pad
•Scroll item under mouse cursor (On/Off)
•Scroll speed setting
•Set initial scroll scope
●On screens that cannot be scrolled (e.g., desktop screen), if you use the touch pad
as described in Step 3(page 8), the computer may try to scroll the screen, causing
the cursor to freeze. If this happens, remove your finger from the touch pad and begin
again, this time starting from the center of the touch pad.
Using the Virtual Scrolling Function
Because the Touch Pad Utility and the Virtual Scrolling function both offer scrolling
functions that use the touch pad, these two features cannot be used simultaneously.
If you try to use them at the same time, a message may be displayed asking you if you
want to enable the Touch Pad Utility.
•To use the Touch Pad Utility:
Select [Yes]. The Virtual Scrolling function will be disabled.
•To use the Virtual Scrolling function:
Select [No], and then remove the Touch Pad Utility and set the Virtual Scrolling
function using the procedure shown below. In this case, the Touch Pad Utility will
be disabled.
Windows 2000
1Log on with the administrator authority.
2Select on the taskbar with the right button, and select [Exit].
•If is not displayed on the taskbar, display it using the following procedure.
In [Start] - [Programs] - [Panasonic] - [Touch Pad Utility Setting] - [General
settings], add a check mark for [Display icon in task tray] and select [OK].
3In [Start] - [Settings] - [Control Panel] - [Add/Remove Programs],
select [TouchPadUtility], then select [Change/Remove].
4At the confirmation message, select [OK], then select [Finish].
5Select at [Add/Remove Programs].
6Select [Start] - [Settings] - [Control Panel] - [Mouse] - [Device
Settings].
7Select the device name in [Devices] (e.g., Synaptics TouchPad),
and select [Settings].
8Select [Virtual Scrolling], add a check mark for the scroll
functions you want to use, and select [OK].
9Select [OK] at [Mouse Properties].

10
Touch Pad
Windows XP
1Log on with the administrator authority.
Do not use the Fast User Switching function.
2Select on the taskbar with the right button, and select [Exit].
•If is not displayed on the taskbar, display it using the following procedure.
In [start] - [All Programs] - [Panasonic] - [Touch Pad Utility Setting] - [General
settings], add a check mark for [Display icon in task tray] and select [OK].
3In [start] - [Control Panel] - [Add or Remove Programs], select
[TouchPadUtility], then select [Change/Remove].
4At the confirmation message, select [OK], then select [Finish].
5Select at [Add or Remove Programs].
6Select [start] - [Control Panel] - [Printers and Other Hardware] -
[Mouse] - [Device Settings].
7Select the device name in [Devices] (e.g., Synaptics TouchPad),
then select [Settings].
8Select [Virtual Scrolling], add a check mark for the scroll
functions you want to use, then select [OK].
9Select [OK] at [Mouse Properties].
NOTE
To begin using the touch pad again:
1Log on with the administrator authority.
2Windows 2000
Select [Start] - [Run], input [c:\util\touchpad\setup.exe], then select [OK].
Windows XP
Select [start] - [Run], input [c:\util\touchpad\setup.exe], then select [OK].
3Select [Next] at [Welcome].
4Select [Finish].
●At the confirmation message asking if you want to enable the Touch Pad Utility,
select [Yes].
●When the setup is complete, will be displayed on the taskbar.
Handling the Touch Pad
●Do not place any object on the work surface or press down forcefully with sharp-pointed
objects (e.g., nails) or hard objects that can leave marks (e.g., pencils and ball point
pens).
●Try to avoid having any harmful substances such as oil, come in contact with the touch
pad. The cursor may not work properly in such cases.
●When the touch pad becomes dirty:
Wipe to remove dirt by using a dry soft cloth such as gauze or a soft cloth first applied
with detergent diluted with water and then thoroughly wrung. Do not use benzene or
thinner, or rubbing alcohol. Doing so may adversely affect the surface, e.g., discolora-
tion. In addition, do not use commercially-available household cleaners and cosmetics,
as they may contain components harmful to the surface.

11
Touchscreen
Your computer is equipped with a touchscreen display allowing you to perform the same
operations as the touch pad or mouse by touching the surface of the display with the stylus
(included). The following explanation gives one example (for the default settings).
The operation settings can be changed. (page 12)
●Moving the cursor ●Clicking
●Double-clicking ●Dragging
CAUTION
●When the LCD is used alone or with an external display simultaneously, the
touchscreen function cannot be used when the area of either display is set larger
than default setting of the screen resolution.
●If a change is made to the screen resolution, or the cursor can not be pointed
correctly, be sure to perform [Calibration]. (page 12)
●Even when only an external display is in use, the cursor will move on the external
display if the surface of the internal LCD is touched when the touchscreen driver is
active. Therefore, do not touch the LCD when only an external display is in use.
●The touchscreen function can not be used when using the full screen in [Command
Prompt].
<Only for models with touchscreen>
One tap
Twoquick
taps
Cursor
Touch and hold the object (e.g.
file or icon), move the stylus on
the surface (dragging the object
to the desired location), then re-
lease the stylus.

12
Touchscreen <Only for models with touchscreen>
When needed, the touchscreen can be configured using the following steps.
1Windows 2000
Select on the taskbar and then select [TouchScreen] or select
[TouchScreen] in [Control Panel] - [Mouse].
Windows XP
Select on the taskbar and then select [TouchScreen] or select
[TouchScreen] in [Control Panel] - [Printers and Other Hardware]
- [Mouse].
2Make necessary changes.
3Select [OK].
NOTE
●For more information about each item
Select at the upper right corner in [Mouse Properties], then, using , select
the item about which you want more information.
●The double-click speed of the touchscreen can be changed in [Buttons].
Configurating the Touchscreen
B
D
A
C
A. Double click settings
Set the width and height of the double click.
C. Advanced configuration
Set the advanced settings.
B. Test
Test for the “Double click settings”.
D.Calibration & Test
Define the calibration setup. Use this procedure when the cursor does not
appear properly. (Necessary for changes in the alignment of the touch-
screen with visual images or an adjustment of the display resolution.)
Touch the “+” mark on the calibration screen for about one second.
After the calibration procedure is executed (e.g., after the nine “+” marks
are touched), the procedure ends when
Enter
EnterEnter
Enter is pressed.

13
Touchscreen <Only for models with touchscreen>
●Use the stylus included with the computer. Do not use an implement other than the
stylus that comes with the computer.
●Do not place any object on the surface or press down forcefully with sharp-pointed
objects (e.g., nails), hard objects that can leave marks (e.g., pencils and ball point pen).
●Do not apply pressure within 5 mm of the perimeter of the display panel. The cursor
may move to the edge of the display.
●Do not operate the computer when such things as dust are on the screen. Do not allow
contact with substances that could dirty the touchscreen, such as oil. The cursor may
not work properly in such cases.
●When the touchscreen becomes dirty:
Wipe lightly to remove dirt by using a dry soft cloth included with the computer.
Do not use benzene or thinner, or rubbing alcohol.
For more information, refer to “Suggestions About Cleaning the LCD Surface”that
comes with the soft cloth.)
●Clean the stylus tip and screen prior to operation. Foreign particles can scratch the
screen and impede the operation of the stylus.
●Use the accessory stylus only for the computer screen. Using it for any other purpose
may damage the stylus and scratch the screen.
●Do not use pencils, implements with sharp tips or hard objects for screen operations.
The screen may be damaged as a result.
●Since the stylus is retractable tip, be sure to use the stylus only after the stylus tip is
ready for use (i.e., clicked open). Otherwise, scratches may result on the screen.
Handling the Touchscreen
Handling the Stylus

14
Display Rotation Tool
By running the Display Rotation Tool, you can rotate the display and perform the touch
pad and touchscreen operations in the rotated mode.
CAUTION
●Be sure to log on with the administrator authority when running the Display Rotation
To o l.
Rotating the Display
Select on the taskbar or press Ctrl
CtrlCtrl
Ctrl + Alt
AltAlt
Alt + R
RR
R
Each time this operation is performed, the screen display switches between the landscape
mode (0 degrees) and the previously set angle (below “Changing the Settings”).
●To select the angle and rotate the display
Select on the taskbar with the right button, and then select the angle.
You can select rotation angles of 90, 180, or 270 degrees from the landscape mode.

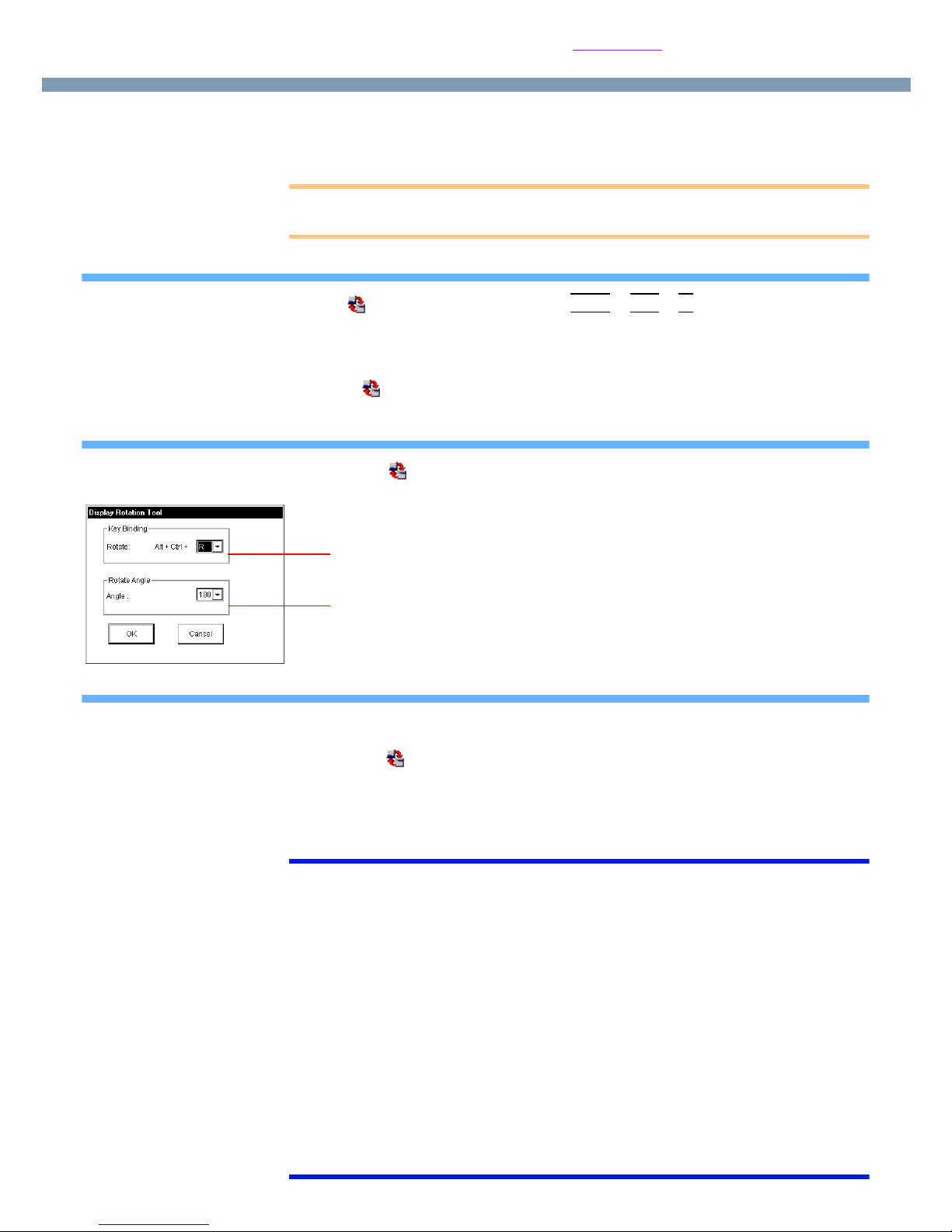

Changing the Settings
1Select on the taskbar with the right button, and then select
[Setting].
2Change the settings.
3Select [OK].
Exiting the Tool
1Rotate the display to landscape mode.
2 Select on the taskbar with the right button, and then select [Exit].
● In the default mode, the Display Rotation Tool will start up when Windows starts up.
● To restart the tool after exiting:
Select [Start] - [Programs] - [Panasonic] - [Display Rotation Tool].
NOTE
●While the display is rotated:
• Do not use the Extended Desktop (The touch pad or touchscreen may fail to
operate properly.)
• Do not calibrate the touchscreen
●Be sure to use the Display Rotation Tool to rotate the display.
●The display cannot be rotated in the following cases:
• When the display resolution is set to 1280 x 1024 pixels or more
• When [Command Prompt] is set to “Full Screen”
• When some applications are running
• When the computer is in the Extended Desktop
• When [Intel(R) 82830M Graphics Controller Properties] is displayed by selecting
[Start] - [Settings] - [Control Panel] - [Intel ® Extreme Graphics]
●If the display is rotated when the resolution is set to 800x600 pixels or 640x480
pixels, depending on the Windows specifications, the resolution displayed in
[Screen area] of [Display Properties] may show [640 by 480 pixels]. Continue using
these settings, without changing [Screen area].
Windows 2000
<only for models with touchscreen>
Changing the key combination (Default : R)
(Only the third key can be changed.)
Changing the angle
(Default: 180 degrees)

15
Standby/Hibernation Functions
If you use the standby or hibernation function, you can shut down the computer without
closing programs and documents. Upon restarting your computer from either the standby
or hibernation mode, you can immediately continue working in all programs, or documents
that were open at the time the computer was placed into standby or hibernation mode.
Differences between the Standby and Hibernation Functions
NOTE
●We recommend plugging in the AC adaptor if the standby function is to be used for
a long period of time. If the AC adaptor cannot be connected, we recommend that
hibernation mode be used instead of the standby mode.
●If the standby or hibernation function is used repeatedly, the computer may not work
properly. To stabilize computer operations, we recommend shutting down Windows
on a regular basis (about once a week) without using the standby or hibernation
function.
Use any of the following methods to enter the standby or hibernation mode.
To use the hibernation mode, make the setting in advance (page 16). (Enabled in
factory preset.)
●Fn key combinations (page 4)
●Using the power switch (page 17)
●From the shutdown screen:
<Standby>
Windows 2000
In [Start] - [Shut Down], select [Stand by] and select [OK].
Windows XP
In [start] - [Turn Off Computer], select [Stand By].
<Hibernation>
Windows 2000
In [Start] - [Shut Down], select [Hibernate] and select [OK].
Windows XP
In [start] - [Turn Off Computer], press and hold Shift , then select [Hibernate].
Starting Up Your Computer Quickly
Function Where data is
saved to
Speed Requires power supply
Standby func-
tion
Memory Fast Yes (if power is cut, all data is lost)
Hibernation
function
Hard disk Somewhat
slow
Power is not required to maintain data
Entering the Standby or Hibernation Mode

16
Standby/Hibernation Functions
Setting for Using the Hibernation Mode
Windows 2000
1Select [Start] - [Settings] - [Control Panel] - [Power Options].
2In [Hibernate], add the check mark for [Enable hibernate support]
and select [OK].
Windows XP
1Select [start] - [Control Panel] - [Performance and Maintenance] -
[Power Options].
2In [Hibernate], add the check mark for [Enable hibernation] and
select [OK].
Precautions
■Before entering the standby or hibernation mode
●Save all data.
●When a file in an external device such as a CD drive, external hard disk, or ATA
card is opened, close the file.
●Even when a password has been set in the Setup Utility, [Enter Password] does
not appear when the computer resumes from the standby or hibernation mode.
If you want to use the security function when using the standby or hibernation
mode, use the Windows password as follows:
Windows 2000
1Set the password in [Control Panel] - [Users and Passwords].
2Add the check mark for [Prompt for password when computer goes off standby]
in [Control Panel] - [Power Options] - [Advanced].
Windows XP
1Select the account to change in [Control Panel] - [User Accounts].
2Set the password.
3Add the check mark for [Prompt for password when computer resumes from
standby] in [Control Panel] - [Performance and Maintenance] - [Power Options] -
[Advanced].
●Do not enter either the standby or hibernation mode under the following
conditions. You may corrupt your data or file, the standby or hibernation function
may not work, or the computer (or peripherals) may fail to work properly.
• While the floppy disk drive is being accessed, or hard disk drive indicator ( ) or
SD memory card indicator ( ) is on.
• When playing/recording audio files and displaying images (such as MPEG files).
• When using communications software or the network function.
• When using LAN cards (port), SCSI cards and modem cards (port) etc. (If these
cards fail to work properly, restart the computer.)
■When entering the standby or hibernation mode*1
●Avoid the following:
• Touching the keyboard, pointing device (touch pad, touchscreen*2, external
mouse, etc.), or power switch.
• Connecting or disconnecting the AC adaptor.
• Closing or opening the display.
*1Standby mode: until the power indicator blinks green
Hibernation mode: until the power indicator goes off
*2Only for models with touchscreen.

17
Standby/Hibernation Functions
■In standby or hibernation mode
●Do not insert or remove peripherals; abnormal operation may result.
●In standby mode, power is consumed. If PC Cards are inserted, more of that power
is consumed. When all power has been consumed, all data saved at standby is lost
since it is retained in memory. We therefore recommend plugging in the AC adaptor
when using the standby function.
Using the Power Switch
■Setting
Windows 2000
1Select [Start] - [Settings] - [Control Panel] - [Power Options] -
[Advanced].
2Select [Standby] or [Hibernate] for [When I press the power
button on my computer] and then select [OK].
Windows XP
1Select [start] - [Control Panel] - [Performance and Maintenance] -
[Power Options] - [Advanced].
2Select [Stand by] or [Hibernate] for [When I press the power
button on my computer], then select [OK].
■Shutting down
Slide the power switch (A) ; at the “Beep*” sound, release your
finger.
The computer will enter either the standby or hibernation mode, depending on the
setting.
CAUTION
●After releasing your finger from the power switch, do not touch the power switch until
the power indicator goes off or blinks.
●At the “beep*”sound, release your finger from the power switch. If you continue to
slide the switch and hold it for more than four seconds, the computer will emit a
second “beep*”then power off. Data not previously saved will be lost.
Windows 2000
Even when [When I press the power button on my computer] is set to [Power Off]
with [Start] - [Settings] - [Control Panel] - [Power Options] - [Advanced], if you slide
the power switch for more than four seconds and do not release it, a second “beep*”
will sound and the power will be turned off forcibly. Data not previously saved will be
lost.
Windows XP
Even when [When I press the power button on my computer] is set to [Shut down]
with [start] - [Control Panel] - [Performance and Maintenance] - [Power Options] -
[Advanced], if you slide the power switch for more than four seconds and do not
release it, a second “beep*”will sound and the power will be turned off forcibly.
Data not previously saved will be lost.
*When the speaker function is disabled, e.g., by the key combination
Fn + F4 , there will
be no beep sound.

18
Standby/Hibernation Functions

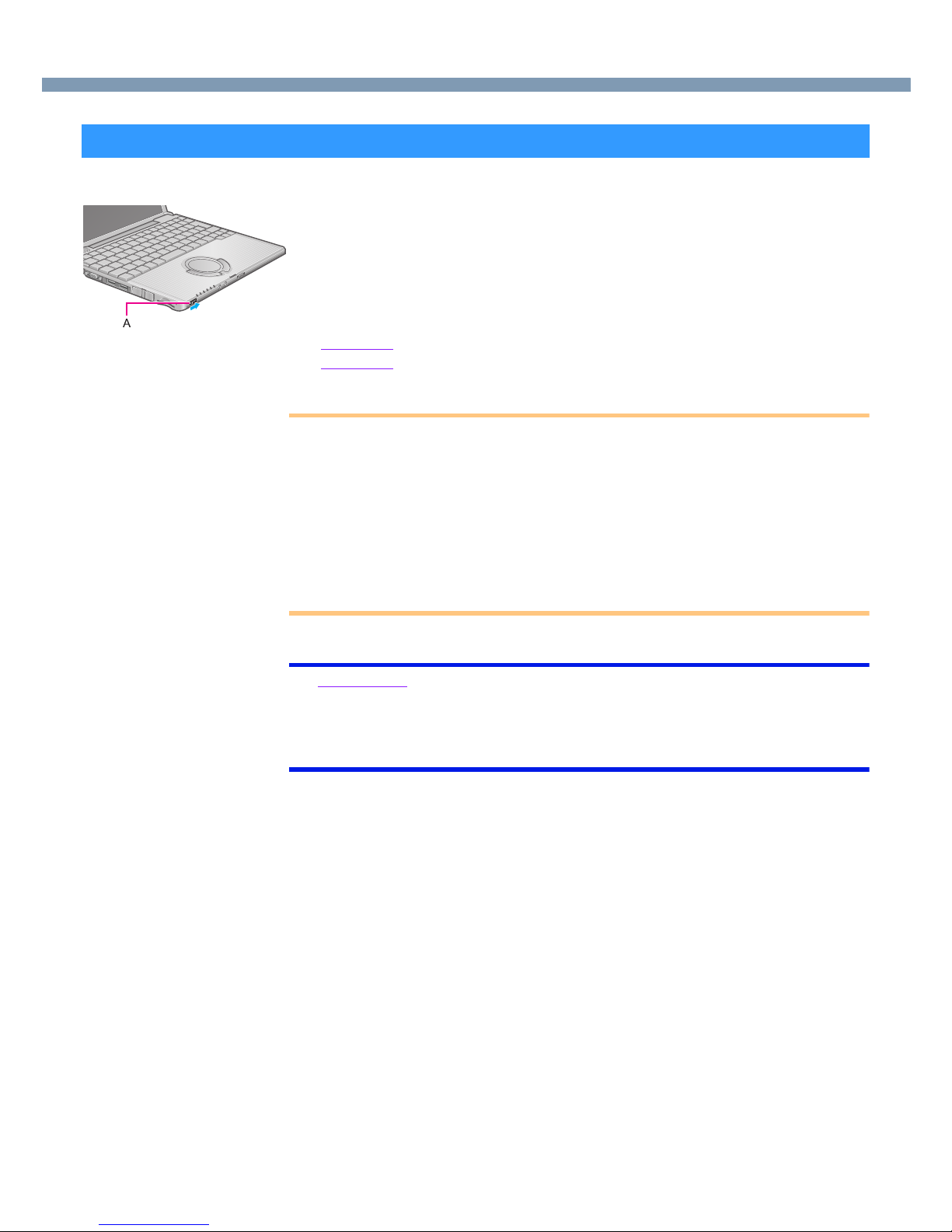

Slide the power switch (A).
When [Standby]*1or [Hibernate] is selected as the setting for [When I close the lid of
my portable computer] in [Control Panel]*2- [Power Options] - [Advanced], the
computer will enter either the standby or hibernation mode when the LCD panel is
closed. Operation will resume when the LCD panel is opened. Even if the display is
closed after the computer has entered either the standby or hibernation mode,
operation will resume when the display is opened. If the computer does not resume
when the LCD panel is opened, slide the power switch.
*1Windows XP : [Stand by]
*2Windows XP : [Control Panel] - [Performance and Maintenance]
CAUTION
●When resuming operation, avoid the following:
•Touching the keyboard (except for password input), pointing device (touch pad,
touchscreen*, external mouse, etc.), or power switch.
•Connecting or disconnecting the AC adaptor.
•Closing or opening the display.
* Only for models with touchscreen.
●After the display returns, the computer needs about 15 seconds to reinitialize.
Do not shut down or restart Windows, or enter either the standby or hibernation
mode again during this time, as this may subsequently cause Windows to operate
abnormally.
NOTE
●Windows 2000
When the computer enters standby/hibernation mode and then resumes while a
USB 1.1 device (e.g., USB floppy disk drive (optional)) is connected, a device
disconnection warning message may appear on the screen, but this will not impede
the computer’s operation.
Resuming Operation

19
Security Measures
To prevent unauthorized access of your computer, the various security measures are
provided below.
NOTE
●Windows has a security function that differs from the security function of the Setup
Utility. For detailed information, refer to the Windows help.
You should set your “Supervisor Password” and “User Password” (The User Password can
only be set when the Supervisor Password has been set).
Without the password, access to your computer is impossible.
Starting Up When the Password is Set
When [Password on boot] of [Security] menu is set to [Enable],
enter your password*1and press
Enter .
*1Supervisor Password or User Password set in the Setup Utility (not the Windows
password).
*2Even if no password is entered for about a minute when starting up the Setup Utility,
the power will not be turned off.
■When the Setup Utility is started with Supervisor
Password.
You can register all items of the Setup Utility. (page 54)
■When the Setup Utility is started with User Password
●You can not register [Advanced] menu and [Boot] menu.
●[Clear registered SD card], [Set Supervisor Password] and [Hard Disk Lock] will not
be displayed on [Security] menu. The User Password can be changed only when
[User Password Protection] has been set to [No Protection]. The User Password
cannot be deleted.
● F9 does not work.
Situation Function to use Reference
You do not want your
computer to be used without
permission.
Supervisor Password
User Password
below
SD Memory Card
Security Function
page 37
You do not want the data
saved on your hard disk to be
read or written over, or you
want to prevent data from
being lost due to theft of the
hard disk.
Hard Disk Lock page 22
When you do not want your computer to be used without permission
Three incorrect attempts
or
No password for about a minute*2
The correct password
Enter Password [ ]
Will Not Star
t
(Power off)
Will Start

20
Security Measures
NOTE
●When [Password on boot] in the Setup Utility is set to [Disable], the password is not
necessary when the computer is started up, but the password becomes necessary
when the Setup Utility is started up. This alternative makes it possible to prevent the
contents of the Setup Utility from being changed.
Setting the Supervisor Password (enabling, changing, disabling)
1Run the Setup Utility. (page54)
2Using either Î
ÎÎ
Î or Í
ÍÍ
Í , select [Security].
3Using either Ï
ÏÏ
Ï or Ð
ÐÐ
Ð , select [Set Supervisor Password] and
press
Enter
EnterEnter
Enter .
4<Only when the Supervisor Password has been set>
Enter your password at [Enter Current Password] and press
Enter
EnterEnter
Enter .
5Enter your password at [Enter New Password] and press Enter
EnterEnter
Enter .
●To disable the Supervisor Password
Press only
Enter .
6Re-enter your password at [Confirm New Password] and press
Enter
EnterEnter
Enter .
●To disable the Supervisor Password
Press only
Enter .
7At [Setup Notice], press Enter
EnterEnter
Enter .
8Press F10
F10F10
F10 and select [Yes], then press Enter
EnterEnter
Enter .
NOTE
●Your password will not be displayed on the screen.
●Limit your password to seven characters. Note that there is no distinction between
upper and lower case letters.
●Do not input your password while holding down on Shift or Ctrl .
●Use only the upper horizontal row of numeric keys to input your password.
●Only the alphabet keys or number keys can be used. Note that the space bar and
function keys cannot be used.
●Disabling the Supervisor Password also disables the User Password.
CAUTION
●Do not forget your password. If your Supervisor Password is forgotten you will be
unable to use your computer. Contact your technical support office.
●When running the Setup Utility, do not leave your computer even for a short time, as
the possibility exists for the password to be set/changed by another person.
