Panasonic KX-FP80C User manual

ORDERNO. KMF0006414C1
Compact PlainPaperFAX
KX-FP80C
(forCanada)
1. INTRODUCTION
1.1. SAFETYPRECAUTIONS
1. Beforeservicing, unplug theACpowercordtopreventanelectric
shock.
2. Whenreplacing parts, use onlythemanufacturer'srecommended
1

components.
3. Check thecondition ofthepowercord. Replace ifwearordamage
isevident.
4. Afterservicing, besuretorestoretheleaddress, insulation
barriers, insulation papers, shields, etc.
5. Beforereturning theservicedequipmenttothecustomer, besure
toperform thefollowing insulation resistance test topreventthe
customerfrombeing exposedtoshock hazards.
1.2. INSULATIONRESISTANCETEST
1. Unplug thepowercordand shortthetwoprongsoftheplug witha
jumperwire.
2. Turnon thepowerswitch.
3. Measuretheresistance valuewithanohmmeterbetweenthe
jumperedACplug and eachexposedmetal cabinet part
(screw heads, control shafts, bottomframe, etc.).
Note:Someexposedparts maybeisolatedfromthechassisby
design. These will readinfinity.
4. Ifthemeasurementisoutsidethespecifiedlimits, thereisa
possibilityofashock hazard.
2

1.3. FORSERVICETECHNICIANS
ICsand LSIsarevulnerabletostaticelectricity.
Whenrepairing, thefollowing precautionswill helppreventrecurring malfunctions.
1. Covertheplasticpart'sboxes withaluminumfoil.
2. Ground thesoldering irons.
3. Use aconductivemat on theworktable.
4. DonottouchtheICorLSI pinswithbarefingers.
1.4. BATTERYCAUTION
CAUTION
Dangerofexplosion ifthebatteryisreplacedincorrectly. Replace
onlywiththesameorequivalenttyperecommendedbythe
manufacturer. Discardusedbatteries according tofollowing caution:
Disposal oflithiumbatteries shouldbeperformedbypermitted,
professional disposal firmsknowledgeableinstate government
federal and local hazardousmaterialsand hazardouswaste
transportation and disposal requirements.
Abatterycontinues tohaveno transportation limitationsas long as
itisseparatedtopreventshortcircuits and packedinstrong
packaging.
Commercial firmsthat dispose ofanyquantityoflithiumcells
shouldhaveamechanisminplace toaccountfortheirultimate
disposition. Thisisagood practice forall types ofcommercial or
industrial waste.
Recommend TypeNumber:
CR2032 (BAT501) ManufacturedbyMATSUSHITA
CR2032 (BAT501) ManufacturedbySONY

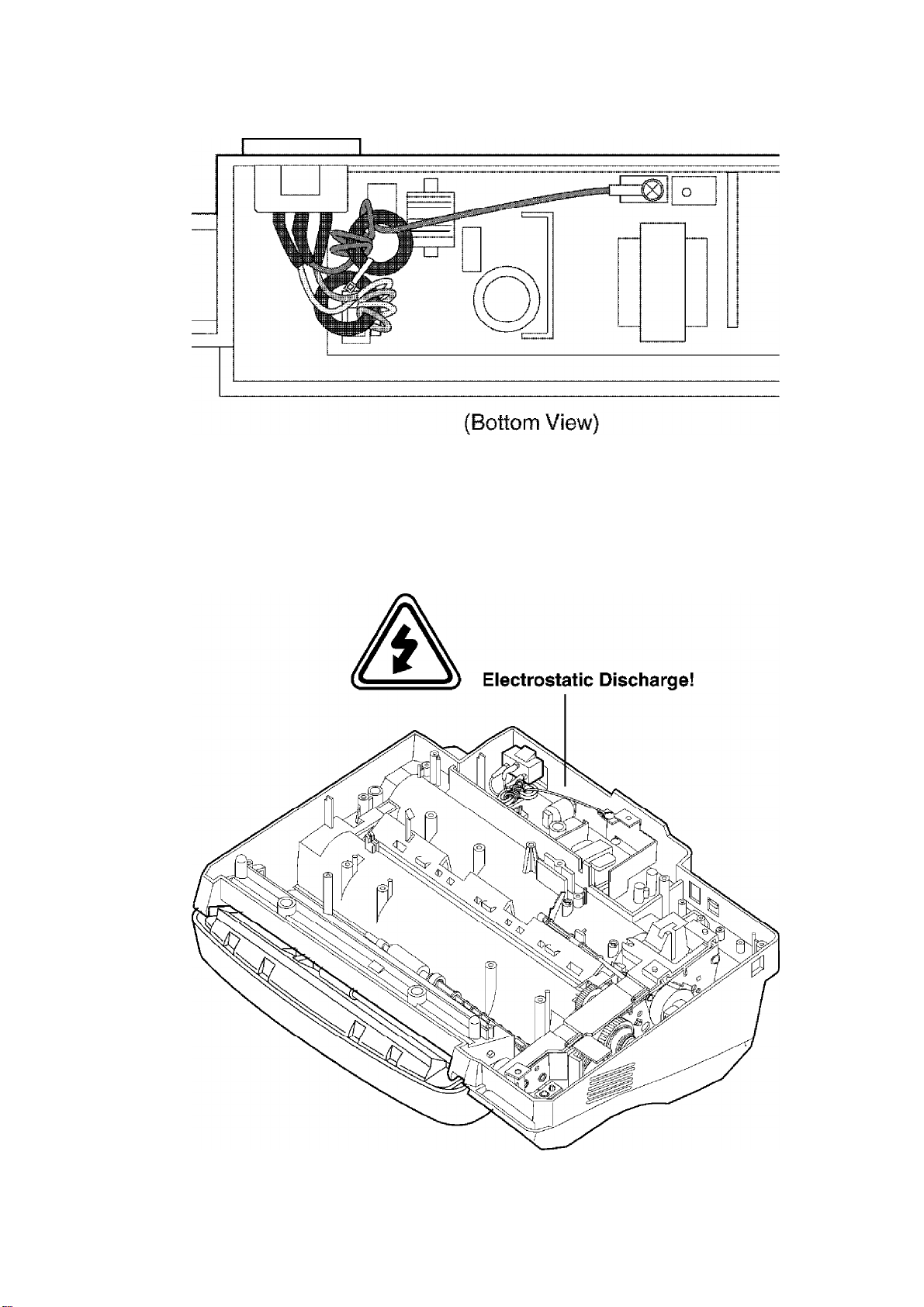

1.5. ACCAUTION
For safety, beforeclosing thelowercabinet, please make sureofthefollowing precautions.
1. Theearthleadisfixedwiththescrew.
2. TheACconnectorisconnectedproperly.
3. Wraptheearthleadaround thecore3times.
4. WraptheACleadaround thecore2times.
3

1.6. PERSONALSAFETYPRECAUTIONS
1.6.1. MOVINGSECTIONS OFTHE UNIT
Becareful nottoletyour hair, clothes, fingers, accessories, etc., becomecaughtinanymoving
sectionsoftheunit.
Themoving sectionsoftheunitaretherollersand agear. Thereisaseparation rollerand a
documentfeedrollerwhicharerotatedbythedocumentfeedmotor. Agearrotates thetwo
rollers. Becareful nottotouchthem withyour hands, especiallywhentheunitisoperating.
1.6.2. LIVE ELECTRICALSECTIONS
All theelectrical sectionsoftheunitsuppliedwithACpowerbytheACpowercord arelive.
Neverdisassembletheunitfor service withtheACpowersupplypluggedin.
CAUTION:
ACvoltageissuppliedtotheprimarysideofthepowersupplyunit.
Therefore, alwaysunplug theACpowercordbeforedisassembling
forservice.
4

1.7. SERVICEPRECAUTIONS
1.7.1. PRECAUTIONS TOPREVENTDAMAGE FROMSTATICELECTRICITY
Electrical charges accumulateon aperson. For instance, clothes rubbing togethercandamage
electricelementsor changetheirelectrical characteristics. Inordertopreventstaticelectricity,
touchametallicpartthatisgroundedtorelease thestaticelectricity. Nevertouchtheelectrical
sectionssuchas thepowersupplyunit, etc.
5

1.8. FEATURES
General
-Helpfunction
Please referto 2.1.3. WHEN YOU DON'T KNOW HOW TO OPERATE
THE UNIT, USE THE HELP FUNCTION.() toprintbelow features.
Display:
1. QUICK SETUP
2. FEATURELIST
3. SPEEDDIALING
4. FAXSND/RCV
5. COPIER
6. Q and A
7. ERRORS
8. REPORTS
-LCD (LiquidCrystal Display)readout
-TAM(Telephoneanswering machine) interface
PlainPaperFacsimileMachine
-15 second transmission speed*
-Letter/G3compatible
-Automaticdocumentfeeder(10 sheets)
-Fax pagercall
-Quick scan
-Resolution:Standard/Fine/Superfine/Halftone(64 level)
-Broadcast withSPEEDDIRECTOR
-50-sheet papercapacity(20 lb.)
-Automaticfax/phoneswitching
-Distinctivering detection **
*The15 second speedisbasedupon theITU-TNo. 1TestCharton thecondition thatmemory
transmission isperformed.
** Subscription todistinctive ring services isrequired.
LargeMemory(24 pages)... PerformedbyDRAM
Approx. 24 pages ofmemoryreception
Approx. 21 pages ofmemorytransmission
IntegratedTelephoneSystem
-On-hookdialing
-Monitorspeaker
-Voice muting
6

-Redialing function
-40-Station telephonedirectorywithSpeedDirector
EnhancedCopierFunction
-Multi-copyfunction (up to40 copies)
-Enlargementand reduction
-Collate
-64-Level halftone
1.9. SPECIFICATIONS
ApplicableLines:
PublicSwitchedTelephoneNetwork
DocumentSize:
Max. 216 mm (8 1/2")inwidth
Max. 600 mm (23 5/8")inlength
EffectiveScanning Width:
208 mm (8 3/16")
Recording PaperSize:
Letter:216×279 mm (8 1/2"×11")
Legal:216×356 mm (8 1/2"×14")
EffectivePrinting Width:
208 mm (8 3/16")
Transmission Time*:
Approx. 15 s/page(Original mode)**
Scanning Density:
Horizontal:
8pels/mm (203 pels/inch)
Vertical:
3.85 lines/mm (98 lines/inch)—STANDARD mode
7.7lines/mm (196 lines/inch)—FINE/HALF TONEmode
15.4lines/mm (392 lines/inch)—SUPERFINEMode
HalftoneLevel:
64-level
ScannerType:
Contact ImageSensor(CIS)
PrinterType:
7

Thermal Transferon PlainPaper
Data Compression System:
ModifiedHuffman(MH), ModifiedREAD(MR)
ModemSpeed:
9,600/7,200/4,800/2,400 bps;AutomaticFallback
Operating Environment:
5—35°C(41—95°F), 20—80 %RH (RelativeHumidity)
Dimensions(H×W×D):
185×345×276 mm (7 9/32"×13 19/32"×10 7/8")
Mass (Weight):
Approx. 3.2kg(8.5lb.)
PowerConsumption:
Standby:Approx. 3.3W
Transmission:Approx. 16 W
Reception:Approx. 42 W(Whenreceiving a20%black document)
Copy:Approx. 42 W(Whencopying a20%black document)
Maximum:Approx. 135 W(Whencopying a100%black document)
PowerSupply:
120 VAC, 60 Hz
MemoryCapacity:
Approx. 24 pages memoryreception
Approx. 21 pages memorytransmission
(Basedon ITU-TNo. 1Test Chartinstandardresolution.)
*Transmission speeddependsupon thecontentsofthepages, resolution, telephoneline
conditionsand capabilityoftheotherparty’smachine.
** The15 second speedisbasedupon theITU-TNo. 1TestChartand original mode. (Referto
"1.11. ITU-TNo. 1TestChart".)Ifthecapabilityoftheotherparty's machineisinferior toyour
unit, thetransmission timemay belonger.
Note:
-Anydetailsgiveninthese instructionsaresubject tochange
withoutnotice.
-Thepictures and illustrationsinthese instructionsmayvaryslightly
fromtheactual product.
Design and specificationsaresubjecttochangewithoutnotice.
8

1.10. OPTIONALACCESSORIES
1.11. TESTCHART
1.11.1. ITU-TNo.1TESTCHART
9

1.11.2. ITU-TNo.2TESTCHART
10

1.12. LOCATIONOFCONTROLS
1.12.1. OVERVIEW
11

Note:
-Thedocumentwill beejectedfromthefrontoftheunit. Install the
uniton adesk orfloorwithasmoothsurface and do notplace
anything infrontoftheunit.

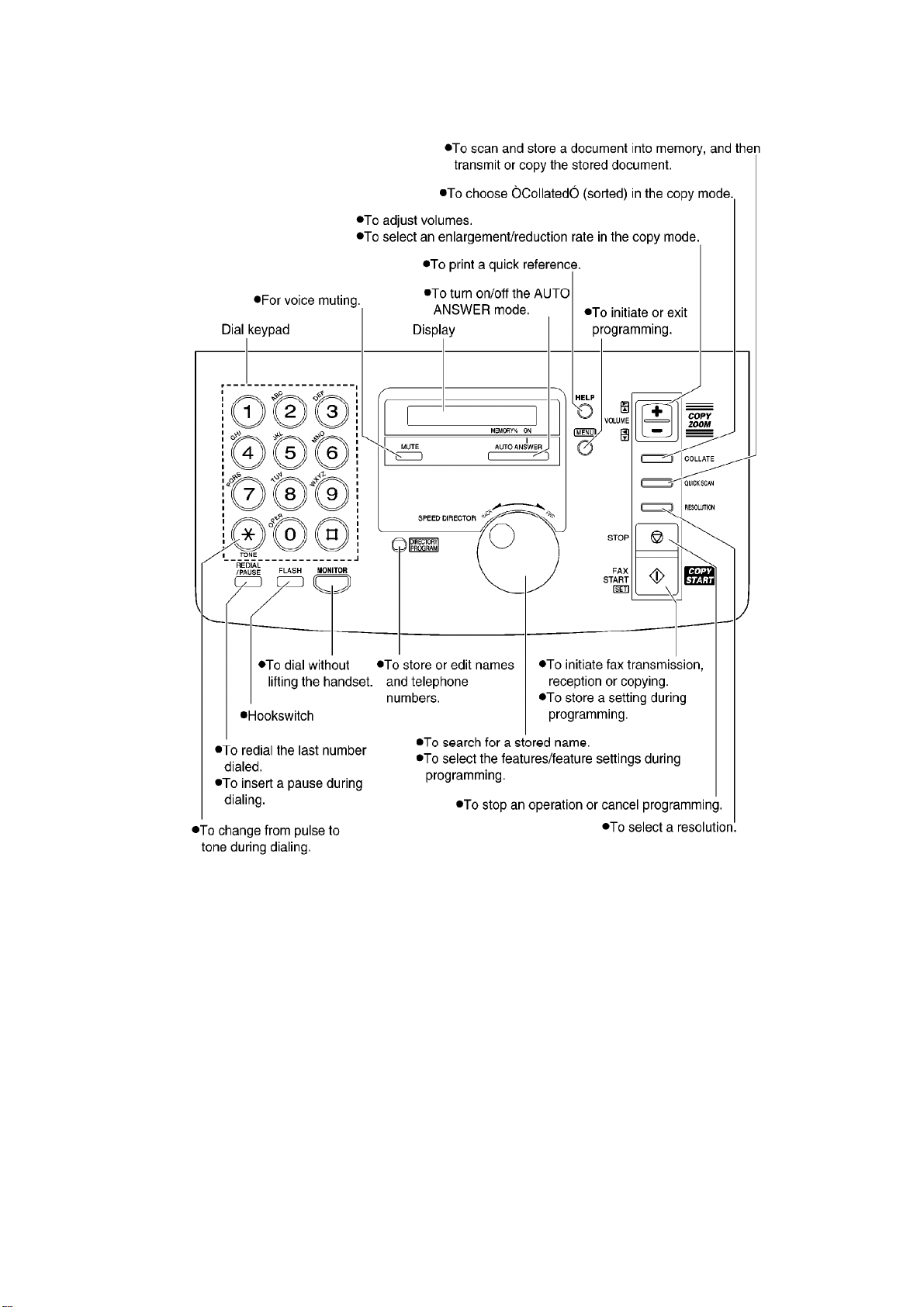

1.12.2. CONTROLPANEL
12

1.13. CONNECTIONS
(1)Connectthehandsetcord.
(2)Connectthetelephonelinecord.
(3)Connectthepowercord.
-Whenthepoweristurnedon forthefirst time, theunitwill print
somebasicinformation.
13

Note:
-Foradditional equipmentprotection, werecommend theuse ofa
surgeprotector. Thefollowing types areavailable;TELESPIKE
BLOKMODELTSB(TRIPPE MFG. CO.), SPIKEBLOKMODELSK6-
0(TRIPPE MFG. CO.), SUPERMAX(PANAMAX)orMP1(ITWLINX).
/ Thewarrantydoes notcoverdamageduetopowerlinesurges or
lightning.
-Whenyou operate thisproduct, thepoweroutlet shouldbenearthe
product and easilyaccessible.
-Ifyou wanttoconnect ananswering machinetotheunit, you will
removethestopperwithyourfingerand connect thecordtothe
EXTjack.
1.14. INSTALLATION
1.14.1. INSTALLATIONSPACE
Thespace requiredtoinstall theunitisshownbelow.
Thedimensionsgivenarenecessaryfor theunittooperateefficiently.
14

Note:
-Avoidexcessiveheat orhumidity.
-Use theunitwithinthefollowing ranges oftemperatureand
humidity.
-Ambienttemperature:5°Cto35°C
-Relativehumidity:20%to80%(withoutcondensation)
-Powercordlengthshouldbeless than5meters(16.4feet). Using a
longercordmayreduce thevoltageorcause malfunctions.
-Avoiddirect sunlight.
-Donotinstall neardevices whichcontainmagnets orgenerate
magneticfields.
-Donotsubject theunittostrong physical shock orvibration.
-Keeptheunitclean. Dust accumulation canpreventtheunitfrom
functioning properly.
-To protect theunitfromdamage, holdbothsides whenyou moveit.
1.14.2. INSTALLINGTHE PAPERTRAY
15

Insertonetabon thepapertray intoonesloton the
back oftheunit( )and theninserttheothertab
intotheotherslot( ).
Note:
-Donotplace theunitinareas wherethepapertray
may beobstructedbyawall, etc.
Touse legal sizepaper
Please purchase alegal papertray Model No. KX-
FA50 and install as shownabove.
1.14.3. INSTALLINGTHE RECORDINGPAPER
Letter* or legal** sizerecording papercanbeloaded. Theunitcanholdup to50 sheetsof60 g/m2
to75 g/m2(16 lb. to20lb.)paperor 30 sheetsof90 g/m2(24 lb.)paper.
*Letter=216 mm ×279 mm (81/2”×11”)
**Legal=216 mm ×356 mm (81/2" ×14")
Ifyou use legal sizepaper, please purchase alegal papertray, Model No. KX-FA50 and install it.
For bestresults, onlyuse inkjetpapersuchas Hammermill JetPrint. Ifyou use othertypes of
paper, theprintqualitymay beaffected.

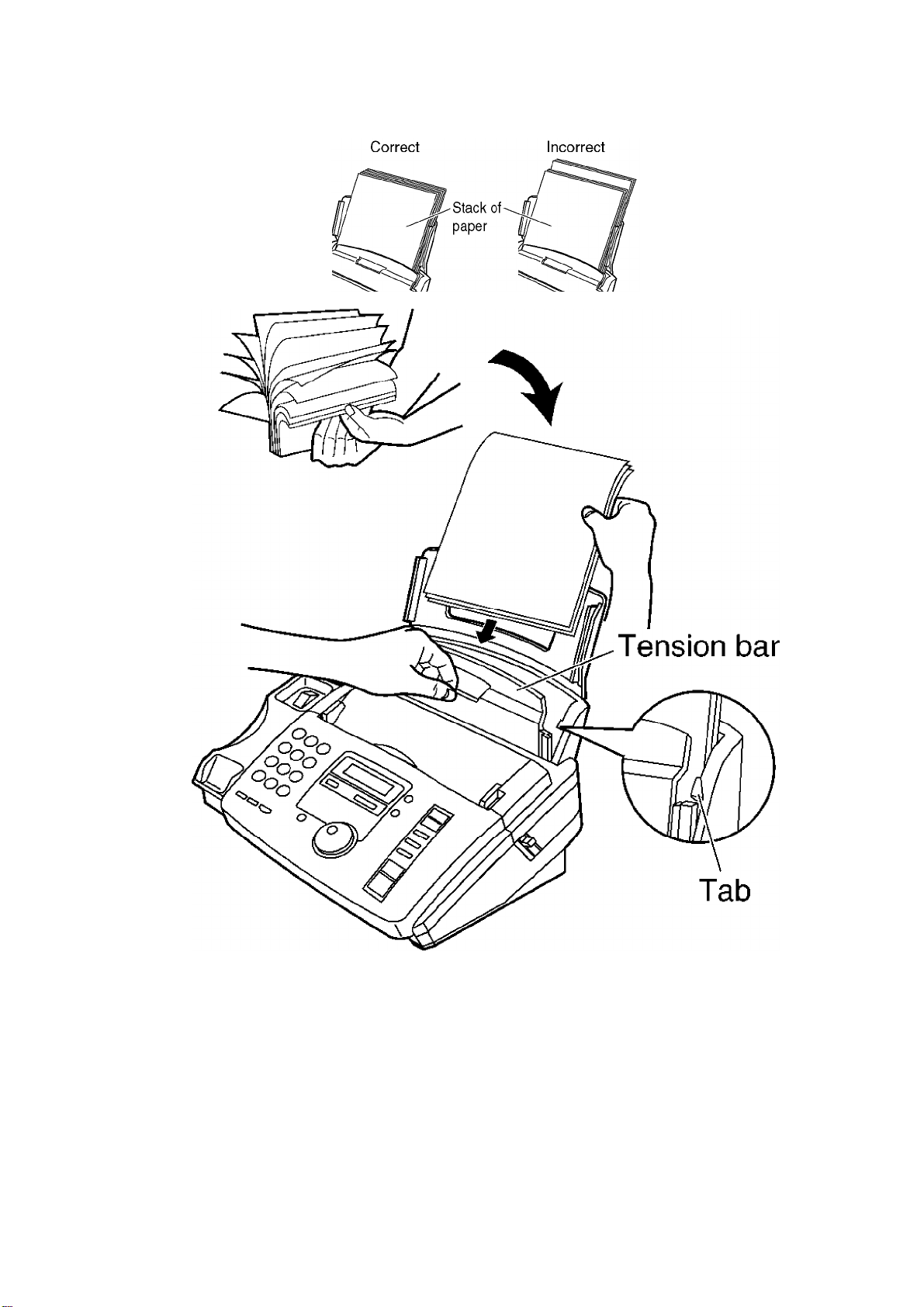

1. Fanthestack ofpapertopreventapaperjam.
2. Pull thetension barforwardand holdopenwhileinserting the
paper.
-Thepapershouldnotbeoverthetab.
-Ifthepaperisnotinsertedcorrectly, readjust thepaperorthe
papermayjam.
16

Notefor recording paper:
-Avoidpaperwithacotton and/orfibercontentthat isover20%,
suchas letterheadpaperorpaperusedforresumes.
-Donotuse differenttypes orthicknesses ofpaperat thesametime.
Thismaycause apaperjam.
-Avoidextremelysmoothorshinypaperthat ishighlytextured.
-Avoidpaperthat iscoated, damagedorwrinkled.
17

Note:
-Avoiddouble-sidedprinting
-Donotuse paperprintedfromthisunitfordouble-sidedprinting
withothercopiersorprinters, orthepapermayjam.
-Somepaperonlyaccepts printon oneside. Tryusing theotherside
ofpaperifyou arenothappywiththeprintquality.
Trademarks:
-Hammermill isaregisteredtrademarkofINTERNATIONAL
PAPERintheUnitedStates and/orothercountries.

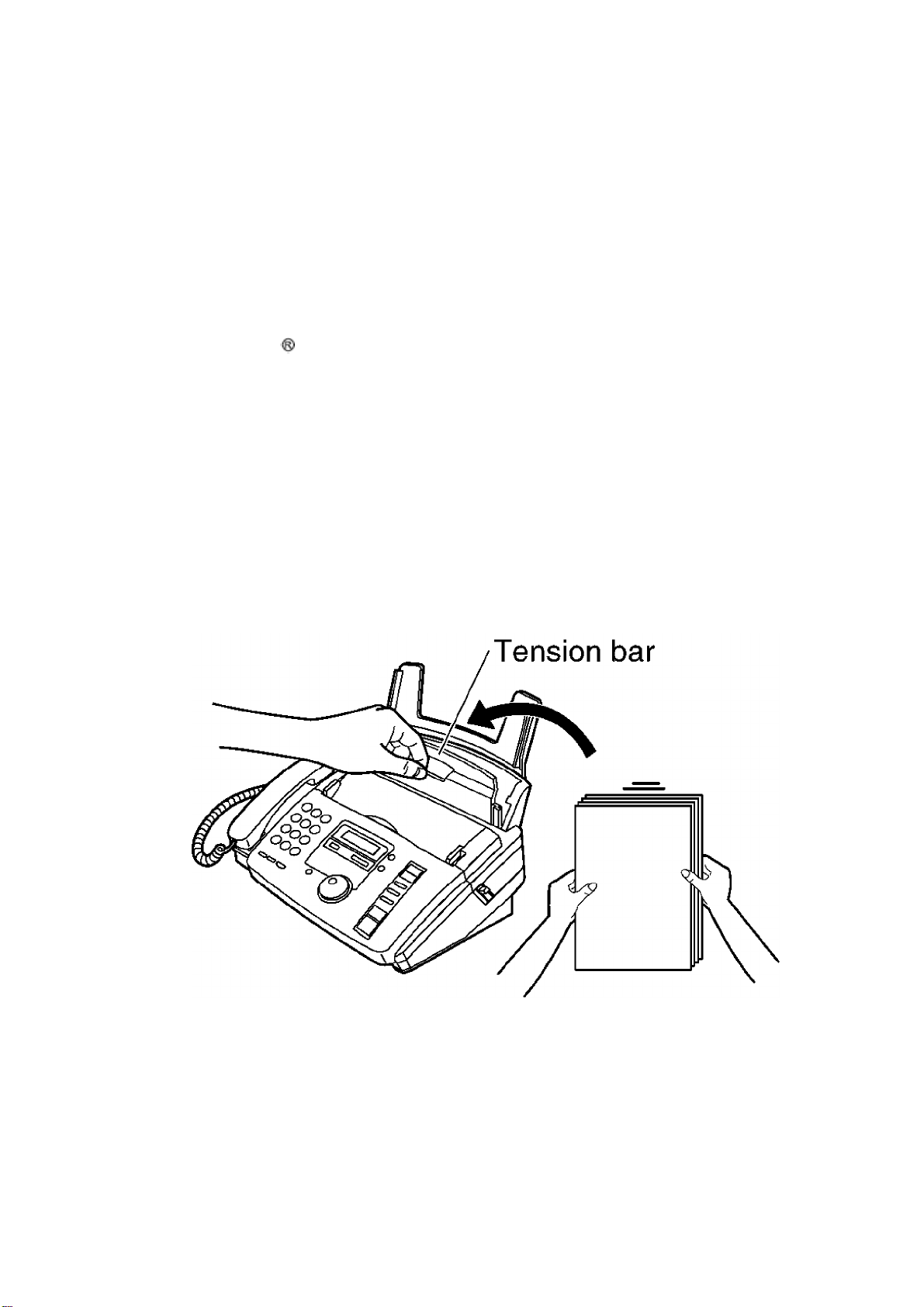

1.14.4. ADDINGPAPERTOTHE PAPERTRAY
1. Pull thecassette openleverforwardand removeall oftheinstalled
paper.
2. Add papertotheremovedpaperand straighten.
3. Fanthestack ofpaper.
4. Pull thetension barforwardand holdopenwhileinserting the
paper.

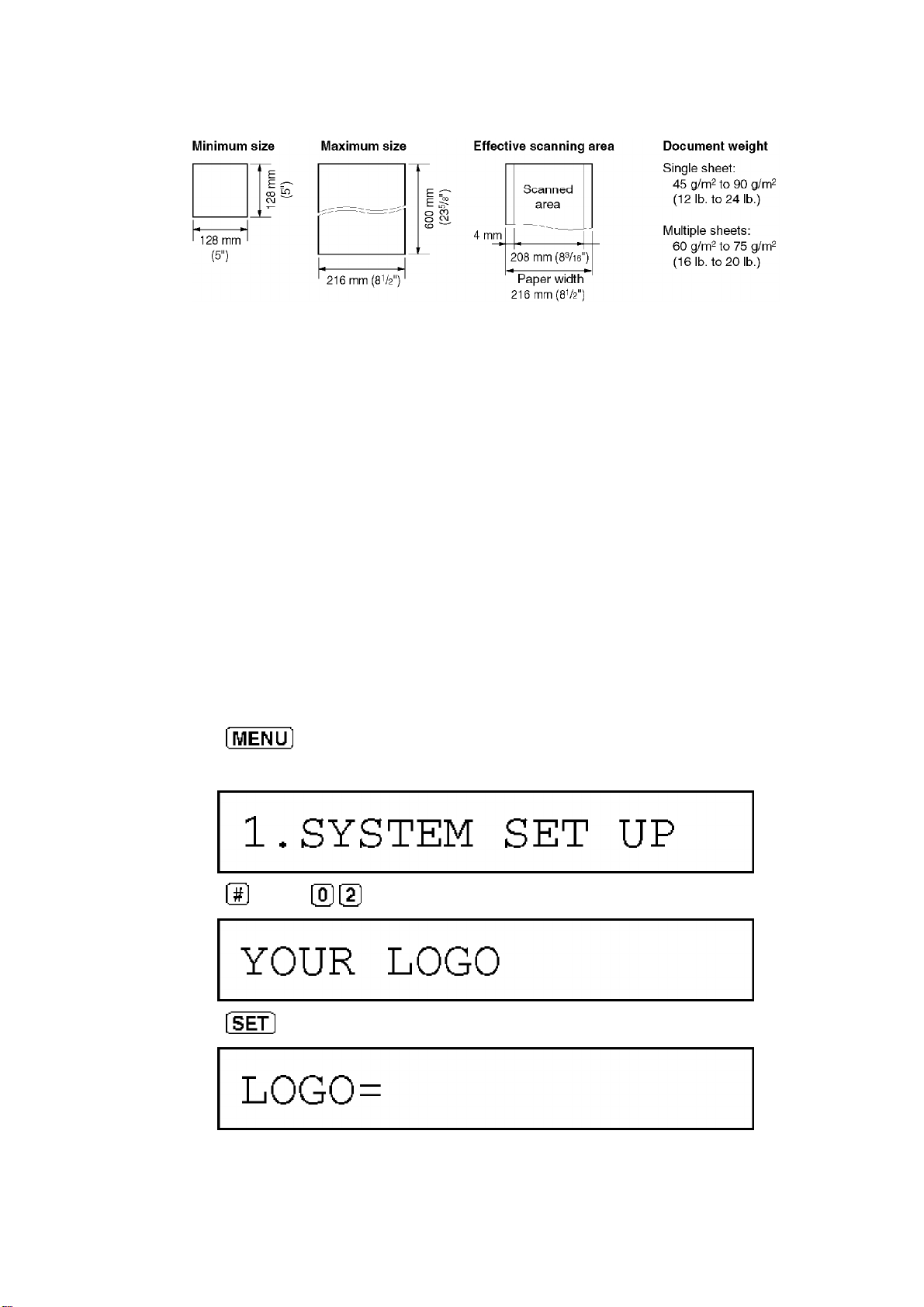

1.14.5. DOCUMENTS THE UNITCAN FEED
18

Note:
-Removechips, staples orothersimilarfastening objects.
-Check that ink, paste orcorrection fluidhas dried.
-Donotsend thefollowing types ofdocuments. Use copies forfax
transmission.
—Chemicallytreatedpapersuchas carbon orcarbon less
duplicating paper
—Electrostaticallychargedpaper
—Heavilycurled, creasedortornpaper
—Paperwithacoatedsurface
—Paperwithafaintimage
—Paperwithprinting on theopposite sidethat canbeseen
through thefront(e.q. newspaper)
1.14.6. SETTINGYOUR LOGO
Thelogo canbeyour company, division or name.
1. Press .
Display:
2. Press , then .
3. Press .
4. Enteryourlogo, up to30 characters, byusing thedial keypad.
19

Example:Bill
A. Press twice.
B. Press sixtimes.
C. Press sixtimes.
D. Press tomovethecursortothenext space and press six
times.
5. Press .
6. Press .
20
