Panasonic KX-PW607DL User manual

Facsimile
Quick Reference Guide
Model No. KX-PW607DL
KX-PW607DW
KX-PW607DL
Main unit:
Portable handset:
KX-PW607
KX-FKN515
Thank you for purchasing a Panasonic facsimile.
This guide explains some basic features and operations, but not all of them.
For further details, see the Japanese operating instructions.
This product is designed for use in Japan.
Panasonic cannot provide service for this product if used outside Japan.
Any details given in this guide are subject to change without notice.
This unit is equipped with the voice guide features. (Japanese only)
For details about voice guide, please see page 10.
Table of Contents
Finding the controls …………………………………………………………… 2
Installations and connections ………………………………………………… 4
Setting the date and time……………………………………………………… 7
Setting your facsimile telephone number …………………………………… 7
Setting your logo ……………………………………………………………… 8
Character input and command key table …………………………………… 9
Voice guide…………………………………………………………………… 10
Automatic dialing on the main unit ………………………………………… 11

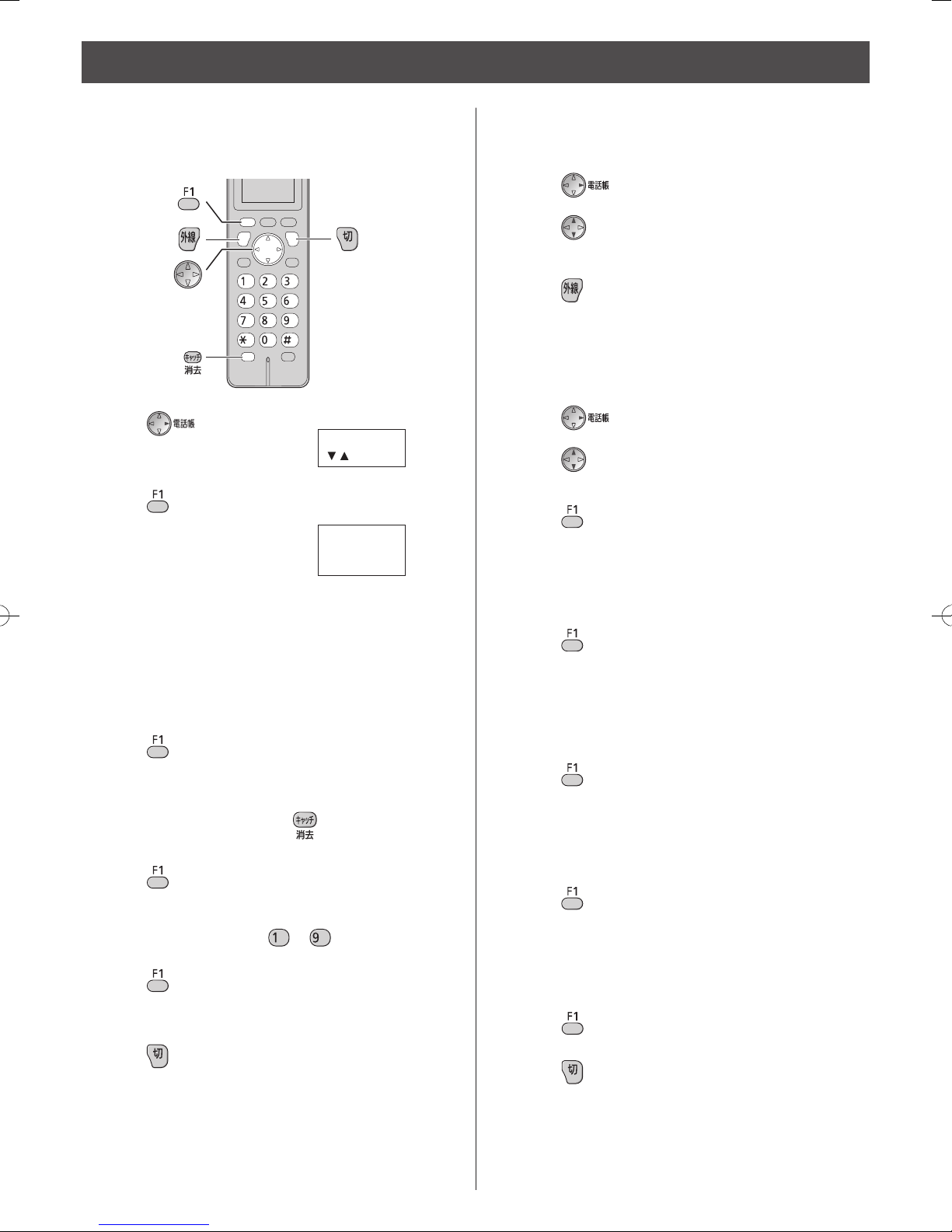

Automatic dialing on the portable handset (KX-FKN515) ……………… 13

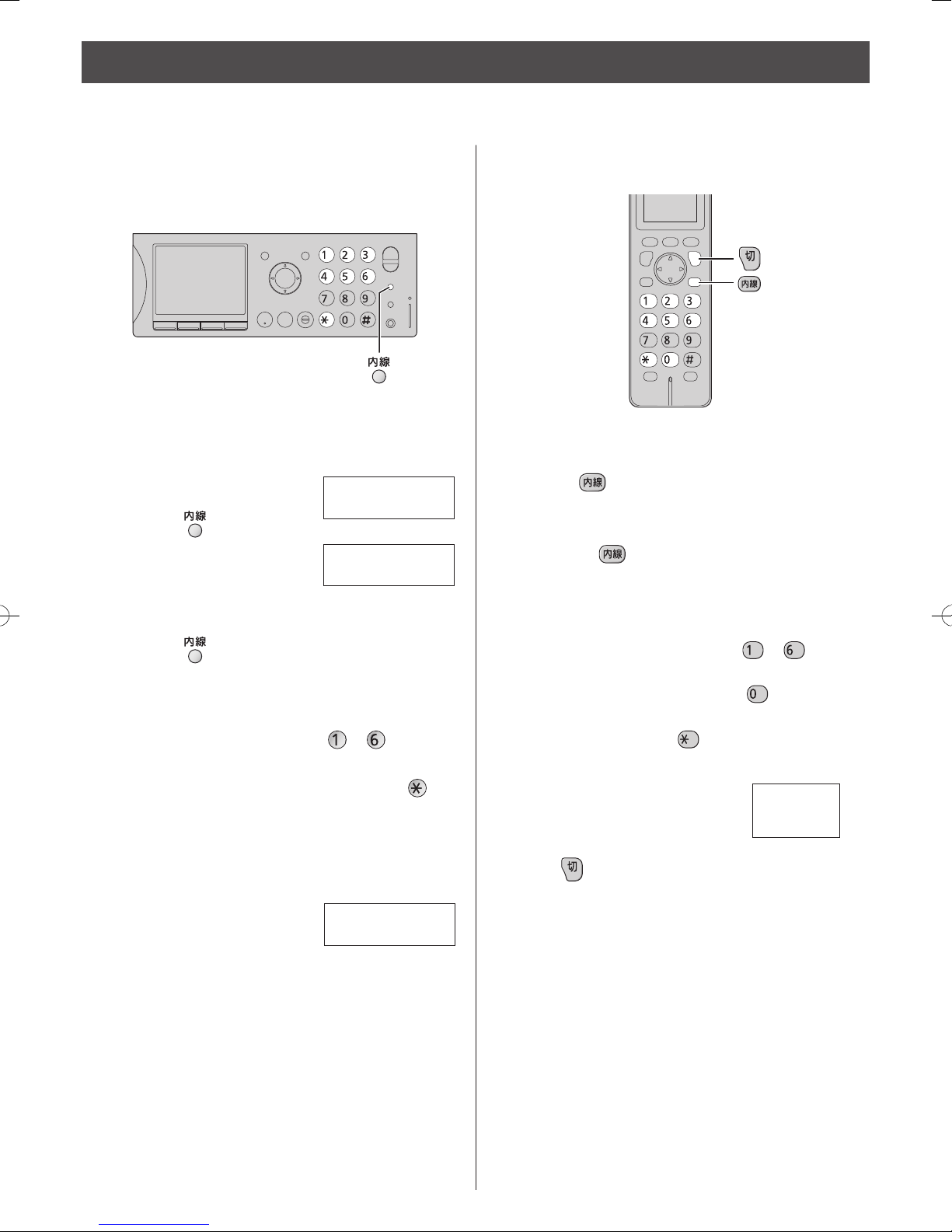

Intercom ……………………………………………………………………… 14
Sending faxes ……………………………………………………………… 15

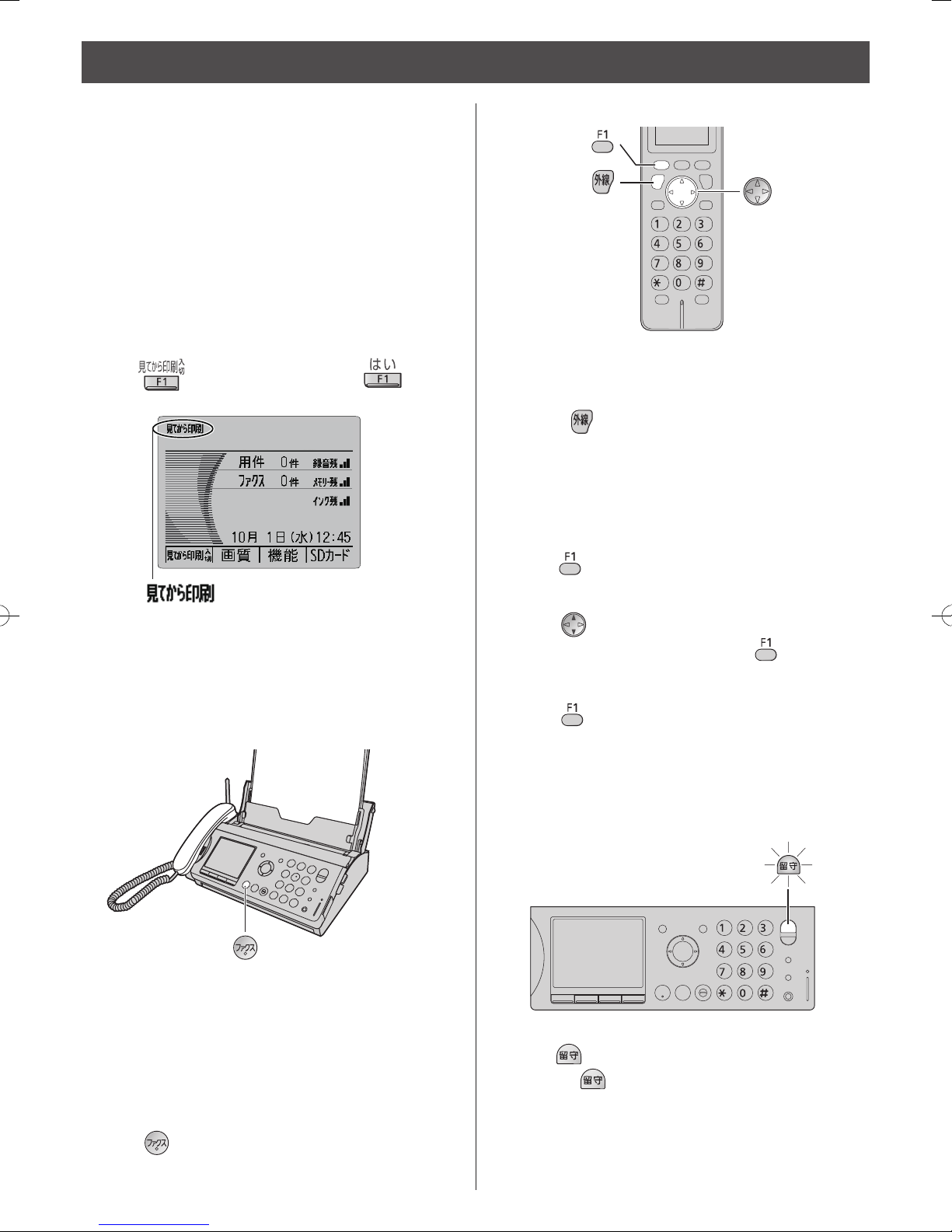

Receiving faxes ……………………………………………………………… 16

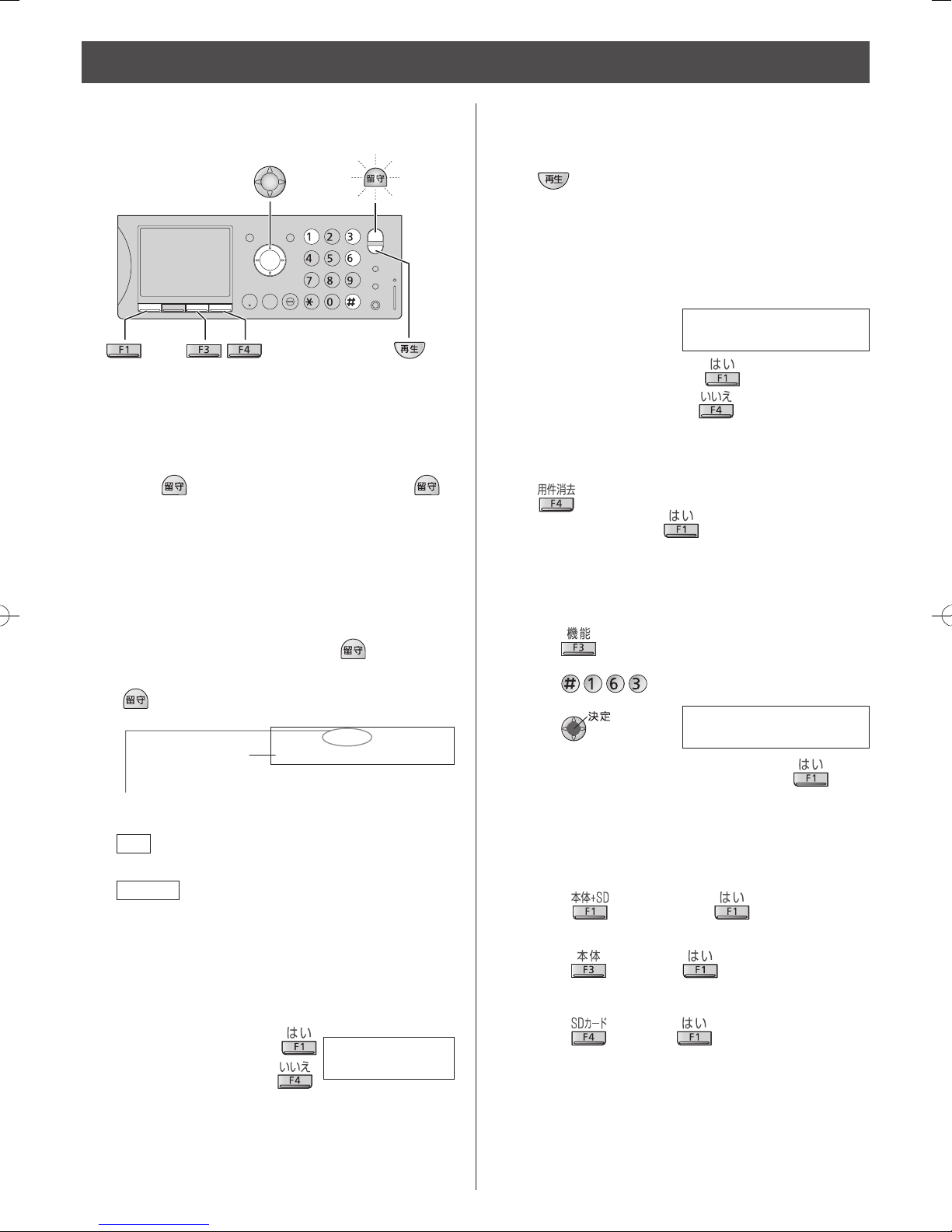

Operating the built-in answering device ………………………………… 18
Night mode…………………………………………………………………… 20
Call block …………………………………………………………………… 21
SD Memory Card …………………………………………………………… 22
Trademarks ………………………………………………………………… 23
Specifications ……………………………………………………… Backcover
KX-PW607DL_QG.indb 1 2008/01/24 16:08:33

22
Finding the controls
Main unit
5 6
12 3 4
7
10
9
8
14 15 16 171311 12 18
1
Liquid crystal display
The display turns off after about 2 minutes
of inactivity.
To turn on the display, press (Stop).
2
Speed Dialer button
3
Volume/Change/Redial/Phonebook key
To adjust the volume.
To change Hiragana into Kanji.
To redial the phone numbers in
the redial list. The last 10 phone
numbers dialed are stored in
memory.
To use the phonebook.
To store a parameter.
4
Call/Fax List button starts a search in
— the Number Display (Caller ID) log.
— the fax list stored in memory.
Call/Fax List indicator lights when
— a call was missed.(For Number Display
service users.)
— a fax was stored in memory.
5
Auto Answer button & indicator
—light on: answering device activated.
—light off: used as a regular telephone.
6
Playback button plays back recorded
messages.
Record button records a telephone
conversation.
When an SD Memory Card is available, it
is recorded in the SD Memory Card.
7
Intercom button
8
Power indicator
9
SD Memory Card cover
10
SD indicator
11
Multi-operation buttons refer to the function
displayed on the display panel.
12
Fax button starts faxing.
13
Copy button starts copying.
14
Stop button
15
Tone button switches to tone dialing.
Night mode button
16
Sharp button
Key lock button can lock the main unit so
that no calls or settings can be made. To
turn key lock on, press this button for about
3 seconds until a single beep is heard.
“”is displayed.
To turn key lock off, press this button for
about 3 seconds.
17
Monitor button
18
Hold button
KX-PW607DL_QG.indb 2 2008/01/24 16:08:36

33
Finding the controls
Portable handset (KX-FKN515)
● 
To adjust the volume.
● 
To change Hiragana into
Kanji.
● 
To redial the phone
numbers in the redial
list. The last 10 phone
numbers dialed are
stored in memory.
● 
To make/answer calls.
● 
To put a call on hold.
● 
To start a search in the
Number Display log.
(For Number Display
service users.)
● 
To use the speakerphone.
● 
For call waiting service
users.
● 
To clear letters/numbers.
Sharp button
Key lock button
●To lock the portable
handset so that no calls
or setings can be made.
To turn key lock on,
press this button for
about 3 seconds until a
single beep is heard.
●“ ” is displayed.
●To turn key lock off,
press this button for
about 3 seconds.
● 
To use the phonebook.
and buttons refer to the function
displayed on the bottom of the display.
They function differently depending on
the mode.
Dial buttons
Earpiece Liquid crystal display
Microphone
Do not cover the
microphone while
talking.
Function menu that is
controlled by or
Portable handset number
(and name)
No link to the main unit
Battery strength
Tone button
●To switch to tone dialing.
● 
To end a call.
● 
To end or exit from editing
or other operations.
How to use key
How to use buttons
● 
To change your voice.
● 
To mute your voice to the
other party by pressing this
button for about 2 seconds.
(To release the mute,
press this button again.)
● 
To page the main unit
and/or portable handset(s).
KX-PW607DL_QG.indb 3 2008/01/24 16:08:36

44
When the unit runs out of ink film, the following message will be displayed.
Install a new ink film.

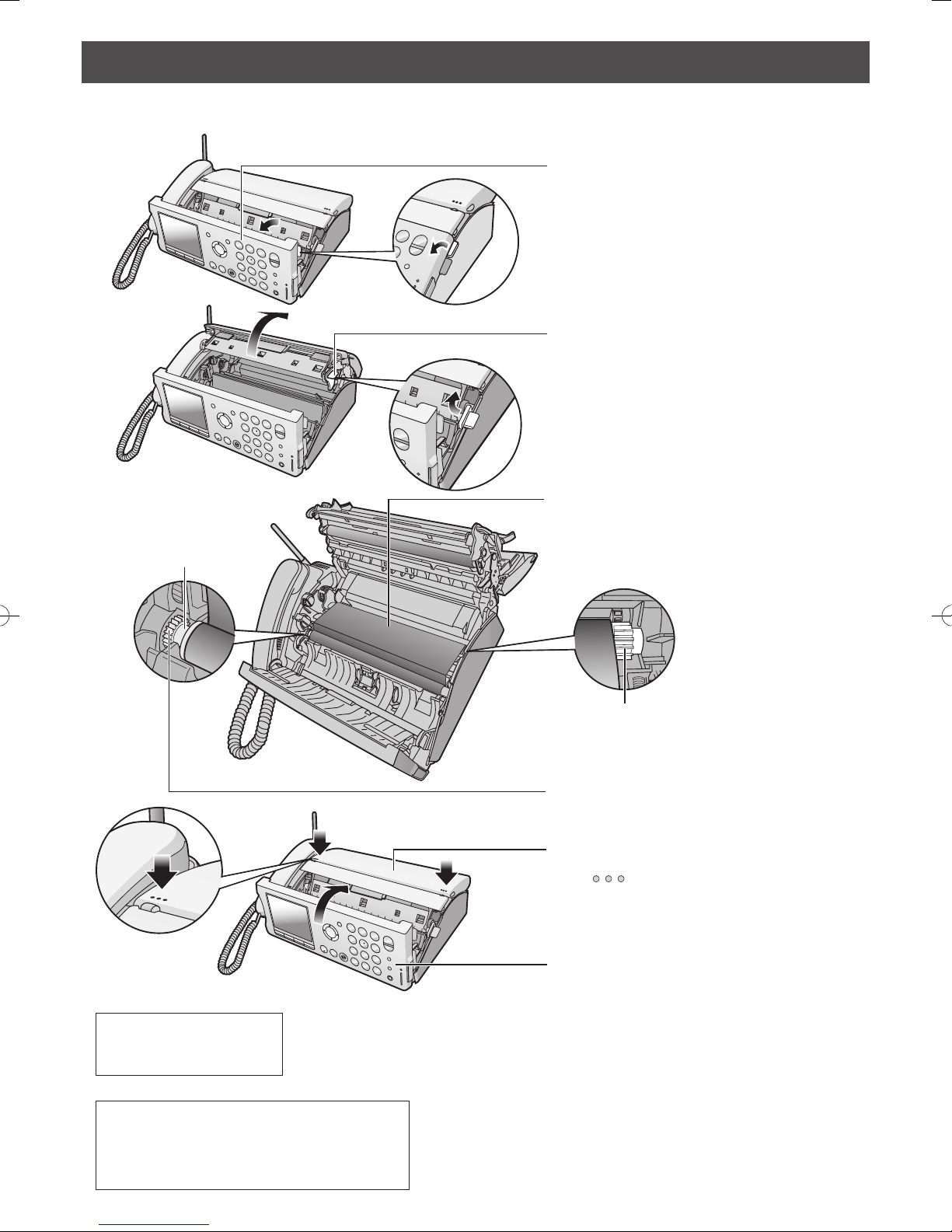

Installations and connections
Installing the ink film
1Open the control panel.
2Open the back cover.
Replacement ink film:
KX-FAN190 (15 m) 714
KX-FAN190W (15 m X 2) 1,208
KX-FAN191 (15 m) (*1) 893
KX-FAN191W (15 m X 2) (*1) 1,523
4If the ink film is slack, tighten it by
winding this gear ( orange) .
3Insert the ink film.
Insert the orange
gear into the left slot
of the main unit.
Insert the white gear into the right slot
of the main unit.
5Close the back cover pressing
“ ” down on both sides
until it clicks into place.
6Close the control panel.
As of February 2008. Tax included.
 

 
*1 KX-FAN191/KX-FAN191W leaves a fainter print trail on the film
than does the KX-FAN190/190W.
KX-PW607DL_QG.indb 4 2008/01/24 16:08:38

55
Installations and connections

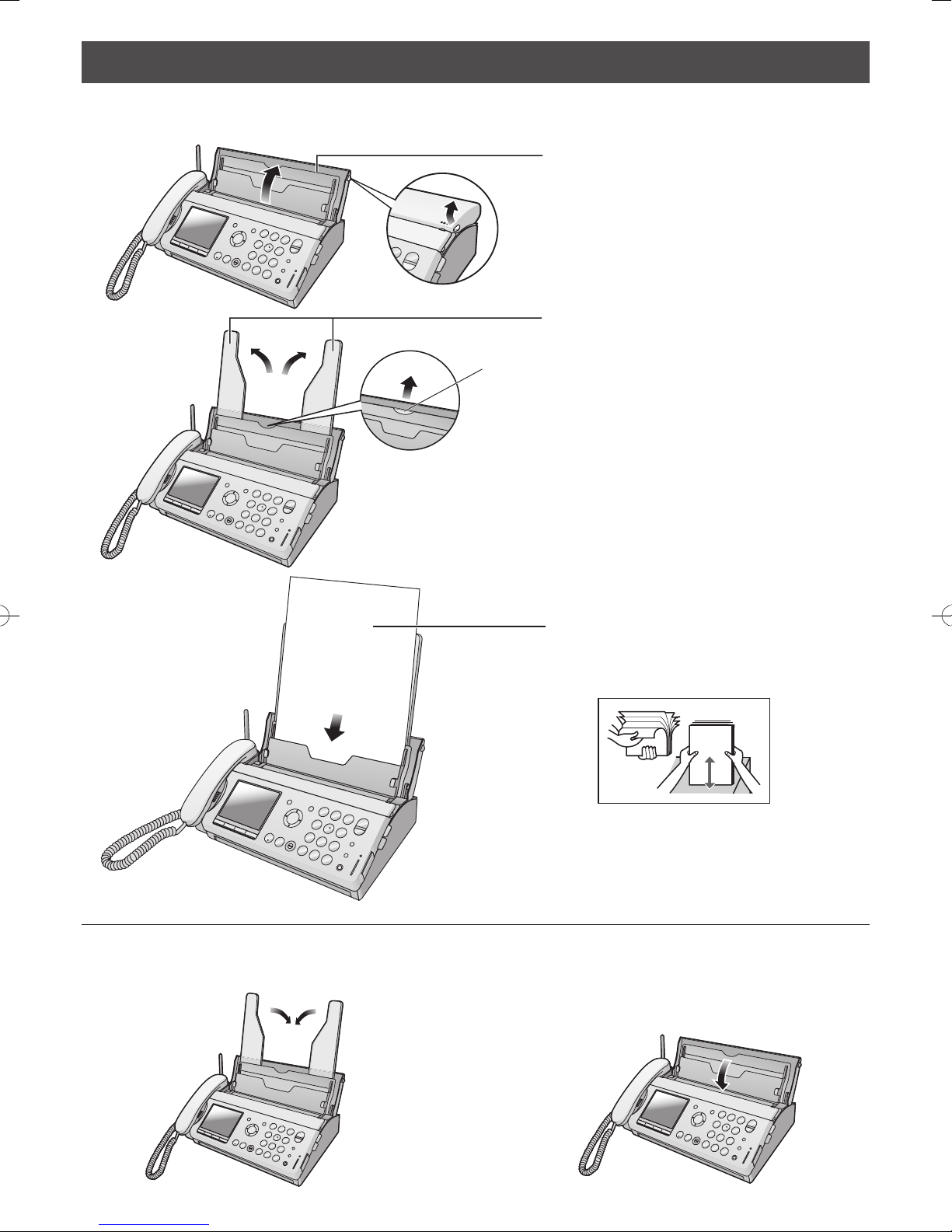

Installing recording paper (A4 size)
2Set up the recording paper stands.
Pull out the front stand first.
3Insert the recording paper into the
recording paper tray. (Up to 15 sheets)
Fan the stack of recording paper.
Recording paper
Printing side is
on the back.
1Open the recording paper tray.
1Remove the recording paper and fold the recording
paper stands in.
2Close the recording paper tray.
Folding the recording paper tray
KX-PW607DL_QG.indb 5 2008/01/24 16:08:39


 

6
Connecting the main unit
Installations and connections
1Raise the antenna.
Power cord
Telephone line cord
(supplied accessory) Wall jack
Power outlet
(AC 100 V)
3Connect the telephone line cord.
4Connect the power cord.
2Connect the cord and
place the handset on
the main unit.
After the Power On...
If you can not make a call...
Set the dialing mode with the main unit.
1. Press (Function).
2. Press .
3. Press (Search button) repeatedly until the
desired setting is selected.
4. Press (Set).
5. Press (Stop).
Example :
 : Tone
  : Pulse (20 PPS)
 : Pulse (10 PPS)
 : Auto (Default)
1This unit will automatically select the dialing
mode (Tone/Pulse).
2When the following is displayed, press
(Stop).

   

Setting up the portable handset
(KX-FKN515)
4Charge the battery in the charger for 10 hours.
1
2
After your Panasonic battery is fully charged,
it will last up to about 5 hours of conversation.
Battery
Charger
Power outlet
(AC 100 V)
3
KX-PW607DL_QG.indb 6 2008/01/24 16:08:41

7

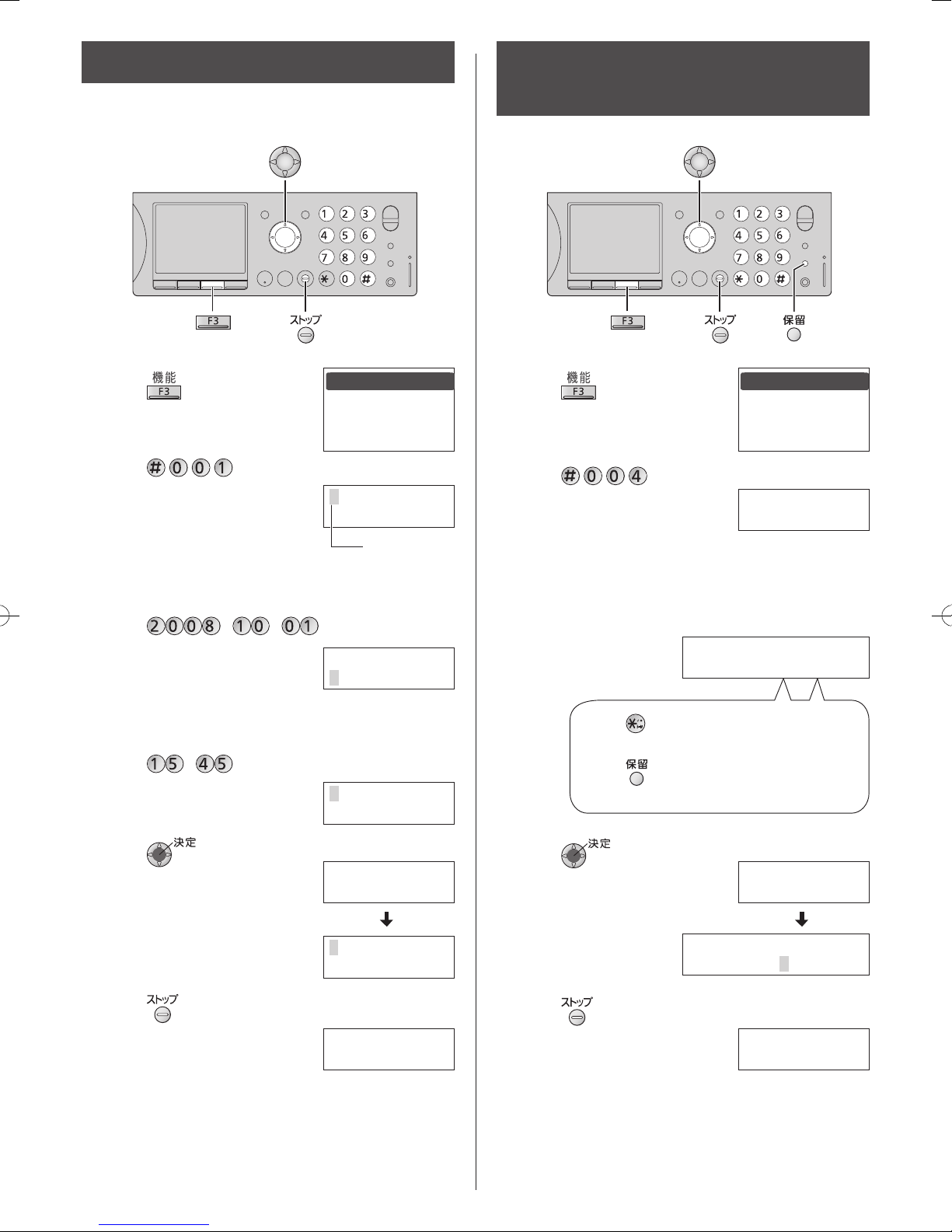

Setting the date and time Setting your facsimile
telephone number
1Press (Function). 1Press (Function).
5Press (Stop).
6Press (Stop).
Example :
3Enter your facsimile telephone number, up to
20 digits.
Example: +098 7654··
3Enter the correct year/month/day.
Example: October 1, 2008
Press .
2Press .
4Enter the correct hour/minute in a 24-hour clock entry.
Example: 15:45 (3:45 PM)
Press .
5Press (Set). 4Press (Set).
2Press .
Example :
     


Cursor
The (Tone) button replaces
the digit with “+”.
The button replaces the digit with
a space.



 



 
     


     



     



 
 

Example :
  


 
 

 
 
 
  


 
 

KX-PW607DL_QG.indb 7 2008/01/24 16:08:42

       

8
3Enter your logo, up to 30 characters, using the dial
keypad.
To enter English characters easily, press
(Character input mode) repeatedly and select
“英” (English and sign input mode).
For details, see the table on page 9 for instructions.
Setting your logo
1Press (Function).
5Press (Stop).
Example: Micah
1. Press once.
2. Press six times.
3. Press six times.
       


4. Press to move the cursor to the next space
and press four times.
5. Press five times.
4Press (Set).



 
       


       

       

       

2Press .
Cursor

       


Example :

Cursor
  


 
 

KX-PW607DL_QG.indb 8 2008/01/24 16:08:45

9
9
Character input and command key table
Pressing the dial keys will select a character as shown below.
Character Hiragana Katakana English Numbers
Display of the
main unit and the
portable handset
［かな］ ［ｶﾅ］ ［英］ ［数］
Dial key
Main
(
unit
)
Portable
handset
(
KX-FKN515
)



 @ . _ – & $ ¥ % + = ~^
      
       
       
        
    
       
      
      
            ’”
     
  
Command keys
(Main unit), (Portable handset) Used to change the character input
mode.
(Main unit), (Portable handset) Used to move the cursor to the left
and right.
(Main unit), (Portable handset) Used to delete a character.
(Main unit), (Portable handset) Used to insert a space.
The characters on the display are somewhat different from those shown in the character input and command key table.
KX-PW607DL_QG.indb 9 2008/01/24 16:08:47

10
10

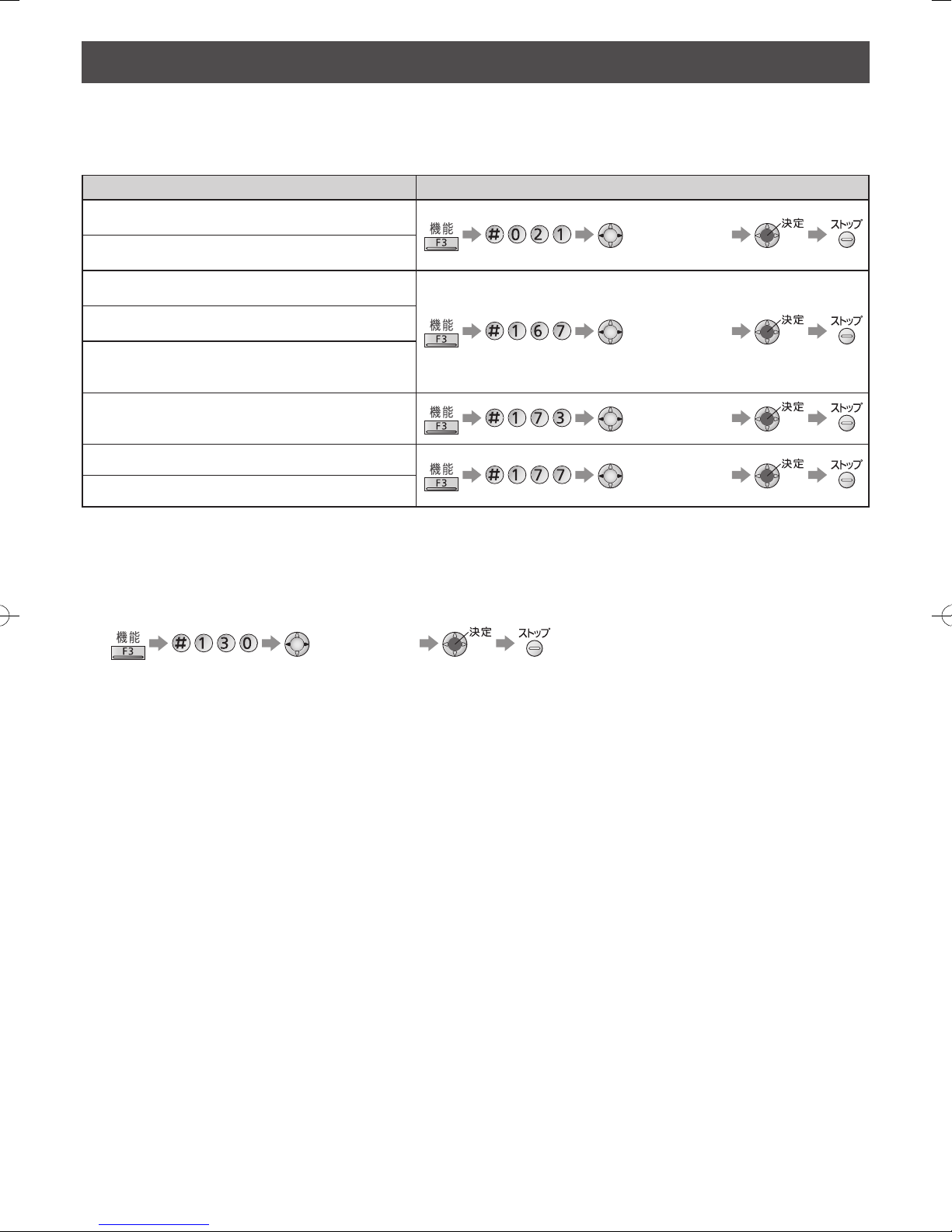

Operation guide
The unit starts the following voice guidance in Japanese:
Operations To cancel the operation guide
Send a fax
(Select “なし ”)
Copy
Add entries to the phonebook
(Select “なし ”)
Store phonebook entries in the speed dialer
Make a call using the phonebook/redial/
speed dialer/call memory
Change a ink film (Select “なし ”)
Select fax documents from the main unit memory
(Select “なし ”)
Select fax documents from the SD Memory Card
Reading-out dial
The unit announces the number dialed in Japanese, when you make a call with the main unit.
To cancel the reading-out dial
(Select “なし ”)
Voice guide
KX-PW607DL_QG.indb 10 2008/01/24 16:08:47

11

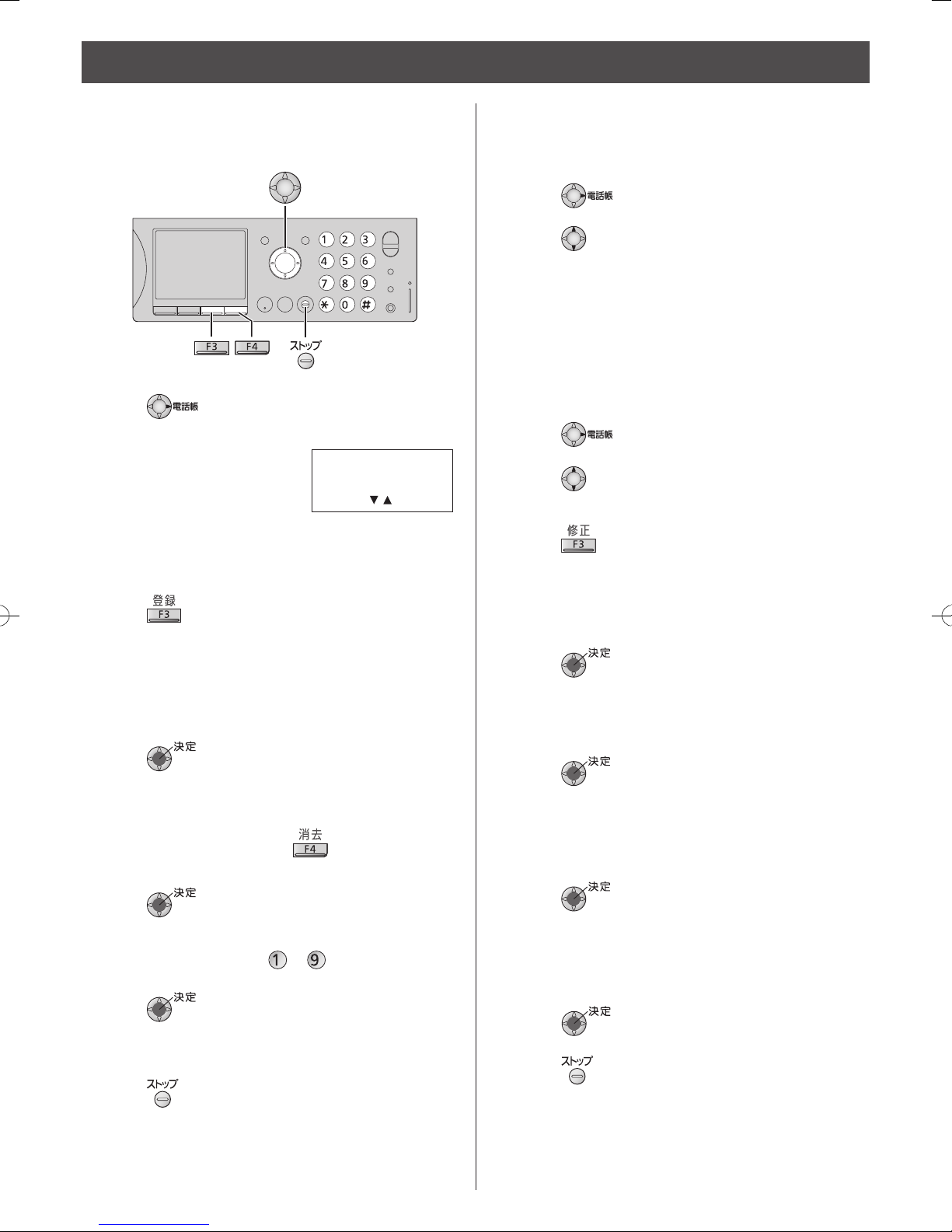

Automatic dialing on the main unit
Storing names and telephone
numbers in the phonebook
Making a voice call using the
phonebook
1Press (Phonebook).
2Press (Register).
3Enter the name, up to 20 characters (see the table on
page 9 for instructions).
4Press (Set) 2 times.
5Enter the telephone number, up to 24 digits.
To correct a mistake, press (Erase).
6Press (Set).
7Enter the group number ( to ).
2Press (Search button) repeatedly until the
desired name is displayed.
3Lift the handset.
Editing a stored name or number
in the phonebook
3Press (Edit).
4Edit the name (see the table on page 9 for
instructions).
If you do not need to edit the name, skip to step 5.
5Press (Set).
8Edit the telephone number.
If you do not need to edit the telephone number,
skip to step 9.
10 Edit the group number.
If you do not need to edit the group number,
skip to step 11.
1Press (Phonebook).
2Press (Search button) repeatedly until the
desired name is displayed.
1Press (Phonebook).
“XXX” shows the remaining
station numbers you can
store.
You can program up to
150 stations, including
4 pre-programmed stations.
8Press (Set).
To program other items, repeat steps 3 to 8.
9Press (Stop) to exit the program.
12 Press (Stop).
11 Press (Set).
9Press (Set).
6Edit the kana.
If you do not need to edit the kana, skip to step 7.
7Press (Set).
  
    
    
KX-PW607DL_QG.indb 11 2008/01/24 16:08:48

 

12
Automatic dialing on the main unit
Storing names and telephone
numbers in the speed dialer
Making a voice call using the
speed dialer
You can store up to 9 names and telephone numbers
which are stored in the phonebook. The dialing buttons
( to ) function as memory stations.
3Press (Register).
1Press (Speed dialer).
5Press (Set).
To program other items, repeat steps 2 to 5.
6Press (Stop) to exit the program.
4Press (Search button) repeatedly until the
desired name is displayed.
2Press the memory station number ( to ).
Example: speed dialer 1
Memory station number
1Press (Speed dialer).
2Press the memory station number ( to ).
Erasing a stored name and
number in the speed dialer
3Lift the handset.
1Press (Speed dialer).
2Press the memory station number ( to ).
4Press (Stop) to exit the program.
3Press (Erase), then press (Yes).
KX-PW607DL_QG.indb 12 2008/01/24 16:08:49

13
Automatic dialing on the portable handset (KX-FKN515)
Storing names and telephone
numbers in the phonebook
Making a voice call using the
phonebook
1Press (Phonebook).
3Enter the name, up to 20 characters (see the table on
page 9 for instructions).
4Press 2 times.
3Press (Talk).
5Enter the telephone number, up to 24 digits.
To correct a mistake, press (Flash/Erase).
6Press .
9Press (Off) to exit the program.
Editing a stored name or number
in the phonebook
3Press .
4Edit the name (see the table on page 9 for
instructions).
If you do not need to edit the name, skip to step 5.
5Press .
8Enter the correct telephone number.
If you do not need to edit the telephone number,
skip to step 9.
11 Press .
1Press (Phonebook).
2Press (Search button) repeatedly until the
desired name is displayed.
2Press (Search button) repeatedly until the
desired name is displayed.
1Press (Phonebook).
7Enter the group number ( to ).
10 Edit the group number.
If you do not need to edit the group number, skip to
step 11.
8Press .
To program other items, repeat steps 3 to 8.
9Press .
12 Press (Off) to exit the program.

 
2Press .
“XXX” shows the remaining
station numbers you can
store.
You can program up to
150 stations, including
4 pre-programmed stations.
 
  
6Edit the kana.
If you do not need to edit the kana, skip to step 7.
7Press .
KX-PW607DL_QG.indb 13 2008/01/24 16:08:50

14
Intercom
An intercom is available between the portable handsets or between the main unit and portable handset(s).
Using the main unit:
3Replace the handset to end the intercom call.
1For single portable handset users
1Lift the handset.
2Press (Intercom).
For multiple portable handset users
1Lift the handset.
2Press (Intercom).
3 Call the portable handset(s) in the following ways:
– To call a specific portable handset, press the
portable handset number ( to ) which
you want to call.
– To call all the portable handsets, press .
2Start talking.
Example :
 
 
 
Using the portable handset (KX-FKN515):
1For single portable handset users
Press (Intercom).
For multiple portable handset users
1Press (Intercom).
2Call the main unit and/or portable handset(s) in
the following ways:
– To call a specific portable handset, press the
portable handset number ( to ) which
you want to call.
– To call the main unit, press .
– To call the main unit and all the portable
handsets, press .
3Press (Off) to end the intercom call.
2Start talking. 
KX-PW607DL_QG.indb 14 2008/01/24 16:08:52

15
Sending faxes
1Open the document cover, and adjust the width of the
document guides to the size of the document.
2Insert the document (up to 5 pages) FACE UP until a
single beep is heard.
3If necessary, press (Resolution) repeatedly to
select the desired setting (see below).
FACE UP
Document
Document
guides
Document cover
5Dial the fax number.
6Press (Fax).
The unit will start fax transmission.
Sending a fax manually
To select the resolution
Select the desired resolution according to the type of document, by pressing (Resolution) repeatedly.
  
(Standard) for printed or typewritten originals with normal-sized characters.
  
(Fine) for originals with minute printing.
  
(Photo) for originals containing photographs.
1Insert the document (up to 5 pages) FACE UP until a
single beep is heard.
2Press (Phonebook).
4Press (Fax).
The unit will start fax transmission.
FACE UP
Document
3Press (Search button) repeatedly until the
desired name is displayed.
4Press (Fax).
1Insert the document (up to 5 pages) FACE UP until a
single beep is heard.
2Press (Speed dialer).
4Press (Fax).
The unit will start fax transmission.
3Press the memory station number ( to ).
Sending a fax using automatic
dialing
Using the phonebook
Using the speed dialer
KX-PW607DL_QG.indb 15 2008/01/24 16:08:53

16
Receiving faxes
Receiving a fax manually
(AUTO ANSWER off)
2When:
– document reception is required,
– a fax calling tone (slow beep) is heard, or
– no sound is heard,
press (Fax), then replace the handset.
The unit will start fax reception.
Using the main unit:
1When you hear a ring, lift the handset to answer the
call.
2When receiving a call, the unit will receive a fax
document or record a voice message automatically
depending on the caller’s request.
light on
Receiving a fax automatically
(AUTO ANSWER on)
1If the (Auto answer) light is off, turn it on by
pressing .
Receiving faxes
You can select beforehand whether to receive faxes by
“Receive in memory” or “Receive on recording paper”.
The received fax will be
stored in the main unit
memory. You can check the
contents on the display, then
print them if necessary.
The received fax will be
printed on recording paper.
Setting/canceling “Receive in memory”
Press (Receive in memory), then (Yes).
(Changes each time they are pressed.)
: Receive in memory
With no display: Receive on recording paper
2When:
– document reception is required,
– a fax calling tone (slow beep) is heard, or
– no sound is heard,
press .
3Press (Search button) repeatedly until the
“ﾌｧｸｽ受信 ” is displayed, then press .
4Press .
The main unit will start fax reception.
Using the portable handset (KX-FKN515):
1When you hear a ring, lift the portable handset from
the charger to answer the call.
If the portable handset is not set on the charger,
press (Talk).
Receive on :
recording paper
Receive in memory :
(Default setting)
KX-PW607DL_QG.indb 16 2008/01/24 16:08:55

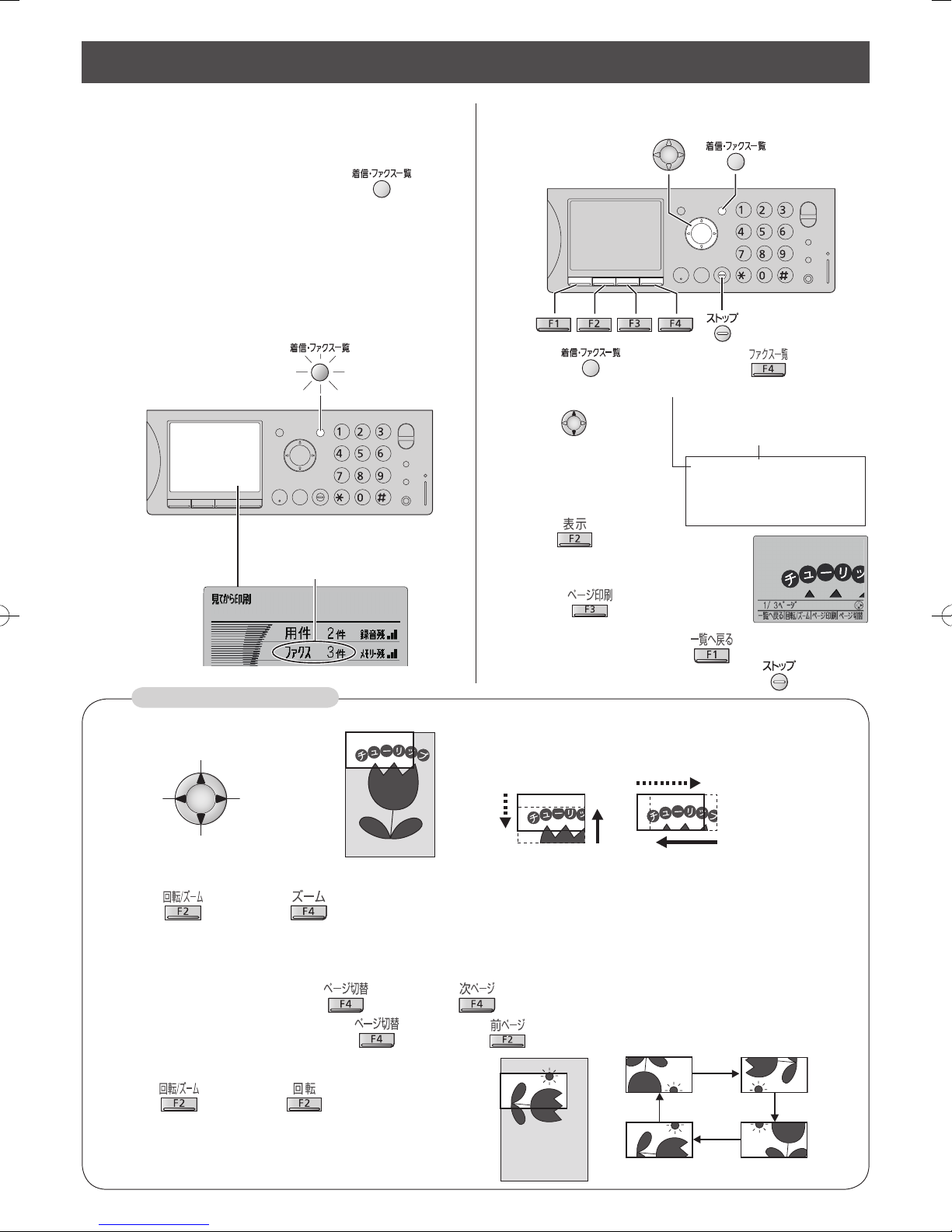

17
Display when faxes are received
in memory
1Press (Call/Fax list), then (Fax list).
2Press (Search
button) to select a
fax to display.
3 Press (Display) to view the fax
(see below for detail).

To print the displayed page,
press (Print a Page).
4To view other faxes, press (Return) and repeat
steps 2–3. To exit the program, press (Stop).
Viewing faxes stored in memory
To enlarge or reduce content
Press (Turn/Zoom) (Zoom) to enlarge or reduce the display content in the following order:
Normal →Enlarge(double size) →Reduce(half size) →Normal…
Scroll pages
To show the next page: Press (Scroll page) (Next page).
To show the previous page: Press (Scroll page) (Previous page).
Information about display
When new faxes are received in memory, (Call/
Fax list) will light on.
It will also light on when a call is missed.
(For Number Display service users.)
Even if an SD Memory Card is inserted, new faxes will
be received in the main unit memory. (To save the faxes
to the SD Memory Card, see page 22.)
To scroll display contents
The display contents can be scrolled
up, down, left and right.
Right
Left
Up
Down
(Example)
To turn display contents
Press (Turn/Zoom) (Turn).
(Example)
Receiving faxes
       
        


light on
The number of faxes stored
in the main unit memory
is displayed.
Example :
means unread message
means this message has
not been saved to any
SD Memory Cards
KX-PW607DL_QG.indb 17 2008/01/24 16:08:59

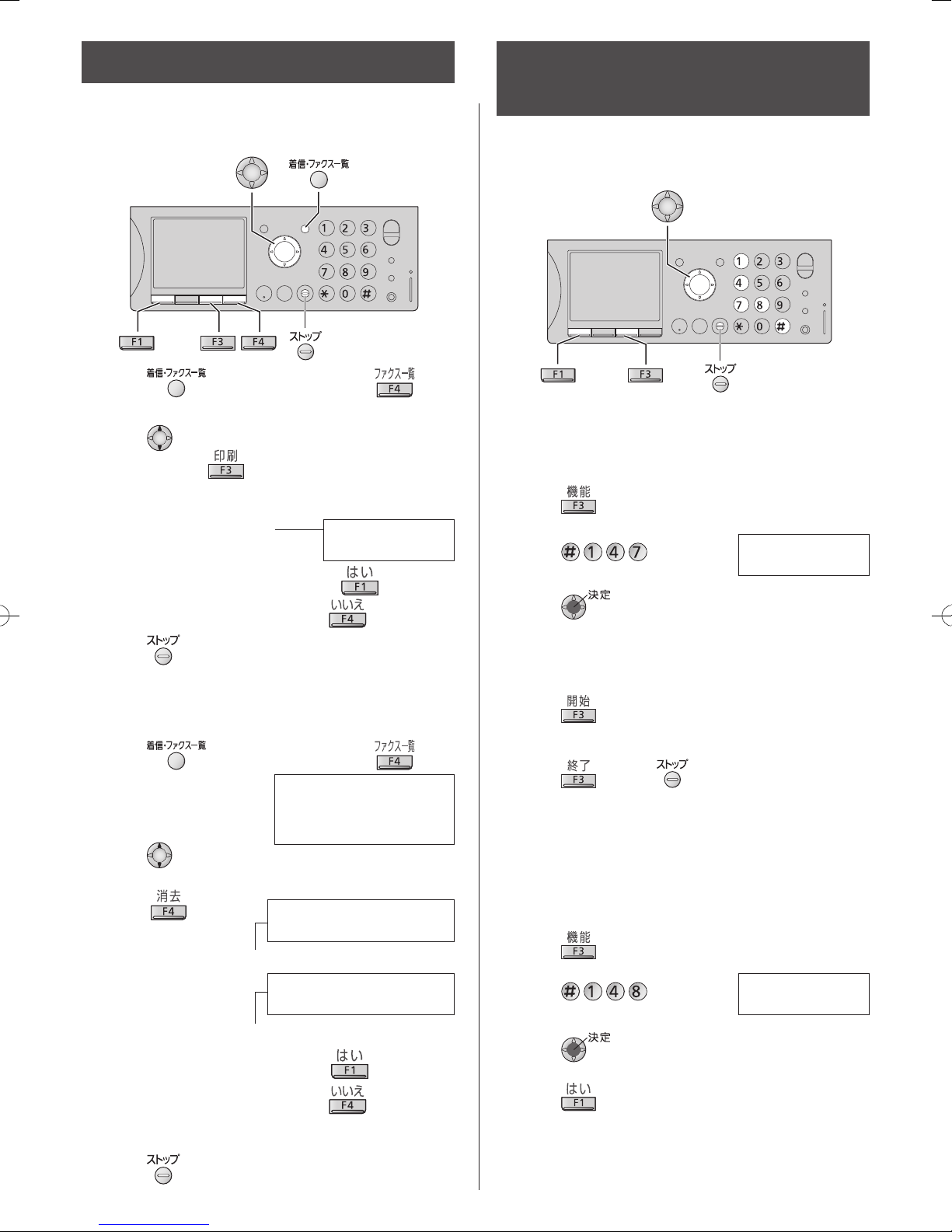

18
2
Press (Search button) to select the desired fax to
print, then press (Print).
Printing a specific fax stored in
memory
1Press (Call/Fax list), then press (Fax
list).
Deleting a specific fax stored in
memory
4Press (Stop).
3After printing, the following is displayed.
If you want to delete the fax, press (Yes).
If you want to hold the fax, press (No).
Receiving faxes

 
3Press (Delete).
1Press (Call/Fax list), then press (Fax
list).
2Press (Search button) to select the desired fax
to delete.
4If you want to delete the fax, press (Yes).
If you want to hold the fax, press (No).
5If you want to delete other faxes, repeat steps 2–4.
6Press (Stop).
Do you delete the fax ?
Do you delete the new fax ?
 

or
 
       
        


Do you delete the
printed contents ?
Recording your own greeting
message
You can record your own greeting message. When
receiving a call, it will be played to callers instead of the
pre-recorded Japanese greeting message.
3Press (Set).
5Press (Start) and speak your greeting message
after a beep, up to 16 seconds, to the handset.
6Press (End) or (Stop) and replace the
handset.
Your greeting message will be played back
automatically.
1Press (Function).
2Press .
Erasing your own greeting
message
1Press (Function).
2Press .
3Press (Set).
4Press (Yes).
The pre-recorded Japanese greeting message will
be played when you receive a call.
4Lift the handset.


Operating the built-in
answering device
KX-PW607DL_QG.indb 18 2008/01/24 16:09:01

19
light on
/flash
Operating the built-in answering device
Erasing a specific message
Press (Erase) while listening to the message you
want to erase, then press (Yes).
Erasing all of the recorded
messages
2Press .
1Press (Function).
 
3Press (Set).
When not using an SD Memory Card, press (Yes).
When using an SD Memory Card, delete messages as
follows:
— To erase the main unit memory messages
and the SD Memory Card messages,
Press (Main unit+SD) (Yes).
— To erase the main unit memory messages,
Press (Main unit) (Yes).
— To erase the SD Memory Card messages,
Press (SD card) (Yes).
2When receiving a call, a greeting message will be
played and the unit will record a voice message.
To record your own greeting message, see page 18.
Activating the answering device
1Turn the (Auto answer) light on by pressing .
Listening to recorded messages
Listening to all of the recorded
messages
When new messages are recorded, the (Auto
answer) light will flash.
Press to listen to recorded messages.
After the messages are played back, the following will be
displayed.
 To erase the messages, press .
 To save the messages, press .
Press (Playback) when new messages are not
recorded.
When new messages are recorded, only the new
messages will be played back.
After the messages are played back, the following will be
displayed.
To erase the messages, press (Yes).
To save the messages, press (No).

 
 
means recorded
date and time : Thursday, Oct. 2, 10:05
      
      
If an SD Memory Card is available(inserted), voice
messages will be recorded to the SD Memory Card.
(See page 22.)
If an SD Memory Card is inserted, the following
variations may occur:
  
: Playing a message in the SD Memory
Card.
  
: Playing a message in the main unit that
is not saved to any SD Memory Card.
Blank : Playing a message in the main unit that
has been saved to an SD Memory Card.
KX-PW607DL_QG.indb 19 2008/01/24 16:09:02

20
Operating the built-in
answering device
Operating the answering device
from a remote location
Operation: Listening to a recorded message from a
remote location
Turn the (Auto answer) light on before you go out.
Remote operations are available only from a touch tone
telephone.
1. Call your unit.
2. Enter the remote operation ID during the greeting
message.
3. Press
2
or wait 4 seconds.
Only the new recorded messages will be played
back.
To listen to all the recorded messages, press
4
after the new messages have been played back.
Preparation: Programming the remote operation ID
1. Press (Function).
2. Press .
3. Enter any 4-digit number (remote operation ID) except
or #.
4. Press (Set).
5. Press (Stop).
Example :
light on
Night mode
light on
Turn off the night mode
Press (Night mode) for about 3 seconds.
Press (Night mode) for about 3 seconds.
“”is displayed and lights on.
When a call is received during night mode, the unit
will handle the call silently, either by storing the
received fax into memory or by recording the caller’s
message.
Night mode allows you to select a block of time
during which the unit will not ring for outside calls
or make sounds when you change the settings.
This feature is useful when you do not want to be
disturbed, for example, while sleeping.
Printing received fax documents
When new faxes are received, the (Call/Fax
list) light will turn on.
To print the faxes, see "Printing a specfic fax stored in
memory" on page 18.
Listening to recorded messages
When new messages are recorded, the following will be
displayed.
Press (Playback) to listen to recorded messages.
After the messages are played back, the following will be
displayed.
To erase the messages, press (Yes).
To save the messages, press (No).
Turn on the night mode
 


 



KX-PW607DL_QG.indb 20 2008/01/24 16:09:03
