Panasonic KX-FP101AL User manual

©1999 Kyushu Matsushita Electric Co., Ltd. All
rights reserved. Unauthorized copying and
distribution is a violation of law.
KX-FP101AL
(for Australia)
Compact Plain Paper FAX
ORDER NO. KM79909316C3

1 INTRODUCTION
1.1. SAFETY PRECAUTIONS
1.Before servicing, unplug the AC power cord to prevent an electric shock.
2.When replacing parts, use only the manufacturer’s recommended components.
3.Check the condition of the power cord. Replace if wear or damage is evident.
4.After servicing, be sure to restore the lead dress, insulation barriers, insulation papers, shields, etc.
5.Before returning the serviced equipment to the customer, be sure to perform the following insulation resistance test to prevent
the customer from being exposed to shock hazards.

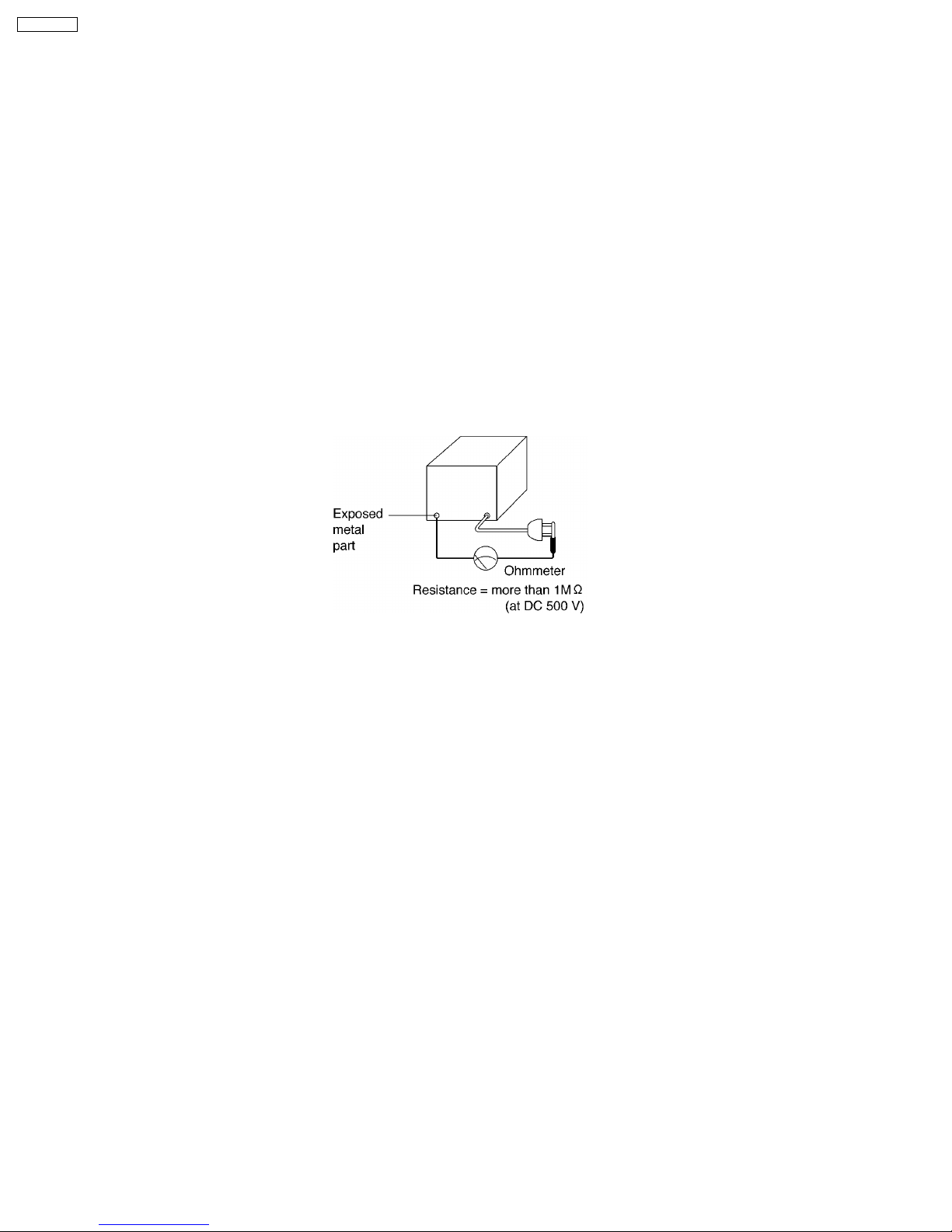

1.2. INSULATION RESISTANCE TEST
1.Unplug the power cord and short the two prongs of the plug with a jumper wire.
2.Turn on the power switch.
3.Measure the resistance value with an ohmmeter between the jumpered AC plug and each exposed metal cabinet part
(screwheads, control shafts, bottom frame, etc.).
Note: Some exposed parts may be isolated from the chassis by design. These will read infinity.
4.If the measurement is outside the specified limits, there is a possibility of a shock hazard.
1.3. FOR SERVICE TECHNICIANS
ICs and LSIs are vulnerable to static electricity.
When repairing, the following precautions will help prevent recurring malfunctions.
1.Cover the plastic part’s boxes with aluminum foil.
2.Ground the soldering irons.
3.Use a conductive mat on the worktable.
4.Do not touch the IC or LSI pins with bare fingers.
1.4. BATTERY CAUTION
CAUTION
Danger of explosion if the battery is replaced incorrectly. Replace only with the same or equivalent type recommended by the
manufacturer. Discard used batteries according to following caution:
Disposal of lithium batteries should be performed by permitted, professional disposal firms knowledgeable in state government
federal and local hazardous materials and hazardous waste transportation and disposal requirements.
A battery continues to have no transportation limitations as long as it is separated to prevent short circuits and packed in strong
packaging.
Commercial firms that dispose of any quantity of lithium cells should have a mechanism in place to account for their ultimate
disposition. This is a good practice for all types of commercial or industrial waste.
Recommend Type Number:
CR2032 (BATT) Manufactured by MATSUSHITA
CR2032 (BATT) Manufactured by SONY
2
KX-FP101AL

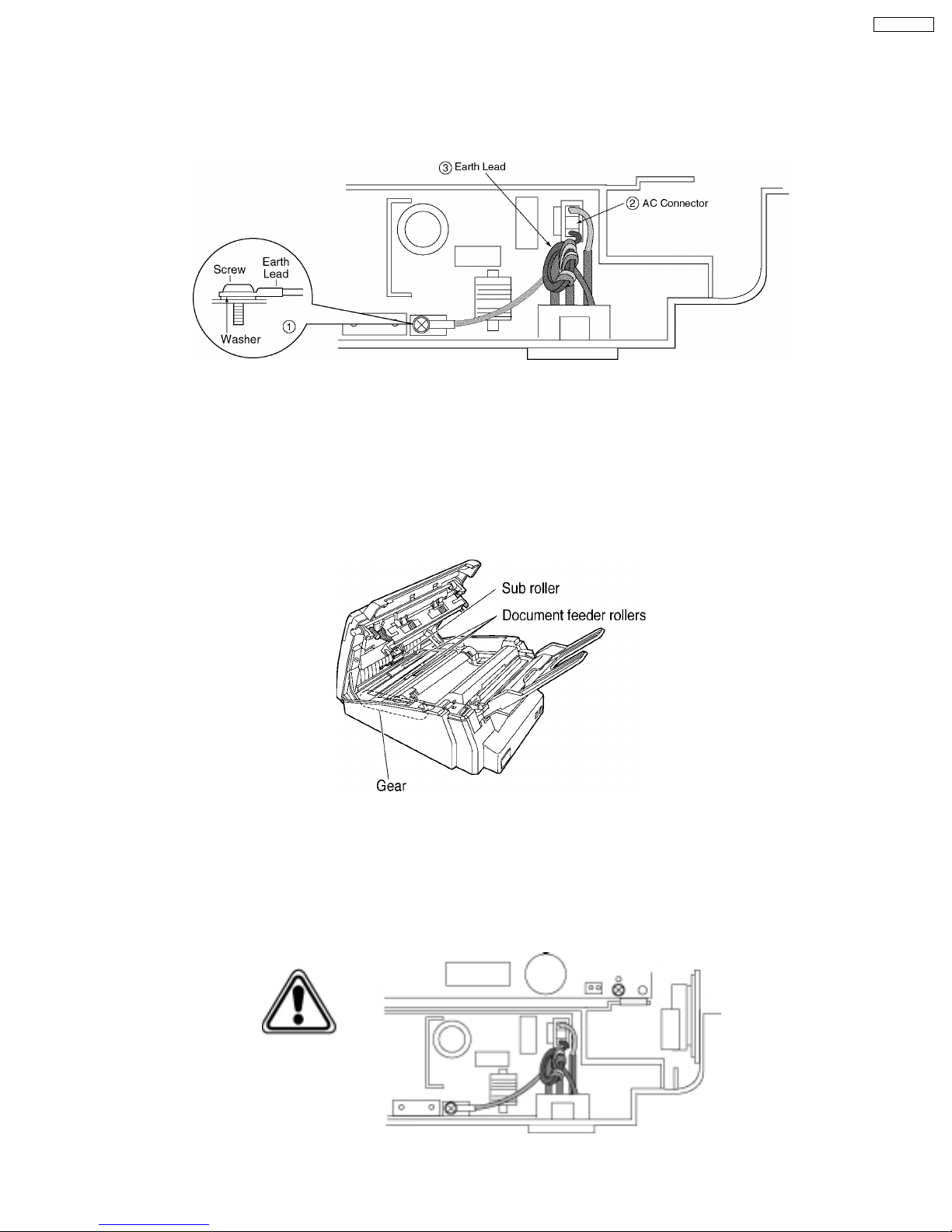

1.5. AC CAUTION
For safety, before closing the lower cabinet, please make sure of the following precautions.
1.The earth lead is fixed with the screw.
2.The AC connector is connected properly.
3.Wrap the earth lead around the core 3 times.
(Bottom View)
1.6. PERSONAL SAFETY PRECAUTIONS
1.6.1. MOVING SECTIONS OF THE UNIT
Be careful not to let your hair, clothes, fingers, accessories, etc., become caught in any moving sections of the unit.
The moving sections of the unit are the rollers and a gear. There is a separation roller and a document feed roller which are rotated
by the document feed motor. A gear rotates the two rollers. Be careful not to touch them with your hands, especially when the unit
is operating.
1.6.2. LIVE ELECTRICAL SECTIONS
All the electrical sections of the unit supplied with AC power by the AC power cord are live.
Never disassemble the unit for service with the AC power supply plugged in.
CAUTION:
AC voltage is supplied to the primary side of the power supply unit. Therefore, always unplug the AC power cord before
disassembling for service.
(Bottom View)
3
KX-FP101AL

1.7. SERVICE PRECAUTIONS
1.7.1. PRECAUTIONS TO PREVENT DAMAGE FROM STATIC ELECTRICITY
Electrical charges accumulate on a person. For instance, clothes rubbing together can damage electric elements or change their
electrical characteristics. In order to prevent static electricity, touch a metallic part that is grounded to release the static electricity.
Never touch the electrical sections such as the power supply unit, etc.
4
KX-FP101AL

General
· Help function
Display:
1.HOW TO SET UP
2.JOG/AUTO DIAL
3.FAX SENDING
4.FAX RECEIVING
5.COPIER
6.Q and A
7.ERRORS
8.REPORTS
9.CALLER ID
· LCD (Liquid Crystal Display) readout
· TAM (Telephone answering machine) interface
Plain Paper Facsimile Machine
· 12 second transmission speed *
· Letter/Legal, G3 compatible
· Automatic document feeder (15 sheets)
· 6 stations one-touch dialer
· Broadcast (up to 20 station) × 3
· Resolution : Standard/Fine/Super fine/Half tone (64 level)
· LCD Contrast : Normal/Darker
· Delayed transmission
· Overseas transmission function
· Remote FAX receiving using an extension phone
· 150-sheet paper capacity
· Automatic fax/phone switching
· Distinctive ring detection **
· Caller ID
* The 12 second speed is based upon the ITU-T Test Chart on
the condition that memory transmission is performed.
** Subscription to distinctive ring services required.
Large Memory (28 pages) ... Performed by DRAM
Approx. 28 pages of memory reception
Approx. 25 pages of memory transmission
Integrated Telephone System
· On-hook dialing
· Monitor
· Voice muting
· Redialing function
· 50-Station telephone directory with Jog Dial
Copier function
· Multi-copy function (up to 99 copies)
· Enlargement and reduction
· Collate
· 64-Level halftone
· Electronic film indicator
1.8. FEATURES
5
KX-FP101AL

1.9. SPECIFICATIONS
Applicable Lines: Public Switched Telephone Network
Document Size: Max. 216 mm (8 1/2") in width
Max. 600 mm (23 5/8") in length
Effective Scanning Width: 208 mm (8 3/16")
Recording Paper Size: A4: 210×297 mm (8 1/4"×11 11/16")
Effective Printing Width: 202 mm (8")
Transmission Time*: Approx. 12 sec./page (Original mode)**
Scanning Density: Horizontal:
8 pels/mm (203 pels/inch)
Vertical:
3.85 lines/mm (98 lines/inch)—STANDARD mode
7.7 lines/mm (196 lines/inch)—FINE/HALF TONE mode
15.4 lines/mm (392 lines/inch)—SUPER FINE Mode
Halftone Level: 64-level
Scanner Type: Contact Image Sensor (CIS)
Printer Type: Thermal Printing
Data Compression System: Modified Huffman (MH), Modified READ (MR)
Modem Speed: 9,600/7,200/4,800/2,400 bps; Automatic Fallback
Operating Environment: 5—35°C (41—95°F), 20—80 % RH(Relative Humidity)
Dimensions (H×W×D): 143×325×305 mm (5 5/8"×12 13/16"×12")
Mass (Weight): Approx. 4.0 kg (8.8 lb.)
Power Consumption: Standby: Approx. 6.5 W
Transmission: Approx. 15 W
Reception: Approx. 42 W (When receiving a 20% black document)
Copy: Approx. 45 W (When copying a 20% black document)
Maximum: Approx. 150 W (When copying a 100% black document)
Power Supply: 220—240 V AC, 50/60 Hz
Memory Capacity: Approx. 28 pages memory reception
Approx. 25 pages memory transmission
(Based on ITU-T Test Chart in standard resolution.)
* Transmission speed depends upon the contents of the pages, resolution, telephone line conditions and capability of the receiving
unit.
** The 12 second speed is based upon the ITU-T Test Chart and original mode. (Refer to "1.11. ITU-T Test Chart".) If the capability
of the other party’s machine is inferior to your unit, the transmission time may be longer.
Note:
· Any details given in these instructions are subject to change without notice.
· The pictures and illustrations in these instructions may vary slightly from the actual product.
Design and specifications are subject to change without notice.

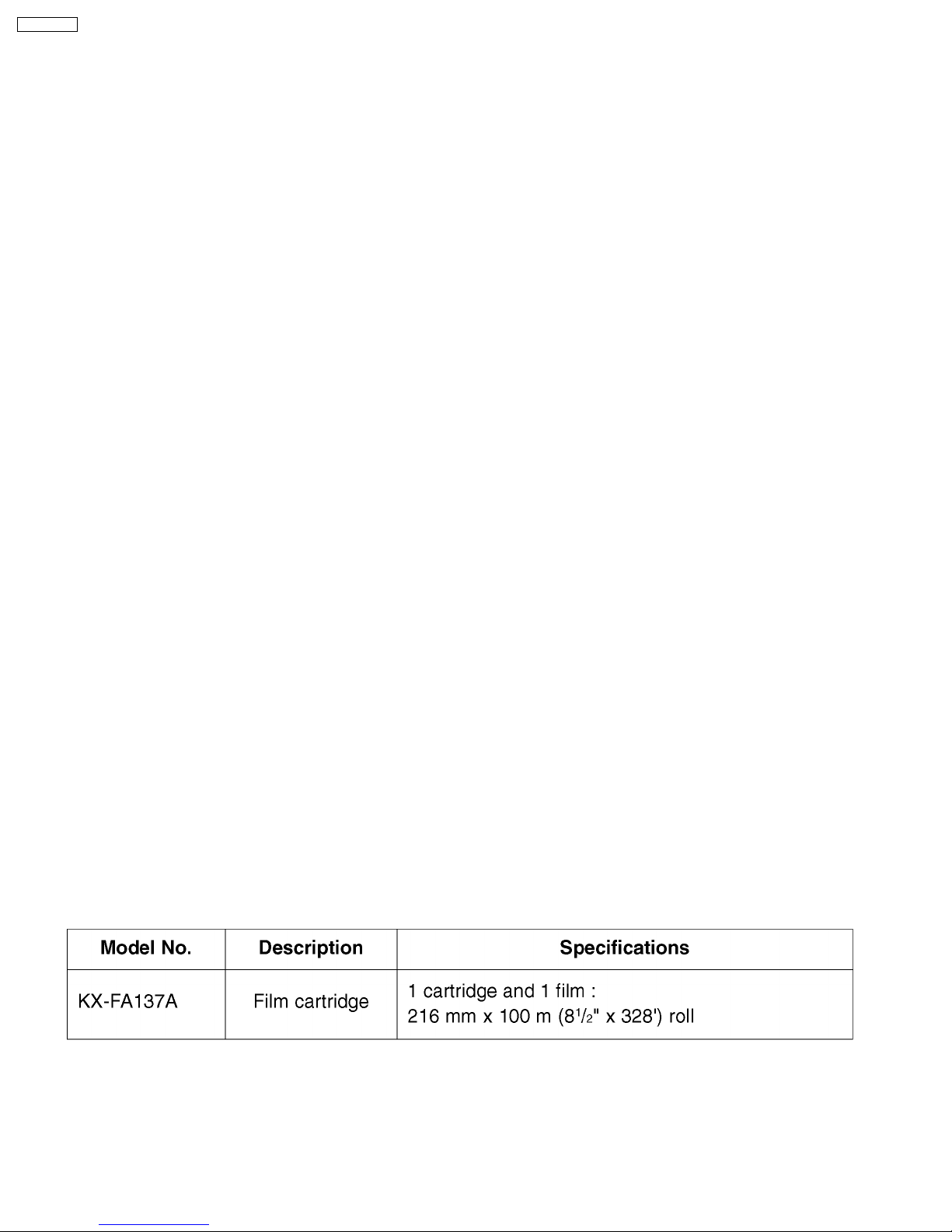

1.10. OPTIONAL ACCESSORIES
6
KX-FP101AL

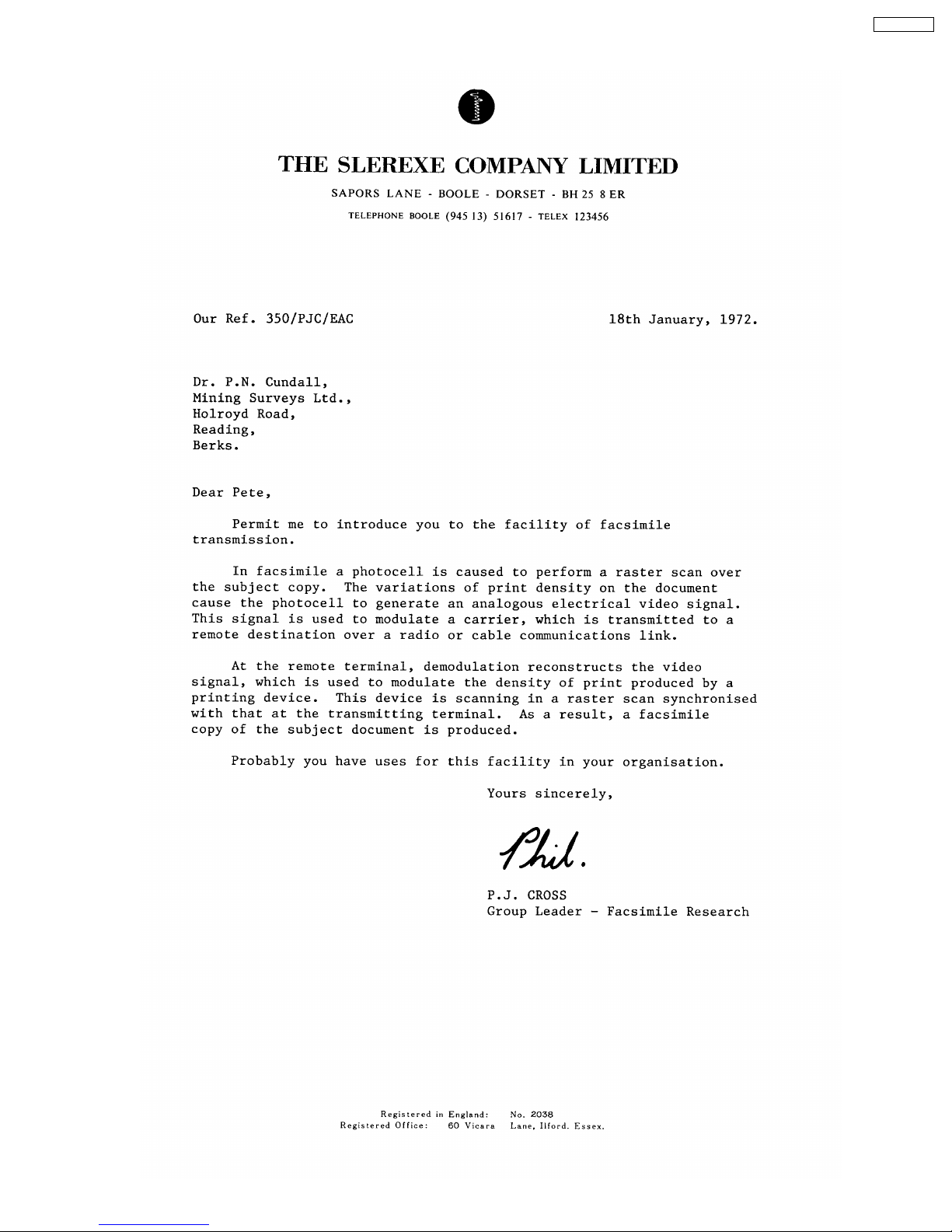

1.11. ITU-T Test Chart (Actual size)
7
KX-FP101AL

1.12. LOCATION OF CONTROLS

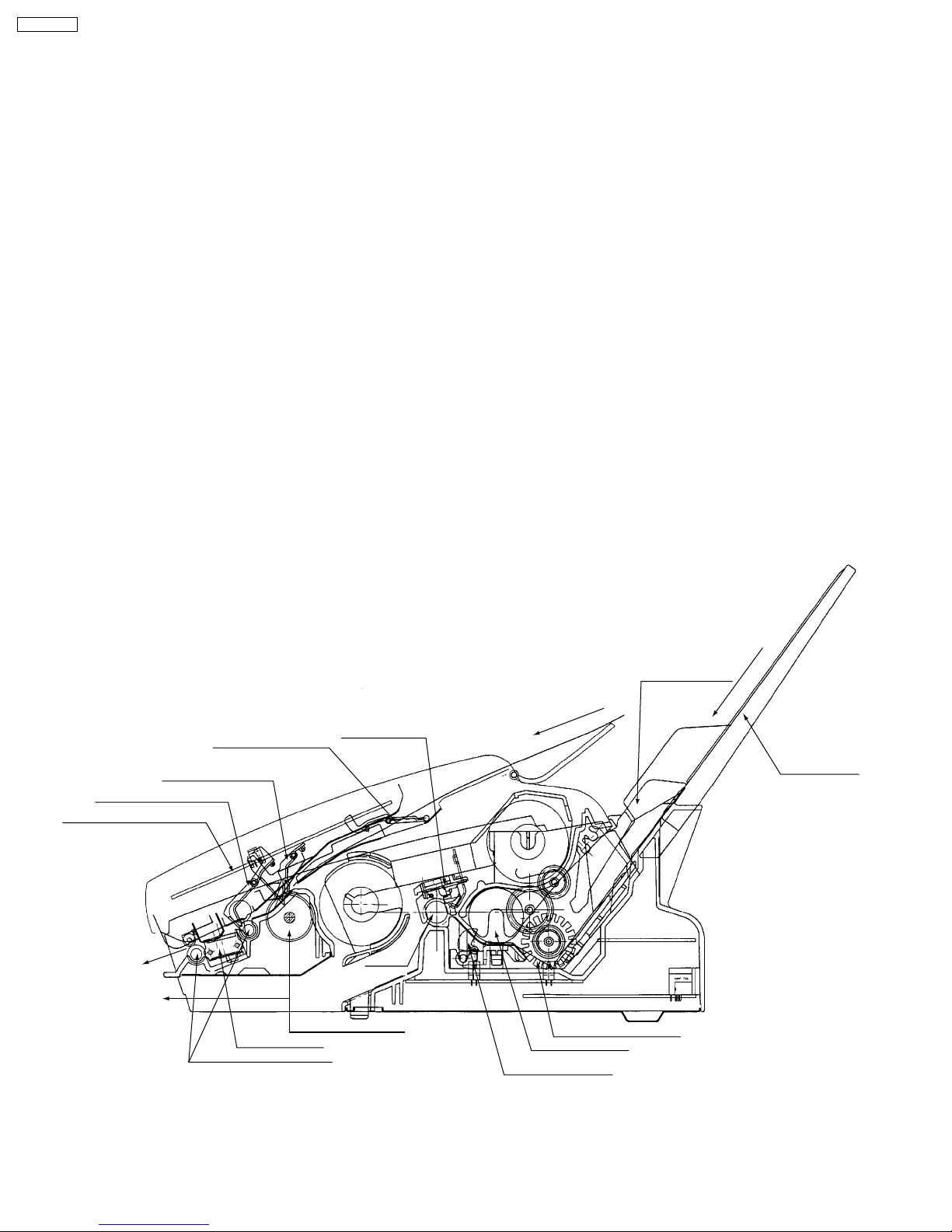

1.12.1. OVERVIEW
Note:
· The document and recording paper will be ejected from the front of the unit. Do not put anything in front of the unit.
8
KX-FP101AL

1.12.2. CONTROL PANEL
9
KX-FP101AL

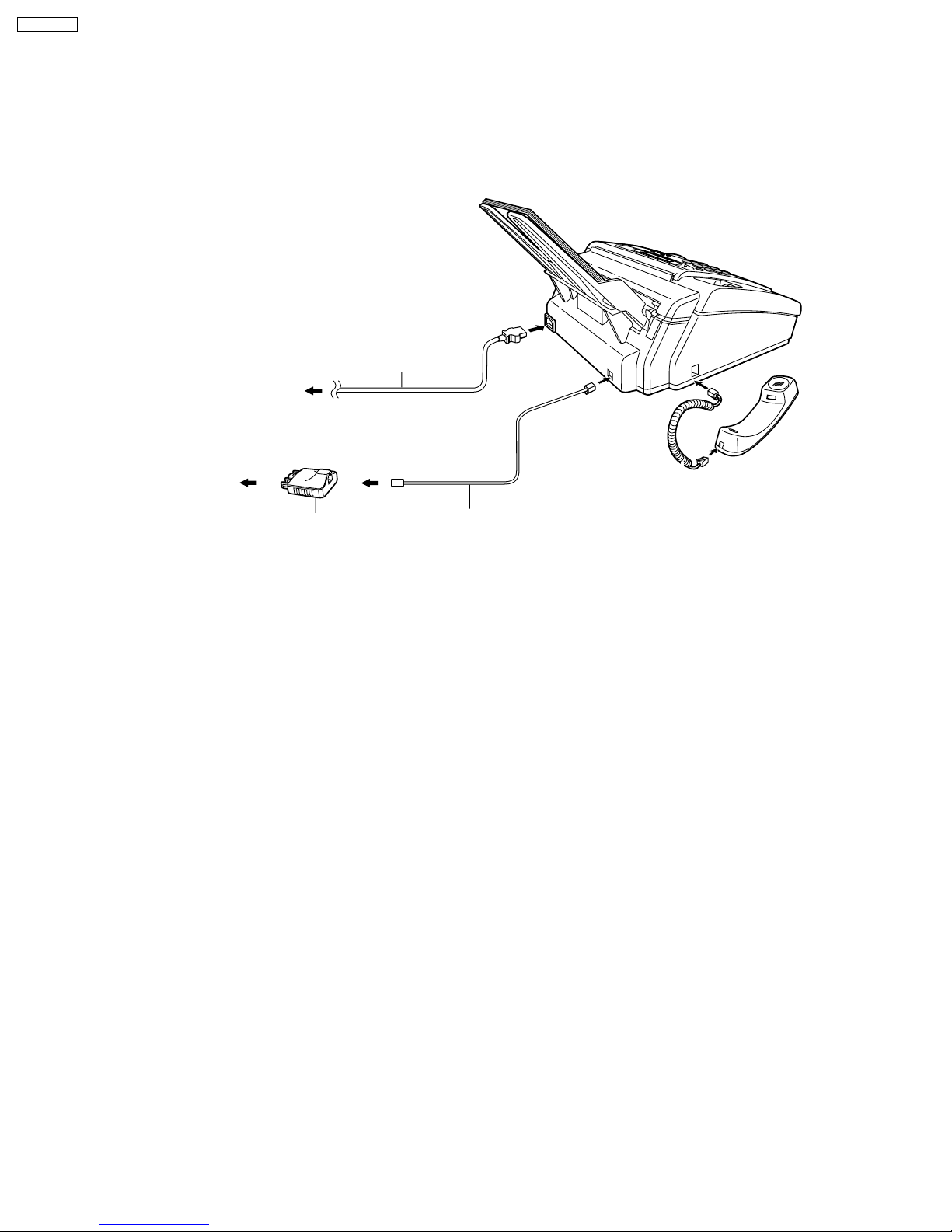

1.13. CONNECTIONS
To the power outlet
(220–240 V, 50/60 Hz)
Telephone
line cord
Power cord
Handset cord
To the single
telephone line
Telephone plug
1
Connect the handset cord.
2
Connect the telephone line cord.
3
Connect the power cord.
When the power is turned on for the
first time, the unit will print some
basic information.
NOTE
When you operate this product, the power outlet should be near the product and easily accessible.
10
KX-FP101AL

1.14. INSTALLATION
1.14.1. INSTALLATION SPACE
The space required to install the unit is shown below.
The dimensions given are necessary for the unit to operate efficiently.
Note:
· Avoid excessive heat or humidity.
· Use the unit within the following ranges of temperature and humidity.
· Ambient temperature: 5°C to 35°C
· Relative humidity: 20% to 80% (without condensation)
· Power cord length should be less than 5 meters (16.4 feet). Using a longer cord may reduce the voltage or cause
malfunctions.
· Avoid direct sunlight.
· Do not install near devices which contain magnets or generate magnetic fields.
· Do not subject the unit to strong physical shock or vibration.
· Keep the unit clean. Dust accumulation can prevent the unit from functioning properly.
· To protect the unit from damage, hold both sides when you move it.
11
KX-FP101AL

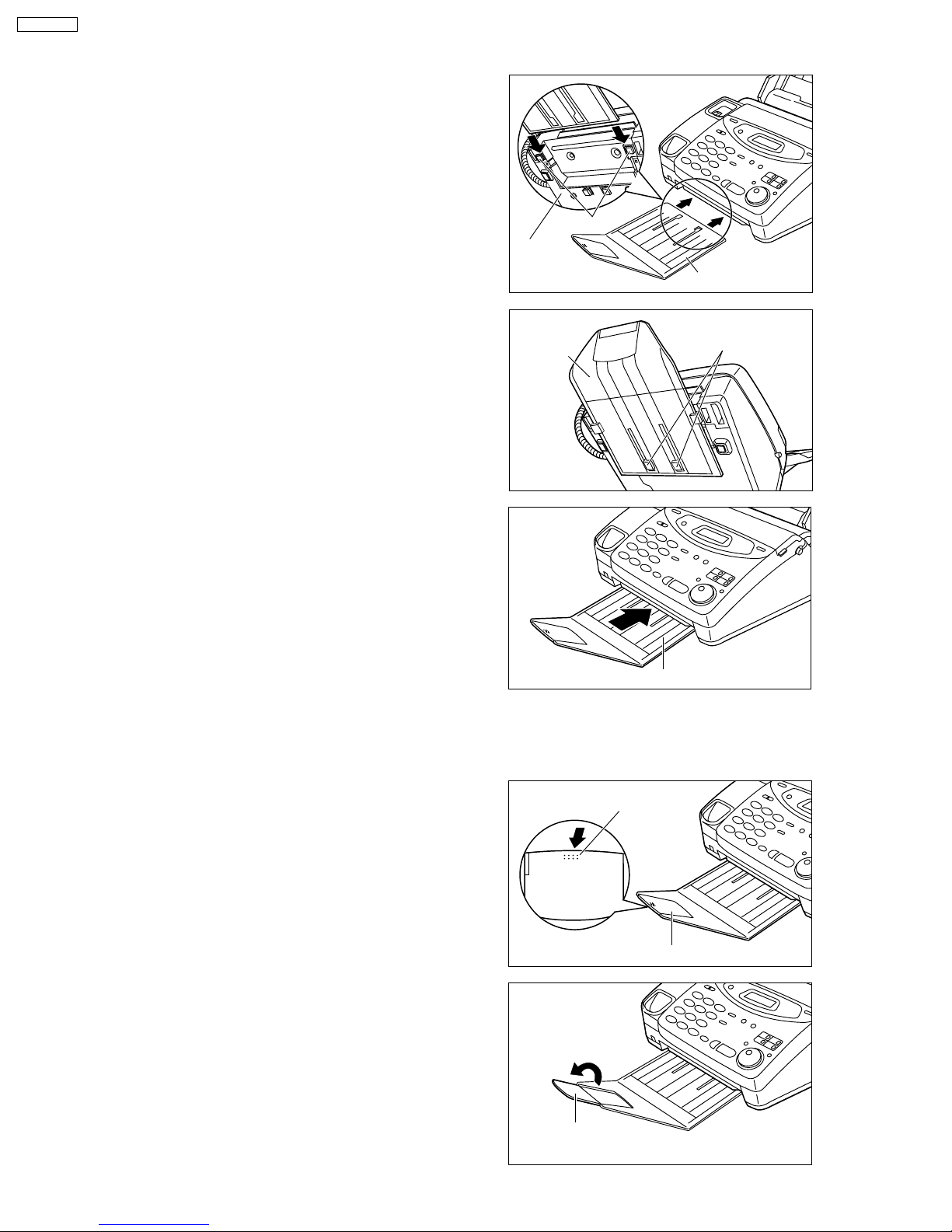

1.14.2. INSTALLING THE PAPER STACKER
1
Remove the shipping tape from the paper stacker.
2
Lift the front of the unit and insert the paper
stacker into the side slots.
Paper stacker
Side slots
Bottom
3
Confirm if the paper stacker is locked into the
center slots. Center slots
Paper
stacker
4
Slide the paper stacker until it stops.
Paper stacker
1.14.3. USING LEGAL SIZE PAPER
1
Press the dotted area on the paper stacker
extender.
Paper stacker extender
Dotted area
2
Open the paper stacker extender.
Paper stacker
extender
12
KX-FP101AL

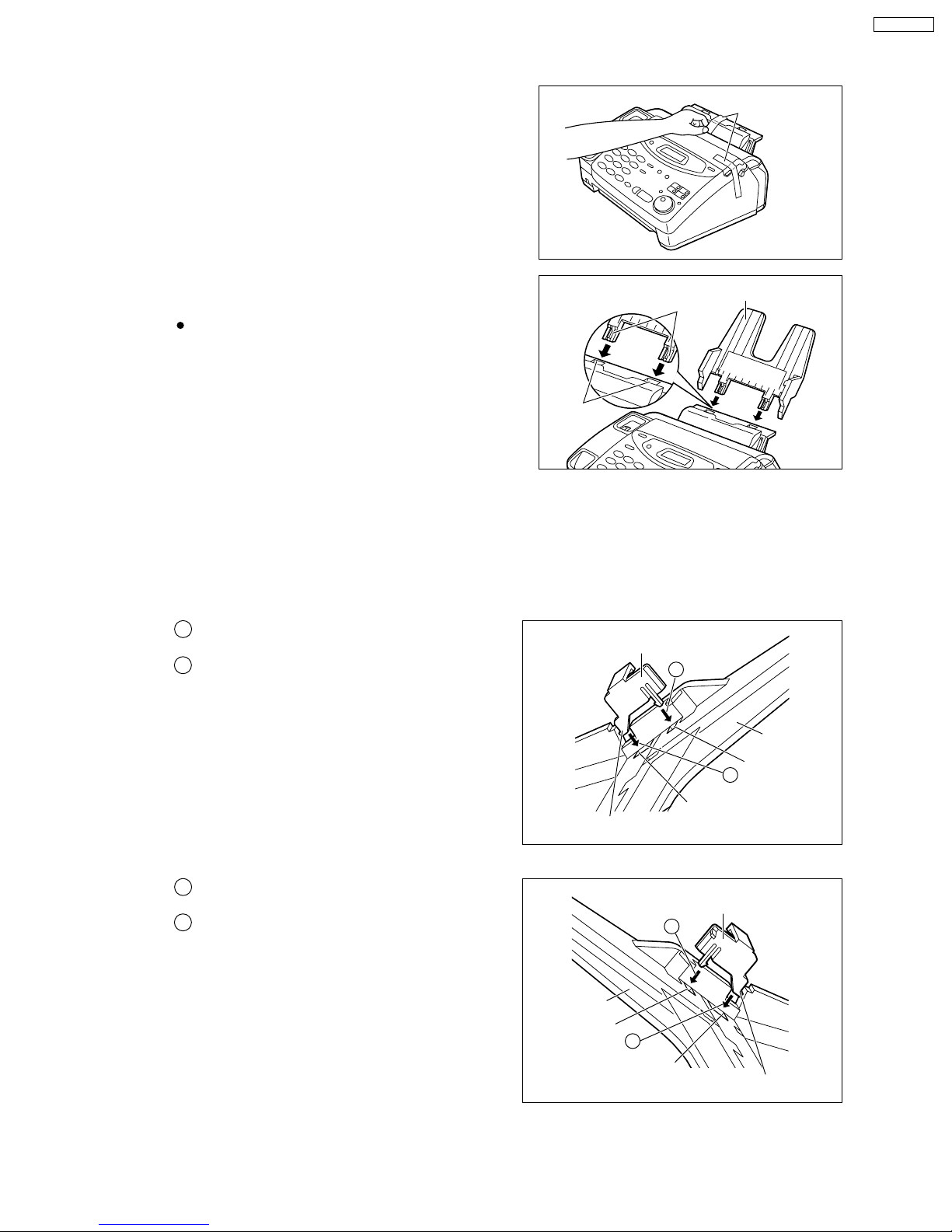

1.14.4. INSTALLING THE PAPER TRAY
2
Insert the two tabs on the paper tray into the slots
on the back of the unit.
Do not place the unit in areas where the paper
tray may be obstructed by a wall, etc.
Tabs
Slots
Paper tray
1
Remove the shipping tape from the unit. Shipping tape
1.14.5. INSTALLING THE A4 PAPER GUIDE
1
A Insert the bottom tab on the A4 paper guide
(left) into the lower slot.
B Press the guide into the upper slot.
A Insert the bottom tab on the A4 paper guide
(right) into the lower slot.
B Press the guide into the upper slot.
Install the A4 paper guides before settting the A4 size recording paper.
Note:
If the A4 paper guide cannot be installed, make
sure the paper tray has been installed correctly.
2
A4 paper guide (left)
Upper slot
Lower slot
Bottom tab
B
A
Paper tray
A4 paper guide (right)
Upper slot
Paper tray
Lower slot Bottom tab
B
A
13
KX-FP101AL

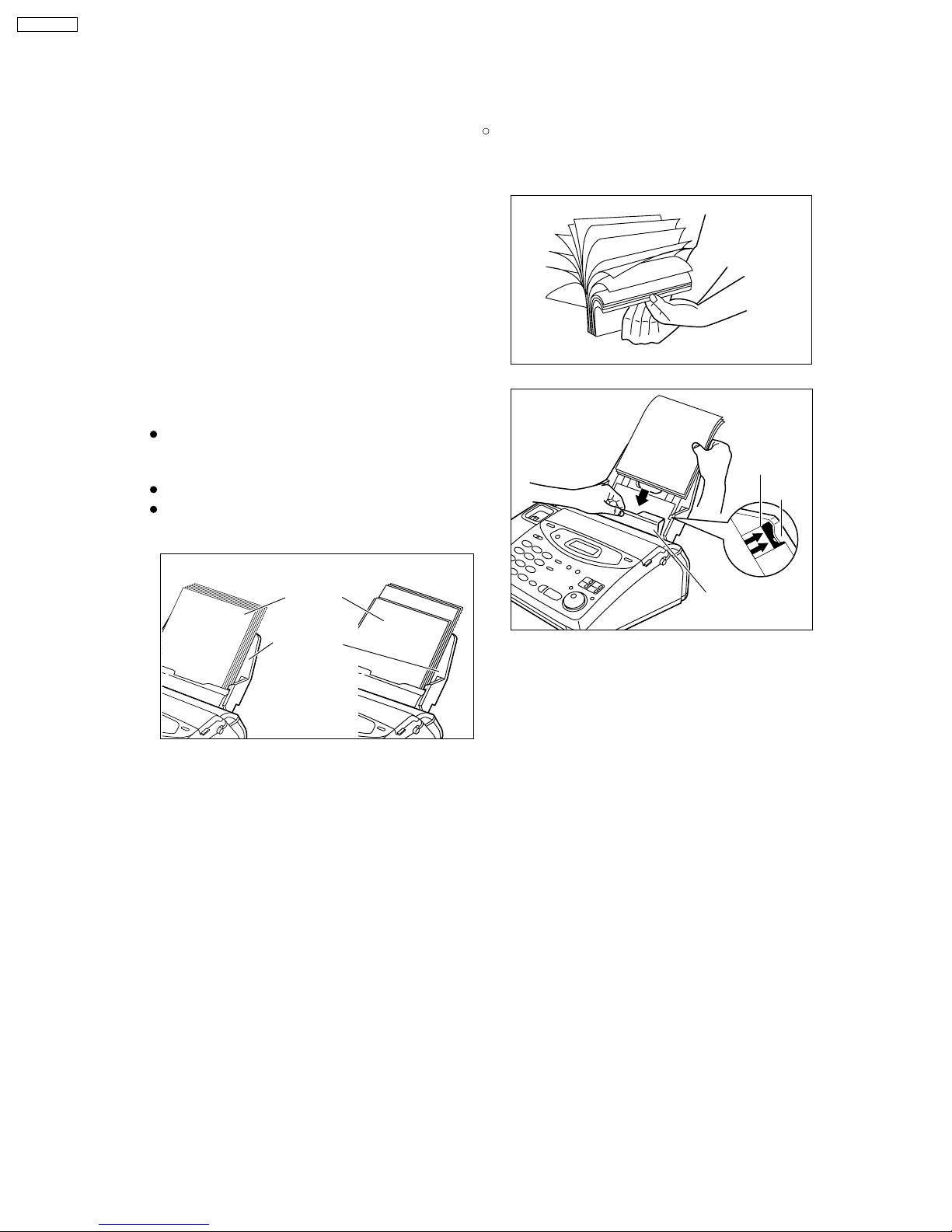

1.14.6. INSTALLING THE RECORDING PAPER
2
Pull the cassette open lever forward and insert the
paper into the cassette completely.
The height of the stack of the paper should not
exceed the upper limit on the paper tray,
otherwise the paper may jam or multi-feed.
The paper should not be over the tab.
If the paper is not inserted correctly, readjust the
paper or the paper may jam.
Incorrect
Correct
Stack of
paper
Paper tray
Upper limit
Cassette
open lever
Tab
Letter or legal size recording paper can be loaded. The paper tray can hold up to 150 sheets of 75 g/m
2
(20 lb.)
paper. You may use 60 g/m
2
to 90 g/m
2
(16 lb. to 24 lb.) paper.
For best results, only use inkjet paper like Hammermill Jet Print. If you use other types of paper, the
print quality may be affected.
R
1
Fan the stack of paper to prevent a paper jam.
Note:
· Avoid paper with a cotton and/or fiber content that is over 20%, such as letterhead paper or those used for
resumes.
· Do not use different types or thicknesses of paper in the cassette at the same time. This may cause a paper jam.
· Avoid extremely smooth or shiny paper that is highly textured. Also avoid paper that is coated, damaged or
wrinkled.
· Avoid double-sided printing.
· Do not use paper printed from this unit for double-sided printing with other copiers or printers, or the paper may jam.
14
KX-FP101AL

1.14.7. ADDING PAPER TO THE PAPER TRAY
1. Pull the cassette open lever forward and remove
all of the installed paper.
2. Add paper to the removed paper and straighten it.
3. Fan the stack of paper.
4. Pull the cassette open lever forward and insert
the paper into the cassette.
Cassette
open lever
1.14.8. DOCUMENTS THE UNIT CAN FEED
15
KX-FP101AL

1.14.9. SETTING YOUR LOGO
1
Press .
Display:
2
Press , then .
3
Press .
4
Enter your logo, up to 30 characters, by using the
dial keypad or JOG DIAL.
Example: Bill
1. Press twice.
Cursor
2. Press six times.
3. Press six times.
4. Press to move the cursor to the next space
and press six times.
5
Press .
6
Press .
MENU
SETUP ITEM [ ]
START/SET/COPY
LOGO=Bill
LOGO=Bil
5
LOGO=Bi
4
LOGO=B
2
LOGO=
START/SET/COPY
YOUR LOGO
0 2
1.SYSTEM SET UP
MENU
123
456
789
0
STOP
START/SET/COPY
MENU
EASY DIAL
INSERT
Press or to move the cursor to the
incorrect character, then make the correction.
Move the cursor to the character you want to delete
and press .
STOP
To insert a character
1. Press or to move the cursor to
the position to the right of where you want
to insert the character.
2. Press (One-Touch Dial key 2) to
insert a space and enter the character.
INSERT
The logo can be your company, division or name.
Note:
You can enter your logo by rotating
(see the next page). If using
, press to move the cursor.
EASY DIAL
EASY DIAL
5
To correct a mistake
To delete a character
16
KX-FP101AL

1.14.10. TO SELECT CHARACTERS WITH THE DIAL KEYPAD
Note: A hyphen entered in a telephone number is counted as two digits.
1.14.11. TO SELECT CHARACTERS USING THE JOG DIAL
Instead of pressing the dial keys, you can select characters using the JOG DIAL.
1. Rotate until the desired character
is displayed.
2. Press to move the cursor to the next space.
The character displayed in step 1 is inserted.
3. Return to step 1 to enter the next character.
Display order of characters
EASY DIAL
Capital
alphabet
Lower case
alphabet Number
Symbol
: Rotating to
the right
: Rotating to
the left
123
456
789
0
EASY DIAL
17
KX-FP101AL

1.14.12. REPLACING THE FILM CARTRIDGE
18
KX-FP101AL

19
KX-FP101AL

1.15. MAINTENANCE ITEMS AND COMPONENT LOCATIONS
1.15.1. OUTLINE
MAINTENANCE AND REPAIRS ARE PERFORMED USING THE FOLLOWING STEPS.
1.Periodic maintenance
Inspect the equipment periodically and if necessary, clean any contaminated parts.
2.Check for breakdowns
Look for problems and consider how they arose.
If the equipment can be still used, perform copying, self testing or communication testing.
3.Check equipment
Perform copying, self testing and communication testing to determine if the problem originates from the transmitter, receiver or
the telephone line.
4.Determine causes
Determine the causes of the equipment problem by troubleshooting.
5.Equipment repairs
Repair or replace the defective parts and take appropriate measures at this stage to ensure that the problem will not recur.
6.Confirm normal operation of the equipment
After completing the repairs, conduct copying, self testing and communication testing to confirm that the equipment operates
normally.
7.Record keeping
Make a record of the measures taken to rectify the problem for future reference.
1.15.2. MAINTENANCE CHECK ITEMS/COMPONENT LOCATIONS
COVER OPEN SENSOR
OPERATION PANEL BOARD
READ POSITION SENSOR
DOCUMENT SENSOR
THERMAL HEAD
INSERT DOCUMENT
CASSETTE OPEN
INSERT RECORDING
PAPER
LEVER
INK FILM
INK FILM SUPPLY
POWER SUPPLY
ANALOG UNIT
INK FILM END SENSOR
PICK UP ROLLER
PAPER TOP SENSOR
WIND
PLATEN
DIGITAL UNIT
ROLLER
SEPARATION ROLLER
IMAGE SENSOR
DOCUMENT
EXIT
RECORDING
PAPER EXIT
DOCUMENT FEED ROLLER
PAPER TRAY
20
KX-FP101AL
