Quick Menu Guide
(Mono bloc)
Air-to-Water Heatpump
Model No.
Mono bloc Unit
WH-MXC09J3E5-1
WH-MXC12J6E5-1
WH-MXC09J3E8-1
WH-MXC12J9E8-1
WH-MXC16J9E8-1
REFRIGERANT

2
This Quick Guide explains how to use the Quick Menu.
Please read the Operating Instructions thoroughly before using the Quick Menu.
Before Use

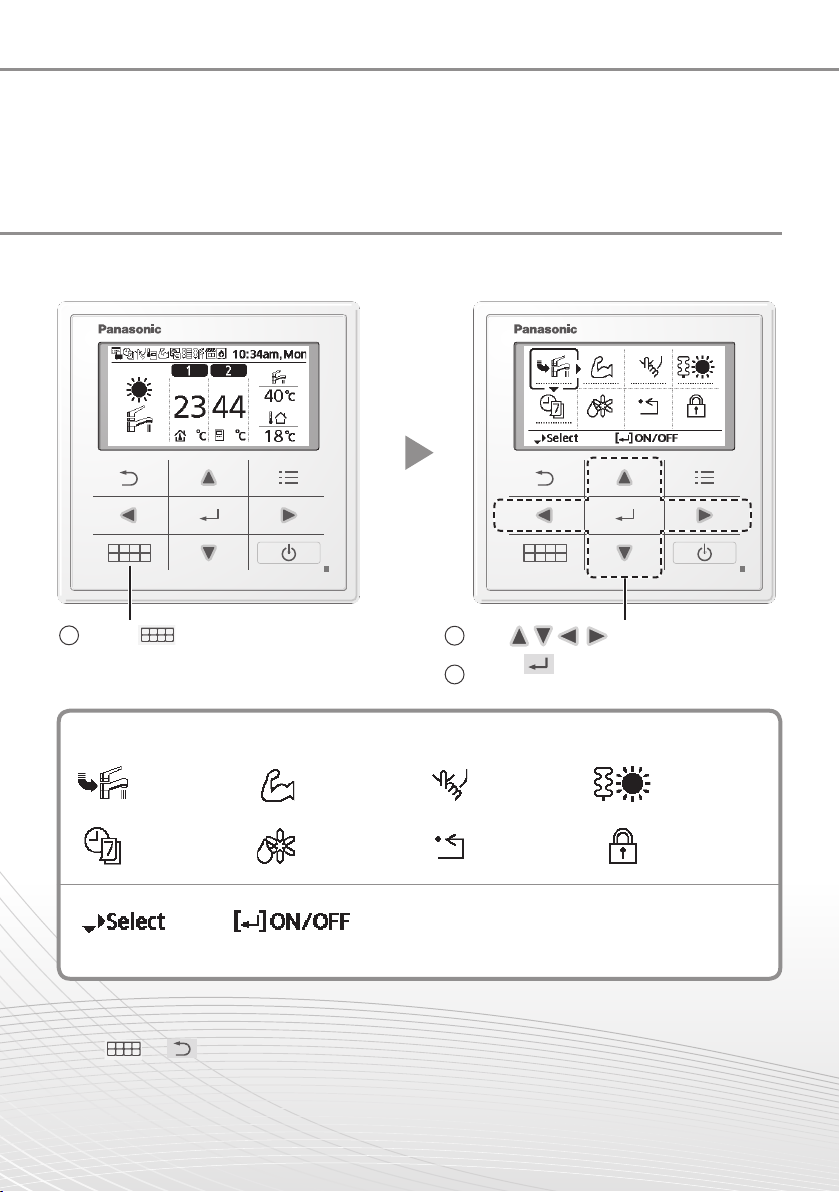

How to use the Quick Menu
After the initial settings have been completed, you can select a quick menu from the
following options and edit the setting.
Select each setting and confirm the setting
according to the instructions displayed at the
bottom of the screen. (The icons refer to each
selection key.)
Quick Menu
To return to the Main Screen,
Press or .
Force DHW Powerful Quiet Force
Heater
Weekly
Timer Force Defrost Error Reset R/C Lock
1Press . 2Use to select menu.
3Press to turn on/off the select
menu.

3
English

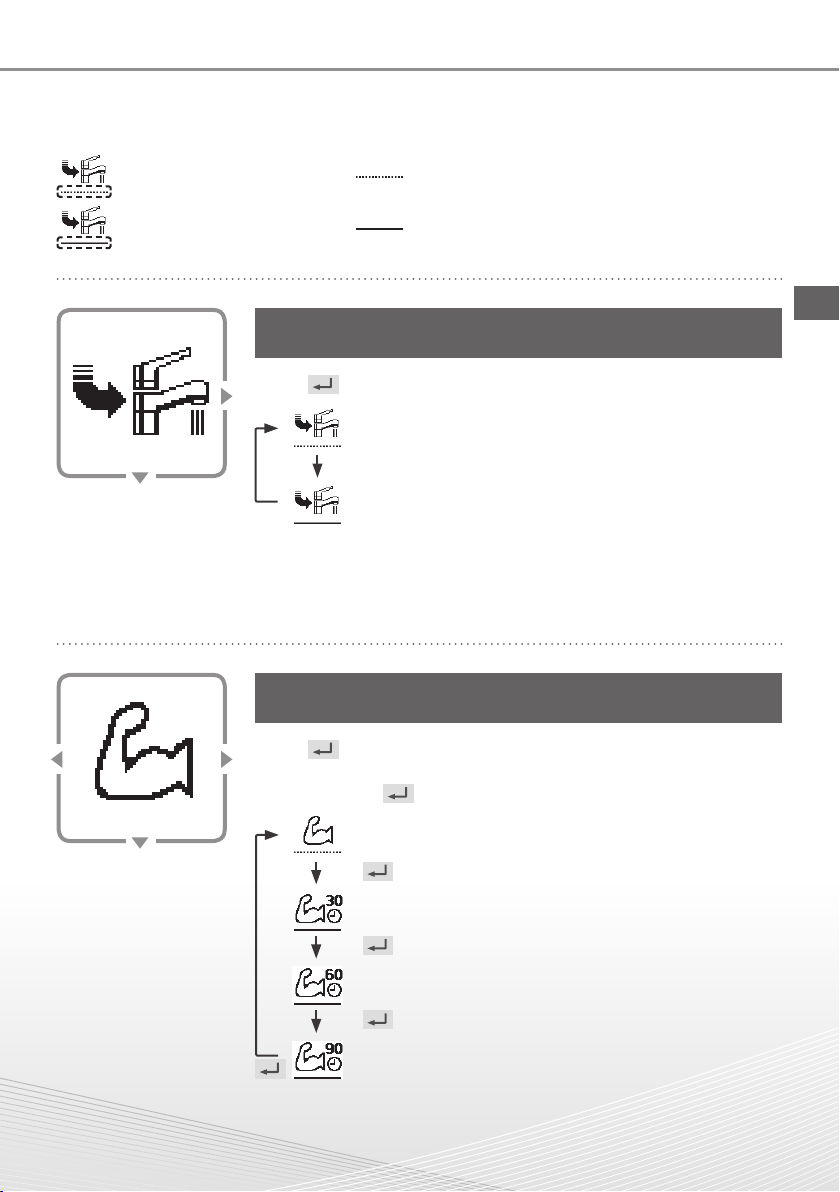

How to use the Quick Menu
Notes on operation icon
Example:
• Operation icon indicate with “ ” = OFF
• Operation icon indicate with “ ” = ON
Select this icon to turn the Tank DHW on or off.
Press to confirm your selection.
• Force DHW is turned off.
• Force DHW is turned on.
■Note:
• Force DHW is disabled when Force Heater is turned on.
• When Force DHW is turned off, operation & mode should change back to
the previous memorized status.
Force DHW
Select this icon to operate the heating/cooling system
powerfully.
Press to confirm your selection.
(The powerful operation starts approximately 1 minute after is
pressed.)
• Powerful mode is set off.
• The Powerful mode operates for 30 minutes.
• The Powerful mode operates for 60 minutes.
• The Powerful mode operates for 90 minutes.
■Note:
• Powerful is disabled when operation is turned OFF.
Powerful

4
Select this icon to operate quietly.
Press to confirm your selection.
(The quiet operation starts approximately 1 minute after is pressed.)
• Quiet mode is set off.
• The Quiet mode operates at level 1.
• The Quiet mode operates at level 2.
• The Quiet mode operates at level 3.
Level 3 is the most quiet mode.
• Select this to set a timer for the Quiet mode operation.
After 1 sec delay.
Quiet
Select “Yes”.
• Select “Yes” using buttons.
Select pattern “1” ~ “6”.
Select “Edit”.
• If you select “Delete”, the timer setting of
the selected pattern will be deleted.
Set the hour and minutes.
Select the level of Quiet.
■Note:
• If the time overlaps with another pattern,
"Set time is overlapped!" will appear on
the screen.
How to use the Quick Menu

5
English

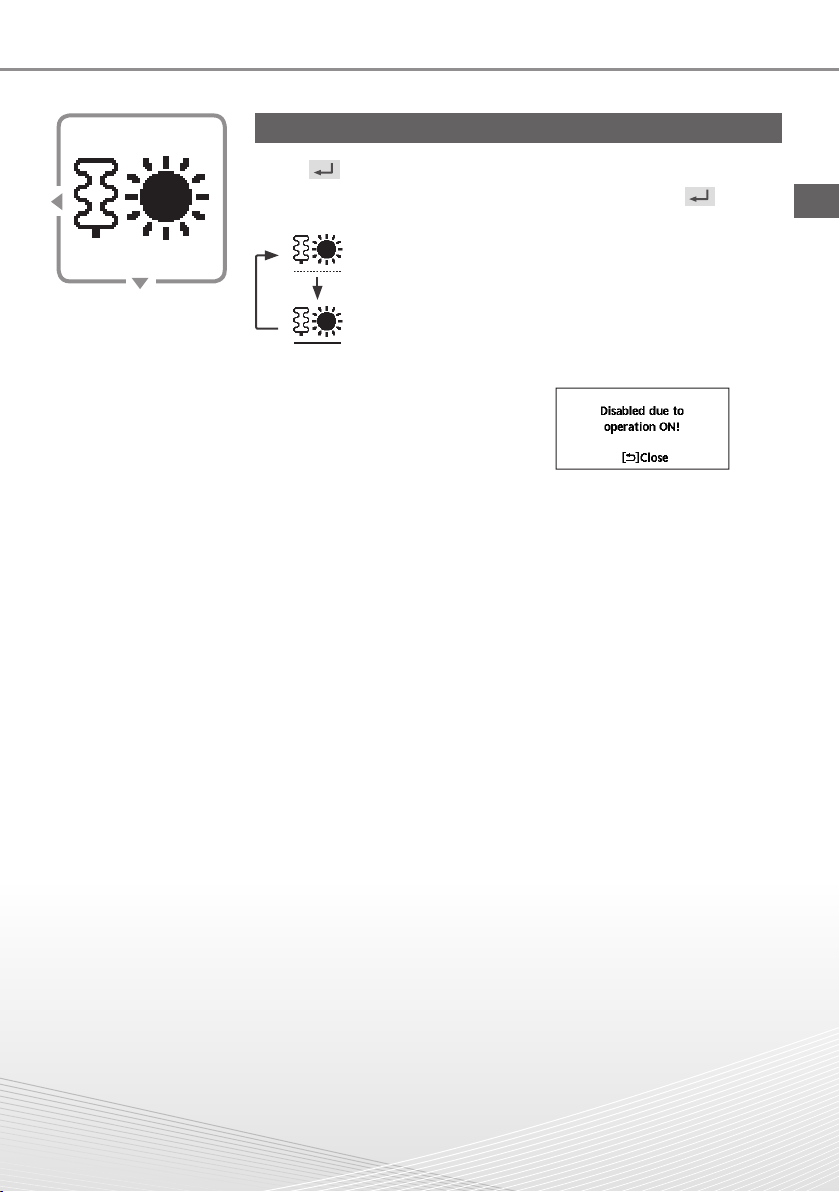

Select to force the Heater on.
Press to confirm your selection.
(The Force Heater mode starts approximately 1 minute after is
pressed.)
• Force Heater is turned off.
• Force Heater is turned on.
■Note:
• Force Heater is disabled whenever
operation is already on and ‘Disabled
due to operation ON!’ will be
displayed.
Force
Heater

6
Select this icon to delete (cancel) or change the pre-set
Weekly Timer.
Press to confirm your selection.
• Timer is not ON.
• Timer is set.
After 1 sec delay.
Weekly
Timer
Select “Yes”.
• If you select “No”, the screen will return to the Main Screen.
• Timer setup: Select Timer setup to edit the Weekly Timer.
• Timer copy: Select to copy a timer setting.
[Example of a Timer setup]
Select the day(s) which you wish to edit using buttons.
If all 6 patterns are not preset, this screen will be displayed.
1 2 3 4 5 6
1Select pattern “1” ~ “6”.
2Set the hour and minutes of the Timer.
3Select ON/OFF of the Timer.
4Select the operation mode.
/ / / / / /
• Select mode using buttons.
5Set the temperature for both Zone 1 and 2
(if your system has the 2-Zone setting).
6Set the Tank temperature.
■Note:
• Timer is disabled when Force Heater is turned on or Heat-Cool SW is enabled.
• If you have preset the Weekly Timer on 2 zones, you must repeat the same procedure with Zone 2.
How to use the Quick Menu

7
English

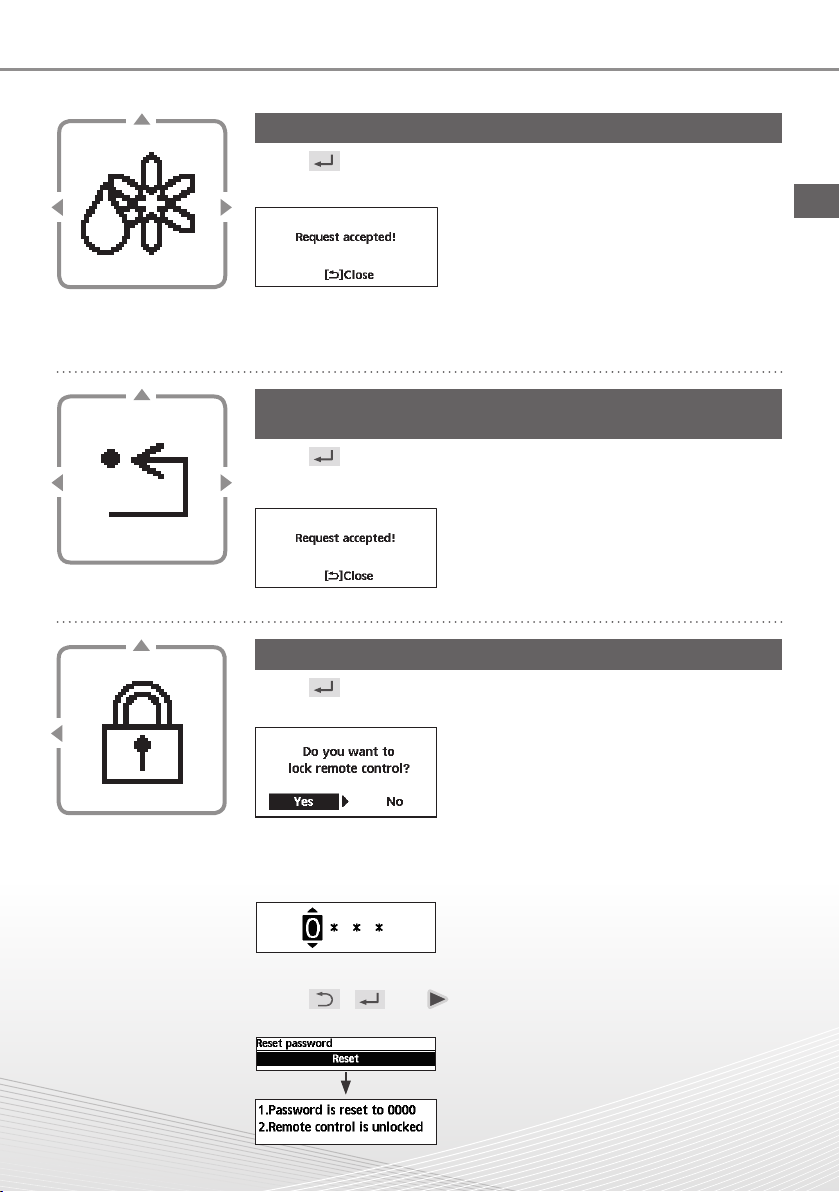

Select to defrost the frozen pipes.
Press to confirm your selection.
(When the mode is accepted, below screen will be displayed.)
Force
Defrost
Select to restore the previous settings when error has
occurred.
Press to confirm your selection.
(When the mode has been accepted, below screen will be displayed.)
• Make sure all units are turned off before
selecting this mode which restores the whole
system to the previous settings.
Error Reset
Select to lock the Remote Controller.
Press to confirm your selection.
(When the mode has been accepted, below screen will be displayed.)
Select “Yes”.
(The Main Screen will be locked.)
• If “No” is selected, the screen will return to the
Main Screen.
To unlock the Remote Controller
Press any key.
(When the mode has been accepted, below screen will be displayed.)
Enter any 4 digits of number (if the number is
correct, the screen will be unlocked).
To reset forgotten password (under operation OFF screen)
Press , and continuously for 5 seconds.
(When the mode has been accepted, below screen will be displayed.)
Select “Reset”.
(The screen will be off after 3 seconds.)
R/C Lock

8
Denne hurtige vejledning forklarer, hvordan hurtigmenuen skal bruges.
Du bedes læse betjeningevejledningen grundigt, før du bruger hurtigmenuen.
Før brug
Sådan bruger du hurtigmenuen
Når de indledende indstillinger er gennemført, kan du vælge en hurtigmenu fra følgende
indstillinger, og redigere indstillingen.
Vælg hver indstilling og bekræft indstillingen i
henhold til de instruktioner, der vises nederst på
skærmen. (Ikonerne henviser til hver valgtast.)
Hurtig menu
Sådan vender du tilbage til hovedskærmen,
Tryk på eller .
Tving DHW Powerful Lydsvag Start el
backup
Ugeprogram Kraftig
optøning Nulstilling af fejl R/C-lås
1Tryk på . 2Brug til at vælge menuen.
3Tryk på for at tænde/slukke for den
valgte menu.

9
Sådan bruger du hurtigmenuen
Vælg dette ikon for at tænde eller slukke tankens varme
brugsvand.
Tryk på for at bekræfte dit valg.
• Kraftigt varmt brugsvand er slukket.
• Kraftigt varmt brugsvand er tændt.
■Bemærk:
• Kraftigt varmt brugsvand er deaktiveren når det kraftige varmelegeme er
tændt.
• Når det kraftige varme brugsvand er slukket, bør funktionen & tilstanden
skifte tilbage til den forrige gemte status.
Tving DHW
Vælg dette ikon for at køre varme/kølesystemet kraftigt.
Tryk på for at bekræfte dit valg.
(Den kraftige drift starter ca. 1 minut efter der er trykket på .)
• Den kraftige tilstand er slukket.
• Den kraftige tilstand fungerer i 30 minutter.
• Den kraftige tilstand fungerer i 60 minutter.
• Den kraftige tilstand fungerer i 90 minutter.
■Bemærk:
• Kraftig bliver deaktiveret når funktionen er slukket.
Powerful
Noter om betjeningsikon
Eksempel:
• Betjeningsikon indikeres med " " = FRA
• Betjeningsikon indikeres med " " = TIL
Dansk

10

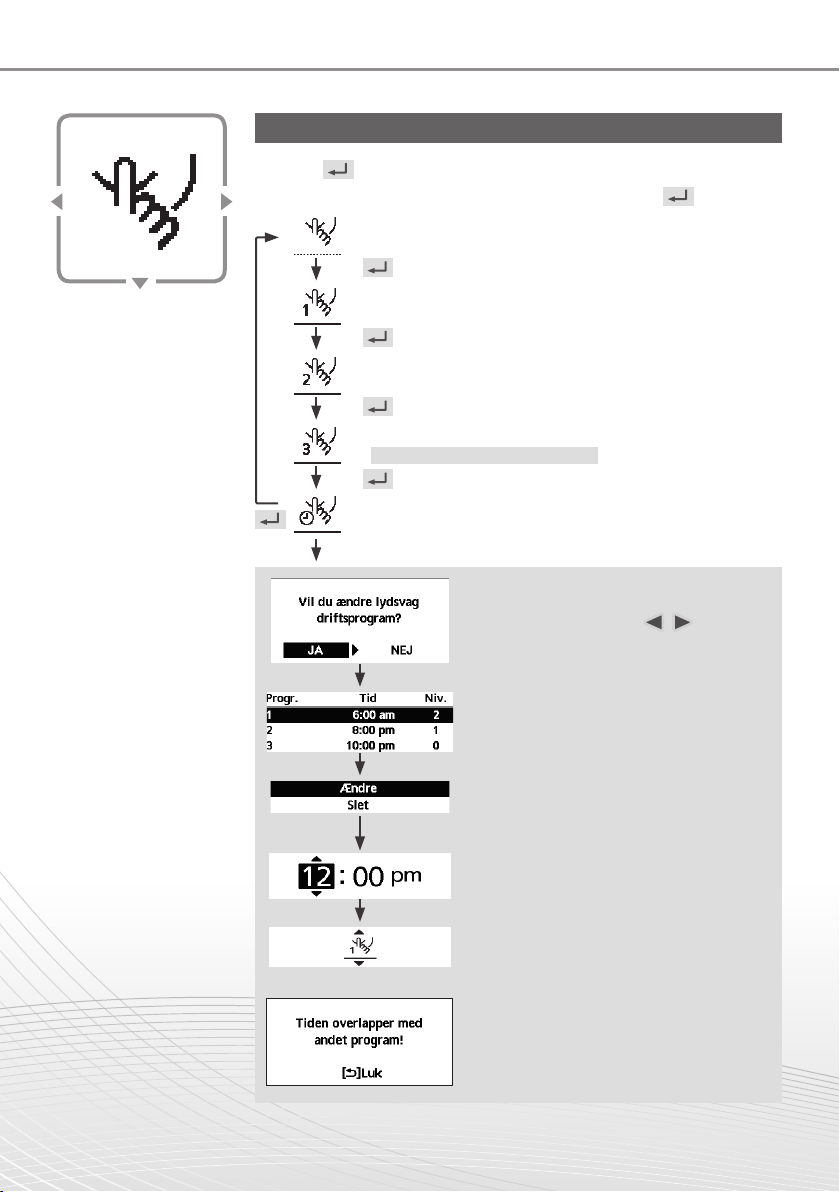

Vælg dette ikon for at stille drift.
Tryk på for at bekræfte dit valg.
(Den stille drift starter cirka 1 minut efter der er trykket på .)
• Stille tilstand er slukket.
• Den stille tilstand fungerer på niveau 1.
• Den stille tilstand fungerer på niveau 2.
• Den stille tilstand fungerer på niveau 3.
Niveau 3 er den mest stille tilstand.
• Vælg dette for at indstille en timer til at fungere på stille
tilstand.
Efter en forsinkelse på 1 sekund.
Lydsvag
Vælg "JA".
• Vælg "JA" ved at bruge
knapperne.
Vælg mønster "1" ~ "6".
Vælg "Ændre".
• Hvis du vælger "Slet", vil timeren
indstilling fordet valgte mønster blive
slettet.
Indstil timen og minutter.
Vælg niveauet for stille.
■Bemærk:
• Hvis tiden overlapper med et andet
mønster, vises "Tiden overlapper med
andet program!" på skærmen.
Sådan bruger du hurtigmenuen
