STEP1Positioning the speakers
STEP2Speaker connections
STEP3Digital transceiver connection
STEP4Audio, video and radio connections
STEP5AC mains lead connections
STEP6Preparing the remote control
STEP7Presetting the radio stations
STEP8Performing QUICK SETUP
Setup Guide
RQT8737-2B.fm Page 1 Tuesday, May 9, 2006 4:41 PM

2
How you set up your speakers can affect the bass and the sound field. Note the following points:
≥Place speakers on flat secure bases.
≥Placing speakers too close to floors, walls, and corners can result in excessive bass. Cover walls and windows with thick
curtains.
≥Left and right speakers are interchangeable, but front and surround speakers are not.
≥Place the front, center, and surround speakers at approximately the same distance from the seating position.
The angles in the diagram are approximate.
≥Use only supplied speakers
Using other speakers can damage the unit, and sound
quality will be negatively affected.
≥Set the speakers up on an even surface to prevent them
from falling. Take proper precautions to prevent the
speakers from falling if you cannot set them up on an
even surface.
This unit
[Note]
≥Keep your speakers at least 10 mm away from the
system for proper ventilation.
≥To allow for proper ventilation and to maintain good
airflow around this unit, position it with at least 5 cm of
space on all sides.
≥Do not block the ventilation holes of this unit.
Center speaker
≥Vibration caused by the center speaker can disrupt the
picture if it is placed directly on the television. Put the
center speaker on a rack or shelf.
≥To prevent the speakers from falling, do not place directly
on top of the television.
Wireless system
≥Place the wireless system within approximately 10 m
from this unit.
≥Do not use the wireless system or the digital transceiver
in a metal cabinet or bookshelf.
Subwoofer
Place to the right or left of the television, on the floor or a
sturdy shelf so that it will not cause vibration. Leave about
30 cm from the television.
Caution
Do not touch the netted area
of the speakers.
STEP1Positioning the speakers
5
5

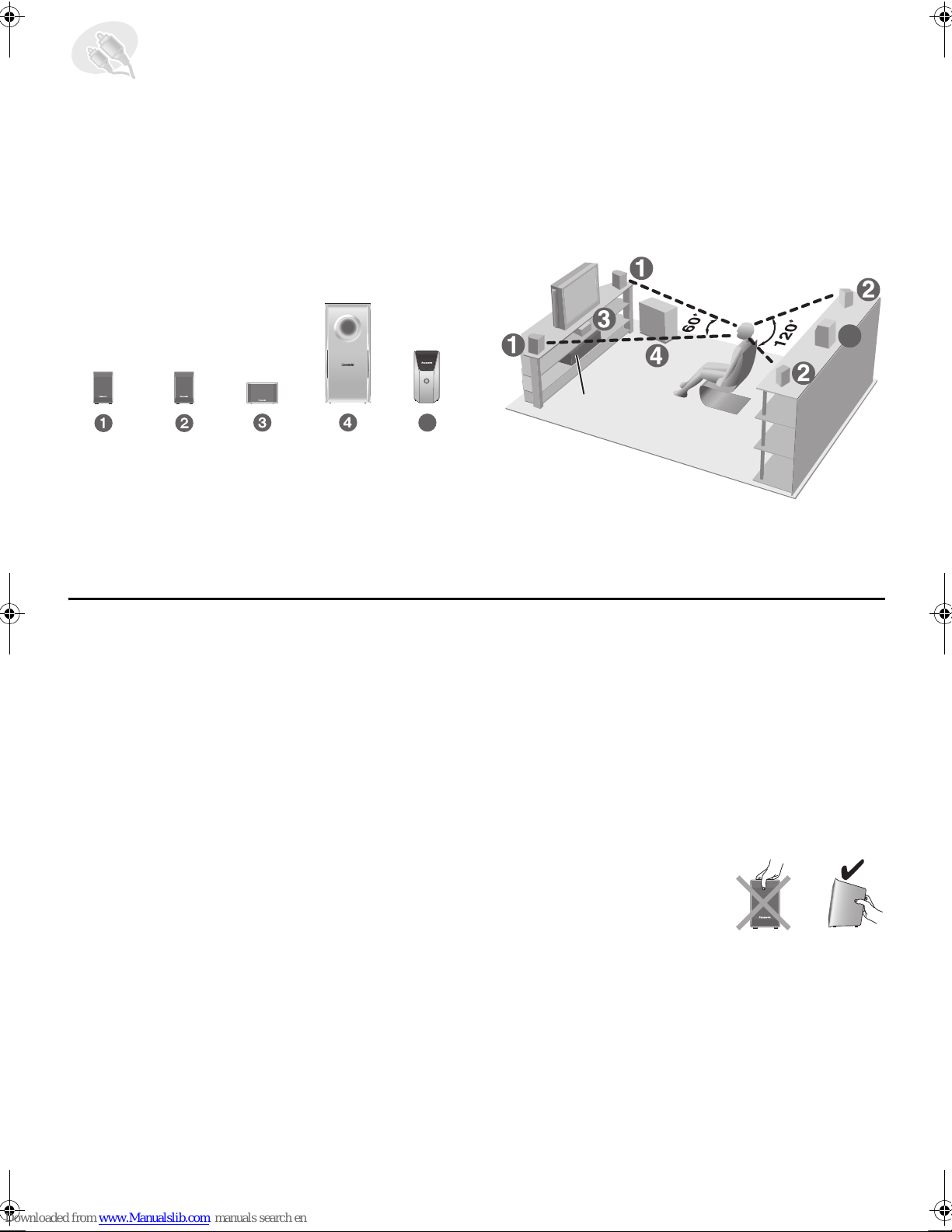

Setup example
This unit
(with digital transceiver)
FRONT
(L, R)
SURROUND
(L, R)
CENTER
SUBWOOFER
Connect the supplied speakers and subwoofer to this unit only.
Do not attempt to connect the supplied speakers and subwoofer
to the external amplifier and so on.
WIRELESS
SYSTEM
e.g. Front speaker
RQT8737-B.fm P age 2 Friday, April 7, 2006 4:38 PM

3
Notes on speaker use
≥You can damage your speakers and shorten their useful
life if you play sound at high levels over extended periods.
≥Reduce the volume in the following cases to avoid
damage:
– When playing distorted sound.
– When the speakers are reverberating due to a record
player, noise from FM broadcasts, or continuous
signals from an oscillator, test disc, or electronic
instrument.
– When adjusting the sound quality.
– When turning the unit on or off.
If irregular coloring occurs on your television
The front and center speakers are designed to be used
close to a television, but the picture may be affected with
some televisions and setup combinations.
If this occurs, turn the television off for about 30 minutes.
The demagnetizing function of the television should correct
the problem. If it persists, move the speakers further away
from the television.
∫Avoiding interference
To avoid possible interference, do not place the wireless system near any of the following devices.
The wireless system uses the same radio frequencies as other devices that may be present in your home.
The wireless system will automatically seek a clear channel if any of these other devices interfere with its communication.
When this happens, the wireless link indicator (“ [W] ”) flashes on this unit, and there is a brief interruption in audio coming
from the surround speakers.
This is the normal operation of the product working to assure the best possible performance of your Home Theater System.
If the interference persists, try moving the other devices to another location outside the range of the wireless system.
Caution
≥This unit and the supplied speakers are to be used
only as indicated in this setup. Failure to do so may
lead to damage to the amplifier and/or the
speakers, and may result in the risk of fire. Consult
a qualified service person if damage has occurred
or if you experience a sudden change in
performance.
≥Do not attempt to attach these speakers to walls
using methods other than those described in this
manual.
2.4GHz-band microwave oven
2.4GHz-band cordless phone
personal computer with 2.4GHz-band
wireless LAN
e.g.
RQT8737-B.fm P age 3 Wednesday, April 12, 2006 2:08 P

4

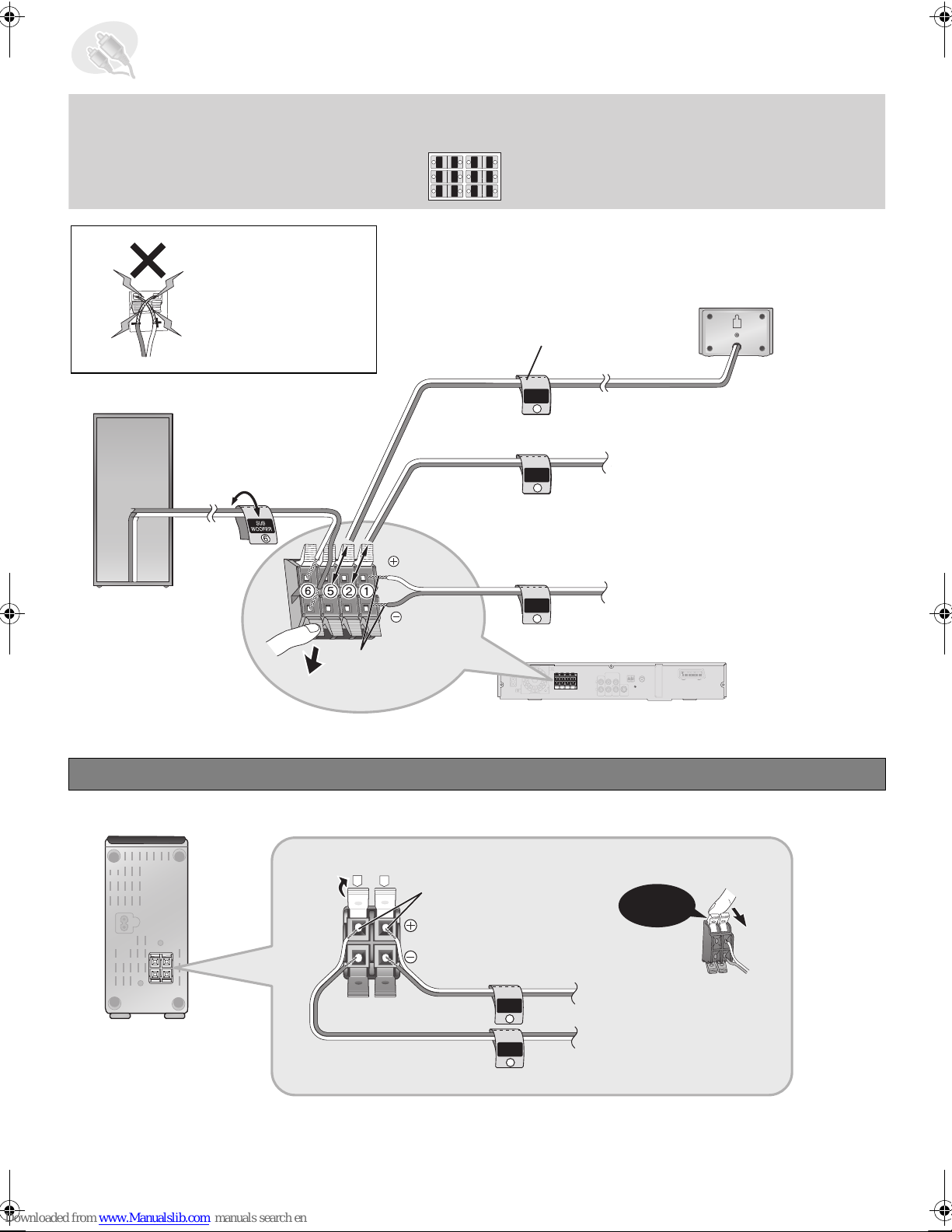

Connecting the surround speaker cables to the wireless system
STEP2Speaker connections
4
4
2
2
6
6
53
5
3
1
1
SURROUND
Rch
Rch
SURROUND
Rch
Rch
FRONT
WOOFER
SUB
Lch
Lch Lch
CENTER
Lch
SURROUND
SURROUND
FRONT
SUB
WOOFER
FRONT
FRONT
CENTER
Rch
FRONT
2
FRONT
Lch
1
CENTER
5
1 sheet of speaker cable stickers
≥Attach the speaker-cable stickers to make connection easier.
Speaker cable sticker
2FRONT (R)
1FRONT (L)
5CENTER
This unit
Insert the wire fully.
i: White
j: Blue
Push!
6SUBWOOFER
Be careful not to cross
(short-circuit) or
reverse the polarity of
the speaker wires as
doing so may damage
the speakers.
LR
Rch
SURROUND
4
Lch
SURROUND
3
Wireless system
Click!
Insert the wire fully.
i: White
j: Blue
4SURROUND (R)
3SURROUND (L)
RQT8737-B.fm P age 4 Friday, April 7, 2006 4:38 PM

5
≥Do not connect through the video cassette recorder.
Due to copy guard protection, the picture may not be displayed properly.
≥Turn the television off before connecting, and refer to the television’s operating instructions.
To improve picture quality, you can change the video signal output from the SCART (AV) terminal.
Select “RGB/No Output” from QUICK SETUP (➜page 11).
≥This connection will also enable you to play audio from your television through your home theater system.
Refer to “Operating other equipment” (➜page 39, Operations Guide).

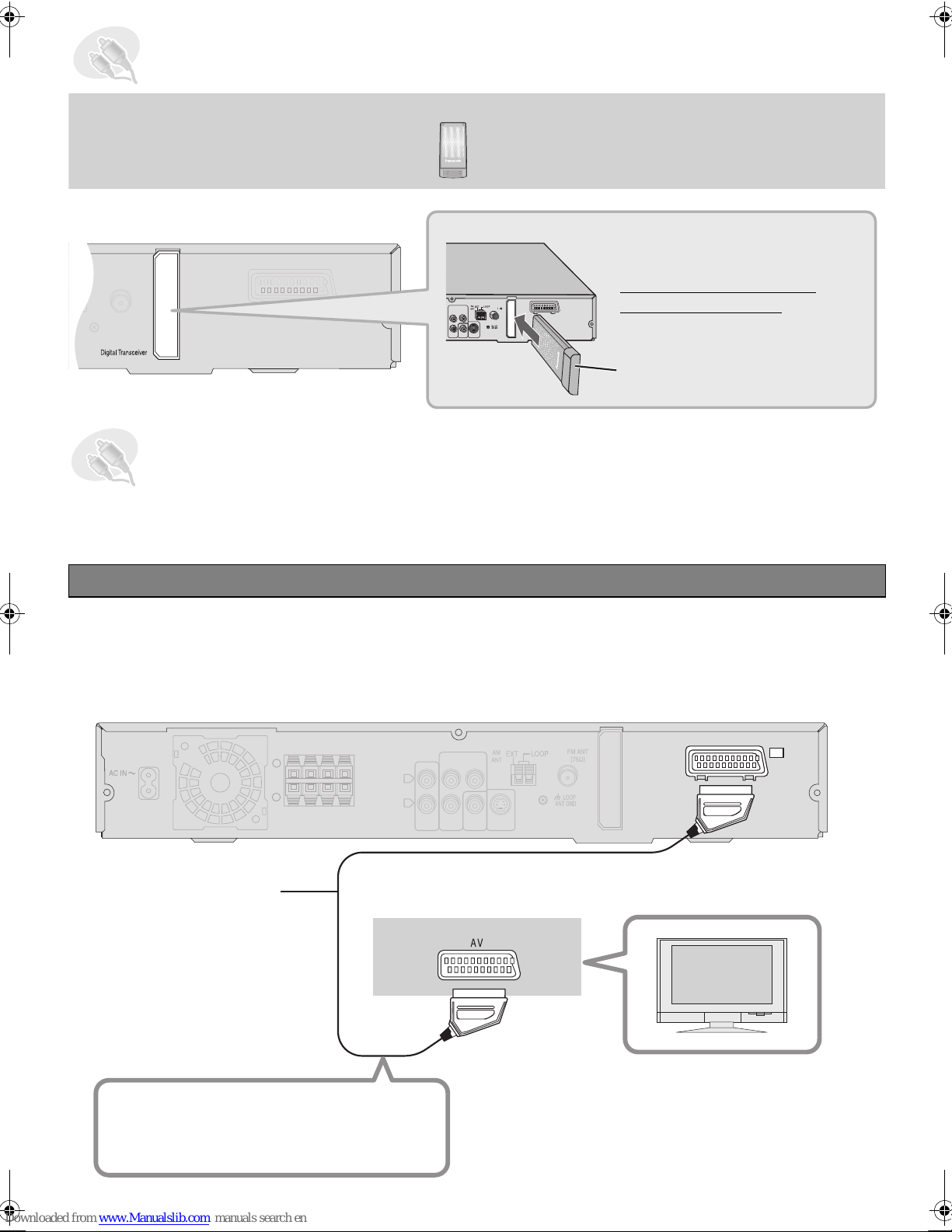

Connecting to a television with SCART (AV) terminal
STEP3Digital transceiver connection
Digital Transceiver
FM ANT
75
COMPONENT VIDEO OUT
VIDEO
S-VIDEO
OUT
Y
PB
R
P
OUT
This unit Insert the digital transceiver
into the slot.
Do not insert or remove
while this unit is on.
Digital transceiver
Insert fully until you hear a click.
Digital transceiver
STEP4Audio, video and radio connections
COMPONENT VIDEO OUT
VIDEO
VIDEO
OUT
OUT
r
s
S-VIDEO
S-VIDEO
OUT
OUT
R
L
P B
P R
Y
AUX
AUX
Digital Transceiver
AV
Back of this unit
Television
(not included)
Scart cable (not included)
≥To listen to the sound from the
television, select the appropriate
audio out (e.g., Monitor) on the
television.
Sound from the television
Press [EXT-IN] to select the “TV” audio input
on the remote control (➜page 39,
Operations Guide).
RQT8737-B.fm P age 5 Friday, April 7, 2006 4:38 PM

6
∫Television with an S-VIDEO IN terminal
The S-VIDEO OUT terminal achieves a more vivid picture than the VIDEO OUT terminal by separating the chrominance
(C) and luminance (Y) signals. (Actual results depend on the television.)
Connecting to a television with AUDIO/VIDEO terminals
Using other video connections for improved picture quality
P B
P R
Y
COMPONENT VIDEO OUT
r
s
S-VIDEO
S-VIDEO
OUT
OUT
R
L
AUX
AUX
VIDEO
VIDEO
OUT
OUT
Digital Transceiver
AV
AUDIO
OUT
L
R
VIDEO IN
AUDIO
IN
VIDEO OUT
Television
(not included)
Back of this unit
Video cable
(not included)
Audio cable§
(not included)
§This audio connection will enable you to play audio from your television through your home theater system.
Refer to “Operating other equipment” (➜page 39, Operations Guide).
P
COMPONENT VIDEO OUT
r
sR
L
AUX
AUX
VIDEO
VIDEO
OUT
OUT
S-VIDEO
S-VIDEO
OUT
OUT
P B
R
Y
AV
Digital Transceiver
AUDIO
OUT
L
R
AUDIO
IN
VIDEO OUT S-VIDEO
IN
Television
(not included)
S-video cable
(not included)
Back of this unit
Audio cable§
(not included)
§This audio connection will enable you to play audio from your television through your home theater system.
Refer to “Operating other equipment” (➜page 39, Operations Guide).
RQT8737-B.fm P age 6 Friday, April 7, 2006 4:38 PM

7
∫Television with COMPONENT VIDEO IN terminals
The COMPONENT VIDEO OUT terminals provides a purer
picture than the S-VIDEO OUT terminal. These terminals
can be used for either interlaced or progressive output.
Connection using these terminals outputs the colour
difference signals (PB/PR) and luminance signal (Y)
separately in order to achieve high fidelity in reproducing
colours.
≥The description of the component video input terminals
depends on the television or monitor
(e.g. Y/PB/PR, Y/B-Y/R-Y, Y/CB/CR). Connect to terminals of
the same colour.
≥When making this connection, select “Video/YPbPr”
(Video and YPbPr) or “S-Video/YPbPr” (S-Video and
YPbPr) from QUICK SETUP (➜page 11). If “RGB/No
Output” (RGB only) is selected, the RGB signal is output
from the SCART (AV) terminal, but no signal is output
from the component video output terminals.
To enjoy progressive video
≥Connect to a progressive output compatible television.
≥Set “Video Output Mode” to “480p” or “576p”, and then follow the instructions on the menu screen (➜page 28,
Picture Menu, Operations Guide).
≥Panasonic televisions with 625 (576)/50i·50p, 525 (480)/60i·60p input terminals are progressive compatible.
Consult the manufacturer if you have another brand of television.
r
s
S-VIDEO
S-VIDEO
OUT
OUT
R
L
AUX
AUX
VIDEO
VIDEO
OUT
OUT
P B
COMPONENT VIDEO OUT
COMPONENT VIDEO OUT
P R
Y
Digital Transceiver
AV
VIDEO IN
S-VIDEO
IN
COMPONENT
VIDEO IN
PR
PB
Y
AUDIO
OUT
L
R
Television
(not included)
Back of this unit
Video cables
(not included)
Audio cable§
(not included)
§This audio connection will enable you to play audio from your television through your home theater system.
Refer to “Operating other equipment” (➜page 39, Operations Guide).
RQT8737-B.fm P age 7 Friday, April 7, 2006 4:38 PM

8
Connecting the FM and AM antennas
Adhesive tape
This unit
AM loop antenna
Stand the antenna up on its base.
Place the antenna where reception is best.
Keep loose antenna cable away from other
wires and cables.
Click!
AM loop antenna FM indoor antenna
FM indoor antenna
Affix this end of the antenna where
reception is best.
≥Using an outdoor antenna (optional) (➜page 35, Operations Guide).
Re-tighten the
terminal screw.
Loosen the terminal screw with
a Phillips-head screwdriver.
White
Red Black
While pushing, insert the wire fully.
RQT8737-B.fm P age 8 Friday, April 7, 2006 4:38 PM

9
Conserving power
This unit and the wireless system consume a small amount of power when they are in standby mode (this unit: approx.
0.5 W, wireless system: approx. 4 W). To save power when they are not to be used for a long time, unplug them from the
household mains socket. You will need to reset some memory items after plugging in this unit.
[Note]
The included AC mains leads are for use with this unit and wireless system only. Do not use them with other equipment.
Also, do not use cords for other equipment with this unit or wireless system.
STEP5AC mains lead connections
AC IN~
2 AC mains leads
To household mains socket
(AC 230–240 V, 50 Hz)
AC mains lead
≥Connect the AC mains leads after all other connections are complete.
This unit
BE SURE TO READ THE CAUTION FOR THE
AC MAINS LEAD ON PAGE 4 IN THE
OPERATIONS GUIDE BEFORE CONNECTION.
AC mains lead
To household mains socket
(AC 230–240 V, 50 Hz)
Wireless system
RQT8737-2B.fm Page 9 Tuesday, May 9, 2006 6:13 PM

10
Do not:
≥mix old and new batteries.
≥use different types at the same time.
≥heat or expose to flame.
≥take apart or short circuit.
≥attempt to recharge alkaline or manganese batteries.
≥use batteries if the covering has been peeled off.
Mishandling of batteries can cause electrolyte leakage
which can severely damage the remote control.
Remove the batteries if the remote control is not going to be
used for a long period of time. Store in a cool, dark place.
∫Use
Aim at the remote control signal sensor (➜page 17,
Operations Guide), avoiding obstacles, at a maximum
range of 7 m directly in front of the unit.
Up to 15 stations can be set in each band, FM and AM.

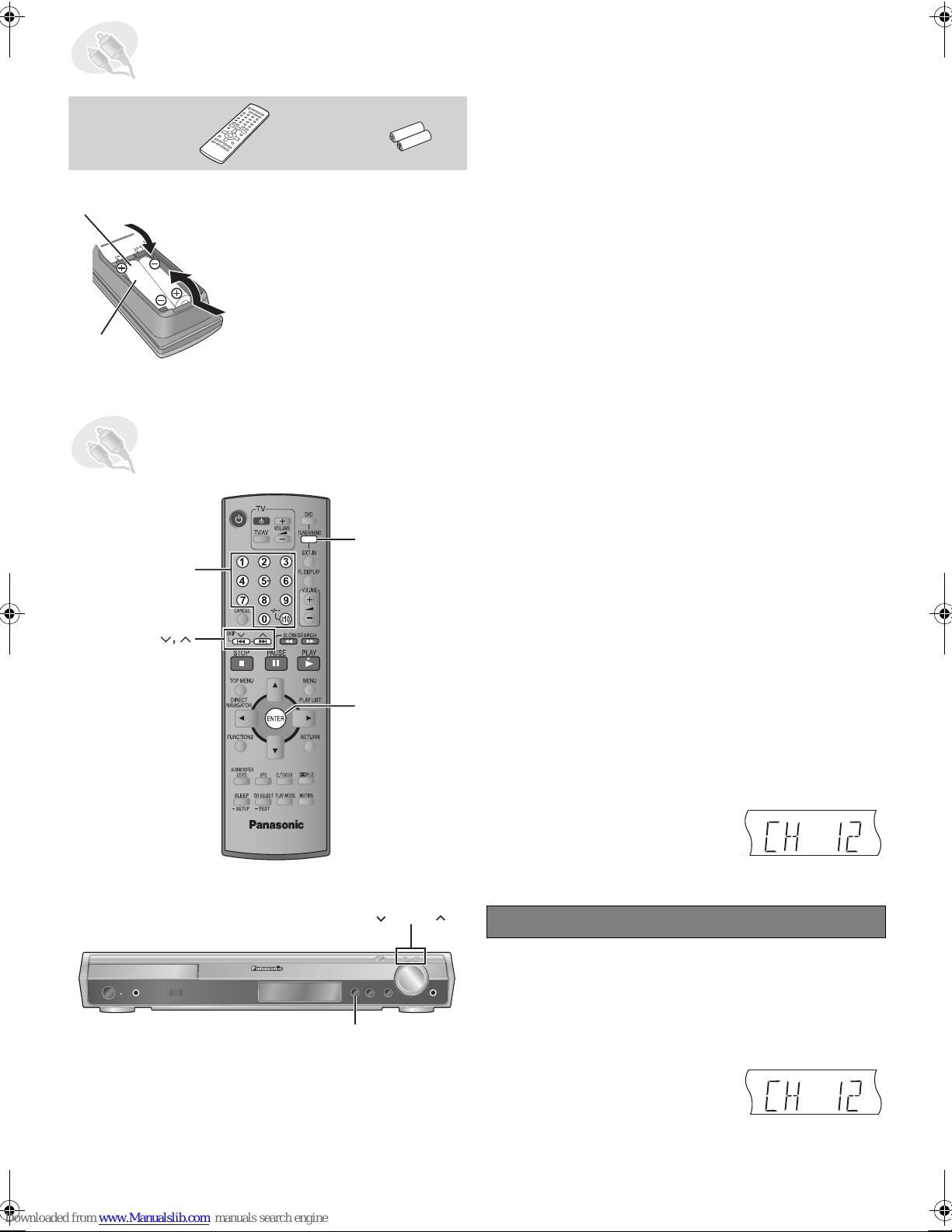

STEP6Preparing the remote control
R6/LR6, AA
1
3
2
Remote control Batteries
Insert so the poles (iand j) match those in the remote
control.
≥Do not use rechargeable
type batteries.
STEP7Presetting the radio stations
ENTER
TUNER/BAND
Numbered
buttons
TUNING
-TUNE MODE
1Press [TUNER/BAND] to select “FM” or “AM”.
2Press [-TUNE MODE] to select “MANUAL”.
Each time you press the button: MANUAL()PRESET
3Press [XTUNING W] to tune to the preferred
frequency.
≥To start automatic tuning, press and hold
[XTUNING W] until the frequency starts scrolling.
Tuning stops when a station is found.
4While listening to the broadcast
Press [ENTER].
5While the frequency and “PGM” are flashing on the
display
Press the numbered buttons to select a channel.
≥To select a 2-digit number
e.g. To select 12:
[S10] ➜[1] ➜[2]
Alternatively, press [X,W], and then press [ENTER].
Confirming the preset channels
1Press [TUNER/BAND] to select “FM” or “AM”.
2Press [-TUNE MODE] to select “PRESET”.
Each time you press the button: MANUAL()PRESET
3Press the numbered buttons to select the channel.
≥To select a 2-digit number
e.g. 12: [S10] ➜[1] ➜[2]
Alternatively, press [X,W].
e.g. Display
DISC SFC
TG
D.MIX
MONO SLP
e.g. Display
DISC SFC
TG
D.MIX
MONO SLP
E
A
C
G
RQT8737-B.fm P age 10 Wednesday, April 12, 2006 2:10 P

11
The QUICK SETUP screen assists you to make necessary settings.
To display the picture from this unit, turn on your television and change
the television’s video input mode which is
connected to this unit (e.g. VIDEO 1, AV 1, etc.). To change your television’s video input mode, refer to its
operating instructions.
≥This remote control can perform some basic television operations (➜page 39, Operations Guide).
To change these settings later
Select “QUICK SETUP” in the “Others” menu (➜page 32,
Operations Guide).
∫Details of settings
≥Boxed items are the factory settings in the above diagram.
STEP8Performing QUICK SETUP
ENTER
RETURN
DVD
SETUP
1Turn on the unit.
2Select “DVD/CD”.
3Press and hold to show
the QUICK SETUP screen.
4Follow the messages and
make the settings.
≥Menu Language
≥TV Type
≥TV Aspect
≥Video Out (AV/Component)
(For details ➜ below)
5Press to finish QUICK
SETUP.
6Press repeatedly to exit.
Select
Register
ENTER
Menu Language
Choose the language for the
on-screen messages.
≥English ≥Français ≥Deutsch ≥Italiano
≥Español ≥Polski ≥Svenska ≥Nederlands
TV Type
Select to suit the type of
television.
≥Standard (Direct View TV) ≥CRT Projector ≥LCD TV/Projector
≥Projection TV ≥Plasma TV
TV Aspect
Choose the setting to suit
your television and
preference.
≥4:3 : Regular aspect television
≥16:9: Widescreen television
Video Out (AV/Component)
Choose the video signal
format to be output from the
SCART (AV) and Component
terminal.
≥Video/YPbPr : Video and YPbPr ≥S-Video/YPbPr: S-Video and YPbPr
≥RGB/No Output: RGB only
RQT8737-B.fm P age 11 Friday, April 7, 2006 4:38 PM

Matsushita Electric Industrial Co., Ltd.
Web Site: http://panasonic.net
RQT8737-2B
F0406NK2056
p
RQT8737-2B.fm Page 12 Tuesday, May 9, 2006 4:42 PM
