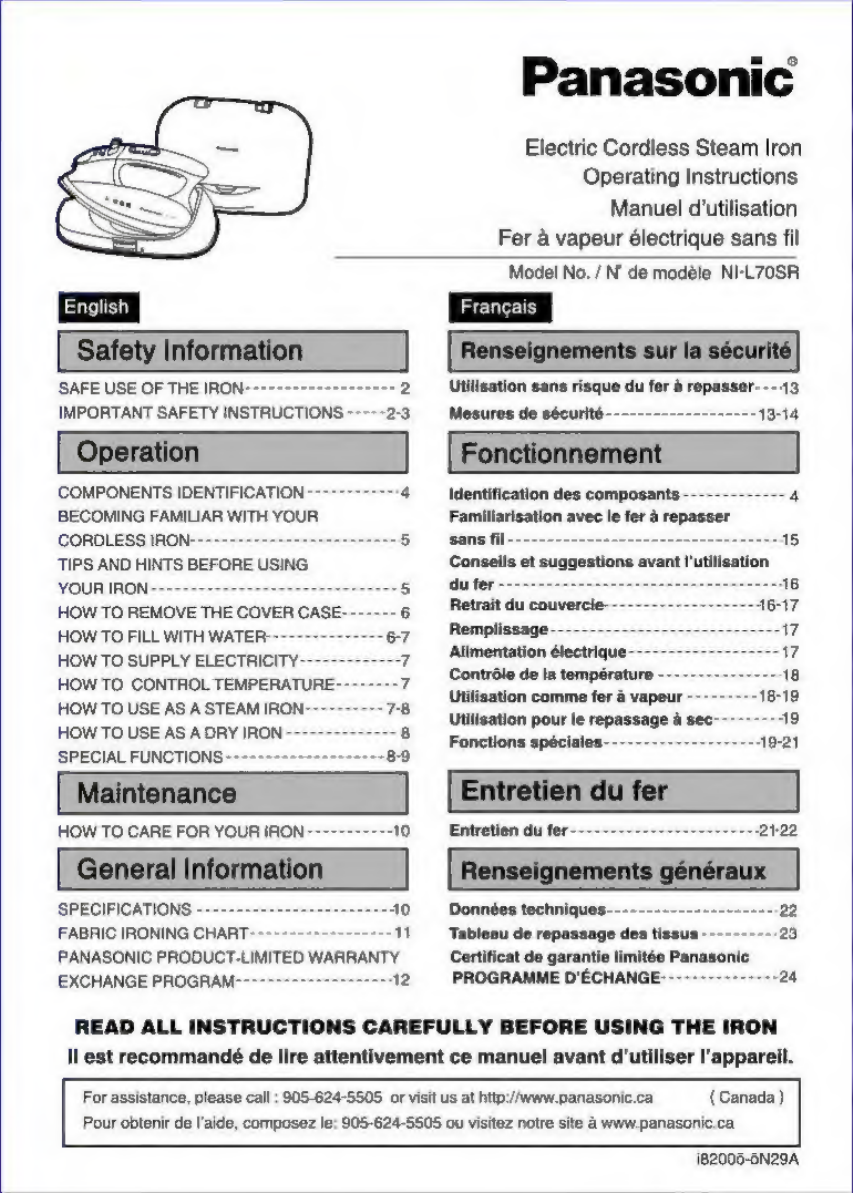

Panasonic NI-L70SR - Steam Iron With Micro-Mist Spray User manual

Panasonic
Electric Cordless Steam Iron
Operating Instructions
Manuel d'utilisation
Fer a vapeur électrique sans fil
Model No. / N' de modèle NI-L70SR
Renseignements sur la sécurité
Safety Information
SAFE USE OF THE IRON- 2
IMPORTANT SAFETY INSTRUCTIONS -----2-3
COMPONENTS IDENTIFICATION --
BECOMING FAMILIAR WITH YOUR
CORDLESS IRON--
TIPS AND HINTS BEFORE USING
YOUR IRON-
HOW TO REMOVE THE COVER CASE
HOW TO FILL WITH WATER--
HOW TO SUPPLY ELECTRICITY.
HOW TO CONTROL TEMPERATURE-
HOW TO USE AS A STEAM IRON-
HOW TO USE AS A DRY IRON -
SPECIAL FUNCTIONS 8-9
Maintenance

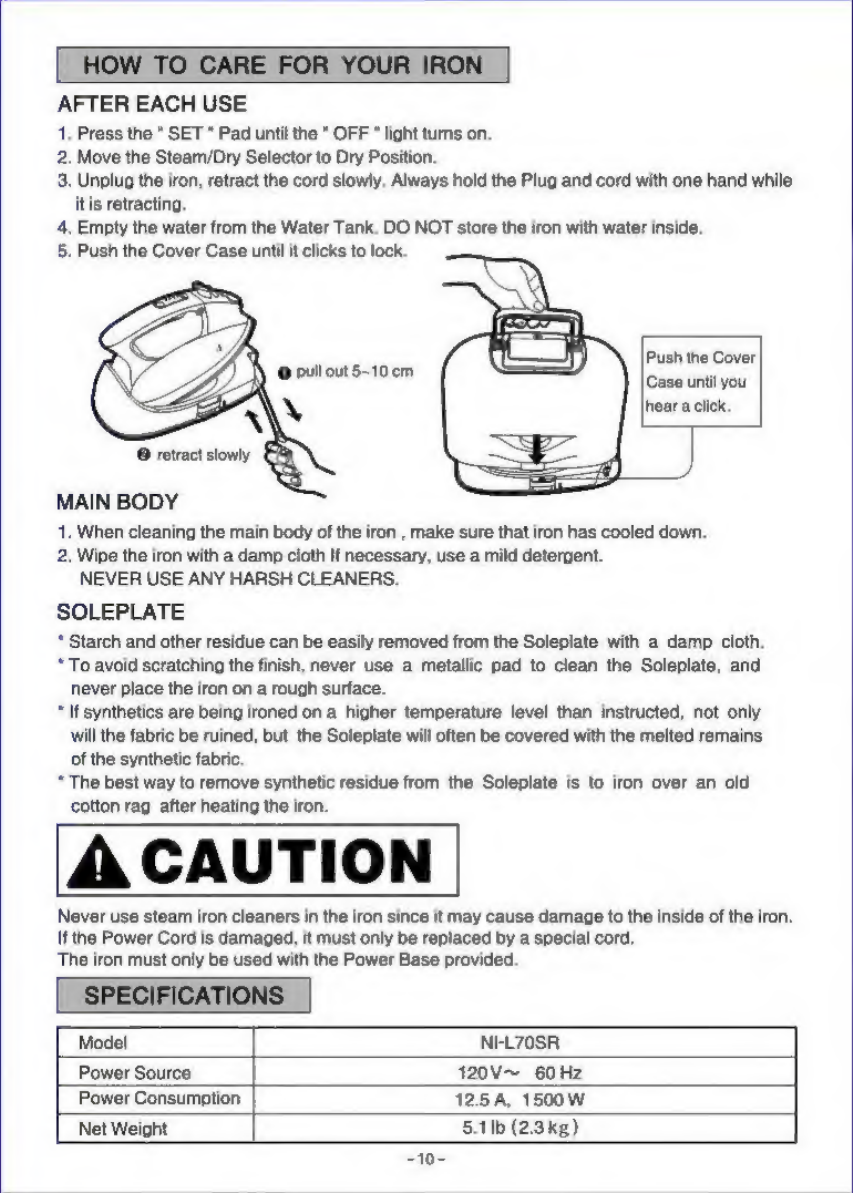

HOW TO CARE FOR YOUR IRON-
General Information
SPECIFICATIONS -
FABRIC IRONING CHART: 11

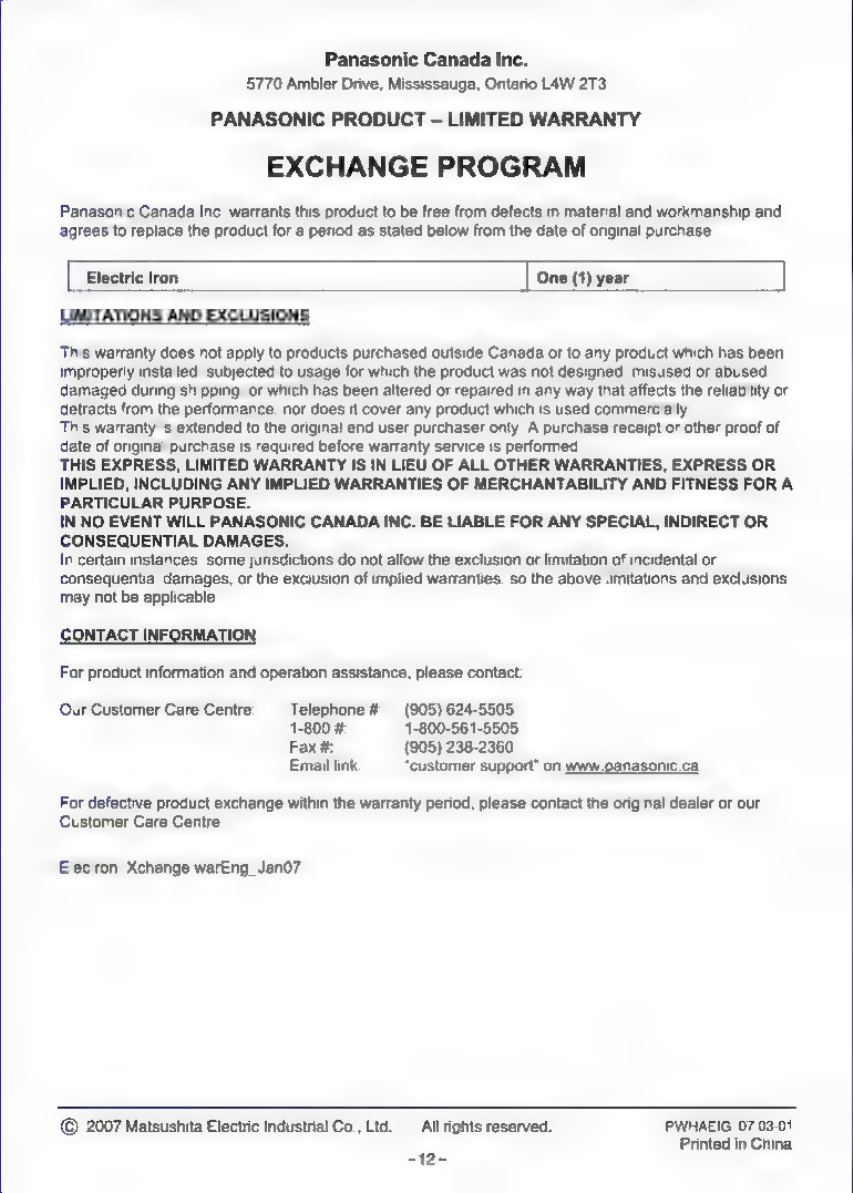

PANASONIC PRODUCT-LIMITED WARRANTY
EXCHANGE PROGRAM--

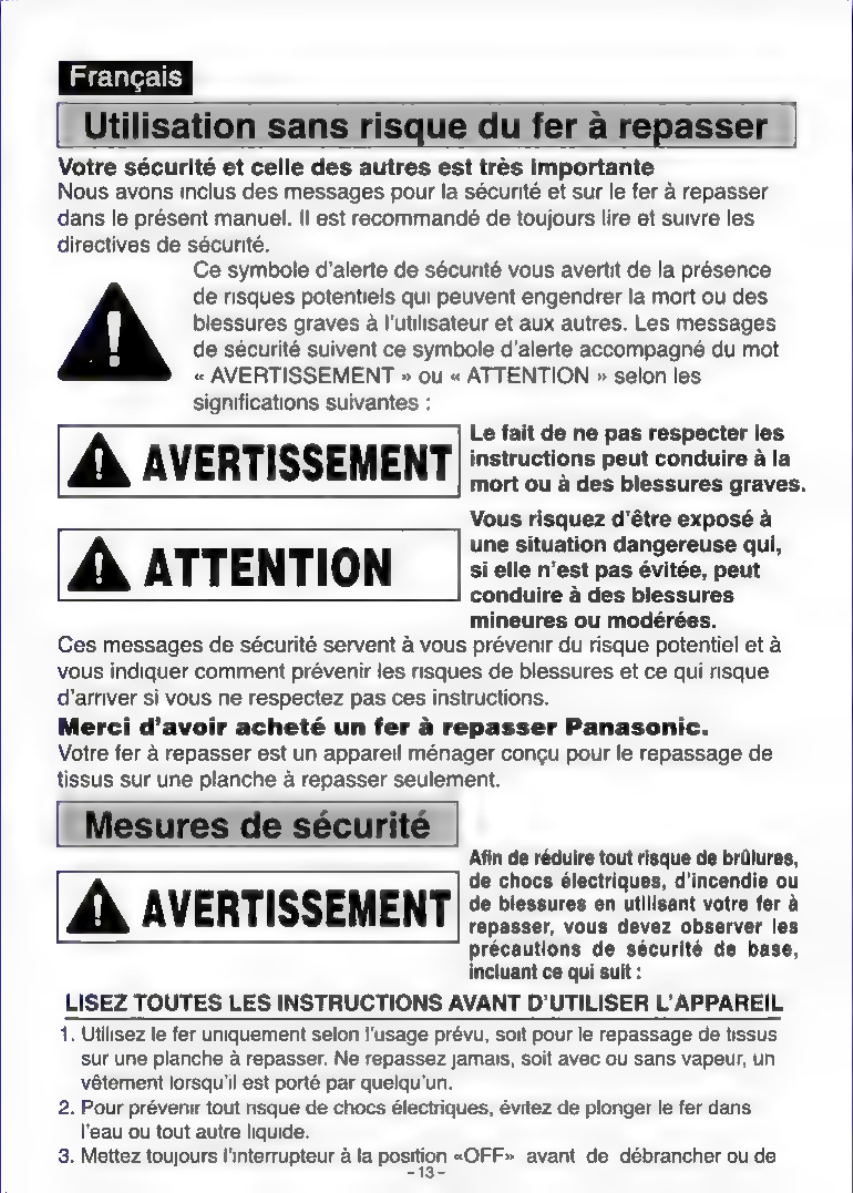

Utilisation sans risque du fer à repasser---13
Mesures de sécurité --— 13-14
LR
Identification des composants
Familiarisation avec le fer à repasser
sans fil -

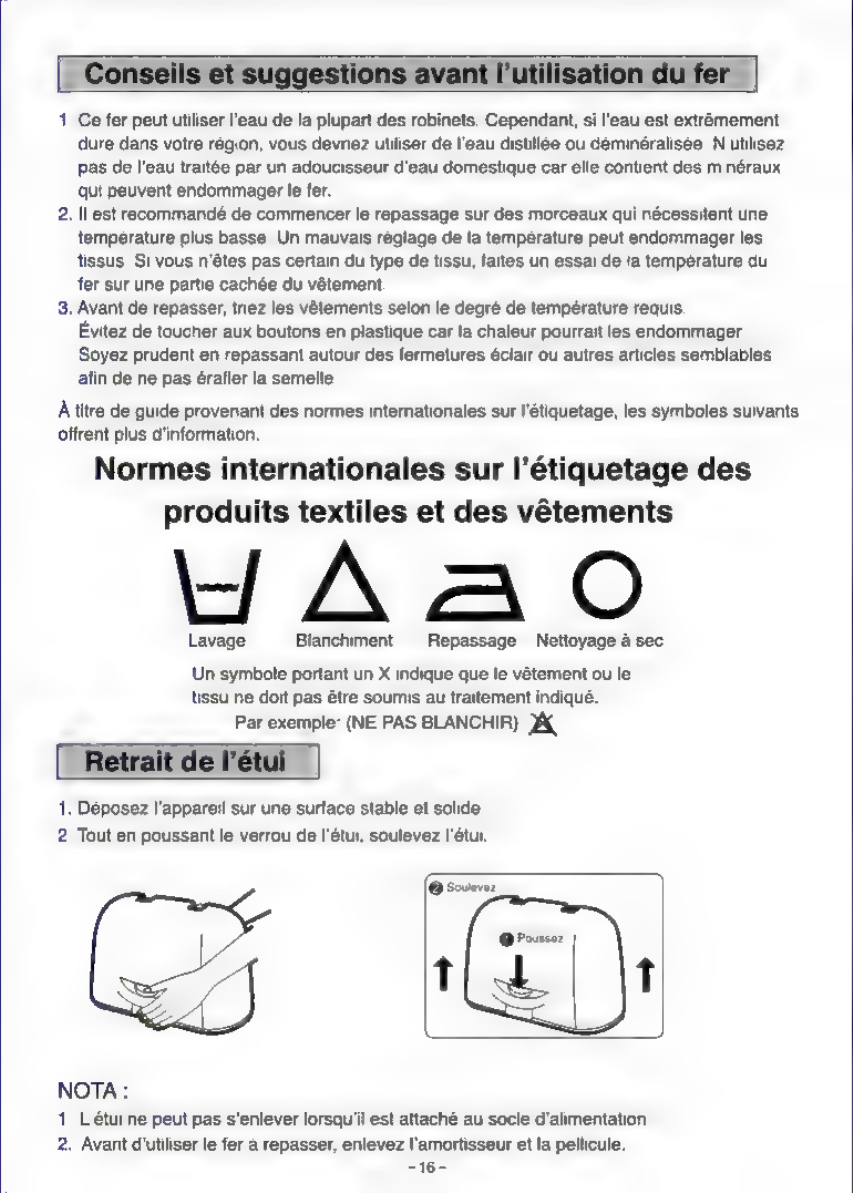

Conseils et suggestions avant l'utilisation

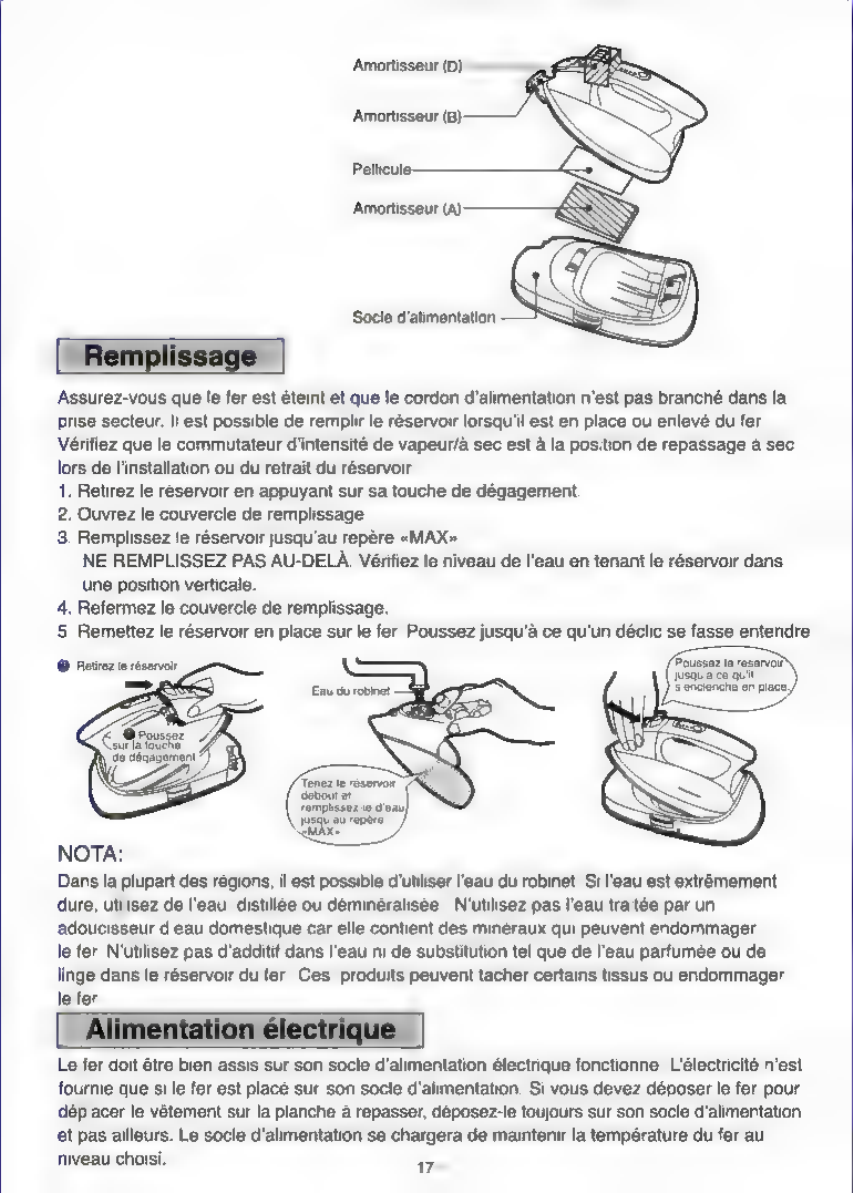

Remplissage-
Alimentation électrique-

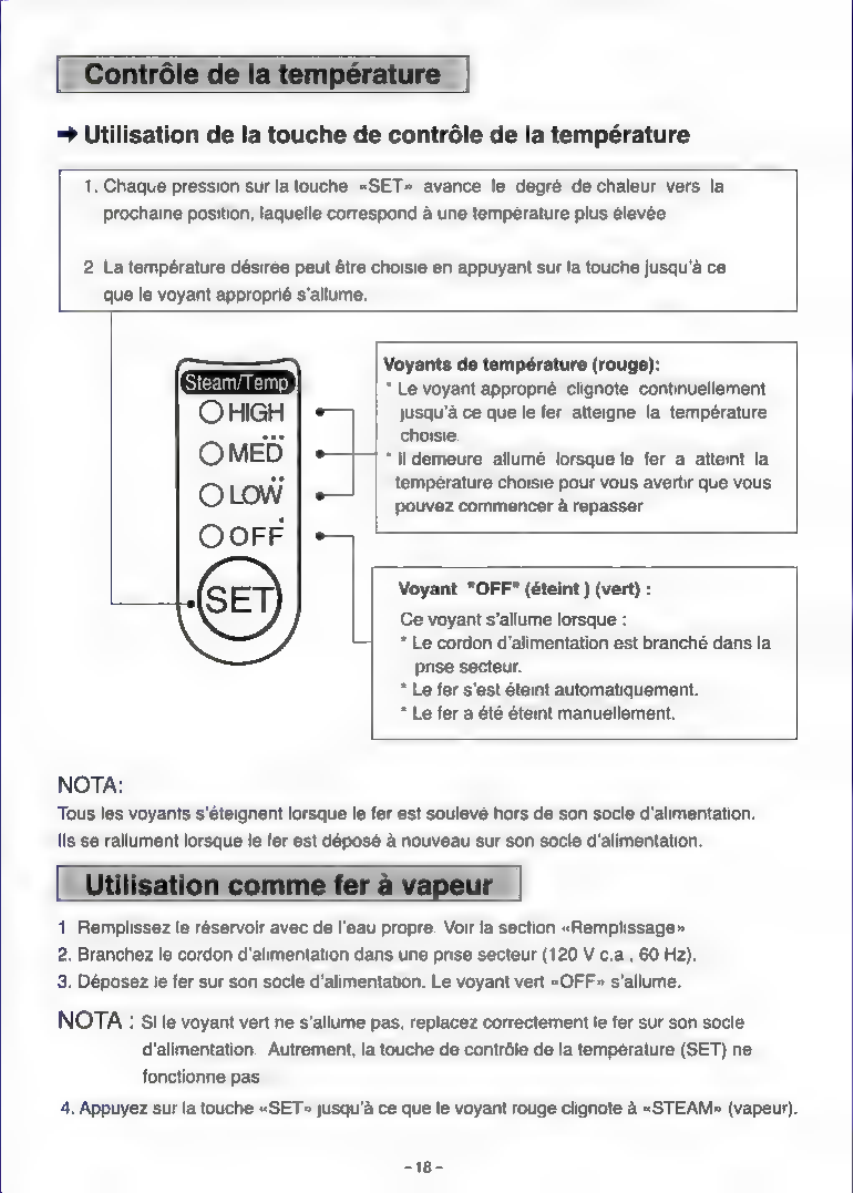

Contrôle de la température -
Utilisation comme fer à vapeur
Vision pour le repassage à à sec
Fonctions spéciales
[Entretien dufer | du fer
Entretien du fer -
Renseignements [Renseignements généraux |
Données techniques. ----22
Tableau de repassage des tissus --23
Certificat de garantie limitée Panasonic
PROGRAMME D'ÉCHANGE-
24
READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THE IRON
Il est recommandé de lire attentivement ce manuel avant d'utiliser l'appareil.
For assistance, please call : 905-624-5505 or visit us at http://www.panasonic.ca
(Canada )
Pour obtenir de l'aide, composez le: 905-624-5505 ou visitez notre site à www.panasonic.ca
182000-6N29A

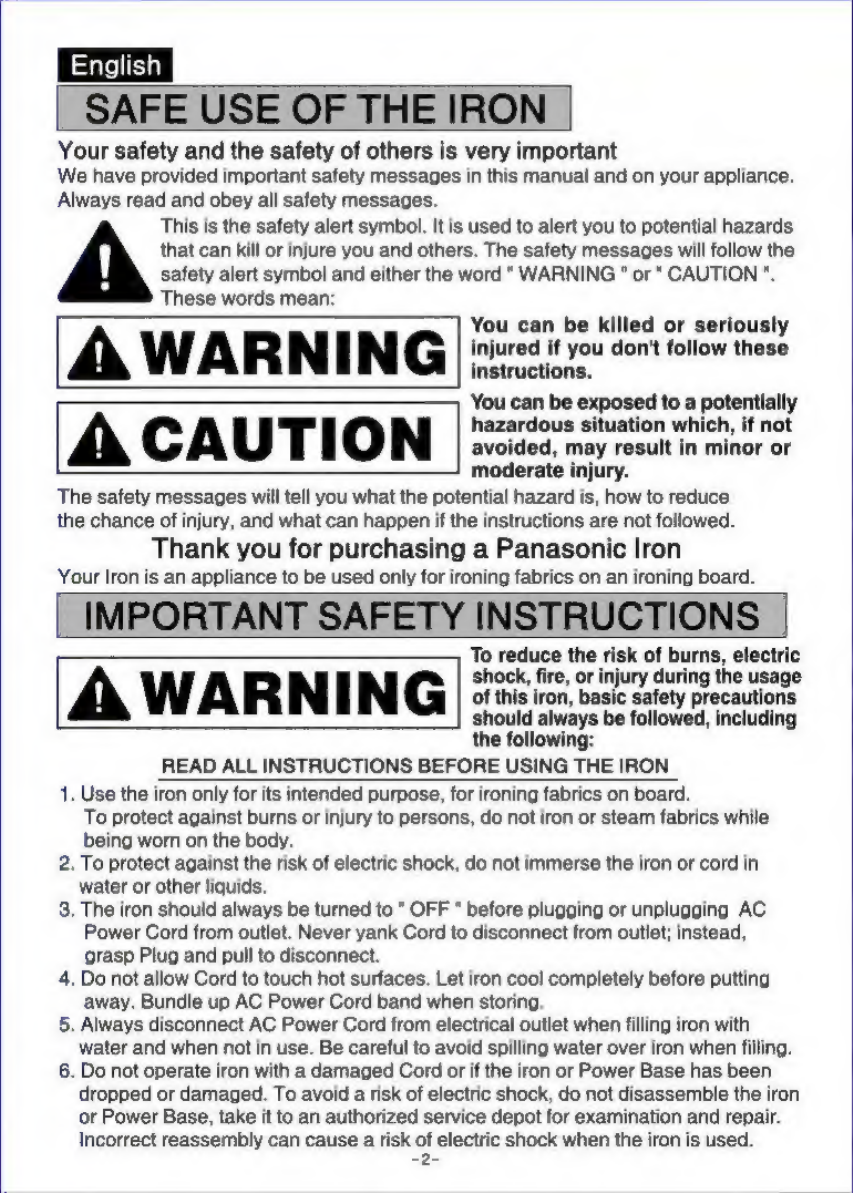

SAFE USE OF THE IRON
Your safety and the safety of others is very important
We have provided important safety messages in this manual and on your appliance.
Always read and obey all safety messages.
This is the safety alert symbol. It is used to alert you to potential hazards
that can kill or injure you and others. The safety messages will follow the
safety alert symbol and either the word " WARNING " or " CAUTION ".
These words mean:
You can be killed or seriously
A WAR N | N G injured if you don't follow these
instructions.
You can be exposed to a potentially
hazardous situation which, if not
A UTI N avoided, may result in minor or
moderate injury.
The safety messages will tell you what the potential hazard is, how to reduce
the chance of injury, and what can happen if the instructions are not followed.
Thank you for purchasing a Panasonic Iron
Your Iron is an appliance to be used only for ironing fabrics on an ironing board.
IMPORTANT SAFETY INSTRUCTIONS
To reduce the risk of burns, electric
shock, fire, or injury during the usage
W AR N | N G of this iron, basic safety precautions
should always be followed, including
the following:
READ ALL INSTRUCTIONS BEFORE USING THE IRON
. Use the iron only for its intended purpose, for ironing fabrics on board.
To protect against burns or injury to persons, do not iron or steam fabrics while
being worn on the body.
. To protect against the risk of electric shock, do not immerse the iron or cord in
water or other liquids.
The iron should always be turned to * OFF “ before plugging or unplugging AC
Power Cord from outlet. Never yank Cord to disconnect from outlet; instead,
grasp Plug and pull to disconnect.
Do not allow Cord to touch hot surfaces. Let iron cool completely before putting
away. Bundle up AC Power Cord band when storing.
Always disconnect AC Power Cord from electrical outlet when filling iron with
water and when not in use. Be careful to avoid spilling water over iron when filling.
Do not operate iron with a damaged Cord or if the iron or Power Base has been
dropped or damaged. To avoid a risk of electric shock, do not disassemble the iron
or Power Base, take it to an authorized service depot for examination and repair.
Incorrect reassembly can cause a risk of electric shock when the iron is used.
-2-
o NV
oe o
œ

7. Close supervision is necessary for any appliance being used by or near children.
Do not leave iron unattended while connected to an electrical outlet or on an
ironing board. Always position iron carefully to prevent it from falling if ironing
board is accidentally bumped or if Cord is pulled. When not in use, always place
iron securely into Power Base.
Burns can occur from touching hot metal parts, the hot surface of the Power Base,
hot water, or steam. Use caution when you turn a steam iron upside down-there
may be hot water in the Water Tank.
To protect against burns or injury to persons, do not direct steam toward the
body when ironing or self-cleaning.
10. The iron must be used and rested on a stable surface. When placing the iron into
Power Base, ensure that the surface on which the Power Base is placed is stable.
11. The AC Power Cord and Plug may present
a risk of personal injury when the cord is
allowed to retract freely. Always hold the
plug and cord with one hand while it is
retracting, and retract the cord slowly to
reduce the risk of the cord "WHIPPING",
which has the potential risk of causing
injury to the face, eyes, etc..
SPECIAL INSTRUCTIONS
AWARNING
1. Do not operate another high wattage appliance in the same circuit, to avoid a
circuit overload.
2. If an extension cord is absolutely necessary, use a cord rated a minimum of 13
amperes.
Cords rated for less amperage may overheat, and should not be used.
Care should be taken to arrange the cord so that it cannot be accidentally
pulled or tripped over.
A
CAUTION
1. Never use steam iron cleaning products in the iron, as they may damage working
parts of the iron.
2. Do not use water additives or substitute water such as linen or scented water in
the steam iron. They can stain fabrics.
3. If the Steam/Dry Selector is not at Dry position after using, remaining water will
move into the Soleplate and can result in burns when you next use the iron.
4. Don't use the Steam or Jet of Steam, while AC Power Cord is unplugged. Water
will remain inside the soleplate which will cause staining.
Please do not use Steam or Jet of Steam while Temperature Control Pad is set
to "OFF".
œ
2
@ retract slowly
To reduce the risk of electric
shock or fire:
To reduce the risk of personal
injury and damage to your iron:
-3-

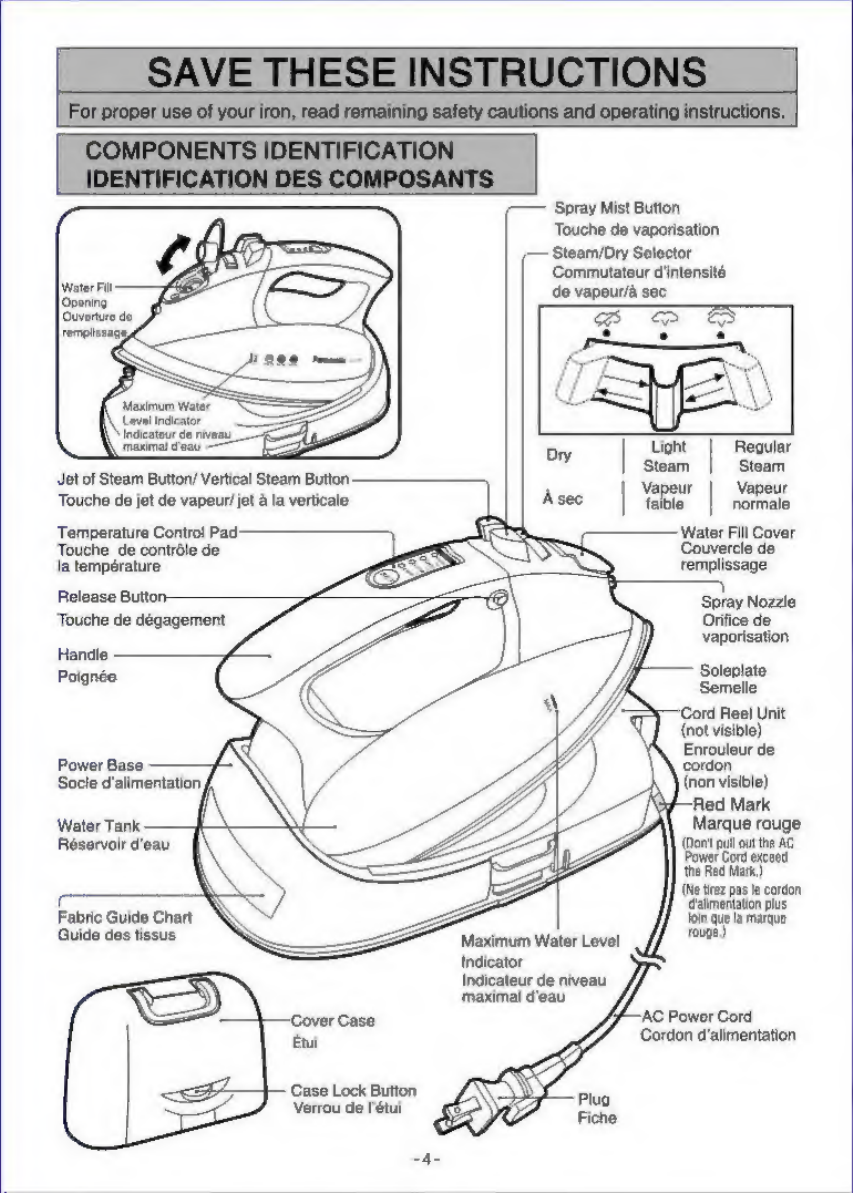

SAVE THESE INSTRUCTIONS
For proper use of your iron, read remaining safety cautions and operating instructions.
‘Spray Mist Button
COMPONENTS IDENTIFICATION
IDENTIFICATION DES COMPOSANTS
Touche de vaporisation
— Steam/Dry Selector
Commutateur d'intensité
de vapeur/à sec
Laval indi
maximal ea = Light) Regular
Jetot Steam Buton/ Vertical Steam Buton z | Des | (an
et of Steam Button/ Verti
å Vapeur Vapeur
Touche de jet de vapeur/ jet à la verticale Asec | falie | normale
Temperature Control Pad
Touche de contrôle de
la température
Water Fill Cover
Couvercle de
remplissage
Release Buttor
Touche de dégagement
Spray Nozzle
Orifice de
vaporisation
Handle
i
Soleplate
FeS Semelle
‘Cord Reel Unit
(not visible)
Enrouleur de
cordon
(non visible)
‘Red Mark
Power Base
Socle d'alimentation /
Water Tank Marque rouge
Réservoir d'eau {Dont pull out the AC
Power Cord exceed
the Red Mark.)
(Ne tirez pas le cordon
d'alimentation plus
loin que la marque
rouge.)
Fabric Guide Chart Ñ
Guide
des
tissus
Maximum
Water
Level
Indicator
Indicateur de niveau
maximal d'eau
AC Power Cord
Cordon d'alimentation
Cover Case
Étui
Case Lock Button
Verrou de l'étui

READ THIS INSTRUCTION BOOK THOROUGHLY BEFORE USING YOUR
Panasonic IRON TO BECOME FAMILIAR WITH THE IRON FEATURES
BECOMING FAMILIAR WITH YOUR CORDLESS IRON
How does it work?
A cordless iron has no electrical cord directly attached to itself, therefore, you might
wonder how the heat will be maintained.
If you think back on how you've been ironing, you'll remember that you've always placed the
iron somewhere that enables you to have two hands free, so that you can move the garment
on your ironing board.
Since the remaining heat of the Soleplate is used for ironing with a cordless iron, the iron must
be placed on its Power Base and nowhere else.
The iron will re-heat quickly every time it is placed on the Power Base and maintains its tem-
perature.
NOTE:
A cordless iron is NOT a rechargeable device. You cannot continuously use this iron without
placing it on the Power Base.
TIPS AND HINTS BEFORE USING YOUR IRON
. Most ordinary tap water can be used in this iron. However, in extremely hard water areas,
distilled or demineralized water should be used. Do not use water processed through home
water softening systems, since this water contains minerals that may be harmful to the iron.
Itis best to start ironing with garments which require lower temperature settings. Wrong
N
temperature setting may damage the fabric. If you are not sure of the fabric content, try the
temperature of the iron on a hidden area of the garment.
. Before ironing, sort the garments according to the different heat settings required.
Do not touch plastic buttons with a hot iron, as this may damage the buttons.
Caution is also required when ironing around zippers and similar items which might scratch
the Soleplate.
As a guide to the international Textile Care Labeling code,the following symbols are noted for
your information.
INTERNATIONAL TEXTILE CARE & LABELING CODES
HJ
AAO
Washing Bleaching kroning Dry Cleaning
A symbol crossed out indicates that the article of clothing
must not be subjected to the particular treatment.
EXAMPLE:(DO NOT BLEACH)
-5-
w

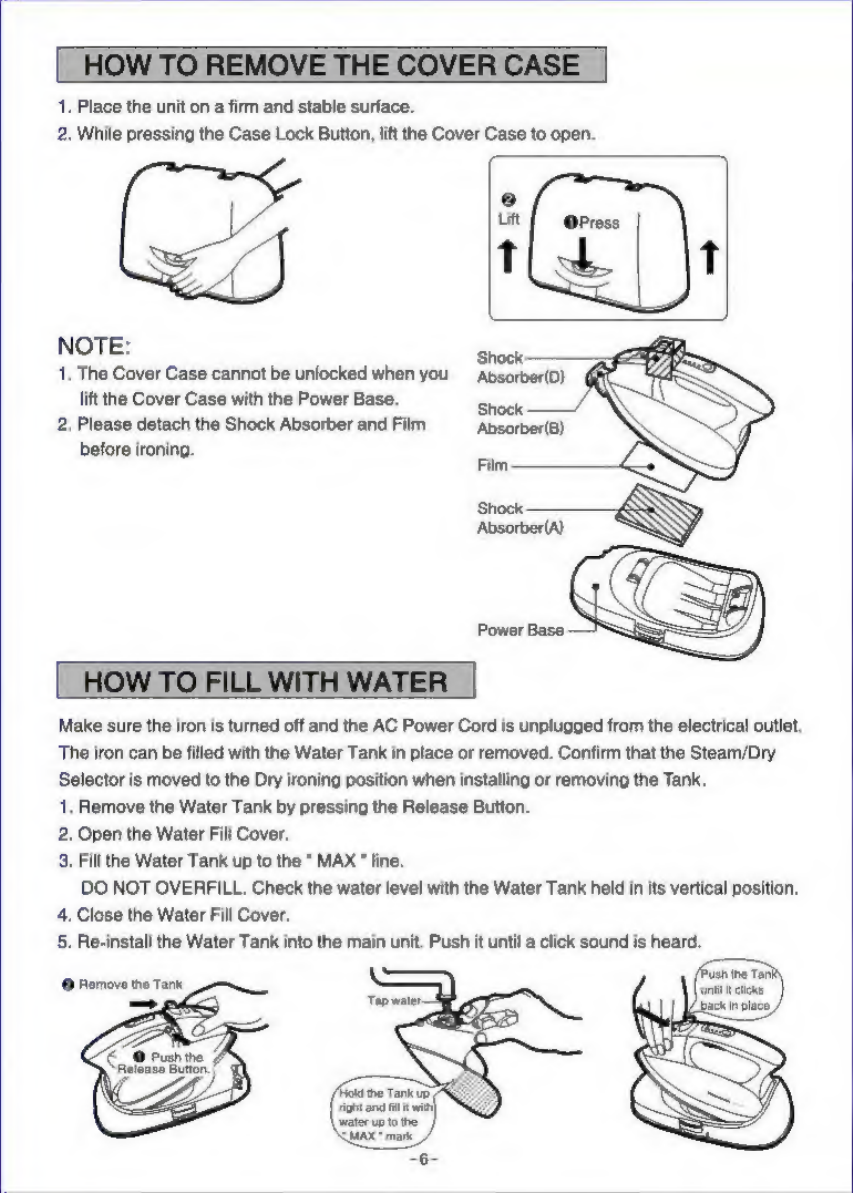

[ HOW TO REMOVE THE COVER CASE
1. Place the unit on a firm and stable surface.
2. While pressing the Case Lock Button, lift the Cover Case to open.
NOTE: Shock
1. The Cover Case cannot be unlocked when you Absorber(D)
lift the Cover Case with the Power Base. Back
2. Please detach the Shock Absorber and Film Absorber(B)
before ironing.
Film
HOW TO FILL WITH WATER |
Make sure the iron is turned off and the AC Power Cord is unplugged from the electrical outlet.
The iron can be filled with the Water Tank in place or removed. Confirm that the Steam/Dry
Selector is moved to the Dry ironing position when installing or removing the Tank.
1. Remove the Water Tank by pressing the Release Button
2. Open the Water Fill Cover.
3. Fill the Water Tank up to the " MAX " line.
DO NOT OVERFILL. Check the water level with the Water Tank held in its vertical position.
4. Close the Water Fill Cover.
5. Re-install the Water Tank into the main unit. Push it until a click sound is heard.
Push the Tank
nti it clicks
back in place
@ Remove the Tank
@ Push the /
Release Button.

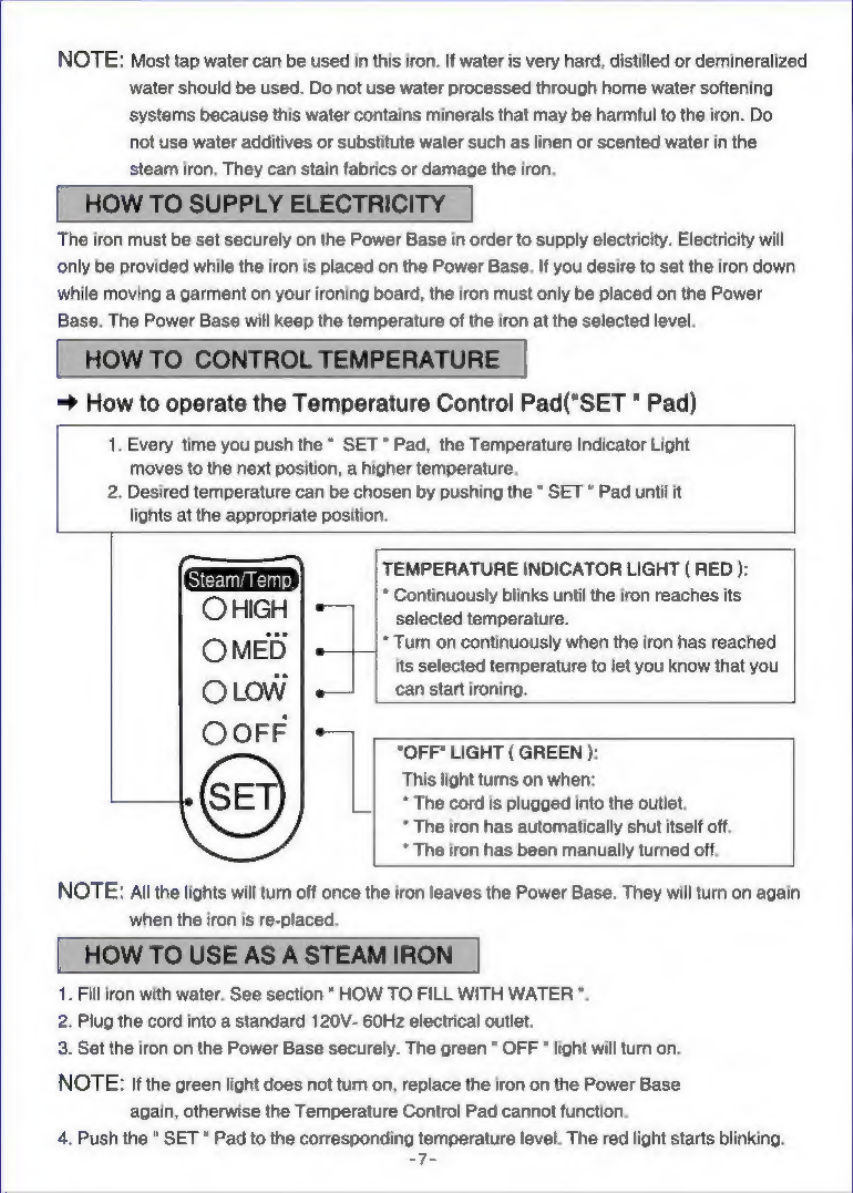

NOTE: Most tap water can be used in this iron. If water is very hard, distilled or demineralized
water should be used. Do not use water processed through home water softening
‘systems because this water contains minerals that may be harmful to the iron. Do
not use water additives or substitute water such as linen or scented water in the
steam iron. They can stain fabrics or damage the iron.
HOW TO SUPPLY ELECTRICITY
The iron must be set securely on the Power Base in order to supply electricity. Electricity will
only be provided while the iron is placed on the Power Base. If you desire to set the iron down
while moving a garment on your ironing board, the iron must only be placed on the Power
Base. The Power Base will keep the temperature of the iron at the selected level.
HOWTO CONTROL TEMPERATURE |
= How to operate the Temperature Control Pad("SET " Pad)
1. Every time you push the " SET “ Pad, the Temperature Indicator Light
moves to the next position, a higher temperature.
2. Desired temperature can be chosen by pushing the * SET “ Pad until it
lights at the appropriate position.
TEMPERATURE INDICATOR LIGHT ( RED ):
* Continuously blinks until the iron reaches its
selected temperature.
* Tum on continuously when the iron has reached
its selected temperature to let you know that you
can start ironing.
"OFF" LIGHT ( GREEN ):
This light turns on when:
* The cord is plugged into the outlet.
* The iron has automatically shut itself off.
* The iron has been manually turned off.
NOTE: All the lights will turn off once the iron leaves the Power Base. They will turn on again
when the iron is re-placed.
HOW TO USE AS A STEAM IRON
1. Fill iron with water. See section " HOW TO FILL WITH WATER *.
2. Plug the cord into a standard 120V- 60Hz electrical outlet.
3. Set the iron on the Power Base securely. The green " OFF " light will turn on.
NOTE: if the green light does not tum on, replace the iron on the Power Base
again, otherwise the Temperature Control Pad cannot function.
4. Push the " SET * Pad to the corresponding temperature level. The red light starts blinking.

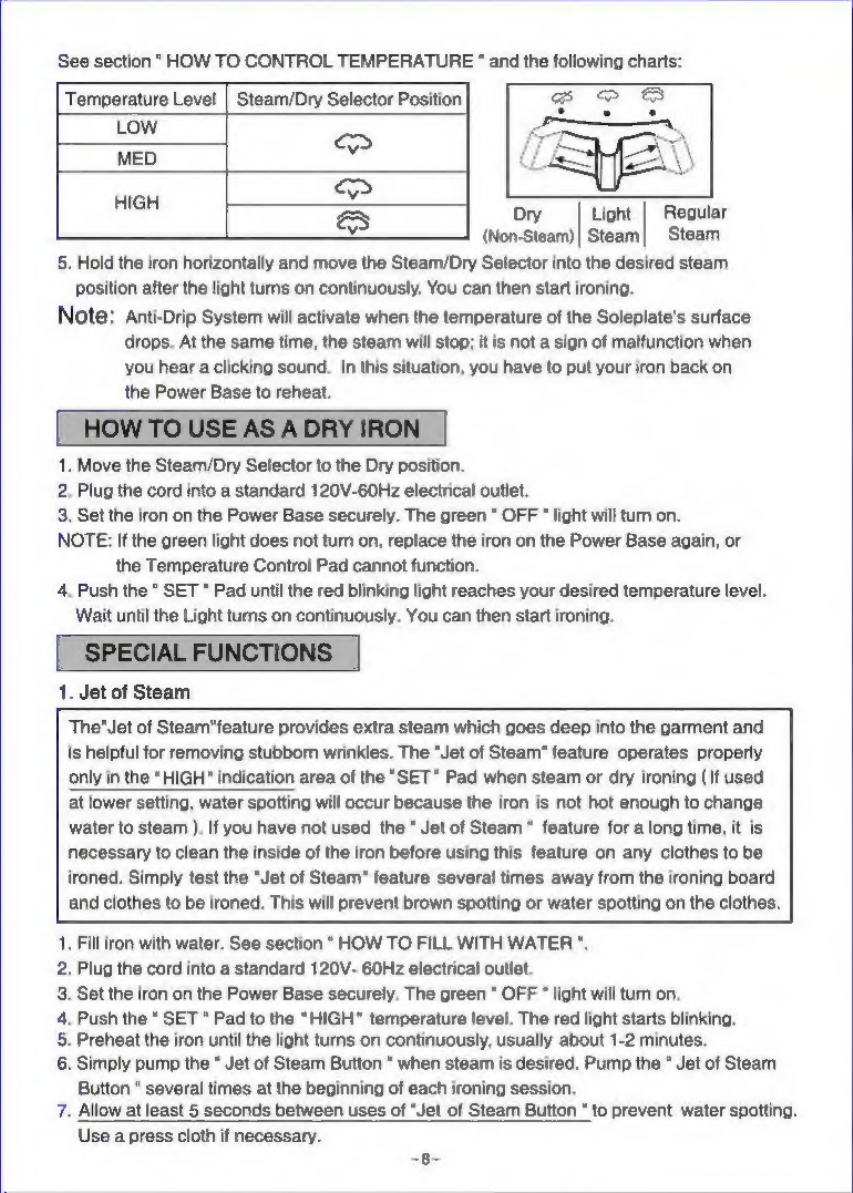

See section “HOW TO CONTROL TEMPERATURE “ and the following charts:
Temperature Level
Low
MED
per
A
Dry
Light
|
Regular
x
(Non-Steam)|
Steam|
Steam
5. Hold the iron horizontally and move the Steam/Dry Selector into the desired steam
position after the light turns on continuously. You can then start ironing.
Note: Anti-Drip System will activate when the temperature of the Soleplate's surface
drops. At the same time, the steam will stop; it is not a sign of malfunction when
you hear a clicking sound. In this situation, you have to put your iron back on
the Power Base to reheat.
| HOWTO USE ASA DRY IRON |
1. Move the Steam/Dry Selector to the Dry position.
2. Plug the cord into a standard 120V-60Hz electrical outlet.
3. Set the iron on the Power Base securely. The green " OFF * light will turn on.
NOTE: If the green light does not turn on, replace the iron on the Power Base again, or
the Temperature Control Pad cannot function.
4. Push the " SET " Pad until the red blinking light reaches your desired temperature level.
Wait until the Light turns on continuously. You can then start ironing.
SPECIAL FUNCTIONS
1. Jet of Steam
The"Jet of Steam"feature provides extra steam which goes deep into the garment and
is helpful for removing stubborn wrinkles. The “Jet of Steam" feature operates properly
only in the "HIGH" indication area of the "SET" Pad when steam or dry ironing (If used
at lower setting, water spotting will occur because the iron is not hot enough to change
water to steam ). If you have not used the " Jet of Steam " feature for a long time, it is
necessary to clean the inside of the iron before using this feature on any clothes to be
ironed. Simply test the "Jet of Steam" feature several times away from the ironing board
and clothes to be ironed. This will prevent brown spotting or water spotting on the clothes.
1. Fill iron with water. See section * HOW TO FILL WITH WATER *.
2. Plug the cord into a standard 120V- 60Hz electrical outlet.
3. Set the iron on the Power Base securely. The green * OFF * light will turn on.
4. Push the " SET " Pad to the "HIGH" temperature level. The red light starts blinking.
5. Preheat the iron until the light turns on continuously, usually about 1-2 minutes.
6. Simply pump the “ Jet of Steam Button " when steam is desired. Pump the " Jet of Steam
Button " several times at the beginning of each ironing session.
7. Allow at least 5 seconds between uses of “Jet of Steam Button " to prevent water spotting.
Use a press cloth if necessary.
a=

NOTE: Do not touch the fabric with the iron. Keep the iron slightly over the fabric to
prevent burns or disfiguring.
Jet of Steam can be provided by pumping the " Jet of Steam Button ".
Set temperature at " HIGH " level.
To avoid hot water from dripping out of the Soleplate, please give 5 seconds
of interval time before re-pumping
2. Vertical Steam
To get better results when using vertical steam, hang the garment on a clothes hanger. Curtains
and drapes may also be steamed once they're hung. Hold the iron away from your body, close
to but not touching the fabric. Pull the fabric tight with your free hand and pump the Vertical
Steam Button (Jet of Steam Button) at 5 seconds intervals as you pass the iron over the
wrinkled fabric.
3. Anti-Drip System ( Automatic Water Seal )
This model has an Anti-Drip System. When the temperature of the Soleplate's
surface drops below 250'F(121 C), the valve for the vaporizing chamber in the iron
automatically closes and stops the water from going in further. This prevents hot
unvaporized water from spitting out from the soleplate when the iron has cooled
down. With this System, it is unnecessary for you to wait until the inside of the
vaporizing chamber dries completely when you store the iron.
NOTE: itis not a sign of malfunction when you hear a clicking sound.
This sound can be heard whenever this System is activated.
4. Automatic Shut-Off
The Automatic Shut-Off System provides you with a visible waming signal before
the iron automatically shuts off. The iron will automatically shut itself off if the iron
has been left on the Power Base longer than 10 minutes. 10 seconds before the
actual shut-off, the * OFF " indicator will start blinking rapidly.
If the iron is not moved during the warning, the heater in the iron's Soleplate
will automatically shut off.
The Automatic Shut-Off System activates only after the temperature reaches its selected level.
To reheat your iron after it automatically shuts off, simply push * SET * Pad until the red light
appears at the desired temperature indicator.
" OFF " light(green) remains on after your iron automatically shuts off .
This light indicates that the iron is still plugged into the electrical outlet and voltage is being
supplied to the Power Base.
5. Spray
Note: Before using the spray feature, check the fabric label for ironing instructions because
some fabrics may be spotted or stained with moisture.
The spray feature is particularly helpful for removing stubborn wrinkles and where extra
dampening is needed.
The spray may be used with steam or dry ironing.
1. Simply pump the Spray Mist Button
If the spray doesn't come out immediately, keep pumping until it does.
2. To get a finer spray, pump the Button vigorously.
To get a more powerful spray, pump the Button more slowly.
For best results, use a quick, full stroke.

HOW TO CARE FOR YOUR IRON
AFTER EACH USE
1. Press the * SET " Pad until the " OFF * light turns on.
2. Move the Steam/Dry Selector to Dry Position.
8. Unplug the iron, retract the cord slowly. Always hold the Plug and cord with one hand while
itis retracting.
4. Empty the water from the Water Tank. DO NOT store the iron with water inside.
5, Push the Cover Case until it clicks to lock.
Push the Cover
Case until you
hear a click.
ee
Ca
MAIN BODY
1. When cleaning the main body of the iron , make sure that iron has cooled down.
2. Wipe the iron with a damp cloth If necessary, use a mild detergent.
NEVER USE ANY HARSH CLEANERS.
SOLEPLATE
* Starch and other residue can be easily removed from the Soleplate with a damp cloth.
* To avoid scratching the finish, never use a metallic pad to clean the Soleplate, and
never place the iron on a rough surface.
* If synthetics are being ironed on a higher temperature level than instructed, not only
will the fabric be ruined, but the Soleplate will often be covered with the melted remains
of the synthetic fabric.
* The best way to remove synthetic residue from the Soleplate is to iron over an old
cotton rag after heating the iron.
A
CAUTION
Never use steam iron cleaners in the iron since it may cause damage to the inside of the iron.
If the Power Cord is damaged, it must only be replaced by a special cord.
The iron must only be used with the Power Base provided.
SPECIFICATIONS
Model NI-L70SR
Power Source 120V~ 60 Hz
Power Consumption 125 A, 1500W
Net Weight 5.11b (2.3kg)
=10-
