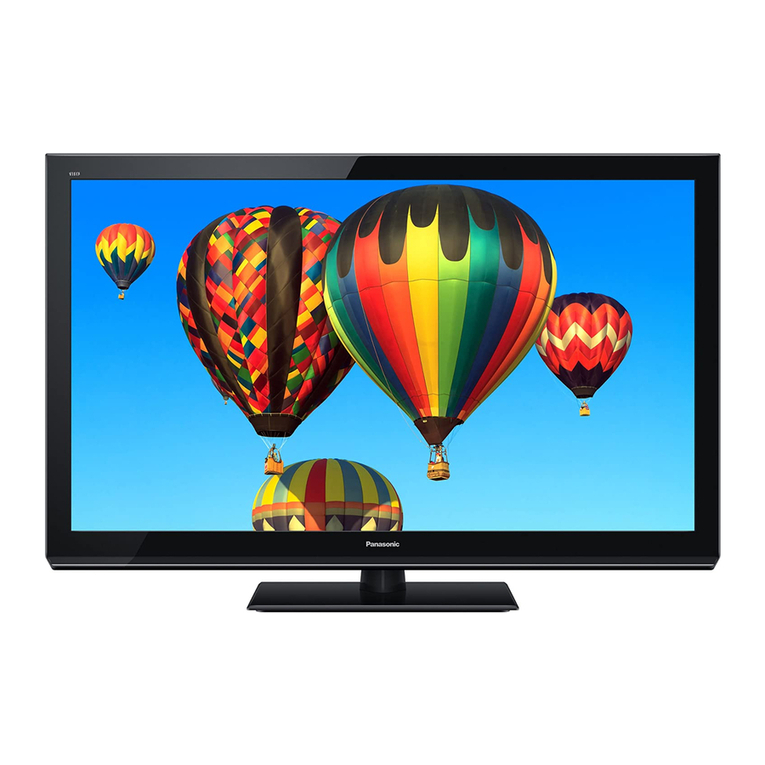

Panasonic TCL32U3 - 32" LCD TV Service manual

© Panasonic Corporation 2011. Unauthorized
copying and distribution is a violation of law
ORDER NO. MTV1104005BE
LCD TV
Model No. TC-L32U3
TC-L32C3
TC-32LX34
TC-L3232C
TC-L32X30
Chassis: LA14 & LA15
Subject : Caution for screw to secure bracket to pedestal base & bracket to TV set.
TABLE OF CONTENTS
PAGE
1 Service Hints ------------------------------------------------------------------------------------------------------------------------------------------------ 2
Please use this service hint together with the manual Model No. TH-L32 SERIES.
Except for the parts listed in table below, all parts are same.

2
1 Service Hints
SYMPTOM: Remote receiver not functioning.
DEFECT SAMPLE: Remote receiver board (TNPA5378) damaged with screw marking. (as shown)
CAUSE: KA Board (TNPA5378) damaged due to wrong TYPE A screw applied instead of TYPE B screw usage.
CAUTION POINT:
a) Only use attached screw TYPE A to bracket for fixing to pedestal base.

3
b) Only use attached screw TYPE B to fanbag for fixing bracket to TV set.
ACTION: Change remote receiver board (TNPA5378) if found damage.
* NOTE : If wrongly used screw TYPE A to secure bracket to TV set, it will damage the remote receiver board (TNPA5378).
