Panasonic Viera TX-32LMD70A User manual

Service Manual
Colour LCD Television
TX-32LMD70A
TX-32LMD70FA
TX-32LMD71FA
TX-32LMD72FA
TX-26LMD70A
TX-26LMD70FA
TX-26LMD71FA
GLP22M Chassis
Specifications
(Informations in brackets [ ] refers to model 26”)
Power Source: 220-240V AC, 50Hz
Power Consumption 135W [104W]
Stand-by Power Consumption: 1.0W (TV ONLY)
13W (TV+DVB set to record)
Aerial Impedance: 75Ωunbalanced, Coaxial Type
Receiving System: LMD70A LMD70FA
PAL-I PAL-I/H, B/G, D/K
PAL-525/60 (AV only) SECAM B/G, D/K, L/L’
DVB (via UHF aerial input) PAL-525/60 (AV only)
M.NTSC (AV only) DVB (via VHF/UHF aerial input)
NTSC (AV only) M.NTSC (AV only)
NTSC (AV only)
Receiving Channels: LMD70A LMD70FA
UHF E21-E68 VHF E2-E12 VHF H1-H2 (ITALY)
VHF A-H (ITALY) VHF R1-R2
VHF R3-R5 VHF R6-R12
UHF E21-E69 CATV (S01-S05)
CATV S1-S10 (M1-M10) CATV S11-S20 (U1-U10)
CATV S21-S41 (Hyperband)
Operating Conditions: Temperature: 0°C ÷35°C
Humidity: 20% ÷ 80% RH (non condensing)
Scanning format: 480i(60Hz), 480p(60Hz), 576i(50Hz), 576p(50Hz), 720p(60Hz), 720p(50Hz), 1.080i(60Hz),
1.080i(50Hz), 1.080p(60Hz), 1.080p(50Hz)
PC signals: VGA, SVGA, XGA, SXGA(compressed)
Horizontal scanning frequency 31 – 69 kHz
Vertical scanning frequency 59 – 86 Hz
ORDER No. PCZ0709109CE
Panasonic CS ( U.K. ) Ltd.
WILLOUGHBY ROAD,
BRACKNELL,
BERKS.,
RG12 8FT.
All manuals and user guides at all-guides.com

Intermediate Frequency:
Video/Audio LMD70A LMD70FA
Video 38,9MHz 38,9MHz, 33,9MHz
Audio 32.90MHz 33,4MHz (B/G), 33,16MHz (A2)
32.35MHz(NICAM) 33,05MHz (NICAM B/G, D/K, L’)
32,4MHz (D/K), 32,66MHz (CZ STEREO)
40,4MHz (L’), 39,75MHz (L’ NICAM)
Colour 34,47MHz 34,47MHz (PAL)
34,5MHz, 34,65MHz (SECAM)
38,3MHz, 38,15MHz (SECAM L’)
Terminals:
AV1 IN Video (21 pin) 1V p-p 75Ω
Audio (21 pin) 500mV rms 10kΩ
RGB (21 pin) 0,7V p-p 75Ω
AV1 OUT Video (21 pin) 1V p-p 75Ω
Audio (21 pin) 500mV rms 1kΩ
AV2 IN Video (21 pin) 1V p-p 75Ω
Audio (21 pin) 500mV rms 10kΩ
RGB (21 pin) 0,7V p-p 75Ω
S-video IN (21-pin)Y: 1V p-p 75Ω
C:0,3V p-p 75Ω
AV2 OUT Video (21 pin) 1V p-p 75Ω
Audio (21 pin) 500mV rms 1kΩ
AV3 IN S-Video IN (4-pin) Y: 1V p-p 75Ω
C:0,286V p-p 75Ω
Audio (RCAx2) 500mV rms 10kΩ
Video (RCAx1) 1V p-p 75Ω
HDMI1, HDMI2 Type A Connector
COMPONENT Video (RCAx3) Y:1V p-p 75Ω(including synchronization)
Pb, Pr: ±0,35V p-p 75Ω
AUDIO IN Audio (RCAx2) 500mV rms 10kΩ(for YUV; HDMI1)
AUDIO OUT Audio (RCAx2) 500mV rms 1kΩ(high Impedance)
PC HIGH-DENSITY D_SUB 15PIN R,G,B: 700mV p-p 75Ω
HD,VD:TTL Level 2-5V p-p (high impedance)
LCD screen: L5EDD8Q00037 [L5EDD6Q00026]
1366 x 768 XGA, 16:9
Visible Diagonal 800mm [660mm]
Audio Output: 20W (2x10W)
Headphones: 3,5mm (M3), 8ΩImpedance
Accessories supplied : Remote Control 2 x R6 (UM3) Batteries
Dimensions:
Height: Width: Depth:
Including TV stand 615mm 791mm 248mm
[525mm] [657mm] [216mm]
TV set only 563mm 791mm 117mm
[473mm] [657mm] [117mm]]
Net weight: 17,5kg [14kg]
Specifications are subject to change without notice.
Weights and dimensions shown are approximate.
This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not
contain warnings or cautions to advise non-technical individuals of potencial dangers in attempting to service a product. Products
powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or repair the
product or products deal within this service information by anyone else could result in serious injury or death.
Warning
2
All manuals and user guides at all-guides.com

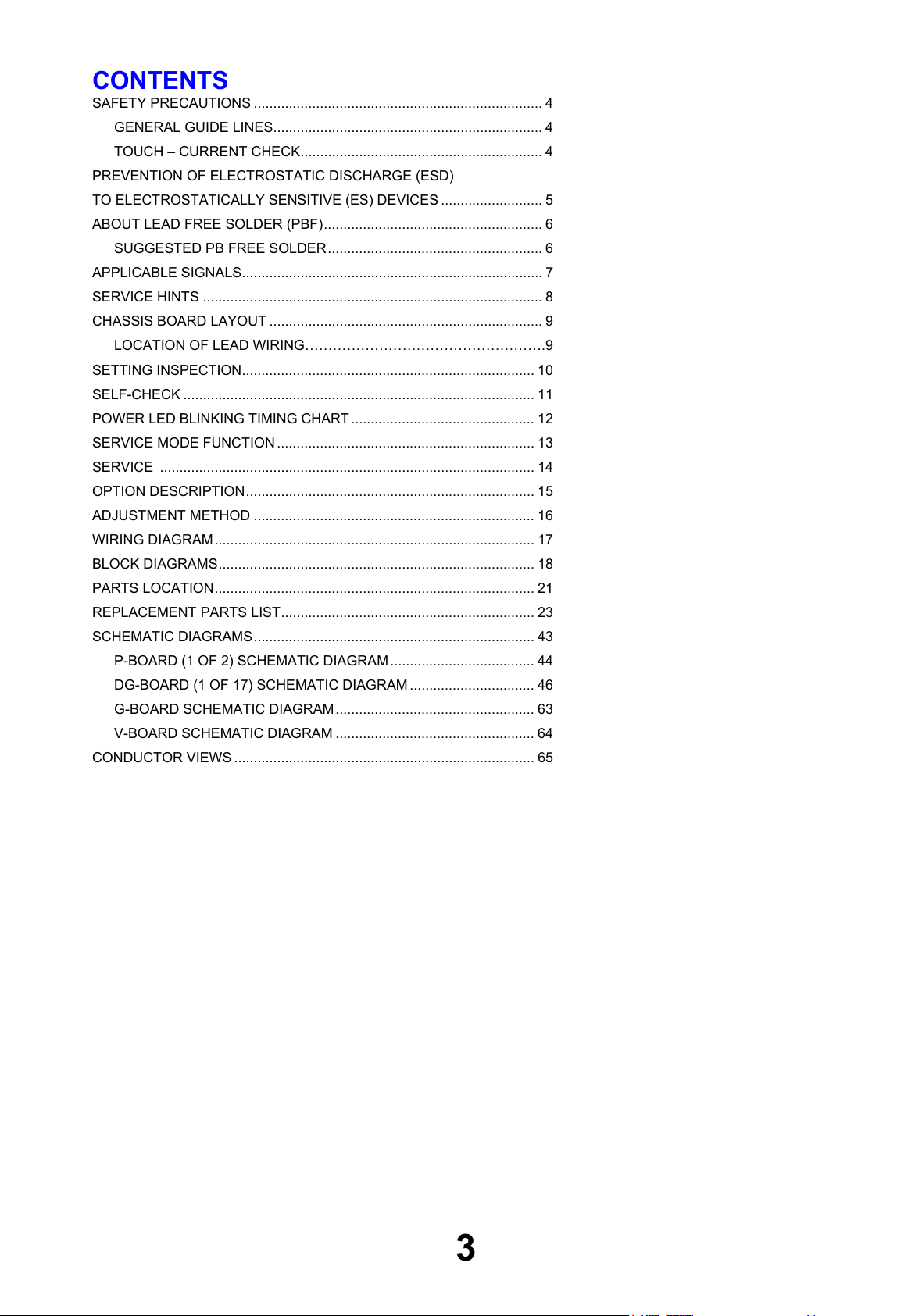

CONTENTS
SAFETY PRECAUTIONS .......................................................................... 4
GENERAL GUIDE LINES..................................................................... 4
TOUCH – CURRENT CHECK.............................................................. 4
PREVENTION OF ELECTROSTATIC DISCHARGE (ESD)
TO ELECTROSTATICALLY SENSITIVE (ES) DEVICES .......................... 5
ABOUT LEAD FREE SOLDER (PBF)........................................................ 6
SUGGESTED PB FREE SOLDER....................................................... 6
APPLICABLE SIGNALS............................................................................. 7
SERVICE HINTS ....................................................................................... 8
CHASSIS BOARD LAYOUT ...................................................................... 9
LOCATION OF LEAD WIRING…………………………………………….9

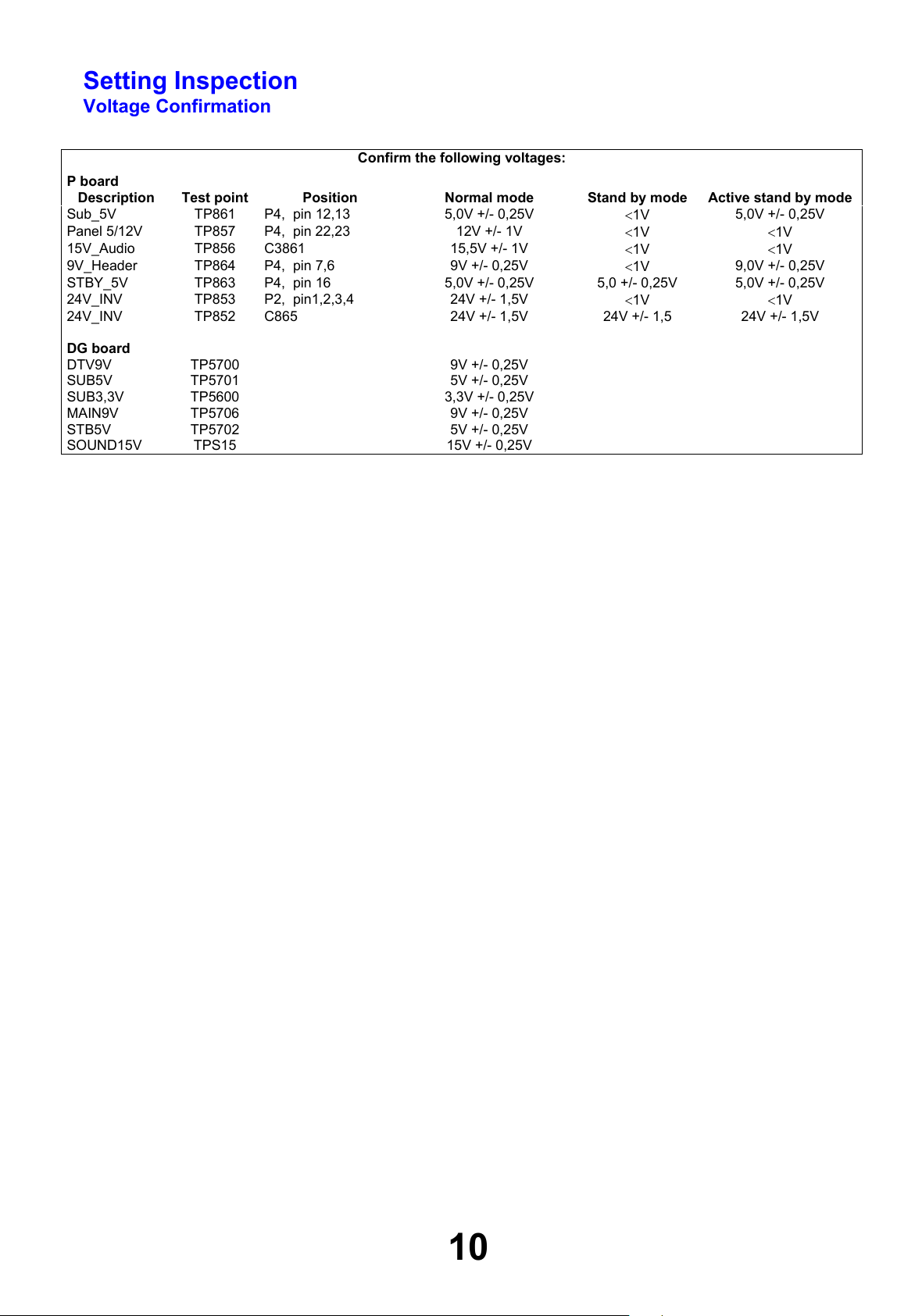

SETTING INSPECTION........................................................................... 10
SELF-CHECK .......................................................................................... 11

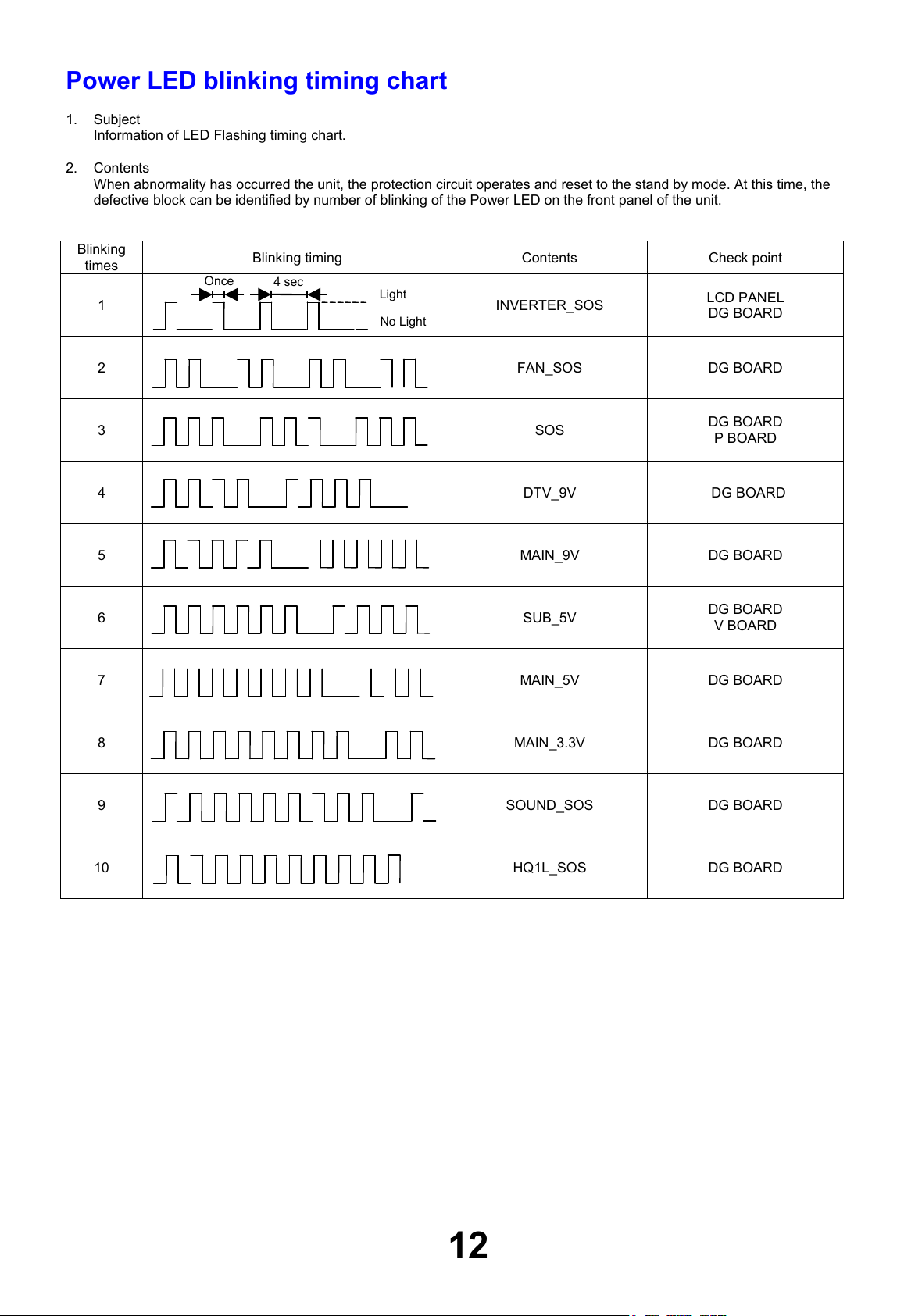

POWER LED BLINKING TIMING CHART ............................................... 12
SERVICE MODE FUNCTION .................................................................. 13
SERVICE ................................................................................................ 14

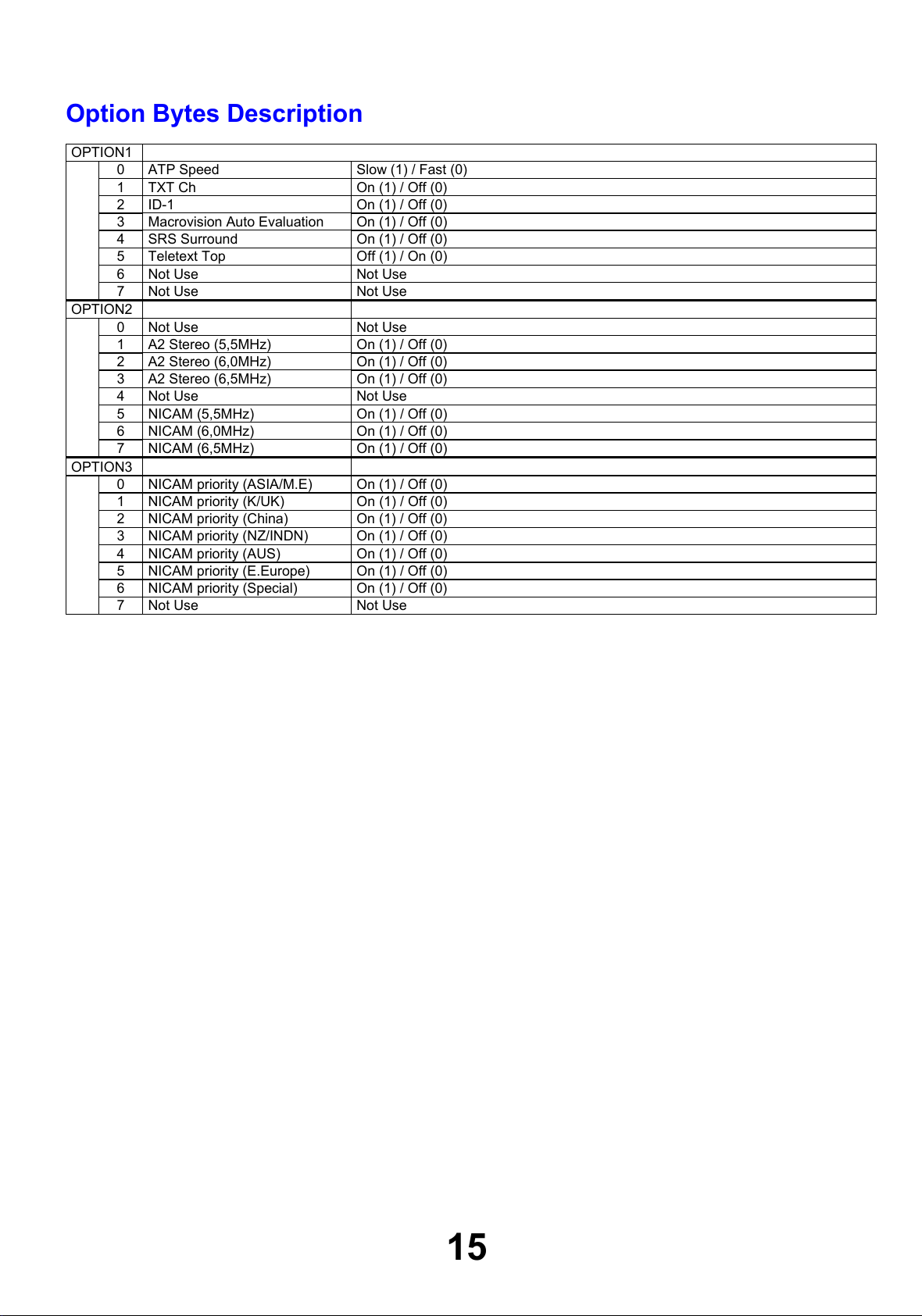

OPTION DESCRIPTION.......................................................................... 15

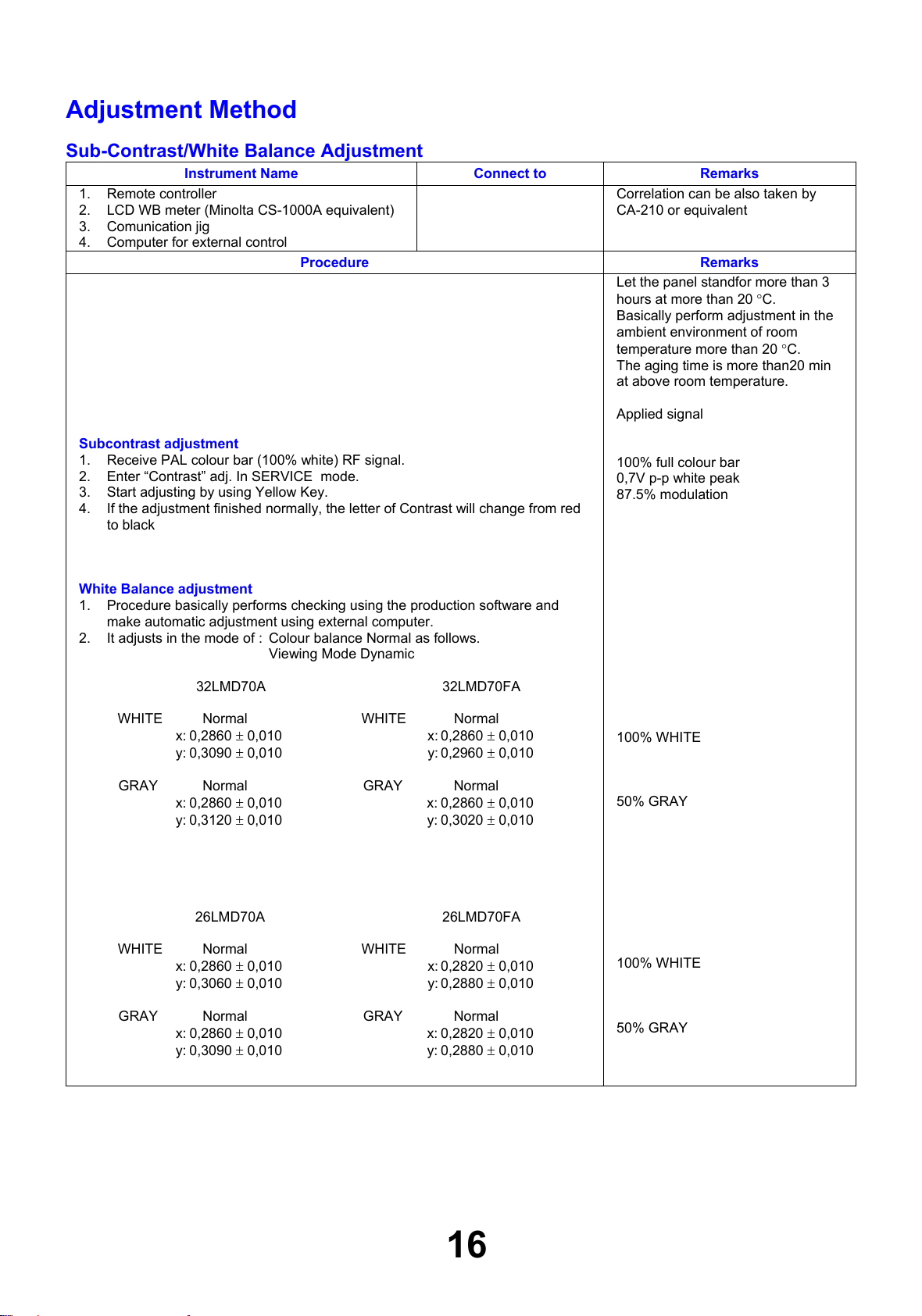

ADJUSTMENT METHOD ........................................................................ 16
WIRING DIAGRAM.................................................................................. 17

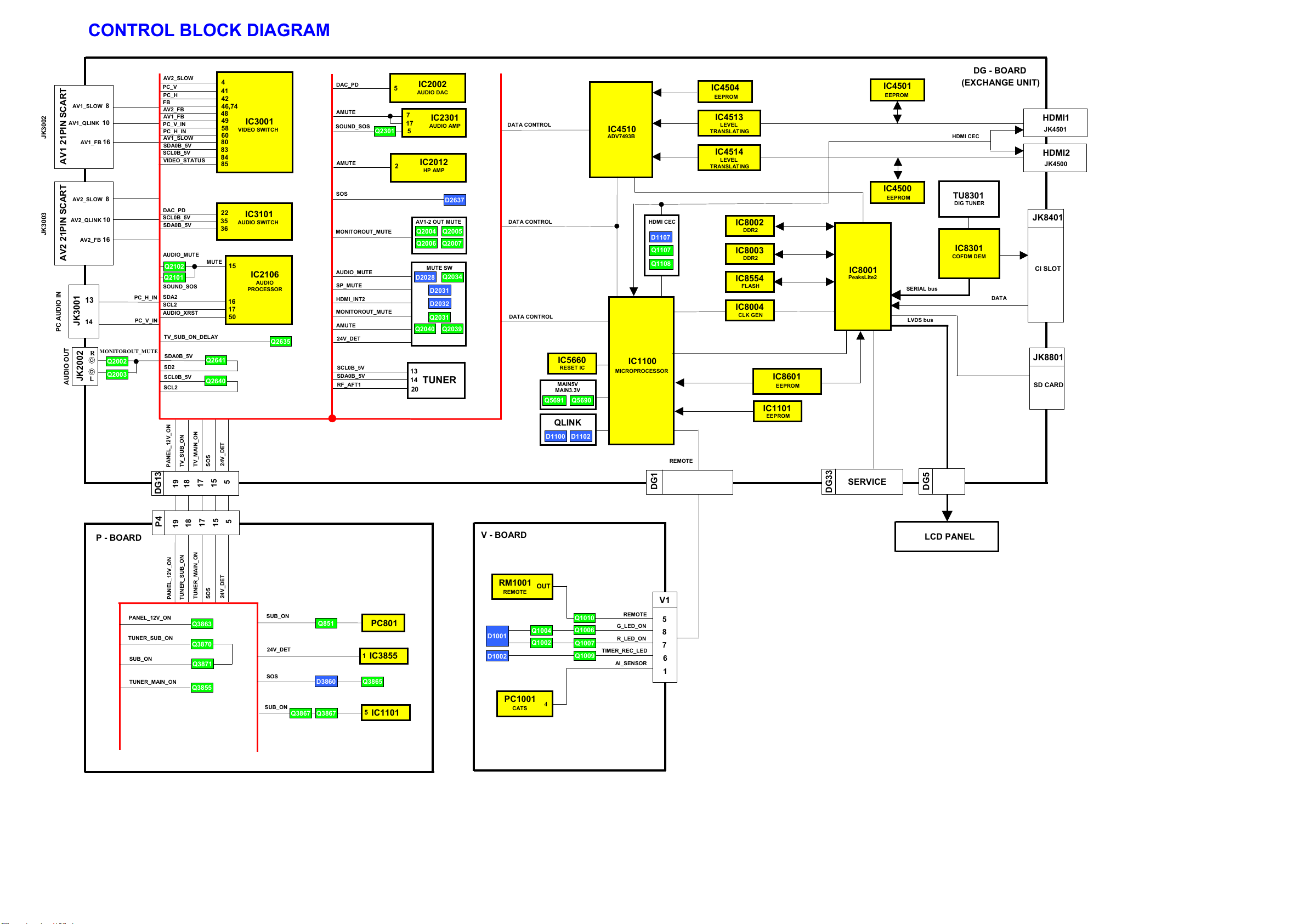

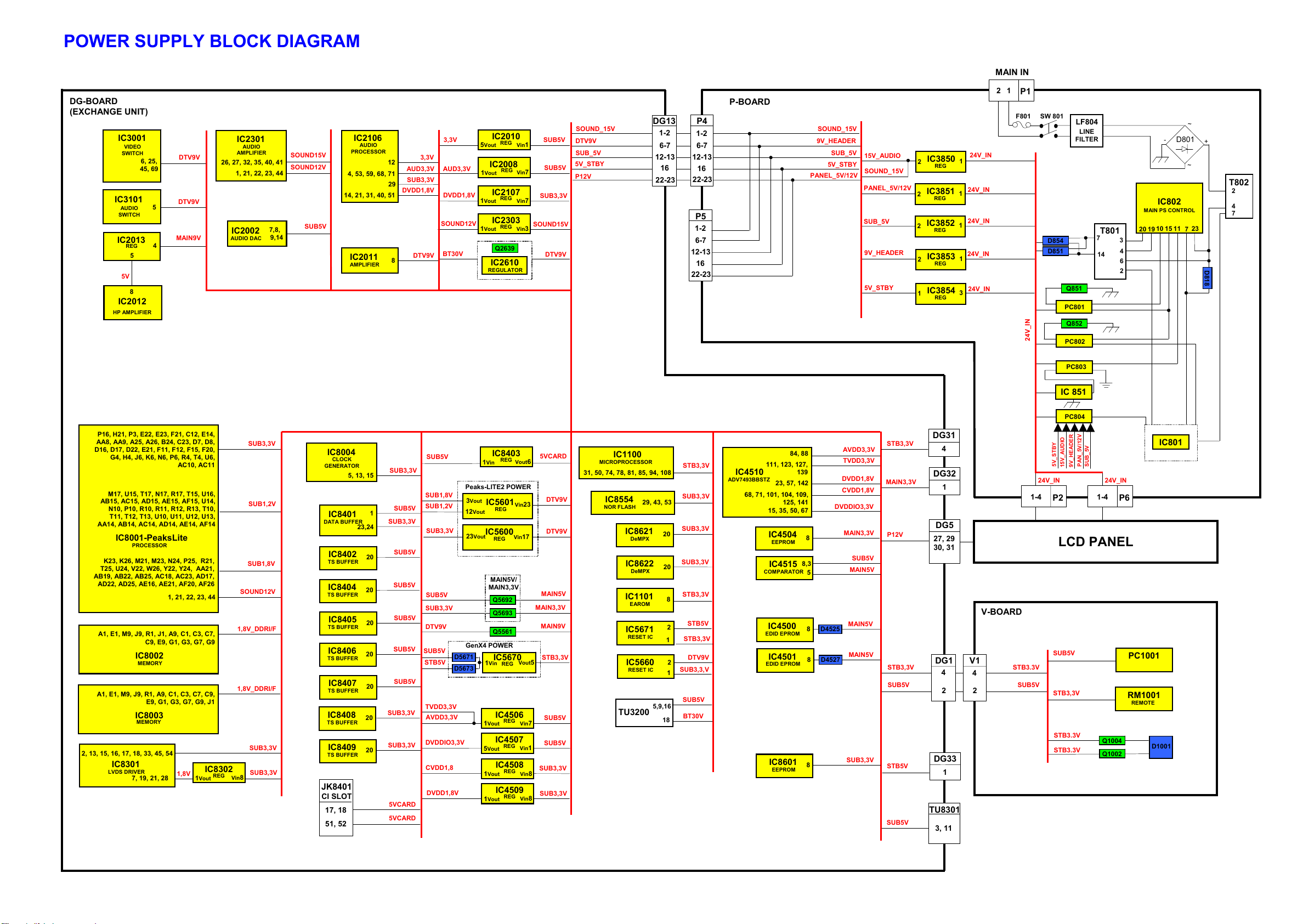

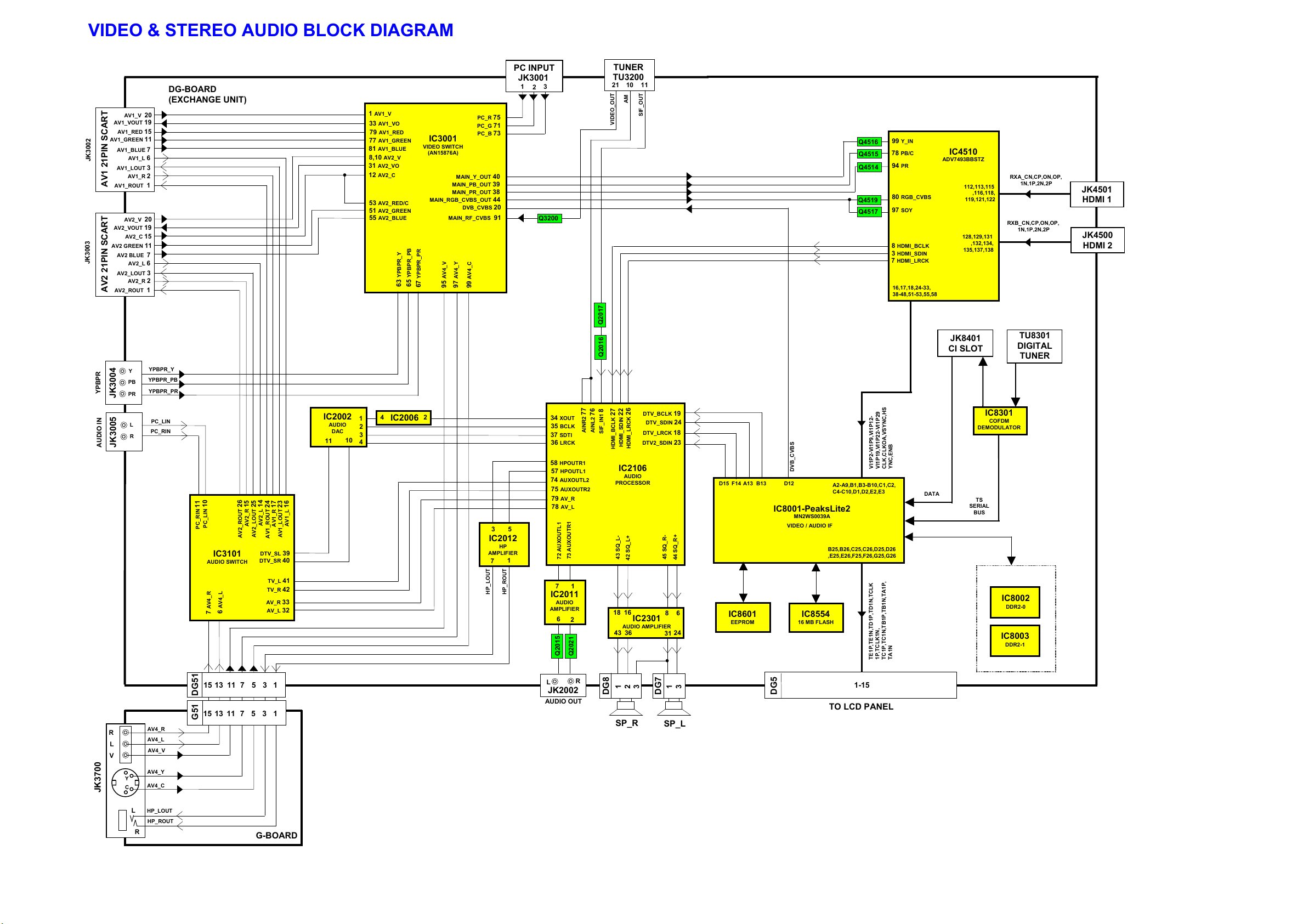

BLOCK DIAGRAMS................................................................................. 18
PARTS LOCATION.................................................................................. 21
REPLACEMENT PARTS LIST................................................................. 23
SCHEMATIC DIAGRAMS........................................................................ 43
P-BOARD (1 OF 2) SCHEMATIC DIAGRAM ..................................... 44
DG-BOARD (1 OF 17) SCHEMATIC DIAGRAM ................................ 46
G-BOARD SCHEMATIC DIAGRAM................................................... 63
V-BOARD SCHEMATIC DIAGRAM ................................................... 64
CONDUCTOR VIEWS ............................................................................. 65
3
All manuals and user guides at all-guides.com

Safety Precautions
General Guide Lines
1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated
or damaged by the short circuit.
2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly
installed.
3. After servicing, make the following touch current checks to prevent the customer from being exposed to shock hazards.
4. Always ensure panel TKP0E16001 is correctly replaced before returning to customer (see Fig.1).
Touch-Current Check
1. Plug the AC cord directly into the AC outlet. Do not use an isolation transformer for this check.
2. Connect a measuring network for touch currents between each exposed metallic part on the set and a good earth
ground such as a water pipe, as shown in Fig. 2.
3. Use Leakage Current Tester (Simpson 228 or equivalent) to measure the potential across the measuring network.
4. Check each exposed metallic part, and measure the voltage at each point.
5. Reserve the AC plug in the AC outlet and repeat each of the above measure.
6. The potential at any point (TOUCH CURRENT) expressed as voltage U1 and U2, does not exceed the following values:
For a. c.: U1 = 35 V (peak) and U2 = 0.35 V (peak);
For d. c.: U1 = 1.0 V,
Note:
The limit value of U2 = 0.35 V (peak) for a. c. and U1 = 1.0 V for d. c. correspond to the values 0.7 mA (peak) a. c. and
2.0 mA d. c.
The limit value U1 = 35 V (peak) for a. c. correspond to the value 70 mA (peak) a. c. for frequencies greater than 100
kHz.
7. In case a measurement is out of the limits specified, there is a possibility of a shock hazard, and the equipment should
be repaired and rechecked before it is returned to the customer.
Fig. 2
4
TO
A
PPLIANCES
EXPOSED
METAL PARTS
Resistance values in ohms (Ω)
V
R0=500
Ω
RS=1500
Ω
CS=0.22
μ
F
10k
Ω
0.022
μ
F
U1
COLD
WATER PIPE
(EARTH GROUND)
V: Voltmetr or oscilloscope
(r.m.s. or peak reading)
Measuring network for TOUCH CURRENTS
Input resistance: ≥ 1M
Ω
Input capacitance: ≤ 200pF
Frequency range: 15Hz to 1MHz and d.c.respectively
NOTE – Appropriate measures should be taken to obtain the correct value in case of non-sinusoidal waveforms
U2(V)
Fig. 1
All manuals and user guides at all-guides.com

Prevention of Electrostatic Discharge (ESD) to Electrostatically
Sensitive (ES) Devices
Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are
called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect
transistors and semiconductor "chip" components. The following techniques should be used to help reduce the incidence of
component damage caused by electrostatic discharge (ESD).
1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on
your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD
wrist strap, which should be removed for potential shock reasons prior to applying power to the unit under test.
2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge build up or exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.
4. Use only an anti-static solder removal device. Some solder removal devices not classified as "anti-static (ESD
protected)" can generate electrical charge sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil
or comparable conductive material).
7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective
material to the chassis or circuit assembly into which the device will be installed.
Caution
Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the
brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity
(ESD) sufficient to damage an ES device).
There are special components used in this equipment which are important for safety.
These parts are marked by in schematic diagrams, exploded views and replacement parts list. It is essential that
these critical parts should be replaced with manufacturer’s specified parts to prevent shock, fire, or other hazards. Do
not modify the original design without permission of manufacturer.
IMPORTANT SAFETY NOTICE
5
All manuals and user guides at all-guides.com

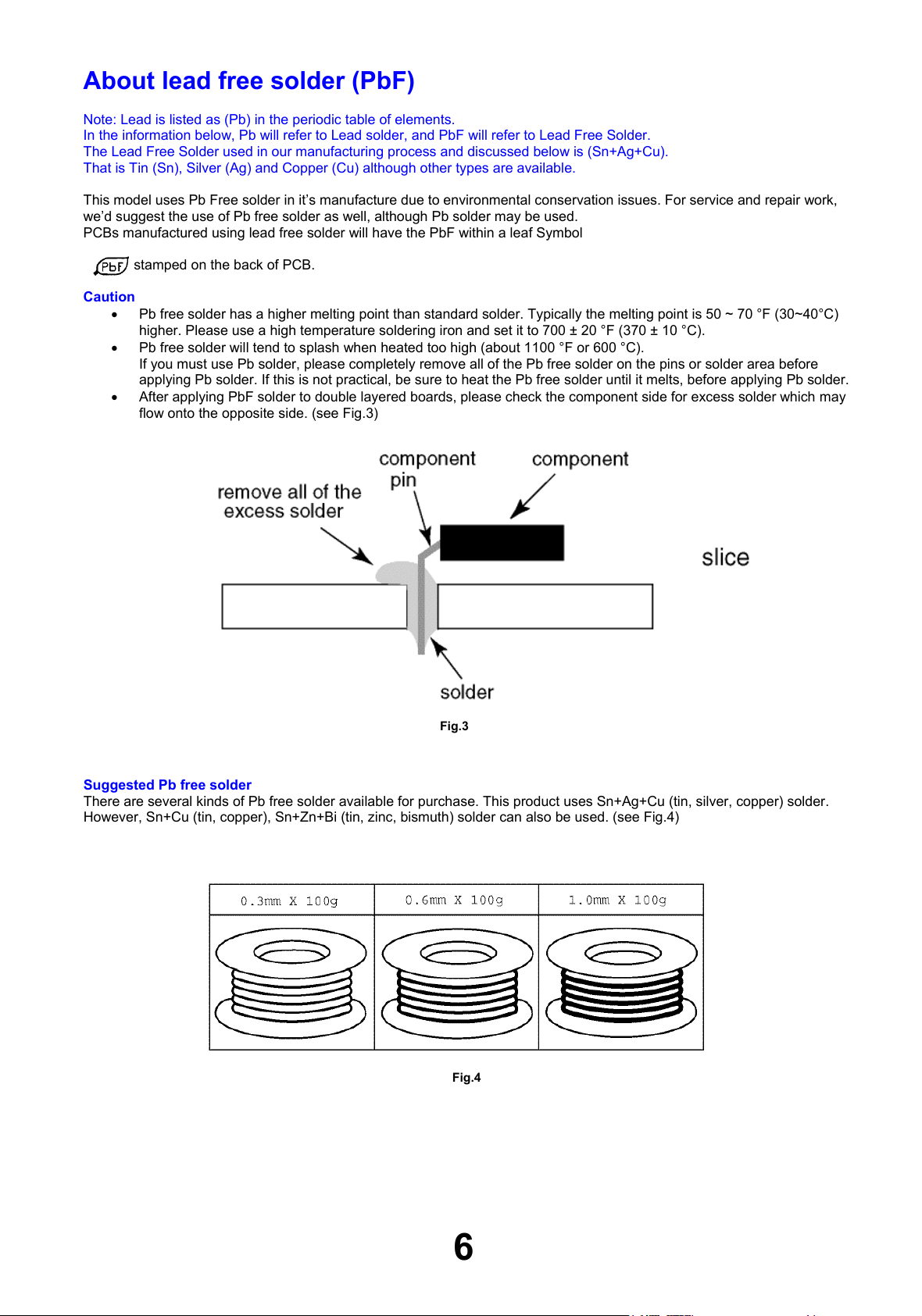

About lead free solder (PbF)
Note: Lead is listed as (Pb) in the periodic table of elements.
In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder.
The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu).
That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.
This model uses Pb Free solder in it’s manufacture due to environmental conservation issues. For service and repair work,
we’d suggest the use of Pb free solder as well, although Pb solder may be used.
PCBs manufactured using lead free solder will have the PbF within a leaf Symbol
stamped on the back of PCB.
Caution
•Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 °F (30~40°C)
higher. Please use a high temperature soldering iron and set it to 700 ± 20 °F (370 ± 10 °C).
•Pb free solder will tend to splash when heated too high (about 1100 °F or 600 °C).
If you must use Pb solder, please completely remove all of the Pb free solder on the pins or solder area before
applying Pb solder. If this is not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder.
•After applying PbF solder to double layered boards, please check the component side for excess solder which may
flow onto the opposite side. (see Fig.3)
Suggested Pb free solder
There are several kinds of Pb free solder available for purchase. This product uses Sn+Ag+Cu (tin, silver, copper) solder.
However, Sn+Cu (tin, copper), Sn+Zn+Bi (tin, zinc, bismuth) solder can also be used. (see Fig.4)
Fig.3
Fig.4
6
All manuals and user guides at all-guides.com

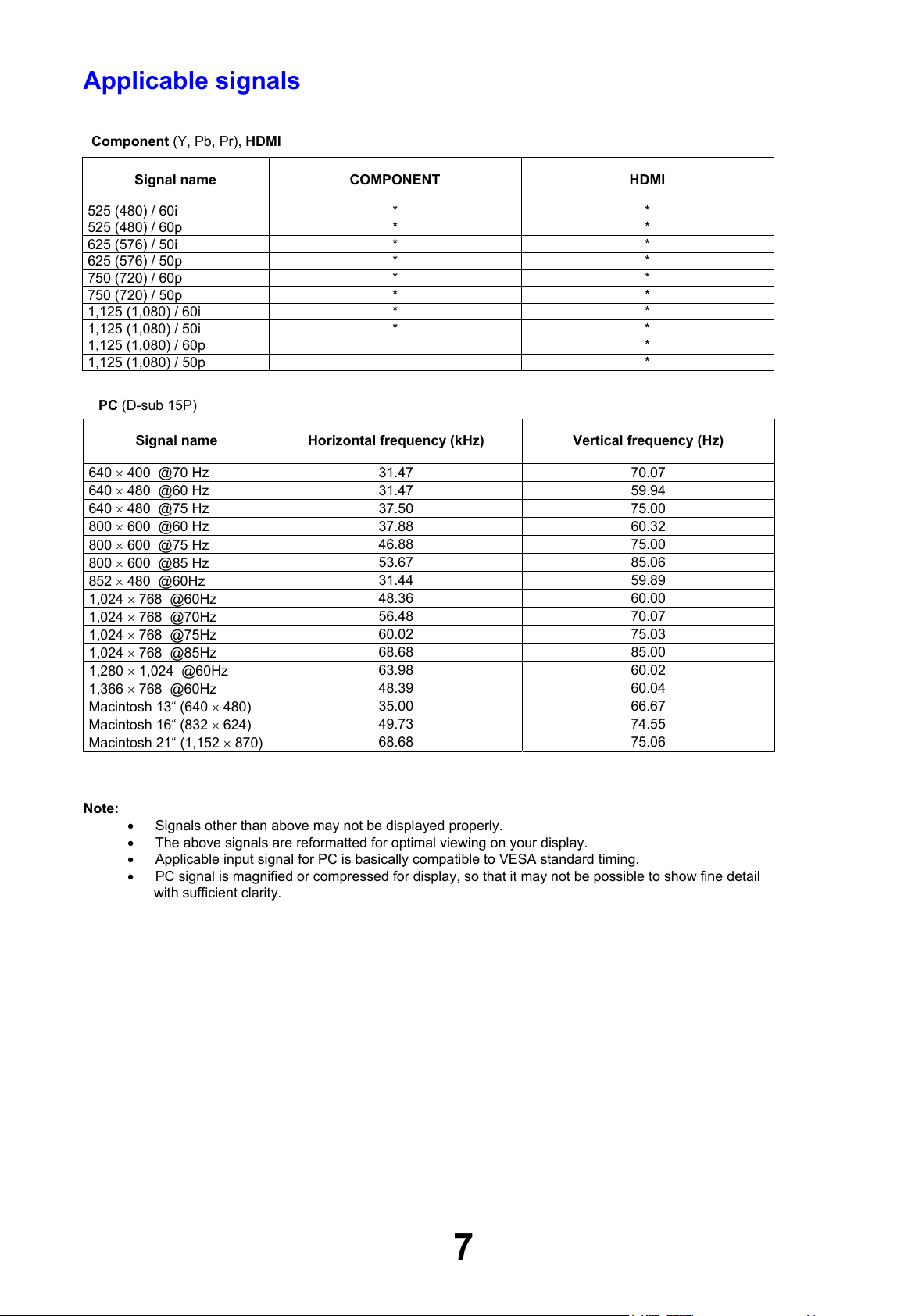

Applicable signals
Signal name Horizontal frequency (kHz) Vertical frequency (Hz)
640 ×400 @70 Hz 31.47 70.07
640 ×480 @60 Hz 31.47 59.94
640 ×480 @75 Hz 37.50 75.00
800 ×600 @60 Hz 37.88 60.32
800 ×600 @75 Hz 46.88 75.00
800 ×600 @85 Hz 53.67 85.06
852 ×480 @60Hz 31.44 59.89
1,024 ×768 @60Hz 48.36 60.00
1,024 ×768 @70Hz 56.48 70.07
1,024 ×768 @75Hz 60.02 75.03
1,024 ×768 @85Hz 68.68 85.00
1,280 ×1,024 @60Hz 63.98 60.02
1,366 ×768 @60Hz 48.39 60.04
Macintosh 13“ (640 ×480) 35.00 66.67
Macintosh 16“ (832 ×624) 49.73 74.55
Macintosh 21“ (1,152 ×870) 68.68 75.06
Note:
•Signals other than above may not be displayed properly.
•The above signals are reformatted for optimal viewing on your display.
•Applicable input signal for PC is basically compatible to VESA standard timing.
•PC signal is magnified or compressed for display, so that it may not be possible to show fine detail
with sufficient clarity.
7
Signal name COMPONENT HDMI
525 (480) / 60i * *
525 (480) / 60p * *
625 (576) / 50i * *
625 (576) / 50p * *
750 (720) / 60p * *
750 (720) / 50p * *
1,125 (1,080) / 60i * *
1,125 (1,080) / 50i * *
1,125 (1,080) / 60p *
1,125 (1,080) / 50p *
Component (Y, Pb, Pr), HDMI
PC (D-sub 15P)
All manuals and user guides at all-guides.com

Service Hints
How to remove the backcover
Remove the 18[16] fixing screws. (see Fig.5)
How to remove the Pedestal assembly
Lay the main unit face down. (see Fig.6)
Remove the 4 fixing screws and the pedestal assembly. (see Fig.7)
Fig.6
8
Fig.7
SCREWS
SCREWS SCREWS
Fig.5
All manuals and user guides at all-guides.com

Chassis Board Layout
Location of Lead Wiring
To find the Part Number of required wire in Replacement Parts List click on the wire name in red box.
Board Name Function
DG-Board Global Core, HDMI, IDTV Processor, D/A Converter,
AV Connector, Analog tuner, Digital tuner, AV Switch
G-Board Side AV Connector
P-Board Main Input, Power Supply, Main Switch
V-Board Remote Receiver, LED IR, Cats
V-BOARD
DG-BOARD P-BOARD
G-BOARD
9
G51-DG51
TU3200
DG11
P7
DG5
DG8
DG51
G51
DG9
DG1
DG7
P6
P2
V1
TU8301
DG1-V1DG7-SP
DG8-SP
P2/DG11-INV
P7-DG
TNR-TN
DG5-PAN
P6-INV
( Only for 32” )
G51-DG51
( 32” )
( 26” )
DG5-PAN
( 32” )
( 26” )
All manuals and user guides at all-guides.com

Setting Inspection
Voltage Confirmation
Confirm the following voltages:
P board
Description Test point Position Normal mode Stand by mode Active stand by mode
Sub_5V TP861 P4, pin 12,13 5,0V +/- 0,25V <1V 5,0V +/- 0,25V
Panel 5/12V TP857 P4, pin 22,23 12V +/- 1V <1V <1V
15V_Audio TP856 C3861 15,5V +/- 1V <1V <1V
9V_Header TP864 P4, pin 7,6 9V +/- 0,25V <1V 9,0V +/- 0,25V
STBY_5V TP863 P4, pin 16 5,0V +/- 0,25V 5,0 +/- 0,25V 5,0V +/- 0,25V
24V_INV TP853 P2, pin1,2,3,4 24V +/- 1,5V <1V <1V
24V_INV TP852 C865 24V +/- 1,5V 24V +/- 1,5 24V +/- 1,5V
DG board
DTV9V TP5700 9V +/- 0,25V
SUB5V TP5701 5V +/- 0,25V
SUB3,3V TP5600 3,3V +/- 0,25V
MAIN9V TP5706 9V +/- 0,25V
STB5V TP5702 5V +/- 0,25V
SOUND15V TPS15 15V +/- 0,25V
10
All manuals and user guides at all-guides.com

Self Check
Self-check is used to automatically check the bus lines and hexadecimal code of the TV set. To enter Self-Check mode, keep
pressing the down (-/v) button on the TV set and press the STATUS button on the remote control. To exit Self Check,
switch off the TV set at the power button.
Display Ref. No. Description P.C.B.
ADV IC4510 A/D CONVERTER DG-Board
VSW IC3001 VIDEO SWITCH DG-Board
ADAV IC2106 AUDIO PROCESSOR DG-Board
ASW IC3101 AUDIO SWITCH DG-Board
TUN1 TU3200 ANALOG TUNER DG-Board
GENX IC1100 MICROPROCESSOR DG-Board
MEM1 IC1101 EEPROM DG-Board
MEM2 IC8601 EEPROM DG-Board
D-TUN TU8301 DIGITAL TUNER DG-Board
OFDM IC8301 COFDM DEMODULATOR DG-Board
If the CCU
p
orts have been checked and found to be incorrect or not located then " - - " will a
pp
ear in
p
lace of "O.K.".
11
SUM
OPTION 1
OPTION 2
OPTION 3
CHECK
MODEL ID
189f
0c
ea
7f
75
04
03150000
00000002
18c3
2c
ea
7f
95
04
03130000
00000002
A
DV O.K.
VSW O.K.
A
DAV O.K.
A
SW O.K.
GENX O.K.
MEM1 O.K.
MEM2 O.K.
TUN1 O.K.
D-TUN O.K.
OFDM O.K.
PEAKS-SOFT 6.570
PEAKS-EEP 02.06.0035
GenX-SOFT 1.00.00
GenX-EEP 1.02.00
GenX-ROMCORR 1.01.00
Self Check Com
p
lete
26 Panasonic 2007LCD 26lmd70a.dat:000001
189e
0c
ea
7
f
75
04
03150000
00000004
A
DV O.K.
VSW O.K.
A
DAV O.K.
A
SW O.K.
GENX O.K.
MEM1 O.K.
MEM2 O.K.
TUN1 O.K.
D-TUN O.K.
OFDM O.K.
PEAKS-SOFT 6.570
PEAKS-EEP 02.06.0034
GenX-SOFT 1.00.00
GenX-EEP 1.02.00
GenX-ROMCORR 1.01.00
SUM
OPTION 1
OPTION 2
OPTION 3
CHECK
MODEL ID
32
Self Check Complete
Panasonic 2007LCD 32lmd70a.dat:000002
A
DV O.K.
VSW O.K.
A
DAV O.K.
A
SW O.K.
GENX O.K.
MEM1 O.K.
MEM2 O.K.
TUN1 O.K.
D-TUN O.K.
OFDM O.K.
5.570
01.06.0039
1.00.00
1.02.00
1.01.00
PEAKS-SOFT
PEAKS-EEP
GenX-SOFT
GenX-EEP
GenX-ROMCORR
SUM
OPTION 1
OPTION 2
OPTION 3
CHECK
MODEL ID
Self Check Complete
26 Panasonic 2007LCD 26lmd70a.dat:000001
5.570
01.06.0038
1.00.00
1.02.00
1.01.00
18c2
2c
ea
7
f
95
04
0313000
0000004
A
DV O.K.
VSW O.K.
A
DAV O.K.
A
SW O.K.
GENX O.K.
MEM1 O.K.
MEM2 O.K.
TUN1 O.K.
D-TUN O.K.
OFDM O.K.
PEAKS-SOFT
PEAKS-EEP
GenX-SOFT
GenX-EEP
GenX-ROMCORR
SUM
OPTION 1
OPTION 2
OPTION 3
CHECK
MODEL ID
32
Self Check Complete
Panasonic 2007LCD 32lmd70a.dat:000002
TX-26LMD70FA
TX-26LMD71FA
TX-32LMD70FA
TX-32LMD71FA
TX-32LMD72FA
TX-26LMD70A
TX-32LMD70A
All manuals and user guides at all-guides.com

4 sec
Once
Power LED blinking timing chart
1. Subject
Information of LED Flashing timing chart.
2. Contents
When abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the
defective block can be identified by number of blinking of the Power LED on the front panel of the unit.
Blinking
times Blinking timing Contents Check point
1 INVERTER_SOS LCD PANEL
DG BOARD
2 FAN_SOS DG BOARD
3SOS
DG BOARD
P BOARD
4 DTV_9V DG BOARD
5 MAIN_9V DG BOARD
6 SUB_5V DG BOARD
V BOARD
7 MAIN_5V DG BOARD
8 MAIN_3.3V DG BOARD
9 SOUND_SOS DG BOARD
10 HQ1L_SOS DG BOARD
No Light
12
Light
All manuals and user guides at all-guides.com

Service Mode Function
MPU controls the functions switching for each IICs through IIC bus in this chassis. The following setting and adjustment can be
adjusted by remote control in Service Menu
How to enter SERVICE
While pressing (-/v) button on TV unit, press on the remote
control for 3 times within 2 seconds.
Note:
To exit from Service mode, press the exit button on remote control.
0
13
All manuals and user guides at all-guides.com

SERVICE
14
SERVICE
ADJUST
WB-ADJ
OPTION
SRV-TOOL
Peaks SOFT 6.570 OPTION 1 0c
Peaks EEP 02.06.0034 OPTION 2 ea
LSI DATA 0.00.02 OPTION 3 7f
GenX SOFT 1.00.00 Model ID 04
GenX EEP 1.02.00 03150000
GenX ROMCOR 1.01.00 00000004
HQ1L EEP -- Time 00000:00
Count 0000016
ADJUST DYNAMIC
CONTRAST
Y
MAX
1,2:MAIN SELECT
3,4:SUB SELECT
9 :PICTURE MENU SELECT
Y
ELLOW:AUTO ADJUST
VOL:ADJUST
OK :WRITE
000
ADJUST DYNAMIC
COLOR
1,2:MAIN SELECT
3,4:SUB SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE
3A
A
DJUST DYNAMIC
TINT
1,2:MAIN SELECT
3,4:SUB SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE
00
ADJUST DYNAMIC
SUB-BRT
1,2:MAIN SELECT
3,4:SUB SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE
808
A
DJUST DYNAMIC
BACKLIGHT
1,2:MAIN SELECT
3,4:SUB SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE
276
A
DJUST DYNAMIC
H-POS
1,2:MAIN SELECT
3,4:SUB SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE
0
A
DJUST DYNAMIC
H-AMP
1,2:MAIN SELECT
3,4:SUB SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE
0
ADJUST DYNAMIC
V-POS
1,2:MAIN SELECT
3,4:SUB SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE
0
A
DJUST DYNAMIC
V-AMP
1,2:MAIN SELECT
3,4:SUB SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE
0
WB-ADJ DYNAMIC
R-GAIN
COLOR TEMP NORMAL
1,2:MAIN SELECT
3,4:SUB SELECT
7 :COLOR TEMP SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE
FF
WB-ADJ DYNAMIC
G-GAIN
COLOR TEMP NORMAL
1,2:MAIN SELECT
3,4:SUB SELECT
7 :COLOR TEMP SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE
F2
WB-ADJ DYNAMIC
B-GAIN
COLOR TEMP NORMAL
1,2:MAIN SELECT
3,4:SUB SELECT
7 :COLOR TEMP SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE
E4
WB-ADJ DYNAMIC
R-CENT
COLOR TEMP NORMAL
1,2:MAIN SELECT
3,4:SUB SELECT
7 :COLOR TEMP SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE
48
WB-
A
DJ DYNAMIC
G-CENT
COLOR TEMP NORMAL
1,2:MAIN SELECT
3,4:SUB SELECT
7 :COLOR TEMP SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE
WB-
A
DJ DYNAMIC
B-CENT
COLOR TEMP NORMAL
1,2:MAIN SELECT
3,4:SUB SELECT
7 :COLOR TEMP SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE
40
OPTION DYNAMIC
Boot
1,2:MAIN SELECT
3,4:SUB SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
ROM
OPTION DYNAMIC
STBY-SET
1,2:MAIN SELECT
3,4:SUB SELECT
9 :PICTURE MENU SELECT
OK :POWER OFF
00
OPTION DYNAMIC
Emergency
1,2:MAIN SELECT
3,4:SUB SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OFF
OPTION DYNAMIC
Y
/C Dela
y
1,2:MAIN SELECT
3,4:SUB SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE
OPTION DYNAMIC
OPT 1
1,2:MAIN SELECT
3,4:SUB SELECT
5,6:BIT SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE
00001100
OPTION DYNAMIC
OPT 2
1,2:MAIN SELECT
3,4:SUB SELECT
5,6:BIT SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE
11101010
OPTION DYNAMIC
OPT 3
1,2:MAIN SELECT
3,4:SUB SELECT
5,6:BIT SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE
01111111
SRV-TOOL DYNAMIC
1,2:MAIN SELECT
9 :PICTURE MENU SELECT
OK :ENTER
00
1
2
3
4
1
1
1
2
2
2
333
3
3
33
3
3
3
3
3
3
3
3
333
4
4
4
4
4
4
444
4
44
4
4
4
44
4
80
Key Command
•Press the 3/4 button to change the adjustment values or function.
•Press the 1/2 button to step up/down through the functions and adjustments
•Press the numerical button VOLUME (+/-) to change option item.
•Press the OK button after each adjustment has been made to store the required values.
All manuals and user guides at all-guides.com

Option Bytes Description
OPTION1
0 ATP Speed Slow (1) / Fast (0)
1 TXT Ch On (1) / Off (0)
2 ID-1 On (1) / Off (0)
3 Macrovision Auto Evaluation On (1) / Off (0)
4 SRS Surround On (1) / Off (0)
5 Teletext Top Off (1) / On (0)
6 Not Use Not Use
7 Not Use Not Use
OPTION2
0 Not Use Not Use
1 A2 Stereo (5,5MHz) On (1) / Off (0)
2 A2 Stereo (6,0MHz) On (1) / Off (0)
3 A2 Stereo (6,5MHz) On (1) / Off (0)
4 Not Use Not Use
5 NICAM (5,5MHz) On (1) / Off (0)
6 NICAM (6,0MHz) On (1) / Off (0)
7 NICAM (6,5MHz) On (1) / Off (0)
OPTION3
0 NICAM priority (ASIA/M.E) On (1) / Off (0)
1 NICAM priority (K/UK) On (1) / Off (0)
2 NICAM priority (China) On (1) / Off (0)
3 NICAM priority (NZ/INDN) On (1) / Off (0)
4 NICAM priority (AUS) On (1) / Off (0)
5 NICAM priority (E.Europe) On (1) / Off (0)
6 NICAM priority (Special) On (1) / Off (0)
7 Not Use Not Use
15
All manuals and user guides at all-guides.com

Adjustment Method
Sub-Contrast/White Balance Adjustment
Instrument Name Connect to Remarks
1. Remote controller
2. LCD WB meter (Minolta CS-1000A equivalent)
3. Comunication jig
4. Computer for external control
Correlation can be also taken by
CA-210 or equivalent
Procedure Remarks
Subcontrast adjustment
1. Receive PAL colour bar (100% white) RF signal.
2. Enter “Contrast” adj. In SERVICE mode.
3. Start adjusting by using Yellow Key.
4. If the adjustment finished normally, the letter of Contrast will change from red
to black
White Balance adjustment
1. Procedure basically performs checking using the production software and
make automatic adjustment using external computer.
2. It adjusts in the mode of : Colour balance Normal as follows.
Viewing Mode Dynamic
32LMD70A 32LMD70FA
WHITE Normal WHITE Normal
x: 0,2860 ±0,010 x: 0,2860 ±0,010
y: 0,3090 ±0,010 y: 0,2960 ±0,010
GRAY Normal GRAY Normal
x: 0,2860 ±0,010 x: 0,2860 ±0,010
y: 0,3120 ±0,010 y: 0,3020 ±0,010
26LMD70A 26LMD70FA
WHITE Normal WHITE Normal
x: 0,2860 ±0,010 x: 0,2820 ±0,010
y: 0,3060 ±0,010 y: 0,2880 ±0,010
GRAY Normal GRAY Normal
x: 0,2860 ±0,010 x: 0,2820 ±0,010
y: 0,3090 ±0,010 y: 0,2880 ±0,010
Let the panel standfor more than 3
hours at more than 20 °C.
Basically perform adjustment in the
ambient environment of room
temperature more than 20 °C.
The aging time is more than20 min
at above room temperature.
Applied signal
100% full colour bar
0,7V p-p white peak
87.5% modulation
100% WHITE
50% GRAY
100% WHITE
50% GRAY
16
All manuals and user guides at all-guides.com

DG-BOARD
DG13
DG51
G-BOARD
JK4501 JK4500
Wiring diagram
G51
V-BOARD
DG1
P-BOARD
P5
V1
LCD PANEL
DG5 DG11 P2
DG9 DG8
SP_R
DG7
SP_L
JK3002
J
K
3003
AV1 AV2
HDMI 1 HDMI 2
TU3200
TUNER
TU8301
DIGITAL TUNER
JK3700
KEY
JK8401 CI SLOT
JK3001 PC INPUT
JK3004
YPBPR
JK3005
AUDIO IN
JK2002
AUDIO OUT
DG33
SERVICE
DG32
SERVICE
JK8801 SD SLOT
P7
P6
AV3
P1
MAIN INPUT
( 32” ONLY )
P4
All manuals and user guides at all-guides.com

VIDEO & STEREO AUDIO BLOCK DIAGRAM
A
V1 21PIN SCART
AV1_V 20
AV1_VOUT 19
AV1_RED 15
AV1_GREEN 11
AV1_BLUE 7
AV1_L 6
AV1_LOUT 3
AV1_R 2
AV1_ROUT 1
JK3002
A
V2 21PIN SCART
AV2_V 20
AV2_VOUT 19
AV2_C 15
AV2 GREEN 11
AV2 BLUE 7
AV2_L 6
AV2_LOUT 3
AV2_R 2
AV2_ROUT 1
JK3003
L
R
IC3001
VIDEO SWITCH
(AN15876A)
77 AV1_GREEN
MAIN_PR_OUT 38
MAIN_PB_OUT 39
79 AV1_RED
81 AV1_BLUE
51 AV2_GREEN
55 AV2_BLUE
63 YPBPR_Y
65 YPBPR_PB
67 YPBPR_PR
PC_R 75
PC_G 71
12 AV2_C
8,10 AV2_V
MAIN_RF_CVBS 91
53 AV2_RED/C
1 AV1_V
33 AV1_VO
31 AV2_VO
PC_B 73
MAIN_Y_OUT 40
DVB_CVBS 20
YPBPR_Y
YPBPR_PB
YPBPR_PR
JK3005
AUDIO IN
IC3101
AUDIO SWITCH
PC_RIN 11
DTV_SR 40
DTV_SL 39
TV_R 42
AV1_R 17
PC_LIN 10
TV_L 41
PC_LIN
PC_RIN
AV1_LOUT 23
AV1_L 16
AV2_ROUT 26
AV2_R 15
AV2_LOUT 25
AV2_L 14
AV1_ROUT 24
JK3001
23
1
PC INPUT
MAIN_RGB_CVBS_OUT 44
AV_R 33
AV_L 32
24
IC2002
AUDIO
DAC
1
11
2
10 4
3
IC2106
AUDIO
PROCESSOR
95 AV4_
V
97 AV4_
Y
36 LRCK
37 SDTI
35 BCLK
34
X
OUT
IC2006
HDMI_BCLK 27
HDMI_SDIN 22
HDMI_LRCK 26
74 AUXOUTL2
75 AUXOUTR2
79 AV_R
78 AV_L
TUNER
TU3200
21 10
99 AV4_C
VIDEO_OUT
Q2017
Q2016
SIF_OUT
SIF_IN1 8
IC2011
AUDIO
AMPLIFIER
7
6
1
2
Q2015
Q2021
G51 DG51
IC2012
HP
AMPLIFIER
71
35
58 HPOUTR1
57 HPOUTL1
HP_ROUT
HP_LOUT
7 AV4_R
6 AV4_L
45 SQ_R-
44 SQ_R+
43 SQ_L-
42 SQ_L+
IC2301
AUDIO AMPLIFIER
8
16
18 6
31
36
43 24
DG8
1
2 3
R
L
V
L
R
Y
C
JK3700
AV4_R
AV4_L
AV4_V
AV4_Y
AV4_C
HP_LOUT
HP_ROUT
G-BOARD
IC4510
ADV7493BBSTZ
99 Y_IN
78 PB/C
94 PR
V
I1P2-VI1P9,VI1P12-
V
I1P19,VI1P22-VI1P29
CLK,CLKOA,VSYNC,HS
Y
NC,ENB
IC8001-PeaksLite2
MN2WS0039A
Q4516
Q4515
Q4514
Q4519 80 RGB_CVBS
7 HDMI_LRCK
3 HDMI_SDIN
8 HDMI_BCLK
VIDEO / AUDIO IF
D12
112,113,115
,116,118,
119,121,122
DG5
TO LCD PANEL
16,17,18,24-33,
38-48,51-53,55,58
IC8002
DDR2-0
B25,B26,C25,C26,D25,D26
,E25,E26,F25,F26,G25,G26
IC8301
COFDM
DEMODULATOR
DG-BOARD
(EXCHANGE UNIT)
A
2-A9,B1,B3-B10,C1,C2,
C4-C10,D1,D2,E2,E3
73 AUXOUTR1
72 AUXOUTL1
Q3200
Q4517 97 SOY
SP_R SP_L
11
AM
DTV_BCLK 19
DTV_SDIN 24
DTV_LRCK 18
DTV2_SDIN 23
B13
A13F14D15
IC8003
DDR2-1
1-15
TE1P,TE1N,TD1P,TD1N,TCLK 1P,TCLK1N, TC1P,TC1N,TB1P,TB1N,TA1P, TA1N
IC8554
16 MB FLASH
IC8601
EEPROM
3
3
5
5
7
1
1
7
11
11
13
13
15
15
Y
PB
PR
JK3004
YPBPR
DG7
1
3
AINL2 76
AINR2 77
LR
JK2002
AUDIO OUT
JK8401
CI SLOT
TU8301
DIGITAL
TUNER
TS
SERIAL
BUS
DATA
JK4500
HDMI 2
DVB_CVBS
JK4501
HDMI 1
RXA_CN,CP,ON,OP,
1N
,
1P
,
2N
,
2P
128,129,131
,132,134,
135,137,138
RXB_CN,CP,ON,OP,
1N
,
1P
,
2N
,
2P
All manuals and user guides at all-guides.com

POWER SUPPLY BLOCK DIAGRAM
9V_HEADER
5V_STBY
9V_HEADER
SUB_5V
15V_AUDIO
PANEL_5V/12V
5V_STBY
SUB_5V
SOUND_15V
PANEL_5V/12V
24V_IN
SOUND_15V
5V_STBY
SUB_5V
SOUND_15V
DTV9V
P16, H21, P3, E22, E23, F21, C12, E14,
AA8, AA9, A25, A26, B24, C23, D7, D8,
D16, D17, D22, E21, F11, F12, F15, F20,
G4, H4, J6, K6, N6, P6, R4, T4, U6,
AC10, AC11
SUB3,3V
1, 21, 22, 23, 44 SOUND12V
IC8001-PeaksLite
PROCESSOR
M17, U15, T17, N17, R17, T15, U16,
AB15, AC15, AD15, AE15, AF15, U14,
N10, P10, R10, R11, R12, R13, T10,
T11, T12, T13, U10, U11, U12, U13,
AA14, AB14, AC14, AD14, AE14, AF14
SUB1,2
V
K23, K26, M21, M23, N24, P25, R21,
T25, U24, V22, W26, Y22, Y24, AA21,
AB19, AB22, AB25, AC18, AC23, AD17,
AD22, AD25, AE16, AE21, AF20, AF26
SUB1,8V
5, 13, 15 SUB3,3V
IC8004
CLOCK
GENERATOR
A1, E1, M9, J9, R1, J1, A9, C1, C3, C7,
C9, E9, G1, G3, G7, G9
1,8V_DDRI/F
IC8002
MEMORY
A1, E1, M9, J9, R1, A9, C1, C3, C7, C9,
E9, G1, G3, G7, G9, J1
1,8V_DDRI/F
IC8003
MEMORY
2, 13, 15, 16, 17, 18, 33, 45, 54 SUB3,3V
IC8301
LVDS DRIVER SUB3,3V
1,8V
7, 19, 21, 28
1SUB5V
IC8401
DATA BUFFER
23,24 SUB3,3V
20 SUB5V
IC8402
TS BUFFER
20 SUB5V
IC8404
TS BUFFER
20 SUB5V
IC8405
TS BUFFER
20 SUB5V
IC8406
TS BUFFER
20 SUB5V
IC8407
TS BUFFER
5VCARD
SUB5V
JK8401
CI SLOT
17, 18 5VCARD
51, 52 5VCARD
20 SUB3,3V
IC8408
TS BUFFER
20 SUB3,3
V
IC8409
TS BUFFER
SUB3,3V
IC8554
NOR FLASH 29, 43, 53
20 SUB3,3V
IC8621
DeMPX
20 SUB3,3V
IC8622
DeMPX
IC5601
REG Vin23 DTV9V
SUB1,8V 3Vout
SUB1,2V 12Vout
IC5600
REG Vin17 DTV9V
SUB3,3V 23Vout
Q5692
SUB5V
Q5693
SUB3,3V
MAIN5V
MAIN3,3V
Peaks-LITE2 POWER
MAIN5V/
MAIN3,3V
2DTV9
V
IC5660
RESET IC
2STB5V
IC5671
RESET IC
IC5670
Vout5
1Vin REG
STB3,3V
SUB5V
STB5V D5671
D5673
GenX4 POWER
8STB3,3V
IC1101
EAROM
31, 50, 74, 78, 81, 85, 94, 108
STB3,3V
IC1100
MICROPROCESSOR
8MAIN5V
IC4500
EDID EPROM D4525
8MAIN5
V
IC4501
EDID EPROM D4527
8MAIN3,3V
IC4504
EEPROM
8,3 SUB5V
IC4515
COMPARATOR
IC4507
Vin1
5Vout REG SUB5V
DVDDIO3,3V
IC4506
Vin7
1Vout REG SUB5V
AVDD3,3V
IC4509
Vin8
1Vout REG SUB3,3V
DVDD1,8V
IC4508
Vin8
1Vout REG SUB3,3V
CVDD1,8
84, 88
A
VDD3,3V
IC4510
A
DV7493BBSTZ
111, 123, 127,
139
TVDD3,3V
TVDD3,3V
23, 57, 142 DVDD1,8V
68, 71, 101, 104, 109,
125, 141
CVDD1,8V
IC8403
Vout6
1Vin REG
15, 35, 50, 67 DVDDIO3,3V
IC8302
Vin8
1Vout REG
DG5
27, 29
30, 31
P12V LCD PANEL
DG1
V1
4
4
22
STB3,3
V
SUB5V
STB3.3V
SUB5V
Q1004
Q1002
D1001
STB3.3V
STB3.3V
RM1001
REMOTE
STB3,3V
PC1001
SUB5V
V-BOARD
26, 27, 32, 35, 40, 41
SOUND15V
SOUND12V
SOUND15V
1, 21, 22, 23, 44 SOUND12V
IC2301
AUDIO
AMPLIFIER
8DTV9V
IC2011
AMPLIFIER
DTV9V
IC2610
REGULATOR
Q2639
BT30V
SUB5V
3,3V
SUB5V
AUD3,3V
12 3,3V
4, 53, 59, 68, 71 AUD3,3V
IC2106
AUDIO
PROCESSOR
29 SUB3,3V
14, 21, 31, 40, 51 DVDD1,8V SUB3,3V DVDD1,8V
7,8,
9,14
SUB5
V
IC2002
AUDIO DAC
IC2013 4
5
REG
MAIN9V
5V
8
IC2012
HP AMPLIFIER
IC2010
Vin1
5Vout REG
Vin7
1Vout REG
IC2107
Vin7
1Vout REG
IC2303
Vin3
1Vout REG
6, 25,
45, 69
IC3001
V
IDEO
SWITCH
5
IC3101
AUDIO
SWITCH
DTV9V
DTV9V
TU8301
3, 11
SUB5V
P2
F801
1-4
T801
IC802
19 10 15 20 11
3
4
P-BOARD
7
14
LINE
FILTER
LF804
IC 851
Q851
SW 801
23
MAIN IN
PC801
MAIN PS CONTROL
24V_IN
P1
21
-D801 +
~
~
6
7
24V_IN
D851
D854
PC802
Q852
IC801
PC803
D818
2
T802
2
4
7
P
6
1-4
24V_IN
8SUB3,3V
IC8601
EEPROM
PC804
IC3850
2REG 1
IC3851
2REG 1
IC3852
2REG 1
IC3853
2REG 1
IC3854
1REG 3
24V_IN
24V_IN
24V_IN
24V_IN
P4
1-2
6-7
12-13
22-23
16
P5
1-2
6-7
12-13
22-23
16
DG13
1-2
6-7
12-13
22-23
16
P12V
DG31
4
STB3,3V
DG32
1
MAIN3,3V
DG33
1
STB5V
1SUB3,3,
V
5MAIN5V
5,9,16
SUB5V
TU3200
18 BT30V
1STB3,3V
Q5561
DTV9V MAIN9V
IC2008
5V_STBY
15V_AUDIO
9V_HEADER
PAN_5V/12
V
SUB_5
V
DG-BOARD
(EXCHANGE UNIT)
All manuals and user guides at all-guides.com

SD2
HDMI_INT2
CONTROL BLOCK DIAGRAM
A
V1 21PIN SCART
AV1_FB 16
AV1_SLOW 8
JK3002
A
V2 21PIN SCART
AV2_QLINK 10
AV2_SLOW 8
JK3003
JK3001
14
13
PC AUDIO IN
JK2002
R
L
AUDIO OUT
PC_H_IN
PC_V_IN
Q2002
Q2003
MONITOROUT_MUTE
IC3001
VIDEO SWITCH
46,74
42
48
84
49
83
85
4
58
41
60
80
PC_V
AV2_SLOW
FB
PC_H
AV1_FB
AV2_FB
PC_H_IN
PC_V_IN
SDA0B_5V
SCL0B_5V
AV1_SLOW
VIDEO_STATUS
IC3101
AUDIO SWITCH
22
35
36
SDA0B_5V
DAC_PD
SCL0B_5V
IC2106
AUDIO
PROCESSOR
50
15
16
17
SCL2
AUDIO_MUTE
SDA2
AUDIO_XRST
Q2102
Q2101
SOUND_SOS
MUTE
TUNER
13
14
20
SCL0B_5V
SDA0B_5V
RF_AFT1
IC2002
AUDIO DAC
5
DAC_PD
IC2301
AUDIO AMP
7
17
AMUTE
IC2012
HP AMP
2
AMUTE
AV1-2 OUT MUTE
Q2007
Q2005
MONITOROUT_MUTE
Q2040
Q2034
MUTE SW
Q2039
Q2031
D2028
AUDIO_MUTE
SP_MUTE D2031
D2032
MONITOROUT_MUTE
AMUTE
Q2641
SDA0B_5V
SCL2
Q2640
SCL0B_5V
DG13
AV1_QLINK 10
AV2_FB 16
5
SOUND_SOS Q2301
Q2003
D2637
SOS
Q2004
Q2006
P4
17 15
5
24V_DET
SOS
TUNER_MAIN_ON
PANEL_12V_ON
TUNER_SUB_ON
Q3870
Q2635
Q3863
SUB_ON
PANEL_12V_ON
Q3871
Q3855
TUNER_SUB_ON
24V_DET
P - BOARD
PC801
V1
5
8
7
6
1
Q1009
Q1007
Q1006
Q1010
Q1002
Q1004
D1001
D1002
PC1001
CATS
RM1001
REMOTE
OUT
4
IC1100
MICROPROCESSOR
IC4510
ADV7493B
IC8001
PeaksLite2
TIMER_REC_LED
AI_SENSOR
REMOTE
G_LED_ON
R_LED_ON
LCD PANEL
IC8601
EEPROM
IC8003
DDR2
LVDS bus
D1102D1100
QLINK
HDMI2
HDMI1
IC4500
EEPROM
JK8401
CI SLOT
IC8301
COFDM DEM
TU8301
DIG TUNER
HDMI CEC
JK4500
JK4501
IC4514
LEVEL
TRANSLATING
REMOTE
SERIAL bus
DATA
JK8801
SD CARD
IC4513
LEVEL
TRANSLATING
IC4501
EEPROM
IC8554
FLASH
IC8002
DDR2
IC1101
EEPROM
DG1
V - BOARD
IC4504
EEPROM
IC5660
RESET IC
MAIN5
V
MAIN3.3V
Q5691 Q5690
IC8004
CLK GEN
HDMI CEC
D1107
Q1107
Q1108
(EXCHANGE UNIT)
DG - BOARD
DG33
SERVICE
TUNER_MAIN_ON
SUB_ON
Q851
SOS D3860 Q3865
18
19
PANEL_12V_ON
TV_SUB_ON
24V_DET
SOS
TV_MAIN_ON
17 15
5
18
19
DATA CONTROL
DATA CONTROL
DATA CONTROL
SUB_ON
Q3867 Q3867 IC1101
5
IC3855
1
24V_DET
DG5
TV_SUB_ON_DELAY
All manuals and user guides at all-guides.com
