Panasonic Viera TX-32LMD70 User manual

Service Manual
Colour LCD Television
TX-32LMD70
TX-32LMD70F
TX-32LMD71F
TX-32LMD72F
TX-26LMD70
TX-26LMD70F
TX-26LMD71F
GLP22 Chassis
Specifications
(Informations in brackets [ ] refers to model 26“)
Power Source: 220-240V AC, 50Hz
Power Consumption 115W [100W]
Stand-by Power Consumption: 1.0W (TV ONLY)
13W (TV+DVB set to record)
Aerial Impedance: 75Ωunbalanced, Coaxial Type
Receiving System: LMD70 LMD70F
PAL-I, PAL-I/H, B/G, D/K
PAL-525/60 (AV only) SECAM B/G, D/K, L/L
DVB (via UHF aerial input) PAL-525/60 (AV only)
M.NTSC (AV only) DVB (via VHF/UHF aerial input)
NTSC (AV only) M.NTSC (AV only)
NTSC (AV only)
Receiving Channels: LMD70 LMD70F
UHF E21-E68 VHF E2-E12 VHF H1-H2 (ITALY)
VHF A-H (ITALY) VHF R1-R2
VHF R3-R5 VHF R6-R12
UHF E21-E69 CATV (S01-S05)
CATV S1-S10 (M1-M10) CATV S11-S20 (U1-U10)
CATV S21-S41 (Hyperband)
Operating Conditions: Temperature: 0°C ÷35°C
Humidity: 20% ÷ 80% RH (non condensing)
Scanning format: 480i(60Hz), 480p(60Hz), 576i(50Hz), 576p(50Hz), 720p(60Hz), 720p(50Hz), 1.080i(60Hz),
1.080i(50Hz), 1.080p(60Hz), 1.080p(50Hz)
PC signals: VGA, SVGA, XGA, SXGA(compressed)
Horizontal scanning frequency 31 – 69 kHz
Vertical scanning frequency 59 – 86 Hz
ORDER No. PCZ0703017CE
Panasonic CS ( U.K. ) Ltd.
WILLOUGHBY ROAD,
BRACKNELL,
BERKS.,
RG12 8FT.

Intermediate Frequency:
Video/Audio LMD70 LMD70F
Video 38,9MHz 38,9MHz, 33,9MHz
Audio 32.90MHz 33,4MHz (B/G), 33,16MHz (A2)
32.35MHz(NICAM) 33,05MHz (NICAM B/G, D/K, L)
32,4MHz (D/K), 32,66MHz (CZ STEREO)
40,4MHz (L), 39,75MHz (L NICAM)
Colour 34,47MHz 34,47MHz (PAL)
34,5MHz, 34,65MHz (SECAM)
38,3MHz, 38,15MHz (SECAM L)
Terminals:
AV1 IN Video (21 pin) 1V p-p 75Ω
Audio (21 pin) 500mV rms 10kΩ
RGB (21 pin) 0,7V p-p 75Ω
AV1 OUT Video (21 pin) 1V p-p 75Ω
Audio (21 pin) 500mV rms 1kΩ
AV2 IN Video (21 pin) 1V p-p 75Ω
Audio (21 pin) 500mV rms 10kΩ
RGB (21 pin) 0,7V p-p 75Ω
S-video IN (21-pin)Y: 1V p-p 75Ω
C:0,3V p-p 75Ω
AV2 OUT Video (21 pin) 1V p-p 75Ω
Audio (21 pin) 500mV rms 1kΩ
AV3 IN S-Video IN (4-pin)Y: 1V p-p 75Ω
C:0,286V p-p 75Ω
Audio (RCAx2) 500mV rms 10kΩ
Video (RCAx1) 1V p-p 75Ω
HDMI1, HDMI2 Type A Connector
COMPONENT Video (RCAx3) Y:1V p-p 75Ω(including synchronization)
Pb, Pr: ±0,35V p-p 75Ω
AUDIO IN Audio (RCAx2) 500mV rms 10kΩ(for YUV; HDMI1)
AUDIO OUT Audio (RCAx2) 500mV rms 1kΩ(high Impedance)
PC HIGH-DENSITY D_SUB 15PIN R,G,B: 700mV p-p 75Ω
HD,VD:TTL Level 2-5V p-p (high impedance)
LCD screen: L5EDD8Q00029 [L5EDD6Q00023]
1366 x 768 XGA, 16:9
Visible Diagonal 800mm [660mm]
Audio Output: 20W (2x10W)
Headphones: 3,5mm (M3), 8ΩImpedance
Accessories supplied : Remote Control 2 x R6 (UM3) Batteries
Dimensions: Height: Width: Depth:
Including TV stand 615mm 791mm 248mm
[525mm] [657mm] [216mm]
TV set only 563mm 791mm 117mm
[473mm] [657mm] [117mm]
Net weight: 18kg [14kg]
Specifications are subject to change without notice.
Weights and dimensions shown are approximate.
This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not
contain warnings or cautions to advise non-technical individuals of potencial dangers in attempting to service a product. Products
powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or repair the
product or products deal within this service information by anyone else could result in serious injury or death.
Warning
2

CONTENTS
SAFETY PRECAUTIONS.......................................................................... 4
GENERAL GUIDE LINES..................................................................... 4
TOUCH – CURRENT CHECK.............................................................. 4
PREVENTION OF ELECTROSTATIC DISCHARGE (ESD)
TO ELECTROSTATICALLY SENSITIVE (ES) DEVICES.......................... 5
ABOUT LEAD FREE SOLDER (PBF)........................................................ 6
SUGGESTED PB FREE SOLDER....................................................... 6
APPLICABLE SIGNALS............................................................................. 7
SERVICE HINTS ....................................................................................... 8
CHASSIS BOARD LAYOUT...................................................................... 9
SETTING INSPECTION............................................................................. 9
SELF-CHECK .......................................................................................... 10
POWER LED BLINKING TIMING CHART............................................... 11
SERVICE MODE FUNCTION.................................................................. 12
SERVICE ................................................................................................ 13
OPTION BYTES DESCRIPTION............................................................. 14
ADJUSTMENT METHOD ........................................................................ 15
WIRING DIAGRAM.................................................................................. 16
BLOCK DIAGRAMS................................................................................. 17
PARTS LOCATION.................................................................................. 20
REPLACEMENT PARTS LIST................................................................. 22
SCHEMATIC DIAGRAMS........................................................................ 42
AP-BOARD SCHEMATIC DIAGRAM................................................ 43
G-BOARD SCHEMATIC DIAGRAM................................................... 44
H-BOARD (1 OF 4) SCHEMATIC DIAGRAM..................................... 45
P-BOARD SCHEMATIC DIAGRAM................................................... 49
V-BOARD SCHEMATIC DIAGRAM ................................................... 50
DG-BOARD (1 OF 13) SCHEMATIC DIAGRAM................................ 51
CONDUCTOR VIEWS............................................................................. 64
3

Safety Precautions
General Guide Lines
1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated
or damaged by the short circuit.
2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly
installed.
3. After servicing, make the following touch current checks to prevent the customer from being exposed to shock hazards.
4. Always ensure panel TKP0E16001 is correctly replaced before returning to customer (see Fig.1).
Touch-Current Check
1. Plug the AC cord directly into the AC outlet. Do not use an isolation transformer for this check.
2. Connect a measuring network for touch currents between each exposed metallic part on the set and a good earth
ground such as a water pipe, as shown in Fig. 2.
3. Use Leakage Current Tester (Simpson 228 or equivalent) to measure the potential across the measuring network.
4. Check each exposed metallic part, and measure the voltage at each point.
5. Reserve the AC plug in the AC outlet and repeat each of the above measure.
6. The potential at any point (TOUCH CURRENT) expressed as voltage U1 and U2, does not exceed the following values:
For a. c.: U1 = 35 V (peak) and U2 = 0.35 V (peak);
For d. c.: U1 = 1.0 V,
Note:
The limit value of U2 = 0.35 V (peak) for a. c. and U1 = 1.0 V for d. c. correspond to the values 0.7 mA (peak) a. c. and
2.0 mA d. c.
The limit value U1 = 35 V (peak) for a. c. correspond to the value 70 mA (peak) a. c. for frequencies greater than 100
kHz.
7. In case a measurement is out of the limits specified, there is a possibility of a shock hazard, and the equipment should
be repaired and rechecked before it is returned to the customer.
Fig. 2
4
TO
A
PPLIANCES
EXPOSED
METAL PARTS
Resistance values in ohms (Ω)
V
R0=500
Ω
RS=1500
Ω
CS=0.22
µ
F
10k
Ω
0.022
µ
F
U1
COLD
WATER PIPE
(EARTH GROUND)
V: Voltmetr or oscilloscope
(r.m.s. or peak reading)
Measuring network for TOUCH CURRENTS
Input resistance: ≥ 1M
Ω
Input capacitance: ≤ 200pF
Frequency range: 15Hz to 1MHz and d.c.respectively
NOTE – Appropriate measures should be taken to obtain the correct value in case of non-sinusoidal waveforms
U2(V)
Fig. 1

Prevention of Electrostatic Discharge (ESD) to Electrostatically
Sensitive (ES) Devices
Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are
called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect
transistors and semiconductor "chip" components. The following techniques should be used to help reduce the incidence of
component damage caused by electrostatic discharge (ESD).
1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on
your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD
wrist strap, which should be removed for potential shock reasons prior to applying power to the unit under test.
2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge build up or exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.
4. Use only an anti-static solder removal device. Some solder removal devices not classified as "anti-static (ESD
protected)" can generate electrical charge sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil
or comparable conductive material).
7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective
material to the chassis or circuit assembly into which the device will be installed.
Caution
Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the
brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity
(ESD) sufficient to damage an ES device).
There are special components used in this equipment which are important for safety.
These parts are marked by in schematic diagrams, exploded views and replacement parts list. It is essential that
these critical parts should be replaced with manufacturer’s specified parts to prevent shock, fire, or other hazards. Do
not modify the original design without permission of manufacturer.
IMPORTANT SAFETY NOTICE
5

About lead free solder (PbF)
Note: Lead is listed as (Pb) in the periodic table of elements.
In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder.
The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu).
That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.
This model uses Pb Free solder in it’s manufacture due to environmental conservation issues. For service and repair work,
we’d suggest the use of Pb free solder as well, although Pb solder may be used.
PCBs manufactured using lead free solder will have the PbF within a leaf Symbol
stamped on the back of PCB.
Caution
•Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 °F (30~40°C)
higher. Please use a high temperature soldering iron and set it to 700 ± 20 °F (370 ± 10 °C).
•Pb free solder will tend to splash when heated too high (about 1100 °F or 600 °C).
If you must use Pb solder, please completely remove all of the Pb free solder on the pins or solder area before
applying Pb solder. If this is not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder.
•After applying PbF solder to double layered boards, please check the component side for excess solder which may
flow onto the opposite side. (see Fig.3)
Suggested Pb free solder
There are several kinds of Pb free solder available for purchase. This product uses Sn+Ag+Cu (tin, silver, copper) solder.
However, Sn+Cu (tin, copper), Sn+Zn+Bi (tin, zinc, bismuth) solder can also be used. (see Fig.4)
Fig.3
Fig.4
6

Applicable signals
Signal name Horizontal frequency (kHz) Vertical frequency (Hz)
640 ×400 @70 Hz 31.47 70.07
640 ×480 @60 Hz 31.47 59.94
640 ×480 @75 Hz 37.50 75.00
800 ×600 @60 Hz 37.88 60.32
800 ×600 @75 Hz 46.88 75.00
800 ×600 @85 Hz 53.67 85.06
852 ×480 @60Hz 31.44 59.89
1,024 ×768 @60Hz 48.36 60.00
1,024 ×768 @70Hz 56.48 70.07
1,024 ×768 @75Hz 60.02 75.03
1,024 ×768 @85Hz 68.68 85.00
1,280 ×1,024 @60Hz 63.98 60.02
1,366 ×768 @60Hz 48.39 60.04
Macintosh 13“ (640 ×480) 35.00 66.67
Macintosh 16“ (832 ×624) 49.73 74.55
Macintosh 21“ (1,152 ×870) 68.68 75.06
Note:
•Signals other than above may not be displayed properly.
•The above signals are reformatted for optimal viewing on your display.
•Applicable input signal for PC is basically compatible to VESA standard timing.
•PC signal is magnified or compressed for display, so that it may not be possible to show fine detail
with sufficient clarity.
7
Signal name COMPONENT HDMI
525 (480) / 60i * *
525 (480) / 60p * *
625 (576) / 50i * *
625 (576) / 50p * *
750 (720) / 60p * *
750 (720) / 50p * *
1,125 (1,080) / 60i * *
1,125 (1,080) / 50i * *
1,125 (1,080) / 60p *
1,125 (1,080) / 50p *
Component (Y, Pb, Pr), HDMI
PC (D-sub 15P)

Service Hints
How to remove the backcover
Remove the 18[16] fixing screws. (see Fig.5)
How to remove the Pedestal assembly
Lay the main unit face down. (see Fig.6)
Remove the 4 fixing screws and the pedestal assembly. (see Fig.7)
Fig.6
8
Fig.7
SCREWS
SCREWS SCREWS
Fig.5

Chassis Board Layout
Setting Inspection
Voltage Confirmation
Board Name Function
AP-Board Power Supply Regulator
DG-Board Global Core, HDMI, IDTV Processor, D/A Converter
G-Board Side AV Connector
H-Board AV Connector, TV tuner, AV Switch
P-Board Main Input, Power Supply, Main Switch
V-Board Remote Receiver, LED IR, Cats
9
V-BOARD
AP-BOARD
DG-BOARD
H-BOARD
P-BOARD
G-BOARD
AP board Normal mode
Test point Description Voltage
TP3805 Sub_5V 5,04V ± 0,25V
TP3802 Panel5/12V 12,13V ± 0,45V
TP3804 Sound_Vcc 15,10V ± 0,45V
TP3808 9V 8,93V ± 0,25V
TP3810 STBY_5V 5,0V ± 0,25V
Standby mode
TP3805 Sub_5V max 2V
TP3802 Panel5/12V max 2V
TP3804 Sound_Vcc max 2V
TP3808 9V 8,93V ± 0,25V
TP3810 STBY_5V 5,0V ± 0,25V
Active standby
TP3805 Sub_5V 5,04V ±0,25V
TP3802 Panel5/12V max 2V
TP3804 Sound_Vcc max 2V
TP3808 9V 8,93V ± 0,25V
TP3810 STBY_5V 5,0V ± 0,25V
P board Normal mode
Test point Description Voltage
TP852 24V 24,5V ± 1V
Standby mode
TP852 24V 24,5V ± 1V
Confirm the following voltages:

Self Check
Self-check is used to automatically check the bus lines and hexadecimal code of the TV set. To enter Self-Check mode, keep
pressing the down (-/v) button on the TV set and press the STATUS button on the remote control. To exit Self Check,
switch off the TV set at the power button.
Display Ref. No. Description P.C.B.
ADV IC4510 A/D CONVERTER DG-Board
VSW IC3001 AV SWITCH H-Board
ADAV IC2106 AUDIO PROCESSOR H-Board
ASW IC3101 AV SWITCH H-Board
TUN1 TU3200 ANALOG TUNER H-Board
GENX IC1100 MICROPROCESSOR DG-Board
MEM1 IC1101 EEPROM DG-Board
MEM2 IC8601 EEPROM DG-Board
D-TUN TU8301 DIGITAL TUNER DG-Board
OFDM IC8301 COFDM DEMODULATOR DG-Board
If the CCU
p
orts have been checked and found to be incorrect or not located then " - - " will a
pp
ear in
p
lace of "O.K.".
10
SUM
OPTION 1
OPTION 2
OPTION 3
CHECK
MODEL ID
1896
2c
ea
7
f
95
04
03030000
00000002
186b
0c
ea
7f
75
04
03090000
00000002
A
DV O.K.
VSW O.K.
A
DAV O.K.
A
SW O.K.
TUN1 O.K.
GENX O.K.
MEM1 O.K.
MEM2 O.K.
D-TUN O.K.
OFDM O.K.
PEAKS-SOFT 1.020
PEAKS-EEP 01.00.0022
GenX-SOFT 1.00.00
GenX-EEP 1.02.00
GenX-ROMCORR 1.01.00
Self Check Com
p
lete
26 Panasonic 2007LCD 26lsd70.dat:000055
1895
2c
ea
7
f
95
04
03030000
00000004
A
DV O.K.
VSW O.K.
A
DAV O.K.
A
SW O.K.
TUN1 O.K.
GENX O.K.
MEM1 O.K.
MEM2 O.K.
D-TUN O.K.
OFDM O.K.
PEAKS-SOFT 1.020
PEAKS-EEP 01.00.0021
GenX-SOFT 1.00.00
GenX-EEP 1.02.00
GenX-ROMCORR 1.01.00
SUM
OPTION 1
OPTION 2
OPTION 3
CHECK
MODEL ID
32 Self Check Complete
Panasonic 2007LCD 32lsd70.dat:000066
A
DV O.K.
VSW O.K.
A
DAV O.K.
A
SW O.K.
TUN1 O.K.
GENX O.K.
MEM1 O.K.
MEM2 O.K.
D-TUN O.K.
OFDM O.K.
2.020
02.00.0013
1.00.00
1.02.00
1.01.00
PEAKS-SOFT
PEAKS-EEP
GenX-SOFT
GenX-EEP
GenX-ROMCORR
SUM
OPTION 1
OPTION 2
OPTION 3
CHECK
MODEL ID
Self Check Complete
26 Panasonic 2007LCD 26lsd70.dat:000055
2.020
02.00.0012
1.00.00
1.02.00
1.01.00
186a
0c
ea
7
f
75
04
0309000
0000004
A
DV O.K.
VSW O.K.
A
DAV O.K.
A
SW O.K.
TUN1 O.K.
GENX O.K.
MEM1 O.K.
MEM2 O.K.
D-TUN O.K.
OFDM O.K.
PEAKS-SOFT
PEAKS-EEP
GenX-SOFT
GenX-EEP
GenX-ROMCORR
SUM
OPTION 1
OPTION 2
OPTION 3
CHECK
MODEL ID
32 Self Check Complete
Panasonic 2007LCD 32lsd70.dat:000066
TX-26LMD70
TX-32LMD70
TX-26LMD70F
TX-32LMD70F

4 sec
Once
Power LED blinking timing chart
1. Subject
Information of LED Flashing timing chart.
2. Contents
When abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the
defective block can be identified by number of blinking of the Power LED on the front panel of the unit.
Blinking
times Blinking timing Contents Check point
1INVERTER_SOS POWER UNIT
LCD PANEL
3SOS DG BOARD
AP BOARD, H BOARD
4DTV_9V AP BOARD
DG BOARD, H BOARD
5SUB_5V AP BOARD, H BOARD
DG BOARD, V BOARD
6MAIN_9V AP BOARD
H BOARD, DG BOARD
7MAIN_5V DG BOARD
8MAIN_3.3V DG BOARD
9SOUND_SOS DG BOARD
H BOARD
No Light
11
Light

Service Mode Function
MPU controls the functions switching for each IICs through IIC bus in this chassis. The following setting and adjustment can be
adjusted by remote control in Service Menu
How to enter SERVICE
While pressing (-/v) button on TV unit, press on the remote
control for 3 times within 2 seconds.
Note:
To exit from Service mode, press the exit button on remote control.
0
12

SERVICE
13
SERVICE
ADJUST
WB-ADJ
OPTION
SRV-TOOL
Peaks SOFT 1.020 OPTION 1 2a
Peaks EEP 01.00.0021 OPTION 2 ea
LSI DATA 0.00.66 OPTION 3 7f
GenX SOFT 1.00.00 Model ID 04
GenX SOFT 1.02.00 03030000
GenX ROMCOR 1.01.00 00000004
HQ1L EEP -- Time 00031:30
Count 0000011
ADJUST DYNAMIC
CONTRAST
Y
MAX
1,2:MAIN SELECT
3,4:SUB SELECT
9 :PICTURE MENU SELECT
Y
ELLOW:AUTO ADJUST
VOL:ADJUST
OK :WRITE
000 ADJUST DYNAMIC
COLOR
1,2:MAIN SELECT
3,4:SUB SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE
34
A
DJUST DYNAMIC
TINT
1,2:MAIN SELECT
3,4:SUB SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE
00 ADJUST DYNAMIC
SUB-BRT
1,2:MAIN SELECT
3,4:SUB SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE
808
A
DJUST DYNAMIC
BACKLIGHT
1,2:MAIN SELECT
3,4:SUB SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE
285
A
DJUST DYNAMIC
H-POS
1,2:MAIN SELECT
3,4:SUB SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE
0
A
DJUST DYNAMIC
H-AMP
1,2:MAIN SELECT
3,4:SUB SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE
0ADJUST DYNAMIC
V-POS
1,2:MAIN SELECT
3,4:SUB SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE
0
A
DJUST DYNAMIC
V-AMP
1,2:MAIN SELECT
3,4:SUB SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE
0
WB-ADJ DYNAMIC
R-GAIN
COLOR TEMP NORMAL
1,2:MAIN SELECT
3,4:SUB SELECT
7 :COLOR TEMP SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE
FF WB-ADJ DYNAMIC
G-GAIN
COLOR TEMP NORMAL
1,2:MAIN SELECT
3,4:SUB SELECT
7 :COLOR TEMP SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE
FC WB-ADJ DYNAMIC
B-GAIN
COLOR TEMP NORMAL
1,2:MAIN SELECT
3,4:SUB SELECT
7 :COLOR TEMP SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE
E4 WB-ADJ DYNAMIC
R-CENT
COLOR TEMP NORMAL
1,2:MAIN SELECT
3,4:SUB SELECT
7 :COLOR TEMP SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE
7E WB-ADJ DYNAMIC
G-CENT
COLOR TEMP NORMAL
1,2:MAIN SELECT
3,4:SUB SELECT
7 :COLOR TEMP SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE
WB-ADJ DYNAMIC
B-CENT
COLOR TEMP NORMAL
1,2:MAIN SELECT
3,4:SUB SELECT
7 :COLOR TEMP SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE
8C
OPTION DYNAMIC
Boot
1,2:MAIN SELECT
3,4:SUB SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
ROM OPTION DYNAMIC
STBY-SET
1,2:MAIN SELECT
3,4:SUB SELECT
9 :PICTURE MENU SELECT
OK :POWER OFF
00 OPTION DYNAMIC
Emergency
1,2:MAIN SELECT
3,4:SUB SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
ON OPTION DYNAMIC
Y
/C Dela
y
1,2:MAIN SELECT
3,4:SUB SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE
OPTION DYNAMIC
OPT 1
1,2:MAIN SELECT
3,4:SUB SELECT
5,6:BIT SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE
00101100 OPTION DYNAMIC
OPT 2
1,2:MAIN SELECT
3,4:SUB SELECT
5,6:BIT SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE
11101010 OPTION DYNAMIC
OPT 3
1,2:MAIN SELECT
3,4:SUB SELECT
5,6:BIT SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE
01111111
SRV-TOOL DYNAMIC
1,2:MAIN SELECT
9 :PICTURE MENU SELECT
OK :ENTER
00
1
2
3
4
1
1
1
2
2
2
333
3
3
33
3
3
3
3
3
3
3
3
333
4
4
4
4
4
4
444
4
44
4
4
4
44
4
6F
Key Command
•Press the 3/4 button to change the adjustment values or function.
•Press the 1/2 button to step up/down through the functions and adjustments
•Press the numerical button VOLUME (+/-) to change option item.
•Press the OK button after each adjustment has been made to store the required values.

Option Bytes Description
OPTION1
0ATP Speed Slow (1) / Fast (0)
1TXT Ch On (1) / Off (0)
2ID-1 On (1) / Off (0)
3Macrovision Auto Evaluation On (1) / Off (0)
4SRS Surround On (1) / Off (0)
5Teletext Top Off (1) / On (0)
6Not Use Not Use
7Not Use Not Use
OPTION2
0Not Use Not Use
1A2 Stereo (5,5MHz) On (1) / Off (0)
2A2 Stereo (6,0MHz) On (1) / Off (0)
3A2 Stereo (6,5MHz) On (1) / Off (0)
4Not Use Not Use
5NICAM (5,5MHz) On (1) / Off (0)
6NICAM (6,0MHz) On (1) / Off (0)
7NICAM (6,5MHz) On (1) / Off (0)
OPTION3
0NICAM priority (ASIA/M.E) On (1) / Off (0)
1NICAM priority (K/UK) On (1) / Off (0)
2NICAM priority (China) On (1) / Off (0)
3NICAM priority (NZ/INDN) On (1) / Off (0)
4NICAM priority (AUS) On (1) / Off (0)
5NICAM priority (E.Europe) On (1) / Off (0)
6NICAM priority (Special) On (1) / Off (0)
7Not Use Not Use
14

Adjustment Method
Sub-Contrast/White Balance Adjustment
Instrument Name Connect to Remarks
1. Remote controller
2. LCD WB meter (Minolta CS-1000A equivalent)
3. Comunication jig
4. Computer for external control
Correlation can be also taken by
CA-210 or equivalent
Procedure Remarks
Subcontrast adjustment
1. Receive PAL colour bar (100% white) RF signal.
2. Enter “Contrast” adj. In SERVICE mode.
3. Start adjusting by using Yellow Key.
4. If the adjustment finished normally, the letter of Contrast will change from red
to black
White Balance adjustment
1. Procedure basically performs checking using the production software and
make automatic adjustment using external computer.
2. It adjusts in the mode of : Colour balance Normal as follows.
Viewing Mode Dynamic
LMD70 LMD70F
WHITE Normal WHITE Normal
x: 0,2890 ±0,001 x:0,2850 ±0,001
y: 0,3020 ±0,001 y:0,2930 ±0,001
GRAY Normal GRAY Normal
x: 0,2860 ±0,001 x: 0,2850 ±0,001
y: 0,3050 ±0,001 y: 0,2930 ±0,001
Let the panel standfor more than 3
hours at more than 20 °C.
Basically perform adjustment in the
ambient environment of room
temperature more than 20 °C.
The aging time is more than20 min
at above room temperature.
Applied signal
100% full colour bar
0,7V p-p white peak
87.5% modulation
100% WHITE
50% GRAY
15

DG-BOARD
DG5
DG26
P-BOARD
AP-BOARD
AP2
AP3 AP4
AP5
H-BOARD
H51
H2
H3 H4
H6
AV2
G-BOARD
V-BOARD
V1
DG1
LCD PANEL
HDMI1 HDMI2
DG2
DG6
Wiring diagram
H12
G51
P4
P1
P2 P6
JK2002 JK3001
MAINS IN
DG33
JK8801
SP L / R
JK3002B
AV1
JK3003B
PC
AUDIO OUT
JK3005
YUV, AUDIO IN SD CARD SERVICE
JK4501
JK4500
JK8702
SERVICE
JK8401
CI SLOT
KEY CONTROL
AV3
JK3700
16

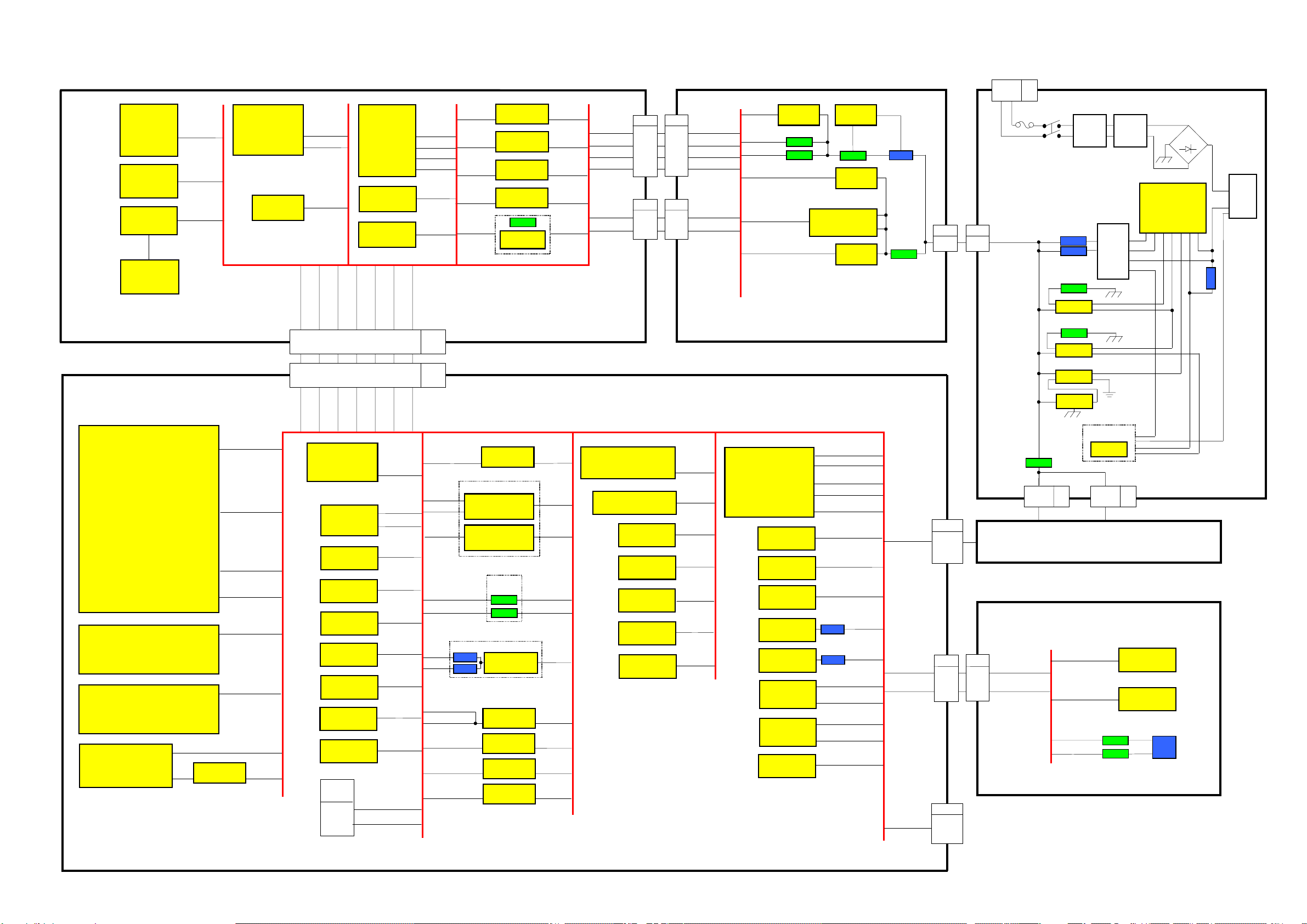

VIDEO & STEREO AUDIO BLOCK DIAGRAM
A
V1 21PIN SCART
AV1_V 20
AV1_VOUT 19
AV1_RED 15
AV1_GREEN 11
AV1_BLUE 7
AV1_L 6
AV1_LOUT 3
AV1_R 2
AV1_ROUT 1
JK3002B
A
V2 21PIN SCART
AV2_V 20
AV2_VOUT 19
AV2_C 15
AV2 GREEN 11
AV2 BLUE 7
AV2_L 6
AV2_LOUT 3
AV2_R 2
AV2_ROUT 1
JK3003B
Y
PB
PR
L
R
IC3001
VIDEO SWITCH
(
A
N15876A)
77 AV1_GREEN
MAIN_PR_OUT 38
MAIN_PB_OUT 39
79 AV1_RED
81 AV1_BLUE
51 AV3_GREEN
55 AV3_BLUE
63 YPBPR_Y
65 YPBPR_PB
67 YPBPR_PR
PC_R 75
PC_G 71
12 AV2_C
8,10 AV2_V
MAIN_RF_CVBS 91
53 AV3_RED/C
1 AV1_V
33 AV1_VO
31 AV2_VO
PC_B 73
MAIN_Y_OUT 40
DVB_CVBS 20
YPBPR_Y
YPBPR_PB
YPBPR_PR
JK3005
YPBPR, AUDIO IN
IC3101
AUDIO SWITCH
PC_RIN 11
DTV_SR 40
DTV_SL 39
TV_R 42
AV1_R 17
PC_LIN 10
TV_L 41
PC_LIN
PC_RIN
AV1_LO 23
AV1_L 16
AV2_RO 26
AV2_R 15
AV2_LO 25
AV2_L 14
AV1_RO 24
JK3001
23
1
PC INPUT
MAIN_RGB_CVBS_OUT 44
H6
3
5
7
10
62
60
58
26
H-BOARD
AV_R 33
AV_L 32
2
4
IC2002
AUDIO
DAC
1
11
2
10 4
3
IC2106
AUDIO
PROCESSOR
95 AV4_
V
97 AV4_
Y
AUDIOOUT_R
36 LRCK
37 SDTI
35 BCLK
34 XOUT
IC2006
64
66
68
72
70
DTV_SDIN 24
DTV_LRCK 18
DTV2_SDIN 23
HDMI_BCLK 27
DTV_BCLK 19
HDMI_SDIN 22
HDMI_LRCK 26
SPDIF_IN 39
74 AUXOUTL2
75 AUXOUTR2
79 AV_R
78 AV_L
TUNER
TU3200
21 10
99 AV4_C
VIDEO_OUT
Q2017
Q2016
SIF_OUT
SIF_IN1 8
JK2002
L
R
AUDIO OUT
IC2011
AUDIO
AMPLIFIER
7
6
1
2
Q2015
Q2021
AUDIOOUT_L
G51
1
3
5
13
15
7
11
H51
7
9
17
10
8
15
19
IC2012
HP
AMPLIFIER
7
1
35
58 HPOUTR1
57 HPOUTL1
HP_ROUT
HP_LOUT
7 AV4_R
6 AV4_L
45 SQ_R-
44 SQ_R+
43 SQ_L-
42 SQ_L+
IC2301
AUDIO
AMPLIFIER
8
16
18 6
31
36
43 24
H12
1
2
3 4
R
L
V
L
R
Y
C
JK3700
AV4_R
AV4_L
AV4_V
AV4_Y
AV4_C
HP_LOUT
HP_ROUT
G-BOARD
DG6
3
5
7
10
62
60
58
26
64
66
68
72
70
MAIN_Y_OUT
MAIN_PB_OUT
MAIN_PR_OUT
MAIN_RGB_CVBS_OUT
DVB_CVBS
DTV_BCLK
DTV_SDIN
DTV_LRCK
DTV2_SDIN
HDMI_BCLK
HDMI_SDIN
HDMI_LRCK
SPDF_IN
MAIN_Y/CVBS
MAIN_PB/C
MAIN_PR
RGB_CVBS
DVB_CVBS
DTV_BCKL
DTV_SDIN
DTV_LRCK
DTV2_SDIN
HDMI_BCLK
HDMI_SDIN
HDMI_LRCK
SPDIF_IN
IC4510
ADV7493BBSTZ
99 Y_IN
78 PB/C
94 PR
VI1P2-VI1P9,VI1P12-VI1P19,VI1P22-VI1P29
CLK,CLKOA,VSYNC,HSYNC,ENB
2 SPDIF
IC8001-PeaksLite2
MN2WS0039A
2
4IC2000
Q4516
Q4515
Q4514
Q4519
80 RGB_CVBS
7 HDMI_LRCK
3 HDMI_SDIN
8 HDMI_BCLK
VIDEO / AUDIO IF
D12
HDMI 1
HDMI 2 JK4501
JK4500
112,113,115,116,
118,119,121,122
RXA_CN,CP,0N,0P,1N,1P,2N,2P
DG5
TO LCD PANEL
16,17,18,24-33,
38-48,51-53,55,
58
IC8002
DDR2-0
B25,B26,C25,C26,D25,D
26,E25,E26,F25,F26,F25,
F26,G25,G26
TU8301
DIGITAL
TUNER
CI SLOT
JK8401
IC8301
COFDM
DEMODULATOR
TS
SERIAL
BUS
DG-BOARD
(EXCHANGE UNIT)
A2-A9,B1,B3-B10,C1,C2,
C4-C10,D1,D2,E2,E3
AUXOUTR1 73
AUXOUTL1 72
Q3200 Q4517
97 SOY
DATA
SP_R SP_L
11
AM
76 AINL2
77 AINR2
DVB_CVBS
DTV_BCKL
DTV_SDIN
DTV_LRCK
DTV2_SDIN SPDIF_IN
D13
A13
F14
D15
A10
IC8003
DDR2-1
1-15
TE1P,TE1N,TD1P,TD1N,TCLK1P,TCLK1N, TC1P,TC1N,TB1P,TB1N,TA1P,TA1N
IC8554
16 MB FLASH
IC8601
EEPROM
17

POWER SUPPLY BLOCK DIAGRAM
IC3802
26, 27, 32, 35, 40, 41
REG
IC38048
6
D3819
9V
Q3810
SUB_9V
IC3805
1REG
5V_STBY
Q3811
MAIN_9V
IC38031
2REG
SUB_5V
6
1
8
−
21
11−14
A
UDIO_16V
IC380112 REG
PANEL_5V/12V
H4
AP4
12-13
12-13
21
21
H3
A
P
3
1
1MAIN_9V
2-3
2-3 SUB_5V
6-7
6-7 SUB_9V
21-22
21-22
PANEL_5V/12V
5V_STB
Y
A
UDIO_16V
SOUND15V
SOUND12V
SOUND15V
SOUND15V
1, 21, 22, 23, 44 SOUND12V
IC2301
AUDIO
AMPLIFIER
DTV9V
8DTV9V
IC2007
AMPLIFIER
8DTV9V
IC2011
AMPLIFIER
DTV9V
IC2610
REGULATOR
Q2639
BT30V
SUB5V
3,3V
SUB5V
AUD3,3V
12 3,3V
4, 53, 59, 68, 71 AUD3,3V
IC2106
AUDIO
PROCESSOR
29 SUB3,3V
14, 21, 31, 40, 51 DVDD1,8V SUB3,3V DVDD1,8V
14 SUB5
V
IC2002
AUDIO DAC
IC2013 4
5
REG MAIN9V
5V
8
IC2012
HP AMPLIFIER
MAIN_9V
SUB_5V
12V_PANEL
STB+5V
P16, H21, P3, E22, E23, F21, C12, E14,
AA8, AA9, A25, A26, B24, C23, D7, D8,
D16, D17, D22, E21, F11, F12, F15, F20,
G4, H4, J6, K6, N6, P6, R4, T4, U6,
AC10, AC11
SUB3,3V
1, 21, 22, 23, 44 SOUND12V
IC8001-PeaksLite
PROCESSOR
M17, U15, T17, N17, R17, T15, U16,
AB15, AC15, AD15, AE15, AF15, U14,
N10, P10, R10, R11, R12, R13, T10,
T11, T12, T13, U10, U11, U12, U13,
AA14, AB14, AC14, AD14, AE14, AF14
SUB1,2
V
K23, K26, M21, M23, N24, P25, R21,
T25, U24, V22, W26, Y22, Y24, AA21,
AB19, AB22, AB25, AC18, AC23, AD17,
AD22, AD25, AE16, AE21, AF20, AF26
SUB1,8V
5, 13, 15 SUB3,3V
IC8004
CLOCK
GENERATOR
A1, E1, M9, J9, R1, J1, A9, C1, C3, C7,
C9, E9, G1, G3, G7, G9
1,8V_DDRI/F
IC8002
MEMORY
A1, E1, M9, J9, R1, A9, C1, C3, C7, C9,
E9, G1, G3, G7, G9, J1
1,8V_DDRI/F
IC8003
MEMORY
2, 13, 15, 16, 17, 18, 33, 45 SUB3,3V
IC8301
LVDS DRIVER SUB3,3V
1,8V
7, 19, 21, 28
1SUB3,3V
IC8401
DATA BUFFER 24 SUB5V
20 SUB5V
IC8402
TS BUFFER
20 SUB5V
IC8404
TS BUFFER
20 SUB5V
IC8405
TS BUFFER
20 SUB5V
IC8406
TS BUFFER
20 SUB5V
IC8407
TS BUFFER
5VCARD
SUB5V
JK8401
CI SLOT
17, 18 SUB5V
51, 52 SUB5V
20 SUB3,3V
IC8408
TS BUFFER
20 SUB3,3
V
IC8409
TS BUFFER
SUB3,3V
IC8554
NOR FLASH 29, 43, 53
20 SUB3,3V
IC8621
DeMPX
20 SUB3,3V
IC8622
DeMPX
IC5601
REG Vin23 DTV9V
SUB1,8V 3Vout
SUB1,2V 12Vout
IC5600
REG Vin17 DTV9V
SUB3,3V 23Vout
Q5692
SUB5V
Q5693
SUB3,3V
MAIN5V
MAIN3,3V
Peaks-LITE2 POWER
MAIN5V/
MAIN3,3V
2STB5
V
IC5660
RESET IC
2SUB5V
IC5671
RESET IC
IC5670
Vout5
1Vin REG STB3,3V
SUB5V
STB5V D5671
D5673
GenX4 POWER
5STB3,3V
IC1101
EAROM
31, 50, 74, 78, 81, 85, 94, 108 STB3,3V
IC1100
MICROPROCESSOR
5SUB3,3V
IC2000
BUS BUFFER
8MAIN5V
IC4500
EDID EPROM D4525
8MAIN5
V
IC4501
EDID EPROM D4527
1MAIN5V
IC4513
BUS REPEATER
5, 8 MAIN3,3V
1MAIN5V
IC4514
BUS REPEATER
5, 8 MAIN3,3V
8MAIN3,3V
IC4504
EEPROM
8SUB5V
IC4515
COMPARATOR
IC4507
Vin1
5Vout REG SUB5V
DVDDIO3,3V
IC4506
Vin7
1Vout REG SUB5V
AVDD3,3V
IC4509
Vin8
1Vout REG SUB3,3V
DVDD1,8V
IC4508
Vin8
1Vout REG SUB3,3V
CVDD1,8
IC2010
Vin1
5Vout REG
IC2008
Vin7
1Vout REG
IC2107
Vin7
1Vout REG
IC2303
Vin3
1Vout REG
84, 88
A
VDD3,3V
IC4510
A
DV7493BBSTZ
111, 123, 127,
139
TVDD3,3V
TVDD3,3V
23, 57, 142 DVDD1,8V
68, 71, 101, 104, 109,
125, 141
CVDD1,8V
IC8403
Vout6
1Vin REG
15, 35, 50, 67 DVDDIO3,3V
IC8302Vin8
1Vout REG
AP-BOARD
H-BOARD
6, 25, 45, 69
IC3001
V
IDEO
SWITCH
5
IC3101
AUDIO
SWITCH
DTV9V
DTV9V
H2
1-2 5-6 8-912−1417-18 21 23
DG2
1-2 5-6 8-9 12-14 17-18 21 23
LCD3,3
V
12V_PANEL
(DTV9V) 9V_SUB
5V_SUB
SUB3,3V
MAIN9
V
STB5
V
LCD3,3
V
12V_PANEL
DTV9V
5V_SUB
SUB3,3
V
MAIN9
V
STB5
V
DG5
27, 29
30, 31
P12V LCD PANEL
DG1
V1
4
4
212
STB3.3
V
SUB5V
STB3.3V
SUB5V
Q1004
Q1002 D1001
STB3.3V
STB3.3V
RM1001
REMOTE
STB3,3V
PC1001
SUB5V
V-BOARD
DG-BOARD
TU8301
3, 11
SUB5V
REGULATOR
P4
5−8
P2
F801
1-4
T801
IC802
1910 15 20 11
3
4
P-BOARD
13
8
LINE
FILTER
LF804
IC 851
Q851
SW 801
23
MAIN IN
PC801
MAIN PS CONTROL
24V
P1
41
LINE
FILTER
LF802
-D801 +
~
~
6
7
Q855
24V_HEADER
D851
D854
PC802
Q852
IC801
AP2
6−8
PC803
D818
2
Q3813
Q3814
T802
2
4
7
P
6
1-4
24V
8SUB3,3V
IC8601
EEPROM
18

DG6
SDA0B
HDMI_INT2
CONTROL BLOCK DIAGRAM
A
V1 21PIN SCART
AV1_FB 16
AV1_SLOW 8
JK3002B
A
V2 21PIN SCART
AV2_QLINK 10
AV2_SLOW 8
JK3003B
JK3001
14
13
PC AUDIO IN
JK2002
R
L
AUDIO OUT
PC_H_IN
PC_V_IN
Q2002
Q2003
MONITOROUT_MUTE
IC3001
VIDEO SWITCH
46,74
42
48
84
49
83
85
4
58
41
60
80
PC_V
AV2_SLOW
FB
PC_H
AV1_FB
AV3_FB
PC_H_IN
PC_V_IN
SDA0B_5V
SCL0B_5V
AV1_SLOW
VIDEO_STATUS
IC3101
AUDIO SWITCH
22
35
36
SDA0B_5V
DAC_PD
SCL0B_5V
IC2106
AUDIO
PROCESSOR
50
15
16
17
SCL0B
AUDIO_MUTE
SDA0B
AUDIO_XRST
Q2102
Q2101
SOUND_SOS
MUTE
TV_SUB_ON_DELAY
TUNER
13
14
20
SCL0B_5V
SDA0B_5V
AFC1
IC2002
AUDIO DAC
6
5
AUDIO_MUTE
DAC_PD
IC2301
AUDIO AMP
7
17
AMUTE
IC2012
HP AMP
2
AMUTE
A
V1-2 OUT MUTE
Q2007
Q2005
MONITOROUT_MUTE
Q2040
Q2034
MUTE SW
Q2039
Q2031
D2028
AUDIO_MUTE
SP_MUTE D2031
D2032
MONITOROUT_MUTE
AMUTE
Q2641
SDA0B_5V
SCL0B Q2640
SCL0B_5V
H6
12
14
PC_V
FB
PC_H
49
30
28
SDA0B
SCL0B
32
AUDIO_MUTE
AUDIO_XRST
35
34
SP_MUTE
TV_SUB_ON_DELAY
38
SOS
41
39
AFC1
SOUND_SOS
QLINK_AV2 44
46
QLINK_AV3
48
16
33
74
HDMI_INT2
51
54
55
79
VIDEO_STATUS
H - BOARD
H4
9
10
16
18
23
H3
AV1_QLINK 10
AV2_FB 16
5
SOUND_SOS Q2301
Q2003
D2637
SOS
Q2004
Q2006
AP4
9
10
16
18
23
AP3 9
18
9
18
SOS
TUNER_MAIN_ON
TUNER_SUB_ON
24V_DET
PANEL_ON
KEY
24V_DET
BACKLIGHT_PSU_ON FAN_CONT
SOS
TUNER_MAIN_ON
TUNER_SUB_ON
PANEL_ON
KE
Y
Q3807
Q2635
Q3816
TUNER_SUB_ON
SOS
PANEL_ON
Q3801
Q3803
Q3809
TUNER_MAIN_ON
AP2
13
14
AP - BOARD
15
24V_DET
BACKLIGHT_PSU_ON
TUNER_SUB_ON
P4
13
14
15
24V_DET
BACKLIGHT_PSU_ON
TUNER_SUB_ON
P - BOARD
Q852
Q853
Q851
Q857
PC801
PC801
TUNER_MAIN_ON
TUNER_SUB_ON
FAN_CONT
KEY
PANEL_STBY_ON
24V_DET 56
V1
5
8
7
6
1
Q1009
Q1007
Q1006
Q1010
Q1002
Q1004
D1001
D1002
PC1001
CATS
RM1001
REMOTE OUT
4
IC1100
MICROPROCESSOR
IC4510
ADV7493B
IC8001
PeaksLite2
TIMER_REC_LED
AI_SENSOR
REMOTE
G_LED_ON
R_LED_ON
KEYSCAN
AP5
1
KEY SW
KEY CONTROL
LCD PANEL
IC8601
EEPROM
IC8003
DDR2
LVDS bus
D1102D1100
QLINK
HDMI2
HDMI1
IC4500
EEPROM
JK8401
CI SLOT
IC8301
COFDM DEM
TU8301
DIG TUNER
HDMI CEC
JK4500
JK4501
IC4514
LEVEL
TRANSLATING
REMOTE
SERIAL bus
DATA
JK8801
SD CARD
IC4513
LEVEL
TRANSLATING
IC4501
EEPROM
IC8554
FLASH
IC8002
DDR2
IC1101
EEPROM
DG1
V - BOARD
IC4504
EEPROM
IC5660
RESET IC
MAIN5
V
MAIN3.3V
Q5691 Q5690
IC8004
CLK GEN
HDMI CEC
D1107
Q1107
Q1108
(EXCHANGE UNIT)
DG - BOARD
DG33
SERVICE
19

Parts Location
20
(CONTINENTAL)
NOTE:
The numbers on the exploded view below refer to the exploded view section of the Replacement Parts List.
4
21
34
35
22
7
23
(UK)
