1 Safety Precautions
TOP PREVIOUS NEXT
1.1 General Guidelines
1.2 Leakage Current Cold Check
1.3 Leakage Current Hot Check
1.4 X-Radiation
1.5 Horizontal Osc. Disable Circuit Test
1.6 Repair Procedure of Horizontal Osc. Disable Circuit
•@
TOP PREVIOUS NEXT
file:///E:/BT-S1315DA_BT-S1315DAD_BT-S1415DA_BT-S1415DAD/SVC/s0100000000x.html [2006-02-04 08:28:07]
file:///E:/BT-S1315DA_BT-S1315DAD_BT-S1415DA_BT-S1415DAD/SVC/s0101000000.html
1.1 General Guidelines
TOP PREVIOUS NEXT
It is advisable to insert an isolation transformer in the power line and AC supply before servicing a hot
chassis.
When servicing this monitor, observe the original lead dress, especially the lead dress in the high
voltage circuits. If a short circuit is found, replace all parts which have been overheated or damaged
by the short circuit.
After the service, check that all the protective devices such as insulation barriers, insulation papers,
shields, and isolation R-C combinations are properly installed.
Before turning the monitor on, measure the resistance between B+ Iine and chassis ground. Connect
the "-" side of an ohmmeter to each B+ Iine, and the "+" side to chassis ground. The resistance of each
line must behigher than specified as follows:
When the monitor is not used for a long period of time, unplug the power cord from the AC outlet.
High voltage points, as high as 23.5 kV, are present when this monitor is in operation. Operating the
monitor without the rear cover involves you in a dangerous electric shock from the monitor power
supply. Servicing must not be attempted byanyone who is not thoroughly familiar with the necessary
precautions when working on high voltage equipment. Always discharge the anode of the picture tube
to the chassis ground before handling the picture tube.
After the service, make the following leakage current checks to prevent the customer from getting an
electric shock.
•@
TOP PREVIOUS NEXT
file:///E:/BT-S1315DA_BT-S1315DAD_BT-S1415DA_BT-S1415DAD/SVC/s0101000000.html [2006-02-04 08:28:09]
file:///E:/BT-S1315DA_BT-S1315DAD_BT-S1415DA_BT-S1415DAD/SVC/s0102000000.html
1.2 Leakage Current Cold Check
TOP PREVIOUS NEXT
1. Unplug the AC power cord and connect a jumper wire between the two prongs of the AC plug.
2. Set the power switch of this monitor to the ON position.
3. Measure the resistance with an ohmmeter between the prongs of the AC plug and each exposed
metallic cabinet part on the monitor such as screw heads, connectors, and control shafts. When
the exposed metallic part has a return path to the chassis,the ohmmeter should read between 5
MΩ and 15 MΩ. When the exposed metallic part does not have a return path to the chassis, the
reading must be infinity.
•@
TOP PREVIOUS NEXT
file:///E:/BT-S1315DA_BT-S1315DAD_BT-S1415DA_BT-S1415DAD/SVC/s0102000000.html [2006-02-04 08:28:10]
file:///E:/BT-S1315DA_BT-S1315DAD_BT-S1415DA_BT-S1415DAD/SVC/s0103000000.html
1.3 Leakage Current Hot Check
TOP PREVIOUS NEXT
1. Plug the AC power cord directly into the AC outlet. Do not use an isolation transformer for
this check.
2. Connect the test jig shown in Fig.1 between each exposed metallic part on the monitor and an
earth ground such as a water pipe.
3. Use an AC voltmeter having high impedance (1 kΩ/V or higher) to measure the voltage.
4. Measure the voltage at each exposed metallic part.
5. The voltage at any point must be less than 0.25 V[rms].
6. A Ieakage current tester (Simpson Model 228 or equivalent) may be used to make the hot
checks. In this case, the current must be less than 0.5 mA.
7. If the reading is outside of the specified limit, the monitor must be repaired and rechecked
before it is returned to the customer because of a possibility of an electric shock.

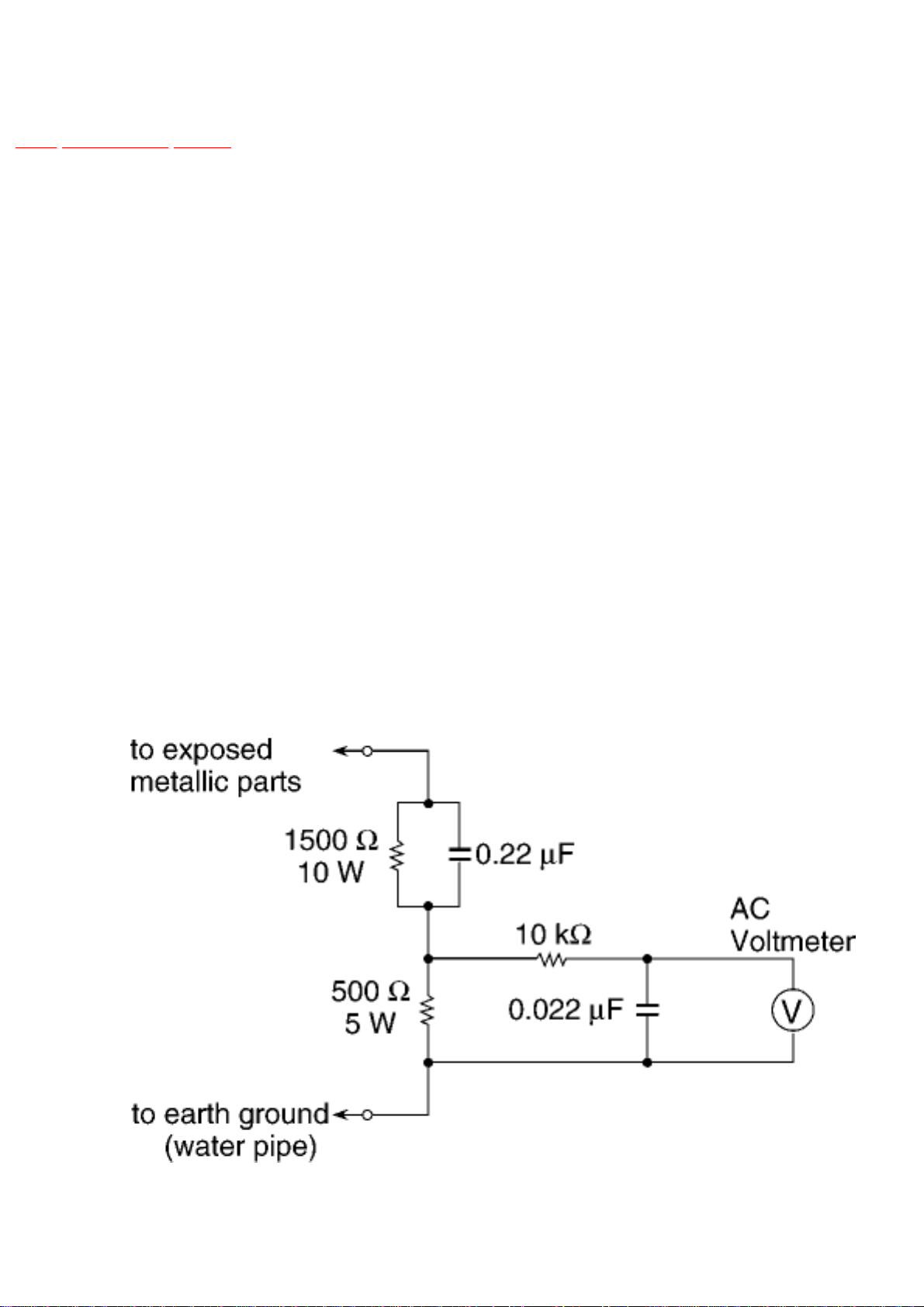

Fig.1
•@
file:///E:/BT-S1315DA_BT-S1315DAD_BT-S1415DA_BT-S1415DAD/SVC/s0103000000.html (1 z 2) [2006-02-04 08:28:11]
file:///E:/BT-S1315DA_BT-S1315DAD_BT-S1415DA_BT-S1415DAD/SVC/s0104000000.html
1.4 X-Radiation
TOP PREVIOUS NEXT
Warnings:
The potential sources of X-Radiation in the monitor are the high voltage section and the picture tube.
When using a picture tube test jig for service, check that the jig is capable of handling 28.5 kV
without causing X-Radiation.
Note:
It is important to use an accurate, periodically calibrated high-voltage meter (electrostatic type).
1. Turn the BRIGHT and CONTRAST controls counterclockwise fully.
2. Check that the high voltage is 23.5 kV±1.5 kV. If not, immediate service and correction is
required to prevent a possibility of premature component failure.
3. To prevent an X-Radiation possibility, it is essential to use the specified picture tube.
•@
TOP PREVIOUS NEXT
file:///E:/BT-S1315DA_BT-S1315DAD_BT-S1415DA_BT-S1415DAD/SVC/s0104000000.html [2006-02-04 08:28:11]
file:///E:/BT-S1315DA_BT-S1315DAD_BT-S1415DA_BT-S1415DAD/SVC/s0105000000.html
1.5 Horizontal Osc. Disable Circuit Test
TOP PREVIOUS NEXT
This test must be made as a final check before the monitor is returned to the customer./Fig. 2 shows
the horizontal osc. disable circuit.
1. With the rear cover removed, supply nominal 120 V AC for BT-S1315DA/DAD or 220 V AC
for BT-S1415DA/DAD to the monitor and turn the power on.
2. Set the customer controls to normal operating positions.
3. Input a monoscope pattern signal.
4. Short R571 with a 10 kΩ jumper wire.
5. Check that the high voltage vanishes, the raster stops, and the AC power supply voltage is 120
V for BT-S1315DA/DAD or 220 V for BT-S1415DA/DAD.
6. If these do not occur, the horizontal osc. disable circuit is not operating properly. Repair this
circuit according to the following procedure before returning the monitor to the customer.
•@
TOP PREVIOUS NEXT
file:///E:/BT-S1315DA_BT-S1315DAD_BT-S1415DA_BT-S1415DAD/SVC/s0105000000.html [2006-02-04 08:28:12]
file:///E:/BT-S1315DA_BT-S1315DAD_BT-S1415DA_BT-S1415DAD/SVC/s0106000000.html
1.6 Repair Procedure of Horizontal Osc.
Disable Circuit
TOP PREVIOUS NEXT
1. Connect a DC voltmeter between the "+" side of C550 and a chassis ground. If the voltmeter
does not read nearly 20 V, check R569, D520, C550, R571 and R573.
2. Connect the "+" side of the DC voltmeter to the collector of Q803 and the "-" side to TPA4
(GND). The collector voltage of Q803 changes from nearly 11 V to 0.1 V when R571 is
shorted by 10 kΩ jumper. If this does not occur, checkQ518, C568, R581, Q515, C558, R574,
R575, Q514, C551, R570, D521, C554, C555, D524, R576, R582, R590, R577, C564, R591,
C562, Q517, D526, R579, D509, R571, R573, C550, D520, R569, R836, R835, C837, Q803,
D818, R834 and D823.
3. Carefully check the above specified parts and the related circuits and parts. When the circuit
has been repaired, make the horizontal osc. disable circuit test again.

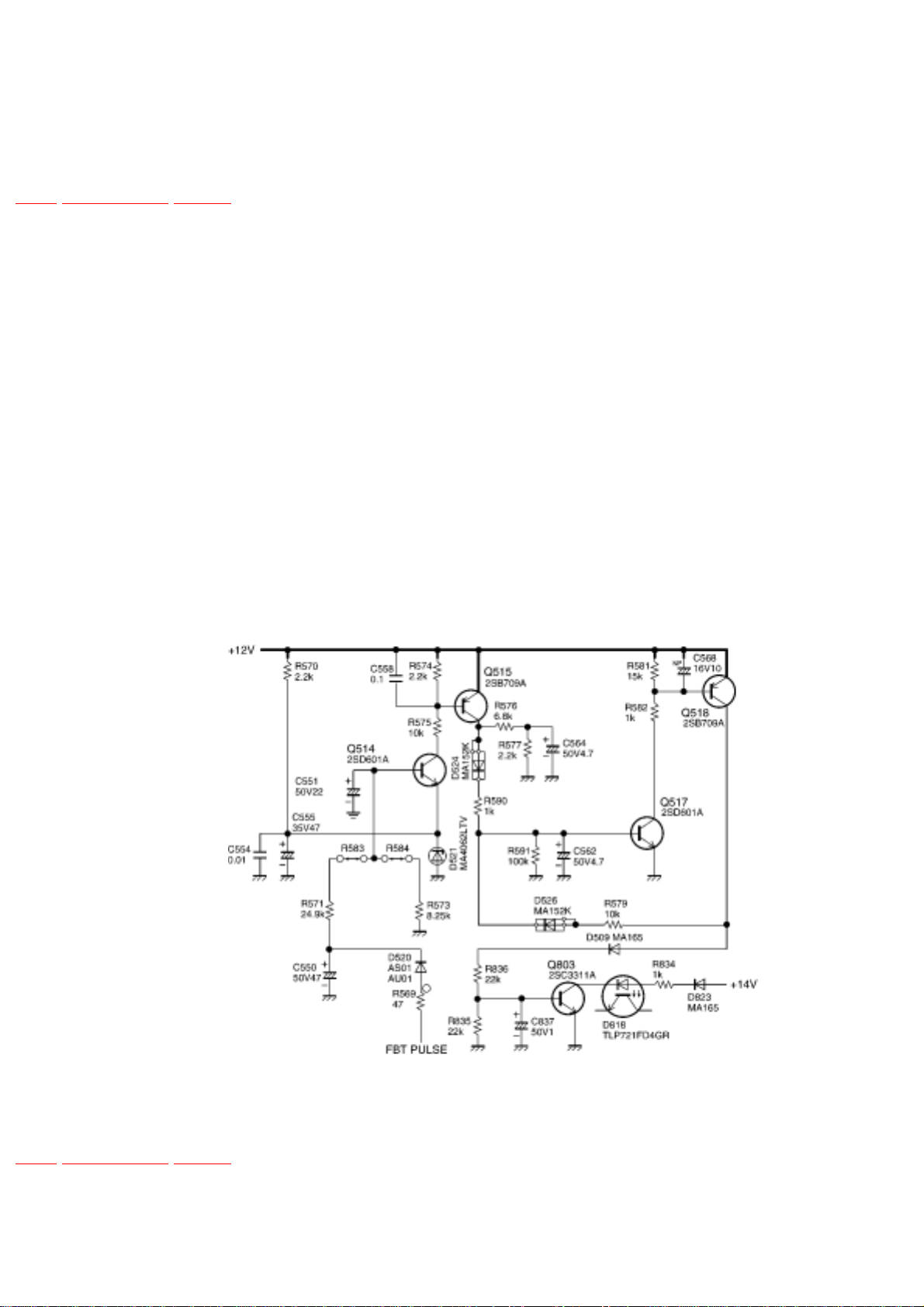

Fig.2
•@
TOP PREVIOUS NEXT
file:///E:/BT-S1315DA_BT-S1315DAD_BT-S1415DA_BT-S1415DAD/SVC/s0106000000.html [2006-02-04 08:28:13]
file:///E:/BT-S1315DA_BT-S1315DAD_BT-S1415DA_BT-S1415DAD/SVC/s0200000000x.html
2 Disassembly Instructions
TOP PREVIOUS NEXT
Warnings:
Be sure to unplug the AC power cord from the AC power outlet before disassembling this monitor.
Cautions:
When turning over a printed circuit board, be sure to put a insulating material under it to prevent a
short circuit.
Printed circuit boards and wires must not be pulled forcibly, but be handled carefully.
Connectors also must be handled carefully.
After repairing this monitor, be sure to put back the wires and connectors to the original conditions.
When removing the rear panel, take care not to damage the neck of the picture tube.
Note:
After replacing any P.C. Board with a new one, be sure to check the picture quality. If there is a
problem, adjust the items related to its problem according to the chapter "Measurements and
Adjustments".
2.1 Printed Circuit Board Layout
2.2 Removal of Top Cabinet
2.3 Removal of Rear Cover
2.4 Removal of DS-P.C.Board (for BT-S1315DAD/S1415DAD only)
2.5 Removal of B- andW-P.C.Boards
2.6 Removal of A-P.C.Board
•@
file:///E:/BT-S1315DA_BT-S1315DAD_BT-S1415DA_BT-S1415DAD/SVC/s0200000000x.html (1 z 2) [2006-02-04 08:28:15]
file:///E:/BT-S1315DA_BT-S1315DAD_BT-S1415DA_BT-S1415DAD/SVC/s0201000000.html
2.1 Printed Circuit Board Layout
TOP PREVIOUS NEXT
•@
TOP PREVIOUS NEXT
file:///E:/BT-S1315DA_BT-S1315DAD_BT-S1415DA_BT-S1415DAD/SVC/s0201000000.html [2006-02-04 08:28:16]
file:///E:/BT-S1315DA_BT-S1315DAD_BT-S1415DA_BT-S1415DAD/SVC/s0202000000.html
2.2 Removal of Top Cabinet
TOP PREVIOUS NEXT

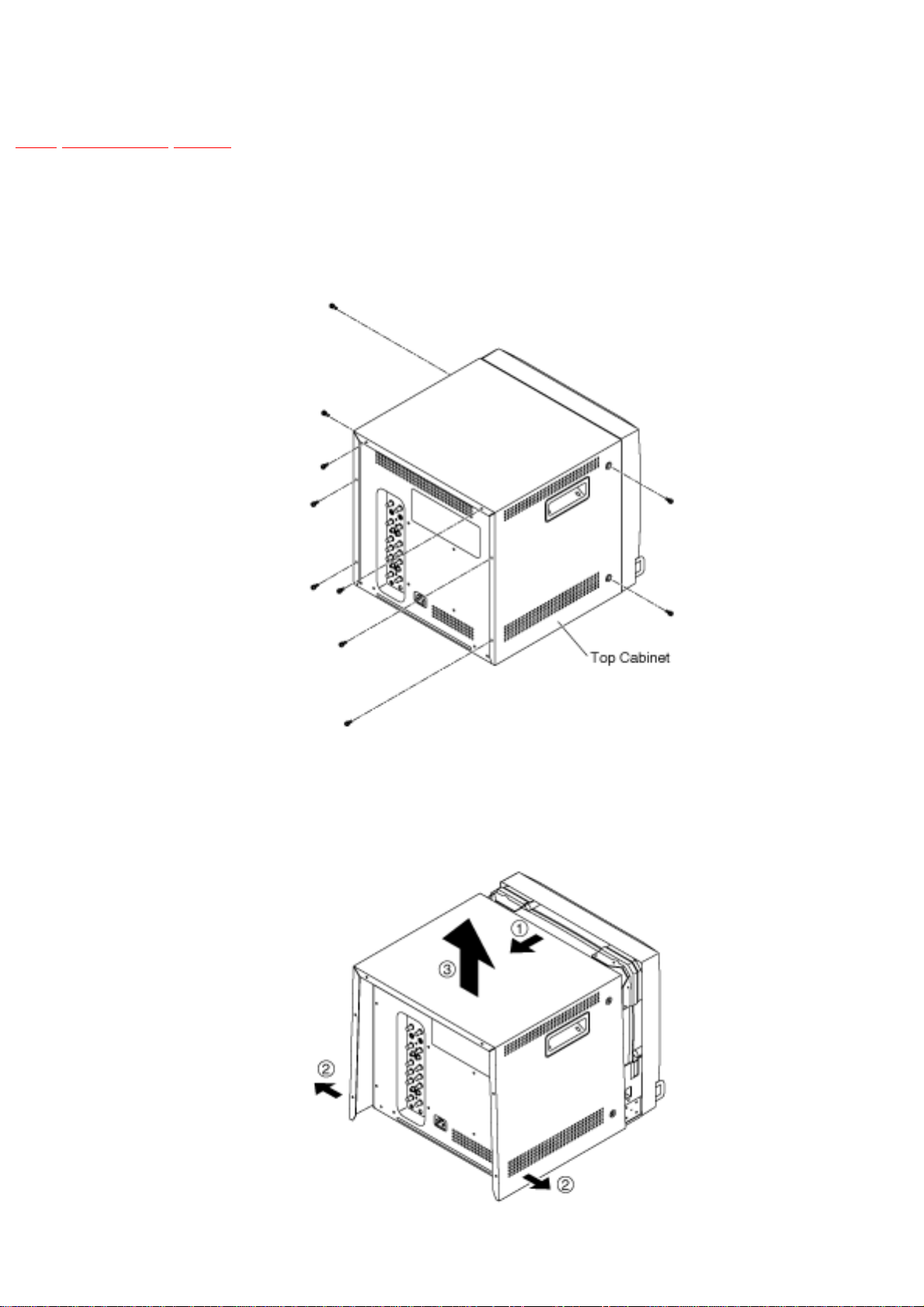

1. Unscrew the 4 screws fixing the cabinet./(2 screws per side)
2. Unscrew the 6 screws fixing the cabinet.
3. After sliding the cabinet roughly 5 mm backward, lift it off while opening its bottom portions
approx. 10 mm.
file:///E:/BT-S1315DA_BT-S1315DAD_BT-S1415DA_BT-S1415DAD/SVC/s0202000000.html (1 z 2) [2006-02-04 08:28:17]
file:///E:/BT-S1315DA_BT-S1315DAD_BT-S1415DA_BT-S1415DAD/SVC/s0203000000.html
2.3 Removal of Rear Cover
TOP PREVIOUS NEXT

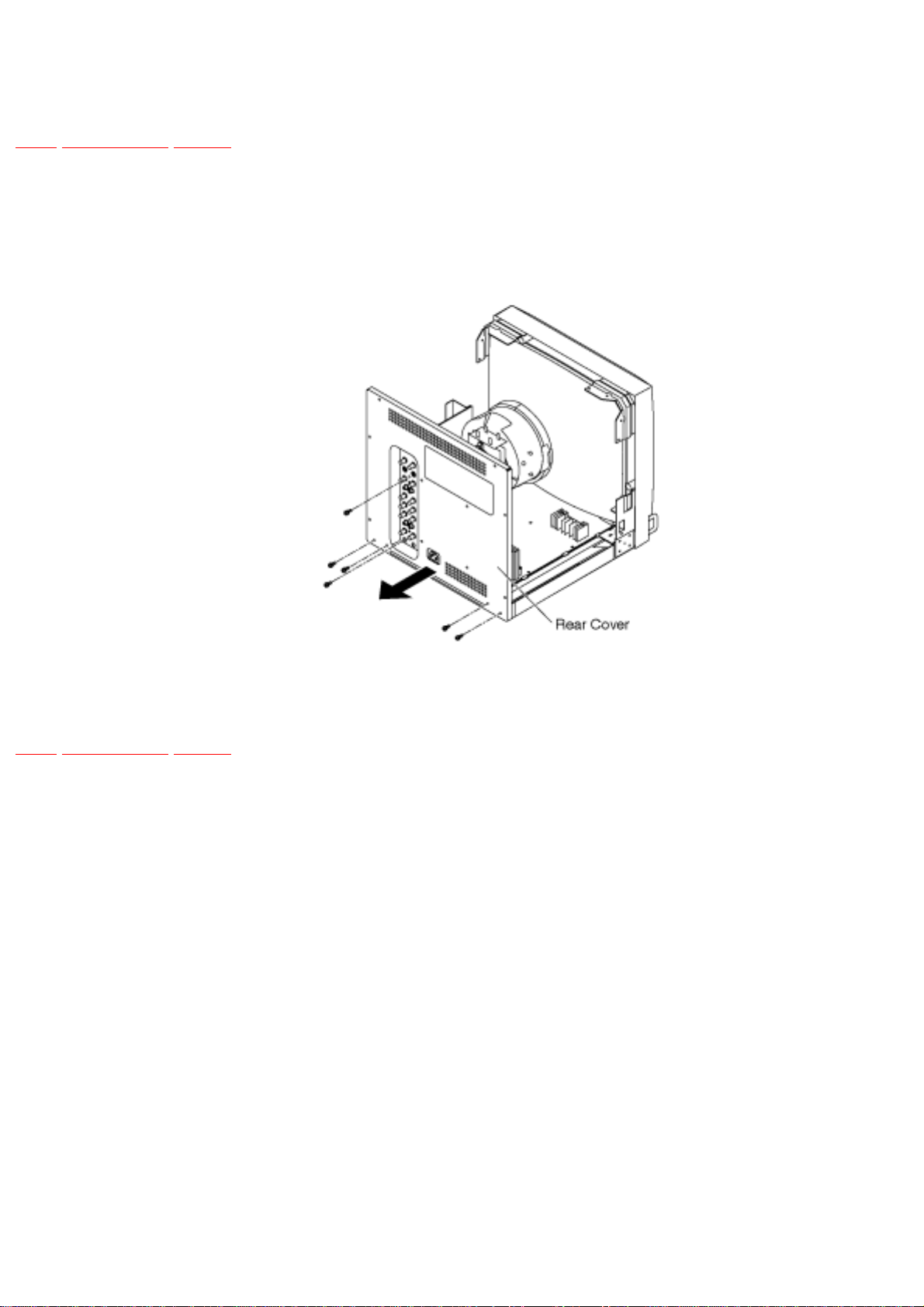

1. Unscrew the 6 screws fixing the rear cover.
2. Remove the rear cover backward.
•@
TOP PREVIOUS NEXT
file:///E:/BT-S1315DA_BT-S1315DAD_BT-S1415DA_BT-S1415DAD/SVC/s0203000000.html [2006-02-04 08:28:18]
file:///E:/BT-S1315DA_BT-S1315DAD_BT-S1415DA_BT-S1415DAD/SVC/s0204000000.html
2.4 Removal of DS-P.C.Board (for BT-
S1315DAD/S1415DAD only)
TOP PREVIOUS NEXT

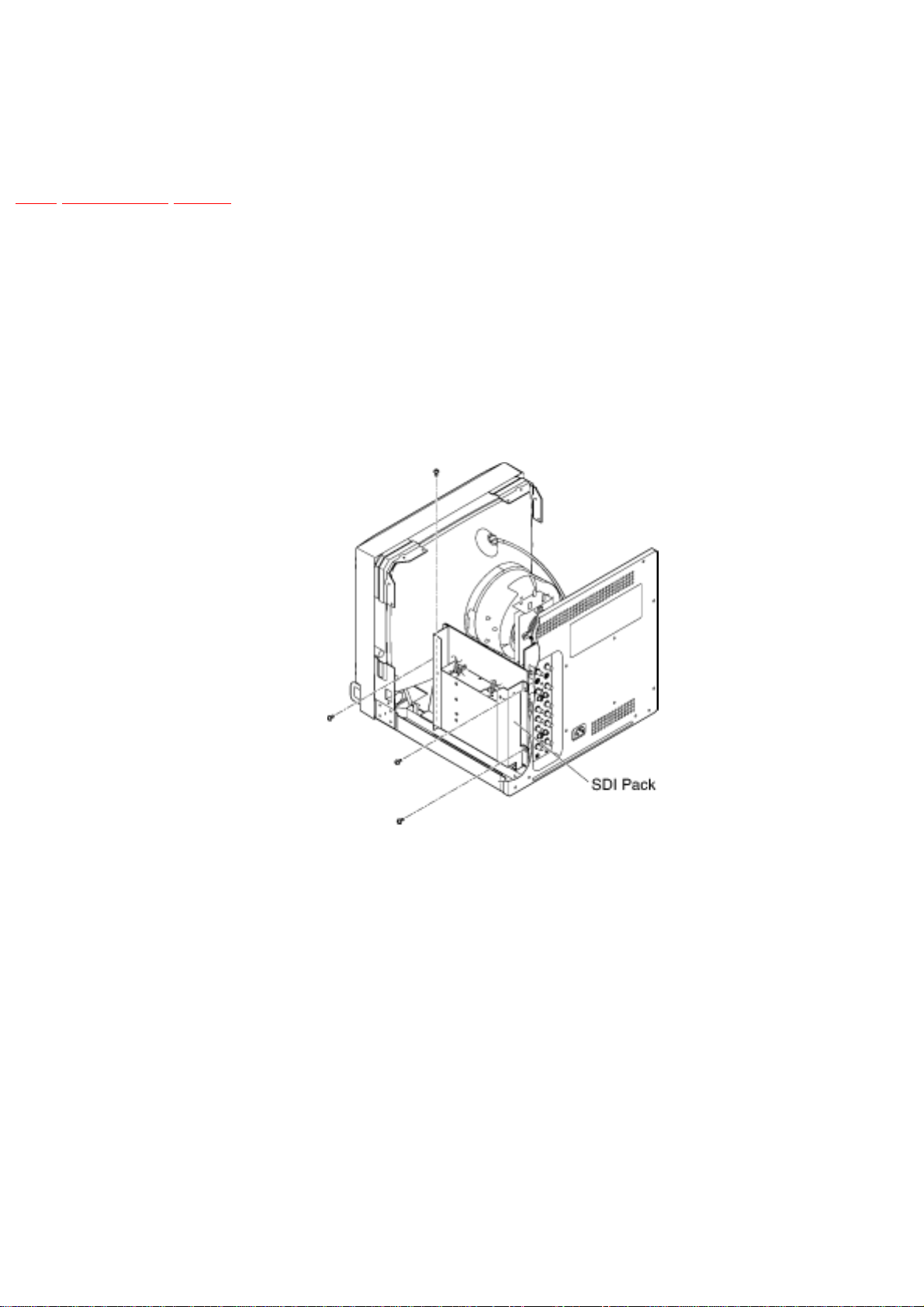

1. Remove the top cabinet according to the section 2.2."Removal of Top Cabinet".
2. Remove the rear cover according to the section 2.3. "Removal of Rear Cover".
3. Disconnect the wires connected from other P.C.Boards to DS-P.C.Board.
4. Unscrew the 4 screws and remove the SDI pack.
5. Unscrew the 4 screws and remove the SDI shield case.
6. Unscrew the 4 screws and remove the DS-P.C.Board.
file:///E:/BT-S1315DA_BT-S1315DAD_BT-S1415DA_BT-S1415DAD/SVC/s0204000000.html (1 z 2) [2006-02-04 08:28:19]
This manual suits for next models
3
Table of contents
Other Panasonic Monitor manuals
Panasonic
Panasonic PT-60LCX64-K User manual
Panasonic
Panasonic TH-37PG9U User manual
Panasonic
Panasonic CF-VDW Series Wiring diagram
Panasonic
Panasonic GPRV202 - REAR VIEW CAMERA User manual
Panasonic
Panasonic TH-80LFB70U User manual
Panasonic
Panasonic BT-LH2600WP User manual
Panasonic
Panasonic WVBM1400 - B&W CAMERA User manual
Panasonic
Panasonic WVCM1420 - COLOR MONITOR User manual
Panasonic
Panasonic TH-50PHD5 User manual
Panasonic
Panasonic TH-42LFP30W User manual
Panasonic
Panasonic TH-50PH30E User manual
Panasonic
Panasonic TH-50PHD30BX User manual
Panasonic
Panasonic VL-MC3000BX Technical manual
Panasonic
Panasonic Viera TH-42PWD4 User manual
Panasonic
Panasonic BT-LH2550 User manual
Panasonic
Panasonic TH37LRT12U - HD LCD DISPLAY User manual
Panasonic
Panasonic TH-42PHW5BX User manual
Panasonic
Panasonic TH-50PB2W User manual
Panasonic
Panasonic PANAFLAT LC-50 User manual
Panasonic
Panasonic TH-42PW6 User manual
Popular Monitor manuals by other brands
Jedia
Jedia JMU-307B operating instructions
Hisense
Hisense LCD2005EU Service manual
Elo Touch Solutions
Elo Touch Solutions IDS ET3203L user manual
Defender Security
Defender Security DFR-MN-215HD quick start guide
WBOX Technologies
WBOX Technologies 0E-19VGHDMI2 user manual
Geemarc
Geemarc ClearSound AMPLICALL 30 user guide
