Instructions
Model No. DT- 1 300 M S
Panasonic.
Read these instructions completely before operating this unit.
TQB510197

Dear Panasonic Customer:
Welcome to our Panasonic family of customers. It is our desire that you receive many years of enjoyment from your
new Color Video/Data Monitor. in keeping up with the state of the art, we have built quality, reliability and
performance into your unit.
However, for the best performance, a Color Video/Data Monitor should be suitably positioned in the viewing area
and properly adjusted.
This instruction booklet provides all the necessary operating information. We hope it will help you to get the most
enjoyment out of your new product, and that you will be pleased with your Panasonic Color Video/Data Monitor.
The serial number of this product may be found on its front. You should note the serial number of this unit in the
space provided and retain this book as a permanent record of your purchase to aid in identification in the event of
theft or loss.
Model number: DT-1300MS Serial number:
Contents
Important Safety NOICE “ikai aa Nga yap d Kan NGGAE AA AN Da A ANG SNG a a a KN 2
PYG CAUTIONS aaa NG Ega aa aaa Aa A ANG IG gg ceca cate a ang aa Aak a a A ak NG 3
a a NA AAN ER a a BR Pa BN KN aan KT IN MERE a 4
LOCANONS sasana ka ai NGA Ag a GA SAN a AA Ka a TA Aa a aa GA a pa A gan a aba nas E 9
Operations
Front COMMONS isos a GEN aka a AN A KA TAA AA NE GA AA BE aaa a TAA a 6
Rear Terminals: saka aka Aa aa A PE A aaa LA E E Ba a aaa LEE a aa 9
Connections

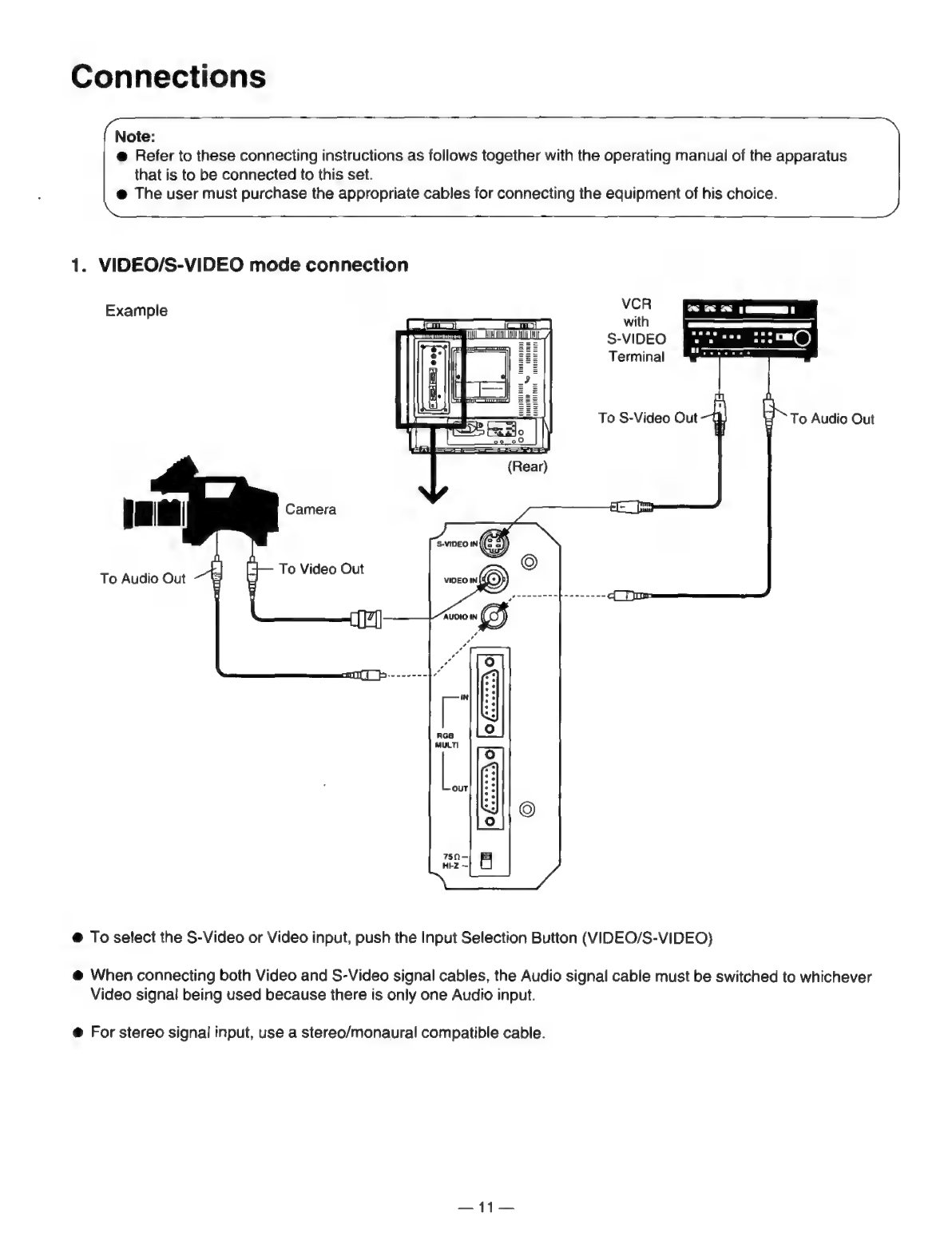

VIDEO/S-VIDEO mode connection ..................... Gah a te 11
RGB MULTI mode connection .................0esreeenenananananenarana nenen ana nenen nean 12
SpecmMeahonS Ta aaa a SA gaga E a oe ANA a es aa aa a AG BA aa eam ga DAN 14

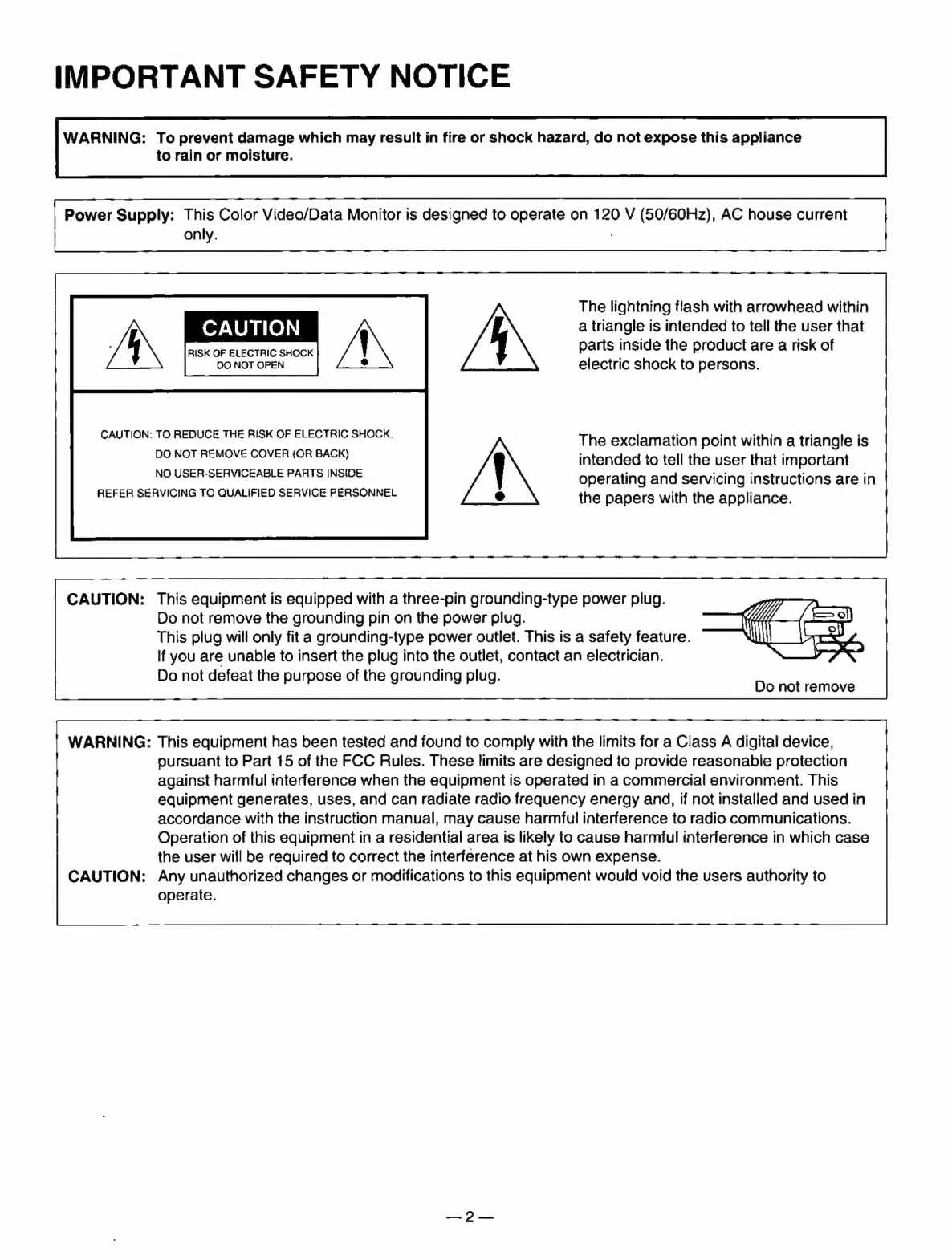

IMPORTANT SAFETY NOTICE
WARNING: To prevent damage which may result in fire or shock hazard, do not expose this appliance
to rain or moisture.
! Power Supply: This Color Video/Data Monitor is designed to operate on 120 V (50/60Hz), AC house current |
only.
nt rp a maan maan a maan agama ai aaa maan ama Aam aaa aaa
The lightning flash with arrowhead within
CAUTION a triangle is intended to tell the user that
RISK OF ELECTRIC SHOCK parts inside the product are a risk of
DO NOT OPEN electric shock to persons.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER {OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
The exclamation point within a triangle is
intended to tell the user that important
operating and servicing instructions are in |
||
the papers with the appliance. |
CAUTION: This equipment is equipped with a three-pin grounding-type power plug.
Do not remove the grounding pin on the power plug.
This plug will only fit a grounding-type power outlet. This is a safety feature.
If you are unable to insert the plug into the outlet, contact an electrician.
Do not defeat the purpose of the grounding plug. eee
WARNING: This equipment has been tested and found to comply with the limits for a Class A digital device, |
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection |
against harmful interference when the equipment is operated in a commercial environment. This |
equipment generates, uses, and can radiate radio frequency energy and, if not installed and usedin |
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
CAUTION: Any unauthorized changes or modifications to this equipment would void the users authority to
operate.

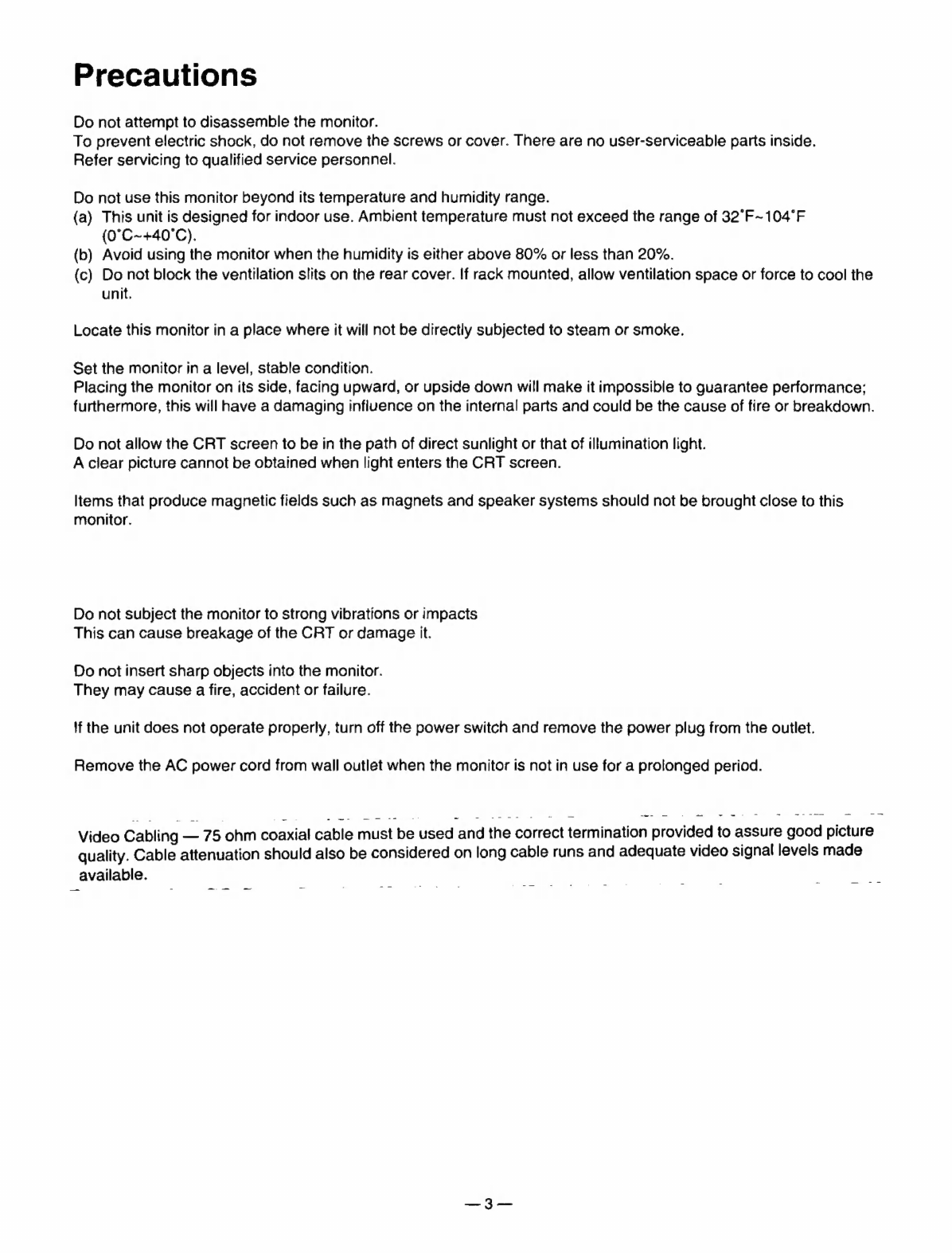

Precautions
Do not attempt to disassemble the monitor.
To prevent electric shock, do not remove the screws or cover. There are no user-serviceable parts inside.
Refer servicing to qualified service personnel.
Do not use this monitor beyond its temperature and humidity range.
(a) This unit is designed for indoor use. Ambient temperature must not exceed the range of 32°F~104°F
(0°C~+40°C).
(b) Avoid using the monitor when the humidity is either above 80% or less than 20%.
(c) Do not block the ventilation slits on the rear cover. If rack mounted, allow ventilation space or force to cool the
unit.
Locate this monitor in a place where it will not be directly subjected to steam or smoke.
Set the monitor in a level, stable condition.
Placing the monitor on its side, facing upward, or upside down will make it impossible to guarantee performance;
furthermore, this will have a damaging influence on the internal parts and could be the cause of fire or breakdown.
Do not allow the CRT screen to be in the path of direct sunlight or that of illumination light.
A clear picture cannot be obtained when light enters the CRT screen.
Items that produce magnetic fields such as magnets and speaker systems should not be brought close to this
monitor.
Do not subject the monitor to strong vibrations or impacts
This can cause breakage of the CRT or damage it.
Do not insert sharp objects into the monitor.
They may cause a fire, accident or failure.
If the unit does not operate properly, turn off the power switch and remove the power plug from the outlet.
Remove the AC power cord from wall outlet when the monitor is not in use for a prolonged period.
Video
Cabling
—
75
ohm
coaxial
cable
must
be
used
and
the
correct
termination
provided
to
assure
good
quality.
Cable
attenuation
should
also
be
considered
on
long
cable
runs
and
adequate
video
signal
levels
made
available.

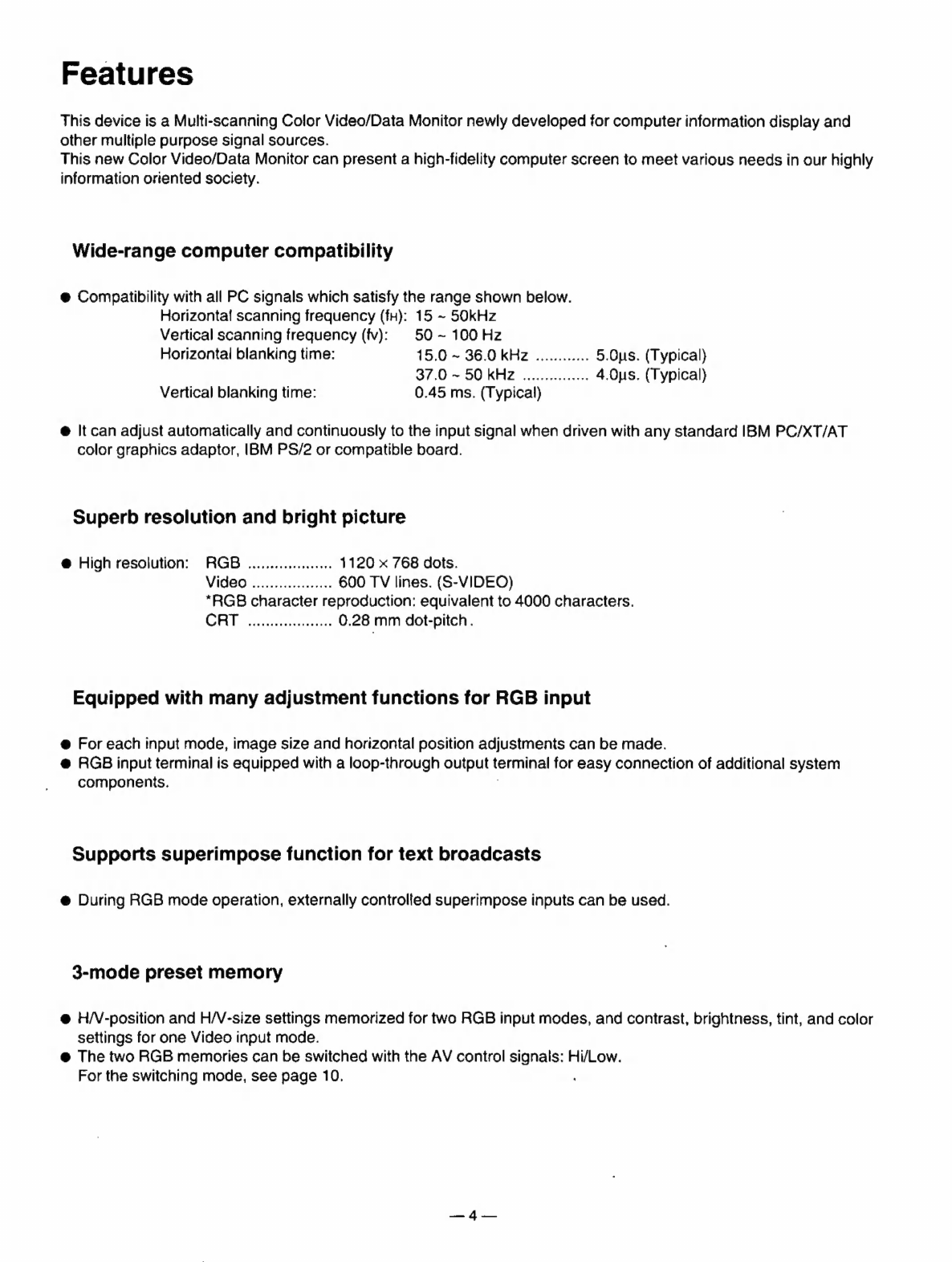

Features
This device is a Multi-scanning Color Video/Data Monitor newly developed for computer information display and
other multiple purpose signal sources.
This new Color Video/Data Monitor can present a high-fidelity computer screen to meet various needs in our highly
information oriented society.
Wide-range computer compatibility
@ Compatibility with all PC signals which satisfy the range shown below.
Horizontal scanning frequency (fH): 15 ~ 50kHz
Vertical scanning frequency (fv): 50 ~ 100 Hz
Horizontal blanking time: 15.0 ~ 36.0 KHz ............ 5.0us. (Typical)
37.0 ~ SO KAZ ............... 4.0us. (Typical)
Vertical blanking time: 0.45 ms. (Typical)
@ It can adjust automatically and continuously to the input signal when driven with any standard IBM PC/XT/AT
color graphics adaptor, IBM PS/2 or compatible board.
Superb resolution and bright picture
è High resolution: RGB ................... 1120 x 768 dots.
Video .................. 600 TV lines. (S-VIDEO)
*RGB character reproduction: equivalent to 4000 characters.
CAT akak aka 0.28 mm dot-pitch.
Equipped with many adjustment functions for RGB input
@ For each input mode, image size and horizontal position adjustments can be made.
@ RGB input terminal is equipped with a loop-through output terminal for easy connection of additional system
components. ;
Supports superimpose function for text broadcasts
@ During RGB mode operation, externally controlied superimpose inputs can be used.
3-mode preset memory
6 /V-position and H/V-size settings memorized for two RGB input modes, and contrast, brightness, tint, and color
settings for one Video input mode.
@ The two RGB memories can be switched with the AV control signals: Hi/Low.
For the switching mode, see page 10.

Locations
(5) Control Switch
(6) Control Mode Select Switch
Control Indicator
NORMAL Button
VIDEO ~ RGB MULTI | CONTROL FUNC-1 VOLUME -H
Ta Vea
“S-¥IDEO DEG (FUNG-2] [SIDE-PIN]
co BRIGHT TINT COLOR
(H-SIZE ] [ ¥-SIZE]
(9) Control Buttons
(4) Input Selection Button (RGB MULTI/VIDEO)
(3) Input Selection Button (VIDEO/S-VIDEO)
GB
MULTI
S-VIDEO VIDEO
Rear Terminals
S-VIDEO IN
Rating plate
S-VIDEO IN
Terminal
©
VIDEO IN
Terminal
AUDIO IN
AC Inlet Terminal
for Service use only
RGB
MULT! IN/OUT
Terminals
RGB impedance
Switch

Operations
D Power Switch
Push this switch to turn the monitor ON/OFF.
When the power is ON, one of the Input Mode Indicators light.
D) Input Mode Indicators
When the power is ON, the selected input mode is indicated.
Cc
coo å A
pa BGR
vipeo
VIDEO
MULTI
6) Input Selection Button (VIDEO/S-VIDEO)
Push this button to select S-VIDEO or VIDEO input.
VIDEO 6 This function is only available when VIDEO input was selected with Input
Selection Button (RGB MULTIMIDEO).
@ Selected input mode is shown on the Input Mode Indicators ®©.
S-VID
(4) input Selection Button (RGB MULTI/VIDEO)
Push this button to select VIDEO or RGB MULTI input.
RGB MULTI @ Selected input mode is indicated on the Input Mode Indicators ©.
@ When the RGB MULTI is selected, it is able to select RGB or VIDEO signal within
the RGB terminal by using YS signal through the RGB terminal.
@ When the VIDEO is selected, VIDEO or S-VIDEO input will appear due to the
condition of the Input Selection Button (VIDEO/S-VIDEO).
(see page 9 ~ 10)
Set this switch to OFF position to prevent unexpected changes of the adjustments.
ON ... All controls can be operated.
OFF.. Only power on/off and input selection can be operated.
(©) Control Mode Select Switch
Set this switch to determine which adjustments will be done.
FUNC-1
FUNC-1 ..... Picture and Volume
FUNC-2}..... Size, Position and Side-pincushion

Operations
D Control Indicator
While a control adjustment is being made, this indicator blinks.
When the adjustment level reaches the max/min, this indicator stays lit.
g
NORMAL Button
Push this button to return the adjustment level to the factory presettings.
AL Use an adjustment screwdriver or tool to push this button.
NORM In the control off condition, this has no effect.
KA
©) Control Buttons
By using each +/~ buttons, the adjustment can be done in 64 steps.
The adjustment levels are memorized for each input mode.
In the control off condition, these adjustment have no effect.
@ Function-1 Picture and Volume
Set the Control Mode Select Switch to FUNC-1 position.
Contrast adjustment Brightness adjustment
CONTRAST, BRIGHT
-©
©
tI
L.
Decrease
6
©
TT
_...
Dark
+- Increase ++ Bright
Tint adjustment Color adjustment
@ @ ,.| (ineffective at RGB) 6-6 , | (ineffective at RGB)
-- Red —- Low color
+-
Green
+---
High
color
Volume Control
VOLUME
O_O: —... Decrease
+- Increase

@ Function-2 Size, Position and Side-pincushion
Set the Control Mode Select Switch to the | FUNC-2 | position.
CONTRAST. S
O Ot
(H.POS]]
BRIGHT
DO ;
TINT
Q aS
COLOR
Q í
VOLUME
Ņ
OO
[SIDE-PINI
Horizontal position adjustment
(ineffective at VIDEO)
Horizontal size adjustment
Vertical position adjustment
Vertical size adjustment
Side-pincushion adjustment
Pa
Tia
Ta

Operations

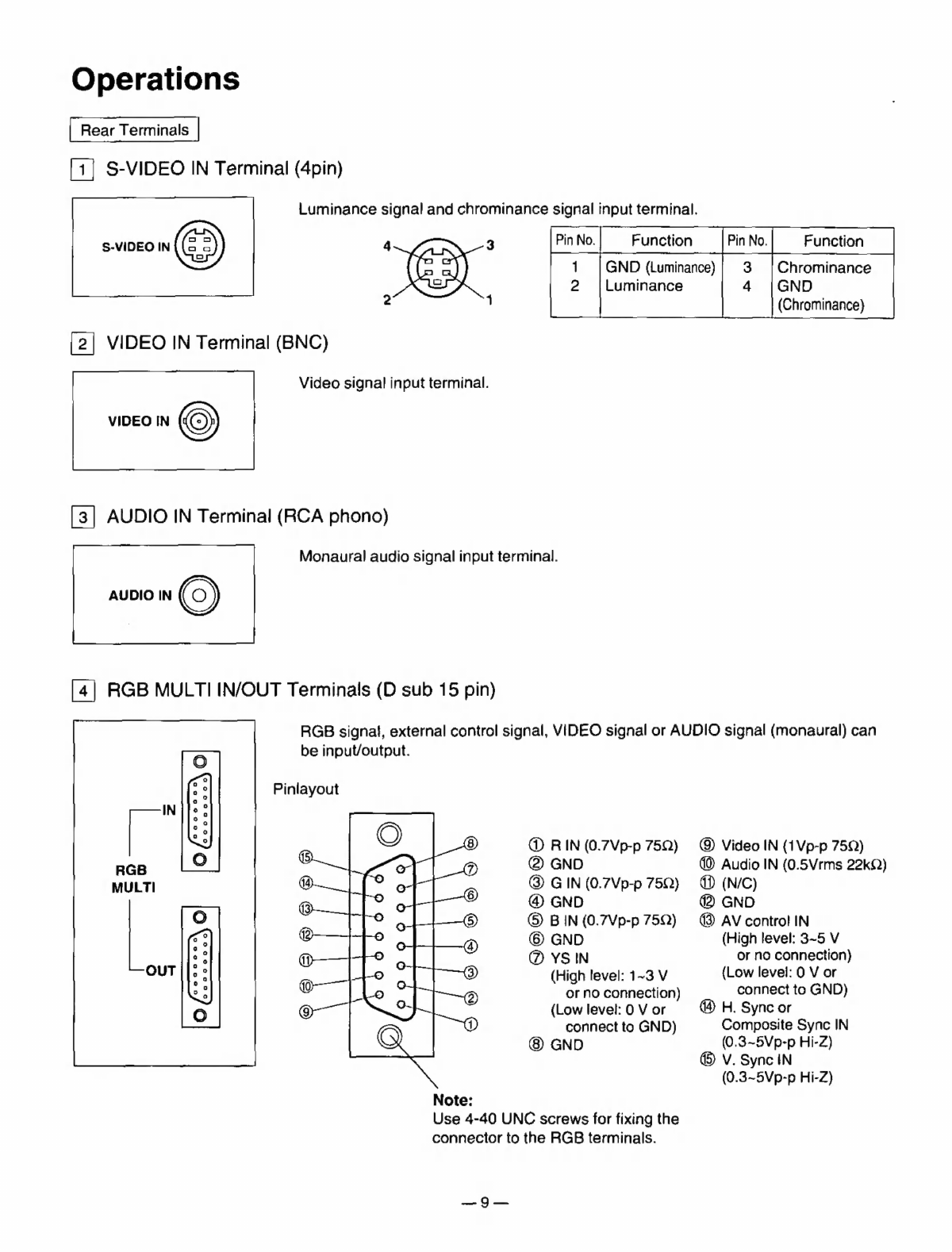

S-VIDEO IN Terminal (4pin)
Luminance signal and chrominance signal input terminal,
Function
S-VIDEO IN
D
GND (Luminance) Chrominance
Luminance GND
(Chrominance)
VIDEO IN Terminal (BNC)
Video signal input terminal.
VIDEO IN
AUDIO IN Terminal (RCA phono)
AUDIO IN
Monaural audio signal input terminal.
[4] RGB MULTI IN/OUT Terminals (D sub 15 pin)
RGB signal, external control signal, VIDEO signal or AUDIO signal (monaural) can
be input/output.
Piniayout
@ RIN (0.7Vp-p 752) © Video IN (1Vp-p 752)
@ GND @@ Audio IN (0.5Vrms 22kQ)
@ GIN (0.7Vp-p 752) ® (N/C)
@ GND @ GND
© BIN (0.7Vp-p 759) ~@ AV control IN
© GND (High level: 3~5 V
@®
YS
IN
or
no
connection)
(High level: 1~3 V (Low level: 0 V or
or no connection) connect to GND)
(Low level: 0 V or H. Sync or
connect to GND) Composite Sync IN
GND
(0.3~5Vp-p
Hi-Z)
® V. Sync iN
(0.3~5Vp-p Hi-Z)
Note:
Use 4-40 UNC screws for fixing the
connector to the RGB terminals.

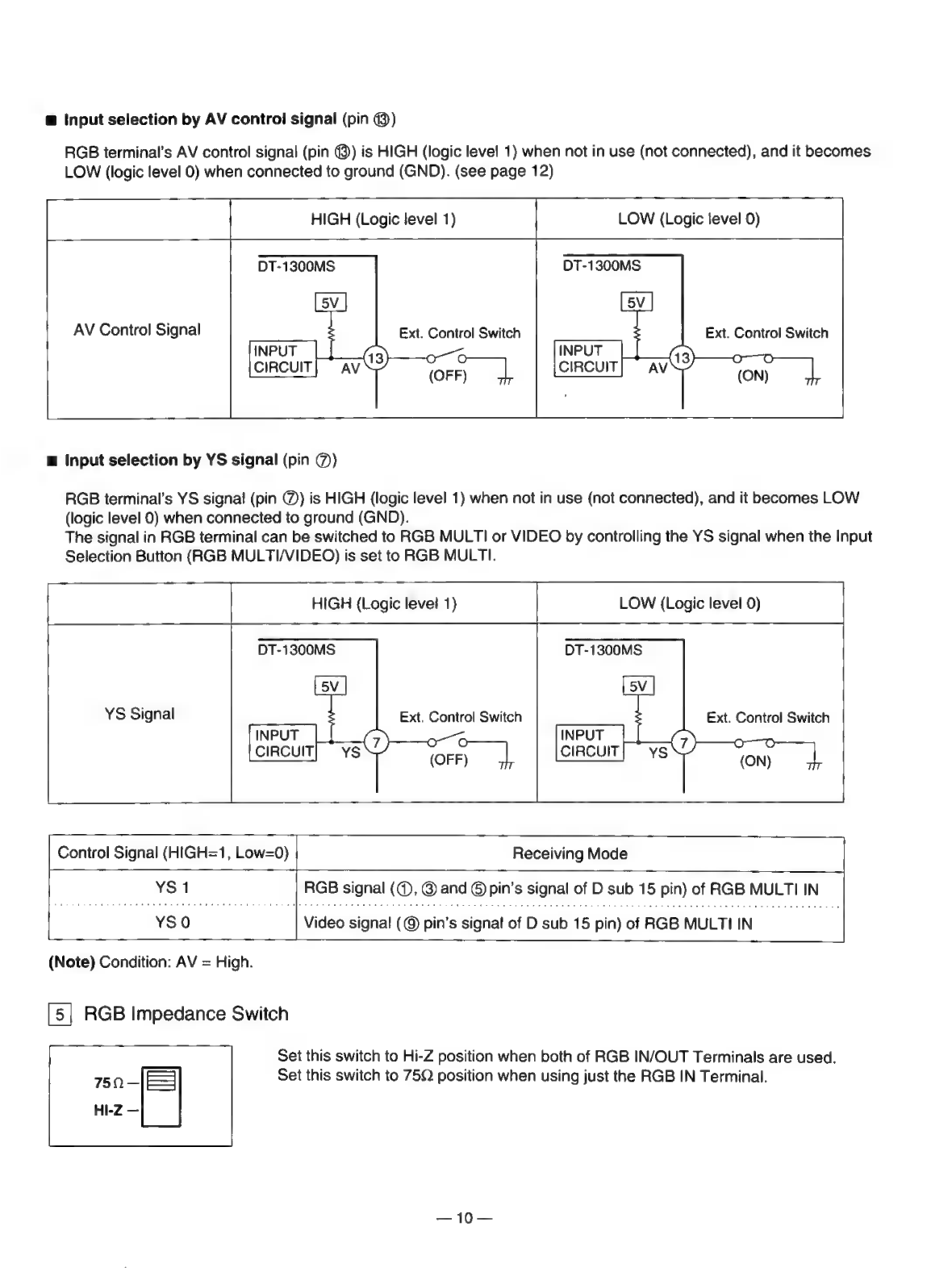

w Input selection by AV control signal (pin @)
RGB terminal's AV control signal (pin @) is HIGH (logic level 1) when not in use (not connected), and it becomes
LOW (logic level 0) when connected to ground (GND). (see page 12)
HIGH (Logic level 1)
DT-1300MS
AV Control Signal Ext. Control Switch
E Input selection by YS signal (pin ©)
RGB terminal’s YS signal (pin ©) is HIGH (logic level 1) when not in use (not connected), and it becomes LOW
(logic level 0) when connected to ground (GND).
The signal in RGB terminal can be switched to RGB MULTI or VIDEO by controlling the YS signal when the Input
Selection Button (RGB MULTI/VIDEO) is set to RGB MULTI.
HIGH (Logic level 1} LOW (Logic level 0)
DT-1300MS DT-1300MS
YS Signal
(Note) Condition: AV = High.
RGB Impedance Switch
——
Set this switch to Hi-Z position when both of RGB IN/OUT Terminals are used.
Set this switch to 7502 position when using just the RGB IN Terminal.
= NY

Connections
Note:
6 Refer to these connecting instructions as follows together with the operating manual of the apparatus
that is to be connected to this set.
@ The user must purchase the appropriate cables for connecting the equipment of his choice.
1. VIDEO/S-VIDEO mode connection
VCR
Example
with
S-VIDEO
Terminal
To Audio Out
To Audio Out To Video Qut
@ To select the S-Video or Video input, push the Input Selection Button (VIDEO/S-VIDEO)
@ When connecting both Video and S-Video signal cables, the Audio signal cable must be switched to whichever
Video signal being used because there is only one Audio input.
@ For stereo signal input, use a stereo/monaural compatible cable.
—11—

. RGB MULTI mode connection
Example 1: for 2 units of PC
| Ga (ee |
Personal Computer A
Personal Computer B
062230
Example 2: for PC with VCR
Personal Computer
Tani ke LE
MIN ISIE | WAN NATSU AMAI
ULL
(Rear)
external switcher
6 GND anan
7 YS
do
> g
(aftr
GND D > ol S B
Audio Jeo K A : G ne
Video a 9 2 GND
0 R
H. Sync or Composite
V. Sync

Example 3: for Multi monitor
[mi
WI ko munu Upto bend aire
Personal Computer
© 15P
Notes:
@ When the RGB OUT Terminal is used, set the RGB Impedance Switch to Hi-Z position.
@ If you want to make the bridge connections by VIDEO IN/OUT, please use RGB MULTI IN/OUT
Terminals {pin © of D sub 15 pin, please see the pin layout in page 9).
@ Please use the shield cable for D sub 15 pin.
@ How to use the superimpose function
RGB signal title, etc., can be superimposed to VIDEO signal screen by connecting VIDEO and RGB signals to the
RGB terminal. (The background of superimposed characters cannot be halftones, due to the fact that this monitor
cannot receive the YM signal.)
Getting ready
(1) Connect VIDEO signal to pin ©.
(2) Connect AUDIO signal for RGB to pin @.
(3) Connect RGB signals (text broadcast signals, etc.) for superimposing to pins D, @ and ©.
(4) Connect YS signal to pin ©.
* Do not connect sync signal to pin @.
Operation
RGB signals can be superimposed while VIDEO signal and AUDIO signal are being input to pin @ and pin @,
respectively, by setting the Input Selection Button (RGB MULTI/VIDEQ) to RGB MULTI.
CAUTIONS
1. The input signal for superimposing must be RGB signat of 15.75kHz
horizontal scanning frequency.
. When VIDEO signal and RGB signal are being input from separate equipment,
a TBC with GENLOCK must be connected.

Specifications
Power Source:
Max. Amps:
CRT:
Speaker Output:
Horizontal Frequency:
Vertical Frequency:
Resolutions:
Video;
RGB;
Frequency Response:
Y/c input;
RGB input;
Terminals:
VIDEO IN;
S-VIDEO IN;
AUDIO IN;
RGB IN/OUT;
Head Phones;
120V AC, 50/60Hz
Color System:
1.6A Dimensions:
Width;
14" diagonal Height;
90-degree deflection Depth;
0.28 dot pitch
Weight:
4. 5W (10% THD)
Impedance 8Q
15~50kHz
Operating Humidity:
(automatic follow)
Accessory:
50~100 Hz ry
(automatic follow)
Safety regulations:
600 TV lines (S-VIDEO)
1120 x 768 dots EMC regulations:
8MHz
30MHz
BNC type connector
1 Vp-p, 75Q termination
Mini Din 4 Pin type connector
Y signal: 4.0Vp-p
C signal: 0.286Vp-p
7502 termination
RCA type connector
0.5 Vrms
D-Sub 15 pin type connector
R; 0.7Vp-p, 75Q
G; 0.7Vp-p, 750
B; 0.7Vp-p, 752
HD; 0.3~5V POSI/NEGA
VD; 0.3~5V POSI/NEGA
YS; High - 1~3V or no
connection
Low - Connect to GND
AV; High - 3~5V or no
connection
Low - Connect to GND
Video; 1Vp-p 759
Audio; 0.5Vrms
8Q Mini headphones jack
ra NA
Operating Temperature:
NTSC
15-7/16 (392 mm)
14-13/32 (366 mm)
16-5/32 (410 mm)
27.6 Ibs (12.5 kg)
32°F~104°F (0°~40°C)
20~80%
AC Power cord
(TSX3164)
UL 1492 Listed
Complies with FCC
rules Part 15
@ Specifications are subject
to change without notice.

Panasonic.
Professional/Industrial Video
Panasonic Broadcast & Television Systems Company
Division of Matsushita Electric Corporation of America
HEADQUARTERS:
50 Meadowland Parkway, Secaucus, New Jersey 07094
EASTERN ZONE:
50 Meadowland Parkway, Secaucus, NJ 07094 [phone]
CENTRAL ZONE:
9041 West Grand, Ave. Franklin Park IL 60131 [phone]
SOUTHERN ZONE:
Dallas Region: 4500 Amon Carter. Blvd., Ft Worth, TX 76155 [phone]
Atlanta Region: 1854 Shackleford Ct., Suite 115, Norcross, GA 30093 [phone]
WESTERN ZONE:
Seattle Region: 1200 Westlake Ave. N., Suite 508, Seattle, WA 98109 [phone]
Los Angeles Region: 6550 Katella Ave., Cypress, CA 90630 [phone]
Printed in Japan
S0694-0A
