Panasonic TH-85PF12E User manual

TH-85PF12E (1/3)
M090917
Product summary
Product specification (Design and specifications subject to change without notice)
• 85-inch 1080p High Definition Plasma Display for professional use.
• Equipped with three interchangeable slots-provide flexible and powerful
systemsolution by adding/exchanging wide variety of optional slot-in boards.
• Available with various unique professional features-Weekly Command Timer,
Dualpicture mode, Digital zoom, Built-in video wall image enlarger, etc..
• Various Energy-saving functions-DPMS, Auto power off, power save mode, etc...
• This is Low-reflection model
Note: Dual picture mode cannot handle the following combinations of two analog signals
Component -Component, Component - PC(RGB), PC(RGB) - Component, PC(RGB) -PC(RGB)
High Definition
Plasma Display TH-85PF12E
• Wall-hanging bracket (vertical) • Pedestal • Ceiling-handing bracket • Floor stand • Terminal boards
DISPLAY
Screen Size (Diagonal)
Aspect Ratio
Effective Display Area (W x H)
Number Of Pixeis (H x V)
Pixel Pitch (H x V)
Moving Picture Resolution
Contrast
Dynamic Contrast
Gradation
85-inch (2,167 mm)
16:9
1,889 x 1,062 mm
1,920 x 1,080 pixels (1 pixel = 3cells for R, G and B)
0.984 x 0.984 mm
1,080 lines *Based on APDC measurement method.
40,000:1
2,000,000:1
6,144 steps (equivalent)
APPLICABLE SIGNALS
Scanning Format
PC Signal Compatibility
525 (480) / 60i · 60p, 625 (575) / 50i · 50p, 625 (576) / 50p,
750 (720) /60p · 50p, 1125 (1080) / 60i · 60p ·50i · 50p · 24p · 25p ·
30p · 24sF, 1250 (1080) / 50i
VGA, SVGA, XGA, WXGA, SXGA, UXGA
(Over SXGA resolution: compressed)
Horizontal scanning frequency 15 - 110 kHz
Vertical scanning frequency 48 - 120 Hz
ELECTRICAL
Power Requirements
Power Consumption
Power Off Condition
Stand-By Condition
220 - 240 V AC, 50 Hz/60 Hz
1100 W
0.4 W
Save OFF: 1.2 W, Save ON: 0.7 W
SOUND
Audio Out RCA pin jack x 2 (L /R) Output level: Variable (-∞~ 0 dB)
MECHANICAL
Dimemsions (W x H x D)
Weight
Cabinet Color
2,015 x 1,195 x 99 mm
approx. 117 kg
Black
RADIATION REGULATIONS
IINPUT / OUTPUT
Vacant
DVI-D Input
Audio Input (L/R)
Component Input
Audio Input (L/R)
LAN Control
PC Input
Audio Input
Serial
(Slot1)
(Slot2)
(Slot3)
(Fixed)
DVI x 1
M3 jack x 1 0.5 V[rms]
BNC x 3 Y/G : with sync 1.0 V[p-p] (75 Ω)
PB/B, PR/R: 0.7 V[p-p] (75 Ω)
M3 jack x 1 0.5 V[rms]
RJ45 10BASE-T / 100BASE-TX, compatible with PJLink™
MINI D-sub 15-pin x 1 (Female) Y/G : with sync 1.0 V[p-p] (75 Ω)
PB/B, PR/R: 0.7 V[p-p] (75 Ω)
HD/VD : 1.0 ~5.0 V[p-p]
(high impedance)
Plug & Play (VESA DDC 2B)
M3 jack x 1
D-sub 9-pin x 1 (External control), RS-232C compatible
ENVIRONMENTAL
Temperature
Humidity
Altitude
Operating Environment
0°C to 40 °C
20 % to 80 % (Non condensation)
0 to 2,400 m
Temperature
Humidity
Altitude
Storage Environment
–20 °C to 60 °C
20 % to 90 % (Non condensation)
0 to 3,300 m
DC 3 V (2 x R6 (UM3) Size batteries)
approx. 7 m in front pf plasma display
approx. 130 g including batteries
EN60065 Ver.7
SAFETY REGULATIONS
EN55022 Class-B, EN55024 EN61000-3-2, EN61000-3-3
REMOTE CONTROL TRANSMITTER
Power Requirements
Operation Distance
Weight
INCLUDED ACCESSORIES
• AC power cord • Operating instruction book • Remotecontrol transmitter • Batteries • Fixing band
• CD-ROM (Operating instructions) • Allen wrench x 1 • Eyebolt cap x 1 • Eyebolt (M12) x 1
• Ferrite core x 2 • Noise cut filter
OPTIONAL ACCESSORIES

TH-85PF12E (2/3)
M090917
Dimensions
1230
178 443
194
2015
1889 41
99
469 1062
1195
419
153.5
1258
829.5
AC cord
Units : mm
<Connection terminals>
Multi-Function
slots
Fixed part
<Terminal dimension>
374
467484
With the optional pedestal
TY-ST85P12 attached

Composite/Component Video TY-42TM6
Y
Component Video TY-42TM6A/Z PC Input TY-42TM6P RGB Active Through TY-42TM6G Composite Video TY-42TM6B/V BNC Dual Video TY-FB9BD DVI-D TY-FB11DD SDI TY-FB7SD HD-SDI TY-FB9HD HD-SDI with Audio TY-FB10HD Dual HD-SDI TY-FB11DHD HDMI TY-FB8HM Dual HDMI TY-FB10HMD SCART TY-FB8SC

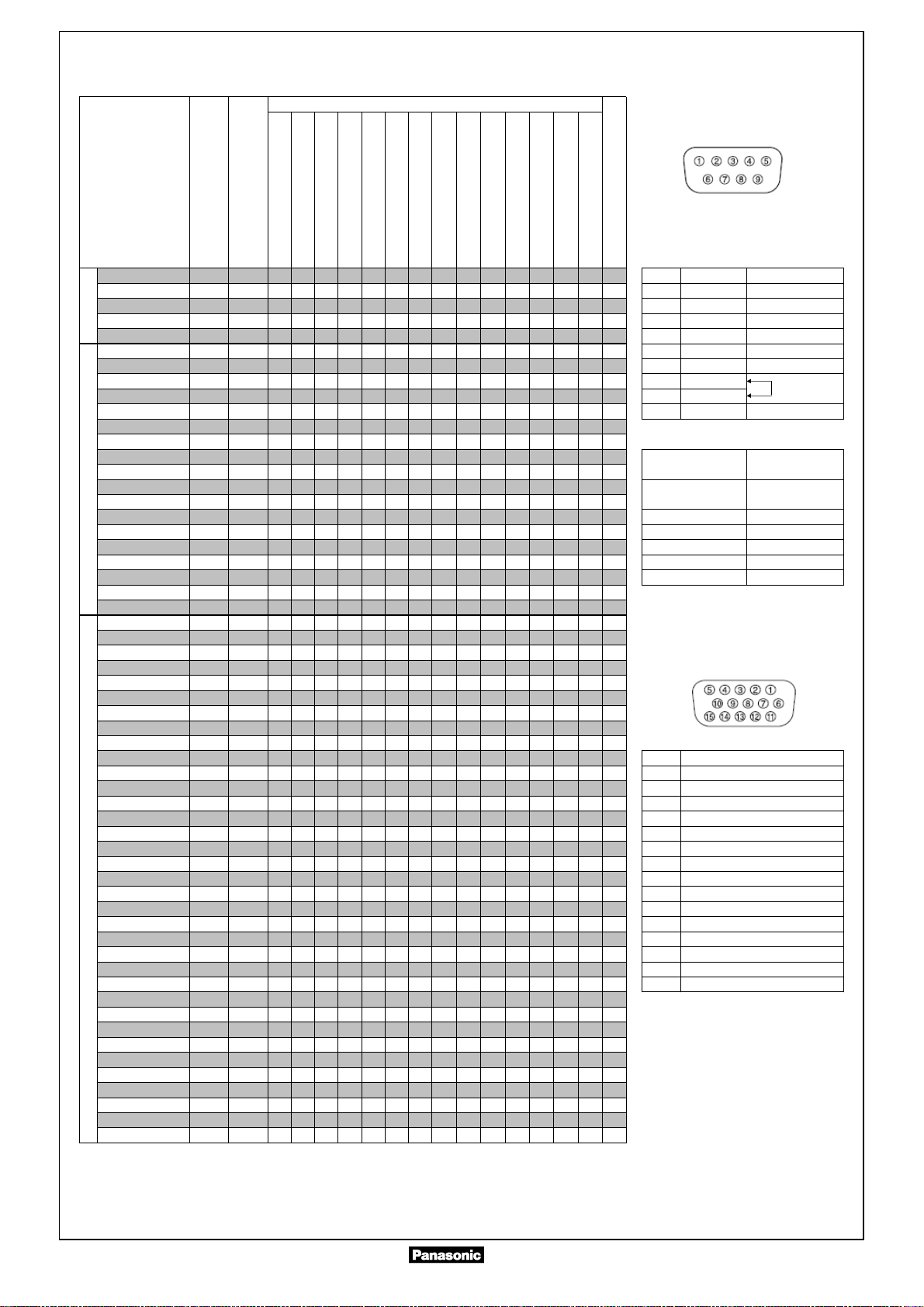

Pin Assignment and Signal Nam
e
NTSC 15.73 59.94 YYY Y
Pin No. Signal name
PAL 15.63 50.00 YYY Y
1CD
PAL60 15.73 59.94 YYY Y
2 RXD
SECAM 15.63 50.00 YYY Y
3 TXD
Modified NTSC 15.73 59.94 YYY Y
4 DTR
525(480)/60i 15.73 59.94 YYYY YYY Y 5 GND
525(480)/60p 31.47 59.94 YY
Y*1 Y*1 YYY
Y*1 6 DSR
625(575)/50i 15.63 50.00 YYYY YYY Y 7 RTS
625(575)/50p 31.25 50.00 YYYY Y 8 CTS
625(576)/50p 31.25 50.00 YYY
9RI
750(720)/60p 45.00 60.00 YYYY Y YYYYY Y
750(720)/50p 37.50 50.00 YYYY Y YYYYY Y Transmitting Conditions
1125(1080)/60i 33.75 60.00 Y*2 Y*2 Y*2 Y*2 Y YYYYY Y*2
1125(1080)/60p 67.50 60.00 Y*2 Y*2 Y*2 Y*2 YYY
Y*2
1125(1080)/50i 28.13 50.00 Y*2 Y*2 Y*2 Y*2 Y YYYYY Y*2
1125(1080)/50p 56.25 50.00 Y*2 Y*2 Y*2 Y*2 YYY
Y*2
1125(1080)/30p 33.75 30.00 Y*2 Y*2 Y*2 Y*2 Y YYY Y*2
1125(1080)/25p 28.13 25.00 Y*2 Y*2 Y*2 Y*2 Y YYY Y*2
1125(1080)/24p 27.00 24.00 Y*2 Y*2 Y*2 Y*2 Y YYY Y Y*2
1125(1080)/24sF 27.00 48.00 Y*3 Y*3 Y*3 Y*3 YYY Y*3
1250(1080)/50i 31.25 50.00 Y*4 Y*4 Y*4 Y*4 Y*4
2048x1080/24䌰27.00 24.00 Y*5
2048x1080/24䌳F 27.00 48.00 Y*5
640×400@70Hz 31.46 70.07 YYYY Y
640×480@60Hz 31.47 59.94 Y*6 Y*6 YY Y YY Y
640×480@72Hz 37.86 72.81 YYYY Y
640×480@75Hz 37.50 75.00 YYYY Y
640×480@85Hz 43.27 85.01 YYYY Y
800×600@56Hz 35.16 56.25 YYYY Y
800×600@60Hz 37.88 60.32 YYYY Y Y
800×600@72Hz 48.08 72.19 YYYY Y
800×600@75Hz 46.88 75.00 YYYY Y Signal Name
800×600@85Hz 53.67 85.06 YYYY Y Pin No.
852×480@60Hz 31.47 59.94 Y*6 Y*6 YY Y Y 1
1024×768@50Hz 39.55 50.00 Y2
1024×768@60Hz 48.36 60.00 YYYY Y Y 3
1024×768@70Hz 56.48 70.07 YYYY Y 4
1024×768@75Hz 60.02 75.03 YYYY Y 5
1024×768@85Hz 68.68 85.00 YYYY Y 6
1066×600@60Hz 37.64 59.94 YYYY Y Y 7
1152×864@60Hz 53.70 60.00 Y8
1152×864@75Hz 67.50 75.00 YYYY Y 9
1280×768@60Hz 47.70 60.00 YYYY Y 10
1280×960@60Hz 60.00 60.00 YYYY Y 11
1280×960@85Hz 85.94 85.00 YYYY Y 12
1280×1024@60Hz 63.98 60.02 YYYY Y Y 13
1280×1024@75Hz 79.98 75.03 YYYY Y 14
1280×1024@85Hz 91.15 85.02 YYYY Y 15
1366×768@50Hz 39.55 50.00 Y
1366×768@60Hz 48.36 60.00 YYYY Y Y
1400×1050@60Hz 65.22 60.00 Y
1600×1200@60Hz 75.00 60.00 YYYY Y Y
1600×1200@65Hz 81.25 65.00 YYYY Y
1920x1080@60Hz 67.50 60.00 Y*7 Y*7 Y*7 Y*7 Y*7 Y*7
1920×1200@60Hz 74.04 59.95 Y
Mac13”䋨640×480䋩35.00 66.67 YYYY Y
Mac16”䋨832×624䋩49.72 74.54 YYYY Y
Mac21”䋨1152×870䋩68.68 75.06 YYYY Y
Note: Signals without above specifi cation may not be displayed properly.
TH-**PF12 series(3/3)
GSMG0826
*1:When selected the RGB format and 525p signal input, it is recognized as VGA 60Hz signal. *2:Based on SMPTE
274M standard. *3:Based on SMPTE RP211 standard. *4:Based on SMPTE 295M standard. *5:Based on SMPTE
292M and 372M standards. *6:When inputted VGA 60Hz format signal, it is recognized as 525p signal. *7:The input
signal is recognized as 1,125 (1,080) / 60p.
Optional Terminal Board
Parity None
Complied with
RS232C
Asynchronous
method
Baud Rate 9600 bps
GND (Ground)
NC (Not connected)
SDA
HD/SYNC
Preset Input Signals
Synchronization
GND (Ground)
+5V DC
NC (Not connected)
GND (Ground)
NC
VD
SCL
Character Length 8 bits
Stop Bit 1 bit
Flow control -
GND (Ground)
GND (Ground)
B (PB/CB)
PC Input : D-Sub 15-Pin (Female)
Signal Level
Not used
ޓޓShort Circuit
Signal name
R (PR/CR)
G (Y)
PC IN(D-sub 15-pin) Fixed Terminal
Descriptions
NC
Receive Data
Transmit Data
Serial RS232C : D-sub 9-Pin (Male)
RGB Component / RGB
Signal name
horizontal frequency
(kHz)
vertical frequency
(Hz)
Composite
Not used
Ground
