Panasonic HL-CK644S User manual

Operating Instructions
Installation Instructions
Electric Built-in Oven
IMPORTANT SAFETY INSTRUCTIONS: Before operating this oven, please read these
instructions carefully and keep for future reference.
FOR DOMESTIC USE ONLY
Model No. HL-CK644S
HL-CK644B

2

3
■This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
■WARNING: The appliance and its accessible parts
become hot during use. Care should be taken to avoid
touching heating elements. Children less than 8 years of
age shall be kept away unless continuously supervised.
■WARNING:Dangerofre:donotstoreitemsonthe
cooking surfaces.
■WARNING: Ensure that the appliance is switched off
before replacing lamp to avoid the possibility of electric
shock.
■Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the oven door glass since they can
scratch the surface, which may result in shattering of the
glass.
■Do not use steam cleaners or high-pressure cleaners
to clean the cooking appliance, as this may result in an
electric shock.

4
Thank you for purchasing a Panasonic electric oven.
Contents
Important safety instructions....................................................................................................5-7
Outline diagram ..........................................................................................................................8
Operation modes................................................................................................................. 10-11
Before using your oven.............................................................................................................12
Using your oven...................................................................................................................13-17
Accessories ..............................................................................................................................17
Food preparation .................................................................................................................19-28
Cleaning and maintenance..................................................................................................29-34
Questions and answers.......................................................................................................35-36
Installation and connection..................................................................................................37-39
Technical Specications ...........................................................................................................40

5
Installation and Connection
Oven connection should be carried out in compliance with the instructions in the section
“Connection to the power mains” (see page 38), and the relevant effective regulations and
standards.
The appliance must be properly earthed for personal safety.
Servicing and Repairs
Servicing and repairs should only be carried out by a qualied electrician. If the appliance is
defective, disconnect from mains or switch off the appliance at the circuit breaker in the fuse box.
Contact the nearest authorised dealer.
Sprays, areosols and inammable subtances
Spray canisters, areosols and other inammable substances can ignite when heated. Do not store
or use such item near the oven.
This manual constitutes an integral part of the appliance. It should be kept intact and at hand for the
appliance’s entire life cycle. It is important to carefully read this manual and all of the instructions
contained herein before using the appliance.
WARNING
Only a qualied electrician may connect the appliance.
WARNING
You will lose your warranty entitlement in the event of any damage caused by incorrect
installation.
Important safety instructions
Examine your oven
Please make sure the appliance was supplied to you undamaged. Remove all packaging and
examine the oven for any damage such as dents, broken door latches or cracks in the door. If you
nd any damage, notify your dealer immediately. Do not install a damaged oven.
Identication label
The identication label indicating the basic information of the appliance is attached to the inside of
the oven and is visible when you open the door. (see page 8). Do not remove the label.
WARNING
Remove all internal and external packaging. Please ensure all internal packaging is
removed before switching the oven on.

6
Improper Use
Do not place empty cookware inside the oven.
Never obstruct the openings and slits provided for ventilation and heat dispersal.
Do not rest any weight or sit on the open door of the appliance.
To avoid a short circuit, ensure that the power cords of appliances located near this appliance are
not caught in the oven door.
Do not use sealed tins or containers in the appliance. Overpressure may occur inside the containers
during cooking, creating a danger of explosion.
Do not leave the appliance unattended during cooking processes where fats or oils could be
released. Fats and oils may catch re.
Do not cover the bottom of the oven with aluminium or tinfoil sheets during cooking and do not place
pans or trays on it to avoid damage to the enamelled surface.
Do not attempt to tamper with or make any adjustments or repairs to the door, control panel
housing, safety interlock switches or any other part of the oven. Repairs should only be carried out
by service technicians authorised by the appliance manufacturer.
All cooking operations must take place with the door closed.
Risk of Burns
The appliance becomes very hot during use. Suitable heat-proof gloves should always be worn.
Never prepare food containing high alcohol content. Alcoholic vapours can catch re in the oven
cavity.
WARNING
The appliance is intended solely for cooking. Do not use it for any other purpose, e.g.
for room heating.
WARNING
The manufacturer cannot be held liable for damage to persons or items caused by
failure to observe the above instructions, by interference with any part of the appliance
or by the use of non-original spare parts.
Important safety instructions

7
This symbol on the products and/or accompanying documents means that used electrical and
electronic products should not be mixed with general household waste.
For proper treatment, recovery and recycling, please take these products to designated collection
points, where they will be accepted on a free of charge basis. Alternatively, in some countries you
may be able to return your products to your local retailer upon the purchase of an equivalent new
product.
Disposing of this product correctly will help to save valuable resources and prevent any potential
negative effects on human health and the environment which could otherwise arise from
inappropriate waste handling. Please contact your local authority for further details of your nearest
designated collection point.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national
legislation.
This symbol is only valid in the European Union.
If you wish to discard this product, please contact your local authorities or dealer and ask for the
correct method of disposal.
Information on Disposal for Users of Waste Electrical &
Electronic Equipment (private households)
Information on Disposal in other Countries outside the European Union
Important safety instructions

8
123
6
7
8
1
2
3
4
5
10
9
9
11

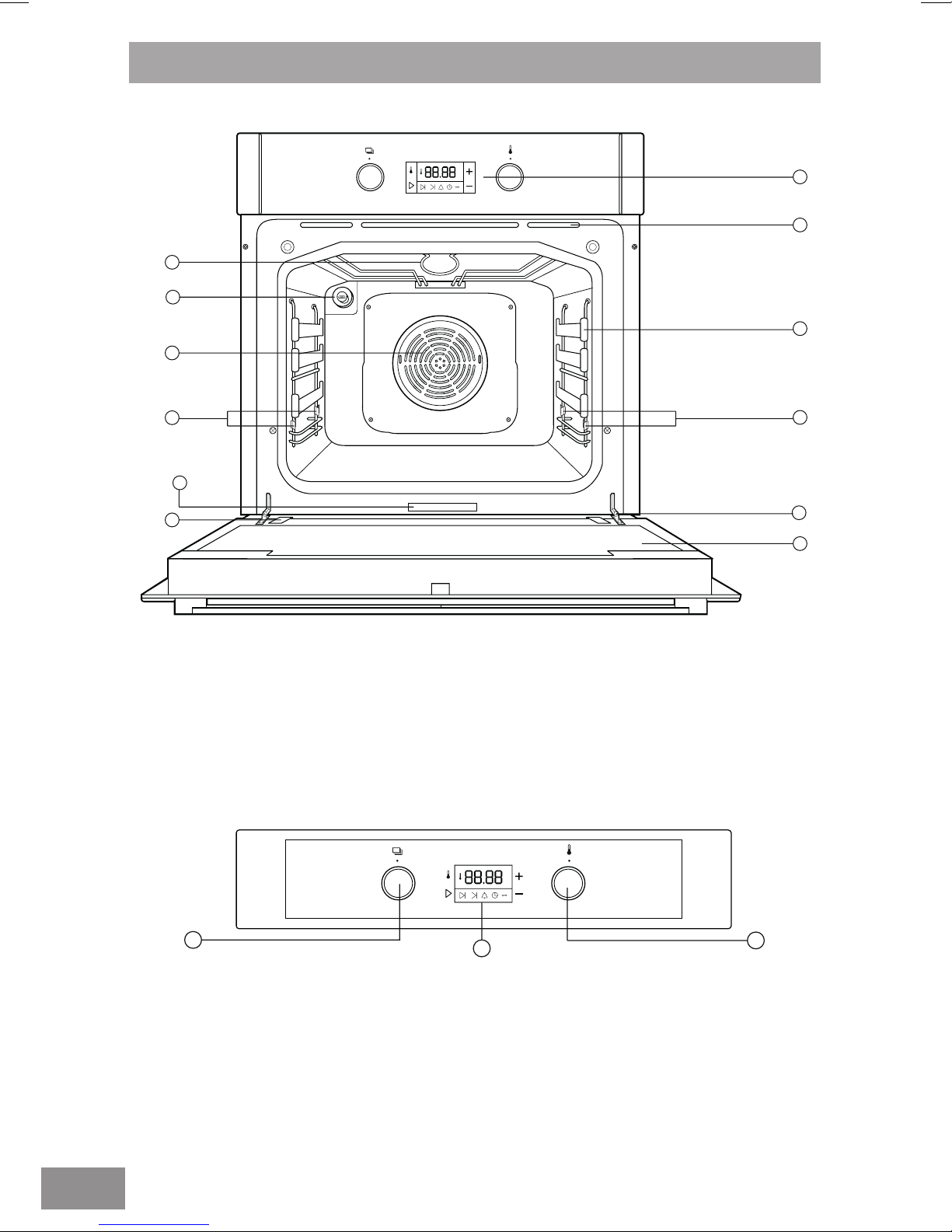

Outline diagram
1On/Off and function dial
2Program timer (see page 13)
3Plus / Minus dial.
This illustration is for reference only.
1. Grill elements
2. Oven lamp
3. Oven fan
4. Identication label
5. Door glass release
6. Control Panel
7. Air vents
8. Telescopic guides
9. Shelving clips
10. Door hinge
11. Door glass

9

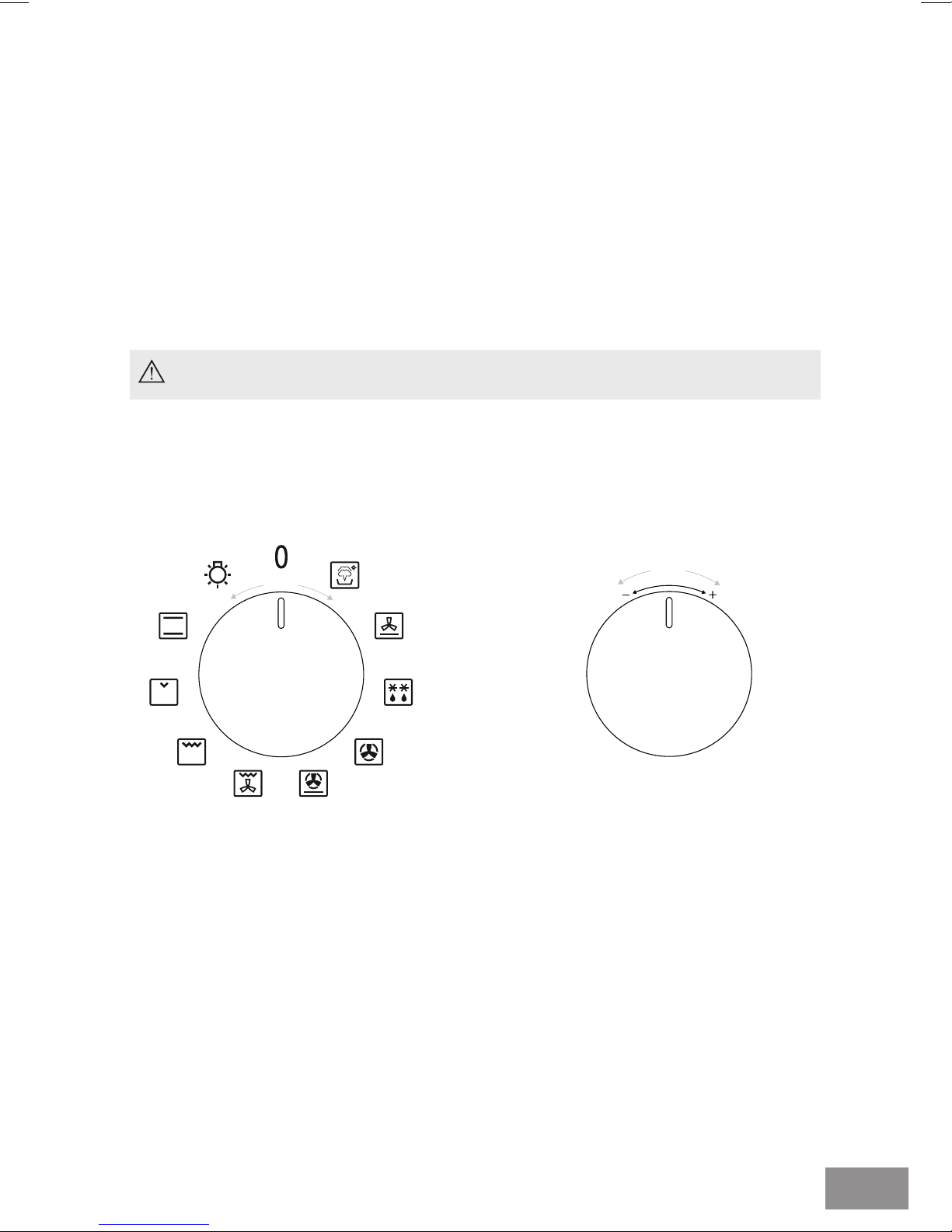

The oven is operated by the function and the plus/ minus
dials.
• Push the dial slightly, to make it pop out of the control
panel. After use press it back into its recessed position,
ush with the control panel.
Plus / Minus dial.
On/off and function dial.
Operation dials
The recessed dial may only be pushed back into its recessed postion when it is in the
“off” position.
Setting the temperature using the Plus / Minus dial.
Temperature and other settings can also be adjusted by using the Plus /Minus dial. This is an
alternative method to using the + / - keys.
• Rotate the plus/ minus dial clockwise or counterclockwise. The set temperature is displayed,
and the symbol “°C” will ash.
• The temperature is changed in 5°C steps.
• Temperature and all timer settings can be deleted using the temperature dial: decrease the
temperature to 30°C, then rotate the dial to the left once again. This will bring the oven back
to clock mode.

10
Operation modes
Fan grill
The upper heater and the fan are activated simultaneously. It
is appropriate for grilling and browning large pieces of meat,
poultry or gratins on one shelf level.
Half grill
The inner heater is activated. This mode is appropriate for
grilling smaller quantities of toasted sandwiches, sausages
or bread.
Oven lighting
There is one interior lighting lamp: on the upper part of the
back wall. Oven lighting can be selected independently. With
all other modes of operation, the oven lighting is turned on
automatically when the operation mode is selected.
Full grill
The inner and the outer heaters are activated simultaneously.
This operation mode is appropriate for cooking smaller pieces
of meat, such as steaks, roasts, chops, ribs, etc.

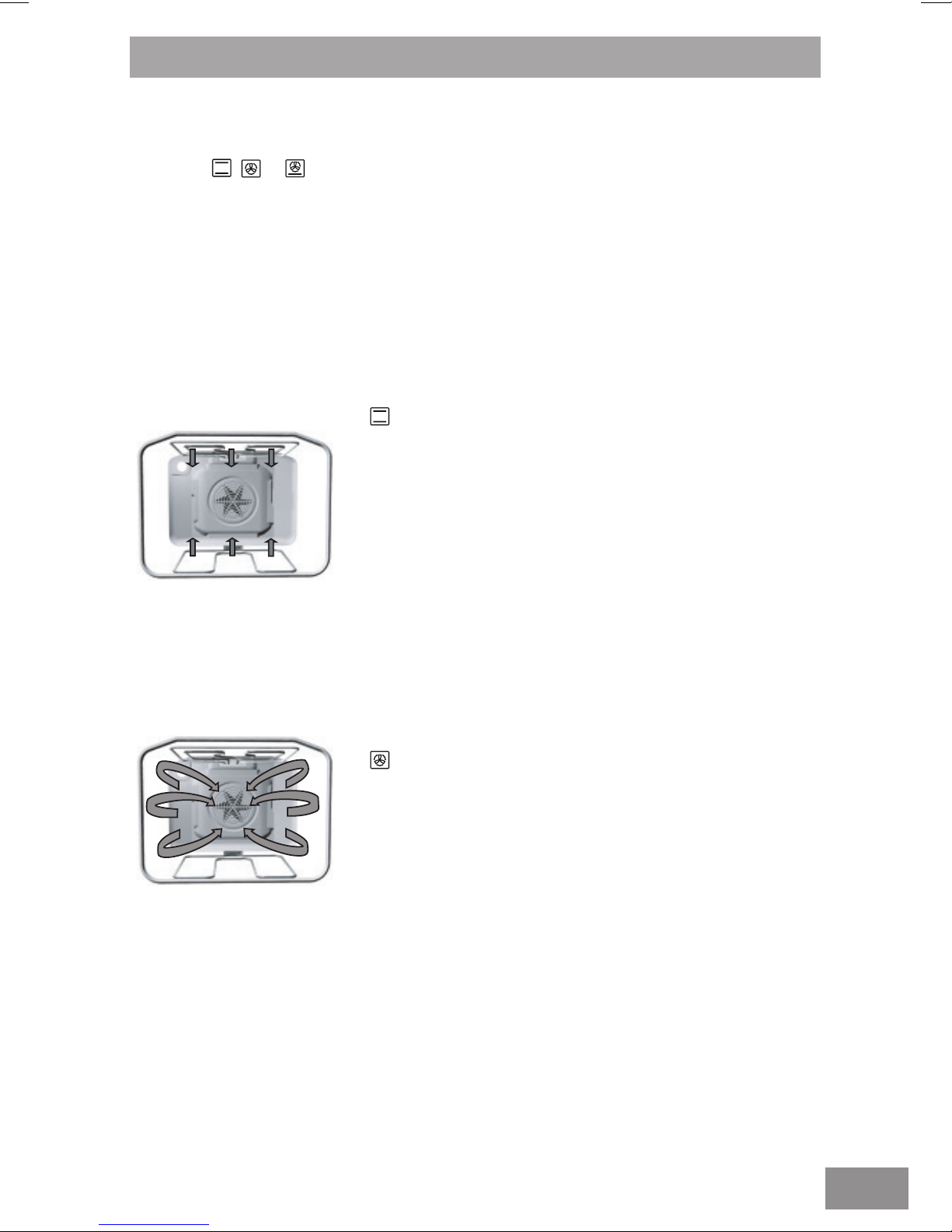

Upper / lower heater
The heaters on the upper and lower side of the oven radiate
uniformly and evenly into the oven interior. Pastries, cakes
and meat can be cooked on one shelf level only.

11
Lower heater/ Steam clean
The bottom heater is activated. Select this mode when you
wish to cook the bottom side of the dish more thoroughly
(e.g. for deep pastry with fruit lling). Set the temperature with
the temperature selection dial. The lower heater can also be
used for cleaning the oven, for instructions please see the
“Cleaning and maintenance” section on page 29.
Lower heater and fan
The lower heater and the fan operate simultaneously. Used
for baking sweet bread dough and preserving fruit and
vegetables. Use the rst shelf position from the bottom and
shallow rather than deep baking trays.
Defrosting
The air is circulated without any heater being turned on. Only
the fan is in operation. This is used for defrosting frozen food.
Convection
The back heater and the fan operate simultaneously in order
for the hot air to circulate constantly. This mode is appropriate
for roasting meat and making pastry on several shelves
simultaneously. Cooking temperature should be set lower
than conventional operation.
Convection and lower heater
The back heater, the fan and the lower heater operate
simultaneously. This is suitable for making pizza, pastries,
fruit cakes or baked cheesecakes.

12
Note
The switch will turn off the oven heating and the fan when
the door is opened during oven operation; when the door is
closed again, the heating is resumed.
After the oven is switched off, the cooling fan continues to
operate for a short time to cool the appliance.
The appliance features a built-in cooling fan which cools the
appliance housing and control panel.
Oven door switch
Extended operation
of the cooling fan
Cooling fan
Before using your oven
• Before using the oven for the rst time, run Convection at 250 C for 5 minutes. A specic odour of
a “new appliance” will be present. Make sure the room is ventilated.
• After the oven has cooled down, clean the inside and all accessories with warm water and a
conventional detergent. Do not use abrasive cleaning aids.
Important warnings
• Use dark, black silicon coated or enamel coated baking trays, as these transmit the heat well.
• Only preheat the oven if specically stated in the recipe or in the cooking charts supplied.

13
• When the appliance is connected to the power supply or after a power failure, the word
“GLAS” is rst displayed; then, the display ashes. To allow operation of the oven the time
must be set using (b) and (c) .
Using your oven

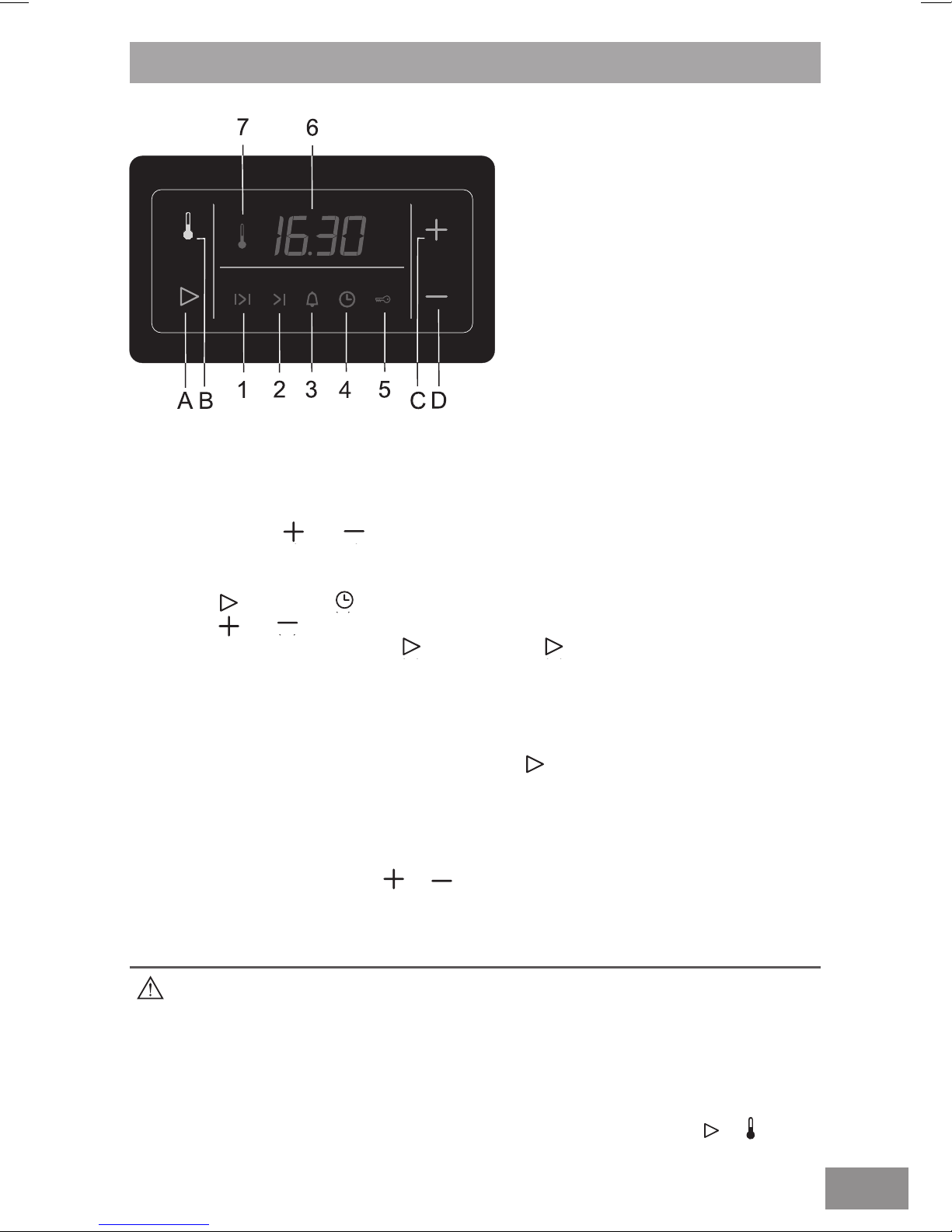

Operation keys:
A Function selection and conrmation
key
B Temperature setting key
C Plus key
D Minus key
Display:
1 Duration/cooking timer
2 Program end time
3 Kitchen timer
4 Clock
5 Child lock
6 Time/ Temp display
7 Heater operation symbol
Setting the clock
• Press the (a) key until the (4) is selected .
• Press the (B) and (C) key to set the time of day.
• Conrm the setting by pressing the (A) key again; if the (A) key is not pressed, the time will
automatically set after a few seconds.
• This is a 24 hour clock.
To improve the response of the keys, touch them with a larger surface of your
nger.
Temperature and other settings may also be set using the plus/minus dial.
Setting the timer functions
The electronic program timer can also be used to set the temperature and the timer function. Both
settings are indicated on the same display. This is set by pressing the relevant key (A) or (B).
Selecting timer functions
• Select the type of function required by pressing the (A) key. The selected function will ash
for ve seconds, the value can be set during this time. Once set, the function will ash
slowly and the time is displayed. N.B. The symbols lit are selected. The most recent setting
will be shown in the display.
• Each press of a key is acknowledged by a beep.
• If one of the value settings keys (B) or (C) is touched and held, the speed of changing the
value will increase.
• In case of a power failure which lasts less than two minutes, all settings are maintained.

14
Setting the duration / cooking time
This mode allows you to set a function for a specic length of time. A maximum of 10 hours
can be set.
• Press the (A) key to select the symbol (1) . Use the (B) (C) and (0) keys to set the duration /
cooking time.
• Use the oven dials to set the operation mode and temperature. When the set time has
elapsed, the oven will automatically stop operating. An intermittent beep will sound, which
can be stopped by pressing any key; if no key is pressed, the beep will stop after one
minute.
• To edit the time set, press (a) . Use the (c) and (d) keys to modify.
• The symbol (1) and the sign (-.--) will ash. If you wish to resume cooking, press and hold
the (A) key to set a new cooking time or to return to the clock press and hold (C) and (d) .
Using the timer
Manually setting the oven
• Select the operation mode using the function dial (see page 9).
• Set the required temperature using the plus/ minus dial (see page 9). After each use, turn the
dial back to the off position or by setting the temperature back to 0°C using the keys (C) and
(D) or the plus/ minus dial.
Using the temperature setting key
• Touch the (B) key. Preset temperature of 180°C is displayed, and the symbol “°C” will ash for a
few seconds. The oven starts to operate.
• As long as the symbol “°C” is ashing, the keys (C) and (D) can be used to set the required
temperature. It counts in intervals from 30 to 275 °C, in 5°C steps. Each time the key is pressed,
the temperature is changed by 5 °C.
• Rising actual oven temperature is indicated on the display, in 5°C steps. As long as the oven
temperature is less than 30°C, “---°C” will be displayed. Symbol (7) is also displayed, indicating
the operation of the heaters.
• When the set temperature is reached, the symbol (7) will go off, and a short beep will sound.
• During cooking, the temperature is maintained by occasional activation of the heaters; when this
happens, the symbol (7) appears.
• During cooking temperature may be changed at any time by touching the (B) key and changing
the value using the keys (C) and (D).
NOTE - INTERIOR LIGHT:
If only the oven interior light is selected on the selector dial, the light will only be lit when the
key (B) is touched or plus/ minus dial is used. Ambient temperature inside the oven will be
shown in the display.

15
Setting the program end time
This mode allows you to set the time at which the oven should stop operating. A maximum of
10 hours relative to the current time of day can be set.
• Make sure the current time of day is set correctly.
• Use the (A) key to select (2) . The current time of day is indicated on the display. Press the
(B) and (C) keys to set the program end time.
• Use the oven dials to set the operation mode and temperature. When the set time has
elapsed, the oven will automatically stop operating. An intermittent beep will sound, which
can be stopped by pressing any key; if no key is pressed, the beep will stop after one
minute.
• The symbol (1) and the sign (-.--) will ash. If you wish to resume cooking, press and hold
the (A) key and set a new duration/ cooking time or to return to the clock press and hold (C)
and (D) .
Setting the delayed start
With this operation mode, two settings have to be made: duration / cooking time and cooking
end time.
Cooking end time can be delayed by a maximum of 24 hours relative to the current time of
day.
• Make sure the current time of day is set correctly.
• First, set the duration / cooking time: Press the (A) key to select the symbol (1). Use the (C)
and (D) keys to set the duration / cooking time.
• Then, set the program end time: Use the (A) key and select the symbol (2). Press the (C)
and (D) keys to set the program end time. (A sum of the current time of day and the oven
operation time is automatically shown on the display).
• Use the function dial to select the operation mode and the (0) key to select the required
temperature.
• Both symbols (1) and (2) are lit. When cooking begins only the symbol (1) will be displayed.
• When the set time has elapsed, the oven will automatically stop operating. An intermittent
beep will sound, which can be stopped by pressing any key; if no key is pressed, the beep
will stop after one minute.
• The symbol (1) and the sign (-.--) will ash. If you wish to resume cooking, press and hold
the (A) key and set a new duration/ cooking time or to return to the clock press and hold (C)
and (D) .

16
Setting the kitchen timer
The oven has a kitchen timer that sounds an alarm after counting down the preset time.
• Use the (A) key to select the symbol (3). Then, use the (C) and (D) keys to set the time before the
alarm sounds. Maximum time is 10 hours.
• When the set time has elapsed, an intermittent beep will sound, which can be stopped by
pressing any key; if no key is pressed, the beep stops after one minute. The symbol (3) will go off.
N.B. The last minute of the timer countdown is displayed in second intervals.
For safety reasons, the oven will automatically go off after a certain period of
time:
- after 10 hours, if the cooking temperature is above 120°C;
- after 24 hours, if the temperature set is lower than 120°C.
Setting the beep volume
The alarm volume can be set when no timer function is activated (only current time of day is
displayed).
• Press the (B) key and hold it approximately three seconds; a volume indicator will appear, and
the corresponding sample sound will sound. “oooo” indicates maximum volume, and “o” indicates
minimum volume. Use the (C) key to select among the four volume levels.
• Conrm the selected volume level by pressing the (A) key; if the (A) key is not pressed the setting
will be conrmed and stored automatically after a few seconds.
Setting the child lock
Activation: Press the (A) key to select the symbol (5). Use the (B) or C) keys to activate the child
lock; the display will read “ON”. Conrm the setting by pressing the (A) key. The symbol is lit
when activated.
Deactivation: Press the (A) key to select child lock, then pres the (C) or (D) key to deactivate the
child lock; “OFF” is displayed.
The setting must be conrmed by pressing the (A) key.
- If the child lock is activated when no timer or temperature function is set (only the current time of
day is displayed), the oven will not operate and no changes to any setting will be allowed.
- If the child lock is activated after one of the timer or temperature functions has been set, the oven
will operate as normal; however, no changes to the timer settings will be possible.
Deleting the timer settings
- All timer settings can be deleted at any time by pressing the (C) and (D) keys simultaneously and
holding them for three seconds. The set programs are automatically interrupted and the timer
switches to display of the current time of day.
- Another way to delete a setting is by setting the timer value to “0.00”.

17
Shelf levels
• Accessories (wire shelf, shallow baking tray and the
deep baking tray) can be inserted into the oven at four
levels.
• Please note that the shelf levels are always referred
to by consecutive numbers starting from the bottom
(particular shelf levels are described in the cooking
tables).
• The wire shelf and the trays should always be inserted
into the leading slot formed by adjacent wire proles of
the wire guides.
Wire shelf
Food is placed directly on wire shelf or in a container on wire
shelf.
A safety stop is tted on the wire shelf and on the
guides. To pull out the wire shelf, lift it slightly
when it hits the stop.
Shallow baking tray
This is used for baking pastry, small cakes and biscuits.
Deep baking tray
This is used for roasting meat and as a drip tray.
The deep baking tray is used only as a drip
tray when using the grill functions, the deep
tray should not be inserted into the fourth shelf
position.
Accessories

18
• To insert the wire shelf, deep baking tray, or shallow baking tray, rst pull out the telescopic
guides of the desired level.
• Place the wire shelf, deep baking tray, or shallow baking tray on the pull-out guides and
push it into the oven. Close the oven door only when the telescopic guides have been fully
retracted.
The fan on the oven back plate is covered by a catalytic
layer that can be installed or removed only by an authorised
service technician.

19
Food preparation
Baking and cooking
• Use the , or . mode of operation.
Instructions
• Always observe the instructions on the shelf / shelf position, temperature, and cooking time
indicated in the baking table. The values indicated in the table are dened and checked
especially for this particular oven.
• If the baking table does not specically mention a particular food, refer to the information for
a similar type of food.
Cooking /baking with upper and lower heater
• Cook /Bake at one level only.
• Upper / lower heater combination is suitable for cooking
various types of pastry, bread, and meat.
• Use dark-coloured baking trays. Light-coloured trays reect
the heat, which leads to poorer cooking (browning) results.
Always place your own cooking containers on the wire
shelf. If you are using the supplied baking tray, remove the
wire shelf.
• Preheating will shorten the cooking time. Place the dish
into the oven only when the selected temperature has been
reached, i.e. When the heater operation symbol goes off
for the rst time.
Cooking / baking with convection
Cooking / baking with convection is useful when you wish
to bake on several shelves simultaneously. Preheating
is recommended. This mode is also appropriate for large
sponge cakes and fruit cakes (in this case, bake on a single
level only).
• The temperature is normally set lower than when baking with
the upper/lower heater combination (see baking table).
• When baking with several baking trays simultaneously,
baking time for each tray can vary. You may have to
remove one of the trays earlier (normally, this would be the
uppermost tray).
• When using several baking trays simultaneously, there
may be a signicant amount of vapour in the oven,
resulting in condensation on the oven door.

20
Is the cake cooked?
At the end of the cooking time, insert a metal skewer into the highest point of the cake and
then withdraw it. If the batter does not stick to the metal skewer, the cake is cooked.
The sponge cake has collapsed after I take it out of the oven
Check the recipe. Check the instructions relating to mixing time. Ensure the oven door is ot
opened during cooking.
The pastry is too light-coloured
A dark-coloured baking tray cooks dishes faster and browns foods more than lighter coloured
pans. Place the tray one shelf position lower, or turn on the lower heater towards the end of
the cooking process.
Pastries with a moist lling (e.g. deep lled pie) is not cooked
Reduce the temperature and extend the cooking time.
Notes on the baking chart:
• Two values are indicated for temperature, lower and upper. Initially, set the lower
temperature; if the pastry is not brown enough, increase the temperature.
• Cooking times are a guideline only.
• The value printed in bold in the temperature table indicates the most appropriate operating
mode for a particular type of food.
• Always preheat the oven.
• When using baking paper, make sure it is resistant to high temperature.
Tips on baking
