Panasonic NB-G100P User manual

KAD0110454C1
TOASTEROVEN
NB-G100P
USA
SPECIFICATIONS
Specifications
1

Power
supply: 120V a.c
Power
consumption: 1300W
Temperature
control(approx.): 250°F-500°F(120°C-260°C)
Timer
:0.5-25min
Dimensions
:
WxDxH)
approx.)inch(
cm)
Outer dimensions
Internal dimensions
Outer tray(inner dimensions)
13”x12”x10.2”(33.0x30.5x26.0)
10.2”x9.8”x4.1”(26.0x25.0x10.5)
9.3”x9.3”x0.7”(23.5x23.5x1.8)
Weight(
approx.): 7.5lbs(3.4kg)
Power
cordlength: 36.6inch(93cm)
Accessories
: Drippan
HOUSEHOLD
USE ONLY
2001 Matsushita ElectricIndustrial Co., Ltd. All rights reserved.
Unauthorized copying and distribution isaviolation of law.
1. PART NAMES AND HANDING INSTRUCTIONS
2

3

2. COOKING USING AUTOMATIC KEYS(OPERATING
PROCEDURE)
4

3. TROUBLESHOOTING GUIDE
Before starting the troubleshooting, check the action of the ovenaccording tothe operation
check tests 1 & 2 below.
1. Operation check test for the P.C. board
2. Operation check test for the heater and thermistor
3.1. Operation check test for the P.C. board (Donot turn on the
power of the heater during the check test.)
5

No. Operation Working description Items tobe
checked
Displayand buzzerinformation Action
1-Set thepower button to
ON.
-Connect thepower cord
to the120 Va.coutlet with
thetemperaturekeys
" " and " "
pressed.
-Thepower lamp comes on.
-Thetimer display"8" and "8.5" blinks in turn. Check if the mode
changes
the test one.
*The timerdisplay"8" and "8.5"
won't be displayed. *The mode change
was
endedinfailure.
(Perform the
operation
again.)
2-Press the"Toast" key. -Thepower lamp comes on.
-Thebuzzer soundsonce when thekeyis
operated.
-The"Toast" lamp comes on.
3-Press the"Frozen Toast"
key. -Thepower lamp comes on.
-Thebuzzer soundsonce when thekeyis
operated.
-The"Frozen Toast" lamp comes on.
4-Press the"Reheat Roll"
key. -Thepower lamp comes on.
-Thebuzzer soundsonce when thekeyis
operated.
-The"Reheat Roll" lamp comes on.
5-Press the"Frozen Pizza"
key. -Thepower lamp comes on.
-Thebuzzer soundsonce when thekeyis
operated.
-The"Frozen Pizza" lamp comes on.
6-Press the"Reheat Quick"
key. -Thepower lamp comes on.
-Thebuzzer soundsonce when thekeyis
operated. Nopoweris
suppliedto
the heater.
-The" Reheat Quick" lamp comes on.
7-Press the"Frozen Hash
Browns" key. -Thepower lamp comes on.
-Thebuzzer soundsonce when thekeyis
operated.
-The"Frozen Hash Browns" lamp comes on.
8-Press thekey" " on
the"ShadeControl".
-Thepower lamp comes on.
-Thebuzzer soundsonce when thekeyis
operated.
-Thetemperaturecontrol lamp "250" comes on. -Thethermistor temperature
is
-Thetemperaturecontrol lamp won't comeon. -Thethermistor temperature
is
-Thetemperaturecontrol lamp "500" comes on. -Thethermistor temperature
is
higher.
9-Press thekey" " on
the"ShadeControl".
-Thepower lamp comes on.
-Thebuzzer soundsonce when thekeyis
operated.
-Thebaked color lampsof"Light", "Medium"
and "Dark" comeon onebyonein thisorder
repeatedly.
6

No. Operation Working description Items tobe
checked
Displayand buzzerinformation Action
10 -Press thekey"Light". -Thepower lamp comes on.
-Thebuzzer soundsonce when thekeyis
operated.
-The"Light" lamp comes on.
*Check the Algon
Heater's
wiring inthis step.
-When power issupplied to
the
Heater for 1sec.
-Theoven insidebecomes
bright.
11 -Press thekey" " on
the"TemperatureControl".
-Thepower lamp comes on.
-Thebuzzer soundsonce when thekeyis
operated.
-Thetemperaturelamps"250" and "500" come
on in thisorder repeatedly.
-Thekey” ” to the
temperature
notaccepted.
12 -Press thekey" " on
the"Timer".
-Thepower lamp comes on.
-Thebuzzer soundsonce when thekeyis
operated.
-"8" and "8.5" on thetimer displayblinkin this
order repeatedly.
-Thetimer key" "
won't
accepted.
13 Afterchecking, press the powerbutton tofinishthe test.
3.2. Operation check test for the heater and thermistor
The precondition forthis test is toset the bakedcolorto"Medium".
No. Operation Working description Items tobe
checked
Displayand buzzerinformation Action
1-Connect thepower cord
to the120 Va.coutlet. -Thepower lamp comes on. -Check thepower cord
2-Thepower supplybutton
ispushed. -Power supplyindication lightlighting. -Thepower cord isnormal.
3-Press the"Toast" key. -The"Toast" lamp comes on. *The heater
is heatedup
tobecome
red.
-Check thealgon heater.
-Thecooking timedisplay"2.5min." blinks. *2 The upperheater
has
failure.
-Thecooking timedisplaycomes to "0min." -Theheater turns
off. *2 The lowerheater
has
failure.
-Thebuzzer sounds12 times.
-Onlythepower lamp comes on.
4Disconnect the powercordfromthe outlet (tocarryout the check test forthe thermistor).
5-After 10 sec., make sure
that thepower button is
set to "ON". Then, connect
thepower cord to the120
Va.coutlet with the
temperature" " and
thetimer " " keys
pressed. (test mode)
-Thepower lamp comes on.
-"8" and "8.5" on thetimer displayblinkin this
order repeatedly. Check if the mode
changes
the test one.
*"8" and "8.5" on the timer
displaywon't blink. *The mode change
was
endedinfailure.
(Perform the
operation
again.)
7

No. Operation Working description Items tobe
checked
Displayand buzzerinformation Action
6-Press the" " keyof
the"ShadeControl".
-Thepower lamp comes on.
-Thebuzzer soundsonce when thekeyis
operated.
-Thetemperaturelamp "500" comes on. -Thethermistor has no
failure.
7Afterchecking, press the powerbutton tofinishthe test.
*1: Check if the powerconsumption is approx. 1300 W whenthe poweris suppliedtothe heater,
if possible.
*2: If the light of the algon heateris too strong tocheck the supplyof the power, turnoff the
heaterand visuallycheck it ina dimlight.
4. TABLE OF TROUBLESHOOTING GUIDE
Whenperforming the troubleshooting, see the check point on page XX forthe electric
resistances of the parts whichmight cause anytrouble.
Notes:
Whenthe poweris suppliedtothe algon heater, it is too bright tovisuallycheck the upper
heaterassy. (farinfraredrays heater) and the lowerheaterassy. (miracron heater) for
malfunction orbreakage of wire. If the consumption powercannotbe measured, turnoff the
heaterand visuallycheck the dimlight of the upperand lowerheaters.
Troubles Items tobe checked
Remedy
Powercannot be supplied.
-Power cannotbesupplied to all heaters.
-Power cannotbesupplied to all lamps, too.
-Check thepower cord for breakage.
-Check theP.C. board for correct connection
-Replace the
power
-Replace theP.C.
board.
Bakedcolorwon't be addedtothe food
uppersurface
-Thealgon heater won't emitlight.
Measure voltage
-120 Va.cissentto CN5and CN8.
-120 Va.cisnotsentto CN5and CN8.
-Replace the
algon
-Replace theP.C.
board
Bakedcolorwon't be addedtothe food
uppersurface
-Power won't besupplied to theupper heater (far
infrared raysheater).
Measure resistance
-Measureupper heater resistance:approx. 31
-Measureupper heater resistance:None
-Replace theP.C.
board
-Replace the
upper
Bakedcolorwon't be addedtothe food
lowersurface
-Power won't besupplied to thelower heater (miracron).
Measure resistance
-Measureupper heater resistance:approx. 26
-Measureupper heater resistance:None
-Replace theP.C.
board
-Replace the
lower
Noswitchexcept the powerswitchwill
be accepted.
-"H1" isdisplayed and thetoast lamp blinks.
Measure resistance.
-Measurethermistor resistance:approx. 1.4M or more
(Thermistor isbroken or short-circuited.)
-Replace the
thermistor.
Poweris suppliedtothe algon heaterfor
5 seconds aftercooking starts. After
that, no poweris suppliedtothe all
heaters.
-Thethermistor isshort-circuited. -Replace the
thermistor.
8

Troubles Items tobe checked
Remedy
Nokeys on the operation area is
accepted.
-Baked color cannotbecontrolled.
-Cooking keycannotbeoperated.
-TheLED lamp won't comeon.
Check the P.C. board.
-Terminalson theP.C. board arenotconnected.
-TheP.C. board iscracked.
-Theelectronicparts arebroken.
-Connect the
terminals
correctly
-Replace theP.C.
board.
-Replace theP.C.
board.
Note:
The unit is controlledwithbothof the powerboardand the operation boardon the P.C. board
unit. Replace the P.C. boardunit as a set.
5. Checking Points
The points tochecking the thermistors inthe upperand lowerheaters are indicatedbelow.
6. Disassembly Procedure
Notes:
-Before disassembling the unit, remove the crumb tray, net assy.,
9

and drippan.
-Reassemblethe unitinthe reverse order of the disassembly,
referring to the points inreassembly.

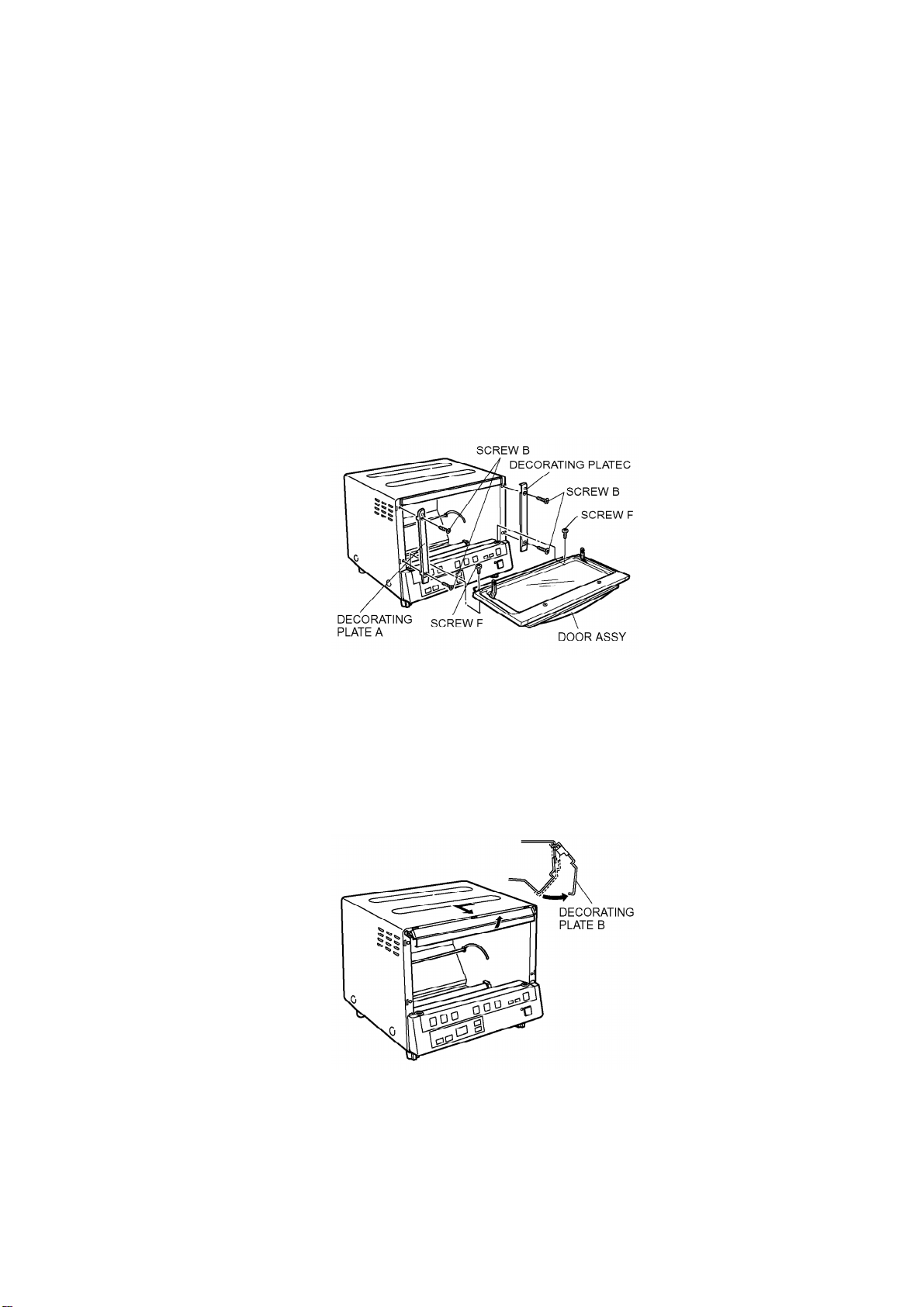

6.1. Disassembling the door assy, decorating plate Aand decorating
plate C
1. Remove the twoscrewsFand remove the door assembly.
2. Remove the twoscrewsBand remove the decorating plate A.
3. Remove the twoscrewsBand remove the decorating plate C.
6.2. Disassembling the decorating plate B
1. Remove the hook (inside the unit) from the frame of the
decorating plate B.
2. Remove the decorating plate Binthe direction indicated bythe
arrows1and 2.
6.3. Disassembling the back plate assy.
1. Remove the 4screwsAand remove the back plate assy. inthe
10

direction indicated bythe arrow.
6.4. Disassembling the outer plate assy.
1. Pull out the 4leg rubbers.
2. Remove the 2screwsCand remove the front leg.
3. Remove the 2screwsCand remove the rear leg.
4. Remove the 2screwsAand remove the outer plate assy.
6.5. Disassembling the front plate
1. Remove the 2screwsA.
2. Remove the 2tabs from the oven compartment assy. and remove
the front plate.
11

The point inreassembly
Reinstall the front plate byinserting the tabs (at right and left sides) tothe stepmark.
6.6. Disassembling the upper heater assy. and the lower heater assy.
Disassembling the upperheaterassy.
1. Remove the 2screwsE.
2. Roll out the tab locking the upper heater assy. with apairof small
pliers.
3. Remove the upper heater assy.
Disassembling the lowerheaterassy.
1. Remove the 2screwsE.
2. Roll out the tab locking the lower heater assy. with apairof small
pliers.
3. Remove the lower heater assy.
12

The points inreassembly
Howtodistinguishbetweenupperheaterassy. and lowerheaterassy.
Heater Difference Resistance at
room
temperature
Upperheaterassy. The pipe is
yellow. Approx. 31
Lowerheaterassy. The pipe is
white. Approx. 26
6.7. Disassembling the algon heater assy.
1. Remove the 2screwsE.
2. Remove the fasten terminal (CN5: red and CN8: white) from the
P.C. board unit.
3. Roll out the tab locking the algon heater assy. with apairof small
pliers.
4. Remove the heater plate.
5. Remove the algon heater assy.
13

6.8. Disassembling the thermistor assy.
1. Remove the fasten terminal (CN5: blue) from the P.C. board unit.
2. Cut the band.
3. Remove the screw A.
4. Remove the insulation plate and thermistor assy.
6.9. Disassembling the P.C. board unit
1. Remove the fasten terminal and connector from the P.C. board
unit.
2. Remove the 4screwsG and remove the P.C. board Bassy.
3. Remove the 6screwsG.
4. Spread out the 4holding tabs to remove the P.C. Board Aassy.
*1.The flat cable assy. is connected.
*2.Use caution not toloose the powerbutton.
14

6.10. Disassembling the door assy.
6.10.1. DOOR
1. Remove the 2screws.
2. Remove the door assy.

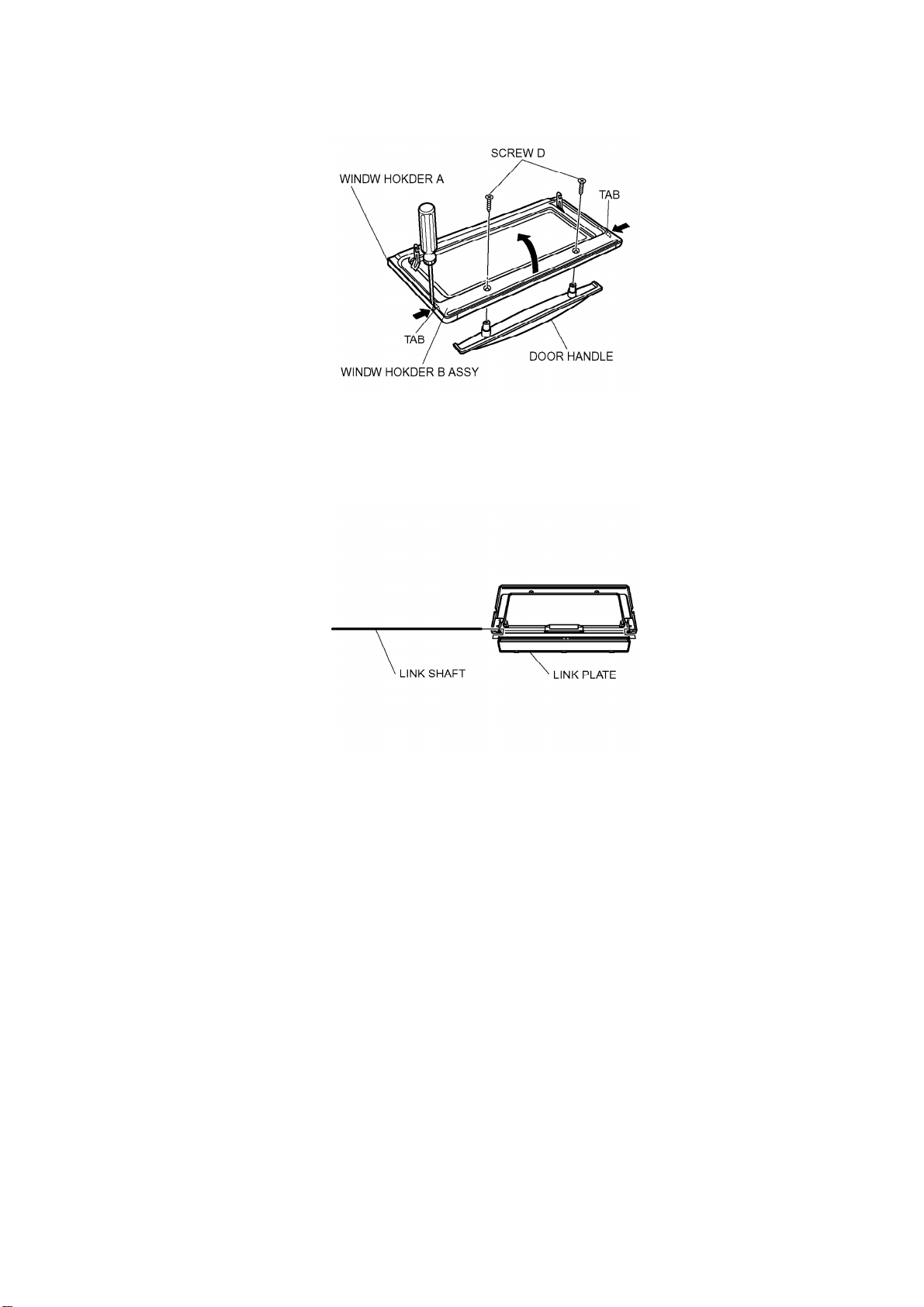

6.10.2. DOOR HANDLE
1. Remove the 2screwsD.
2. Remove the door handle.
3. Insert the thinscrewdriver between the window holder Aand
window holder B, and remove the 2tabs.
4. Remove the window holder Aand the window holder Bassy. in
the direction indicated bythe arrow.
15

6.10.3. WINDOW HOLDER
1. Pull out the link shaft and remove the link plate from the window
holder Bassy.
6.10.3.1. Points inreassembly
WINDOW HOLDER A&B
1. Insert the 2holders on the window holder Ainto the holes on the
window holder Bassy. to install the window holder Aand the
window holder Binthe door assy.
16

GLASS A&DOOR HONDLE
1. Adjust the clearance between the window holder plate Band
glass A, and install the door handle.
6.10.4. Disassembling the powercordassy.
1. Cut the band out.
2. Remove the power cord assy. fasten terminal from the P.C. board
unit.
3. Remove the power cord assy. from the frame R.
17

7. CIRCUIT DIAGRAM
7.1. SCHEMATICDIARAM
7.2. BASICWIRING DIAGRAM
18

8. PARTS LOCATION
19

9. REPLACEMENT PARTS LIST
Important safetynotice :
Components identified bymark have special characteristics
important for safety.
When replacing anyof these component, use onlymanufacturer’s
specified part.
20
