PREFACE
The Panasonic color special effects generator, model
WJ-4600C has many features such as an internal sync
generator with genlock capability, color bar generator,
vertical interval switching and internal and external keying.
A separate sync generator is no longer required. When
using this SEG with any new Panasonic color camera,
no external subcarrier phase shifter is needed. Other
features include non-locking pushbuttons that light up
when pressed to indicate input, and lock-release buttons
that light up when pressed to indicate function. The
WJ-4600C can mix composite and non-composite video
inputs. The WJ-4600C has one preview output, one effects
output, three black burst Outputs, and two program out-
puts; tt also supply intercom power and tally tight switching
to cameras. :
The WJ-4600C is ideal for small color studios if business,
education, or CATV, and very compact for easy mobility in
a portable studio.
The WJ-4600C has EXT DC input for outdoor use portable
switcher,
CAUTION
RISK OF ELECTRIC SHOCK
00 NOT OPEN
AY /\
CAUTION: TO REDUCE THE RISK OF ELEC.
TRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER-
SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALI-
FIED SEAVICE PERSONNEL.
The lightning flash with arrowhead
symbol, within an equilateral tri-
angle, is intended to alert the user to
the presence of uninsulated “dan-
gerous voltage” within the product's
enclosure that may be of sufficient
magnitude to constitute a risk of
electric shock to persons.
SA 1965
WARNING:
PARED T SON PETS HN HERERO PRES EERE P EEE eae
FEATURES
1. Inputs:
6 program inputs, 1 super input, 1 external key (mono-
chrome) input.
2. Functions:
Vertical interval switching. Fades and lap-dissoives. Six
wipe patterns. Super Internal and external key.
3. Non-locking pushbuttons light up when pressed to
show Inputs and selected functions.
4. "CUT" pushbutton transfers program and preview
buses. ;
9. Built-in sync and color bar generator:
Genlock circuits, Color bar generator. Front panel
SC phase and H. phase adjustments for genlock,
and SC phase adjustment for color bars.
Accepts composite or non-composite inputs.
BNC connectors. ,
Effects, Preview, and two program outputs.
Supplies intercom power to six Cameras,
10. Supplies tally light on/off switching of all eight inputs,
11. Adjustable intercom level.
12. Requires just 5-1/4" of standard EltA rack space.
13. AC or OC power operation available.
14, Can be put into optional carrying case for hand-
carry transportation,
The exclamation point within an
equilateral triangle is intended to
alert the user to the presence of
important operating and mainte
nance (servicing) instructions in the
literature accompanying the appti-
ance,
Om Oo
so
SA 1966
Warning :
This equipment generates and uses radio fre-
quency energy and if not installed and used
properly, i.e., in strict accordance with the
instructions manual, may cause harmful inter-
ference to radio communications.
It has been tested and found to comply with the
limits for a Class A computing device pursuant
to Subpart J of Part 15 of FCC Rules, which are
designed to provide reasonable protection
against such interference when operated in a
commercial environment.
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE

MAJOR
OPERATING
CONTROLS
e
FRONT
VIEW
e REAR VIEW

CONTROLS AND THEIR FUNCTIONS
FRONT
@ ON/OFF Switch [ POWER ON/OFF }
@ Pilot Lamp
@ Input A Selector [ INPUT A ]
@
©)
©
@
wD)
@
Selects any one of 6 video sources for input A
CAUTION Preview monitor will show the black &
white picture when the black & white sig-
na! or no signal is selected on CH A (Input
A)
It 1s recommended that the color signal for
CH A should be selected for color preview
monitor
Input B Selector [INPUT B]
Selects any one of 6 video sources for input B
Mix and Wipe Levers [MIX/WIPE]
Separate or locked, dual-fader and split screen controls
Wipe Mode Selector [WIPE MODE ]
Pushing any one of the six wipe mode selector buttons
selects the wipe pattern and enables the Mix and Wipe
Levers ()
Function Selector { MIX/WIPE/INT KEY/EXT KEY]
Selects the type of special effect which Is applied to
the program out bus
Key Level Control [KEY LEVEL ]
Controt for obtaining optimum keying
Preview/Program Selector [PREVIEW/PROGRAM]
Cut ON/OFF Switch @2 OFF
Permits the preview video (1~6, EFF} to be seen in the
preview monitor
Cut ON/OFF Switch @,ON
Permits the preview video {1~6, EFF) to be seen as a
program (line out)
Color Bar/Camera Selector [COLOR BAR/CAMERA]
Set this selector to COLOR BAR position when ad
justing a color monitor
Subcarrier Phase Control [ SC PHASE]
The recessed contro! adjusts the phase of the sub-
carrier for color bar
Cut ON/OFF Switch {CUT ]
Reverses the preview and program buses when ON
Super ON/OFF Switch [ SUP ]
Permit superimposing of images when ON
Super Level Control { SUPER LEVEL]
Contro! for obtaining optimum superimposed image
Gen-lock ON/OFF Switch [ GEN LOCK]
Gen-lock video input signal should be connected to the
Video Input Connector for Gen-lock @ When the
gen lock signal is connected, and this switch ts pushed
In, the tamp will tight It will stay off otherwise
Gen-lock Push Button [ 4 G/L ]
Gen lock Switch ON
The video signal which ts connected to the Video Input
Connector for Genlock @8 will be selected by de-
pressing the No 4 (G/L) button of input selector
Gen-lock Switch OFF
The video signal which 1s connected to the No 4 of
Video Input Connector @2 will be selected by de-
pressing the No 4(G/L) button of input selector
SC Phase Control for Gen-lock [GEN LOCK SC PHA-
SE]
This recessed control is need to match the color hues
between the gen-lock signal and the program output
See page 7
Horizontal Phase Control for Gen-lock |GEN LOCK H
PHASE ]
The horizontal phase difference between the gen-lock
signal and the program output may be adjusted with
this recessed control See page 7
Intercom Jack [INTERCOM ]
For voice communications
WJ-4600C
Intercom Level Control [LEVEL]
Turn this control to have optimum sound level for
headset connecting to the intercom jack @
AC/DC Switch {AC/OC)
This 1s AC or DC power selector switch
Set this switch to AC side when 120V AC 60Hz power
Is supplied through AC power supply connector ¢9
Set this switch to DC side when 12V DC power !s sup-
plied through EXT DC INPUT @
between cameras and

REAR
Q2 Video Input Connector [ VIDEO INPUT 1~ 6]
The output of a remote control unit should be con-
nected to one of these two BNC connectors. If this
signal is not looped through, the Video Termination
Switch @) should be set to 75Q position.
External DC Input Connector (EXT DC INPUT)
Four pin type connector for external 12V DC 1.2A
source.
Video Input Connector for Key { VIDEO INPUT/KEY |
The output of the key carnera should be connected to
one of these two BNC connectors. If this signal is not
looped through, the Video Termination Switch @
should be set to 75 22 position.
Video Input Connector for Superimposing
{ VIDEO INPUT/SUPER ]
The output of the camera used for superimposing
should be connected to one of these two BNC con-
nectors. H{ this signal is not looped through, the Video
Termination Switch @) should be set to 752 position.
Video Input Connector for Gen-lock [VIDEO INPUT
/GEN LOCK]
The output of a non-synchronous composite video
source should be connected to one of these two BNC
connectors. If this signal is not tooped through, the
Video Termination Switch @) should be set to 752
position.
Video Termination Switch [VIDEO INPUT 75 2/Hi-Z]
When bridging or looping through, set this switch to
Hi-Z position. Set to 75Q position otherwise.
Tally Intercom Connector [ TALLY/INTERCOM }
The output of the remote control unit is introduced
into this connector,
Program Output Connector [VIDEO OUTPUT
PROGRAM 1-2]
There are two program outputs available, both using
BNC type connectors.
@ Preview Output Connctor [VIDEO OUTPUT
/PREVIEW ]
BNC type connector for preview output.
CAUTION: Preview monitor will show the black &
white picture when the black & white sig-
nal or no signal is selected on CH A (Input
A).
It is recommended that the color signal for
-CH A should be selected for color preview
monitor.
@)
Effects
Output
Connector
[
VIDEO
OUTPUT/EFFECT
]
BNC
type
connector
for
effects
output.
@2 Horizontal Drive Output Cnnector [SYNC OUTPUT
/HD)
BNC type connector for HD signal.
63 Vertical Drive Output Connector [SYNC OUTPUT/VD ]
BNC type connector for VD signal,
64 Blanking Output Connector [SYNC OUTPUT/BL]
BNC type connector for BL signa}.
@} Sync Output Connector [SYNC OUTPUT/SYNC }
BNC type connector for SYNC signal,
@8
Burst
Flag
Pulse
Output
Connector
[SYNC
OUTPUT
/BFP}
BNC type connector for BFP pulse.
Subcarrier Output Connector [SYNC OUTPUT/SC ]
BNC type connector for SC signal.
Black Burst Output Connector [BLACK BURST]
BNC type connectors for Black Burst signals.
@ Power Supply Connector
©

SYSTEM
CONNECTION
"JOWUOW
MaIAaIG JO|OO
JO}
Paajas aq Pinoys
Y HD
JO}
[EUBIS
10/09
94}
EY]
PapuawWWwOda
SI
1]
{Vv
1nduj)
Y
HD
YO
payajas
si
jeuBis
Ou
JO
jeu
-BIS
BIIWM
3B
YOe|GQ
94)
UBYM
sINIDIC
|1IyM
RW
YOL|Q
BY]
MOYS
|[IM
JOWUOW
MalAalg
-NOILNVS
WelsdsS
s8420UR
jO
indino
Oapln
ayy
Wol4
ox
JOUNUOW
J0;09
wesBolg
JOUUCW
JO[OD
MIABIG
JOUUOW
LJOJBARAA
9d03S10138A,
O301A
gH
aA
O20IA
INAS JLISOdWOD
OIGIA
(NDOT-N3ID)
LSYNE NOVIE
WOOXSLNI
A
RBATIVL
i
O3GIA
)
B2WeD
OIPMIS
-_
£
'ON
es
|
oe
I‘
~2999
7
5
4
:
WOOH3LNI
BATIVI
O3QIA
OAGIA
WOOYsLN!
RBATIVI
493443
(49071
N39}
LSUNE
4OVI1E
GseWwe)
O1PMIS
LON
@2sWe)

* 1 System application with AUX video inputs
To the video output of AUX
for example, Panasonic VTR
or camera
arr ear arora.
\
|
|
|
|
Program
Color
Monitor
aaa
AYN 0 Of
®
%® (O 19110 10 10>
[eS _
LINE OUT
Active Switcher
PROGRAM
To the video output
|
of
another
system
ExT el
ACM
* 2 NO 6 Video Input Connector
When using Fade in/Fade out, do not use this con
nector
* 3 Gen-lock
Video input signal should be composite Other video
input signal may be either composite or non-composite

SET UP PROCEDURE
® Connect the units as shown in the system connection
diagram.
1. Phase Adjustment of the built-in Color Bar
1) Set the Color Bar/Camera Selector
COLOR BAR position.
@ to the
PAL VIEW /PROCK AM
ee
2) Oepress the Cut ON/OFF Switch @2 to place in
the ON position.
On f,
ra
3} Depress the No. 5 button of the Preview/Program
Selector @.
PREVIEW PAOGE oop VON
4) Adjust the SC phase control of the color bar to
align the correct hues on the Vectorscope.
5) Adjust the phase control of the color bar to get
the correct hues on the properly adjusted color
monitor tf a Vectorscope is not availabe.
PREVIEW ‘PROGRAM
415 |
BRRGI
jon TD) ’
$c Puan
2. SC &H Phase Adjustment of Gen-Lock
A. SC phase adjustment of Gen-Lock
@ Procedure by using monitor
1) Connect the coaxial cable for gen-lock to gen-lock
input connector @ .
Select the No. 4 button on the input A Selector @
and No. 5 button on the Input B Selector @.
Then depress the gen-lock ON/OFF switch @ to
ON position.
2)
VINT | Ext
KEY | KEY
INPUT s Me =
ton
re.
3) Set the Color Bar/Camera Selector ® to the
Color Bar position.
OR vi we PROGR aee
en
BRAG
Lon fe?o) © |
Oia ose BE] nour s
at Prete
4) Select the vertical wipe |gigd mode on the Wipe
Mode Selector @), the WIPE mode on the Function
Selector @ and set the Fade and Wipe Levers
for EFFECT 6) in the middle.
5) Depress the EFF button of the Preview/Program
Selector @). Make sure that the Cut ON/OFF
Switch (2 is OFF.
6) Adjust the SC Phase Control 4 for GEN-LOCK
to align the subcarrier phase of the color bar and
the gen-lock input.
Color Bar of
gen-lock
H PHASE $C PHASE
Color Bar of special
effect generator signal
Procedure by using Vectorscope
1} Connect the program output signal @9 to vector-
scope.
2) Set the Color Bar/Camera Selector Switch q to
Color Bar position.
3) Select the No. 4 button on the Input A Selector
@) and set the Mix and Wipe jevers () at top posi-
tion. Then, depress the Gen-lock ON/OFF Switch
(§ to ON position.
ON
: : /
EEN EARAG
G/L
PERE
weet @
4) Then, adjust the SC Phase @. so that the chroma
vectors of the program signal go into the EY of
vectorscope.

B. H Phase Adjustment of Gen-Lock
® Procedure by using dual oscilloscope
1) Connect CH A of oscilloscope at the Program
Output Connector @ and also connect CH B of
oscilloscope at the Gen-lock Input Connector @ .
2) Depress the Gen-lock ON/OFF Switch @ to ON
position and lamp lights when the gen-lock signal
is connected.
mrut
me Z s = / A é atl
. . - in f - .
IMPUT ©
Brick
(SEE
ON
NV oe
“feat
LocK
a \
7 tN
3) Observe the waveform on the oscilloscope as;
Program Output Signal
a = CHA/H-rate
i]
1!
I 1
t I
a r=—Match
t ' Gen-lock In
; ; Signat
CHB/Hrate
4) Adjust the H Phase Control for the Gen-lock @ to
match the sync of both signals.
iN. Lock <P)
H PHASE SC PHASE
» SYSTEM CAMERA
1. SC Phase Adjustment of System Camera
@ Set up procedure
1) Set the Color Bar/Camera Selector Switch @0 to
Color Bar position.
2) Select the No. 1 button on the [nput A Selector
@) and No. 5 button on the Input B Selector @.
wwe moot
EIS talele
Joes Jere 2s
KEY
ON
\ HON tarut
(NEI EN EARAGS|
| i LG/L] Cs B J
it a (ee
L121 3 [en ferol ¢ |
| 1 G/L Cs 6
mutT @ ts
6 aby
she
71N
3) Select the vertical wipe ‘m= mode on the Wipe
Pattern Selector © , and set the Mix and Wipe
levers @) at middle position.
V 174 ryt
Ses é : : : = :
|e EA EEA EAE
GL Ce BY l
Lt 123 fei feret & |
i | | [G/L]C/ 8 ~ jf
AVN
Put B
@ Procedure by using monitor
1} Observe the program color monitor and adjust the
SC Phase Control on the camera to match the hues.
Color Bar of
camera
Split line
Color Bar of
specia! effects
generator signal
@ Procedure by using vectorscope
1) Connect the program output signal @9 to vector-
scope.
2) Adjust the SC Phase Contro! on the camera so that
the chroma vectors of camera match to the chroma
vectors of SEG. 7
2. HPhase Adjustment of System Camera
@ Procedure by using dual oscilloscope
1} Connect CH A of oscilloscope at the Program
Output Connector @) and also connect the CH B
of oscilloscope at the Video Input Connector @
No. 1 (systern camera No. 1 signal}.
2) Observe the waveform on the oscilloscope as;
ae i ad
Program Output Signal
CHA/H-rate
Video in Signal No. 1
{system camera No. 1)
{
i
I
= L— Match
al
CHB/H-rate
3) Adjust the H Phase Control of the camera to match
the sync of both signals.
The same procedures are carried for the system cameras,

OPERATION
1.
Make
all
necessary
connections.
B.
Fading
2.
Turn
on
the
color
monitors.
1)
Depress
the
Cut
ON/OFF
Switch
{2
to
place
in
the
3.
Turnon
the
special
effects
generator.
GN:
pecition:
4.
Set
up
the
special
effects
generator
as
described
orevi-
Dir
Fo
fade
eine
DAE
lee
ono
AS)
ously.
selector, depress the No. 6 button of the input B
@) which is not connected to any camera.
Special
Effects
3)
Move
the
Mix
and
Wipe
Levers
for
EFFECT
©
1.
Mix
mode
simultaneously
from
bottom
to
top
(or
top
from
bottom}.
:
4)
Depress
the
Cut
ON/OFF
Switch
@2
to
place
in
1)
Depress
the
Cut
ON/OFF
Switch
@2
to
place
in
the
thie
“ORF
oocition:
when!
the-desired:
Stteck
vis
ON Bye ; achieved. The previewed fade effect can now be
2} Select one input singal via the Input A Selector supplied to line output [PROGRAM] .
@ and another via the Input B Selector @.
3) Pie the MIX button on the Function Selector EADE OUT FADE IN
4) Watch the picture on the preview monitor.
5) Move both Mix and Wipe Levers (§) together from
top to bottom or vice versa for a jap-dissolve.
6) Depress the Cut ON/OFF Switch q2 to place in
the OFF position when the desired effect is achiev-
ed. [It may be supplied to the line output
[PROGRAM]
A. Lap-dissolve
SCENE 1
U3
a) |
SCENE 1 and SCENE 2
@ Fade-in and fade-out can be obtained by separately
a: operating the Mix and Wipe Levers for EFFECT ©. If
both fade levers are in the up position, move the left of
them downward for picture to fade out. !f this lever is
Bee subsequently moved top, the picture will fade in.
2. Wipe mode
a) Six patterns can be selected with the Wipe Mode
Selector ®.
Z
SCENE 2

by}
a)
4)
5)
6)
Depress
the
Cut
ON/OFF
Switch
2
to
place
in
the
ON,
position.
Depress the WIPE button of Function Selector @.
Choose
one
input
at
the
Input
A
Selecior
@
and
another at the Input B Selector @.
Depress the Wipe Mode Selector © in accordance
with the desired wipe action.
Preview the wipe action by operating the Mix and
Wipe Levers for EFFECT ©.
Depress
the
Cut
ON/OFF
Switch
@
to
place
in
the
OFF
position
when
ready
to
supply
the
pre-
viewed
wipe
to
PROGRAM
out.
SCENE 1:1NPUTA
Jo]
OFF
EFFECTED SCENE
Key mode
Internal key
lf it is desired to key in the signal supplied by one of
six Cameras Connected to Video input Connectors @.
Select the picture which is to be keyed at the
1}
2)
3)
4)
Input A Selector @).
Depress the proper button at the [nput B Selector
@ to select the keying signal.
Depress the INT KEY button on the Function
Selector @.
Adjust the Key Level Control @) for best results.
b)
=o
CAMERA
No.
2
SCENE
2
INPUTA SCENE 1
+ ig.
INPUT B Jy
EFFECTED SCENE
External key
@ The keying camera should be connected to the Video
Input Connector for Key @. For best results the
keying signal should have high contrast, since the high-
lights of the signal are keyed into the Input A@and B
@ selected pictures.
1) Depress the button at Input A@and B@Selectors.
2)
Depress
the
EXT
KEY
of
the
Function
Selector
@.
3) Adjust ihe key level with Key Level Control ®for
best result.
INPUT a
KEY CAMERA EFFECTED SCENE

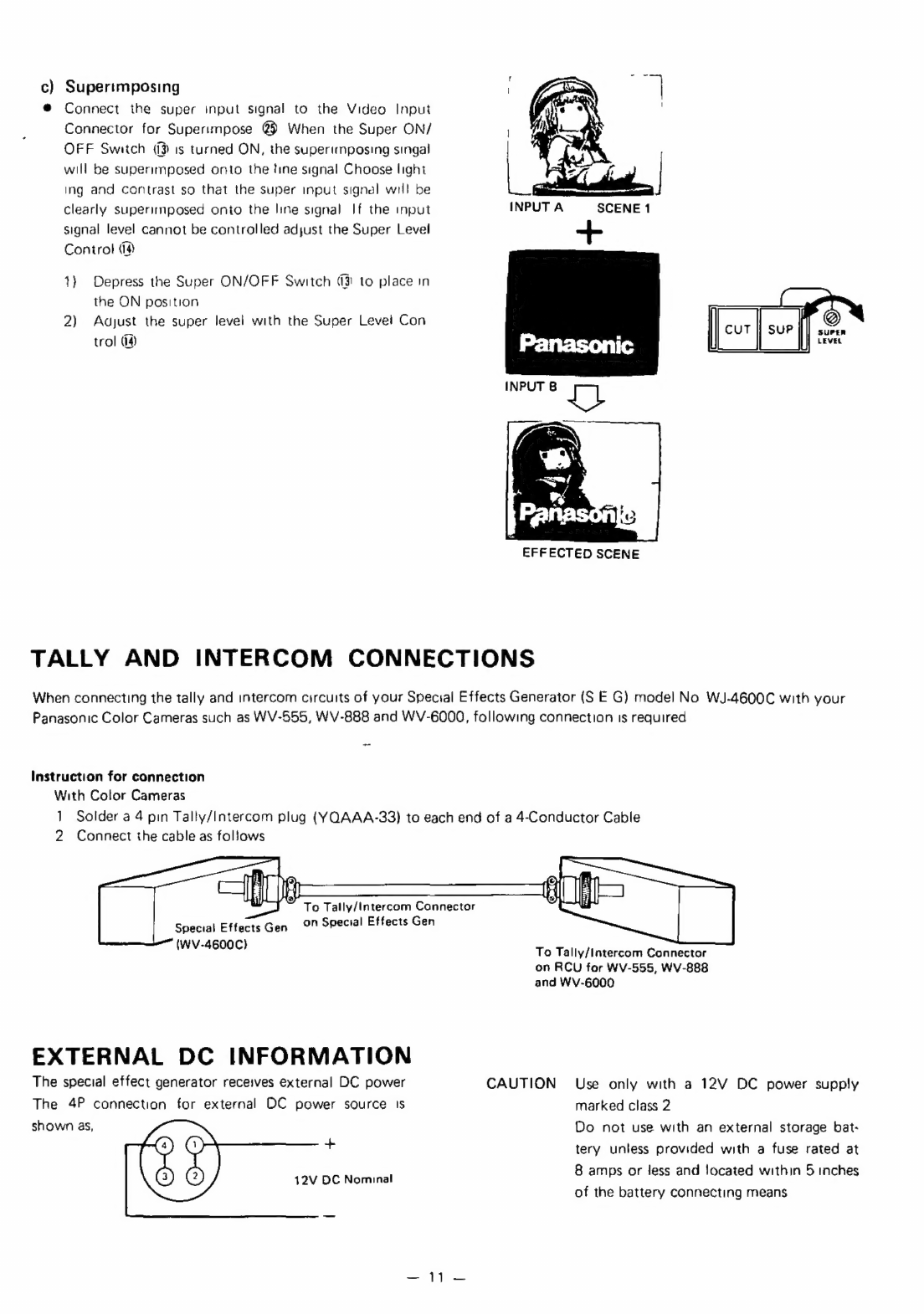

c) Supertmposing
@ Connect the super input signal to the Video Input
Connector for Superimpose @) When the Super ON/ ,;
OFF Switch (3 is turned ON, the superimposing singal |
will be superimposed onto the tine signal Choose light
ing and contrast so that the super input signal will be ame
clearly superimposed onto the line signal If the input INPUT A SCENE 1
signal level cannot be controlled adjust the Super Level +
Control (4
1} Depress the Super ON/OFF Switch 3 to place in
the ON position
2) Adjust the super level with the Super Level Con
oe Panasonic
INPUT B
EFFECTED SCENE
TALLY AND INTERCOM CONNECTIONS
When connecting the tally and intercom circuits of your Special Effects Generator (S E G) model No WJ-4600C with your
Panasonic Color Cameras such as WV-555, WV-888 and WV-6000, following connection is required
—
Instruction for connection
With Color Cameras
1 Solder a 4 pin Tally/Intercom plug (YQAAA-33) to each end of a 4-Conductor Cable
2 Connect the cable as follows
©)
a ee EEE! | 5 ma
GUE
To Tally/Intercom Connector #
on Special Effects Gen
Special Effects Gen
(WV-4600C}
To Tally/Intercom Connector
on RCU for WYV-555, WV-888
and WV-6000
EXTERNAL DC INFORMATION
The special effect generator receives external DC power CAUTION Use only with a 12V DC power supply
The 4P connection for external OC power source is marked class 2
shown as, Do not use with an external storage bat-
(4) @) + tery untess provided with a fuse rated at
8 amps or less and located within 5 inches
of the battery connecting means
(3) (2) 12V DC Nominal
a

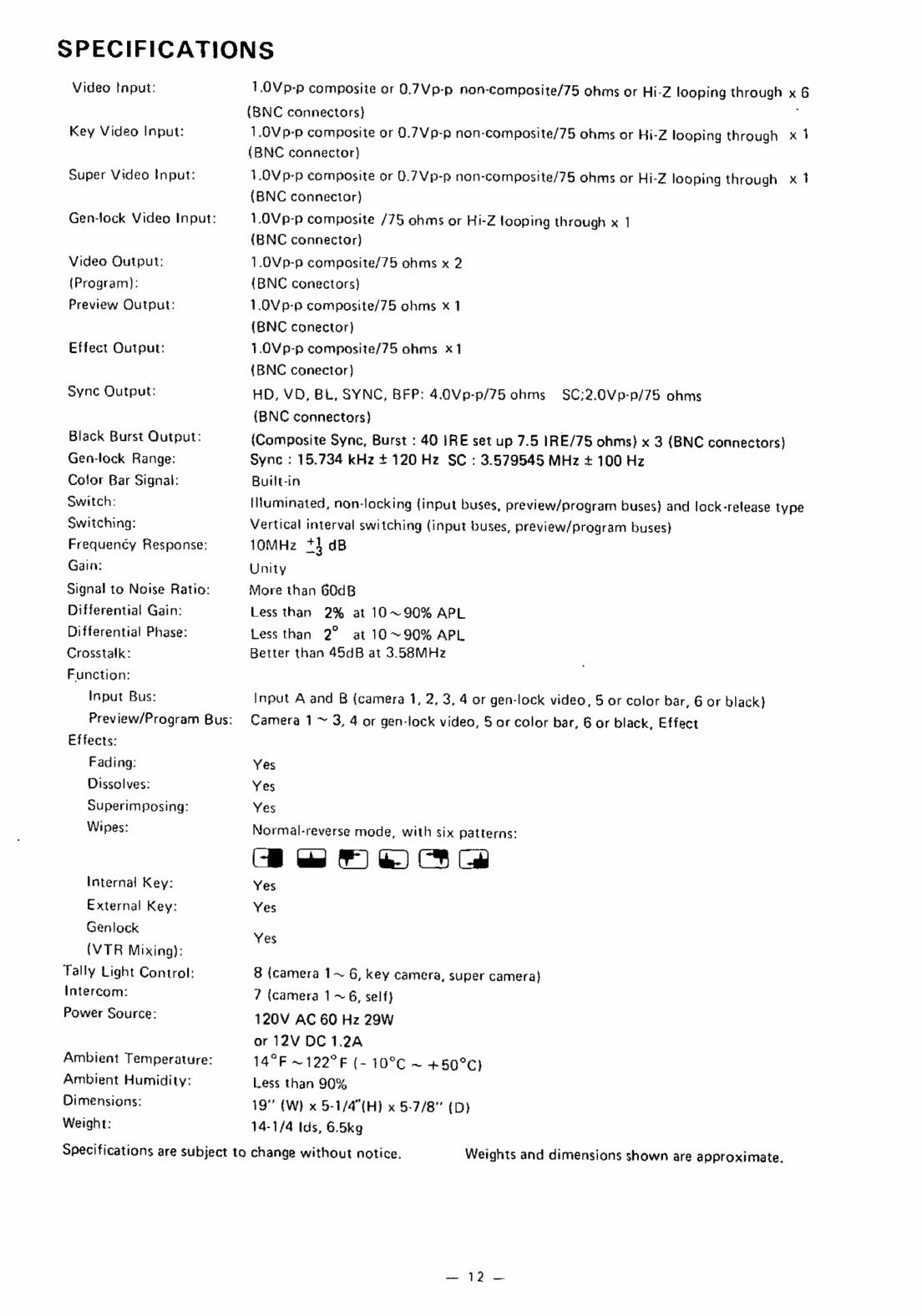

SPECIFICATIONS
Video Input:
Key Video Input:
Super Video Input:
Gen-lock Video Input:
Video Output:
(Program):
Preview Output:
Effect Output:
Syne Output:
Black Burst Output:
Gen-lock Range:
Color Bar Signal:
Switch:
Switching:
Frequency Response:
Gain:
Signa! to Noise Ratio:
Differential Gain:
Differential Phase:
Crosstalk:
Function:
Input Bus:
Preview/Program Bus:
Effects:
Fading:
Dissolves:
Superimposing:
Wipes:
Internal Key:
External Key:
Genlock
(VTR Mixing):
Tally Light Control:
Intercom:
Power Source:
Ambient Temperature:
Ambient Humidity:
Dimensions:
Weight:
Specifications
are
subject
to
change
without
notice.
1.0Vp-p
composite
or
0.7Vp-p
non-composite/75
ohms
or
Hi-Z
looping
through
x
6
(BNC
connectors}
.
1.0Vp-p
composite
or
0.7Vp-p
non-composite/75
ohms
or
Hi-Z
looping
through
x
1
(BNC
connector)
1.0Vp-p
composite
or
0.7Vp-p
non-composite/75
ohms
or
Hi-Z
looping
through
x
4
{BNC
connector}
1.0Vp-p
composite
/75
ohms
or
Hi-Z
looping
through
x
1
(BNC connector)
1.0Vp-p compaosite/75 ohms x 2
{BNC conectors}
1.0Vp-p composite/75 ohms x 1
(BNC conector)
1.0Vp-p composite/75 ohms x1
{BNC conector)
HD, VD, BL, SYNC, BFP: 4.0Vp-p/75 ohms
(BNC connectors)
(Composite Sync, Burst : 40 IRE set up 7.5 IRE/75 ohms) x 3 (BNC connectors)
Sync : 15.734 kHz + 120 Hz SC : 3.579545 MHz + 100 Hz
Built-in
SC;2.0Vp-p/75 ohms
INuminated,
non-locking
{input
buses,
preview/program
buses)
and
lock-release
type
Vertical
interval
switching
(input
buses,
preview/program
buses)
10MHz
*3
dB
Unity
More than 60d8
Less than 2% at 10~90% APL
Less than 2° at 10~90% APL
Better than 45dB at 3.58MHz
Input
A
and
B
(camera
1,
2,
3,
4
or
gen-lock
video,
5
or
color
bar,
6
or
black}
Camera
1
~
3,
4
or
gen-lock
video,
5
or
color
bar,
6
or
black,
Effect
Yes
Yes
Yes
Normal-reverse
mode,
with
six
patterns:
(HB eke OF) ee) OB Ge
Yes
Yes
Yes
8
(camera
1~
6,
key
camera,
super
camera}
7
(camera
1
~6,
self}
120V AC 60 Hz 29W
or 12V DC 1.2A
14°F
~122°F
(-
10°C
~
+50°C)
Less than 90%
19°" (W) x 5-1/4"(H) x 5-7/8" (D)
14-1/4 Ids, 6.5kg
Weights
and
dimensions
shown
are
approximate.
eee eee

STANDARD ACCESSORIES
4-pin connector (YQAAA-33)}
for Tally Se INtEKGOM owt Atnaed wens Ae ety S 8 pcs.
Lamp: 1¥W62001 20500) 63 cata eee eee ees 2 pcs.
Indication card (YWJ5500UR02)............. 1 set
Extension board (YWJ5500ZK13)............ 1 pc.
AC power cord (33-892M} for U.S.A........0.. 1 pe.
AC power cord (33A-89A2M) for Canada....... 1. pe.
@ Rackmount angle (YWV8250AM20}...........
[Rack handle (YWB350-HMO1) .....0...0000..
@
4-pin
connector
(YWRM12BPG4S)
for EXT DC Input
Ce

PANASONIC INDUSTRIAL COMPANY, Division of Matsush:ta Electric Corporation of America
Executive Office One Panasonic Way Secaucus New Jersey 07094 [phone]
Audto-Video Systems Divisron Execute Office One Panasonic Way Secaucus New Jersey 07094 [phone]
Northeast Regional Offica Panasonic Audio-Video Systems 333 Meadowlands Parkway Secaucus New Jersey 07094 (201} 348-7620
Northwest Regional Office Panasonic Audio-Video Systems 4060 Lind Avenue Renton Washington 98055 [phone]
Midwest Regional Office Panasonic Audii-Video Systems 425 East Algonquin Road Arlington Heights Illinois 80005 [phone]
Southeast Regional Otfice Panasonic Audio-Video Systems 3 Meca Way Norcross Georgia 30093 [phone]
Southwest Regional Office Panasonic Audio-Video Systems 1825 Walnut Hill Lane Irving Texas 7$062 [phone]
Western Ragional Offica Panasonic AudiG-Video Systems 6550 Katella Avenue Cypress California 90630 (714} 895-7200
PANASONIC HAWAII INC
91 238 Kauh Street Ewa Beach P O Box 774 Honolulu Hawan 96808-0774 (808} 682-2851
MATSUSHITA ELECTRIC OF CANADA LIMITED
5770 Ambler Dove Mississauga Ontano Canada L4W 273 [phone]
PANASONIC SALES COMPANY
Ave 65 de Infanteria Km 97 Victoria Industrial Park Carolina Puerto Rico 00630 [phone]
© Matsushita Electric Industral Co Lid (
All nghts reserved Unauthorized
copying and distribution Is a violation of law N1184-1025 YFV8QA0679BN i
