USER’S MANUAL
Power Supply Built-in
Compact Multi-voltage
Photoelectric Sensor
NX-5 Series

2
Contents
1. Cautions··························································································3
2. Part description·················································································4
3. Mounting ·························································································6
3-1 Installing to sensor mounting bracket ························································· 6
3-2 Mounting interval (thru-beam type NX5-M□) ················································ 7
3-3 Long sensing range retroreflective type sensor (NX5-RM7□)··························· 9
4. I/O circuit diagram and output operation ··············································· 10
4-1 I/O Circuit Diagram················································································10
4-2 Output operation···················································································10
5. Adjustment
5-1 Light axis adjustment (thru-beam type NX5-M10R□/NX5-M30□)
(retroreflective type NX5-PRVM5□/ NX5-RM7□) ············ 11
5-2 Sensitivity adjustment ············································································12
6. Automatic interference prevention function ··········································· 13
7. Stability indicator ············································································· 14
8. Retroreflective type sensor with polarizing filter (NX5-PRVM5□)················ 15
9. Option··························································································· 16
9-1
Slit mask (exclusively for thru-beam type sensor NX5-M10R□/ NX5-M30□) ······ 16
9-2
Interference prevention filter (exclusively for thru-beam type sensor NX5-M10R□) ··17
9-3 Reflector / refractive tape (retroreflective type NX5-PRVM5□/ NX5-RM7□)·······18
10. Specifications ··············································································· 19
11. Dimensions ·················································································· 21

3
1. Cautions
WARNING
●Never use this product as a sensing device for personnel protection.
●In case of using devices for personnel protection, use products which meet laws and
standards, such as OSHA, ANSI or IEC etc., for personnel protection applicable in
each region or country.
●This product has been developed / produced for industrial use.
●Make sure that the power supply is off while wiring.
●Take care that wrong wiring will damage the sensor.
●Verify that the supply voltage variation is within the rating.
●If power is supplied from a commercial switching regulator, ensure that the frame ground
(F.G.) terminal of the power supply is connected to an actual ground.
●In case noise generating equipment (switching regulator, inverter motor, etc.) is used in
the vicinity of this product, connect the frame ground (F.G.) terminal of the equipment to
an actual ground.
●Do not run the wires together with high-voltage lines or power lines or put them in the
same raceway. This can cause malfunction due to induction.
●Take care that the sensor is not directly exposed to fluorescent lamp from a rapid-starter
lamp, a high frequency lighting device or sunlight etc., as it may affect the sensing per-
formance.
●Do not use during the initial transient time (50ms) after the power supply is switched on.
●Extension up to total 100m, is possible with
0.3mm2, or more, conductor area cable.
●When connecting an inductive load, such as a
DC relay, connect a surge absorber as shown in
the right figure.
●This sensor is suitable for indoor use only.
●Avoid dust, dirt, and steam.
●Take care that the sensor does not come in direct
contact with water, oil, grease, organic solvents,
such as, thinner etc., or strong acid, and alkaline.
●The following items are required, as conditions for use in order to conform to CE.
The output applied voltage should be the same as the supply voltage of the sensor.
Be sure to add a short-circuit protection (a fuse or a breaker) to the power supply input
and the output.
DC relay
Sensor
COM
Output relay
N.O.
N.C.
Be sure to
connect
a surge
absorption
diode
-
+

4
2. Part description
Thru-beam type emitter: NX5-M10R□
Thru-beam type receiver: NX5-M10R□
Retroreflective type with polarizing filters: NX5-PRVM5□
Diffuse reflective type: NX5-D700□
Thru-beam long sensing range type emitter: NX5-M30□
Power indicator (Red)
Lights up when the power is ON
Stability indicator (Green)
Lights up under the stable
light condition or the
stable dark condition
Operation indicator (Red)
Lights up when the
sensing output is ON
Sensitivity adjuster
Sensing range becomes
longer by turning clockwise

5
Thru-beam long sensing range type receiver: NX5-M30□
Retroreflective long sensing range type: NX5-RM7□
Stability indicator (Green)
Lights up under the
stable light condition or
the stable dark condition
Operation indicator (Red)
Lights up when the
sensing output is ON

6
3. Mounting

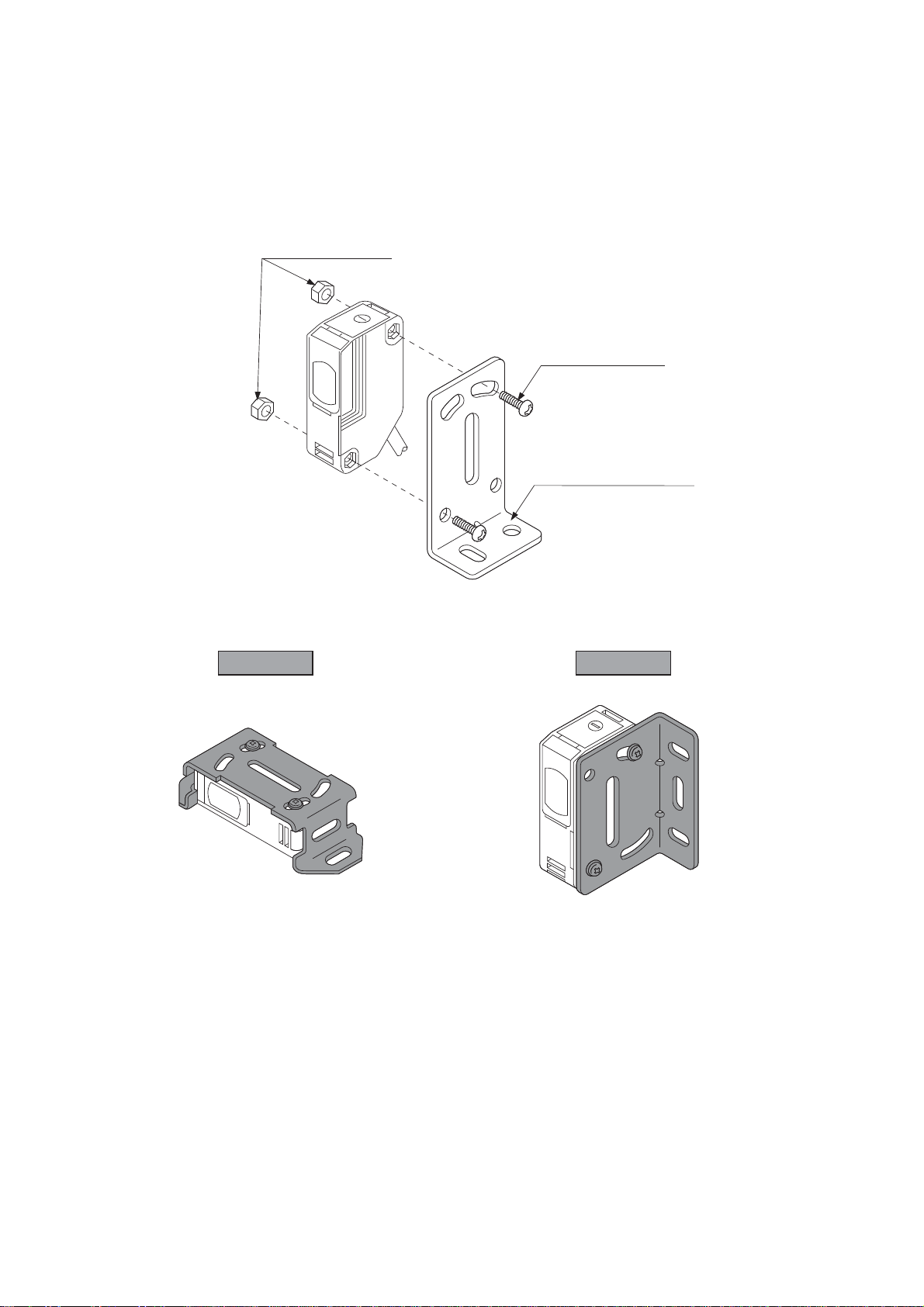

3-1 Installing to sensor mounting bracket
The tightening torque should be 0.8 N·m or less.
MS-NX5-2 MS-NX5-3
M4 nuts (Accessory)
Sensor mounting bracket
MS-NX5-1 (Optional)
M4 (length: 25mm )
screw with washers

7

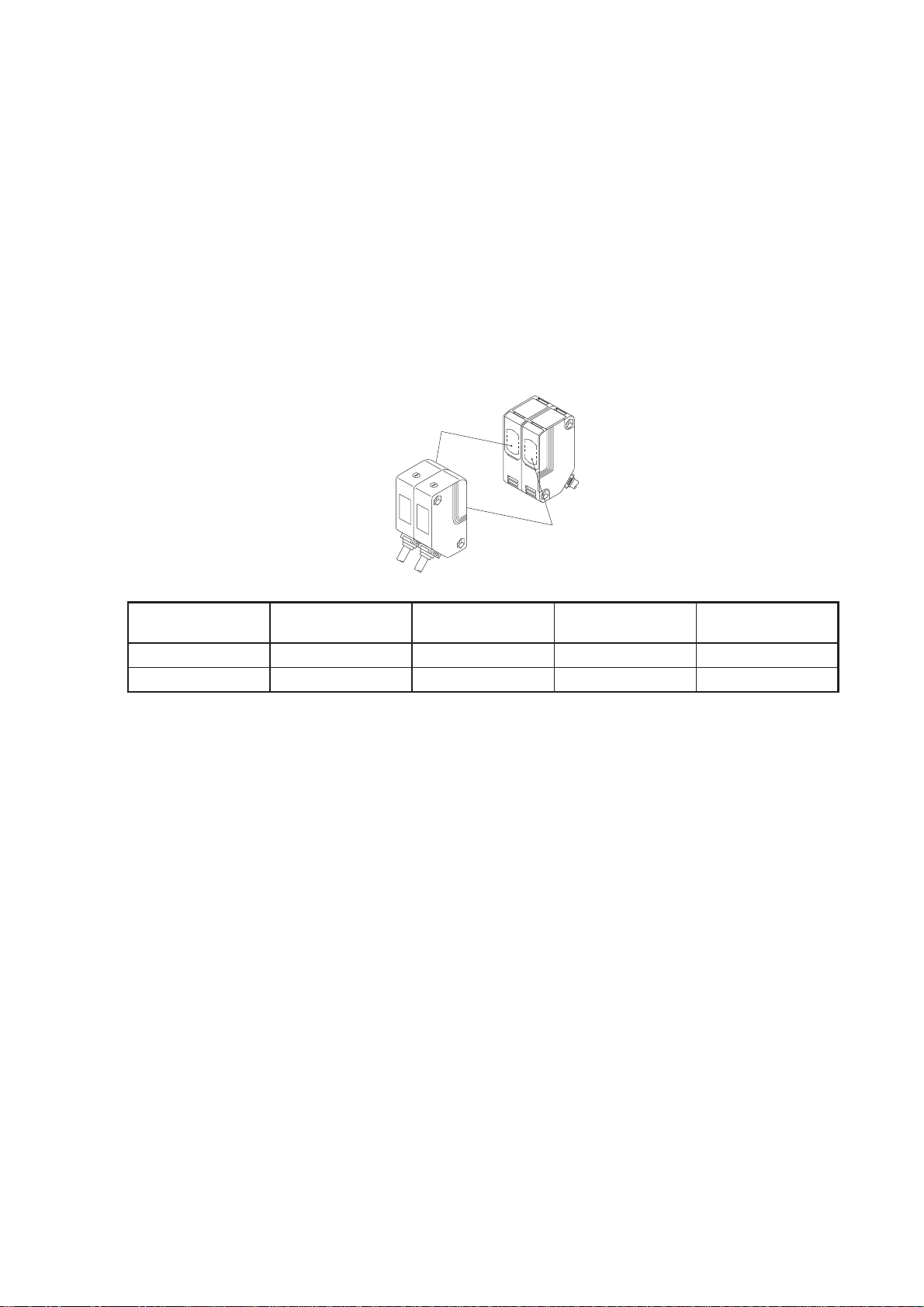

3-2 Mounting interval (thru-beam type NX5-M□)
●In case mounting two sets or more of the this product close together, mount them as
drawing left indicates (typical example)
●Find out the operating point ℓon the parallel deviation diagram for the setting distance L.
Separate sensors by 2 × ℓor more.
<Installation interval for NX5-M10R□>
In case using at sensing distance (L1) 10m, the opera-
tion point (ℓ1) is approx. 444mm according to diagram
left.
The installation interval is
Approx. 444mm × 2 = 888mm
Thus, install another NX5-M10R□to 888mm or more
away.
<Installation interval for NX5-M30□>
In case using at sensing distance (L2) 30m, the opera-
tion point (ℓ2) is approx. 1,200mm according to dia-
gram left.
The installation interval is
Approx. 1,200mm × 2 = 2,400mm
Thus, install another NX5-M30□to 2,400mm or more
away.
NX5-M30□parallel deviation diagram (typical)
NX5-M10R□parallel deviation diagram (typical)
1,000 500 0 500
0
10
5
CenterLeft Right
Operational point ℓ(mm)
(ℓ1)
(L1)
Sensing distance L (m)
0
40
20
30
10
2,000 1,000 0 1,000 2,000
(ℓ2)
(L2)
CenterLeft Right
Operational point ℓ(mm)
1,000
Sensing distance L (m)

8
L
ℓ
ℓ
Type L ℓ
NX5-M10R□10m Approx. 888mm or more
NX5-M30□30m Approx. 2,400mm or more
●Since retroreflective type NX5-PRVM5□/NX5-RMA□and diffuse reflective type
NX5-D700A□incorporate auto interference prevention function, the sensors can mount
closely.

9
3-3 Long sensing range retroreflective type sensor
(NX5-RM7□)
●Please take care of the following points when detecting materials having a gloss
with retroreflective type sensor (NX5-RM7□).
1. Make L, shown in the diagram, sufficiently long. (Note)
2. Install at an angle of 10 to 30 degrees to the sensing object.
Note: In case the distance between the sensor and the sensing object is short, the re-
flected light from the sensing object may be detected.
●Retroreflective type with polarizing filter (NX5-PRVM5□)does not need the above
adjustment.
LThe distance L should be as long possible.
Sensing
object
Reflector
10 to 30°
Glossy surface
Sensor

10
4. I/O circuit diagram and output operation

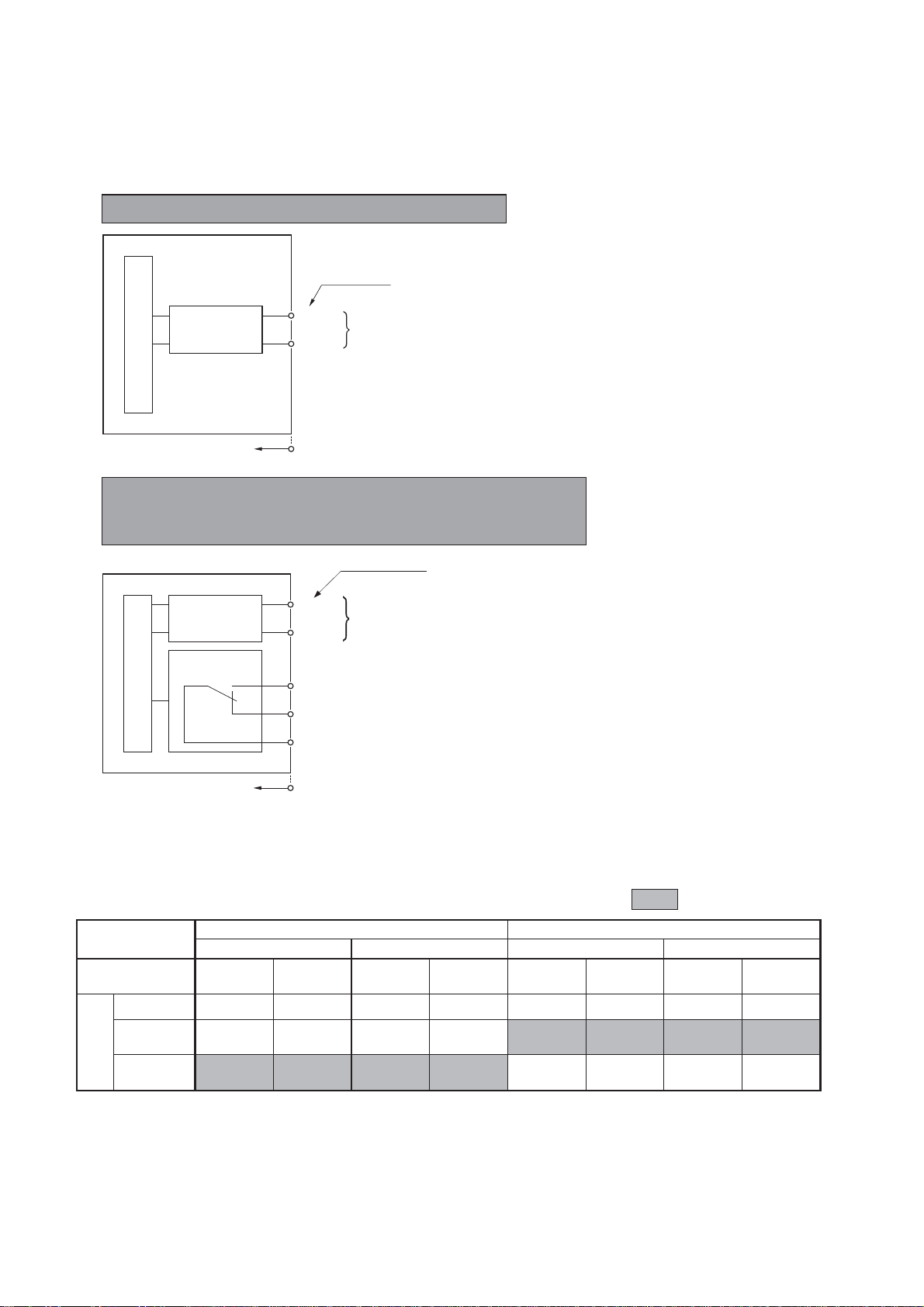

4-1 I/O Circuit diagram
Thru-beam type emitter NX5-M10R□ / NX5-M30□
Thru-beam type receiver NX5-M10R□/ NX5-M30□,
Retroreflective reflective type NX5-PRVM5□/ NX5-RM7□
Diffuse reflective NX5-D700□
4-2 Output operation
Type Thru-beam & Retroreflective type Diffuse reflective type
Light-ON (A) type Dark-ON (B) type Light-ON (A) type Dark-ON (B) type
Output N.O.
(Black cable)
N.C.
(Gray cable)
N.O.
(Black cable)
N.C.
(Gray cable)
N.O.
(Black cable)
N.C.
(Gray cable)
N.O.
(Black cable)
N.C.
(Gray cable)
Output condition
Power OFF Open Close Open Close Open Close Open Close
Beam-
received Close Open Open Close Close Open Open Close
Beam-
interrupted Open Close Close Open Open Close Close Open
: Object detected state
<Output operation>
Internal circuit
Color code
Supply voltage
24 to 240V AC %
+10
- 15
or
12 to 240V DC %
+10
- 15
Sensor circuit
Multi-voltage
circuit Blue
Brown
Internal circuit
Multi-voltage
circuit
Output relay
Blue
Color code
Brown
Supply voltage
24 to 240V AC %
+10
- 15
or
12 to 240V DC %
+10
- 15
Sensor circuit
Black ······ N.O.
Gray ······ N.C.
White ······ COM.

11
5. Adjustment
5-1 Light axis adjustment
(thru-beam type NX5-M10R□/ NX5-M30□)
(retroreflective type NX5-PRVM5□/ NX5-RM7□)
Thru-beam type NX5-M10R□/ NX5-M30□
1. Place the emitter and the receiver face to face
along a straight line, move the emitter in the up,
down, left and right directions, in order to deter-
mine the range of the light received condition with
the help of the operation indicator (red). Then, set
the emitter at the center of this range.
2. Similarly, adjust for up, down, left and right
angular movement of the emitter.
3. Further, perform the angular adjustment for the
receiver also.
4. Check that the stability indicator (green) lights up.
(only for
NX5-M10R□)
Retroreflective type NX5-PRVM5□/ NX5-RM7□
1. Placing the sensor and the reflector face to face
along a straight line, move the reflector in the up,
down, left and right directions, in order to deter-
mine the range of the light received condition with
the help of the operation indicator (red). Then, set
the reflector at the center of this range.
2. Similarly, adjust for up, down, left and right angu-
lar movement of the reflector.
3. Further, perform the angular adjustment for the
sensor also.
4. Check that the stability indicator (green) lights up.
(only for NX5-PRVM5□)
Receiver
Reflector
Receiver
Emitter
Receiver
Emitter
Sensing object
Operation indicator
(Red)
Stability indicator
(Green)
Receiver
Sensing object
Reflector
Operation indicator
(red)
Stability indicator
(Green)

12

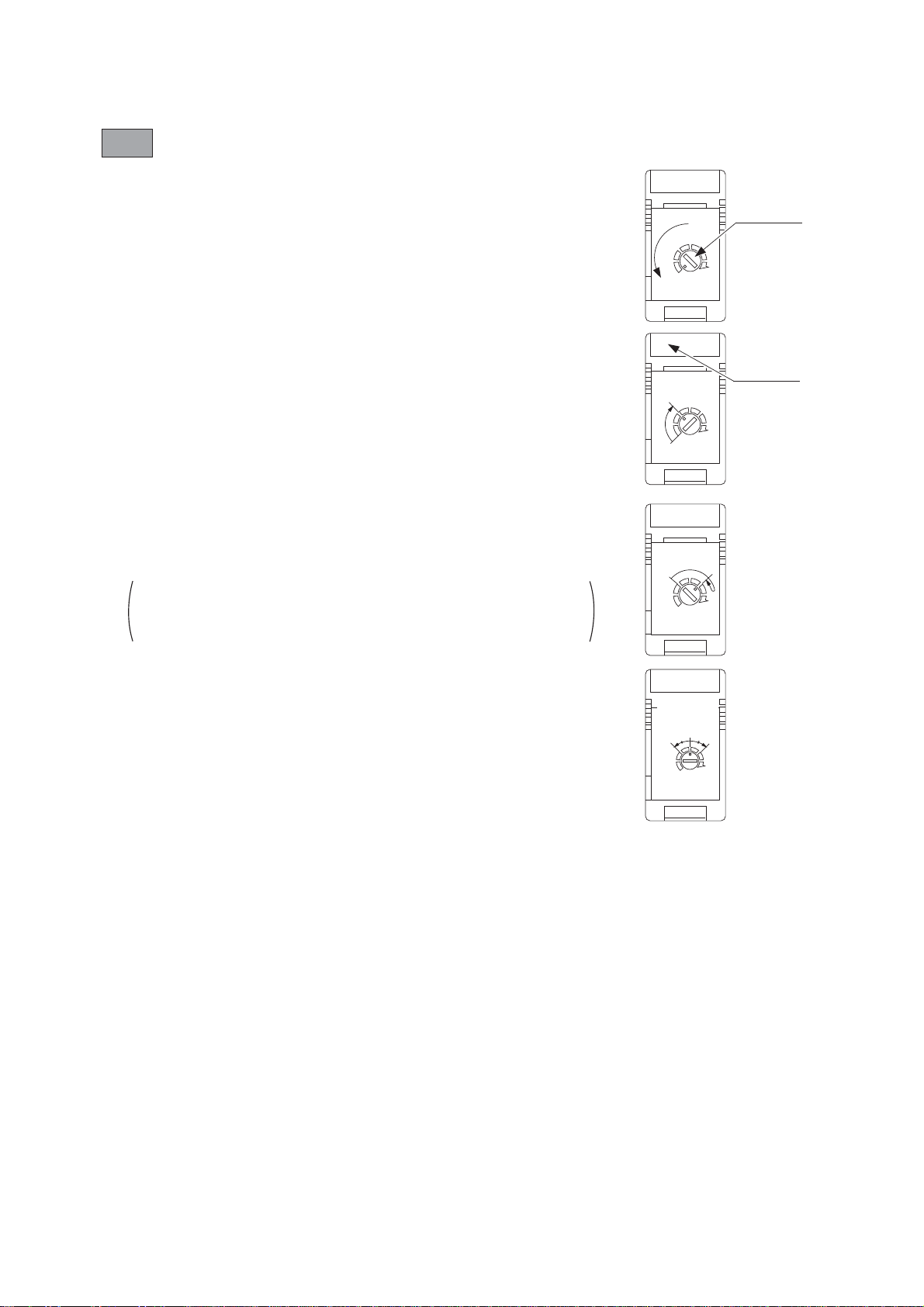

5-2 Sensitivity adjustment
Step
1. Turn the sensitivity adjuster fully counterclockwise to the
minimum sensitivity position (MIN.)
2. In sensing object present condition, turn the sensitivity ad-
juster slowly clockwise and confirm the point Awhere the
sensor enters the “Light” state operation.
3. In non-sensing object present condition, turn the sensitivity
adjuster further clockwise until the sensor enters the “Light”
state operation and then bring it back to confirm point B
where the sensor just returns to the “Dark” state operation.
If the sensor does not enter the “Light” state operation
even when the sensitivity adjuster is turned fully clock-
wise, the position is point B.
4. The position at the middle of points Aand Bis the optimum
sensing position.
Note: Use the accessory adjusting screwdriver to turn the adjuster slowly. Turning with excessive strength will cause
damage to the adjuster.
AB
MIN.
MIN.
MAX.
MAX.
A
MIN.
MIN.
MAX.
MAX.
Operation
indicator
(Red)
MIN.
MIN.
MAX.
MAX.
Sensitivity
adjuster
AB
MIN.
MIN.
MAX.
MAX.
Optimum
position

13
6.
Automatic interference prevention function

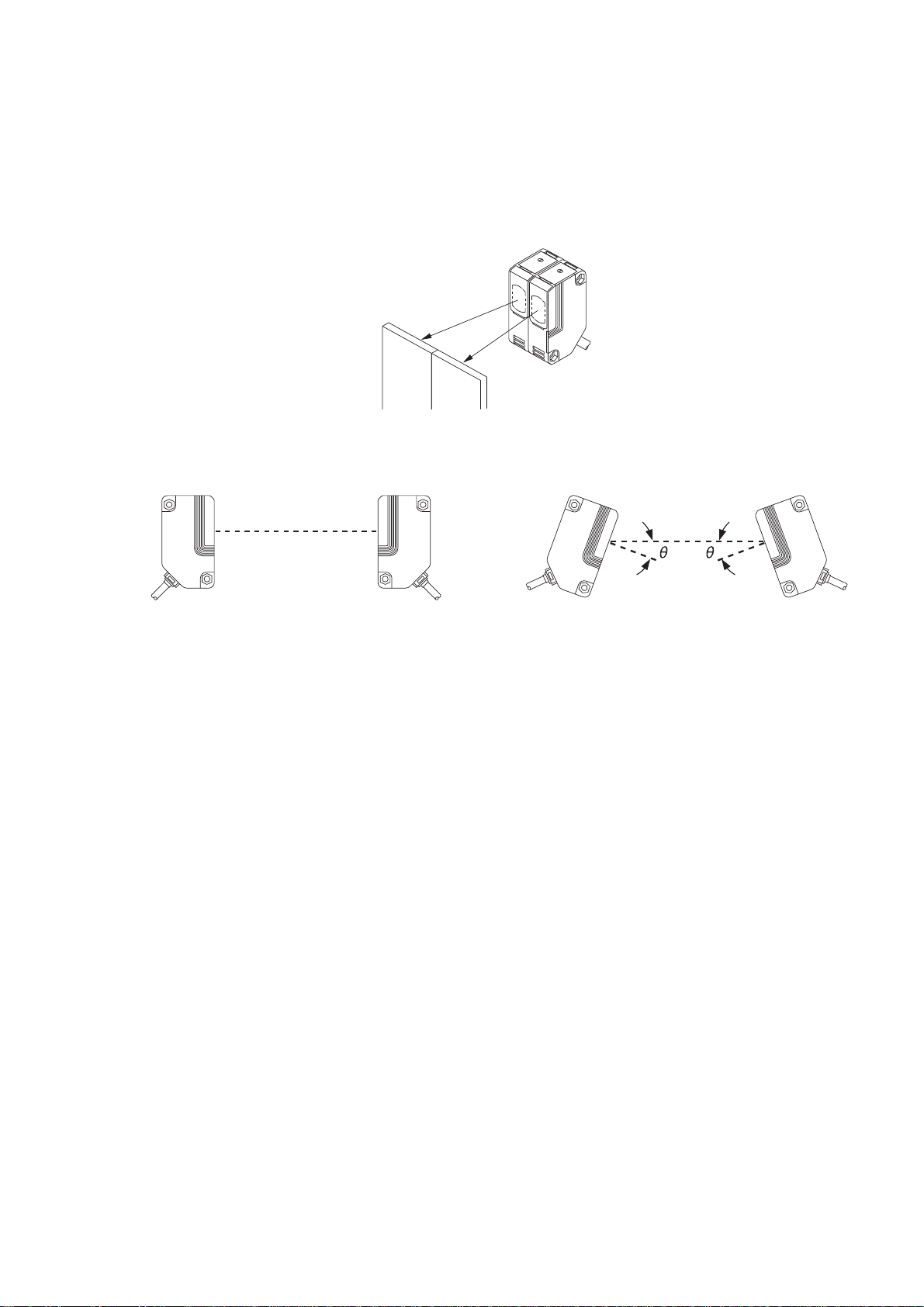

●The retroreflective type NX5-PRVM5□/ NX5-RM7□and the diffuse reflective type
NX5-D700□incorporate an automatic interference prevention function, so that two sen-
sors can be mounted closely. (Thru-beam type NX5-M10R / NX5-M30□does not incor-
porate the automatic interference prevention function.)
Note: If
NX5-D700□are mounted facing each other, they should be angled so as not to receive the beam from
the opposing sensor or to detect its front face.
Not good Good

14
7. Stability indicator
●The stability indicator (green) lights up when the incident light intensity has sufficient
margin with respect to the operation level.
Incident light intensity level is such that the stability indicator light up, stable sensing can
be done without the light received operation and the light interrupted operation being
affected by a change in ambient temperature or supply voltage.
Use the staility indicator in the condition below
• Adjusting the light axes
• Checking dirt of the sensor

15
8. Retroreflective type sensor with
polarizing filter (NX5-PRVM5□)
If a shiny object is covered or wrapped with a transparent film, such as those described
below, the retroreflective type sensor with polarizing filters NX5-PRVM5□may not be
able to detect it. In that case, take the following measures given below.
<Example of sensing objects>
• Can wrapped by clear film
• Aluminum sheet covered by plastic film
• Gold or silver color (specular) label or wrapping paper
<Measures>
• Tilt the sensor with respect to the sensing object while fitting.
• Reduce the sensitivity.
• Increase the distance between the sensor and the sensing object.

16

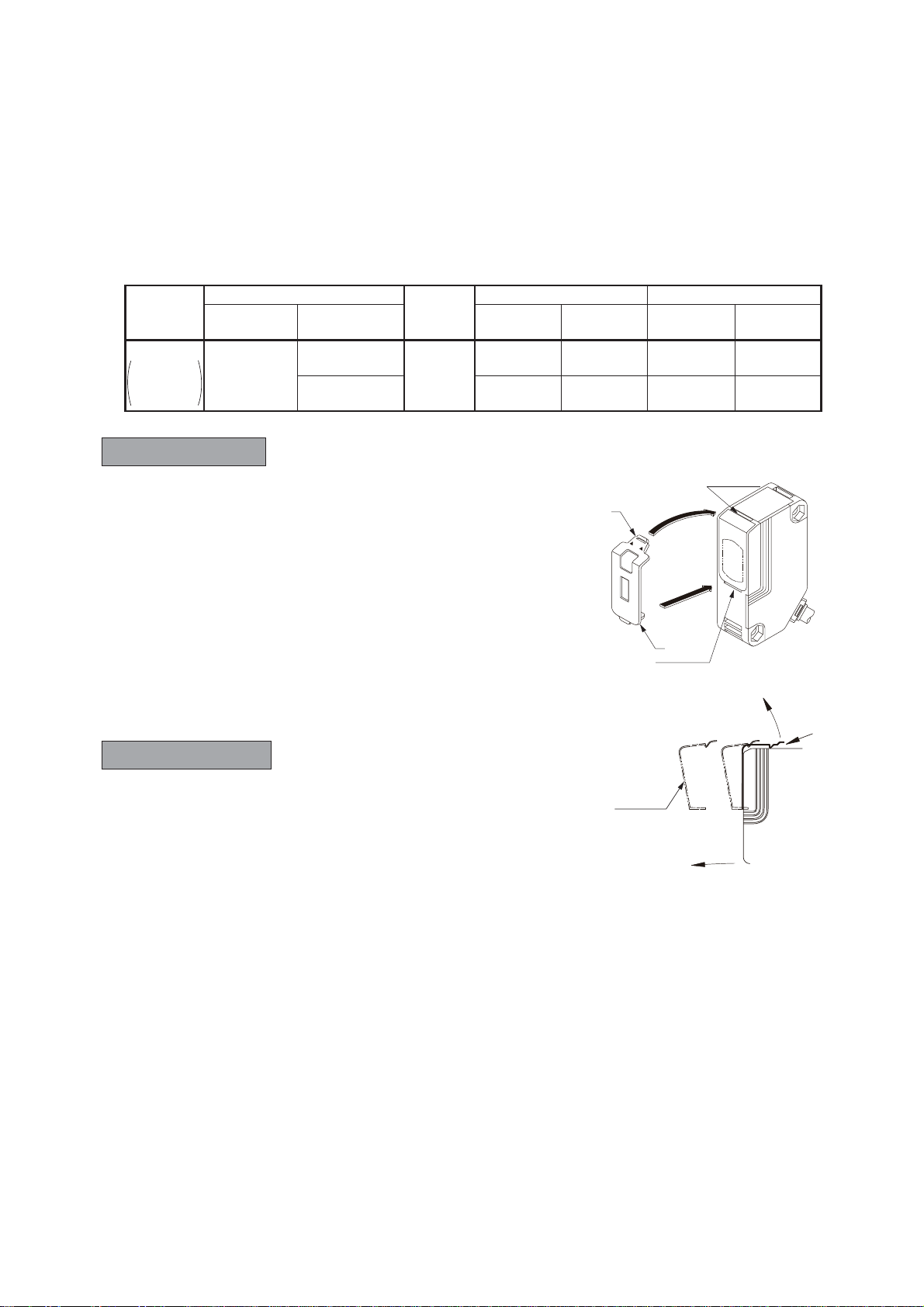

9. Option
9-1 Slit mask
(exclusively for thru-beam type sensor NX5-M10R□/NX5-M30□)
With the slit mask OS-NX5-3×6, the sensor can detect an object as small as 3 × 6mm.
However, the sensing range is reduced when the slit mask is mounted.
Type
Model No. Slit mask
size
Sensing distance Min. sensing object
Slit mask Sensor Mounting
on one side
Mounting
on both side
Mounting
on one side
Mounting
on both side
Slit mask
Exclusively
for thru-
beam type
OS-NX5-3×6
NX5-M10R□
3 × 6mm
3m 1m φ10mm 3 × 6mm
NX5-M30□16m 6m φ20mm 3 × 6mm
Mounting method
1. Fit the Cportion of the slit mask in the groove Aof the
main body case.
2. Then press the slit mask against the main body to fit
the slit mask hook Dportion in the groove Bof the main
body case.
Removing method
1. Insert a flat head driver into the Eportion of the slit
mask.
2. Lift the E portion up to remove the slit mask from the
main body case.
Groove B
2
1
C
D
Groove A
E
Slit mask
1
2

17
9-2 Interference prevention filter
(exclusively for thru-beam type sensor NX5-M10R□)
●By mounting interference prevention filters PF-NX5-□, two sets of NX5-M10R□can be
mounted close together.
However, the sensing range is reduced when the interference prevention is mounted.
●The filters can be mounted by the same method as for the slit masks.
●There are two types of interference prevention filters. The two sets of thru-beam type
sensors should be fitted with different types of interference prevention filters.
●The interference prevention does not work even if the filters are mounted for emitters
only, receivers only or the same model No. of the interference prevention filters are
mounted on both the sets of the sensor.
Model No. Direction of
thru-beam axis Color of the bracket Sensing distance Min. sensing object
PF-NX5-V Vertical Silver 5m ø20mm
PF-NX5-H Horizontal Light brown 5m ø20mm
Note: The model No. is not shown on the interference prevention filters. Take care when mounting them on the
sensors.
Fitted with
PF-NX5-H
Fitted with
PF-NX5-V

18
9-3 Reflector / reflective tape
( retroreflective type NX5-PRVM5□/ NX5-RM7□)
●Reflector RF-230 is accessory of retroreflective type NX5-PRVM5□and NX5-RM7□.
●By using reflector (optional) or reflectivity tape (optional), small object can be detected.
However, the sensing distance would be shorter by using reflector (optional) or
reflectivity tape (optional).
Desig-
nation
Model No. Sensing
distance
Min. sens-
ing object Specification
Sensor
Reflec-
tor
RF-230
(Accessory)
NX5-PRVM5□0.1 to 5m
ø50mm
Dimension (W × H × D):
50.3mm × 59.3mm × 8.3mm
Thru-hole threads: ø3.7mm
NX5-RM7□0.1 to 7m
RF-210
(Optional)
NX5-PRVM5□0.1 to 1.5m
ø30mm
Dimension (W × H × D):
33.3mm × 12.8mm × 11mm
Thru-hole threads: ø3.4mm
NX5-RM7□0.1 to 2.5m
RF-220
(Optional)
NX5-PRVM5□0.1 to 3.5m
ø35mm
Dimension (W × H × D):
35.3mm × 42.3mm × 8.3mm
Thru-hole threads: ø3.6mm
NX5-RM7□0.1 to 5m
Reflec-
tive
tape
RF-11
(Optional)
NX5-PRVM5□0.1 to 0.8m
ø30mm
Dimension (W × H × D):
30mm×8mm×0.7mm
Ambient temperature: - 25 to +50ºC
Ambient humidity: 35 to 85%RH
NX5-RM7□0.1 to 1m
RF-12
(Optional)
NX5-PRVM5□0.1 to 1m
ø30mm
Dimension (W × H × D):
30mm × 25mm × 0.7mm
Ambient temperature: - 25 to +50ºC
Ambient humidity: 35 to 85%RH
NX5-RM7□0.1 to 1.5m

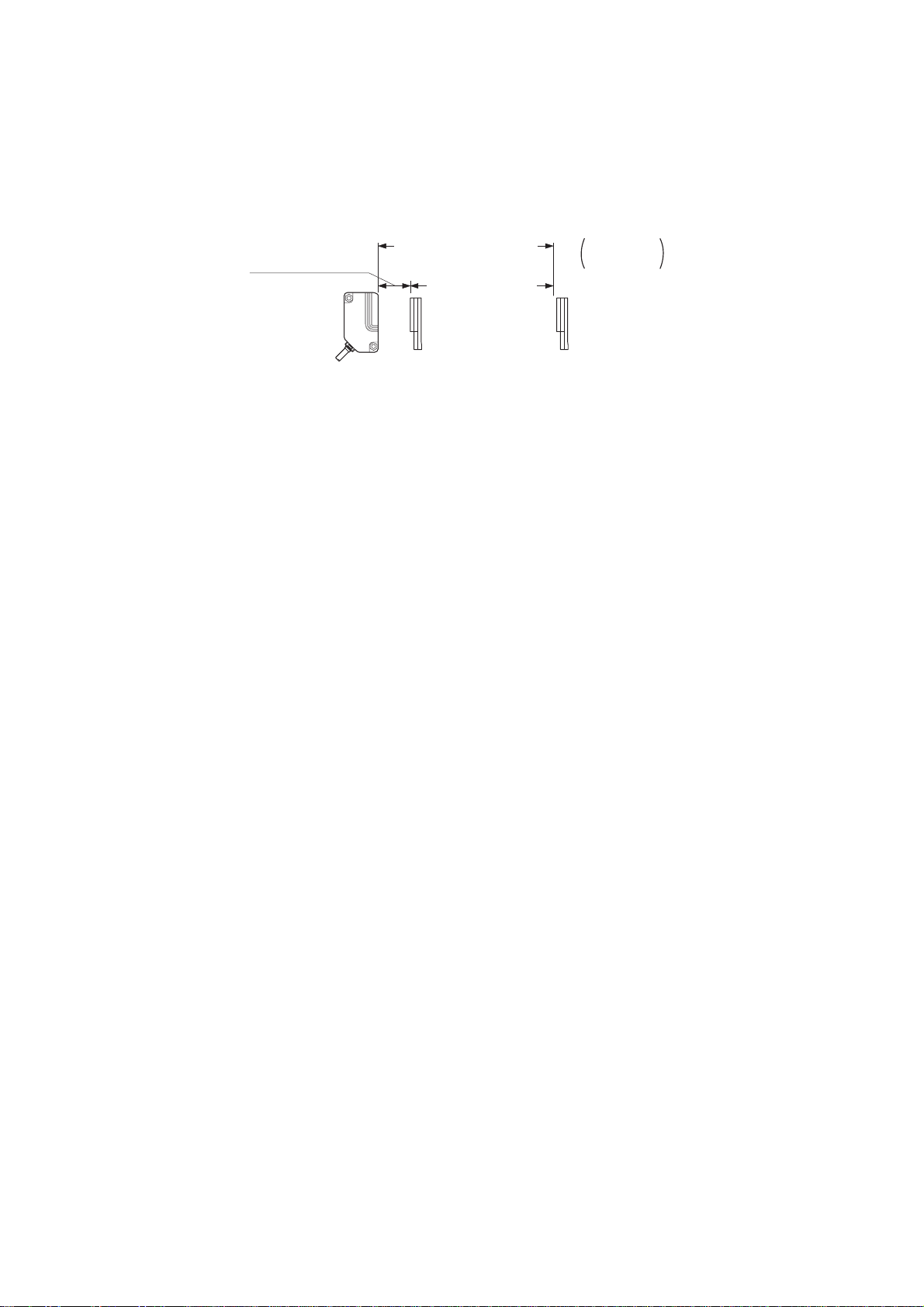

In case of RF-230
Setting range of reflector /
reflective tape
Reflector / reflective tape
Sensor
0.1m
Reflector / reflective tape
Actual sensing range
of the sensor
Reflector cannot be
placed in this range.
5m (NX5-RM7□is 7m)

19
10. Specification
Type
Thru-beam Retroreflective
Diffuse reflective
Long sensing
range
With polarizing
filters (Note 2) Long sensing range
Model
No.
(Note 1)
Light-ON NX5-M10RA NX5-M30A NX5-PRVM5A NX5-RM7A NX5-D700A
Dark-ON
NX5-M10RB NX5-M30B NX5-PRVM5B NX5-RM7B NX5-D700B
Sensing range 10m 30m 0.1 to 5m (Note 3) 0.1 to 7m (Note 3) 700mm (Note 4)
Sensing object
Opaque object of
ø20mm or more
(Note 5)
Opaque object of
ø20mm or more
Completely beam
interrupted object
(Note 5)
ø
50mm, Opaque,
translucent or
specular objects
(Note 3, 6)
ø 50mm, Opaque,
translucent or
objects
( Note 3, 6 )
Opaque, translu-
cent or transparent
object
( Note 6 )
Hysteresis
-
15% or less of
operation distance
(Note 4)
Repeatability
perpendicular to
sensing axis
0.1 mm or less 0.2 mm or less 0.3 mm or less
Supply voltage 24 to 240V AC % or 12 to 240V DC % Ripple P-P10% or less
Power consumption
Emitter: 1VA or less
Receiver: 2VA or less
Emitter: 1.5VA or less
Receiver: 2VA or less
2VA or less
Output
Relay contact 1c
• Switching capacity: 250V AC 1A (resistive load)
30V DC 2A (resistive load)
• Electrical life: 100,000 or more operations (at AC rated load and switching 3,600 operations/hour)
500,000 or more operations (at AC rated load and switching 3,600 operations/hour)
• Mechanical life: 100,000,000 or more operations (switching 36,000 operations/hour)
Response time 10ms or less
Sensitivity adjuster Variable adjuster
- Variable adjuster - Variable adjuster
Automatic interfer-
ence prevention
function
- (Note 7) -
Incorporated
(Two units of sensors can be mounted closely.)
Protection IP66 (IEC)
Ambient
temperature
−25 to +55 °C (No dew condensation or icing allowed), Storage: −30 to +70 °C
Ambient humidity 35 to 85% RH, Storage: 35 to 85 %RH
Emitting element Red LED Infrared LED Red LED Infrared LED
Material Enclosure: Polycarbonate, Lens: Polycarbonate, Cover: Polycarbonate
Front cover: Acrylic (retroreflective type sensor only)
Cable 0.3 mm25-core (thru-beam type emitter: 2-core) cabtyre cable,2m long
Weight
Emitter: approx. 100g
Receiver: approx. 140g
Emitter: approx. 125g
Receiver: approx. 40g
Approx. 140g
Accessories
Adjusting screwdriver:
1 pc .
-
RF-230 (Reflector):
1 pc.
Adjusting screwdriver:
1 pc.
RF-230 (Reflector):
1 pc.
Adjusting screwdriver:
1 pc.

20
Notes: 1) The model No. with suffix “P” shown on the label affixed to the thru-beam type sensor is the emitter, “D”
shown on the label is the receiver.
(e.g.) Thru-beam type sensor emitter: NX5-M10RP, Thru-beam type sensor receiver: NX5-M10RAD
2) The retroreflective type sensor with polarizing filters may not stably detect specular or glossy objects
through transparent film since light is polarized by the transparent film.
3) The sensing range and sensing object for the retroreflective type sensor is specified for the RF-230 re-
flector. Further, the sensing range is the possible setting range for the reflector. The sensor can detect
an object less than 0.1m away.
4) The sensing range and hysteresis of the diffuse reflective type sensor and narrow-view reflective type
sensor are specified for white non-glossy paper (200 × 200mm) as the object.
5) If slit masks (optional) are fitted, an object as small as 3 × 6mm can be detected.
6) Make sure to confirm detection with an actual sensor before use.
7) By mounting optional interference prevention filter PF-NX5-□, two sensors can be mounted closely.
8) In case the sensor is to be used at an ambient temperature of -15
°C
or less, please contact our office.
Reflector cannot be
placed in this range.
Actual sensing
range of the sensor
0.1m Setting range of
the reflector
Reflector Reflector
5m
NX5-RM7□
is 7m
Sensor
