Panasonic PT-47WX42 User manual

®
®
HDTVProjectionMonitor
OperatingInstructions
PT-47WX42
PT-47WX52 PT-53WX42 PT-53WX52 PT-56WX42 PT-56WX52
TQB2AA0420-1 20418
PRINTEDINUSA
TQB2AA0420-1 20418
IMPRESOENEE.UU.
Forassistance,pleasecall:1-888-VIEW-PTVorsend
e-mailto:[e-mail](USAonly)
Paraasistenciallamealteléfono:1-888-VIEW-PTV
oenvíeuncorreoelectrónicoaladirección:
[e-mail](SoloenEstadosUnidos)
PT-47WX42
PT-47WX52 PT-53WX42 PT-53WX52 PT-56WX42 PT-56WX52
MonitordeproyeccióndeHDTV
InstruccionesdeOperación

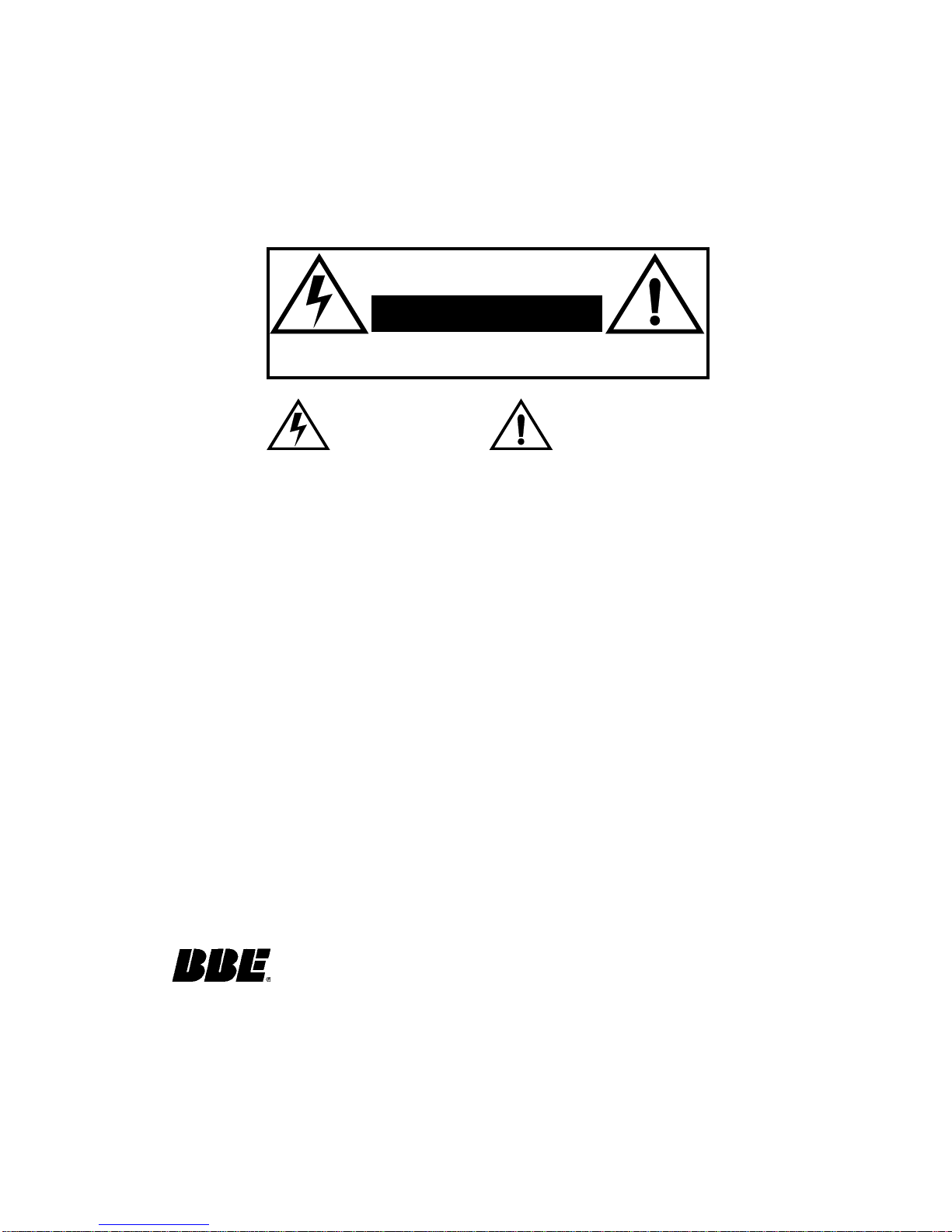

WARNING: To reduce the risk of electric shock do not remove cover or back.
No user-serviceable parts inside. Refer servicing to qualified service personnel.
The exclamation point within a
triangle is intended to tell the
user that important operating
and servicing instructions are
in the papers with the
appliance.
The lightning flash with arrow
head within a triangle is
intended to tell the user that
parts inside the product are a
risk of electric shock to
persons.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING
WARNING:TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO
NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.
ANY CHANGES OR MODIFICATIONS TO THIS PTV
RECEIVER NOT EXPRESSLY APPROVED BY
MATSUSHITA ELECTRIC CORPORATION OF AMERICA
COULD CAUSE HARMFUL INTERFERENCE, WHICH
WOULD VOID THE USER’S AUTHORITY TO OPERATE
THIS EQUIPMENT.
FCC CAUTION:
THIS PRODUCT UTILIZES CATHODE RAY TUBES (CRT) AND OTHER
COMPONENTS THAT CONTAIN LEAD. DISPOSAL OF THESE MATERIALS
MAY BE REGULATED IN YOUR COMMUNITY DUE TO ENVIRONMENTAL
CONSIDERATIONS. FOR DISPOSAL OR RECYCLING INFORMATION
PLEASE CONTACT YOUR LOCAL AUTHORITIES, OR THE ELECTRONICS
INDUSTRIES ALLIANCE: <HTTP://WWW.EIAE.ORG.>
ENVIRONMENTAL NOTICE:
This product incorporates U.S. Patent 6,266,098 B1; Issue date: July 24, 2001; assigned
to Matsushita Electric Corporation of America; other U.S. and foreign patents pending.
Read these instructions completely before operating television.
Contents are subject to change without notice or obligation.
Copyright 2002 by Matsushita Electric Corporation of America. All rights reserved.
Unauthorized copying and distribution is a violation of law.
Manufactured under license from BBE Sound, Inc.
Licensed by BBE Sound, Inc. under USP4638258 and 4482866.
BBE and BBE symbol are registered trademarks of BBE Sound, Inc.
High Definition Sound

1l

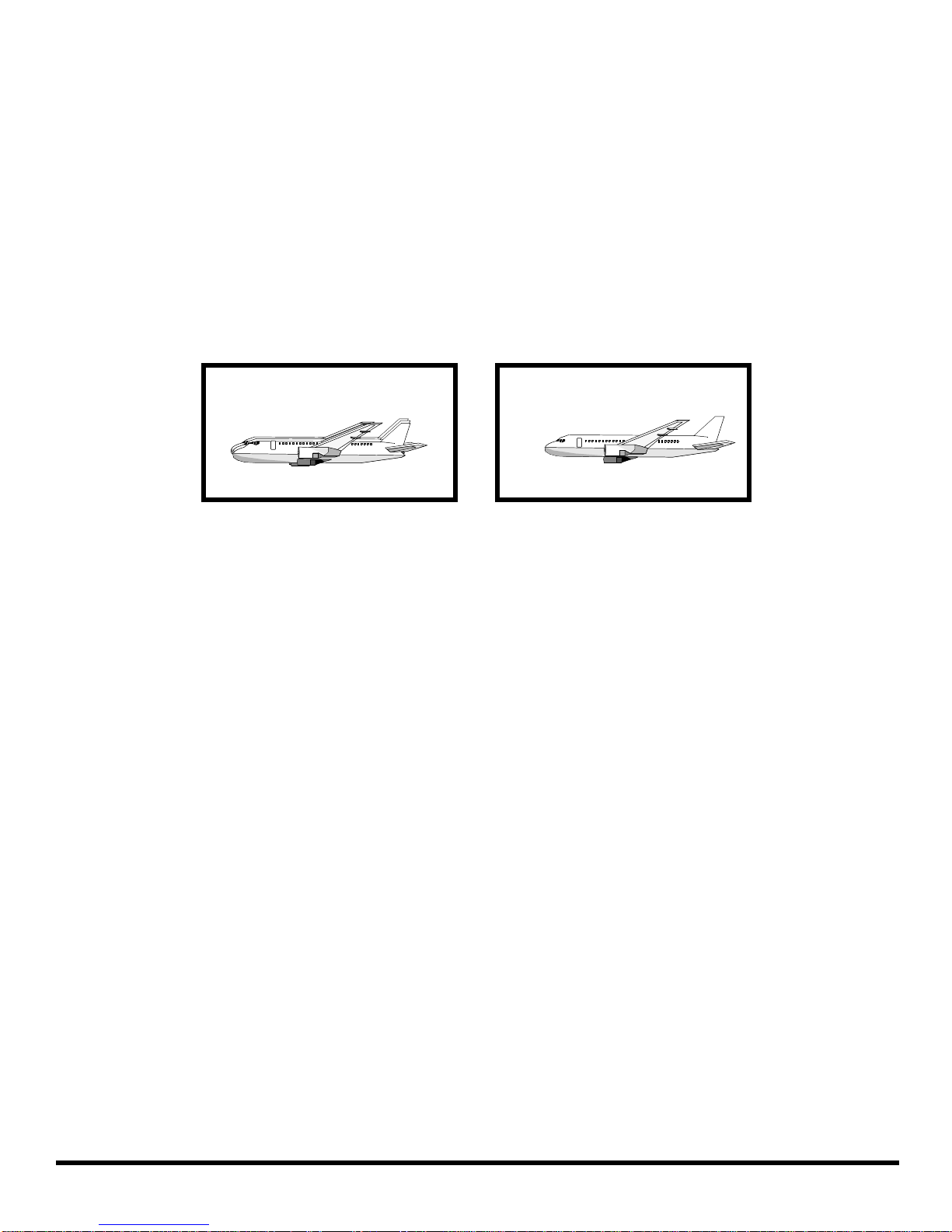

INFORMATION REGARDING CONVERGENCE
In the projection television, the image is formed by projecting 3 different color images (red, green and blue) onto the
projection screen. Convergence refers to the alignment of red, green and blue images on the projection screen.
When these images are properly aligned (converged), you see a sharp and vibrant color image. Sometimes, the three
images may require alignment. This is due to the effect of earth’s magnetic field on the projection tubes. Normally,
adjustment is not necessary after the initial alignment at the center of the screen. It is possible to correct the color fringing
on other areas of the screen by using the buttons on the remote control and by following the on-screen instructions in the
set-up menu. Please converge the images before using the television for the first time. The following diagram shows
examples of a misaligned image and a properly aligned image. Please refer to pages 35 and 36 for detailed procedure
on how to adjust convergence.
Misconverged image Properly aligned image

2l
T ABLE OF C ONTENTS
Table of Contents
Congratulations.........................................................3
Customer Record ......................................................................3
Care and Cleaning.....................................................................3
Specifications ............................................................................3
Installation..................................................................4
Television Location....................................................................4
Optional Cable Connections......................................................4
AC Power Supply Cord..............................................................4
Cable / Antenna Connection......................................................4
Care and Cleaning.....................................................5
Feature Comparison Chart .......................................6

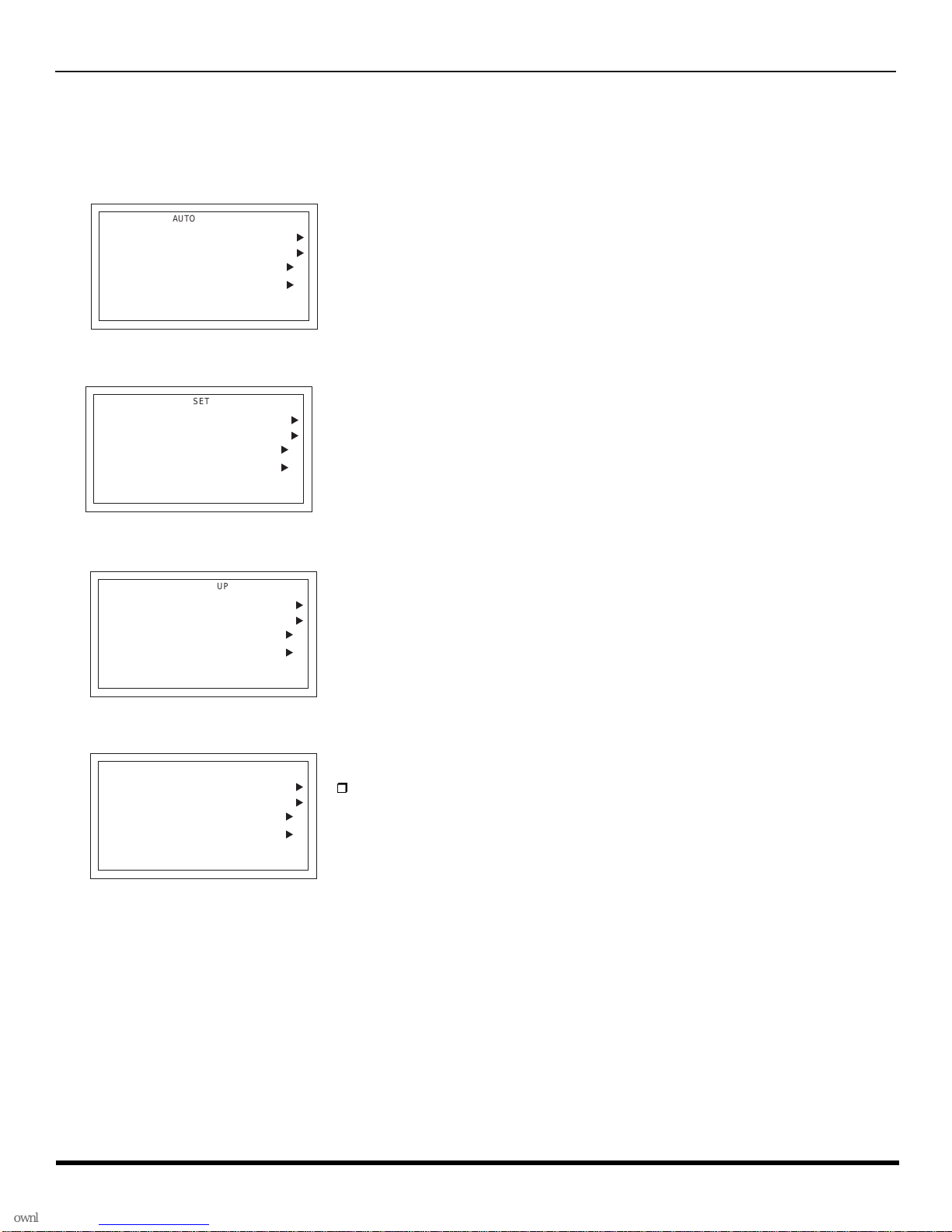

Auto Set Up Menu......................................................7

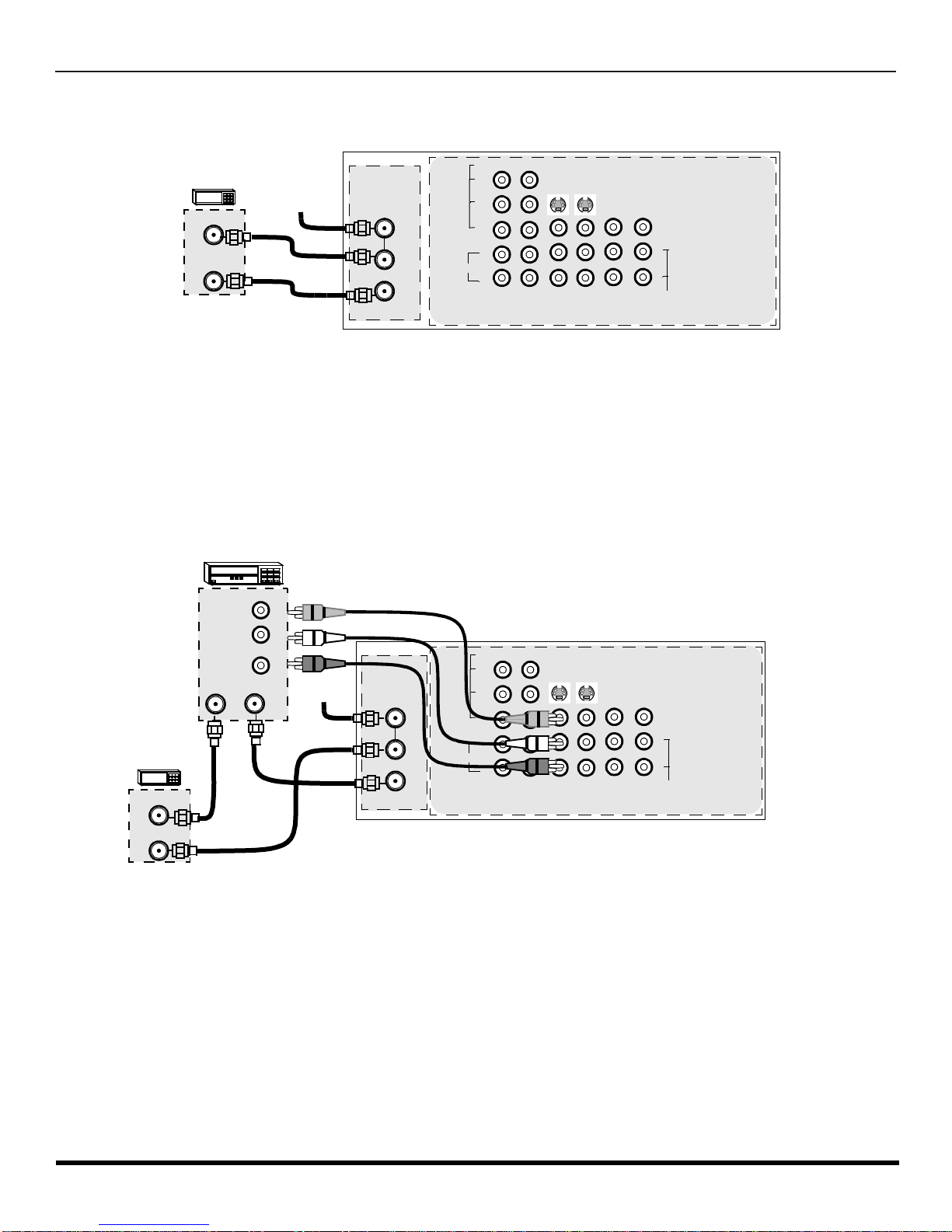

Optional Equipment Connections ...........................8
VCR .........................................................................................8
Cable Box..................................................................................9
VCR and Cable Box ..................................................................9
Amplifier (TO AUDIO AMP).....................................................10
Front Control Panel .................................................................10
Program Out (PROG OUT) .....................................................11
Digital TV - Set-Top Box (DTV-STB) or DVD Players.............11

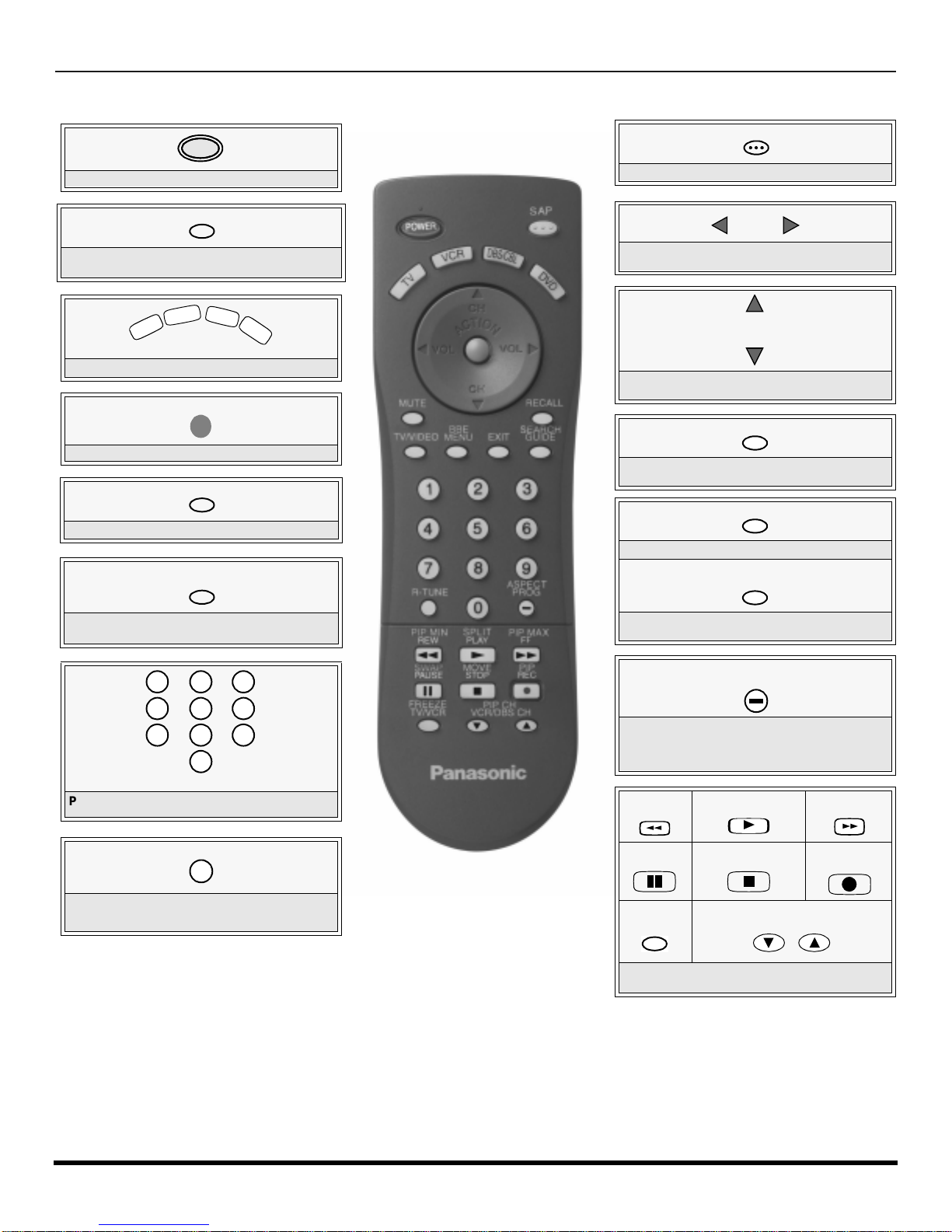

Special Remote Buttons .........................................12

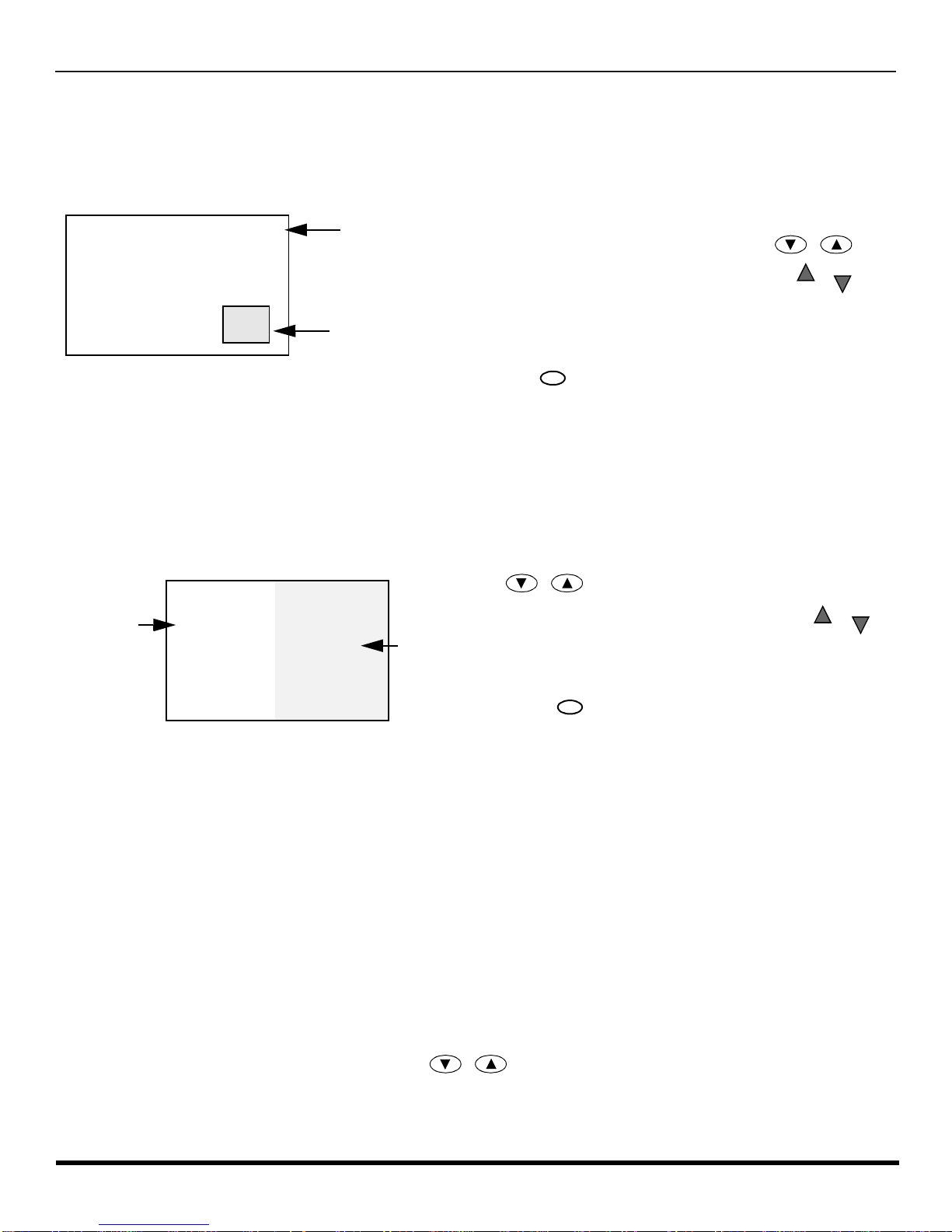

PIP and Split Operations.........................................13
Remote Control Operation (models PT-47WX42,
PT-53WX42, and PT-56WX42..............................16
Mode Operational Key Chart ..................................................17
Programming the Remote .......................................................19
Programming Without a Code.................................................19
Component Codes...................................................................20
Remote Control Operation (models PT-47WX52,
PT-53WX52, and PT-56WX52..............................22
Mode Operational Key Chart ..................................................23
Programming the Remote .......................................................25
Programming Without a Code.................................................25
Component Codes...................................................................27
Roller Guide Menu™ Navigation............................30
Roller Guide Icons...................................................32
Roller Guide Icon Menus.........................................................32
Icon Menus Operation.............................................33
V-Chip Menu Operation...........................................43
Troubleshooting Chart............................................49
Limited Warranty .....................................................50
Customer Services Directory .................................52
Index .........................................................................53

C ONGRATULATIONS
3l
Congratulations
Your new HDTV Projection Monitor features state-of-the-art technology for high quality picture and sound with complete
audio/video connections for your home theater system. Your Projection TV is designed to give you many years of
enjoyment. It was thoroughly tested and tuned at the factory for best performance.
Customer Record
The model and serial number of this product are located on the back of the TV set. You should note the model and serial number
in the space provided and retain as a permanent record of your purchase. This will aid in identification in the event of theft or loss.
Product registration for U.S. customers is available at: www.prodreg.com/panasonic.
Model
Number
Serial
Number
Specifications
Specifications are subject to change without notice or obligation
Power Source PT-47WX42 (4.2A)
PT-47WX52 (4.2A)
PT-53WX42 (4.2A)
PT-53WX52 (4.2A)
PT-56WX42 (4.2A)
PT-56WX52 (4.2A)
120V AC, 60Hz
Channel Capability - 181 VHF-12; UHF-56; Cable-113
Video Input Jacks 1Vp-p, 75 Ohm, Phono Jack Type
Audio Input Jacks 500mV RMS 47K Ohm
Video Output Jack 1Vp-p, 75 Ohm, Phono Jack Type
Audio Output Jacks 0-2.0V RMS 4.7K Ohm
Component Input (Y / PB / PR)75 Ohm, Phono Jack Type
S-Video Input Jacks S-Video (Y-C) Connector

4l
I NSTALLATION
Installation
Television Location
This unit can be used as an entertainment center. Consult your dealer for available options.
rAvoid excessive sunlight or bright lights, including reflections.
rKeep away from excessive heat or moisture. Inadequate ventilation may cause internal component failure.
rFluorescent lighting may reduce remote control transmitting range.
rKeep away from magnetic equipment, including motors, fans and external speakers.
Optional Cable Connections
Shielded audio and video cables should be used between components. For best results:
rUse 75-ohm coaxial shielded cables.
rUse appropriate input and output connectors, that match your component connectors.
rAvoid long cables to minimize interference.

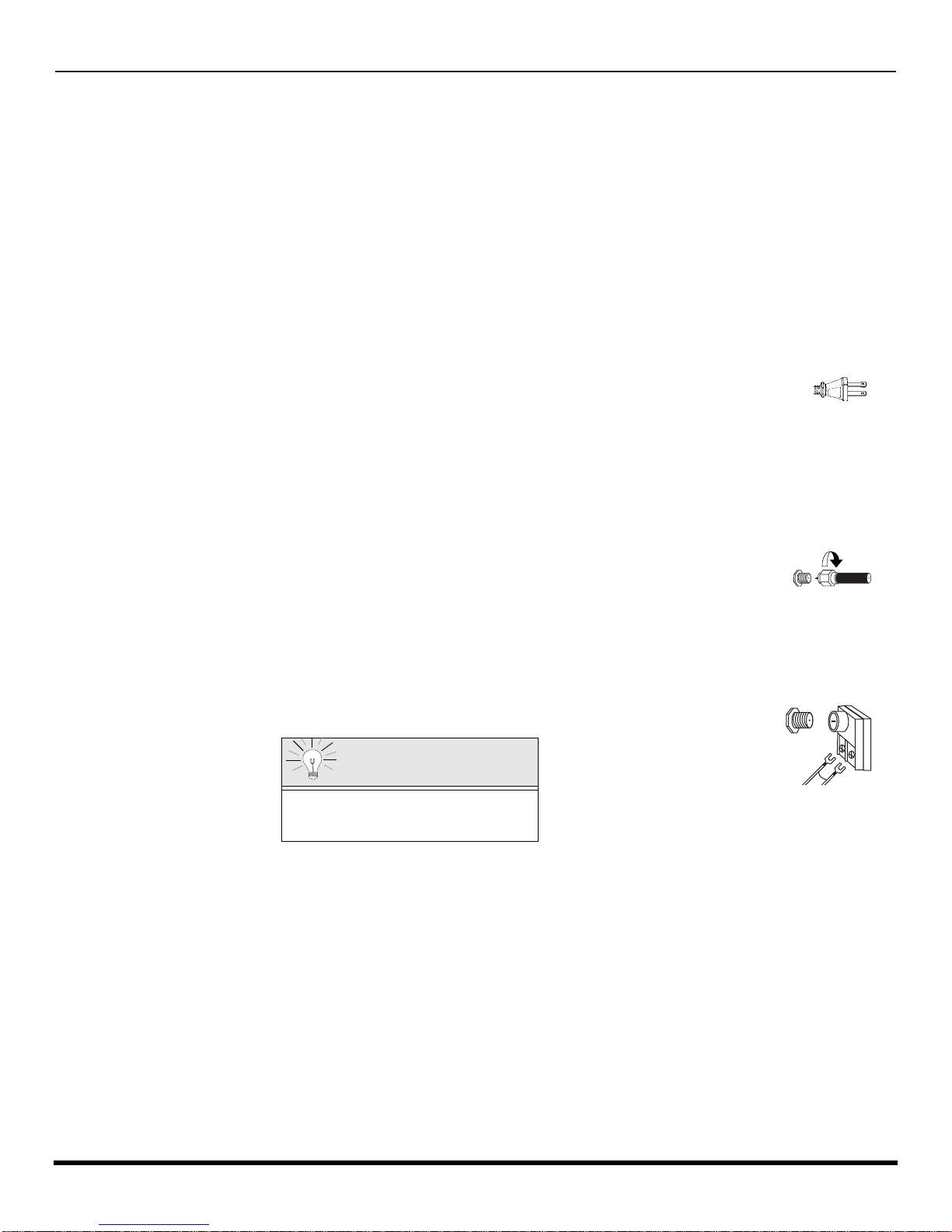

AC Power Supply Cord
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT OF AC OUTLET AND FULLY
INSERT. DO NOT USE A PLUG WITH A RECEPTACLE OR OTHER OUTLET UNLESS THE BLADE CAN BE FULLY INSERTED
TO PREVENT BLADE EXPOSURE.
PROTECT POWER CORDS FROM BEING WALKED ON, ROLLED OVER, CRIMPED, BENT, OR PINCHED, PARTICULARLY AT
PLUGS, CONVENIENCE RECEPTACLES, AND THE POINT WHERE THEY EXIT FROM THE APPARATUS.
Cable / Antenna Connection
For proper reception, either a cable or antenna connection is required.
Cable Connection
Connect the cable supplied by your local cable company to ANT1 connection on back of television. Select cable
mode and ANT1 in SET UP menu under Prog Chan (Program Channels).
Note: A cable converter box may be required for proper reception. Check with your local cable company for
compatibility requirements.
Antenna Connections
• For proper reception of VHF/UHF channels, an external antenna is required. For best reception an outdoor antenna is
recommended.
•Connect home antenna to ANT1 connection on back of television. Select TV mode and ANT1 in the
SET UP menu under Prog Chan.
Polarized plug
75 Ohm VHF/UHF
on back of PTV
Incoming Cable from
Cable Company
I
ncom
i
ng
C
a
bl
e
f
rom
Home Antenna
Cable Preset
Cable Mode is preset at the factory.
Antenna users must change to TV Mode and
ANT 1 in the Set Up menu.

C ARE AND C LEANING
5l
Care and Cleaning
Projection Screen (Turn set Off) (For Models PT-47WX52, PT-53WX52 and PT-56WX52)
The projection screen is a high precision lens system which has a protective screen. The protective screen is fully
washable with the following precautions:
rUse a mild soap solution or window cleaner and a clean cloth.
• DO NOT USE ABRASIVE CLEANERS.
• Do not use laundry detergent or automatic dishwasher soap.
• Do not use alcohol, ammonia, or petroleum based products.
rAvoid excessive moisture and wipe dry.
• Prevent solution from running into the receiver below.
rAvoid bumping or scraping the screen.
Note: Do not spray any type of cleaning fluid directly on the screen.
Projection Screen (Turn set Off) (For Models PT-47WX42, PT-53WX42 and PT-56WX42)
The projection screen is a high precision lens system which does not attract dust.
rOccasional dusting with a feather duster or very soft brush using only up and down motions.
• Never rub across the screen using a side to side motion.
rInfrequent washing with a very weak solution of dishwashing soap using a soft, lint-free clean cloth.
• DO NOT USE ABRASIVE CLEANERS.
• Do not use window or glass cleaner, laundry detergent, automatic dishwasher soap, or abrasive cleaners.
• Do not use alcohol, ammonia, or petroleum based products.
rAvoid excessive moisture and wipe dry.
• Prevent solution from running into the receiver below.
rAvoid bumping or scraping the screen.
• Protect the very fine grooves on the screen which transport the picture.
Note: Do not spray any type of cleaning fluid directly on the screen.
Cabinet and Remote Control
rFor cabinets and remote control, use a soft cloth dampened with water or a mild detergent solution. Avoid excessive
moisture and wipe dry.
rDo not use benzene, thinner or other petroleum based products.

6l
F EATURE C OMPARISON C HART
Feature Comparison Chart
MODELS
PT-47WX42
PT-47WX52
PT-53WX42
PT-53WX52
PT-56WX42
PT-56WX52
FEATURES
MENU LANGUAGE ENG/SPAN/FR r r r r r r
PROTECTIVE SCREEN r r r
2 TUNER SPLIT rrr r r r
2 TUNER PIP rrr r r r
VIDEO INPUT SKIP r r r r r r
CLOSED CAPTIONING r r r r r r
V-CHIP CAPABILITY r r r r r r
DIGITAL SCAN RATE
1080i,
480p 1080i, 480p 1080i, 480p 1080i, 480p 1080i, 480p 1080i, 480p
NTSC LINE - DOUBLER
480p 480p 480p 480p 480p 480p
VIDEO NORM r r r r r r
AUDIO NORM r r r r r r
STEREO rrr r r r
AI SOUND r r r r r r
BASS/BALANCE/TREBLE rrr r r r
SURROUND r r r r r r
BBE r r r r r r
A/V PROGRAM OUT r r r r r r
A/V IN (REAR/FRONT) 4 (3/1) 4 (3/1) 4 (3/1) 4 (3/1) 4 (3/1) 4 (3/1)
AUDIO OUT r r r r r r
S-VHS INPUT (REAR/FRONT)
2/1 2/1 2/1 2/1 2/1 2/1
COMPONENT INPUT
2 2 2 2 2 2
IMPORTANT INFORMATION REGARDING THE USE OF VIDEO GAMES, COMPUTERS, OR
OTHER FIXED IMAGE DISPLAYS.
WARNING: The marking or retained image on the picture tube resulting from viewing fixed
image is not an operating defect and as such is not covered by Warranty.
The projection television is designed to display constantly moving images on the screen.
Continuous viewing of stationary images such as letterbox pictures on standard screen TVs (with
top/bottom bars), non-expanded standard (4:3) pictures on wide screen TVs (with side bars shown
on each side of an image), stock market report bars (ticker running at the bottom of the screen),
video game patterns, fixed scoreboards, bright station logos, on-line (internet) or repetitive computer
style patterns should be limited.
The extended use of fixed image program material can cause a permanent picture tube damage,
shown as a “shadow image” viewable on normal programs. This type of irreversible picture tube
deterioration can be limited by performing the following steps:
• Limit the display of fixed image program material to no more than 15% of total viewing time per week.
• Turn the power off when not in use.
A/V
JACKS AUDIO SPECIAL
FEATURES

A UTO S ET U P M ENU
7l
Auto Set Up Menu
For your convenience, Auto Set up menu will be displayed on screen when the set is turned on for the first time. If needed,
follow the menus and procedures for setting up the features.
rIDIOMA/LANGUE - To change menu language to ENGLISH, SPANISH or FRENCH.
rMODE - To select TV (antenna) or CABLE mode depending on the signal source.
rAUTO PROGRAM - To automatically program all channels with a signal.
rCONVERGENCE -To adjust the center convergence, if needed.
rPress VOL uto select English, Spanish or French.
IDIOMA/LANGUE
CONVERGENCE
ENGLISH
CABLEMODE
AUTO PROGRAM
PRESS ACTIONTO EXIT
u
u
u
u
AUTO SET UP
rPress VOL uto select TV or CABLE.
IDIOMA/LANGUE
CONVERGENCE
ENGLISH
CABLEMODE
AUTO PROGRAM
PRESS ACTIONTO EXIT
u
u
u
u
AUTO SET UP
rPress VOL uto start Auto Programming.
IDIOMA/LANGUE
CONVERGENCE
ENGLISH
CABLEMODE
AUTO PROGRAM
PRESS ACTIONTO EXIT
u
u
u
u
AUTO SET UP
rPress VOL uto display Convergence adjustment menu.
Note: Refer to page 35 for setting Convergence, if needed.
IDIOMA/LANGUE
CONVERGENCE
ENGLISH
CABLEMODE
AUTO PROGRAM
PRESS ACTIONTO EXIT
u
u
u
u
AUTO SET UP

8l
O PTIONAL E QUIPMENT C ONNECTIONS
Optional Equipment Connections
VCR Connection
Follow this diagram when connecting your television to a VCR only.
Note: The remote control must be programmed with supplied codes to operate the VCR.
Viewing a television program
Procedure
1. Select ANT1 in the SET UP menu under Prog Chan (Program Channels).
2. Tune the television to the television program you want to view.
Viewing a video
Procedure
rOption A
1. Select ANT1 in the SET UP menu under Prog Chan.
2. Press the TV/VIDEO button on the remote control to select the video input (VIDEO 1, VIDEO 2, etc.) connected to your VCR.
3. Begin the video.
rOption B
1. Select ANT2 in the SET UP menu under Prog Chan.
2. Tune the television to Channel 3 or 4, depending on your VCR.
3. Begin the video.
Recording a television program
Procedure
rOption A (Recording and viewing the same program)
1. Select ANT2 in the SET UP menu under Prog Chan.
2. Tune the television to Channel 3 or 4, depending on your VCR.
3. Using the VCR, tune to the television program you want to record.
4. Begin recording.
rOption B (Recording one program while viewing another program)
1. Select ANT1 in the SET UP menu under Prog Chan.
2. Press the TV/VIDEO button on the remote control to select the video input (VIDEO 1, VIDEO 2, etc.) connected to your VCR.
3. Using the VCR, tune to the television program you want to record.
4. Begin recording.
5. Press the TV/VIDEO button on the remote control to switch back to TV mode.
6. Tune the television to the television program you want to view.
VCR
CABLES NOT SUPPLIED
CONNECTIONS ON BACK OF THE PTV
S-
VIDEO
VIDEO
AUDIO
L
R
VIDEO
Y
PB
PR
PROG
OUT TO
AMP
L
R
INPUT
1INPUT 2INPUT 3
COMPONENT
ANT 1
ANT 2
SPLIT OUT
12 AUDIO
VIDEO INPUTS
L
R
AUDIO OUT
VIDEO OUT
ANT INANT OUT
Incoming
Cable
Use either the
S-Video or Video
connection.

O PTIONAL E QUIPMENT C ONNECTIONS
9l
Cable Box Connection
Follow this diagram when connecting your television to a cable box only.
Note: The remote control must be programmed with supplied codes to operate the cable box.
Viewing a premium (scrambled) cable channel
Procedure
1. Select ANT2 in the SET UP menu under Prog Chan (Program Channels).
2. Tune the television to Channel 3.
3. Using the cable box, tune to the premium cable channel you want to view.
Note: To use special features such as Favorite Channels and Channel Captions ANT1 must be selected in the SET UP menu under
Prog Chan.
VCR and Cable Box Connection
Follow this diagram when connecting your television to both a VCR and a cable box.
Note: The remote control must be programmed with supplied codes to operate the VCR and cable box.
Viewing a premium (scrambled) cable channel
Procedure
1. Select ANT2 in the SET UP menu under Prog Chan (Program Channels).
2. Tune the television to Channel 3.
3. Using the cable box, tune to the premium cable channel you want to view.
Note: To use special features such as Favorite Channels and Channel Captions ANT1 must be selected in the SET UP menu under
Prog Chan.
CONNECTIONS ON BACK OF THE PTV
CABLE BOX INCOMING
CABLE
CABLES NOT SUPPLIED
S-
VIDEO
VIDEO
AUDIO
L
R
VIDEO
Y
PB
PR
PROG
OUT TO
AMP
L
R
INPUT
1INPUT 2INPUT 3
COMPONENT
ANT 1
ANT 2
SPLIT OUT
12 AUDIO
VIDEO INPUTS
ANT OUT
ANT IN
S-
VIDEO
VIDEO
AUDIO
L
R
VIDEO
Y
PB
PR
PROG
OUT TO
AMP
L
R
INPUT
1INPUT 2INPUT 3
COMPONENT
ANT 1
ANT 2
SPLIT OUT
12 AUDIO
VIDEO INPUTS
CONNECTIONS ON BACK OF THE PTV
CABLES NOT SUPPLIED
Incoming
Cable
CABLE BOX
ANT IN
ANT OUT
VCR
L
R
AUDIO OUT
VIDEO OUT
ANT OUTANT IN

10 l
O PTIONAL E QUIPMENT C ONNECTIONS
VCR and Cable Box Connection (Contd.)
Recording a premium (scrambled) cable channel
Procedure
1. Select ANT2 in the SET UP menu under Prog Chan.
2. Press the TV/VIDEO button on the remote control to select the video input (VIDEO 1, VIDEO 2, etc.) connected to your VCR.
3. Turn the VCR ON.
4. Tune the VCR to Channel 3 or 4, depending on the switch setting on the back of VCR.
5. Using your cable box, tune to the premium cable channel you want to record.
6. Begin recording.
Note: To view a different channel while recording:
• Select ANT1 in the SET UP menu under Prog Chan.
• Press the TV/VIDEO button on the remote control to TV mode.
• Tune the television to a television program (except another premium cable channel).
Amplifier Connection (TO AUDIO AMP)
To listen through a separate stereo system, connect an external audio amplifier TO AUDIO AMP outputs on back of television.
Note: TO AUDIO AMP terminals cannot be connected directly to external speakers.
Audio Adjustments
1. Select SPEAKERS ON located in the onscreen AUDIO menu.
2. Set amplifier volume to minimum.
3. Adjust television volume to desired level.
4. Adjust amplifier volume to match the television.
5. Select SPEAKERS OFF & VARIABLE AUDIO OUT from AUDIO menu.
6. Volume, mute, bass, treble and balance are now controlled through the television.
Note: Select SPEAKERS OFF & FIXED AUDIO OUT to control audio functions through the external amplifier.
Front Control Panel
The front control panel can be used to access menus and switch video mode when the remote control is not available.
A second VCR, Camcorder, a video disc player, video game equipment or DSS equipment can also be connected to the
video inputs. See the optional equipment manual for details.
Procedure
1. Connect equipment to front Audio/Video input jacks.
2. Press TV/VIDEO button to select VIDEO 4 input mode.
3. Operate optional equipment as instructed in equipment manual.
CABLES NOT SUPPLIED
CONNECTIONS ON BACK OF TV
External Amplifier
S-
VIDEO
VIDEO
AUDIO
L
R
VIDEO
Y
PB
PR
PROG
OUT TO
AMP
L
R
INPUT
1INPUT 2INPUT 3
COMPONENT
ANT 1
ANT 2
SPLIT OUT
12 AUDIO
VIDEO INPUTS
ACTION TV/VIDEO q CHANNEL p
S-VIDEO VIDEO4 L-AUDIO-R
t VOLUME u POWER
ON/OFF INDICATOR
POWER ON/OFF
CAMCORDER
Note: The ON/OFF indicator LED (red) will be lit when set is on.
Note: The S-VIDEO connection provides higher quality picture. It
overrides VIDEO 4 connections. Use INPUT 4, AUDIO L
and R with S-VIDEO connection.

O PTIONAL E QUIPMENT C ONNECTIONS
11 l
Program Out Connection (PROG OUT)
To use the television audio and video with optional equipment, connect the PROG OUT and TO AUDIO AMP connections on the back of
the television.
Procedure
1. Connect optional equipment to PROG OUT and TO AUDIO AMP terminals.
2. PROG OUT terminal display is the same as onscreen display.
3. See optional equipment manual for further instructions for recording and monitoring.
Digital TV - Set-Top Box (DTV-STB) or DVD Connection
This television is capable of displaying 1080i and 480p DTV signals when connected to a DTV Tuner set-top-box (STB). In
order to view DTV programming, the STB must be connected to the component video inputs (Y, PB, PR) of the television. A
DTV signal must be available in your area. Select the output of the STB to either 1080i or 480p.
This television also utilizes a progressive scan doubler, which de-interlaces the NTSC signal and progressively scans the
image. This allows you to sit close to the TV and not see the thin black horizontal lines (venetian blind effect) associated
with interlaced TV pictures.
Use this diagram to connect the Panasonic DTV-STB (Digital TV-Set-Top Box) or DVD Player to the back of your TV.
Note: There are 2 sets of three video inputs, Y, P
B
, and P
R
. Separate component color inputs provide luminance and color separation.
Use the L (left) and R (right) audio inputs.
CABLES NOT SUPPLIED
CONNECTIONS ON BACK OF TV
VCR
OR
MONITOR
S-
VIDEO
VIDEO
AUDIO
L
R
VIDEO
Y
PB
PR
PROG
OUT TO
AMP
L
R
INPUT
1INPUT 2INPUT 3
COMPONENT
ANT 1
ANT 2
SPLIT OUT
12 AUDIO
VIDEO INPUTS
S-
VIDEO
VIDEO
AUDIO
L
R
VIDEO
Y
PB
PR
PROG
OUT TO
AMP
L
R
INPUT
1INPUT 2INPUT 3
COMPONENT
ANT 1
ANT 2
SPLIT OUT
12 AUDIO
VIDEO INPUTS
TERMINALS ON BACK OF DTV-STB OR DVD PLAYER
DIGITAL TV OUTPUT
PR PB Y
MAIN
VIDEO
NTSC OUTPUT
R-AUDIO-L S-VIDEO
L-AUDIO-R
-VIDEO
DTV INPUT TERMINALS ON BACK OF TV
CABLES NOT SUPPLIED

12 l
S PECIAL R EMOTE B UTTONS
Special Remote Buttons
ASPECT Button
The ASPECT button on the remote control lets you choose one of four display modes, depending on the format of the
received signal and your preferences.
BBE Button
Press this button to turn the BBE®sound feature On or Off. BBE®Sound technology enhances speech intelligibility and
restores the dynamic range of musical passages to provide outstanding natural sound.
SAP Button
Press this button to let you cycle through different audio modes. If you are receiving a stereo program and you press the
SAP button, you can cycle between STEREO and MONO.

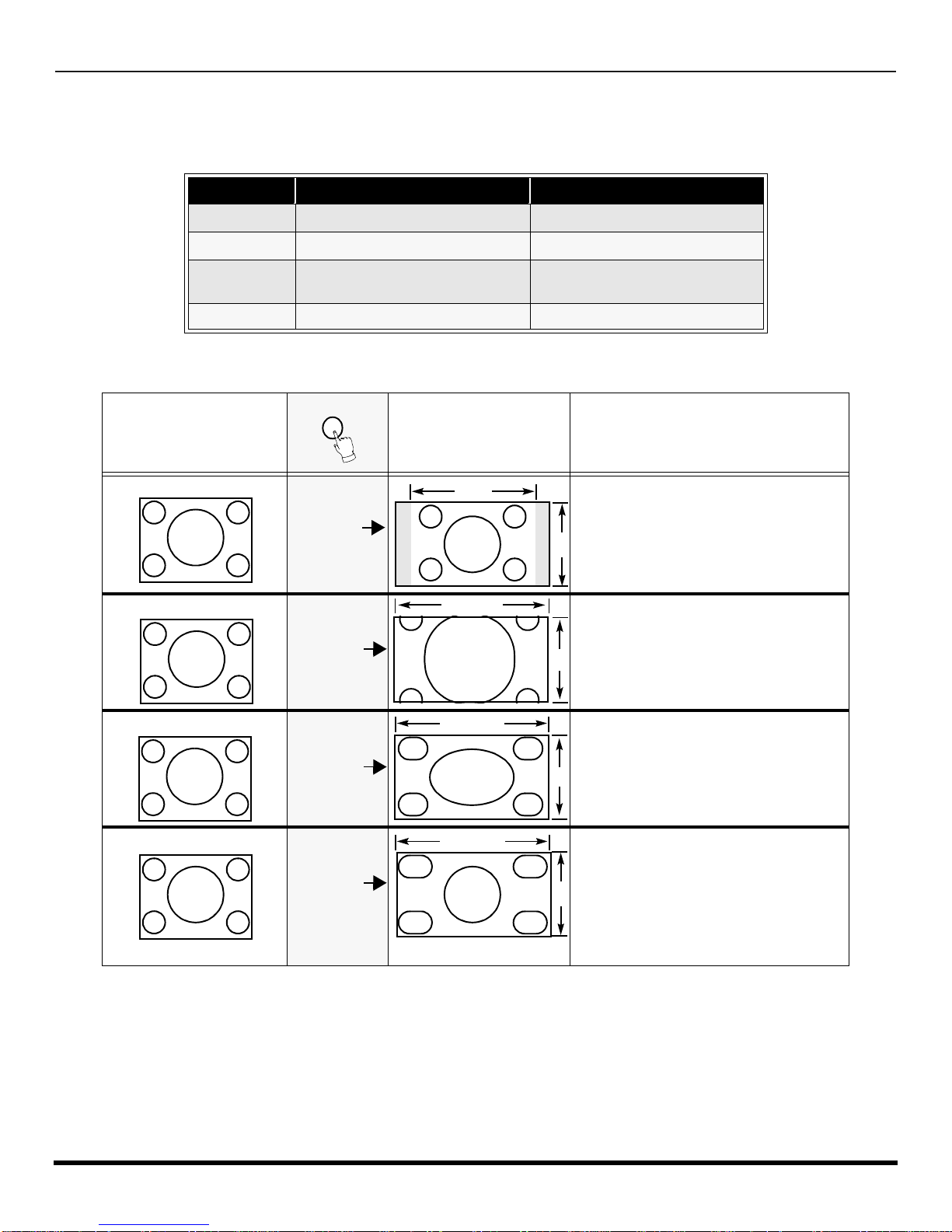

Customer Options depending on Component Input Signal
INPUT SIGNAL DISPLAY ON SCREEN ASPECT BUTTON OPTIONS
1080i 16:9 only no options
480p (16:9) Default to 16:9 4:3, Full or Zoom (see below)
480p (4:3) Default to FULL mode
Note: Will stretch picture horiz.
4:3, Full or Zoom (see below)
480i Default to JUST mode 4:3, Full, Just or Zoom (see below)
Input Signal ASPECT Image on
16:9 Screen Size Explanation
4:3
This will display a 4:3 picture at its
standard 4:3 size with gray side bars.
(Not recommended for viewing 4:3
pictures, may cause a permanent
image on screen if displayed for a
prolonged period of time.)
ZOOM
This will expand the 4:3 picture
uniformly (width and height) to full
screen width and then reposition the
picture vertically. (Recommended for
letterbox pictures.)
FULL
This will show picture at full
screen size. (Recommended for
anamorphic pictures.)
JUST
This will stretch the right and left
edges of a 4:3 picture to fill the
screen. The center of the screen
will have aspect correction applied.
The size of the picture will depend on
the original signal. (Recommended
for regular TV viewing.)
4
3
16
9
16
9
16
9
480i or 480p
480i or 480p
480i or 480p
480i

PIP AND S PLIT O PERATION
13 l
PIP and Split Operation
PIP Operation
This television includes a two-tuner Picture In Picture (PIP) feature. This allows you to watch two (2) live broadcasts at the
same time with or without an external video source such as a VCR, cable box, etc.
Split Operation
This feature lets you watch two different channels side by side with or without an external video source.
PIP and Split Operation With a Cable Box
To view premium (scrambled) cable channels through your cable box in the Main Picture:
Note: Use this procedure if you want to watch premium cable channels in the Main Picture while viewing a television program or video
in the PIP or Split frame.
Procedure
rSelect ANT 2 in the SET UP menu under Prog Chan (Program Channels).
rTune PTV to Channel 3.
rPress PIP or SPLIT button on the remote control to display the PIP or Split frame.
Note: Audio is from the Main Picture only.
rVerify the Cable box is ON.
rChoose channels for the Main Picture by tuning the cable box.
rChoose channels for the PIP or Split frame by pressing .
Note: Swap is not available when using the cable box to tune channels. If your cable box has video output, it can be
connected to the PTV to allow you to use all PIP or Split functions. See the equipment manual for more information.
Main Picture
PIP Frame
rConnect incoming cable to ANT 1 input on back of TV
rPress PIP button to display PIP frame.
rSelect channels for the PIP frame by pressing .
rSelect channels for the Main picture by pressing
or use the remote control numeric keypad.
rPress SWAP button to switch the PIP and MAIN PICTURE
source.
rPress to view picture source status.
rPress PIP button to cancel PIP frame.
PIP
C
H
or
CH
CH
RECALL
Note: Audio is from Main Picture only.
Split Picture
no Audio
rPress SPLIT button to display Split screen.
rSelect channels for the Split screen by pressing
.
rSelect channels for the Main picture by pressing
or use the remote control numeric keypad.
rPress SWAP button to switch the SPLIT SCREEN and MAIN
PICTURE source.
rPress to view picture source status.
rPress SPLIT button to cancel Split screen.
PIP CH
or
CH
CH
RECALL
Main Picture
with Audio
Note: Audio is from Main Picture only.
PIP CH

14 l
PIP AND S PLIT O PERATION
PIP and Split Operation (contd.)
TV/VIDEO Button (PIP and Split)
Press when PIP or Split frame is displayed to select desired input mode.
Search Button (PIP and Split)
This feature lets you scan through all available channels.
Move Button (PIP only)
This feature is used to move PIP frame to one of four corners.
PIP MIN and PIP MAX Buttons
While PIP frame is displayed, press PIP MIN or PIP MAX button to vary the size of PIP frame.
PIP Frame
Main Picture
CH # COMPONENT 1 COMPONENT 2 VIDEO 1
VIDEO 2VIDEO 3VIDEO 4
Main Picture
COMPONENT 2 VIDEO 1
VIDEO 2VIDEO 3
Split Frame
CH # COMPONENT 1
VIDEO 4
Search Frames
rPress PIP or SPLIT to display PIP or Split frame.
rPress SEARCH button to display search frames.
rPress SEARCH again to stop search feature. PIP
or Split frame channel will be the last active search
frame.
rPress PIP or SPLIT button to cancel PIP or Split
frame.
Main Picture
2
3
4
PIP Frame
rPress PIP button to display PIP frame.
rPress MOVE button to position PIP frame to desired
corner.
rPress PIP button to cancel PIP frame.
Main Picture
MIN
rPress PIP button to display PIP frame.
rPress or to size PIP frame.
rPress PIP to cancel PIP frame.
PIP MIN PIP MAX
Main Picture
MAX

PIP AND S PLIT O PERATION
15 l
PIP and Split Operation (contd.)
Freeze Button (PIP and Split)
This feature is used to stop action in PIP or Split frame.
Main Picture Freeze Feature
This feature is used to stop action of the Main Picture in display it on a Split freeze frame.
PIP, Split and Freeze Mode Buttons Operational Chart
This chart indicates the buttons that are operational with PIP, Split or Main Picture Freeze mode.
REMOTE
BUTTONS PIP MODE SPLIT MODE MAIN PICTURE FREEZE MODE
PIP MIN Size Smaller No Effect No Effect
PIP MAX Size Larger No Effect No Effect
FREEZE Freeze PIP Frame Freeze Split Frame Display or Delete
PIP CH Change Channel Change Channel No Effect
SEARCH Displays Search Frames Displays Search Frames No Effect
PIP Displays PIP Frame Displays PIP Frame No Effect
SPLIT Displays Split Frame Displays Split Frame No Effect
MOVE Move PIP Frame No Effect Move PIP Frame
SWAP Swap With Main Picture Swap With Main Picture No Effect
rPress PIP or SPLIT to display PIP or Split frame.
rPress to stop PIP or Split frame action.
rPress again to continue action.
rPress PIP or SPLIT to cancel PIP frame.
FREEZE
TV/VCR
FREEZE
TV/VCR
Main Picture
Freeze frame
rTo stop action for Main picture, press while
PIP or Split frame is not displayed.
rMain Picture freeze will be displayed in a PIP or Split
frame, depending on the selection in the Freeze menu
located inPicture Other ADJ2 section (refer to page40).
rPress again to cancel Main Picture freeze
frame.
Note: While Main Picture freeze frame is displayed, only
move button is active for PIP, all other PIP and Split
buttons has no effect (see chart below).
FREEZE
TV/VCR
FREEZE
TV/VCR
Main Picture
Main Picture
Freeze frame
PIP or Split.

16 l
R EMOTE C ONTROL O PERATION ( MODELS PT-47WX42, PT-53WX42 AND PT-56WX42)
Remote Control Operation (models PT-47WX42, PT-53WX42 and PT-56WX42)
Press to turn ON and OFF.
POWER
MUTE
Press to mute sound. Press to display and
cancel CC (Closed Caption).
SAP
Press to access second audio program.
TV/VIDEO
Press to select TV, Video mode.
Press to select remote operation.
TV
VCR
DBS/CBL
DVD
ACTION
Press to access menus.
Press to select next or previous channel and
navigate in menus.
CH
CH
Press to adjust TV sound and navigate in
menus.
VOLVOL
EXIT
DBS functions button.
SEARCH
GUIDE
SEARCH - Press for PIP Search.
GUIDE - DBS functions button.
*PIP MIN
REW *SPLIT
PLAY *PIP MAX
FF
*SWAP
PAUSE *MOVE
STOP *PIP
REC
*FREEZE
TV/VCR *PIP CH
VCR /DBS CH
*Split and PIP function buttons
Component function buttons
u
Press numeric keypad to select any channel.
7
4
1 2
5
8
0
9
6
3
R-TUNE
Press to switch to previously viewed
channel or video mode.
Battery Installation
Use two AA batteries:
Remove battery cover by pushing in and up near arrow.
Install batteries matching (+) and (-) polarity signs.
Replace the battery cover.
Note: Incorrect installation can cause battery leakage and
corrosion that will damage the Remote Control
Precautions
• Replace batteries in pairs.
• Do not mix battery types (zinc carbon
with alkaline).
• Do not recharge, heat, short-circuit,
disassemble, or burn batteries.
ASPECT
PROG
ASPECT - Select picture size (ratio) to match
programming format.
PROG - Press to enter minor number in a
compound number.
RECALL
Press to display time, channel, sleep timer,
and other options.
BBE
MENU
BBE - Press to turn on or off.
MENU- Press to access DBS or DVD menus.
EUR7613Z40

R EMOTE C ONTROL O PERATION ( MODELS PT-47WX42, PT-53WX42 AND PT-56WX42)
17 l
Mode Operational Key Chart
This chart defines the keys that are operational in the selected component modes (TV, VCR, DBS, CABLE or DVD) after
programming (if needed).
KEY NAME TV MODE CABLE MODE DBS MODE
POWER POWER POWER POWER
SAP SAP ON/OFF - -
MUTE MUTE TV MUTE TV MUTE
TV/VIDEO INPUT SWITCH TV INPUT SWITCH TV INPUT SWITCH
BBE/MENU BBE ON/OFF -DBS MENU
CHAN UP CHANNEL UP CABLE CHANNEL UP DBS NAVIGATION UP
CHAN DOWN CHANNEL DOWN CABLE CHANNEL DOWN DBS NAVIGATION DOWN
VOL RIGHT VOL + TV VOL + DBS NAVIGATION RIGHT
VOL LEFT VOL - TV VOL - DBS NAVIGATION LEFT
ACTION ACTION -DBS MENU
RECALL DISPLAY TV DISPLAY DBS PROG. INFO
EXIT - - DBS EXIT
SEARCH/GUIDE PIP OR SPLIT SEARCH -DBS GUIDE
1DIGIT 1 DIGIT 1 DIGIT 1
2DIGIT 2 DIGIT 2 DIGIT 2
3DIGIT 3 DIGIT 3 DIGIT 3
4DIGIT 4 DIGIT 4 DIGIT 4
5DIGIT 5 DIGIT 5 DIGIT 5
6DIGIT 6 DIGIT 6 DIGIT 6
7DIGIT 7 DIGIT 7 DIGIT 7
8DIGIT 8 DIGIT 8 DIGIT 8
9DIGIT 9 DIGIT 9 DIGIT 9
0DIGIT 0 DIGIT 0 DIGIT 0
R-TUNE PREVIOUS CHAN
OR VIDEO MODE CABLE PREVIOUS CHANNEL PREVIOUS DBS CHANNEL
ASPECT
PROG TV ASPECT -DBS PROGRAM
PIP MIN
<<REW TV PIP MIN - -
SIZE
PLAY TV PIP SIZE - -
PIP MAX
FF >> TV PIP ON / OFF - -
SWAP
PAUSE TV PIP/SPLIT SWAP - -
MOVE
STOP MOVE PIP - -
PIP/RECORD TV PIP ON / OFF - -
FREEZE/TV/VCR PIP OR SPLIT FREEZE - -
PIP CH
VCR/DBS CH
PIP OR SPLIT CHANNEL
DOWN -DBS CHANNEL DOWN
PIP CH
VCR/DBS CH
TV PIP OR SPLIT
CHANNEL UP -DBS CHANNEL UP

18 l
R EMOTE C ONTROL O PERATION ( MODELS PT-47WX42, PT-53WX42 AND PT-56WX42)
Mode Operational Key Chart (contd.)
KEY NAME
VCR MODE DVD MODE
POWER POWER POWER
SAP - -
MUTE TV MUTE TV MUTE
BBE/MENU - -
TV/VIDEO TV INPUT SWITCH TV INPUT SWITCH
CHAN UP -NEXT CHAPTER
CHAN DOWN - PREVIOUS CHAPTER
VOL RIGHT TV VOLUME + NAVIGATION RIGHT
VOL LEFT TV VOLUME - NAVIGATION LEFT
ACTION - -
RECALL ONSCREEN VCR
DISPLAY DVD DISPLAY
EXIT - -
SEARCH/GUIDE - -
1- -
2- -
3- -
4- -
5- -
6- -
7- -
8- -
9- -
0- -
R-TUNE - -
ASPECT/PROG - -
PIP MIN
<<REW VCR REWIND SKIP SEARCH REW <<
SPLIT
PLAY VCR PLAY DVD PLAY
PIP MAX
FF>> VCR FF SKIP SEARCH FF>>
SWAP
PAUSE VCR PAUSE DVD STILL
MOVE
STOP VCR STOP DVD STOP
PIP/RECORD VCR RECORD -
FREEZE/TV/VCR TV/VCR SWITCH OPEN/CLOSE
PIP CH
VCR/DBS CH
VCR CHANNEL
DOWN SLOW -
PIP CH
VCR/DBS CH
VCR CHANNEL UP SLOW +
