Panasonic CQ-DFX501 User manual

Panasonic.
Removable Full Front CD Player/Receiver with Changer Control
Lecteur CD/Recepteur avec commande de changeur de CD
el panneau avant entièrement amovible
Reproductor de CD/Receptor con caratula completa
desmontable y control de cambiador de CD
CQ-DFX501/DF401U
Removable Full Front CD Player/Receiver
Lecteur CD/Récepteur avec panneau avant entièrement amovible
Reproductor de CD/Receptor con caratula completa desmontable
CQ-DFX301U
Operating Instructions
Manuel d'instructions
Manual de instrucciones
+ Please read these instructions carefully before using this product and save this manual for future use.
® Prière de lire ces instructions atientivement avant d'utiliser le produit et garder ce manuei pour l'utilisation uiténeure.
*
Lea
con
atención
estas
instrucciones
antes
de
utilizar
el
producto
y
guarde
este
manual
para
poderlo
consultar
en
el
futuro.

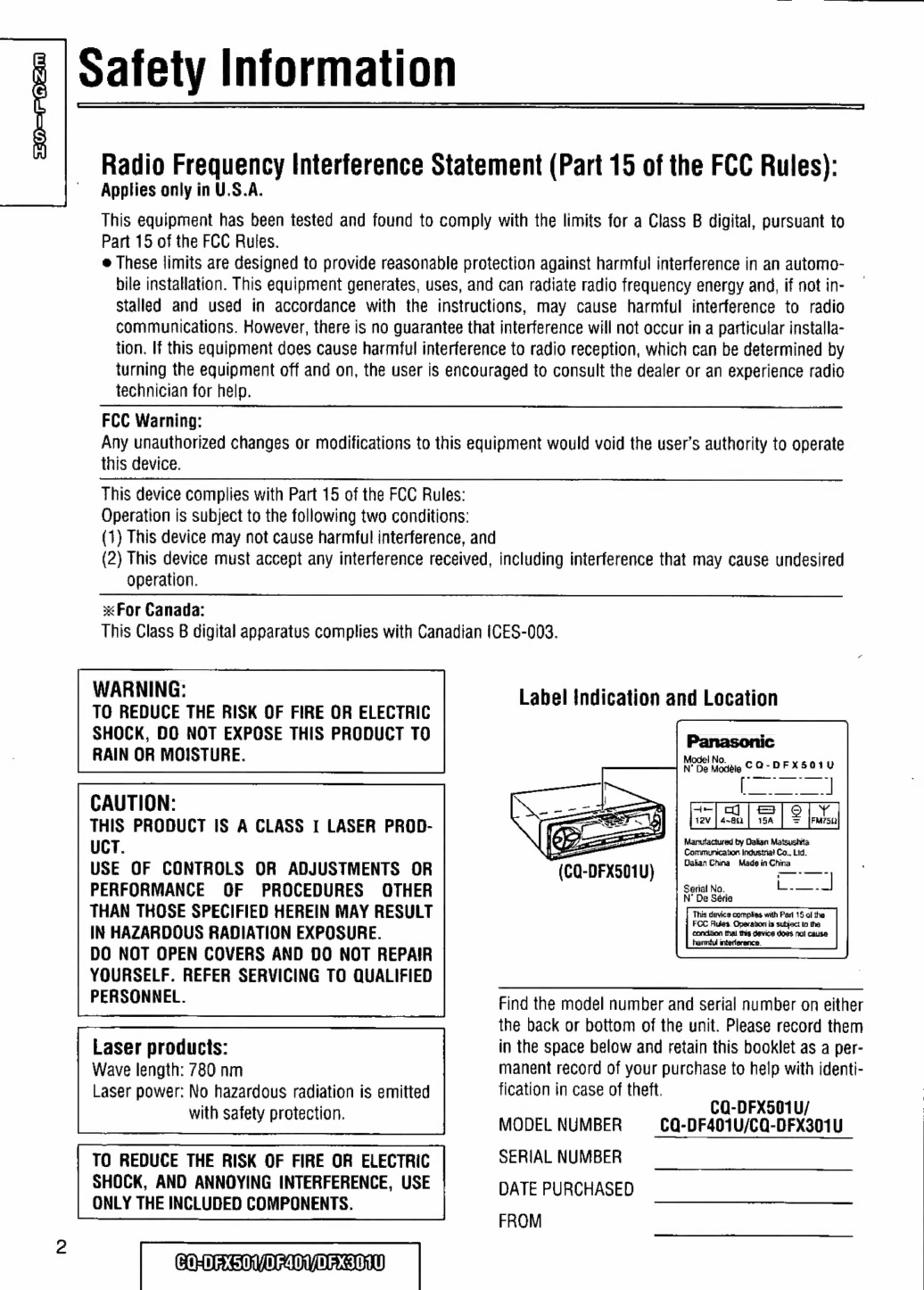

Safety Information
Radio Frequency Interference Statement (Part 15 of the FCC Rules):
Applies only in U.S.A.
This equipment has been tested and found to comply with the limits for a Class B digital, pursuant to
Part 15 of the FCC Rules.
e These limits are designed to provide reasonable protection against harmful interference in an automo-
bile installation. This equipment generates, uses, and can radiate radio frequency energy and, if not in-
stalled and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installa-
tion. If this equipment does cause harmful interference to radio reception, which can be determined by
turning the equipment off and on, the user is encouraged to consult the dealer or an experience radio
technician for help.
FCC Warning:
Any unauthorized changes or modifications to this equipment would void the user’s authority to operate
this device.
This device complies with Part 15 of the FCC Rules:
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
xFor Canada:
This Class B digital apparatus complies with Canadian ICES-003.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.
Label Indication and Location
Panasonic
Model No wig CO-DEX501U
CAUTION:
THIS PRODUCT IS A CLASS I LASER PROD-
UCT.
USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER
THAN THOSE SPECIFIED HEREIN MAY RESULT
IN HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR
YOURSELF. REFER SERVICING TO QUALIFIED
PERSONNEL.
Manufactured by Dalan Matsushita
Communication Industria? Co., Lid.
Dakan China Made in China
,
Serial No. E
N° De Série
This device complies with Part 15 ol the
FCC Rules. Operation is subject to tha
condition thal this device does nol cause
harmtul interference.
Find the model number and serial number on either
the back or bottom of the unit. Please record them
Laser products: in the space below and retain this booklet as a per-
Wave length: 780 nm manent record of your purchase to help with identi-
Laser power: No hazardous radiation is emitted fication in case of theft.
with safety protection. CQ-DFX501U/
MODEL NUMBER CQ-DF401U/CQ-DFX301U
TO REDUCE THE RISK OF FIRE OR ELECTRIC SERIAL NUMBER
SHOCK, AND ANNOYING INTERFERENCE, USE DATE PURCHASED
ONLY THE INCLUDED COMPONENTS.
FROM
CO-DEXS01/DE401/DEX3O1U

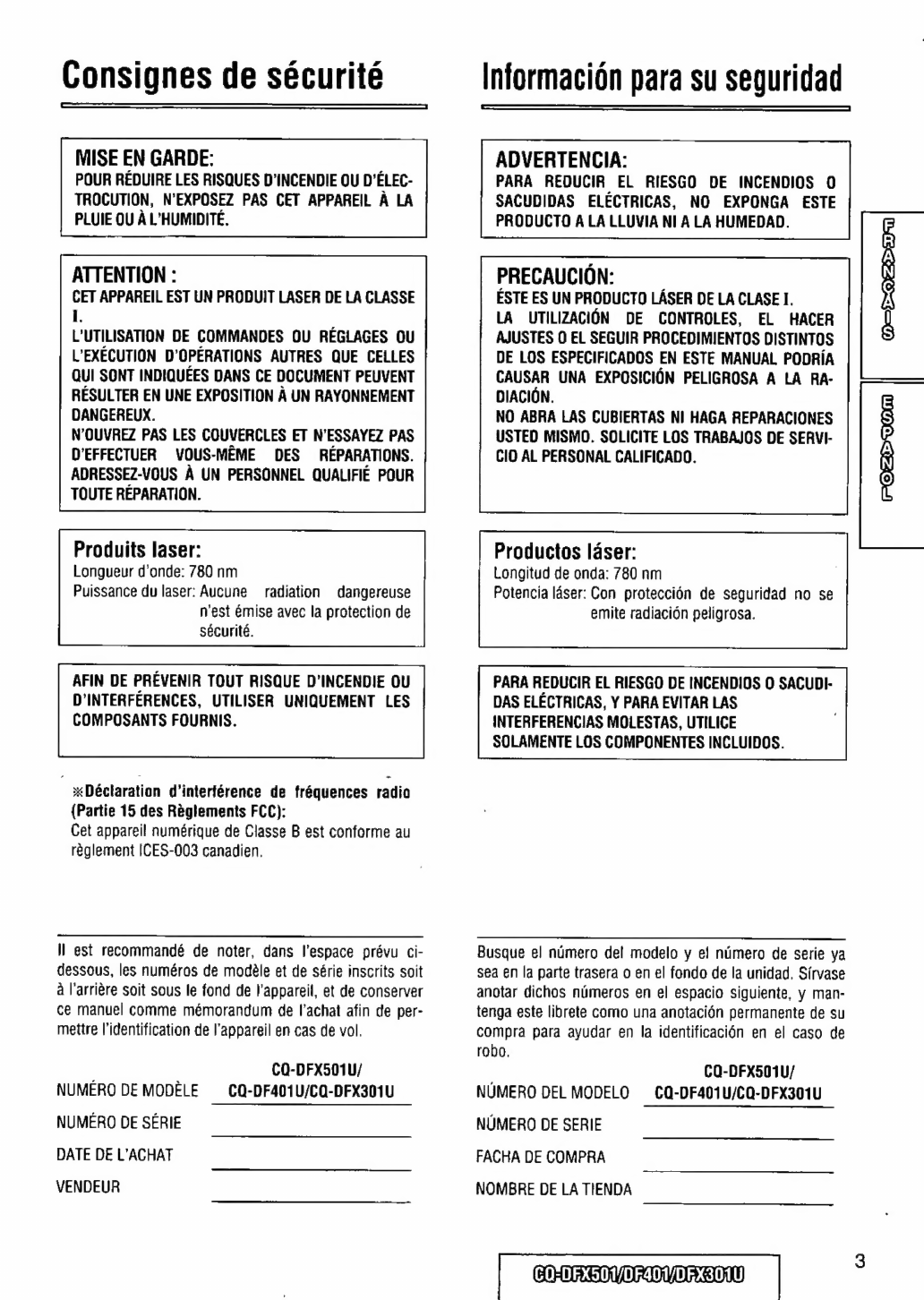

Consignes de sécurité
MISE EN GARDE:
POUR RÉDUIRE LES RISQUES D'INCENDIE OU D'ÉLEC-
TROCUTION, N'EXPOSEZ PAS CET APPAREIL À LA
PLUIE OU À L'HUMIDITÉ.
ATTENTION :
CET APPAREIL EST UN PRODUIT LASER DE LA CLASSE
i
L'UTILISATION DE COMMANDES OU REGLAGES OU
L'EXÉCUTION D'OPÉRATIONS AUTRES QUE CELLES
QUI SONT INDIQUÉES DANS CE DOCUMENT PEUVENT
RÉSULTER EN UNE EXPOSITION À UN RAYONNEMENT
DANGEREUX.
N’OUVREZ PAS LES COUVERCLES ET N'ESSAYEZ PAS
D'EFFECTUER VOUS-MÊME DES REPARATIONS.
ADRESSEZ-VOUS À UN PERSONNEL QUALIFIÉ POUR
TOUTE RÉPARATION.
Produits laser:
Longueur d'onde: 780 nm
Puissance du laser: Aucune radiation dangereuse
n'est émise avec la protection de
sécurité.
AFIN DE PRÉVENIR TOUT RISQUE D'INCENDIE OU
D'INTERFERENCES, UTILISER UNIQUEMENT LES
COMPOSANTS FOURNIS.
xDéctaration d’interférence de fréquences radio
{Partie 15 des Règlements FCC):
Cet appareil numérique de Classe B est conforme au
règlement ICES-003 canadien.
Il est recommandé de noter, dans l’espace prévu ci-
dessous, les numéros de modèle et de série inscrits soit
à l'arrière soit sous le fond de l'appareil, et de conserver
ce manuel comme mémorandum de l'achat afin de per-
mettre l'identification de l'appareil en cas de vol.
| C0-DFX501U/
NUMÉRO DE MODÈLE CQ-DF401U/CQ-DFX301U
NUMÉRO DE SÉRIE
DATE DE L'ACHAT
VENDEUR
Información para su seguridad
ADVERTENCIA:
PARA REDUCIR EL RIESGO DE INCENDIOS 0
SACUDIDAS ELÉCTRICAS, NO EXPONGA ESTE
PRODUCTO A LA LLUVIA NI A LA HUMEDAD.
PRECAUCIÓN:
ÉSTE ES UN PRODUCTO LÁSER DE LA CLASE I.
LA UTILIZACIÓN DE CONTROLES, EL HACER
AJUSTES 0 EL SEGUIR PROCEDIMIENTOS DISTINTOS
DE LOS ESPECIFICADOS EN ESTE MANUAL PODRÍA
CAUSAR UNA EXPOSICIÓN PELIGROSA A LA RA-
DIACIÓN.
NO ABRA LAS CUBIERTAS NI HAGA REPARACIONES
USTED MISMO. SOLICITE LOS TRABAJOS DE SERVI-
CIO AL PERSONAL CALIFICADO.
Productos láser:
Longitud de onda: 780 nm
Potencia láser: Con protección de seguridad no se
emite radiación peligrosa.
PARA REDUCIR EL RIESGO DE INCENDIOS O SACUDI-
DAS ELÉCTRICAS, Y PARA EVITAR LAS
INTERFERENCIAS MOLESTAS, UTILICE
SOLAMENTE LOS COMPONENTES INCLUIDOS.
Busque el número del modelo y el número de serie ya
sea en la parte trasera o en el fondo de la unidad, Sírvase
anotar dichos números en el espacio siguiente, y man-
tenga este librete como una anotación permanente de su
compra para ayudar en la identificación en el caso de
robo.
CQ-DFX501U/
NÚMERO DEL MODELO €Q-DF401U/CO-DFX301U
NUMERO DE SERIE
FACHA DE COMPRA
NOMBRE DE LA TIENDA
CO5DEX501/D5401/DFEX301U
SC) ZT
Tn UO ITI

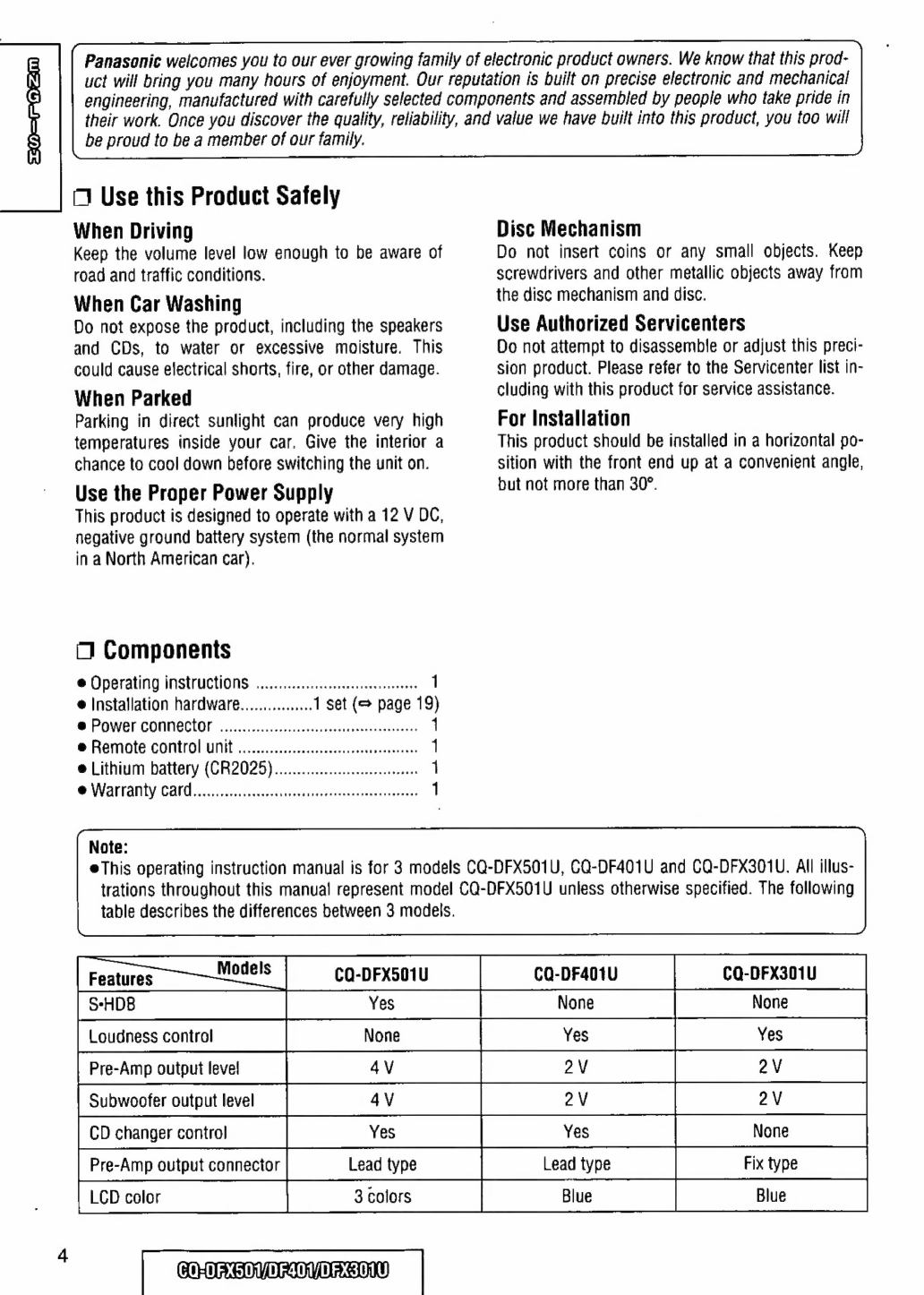

Panasonic
welcomes
you
to
our
ever
growing
family
of
electronic
product
owners.
We
know
that
this
prod-
uct
will
bring
you
many
hours
of
enjoyment.
Our
reputation
is
built
on
precise
electronic
and
mechanical
engineering,
manufactured
with
carefully
selected
components
and
assembled
by
people
who
take
pride
in
their
work.
Once
you
discover
the
quality,
reliability,
and
value
we
have
built
into
this
product,
you
too
will
be proud to be a member of our family.
O Use this Product Safely
When Driving
Keep the volume level low enough to be aware of
road and traffic conditions.
When Car Washing
Do not expose the product, including the speakers
and CDs, to water or excessive moisture. This
could cause electrical shorts, fire, or other damage.
When Parked
Parking in direct sunlight can produce very high
temperatures inside your car. Give the interior a
chance to cool down before switching the unit on.
Use the Proper Power Supply
This product is designed to operate with a 12 V DC,
negative ground battery system (the normal system
in a North American car).
O Components
e Operating instructions aeee 1
e Installation hardware................ 1 set (> page 19)
è Power connector anren 1
e Remote control unit... 1
e Lithium battery (CR2025).......................... 1
è Walla WC siii 1
Note:
eThis operating instruction manual is for 3 models CQ-DFX501U, CQ-DF401U and CQ-DFX301U. All illus-
trations throughout this manual represent model CQ-DFX501U unless otherwise specified. The following
table describes the differences between 3 models.
| CO-DEXS01/DE401/DEX3O1U |
Disc Mechanism
Do not insert coins or any small objects. Keep
screwdrivers and other metallic objects away from
the disc mechanism and disc.
Use Authorized Servicenters
Do not attempt to disassemble or adjust this preci-
sion product. Please refer to the Servicenter list in-
cluding with this product for service assistance.
For Installation
This product should be installed in a horizontal po-
sition with the front end up at a convenient angle,
but not more than 30°.

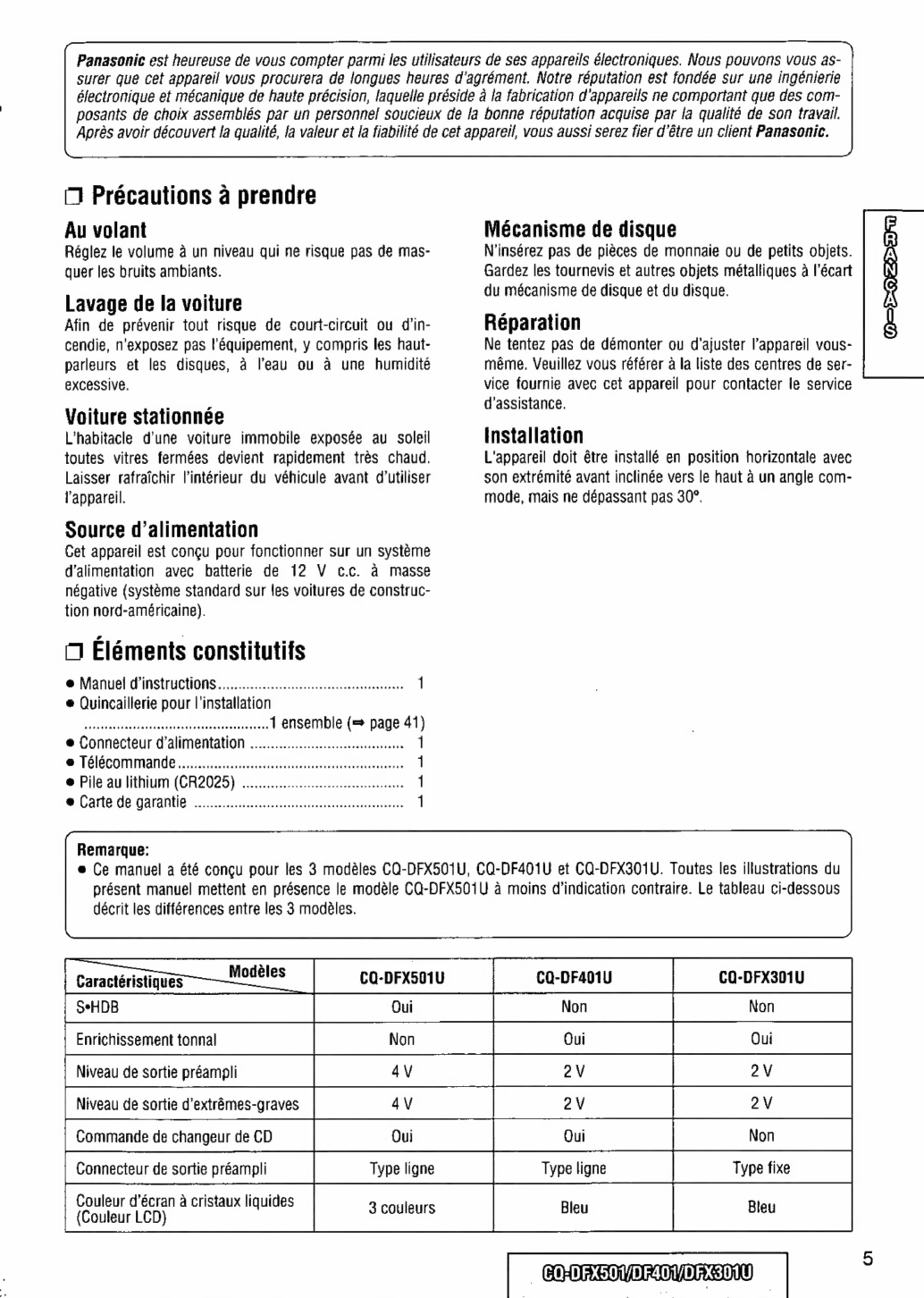

Panasonic est heureuse de vous compter parmi les utilisateurs de ses appareils électroniques. Nous pouvons vous as-
surer que cet appareil vous procurera de longues heures d'agrément. Notre réputation est fondée sur une ingénierie
électronique et mécanique de haute précision, laquelle préside à la fabrication d'appareils ne comportant que des com-
posants de choix assemblés par un personnel soucieux de la bonne réputation acquise par la qualité de son travail.
Après avoir découvert la qualité, la valeur et la fiabilité de cet appareil, vous aussi serez fier d'être un client Panasonic.
© Précautions à prendre
Au volant
Réglez le volume à un niveau qui ne risque pas de mas-
quer les bruits ambiants.
Lavage de la voiture
Afin de prévenir tout risque de court-circuit ou d’in-
cendie, n'exposez pas l'équipement, y compris les haut-
parleurs et les disques, à l'eau ou à une humidité
excessive.
Voiture stationnée
L'habitacle d'une voiture immobile exposée au soleil
toutes vitres fermées devient rapidement trés chaud.
Laisser rafraîchir l’intérieur du véhicule avant d'utiliser
l'appareil.
Source d'alimentation
Cet appareil est conçu pour fonctionner sur un système
d'alimentation avec batterie de 12 V c.c. à masse
négative (système standard sur les voitures de construc-
tion nord-américaine).
O Éléments constitutifs
e Manuel d'instructions... 1
e Quincaillerie pour l'installation
RP vata EME AE 1 ensemble (= page 41)
e Connecteur d'alimentation oo... cece 1
e Télécommande ura aia 1
e Pile au lithium (CR2025) ..ooconconoociccicicicccccicaricanso 1
@ Carte de garantie coria 1
Remarque:
e Ce manuel a été conçu pour les 3 modèles CO-DFX501U, CQ-DF401U et CQ-DFX301U. Toutes les illustrations du
Mécanisme de disque
N'insérez pas de piéces de monnaie ou de petits objets.
Gardez les tournevis et autres objets métalliques à l'écart
du mécanisme de disque et du disque.
Réparation
Ne tentez pas de démonter ou d'ajuster l'appareil vous-
même. Veuillez vous référer à la liste des centres de ser-
vice fournie avec cet appareil pour contacter le service
d'assistance.
Installation
L'appareil doit être installé en position horizontale avec
son extrémité avant inclinée vers le haut à un angle com-
mode, mais ne dépassant pas 30°.
présent manuel mettent en présence le modèle CQ-DFX501U à moins d'indication contraire. Le tableau ci-dessous
décrit les différences entre les 3 modèles.
S*HDB
Commande de changeur de CD
Caractéristiques——Modeles | coorxsou | co-oramu CO-DFX301U
Connecteur de sortie préampli Type ligne Type ligne Type fixe
Couleur d’écran a cristaux liquides
(Couleur
LCD)
3
couleurs
Doa

FORSR

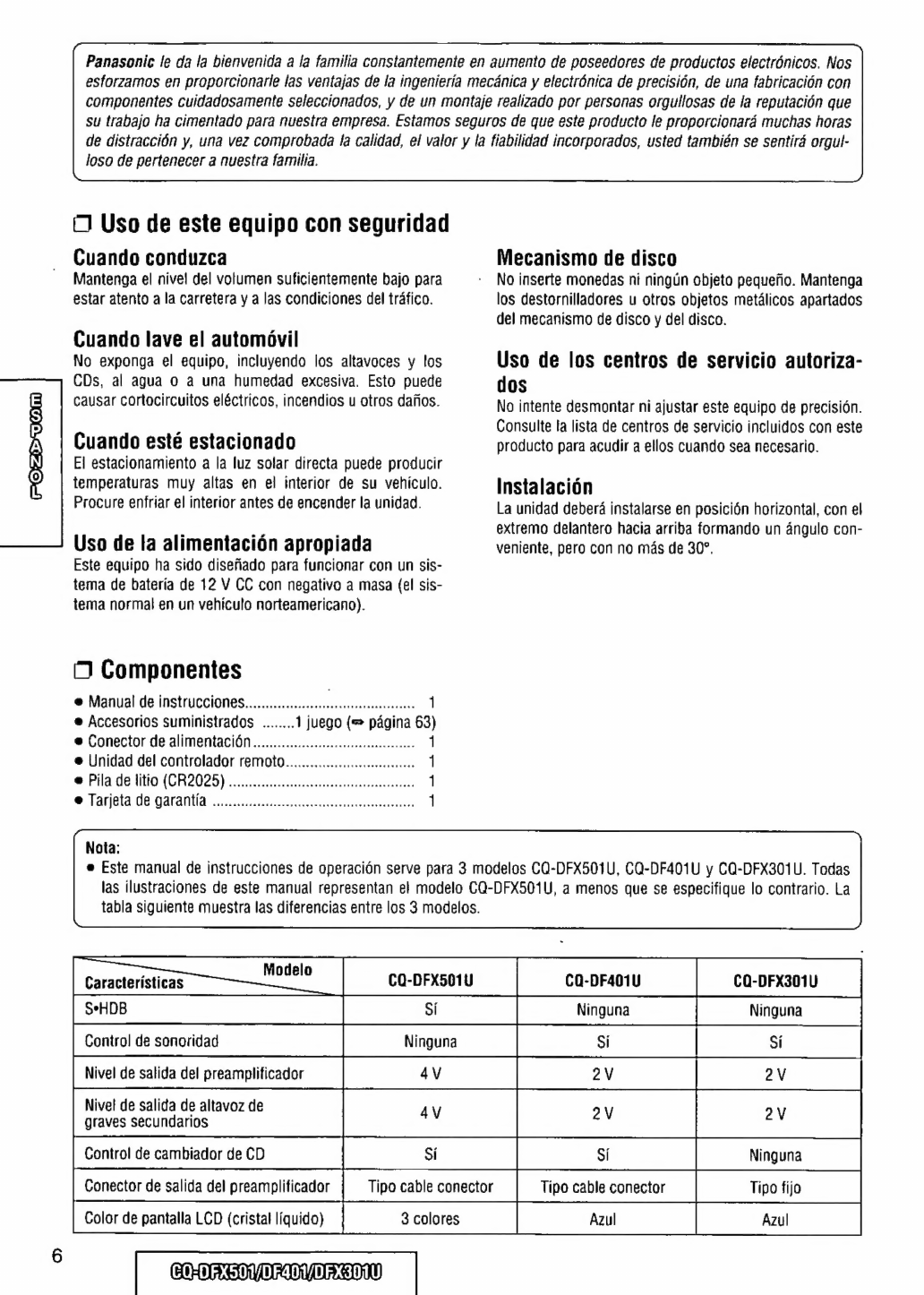

Panasonic le da la bienvenida a la familia constantemente en aumento de poseedores de productos electrónicos. Nos
esforzamos en proporcionarle las ventajas de la ingeniería mecánica y electrónica de precisión, de una fabricación con
componentes cuidadosamente seleccionados, y de un montaje realizado por personas orgullosas de la reputación que
su trabajo ha cimentado para nuestra empresa. Estamos seguros de que este producto le proporcionará muchas horas
de distracción y, una vez comprobada la calidad, el valor y la fiabilidad incorporados, usted también se sentirá orgul-
loso de pertenecer a nuestra familia.
O Uso de este equipo con seguridad
Cuando conduzca
Mantenga el nivel del volumen suficientemente bajo para
estar atento a la carretera y a las condiciones del tráfico.
Cuando lave el automóvil
No exponga el equipo, incluyendo los altavoces y los
CDs, al agua o a una humedad excesiva. Esto puede
causar cortocircuitos eléctricos, incendios u otros daños.
Cuando esté estacionado
El estacionamiento a la luz solar directa puede producir
temperaturas muy altas en el interior de su vehículo.
Procure enfriar el interior antes de encender la unidad.
Uso de la alimentación apropiada
Este equipo ha sido diseñado para funcionar con un sis-
tema de batería de 12 V CC con negativo a masa (el sis-
tema normal en un vehículo norteamericano).
© Componentes
e Manual de instrucciones..…................. 1
e Accesorios suministrados ........1 juego (= página 63)
e Conector de alimentación 00... cece eerste cee 1
e Unidad del controlador remoto... 1
e Pila de litio (CR2025) .0ccocococonicinonicononinicrnonicinnioss 1
è Tarjeta de garantia oo... rnnr 1
Nota:
Mecanismo de disco
No inserte monedas ni ningún objeto pequeño. Mantenga
los destornilladores u otros objetos metálicos apartados
del mecanismo de disco y del disco.
Uso de los centros de servicio autoriza-
dos
No intente desmontar ni ajustar este equipo de precisión.
Consulte la lista de centros de servicio incluidos con este
producto para acudir a ellos cuando sea necesario.
Instalación
La unidad deberá instalarse en posición horizontal, con el
extremo delantero hacia arriba formando un ángulo con-
veniente, pero con no más de 30°.
e Este manual de instrucciones de operación serve para 3 modelos CO-DFX501U, CQ-DF401U y CQ-DFX301U. Todas
las ilustraciones de este manual representan el modelo CQ-DFX501U, a menos que se especifique lo contrario. La
tabla siguiente muestra las diferencias entre los 3 modelos.
-= Modelo
Caracteristicas
S*HDB
| COSDEXS01/DR401/DEX301U |
2V

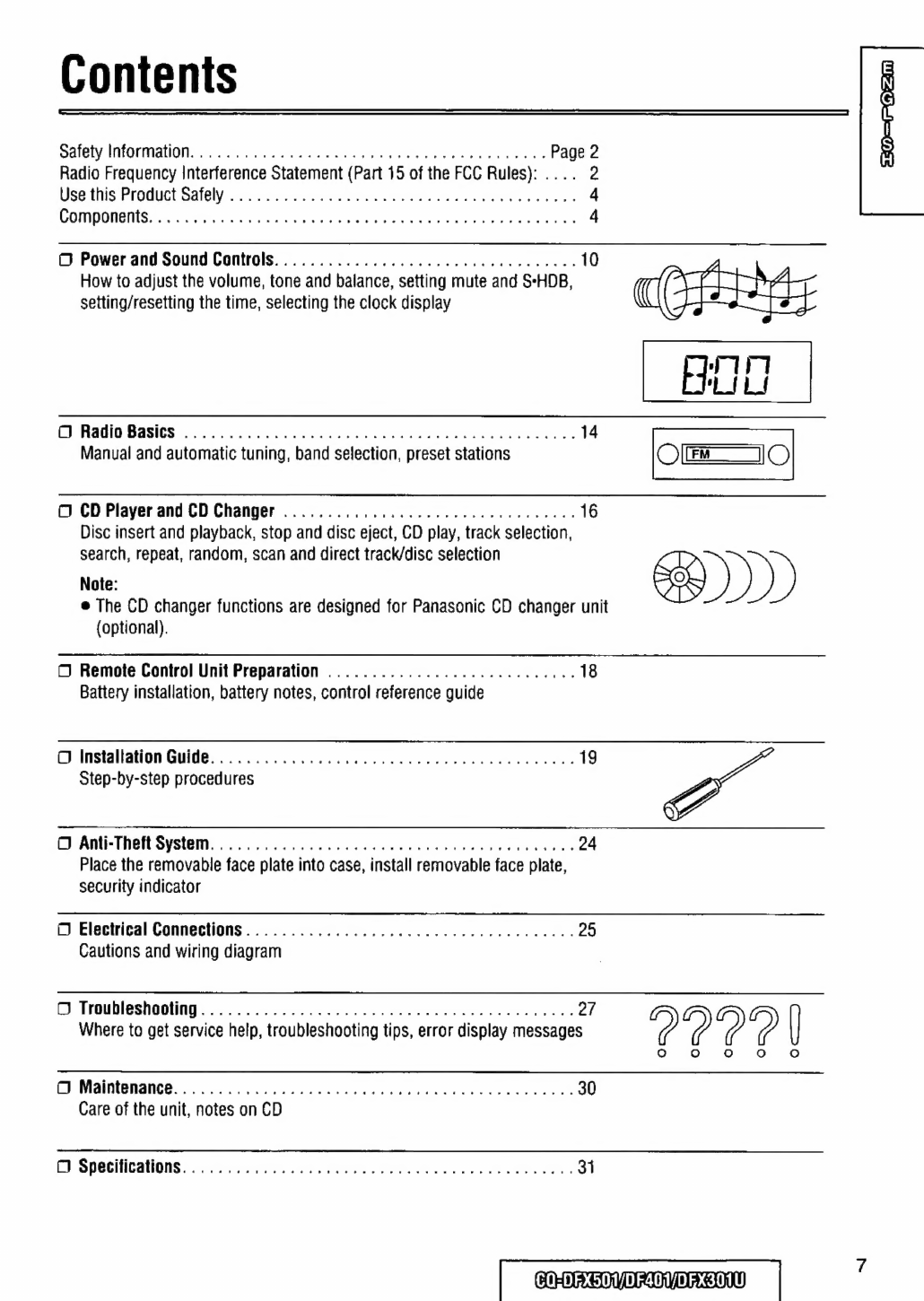

Contents
Safety A ÓN Page 2
Radio Frequency Interference Statement (Part 15 of the FCC Rules): .... 2
Use this Product Safely ............................,,,,....... 4
COMPONEN astas aaa ia ta eee Tan 4
O Power and Sound Controls......................,........... 10
How to adjust the volume, tone and balance, setting mute and S-HDB,
setting/resetting the time, selecting the clock display
BOO
‘LILI
EM Rádi BASES Senco Ss Ew Gis See ees ren OS 14
Manual and automatic tuning, band selection, preset stations OEA JO
O CD Player and CD Changer ................................. 16
Disc insert and playback, stop and disc eject, CD play, track selection,
search, repeat, random, scan and direct track/disc selection a,
SON
Note: CIN
e The CD changer functions are designed for Panasonic CD changer unit
(optional).
O Remote Control Unit Preparation ............................ 18
Battery installation, battery notes, control reference guide
O Installation Guide. ........................................ 19
Step-by-step procedures
O Anti-Theft System. ..............................,..,..,... 24
Place the removable face plate into case, install removable face plate,
security indicator
O Electrical Connections ..................................... 25
Cautions and wiring diagram
J Troubleshooting... ¿rica ida 27
Where to get service help, troubleshooting tips, error display messages a) » DA |
e) © O o O
O Maintenance... .......................,,.................. 30
Care of the unit, notes on CD
EI SPeGhiCaons iia AAA 31
| GO7DEX501/DF401/DFX301U |

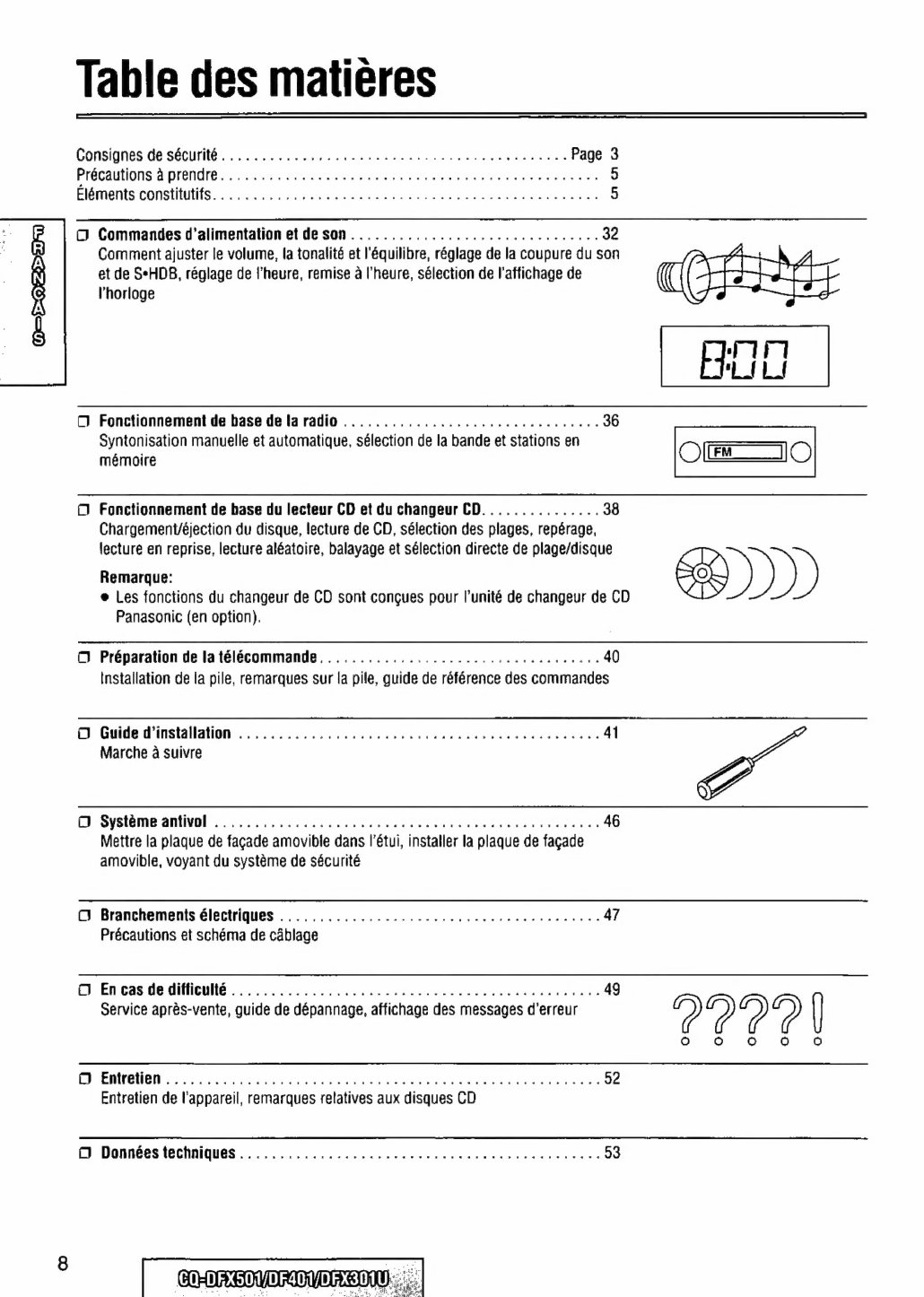

Table des matières
Consignes OO SECULAR ds Page 3
Précautions a prendre a te 5
Eléments constitutifs.. a ON es wo a din ead bees Sud dió 5
O Commandes d'alimentation et de san ............................... 32
Comment ajuster le volume, la tonalité et l'équilibre, réglage de la coupure du son
et de S*HDB, réglage de l'heure, remise à l'heure, sélection de l'affichage de
l'horloge
O Fonctionnement de base de la radio ................................ 36
Syntonisation manuelle et automatique, sélection de la bande et stations en
mémoire OEM JO
O Fonctionnement de base du lecteur CD et du changeur CD............... 38
Chargement/éjection du disque, lecture de CD, sélection des plages, repérage,
lecture en reprise, lecture aléatoire, balayage et sélection directe de plage/disque cis
SV)
Remarque: HAY
e Les fonctions du changeur de CD sont conçues pour l'unité de changeur de CD 4
Panasonic (en option).
O Préparation de la télécommande................................... 40
Installation de la pile, remarques sur la pile, guide de référence des commandes
O Guide d'installation ...........................................,. 41
Marche à suivre
O Système antivol 5 ris oka kee a wh eRe hares FAS 45 46
Mettre la plaque de façade amovible dans l'étui, installer la plaque de façade
amovible, voyant du système de sécurité
O Branchements électriques ..............................,......... 47
Précautions et schéma de câblage
O En cas de difficulté ............................. aig a na Rad rs 49
Service après-vente, guide de dépannage, affichage des messages d'erreur D D P D |
O e) O O O
IAEA ra E a A ASA 52
Entretien de l'appareil, remarques relatives aux disques CD
O Données techniques ............................................. 53

Indice
Información para su seguridad...........,........................ Pagina 3
Uso de este equipo con Seguridad ..................................... 6
GOMPOMENIES aa one A li Ne Tee ne. 6
O Controles de alimentación y sonido................................. 54
Cómo ajustar el volumen, tono y equilibrio, configuración de silenciamiento y
SeHDB, puesta inicial de la hora, reposición de la hora, selección de pantalla
del reloj
ana
LILI
O Radio: Conceptos generalgs....................................... 58
Sintoniá manual y automática, selección de banda y preajuste de emisoras ORE O
O Reproductor de CD y Cambiador de CD: Conceptos generales ............ 60
Carga/expulsión de un disco, reproducción de CD, selección de pista, búsqueda,
repetición, selección aleatoria, exploración y selección directa de pista/disco
EN
Nota:
soe
e Las funciones del cambiador de CD han sido diseñadas para el aparato cambi- AD
ador de CD de Panasonic (opcional).
O Preparación del controlador remoto ................................ 62
Instalación de la pila, notas sobre la pila, guía de referencia de los controles
O Guía de instalacibn..............................,,........,..... 63
Procedimientos paso a paso
O Sistema ANON a Te nt deu ae 68
Coloque la placa frontal removible en la caja, instale la placa frontal removible, el
indicador de seguridad
O Conexiones eléctricas............................................ 69
Medidas de precaución y diagrama del cableado
O Solución de problemas. vo ace eens este etienne Aaa 71
Dónde obtener ayuda técnica, consejos sobre solución de problemas, mensajes de D D 1) O |
error
o o o o ©
O Mantenida is heroes 74
Cuidado del aparato, notas sobre los discos compactos
O ESDOCINCACIÓONES is. ra A ere ee 75
CO-DEXS01/DF401/DEX301U
BOZ DauN m

Power and Sound Controls
Power
Turn the key in the ignition until the accessory indi- É
cator lights. ce N
Power on: Press [SOURCE] (PWR). | ici
Power off: Press [SOURCE] (PWR) again and hold.
Note:
e When the power is switched on for the first time,
a demonstration message appears on the display.
To cancel this display, press [DISP].
(= SCAN/APM pare CHENE CO-DFX50 malaswa ES
| MESS furgon |]
SE 4
|
CD ES
CD AL CEIVEH VATH CHANGER CONTA ME
MONO/LOC_7
8
3
10
11
12
clock
|
mor er 23 4offos 6c]fosp] — Prier
Volume Mute
[A VOL]: Up Press [MUTE] to mute the sound completely.
[V
VOL]:
Down
|
2.
Press
and
hold
for
rapid
adjustment.
od
ne)
Volume
level
(7)
Fo
|
Y
EE.
A
(0
to
40)
Press
[MUTE]
again
to
cancel.
Anti-volume-blast circuit:
When the power is switched off and on again, the volume slowly rises to the previous level,
The anti-volume-blast circuit will not work when the volume level is set lower than position 20 on the dis-
play.
10

D SO oraz
CP AA

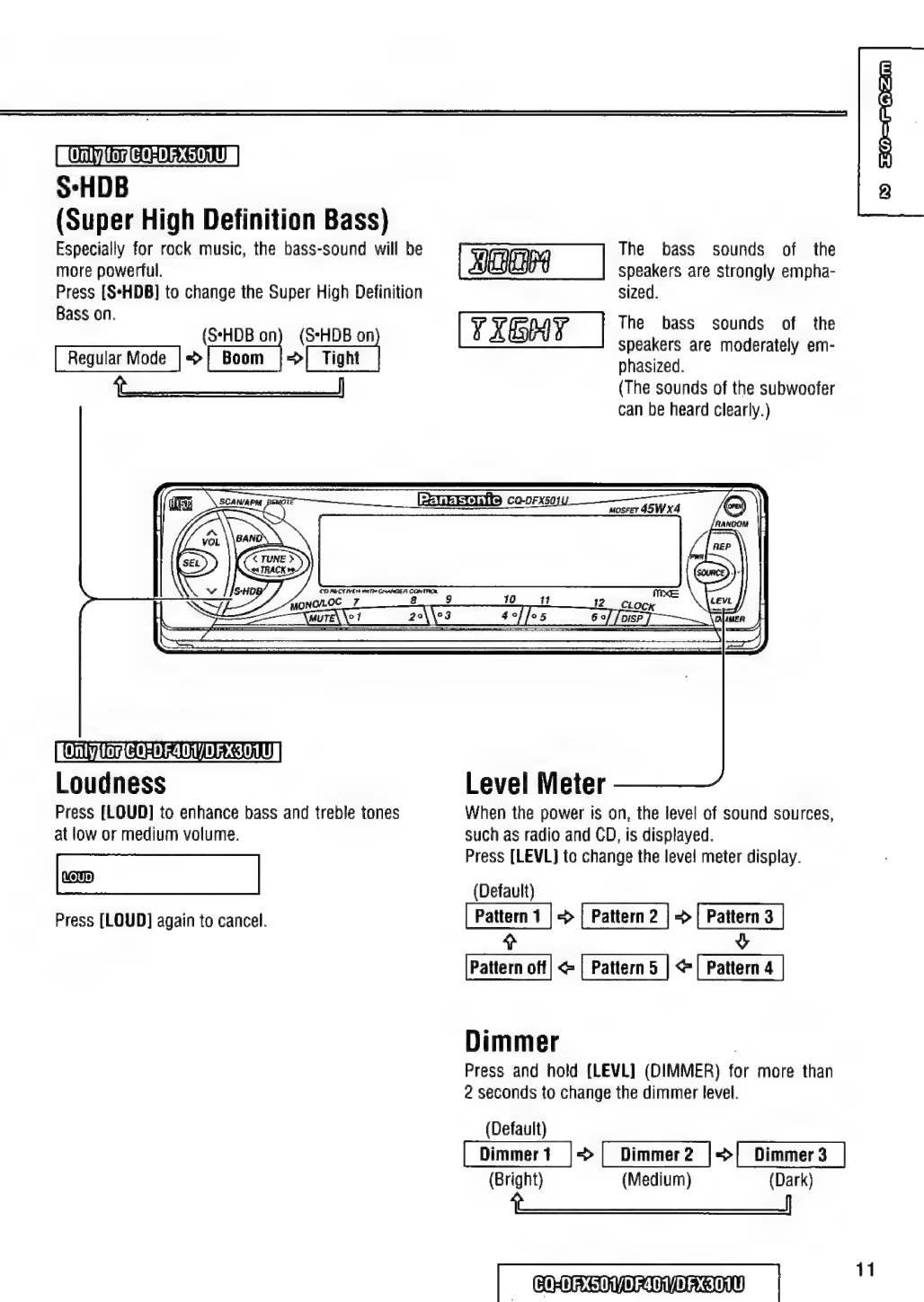

S-HDB
(Super High Definition Bass)
Especially for rock music, the bass-sound will be = The bass sounds of the
more powerful. HUF speakers are strongly empha-
Press [S*HDB] to change the Super High Definition sized.
Bass on.
The bass sounds of the
(S:HDB on (S'HDB Sh Y XEY speakers are moderately em-
Regular Mode |! Boom || Tight phasized.
(The sounds of the subwoofer
can be heard clearly.)
BAND\_\,
< er
(o)
REP
dE TT CO-DFX501 uos 45Wx4 (S)
i A PN RANDOM Í
KOnlyloCO:DEA01/DEX301UE
Loudness Level Meter
Press [LOUD] to enhance bass and treble tones When the power ts on, the level of sound sources,
at low or medium volume. such as radio and CD, is displayed.
“= SS Press [LEVL] to change the level meter display.
(Default)
Press [LOUD] again to cancel. > >
> y
[Pattern off] <> [ Pattern 5 | <[ Pattern 4 |
Dimmer
Press and hold [LEVL] (DIMMER) for more than
2 seconds to change the dimmer level.
(Default)
[_Dimmert_]=> [_Dimmer2 ]->[_Dimmer3 ]
(Bright) (Medium) (Dark)
11
CO5DEXS01/D5401/DFX301U

Oo BoO-Parsn
12
Press [SEL] to select the audio mode.
4
[C Volume Je (Hass) > Cente
2 y
[_Subwooter_]<=[_Fader_]<>[ Balance |
Adjustable range: —12 dB to +12 dB
Treble:
TRE- 343
Adjustable range: —12 dB to +12 dB
Balance:
R (right speaker) or L (left speaker)
Adjustable range: 1 to 15 Balance center
Fader:
F (front speaker) or R (rear speaker)
Adjustable range: 1 to 15 Fader center
Subwoofer volume:
Default
Subwoofer volume level:
From MUTE (0) to 8
COSDEXSO1/DE401/DEX301U
Power and Sound Controls (continues)
Audio Mode (Bass/Treble/Balance/Fader/Subwoofer)
Note:
elf no operation takes place for more than
5 seconds in audio mode (2 seconds in vol-
ume mode), the display returns to the regu-
CCAA |
Cut-off frequency control
The maximum lower frequency level can be ad-
justed to match your subwoofer and the
acoustics inside your car.
When the subwoofer is activated, press
[< TUNE) or [> TUNE] to change the cut-off
frequency as follows.
Cut-off frequency:
120 Hz/80 Hz (Default: 120 Hz)
e Cut-off frequency control is not available for
CQ-DF401/DFX301U (subwoofer volume can
be adjusted).

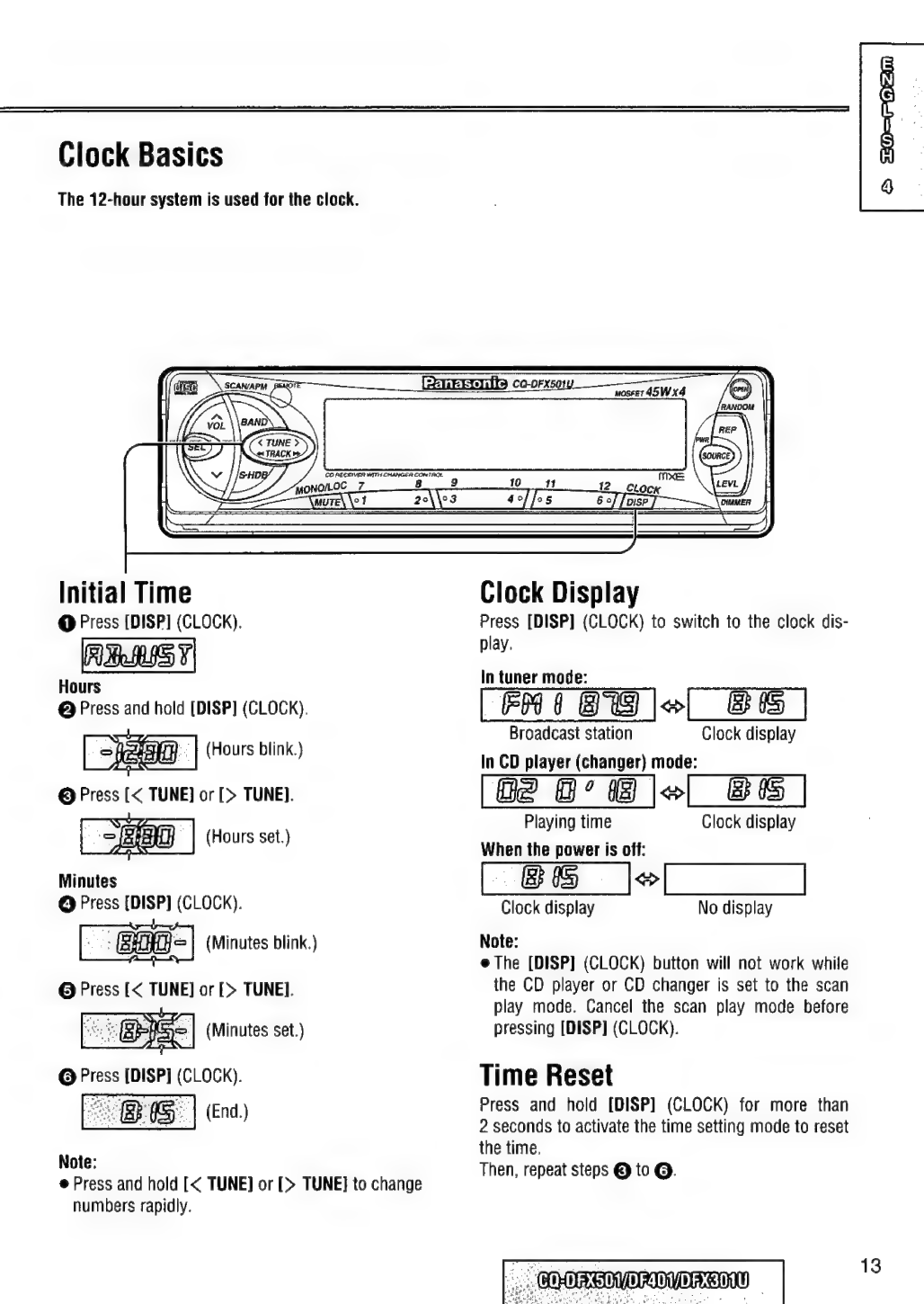

Clock Basics
The 12-hour system is used for the clock.
Initial Time Clock Display
@ Press [DISP] (CLOCK). Press [DISP] (CLOCK) to switch to the clock dis-
lay.
FRET sia
Hours In tuner mode:
@ Press and hold [DISP] (CLOCK). _ FA 0 Bes >| BS |
Broadcast station Clock display
SENO
O | LOU Bn) In CD player (changer) mode:
© Press [< TUNE] or [> TUNE]. 02 0" Bis BS.
SA Playing time Clock display
SIT ig?
| ED | (Hours set.) When the power is off:
Minutes
BS
el
f
O
Press
[DISP]
(CLOCK).
Clock
display
No
display
<BR
|
(Minutes
blink.)
Note:
PA
e
The
[DISP]
(CLOCK)
button
will
not
work
while
@
Press
[<
TUNE]
or
[>
TUNE].
the
CD
player
or
CD
changer
is
set
to
the
scan
es
play
mode.
Cancel
the
scan
play
mode
before
BIS
|
(Minutes
set.)
pressing
[DISP]
(CLOCK).
O
Press
[DISP]
(CLOCK).
Time
Reset
NS
Press
and
hold
[DISP]
(CLOCK)
for
more
than
=
BI
|
(End)
EEN
cl
li
2
seconds
to
activate
the
time
setting
mode
to
reset
the
time,
Note:
Then,
repeat
steps
©
to
O.
e Press and hold [< TUNE] or [> TUNE] to change
numbers rapidly.
13

Radio Basics
Mode Selection
Press [SOURCE] to change to the radio mode.
Source
4
CD player (When a CD is inserted.)
$
CD changer contrat | Only for CQ-DFX501/DF401U
CD changer control | when a CD changer is connected.)
Panasonic]
Í GES O CQ-DFX50 45Wx4
a
a BOr
CO RECENVER With: CHANGER T
12 _ coc
ge a TE O 2
©
Band
EF
9
FM
stereo
indicator
Press [BAND] to change the band. x
©! (@) Manual Tuning Seek Tuning
[> TUNE]: Higher frequency Press and hold ...
[< TUNE]: Lower frequency [> TUNE]: Higher frequency
[< TUNE]: Lower frequency
Tuning will automatically stop when the signals
of the next broadcast station are received.
Mono/Local
Selection
FM
broadcast:
=
MONO:
Noise
is
significantly
decreased
when
:]
MONO
OFF/
LOCAL
OFF
weak signals are received from an FM
broadcast station. MONO ON/
LOCAL: Only strong signals of stations are Mir: LOCAL OFF
Searched in seek tuning, while at the
LOCAL OFF setting, relatively weak sig- _ ER f D TOCA on
nals are also searched. CES OCAL ON
FM
broadcast:
FR
8
à
Y
MODO
Press and hold [MUTE] (MONO/LOC) to change LOCAL ON
the
mode.
AM
nu
Release when at the desired mode. OCAL OFF
AM broadcast: Ë 3 j K
Press and hold [MUTE] (MONO/LOC) to switch
LOCAL mode on and off.
14

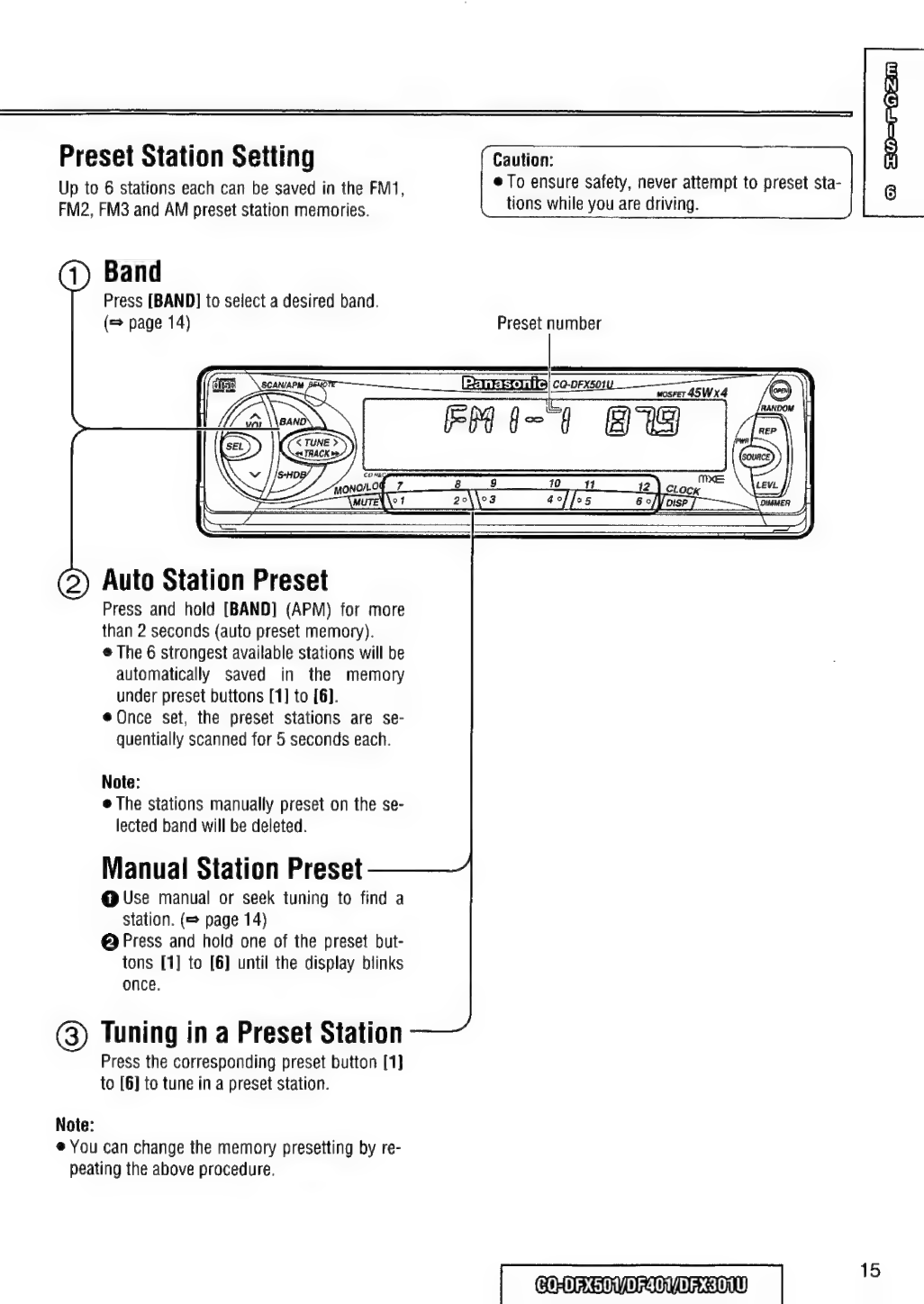

Preset Station Setting Caution:
Up to 6 stations each can be saved in the FM1, e To ensure safety, never attempt to preset sta-
FM2, FM3 and AM preset station memories. tions while you are driving.
Band
Press [BAND] to select a desired band.
(= page 14) Preset number
Pei EL ca-DFX501
Auto Station Preset
Press and hold [BAND] (APM) for more
than 2 seconds (auto preset memory).
e The 6 strongest available stations will be
automatically saved in the memory
under preset buttons [1] to [6].
e Once set, the preset stations are se-
quentially scanned for 5 seconds each.
Note:
e The stations manually preset on the se-
lected band will be deleted.
Manual Station Preset
@ Use manual or seek tuning to find a
station. (= page 14)
@ Press and hold one of the preset but-
tons [1] to [6] until the display blinks
once.
(3) Tuning in a Preset Station
Press the corresponding preset button [1]
to [6] to tune in a preset station.
Note:
e You can change the memory presetting by re-
peating the above procedure.
15
CO-DEX501/DE401/DEX301U

Note:
e The CD changer functions are designed for
Panasonic CD changer unit (optional).
IA 20M
Lights when the disc is loaded.
A (EJECT)
Label side
HEL CO-OFX:
De bork MAP eG
at
CLG
DISP
Track Selection
[> TRACK]: Advance to the next track.
[<4<4TRACK]: Back to the beginning of the cur-
rent track.
Back to the previous track.
(Press twice.)
Track Search
Press and hold ...
[>> TRACK]: Fast forward
[ «4 TRACK]: Fast backward
Release to resume the regular CD or CD changer
play.
| CO5DEX501/05401/DFX301U |
16
tated E a j
BN fk
CD Player and CD Changer
Cautions:
e Only 12 cm CD is available for this unit.
e This unit is not designed for any 8 cm CD.
e |f you insert an 8 cm CD and can not eject it, turn ACC of
your car off once and turn it on again, then press [4]
(EJECT).
Disc Insert and Playback
Open the front panel.
Press [OPEN] to open the front panel.
Insert the disc.
Close the front panel manually.
Playback will start automatically.
Stop and Disc Eject
Press [4] (EJECT) to stop CD play and eject the disc.
When CD is in the player
Press [SOURCE] to change to CD play mode.
Mode Selection
Press [SOURCE] to change to the CD player or
CD changer mode.
Source
4
CD
player
(When
a
CD
is
inserted.)
Y
-
CD
changer
contro!
Only
for
CQ-DFX501/DF401U
(When a CD changer is
connected.)
Display Change
Press [DISP] to switch to the clock display.
CD player:
CA 02 0’ 4 || 665]
Track number/Track playing time Clock display
CD changer:
-03 0-28 |-
Disc number/Track number/ Clock display
Track playing time

<7
(007)
player

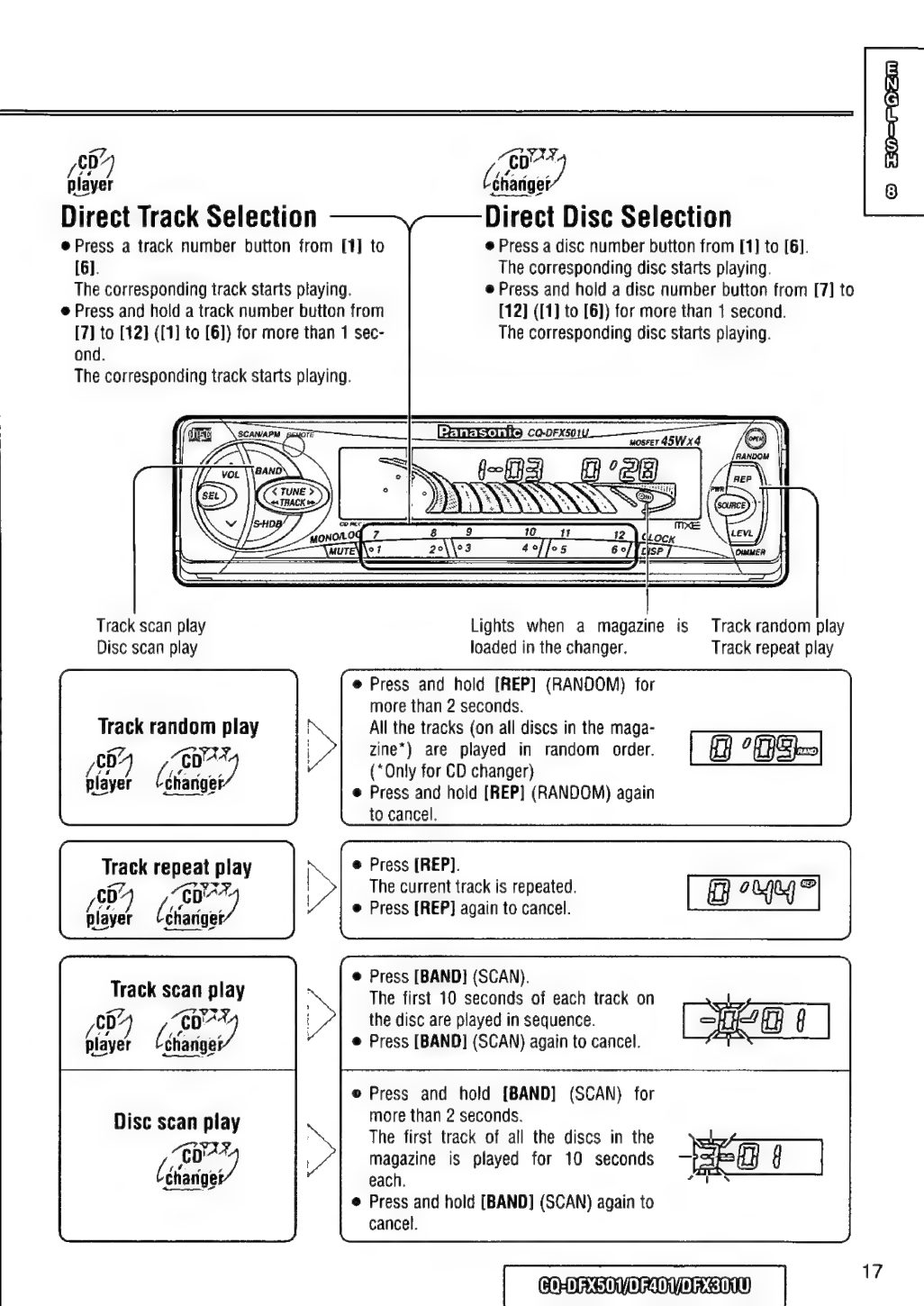

Direct Track Selection
e Press a track number button from [1] to
[6].
The corresponding track starts playing.
e Press and hold a track number button from
[7] to [12] ([1] to [6]) for more than 1 sec-
o 20-20
Ei
Direct Disc Selection
e Press a disc number button from [1] to [6].
The corresponding disc starts playing.
e Press and hold a disc number button from [7] to
[12] (11) to [6)) for more than 1 second.
The corresponding disc starts playing.
ond.
The corresponding track starts playing.
CO-DFX50
TO wosrer 45Wx4
SE
ES ET SS Sal]
Track scan play Lights when a magazine is Track random play
Disc scan play loaded in the changer. Track repeat play
e Press and hold [REP] (RANDOM) for
more than 2 seconds.
All the tracks (on all discs in the maga-
zine*) are played in random order.
(“Only for CD changer)
e Press and hold [REP] (RANDOM) again
to cancel.
Track random play
có “cpr.
(i Carias)
e Press [REP].
The current track is repeated.
e Press [REP] again to cancel.
Track repeat play
Anon.
(A ET
player ‘changer
e Press [BAND] (SCAN).
The first 10 seconds of each track on
the disc are played in sequence.
e Press [BAND] (SCAN) again to cancel.
Track scan play
<7 y PRY
20,187
player charge
o Press and hold [BAND] (SCAN) for
more than 2 seconds.
The first track of all the discs in the
Disc scan play |
(ey magazine is played for 10 seconds
each.
e Press and hold [BAND] (SCAN) again to
cancel.
LT 5, 7
change

© Oroa
18
Remote Control Unit Preparation
Battery Installation Lithium battery
@ Remove the battery holder. (included)
Pull the holder by the position B while pushing posi- Bankside
tion A in the direction indicated by the arrow.
@ Install the battery on the battery holder. AN
Set a new battery properly with its (+) side facing up
as shown in the figure.
© Insert the battery holder.
Push in the battery holder back into its original posi-
tion.
Position B
Battery
Notes
Battery
holder
Position
À
Remove
and
dispose
of
an
old
battery
immediately.
Battery Information:
e Battery type: Panasonic lithium battery (CR2025) (included)
e Battery life: Approximately 6 months with normal use (at room temperature)
Caution:
e improper use of batteries may cause overheating, an explosion or ignition, resulting in injury or a fire.
Battery leakage may damage the unit.
e Do nat disassemble or short the battery. Do not throw a battery into a fire.
e Keep batteries away from children to avoid the risk of accidents.
e Be careful to the local disposal rules when you dispose of batteries.
Control Reference Guide
Buttons of the remote control function in the same way as the controls on the main unit of the reference page.
Point the remote control unit at the main unit's sensor (REMOTE).
Power button (PWR)
(= page 10)
Mode button (MODE)
(=> pages 14, 16)
Mute button (MUTE)
(= page 10)
Volume control buttons
(VOL, A Vv)
(= page 10)
Band/Disc up* button
(BAND/DISC UP*)
(= pages 14, 17) .
(23) ere
z >
E Re >
*Only for CD changer
control
(When the CD changer
is connected.)
Tune/ Track buttons
(TUNE/TRACK, «« »»/< >)
(= pages 14, 16)

Installation Guide
AN WARNING
This installation information is designed for experienced installers and is not in-
tended for non-technical individuals. It does not contain warnings or cautions of po-
tential dangers involved in attempting to install this product.
Any attempt to install this product in a motor car by anyone other than qualified in-
staller could cause damage to the electrical system and could result in serious per-
sonal injury or death.
O Installation Hardware
em | biagram [av
ae Mounting collar ST
Hex. nut (5 mme)
(3) | Rear support strap
@ | Tapping screw |
(5 mm x 16 mm)
(5) | Mounting bolt (5 mmo)
©) | Power connector
@) | Removable face plate
case
Trim plate
O Overview
This product should be installed by a professional.
However, if you plan to install this product yourself,
your first step is to decide where to install it. The
instructions in these pages will guide you through
the remaining steps:
(Please refer to the
above.)
“WARNING” statement
e Identify and label the car wires.
e Connect the car wires to the wires of the power
connector.
e Install the unit in the dashboard.
e Check the operation of the unit.
If you encounter problems, please consult your
nearest professional installer.
Caution:
e This unit operates with a 12 V DC negative
ground auto battery system only. Do not at-
tempt to use it in any other system. Doing so
could cause serious damage.
Before you begin installation, look for the items
which are packed with your unit.
e Warranty Card...Fill this out promptly.
e Panasonic Servicenter for Service Directory
...Keep for future reference in case the product
needs servicing.
e Installation Hardware...Needed for in-dash in-
stallation.
O Required Tools
You'll need a screwdriver, a 1.5 V AA battery, and
the following:
12V DC Electrical Side-cut
Test bulb tape pliers
Ñ e =
O Dashboard Specifications
Thickness
Min. 346” (4.75 mm)
—||—— Max. 74 (5.56 mm)
232" (53 mm)
7542" (182 mm)
| CQ;DEXS501/DF401/05X301U |
3 aroan
19

2 SO-P020
20
Installation Gu ide (Continued)
O Identify All Leads
The first step in installation is to identify all the car
wires you'll use when hooking up your sound sys-
tem.
As you identify each wire, we suggest that you label
it using masking tape and a permanent marker.
This will help avoid confusion when making con-
nections later.
Note:
Do not connect the power connector to the stereo
unit until you have made all connections. If there
are no plastic caps on the stereo hooking wires,
insulate all exposed leads with electrical tape until
you are ready to use them. Identify the leads in
the following order.
Power Lead
If your car has a radio or is pre-wired for one:
Cut the connector wires one at a time from the plug
(leaving the leads as long as possible) so that you
can work with individual leads.
Turn the ignition on to the accessory position, and
ground one lead of the test bulb to the chassis.
Touch the other lead of the test bulb to each of the
exposed wires from the cut radio connector plug.
Touch one wire at a time until you find the outlet
that causes the test bulb to light.
Now turn the ignition off and then on. If the bulb
also turns off and on, that outlet is the car power
lead.
If your car is not wired for an audio unit:
Go to the fuse block and find the fuse port for radio
(RADIO), accessory (ACC), or ignition (IGN).
Battery Lead
If your stereo unit has a yellow lead, you will need
to locate the car's battery lead. Otherwise you may
ignore this procedure. (The yellow battery lead pro-
vides continuous power to maintain a clock, memo-
ry storage, or other function.)
If your car has a radio or is pre-wired for one:
With the ignition and headlights off, identify the car
battery lead by grounding one lead of the test bulb
to the chassis and checking the remaining exposed
wires from the cut radio connector plug.
If your car is not wired for an audio unit:
Go to the fuse block and find the fuse port for the
battery, usually marked BAT.
Speakers
Identify the car speaker leads. There are two leads
for each speaker which are usually color coded.
A handy way to identify the speaker leads and the
speaker they are connected with is to test the leads
using a 1.5 V AA battery as follows.
Hold one lead against one pole of the battery and
Stroke the other lead across the other pole. You will
hear a scraping sound in one of the speakers if you
are holding a speaker lead.
If not, keep testing different lead combinations until
you have located all the speaker leads. When you
label them, include the speaker location for each.
Antenna Motor
If your car is equipped with an automatic power an-
tenna, identify the car motor antenna lead by con-
necting one bulb tester lead to the car battery lead
and touching the remaining exposed wires from the
cut radio connector plug one at a time. You will
hear the antenna motor activate when you touch
the correct wire.
Antenna
The antenna lead is a thick, black wire with a metal
plug at the end.
O Connect All Leads
Now that you have identified all the wires in the car,
you are ready to begin connecting them to the
stereo unit wires. The wiring diagram (= pages 25,
26) shows the proper connections and color coding
of the leads.
We strongly recommend that you test the unit be-
fore making a final installation.
You can set the unit on the floor and make tempo-
rary connections to test the unit. Use electrical tape
to cover ali exposed wires.
Important:
e Connect the red power lead last, after you
have made and insulated all other connec-
tions.
Ground
Connect the black ground lead of the power con-
nector to the metal car chassis.
