Panasonic NR-BN34FX1 User manual

© Panasonic Corporation 2014 Unauthorized copy-
ing and distribution is a violation of law.
Order Number GORR1405001CE
REFRIGERATOR-FREEZER
Model No. NR-BN34FX1
Model No. NR-BN34FW1
Product-Color X:Stainless
W:White
Destination E(Europe Continental)
B(U.K.)
TABLE OF CONTENTS
PAGE PAGE
1 Safety Precautions----------------------------------------------- 2
2 Specifications ----------------------------------------------------- 5
3 Technical Descriptions ----------------------------------------- 6
4 Location of Controls and Components ------------------- 8
5 Installation Instructions ---------------------------------------10
6 Operating Instructions-----------------------------------------12
7 Service Mode -----------------------------------------------------15
8 Troubleshooting Guide ----------------------------------------26
9 Disassembly and Assembly Instructions ---------------32
10 Schematic Diagram ---------------------------------------------45
11 Exploded View and Replacement Parts List ----------- 46

2
1 Safety Precautions

3

4

5
2 Specifications

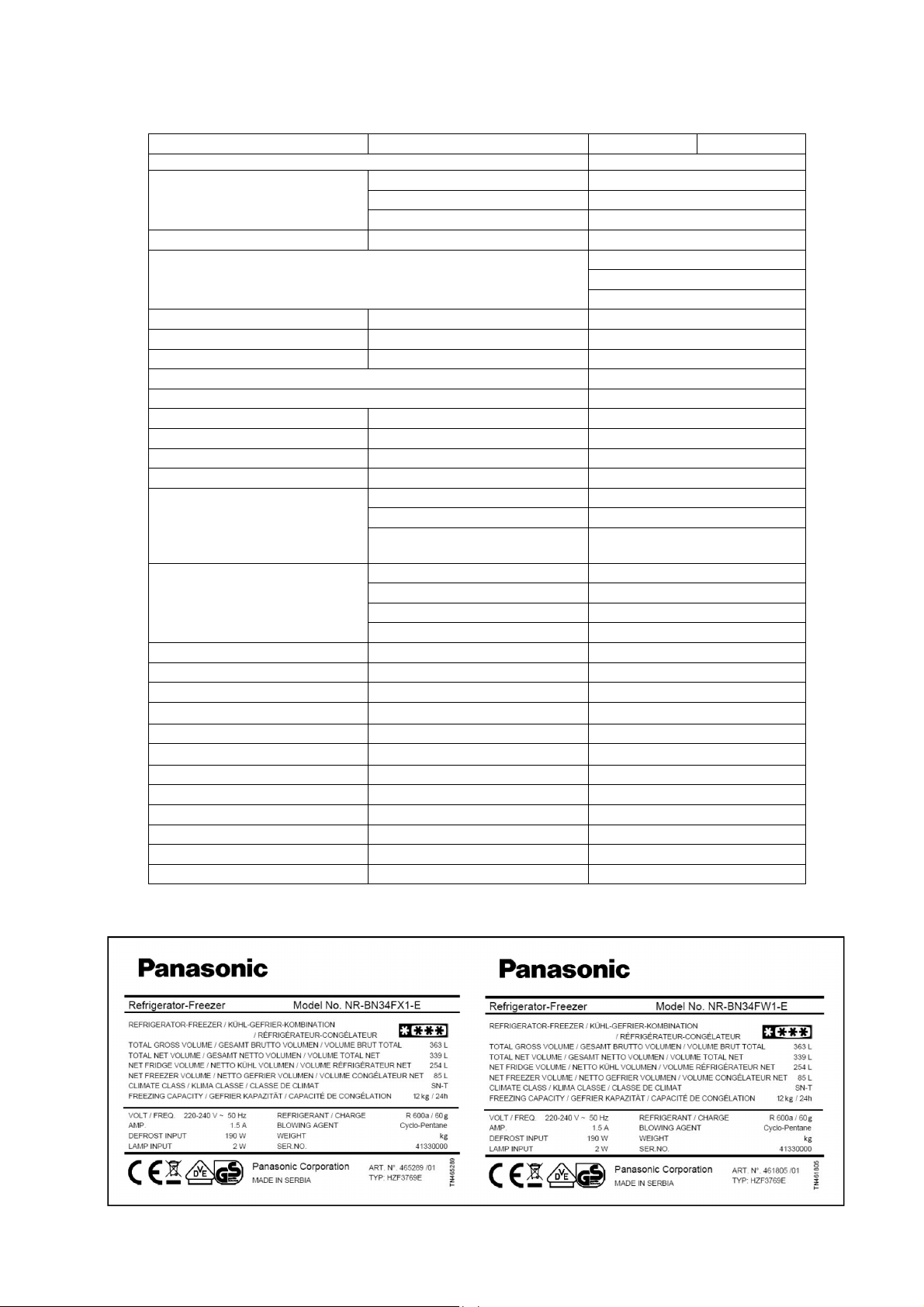

Name Plate
Model NR-BN34FX1 NR-BN34FW1
Destination Europe – U.K.
Volume capacity
Total effective volume capacity 339 L
Fridge compartment (PC) 254L
Freezer compartment (FC) 85 L
External dimensions Width/ Depth/ Height (mm) 600 mm x 640 mm x 2,000 mm
Installation size
side : 20 mm or more
Back : 50 mm or more
Top : 150 mm or more
Power supply plug Rating 250V/10A
Power supply code Length 2050 mm
Interior lamp (LED) Rating 230V/2W
IEC protection against electric shock classes Class I
Climate Class SN-T
Fridge compartment sensor PCC ESCOP B57020-M2502
Freezer compartment sensor FCC ESCOP B57020-M2502
Ambient temperature sensor ATC Not used
Defrost temperature sensor DFC ESCOP B57020-M2502
Compressor
Model Jiaxipera NB1114Y
Rotation speed 2930 rpm
Curled resistance cord (at 25°C) Main wiring : 20.3 Ohm
Aux wiring : 18.8 Ohm
Overlord relay
Model B50-120
Operating temperature without power 120 °C
Return temperature 61 °C
Operating current (A) 5A
Fan motor Model/Rating BG1512,220/240V,50/60Hz,2W
Dumper Rating / Voltage 12VDC.60mA
Defrost heater Rating 190 W
Thermal fuse Class / Fill Class II.72 ℃
Oil charge 180ml
Freezing ability 12 kg /24 H
Values of the energy consumption 245kwh/year
Energy efficiency grade A++
Refrigerant charge R600a / 60g
Measurement of exterior noise emitted 42 dB
Form polyurethane Cyclo - pentane
Net weight (kg) Without packaged 76kg

6
3 Technical Descriptions
Single-compressor cooling system
On the basis of temperature checking with sensor in fridge compartment and temperature in freezer
compartment, the request for switch-on/off of compressor and Fan Motor is set /deleted
Compressor operation
In normal mode of operation the compressor functions with the frequency which is prescribed with regard to the
actual conditions of regulations.
The condition for compressor switch-on is not considered if the compressor is locked due to min switch-off time
which is 5 minutes
The same is valid for compressor switch-off, when the compressor does not switch off until the min switch-on
time is reached which is 5 minutes.
PC Damper operation
The PC Damper can be opened only to the extreme position, or completely closed.
At switching-on it is necessary to set the PC Damper, so that it can be opened and closed. It is reset when the
parameter “max time of PC Damper position” which is 6 hours, expires. This time is considered when the PC Damper is in one
position, open or closed.
It is not possible to set the PC Damper during defrosting.
Whenever the PC Damper opens, the Fan Motor starts to function.
When the PC Damper is closed, the Fan Motor operates according to its regulation.
Opening or closing any door does not affect the PC Damper operation.
Fan Motor operation
The Fan Motor switches on when the request is made for cooling of fridge or freezer compartment. When a request
is made for cooling of fridge compartment, first the PC Damper opens and after 30 seconds, the Fan Motor switches on.
Fan Motor switches on with time delay after the compressor start-up - depending on the last
cycle.
If the last cycle was a normal cycle, the Fan Motor switches on immediately.
After defrosting of the evaporator, the Fan Motor starts to function after 4 minutes.
Fan Motor operation is suspended if the freezer or refrigerator door is opened.
When the door is closed, the Fan Motor switches-on after 5 seconds.
If the door is open for 20 minutes, normal operation of Fan Motor continues as prescribed by regulation of cooling.
LED Lamp
Fridge compartment LED Lamp switches on when the door opens.
Fridge compartment LED Lamp switches off when the door closes.
In case of open door, the incorporated time limitation becomes active which switches off the LED Lamp after
10 minutes
Condition for cooling of fridge compartment (PC)
The temperature in fridge compartment can be set from +1 to +9 °C.
Based on the verification of the temperature in fridge compartment, the request for cooling of fridge
compartment is set or deleted.
When the temperature in fridge compartment is equal to or rises above +1 °C, the PC Damper opens and after 30
seconds (Fan Motor switch-on delay time due to PC Damper switch-on) the Fan Motor in freezer compartment switches on, too.
When the temperature in fridge compartment is lower than +1 °C, the PC Damper closes, and in case the request for
cooling of freezer compartment is not set, the Fan Motor in freezer compartment switches off.
On the basis of request for cooling of fridge compartment, the PC Damper and Fan Motor in the freezer compartment switch on.

7
Condition for fridge of freezer compartment (FC)
Standard compressor
The temperature in freezer compartment can be set from -16°C to -24°C.
It operates according to the principle of setting/deleting the request for cooling of freezer compartment.
When the temperature in the freezer compartment is equal to or rises above +1 ° C, the compressor and Fan Motor
(in normal operation) switch on or, after the expiry of Fan Motor switch-on delay time after defrosting, the Fan Motor of
freezer compartment switches on, too.
When the temperature in freezer compartment is lower than 0 ° C, the request for cooling of freezer
compartment is deleted; the compressor and Fan Motor of freezer compartment switch off.
Based on request for cooling of freezer compartment the compressor and Fan Motor of freezer compartment are
controlled.
Defrosting
Unconditional start of defrosting is installed in the following cases:
1. At switch-on of "Fast Freeze" function if the compressor of freezer compartment does not function.
2. At switch-on of "Super Cool" function if the compressor of freezer compartment does not function.
3. At switch-on of "Extreme Freeze" function if the compressor of freezer compartment does not function
4. If, at switch on of "Fast Freeze" or "Super Cool" function the compressor functions without interruption for 1
hour i.e. immediately after the first interruption of operation of compressor.
5. Always after the terminated "Super Cool", "Extreme Freeze" and "Fast Freeze" function.
6. In case when the user interrupts the "Fast Freeze" function later than in 8 h after switching-on this function.

8
4 Location of Controls and Components
4.1. Display and Control Panel

9
4.2. Components

10

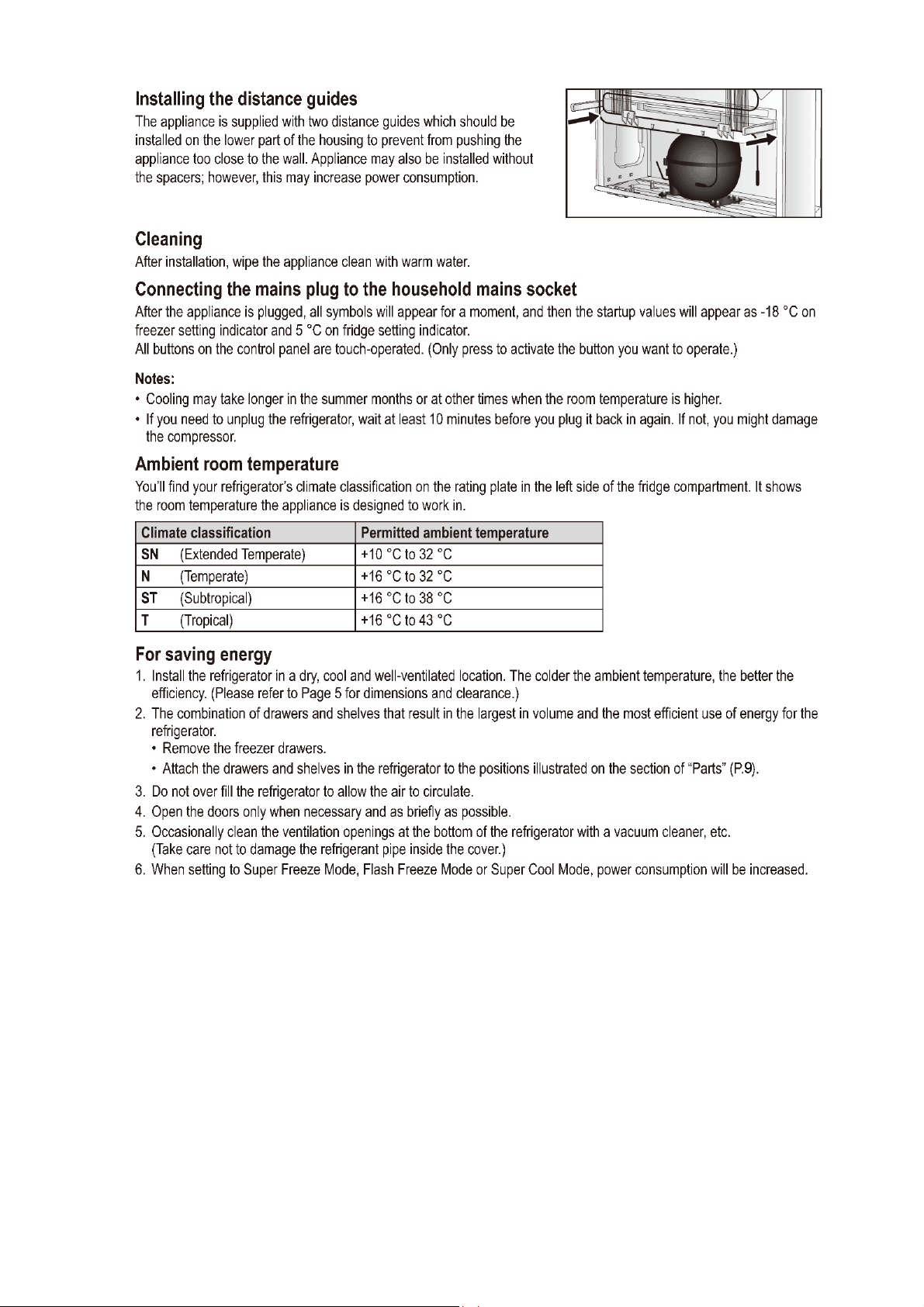

5 Installation Instructions

11

12
6 Operating Instructions
6.1. Setting the temperature
6.1.1. Fridge compartment (PC)
6.1.2. Freezer compartment (FC)
6.1.3. Fresh Zone Crisper

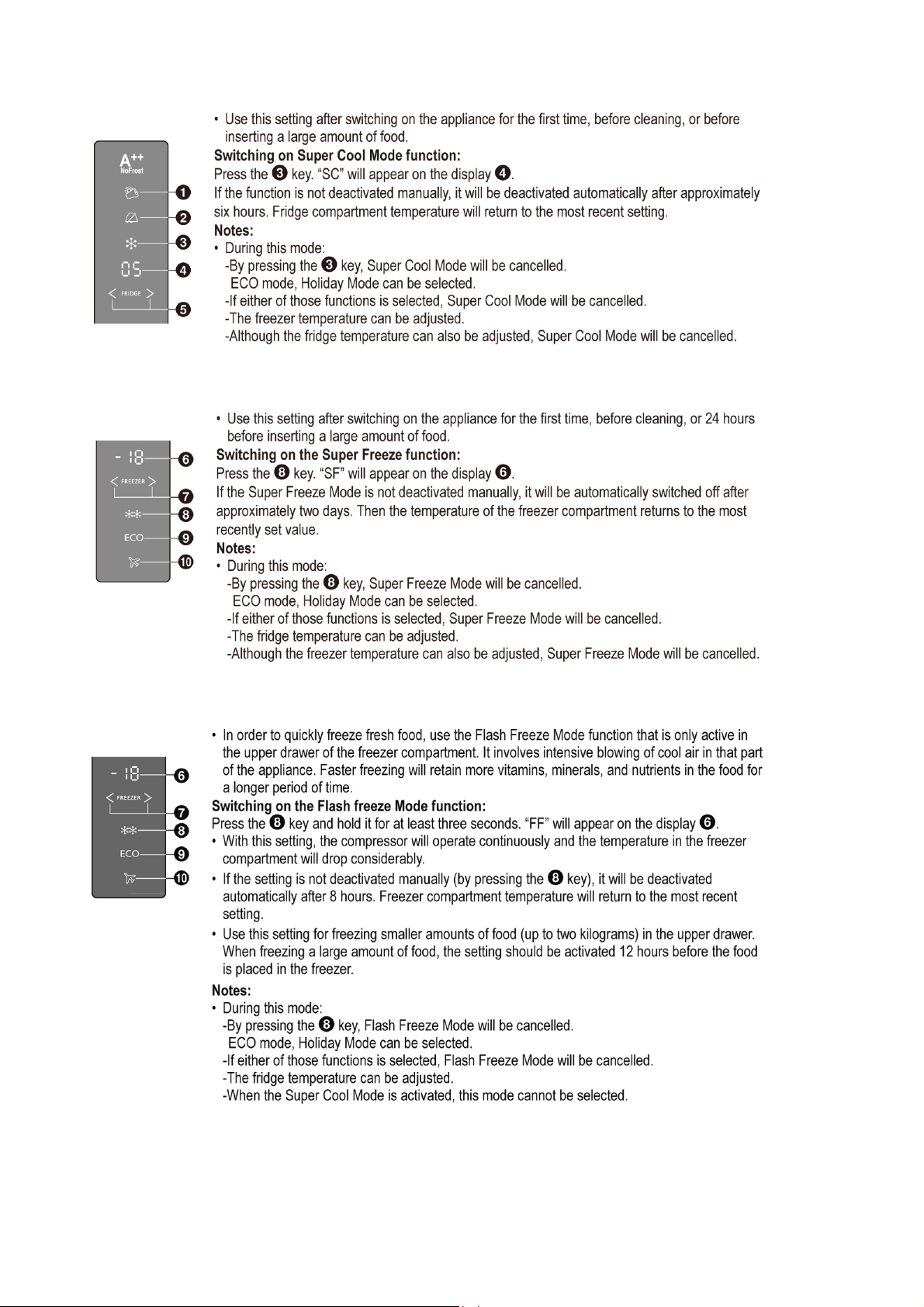

6.2. Functions
6.2.1. Vitamin LED Mode

13
6.2.2. Super Cool Mode
6.2.3. Super Freeze Mode
6.2.4. Flash Freeze Mode

14
6.2.5. ECO Mode
6.2.6. Holiday Mode
6.2.7. Alarm Mode
6.2.8. Child safety lock

15
7 Service Mode
7.1. Service mode of operation
General
• Service mode is intended for service interventions
• In service mode it is possible to select optionally among the outputs
• From service mode we always enter normal mode of operation
Display Panel A’ssy
Display Panel A’ssy on appliance door

16

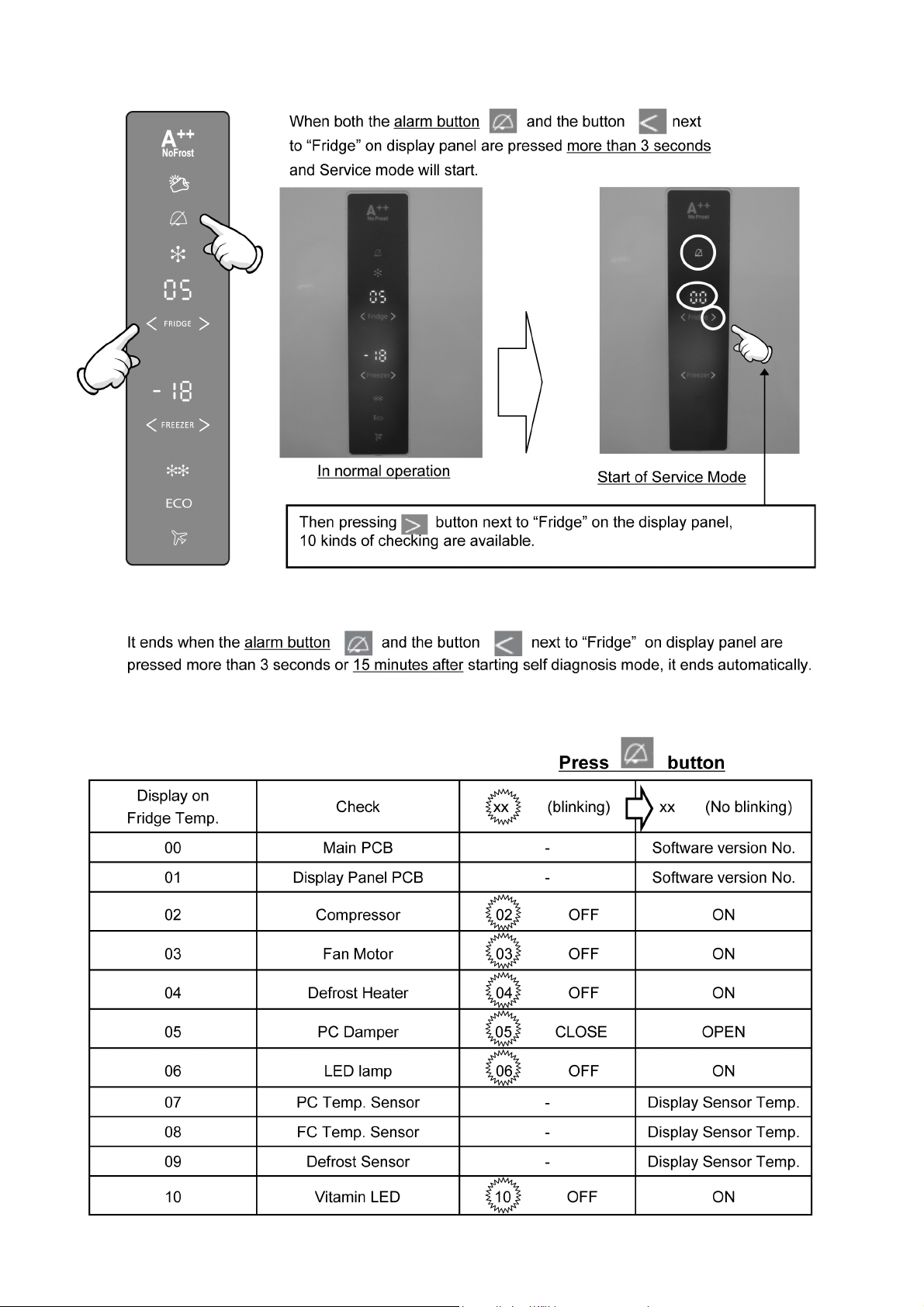

7.1.1. How to start
7.1.2. How to stop
7.1.3. Summary of Service Mode

17
7.1.4. Service Mode “00” (Main PCB)
7.1.5. Service Mode “01” (Display Panel PCB)

18

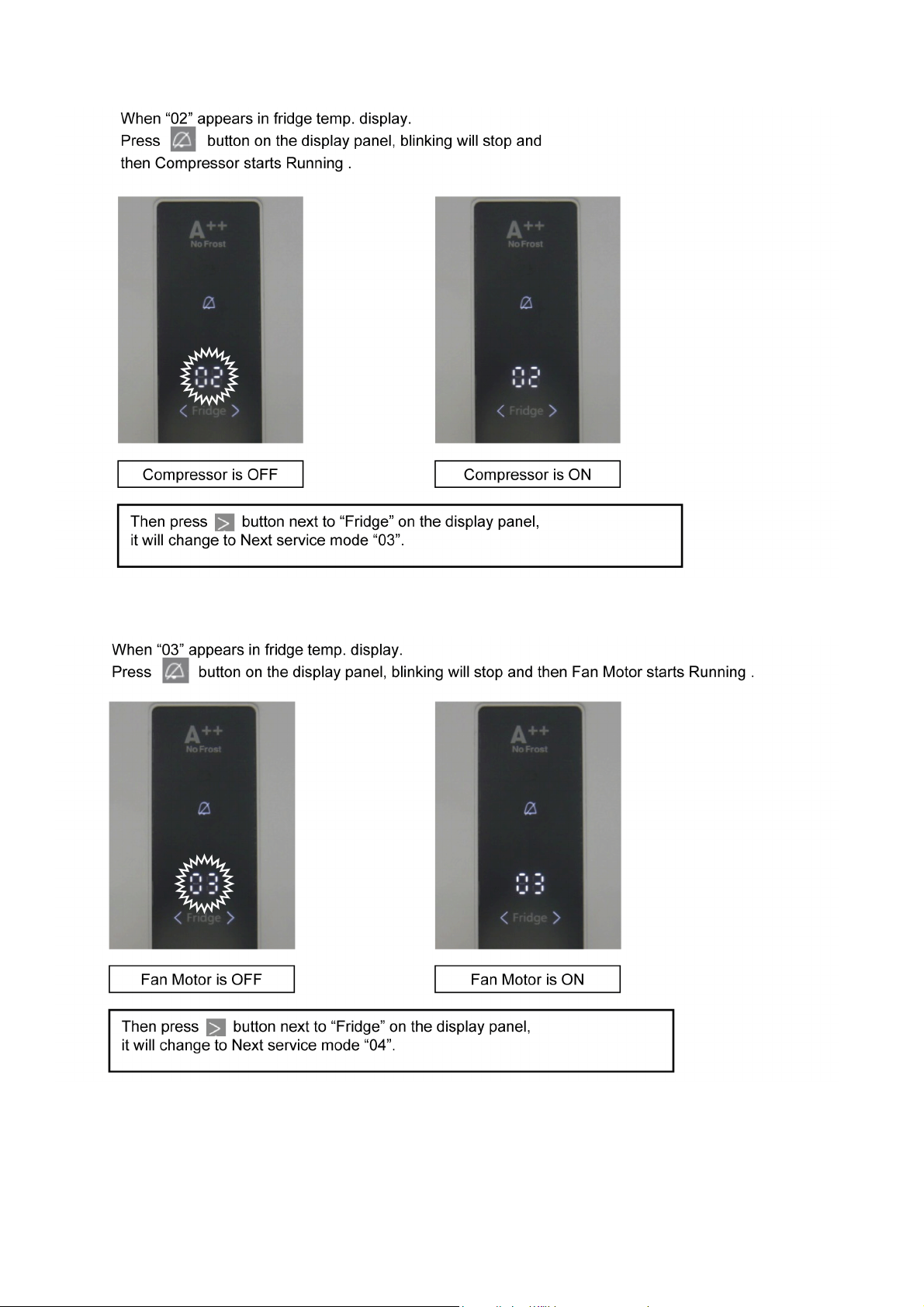

7.1.6. Service Mode “02” (Compressor)
7.1.7. Service Mode “03” (Fan Motor)

19
7.1.8. Service Mode “04” (Defrost Heater)

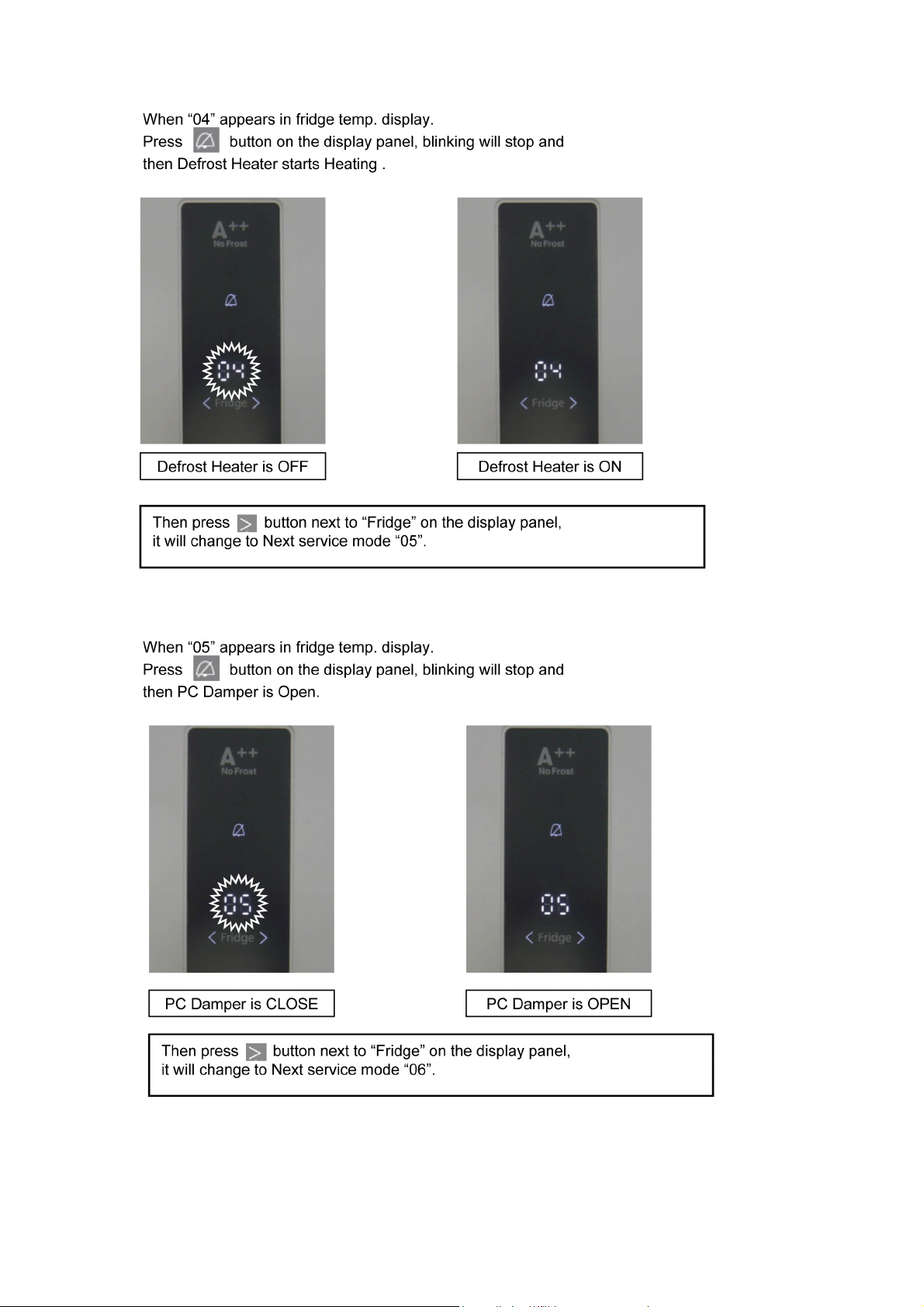

7.1.9. Service Mode”05” (PC Damper)

20
7.1.10. Service Mode “06” (LED Lamp)
7.1.11. Service Mode “07” (PC Temp. Sensor)
