Panasonic NR-AH144S User manual

Order No. PAPTH120201CE
Service Manual
Refrigerator
NR-AH144S
NR-AH184S
NR-AH184M
NR-AH184G
NR-AH184P
Product Colour
Imperial Blue (SA), Vivid Green (SG)
Henry Gray (SH), Magenta Pink (MP)
Vivid Orange (MD), Silver (MS)
Metallic Dark Gray (GH)
Warm Copper (PN)
Destination
M - S SERIES G - P SERIES
Thailand
© Panasonic Appliances (Thailand) Co., Ltd. 2012.
All rights reserved. Unauthorized copying and
distribution is a violation of law.
There are special components used in this equipment which are important for safety. These parts are marked by
in the Schematic Diagrams, Circuit Board Diagrams, Exploded Views and Replacement Parts List. It is essential that
these critical parts should be replaced with manufacturer’s specified parts to prevent shock, fire or other hazards. Do
not modify the original design without permission of manufacturer.
IMPORTANT SAFETY NOTICE
WARNING
The service information is designed for experienced repair technicians only and is not designed for use by the general
public. It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting
to service a product. Products powered by electricity should be serviced or repaired only by experienced professional
technicians. Any attempt to service or repair the product or products dealt within this service information by anyone
else could result in serious injury or death.
CFCs have been used in refrigerant as refrigerator and the insulation materials for many years. But it
is now known that these compounds which once seemed so ideal for use as cleaning agents and in
refrigeration systems, destroy the earth’s ozone layer as a result, an international body decided on a
total worldwide ban of harmful CFCs by the end of 1995.

- 2 -
CONTENT
Page
3
4
5
5
6
6
7
8
9
10
11
12 - 13
14 - 15
1. Safety Cautions for Repairing
1.1 Warning
1.2 Caution
2. Specification and Components
3. Schematic Diagram
3.1 Wiring Diagram : NR-AH144
3.2 Wiring Diagram : NR-AH184
3.3 Wiring Connection : NR-AH144
3.4 Wiring Connection : NR-AH184
4. Performance Data
4.1 NR-AH144
4.2 NR-AH184
5. Disassembly Instruction
5.1 Cover Hinge Top : NR-AH144M/S / NR-AH184M/S
5.2 Top Table : NR-AH184G / NR-AH184P
5.3 Hinge Top
6. Parts Exploded View and Replacement Parts List
6.1 Part Exploded View : Body
6.2 Part Exploded View : Door
6.3 Part Exploded View : Packing
6.4 Replacement Parts List : NR-AH144M / NR-AH144S
6.5 Replacement Parts List : NR-AH184G / NR-AH184P
NR-AH144 / NR-AH184

- 3 -
1. SAFETY CAUTIONS FOR REPAIRING
When you repair the refrigerator, please kindly take care for the following cautions.
1.1 Warning
Before repairing unit, unplug supply cord
• Before you repair the refrigerator, please unplug the supply cord.
Use authentic parts when repairing
• When you replace the parts, please use authentic parts to replace defective parts.
Caution during brazing
• When you use touch for brazing, please ensure ventilation.
Otherwise, you will be poisoned by carbon monoxide.
Pay attention to using refrigerant
• If refrigerant touches fire, the gas becomes poisonous gas.
Pay attention to getting electricity shock
• When you check the voltage of terminal, please do not touch the electricity part terminal.
• When you replace the parts, please wait for 3 minutes at least for discharging capacitor.
Check safety after repairing
• Check the screws, parts, lead wires to take in place.
• Check the repairing portion whether circumferential parts are damaged or not.
• Check insulation resistance between supply plug and earth.
• When install refrigerator, check condition of supply cord and plug.
• Wipe off the dust on plug.
• Cutting and seal the electric device carefully.
1.2 Caution
Watch the hot parts
• During operation and after operation, compressor and pipes are hot.
• Also, under these condition, heater are hot.
• Do not burn your fingers when you touch it.
Pay attention to refrigerant
• Do not touch liquid refrigerant. Otherwise your hands may be burnt.
Pay attention to edge of parts
• Otherwise, your fingers may be cut.
Pay attention to fins of evaporator and condenser
• Otherwise, your fingers may be cut.
Before transportatin, adjust the bolt
• Otherwise, the floor may be damaged.
Do not touch the pipe after brazing
• Otherwise, your hands may be burnt.
NR-AH144 / NR-AH184

- 4 -
2. SPECIFICATION AND COMPONENTS
Model
Destination
Code Attached Model
Colour Name
Material Spec.
Plug
Power Source
Specification
Sealed Unit
SA
Imperial
Blue
SG
Vivid
Green
AH144S
SH
Henry
Gray
Henry
Gray
SA SG
AH184S
Vivid
Green
Vivid
Orange
Magenta
Pink
SH
Side : 50 mm., min. / Back : 100 mm., min. / Top : 300 mm., min.
Level 5
Full automatic temp. Control equipment (Thermostat)
Thailand
PCM
C2P
220V, 50Hz
MD MP MS
AH184G AH184PAH184M
Silver
GH
Metallic
Dark
Gray
PN
Warm
Copper
Imperial
Blue
Evaporator
Compressor
Overload Protector
PTC Relay
Condenser
Refrigrant Charge
Lubricating Oil
Roll - Bond type
Single wall steel tube (Zinc coat)
R600a, 35 ± 5g.
195 ml. (Freol ∞10)
Capacity Total Volume
Freezer FC
Fresh food PC
EVAP.
PC
Internal Dimension
External Dimension
Net Weight
Installation Space
Energy Level
Temperature Control
Semi automatic (Forcibly evaporated in the air)Defrosting
SPCC-SDExterior Finish (Cabinet)
Vacuum formed ABS resinInner Liner
Cyclopentane foam (shell and door)Insulation
138L 179L
31L 31L
107L 148L
412 x 308 x 220 412 x 308 x 220
W x D x H (mm) W x D x H (mm)
474 x 377 x 756 474 x 377 x 952
572 x 570 x 1007 572 x 570 x 1220572 x 570 x 1203
SF51E60GLW5-T1YS SF51E70RLW5-T1YS
5TM142NHBYY 5TM134LFBYY
PTH7M330MC1 PTH7M330MD2
Electric Parts
Motor Compressor
Door Switch PC
Lamp Receptacle
Lamp
Ambient Temp.
* Specification subjects to change without notice.
Split-phase induction motor, ES-BR21, 220V / 50Hz / 75W 2 poles
D3D - 121 (Omron), 250V / 0.5A, Switch type S.P. - S.T.
5PS - 51T - 187, 250V / 1A
RM240V10WSL, 240V / 10W
32 ± 1°C
27 Kgs. 34 Kgs.
NR-AH144 / NR-AH184

- 5 -
3. SCHEMATIC DIAGRAM
3.1 Wiring Diagram : NR-AH144 ( No Capacitor)
LAMP (240V - 10W)
THERMOSTAT
STARTING
RELAY
COMPRESSOR
OVERLOAD
PROTECTOR25
6A
M
C3 1
DOOR
SWITCH
N.C C
brownblue
white
white
black
black
blue
C2P 220V / 50Hz
3.2 Wiring Diagram : NR-AH184 ( Have Capacitor)
LAMP (240V - 10W)
THERMOSTAT
STARTING
RELAY
RUNNING
CAPACITOR
COMPRESSOR
OVERLOAD
PROTECTOR25
63A
M
C3 1
DOOR
SWITCH
N.C C
brownblue
white
white gray blue
black
black
blue
C2P 220V / 50Hz
NR-AH144 / NR-AH184

- 6 -

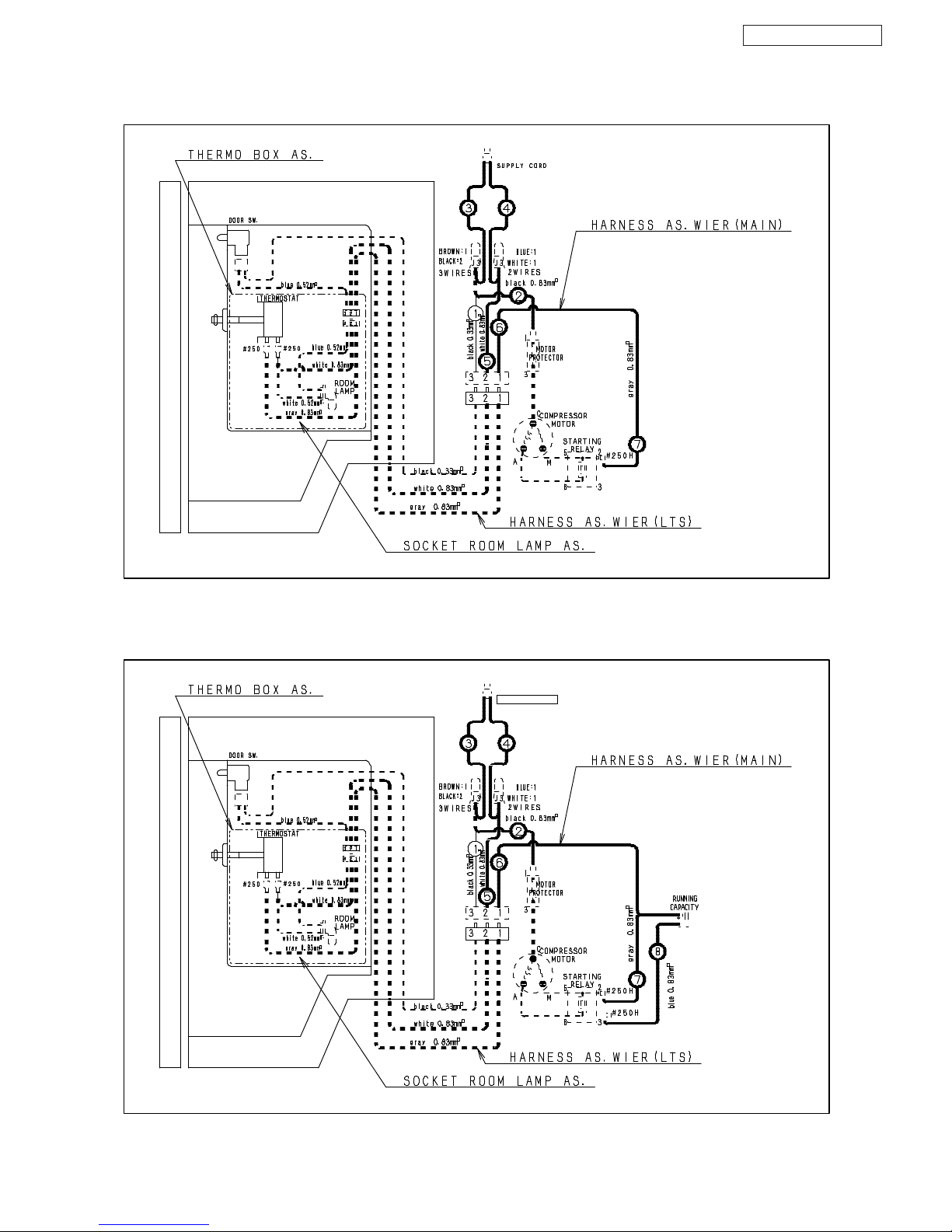

3.3 Wiring Connection : NR-AH144 ( No Capacitor)
3.4 Wiring Connection : NR-AH184 ( Have Capacitor)
NR-AH144 / NR-AH184

- 7 -
4. PERFORMANCE DATA
4.1 NR-AH144 (AT 32 ± 1°C)
Thermostat Dial Setting
Freezer Temperature
Fresh Food Compartment Temperature
Running Ratio
Power Consumption
“ 5 ”
(°C)
(°C)
(%)
(kWh/Day)
“ 3 ” “ 1 ”
-12.5 ± 2.5 -6.5 ± 2.5 -0.5 ± 2.5
-6.0 ± 2.5 -1.0 ± 2.5 4.0 ± 2.5
55 ± 15 35 ± 15
0.9 or under
20 ± 15
4.2 NR-AH184 (AT 32 ± 1°C)
Thermostat Dial Setting
Freezer Temperature
Fresh Food Compartment Temperature
Running Ratio
Power Consumption
“ 5 ”
(°C)
(°C)
(%)
(kWh/Day)
“ 3 ” “ 1 ”
-14.0 ± 2.5 -6.5 ± 2.5 -0.5 ± 2.5
-5.0 ± 2.5 1.0 ± 2.5 6.5 ± 2.5
60 ± 15 40 ± 15
0.9 or under
25 ± 15
NR-AH144 / NR-AH184

- 8 -
5. DISASSEMBLY INSTRUCTION
5.1 Cover Hinge Top : NR-AH144S / NR-AH184S / NR-AH184M
5.2 Top Table : NR-AH184G / NR-AH184P
5.3 Hinge Top
- Take out by use screwdriver put at small gap between the cover hinge top with body at arrow mark
and lift it up little.
- Then use hand pull it up slowly.
Fig. 1
- Take out the top panel by remove screws at hanger shells. (Fig. 2)
- Open the door.
- Lift the top panel by pull back a little for unlock from hook. (Fig. 3)
- Lift up the top panel and push it forward for unlock from grill button. (Fig. 4)
- Take out by use boltdriver remove the screws as Fig. 5 and Fig. 6.
- After that lift it up / as Fig. 7 have to lift it until hook loose from hole at Door As.
- When repair it finish / have to tighten screws by control torque 40 ~ 100 kgf.
Fig. 2 Fig. 3 Fig. 4
Fig. 5 (NR-AH144S/184S/184M) Fig. 6 (NR-AH184G/184P) Fig. 7 (NR-AH184G/184P)
NR-AH144 / NR-AH184

- 9 -
6. PARTS EXPLODED VIEW AND REPLACEMENT PARTS LIST
6.1 Parts Exploded View : Body
(NR-AH144 x 1PC)
(FOR NR-AH144M/S, 184M/S)
(FOR NR-AH184G/184P)
(FOR NR-AH184G/P)
Tempered Glass
(NR-AH184G/184P)
(FOR NR-AH184G/P)
(FOR NR-AH184)
(FOR NR-AH184)
(NR-AH184G/184P)
22
1
2
3
11
20
(FOR NR-AH144M/S, 184M/S)
20
19
12
13
14
15
17
16
23
24
25 21
18
41
42
39
40
44
43
30
31
32
33
45
36
35
37 38
26 27
28
29
34
NR-AH144 / NR-AH184
4
5
6
7
8
910

- 10 -

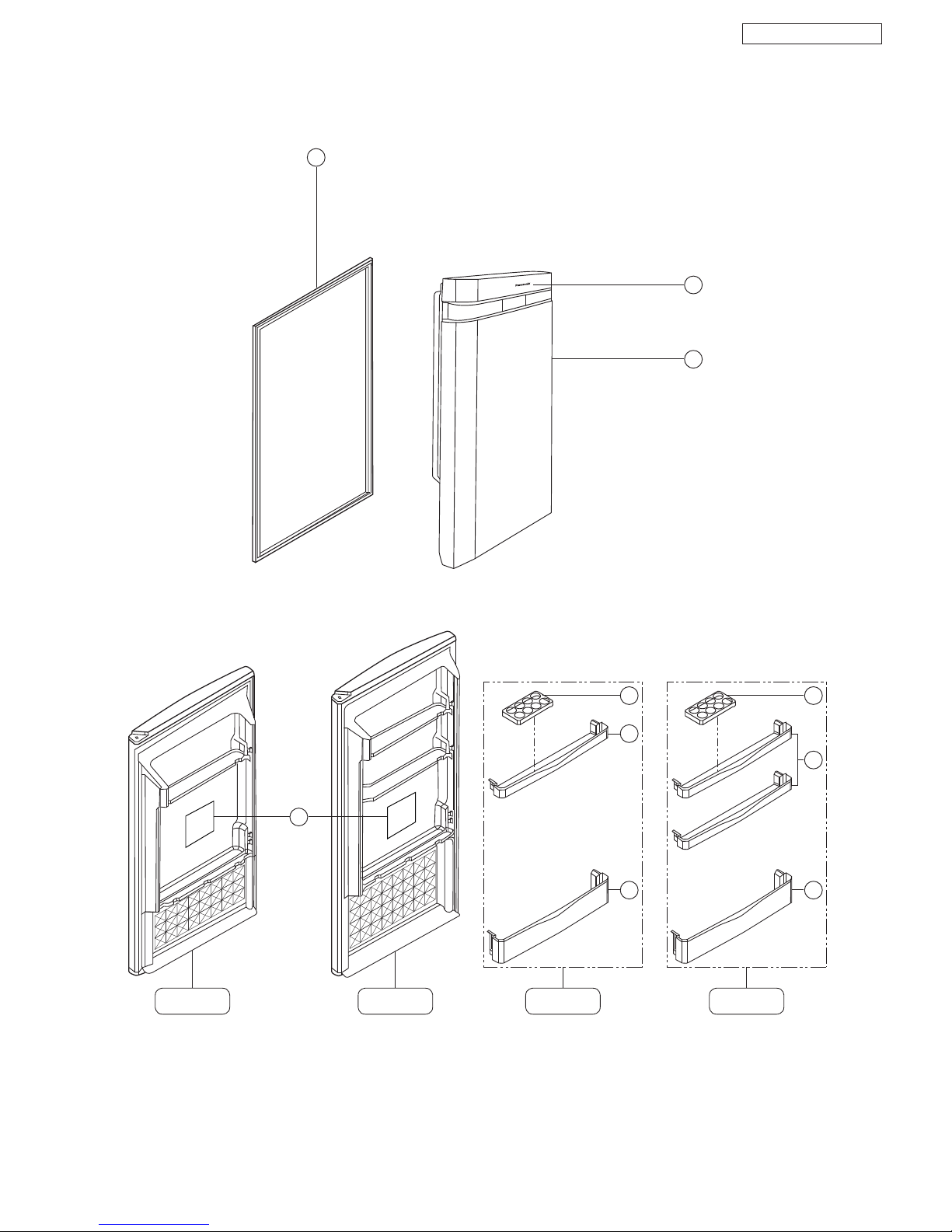

6.2 Parts Exploded View : Door
NR-AH144 NR-AH184 NR-AH144 NR-AH184
47
50 50
51
51
52
46
52
49
48
NR-AH144 / NR-AH184

Refrigerator
Refrigerator
- 11 -
6.3 Parts Exploded View : Packing
PLASTIC COVER
BOTTOM TRAY AS.
PACKING AS.
STICKER MODEL NAME
STICKER BAR CODE
TOP PAD R
TOP PAD L
NR-AH144 / NR-AH184

- 12 -
6.4 Replacement Part List : NR-AH144
Important safety notice :
Parts List
REF.
NO. PART NAME PART NO. SAFETY REMARK
144SH 144SA
MODEL / Q’TY
144SG
111
111
111
111
111
111
111
111
111
111
111
111
111
111
111
1
1
1
111
111
111
111
111
111
111
111
111
444
111
111
222
222
111
111
111
111
111
111
1
1
1
111
1
1
1
222
222
222
LOW SIDE AS.1 CNRBF-153662
Components identified by mark have special characteristics important for safety.
When replacing any of these components, use only manufacturer’s specified part.
TRIM EVAP.2
DOOR SW.3
THERMOSTAT4
3.5 TUBE (PVC HT) 4505
THERMO BOX CONTROL AS.6
SOCKET ROOM LAMP AS.7
CNRAF-179911
CNRAG-153290
CNRAG-171220
CNRAJ-162670
CNRBH-146020
CNRBG-187600
10-240 LAMP8
DIAL THERMO AS.9
DOOR EVAPORATOR10
TRAY ICE11
S
CNRAG-145270
CNRBH-140180
CNRAF-179921
CNRAH-140750
PLASTIC
PLASTIC
NO HOLE
LAMP SOCKET TYPE
COLOR : WHITE
COLOR : BLACK
COLOR : BLACK
NR-AH144SHTH
NR-AH144SATH
NR-AH144SGTH
SF51E60GLW5-T1YS
5TM142NHBYY
PTH7M330MC1
COLOR : BLACK
COLOR : BLACK
COLOR : BLACK
PLUG : C2P
COLOR : VIVID GREEN
COLOR : IMPERIAL BLUE
COLOR : HENRY GRAY
NR-AH144SGTH
NR-AH144SATH
NR-AH144SHTH
MEAT TRAY12 CNRAH-272871
TRAY PC13
TRAY PC BOTTOM14
LABEL NAME - SH
LABEL NAME - SA
LABEL NAME - SG
45
CNRAH-272040
CNRAH-270950
CRISPER15 CNRAH-270961
CNRAH-299650
S
S
CNRAH-299630
CNRAH-299640
HINGE BOTTOM17 CNRAE-136091
SHELL & LINER AS. (FOAM)18 CNRBC-358210
COVER HINGE TOP - K19 CNRAE-138990
CNRAE-140580HINGE TOP20
WIRING DIAGRAM - SH
WIRING DIAGRAM - SA
WIRING DIAGRAM - SG
25 CNRAH-299680
CNRAH-299670
CNRAH-299660
HEXAGON NUT 826 CNR38-8170A1
SP. WASHER 827 CNR38-4270A0
8 WASHER28 CNR38-4170A0
COMPRESSOR29 CNR91-105530
5 DRYER W30
OVERLOAD PROTECTOR31
S
S
S
CNR39-340920
SCNR06-598520
PTC RELAY32
PROTECTOR COVER33
CNR06-592680
CNRGD-036540
RUBBER GROMMET34
PLATFORM F - K35
PLATFORM S - K36
PLATFORM B - K37
CNR01-219932
CNRAH-248011
CNRAH-248700
CNRAH-248251
HEXAGON 8 BOLT 4038
HARNESS AS. WIRE (MAIN)40
CNR38-9924A0
CNRBG-176962
BOX CAPACITOR42
EARTH AS. COMP. 270
44
LABEL HC BACK - THAI16
GASKET DOOR
46
DOOR AS. (FOAM) - SG
47
EMBLEM
48
CNRAG-158932
COVER BOX CAPACITOR CNRAG-169960
CNRBG-163470
CNRAH-269301
CNRAD-300742
DOOR AS. (FOAM) - SH CNRBD-358902
DOOR AS. (FOAM) - SA CNRBD-376250
CNRBD-376260
CNRAD-339801
111
TRAY EGG 850
49
CNRAD-350530
NR-AH144 / NR-AH184

- 13 -
Parts List
Packing List
Screws
REF.
NO. PART NAME PART NO. SAFETY REMARK
144SH 144SA
MODEL / Q’TY
144SG
144SH 144SA 144SG
144SH 144SA 144SG
111
111
51
52
SHELF EGG
SHELF BOTTLE
CNRAD-338090
CNRAD-338100
REF.
NO. PART NAME PART NO. SAFETY REMARK
MODEL / Q’TY
444
111
333
666
222
TRUSS 4 TS 12 (SUS) CNR38-114351
CNR38-114351 FIX TRIM EVA.
FIX THERMO BOX CONTROL
FIX HINGE TOP
FIX PLATFORM
FIX HINGE BOTTOM
HEXAGON H. 5TS 16
CNRAJ-161490
CNRAJ-161490
CNRAJ-161490
REF.
NO. PART NAME PART NO. SAFETY REMARK
MODEL / Q’TY
1
1
1
111
111
111
111
111
PACKING AS. - SA
PACKING AS. - SH
PACKING AS. - SG
THAI LANGUAGE
CNRBK-130010
BOTTOM TRAY AS.
PLASTIC COVER
TOP PAD L
TOP PAD R
CNRBK-130020
CNRBK-130030
CNRBK-124762
CNRAJ-162961
CNRAK-139181
CNRAK-139191
INSTRUCTION BOOK CNRAK-160770
NR-AH144 / NR-AH184
NR-AH144SGTH
NR-AH144SATH
NR-AH144SHTH

- 14 -
6.5 Replacement Part List : NR-AH184S, NR-AH184M, NR-AH184G, NR-AH184P
Parts List
REF.
NO. PART NAME PART NO. SAFETY REMARK
184GH 184PN 184MS 184MP 184MD 184SA 184SG 184SH
11111111
MODEL / Q’TY
1
2
3
HAVE HOLE
PLASTIC
TEMPERED GLASS
COLOR : BLACK
COLOR : BLACK
COLOR : BLACK
NR-AH184GHTH
NR-AH184MSTH
NR-AH184MPTH
NR-AH184MDTH
NR-AH184SATH
NR-AH184SGTH
NR-AH184SHTH
SF51E70RLW5-T1YS
5TM134LFBYY
PTH7M330MD2
COLOR : BLACK
COLOR : BLACK
NR-AH184PNTH
4
5
6
7
8
9
10
11
12
13
14
15
17
18
19
20
21
22
23
11111111
1S
S
S
S
S
S
S
1111111
11111111
11111111
11111111
11111111
11111111
11111111
11111111
111
11111111
11111
22
22222
11111111
11111111
11111111
11
11
22
11
11
11
111111
11111
11111
22222222
22222222
22222222
11111111
11111111
11111111
11111111
11111111
11111111
22222222
44444444
1
1
1
1
1
1
1
1
2
26
27
28
29
30
31
32
33
34
LOW SIDE AS.
TRIM EVAP.
DOOR SW.
THERMOSTAT
3.5 TUBE (PVC HT) 450
THERMO BOX CONTROL AS.
SOCKET ROOM LAMP AS.
10-240 LAMP
DIAL THERMO AS.
DOOR EVAPORATOR
TRAY ICE
MEAT TRAY
TRAY PC
GLASS TRAY AS.
TRAY PC BOTTOM
CRISPER
HINGE BOTTOM
SHELL & LINER AS. (FOAM)
HINGE TOP
HINGE TOP AS.
BUTTON GRILL FRONT
HEXAGON NUT 8
SP. WASHER 8
8 WASHER
COMPRESSOR
5 DRYER W
OVERLOAD PROTECTOR
PTC RELAY
PROTECTOR COVER
RUBBER GROMMET
CNRBF-153502
CNRAF-179911
CNRAG-153290
CNRAG-171220
CNRAJ-162670
CNRBH-146020
CNRBG-187600
CNRAG-145270
CNRBH-140180
CNRAF-179921
CNRAH-140750
CNRAH-272031
CNRAH-272040
CNRBH-140571
CNRAH-270950
CNRAH-270961
16 11111111
LABEL HC BACK - THAI CNRAH-269301
CNRAE-136091
CNRBC-358190
1
1
COVER HINGE TOP - K CNRAE-138990
CNRBC-358180
CNRAE-140580
CNRBE-108742
TOP TABLE - K CNRAH-291290
AG CLEAN CASE CNRAH-272170
AG BIO FILTER CNRAH-245521
CNRAJ-112920
24
25 WIRING DIAGRAM - GH CNRAH-299440
WIRING DIAGRAM - PN CNRAH-299430
WIRING DIAGRAM - MS CNRAH-299370
WIRING DIAGRAM - MP CNRAH-299380
WIRING DIAGRAM - MD CNRAH-299390
WIRING DIAGRAM - SA CNRAH-299400
WIRING DIAGRAM - SG CNRAH-299410
WIRING DIAGRAM - SH CNRAH-299420
CNR38-4270A0
CNR38-8170A1
CNR38-4170A0
CNR91-105540
CNR39-340920
CNR06-598030
CNR06-592700
CNRGD-036540
CNR01-219932
35 PLATFORM F - K CNRAH-248011
36 PLATFORM S - K CNRAH-248700
LAMP SOCKET TYPE
111
PLUG : C2P
COLOR : BLACK37 11
S
11 1
22222222
111
111
111
11111
11111
11111
11111111
PLATFORM B - K
HEXAGON 8 BOLT 40 CNR38-9924A0
CNRAH-248251
38
PAN WATER EVA. AS. CNRBF-15035139
HARNESS AS. WIRE (MAIN) CNRBG-17695140
BOX CAPACITOR AS. CNRBG-16609041
BOX CAPACITOR CNRAG-15993242
1111111143 MF. CAPACITOR CNRAG-153360
NR-AH144 / NR-AH184

- 15 -
Parts List
REF.
NO. PART NAME PART NO. SAFETY REMARK
184GH 184PN 184MS 184MP 184MD 184SA 184SG 184SH
184GH 184PN 184MS 184MP 184MD 184SA 184SG 184SH
184GH 184PN 184MS 184MP 184MD 184SA 184SG 184SH
MODEL / Q’TY
COLOR : METALLIC DARK GRAY
COLOR : SILVER
COLOR : MAGENTA PINK
COLOR : VIVID ORANGE
COLOR : IMPERIAL BLUE
COLOR : VIVID GREEN
COLOR : HENRY GRAY
COLOR : WARM COPPER
11111111
11111111
11111111
11111111
11111111
1
1
1
1
1
1
1
1
22222222
44 COVER BOX CAPACITOR
EARTH AS. COMP. 270
CNRAG-158942
11111111CNRBG-163470
GASKET DOOR CNRAD-300713
46
DOOR AS. (FOAM) - GH CNRBD-37624048
47
EMBLEM CNRAD-33980149
TRAY EGG 8 CNRAD-35053050
SHELF EGG CNRAD-33809051
52 SHELF BOTTLE CNRAD-338100
DOOR AS. (FOAM) - PN CNRBD-376230
DOOR AS. (FOAM) - MS CNRBD-376180
DOOR AS. (FOAM) - MP CNRBD-376190
DOOR AS. (FOAM) - MD CNRBD-376200
DOOR AS. (FOAM) - SA CNRBD-376210
DOOR AS. (FOAM) - SG CNRBD-376220
DOOR AS. (FOAM) - SH CNRBD-358812
Screws
REF.
NO. PART NAME PART NO. SAFETY REMARK
44444444
MODEL / Q’TY
FIX TRIM EVA.
FIX THERMO BOX CONTROL
FIX AG CLEAN CASE
FIX BUTTON GRILL FRONT
FIX TOP TABLE
FIX PLATFORM
FIX HINGE BOTTOM22222222
11
11
22
22
111111
FIX HINGE TOP33333333
66666666
11111111
11111111
11
111111
1
1
1
111111
1111111
1
1
1
1
1
1
1
1
TRUSS 4 TS 12 (SUS) CNR38-114351
CNR38-114351
CNR38-114351
TRUSS 4 TS 10
TRUSS 5 TS 18
HEXAGON H. 5TS 16
CNR38-1156A1
CNRAJ-161490
CNRAJ-161490
CNRAJ-161490
CNRAJ-160900
Packing List
REF.
NO. PART NAME PART NO. SAFETY REMARK
MODEL / Q’TY
NR-AH184GHTH
NR-AH184PNTH
NR-AH184MSTH
NR-AH184MPTH
NR-AH184MDTH
NR-AH184SATH
NR-AH184SGTH
NR-AH184SHTH
THAI LANGUAGE
S
S
S
S
S
S
S
S
PACKING AS. CNRBK-130000
CNRBK-129990
CNRBK-129940
CNRBK-129970
BOTTOM TRAY AS.
PLASTIC COVER
CNRBK-129980
CNRBK-129960
CNRBK-124762
CNRAJ-162961
TOP PAD L CNRAK-140592
CNRAK-139181
TOP PAD R CNRAK-140602
CNRAK-139191
INSTRUCTION BOOK CNRAK-160770
CNRBK-129950
CNRBK-129930
NR-AH184GHTH
NR-AH184MSTH
NR-AH184MPTH
NR-AH184MDTH
NR-AH184SATH
NR-AH184SGTH
NR-AH184SHTH
NR-AH184PNTH
45
S
S
S
S
S
S
S
S
1
1
1
1
1
1
1
1
LABEL NAME - GH
LABEL NAME - PN
LABEL NAME - MS
LABEL NAME - MD
LABEL NAME - MP
LABEL NAME - SA
LABEL NAME - SG
LABEL NAME - SH
CNRAH-299360
CNRAH-299350
CNRAH-299290
CNRAH-299300
CNRAH-299310
CNRAH-299320
CNRAH-299330
CNRAH-299340
NR-AH144 / NR-AH184
