A14 and A34 Dome Camera
Quick Start Guide

Network Dome Camera Quick Operation Guide
1
Thank you for purchasing our product. If there are any questions, or requests,
please do not hesitate to contact the dealer.
About This Manual:
This manual applies to A14 and A34 dome camera.
This manual may contain several technical incorrect places or printing errors, and
the content is subject to change without notice. The updates will be added to the
new version of this manual. We will readily improve or update the products or
procedures described in the manual.
DISCLAIMER STATEMENT
“Underwriters Laboratories Inc. (“UL”) has not tested the performance or
reliability of the security or signaling aspects of this product. UL has only tested
for fire, shock or casualty hazards as outlined in UL’s Standard(s) for Safety,
UL60950-1. UL Certification does not cover the performance or reliability of the
security or signaling aspects of this product. UL MAKES NO REPRESENTATIONS,
WARRANTIES OR CERTIFICATIONS WHATSOEVER REGARDING THE
PERFORMANCE OR RELIABILITY OF ANY SECURITY OR SIGNALING RELATED
FUNCTIONS OF THIS PRODUCT.
0100001030827

Network Dome Camera Quick Operation Guide
2
Regulatory Information
FCC Information
FCC compliance: This equipment has been tested and found to comply with the
limits for a digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful interference
to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be required to
correct the interference at his own expense.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that
may cause undesired operation.
EU Conformity Statement
This product and - if applicable - the supplied accessories too
are marked with "CE" and comply therefore with the
applicable harmonized European standards listed under the
Low Voltage Directive 2006/95/EC, the EMC Directive 2004/108/EC, the RoHS
Directive 2011/65/EU.
2012/19/EU (WEEE directive): Products marked with this
symbol cannot be disposed of as unsorted municipal waste in
the European Union. For proper recycling, return this product
to your local supplier upon the purchase of equivalent new

Network Dome Camera Quick Operation Guide
3
equipment, or dispose of it at designated collection points. For more information
see: www.recyclethis.info.
2006/66/EC (battery directive): This product contains a
battery that cannot be disposed of as unsorted municipal
waste in the European Union. See the product
documentation for specific battery information. The battery
is marked with this symbol, which may include lettering to
indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return
the battery to your supplier or to a designated collection point. For more
information see: www.recyclethis.info

Network Dome Camera Quick Operation Guide
4
Safety Instruction
These instructions are intended to ensure that user can use the product correctly
to avoid danger or property loss.
The precaution measure is divided into “Warnings” and “Cautions”
Warnings: Serious injury or death may occur if any of the warnings are
neglected.
Cautions: Injury or equipment damage may occur if any of the cautions are
neglected.
Warnings
In the use of the product, you must be in strict compliance with the electrical
safety regulations of the nation and region.
Please refer to technical specifications for detailed information.
Input voltage should meet both the SELV(Safety Extra Low Voltage) and the
Limited Power Source with AC 24V or DC 12V according to the IEC60950-1
standard. Please refer to technical specifications for detailed information.
Do not connect several devices to one power adapter as adapter overload may
cause over-heating or a fire hazard.
Warnings Follow these
safeguards to prevent serious
injury or death.
Cautions Follow these precautions
to prevent potential injury or
material damage.

Network Dome Camera Quick Operation Guide
5
Please make sure that the plug is firmly connected to the power socket.
When the product is mounted on wall or ceiling, the device shall be firmly fixed.
If smoke, odor or noise rise from the device, turn off the power at once and
unplug the power cable, and then please contact the service center.
If the product does not work properly, please contact your dealer or the nearest
service center. Never attempt to disassemble the camera yourself. (We shall not
assume any responsibility for problems caused by unauthorized repair or
maintenance.)
Cautions
Make sure the power supply voltage is correct before using the camera.
Do not drop the camera or subject it to physical shock.
Do not touch CMOS modules with fingers. If cleaning is necessary, use clean cloth
with a bit of ethanol and wipe it gently. If the camera will not be used for an
extended period, please replace the lens cap to protect the CMOS from dirt.
Do not aim the camera at the sun or extra bright places. Blooming or smearing
may occur otherwise (which is not a malfunction), and affect the endurance of
CMOS at the same time.
The CMOS may be burned out by a laser beam, so when any laser equipment is
in using, make sure that the surface of CMOS will not be exposed to the laser
beam.
Do not place the camera in extremely hot, cold (the operating temperature shall
be-30℃~+60℃), dusty or damp locations, and do not expose it to high
electromagnetic radiation.

Network Dome Camera Quick Operation Guide
6
To avoid heat accumulation, good ventilation is required for operating
environment.
Keep the camera away from liquid while in use.
While in delivery, the camera shall be packed in its original packing, or packing of
the same texture.
Regular part replacement: a few parts (e.g. electrolytic capacitor) of the
equipment shall be replaced regularly according to their average enduring time.
The average time varies because of differences between operating environment
and using history, so regular checking is recommended for all the users. Please
contact with your dealer for more details.
Improper use or replacement of the battery may result in hazard of explosion.
Replace with the same or equivalent type only. Dispose of used batteries
according to the instructions provided by the battery manufacturer.

Network Dome Camera Quick Operation Guide
7
Table of Contents
1 Overview .......................................................................................................... 8
2 Installation ...................................................................................................... 10
3 Setting the Network Camera over the LAN ..................................................... 14
4 Accessing via Web Browser .................................. Error! Bookmark not defined.

Network Dome Camera Quick Operation Guide
8
Overview

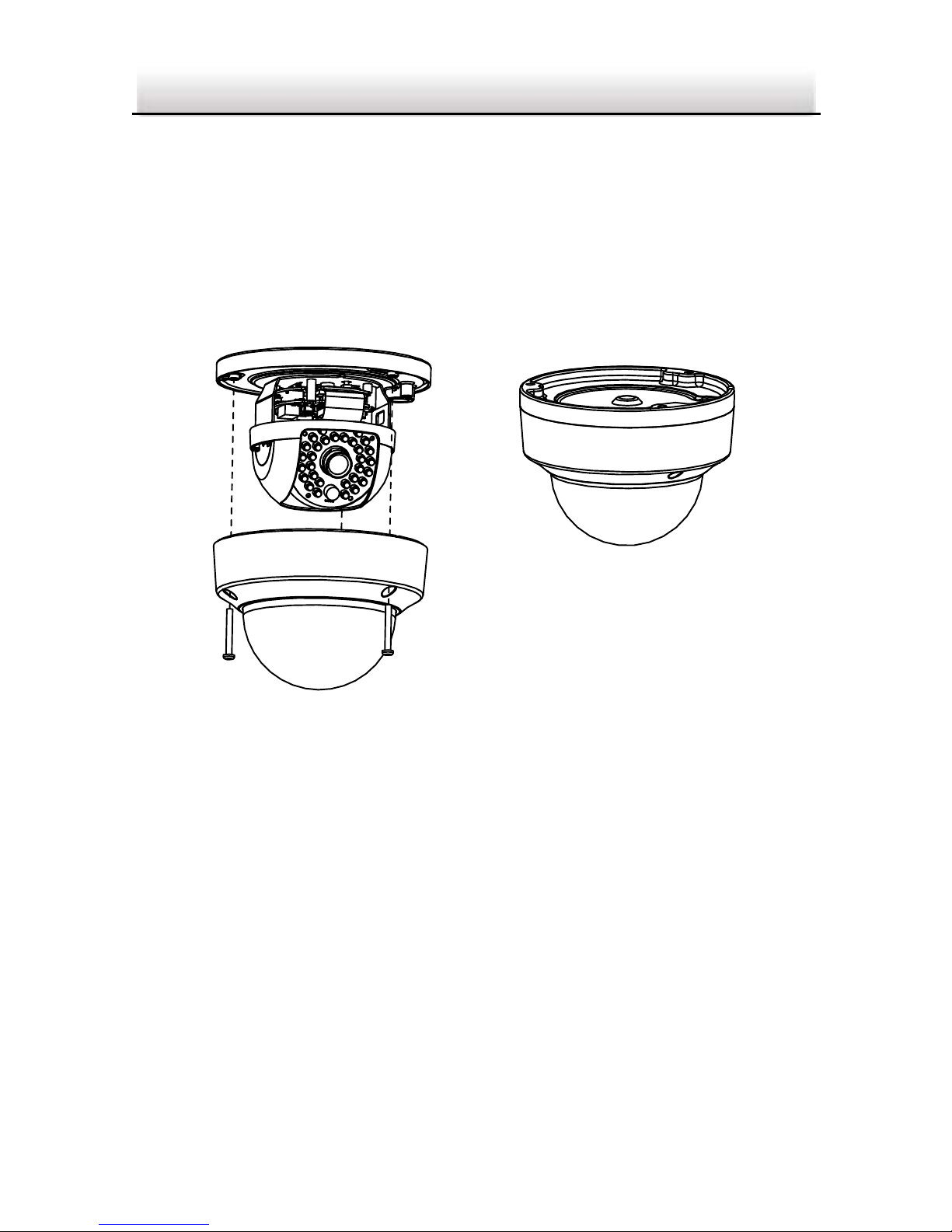

Figure 1-1 Overview
1
2
3
4
5
6
7
8
9

Network Dome Camera Quick Operation Guide
9
Table 1-1 Physical Description
No. Description
1 Mounting Base
2 Horizontal Stand
3 Vertical Stand
4 Bubble
5 Cables
6 IR Led
7 Lens
8 Black Liner
9 Safety Cable

Network Dome Camera Quick Operation Guide
10
Installation
Before you start:
 Please make sure that the device in the package is in good condition and all
the assembly parts are included.
 Make sure that all the related equipment is power-off during the installation.
 Check the specification of the products for the installation environment.
 Make sure the power supply is matched with your required voltage to avoid
damage.
 If the product does not function properly, please contact your dealer or the
nearest service center. Do not disassemble the camera for repair or
maintenance by yourself.
 Please make sure that the wall is strong enough to withstand three times the
weight of the camera.
Steps:
Drill the cable hole and the screw holes in the ceiling according to the
supplied drilling template.
Figure 2-1 Drilling Template
Screw Hole
Screw Hole Screw Hole
Ceiling Mounting

Network Dome Camera Quick Operation Guide
11
Loosen the set screws with a hex key (supplied) to remove the bubble.

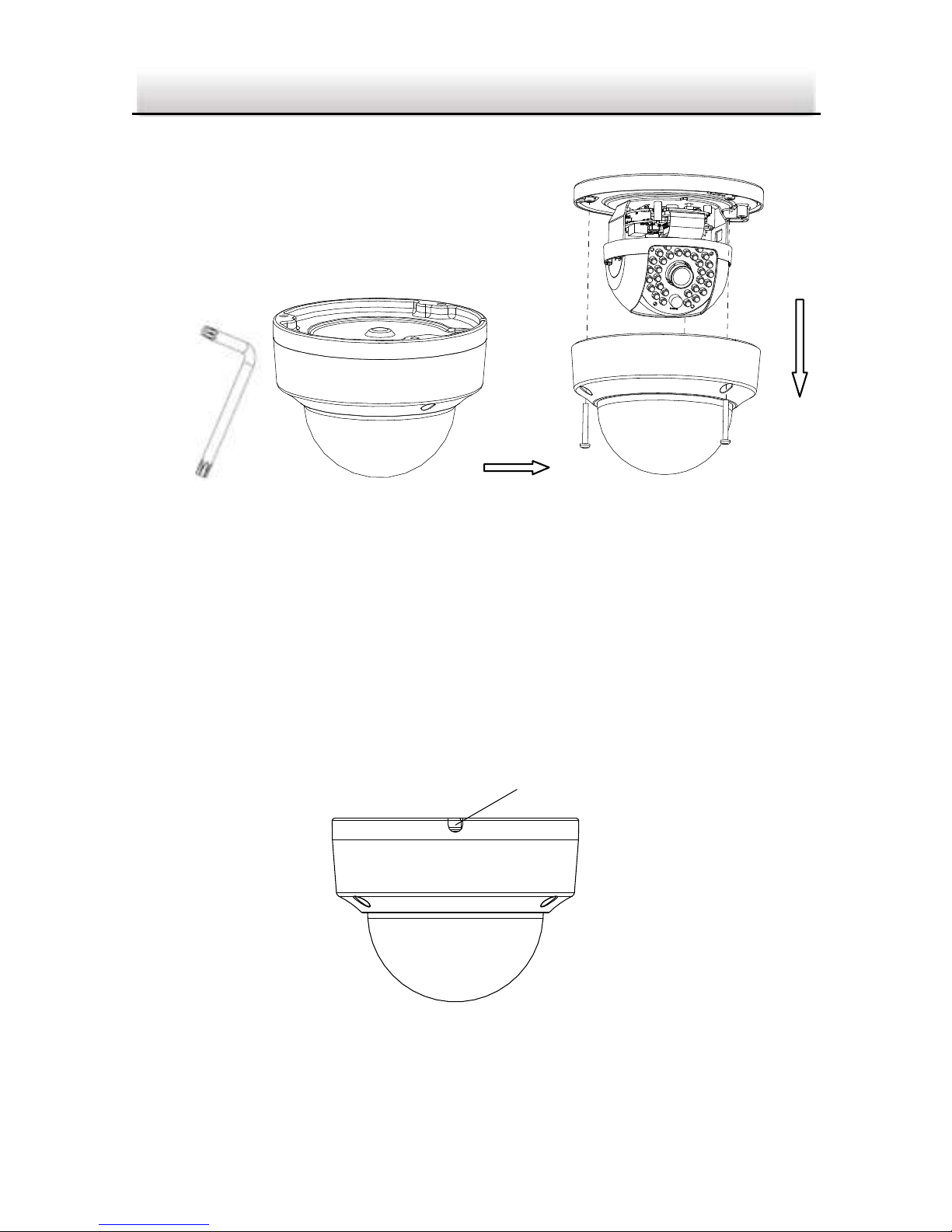

Figure 2-2 Remove the Bubble
Connect the corresponding cables.
If required, you can route cables through the side opening on the side of the
mounting base.
Figure 2-3 Side Opening
Side Opening

Network Dome Camera Quick Operation Guide
12
Fix the mounting base to the ceiling with screws.
Figure 2-4 Fix the Mounting Base
Adjust the surveillance angel.
Loosen the tilt adjusting screws, and adjust the tilt angel [0~65], and
tighten the tilt adjusting screws.
Hold the black liner and rotate it to adjust the pan position [0~360].
Remove the black liner and rotate the camera to adjust the azimuth
angle [0~360].
Figure 2-5 3-axis Adjustment
Tilt Adjusting Screw

Network Dome Camera Quick Operation Guide
13
As the lens has already been factory adjusted to the best imaging effect, you just
need to adjust the pan position and tilt position to get the desired surveillance
angle.
Reinstall the bubble and tighten the screws.
Figure 2-6 Complete the Installation

Network Dome Camera Quick Operation Guide
14
Setting the Network Camera over
the LAN
Purpose:
To view and configure the camera via LAN (Local Area Network), you need to
connect the network camera in the same subnet with your PC. Then install the
iVMS-4200 software to search and change the IP address of the network camera.
The following figure shows the cable connection of a network camera and a PC:
Figure 3-1 Wiring over LAN
Set the IP address of the camera for accessing via LAN.
Steps:
To set the IP address, please use the Advidia Camera Finder Utility as
described below:
 To view and configure the camera via LAN (Local Area Network), you need to
connect the network camera in the same subnet with your PC. Then, install
the Advidia Camera Finder Utility.
Refer to the following introductions to set IP address with the Advidia
Camera Finder Utility software (for more detailed instructions please

Network Dome Camera Quick Operation Guide
15
download the Camera Finder manual from the Advidia Website
www.advidia.com/support):
 After launching the Advidia Camera Finder software, it automatically
searches the online devices from the subnet where your computer is located.
This search may take 30 seconds or more depending on network size. After
searching it will show total number and information of the Advidia cameras
found on the network. Device information including the device type, IP
address, port number, gateway, etc. will be displayed.
Figure 3-2 Advidia Camera Finder
Note:
To perform a manual search for additional cameras:
Click the refresh icon to refresh the online device list manually.
The newly discovered devices will be added to the list.
Note:

Network Dome Camera Quick Operation Guide
16
You can click on each column heading to order the information.
 Modify device information
Steps:
1). Select the device(s) to be modified in the device list as shown in Figure
3-3.
2). Click on “File” and select “Login Manager” as shown in Figure 3-4 to
enter the username and password information of selected device(s).
3). Enter the username and password information of the admin account of
each device you wish to modify in the “Username” and “Password”
fields and click the Save icon to save the changes.
4). Close the Login Manager and select “Launch Edit Table” under the “Edit”
menu dropdown or with Ctrl+E as seen in figure 3-5.
Figure 3-3 Select a Device

Network Dome Camera Quick Operation Guide
17
Figure 3-4 Login Manager
Figure 3-5 Launch Edit Table
Figure 3-6 Edit Table
5)
Enter the desired IP address (or range if changing the IP address of more
than one device) of the network camera in the address field of the edit table

Network Dome Camera Quick Operation Guide
18
and click Apply Network Changes. You can also select “Dynamic IP” if you
would prefer to have an IP address assigned by your network router.
The default value of the IP address is “192.0.0.64”. The default user name is
“admin”, and password is “12345”. For security purposes the default
Username and password should be changed to something unique.
For accessing the network camera from different subnets, please set the
gateway for the network camera after you log in.

Network Dome Camera Quick Operation Guide
19
4 Accessing via Web Browser
System Requirement:
Operating System: Microsoft Windows XP SP1 and above version / Vista / Win7 /
Server 2003 / Server 2008 32bits
CPU: Intel Pentium IV 3.0 GHz or higher
RAM: 1G or higher
Display: 1024×768 resolution or higher
Web Browser: Internet Explorer 6.0 and above version, Apple Safari 5.02 and
above version, Mozilla Firefox 3.5 and above version and Google Chrome8 and
above version
Steps:
1)
Open the web browser.
2)
In the browser address bar, input the IP address of the network camera, e.g.,
192.0.0.64 and press the Enter key to enter the login interface.
3)
Input the user name and password.
4)
Click Login.
