Panasonic KX-HCM280 User manual

Getting Started
Model No. KX-HCM280
Please read the Operating Instructions for the details.
Keep this leaflet for the future reference.
The suffix of each model number is omitted.
Network Camera
Included Accessories
The following items are provided with a Network Camera.
Notes
• If any items are missing, contact the dealer immediately.
• The order numbers listed above are subject to change without notice.
• Save the original carton and packing materials for future shipping and
transportation of the unit.
AC Adaptor—1 pc.
Order No. PSLP1242Z AC cord (Type C-7)—1 pc. Order No. PSJA1074Z
Ceiling Mounting Cover—1 pc.
Order No. PSKL1023Z
Ceiling Plate B—1 pc.
Order No. PSMD1045Z Setup CD-ROM—1 pc. Order No.
PSQX2871Y
Screws A—2 pcs.
Order No. XYN3+J6FY Screws B—4 pcs. Order No. XTB4+20AFY
Ceiling Plate A—1 pc.
Order No. PSZMHCM280M

Operating Instructions
2
Network Camera Configuration Type
A Network Camera can be connected on a LAN/Intranet and the Internet. Select
one of the four Network Camera configuration types. Network parameters differ
depending on the Network Camera configuration type.
[Type 1]—LAN/Intranet Connection with an Ethernet®
Switching Hub
The Network Camera can be installed on the LAN/Intranet.
*1Network traffic can be improved by using the Ethernet switching hub.
[Type 2]—Internet Connection with a Broadband Router
The Network Camera can be accessed from the Internet. The broadband router
needs Port Forwarding (IP Masquerade) feature on page 32 in the Operating
Instructions.
LAN/Intranet Ethernet switching hub*1
Modem Broadband
Router
CATV
xDSL
Optical cable
Internet WAN LAN

Operating Instructions
3
[Type 3]—Internet Direct Connection with a Modem
The Network Camera can be installed alone without PC on the network. When you
set up a Network Camera in [Type 3], connect it temporarily in [Type 1], [Type 2]
or [Type 4].
Note
Some xDSL services use PPPoE. The Network Camera does not support
PPPoE. If the Internet connection requires PPPoE, connect with the
broadband router supporting PPPoE like [Type 2].
[Type 4]—Direct Connection with a PC
The Network Camera can be connected to a PC directly.
Note
Use a category 5 cross cable when connecting directly with the cable to the
PC.
Modem
Internet
Category 5 cross cable

Operating Instructions
4
How to turn on the Network Camera for Installation
The Network Camera powers up when connecting AC plug to the power outlet.
Notes
• Do not hold or touch the Pan/Tilt as it starts moving when connecting AC
plug to the power outlet.
• AC adaptor is used as the main disconnect device, so ensure that the
power outlet is located/installed near the equipment and is easily
accessible.
• Use only specified Panasonic AC adaptor PSLP1242 (Order No.
PSLP1242Z).
• When you set up a Network Camera in [Type 3], connect it temporarily in
[Type 1], [Type 2] or [Type 4].
• When Indicator is orange, confirm that the Ethernet cable is properly
connected, or the PC, Ethernet hub or broadband router is properly
working.
External I/O
Ethernet port
AC cord
To Network
Category 5 straight/cross cable
Connect the DC plug of the
AC adaptor to the DC IN jack.
Hook the AC adaptor cord
to the Hook for AC Adaptor.
Connect the AC cord
to the AC adaptor. Connect the AC plug
of the AC cord to
the power outlet.
2)
1)
4)
Connect a category 5
straight/cross cable
to the Ethernet port.
3)
5)
Power Outlet
Hook for AC Adaptor
DC IN jack

Operating Instructions
5
Network Parameters
Preparing the Network Parameters for the Network Camera
Before starting to set up the network parameters of a Network Camera, make note
of corresponding network parameters.
Refer to page 6 in this Getting Started and page 23 in the Operating Instructions
for network parameters.
Network parameters memo for Network Camera
The devices on the network may not be assigned the same IP address. Each
device must have its own IP address. Overlapped IP addresses can cause other
network devices to stop working and may result in widespread network problems.
[Type 1] Ask your network administrator for the network parameters.
[Type 2] Refer to the broadband router’s manual for the network parameters.
[Type 3] Ask your ISP (Internet Service Provider) for the network parameters.
[Type 4] Install the Network Camera in the default condition. Set the PC
"192.168.0.250" (IP address) and "255.255.255.0" (Subnet Mask).
Refer to page 24 in the Operating Instructions.
Default Gateway . . . DNS Server 1 . . .
IP Address . . .
DNS Server 2 . . .
Subnet Mask . . .

Operating Instructions
6
Network Parameters Table
*1Many ISP's intentionally block the port number 80 to guard against network
viruses. If your ISP blocks the port number 80, substitute it to another unused
port number.
*2When you use more than one Network Camera with a broadband router, each
Network Camera needs its own port number.
*3The Port Forwarding (IP Masquerade) feature needs to be set to the
broadband router. Refer to page 32 in the Operating Instructions.
*4Refer to the broadband router's manual.
*5
When you use a Network Camera in DHCP feature, check [DHCP] and enter
the Host Name if your ISP requires. If you automatically get the address of
Default Gateway and DNS server from DHCP server, you do not need to set up.
*6 Verify that your ISP supports DHCP. If your ISP supports DHCP, or if you assign a
domain name to the Network Camera, you need to contract and register for DDNS
service. If you set a static global IP address to the Network Camera and the
broadband router, you do not need to register for DDNS service. Refer to page 34
in the Operating Instructions .
It can restrict the transmit bandwidth.
Select from 0.1 to Unlimited Mbit/s.
Max.
Bandwidth
Usage
Parameters
Network Camera ConfigurationType
Port No.
IP address
Subnet
Mask
Default
Gateway
DNS
Server 1, 2
DDNS
Check [Static],
and set the
static private
IP address.
192.168.0.253
(default)
255.255.255.0
(default)
Check [Static],
and set the
static global
IP address.*5
Check [Static],
and set the
static private
IP address.*4
Set Default
Gateway
address.
You do not
need to set up.
Set DNS server address.
[Type 1] [Type 2] [Type 3] [Type 4]
Set Default
Gateway
address.*5
Set DNS server
address.*5
Set the private
IP address of the
broadband router
(on your network),
not of the gateway
of your ISP.*
4
80 (default)*1 80 (default) 80 (default)
Set the Subnet Mask fitted to your network.
You do not
need to setup. You do not need to setup.
*6*6
80 (default)
*1*3
*2

Operating Instructions
7
Proxy Server Setting
A proxy server may prevent you from connecting directly to a Network Camera in
some corporate environments. The web browser can set up the IP address
communication without using a proxy server. Consult your ISP or network
administrator.
Note
A proxy server is generally used to protect security of a network that offers an
Internet connection. The network of a Network Camera with the proxy server
may cause some problems to the image quality such as taking much time in
refresh interval. Consult your ISP or network administrator for details.
1. Start up the Internet Explorer. (The window comes from Internet Explorer
5.50.)
2. Select [Tools] –> [Internet Options...] –> [Connections] tab and click [LAN
Settings]. See if the Use a proxy server check box is checked or not in the
next window. When checked, click [Advanced...].
When not checked, click [Cancel]. Your proxy settings are causing no
problems.
See if the check
box is checked or not.
When checked, click
[Advanced...].

Operating Instructions
8

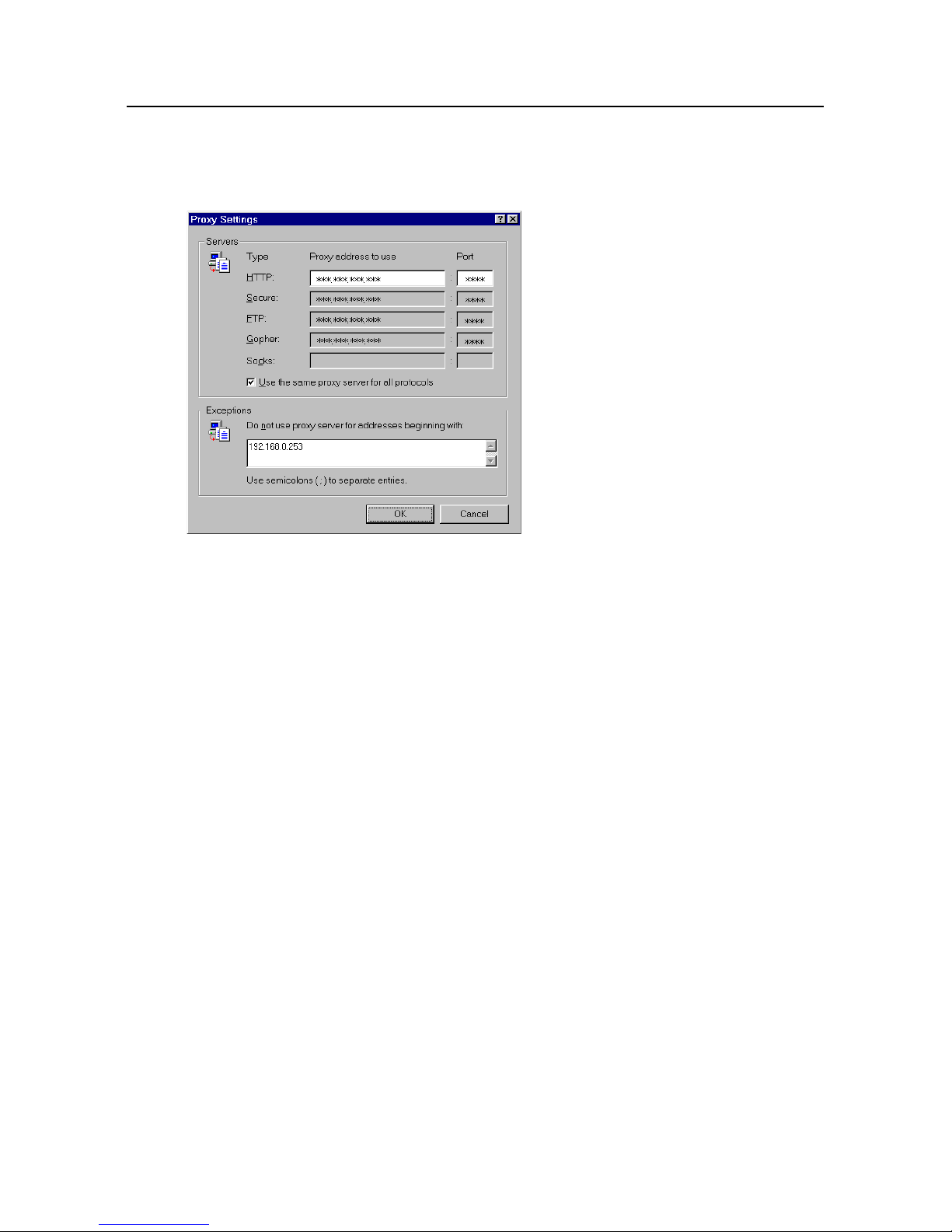

3. Enter an IP address for the Network Camera assigned from your ISP or
network administrator into the Do not use proxy server for addresses
beginning with data field.
4. Click [OK] on all of the opening windows.

Operating Instructions
9
Simple Installation using the Setup CD-ROM
After finishing cabling, turn on the Network Camera and insert the Setup CD-ROM
in the CD-ROM drive of the PC. Setup CD-ROM should start the application
automatically. This program automatically finds Network Cameras on the network.
1. Turn on the Network Camera.
2. Insert the Setup CD-ROM in the CD-ROM drive of the PC.
(If Network Camera Setup window does not appear, click "setup.exe" on the
Setup CD-ROM.)

Operating Instructions
10

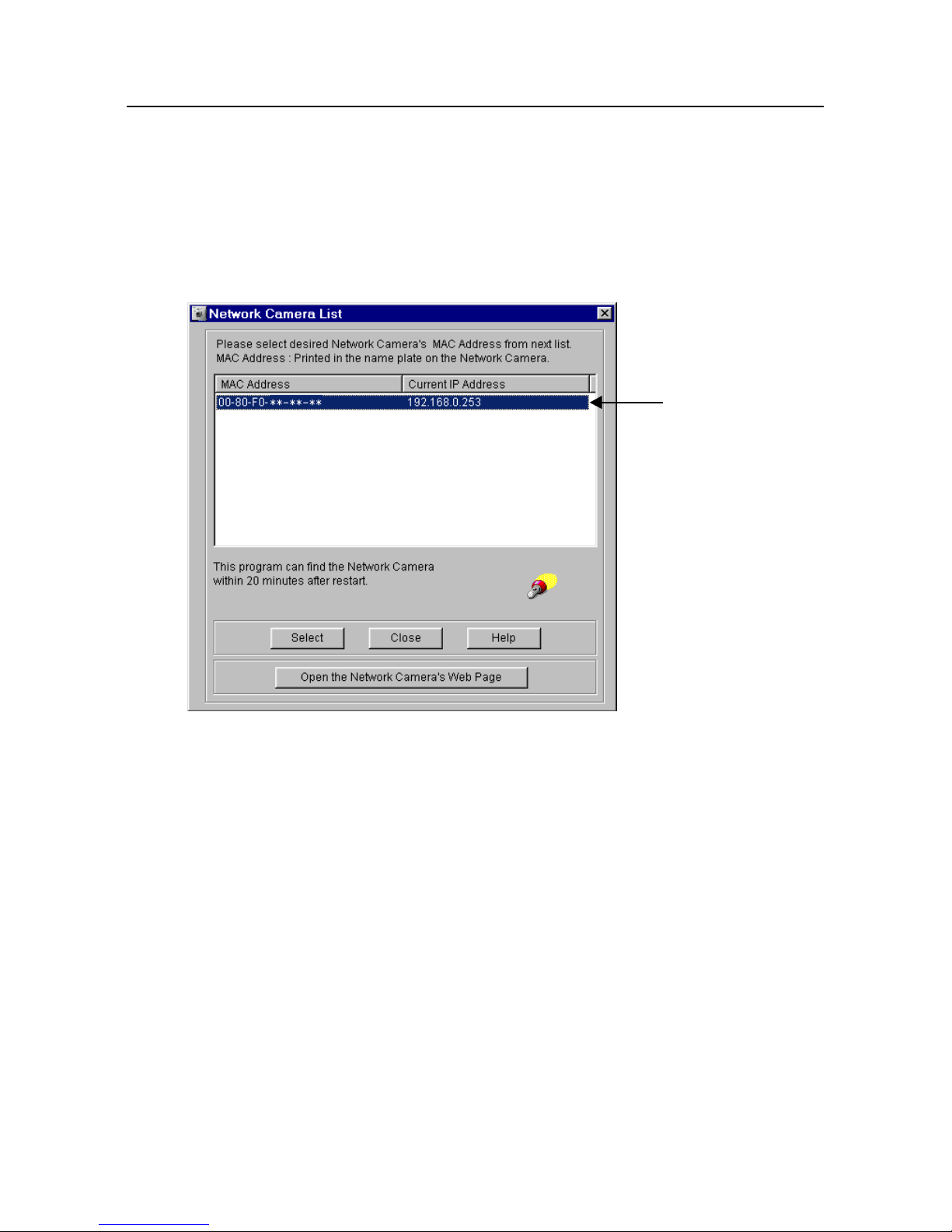

3. Click [Network Configuration]. Network Camera List window appears. The
Setup program finds all Network Cameras connected on your local network. It
lists all of MAC addresses and IP addresses of Network Cameras. Network
Cameras that are isolated by the use of a home gateway or broadband router
will not be detected. Record their MAC addresses on the Network Camera
Memo on page 3 in the Operating Instructions. It is useful for customer
servicing.
Notes
• The setup program finds and identifies Network Cameras by listening for
data, which the Network Cameras send out for the first 20 minutes after
powering up. If the installation is not completed within 20 minutes,
disconnect temporarily the AC adaptor to restart this operation.
• Each Network Camera has a unique MAC address labelled on the bottom.
Refer to page 15 in the Operating Instructions.
• Network Cameras that are isolated by the use of a home gateway or
broadband router will not be detected.
(A)

Operating Instructions
11
4. Select your target Network Camera from the list as shown in example (A) on
Network Camera List window on page 10 and click [Select]. Configuration
window appears. Refer to page 5 and page 6 and enter correct network
parameters. Refer to page 60 in the Operating Instructions for details about
each parameter.
5. Click [Save] when finished. The "Successful!" message appears.
Notes
• The Network Camera automatically restarts after saving the network
configuration.
• The next message appears if the IP address overlaps with another one. If
you cannot set the IP address, ask your ISP or the administrator.

Operating Instructions
12
6. Click [OK].
Refer to page 59 in the Operating Instructions for Setup Page (Network
window).
7. Click [Top Page]. Top Page appears.
Refer to page 38 in the Operating Instructions for Top Page.
Notes
• When starting to view images for the first time in the Internet Explorer, a
pop-up Security Warning window may appear. The window requests
your permission to download ActiveX®Controls (OCX file) used to display
Motion JPEG. Refer to page 40 in the Operating Instructions.
• If you are configuring in [Type 3], Top Page may not appear at this point.
After a Network Camera is directly connected with the modem, confirm the
Network Camera Access from the Internet on page 32 in the Operating
Instructions.
Click the language to change the display.

Operating Instructions
13
Mounting
Two ways of mounting are shown in the following figures. MAC Address and Serial
Number are indicated on the bottom label of the main unit of the Network Camera.
Record both of them on the Network Camera Memo on page 3 in the Operating
Instructions. They are indispensable for setting network parameters after
mounting a Network Camera and for future customer servicing.
Notes
• Mounting and cabling instructions described in this Getting Started follow
generally accepted guidelines suitable for residential installations. In some
areas, commercial and industrial installations are regulated by local or
state ordinances. For such installations, contact your local building
department or building inspector for more details.
• The Network Camera is intended for indoor use only. Prolonged exposure
to direct sunlight or halogen light may damage CCD.
Mounting on the Table
Mount the Network Camera at an even place without vibrations.
Note
The Network Camera is available between 15° based on level line for mounting
on the ceiling.

Operating Instructions
14
Mounting on the Ceiling
Mount the Network Camera at an even place without vibrations. Set the Tilt Range
to [On the ceiling] on Camera Setup window on page 85 in the Operating
Instructions. Two ways of wiring can be considered; wiring through a hole made in
the ceiling or wiring without making a hole for a cable in the ceiling. Select either
one of the two.
Wiring through a hole made in the ceiling
1. Fix the Ceiling Plate B on the ceiling with Screws B.
• Fix the Ceiling Plate B more than 100 mm off the wall or other obstacles
from its centre.
• Make sure the Network Camera is firmly mounted on a beam of wood etc.
When there is no beam, apply a board on the other side of the ceiling to
make sure the Network Camera does not drop.
Screws B (4 pcs.)
Keep more than 100 mm
off the wall or other obstacles.
Network Camera
Direction
100 mm

Operating Instructions
15
2. Make a hole for a cable.
3. Fix the rubbers and dents of the Network Camera to the Ceiling Plate A and
fix them firmly.
• Make sure the Network Camera, using coins etc., is firmly fixed.
4. Fix the Ceiling Plate A to the Ceiling Plate B and fix them firmly with Screws A.
Note
Install the Network Camera so that the connecting part comes to the front.
Hole for a cable: 25 mm
65 mm
Fit the four rubbers in place.
Fit the two dents
in place.
Fit the hooks to the holes and move
in the anticlockwise direction.
Screws A
(2 pcs.)
Four Tabs
Fix firmly with Screws A.

2003 Panasonic Communications Co., Ltd. All Rights Reserved.
Screen shots reprinted with permission from Microsoft Corporation.
ActiveX is either a registered trademark or a trademark of Microsoft Corporation
in the United States and/or other countries.
All other trademarks identified herein are the property of their respective owners.
Trademarks
Ethernet is either a registered trademark or a trademark of Xerox Corporation
in the United States and/or other countries.
Printed in Japan PSQX2945ZA KK0503JT0 (CE)
Operating Instructions
5. Connect the cable and fix the Ceiling Mounting Cover. Adjust the "l" of the main
unit to the "l" of the Ceiling Mounting Cover.
• Be careful not to nip the cable etc.
6. Move the Ceiling Mounting Cover in the clockwise direction until the "•" of it fits
to the "l" of the main unit.
• When removing the Ceiling Mounting Cover, move it in the anticlockwise
direction. Adjust both "l" and let down the main unit.
Wiring without making a hole for a cable in the ceiling
• Follow the steps 1, 3, 4, 5 and 6. Making a hole is not necessary.
• Remove the tab of Ceiling Mounting Cover and wire through the notch.
