Panasonic WVBP130 - B/W CCTV CAMERA User manual

CCTV Cimirii
WV-BP130/WV-BP132/WV-BP134
Operating
Instructions
fUnt cfrtunl
Panasonic
IJHui; M’^rr ptinff 1(3 CDflhaCl Dl UH#mll 'li"l | 1*1"
pleasa ie;dd ihpsc in&i-j-cliDni ooirpiaN v
ENGLISH

A
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR BACK). NO USER SER¬
VICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PER¬
SONNEL.
A The lightning flash with arrowhead sym¬
bol, within an equilateral triangle, is
intended to alert the user to the presence
of uninsulated 'dangerous voltage' within
the product's enclosure that may be of
sufficient magnitude to constitute a risk of
____ ■ electric shock to persons.
C A -1 ACC
The exclamation point within an equilater¬
al triangle is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in
the literature accompa-nying the appli¬
ance.
SA 1966
,-For U.S.A —,
! Warning:
I This equipment generates and uses radio frequency energy !
| and if not installed and used properly, i.e., in strict accor- j
j dance with the instruction manual, may cause harmful j
; interference to radio communications. It has been tested |
| and found to comply with the limits for a Class A computing J
! device pursuant to Subpart J of Part 15 of FCC Rules, !
! which are designed to provide reasonable protection !
! against such interference when operated in a commercial !
i environment.
L._I
The serial number of this product may be found on the top
of the unit.
You should note the serial number of this unit in the space
provided and retain this book as a permanent record of your
purchase to aid identification in the event of theft.
Model No. __
Serial No. _
WARNING:
TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

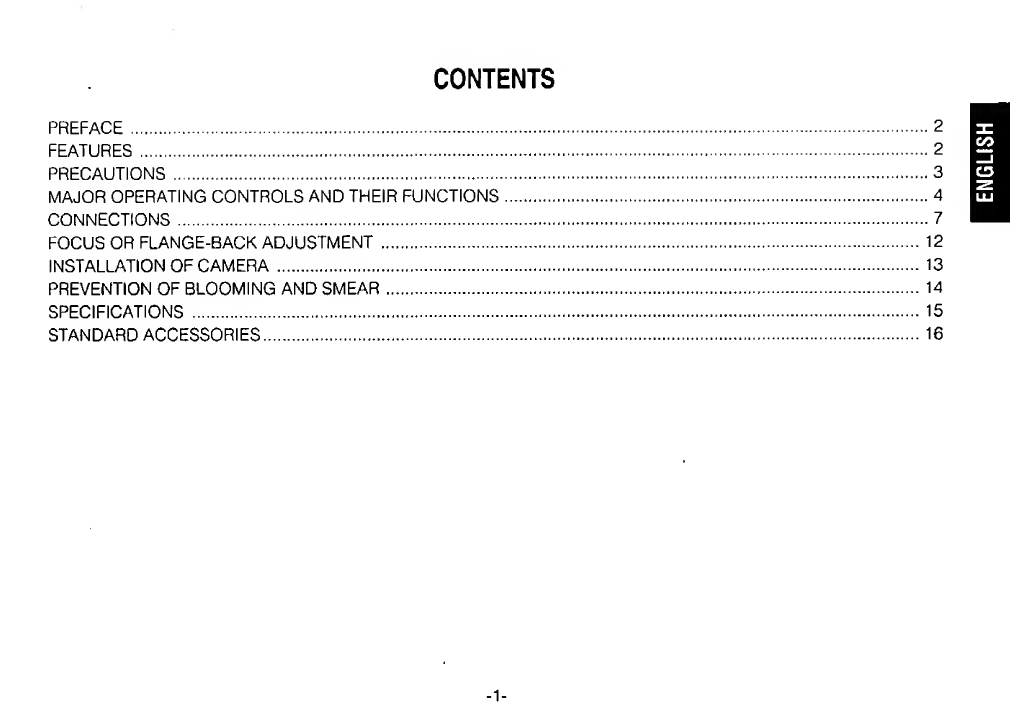

CONTENTS
PREFACE . 2
FEATURES . 2
PRECAUTIONS .3
MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS.4
CONNECTIONS .7
FOCUS OR FLANGE-BACK ADJUSTMENT . 12

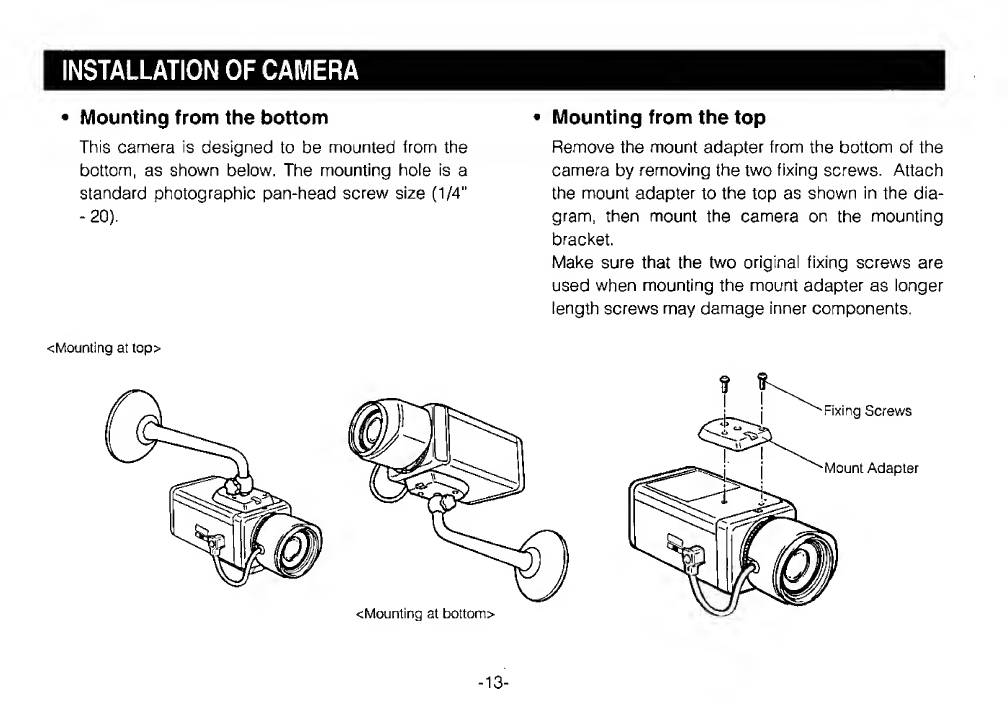

INSTALLATION OF CAMERA . 13
PREVENTION OF BLOOMING AND SMEAR . 14
SPECIFICATIONS . 15
STANDARD ACCESSORIES. 16
- 1 -
ENGLISH

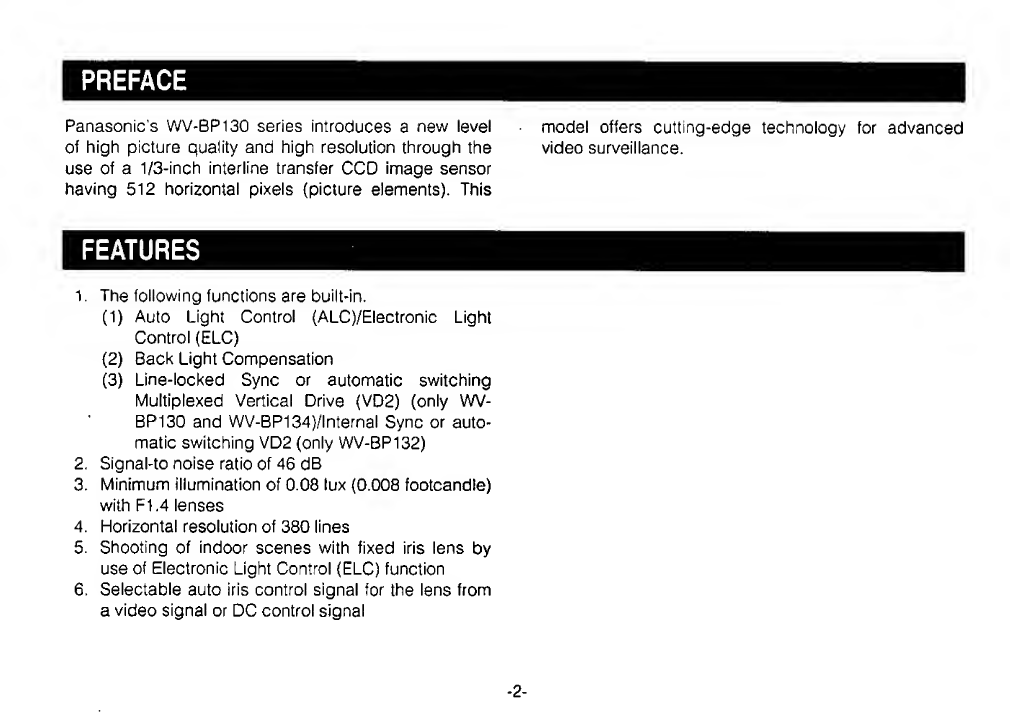

PREFACE
Panasonic's WV-BP130 series introduces a new level model offers cutting-edge technology for advanced
of high picture quality and high resolution through the video surveillance,
use of a 1/3-inch interline transfer CCD image sensor
having 512 horizontal pixels (picture elements). This
FEATURES
1. The following functions are built-in.
(1) Auto Light Control (ALC)/Electronic Light
Control (ELC)
(2) Back Light Compensation
(3) Line-locked Sync or automatic switching
Multiplexed Vertical Drive (VD2) (only WV-
BP130 and WV-BP134)/lnternal Sync or auto¬
matic switching VD2 (only WV-BP132)
2. Signal-to noise ratio of 46 dB
3. Minimum illumination of 0.08 lux (0.008 footcandle)
with FI.4 lenses
4. Horizontal resolution of 380 lines
5. Shooting of indoor scenes with fixed iris lens by
use of Electronic Light Control (ELC) function
6. Selectable auto iris control signal for the lens from
a video signal or DC control signal
- 2 -

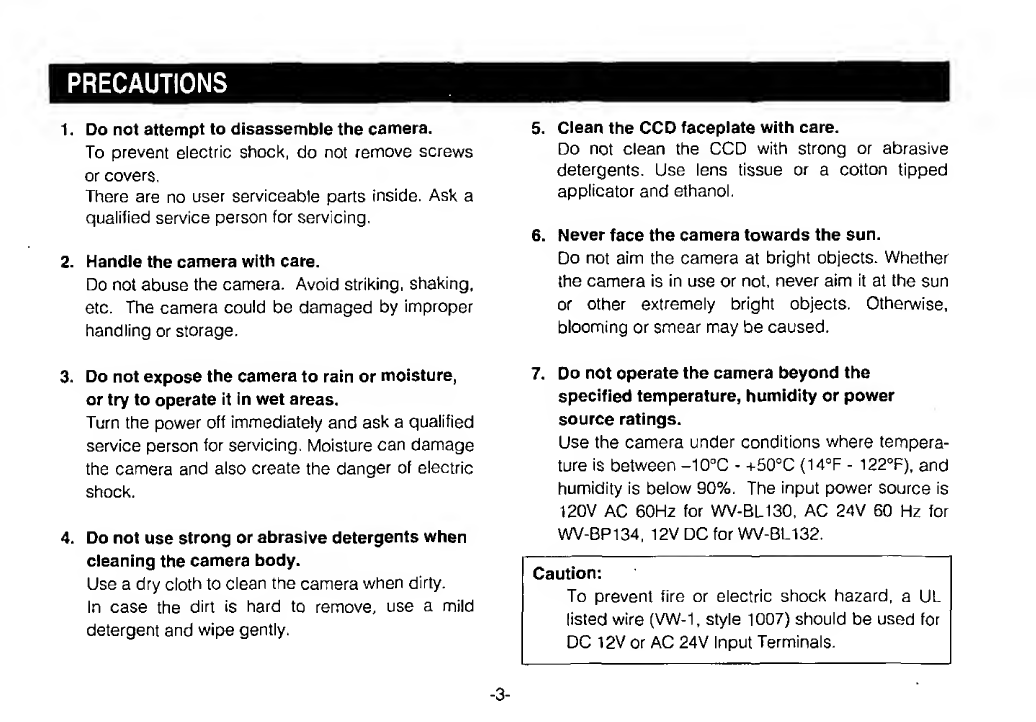

PRECAUTIONS
1. Do not attempt to disassemble the camera.
To prevent electric shock, do not remove screws
or covers.
There are no user serviceable parts inside. Ask a
qualified service person for servicing.
2. Handle the camera with care.
Do not abuse the camera. Avoid striking, shaking,
etc. The camera could be damaged by improper
handling or storage.
3. Do not expose the camera to rain or moisture,
or try to operate it in wet areas.
Turn the power off immediately and ask a qualified
service person for servicing. Moisture can damage
the camera and also create the danger of electric
shock.
4. Do not use strong or abrasive detergents when
cleaning the camera body.
Use a dry cloth to clean the camera when dirty.
In case the dirt is hard to remove, use a mild
detergent and wipe gently.
5. Clean the CCD faceplate with care.
Do not clean the CCD with strong or abrasive
detergents. Use lens tissue or a cotton tipped
applicator and ethanol.
6. Never face the camera towards the sun.
Do not aim the camera at bright objects. Whether
the camera is in use or not, never aim it at the sun
or other extremely bright objects. Otherwise,
blooming or smear may be caused.
7. Do not operate the camera beyond the
specified temperature, humidity or power
source ratings.
Use the camera under conditions where tempera¬
ture is between -10°C - +50°C (14°F - 122°F), and
humidity is below 90%. The input power source is
120V AC 60Hz for WV-BL130, AC 24V 60 Hz for
WV-BP134, 12V DC for WV-BL132.
Caution:
To prevent fire or electric shock hazard, a UL
listed wire (VW-1, style 1007) should be used for
DC 12V or AC 24V Input Terminals.
- 3 -

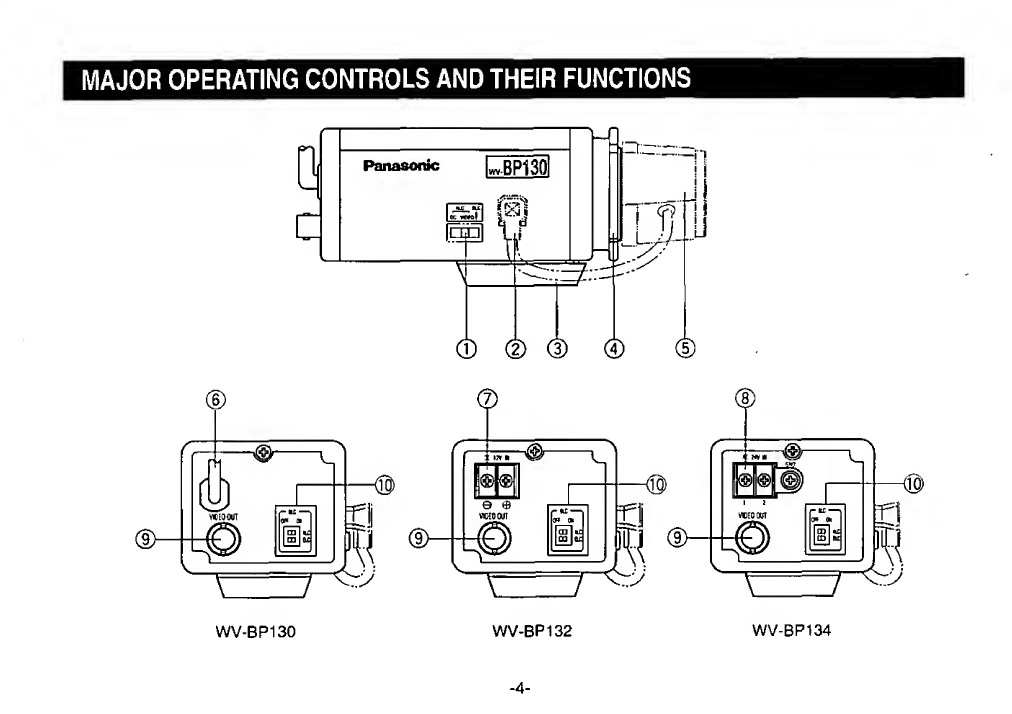

MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS

0 Lens Type and Drive Signal Selector (ALC
(VIDEO/DC), ELC)
Lets you select the mode according to the lens
type that is used with this camera.
ALC: Lets you select this mode when an auto iris
lens {ALC lens) is used with this camera.
ELC: Select this mode when a fixed iris lens or
manual iris lens is used with this camera.
If you have selected ALC select the mode accord*
ing to the type of auto iris lens drive signal to be
supplied to the lens from the auto iris lens connec¬
tor.
VIDEO: Select this mode if you are using the auto
iris lens that requires a video drive signal.
DC: Select this mode if you are using the auto iris
lens that requires a DC drive signal.
(D Auto Iris lens Connector
This connector is for connecting the auto iris lens
by a 4-pin male connector supplied as a standard
accessory (Part No. YFE4191J100).
(3) Camera Mounting Screw Hole
This hole is for mounting the camera onto a mount¬
ing bracket.
© Flange-back Adjusting Ring
This ring adjusts the back focal length or picture
focus. Rotate this ring clockwise for a C-mount
lens or counterclockwise for a CS-mount lens.
© Lens (option)
© Power Cord (only WV-BP130)
Connect this power cord to an electrical outlet of
120V AC 60 Hz.
© DC 12 V Input Terminal (DC 12V IN (only WV-
BP132))
This terminal is for connecting the 12V DC power
supply cord.
© 24V AC Input Terminal (AC 24V IN (only WV-
BP134))
This terminal is for connecting the AC 24V 60 Hz
power supply cord.
© Video Output Connector (VIDEO OUT)
This connector is for connecting with the VIDEO IN
connector of the monitor.
- 5 -

© Back Light Compensation On/Off Selectors
(BLC ON/OFF, ALC/ELC)
Lets you select BLC ON or OFF according to the
position of the object and light condition in the
screen.
BLC ON: Select this mode if the background light
is strong such as a spotlight. The back light
compensation functions.
OFF: Normal camera picture is displayed.
1. Confirm the position of the lens type and drive sig¬
nal selector.
2. If you have selected ALC (VIDEO/DC), use the
upper selector (ALC) to select the mode.
If ELC is selected, select the mode by tower selec¬
tor (ELC).
Cautions:
1. Connect to 12V DC (10.5V-16V) or 24V AC
(19.5V-28V) class 2 power supply only.
Make sure to connect the grounding lead
to the GND terminal when the power is
supplied from a 24V AC power source.
2. To prevent fire or electric shock hazard,
use a UL listed wire VW-1, style 1007 cable
for the Input Terminal.
- 6 -

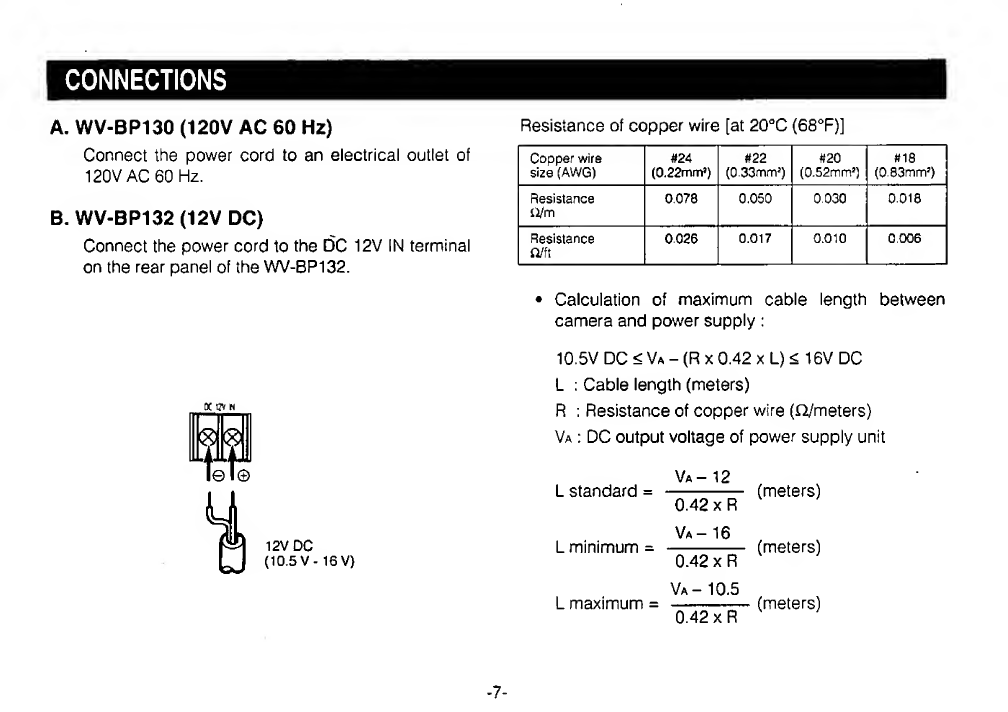

CONNECTIONS
A. WV-BP130 (120V AC 60 Hz)
Connect the power cord to an electrical outlet of
120V AC 60 Hz.
B. WV-BP132 (12V DC)
Connect the power cord to the DC 12V IN terminal
on the rear panel of the WV-BP132.
DC CV N
Resistance of copper wire [at 20°C (68°F)]
Copper wire
size (AWG)
#24
(0.22mm ! )
#22
(0 33nrvn J )
#20
(0.52mm } )
#18
(0.83mm’)
Resistance
ll/m
0.078 0.050
0 030
0.018
Resistance
fl/ft
0026
0.017
0.010
0.006
• Calculation of maximum cable length between
camera and power supply :
10.5V DC < Va - (R x 0.42 x L) < 16V DC
L : Cable length (meters)
R : Resistance of copper wire (Q/meters)
Va : DC output voltage of power supply unit
Va - 12
L standard =
0.42 x R
(meters)
L minimum =
Va - 16
(meters)
0.42 x R
L maximum =
Va - 10.5
- (meters)
0.42 x R
- 7 -

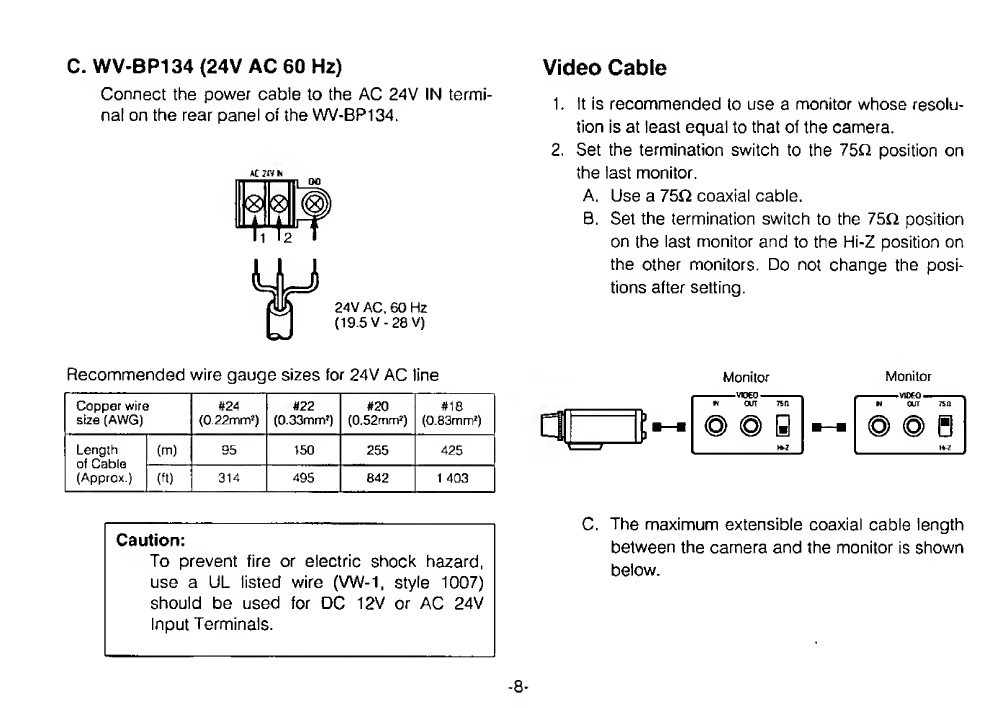

C. WV-BP134 (24V AC 60 Hz)
Connect the power cable to the AC 24V IN termi¬
nal on the rear panel of the WV-BP134.
Caution:
To prevent fire or electric shock hazard,
use a UL listed wire (VW-1, style 1007)
should be used for DC 12V or AC 24V
Input Terminals.
Video Cable
1. It is recommended to use a monitor whose resolu¬
tion is at least equal to that of the camera.
2. Set the termination switch to the 75ft position on
the last monitor.
A. Use a 75ft coaxial cable.
B. Set the termination switch to the 75ft position
on the last monitor and to the Hi-Z position on
the other monitors. Do not change the posi¬
tions after setting.
C. T he maximum extensible coaxial cable length
between the camera and the monitor is shown
below.
8 -

Type ol
coaxial cable
RG-59/U
(3C-2V)
RG-6/U
(5C-2V)
RG-11AJ
(7C-2V)
RG-15AJ
(10C-2V)
Recommended
(m)
250
500 600
800
cable length
(ft)
825
1 650 1 980 2 640
3. Wiring precautions
• Do not bend the coaxial cable into a curve whose
radius is smaller than 10 times the cable’s diame¬
ter.
• Never staple the cable, not even with circular sta¬
ples. Impedance mismatching will occur.
• Never crush or pinch the cable.
All of the above will change the impedance of the
cable and cause poor picture quality.
- 9 -

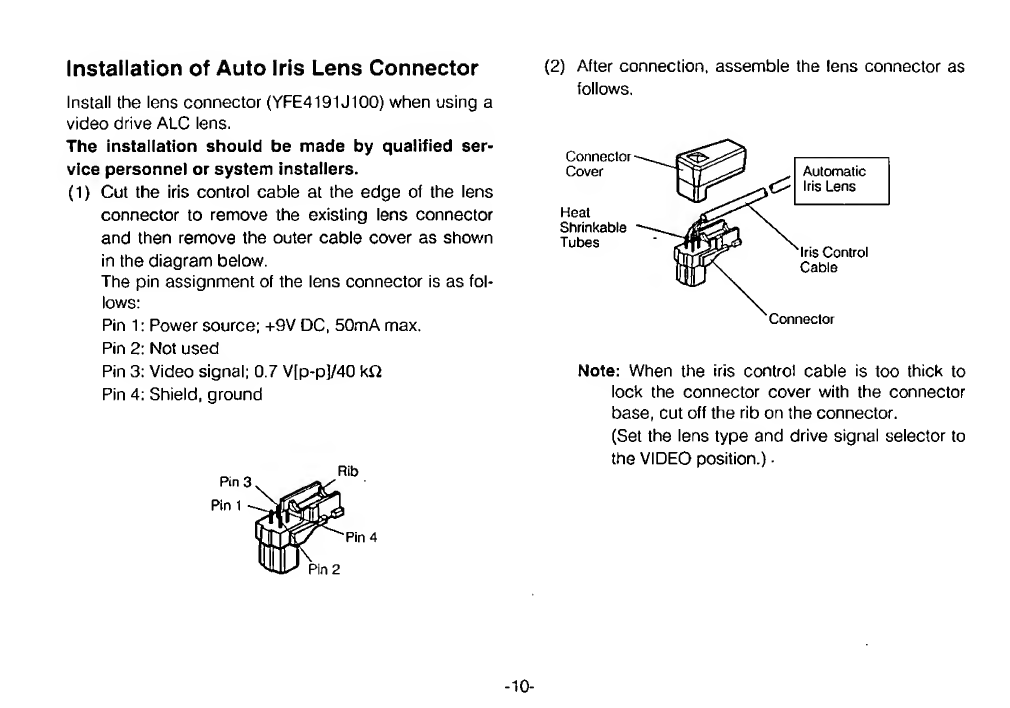

Installation of Auto Iris Lens Connector
Install the lens connector (YFE4191J100) when using a
video drive ALC lens.
The installation should be made by qualified ser¬
vice personnel or system installers.
(1) Cut the iris control cable at the edge of the lens
connector to remove the existing lens connector
and then remove the outer cable cover as shown
in the diagram below.
The pin assignment of the lens connector is as fol¬
lows:
Pin 1: Power source; +9V DC, 50mA max.
Pin 2: Not used
Pin 3; Video signal; 0.7 V[p-p]/40 kfl
Pin 4; Shield, ground
(2) After connection, assemble the lens connector as
follows.
Note: When the iris control cable is too thick to
lock the connector cover with the connector
base, cut off the rib on the connector.
(Set the lens type and drive signal selector to
the VIDEO position.) -
- 1 0 -

Mounting the Lens
Caution for Mounting the Lens
Caution:
Before you mount the lens, loosen the two screws
on the ring, and rotate this ring clockwise until it
stops. If the ring is not at the end, the inner Lens or
CCD image sensor may be damaged.
1. Mount the lens by turning it clockwise on the lens
mount of the camera.
2. Connect the lens cable to the auto iris lens con¬
nector on the side of the camera.
The lens mount should be a C-mount or CS-mount (1"-
32UN) and the lens weight should be less than 450g
(0.99 lbs). If the lens is heavier, both the lens and cam¬
era should be secured by using the supporter.
The protrusion at the rear of the lens should be as
shown below:
C-mount: Less than 11,5mm (7/16")
CS-mount: Less than 7.2 mm (1/4")

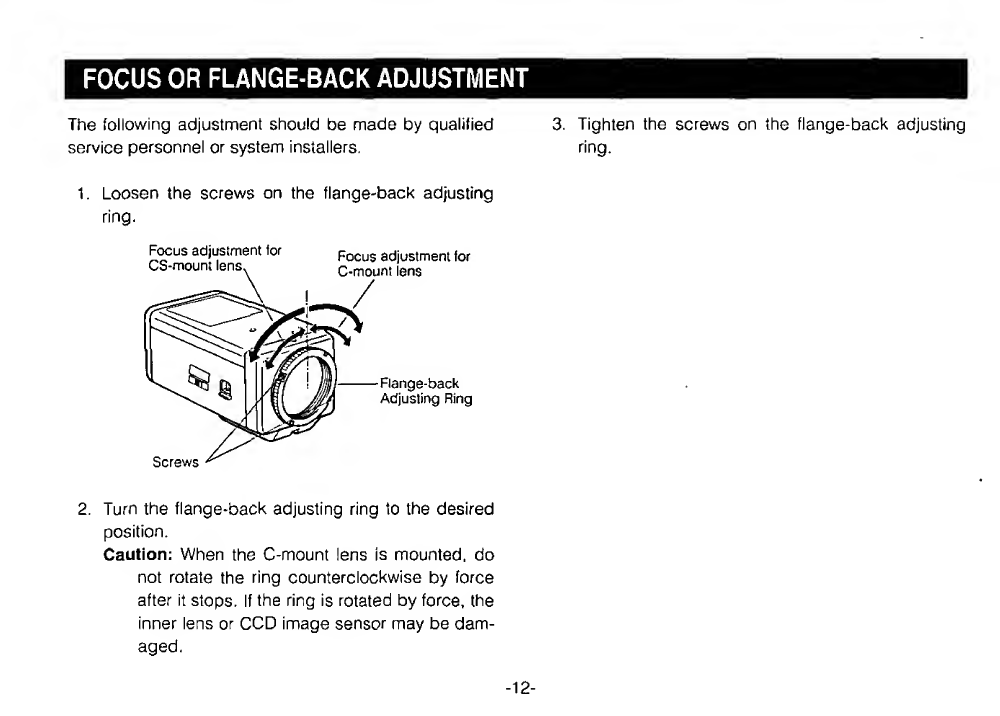

FOCUS OR FLANGE-BACK ADJUSTMENT
The following adjustment should be made by qualified 3. Tighten the screws on the flange-back adjusting
service personnel or system installers. ring.
1. Loosen the screws on the flange-back adjusting
ring.
2. Turn the flange-back adjusting ring to the desired
position.
Caution: When the C-mount lens is mounted, do
not rotate the ring counterclockwise by force
after it stops. If the ring is rotated by force, the
inner lens or CCD image sensor may be dam¬
aged.
- 1 2 -

INSTALLATION OF CAMERA
• Mounting from the bottom
This camera is designed to be mounted from the
bottom, as shown below. The mounting hole is a
standard photographic pan-head screw size (1/4"
- 2 0 ) .
• Mounting from the top
Remove the mount adapter from the bottom of the
camera by removing the two fixing screws. Attach
the mount adapter to the top as shown in the dia¬
gram, then mount the camera on the mounting
bracket.
Make sure that the two original fixing screws are
used when mounting the mount adapter as longer
length screws may damage inner components.
- 1 3 -

PREVENTION OF BLOOMING AND SMEAR
When the camera is aimed at a bright light, such as a
spotlight, or a surface that reflects bright light, smear
or blooming may appear. Therefore, the camera
should be operated carefully in the vicinity of extremely
bright objects to avoid smear or blooming.
- 1 4 -

SPECIFICATIONS
Pick-up Device:
Scanning Area:
Synchronization:
Scanning System:
Scanning:
Horizontal:
Vertical:
Video Output:
Horizontal Resolution:
Signal-to-Noise Ratio:
Electronic Light Control:
Minimum Illumination:
Lens Mount:
Ambient Operating Temperature:
Ambient Operating Humidity:
Power Source and
Power Consumption:
512 (H) x 492 (V) pixels, Interline Transfer CCD
4.8 (H) x 3.6 (V) mm (Equivalent to scanning area of 1/3" pick-up tube)
Line-locked or Multiplexed Vertical Drive (VD2) for WV-BP130 and WV-BP134
Internal or Multiplexed Vertical Drive (VD2) for WV-BP132
2 : 1 interlace
525 lines / 60 fields / 30 frames
15.75 kHz
60 Hz
1.0 V[p-p] EIA composite 75 / BNC connector
380 lines
46 dB
Equivalent to continuous variable shutter speed between 1/60 s
and 1/80 000 s
0.08 lx (0.008 foot-candle) at FI,4
C-mount or CS-mount selectable
-10°C - +50°C (14°F - 122°F)
Less than 90%
WV-BP130 120V AC 60 Hz, 2.8W
WV-BP132 12V DC 175 mA
WV-BP134 24V AC 60Hz, 2.7W
- 1 5 -

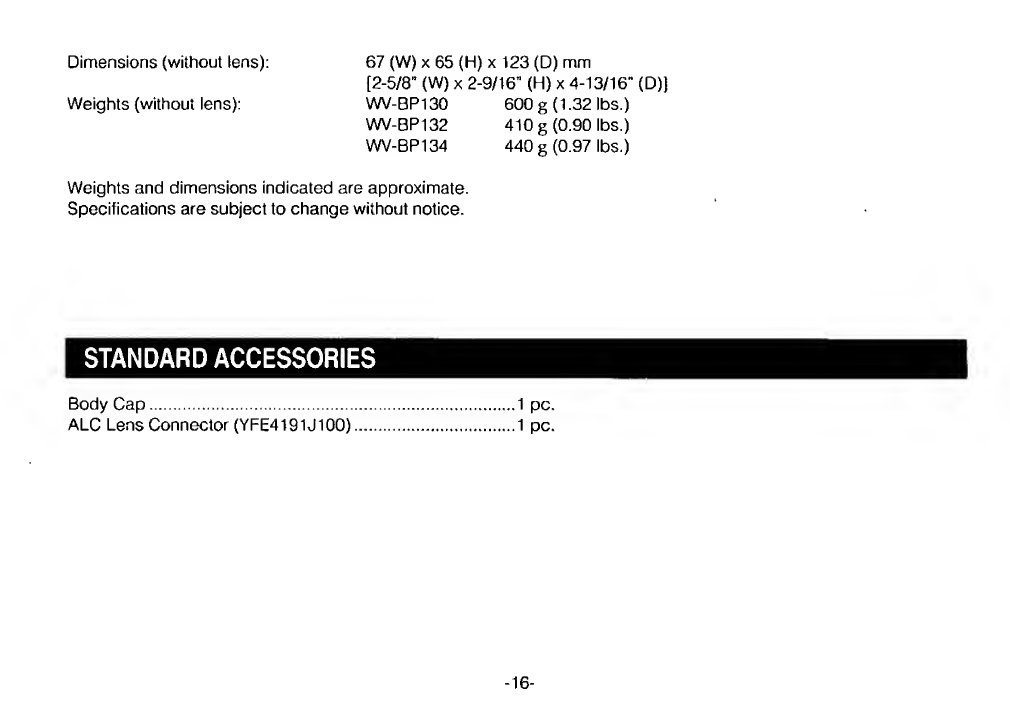

Dimensions (without tens): 67 (W) x 65 (H) x 123 (D) mm
[2-5/8" (W) x 2-9/16" (H) x 4-13/16” (D))
Weights (without lens): WV-BP130 600 g (1.32 tbs.)
WV-BP132 410 g (0.90 lbs.)
WV-BP134 440 g (0.97 lbs.)
Weights and dimensions indicated are approximate.
Specifications are subject to change without notice.
STANDARD ACCESSORIES
Body Cap.1 pc.
ALC Lens Connector (YFE4191J100).1 pc.
- 1 6 -

VERSION FRANQAISE
(FRENCH VERSION)
SA 1966
Le point d’exclamation dans un triangle
Equilateral indique que le manuel d'in-
structions inclus avec I'appareil contient
d'importantes recommandations quant au
fonctionnement et a I'entretien de ce
dernier.
ATTENTION:
AF1N DE PREVENIR LE RISQUE DE CHOCS ELEC-
TRIQUES, NE PAS RETIRER LES VIS. TOUTE
REPARATION DEVRAIT ETRE CONFIEE A UN
PERSONNEL QUALIFIE.
L'interfErence radioElectrique generee par cet appareil
numErique de type A ne dEpasse pas les limites
radioElectriques, section appareil numerique, du Ministere
des Communications.
SA 1965
Le symbole de I'Eclair dans un triangle
EquilatEral indique la prEsence d'une ten¬
sion suffisamment ElevEe pour engendrer
un risque de chocs Electriques.
Nous vous suggErons de noter, dans I'espace prevu ci-
dessous, le numdro de sErie inscrit sous le fond de I'appareil
et de conserver ce manuel comme memo-randum de votre
achat afin d'en permettre identification en cas de vol.
NumEro de module _
NumEro de sErie
MISE EN GARDE: AFIN DE PREVENIR TOUT RISQUE D'INCENDIE OU DE CHOCS ELECTRIQUES, EVITER
D’EXPOSER CET APPAREIL A LA PLUIE OU A UNE HUMIDITE EXCESSIVE.
- 1 7 -
FRANQAIS

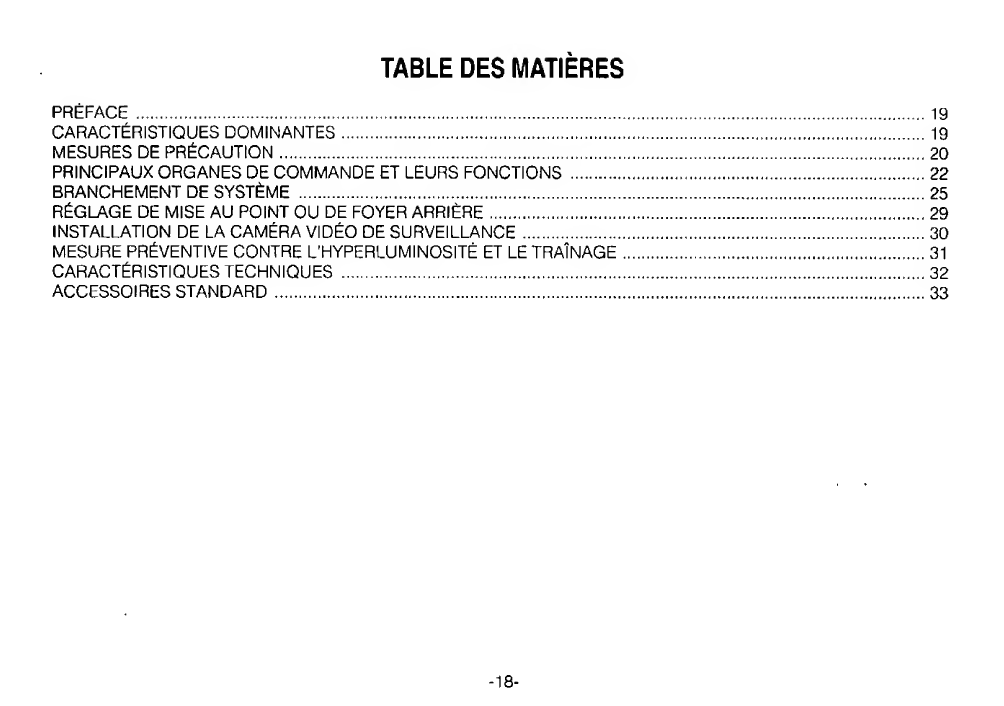

TABLE DES MATIERES
PREFACE .19
CARACTERISTIQUES DOMINANTES.19
MESURES DE PRECAUTION.20
PRINCIPAUX ORGANES DE COMMANDE ET LEURS FONCTIONS .22
BRANCHEMENT DE SYSTEME .25
REGLAGE DE MISE AU POINT OU DE FOYER ARRIERE.29
INSTALLATION DE LA CAMERA VIDEO DE SURVEILLANCE .30
MESURE PREVENTIVE CONTRE L’HYPERLUMINOSITE ET LE TRAINAGE.31
CARACTERISTIQUES TECHNIQUES .32
ACCESSOIRES STANDARD .33
- 1 8 -
