Dome IP Camera
Please see the Panasonic website for further information on collection
centers, etc. or call the customer care toll free number.
Website: https://www.panasonic.com/in/corporate/e-
waste-management.html
PI-DUA5MWA
Model No.:

Important Safeguards and Warnings
1. Please read these instructions carefully.
2. Please heed all warnings.
3. Please follow all instructions.
4. Do not use this apparatus near water.
5. Please clean only with dry cloth.
6. Do not block any ventilation openings, install in accordance with the
manufacturer’s instructions.
7. Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
8. Do not defeat the safety purpose of the polarized or grounding-type
plug. A polarized plug has two blades with one wider than the other. A
grounding type plug has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If the provided plug does
not fit into your outlet, consult an electrician for replacement of the obsolete
outlet.
9. Protect the power cord from being walked on or pinched particularly
at plugs, convenience receptacles, and the point where they exit from the
apparatus.

10. Only use attachments/ accessories specified by the manufacturer.
11. Use with cart, stand, tripod, bracket, or table only as specified by the manufacturer
or sold with the apparatus. When a cart is used, use caution when moving the
cart/apparatus combination to avoid injury from tip-over.
12. Unplug this apparatus during lighting storms or when unused for long
periods of time.
13. Refer all servicing to qualified service personnel.
14. Do use a reliable and secure network connection to avoid interruptions in the
camera's feed.
15. Do ensure good Wi-Fi connectivity/ signal (2.4Ghz), in case camera is used in
Wi-Fi mode.
16. Don't tamper with the camera's internal components or modify its firmware
without proper knowledge or authorization.

Disclaimer
• We strongly recommend you to set a difficult password immediately after the
first log in to ensure account security and don’t share it with unauthorized
personnel.
• Password Characters: Password must contain at least 8 to 16 characters
comprising all three elements: alphabet, special character & digit.
• The illustrations in this manual are for reference only and may vary
depending on the version or model. The screenshots in this manual may
have been customized to meet specific requirements and user preferences.
As a result, some of the examples and functions featured may differ from
those displayed on your screen / monitor.
• We have put in our best efforts to verify the correctness and integrity of the
contents in this manual, but no statement, information / recommendation in
this manual shall constitute formal guarantee of any kind, expressed or
implied. We shall not be held responsible for any technical or typographical
errors in this manual.
• Video and audio surveillance can be regulated by laws that vary from country
to country. Check the law in your local region before using this product for
surveillance purposes. We shall not be held responsible for any consequences
resulting from illegal operations of the device.
• Use of this product, the manual and the subsequent result shall be entirely
the user's own responsibility. In no event shall Panasonic be liable for any
special, consequential, incidental, or indirect damages, including, among
others, damages for loss of business profits, business interruption, or loss of

data or documentation, or product malfunction or information leakage
caused by cyber-attack, hacking or virus in connection with the use of his
product.
• The contents of this manual are subject to change without prior notice.
Regular updates can be added to the new version of this manual.
• Due to uncertainties such as physical environment, discrepancy may exist
between the actual values and reference values provided in this manual. The
ultimate right to interpretation resides with our company.

Contents
Part I Product Introduction ...........................................................................1
Product Funcon .......................................................................................1
Recommended PC Specicaons..............................................................2
Accessories ................................................................................................3
Appearance................................................................................................4
Installaon Precauons.............................................................................5
Installaon Instrucons ............................................................................6
Part II Local Network Access .........................................................................7
1.
Powering and Networking ........................................................................7
2. Active X Installation Procedure ................................................................8
Install Acve-x ...........................................................................................8
3. Camera Configuration & Setup ...............................................................10
4. About the Live Page & Icons ...................................................................13
5. About Playback........................................................................................14
6. About Config............................................................................................15
Local Cong..............................................................................................15
Encode .....................................................................................................16
Network ...................................................................................................25
Record ......................................................................................................29
Alarm ........................................................................................................30
System Conguraon ..............................................................................36
Security ....................................................................................................39

System Tool..............................................................................................40
System Informaon .................................................................................43
Do’s & Don’ts ...............................................................................................45
Troubleshooting Points ...............................................................................46
TECHNICAL SPECIFICATIONS .......................................................................48

1
Part I Product Introduction
Product Function
1. For Indoor & Outdoor use.
2. PoE enabled.
3. Encode codec (H.264, H.265 & H.265+)
4. Full HD Video Quality (2880x1620) 5M.
5. Built-in microphone.
6. Built-in Wi-Fi. (2.4Ghz)
7. ONVIF Compliance.
8. Dual-Streaming.
9. Supports IR.
10. Supports Privacy masking. (4 Zone)
11. This IP camera can display videos in different resolutions and qualities.
12. When an event occurs, the related text notification is sent to the email
address registered by a user.
13. Web Browser-based Monitoring using the Internet web browser to display the
image in a local network environment.
14. User can access this IP camera on mobile application & desktop application
(VMS).
15. Tampering Detection - Detects tempering attempts on video monitoring.
16. Motion Detection - Detects motion from the camera’s video input.

2
17. Video Blind Detection –Detect if camera lens is covered/blocked more than
60%.
18. Abnormality Detection –Detects abnormality alarms like IP Address Conflict,
Network disconnect etc.
19. Sound Detection –Detects abnormal sound from the camera video input.
20. Human Detection –Detects human movement from the camera video input.
21. Analytic –Detect area intrusion & line crossing event in the defined region.
Recommended PC Specifications
1. CPU: Intel Core i5 2.8 GHz or higher
2. RAM: 4GB or higher
3. Supported OS: Windows 10 & above.
4. Supported Browser: Microsoft Internet Explorer. (Fully supported for all
functionalities)
5. Mozilla Firefox & Google Chrome supported with limited functionality.
6. Apple Safari is supported with limited functionality.

3

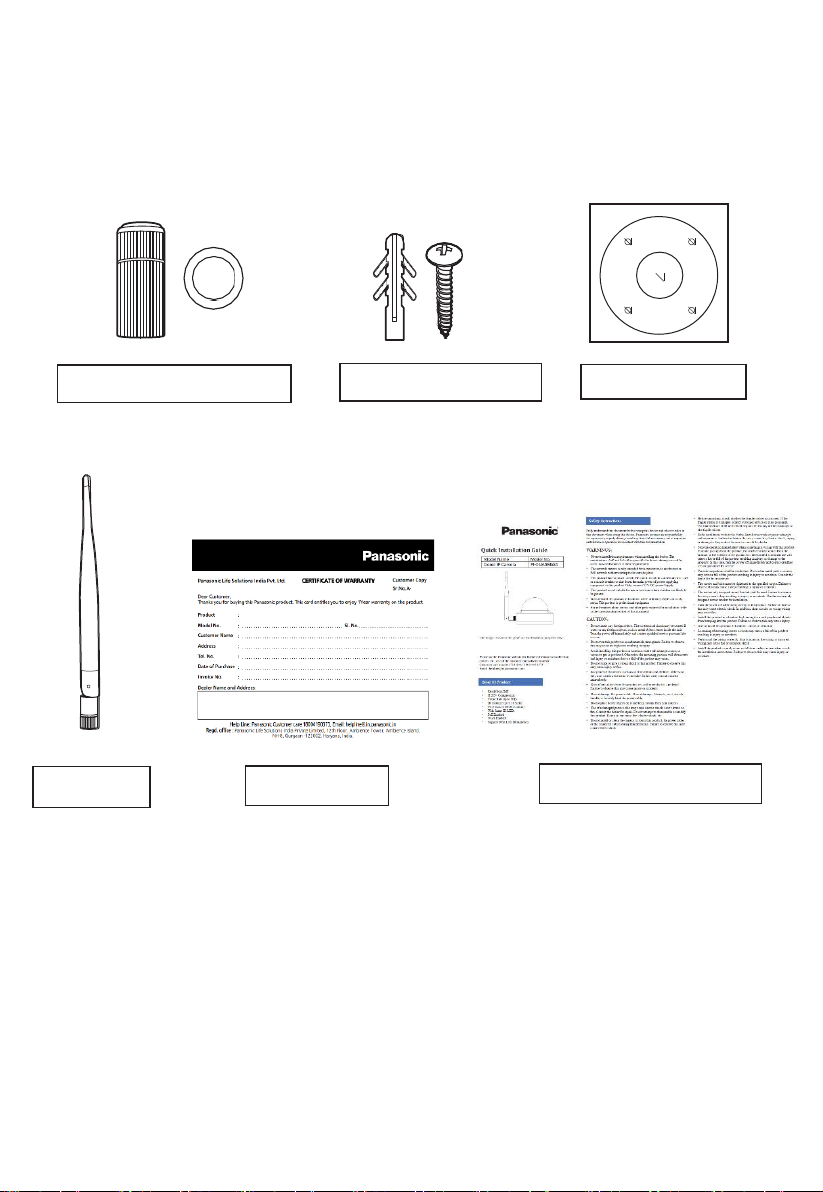

Accessories
RJ45 Cap with sealing Ring
Screw & Wall Plug (x3)
Mounng Scker
Warranty Card
Quick Installaon Guide
Antenna

4
Appearance

5
Installation Precautions
Note: This camera is for indoor and outdoor usage.
1. This device should be mounted and maintained only by an experienced
professional. If in doubt, consult the dealer.
2. Before mounting, determine the suitable location. The device must be
fixed to a wooden or masonry/concrete wall or ceiling using fasteners that
are appropriate for the mounting surface. Do not install on drywalls,
wallboards, or thin plywood. The mounting surface must be capable of
supporting the weight of the device.
3. Do not drill into any pipes or power lines beneath the surface during
mounting holes preparation. Use voltage/metal detector before drilling
any holes to eliminate any such potential risks.
4. Do not hang anything on the device.
5. Mount the device to monitor the most vulnerable areas of your home, such
as front elevations, side access and rear entrance points.
6. It is suggested to mount the device 2.5 m to 4 m above the ground for the
most visibility and the maximum detection range.
7. Do not place the device near high voltage wires or other sources of
electrical interference. Electrical interference may degrade the quality of
the signal.

6

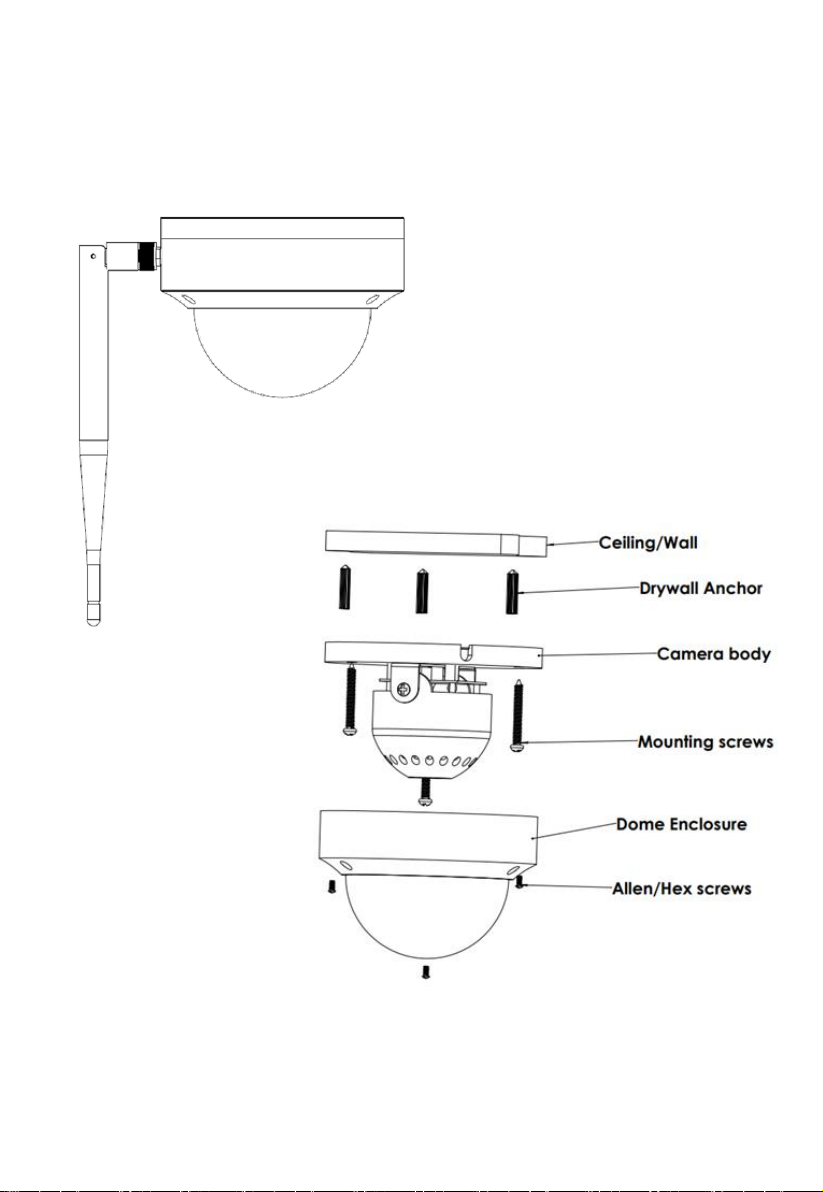

Installation Instructions
1. Disassemble the camera using screwdriver.
2. Place the mounting base of camera onto the selected location.
3. Using the template provided, Drill the 3 holes with a 6 mm drill bit. Insert
the wall plugs for concrete walls.
4. Tuck the cable into the slot on the side of the wall bracket.
5. Fix the camera in mounting bracket with provided mounting screws.
6. Adjust the camera angle as per the requirement, so that the camera faces
towards the monitoring object.
7. Put the dome enclosure on to the base and tighten the Allen screws.

7
Part II Local Network Access
1.
Powering and Networking
1. Use PoE i.e., compliant with IEEE802.3af protocol.
2. Connect the PoE switch and cameras PoE connector.
3. Switch on the PoE switch.
4. Default IP address of the camera is 192.168.1.108
5. Connect the PC on the PoE switch & configure PC IP address in the same
series as IP camera.
6. Launch an internet browser on the local PC.
7. Enter the IP address of the camera in the address bar for the browser.
8. Enter username and password (Default username: admin & password:
admin123) to login to the IP camera.

8

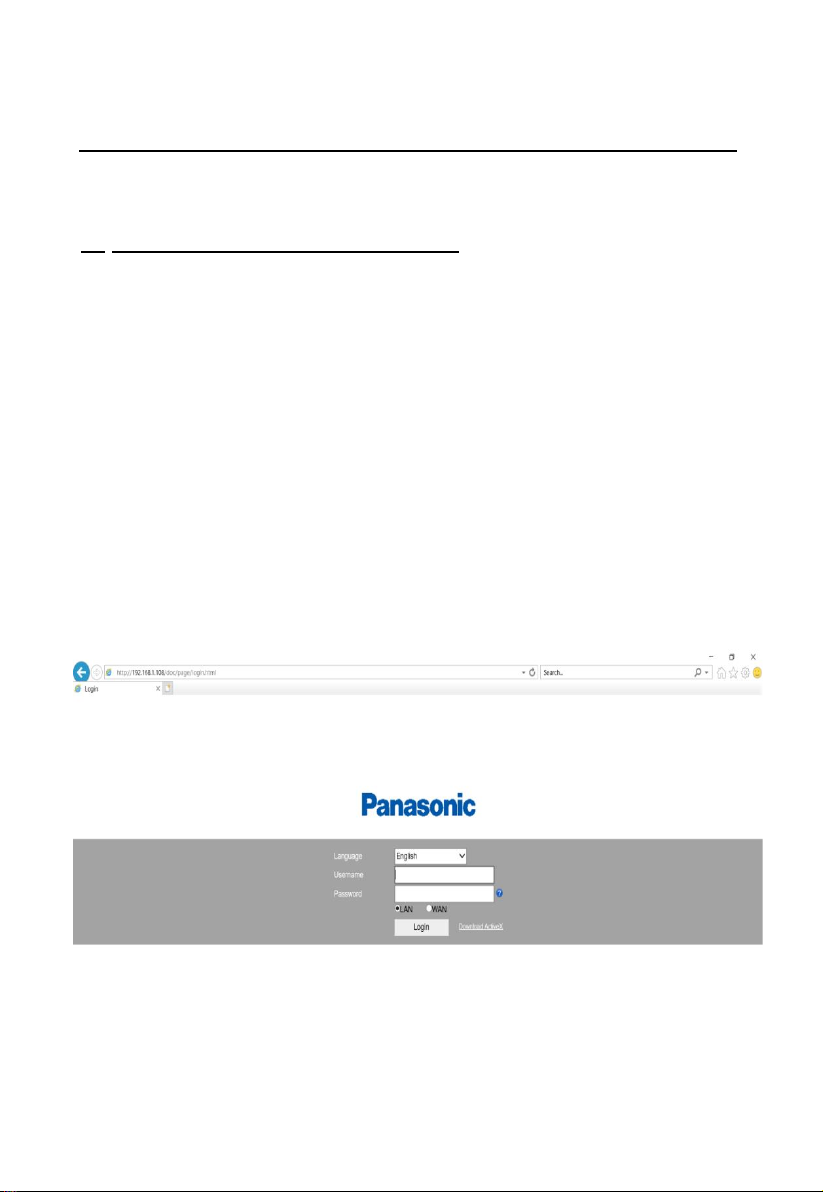

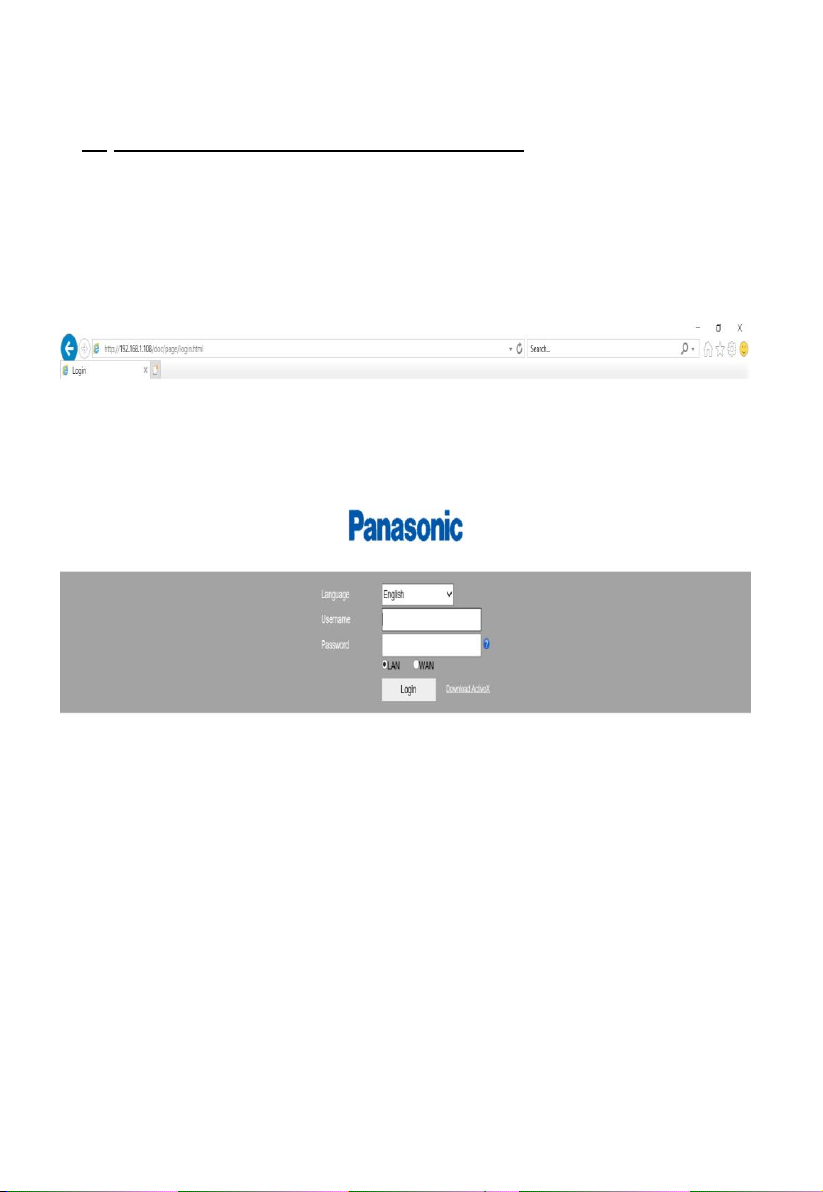

2. Active X Installation Procedure
Install Active-x
1. Input username and password to log in (When first access for live view
it is recommended to download the Active-X.

9
2. Choose a language then enter the username and password to log in,
then click on “Download ActiveX” to download the ActiveX setup file.
3. Then click on save button as shown below.
4. Then click on Run button.
5. Click on Next to finish the installation.

10
3. Camera Configuration & Setup
•IP Address configuration.
•Static –Default IP address of the IP camera is 192.168.1.108, we
recommend changing the default IP address during 1st login.
•Use the internet browser to access the camera, login screen will
appear, login to the camera using username & password.

11

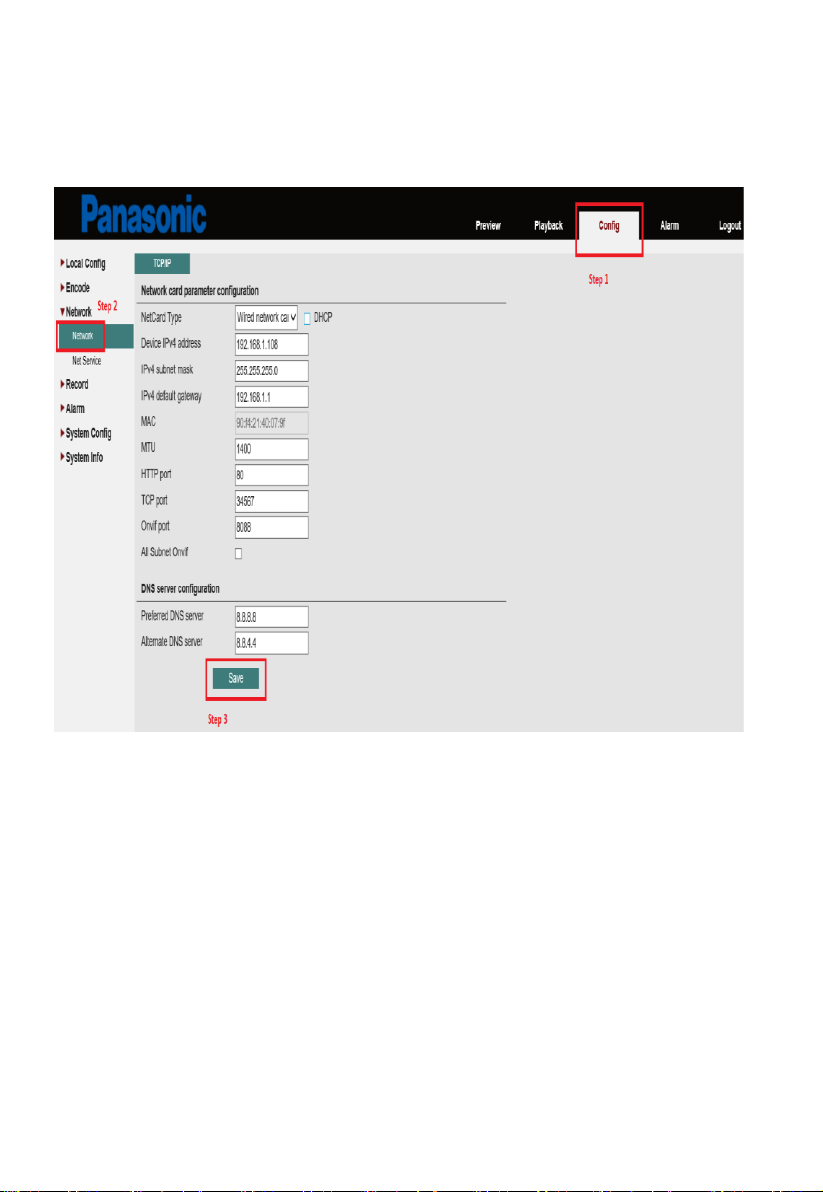

Click on [Config] > [Network] as shown below.
•Change the IP address as per your router/NVR configuration then click
on save button.

12
•DHCP configuration
•Click on [Config] > [Network] as shown below.

13
4. About the Live Page & Icons
Preview
interface
Select Mainstream to view
high resolution video or Sub
stream to low resolution
video.
Turn on to hear the sound.
Not applicable for this model.
