Panasonic WV-CL500 User manual

Colour CCTV Cameras
WV-CL500,
WV-CLOO2E,
WV-CLOO04E
Panasonic
Before
attempting
to
connect
or
operate
this
product,
please
read
these
instructions
completely.

Oo
NUR
aT
e)\\
RISK
OF
ELECTRIC
SHOCK
DO
NOT
OPEN
CAUTION:
TO
REDUCE
THE
RISK
OF
ELECTRIC
SHOCK,
DO
NOT
REMOVE
COVER
(OR
BACK).
NO
USERSER-
VICEABLE
PARTS
INSIDE.
REFER
SERVICING
TO
QUALIFIED
SERVICE
PERSONNEL.
The
lightning
flash
with
arrowhead
Symbol,
within
an
equilateral
triangle,
is
intended
to
alert
the
user
to
the
presence
of
uninsulated
“dangerous
voltage’
within.
the
product’s
enclosure
that
may
be
of
sufficient
magnitude
to
constitute
a
risk
of
elec-
tric
shock
to
persons.
The
exc!amation
point
within
an
equilateral
triangle
is
intended
to
alert
the
user
to
the
presence
of
important
operating
and
maintenance
(servicing)
instructions
in
the
literature
accompa-
nying
the
appliance.
WARNING:
TO
PREVENT
FIRE
OR
SHOCK
HAZARD,
DO
NOT
EXPOSE
THIS
APPLIANCE
TO
RAIN
OR
MOISTURE.
yon
For
WV-CL500/B
........
PLEASE
READ
FOLLOWING
INSTRUCTION
IF
YOUR
POWER
SOURCE
VOLTAGE
IS
MORE
THAN
200V.
WARNING
THIS
APPARATUS
MUST
BE
EARTHED.
IMPORTANT
The
wires
in
this
mains
lead
are
coloured
in
accordance
with
the
follow-
ing
code.
Green-and-yellow:
Earth
.
Blue:
Neutral
Brown:
Live
As
the
colours
of
the
wires
in
the
mains
lead
of
this
apparatus
may
Not
correspond
with
the
coloured
markings
identifying
the
terminals
in
your
plug
proceed
as
follows.
The
wire
which
is
coloured
green-and-yellow
must
be
connected
to
the
terminal
in
the
plug
which
is
marked
by
the
letter
E
or
by
the
Safety
earth
symbol
+
or
coloured
green
or
green-and-yellow,
The
wire
which
is
coloured
blue
must
be
connected
to
the
terminal
which
is
marked
with
the
letter
N
or
coloured
black.
The
wire
which
is
coloured
brown
must
be
connected
to
the
termi-
nal
which
is
marked
with
the
letter
L
or
coloured
red.
This
model
conforms
to
the
EC
directive
(for
radio
interference)
87/308/EEC.
This
apparatus
was
produced
to
BS
800:1987.

CONTENTS
CT
The serial number of this product may be found on
the bottom of the unit.
You should note the serial number of this unit in the
space provided and retain this book as a permanent
record of your purchase to aid identification in the
event of theft.
Model No.
Serial No.
siitetteeeeea ees For WV-CL500/A dees For Australia -+++--++++++++.
THIS
APPARATUS
MUST
BE
EARTHED.
:
:
To
ensure
safe
operation
the
three-pin
plug
supplied
must
be
inser-
:
;
ted
only
into
a
standard
three-pin
power
point
which
is
effectively
:
:
earthed
through
the
normal
household
wiring.
Extension
cords
used
:
:
with
the
equipment
must
be
three-core
and
be
correctly
wired
to
:
:
provide
connection
to
earth.
Wrongly
wired
extension
cords
are
a
:
:
major
cause
of
fatalities.
:
:
The
fact
that
the
equipment
operates
satisfactorily
does
not
imply
:
:
that
the
power
point
is
earthed
and
that
the
installation
is
comple-
:
:
tely
safe.
For
your
safety,
if
in
any
doubt
about
the
effective
ear-
:
:
thing
of
the
power
point,
consult
a
qualified
electrician.

PREFACE
A single, CCD chip is employed in the Panasonic WV-
CL500/WYV-CL502E/WV-CL504E colour CCTV camera
to provide a wide array of benefits to the user.
Since the charge coupled device (CCD) image sensor
eliminates bulky tubes, the camer is extremely compacat
and lightweight.
The CCD camera has superb resistance to burn-in, intro-
duces no geometric distortion, is not affected by mag-
netic fields, has long life, and is highly resistant to dam-
age from vibration and shock.
This camera has been specially designed for surveil-
lance, security, and observation of special and dan-
gerous locations where a compact, lightweight, highly
reliable camera is needed.
FEATURES
10.
dels
Aes
Utilizing
a
1/2-inch
high
resolution
interline
CCD
sensor
(681
(H)
x
582
(V)
effective
pixels)
Variable
strobe
effect
shutter
of
1/250,
1/500
or
1/1,000
second.
410 lines of horizontal resolution.
10 lux of minimum scene illumination at F1.4.
Either optional standard C-mount or special C-
mount (CS mount) Auto Iris control lens can be used.
Selectable internal sync (INT) or line-lock syne (LL)
mode for WV-CL500/WV-CL504E.
Vertical Phase Control for Line-lock sync (LL) mode.
External sync capability with a composite sync,
composite video signal or black burst signal.
Horizontal Phase and Subcarrier Phase Control for
Gen-lock.
Selectable automatic gain control (AGC) ON. (Max.
gain up; approx. 12 dB) or OFF.
Selectable Auto Iris Control signal for the lens either
a video signal or DC control signal.
Selectable automatic tracing white-balance (AUTO)
for through the lens (TTL) type or automatic white-
balance control (LOCK).

PRECAUTIONS
1.
Do not attempt to disassemble the camera.
To prevent electric shock, do not remove screws
or cover. There are no user-serviceable parts
inside. Refer servicing to qualified service
personnel.
. Handle the camera with care.
Do not abuse the camera. Avoid striking and
shaking it. The camera could be damaged by
improper handing storage.
. Donot expose the camera to rain or moisture,
avoid operation in wet areas.
Take immediate action if the camera should be-
comes wet.
Turn power off and request servicing to qualified
service personnel. Moisture can damage the
camera and also create the danger of electric
shock.
4. Never aim the camera at the sun.
Whether the camera is in used or not,
never aim it at the sun
or other extremely bright object.
. Do not use the camera beyond its tempera-
ture, humidity or power source ratings.
(a) Designed for indoor use.
Ambient temperature must not range beyond
—10°C - +50°C.
(b) Avoid using the camera when humidity is
above 90%,
(c) The input power source is 240V AC 50Hz
for WV-CL500/A and WV-CL500/B, 220V
AC 50Hz for WV-CL500/G, 12V DC for WV-
CL502E and 24V AC 50Hz for WV-CL504E.

MAJOR
OPERATING
CONTROLS
AND
THEIR
FUNCTIONS
WV-CL500
|
WV-CL502E
WV-CL504E
@
@wo
@
@ ®

Automatic Iris Lens (Option)
Camera Mounting Screw Hole
This threaded hole (1/4” - 20) is used to mount the
camera onto a mounting bracket or tripod.
Power Indicator
Auto Iris Lens Connector
Supplies the power and either the video signal or
DC contro! signal selected by the Lens Selection
Switch (7) to the Auto Iris Lens.
The 4-pin connector for the lens which originally has
different type of connector is a standard accessory
(Part No. YFE4191J100).
Video Output Connector (VIDEO)
A composite video signal is provided at this
connector,
Camera ON/OFF Switch
Lens Selection Switch (AUTO IRIS, DC/VIDEO)
This switch is used to select the supplied auto iris
control signal to the lens from the Auto Iris Lens
Connector (4).
DC:
Choose this position when the auto iris control
lens requiring DC control signal such as WV-
LA4.5, WV-LA6, WV-LA12, WV-LA18, WV-LA36,
WV-LZ81/6, etc., is mounted on the camera.
VIDEO:
Choose this position when the auto iris con-
trol lens requiring video signal such as WV-
LA8B, WV-LA16B, WV-LA25B, WV-LAS5OB etc.,
is mounted on the camera.
AGC ON/OFF Switch (AGC, ON/OFF)
This switch is used to select the gain of the video
amplifier as follows ;
ON:
When the lens iris is fully open at low light shoot-
ing, a Clear picture is obtained by automatic in-
crease of the gain.
OFF:
A natural and low-noise picture is obtained at
low light shooting.

9
10
11
Gen-Lock
Video
Input
Connector
(GEN
LOCK)
A
composite
B/W
or
colour,
1.0Vp-p/75
ohms
video
signal,
or
black
burst
0.3Vp-p/75
ohms
or
composite
~
sync,
4Vp-p/75
ohms
should
be
supplied
to
this
connector
for
external
synchronization.
S-Video Output Connector (S-VIDEO OUT)
The luminance (Y) and chrome (C) signals for S-VHS
VTR or monitor are provided at this connector.
No. } CONTENTS
Y Ground
C Ground
Y Signal Output
C Signal Output
White
Balance
Selection
Switch
(WHT BAL, AUTO/LOCK)
The
white
balance
setting
can
be
selected
as;
AUTO:
The
white
balance
can
automatically
be
set
by
tracing
the
characteristic/colour
temperature
of
light
source.
Even
if
the
characteristic/colour
temperature
of
light
source
changes
during
the
shooting,
the
white
balance
is
kept
properly.
S-VIDEO OUT (female)
{His
Note:
1.
It
is
recommended
to
use
the
AUTO
position
when
the
colour
temperature
of
light
would
vary
during
shooting.
2.
It
is
recommended
to
use
the
LOCK
position
in
the following conditions.
o Under fluorescent lamp
o
Colour
temperature
does
not
vary
Oo
More
accurate
white
balance
contro!
is
required,
LOCK:
The
white
balance
can
be
set
by
pressing
the
White
Set
Button
(SET)(12)
while
aiming
the
cam-
era
at
the
white
object
such
as
white
wall
or
paper.
More
accurate
white
balance
can
be
achieved
at
this
position.
However,
when
the
colour
temper-
ature
of
light
source
changes,
the
white
balance
must
be
reset
by
pressing
the
White
Set
Button
(SET)
(12)
while
aiming
the
camera
at
the
white
object.

12
White Set Button
In
case
the
White
Balance
Selection
Switch
(11)
is
set
to
LOCK
position,
the
white
balance
can
be
set
by
pressing
this
button
while
aiming
the
camera
at
the
white
object.
15.
AC
24V
in
Terminal
Strip
(AC
24V)
(For WV-CL504E)
Accepts
AC
24V
power
source
(19.5V
-
28V).
Be
sure
to
connect
grounding
lead
to
the
GND
a
;
terminal.
The
white
balance
setting
is
required
whenever
the
lighting
condition
is
changed.
Note:
Caution:
It
may
not
be
proper
to
use
the
LOCK
position
in
the
following
conditions.
o
Under
coloured
illumination
o
No
white
object
is
available
To
Prevent
fire
or
shock
hazard,
the
UL
listed
wire
VW-1,
style
1007
should
be
used
for
the
cable
for
AC
24V
Input
Terminal.
16 Flange-back Adjusting Ring
Used
to
adjust
the
back
focus
or
focus
by
rotating
this
ring
to
clockwise
for
C-mount
lens
or
counterclockwise
for
special
C-mount
(CS
mount)
13.
Power
Cord
(For
WV-CL500)
14
DC
12V
IN
Terminal
Strip
(DC
12V)
(For
WV-CL502E)
ens
This
terminal
accepts
DC
12V
power
source
(10.8
-
CAUTION:
pot
ops
16V).
1.
Always
set
this
ring
to
fully
clockwise
before
mounting the lens.
2.
Do
not
turn
this
ring
too
much
to
counterclock-
wise
when
the
C-mount
lens
is
mounted
as
this
could
damage
the
inner
glass
CCD
sensor.
Caution:
To
Prevent
fire
or
shock
hazard,
the
UL
listed
wire
VW-1,
style
1007
should
be
used
for
the
cable
for
DC
12V
Input
Terminal.

17
Operation
Panel
Cover
18
Sync
Selection
Switch
(INT/LL)
(For
WV-CL500
and
WV-CL504E)
This
switch
is
used
to
select
the
camera
synchro-
nization
mode.
INT:
When
no
signal
is
supplied
to
the
GEN
LOCK
connector,
the
camera
synchronization
mode
is
set
to
internal
2:
1
interlace.
Whenever
the
GEN
LOCK
video
signal
is
sup-
|
plied
to
the
GEN
LOCK
connector,
the
camera
f}aniason||c
|
synchronization
mode
is
automatically
set
to
ex-
ternal
synchronization.
Inside of Operation Panel
(For
WV-CL500
and
WV-CL504E)
18) (9 @ @
sare eenanerneen enema
26 25) 24) @3) Qn LL:
The
camera
synchronization
mode
is
set
to
Line-
(For
WV-CL502E)
Lock
even
if
the
GEN
LOCK
video
signal
is
sup-
plied to the GEN LOCK connector.
Note:
Set
this
switch
to
INT
position
for
Gen-
Lock
operation.
19
Gen-Lock
Signal
Selection
Switch
(VBS/VS)
This
switch
is
used
to
select
the
Gen-Lock
input
signal
as
follows:

VBS
(Video,
Burst,
Sync):
When
the
Gen-Lock
input
signal
is
a
black
burst
signal
or
composite
colour
video
signal,
set
this
Switch
to
the
VBS
position.
The
horizontal,
vertical
scanning
and
subcarrier
phase
are
locked
to
that
of
the
Gen-Lock
input
signal.
VS
(Video,
Sync):
When
the
Gen-Lock
input
signal
is
a
black
and
white
composite
video
signal
or
composite
sync
Signal,
set
this
switch
to
VS
position.
The
hori-
zontal
and
vertical
scanning
are
locked
to
that
of
the
Gen-Lock
input
signal
while
the
internal
sub-
Carrier
signal
is
used
for
the
burst
and
chroma
Signal.
20
Gen-Lock
Termination
Switch
(G/L
75
ohms,
ON/OFF)
When
looping
through
the
Gen-Lock
video
input
Signal,
set
this
switch
to
OFF
position
and
all
other
cases,
set
this
to
ON
position,
21
22
Camera
Mode
Selection
Switch
(SHTR/NOR)
This
switch
is
used
to
select
the
camera
mode
among
the
SHTR
(Strobe
Effect
Shutter),
NOR
(Normal).
SHTR:
The
strobe
effect
shutter
mode
is
enabled
and
the
shutter
speed
can
be
chosen
among
1/250
sec.,
1/500
sec.
and
1/1,000
sec.
by
the
Shutter
Speed
Selection
Switch
(22).
NOR:
A
normal
mode
is
selected.
Notes:
1.
The
Gen-Lock
input
signal
should
be
Specified
as
CCIR
standard
in
order
to
maintain
the
proper
electronic
Sensitivity
up
operation,
2.
There
are
three
positions
on
this
switch.
How-
ever,
the
middle
and
the
lower
positions
are
the
Same
NOR-mode.
Shutter
Speed
Selection
Switch
(1/250,
1/500,
1/1000)
This
switch
selects
the
speed
of
the
electronic
shut-
ter,
which
can
be
1/250
sec,
1/500
sec
or
1/1,000
Sec.

Subcarrier
Phase
Position of
Switches
23 Subcarrier Phase Coarse Switches
(SC, 1/2/3/4)
The subcarrier phase of the camera signal can be
adjusted from 0° to 360° in 90° steps with these
switches, as shown below, for matching the phase
of the subcarrier signal at the Gen-Lock Input con-
nector (9).
These switches should be set when the camera
is used in a system configuration with the Special
Effects Generator.
24 Subcarrier Phase Fine Control (SC PHASE)
This control allows fine adjustment of the subcarrier
phase set by the Subcarrier Phase Coarse Switches
(23). The control allows continuous control of up to
+90° subcarrrier phase to match the phase of the
subcarrier signal obtained at the Gen-Lock Input
connector (9).
25
26
27
This
control
should
be
adjusted
together
with
the
Subcarrier
Phase
Coarse
switches
(23)
when
the
camera
is
used
in
a
system
configuration
including
the
Special
Effects
Generator.
Vertical Phase Control (V PHASE)
(For WV-CL500 and WV-CL504E)
The vertical phase of the camera signal can be
adjusted to match the vertical phase of the power
line at the power Cord (13) or AC 24V In Terminal
Strip (15).
Horizontal Phase Control (H PHASE)
The horizontal phase of the camera signal can be
adjusted to match the horizontal phase of the signal
at the Gen-Lock Video Input Connector (9).
Auto Iris Level Control
(ALC LEVEL, L (low)/H (High))
This control adjusts the control level of the auto iris
control when the lens selection switch (7) is set to
the DC position and the auto iris lens which requires
the DC control voltage such as WV-LA12 etc., is
mounted on the camera.
Note: Adjust this contro! while setting the AGC
ON/OFF Switch (8) to OFF position.

CONNECTION
Power Cable
Keep the camera power switched off during installation.
A: WV-CL500
1. Connect the AC Power Cord (13) to a 50Hz electrical
outlet 240V AC for WV-CL500/A and WV-CL500/B,
220V AC for WV-CL500/G.
B: WV-CL502E
1. A power supply of 12V DC is required.
2. Connect the power cable to the 12C DC Power
Terminal Strip (14) on the rear panel of the camera.
Be careful not to obstruct the operation of camera
ON/OFF switch.
t2V DC
(10.8V - 16V)
Resistance of copper wire at 20°C
Copper
miata #24
wire size
(AWG) (0.22mm2)
Resistance
ohms/m 0.078
e Calculation method of maximum cable length be-
tween camera and power supply.
16V DC> Va — (Rx 0.55 x L) > 10.8V DC
L: Cable length (Meter)
R: Resistance of copper wire (QQ/m)
Va: DC voltage of power supply
VA— 12
L standard = —~——— (Meter)
0.55xR
VA — 16
L minimum = —————— (Meter)
0.55xR
VA — 10.8
L maximum = ————~—— (Meter)
0.55xR
Caution:
To Prevent fire or shock hazard, the UL listed wire
VW-1, style 1007 should be used for the cable for
DC 12V Input Terminal.

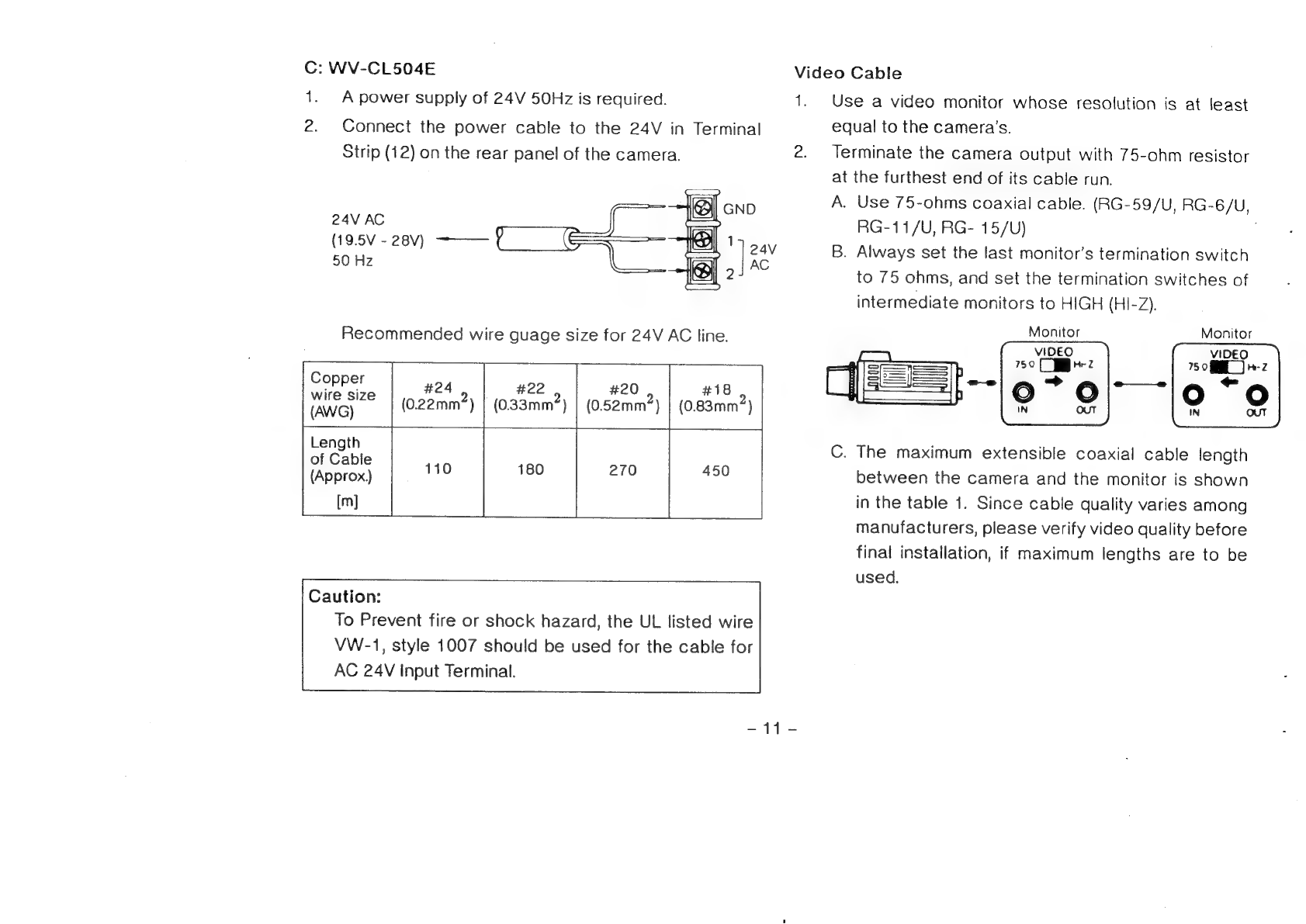

C: WV-CL504E
1. A power supply of 24V 50Hz is required.
2.
Connect
the
power
cable
to
the
24V
in
Terminal
Strip
(12)
on
the
rear
panel
of
the
camera,
24V AC
(19.5V - 28V)
50 Hz
Copper
wire size
(AWG)
#24
#22
(0.22mm?)
#20
(0.33mm?)
(0.52mm?)
Length
of Cable
(Approx,)
[m]
Caution:
To Prevent fire or shock hazard, the UL listed wire
VW-1, style 1007 should be used for the cable for
AC 24V Input Terminal.
a
Video Cable
Use
a
video
monitor
whose
resolution
is
at
least
equal to the camera's.
Terminate
the
camera
output
with
75-ohm
resistor
at the furthest end of its cable run.
A.
Use
75-ohms
coaxial
cable.
(RG-59/U,
RG-6/U,
RG-11/U,
RG-
15/U)
,
B.
Always
set
the
last
monitor’s
termination
switch
to
75
ohms,
and
set
the
termination
switches
of
intermediate
monitors
to
HIGH
(HI-Z).
Monitor Monitor
C.
The
maximum
extensible
coaxial
cable
length
between
the
camera
and
the
monitor
is
shown
in
the
table
1.
Since
cable
quality
varies
among
manufacturers,
please
verify
video
quality
before
final
installation,
if
maximum
lengths
are
to
be
used.

Table 1
-
4
Type of RG-59/U| RG-6U |RG-11/U|]RG-15/U
coaxial cable (3C-2V) (7C-2V) | (10C-2V)
Recommended
Maximum
cable length
(ft) 825
(m) 250
1,980 | 2,640
600 800
3. Wiring precautions:
o Donot bend coaxial cable into a curve whose radius
is smaller than 10 times the cables diameter.
Oo Never staple the cable - not even with circular sta-
ples. Mismatching will occur.
Oo Never crush or pinch the cable.
All these will change the impedance of the cable
and cause poor picture quality.
Gen-Lock Video Cable
1. Connect the coaxial cable for Gen-Lock video sig-
nal between the Gen-Lock Video Input connector
(9) and the reference composite video output (B/W
or colour) (1.0Vp-p/75 ohms) or composite sync
(4Vp-p/75 ohms) or black burst (0.3Vp-p/75 ohms)
of the production system.
Peay oe
Cameras
Coaxial cable
Composite
video signal
Fy
Video distribution
amplifier
GEN LOCK
GEN LOCK
The Gen-Lock Termination Switch (20) of all cam-
eras should be set to ON position.

1°]
Gen-Lock (Looping through)
752 termination switch OFF
Cameras
~en Video
AP.
Video
Video
distribution
amplifier
GEN LOCK
fe
<3
Sequential
switcher
Video
GEN LOCK
Video
GEN LOCK
eZ \ Video
-: eA Vid
a
a
eRiTGi
752 Termination Switch ON
e
The
Gen-Lock
Termination
Switch
(20)
of
the
fur-
thest camera should be set to ON position and that
of all other cameras should be set to OFF position.
Note: The Gen-Lock input signal should meet with
CCIR standard and should not contain jitter
such as VTR playback signal.
Pee, ee

LENSES
1. Selection of Lens
It is recommended to use the following Auto Iris Control Lens.
WV-LA4.5 | WV-LA6
WV-LA2.8 WV-LA12 WV-LA18
Specification (Wide) (Wide) (Standard) | (Telephoto)
ocak Lengih i Brim
Maximum Aperture
;
1:1.4
4:1.4
1:1.4
Ratio
Automatic Light
1:2000 1:2000 1:4000 1:2400
Compensation
6.4mm x 4.8mm (equivalent to 1/2" pick-tube)
Angular Field | H | 107°17' 54°75, | 29°] 20°36’ |] 10713" 7°14’ (tele) 41°56’ (wide)
Minimum Object :
mesh
Dy
0.92(0.3m)
0.89(0.27m)
3.3
Um}
Distance
(ft)
Camera
Optional
Fiite
{Z
Special C-mount (CS mount, 1°’ - 32UN)
0.14 (65g) | 0.17 (759) 0.14 (65g) | 0.15 (70g) | 0.18 (80g) 0.92 (420g)
@1-11/16" 3-3/8''(W) x 2.7/16''(H)
Dimensions x 1-5/16" % 1-11/16" x 1-5/8" (¢43 x 41) x 3-7/8" (D)
(43x34mm)
Far
eon
| Wide |
85(W)x62(H)x99(D)mm
+6V DC Max. 24mA 4sec
—6V DC Max. 24mA 4sec
Dimensions and weight indicated are approximate.
Specifications are subject to change without notice.
WV-L2Z81/6
(Motorized Zoom)
8.5 — 51mm (6x)
WV-LA36
(Telephoto)
F=1:1.2(wide) - 1:1.3(tele)
<|
+6V DC Max. 24mA 6sec
—6V DC Max. 24mA 6sec
= bo

When
you
use
the
lens
other
than
listed
on
page
14,
lens
2.
Installation
of
Auto
Iris
Lens
Connector
mount
should
be
C-mount
or
special
C-mount
(CS-mount
—_
when
you
use
the
Auto
Iris
Lens
other
than
listed
on
page
(1”-32UN))
and
lens
weight
should
be
less
than
420g.
14,
install
the
lens
connector
(YFE41914J100)
coming
with
The
protrusion
of
the
rear
of
the
lens
should
be
as
shown
__
the
camera
as
follows.
below.
The
following
installation
should
be
made
by
quali-
fied
service
personnel
or
system
installers.
(1)
Cut
off
the
iris
control
cable
at
the
edge
of
lens
connector
and
then
cut
off
the
outer
cable
cover
as
shown
in
the
diagram.
Iris
control
cable
Cut
off
Lens
connector
[———
C-mount : Less than 9 mm
CS mount : Less than 4mm
Approximately 8 mm
Iris control cable PP y
a
a ee

(2)
Cut off the inner cable covers of the iris control
cable as shown in the diagram.
Approximately 6 mm
Put the heat shrinkable tubes or equivalent tubes on
the inner cables of the iris control cable.
Solder the inner cables of the iris control cable at
the pin-plug block according to the following pin
assignment and cover the heat shrinkable tubes or
equivalent tubes at soldered area and the heat on
the tubes to shrink.
Pin 1: Power source; +6V DC, 50mA Max.
Pin 2: Not used
Pin 3: Video signal; 0.7Vp-p/40 kohms
Pin 4: Shield, ground
(When the Lens Selection Switch (7) is set to the
VIDEO position)
Pin 3
Pin 1
-16-
Both the connector cover and connector should be
positioned to interlock.
Connector
cover
| Automatic
< iris lens
a\K
Heat
shrinkable
Iris
control
tubes
cable
~ Connector
Note:
Cut off the rib on the connector, when the iris
control cable is thick and the connector cover
and connector can not locked.

3. Mounting the Lens
CAUTION:
Always set the Flange-back Adjusting Ring to
fully clockwise by loosing the screw on the ring
before mounting the lens otherwise the inner
glass and CCD image sensor could be damaged
by the lens.
(1) Mount the lens by turning it clockwise onto the lens
mount of the camera.
(2) Connect the lens cable to the Auto Iris Lens
Connector on the camera when the Auto Iris Lens
is used.
(3)
Set
the
Lens
Selection
Switch
(7)
to
the
proper
sdieing
ne
position
as
follows.
DC:
The mounted lens is one of the listed on page 14
or the one requires the DC control signal for auto
iris control.
VIDEO:
The mounted lens requires video signal for auto
iris control.
