Panasonic WV-S2250L User manual

Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
The model number is abbreviated in some descriptions in this manual.
Important Information
Network Camera
WV-S2250L
* For information about the installation tasks, refer to the provided Installation
Guide. For information about how to perform the settings and how to
operate the camera, refer to the Operating Instructions on the following
Panasonic support web site.
https://security.panasonic.com/download/
Model No. WV-S2250L

2
Contents
* SDXC/SDHC/SD memory card is described as SD memory card.
Limitation of liability....................................................................................................................... 3
Disclaimer of warranty................................................................................................................... 3
Preface .......................................................................................................................................... 4
Main functions............................................................................................................................... 4
About the user manuals ................................................................................................................ 6
System requirements for a PC ...................................................................................................... 6
Trademarks and registered trademarks......................................................................................... 7
Copyright....................................................................................................................................... 7
Open Source Software .................................................................................................................. 8
Network security ........................................................................................................................... 8
Precautions ................................................................................................................................... 9
Precautions for installation.......................................................................................................... 13
Parts and functions ..................................................................................................................... 15
Insert/remove an SD memory card* ............................................................................................ 22
Troubleshooting........................................................................................................................... 24
Specifications.............................................................................................................................. 26
Optional accessories................................................................................................................... 31

3
Limitation of liability
THIS PUBLICATION IS PROVIDED “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY, FITNESS FOR ANY PARTICULAR PURPOSE, OR NON-INFRINGEMENT OF
THE THIRD PARTY'S RIGHT.
THIS PUBLICATION COULD INCLUDE TECHNICAL INACCURACIES OR TYPOGRAPHICAL
ERRORS. CHANGES ARE ADDED TO THE INFORMATION HEREIN, AT ANY TIME, FOR THE
IMPROVEMENTS OF THIS PUBLICATION AND/OR THE CORRESPONDING PRODUCT (S).
Disclaimer of warranty
IN NO EVENT SHALL Panasonic Corporation BE LIABLE TO ANY PARTY OR ANY PERSON,
EXCEPT FOR REPLACEMENT OR REASONABLE MAINTENANCE OF THE PRODUCT, FOR THE
CASES, INCLUDING BUT NOT LIMITED TO BELOW:
(1) ANY LOSS OR DAMAGE, INCLUDING WITHOUT LIMITATION, DIRECT OR INDIRECT,
SPECIAL, CONSEQUENTIAL OR EXEMPLARY, ARISING OUT OF OR RELATING TO THE
PRODUCT;
(2) ANY INCONVENIENCE, LOSS, OR DAMAGE CAUSED BY INAPPROPRIATE USE OR
NEGLIGENT OPERATION OF THE USER;
(3) ALL MALFUNCTIONS OR TROUBLES FROM UNAUTHORIZED DISASSEMBLE, REPAIR OR
MODIFICATION OF THE PRODUCT BY THE USER, REGARDLESS OF THE CAUSE OF THE
MALFUNCTION OR TROUBLE;
(4) INCONVENIENCE OR ANY LOSS ARISING WHEN IMAGES ARE NOT DISPLAYED, DUE TO
ANY REASON OR CAUSE INCLUDING ANY FAILURE OR PROBLEM OF THE PRODUCT;
(5) ANY PROBLEM, CONSEQUENTIAL INCONVENIENCE, OR LOSS OR DAMAGE, ARISING
OUT OF THE SYSTEM COMBINED BY THE DEVICES OF THIRD PARTY;
(6) ANY CLAIM OR ACTION FOR DAMAGES BROUGHT BY ANY PERSON OR ORGANIZATION
AS A PHOTOGRAPHED SUBJECT DUE TO VIOLATION OF PRIVACY CONCERNING A
SURVEILLANCE CAMERA'S PICTURE OR SAVED DATA, FOR SOME REASON (INCLUDING
USE WHEN USER AUTHENTICATION ON THE AUTHENTICATION SETTING SCREEN IS SET
TO OFF), BECOMING PUBLIC OR BEING USED FOR ANY PURPOSE;
(7) LOSS OF REGISTERED DATA CAUSED BY ANY FAILURE (INCLUDING INITIALIZATION OF
THE PRODUCT DUE TO FORGOTTEN AUTHENTICATION INFORMATION SUCH AS A USER
NAME AND PASSWORD).

4
This product is an indoor use dome-type monitoring camera with a 10BASE-T/100BASE-TX net-
work port for network connection.
By connecting to a network (LAN) or the Internet, images and audio from the camera can be moni-
tored on a PC via a network.
Note:
•
It is necessary to configure the network settings of the PC and its network environment to moni-
tor images from the camera on the PC. It is also necessary to install a web browser on the PC .
Preface
Distribution of approximate 5-megapixel moving images can be performed at up to
30 frames per second.
Adoption of new H.265 engine enables distribution of 2560 x 1920 (approx. 5 megapixels) high res-
olution moving images at up to 30 frames per second.
Delivers high image quality streaming at low bit rates thanks to a H.265 engine
equipped with Panasonic's own Smart Coding technology
*1
.
This allows H.265 compression in addition to conventional H.264 compression technology, and
when combined with Smart Coding, reduces data load compared to our previous models.
Panasonic's own intelligent auto (iA) feature provides increased discernibility even in
environments with poor visibility
Improvements to the Super Dynamic (SD) feature and shutter speed optimization provides clear
discernibility even when monitoring moving people or car silhouettes or when license plates are illu-
minated by car headlights.
Auto focus (AF) function
Use the operation button or setting menu of the camera to activate the focus ring of the lens and
automatically adjust focus.
Equipped with SD slot
It is possible to save H.265 / H.264 videos and JPEG images on the SD memory card manually
when an alarm occurs, during the period of the schedule, or on a Web browser. (Downloading is
possible.) It is also possible to save JPEG images if a network failure occurs.
Encryption and alteration detection functions enhanced the security.
Extension Software support
Installing Extension Software*2 makes it possible to add functions that use image data.
Main functions

5
Achieves high-level shock resistance with IK10*3(IEC 62262) conformity.
The camera has a strong shock resistance body which is needed in outdoor installations.
*1 A technology to significantly reduce a band by increasing the compression ratio of areas where a
subject does not move and optimizing the refresh interval and frame rate according to subject
motions.
*2 For further information about Extension Software refer to our website
(https://security.panasonic.com/support/info/ <Control No.: C0103>).
Refer to page 6 about "<Control No.: C****>".
*3 IK10 : is a standard in regards to shock resistance that represents the level of impact protection,
and is regulated by the International Electrotechnical Commission (IEC).

6
System requirements for a PC
CPU: Intel®CoreTM i5-6500 or faster,
or Intel®CoreTM i7-6700 or faster recommended
Memory:
A minimum of 1 GB or more (for 32-bit OSs), 2 GB or more (for 64-bit OSs)
memory is required.
Network interface: 10BASE-T/100BASE-TX 1 port
Audio interface: Sound card (when using the audio function)
Monitor: Image capture size: 1024 x 768 pixels or more
High-resolution monitoring: 3840 x 2160 pixels or more
Color: 24-bit True color or better
OS: Microsoft Windows 10
Microsoft Windows 8.1
Microsoft Windows 7
Web browser: Windows Internet Explorer 11 (32-bit)
Others: CD-ROM drive
(It is necessary to read the several kind of operating instructions and use the
software on the provided CD-ROM.)
Adobe®Reader®
(It is necessary to view the PDF file on the Panasonic support web site
or the provided CD-ROM.)
About the user manuals
Product documentation is composed of the following documents.
• Important Information (this document):
Provides basic information about the product such
as Precautions for installation, Parts and functions, etc..
• Installation Guide: Explains installation, mounting, cable connections, and adjusting the eld
of view.
• Operating Instructions (on the Panasonic support web site): Explains how to perform the
settings and how to operate this camera.
Note:
• The external appearance and other parts shown in this manual may differ from the actual
product within the scope that will not interfere with normal use due to improvement of the
product.
• "<Control No.: C****>" used in this document should be used to search for information on the
Panasonic support website and will guide you to the right information.

7
IMPORTANT:
• For information on the operation verification of the supported operating systems and web
browsers, refer to our website at https://security.panasonic.com/support/info/ <Control No.:
C0104>.
• When using a PC that does not meet the above requirements, displaying of images may
become slower or the web browser may become inoperable.
• Audio may not be heard if a sound card is not installed on a PC. Audio may be interrupted
depending on the network environment.
• Microsoft Windows RT, Microsoft Windows 7 Starter and Microsoft Edge are not supported.
• When using Microsoft Windows 8.1, use it in the desktop. The software cannot be used in the
Modern UI design.
Note:
• For further information about PC system requirements and precautions for when using
Microsoft Windows or Windows Internet Explorer, click “Manual” - “Open” from the supplied
CD-ROM and refer to “Notes on Windows / Internet Explorer versions”.
Trademarks and registered trademarks
• Microsoft, Windows, Windows Media, Internet Explorer, and ActiveX are either registered trade-
marks or trademarks of Microsoft Corporation in the United States and/or other countries.
• Microsoft product screen shot(s) reprinted with permission from Microsoft Corporation.
• Intel and Intel Core are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or
other countries.
• Adobe, Acrobat Reader, and Reader are either registered trademarks or trademarks of Adobe
Systems Incorporated in the United States and/or other countries.
• SDXC Logo is a trademark of SD-3C, LLC.
• iPad and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries.
• Android is a trademark of Google LLC.
• Firefox is a registered trademark of the Mozilla Foundation.
• All other trademarks identified herein are the property of their respective owners.
Except for open source software licensed under GPL/LGPL and so on, distributing, copying, disas-
sembling, reverse compiling and reverse engineering of the software provided with this product are
all expressly prohibited. In addition, exporting any software provided with this product violating
export laws is prohibited.
Copyright

8
As you will use this unit connected to a network, your attention is called to the following security
risks.
ALeakage or theft of information through this unit
BUse of this unit for illegal operations by persons with malicious intent
CInterference with or stoppage of this unit by persons with malicious intent
It is your responsibility to take precautions such as those described below to protect yourself
against the above network security risks.
• Use this unit in a network secured by a firewall, etc.
• If this unit is connected to a network that includes PCs, make sure that the system is not
infected by computer viruses or other malicious entities (using a regularly updated anti-virus
program, anti-spyware program, etc.).
• To prevent unauthorized access, use user-authentication, set user names and passwords, and
limit which users can log in.
• Apply measures such as user authentication to protect your network against leakage or theft of
information, including image data, authentication information (user names and passwords),
alarm mail information, FTP server information and DDNS server information.
• After the unit is accessed by the administrator, make sure to close the browser.
• Change the administrator password periodically. Additionally, save user authentication informa-
tion (user names and passwords) in such a way that it is kept out of the hands of third parties.
• Do not install the camera in locations where the camera or the cables can be destroyed or
damaged by persons with malicious intent.
Network security
Open Source Software
• This product contains open source software licensed under GPL (GNU General Public
License), LGPL (GNU Lesser General Public License), etc.
• Customers can duplicate, distribute and modify the source code of the software under license
of GPL and/or LGPL.
• Refer to the “readme.txt” file on the provided CD-ROM for further information about open
source software licenses and the source code.
• Please note that Panasonic shall not respond to any inquiries regarding the contents of the
source code.

9
Do not insert any foreign objects.
Fire or electrical shock may be caused if water
or any foreign objects, such as metal objects,
enter inside the unit.
Turn the power off immediately and contact
qualified service personnel for service.
Do not use this product in an inflammable
atmosphere.
Failure to observe this may cause an explosion
resulting in injury.
Avoid installing this product in the loca-
tions where salt damage occurs or corro-
sive gas is produced.
Otherwise, the mounting portions will deterio-
rate and accidents such as a fall of the product
may occur.
Do not strike or give a strong shock to this
product.
Failure to observe this may cause fire or injury.
Keep SDXC/SDHC/SD memory cards
away from infants and children.
Otherwise, they may swallow the cards by
mistake.
In this case, consult a doctor immediately.
Do not hang down from this product or
use this product as a pedestal.
Failure to observe this may cause a drop
resulting in accidents.
Do not damage the power cable.
Do not damage, fabricate, twist, stretch, bun-
dle, or forcibly bend the power cable. Do not
place heavy objects on it, and keep it away
from heat sources.
Use of a damaged power cable may cause
electric shock, short circuit, or fire.
Consult the dealer for repair.
Do not attempt to disassemble or modify
this product.
Failure to observe this may cause fire or electric
shock.
Consult the dealer for the repair or inspections.
Do not install or clean the camera, or
touch this product, the power cable or the
connected cables during thunder storms.
Failure to observe this may cause electric shock.
Refer installation work to the dealer.
Installation work requires technique and experi-
ence. Failure to observe this may cause fire,
electric shock, injury, or damage to the product.
Be sure to consult the dealer.
Stop the operation immediately when
something is wrong with this product.
When smoke goes up from the product, the
smell of smoke comes from the product, or the
exterior of the product has deteriorated, con-
tinued use will cause a fire or fall of the product
resulting in injury, or damage to the product.
In this case, turn the power off immediately and
contact qualified service personnel for service.
Select an installation area that can sup-
port the total weight.
Selecting an inappropriate installation surface
may cause this product to fall down or topple
over, resulting in injury or accidents.
Installation work shall be started after sufficient
reinforcement.
Periodic inspections shall be conducted.
Rust on the metal parts or screws may cause a
fall of the product resulting in injury or acci-
dents.
Consult the dealer for the inspections.
The exclusively designed mount bracket
shall be used.
Failure to observe this may cause a drop
resulting in injury or accidents.
Use the exclusively designed mount bracket for
installation.
Precautions

10
The screws and bolts must be tightened to
the specified torque.
Failure to observe this may cause a drop
resulting in injury or accidents.
Turn the power off when do wiring of this
product.
Failure to observe this may cause electric
shock. In addition, short circuit or wrong wiring
may cause fire.
Install this product in a location high
enough to avoid people and objects from
bumping the product.
Failure to observe this may cause injury.
Do not install this product in locations
subject to vibration.
Loosening of mounting screws or bolts may
cause a fall of the product resulting in injury or
accidents.
Correctly perform all wiring
Short circuits in the wiring or incorrect wiring
may cause fire or electrical shock.
Install the product securely on a wall or a
ceiling in accordance with the installation
instructions.
Failure to observe this may cause injury or
accidents.
Turn the power off when cleaning this
product.
Failure to observe this may cause injury.
Do not rub the edges of metal parts with
your hand.
Failure to observe this may cause injury.
Do not touch the metal part of the bottom
side of the product.
The metal part of the bottom side may
become hot while the product is in use. Direct
skin contact with high-temperature parts of the
product may cause burns.
[Precautions for use]
When the product is accessible from the
Internet
To prevent unauthorized access, note the fol-
lowing.
• Leave user authentication turned on.
• Periodically change passwords that are
used to access the product.
Refer to the Operating Instructions on the
Panasonic support web site for information
about how to change passwords.
To keep on using with stable performance
Do not use this product in hot and humid con-
ditions for a long time. Failure to observe this
causes component degradation resulting in life
shortening of this product. Do not expose this
product to direct heat sources such as a heater.
This product is designed to be used
indoors. This product is not operable
outdoors.
Make sure that the product does not
become wet.
Keep this camera away from water and moisture.
This product has no power switch.
When turning off the power, disconnect the
power supply from
the 12 V DC power supply
or the PoE device.
Handle this product with care.
Do not drop this product, nor apply shock or
vibration to the product. Failure to observe this
may cause trouble.
About the battery
A battery is installed inside the camera. Do not
leave the battery exposed in environments of
excessive heat as a result of sunlight or fire.
Do not touch the dome cover with your
bare hands.
A dirty dome cover causes deterioration of pic-
ture quality.

11
When an error is detected, this product
will restart automatically.
This product will be inoperable for around 2
minutes after the restart just as when the
power is turned on.
About the automatic status detection
function
When this product malfunctions due to exoge-
nous noise, etc. for 30 seconds or more, the
product will automatically reset and will return
to normal state. When the product is reset, ini-
tialization will be carried out as when the power
of the product is turned on. When the product
repeatedly resets, exogenous noise level
around the product may be high and that may
cause malfunction. Contact your dealer for
instructions.
Periodically images on the screen appear
to be distorted
When the camera is installed in a location
where it is subject to small vibrations (for exam-
ple, when it is installed near devices that
vibrate), images may appear distorted and
stretched lengthways. This phenomenon is a
characteristic of image pickup devices that use
CMOS sensors and is caused by the relation-
ship between the periodic movements of the
camera and the timing that the image sensor
reads images. This is not a problem with the
camera. To reduce the possibility of this phe-
nomenon occurring, install the camera in a
secure location.
We shall not be liable for content
compensation, losses of recorded or
edited content and any direct or indirect
consequent damages caused by failure to
record or edit due to faults with this unit or
the SD memory card. In addition, the same
provisions apply after unit is reparied.
About the CMOS image sensor
• When continuously shooting a bright light
source such as a spotlight, the color filter
of the CMOS image sensor may become
deteriorated and this may cause discolor-
ation. Even when changing the fixed
shooting direction after continuously
shooting a spotlight for a certain period,
the discoloration may remain.
• When shooting fast-moving subjects or
objects crossing the shooting area may
look to be bending askew.
Cleaning this product body
Be sure to turn off the power before cleaning.
Failure to observe this may cause injury. Do not
use benzine, thinner, alcohol, or any other
types of solvents or detergents. Otherwise, it
may cause discoloration. When using a chemi-
cal cloth for cleaning, read the caution provid-
ed with the chemical cloth product.
Do not loozen or remove screws unless
instructed to do so in the product documenta-
tion.
Cleaning the lens
Use a lens cleaning paper (used to clean cam-
era lenses or lenses of spectacles). When using
solvent, use an alcohols solvent and do not
use a thinner or a glass cleaner.
Cleaning of the dome cover
Use lens cleaning paper (used to clean camera
or spectacles lenses) to remove any dirt on the
dome cover.
The mark of light-shielding parts left inside the
dome or dirt on the dorm cover may influence
the reflection of infrared rays. Therefore, like-
wise remove those marks and dirt using clean-
ing paper.

12
AVC Patent Portfolio License
THIS PRODUCT IS LICENSED UNDER THE
AVC PATENT PORTFOLIO LICENSE FOR THE
PERSONAL USE OF A CONSUMER OR
OTHER USES IN WHICH IT DOES NOT
RECEIVE REMUNERATION TO (i) ENCODE
VIDEO IN COMPLIANCE WITH THE AVC
STANDARD (“AVC VIDEO”) AND/OR (ii)
DECODE AVC VIDEO THAT WAS ENCODED
BY A CONSUMER ENGAGED IN A
PERSONAL ACTIVITY AND/OR WAS
OBTAINED FROM A VIDEO PROVIDER
LICENSED TO PROVIDE AVC VIDEO. NO
LICENSE IS GRANTED OR SHALL BE
IMPLIED FOR ANY OTHER USE. ADDITIONAL
INFORMATION MAY BE OBTAINED FROM
MPEG LA, L.L.C.
SEE HTTP://WWW.MPEGLA.COM
Equipment classification and power
source indication label
Refer to the indication label on the bottom side
of this unit for the equipment classification,
power source, and other information.
Product disposal/transfer
Data saved on this product or a storage device
used with this product may lead to personal
information leakage. When it is necessary to
dispose or give this product to someone, even
when for repair, make sure that there is no data
on this product.
When abandoning the memory media, it is rec-
ommended to destroy it physically after delet-
ing data by PC.
Meaning of symbols
: Direct current symbol

13
In order to prevent injury, the product
must be securely mounted to a wall or
ceiling according to Installation Guide.
Power supply
This product has no power switch.
When performing electrical work, make sure the
camera can be turned on and off. When an
Ethernet cable or power cable is connected, the
power is turned on. When cleaning the product,
remove the Ethernet cable or disconnect the
power cable from the main power supply.
Installation area for this product
Select an appropriate place for the installation
area (such as a strong wall or ceiling) in your
particular environment.
• Make sure that the installation area is
strong enough to hold this product, such
as a concrete ceiling.
• Install the camera in the foundation area of
the architecture or where sufficient strength
is assured.
• Do not mount the product on a plaster
board or a wooden section because they
are too weak. If the product is unavoidably
mounted on such a section, the section
shall be sufficiently reinforced.
This camera is designed to be used
indoors.
This product is not operable outdoors.
Do not expose this camera to direct sunlight
for hours and do not install the product near a
heater or an air conditioner. Otherwise, it may
cause deformation, discoloration and malfunc-
tion. Keep this camera away from water and
moisture.
Do not place this product in the following
places:
• Locations where a chemical agent is used
such as a swimming pool
• Locations subject to moisture or oil smoke
such as a kitchen
• Locations that have a specific environment
that is subject to an inflammable atmo-
sphere or solvents
• Locations where a radiation, an X-ray, a
strong radio wave or a strong magnetic
field is generated
• Locations near coasts directly subjected to
sea breezes, or locations subject to corro-
sive gases such as from hot springs, vol-
canic regions, etc.
• Locations where the temperature is not
within the specified range (☞page 26)
• Locations subject to vibrations, such as on
vehicles, marine vessels, or above product
lines (This product is not designed for on-
vehicle use.)
• Locations where it may get wet from rain
or water splash (including under the eaves,
etc.)
• Locations subject to moisture or dust
• Locations subject to condensation as the
result of severe changes in temperature
Sulfurization caused by rubber products
Do not place the product near rubber products
(packing, rubber feet, etc.) that contain sulfur.
There is a risk that sulfur components in rubber
products may cause electrical parts and termi-
nals, etc. to become sulfurized and corrode.
Panasonic assumes no responsibility for injuries or property damage resulting from
failures arising out of improper installation or operation inconsistent with this
documentation.
For information about the installation tasks, refer to the provided Installation Guide.
Precautions for installation

14
Screw tightening
• The screws and bolts must be tightened
with an appropriate tightening torque
according to the material and strength of
the installation area.
• Do not use an impact driver. Use of an
impact driver may damage the screws or
cause tightening excessively.
• When a screw is tightened, make the
screw at a right angle to the surface. After
tightening the screws or bolts, perform
checks to ensure that the tightening is
sufficient enough so that there is no
movement or looseness.
About reflection of light from outside or IR
light
Depending on the incident angle of high inten-
sity light source such as sunlight or lighting,
images of non-existing objects (reflected light)
or reflections of surroundings on the camera
lens (ghost) may sometimes appear on the
screen. Especially in the case of LED light,
these phenomena may be seen remarkably.
In the case of using the IR light, installation of a
camera near a wall may cause reflection of
infrared rays resulting in a part of the screen or
the entire screen turning whitish. Therefore,
consider the installation place carefully.
*Refer to our website (https://security.
panasonic.com/support/info/ <Control
No.: C0109>) for image examples and
measures to take.
Protection from lightning
When cables are used outdoors, there is a
chance that they may be affected by lightning.
In such a case, install a lightning arrestor close
to the camera, and make the length of the net-
work cable between the camera and lightning
arrestor as short as possible to prevent the
camera from being damaged by lightning.
When noise disturbance may happen
Conduct the power distribution work to keep a
distance of 1 m {3.28 feet} or more from the
120V (for U.S. and Canada) or 220 V – 240 V (for
Europe and other countries) power line. Or con-
duct the electric conduit work separately (Always
connect the metal pipe with grounding).
Radio disturbance
Noise may appear in video or audio near a
strong electric field from a TV or radio antenna,
motors and transformers, or a strong electric
field/magnetic field from a power line (lamp line)
of AC100 V or more.
PoE (Power over Ethernet)
Use a PoE hub/device that is compliant with
IEEE802.3af standard.
Router
When connecting this product to the Internet,
use a broadband router with the port forward-
ing function (NAT, IP masquerade).
Refer to the Operating Instructions on the
Panasonic support web site for further informa-
tion about the port forwarding function.
Time & date setting
It is necessary to set the time & date before
putting this product into operation. Refer to the
Operating Instructions on the Panasonic sup-
port web site for descriptions of how to per-
form the settings.
Make sure to remove this product if it will
no longer be used.

15
Parts and functions

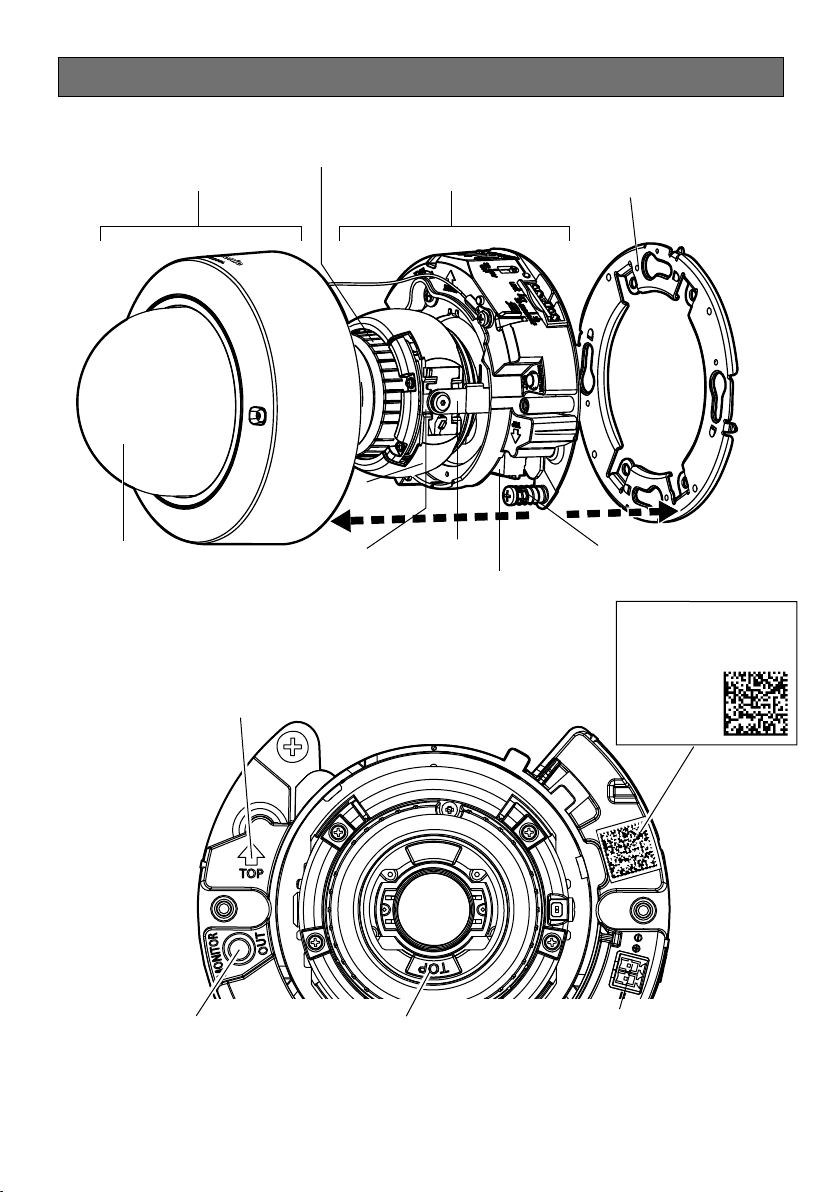

【Whole unit】
Azimuth adjustment ring
Camera Attachment plate (accessory)
Inner
cover
Dome cover
Enclosure
TILT table PAN table
External I/O terminal plug (accessory)
Camera xing screw
Direction marker for installation (TOP⇧)
⿟Points up when installing to a wall.
*1 Depending on the scanning application used, the Data Matrix may not be able to be read
correctly. In this case, access the site by directly entering the following URL.
https://security.panasonic.com/support/qr_sp_select/
MONITOR OUT terminal
(factory shipment: NTSC monitor)
Screen display
top (TOP)
Power cord plug (accessory)
Power supply terminal (12 V DC)
Terminals
⇩
【Camera body】
Two-dimensional
barcode (Data Matrix):
To our website*1

16
ARJ45 Network terminal
Connect an Ethernet cable (category 5e or better, straight) to the network terminal.
IMPORTANT:
⿟Use all 4 pairs (8 pins) of the Ethernet cable.
⿟The maximum cable length is 100 m {328 feet}.
⿟Make sure that the PoE device in use is compliant with IEEE802.3af standard.
⿟When connecting both the 12 V DC power supply and the PoE device for power supply, 12V
DC will be used for power supply.
⿟When the Ethernet cable is disconnected once, reconnect the cable after around 2seconds.
When the cable is quickly reconnected, the power may not be supplied from the PoE device.
■ Terminals
BPower supply terminal (12 V DC)
Connect the output cable of the DC power supply to the power cord plug (accessory).
Caution:
⿟A READILY ACCESSIBLE DISCONNECT DEVICE SHALL BE INCORPORATED TO THE
EQUIPMENT POWERED BY 12 V DC POWER SUPPLY.
⿟ONLY CONNECT 12 V DC CLASS 2 POWER SUPPLY (UL 1310/CSA 223) or LIMITED
POWER SOURCE (IEC/EN/UL/CSA 60950-1).
ARJ45 Network terminal
DAudio output terminal
CAudio input terminal
EEXT I/O terminals
FMONITOR OUT terminal
(factory shipment: NTSC monitor)
B Power supply terminal (12 V DC)
External I/O terminal plug
Power cord
plug

17
CAudio input terminal
DAudio output terminal
IMPORTANT:
⿟Be sure to use the power cable plug (accessory) provided with this product.
⿟Be sure to fully insert the power cable plug (accessory) into the power supply terminal (12 V
DC). Otherwise, it may damage the camera or cause malfunction.
⿟When installing the camera, make sure that excessive force is not applied to the power cable.
⿟Be sure to use an AC adaptor compliant with the Specifications (written in the indication label
on the bottom side of this unit) regarding power source and power consumption.
IMPORTANT:
⿟Connect/disconnect the audio cables and turn on the power of the camera after turning off
the power of the audio output devices. Otherwise, loud noise may be heard from the speaker.
⿟Make sure that the stereo mini plug is connected to this cable. When a monaural mini plug is
connected, audio may not be heard.
When connecting a monaural speaker with amplifier, use a locally procured conversion cable
(mono-stereo).
Note:
⿟The audio output can be switched to the monitor output*1.Refer to the Operating Instructions on
the Panasonic support web site for descriptions of how to switch the output.
⿟The monitor out is set to NTSC in the default settings of the camera. If you want to change the moni-
tor out setting to PAL, refer to the Operating Instructions on the Panasonic support web site.
*1 MONITOR OUT terminal (factory shipment: NTSC monitor)
Used to connect a monitor for adjustments during installation or when performing service.
B Power supply terminal (12 V DC)
Connect an external speaker* using a stereo mini plug ( ø 3.5 mm). (Audio output is monaural.)
⿟Output impedance : Approx. 600 Ω (unbalanced)
⿟Recommended cable length : Less than 10m {32.8feet}
⿟Output level : –20 dBV *Use a powered speaker.
Connect a microphone or the line out of an external device using a stereo mini plug ( ø 3.5 mm).
<For microphone input>
⿟Recommended microphone : Plug-in power type (locally procured)
(Sensitivity of microphone : –48 dB ±3dB (0 dB=1 V/Pa,1 kHz))
⿟Input impedance : Approx. 2 kΩ (unbalanced)
⿟Supply voltage : 2.5 V ±0.5 V
⿟Recommended cable length : Less than 1 m {3.28 feet}
<For line input>
⿟Input level for the line input : Approx. –10 dBV
⿟Recommended cable length : Less than 10 m {32.8 feet}

18
EEXT I/O terminals
<Ratings>
⿟Alarm input1 / Black & white input / Auto time adjustment input, Alarm input2, Alarm input3
Input specication : No-voltage make contact input (4 V - 5 V DC, internally pulled up)
OFF : Open or 4 V - 5 V DC
ON : Make contact with GND (required drive current: 1mA or more)
⿟Alarm output, AUX output
Output specication : Open collector output (maximum applied voltage: 20 V DC)
ON : 4 V - 5 V DC by internal pull-up
OFF : Output voltage 1 V DC or less (maximum drive current: 50 mA)

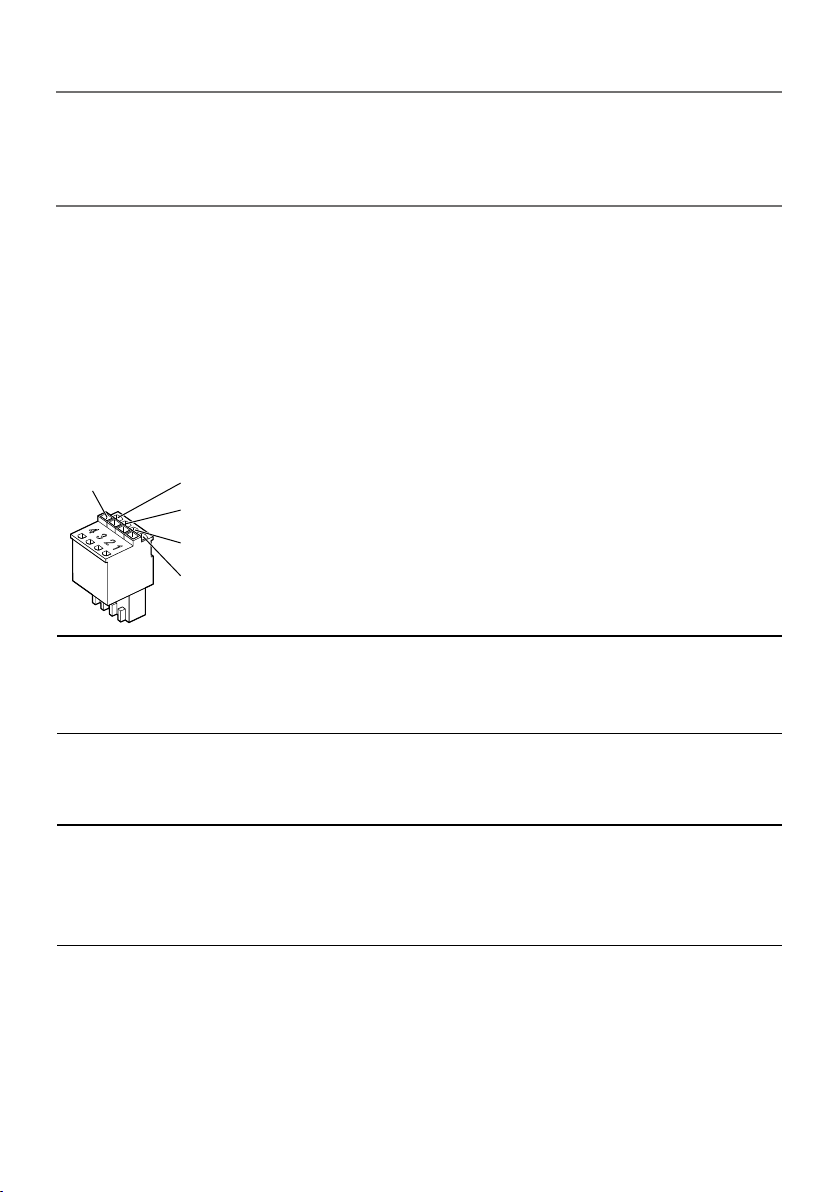

External I/O terminal plug
IMPORTANT:
⿟Install external devices so that they do not exceed the rating of the network camera.
⿟When using the EXT I/O terminals as the output terminals, ensure they do not cause signal
collision with external signals.
Note:
⿟Off, input, and output of the EXT I/O terminal 2 and 3 can be switched by configuring the setting.
Refer to the Operating Instructions on the Panasonic support web site for further information
about the EXT I/O terminal 2 and 3 (ALARM IN2, 3) settings ("Off", "Alarm input", "Alarm output"
or "AUX output").
4321
GND
ALARM IN3 (Alarm input3 / AUX output)
ALARM IN2 (Alarm input2 / Alarm output)
ALARM IN1 (Alarm input1 / Black & white input / Auto time adjustment input)
FMONITOR OUT terminal (factory shipment: NTSC monitor)
Used to connect a monitor used for adjustments during installation or when performing service.
IMPORTANT:
⿟The adjustment monitor is used for checking the adjustment of the angular field of view when
installing the camera or when servicing. It is not provided for recording/monitoring use.
⿟Depending on the monitor, some characters (date, time, camera title, etc.) may not be dis-
played on the screen.
Button

19
WV-S2250L
WV-S2250L
Adjustment monitor PoE device (hub)
PC
Ethernet cable
(category 5e or better,
straight)
Powered speaker
Microphone
(Plug-in power type)
Use an Ethernet cable (category
5e or better, cross) when directly
connecting the camera to a PC.
When connecting to a network using a PoE hub
Before starting the installation, check the entire system configuration. The following illustration gives
a wiring example of how to connect the camera to the network via a PoE device (hub).
Ethernet cable
(category 5e or
better, straight)
Ethernet cable
(category 5e or better,
straight)
Adjustment monitor
Powered speaker
IMPORTANT:
⿟Use a switching hub or a router which is compliant with 10BASE-T/100BASE-TX.
⿟If a PoE hub is not used, each network camera must be connected to a 12 V DC power
supply.
⿟When using 12 V DC, power supply from a PoE hub or router is not required.
Microphone
(Plug-in power type)

20

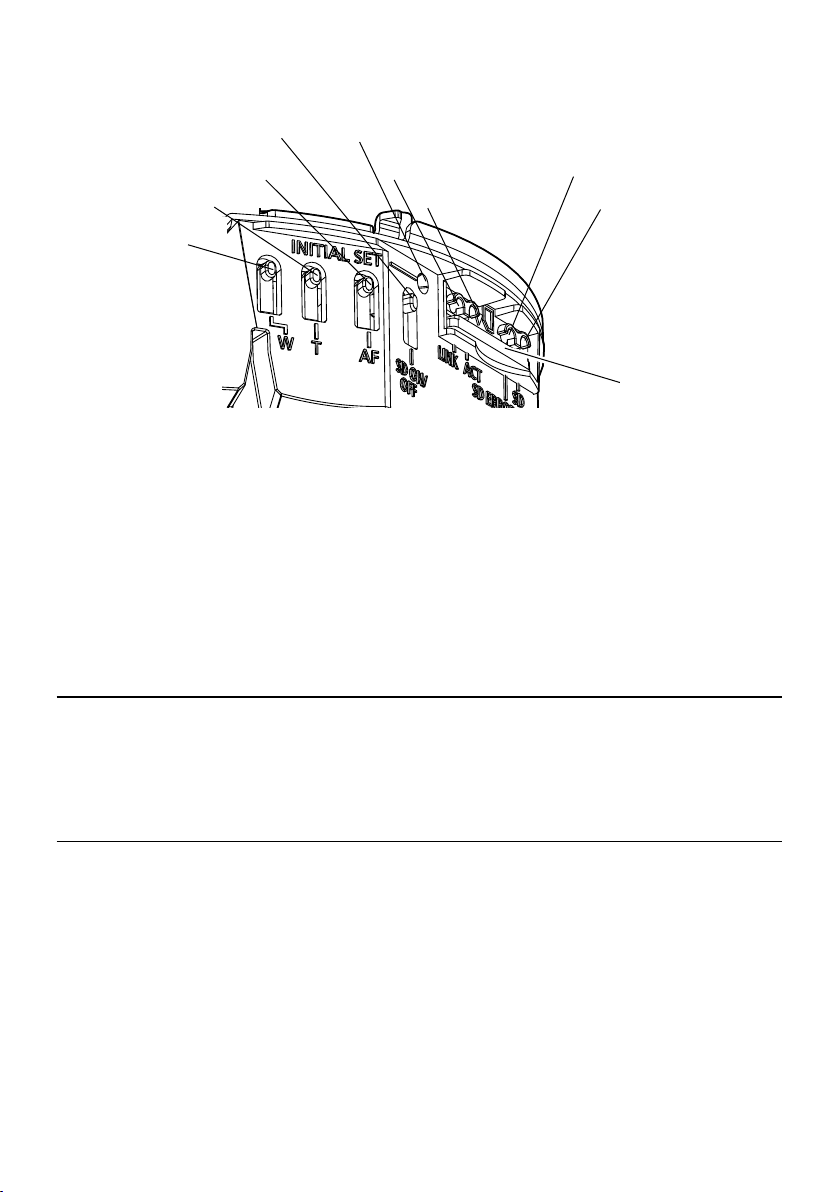

GAF button
HTELE button
IWIDE button
AINITIAL SET button (Initializing / NTSC ⇔PAL switch button)
CACT indicator
BLINK indicator ESD ERROR/AF indicator
SD slot
DSD MOUNT indicator
FSD ON/OFF button
■ Indicators and buttons
AINITIAL SET button (Initializing / NTSC ⇔PAL switch button)
Follow the steps below to initialize the network camera.
⑴Turn off the power of the camera.
When using a PoE hub, disconnect the Ethernet cable from the camera. When using an
external power supply, disconnect the power cord plug (accessory) from the power supply
terminal (12 V DC).
⑵Turn on the power of the camera while pressing the INITIAL SET button, and make sure to
release the button after approximately 15 seconds. In about 2 minutes later, the camera will
start up and the settings including the network settings will be initialized. Retry if the camera
does not start up normally.
IMPORTANT:
⿟When the camera is initialized, the settings including the network settings will be initial-
ized. Before initializing the settings, it is recommended to write down the settings in
advance.
⿟Do not turn off the power of the camera during the process of initialization. Otherwise, it may
fail to initialize and may cause malfunction.
⿟When the INITIAL SET button is pressed (less than 1 second) to switch the output signal of the
MONITOR OUT terminal, the MONITOR OUT terminal can be switched for the NTSC monitor ⇔
PAL monitor.
BLINK indicator
CACT indicator
⿟When data is being sent via the network camera Blinks green (accessing)
⿟When the camera is able to communicate with Lights orange
the connected device
