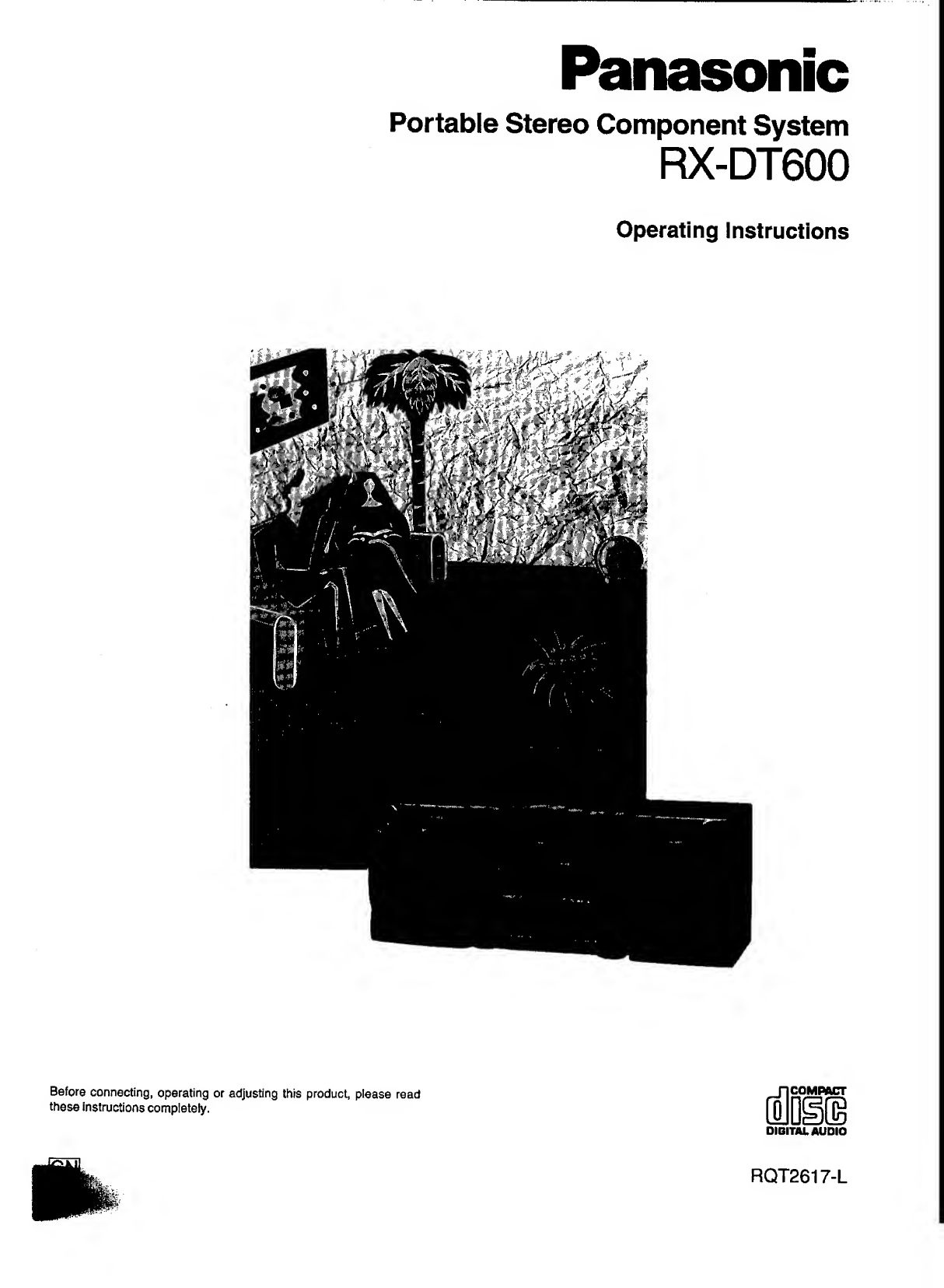

Panasonic RX-DT600 User manual

Panasonic
Portable Stereo Component System
RX-DT600
Operating Instructions
Before connecting, operating or adjusting this product, please read
these instructions completely.
_n COMPACT
Gl0c1)(3d
DIGITAL AUDIO
RQT2617-L

Thank you for purchasing this product.
For optimum performance and safety, please read these operating
instructions carefully.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOIS¬
TURE.
CAUTION!
THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORM¬
ANCE OF PROCEDURES OTHER THAN THOSE SPECI¬
FIED HEREIN MAY RESULT IN HAZARDOUS RADIATION
EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR YOUR¬
SELF. REFER SERVICING TO QUALIFIED PERSONNEL.

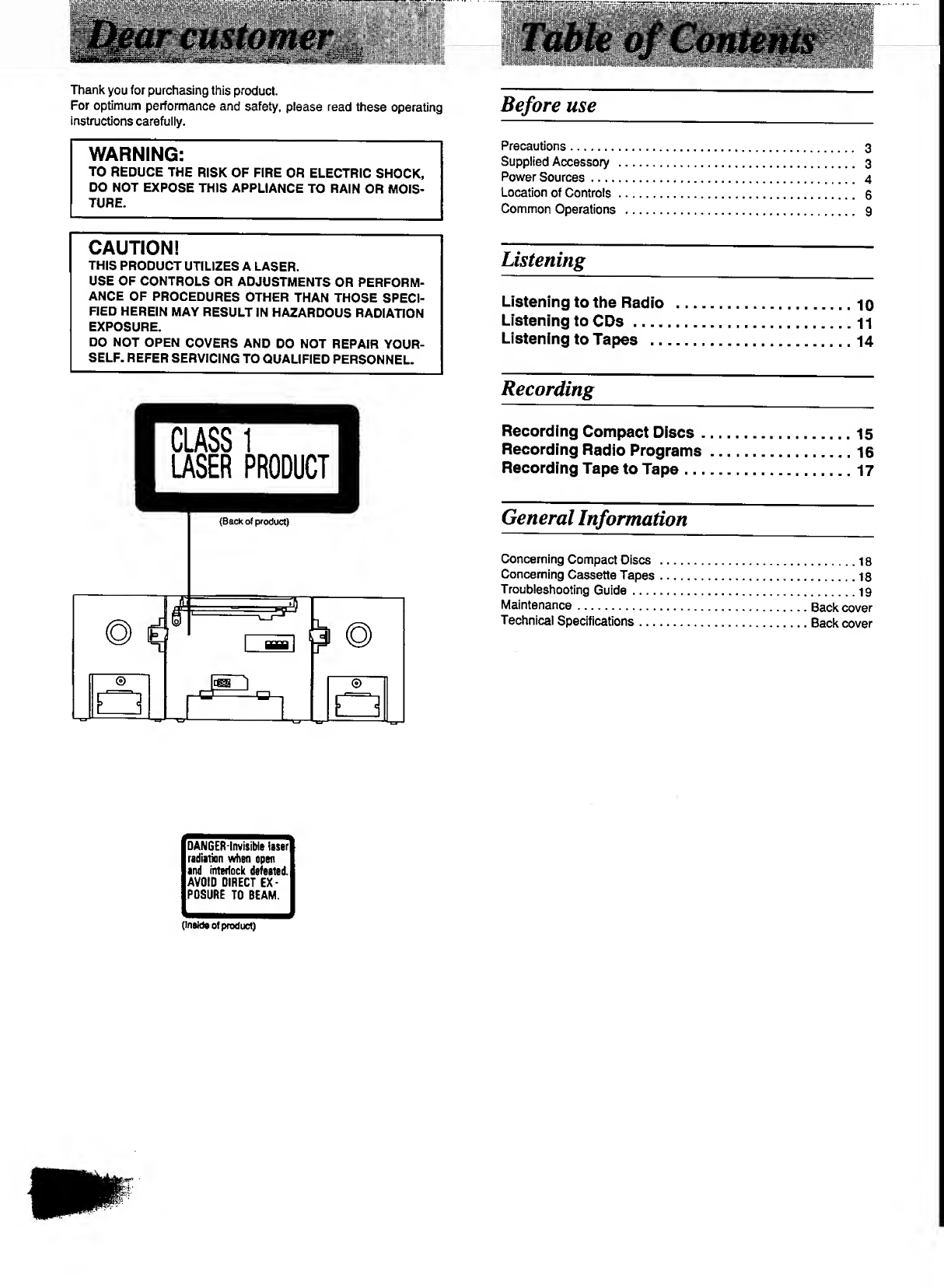

Before use
Precautions. 3
Supplied Accessory . 3
Power Sources. 4
Location of Controls. 6
Common Operations . 9
Listening
Listening to the Radio .10
Listening to CDs. 1 1
Listening to Tapes . 1 4
Recording
Recording Compact Discs. 1 5
Recording Radio Programs.16
Recording Tape to Tape.17
General Information
Concerning Compact Discs . 1 8
Concerning Cassette Tapes. 1 8
Troubleshooting Guide.19
Maintenance.Back cover
Technical Specifications.Back cover
DANGERInvisiNe laser
radiation when open
and interlock defeated.
AVOID DIRECT EX -
POSURE TO BEAM.
(Inside of product)

•If the set is not used for a long period of time or is used only
from an AC power source, remove ail the batteries to prevent
potential damage due to possible battery leakage.
•Avoid using or placing this unit near sources of heat. Do not leave
it in an automobile exposed to direct sunlight for a long time with
the doors and windows closed as this may deform the cabinet.
•Avoid cuts, scratches, or poor connections in the AC power cord,
as they may result in possible fire or electric shock hazard. Also!
excessive bending, pulling or splicing of the cord should be
avoided.
•Do not unplug the AC power cord by pulling on the cord. To do so
may cause premature failure or shock hazard.
•Do not operate the set on AC power in a bathroom, as a potential
shock hazard may result.
•When not in use, disconnect the AC power cord from the house¬
hold AC outlet.
•The Function Selector switch d oes not separate entire unit from
mains even if in "TAPE/CsH® ” position.
3

To operate on AC power
To operate on battery power
Connect the included AC power cord to the AC socket of the unit and
your household AC outlet.
Battery installation
Unplug the AC power cord from the household AC outlet and the AC
socket of the unit.
Insert eight R20/LR20 (UM-1, not included) batteries into the battery
compartment, making sure that the batteries are installed in the
designated numerical order and that the proper polarities are main¬
tained.
•Batteries installed with incorrect polarities may leak and damage
this unit.
•Do not mix batteries (old and new) or types (manganese and
alkaline, etc.).
•If the unit is not used for a long period of time or is used only from
an AC power source, remove the batteries to prevent potential
damage from possible battery leakage.
Battery removal
Remove as shown in the figure below.
Battery life
When the OPERATION/BATT indicator goes off (or dims) during
play, replace all the batteries with new ones.
OPERATION/BATT O

This unit can be used as a one-piece portable stereo radio cassette
recorder, or a three-piece component system, by attaching or de¬
taching the speaker system.
Before attaching or detaching the speakers, be sure to disconnect
the speaker cables f rom the speaker terminals. Be sure to set
SELECTOR to TAPE/ MiJ to turn off the unit before connecting/
disconnecting the speaker cables.

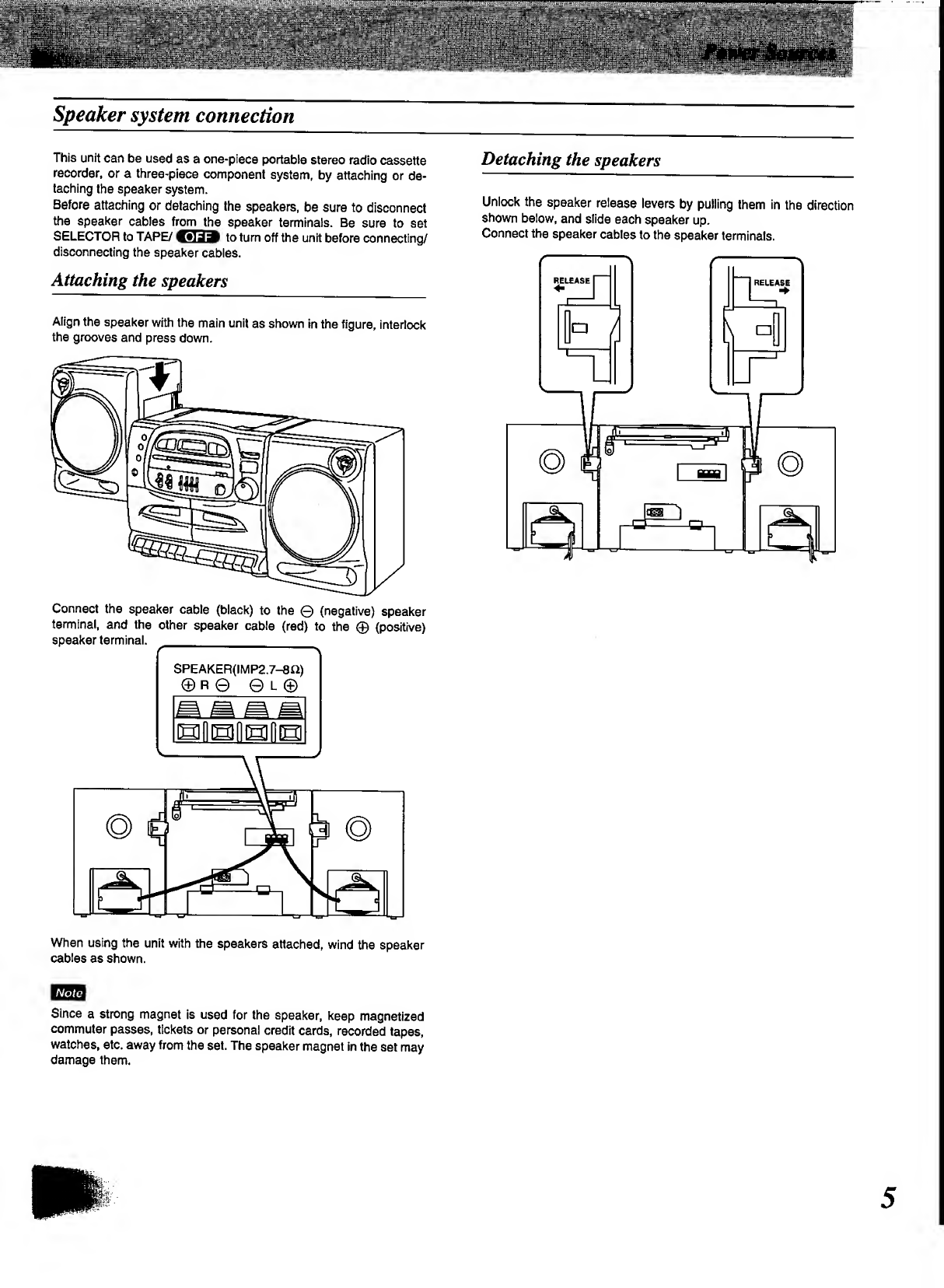

Attaching the speakers
Align the speaker with the main unit as shown in the figure, interlock
the grooves and press down.
Detaching the speakers
Unlock the speaker release levers by pulling them in the direction
shown below, and slide each speaker up.
Connect the speaker cables to the speaker terminals.
Connect the speaker cable (black) to the © (negative) speaker
terminal, and the other speaker cable (red) to the © (positive)
When using the unit with the speakers attached, wind the speaker
cables as shown.
Since a strong magnet is used for the speaker, keep magnetized
commuter passes, tickets or personal credit cards, recorded tapes,
watches, etc. away from the set. The speaker magnet in the set may
damage them.

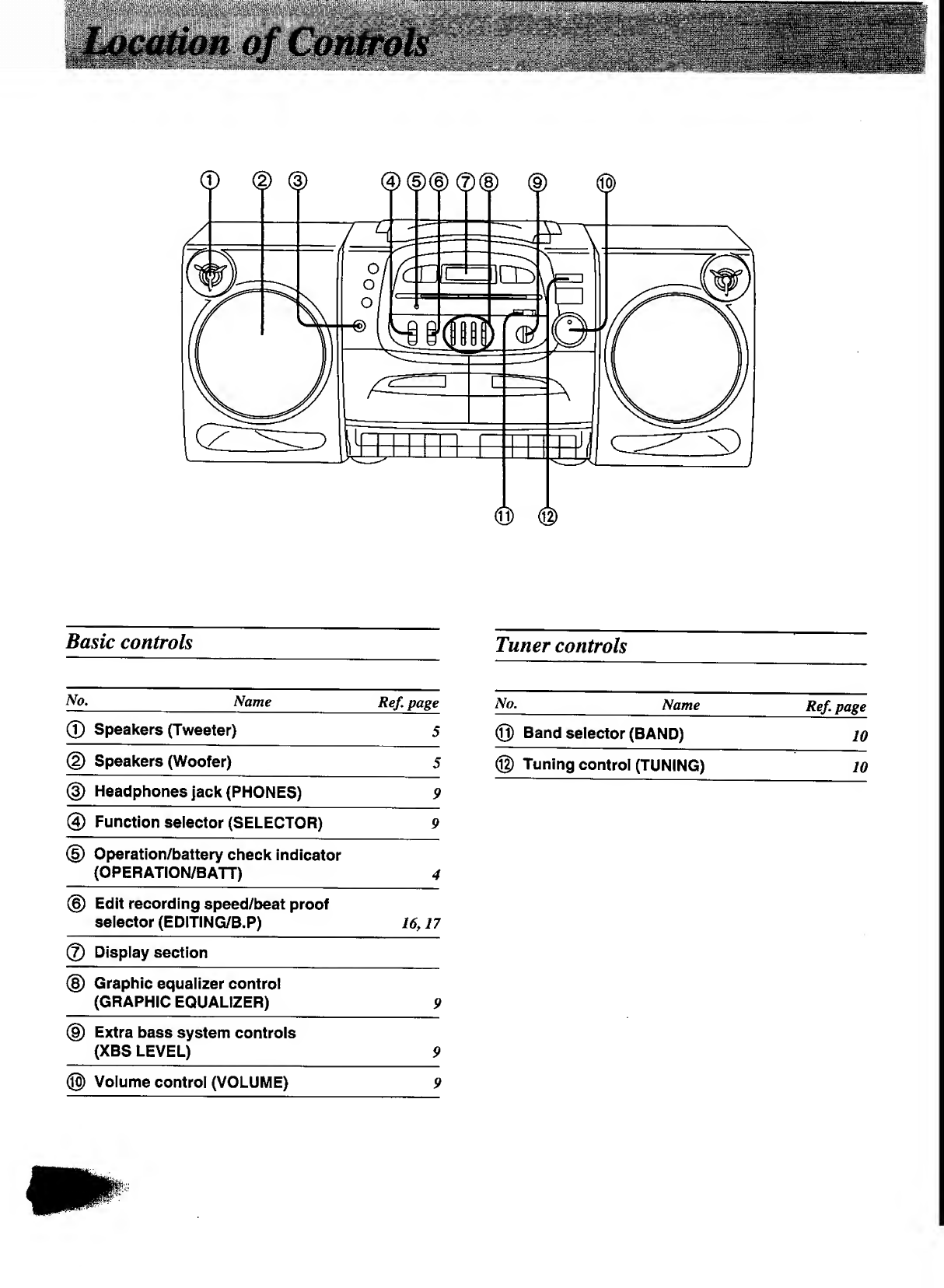

Basic controls
Tuner controls
No. Name
Ref page
© Speakers (Tweeter) 5
(2) Speakers (Woofer)
5
© Headphones jack (PHONES)
9
® Function selector (SELECTOR)
9
© Operation/battery check indicator
(OPERATION/BATT)
4
© Edit recording speed/beat proof
selector (E DITIN G/B.P)
16,17
© Display section
© Graphic equalizer control
(GRAPHIC EQUALIZER)
9
© Extra bass system controls
(XBS LEVEL)
9
® Volume control (VOLUME)
9
No. _ Name
(Q) Band selector (BAND)
® Tuning control (TUNING)

CD controls
Cassette deck controls
No. Name
Ref. page
@ Repeat button (REPEAT)
12
® Easy CD record button
(EASY CD RECORD)
15
© Memory button (MEMORY)
13
© Skip/search buttons ( ► * ◄ / <**, ► ► / ► ► «) 11,12
@ Disc lid 11
® Stop/clear button (B/CLEAR)
11
© Play/pause button (>/II)
11
© CD eject button (± CD EJECT) 11
No. Name
Ref page
© Deck 1 cassette lid (DECK1)
14,17
© Record button (• | rec| )
15
® Playback button (> PLAY)
14
© Rewind/review button ( ◄ ◄ REW/REV)
14
© Fast forward/cue button ( ► > FF/CUE)
14
© Stop/eject button (B/^ STOP/EJECT)
14
@ Pause button (II PAUSE)
14
© Deck 2 cassette lid (DECK2)
14,17

Rear panel section
No. Name
Ref. page
No. Name
Ref page
© Speaker cable compartments
5
® AC socket (AC IN~)
4
© Speaker release levers
5
© Battery compartment cover
4
© Handle
® Speaker cables
5
® Speaker terminals (SPEAKER)
5
© Telescopic antenna
10

STOP/EJECT
J

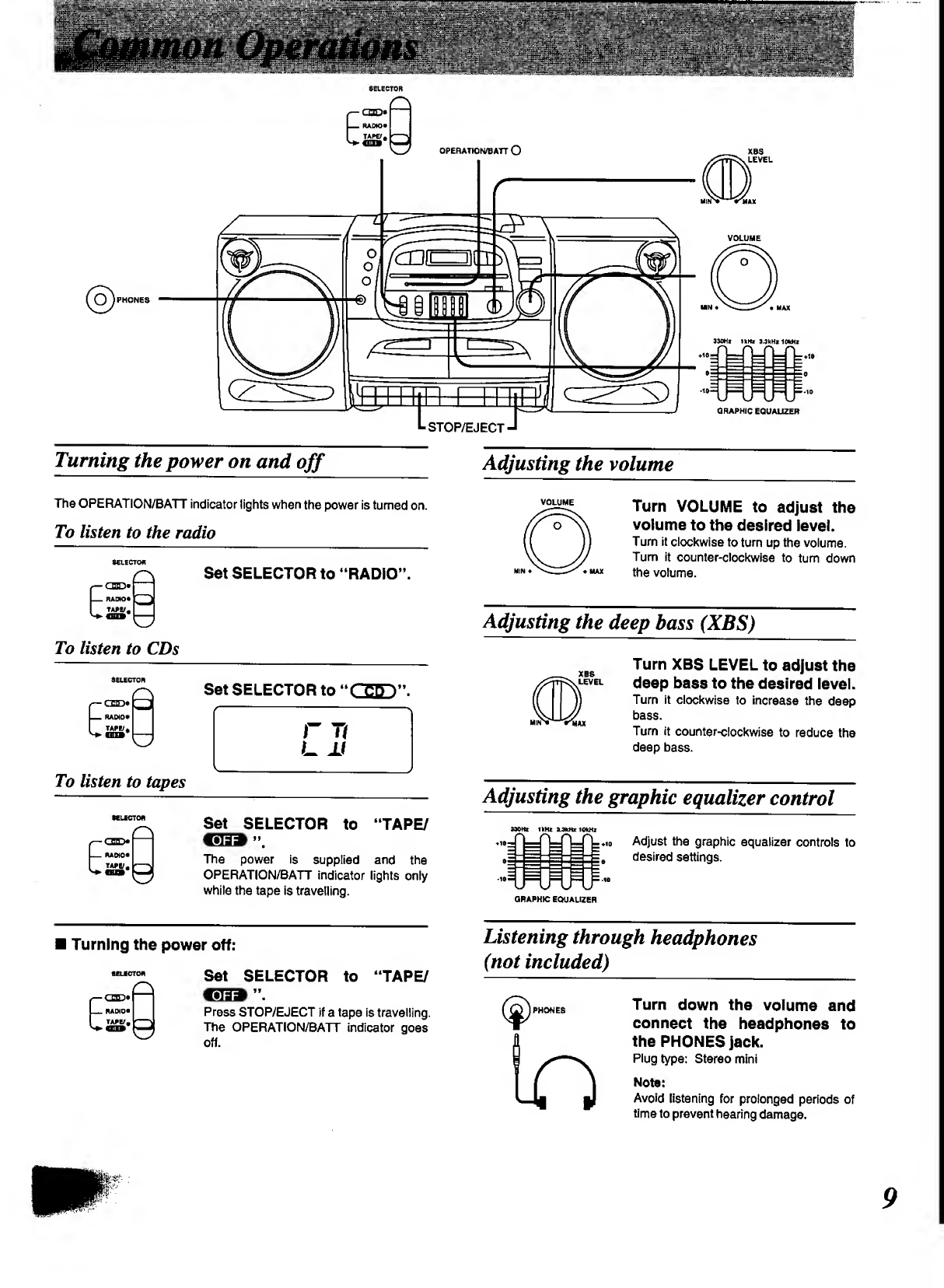

Turning the power on and off
Adjusting the volume
The 0PERAT10N/BATT indicator lights when the power is turned on.
To listen to the radio
SELECTOR
E
Set SELECTOR to “RADIO”.
To listen to CDs
SELECTOR
CEE.Q
RADIO*
TAPE/*
To listen to tapes
Set SELECTOR to “ C3D”
*—- { CD H
- RADIO*
L ia£«
Set S E LECTOR to “TAPE/
C39
The power is supplied and the
OPERATION/BATT indicator lights only
while the tape is travelling.
VOLUME
Turn VOLUME to adjust the
volume to the desired level.
Turn it clockwise to turn up the volume.
Turn it counter-clockwise to turn down
the volume.
Adjusting the deep bass (XBS)
Turn XBS LEVEL to adjust the
deep bass to the desired level.
Turn it clockwise to increase the deep
bass.
Turn it counter-clockwise to reduce the
deep bass.
Adjusting the graphic equalizer control
330Hz 1kHz 3.3kHz 10kHz
=
/•S
—
=
= =
_
~
=
=
U
=
=
=
GRAPHIC EQUALIZER
Adjust the graphic equalizer controls to
desired settings.
■ Turning the power off:
SELECTOR
Set SELECTOR to “TAPE/
Press STOP/EJECT if a tape is travelling.
The OPERATION/BATT indicator goes
off.
Listening through headphones
(not included)
Turn down the volume and
connect the headphones to
the PHONES jack.
Plug type: Stereo mini
Note:
Avoid listening for prolonged periods of
time to prevent hearing damage.

o
2 3
Selecting a radio station
1
2
r\ Set SELECTOR to “RADIO”.
i —>1 Set BAND as desired.
FMST FM AM
E C ciO*
fiAOW*
tape; »
r.m
3
TUNING
Tune in the desired station
using TUNING.
: To higher the frequency
: To lower the frequency
When FM stereo broadcast is picked up,
FM ST indicator will light.
When an FM stereo broadcast is
accompanied by too much noise
Switch the sound to monaural to reduce noise.
I a I Set BAND to “FM”.
A *7m FM ST indicator now goes off.
Adjusting the antenna
For FM reception:
Adjust the length and direction of the telescopic antenna.
For AM reception:
Adjust the direction in which the unit is pointed.
For your reference:
Radio broadcasts may be hard to receive in a building or moving
vehicle because their signals are weak. Whenever possible, use the
unit by a window.

1
E
SELECTOR
C3D.Q
RADIO*
TAPE/.
Set SELECTOR to “ CJ3D
"NO DISC” appears on the display when
a CD has not been inserted.
To stop play:
Press B/CLEAR.
To stop play temporarily:
Press A CD EJECT, insert the
CD and close the disc lid.
Insert the CD with
its label side facing up.
Total play time
Total numbe
r of tracks
(
fl
^_
i'c o-c n 1
I JJ JU
_>
3
Press >/ll to start play.
Play starts from track 1 and continues to
the last track, after which it automatically
stops.
Number of track now playing
Elapsed play time
of track now playing
1
f
ZT|
.
(7
i
t-u
I
\_
Press >711.
The elapsed play time indication now
flashes.
To resume play:
Press >/ll.
E29
Interference may affect radio or TV reception when CDs are played
close to a radio or TV set. If this occurs, place the unit as far away
from the set as possible.
Starting play from a specific track
(Direct play)
n
In the stop mode, press
\«/« or ►► / ► « to specify
the desired track.
Press >/ll to start play.
A disc can be played from a specific track to the end of the last track.
11

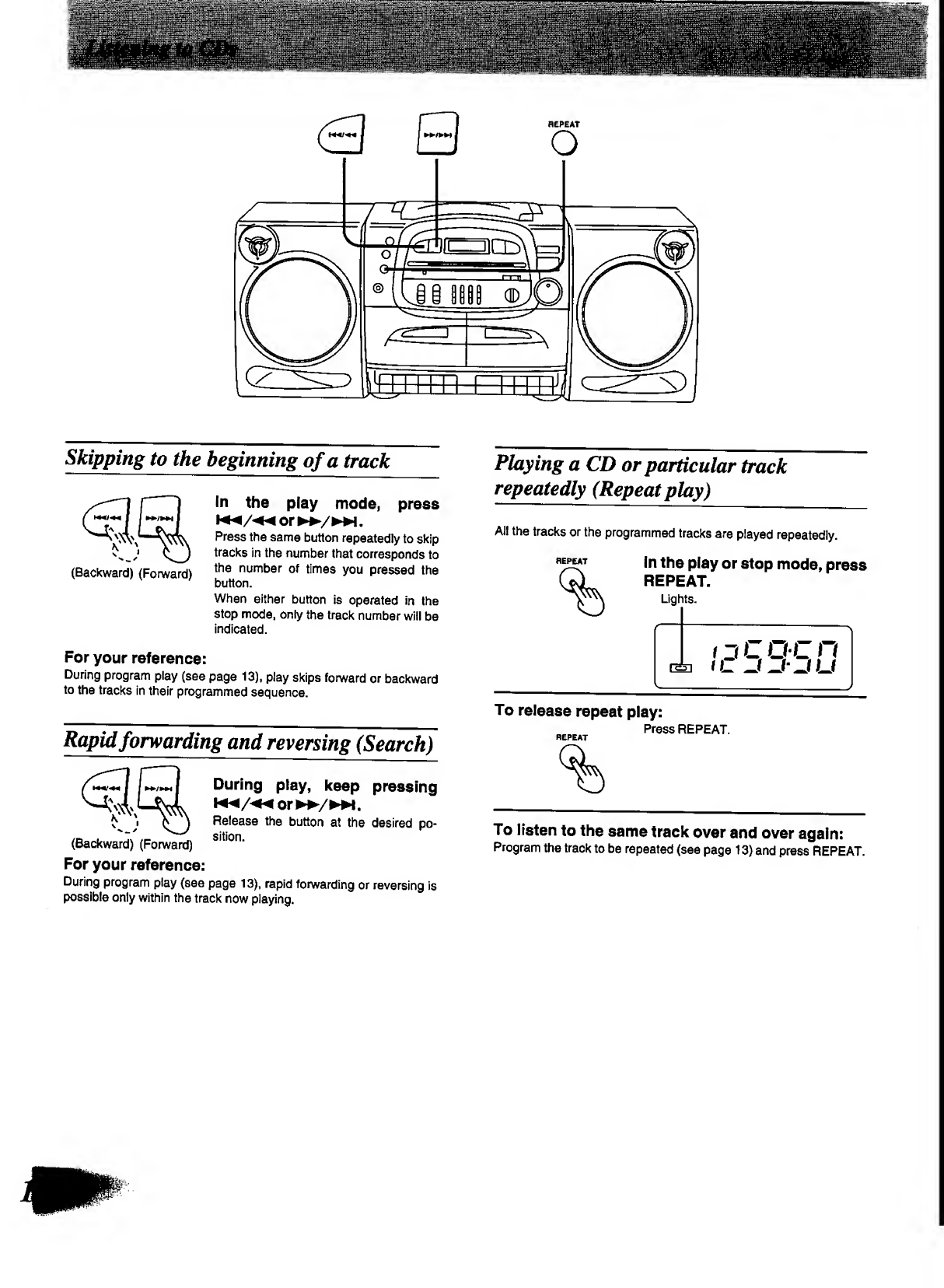

Skipping to the beginning of a track
(Backward) (Forward)
In the play mode, press
\«/« or ►► / ► «.
Press the same button repeatedly to skip
tracks in the number that corresponds to
the number of times you pressed the
button.
When either button is operated in the
stop mode, only the track number will be
indicated.
For your reference:
During program piay (see page 13), play skips forward or backward
to the tracks in their programmed sequence.
Playing a CD or particular track
repeatedly (Repeat p lay)
All the tracks or the programmed tracks are played repeatedly.
In the play or stop mode, press
REPEAT.
Lights.
Rapid forwarding and reversing (Search)
(Backward) (Forward)
During play, keep pressing
or ► ► / ► «.
Release the button at the desired po¬
sition.
For your reference:
During program play (see page 13), rapid forwarding or reversing is
possible only within the track now playing.
To release repeat play:
Press REPEAT.
To listen to the same track over and over again:
Program the track to be repeated (see page 13) and press REPEAT.

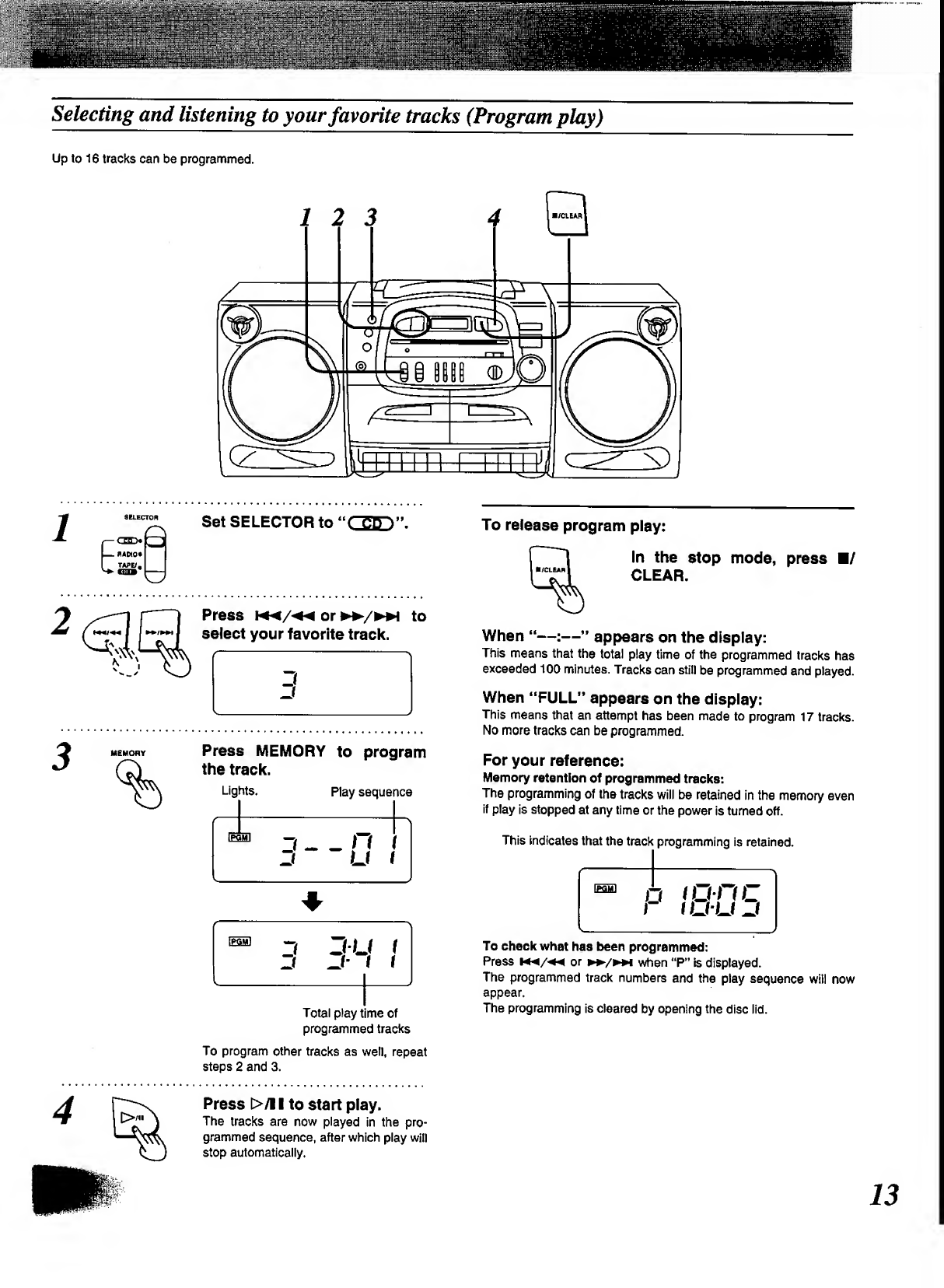

Selecting and listening to your favorite tracks (Program play)
Up to 16 tracks can be programmed.
1
Set SELECTOR to “C3D”-
2
Press \«/« or ►► / ► « to
select your favorite track.
( -
1
—
V_
J
Press MEMORY to program
the track.
Lights. Play sequence
programmed tracks
To program other tracks as well, repeat
steps 2 and 3.
To release program play:
In the stop mode, press ■ /
CLEAR.
When “—:—” appears on the display:
This means that the total play time of the programmed tracks has
exceeded 100 minutes. Tracks can still be programmed and played.
When “FULL” appears on the display:
This means that an attempt has been made to program 17 tracks.
No more tracks can be programmed.
For your reference:
Memory retention of programmed tracks:
The programming of the tracks will be retained in the memory even
if play is stopped at any time or the power is turned off.
This indicates that the track programming is retained.
/
IPQffl ^
r
< -
-
i tone
’ tUUJI
To check what has been programmed:
Press ► *«/«*« or ►► / ► « when “P” is displayed.
The programmed track numbers and the play sequence will now
appear.
The programming is cleared by opening the disc lid.
Press 0/11 to start play.
The tracks are now played in the pro¬
grammed sequence, after which play will
stop automatically.
4

Only normal tapes can be used with this unit. This unit has a dual cassette system, which means that a tape can be played back with both Deck 1
and Deck 2.
1
/— t CB )*
- RADIO*
TAP B,
^ <ra»
ZD
w
Set SELECTOR to “TAPE/
«g»”.
STOWEJECT
Press STOP/EJECT, load the
tape and close the cassette
I J ,,d '
Reverse side
|[ ^ 1 & B M UjHMJ ^
— Top side
t>
PLAY
Press PLAY to start play.
Type of tape which can be played on this unit:
NormalfTYPE I
O
CrO/TYPE II
X
Metat/TYPE IV
X
To rewind or fast forward the tape
hEW/REVl
CSS
In the stop mode, press REW/
REV or FF/CUE.
Do not press PLAY during rewinding or fast forwarding, as this may
jam the tape. Be sure to press STOP/EJECT before proceeding to
the next operation.
To search a particular spot on a tape
To stop play:
To resume play:
Press PAUSE again.
During playback, press REW/
REV or FF/CUE.
Tape play is resumed when the button is
released.
Automatic playback relay
(Deck 2 to Deck 1)
When Deck 2 playback has finished, Deck 1 playback starts auto¬
matically.
1 Insert the playback tapes into Deck 1 and Deck 2.
2 Press Deck 2 PLAY.
3 Press Deck 1 PAUSE, then press PLAY.
Full auto-stop
During playback, recording, fast forward or rewind when the tape
reaches its end, the automatic stop system will release the operation
buttons.

Only normal tapes can be used with this unit.

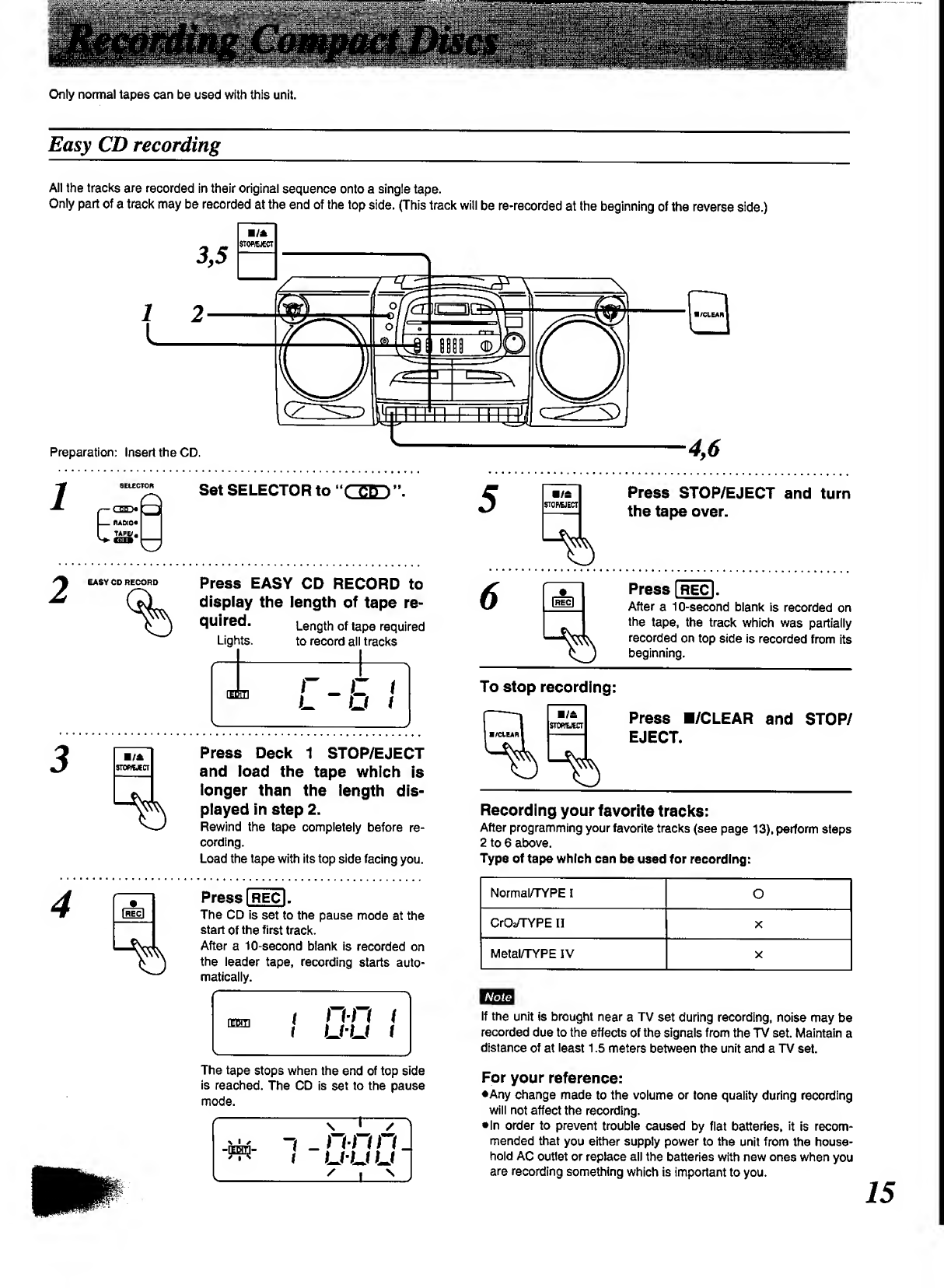

Easy CD recording
All the tracks are recorded in their original sequence onto a single tape.
Only part of a track may be recorded at the end of the top side. (This track will be re-recorded at the beginning of the reverse side.)
3,5
1 2
l_
Preparation: Insert the CD.
■ /CLEAR
_
4,6
1
E t CP
RADIO*
TAPE/ a
fill*
Q
Set SELECTOR to “ f CETt
3
mix
5T0MEJSCT
Press EASY CD RECORD to
display the length of tape re¬
quired. Length of tape required
Lights. to record all tracks
An r _ c f
m jL u i
_
Press Deck 1 STOP/EJECT
and load the tape which is
longer than the length dis¬
played in step 2.
Rewind the tape completely before re¬
cording.
Load the tape with its top side facing you.
5
6
Press STOP/EJECT and turn
the tape over.
Press IrecI .
After a 10-second blank is recorded on
the tape, the track which was partially
recorded on top side is recorded from its
beginning.
To stop recording:
Press B/CLEAR and STOP/
EJECT.
Recording your favorite tracks:
After programming your favorite tracks (see page 13), perform steps
2 to 6 above.
Type of tape which can be used for recording:
Press REC
The CD is set to the pause mode at the
start of the first track.
After a 10-second blank is recorded on
the leader tape, recording starts auto¬
matically.
The tape stops when the end of top side
is reached. The CD is set to the pause
mode.
Normal/TYPE I
O
CrOa/TYPE II
X
Metal/TYPE IV X
1223
if the unit is brought near a TV set during recording, noise may be
recorded due to the effects of the signals from the TV set. Maintain a
distance of at least 1.5 meters between the unit and a TV set.
For your reference:
•Any change made to the volume or tone quality during recording
will not affect the recording.
•In order to prevent trouble caused by flat batteries, it is recom¬
mended that you either supply power to the unit from the house¬
hold AC outlet or replace all the batteries with new ones when you
are recording something which is important to you.

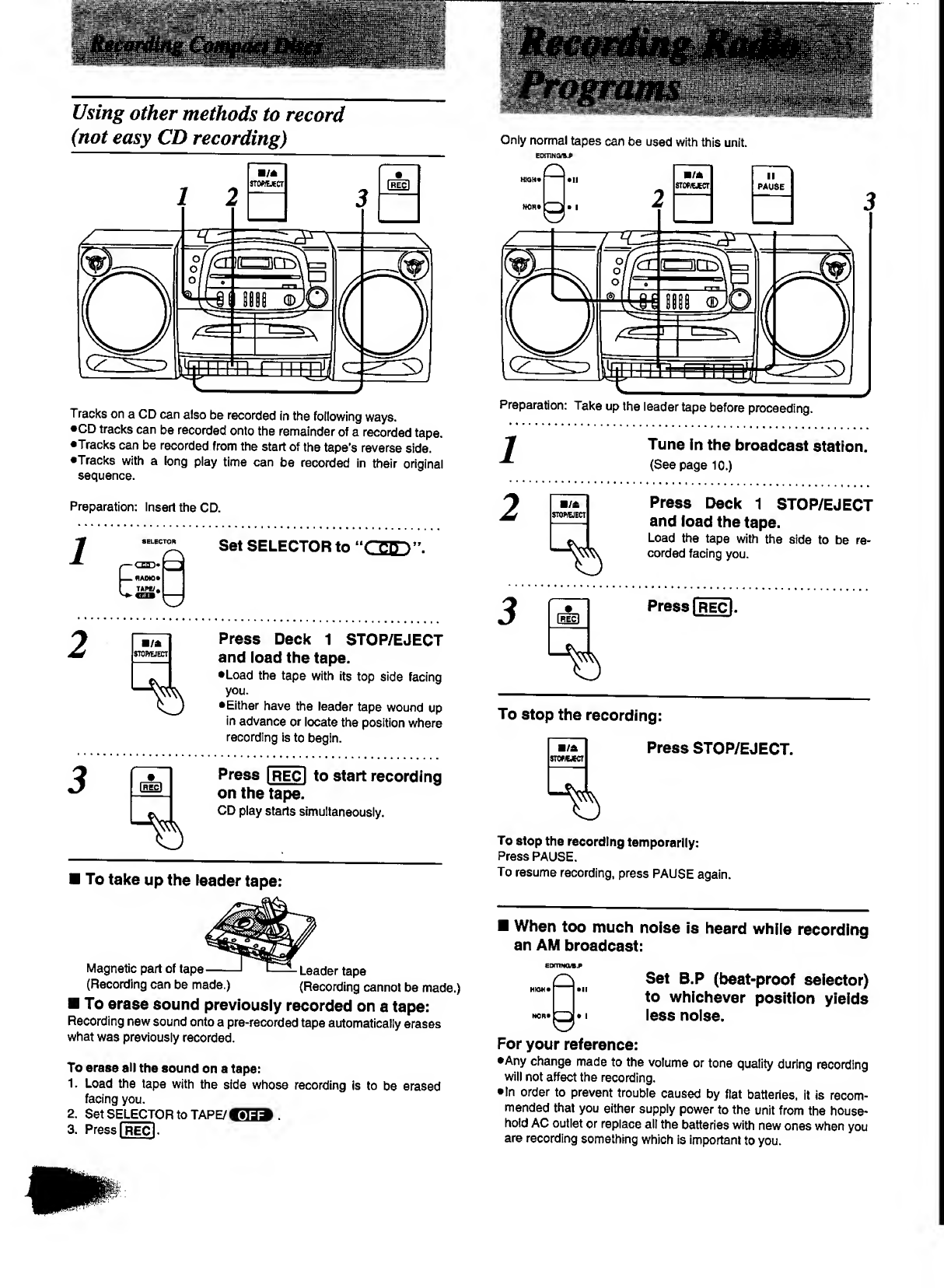

Using other methods to record
(not easy CD recording)
Only normal tapes can be used with this unit.
Tracks on a CD can also be recorded in the following ways.
•CD tracks can be recorded onto the remainder of a recorded tape.
•Tracks can be recorded from the start of the tape’s reverse side.
•Tracks with a long play time can be recorded in their original
sequence.
Preparation: Insert the CD.
E ( CD T
RAOtOa
TAPE U
cm
Set SELECTOR to “Q3D”.
Press Deck 1 STOP/EJECT
and load the tape.
•Load the tape with its top side facing
you.
•Either have the leader tape wound up
in advance or locate the position where
recording is to begin.
Press IrecI to start recording
on the tape.
CD play starts simultaneously.
Preparation: Take up the leader tape before proceeding.
7 Tune in the broadcast station.
(See page 10.)
Press Deck 1 STOP/EJECT
and load the tape.
Load the tape with the side to be re¬
corded facing you.
Press I RECl .
To stop the recording:
Press STOP/EJECT.
To take up the leader tape:
To stop the recording temporarily:
Press PAUSE.
To resume recording, press PAUSE again.
Magnetic part of tape-1 L_2_ Leader tape
(Recording can be made.) (Recording cannot be made,)
■ To erase sound previously recorded on a tape:
Recording new sound onto a pre-recorded tape automatically erases
what was previously recorded.
To erase ail the sound on a tape:
1. Load the tape with the side whose recording is to be erased
facing you.
2. Set SELECTOR to TAPE/C39-
3. Press I RECl.
■ When too much noise is heard while recording
an AM broadcast:
EDOlNOm-P
O Set B.P (beat-proof selector)
HK3M# all ■ '
to whichever position yields
NOR* ^ • I less noise.
w
For your reference:
•Any change made to the volume or tone quality during recording
will not affect the recording.
•In order to prevent trouble caused by flat batteries, it is recom¬
mended that you either supply power to the unit from the house¬
hold AC outlet or replace all the batteries with new ones when you
are recording something which is important to you.
m*

When the Deck 1 pause and record buttons are pressed, tape editing starts by pressing tne Deck 2 playback button.
■ /ft
STOWEJECT
1
CEDD*
_ RADIO*
ZD
Set SELECTOR to “TAPE/
2
Press Deck 1 STOP/EJECT
and load the tape to be re¬
corded.
Load the tape with the side to be re¬
corded facing you.
3
Press Deck 2 STOP/EJECT
and load the tape to be played
back.
Load the tape with the side to be played
facing you.
EDmNO/B.P
Select the editing speed by
setting EDITING/B.P.
HIGH: High speed
NOR: Normal speed
5
11
PAUSE
fnlcl
Press Deck 1 PAUSE, then
press IrecI •
6
Press the Deck 2 PLAY.
Editing is started by means of the synchro-start function.
Do not set the “CD" or “RADIO” function selector during editing.
Do not change the editing selector during editing. The playback
sound may flutter.
Some TV sets generate noise that could be recorded during editing.
To prevent the possibility of this, do not use this unit closer than
1.5 m to a TV set.
Recording is not affected by changes made to the volume or tone
quality during the recording.
To stop the editing:
STOWEJECT
Press the Deck 1 and Deck 2
STOP/EJECT.
For your reference:
Recording is not affected by changes made to the volume or tone
quality during the recording.
17

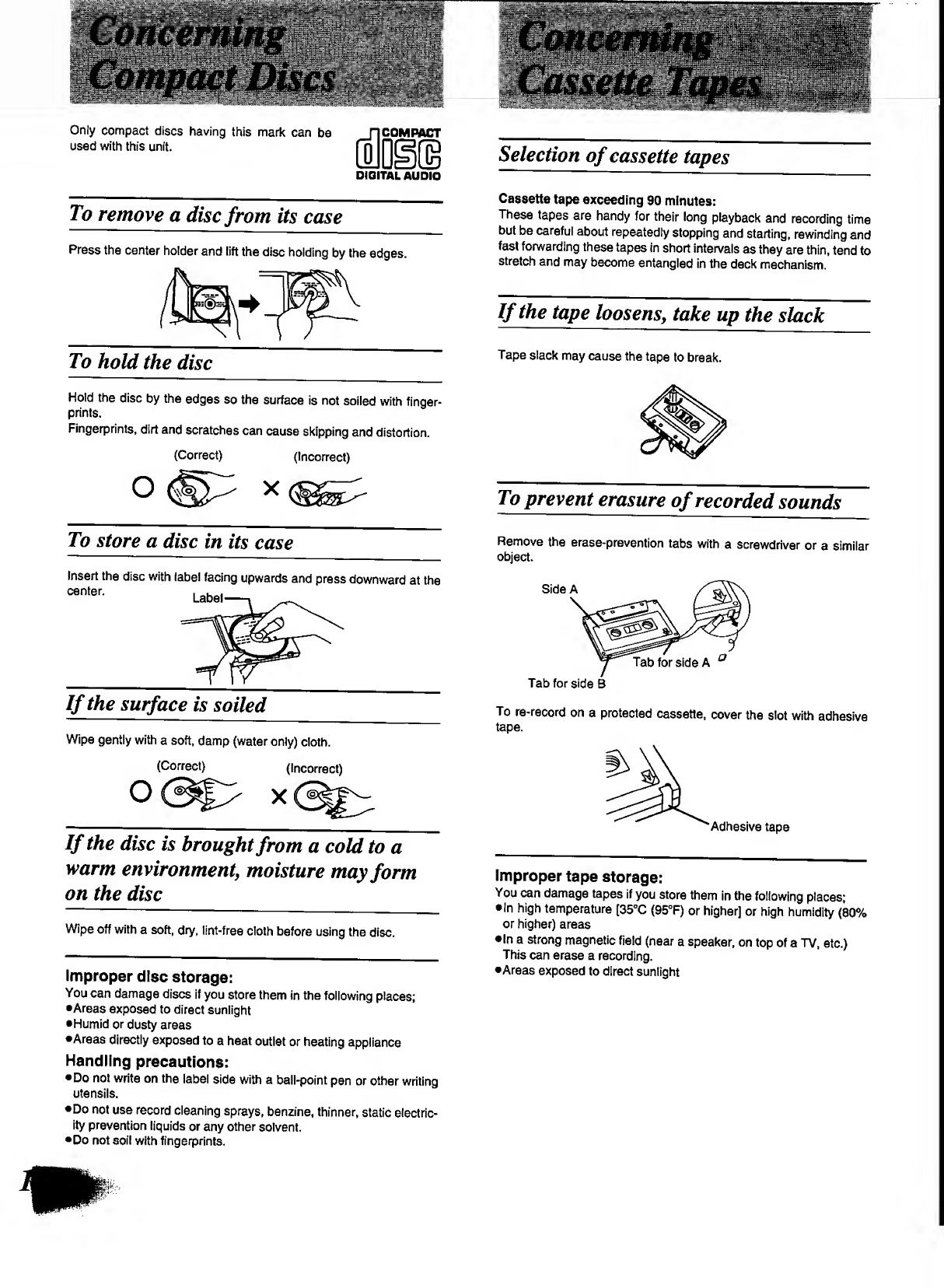

Only compact discs having this mark can be
used with this unit.
n COMPACT
GUDcSGB
DIGITAL AUDIO
Selection of cassette tapes
To remove a disc from its case
Press the center holder and lift the disc holding by the edges.
To hold the disc
Hold the disc by the edges so the surface is not soiled with finger¬
prints.
Fingerprints, dirt and scratches can cause skipping and distortion.
(Correct) (Incorrect)
Cassette tape exceeding 90 minutes:
These tapes are handy for their long playback and recording time
but be careful about repeatedly stopping and starting, rewinding and
fast forwarding these tapes in short intervals as they are thin, tend to
stretch and may become entangled in the deck mechanism.
If the tape loosens, take up the slack
Tape slack may cause the tape to break.
To prevent erasure of recorded sounds
To store a disc in its case
Insert the disc with label facing upwards and press downward at the
center.
If the surface is soiled
Wipe gently with a soft, damp (water only) cloth.
(Correct) (Incorrect)
If the disc is brought from a cold to a
warm environment, moisture may form
on the disc
Wipe off with a soft, dry, lint-free cloth before using the disc.
Improper disc storage:
You can damage discs if you store them in the following places;
•Areas exposed to direct sunlight
•Humid or dusty areas
•Areas directly exposed to a heat outlet or heating appliance
Handling precautions:
•Do not write on the label side with a bail-point pen or other writing
utensils.
•Do not use record cleaning sprays, benzine, thinner, static electric¬
ity prevention liquids or any other solvent.
•Do not soil with fingerprints.
Remove the erase-prevention tabs with a screwdriver or a similar
object.
To re-record on a protected cassette, cover the slot with adhesive
tape.
Adhesive tape
Improper tape storage:
You can damage tapes if you store them in the following places;
•In high temperature [35°C (95°F) or higher] or high humidity (80%
or higher) areas
•In a strong magnetic field (near a speaker, on top of a TV, etc.)
This can erase a recording.
•Areas exposed to direct sunlight

Before requesting service for this unit, check the chart below for a
possible cause of the problem you are experiencing. Some simple
checks or a minor adjustment on your part may eliminate the problem
and restore proper operation.
If you are in doubt about some of the check points, or if the remedies
indicated in the chart do not solve the problem, refer to the directory
of Authorized Service Centers (enclosed with this unit) to locate a
convenient service center, or consult your dealer for instructions.
Problem
Probable cause(s)
Suggested Remedy
Common problems
No operation when unit is
powered by dry batteries.
Is the AC power cord still connected to the unit
while batteries are being used?
Disconnect the AC power cord.
Are the batteries fiat?
Replace them with new ones.
Alternatively, use a household AC outlet as the
power source.
Have the batteries been installed incorrectly with
their (+) and (-) polarities reversed?
Align the (+) and (—) polarities correctly.
While listening to CDs
Play does not start.
Has the CD been installed upside down?
Install the CD with the label side facing up.
No display of track
numbers, etc.
Has condensation formed on the unit's CD
section?
Turn the unit on and leave it on for about an hour
before further operation.
Certain sections are not
played properly.
Is the CD dirty?
Wipe it with a soft cloth.
Is the CD scratched?
Replace it with a new CD.
While listening to ta
pes
Tape Is not ejected.
Are the batteries flat?
Replace them with new ones or, alternatively, use a
household AC outlet as the power source and then
perform the operation once again.
No recording.
Have the erase-prevention tabs been removed?
Cover the holes with adhesive tape.
High level of noise; poor
sound quality.
Are the heads dirty?
Clean them.
Have the heads been magnetized?
Demagnetize them using a head eraser available
from an audio store.
While listening to th
e radio
High level of noise;
stations cannot be tuned in
well.
Has the antenna been adjusted properly?
Try changing its direction.
Noise heard during AM
reception.
Are you operating the unit and a TV set at the
same time?
Place the unit at a distance from the TV.
Alternatively, turn off the TV’s power.

Maintenance of external surfaces
To clean this unit, use a soft, dry cloth.
If the surfaces are extremely dirty, use a soft cloth dipped in a
soap-and water solution or a weak detergent solution.
Wring the cloth well before wiping the unit.
Wipe once again with a soft, dry cloth.
Never use alcohol, paint thinner, benzine, or chemically treated
cloths to clean this unit. Such chemicals may damage the finish of
your unit.
Tape head care
To assure sound quality for recording and playback, be sure to clean
the tape heads after approximately every 10 hours of use.
1. Open the cassette lid by pressing STOP/EJECT.
2. Clean the tape heads, pinch rollers and the capstan shafts with a
cotton swab (or a soft, lint-free cloth) slightly moistened with
isopropyl alcohol.
Do not use any solution other than alcohol for head cleaning.
It is recommended that the head assembly be demagnetized if
distortion or poor sound quality persists after cleaning the heads.
Demagnetize them using a demagnetizer available from an audio
store.
Lens care
■ Radio
Frequency range
FM 88-108 MHz
AM 525-1705 kHz
■ CD player
Sampling frequency
Decoding
Beam source
No. of channels
Frequency Response
S/N
Dynamic Range
Wow and flutter
D/A converter
44.1 kHz
16 bit linear
Semiconductor laser (wavelength 780 nm)
2 channel, stereo
20 Hz-20 kHz (+0, -2 dB)
95 dB
86 dB
Less than possible measurement data
MASH (1 bit DAC)
■ Tape recorder
Track system
Recording system
Erasing system
Monitor system
Frequency range
Normal
■ General
Power requirement
AC
Battery
Power output
Speakers
Jacks
Output
Dimensions (WXHXD)
Weight
4 track, 2 channel, stereo
AC bias
Magnet
Variable sound monitor
30-14,000 Hz
230-240 V, 50 Hz,
Power consumption: 42 W
12 V (Eight R20/LR20, UM-1 batteries)
40 W (20 Wx2)...PMPO
15 W (7.5 Wx2)...RMS max.
2 Woofer; 12 cm
2 Tweeter; 1.5 cm
SPEAKER; 2.7-80
Headphones: 32Q
611X247X237 mm
Main unit; 279x247x237 mm
Speaker box; 170x240x200 mm
6.2 kg without batteries
Note:
Open the disc lid and clean the lens with a blower (not included). Specifications are subject to change without notice.
If the lens is extremely dirty, clean it with a cotton swab. Weight and dimensions are approximate.
Matsushita Electric Industrial Co., Ltd.
Central P.O. Box 288, Osaka 530-91, Japan
In Singapore
RQT2617-L
F0294h0
