Panasonic SCSP100 - COMPACT STEREO SYSTEM User manual

RQTX1010-1B
Operating Instructions
Compact Stereo System
Model No. SC-SP100
EB
Dear Customer
Thank you for purchasing this product. For optimum
performance and safety, please read these
instructions carefully.
Before connecting, operating or adjusting this
product, please read the instructions completely.
Please keep this manual for future reference.
Note:
“EB” on the packaging indicates the United Kingdom.
RQTX1010-1B_gb.indd 1RQTX1010-1B_gb.indd 1 7/1/09 4:08:30 PM7/1/09 4:08:30 PM

2
RQTX1010
RQTX1010-1B_gb.indd 2RQTX1010-1B_gb.indd 2 7/1/09 4:08:35 PM7/1/09 4:08:35 PM

3
RQTX1010
Caution for AC Mains Lead
2. Replace the fuse and close or attach the fuse cover.
RQTX1010-1B_gb.indd 3RQTX1010-1B_gb.indd 3 7/1/09 4:08:36 PM7/1/09 4:08:36 PM

4
RQTX1010
RQTX1010-1B_gb.indd 4RQTX1010-1B_gb.indd 4 7/1/09 4:08:37 PM7/1/09 4:08:37 PM

5
RQTX1010
Placement
Placement
Set the unit up on an even surface away from direct
sunlight, high temperatures, high humidity, and
excessive vibration. These conditions can damage the
cabinet and other components, thereby shortening the
unit’s service life.
Do not place heavy items on the unit.
Voltage
Voltage
Do not use high voltage power sources. This can
overload the unit and cause a fire.
Do not use a DC power source. Check the source carefully
when setting the unit up on a ship or other places where
DC is used.
AC mains lead protection
AC mains lead protection
Ensure the AC mains lead is connected correctly and
not damaged. Poor connection and lead damage can
cause fire or electric shock. Do not pull, bend, or place
heavy items on the lead.
Grasp the plug firmly when unplugging the lead. Pulling
the AC mains lead can cause electric shock.
Do not handle the plug with wet hands. This can cause
electric shock.
Safety precautions
Foreign matter
Foreign matter
Do not let metal objects fall inside the unit. This can
cause electric shock or malfunction.
Do not let liquids get into the unit. This can cause
electric shock or malfunction. If this occurs, immediately
disconnect the unit from the power supply and contact
your dealer.
Do not spray insecticides onto or into the unit. They
contain flammable gases which can ignite if sprayed
into the unit.
Service
Service
Do not attempt to repair this unit by yourself. If sound
is interrupted, indicators fail to light, smoke appears,
or any other problem that is not covered in these
instructions occurs, disconnect the AC mains lead and
contact your dealer or an authorised service centre.
Electric shock or damage to the unit can occur if the
unit is repaired, disassembled or reconstructed by
unqualified persons.
Extend operating life by disconnecting the unit from the
power source if it is not to be used for a long time.
RQTX1010-1B_gb.indd 5RQTX1010-1B_gb.indd 5 7/1/09 4:08:38 PM7/1/09 4:08:38 PM

6
RQTX1010
Caution for AC Mains Lead................................. 3
Safety precautions .............................................. 5
Supplied accessories.......................................... 6
Preparing the remote control ............................. 7
Compatible iPod and iPhone.............................. 8
Charging the iPod or iPhone .............................. 8
Connecting the iPod or iPhone .......................... 9
Listening to the iPod or iPhone........................ 10
Connecting to the PC........................................ 12
Using other equipment ..................................... 13
Avoid interfering with other Panasonic
equipment ...................................................... 13
Troubleshooting guide...................................... 14
Maintenance....................................................... 14
Specifications .................................................... 15
1 Lithium Button-Type battery
(Battery is already installed in the remote control.)
1 AC mains lead
(K2CZ3YY00005)
1 AC adaptor
(Switching power
supply)
(RFEAX1003)
1 Audio cable
(130-318030003)
Table of contents
Supplied accessories
Please check and identify the supplied
accessories.
Use numbers indicated in parentheses when asking for
replacement parts. (As of June 2009)
1 Remote control
(RAKX1002)
2 Dock adaptors
M12
(for iPhone)
(RFEX1001)
M15
(for iPhone 3G)
(RFEX1002)
Warning
Keep the Button-Type battery out
of the reach of children. Never
put Button-Type battery in mouth.
If swallowed call your doctor.
RQTX1010-1B_gb.indd 6RQTX1010-1B_gb.indd 6 7/1/09 4:08:39 PM7/1/09 4:08:39 PM

7
RQTX1010
Preparing the remote control
Before using the remote control for the first time,
remove the insulation sheet.
Replace the remote control battery when it stops
operating, or when the range seems reduced.
Rear view
1Insert an object and push
down to unlock the catch.
CR2025
Pull
Lithium Button-Type
battery (CR2025)
Aim at the remote control signal sensor (\page 10),
avoiding obstacles, at a maximum range of 7 m directly
in front of the main unit.
• Do not heat or expose to flame.
• Do not leave the battery(ies) in an automobile exposed
to direct sunlight for a long period of time with doors
and windows closed.
• Remove the battery if the remote control is not going
to be used for a long period of time. Store in a cool,
dark place.
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type
recommended by the manufacturer. Dispose of used
batteries according to the manufacturer’s instructions.
Warning
Risk of fire, explosion and burns. Do not recharge,
disassemble, heat above 60°C or incinerate.
RQTX1010-1B_gb.indd 7RQTX1010-1B_gb.indd 7 7/1/09 4:08:40 PM7/1/09 4:08:40 PM

8
RQTX1010
Compatible iPod and iPhone
• iPhone 3G (8GB, 16GB)
• iPhone (4GB, 8GB, 16GB)
• iPod touch 2nd generation (8GB, 16GB, 32GB)
• iPod nano 4th generation (video) (8GB, 16GB)
• iPod classic (120GB)
• iPod touch 1st generation (8GB, 16GB, 32GB)
• iPod nano 3rd generation (video) (4GB, 8GB)
• iPod classic (80GB, 160GB)
• iPod nano 2nd generation (aluminum) (2GB, 4GB, 8GB)
• iPod 5th generation (video) (60GB, 80GB)
• iPod 5th generation (video) (30GB)
• iPod nano 1st generation (1GB, 2GB, 4GB)
• iPod 4th generation (colour display) (40GB, 60GB)
• iPod 4th generation (colour display) (20GB, 30GB)
• iPod 4th generation (40GB)
• iPod 4th generation (20GB)
• iPod mini (4GB, 6GB)
Compatibility depends on the software version of your
iPod or iPhone.
Charging the iPod or iPhone
• The iPod or iPhone charges automatically when power
is supplied to the main unit.
• Check iPod or iPhone to see if the battery is fully recharged.
• If you are not using the iPod or iPhone for an extended
period of time after recharging has completed,
disconnect it from the main unit, as the battery will be
depleted naturally. (Once fully recharged, additional
recharging will not occur.)
RQTX1010-1B_gb.indd 8RQTX1010-1B_gb.indd 8 7/1/09 4:08:40 PM7/1/09 4:08:40 PM

9
RQTX1010
Connecting the iPod or iPhone
1Connect the AC power.
AC mains lead
(included)
Rear view
To household
mains socket
AC adaptor
(switching power
supply) (included)
The AC adaptor (switching power supply) is in the
standby condition when the mains plug is connected.
The primary circuit is always “live” as long as the mains
plug is connected to an electrical outlet.
Note:
• The included AC mains lead is for use with this unit
only. Do not use it with other equipment.
• Do not use an AC mains lead from other equipment.
• Do not use any other AC adaptors (switching power
supplies) except the supplied one.
2Insert the dock adaptor into the main unit.
iPod
Use the adaptor supplied with your iPod or refer
to Apple Inc. for the compatible dock adaptor
(for details, refer to the instructions supplied with the
dock adaptors), which may need to be purchased
separately.
iPhone
Use an appropriate iPhone adaptor when playing an
iPhone.
3Connect the iPod or iPhone to the main unit.
Hold the main unit when connecting or disconnecting
the iPod or iPhone.
iPod
(not included)
iPod dock adaptor
(not included)
When removing, insert
your fingernail or a flat
object and lift upwards.
RQTX1010-1B_gb.indd 9RQTX1010-1B_gb.indd 9 7/1/09 4:08:41 PM7/1/09 4:08:41 PM

10
RQTX1010

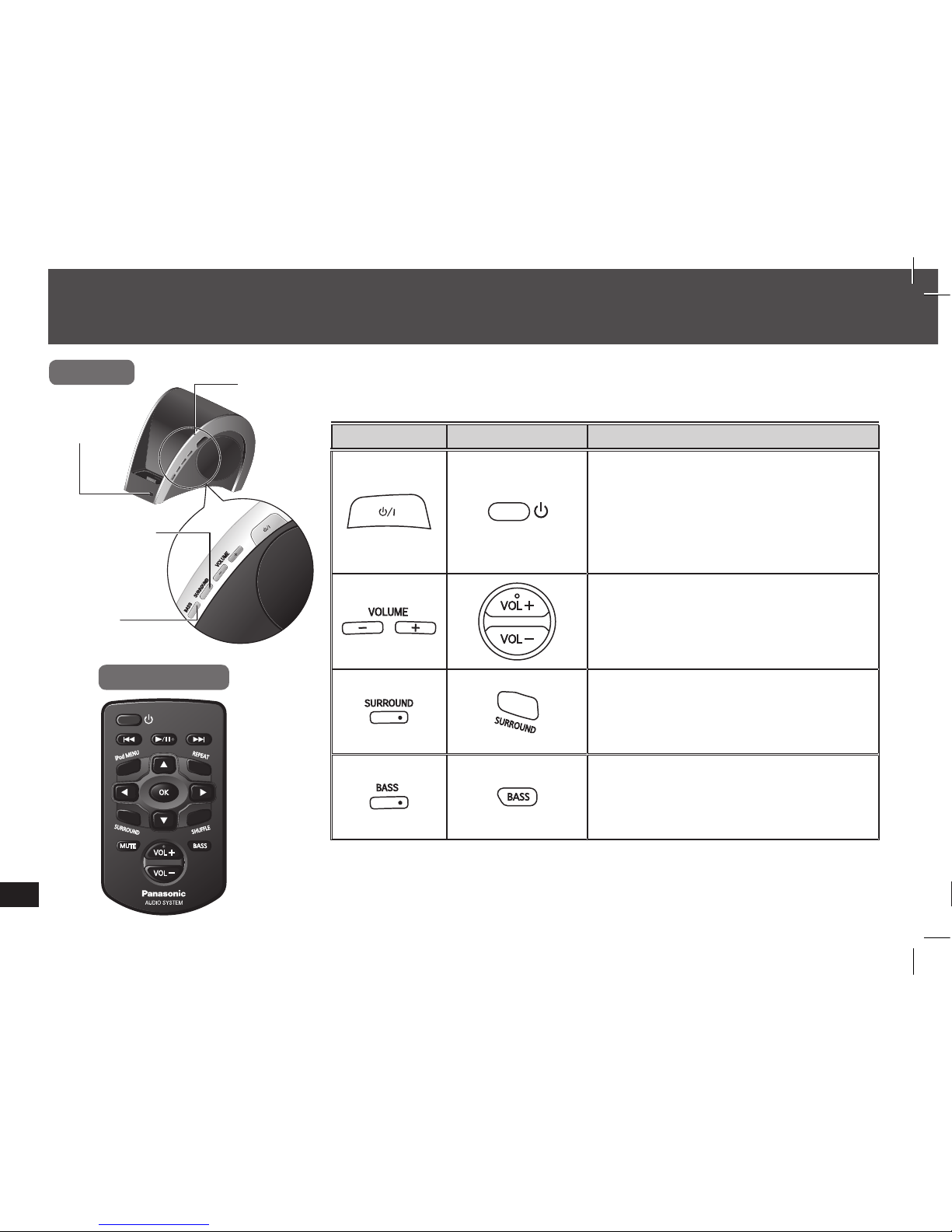

You can navigate the iPod or iPhone using the buttons described.
The power indicator blinks each time a button on the remote control is
pressed.
Main unit Remote control Function
Turn the main unit’s power on or off.
• The power indicator lights up when
the main unit is on.
• The operation switch does not
separate entire unit from mains even
if in off position.
Adjust the speakers’ volume level.
Turn the surround effect on or off.
• The SURROUND indicator on the
main unit button lights up when the
surround function is activated.
Turn the bass effect on or off.
• The BASS indicator on the main
unit button lights up when the bass
function is activated.
Main unit
Remote
control signal
sensor
BASS
indicator
SURROUND
indicator
Power
indicator
Remote control
Listening to the iPod or iPhone
RQTX1010-1B_gb.indd 10RQTX1010-1B_gb.indd 10 7/1/09 4:08:41 PM7/1/09 4:08:41 PM

11
RQTX1010
Remote control Function
Access the menu screens.
Playback or pause the iPod or iPhone.
Select the repeat mode of iPod or iPhone.
Select the shuffle mode of iPod or iPhone.
Mute the sound from the speakers.
To cancel: Press the button again or adjust the volume.
Press to skip to the previous or next track.
Press and hold to backward or forward search for the desired track.
Select an item on the menu screen.
Press and hold: Scrolls through the list.
Confirm the selected menu or playback.
Note:
For iPod or iPhone operation details, please refer to iPod or iPhone User’s Manual.
RQTX1010-1B_gb.indd 11RQTX1010-1B_gb.indd 11 7/1/09 4:08:43 PM7/1/09 4:08:43 PM

12
RQTX1010
Connecting to the PC
While the iPod or iPhone is connected to the main unit, you can transfer data from the PC using the USB
connectivity.
Rear view
USB cable (not included)
1Connect the USB cable to the USB port of the main unit and PC.
Refer to iPod or iPhone User’s Manual on PC synchronisation.
2Before disconnecting the USB cable, make sure the procedure of safe eject of hardware from
the PC is performed.
Recording and operating problems may occur on some computer systems.
Please note that Panasonic and Panasonic dealers cannot be held liable for any lost data or other direct or
indirect damage except in cases of intentional or gross negligence.
RQTX1010-1B_gb.indd 12RQTX1010-1B_gb.indd 12 7/1/09 4:08:44 PM7/1/09 4:08:44 PM

13
RQTX1010
Using other equipment
Preparation
• Ensure that the iPod or iPhone is not connected to the
main unit.
• Ensure that the other equipment is completely set up
and its volume reduced before connecting to the main
unit.
Rear view
Audio cable (included)
Portable audio equipment
(not included)
Connect the other equipment such as a portable audio
equipment, etc. to the MUSIC PORT using the supplied
audio cable.
Avoid interfering with other Panasonic equipment
You can operate this unit using a different mode.
The main unit and remote control must be set to the
same mode.
1Press and hold [SURROUND] on the main
unit and [BASS] on the remote control for at
least 3 seconds.
The power indicator flashes 3 times confirming the
change.
2Press and hold [OK] and [BASS] on the
remote control for at least 2 seconds.
To return to the default mode, repeat the above steps.
For step 2, replace [BASS] with [MUTE].
RQTX1010-1B_gb.indd 13RQTX1010-1B_gb.indd 13 7/1/09 4:08:44 PM7/1/09 4:08:44 PM

14
RQTX1010
Troubleshooting guide
Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the
solutions indicated in the table do not solve the problem, consult your dealer for instructions.
No power • Ensure the AC mains lead is connected properly.
No sound • Adjust the volume.
• Check if mute function is enabled.
• Update your iPod or iPhone with the latest software.
• The iPod or iPhone was incorrectly inserted into the dock. Turn off the iPod or
iPhone, remove it from the dock connector. Reinsert it and turn it on again.
Remote control is not
functioning
• Replace the battery.
• Ensure the iPod or iPhone is seated properly into the unit.
Distorted sound • Reduce the volume.
• Set the “EQ” setting of the iPod to “Off” or “Flat”.
iPod or iPhone does
not charge
• Check the connections.
(\page 9)
Unable to use PC
synchronisation
• Turn the main unit on.
• Check PC and iPod or iPhone connections. (\page 9, 12)
Maintenance
To clean this unit, wipe with a soft, dry cloth.
• Never use alcohol, paint thinner or benzine to clean this unit.
• Before using chemically treated cloth, read the instructions that came with the cloth carefully.
RQTX1010-1B_gb.indd 14RQTX1010-1B_gb.indd 14 7/1/09 4:08:45 PM7/1/09 4:08:45 PM

15
RQTX1010
Specifications
AMPLIFIER SECTION
RMS output power stereo mode
Front Ch (both channels driven)
5 W per channel (6 Ω), 1 kHz, 10% THD
Subwoofer Ch
10 W per channel (6 Ω), 100 Hz, 10% THD
Total RMS stereo mode power 20 W
TERMINALS SECTION
Music port (rear)
Sensitivity 350 mV, 13.2 kΩ
Terminal Stereo, 3.5 mm jack
SPEAKER SECTION
Front speakers
Speaker unit(s) Impedance: 6 Ω
Full range 4 cm cone type
Input power (IEC) 5 W (Max)
Subwoofer
Speaker unit(s) Impedance: 6 Ω
Woofer 6.5 cm cone type
Passive radiator (x2) 6.5 cm
Input power (IEC) 10 W (Max)
GENERAL
Power supply DC 12 V (DC IN terminal)
Power consumption 15.6 W (unit only)
AC adaptor (switching power supply)
AC 100 to 240 V, 50/60 Hz
Power consumption 36 W
Dimensions (WxHxD) 175 mm x 138.8 mm x 178.5 mm
Mass 0.85 kg
Operating temperature range 0°C to +40°C
Operating humidity range
20% to 80% RH (no condensation)
Power consumption in standby mode:
0.7 W (approximate)
Note:
1) Specifications are subject to change without notice.
Mass and dimensions are approximate.
2) Total harmonic distortion is measured by the digital
spectrum analyser.
RQTX1010-1B_gb.indd 15RQTX1010-1B_gb.indd 15 7/1/09 4:08:45 PM7/1/09 4:08:45 PM

Panasonic Corporation
Web Site: http://panasonic.net
Pursuant to at the directive 2004/108/EC, article 9(2)
Panasonic Testing Centre
Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, Germany
En
RQTX1010-1B
L0609CH1079
EU
RQTX1010-1B_gb.indd 16RQTX1010-1B_gb.indd 16 7/1/09 4:08:45 PM7/1/09 4:08:45 PM
