Panasonic SB-WA330GCS User manual

ORDERNO. MD0306220C3
Active Subwoofer System
SB-WA330GCS
Colour
(S)...Silver Type
SPECIFICATIONS
Specification
1

Activesubwoofer
Type 1way, 1speaker, bass-ref.
Speaker unit
Woofer 17 cm conetype4
Input power 200 W(Music)
Output sound pressure level 80 dB/W(1.0m)
Frequencyrange 40 Hz-220 Hz (-16 dB)
45 Hz-180 Hz (-10 dB)
Dimensions(WxH xD) 160 x450 x424 mm
Mass 11.5kg
General
Power supply AC 110 V/127 V/220-230 V/240
V, 50/60 Hz
Power consumption 210 W
Note:
Specificationsare subject tochangewithout notice.
Mass and dimensionsare approximate.
System : SC-HT500 (GC) MusicCenter: SA-HT500 (GC)
Satellitespeakers: SB-HT690 (P)
ActiveSubwoofer: SB-WA330 (GCS)
System : SC-HT700 (GC) MusicCenter: SA-HT700 (GC)
Satellitespeakers: SB-HT700 (P)
ActiveSubwoofer: SB-WA330 (GCS)
System : SC-HT700 (GCS) MusicCenter: SA-HT700 (GCS)
Satellitespeakers: SB-HT700 (P)
ActiveSubwoofer: SB-WA330 (GCS)
2003 PANASONICAVCNetworks Singapore Pte. Ltd. All rights
reserved. Unauthorized copying and distribution isaviolation of
law.
1. Safety Precautions
1.1. GENERALGUIDELINES
1. When servicing, observe the original lead dress. Ifashort circuit
isfound, replace all parts which have been overheated or
damaged bythe short circuit.
2. After servicing, see to itthat all the protective devices such as
2

insulation barriers, insulation papers shields are properly
installed.
3. After servicing, make the following leakage current checks to
prevent the customer from being exposed to shock hazards.
1.1.1. LEAKAGE CURRENTCOLD CHECK
1. Unplug the AC cord and connect ajumper between the two
prongs on the plug.
2. Measure the resistance value, with an ohmmeter, between the
jumpered AC plug and each exposed metalliccabinet part on the
equipment such as screwheads, connectors, control shafts, etc.
When the exposed metallicpart has areturn path to the chassis,
the reading shouldbe between 1M and 5.2 . / When the
exposed metal does not have areturn path to the chassis, the
reading must be . Fig. 1
1.1.2. LEAKAGE CURRENTHOTCHECK (See Figure1.)
1. Plug the AC cord directlyinto the AC outlet. Donot use an
isolation transformer for thischeck.
2. Connect a1.5k , 10 watts resistor, inparallel with a0.15 F
capacitors, between each exposed metallicpart on the set and a
good earth ground such as awater pipe, as showninFigure 1.
3. Use an AC voltmeter, with 1000 ohms/voltor more sensitivity, to
measure the potential across the resistor.
4. Check each exposed metallicpart, and measure the voltage at
each point.
5. Reverse the AC plug inthe AC outlet and repeat each of the above
measurements.
6. The potential at anypoint shouldnot exceed 0.75 volts RMS. A
3

leakage current tester (Simpson Model 229 or equivalent) maybe
used to make the hot checks, leakage current must not exceed 1/2
milliamp. Incase ameasurement isoutside of the limits specified,
there isapossibilityof ashock hazard, and the equipment should
be repaired and rechecked before itisreturned to the customer.
2. Handling the Lead-free Solder
2.1. About lead free solder (PbF)
Distinction of PbF P.C.B. :
P.C.B.s (manufactured) using leadfree solderwill have a PbF stampon the P.C.B.
Caution:
-Pb free solder has ahigher melting point that standard solder;
Typicallythe melting point is50 -70°F (30 -40°C)higher. / Please
use ahigh temperature soldering iron. Incase of the soldering
iron with temperature control, please set itto 700 ± 20°F (370 ±
10°C).
-Pb free solder will tend to splash when heated too high (about
1100°F/600°C).
-When soldering or unsoldering, please completelyremove all of
the solder on the pins or solder area, and be sure to heat the
soldering points with the Pb free solder until itmelts enough.
3. Before Use
Be sure todisconnect the mains cordbefore adjusting the voltage selector. Use a minus (-)
screwdrivertoset the voltage selector(on the rearpanel) tothe voltage setting forthe area in
whichthe unit will be used.
(If the powersupplyinyourarea is 117V or120V, set tothe “127V” position.)
Note that this unit will be seriouslydamagedif this setting is not made correctly. (There is no
voltage selectorforsome countries; the correct voltage is alreadyset.)
4. Before Repair and Adjustment
Disconnect AC power, discharge PowerSupplyCapacitors C546, C547, C548, C549 through a
10 , 1 W resistortoground.
DO NOTSHORT-CIRCUITDIRECTLY (witha screwdriverblade, forinstance), as this may
destroysolidstate devices.
Afterrepairs are completed, restore powergraduallyusing a variac, toavoidovercurrent.
Current consumption at AC 220~230V, 50Hz inNO SIGNALmode shouldbe ~400 mA.
5. Protection Circuitry
The protection circuitrymayhave operatedif eitherof the following conditions are noticed:
-Nosound isheard when the power isturned on.
-Sound stops during aperformance.
4

The function of this circuitryis toprevent circuitrydamage if, forexample, the positive and
negative speakerconnection wires are
“shorted”, orif speakersystems withanimpedance less thanthe indicatedratedimpedance of
the amplifierare used.
If this occurs, followthe procedure outlines below:
1. Turn off the power.
2. Determine the cause of the problem and correct it.
3. Turn on the power once againafter one minute.
Note :
Whenthe protection circuitryfunctions, the unit will not operate unless the poweris first turned
off and thenon again.

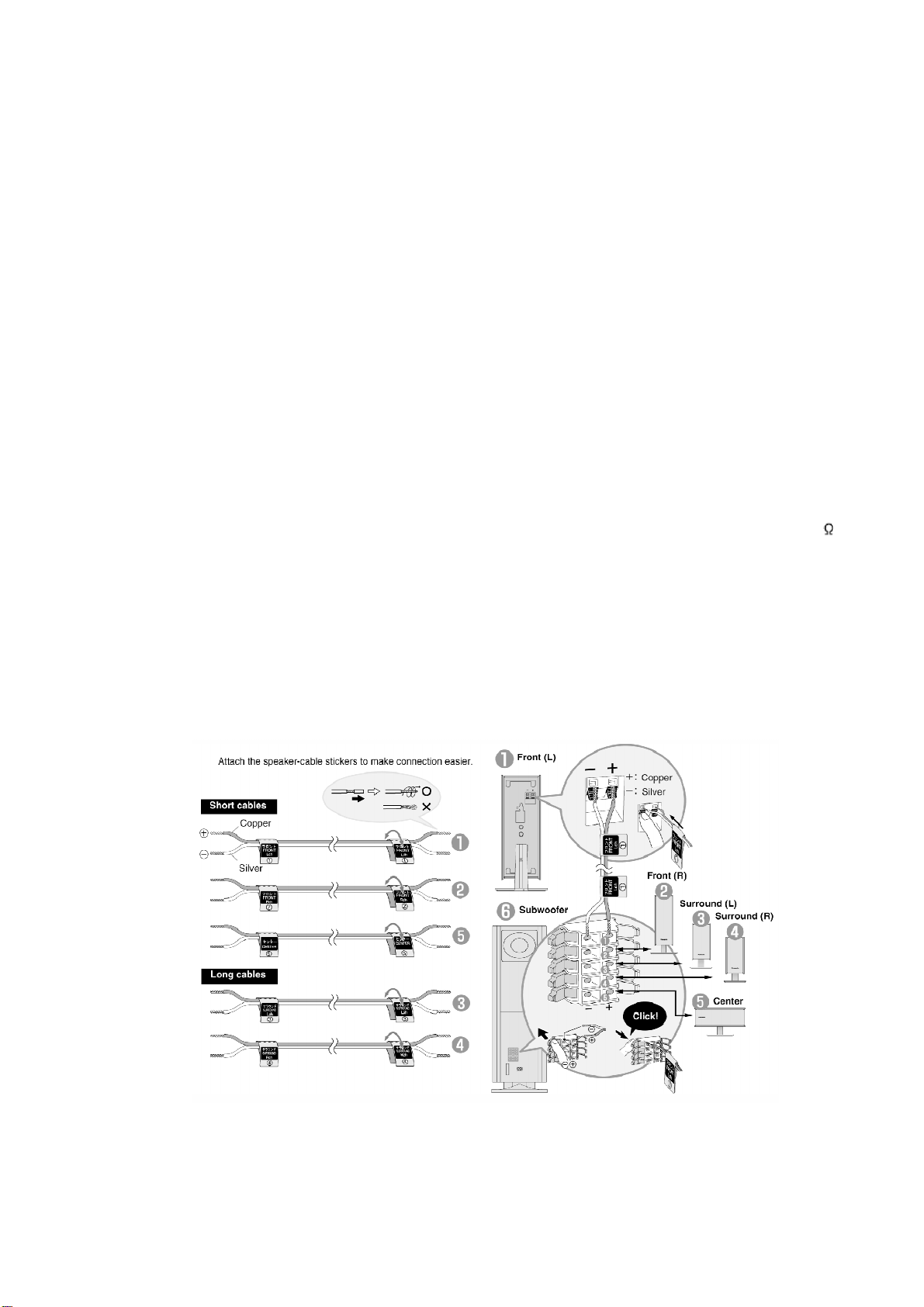

6. Connection of the Speaker Cables
-Besure to connect speaker cables before connecting the AC
power supplycord.
-The load impedance of anyspeaker used with thisunitmust be 4 .
-Besure to connect the cablefrom the right speaker to the right
terminal and the cablefrom the left speaker to the left terminal.
1. Stripoff the outer covering, and twist the center conductor. Make
sure the bare ends of the wires are not unravelled. (Iftheyare,
twist them tight again.)
2. Insert the wire to the rear panel of the unitand close the lever.
Notes :
-To prevent damage to circuitry, never short-circuitpositive (+)and
5

negative (-) speaker wires.
-Besure to connect onlypositive (red) wires to positive (+)
terminalsand negative (black) wires to negative (-) terminals.
7. Disassembly Procedure
“ATTENTION SERVICER”
Some chassis components mayhave sharpedges.
Be careful whendisassembling and servicing.
1. Thissection describes procedures for checking the operation of
the major printed circuitboards and replacing the main
components.
2. For reassemblyafter operation checks or replacement, reverse
the respective procedures.
Special reassemblyprocedures are described onlywhen required.
3. Select items from the following index when checks or
replacement are required.
Contents
-Disassemblyof the Speaker Unit
-MainComponent Replacement Procedures
7.1. Disassemblyof the Speaker Unit
Step1: Remove 2 screws fromthe rearpanel.
6

Step2: Remove all screws.
Step3: Remove the Stand Base.
Step4: Remove 5 screws fromthe speakerbottom.
Step5: Pull the Power/AmpUnit as shown.
7

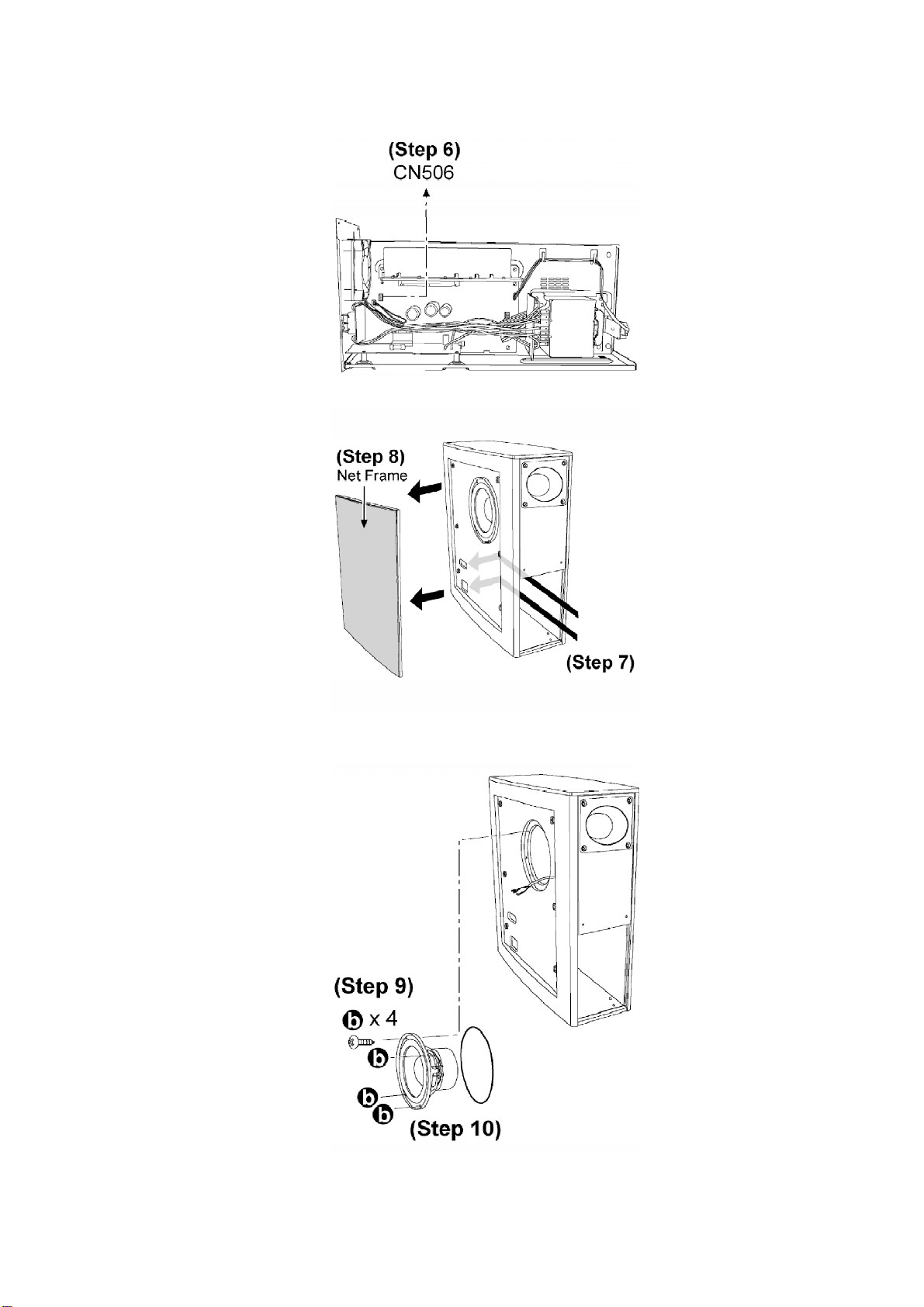

Step6: Release the connectorCN506 and pull out the Power/AmpUnit.
Step7: Pushthe Net Frame fromtwoholes inside the unit.
Step8: Remove the Net Frame.
8

Step9: Remove all the screws.
Step10: Remove the Speaker.
Step11 & 12: Remove all the screws.
Step13: Release the connectorCN507.
Step14: Remove the 2 screws.
9

Step15 & 16: Remove all the screws.

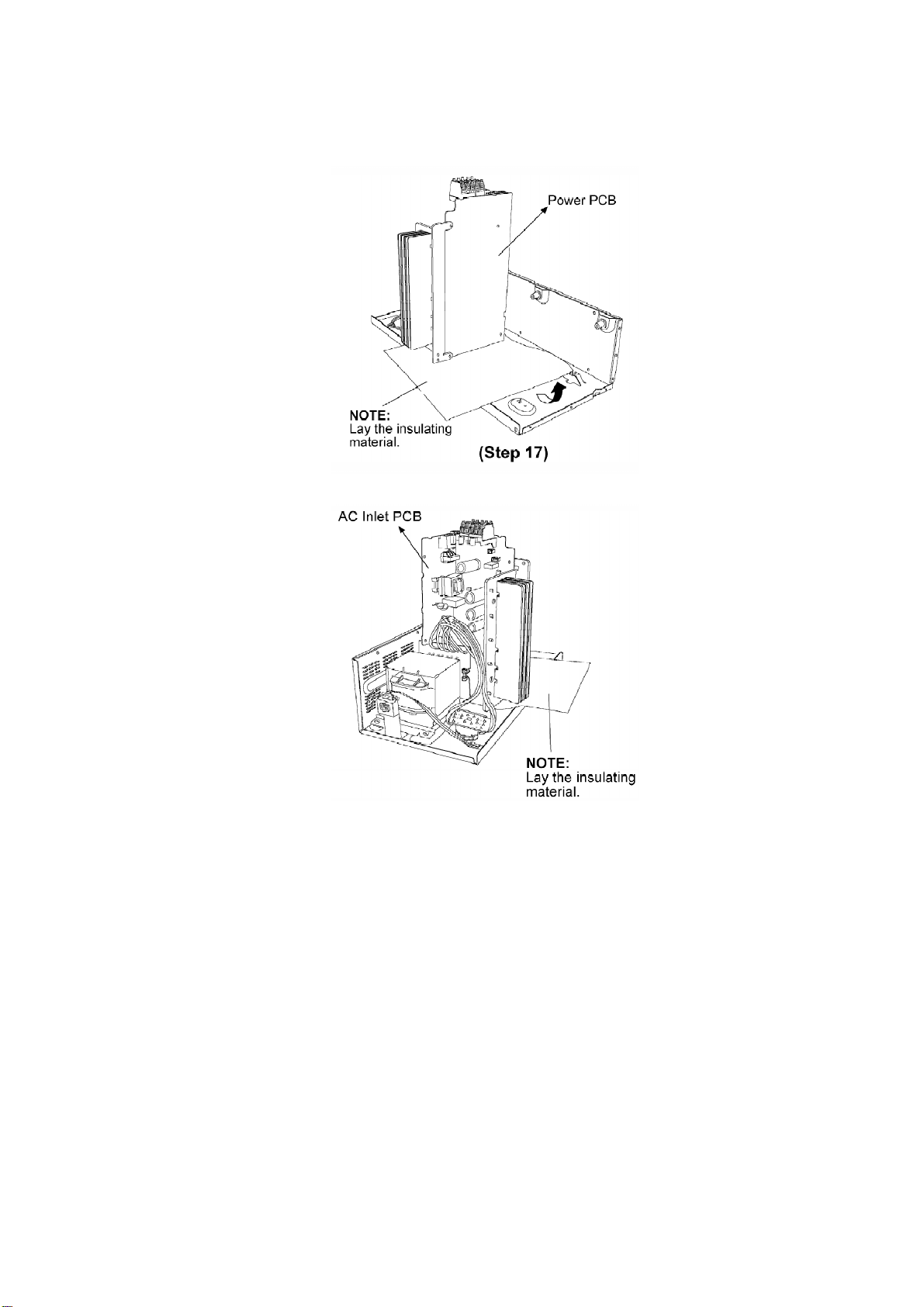

Step17: Place the PowerPCB as shownforchecking.
Checking forAC Inlet PCB.
7.2. MainComponent Replacement Procedures
7.2.1. Replacement of the PowerIC
10

Step1 & 2: Remove all the screws.
Step3: Desolderthe PowerIC terminal and replace the component.
8. Connection of the Speaker Wiring
9. Block Diagram
10. Schematic Diagram
(All schematic diagrams maybe modifiedat anytime withthe development of the new
technology)
Note:
-The voltage value and waveforms are the reference voltage of this
11

unitmeasured byDC electronicvoltmeter (high impedance) and
oscilloscope on the basisof chassis. Accordingly, there mayarise
some error involtage values and waveforms depending upon the
internal impedance of the tester or the measuring unit.
-Importance safetynotice :
Components identified bymark have special characteristics
important for safety. Furthermore, special parts which have
purposes of fire-retardant (resistors), high-qualitysound
(capacitors), low-noise (resistors), etc. are used. When replacing
anyof components, be sure to use onlymanufacturer's specified
parts showninthe parts list.
Caution !
IC, LSI and VLSI are sensitive tostatic electricity.
Secondarytrouble canbe preventedbytaking care during repair.
-Cover the parts boxes made of plastics with aluminium foil.
-Put aconductive mat on the work table.
-Ground the soldering iron.
-Donot touch the pins of IC, LSI or VLSI with fingers directly.
11. Printed Circuit Board
12. Wiring Connection Diagram
13. Illustration of IC’s, Transistors and Diodes
14. Parts Location and Replacement Parts List
Notes:
-Important safetynotice:
Components identified bymark have special characteristics
important for safety.
Furthermore, special parts which have purposes of fire-retardent
(resistors), high-qualitysound (capacitors), low noise (resistors),
etc are used.
When replacing anyof these components, be sure to use only
manufacturer’sspecified parts showninthe parts list.
-The parenthesized indications inthe Remarks columns specifythe
areas or colour. (Refer to the cover page for area or colour)
Parts without these indications can be used for all areas.
12

-Capacitor values are inmicrofarads ( F) unless specified
otherwise, P= Pico-farads (pF), F= Farads.
-Resistance values are inohms, unless specified otherwise, 1K=
1,000 (OHM).
-The marking (RTL) indicates that the Retention Time islimited for
thisitems. After the discontinuation of thisassemblyin
production, the item will continue to be availablefor aspecific
period of time. The retention period of aavailabilityisdependent
on the type of assembly, and inaccordance with the laws
governing part and product retention. After the end of thisperiod,
the assemblywill no longer be available.
-[M] Indicates inthe Remarks columns indicates parts supplied by
PAVCSG.
-The “(SF)” mark denotes the standard part.
14.1. Cabinet
14.1.1. Cabinet PartsLocation
13

14.1.2. Cabinet PartsList
14

Ref. No. PartNo. PartName& Description Remarks
CABINETAND CHASSIS
1RFKHBWAMT1PS SPK CABINETASS’Y [M]
1-1 RMG0520-K CATCH [M]
1-2 XTB4+12AFN SCREW [M]
2RGK1601-S STAND ORNAMENT [M]
3RMQ0705 EVAPACKING [M]
4RKA0147-K FOOT [M]
5RYB0298AJ NETFRAMEASS’Y [M]
6XTB4+14AFN SCREW (WOOFER) [M]
7RGNX0175E-S SPEC LABEL [M]
8REM0072-3 FAN [M]
9RGR0332B-MA REAR PANEL [M]
10 RHD30092 SCREW (MAIN PCB) [M]
11 RMR1485-W LED HOLDER [M]
12 XTB3+16AFZ SCREW [M]
13 XTB3+20JFZ SCREW [M]
14 XTBS3+8JFZ1 SCREW [M]
15 XTS4+20JFZ SCREW [M]
16 XTW3+15T SCREW [M]
17 XYC26+CJ6FZ SCREW [M]
18 SHE187-6J PCB SUPPORT [M]
19 RMC0158-S TR. FIXTURE [M]
14.2. Component Parts List
Ref. No. PartNo. PartName& Description Remarks
PRINTED CIRCUITBOARD
REPX0332A POWER P.C.B./ AC INLETP.C.B./ TRANSFORMER P.C.B./
VOLTAGESELECTOR P.C.B./ LED P.C.B. [M] (RTL)
INTEGRATED CIRCUITS
IC501 RSN311W64B-P HIC [M]
IC502 C0AABB000055 IC AMP [M]
TRANSISTORS
Q501 KTC3199GRTA TRANSISTOR [M]
Q502 KTC3199GRTA TRANSISTOR [M]
Q503 KTC3199GRTA TRANSISTOR [M]
Q505 KTC3199GRTA TRANSISTOR [M]
Q506 KRA102MTA TRANSISTOR [M]
Q507 KTC3199GRTA TRANSISTOR [M]
Q508 KTA12710YTA TRANSISTOR [M]
Q509 KTC3199GRTA TRANSISTOR [M]
Q510 KTC3199GRTA TRANSISTOR [M]
Q511 KTC2026 TRANSISTOR [M]
Q513 KTC3199GRTA TRANSISTOR [M]
Q514 KTC3199GRTA TRANSISTOR [M]
Q515 KTC3199GRTA TRANSISTOR [M]
Q516 KRC102MTA TRANSISTOR [M]
15

Ref. No. PartNo. PartName& Description Remarks
Q517 KTC2026 TRANSISTOR [M]
Q518 B1AAGC000007 TRANSISTOR [M]
Q519 KTC3199GRTA TRANSISTOR [M]
Q520 KRA102MTA TRANSISTOR [M]
DIODES
D500 B0AACK000004 DIODE [M]
D501 B0JAPG000019 DIODE [M]
D502 B0JAPG000019 DIODE [M]
D503 MA2C700A0F DIODE [M]
D504 B0AACK000004 DIODE [M]
D505 B0AACK000004 DIODE [M]
D506 B0AACK000004 DIODE [M]
D507 B0AACK000004 DIODE [M]
D508 B0AACK000004 DIODE [M]
D509 B0BA5R100013 DIODE [M]
D510 B0BA9R600002 DIODE [M]
D511 B0HARM000017 DIODE [M]
D512 B0HARM000017 DIODE [M]
D513 B0HARM000017 DIODE [M]
D514 B0HARM000017 DIODE [M]
D515 B0EAKM000085 DIODE [M]
D516 B0EAKM000085 DIODE [M]
D517 B0HARM000017 DIODE [M]
D518 B0HARM000017 DIODE [M]
D519 B0AACK000004 DIODE [M]
D524 SLI325URCT31 DIODE [M]
D525 B0BA7R000005 DIODE [M]
D527 B0EAKM000085 DIODE [M]
D528 B0EAKM000085 DIODE [M]
D529 MA2C700A0F DIODE [M]
D530 B0EAKM000085 DIODE [M]
D533 B0BA5R100013 DIODE [M]
D534 B0AACK000004 DIODE [M]
CONNECTORS
CN501 K1FB125B0095 SYSTEMCONNECTOR [M]
CN502 K1KB07B00020 2PCONNECTOR [M]
CN503 K1KA12A00066 CONNECTOR [M]
CN506 K1KA03A00006 CONNECTOR [M]
CN507 K1KA02A00008 CONNECTOR [M]
CP502 K1KA07A00123 2PCONNECTOR [M]
COILS& TRANSFORMERS
L500 RLQZ371 LINEFILTER [M]
T501 ETP76VSU62DA POWER TRANSFORMER [M]
T502 G4C2AAJ00005 BACK-UPTRANSFORMER [M]
16

Ref. No. PartNo. PartName& Description Remarks
COMPONENTCOMBINATION
Z501 ERZV10V511CS ZENER [M]
SPEAKER
SP1 EAST17PL21A6 SPEAKER [M]
RELAY
RLY501 RSY0040M-0 PRIMARYRELAY [M]
FUSES
F1 K5D312BK0010 3.15AFUSE [M]
F2 K5D162BK0005 1.6AFUSE [M]
FUSE HOLDERS
FC501 EYF52BC FUSE HOLDER [M]
FC502 EYF52BC FUSE HOLDER [M]
FC503 EYF52BC FUSE HOLDER [M]
FC504 EYF52BC FUSE HOLDER [M]
FUSE PROTECTOR
FP1 K5G502AA0002 5AFUSE PROTECTOR [M]
HOLDERS
H500 K1YF12000002 12PWIREHOLDER [M]
H505A RMR0312 3PCABLEHOLDER [M]
H505B RMR0312 3PCABLEHOLDER [M]
JACKS
JK500 K2AA2B000004 JK AC INLET [M]
JK501 K4BC06B00027 JK 6PSPEAKER [M]
JK502 K4BC04B00056 JK 4PSPEAKER [M]
EARTH TERMINAL
E500 K4CZ01000027 TERMINALS [M]
E501 K4CZ01000027 TERMINALS [M]
WIRES
W1 REE1205 WIREUNIT [M]
W2 REE1204 WIREUNIT [M]
W3 REEX0248 PRIMARYWIRE [M]
W4 REEX0240 PRIMARYWIRE [M]
W5 REEX0245 PRIMARYWIRE [M]
W6 REEX0242 PRIMAYWIRE [M]
17

Ref. No. PartNo. PartName& Description Remarks
W7 REEX0243 PRIMAYWIRE [M]
W8 REEX0244 PRIMARYWIRE [M]
W9 REEX0241 PRIMARYWIRE [M]
W10 REEX0247 PRIMARYWIRE [M]
W500 REX1146 WIREUNIT [M]
W505 RWJ1103320XX 3PSTRAND TYPE WIRE [M]
RESISTORS
R401 ERDS2TJ224T 220K 1/4W [M]
R402 ERDS2TJ102T 1K 1/4W [M]
R403 ERDS2TJ104T 100K 1/4W [M]
R501 ERDS2TJ472T 4.7K 1/4W [M]
R502 ERDS2TJ472T 4.7K 1/4W [M]
R503 ERDS2TJ153T 15K 1/4W [M]
R504 ERDS2TJ153T 15K 1/4W [M]
R505 ERDS2TJ153T 15K 1/4W [M]
R506 ERDS2TJ153T 15K 1/4W [M]
R507 ERDS2TJ392T 3.9K 1/4W [M]
R508 ERDS2TJ392T 3.9K 1/4W [M]
R509 ERDS2TJ472T 4.7K 1/4W [M]
R510 ERDS2TJ472T 4.7K 1/4W [M]
R511 ERDS2TJ153T 15K 1/4W [M]
R512 ERDS2TJ153T 15K 1/4W [M]
R513 ERDS2TJ563T 56K 1/4W [M]
R514 ERDS2TJ563T 56K 1/4W [M]
R515 ERDS2TJ563T 56K 1/4W [M]
R516 ERDS2TJ563T 56K 1/4W [M]
R517 ERDS2TJ563T 56K 1/4W [M]
R518 ERDS2TJ563T 56K 1/4W [M]
R519 ERDS2TJ824T 820K 1/4W [M]
R520 ERDS2TJ223T 22K 1/4W [M]
R521 ERDS2TJ103T 10K 1/4W [M]
R522 ERDS2TJ273T 27K 1/4W [M]
R523 ERDS2TJ124T 120K 1/4W [M]
R524 ERDS2TJ124T 120K 1/4W [M]
R525 ERDS2TJ154T 150K 1/4W [M]
R526 ERDS2TJ124T 120K 1/4W [M]
R527 ERDS2TJ124T 120K 1/4W [M]
R528 ERDS2TJ154T 150K 1/4W [M]
R529 ERDS2TJ223T 22K 1/4W [M]
R530 ERD25FVJ1R0T 1 1/4W [M]
R531 ERD25FVJ1R0T 1 1/4W [M]
R532 ERDS2TJ472T 4.7K 1/4W [M]
R533 ERDS1FVJ100T 10 1/2W [M]
R534 ERDS1FVJ100T 10 1/2W [M]
R535 ERDS1FVJ100T 10 1/2W [M]
R536 ERDS1FVJ100T 10 1/2W [M]
R537 ERDS1FVJ100T 10 1/2W [M]
R538 ERDS1FVJ100T 10 1/2W [M]
R539 ERDS2TJ101T 100 1/4W [M]
R540 ERDS2TJ101T 100 1/4W [M]
R541 ERDS2TJ101T 100 1/4W [M]
R542 ERDS2TJ101T 100 1/4W [M]
18

Ref. No. PartNo. PartName& Description Remarks
R543 ERDS2TJ101T 100 1/4W [M]
R544 ERDS2TJ101T 100 1/4W [M]
R545 ERDS2TJ224T 220K 1/4W [M]
R546 ERDS2TJ102T 1K 1/4W [M]
R547 ERDS2TJ394T 390K 1/4W [M]
R548 ERDS2TJ334T 330K 1/4W [M]
R549 ERDS2TJ473T 47K 1/4W [M]
R550 ERDS2TJ103T 10K 1/4W [M]
R551 ERDS2TJ472T 4.7K 1/4W [M]
R552 ERDS2TJ562T 5.6K 1/4W [M]
R553 ERDS2TJ563T 56K 1/4W [M]
R554 ERDS2TJ824T 820K 1/4W [M]
R555 ERDS2TJ104T 100K 1/4W [M]
R556 ERDS2TJ103T 10K 1/4W [M]
R557 ERDS2TJ563T 56K 1/4W [M]
R558 ERDS1FVJ180T 18 1/2W [M]
R559 ERDS2TJ563T 56K 1/4W [M]
R560 ERDS2TJ103T 10K 1/4W [M]
R561 ERDS2TJ101T 100 1/4W [M]
R565 ERDS1FVJ392T 3.9K 1/2W [M]
R566 ERDS2TJ271T 270 1/4W [M]
R567 ERDS1FVJ152T 1.5K 1/2W [M]
R568 ERDS2TJ151T 150 1/4W [M]
R569 ERDS1FVJ392T 3.9K 1/2W [M]
R570 ERDS2TJ103T 10K 1/4W [M]
R571 ERDS2TJ332T 3.3K 1/4W [M]
R572 ERDS2TJ223T 22K 1/4W [M]
R573 D0XGR10JA005 0.11/10W [M]
R575 ERDS2TJ682T 6.8K 1/4W [M]
R577 ERDS2TJ152T 1.5K 1/4W [M]
R578 ERDS2TJ103T 10K 1/4W [M]
R579 ERDS2TJ332T 3.3K 1/4W [M]
R580 ERDS2TJ220T 22 1/4W [M]
R587 ERDS2TJ272T 2.7K 1/4W [M]
R588 ERDS2TJ824T 820K 1/4W [M]
R589 ERDS2TJ103T 10K 1/4W [M]
R590 ERDS2TJ102T 1K 1/4W [M]
R591 ERDS2TJ682T 6.8K 1/4W [M]
R592 ERDS2TJ683T 68K 1/4W [M]
R593 ERDS2TJ474T 470K 1/4W [M]
R594 ERDS2TJ103T 10K 1/4W [M]
R595 ERDS2TJ101T 100 1/4W [M]
R596 ERDS2TJ473T 47K 1/4W [M]
R597 ERDS2TJ103T 10K 1/4W [M]
R598 ERDS1FVJ152T 1.5K 1/2W [M]
R599 ERDS2TJ223T 22K 1/4W [M]
CAPACITORS
C500 ECKWRS102MBC 1000P400V [M]
C501 ECBT1H102KB5 1000P50V [M]
C502 ECBT1H102KB5 1000P50V [M]
C503 ECBT1H102KB5 1000P50V [M]
C504 ECBT1H681KB5 680P50V [M]
19

Ref. No. PartNo. PartName& Description Remarks
C505 ECBT1H102KB5 1000P50V [M]
C506 ECBT1H102KB5 1000P50V [M]
C507 ECBT1H180JC5 18P50V [M]
C508 ECBT1H180JC5 18P50V [M]
C509 ECBT1H220JC5 22P50V [M]
C510 ECBT1H220JC5 22P50V [M]
C511 ECBT1H220JC5 22P50V [M]
C512 ECBT1H220JC5 22P50V [M]
C513 F1D1H473A012 0.047 50V [M]
C514 ECA0JM101B 100 6.3V [M]
C515 ECKR2H103ZF5 0.01 500V [M]
C516 ECKR2H103ZF5 0.01 500V [M]
C517 ECBT1C103NS5 0.01 16V [M]
C518 F1D1H473A012 0.047 50V [M]
C519 F1D1H473A012 0.047 50V [M]
C520 F1D1H473A012 0.047 50V [M]
C521 F1D1H473A012 0.047 50V [M]
C522 F1D1H473A012 0.047 50V [M]
C523 F1D1H473A012 0.047 50V [M]
C524 F1D1H1040002 0.150V [M]
C525 F1D1H1040002 0.150V [M]
C526 F1D1H1040002 0.150V [M]
C527 F1D1H1040002 0.150V [M]
C528 F1D1H473A012 0.047 50V [M]
C529 F1D1H1040002 0.150V [M]
C530 ECBT1H102KB5 1000P50V [M]
C531 ECBT1H102KB5 1000P50V [M]
C532 ECBT1H102KB5 1000P50V [M]
C533 ECBT1H102KB5 1000P50V [M]
C534 ECA1HM330B 33 50V [M]
C536 ECEA1CKA330B 33 16V [M]
C537 F1D1H1040002 0.150V [M]
C538 ECA0JM101B 100 6.3V [M]
C539 ECEA0JKA221B 220 6.3V [M]
C540 ECEA1HKA2R2B 2.250V [M]
C541 ECEA1CKA100B 10 16V [M]
C543 ECBT1H102KB5 1000P50V [M]
C544 ECA1HM101B 100 50V [M]
C545 F1D1H1040002 0.150V [M]
C546 ECA1VM332B 3300 35V [M]
C547 ECA1VM472B 4700 35V [M]
C548 ECA1VM472B 4700 35V [M]
C549 ECA1VM332B 3300 35V [M]
C550 ECBT1C103NS5 0.01 16V [M]
C551 ECBT1H103KB5 0.01 50V [M]
C552 F1D1H1040002 0.150V [M]
C553 ECQE1104KF3 0.1100V [M]
C554 ECQE1104KF3 0.1100V [M]
C555 ECEA1VKA4R7B 4.735V [M]
C556 ECBT1H103KB5 0.01 50V [M]
C557 F2A1C101A234 100P16V [M]
C558 ECA1CM102B 1000 16V [M]
C559 ECBT1H103KB5 0.01 50V [M]
C560 ECA1HM100B 10 50V [M]
20
