SPECIFICATIONS
Specification
2
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

Activesubwoofer
Type 1way, 2speaker system, Bass
reflex
Speaker unit(s)
1. Woofer 13 cm (5 1/8”) Conetype, 4
2. Woofer 13 cm (5 1/8”) Conetype, 4
Output sound pressure level 80 dB/W(1.0m)
Frequencyrange 40 Hz-220 Hz (-16 dB)
45 Hz-180 Hz (-10 dB)
Dimensions(WxH xD) 201.5x368.2x491.5mm
(7 15/16” x14 1/2” x19 3/8”)
Mass 11.3kg(24.9lbs)
General
Power consumption 340 W
Power supply AC 120V, 60Hz
Note:
Specificationsare subject tochangewithout notice.
Mass and dimensionsare approximate.
System : SC-HT733(P) MusicCenter: SA-HT733(P)
SatelliteSpeakers: SB-HT730(P)
ActiveSubwoofer: SB-WA733(P)
2005 Matsushita ElectricIndustrial Co. Ltd.. All rights reserved.
Unauthorized copying and distribution isaviolation of law.
3
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

1. Safety Precautions
1.1. GENERALGUIDELINES
1. When servicing, observe the original lead dress. Ifashort circuit
isfound, replace all parts which have been overheated or
damaged bythe short circuit.
2. After servicing, ensure that all the protective devices such as
insulation barriers, insulation papers shields are properly
installed.
3. After servicing, check for leakage current to prevent from being
exposed to shock hazards.
(This “SafetyPrecaution” is appliedonlyinU.S.A.)
1. Before servicing, unplug the power cord to prevent an electric
shock.
2. When replacing parts, use onlymanufacturer’srecommended
components for safety.
3. Check the condition of the power cord. Replace ifwear or damage
isevident.
4. After servicing, be sure to restore the lead dress, insulation
barriers, insulation papers, shields, etc.
4
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

5. Before returning the serviced equipment to the customer, be sure
to make the following insulation resistance test to prevent the
customer from being exposed to ashock hazard.
1.1.1. LEAKAGE CURRENTCOLD CHECK
1. Unplug the AC cord and connect ajumper between the two
prongs on the plug.
2. Using an ohmmeter measure the resistance value, between the
jumpered AC plug and each exposed metalliccabinet part on the
equipment such as screwheads, connectors, control shafts, etc.
When the exposed metallicpart has areturn path to the chassis,
the reading shouldbe between 1M and 5.2 . / When the
exposed metal does not have areturn path to the chassis, the
reading must be . Fig. 1

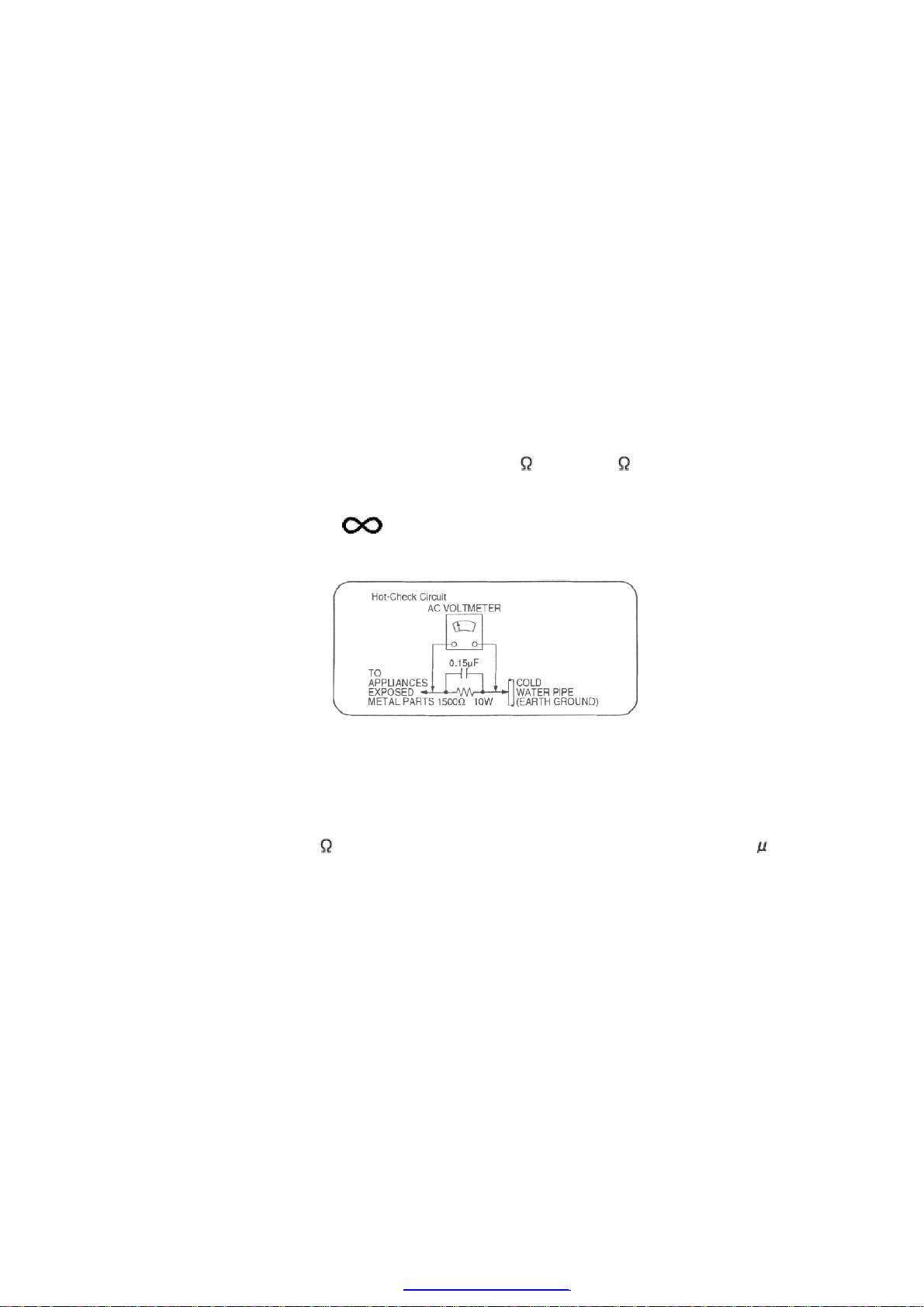

1.1.2. LEAKAGE CURRENTHOTCHECK (See Figure1.)
1. Plug the AC cord directlyinto the AC outlet. Donot use an
isolation transformer for thischeck.
2. Connect a1.5k , 10 watts resistor, inparallel with a0.15 F
capacitors, between each exposed metallicpart on the set and a
good earth ground such as awater pipe, as showninFigure 1.
3. Use an AC voltmeter, with 1000 ohms/voltor more sensitivity, to
measure the potential across the resistor.
4. Check each exposed metallicpart, and measure the voltage at
each point.
5. Reverse the AC plug inthe AC outlet and repeat each of the above
measurements.
6. The potential at anypoint shouldnot exceed 0.75 volts RMS. A
5
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

leakage current tester (Simpson Model 229 or equivalent) maybe
used to make the hot checks, leakage current must not exceed 1/2
milliamp. Shouldthe measurement isoutside of the limits
specified, there isapossibilityof ashock hazard, and the
equipment shouldbe examine and rechecked before itisreturned
to the customer.

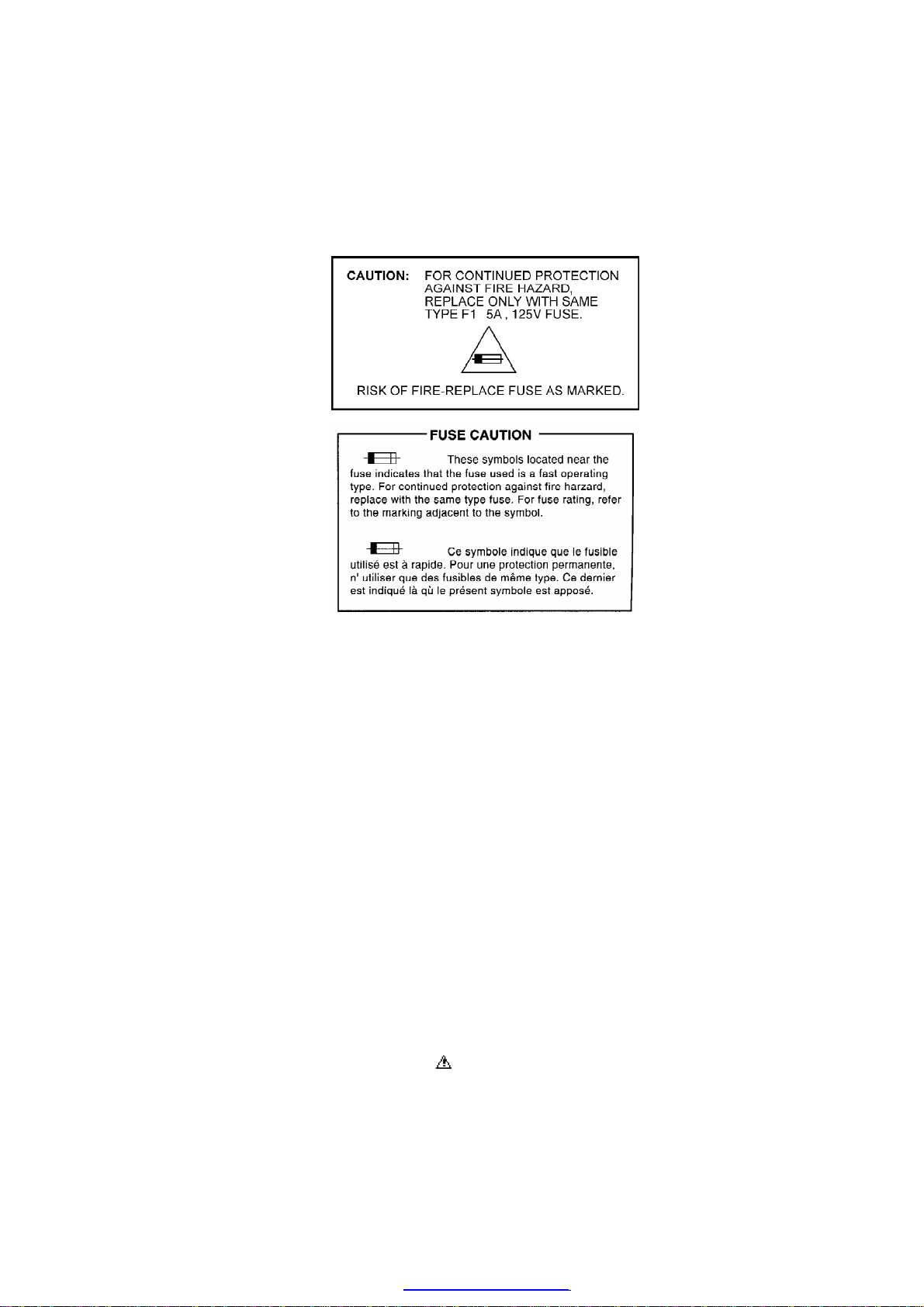

1.1.3. Caution forfuse replacement
2. Handling the Lead-free Solder
2.1. About lead free solder (PbF)
Distinction of PbF P.C.B. :
P.C.B.s (manufactured) using leadfree solderwill have a PbF stampon the P.C.B.
Caution:
-Pb free solder has ahigher melting point than standard solder:
Typicallythe melting point is50 -70°F (30 -40°C)higher. / Please
use ahigh temperature soldering iron. Incase of the soldering
iron with temperature control, please set itto 700 ± 20°F (370 ±
10°C).
-Pb free solder will tend to splash when heated too high (about
1100°F/600°C).
-When soldering or unsoldering, please completelyremove all of
the solder on the pins or solder area, and be sure to heat the
soldering points with the Pb free solder until itmelts enough.
3. Before Repair and Adjustment
Disconnect AC power, discharge PowerSupplyCapacitors C546, C547, C548, C549 through a
10 , 1 W resistortoground.
DO NOTSHORT-CIRCUITDIRECTLY (witha screwdriverblade, forinstance), as this may
destroysolidstate devices.
6
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

Afterrepairs are completed, restore powergraduallyusing a variac, toavoidovercurrent.
Current consumption at AC 120V, 60Hz inNO SIGNALmode (volume at min) shouldbe ~750 mA
.
4. Protection Circuitry
The protection circuitrymayhave operatedif eitherof the following conditions are noticed:
-Nosound isheard when the power isturned on.
-Sound stops during aperformance.
The function of this circuitryis toprevent circuitrydamage if, forexample, the positive and
negative speakerconnection wires are
“shorted”, orif speakersystems withanimpedance less thanthe indicatedratedimpedance of
the amplifierare used.
If this occurs, followthe procedure outlines below:
1. Turn off the power.
2. Determine the cause of the problem and correct it.
3. Turn on the power once againafter one minute.
Note :
Whenthe protection circuitryfunctions, the unit will not operate unless the poweris first turned
off and thenon again.
5. Connection of the Speaker Cables
-Besure to connect speaker cables before connecting the AC
power supplycord.
-The load impedance of anyspeaker used with thisunitmust be 4 .
-Besure to connect the cablefrom the right speaker to the right
terminal and the cablefrom the left speaker to the left terminal.
1. Stripoff the outer covering, and twist the center conductor. Make
sure the bare ends of the wires are not unravelled. (Iftheyare,
twist them tight again.)
2. Insert the wire to the rear panel of the unitand close the lever.
7
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

6. Disassembly Procedure
“ATTENTION SERVICER”
Some chassis components mayhave sharpedges.
Be careful whendisassembling and servicing.
1. Thissection describes procedures for checking the operation of
the major printed circuitboards and replacing the main
components.
2. For reassemblyafter operation checks or replacement, reverse
the respective procedures.
Special reassemblyprocedures are described onlywhen required.
3. Select items from the following index when checks or
replacement are required.
8
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

6.1. Disassemblyflow chart
The following chart is the procedure fordisassembling the casing and inside parts forinternal
inspection whencarrying out the servicing.
To assemble the unit, reverse the steps showninthe chart below.
6.1.1. Disassemblyof Front Panel Assembly
6.1.2. Disassemblyof RearAssembly
6.2. Disassemblyof the Speaker Unitand Checking of the P.C.B.
6.2.1. Disassemblyof the Front Panel Unit
Step1: Slot ina steel rulertogive a gapbetweenthe Front Panel Unit and the Subwoofer
9
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

Cabinet Assemblyas arrowshown.

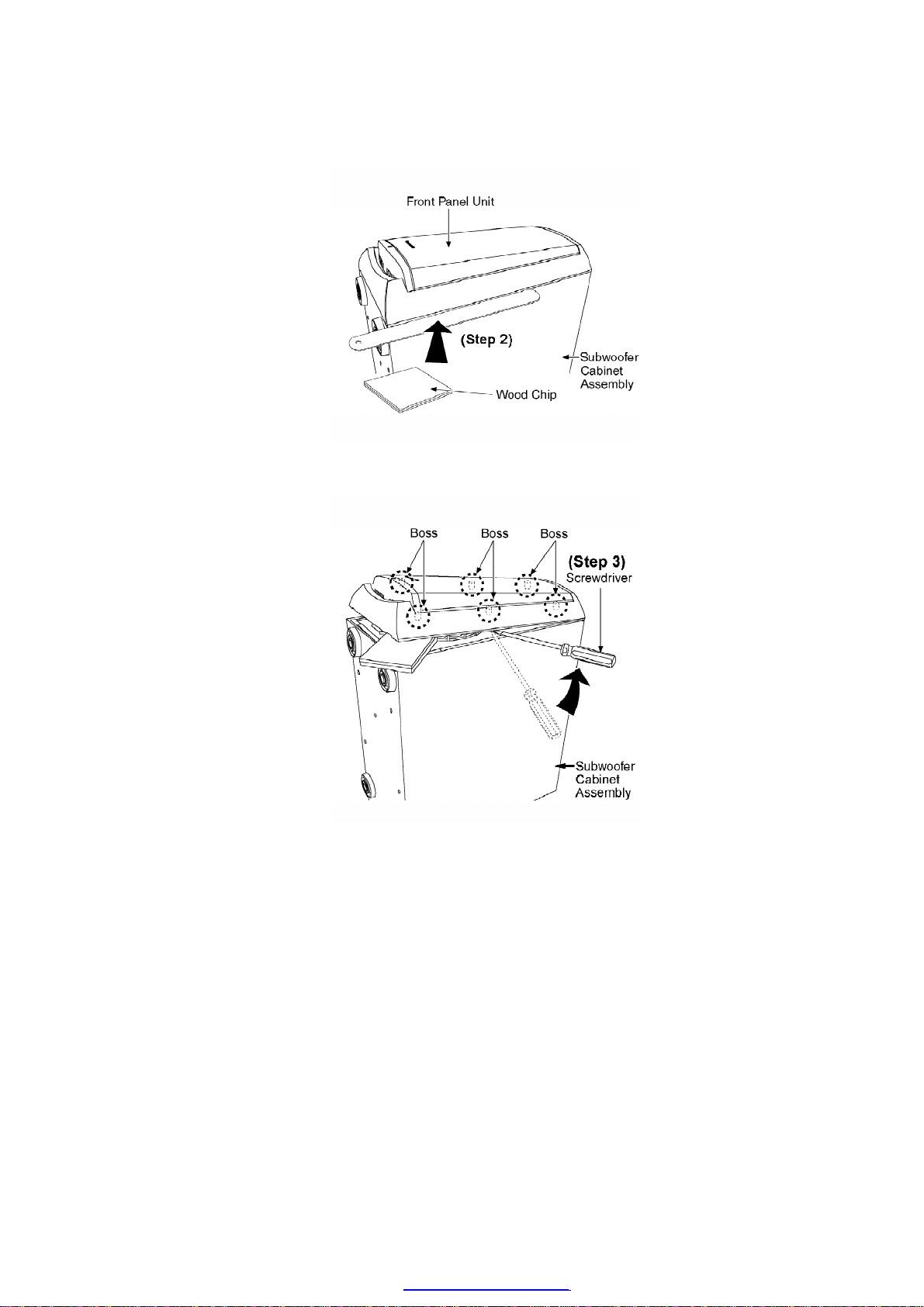

Steps 2: Slot a piece of wood chipinbetweenthe Front Panel Unit and the steel ruleras arrow
shown.
Step3: Use the screwdrivertoslightlylift up the Front Panel Unit as arrowshown.
Note:
Be careful withthe bosses whichare gluedtothe SubwooferCabinet Assembly.
10
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

Step4: Remove the Front Panel Unit fromthe SubwooferCabinet Assembly.
-Assemblyof the Front Panel Unit.
Step 1: Clean up all the glue at the 6Boss points and replace with
the normal glue.
Step 2: Replace the Front Panel Unitfirmlyback to the cabinet.
11
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

6.2.2. Disassemblyof the Woofer1
FollowStep(1) toStep(4) describedinsection 6.2.1.
Step1: Remove 4 screws fromthe Woofer1.
Step2: Remove the Woofer1 bydetaching the (+) and (-) wires.
6.2.3. Disassemblyof the Woofer2
12
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

Step1: Remove 4 screws fromthe Woofer2.
Step4: Remove the Woofer2 bydetaching the (+) and (-) wires.
6.2.4. Disassemblyof the PowerAmpUnit
Step1: Laythe speakerunit as shown. Remove 6 screws fromthe bottomof the wooferunit.
13
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

Step2: Remove 3 screws fromthe rearpanel.
Step3: Pull out the PowerAmpUnit slightlyas shown.
Step4: Disconnect connectorCN506.
14
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

Step5: Pull out the entire PowerAmpUnit.
6.2.5. Disassemblyof the RearPanel and Fan Unit
FollowStep(1) toStep(5) describedinsection 6.2.4.
Step1 & 2: Remove 7 screws fromthe rearpanel.
Step3: Disconnect the connector(CN507) todetachthe rearpanel.
15
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

Step4: Remove 4 screws fromthe rearpanel.
Step5: Laythe rearpanel and remove the FanUnit as arrowshown.
6.2.6. Disassemblyand checking of the AC Inlet P.C.B., PowerP.C.B. and
TransformerP.C.B.
FollowStep(1) toStep(5) describedinsection 6.2.4.
FollowStep(1) toStep(3) describedinsection 6.2.5.
Step1: Remove the P.C.B. support bypushing the claws as arrowshown.
Step2: Disconnect the connector(CN502).
Step3: Lift up the AC Inlet P.C.B. as arrowshown.
16
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

Step4 & 5: Remove 8 screws.
Step6: Remove 4 screws.
Step7: Connect back the connectorCP502 betweenPowerand AC Inlet P.C.B. forchecking.
6.2.7. Replacement of PowerIC and Transistor
17
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

FollowStep(1) toStep(5) describedinsection 6.2.4.
FollowStep(1) toStep(3) describedinsection 6.2.5.
Step1: Desolderthe PowerIC and Transistorterminal.
Step2: Remove 2 screws. and PowerIC501.
Step3: Remove the screwand Transistorholder.
Step4: Detachthe PowerIC and TransistorfromHeat sink.
18
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

7. Voltage Measurement and Waveform Chart
Note:
-Indicated voltage values are the standard values for the unit
measured bythe DC electroniccircuittester (high-impedance)
with the chassistaken as standard.
Therefore, there mayexist some errors inthe voltage values,
depending on the internal impedance of the DC circuittester.
-Circuitvoltage and waveform described hereinshall be regarded
as reference information when probing defect point because it
maydiffer from actual measuring value due to difference of
Measuring instrument and its measuring condition and product
itself.
7.1. Voltage Measurement
7.2. Waveform
8. Block Diagram
9. Notes of Schematic Diagram
(All schematic diagrams maybe modifiedat anytime withthe development of the new
technology)
Note:
-The voltage value and waveforms are the reference voltage of this
unitmeasured byDC electronicvoltmeter (high impedance) and
oscilloscope on the basisof chassis. Accordingly, there mayarise
some error involtage values and waveforms depending upon the
internal impedance of the tester or the measuring unit.
-Importance safetynotice :
Components identified bymark have special characteristics
important for safety. Furthermore, special parts which have
purposes of fire-retardant (resistors), high-qualitysound
(capacitors), low-noise (resistors), etc. are used. When replacing
anyof components, be sure to use onlymanufacturer's specified
parts showninthe parts list.
Caution !
IC, LSI and VLSI are sensitive tostatic electricity.
Secondarytrouble canbe preventedbytaking care during repair.
19
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

-Cover the parts boxes made of plastics with aluminium foil.
-Put aconductive mat on the work table.
-Ground the soldering iron.
-Donot touch the pins of IC, LSI or VLSI with fingers directly.
10. Schematic Diagram
10.1. Power Circuit
10.2. Transformer Circuitand AC Inlet Circuit
11. Printed Circuit Board
11.1. Power P.C.B.
11.2. AC Inlet P.C.B. and Transformer P.C.B.
12. Wiring Connection Diagram
13. Illustration of IC’s, Transistors and Diodes
14. Parts Location and Replacement Parts List
Notes:
-Important safetynotice:
Components identified bymark have special characteristics
important for safety.
Furthermore, special parts which have purposes of fire-retardant
(resistors), high-qualitysound (capacitors), low noise (resistors),
20
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com
