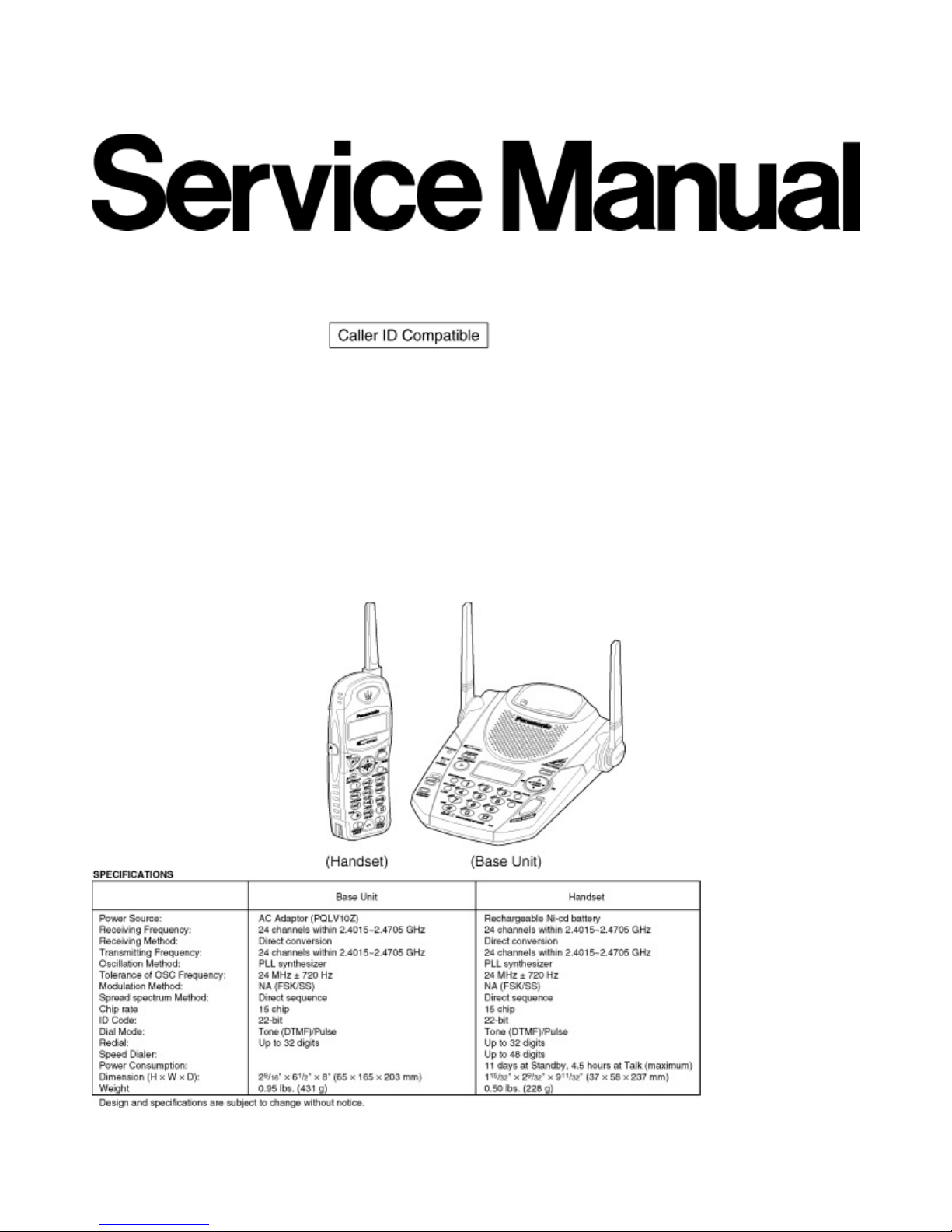

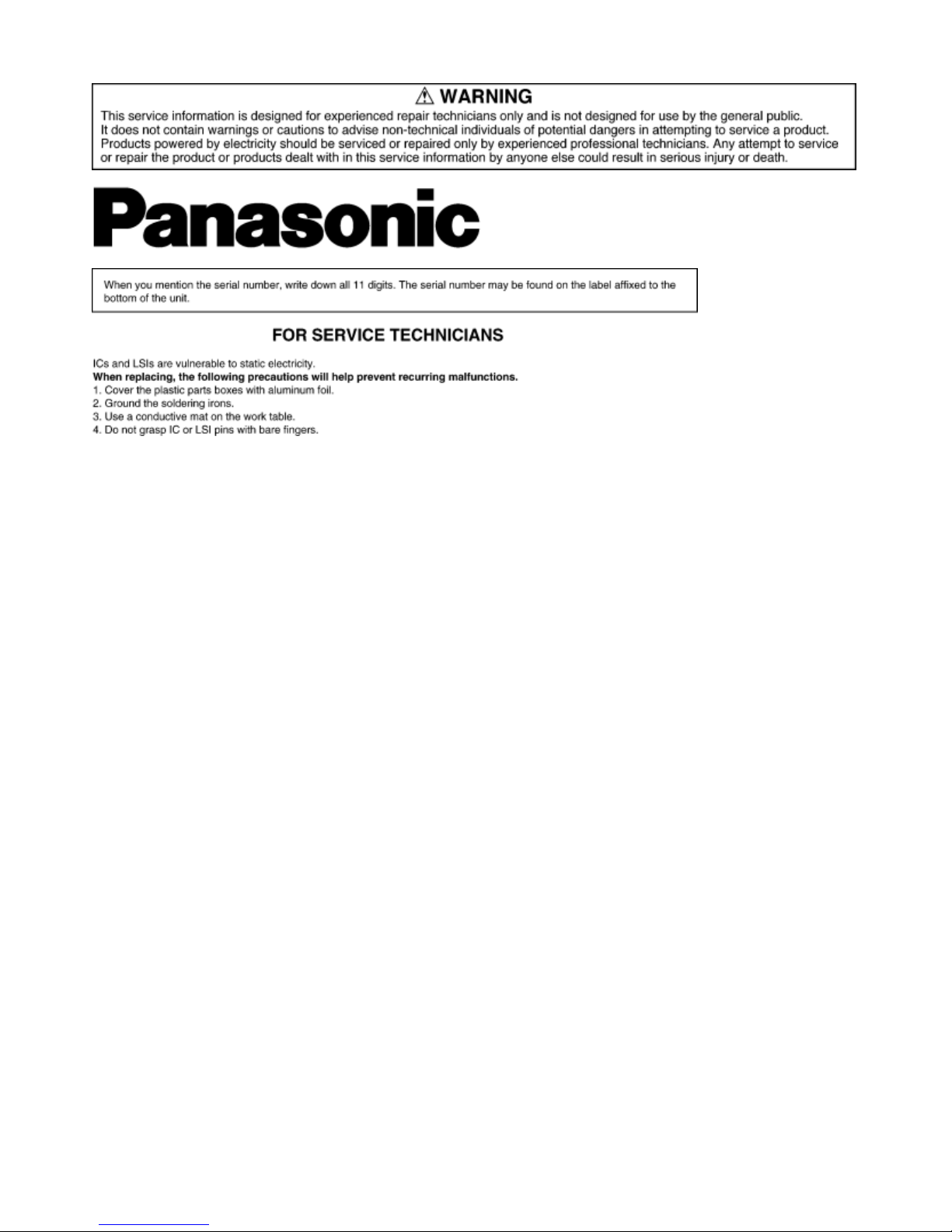

Panasonic KXTG2583B - 2.4 GHZ CORDLESS PHO User manual

ORDER NO. KM40101757C7
F12
Telephone Equipment
KX-TG2583B
KX-TG2583S
KX-TG2583W
2.4GHz Cordless Answering System
Black Version
Silver Version
Pearl White Version
(for U.S.A.)
(for Latin America)
© 2001 Kyushu Matsushita Electric Co., Ltd. All rights reserved. Unauthorized copying and distribution is a violation of law.
Page
1
of
2
5/15/2008
http://tsn.pstc.panasonic.com/viewing/NA/KX
-
TG2583B/SVC/KM40101757C7/doc/KM4
...

Page
2
of
2
5/15/2008
http://tsn.pstc.panasonic.com/viewing/NA/KX
-
TG2583B/SVC/KM40101757C7/doc/KM4
...

Page
1
of
1
5/15/2008
http://tsn.pstc.panasonic.com/viewing/NA/KX
-
TG2583B/SVC/KM40101757C7/doc/20_0
...

Page
1
of
1
5/15/2008
http://tsn.pstc.panasonic.com/viewing/NA/KX
-
TG2583B/SVC/KM40101757C7/doc/21_0
...

Page
1
of
1
5/15/2008
http://tsn.pstc.panasonic.com/viewing/NA/KX
-
TG2583B/SVC/KM40101757C7/doc/22_0
...

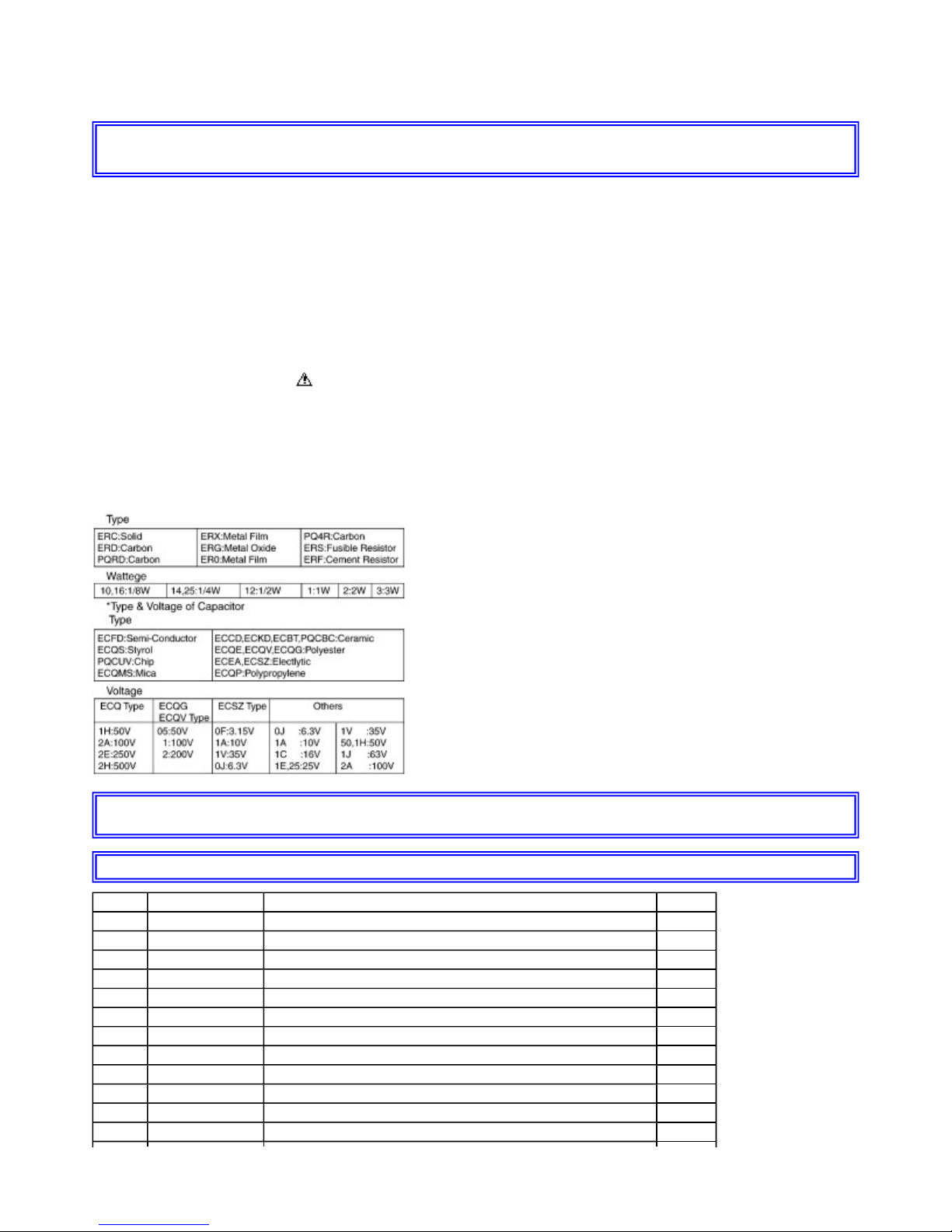

23 REPLACEMENT PARTS LIST
This replacement parts list are U.S.A. version only.
Note:
1. RTL (Retention Time Limited)
The marking (RTL) indicates that the Retention Time is limited for this item.
After the discontinuation of this assembly in production, the item will continue to be available for a specific period of
time. The retention period of availability is dependent on the type of assembly, and in accordance with the laws
governing part and product retention.
After the end of this period, the assembly will no longer be available.
2. Important safety notice
Components identified by a mark special characteristics important for safety. When replacing any of these
components, use only manufactureɅs specified parts.
3. The S mark indicates service standard parts and may differ from production parts.
4. RESISTORS & CAPACITORS
Unless otherwise specified;
All resistors are in ohms (Ω) K=1000Ω, M=1000kΩ
All capacitors are in MICRO FARADS (µF) P=µµF
*Type & Wattage of Resistor
23.1 Base Unit
23.1.1 CABINET AND ELECTRICAL PARTS
Ref. No.
Part No. Part Name & Description
Remarks
1 L0AA05A00011 SPEAKER
2
PQADGP0831GN
LIQUID CRYSTAL DISPLAY S
3 PQBC10334Z1 BUTTON, NAVIGATOR KEY S
4 PQGB7Y BADGE
5 PQGP10180Z1 LCD PANEL S
6 PQGT14557Z NAME PLATE (for KX-TG2583B)
6 PQGT14506Z NAME PLATE (for KX-TG2583S)
6 PQGT14646Z NAME PLATE (for KX-TG2583W)
7 PQHR10848Z LCD HOLDER
8 PQHR10849Z SPEAKER HOLDER
9 PQHS10475Z LCD TAPE
10 PQHS10476Z DOUBLE SIDE TAPE
Page
1
of
12
5/15/2008
http://tsn.pstc.panasonic.com/viewing/NA/KX
-
TG2583B/SVC/KM40101757C7/doc/KM4
...

23.1.2 MAIN P.C. BOARD PARTS
11 PQZHTG2583BH
CHARGE CASE ASSɅY (for KX-TG2583B) (for KX-TG2583S)
11
PQZHTG2583WH
CHARGE CASE ASSɅY (for KX-TG2583W)
12 PQKE10333Z1 HOOK LEVER (for KX-TG2583B) (for KX-TG2583S) S
12 PQKE10333Z2 HOOK LEVER (for KX-TG2583W) S
13 PQYM10112Z1 UPPER CABINET (for KX-TG2583B) S
13 PQYM10112Z2 UPPER CABINET (for KX-TG2583S) S
13 PQYM10112Z4 UPPER CABINET (for KX-TG2583W) S
14 PQSA10109Y ANTENNA (for KX-TG2583B) (for KX-TG2583S)
14 PQSA10109X ANTENNA (for KX-TG2583W)
15 PQSA10110Y ANTENNA (for KX-TG2583B) (for KX-TG2583S)
15 PQSA10110X ANTENNA (for KX-TG2583W)
16 PQSX10168Z RUBBER SWITCH, DIAL (for KX-TG2583B) (for KX-
TG2583S)
16 PQSX10168Y RUBBER SWITCH, DIAL (for KX-TG2583W)
17 PQSX10169Y RUBBER SWITCH, TAM (for KX-TG2583B)
17 PQSX10169Z RUBBER SWITCH, TAM (for KX-TG2583S)
17 PQSX10169X RUBBER SWITCH, TAM (for KX-TG2583W)
18 PQSX10170Y RUBBER SWITCH, NAVI (for KX-TG2583B)
18 PQSX10170Z RUBBER SWITCH, NAVI (for KX-TG2583S)
18 PQSX10170W RUBBER SWITCH, NAVI (for KX-TG2583W)
19 PQYF10195Z1 LOWER CABINET(for KX-TG2583B) (for KX-TG2583S) S
19 PQYF10195Z2 LOWER CABINET (for KX-TG2583W) S
Ref. No.
Part No. Part Name & Description
Remarks
PCB1
PQWP1G2583BH
MAIN P.C.BOARD ASSɅ
Y (RTL)
(ICS)
IC301 PQVIXCF4502P IC S
IC331 PQVIPS3432UT IC S
IC501 C2HBBJ000006 IC
IC571 PQWITG2583BH IC
IC741 PQVITC7S08FU IC S
IC751 PQVITC7W74U IC S
IC761 PQVISPM3204T IC S
(TRANSISTORS)
Q101 2SD1819A TRANSISTOR(SI)
Q115 2SD1819A TRANSISTOR(SI)
Q121 2SA1625 TRANSISTOR(SI) S
Q122 PQVT2N6517CA TRANSISTOR(SI) S
Q131 2SC2120 TRANSISTOR(SI) S
Q311 2SD2136 TRANSISTOR(SI)
Q315 2SD1758Q TRANSISTOR(SI) S
Q321 2SD1819A TRANSISTOR(SI)
Q341 2SD1819A TRANSISTOR(SI)
Q342 2SD1819A TRANSISTOR(SI)
Q343 2SD1819A TRANSISTOR(SI)
Q371 2SD2136 TRANSISTOR(SI)
Q381 2SD1819A TRANSISTOR(SI)
Q445 2SD1819A TRANSISTOR(SI)
Q451 PQVTDTC123JU TRANSISTOR(SI) S
Q461 2SD1819A TRANSISTOR(SI)
Q485 2SD1819A TRANSISTOR(SI)
Q577 UN5213 TRANSISTOR(SI) S
Q601 2SD1994A TRANSISTOR(SI)
Page
2
of
12
5/15/2008
http://tsn.pstc.panasonic.com/viewing/NA/KX
-
TG2583B/SVC/KM40101757C7/doc/KM4
...

Q611 2SD1994A TRANSISTOR(SI)
Q621 2SD2137 TRANSISTOR(SI)
(DIODES)
D101 PQVDS1ZB60F1 DIODE(SI) S
D103 MA111 DIODE(SI)
D117 MA111 DIODE(SI)
D118 MA111 DIODE(SI)
D121 PQVDRLZ20A DIODE(SI) S
D131 PQVDRLZ2R0 DIODE(SI) S
D311 MA8075 DIODE(SI)
D315 MA8047 DIODE(SI)
D321 MA111 DIODE(SI)
D331 MA8036H DIODE(SI)
D371 MA111 DIODE(SI)
D376 MA8220 DIODE(SI)
D377 MA8220 DIODE(SI)
D445 MA153 DIODE(SI)
D481 MA8051 DIODE(SI)
D482 MA8051 DIODE(SI)
D509
PQVDHRU0203A
DIODE(SI) S
D515 MA111 DIODE(SI)
D516 MA111 DIODE(SI)
D517 MA111 DIODE(SI)
D518 MA111 DIODE(SI)
D519 MA111 DIODE(SI)
D521
PQVDHRU0203A
DIODE(SI) S
D611 MA8043 DIODE(SI)
D621 MA8082 DIODE(SI)
D741 MA111 DIODE(SI)
D751 MA111 DIODE(SI)
(CONNECTORS)
CN101 PQJJ2H003Z DC-TEL S
CN581 PQJS30B37Z CONNECTOR SOCKET S
(COILS)
L101 PQLQXF330K COIL S
L102 PQLQXF330K COIL S
L481 PSLQR2T100K COIL S
L482 PSLQR2T100K COIL S
L501 PFVF2P221SG COIL
L515 PQLQR2K1A102 COIL
L516 PQLQR2K1A102 COIL
(RESISTOR ARRAYS)
RA581 EXRV8V221JV RESISTOR ARRAY
RA582 EXRV8V472JV RESISTOR ARRAY S
RA584 EXRV8V472JV RESISTOR ARRAY S
(SURGE ABSORBERS)
SA101 PQVDDSS301L SURGE ABSORBER
SA102 PQVDDSS301L SURGE ABSORBER
(OTHERS)
X501 PQVCK4096N9Z CRYSTAL OSCILLATOR S
E1 PQJM146Y MICROPHONE
E2 PQMG10025Z CUSHION RUBBER, MIC
E3 PQJE10113Z FFC
P101 PQRPAR390N POSISTOR S
G601 PQJT10152Z CHARGE TERMINAL
Page
3
of
12
5/15/2008
http://tsn.pstc.panasonic.com/viewing/NA/KX
-
TG2583B/SVC/KM40101757C7/doc/KM4
...

G602 PQJT10152Z CHARGE TERMINAL
G603 PQJT10152Z CHARGE TERMINAL
G604 PQJT10152Z CHARGE TERMINAL
G605 PQJT10152Z CHARGE TERMINAL
G606 PQJT10152Z CHARGE TERMINAL
(RESISTORS)
R103 ERJ3GEYJ104 100k
R104 ERJ3GEYJ104 100k
R106 ERJ3GEYJ472 4.7k
R107 ERJ3GEYJ473 47k
R111 ERJ3GEYJ394 390k
R112 ERJ3GEYJ394 390k
R113 ERJ3GEYJ472 4.7k
R115 ERJ3GEYJ125 1.2M
R116 ERDS1VJ106 10M
R117 ERJ3GEYJ335 3.3M
R118 ERJ3GEYJ102 1k
R121 ERJ3GEYJ104 100k
R122 ERJ3GEYJ103 10k
R123 ERJ3GEYJ153 15k
R124 ERJ3GEYJ473 47k
R128 ERJ3GEYJ103 10k
R132 ERJ3GEYJ393 39k
R133 ERJ3GEYJ102 1k
R134 ERJ3GEY0R00 0
R136 ERDS1TJ330 33 S
R138 ERJ3GEYJ470 47
R139 ERJ3GEYJ122 1.2k
R140 ERJ3GEYJ821 820
R311 ERD25TJ221 220 S
R315 ERJ3GEYJ221 220
R331 ERJ3GEYJ273 27k
R332 ERJ3GEYJ683 68k
R333 ERJ3GEYJ103 10k
R335 ERJ3GEYJ561 560
R336 ERJ3GEYJ563 56k
R341 ERJ3GEYJ473 47k
R342 ERJ3GEYJ224 220k
R344 ERJ3GEYJ104 100k
R345 ERJ3GEYJ224 220k
R371 ERJ3GEYJ121 120
R372 ERJ3GEYJ561 560
R373 ERJ3GEYJ390 39
R374 ERJ3GEYJ220 22
R375 ERJ3GEYJ220 22
R376 ERJ3GEYJ220 22
R377 ERDS1TJ221 220 S
R378 ERDS1TJ221 220 S
R381 ERJ3GEYJ563 56k
R382 ERJ3GEYJ563 56k
R383 ERJ3GEYJ103 10k
R384 ERJ3GEYJ104 100k
R411 ERJ3GEYJ394 390k
R412 ERJ3GEYJ394 390k
R413 ERJ3GEYJ103 10k
Page
4
of
12
5/15/2008
http://tsn.pstc.panasonic.com/viewing/NA/KX
-
TG2583B/SVC/KM40101757C7/doc/KM4
...

R414 ERJ3GEYJ103 10k
R415 ERJ3GEYJ473 47k
R431 ERJ3GEYJ222 2.2k
R433 ERJ3GEYJ393 39k
R442 ERJ3GEYJ682 6.8k
R443 ERJ3GEYJ103 10k
R444 ERJ3GEYJ332 3.3k
R445 ERJ3GEYJ564 560k
R446 ERJ3GEYJ105 1M
R447 ERJ3GEYJ151 150
R448 ERJ3GEYJ222 2.2k
R449 ERJ3GEYJ102 1k
R451 ERJ3GEYJ103 10k
R461 ERJ3GEYJ150 15
R462 ERJ3GEYJ392 3.9k
R464 ERJ3GEYJ474 470k
R465 ERJ3GEYJ390 39
R472 ERJ3GEYJ272 2.7k
R473 ERJ3GEYJ102 1k
R474 ERJ3GEYJ562 5.6k
R476 ERJ3GEYJ392 3.9k
R477 ERJ3GEYJ184 180k
R485 ERJ3GEYJ102 1k
R488 ERJ3GEYJ102 1k
R541 ERJ3GEYJ151 150
R542 ERJ3GEYJ331 330
R543 ERJ3GEYJ331 330
R544 ERJ3GEYJ331 330
R571 ERJ3GEYJ104 100k
R572 ERJ3GEYJ104 100k
R573 ERJ3GEYJ221 220
R574 ERJ3GEYJ221 220
R575 ERJ3GEYJ221 220
R576 ERJ3GEYJ221 220
R577 ERJ3GEYJ101 100
R579 ERJ3GEYJ104 100k
R585 ERJ3GEYJ221 220
R586 ERJ3GEYJ472 4.7k
R587 ERJ3GEYJ472 4.7k
R593 ERJ3GEYJ472 4.7k
R611 ERJ3GEYJ221 220
R621 ERJ3GEYJ471 470
R658 ERJ3GEYJ180 18
R659 ERJ3GEYJ221 220
R660 ERJ3GEYJ821 820
R664 ERJ3GEYJ180 18
R666 ERJ3GEYJ180 18
R751 ERJ3GEYJ103 10k
R753 ERJ3GEYJ104 100k
R754 ERJ3GEYJ104 100k
(CAPACITORS)
C101 ECKD2H681KB 680P S
C102 ECKD2H681KB 680P S
C103
PQCUV1H154KR
0.15
C104
PQCUV1H154KR
0.15
Page
5
of
12
5/15/2008
http://tsn.pstc.panasonic.com/viewing/NA/KX
-
TG2583B/SVC/KM40101757C7/doc/KM4
...

C106 PQCUV1A684KB 0.68
C111 ECKD2H681KB 680P S
C112 ECKD2H681KB 680P S
C115 ECUV1H103KBV 0.01
C121 ECUV1H103KBV 0.01
C131 ECUV1H101JCV 100P
C132 ECUV1H103KBV 0.01
C134 ECEA1HKS100 10 S
C139 ECEA1CKA100 10
C140 ECUV1C473KBV 0.047
C301 ECUV1H103KBV 0.01
C302 ECUV1C104ZFV 0.1
C303 ECUV1C104ZFV 0.1
C304 ECEA1CKA100 10
C306 ECEA1AU221 220
C308 ECUV1H103KBV 0.01
C311 ECEA1CKA100 10
C315 ECEA1CKA100 10
C316 ECUV1A105ZFV 1
C333 ECUV1H103KBV 0.01
C341 ECUV1H102KBV 0.001
C342 ECUV1H102KBV 0.001
C344 ECUV1C104ZFV 0.1
C345 ECUV1C104KBV 0.1
C371 ECUV1C104ZFV 0.1
C373 ECUV1H103KBV 0.01
C383 ECUV1H103KBV 0.01
C411 ECUV1H121JCV 120P
C412 ECUV1A105ZFV 1
C413 ECUV1H121JCV 120P
C414 ECEA1CKA100 10
C415 ECUV1A105ZFV 1
C431 ECUV1H272KBV 0.0027
C432 ECUV1C104KBV 0.1
C440
ECUV1H100DCV
10P S
C441 ECUV1A224KBV 0.22
C442 ECUV1C683KBV 0.068
C443 ECUV1H101JCV 100P
C444 ECUV1C104KBV 0.1
C445 ECEA1CKA100 10
C448 ECUV1C473KBV 0.047
C449 ECUV1C104KBV 0.1
C451 ECUV1C473KBV 0.047
C453
ECUV1H070CCV
7P
C461 ECUV1C104ZFV 0.1
C464 ECUV1H101JCV 100P
C467
ECUV1H070CCV
7P
C471 ECUV1A105ZFV 1
C472 ECST0JY475 4.7
C474 ECUV1A224KBV 0.22
C475
PQCUV1H154KR
0.15
C476 ECUV1A224KBV 0.22
C477 ECUV1H221JCV 220P
C481
ECUV1H070CCV
7P
C482
ECUV1H070CCV
7P
Page
6
of
12
5/15/2008
http://tsn.pstc.panasonic.com/viewing/NA/KX
-
TG2583B/SVC/KM40101757C7/doc/KM4
...

23.1.3 OPERATIONAL P.C.BOARD PARTS
C483
ECUV1H070CCV
7P
C488 ECUV1H102KBV 0.001
C501 ECEA0JU102 1000
C502 ECUV1C104ZFV 0.1
C503 ECUV1C104ZFV 0.1
C504 ECUV1C104ZFV 0.1
C505 ECUV1C104ZFV 0.1
C506
ECUV1H080CCV
8P
C507
ECUV1H050CCV
5P
C508 ECUV1H332KBV 0.0033
C511 ECUV1H152KBV 0.0015
C513 ECUV1C104ZFV 0.1
C514 EECW5R5D473 0.047 S
C515 ECEA1CKS220 22 S
C516 ECUV1C104ZFV 0.1
C521 ECEA1AU101 100 S
C522 ECUV1C104ZFV 0.1
C524 ECEA0JU331 330
C525 ECUV1C104ZFV 0.1
C526 ECUV1H332KBV 0.0033
C571 ECUV1C104ZFV 0.1
C572 ECUV1H681JCV 680P S
C575 ECUV1H681JCV 680P S
C576 ECUV1H681JCV 680P S
C577 ECUV1H681JCV 680P S
C601 ECEA1AU101 100 S
C603 ECUV1C104ZFV 0.1
C611 ECEA1AU101 100 S
C613 ECEA1AU101 100 S
C614 ECUV1C104ZFV 0.1
C621 ECEA1EU101 100 S
C631 ECUV1H103KBV 0.01
C654 ECUV1C104ZFV 0.1
C657 ECUV1H680JCV 68P
C663 ECUV1H680JCV 68P
C665 ECUV1H680JCV 68P
C741 ECUV1C104ZFV 0.1
C751
ECUV1H100DCV
10P S
C752
ECUV1H100DCV
10P S
C753 ECUV1C104ZFV 0.1
C760
ECUV1H070CCV
7P
C761
ECUV1H070CCV
7P
C763
ECUV1H070CCV
7P
C764
ECUV1H070CCV
7P
Ref. No.
Part No. Part Name & Description
Remarks
PCB2
PQWP2G2583BH
OPERATION P.C.BOARD
(LEDS)
LED841
PQVDBR1111C LED S
LED842
PQVDBR1111C LED S
LED843
PQVDSML310MT
LED S
LED844
PQVDBR1111C LED S
(CONNECTORS)
Page
7
of
12
5/15/2008
http://tsn.pstc.panasonic.com/viewing/NA/KX
-
TG2583B/SVC/KM40101757C7/doc/KM4
...

23.1.4 RF UNIT PARTS
23.2 Handset

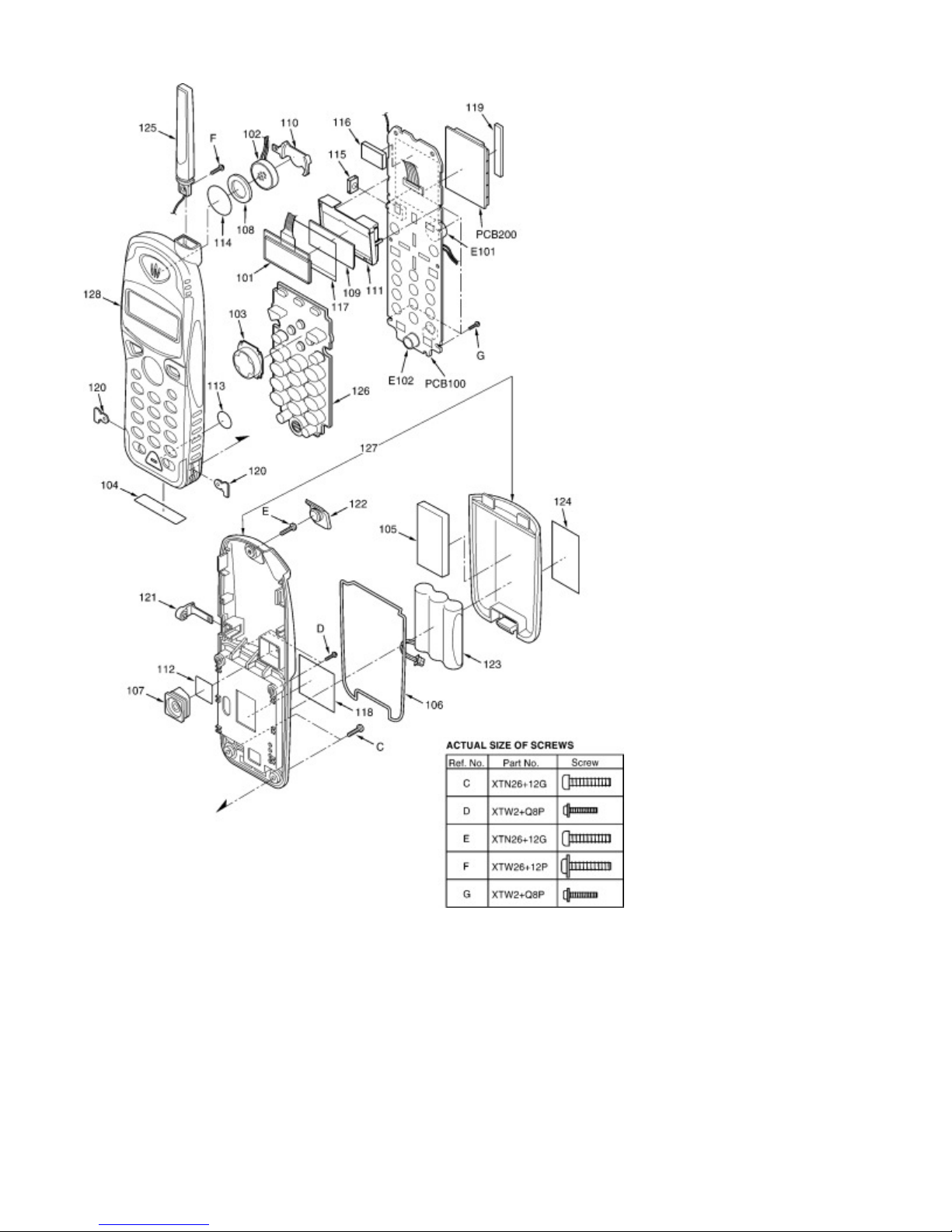

23.2.1 CABINET AND ELECTRICAL PARTS
CN801 PQJS30B37Z CONNECTOR SOCKET S
CN802 PQJS22B11Z FPC CONNECTOR
(RESISTORS)
R801 ERJ3GEYF824 820k S
R802 ERJ3GEYF434 430k S
(CAPACITORS)
C801 ECUV1A474KBV 0.47
C802 ECUV1C104KBV 0.1
C803 ECUV1C104KBV 0.1
C804 ECUV1C104KBV 0.1
C805 ECUV1C104KBV 0.1
C806 ECUV1C104KBV 0.1
C807 ECUV1A474KBV 0.47
C808 ECUV1A474KBV 0.47
Ref. No.
Part No.
Part Name & Description
Remarks
PCB3
PQLP10243Z
RF BLOCK
Ref. No.
Part No. Part Name & Description
Remarks
101 PQADGP0831GN LIQUID CRYSTAL DISPLAY S
102 PQAX2P07Z SPEAKER
103 PQBC10335Z1 BUTTON, NAVIGATOR KEY S
104 PQGT14558Z NAME PLATE (for KX-TG2583B)
104 PQGT14510Z NAME PLATE (for KX-TG2583S)
104 PQGT14647Z NAME PLATE (for KX-TG2583W)
105 PQHE10119Z CUSHION, URETHANE FORM
106 PQHG10620Z PACKING RUBBER, BATTERY
107 PQHG10621Z RINGER RUBBER
108 PQHG10630Z PACKING RUBBER
109 PQHR10727Z LCD PLATE
110 PQHR10739Z SPEAKER HOLDER
111 PQHR10850Z LCD HOLDER
112 PQHS10384Z PACKING SHEET, RINGER
113 PQHS10386Z PACKING SHEET, MIC
114 PQHS10461Z PACKING SHEET, SPEAKER
115 PQHS10484Z PACKING SHEET, EP CAP
116 PQHS10485Z CUSHION, SPEAKER
117 PQHX10862Z LCD COVER SHEET
118 PQHX10934Z SHEET
119 PQHX10959Z RF SPONGE
120 PQJT10175Z CHARGE TEMRINAL
121 PQKE10128Z1 EARPHONE CAP (for KX-TG2583B) (for KX-TG2583S) S
121 PQKE10128Z2 EARPHONE CAP (for KX-TG2583W) S
122 PQKE10129Z1 COVER (for KX-TG2583B) (for KX-TG2583S) S
122 PQKE10129Z2 COVER (for KX-TG2583W) S
123 PQP508SVC BATTERY S
124 PQQT22212Z CHARGE LABEL
125 PQSA10120Z ANTENNA (for KX-TG2583B) (for KX-TG2583S)
Page
8
of
12
5/15/2008
http://tsn.pstc.panasonic.com/viewing/NA/KX
-
TG2583B/SVC/KM40101757C7/doc/KM4
...

23.2.2 MAIN P.C. BOARD PARTS
125 PQSA10120X ANTENNA (for KX-TG2583W)
126 PQSX10171Z RUBBER SWITCH (for KX-TG2583B) (for KX-
TG2583S)
126 PQSX10171W RUBBER SWITCH (for KX-TG2583W)
127 PQYF10524Z1 REAR CABINET (for KX-TG2583B) S
127 PQYF10524Z2 REAR CABINET (for KX-TG2583S) S
127 PQYF10524Z4 REAR CABINET (for KX-TG2583W) S
128 PQYMTG2583BR
FRONT CABINET ASSɅY (for KX-TG2583B)
128 PQYMTG2583SR
FRONT CABINET ASSɅY (for KX-TG2583S)
128
PQYMTG2583WR
FRONT CABINET ASSɅY (for KX-TG2583W)
Ref. No.
Part No. Part Name & Description
Remarks
PCB100
PQWPTG2583BR
MAIN P.C.BOARD ASSɅ
Y (RTL)
(ICS)
IC201 C2HBBH000015 IC
IC202 PQWITG2583BR IC
IC203 PQVIC62FP33M IC S
IC204 PQVIXCP3302M IC S
IC205 PQVIC61CN32N IC S
(TRANSISTORS)
Q201 PQVTDTC143E TRANSISTOR(SI) S
Q202 PQVTDTC143E TRANSISTOR(SI) S
Q203 PQVTDTA143TU TRANSISTOR(SI)
Q204 2SA1797Q TRANSISTOR(SI) S
Q205 2SD1819A TRANSISTOR(SI)
Q206 PQVTDTC143E TRANSISTOR(SI) S
Q207 2SD1819A TRANSISTOR(SI)
Q208 PQVTD123T146 TRANSISTOR(SI) S
Q209 PQVTD123T146 TRANSISTOR(SI) S
Q210 UN521 TRANSISTOR(SI)
Q211 PQVTDTA143TU TRANSISTOR(SI)
(DIODES)
D203 MA111 DIODE(SI)
D212 MA8150 DIODE(SI)
D213 MA8150 DIODE(SI)
D214 PQVD1SR154 DIODE(SI) S
D215 MA2ZD1400 DIODE(SI)
D216 PQVD1SR154 DIODE(SI) S
(LEDS)
LED201
PQVDSML310MT
LED S
LED202
PQVDSML310MT
LED S
LED203
PQVDSML310MT
LED S
LED204
PQVDSML310MT
LED S
LED205
PQVDSML310MT
LED S
LED206
PQVDSML310MT
LED S
LED207
PQVDSML310MT
LED S
(CONNECTORS)
CN201 PQJS22B11Z FPC CONNECTOR
CN202 PQJP2D13Z CONNECTOR PIN S
CN203 PQJJ1J007Z EAR JACK S
(COILS)
L204 PQLQR3FL121 COIL S
L205 PQLQR3FL121 COIL S
Page
9
of
12
5/15/2008
http://tsn.pstc.panasonic.com/viewing/NA/KX
-
TG2583B/SVC/KM40101757C7/doc/KM4
...

(OTHERS)
E101 PQEFBC12111B RINGER S
E102 PQJM146Y MICROPHONE
G1 PQJT10152Z CHARGE TERMINAL
G2 PQJT10152Z CHARGE TERMINAL
G3 PQJT10152Z CHARGE TERMINAL
G4 PQJT10152Z CHARGE TERMINAL
G5 PQJT10152Z CHARGE TERMINAL
G6 PQJT10152Z CHARGE TERMINAL
X201 PQVCI4096N3Z CRYSTAL OSCILLATOR
(RESISTORS)
R201 ERJ3GEYJ331 330
R202 ERJ3GEYJ331 330
R203 ERJ3GEYJ331 330
R204 ERJ3GEYJ331 330
R205 ERJ3GEYJ101 100
R206 ERJ3GEYJ101 100
R207 ERJ3GEYJ101 100
R209 ERJ3GEYJ102 1k
R210 ERJ3GEYJ104 100k
R211 ERJ3GEYJ104 100k
R212 ERJ3GEYJ101 100
R213 ERJ3GEYJ101 100
R217 D1BB4533A001 453k
R218 ERJ3GEYF824 820k S
R220 ERJ3GEYJ474 470k
R221 ERJ3GEYJ103 10k
R222 ERJ3GEYJ101 100
R223 ERJ3GEY0R00 0
R224 ERJ3GEYJ103 10k
R225 ERJ3GEYJ472 4.7k
R226 ERJ3GEYJ103 10k
R227 ERJ3GEYJ473 47k
R228 ERJ3GEYJ224 220k
R229 ERJ3GEYJ102 1k
R230 ERJ3GEYJ102 1k
R231 ERJ3GEYJ102 1k
R232 ERJ3GEYJ103 10k
R233 ERJ3GEY0R00 0
R234 ERJ3EKF2204 0
R235 ERJ3EKF2204 0
R236 ERJ3GEYJ473 47k
R241 ERJ3GEY0R00 0
R242 ERJ3GEYJ180 18
R243 ERJ3GEYJ180 18
R244 ERJ3GEYJ473 47k
R245 ERJ3GEYJ103 10k
R246 ERJ3GEYJ153 15k
R247 ERJ3GEYJ391 390
R248 ERJ3GEYJ393 39k
R249 ERJ3GEYJ222 2.2k
R250 ERJ3GEYJ222 2.2k
R251 ERJ3GEYJ120 12
R252 ERJ3GEYJ820 82
R253 ERJ3GEYJ222 2.2k
Page
10
of
12
5/15/2008
http://tsn.pstc.panasonic.com/viewing/NA/KX
-
TG2583B/SVC/KM40101757C7/doc/KM4
...

R260 ERJ3GEYJ103 10k
R263 ERJ3GEYJ104 100k
R264 ERJ3GEYJ103 10k
R265 ERJ3GEYJ103 10k
R266 ERJ3GEYJ105 1M
R270 ERJ3GEYJ104 100k
R271 ERJ3GEY0R00 0
R272 ERJ3GEYJ105 1M
R273 ERJ3GEY0R00 0
R274 ERJ3GEY0R00 0
R275 ERJ3GEY0R00 0
(CAPACITORS)
C203 ECUV1C104ZFV 0.1
C205 ECUV1H101JCV 100P
C206 ECUV1C104KBV 0.1
C207 ECUV1C104KBV 0.1
C208 ECUV1C104KBV 0.1
C209 ECUV1C104KBV 0.1
C210 ECUV1C104KBV 0.1
C211 ECUV1A474KBV 0.47
C212 ECUV1A474KBV 0.47
C213 ECEV1AA221 220
C214 ECUV1H103KBV 0.01
C215 ECUV1A474KBV 0.47
C217 ECUV1C104ZFV 0.1
C218 ECUV1C104ZFV 0.1
C219 ECUV1H470JCV 47P
C220 ECEV0JA101 100
C221 ECUV1C104ZFV 0.1
C222 ECUV1C104ZFV 0.1
C223 ECST0JY106 10
C224 ECUV1C104ZFV 0.1
C226 ECUV1C104ZFV 0.1
C227 ECUV1H470JCV 47P
C228 ECUV1C104ZFV 0.1
C229 ECUV1C104ZFV 0.1
C230 ECUV1C104KBV 0.1
C231 ECUV1A224KBV 0.22
C232 ECUV1C104KBV 0.1
C233 ECUV1C104ZFV 0.1
C234 ECUV1A224KBV 0.22
C236 ECUV1H060DCV 6P S
C237 ECUV1H060DCV 6P S
C239 ECUV1H103KBV 0.01
C249 ECST0GY226 22
C255 ECUV1A224KBV 0.22
C267 ECST0JY226 22
C270 ECST0JY475 4.7
C274 ECUV1C104ZFV 0.1
C280 ECUV1C104ZFV 0.1
C283 ECUV1A105ZFV 1
C290 ECUV1H102KBV 0.001
C291 ECUV1H102KBV 0.001
C294 ECUV1H103KBV 0.01
C296 ECUV1C104ZFV 0.1
Page
11
of
12
5/15/2008
http://tsn.pstc.panasonic.com/viewing/NA/KX
-
TG2583B/SVC/KM40101757C7/doc/KM4
...

23.2.3 RF UNIT PARTS
23.2.4 ACCESSORIES AND PACKING MATERIALS
C297 ECUV1C104ZFV 0.1
C298 ECUV1A105ZFV 1
Ref. No.
Part No.
Part Name & Description
Remarks
PCB200
PQLP10244Z
RF BLOCK
Ref. No.
Part No. Part Name & Description
Remarks
A1 PQJA10075Z TEL CORD
A2 PQKE10127Z1 BELT CLIP (for KX-TG2583B) (for KX-TG2583S) S
A2 PQKE10127Z2 BELT CLIP (for KX-TG2583W) S
A3 PQKL10038Z3 WALL MOUNT ADAPTOR (for KX-TG2583B) (for KX-
TG2583S)
S
A3 PQKL10038Y1 WALL MOUNT ADAPTOR (for KX-TG2583W) S
A4 PQLV10Z AC ADAPTOR
A5 PQPD10440Y PAD
A6 PQQT22229Z TAM LABEL
A7 PQQW12360Z QUICK GUIDE (for English)
A8 PQQW12361Z QUICK GUIDE (for Spanish)
A9
PQZTTG2583B
INSTRUCTION BOOK ASS’Y
A10 PQPD10469Z CUSHION CORRUGATED (for KX-TG2583S)
A11 PQXDDS400-
8
SECURITY TAG (for KX-TG2583S)
A12 PQXDZLDRS1 SECURITY TAG (for KX-TG2583S)
P1 XZB21X35A03 PROTECTION COVER (for Base Unit)
P2 XZB10X35A02 PROTECTION COVER (for Handset)
P3 PQPK13353Z GIFT BOX (for KX-TG2583B)
P3 PQPK13344Z GIFT BOX (for KX-TG2583S)
P3 PQPK13387Z GIFT BOX (for KX-TG2583W)
Page
12
of
12
5/15/2008
http://tsn.pstc.panasonic.com/viewing/NA/KX
-
TG2583B/SVC/KM40101757C7/doc/KM4
...
