Panasonic OmniVision PV-C1321-K User manual

ORDERNO. MKE0102104C1
B3
Combination VCR
PV-C1321-K/ PV-C1351W-K/ PV-C2031-K
SPECIFICATIONS
1

1. SAFETYPRECAUTIONS
GENERALGUIDELINES
1. IMPORTANTSAFETYNOTICE
Therearespecial components usedinthisequipmentwhichare
importantforsafety. These parts aremarkedbyinthe
SchematicDiagrams, CircuitBoardLayout, ExplodedViewsand
ReplacementParts List. Itisessential that these critical parts
shouldbereplacedwithmanufacturer'sspecifiedparts toprevent
X-RADIATION, shock, fire, orotherhazards. Donotmodifythe
original design withoutpermission ofmanufacturer.
2. AnIsolation Transformershouldalwaysbeusedduring the
servicing ofCombination VCR whose chassisisnotisolatedfrom
theACpowerline. Use atransformerofadequate powerrating as
thisprotects thetechnicianfromaccidents resulting inpersonal
injuryfromelectrical shocks. Itwill alsoprotect Combination VCR
frombeing damagedbyaccidental shorting that mayoccurduring
servicing.
3. Whenservicing, observetheoriginal leaddress, especiallythe
leaddress inthehigh voltagecircuits. Ifashortcircuitisfound,
replace all parts whichhavebeenoverheatedordamagedbythe
shortcircuit.
4. Afterservicing, see toitthat all theprotectivedevices suchas
insulation barriers, insulation papers, shield, and isolation R-C
combinationsareproperlyinstalled.
5. Beforeturning thereceiveron, measuretheresistance betweenB+
lineand chassisground. Connect (-) sideofanohmmetertotheB
2

+lines, and (+)sidetochassisground. Eachlineshouldhave
moreresistance thanspecified, as follows:
(Formodel with13 inchCRT)
B+ Line
MinimumResistance
130.0V
1k(Coldchassisground)
23.5V
180 (Coldchassisground)
13.0V
110 (Coldchassisground)
(Formodel with20 inchCRT)
B+ Line
MinimumResistance
130.0V
1k (Coldchassisground)
21.5V
180 (Coldchassisground)
15.9V
110 (Coldchassisground)
6. WhentheTVset isnotusedforalong period oftime, unplug the
powercordfromtheACoutlet.
7. Potentials, as high as 25.0kV(Formodel with13 inchCRT)or30.0
kV(Formodel with20 inchCRT)arepresentwhenthisTVset isin
operation. Operation oftheTVset withouttherearcoverinvolves
thedangerofashock hazardfromtheTVset powersupply.
Servicing shouldnotbeattemptedbyanyonewho isnot
thoroughlyfamiliarwiththeprecautionsnecessarywhenworking
on high voltageequipment. Alwaysdischargetheanodeofthe
picturetubetotheCRTground ofreceiverbeforehandling the
tube.
8. Afterservicing make thefollowing leakagecurrentchecks to
preventthecustomerfrombeing exposedtoshock hazards.
3

LEAKAGE CURRENTCOLDCHECK
1. Unplug theACcordand connect ajumperbetweenthetwoprongs
on theplug.
2. Forphysicallyoperatedpowerswitches, turnpoweron. Otherwise
skipstep2.
3. Measuretheresistance value, withanohmmeter, betweenthe
jumperedACplug and eachexposedmetalliccabinet parton the
receiver, suchas screwheads, connectors, etc. Whentheexposed
metallicparthas areturnpathtothechassis, thereading should
bebetween1M and 12 M . Whentheexposedmetal does not
haveareturnpathtothechassis, thereading must beinfinity.
LEAKAGE CURRENTHOTCHECK
1. Plug theACcorddirectlyintotheACoutlet.
Donotuse aisolation transformerforthischeck.

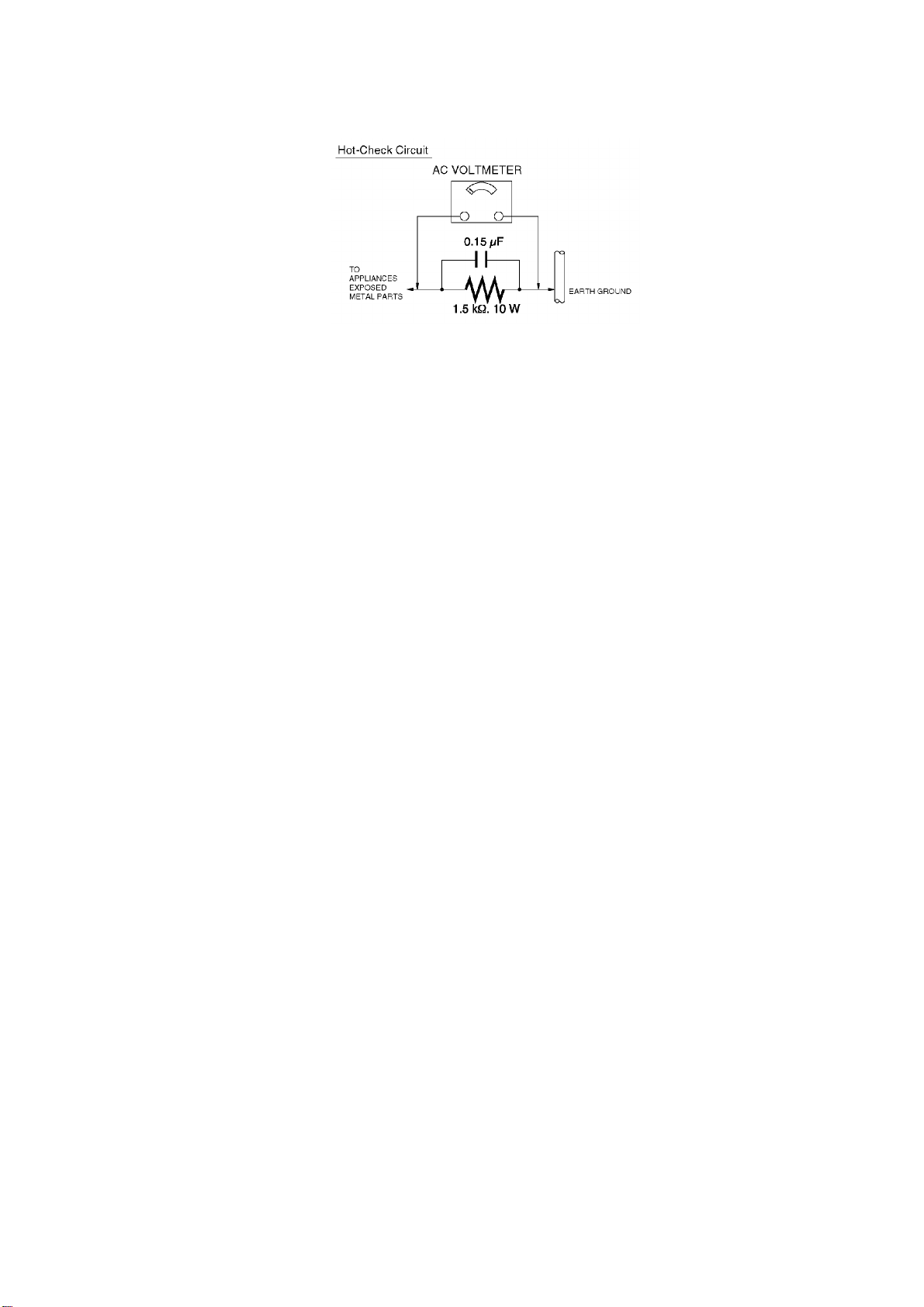

2. Connect a1.5k , 10 Wresistor, inparallel witha0.15 F
capacitor, betweeneachexposedmetallicparton theset and a
good earthground , as showninFigure1.
3. Use anACvoltmeter, with1k /Vormoresensitivity, tomeasure
thepotential across theresistor.
4. Check eachexposedmetallicpart, and measurethevoltageat
eachpoint.
5. Reverse theACplug intheACoutlet and repeat eachoftheabove
measurements.
6. Thepotential at anypointshouldnotexceed0.75 VRMS.
Aleakagecurrenttester(Simpson Model 229 equivalent) maybe
usedtomake thehotchecks. Leakagecurrentmust notexceed1/2
mA. Incase ameasurementisoutsideofthelimits specified, there
isapossibilityofshock hazard, and thereceivershouldbe
repairedand recheckedbeforeitisreturnedtothecustomer.
Figure1
4

2. X-RADIATION
WARNING:
1. Thepotential source ofX-Radiation inTVsets istheHigh Voltage
section and thepicturetube.
2. Whenusing apicturetubetest fixtureforservice, ensurethat the
fixtureiscapableofhandling 25.0kV(Formodel with13 inchCRT)
or30.0kV(Formodel with20 inchCRT)withoutcausing X-
Radiation.
NOTE :
Itisimportanttouse anaccurate periodicallycalibratedhigh
voltagemeter.
1. Reduce thebrightness tominimum.
2. Set theSERVICEswitchtoSERVICE.
3. MeasuretheHigh Voltage. Themeterreading shouldindicate 23.5
kV±1.5kV(Formodel with13 inchCRT)or28.5kV±1.5kV(For
model with20 inchCRT).
Ifthemeterindication isoutoftolerance, immediate service and
correction isrequiredtopreventthepossibilityofpremature
componentfailure.
4. To preventanX-Radiation possibly, itisessential touse the
specifiedpicturetube.
HORIZONTALOSCILLATORDISABLE CIRCUITTEST
SERVICE WARNING:
Thetestmustbemadeas afinal check beforesetisreturnedtothecustomer.
1. Withtherearcoverremoved, supplyabouta90 VACpower
source totheset, turnon theset.
2. Set thecustomercontrolstonormal operating positions.
5

3. ShortbetweenTP891 and TP892 on theMaincircuitboardwitha
jumperwire. Confirm that thepicturegoes outofhorizontal sync.
4. Ifthisdoes notoccur, thehorizontal oscillatordisablecircuitis
notoperating. Follow theRepairProcedures ofhorizontal
oscillatordisablecircuitbeforetheset isreturnedtocustomer.
REPAIRPROCEDURES OFHORIZONTALOSCILLATORDISABLE CIRCUIT
1. Connect aDC voltmeterbetweencapacitorC513 (+)on theMain
circuitboardand chassisground.
2. Ifapproximately+21.0V(Formodel with13 inchCRT)or+21.9V
(Formodel with20 inchCRT)isnotpresentat that pointwhen120
VACisapplied, find thecause. Check R503, R5505, C5507, C513
and D503.
3. Carefullycheck abovespecifiedparts and relatedcircuits and
parts. Whenthecircuitisrepaired, trythehorizontal oscillator
disablecircuittest again.
CIRCUITEXPLANATION
HORIZONTALOSCILLATORDISABLE CIRCUIT
Thepositive DC voltage, suppliedfrom theD503 cathodefor monitoring high voltage, isapplied
totheIC5301 Pin11 through R503 and R5504. Undernormal conditions, thevoltageatIC5301 Pin
11 isless thanapprox3V. Ifthehigh voltageatFlyback TrPin5exceedsthespecifiedvoltage,
thepositive DC voltagewhichissuppliedfrom theD503 cathodealsoincreases. Theincreased
voltageisappliedtoIC5301 Pin11 through R503 and R5504. Duetotheincreasedvoltageat
IC5301 Pin11, thehorizontal oscillator frequency increases, thepicturegoes outofhorizontal
sync, thebeam currentdecreases and thepicturebecomes darkinordertokeepX-radiation
underspecification.
Figure2
3. PREVENTIONOFELECTROSTATICDISCHARGE
(ESD) TO ELECTROSTATICALLYSENSITIVE (ES)
DEVICES
Somesemiconductor (solidstate)devices canbedamagedeasilybystaticelectricity. Such
componentscommonlyarecalledElectrostaticallySensitive (ES)Devices. Examples oftypical
ES devices areintegratedcircuitsand somefield-effecttransistorsaresemiconductor "chip"
components. Thefollowing techniques shouldbeusedtohelpreduce theincidence of
componentdamagecausedbyelectrostaticdischarge(ESD).
6

1. Immediatelybeforehandling anysemiconductorcomponentor
semiconductor-equippedassembly, drainoff anyESDon your
bodytouching aknownearthground. Alternatively, obtainand
wearacommerciallyavailabledischarging ESDwrist strap, which
shouldberemovedforpotential shock reasonspriortoapplying
powertotheunitundertest.
2. Afterremoving anelectrical assemblyequippedwithES devices,
place theassemblyon aconductivesurface suchas aluminum
foil, topreventelectrostaticchargebuildup orexposureofthe
assembly.
3. Use onlyagrounded-tipsoldering iron tosolderorunsolderES
devices.
4. Use onlyanantistaticsolderremoval device. Somesolderremoval
devices notclassifiedas "antistatic(ESDprotected)"cangenerate
electrical chargesufficienttodamageES devices.
5. Donotuse freon-propelledchemicals. These cangenerate
electrical charges sufficienttodamageES devices.
6. DonotremoveareplacementES device fromits protective
packageuntil immediatelybeforeyou arereadytoinstall it. (Most
replacementES devices arepackagedwithleadselectrically
shortedtogetherbyconductivefoam, aluminumfoil orcomparable
conductivematerial).
7. Immediatelybeforeremoving theprotectivematerial fromthe
leadsofareplacementES device, touchtheprotectivematerial to
thechassisorcircuitassemblyintowhichthedevice will be
installed.
CAUTION:
Besureno powerisappliedtothechassisorcircuit, and observe
all othersafetyprecautions.
8. Minimizebodilymotionswhenhandling unpackagedreplacement
ES devices. (Otherwise harmless motion suchas thebrushing
togetherofyourclothes fabricorthelifting ofyourfootfroma
carpetedfloorcangenerate staticelectricity(ESD)sufficientto
damageanES device).
7

"NOTE toCATV system installer:
Thisreminderisprovidedtocall theCATV system installer's attention toArticle820-40 ofthe
NECthatprovides guidelines for propergrounding and, inparticular, specifies thatthecable
ground shall beconnectedtothegrounding system ofthebuilding, as close tothepointofcable
entryas practical."
4. OPERATIONGUIDE
5. SERVICE NOTES (PLEASE READ)
5.1. SERVICENOTES
5.1.1. SIMPLIFIEDFAULT FINDINGDATA
SimplifiedSelf-DiagnosticSystem facilitates finding thecause ofthefault. A4digitfor faultcode
and communication for I2Cbuscodewill bedisplayedon TV screen.
TheSimplifiedFaultfinding dataisstoredintheMemoryIC(IC6004). Thisdataisclearedafterit
isdisplayed, and thenthePOWERbutton ispressedback on.
1. Withpowerturnedoff, press FF and REW buttonson unittogether
forover3seconds. Fig. 1-1

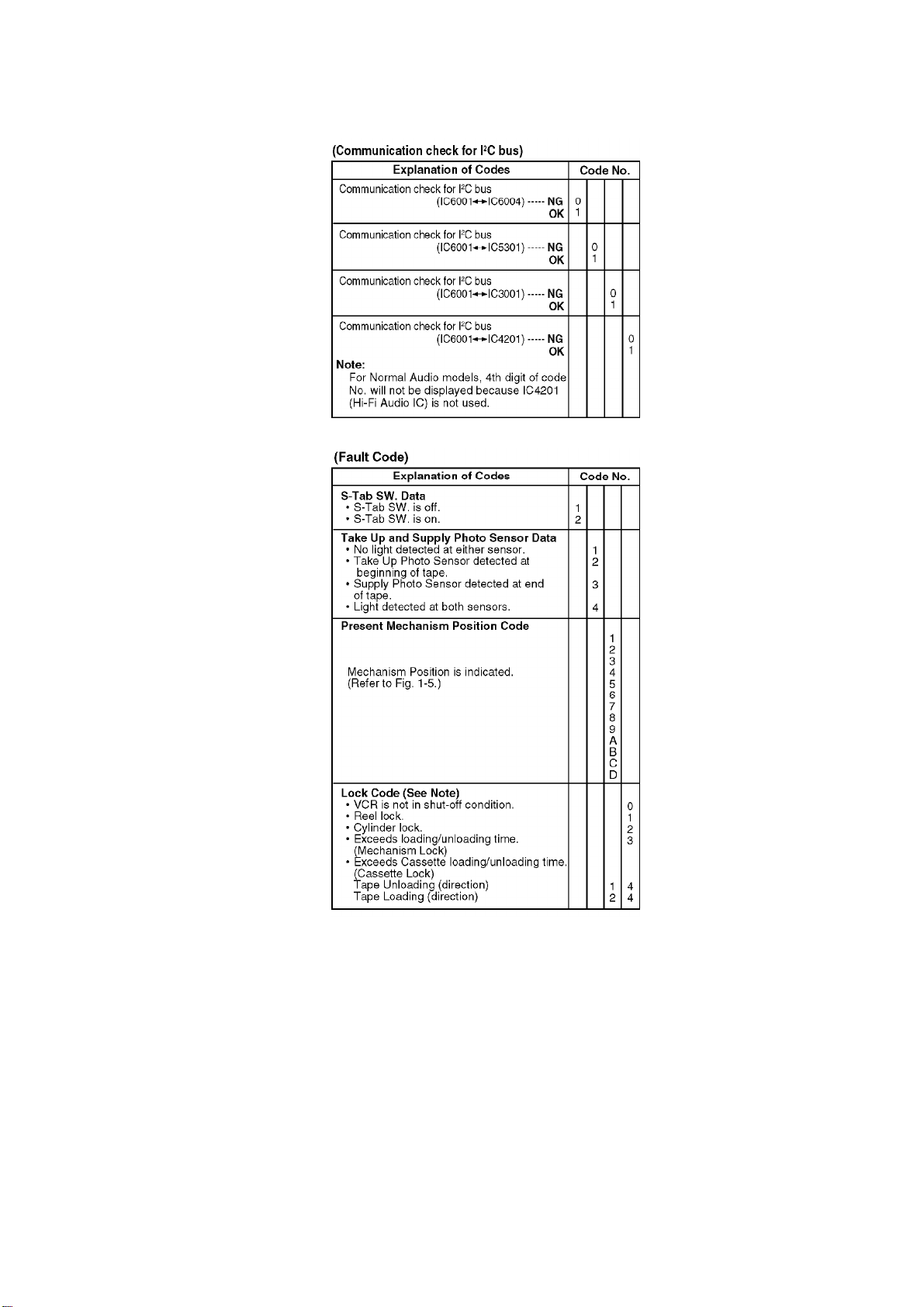

2. TVpowergoes on and theunitgoes intoservice mode. 4digitfor
faultcodeand communication forI2Cbuscodewill bedisplayed.
Fig. 1-2
Fig. 1-3
8

Fig. 1-4
Fig. 1-5
9

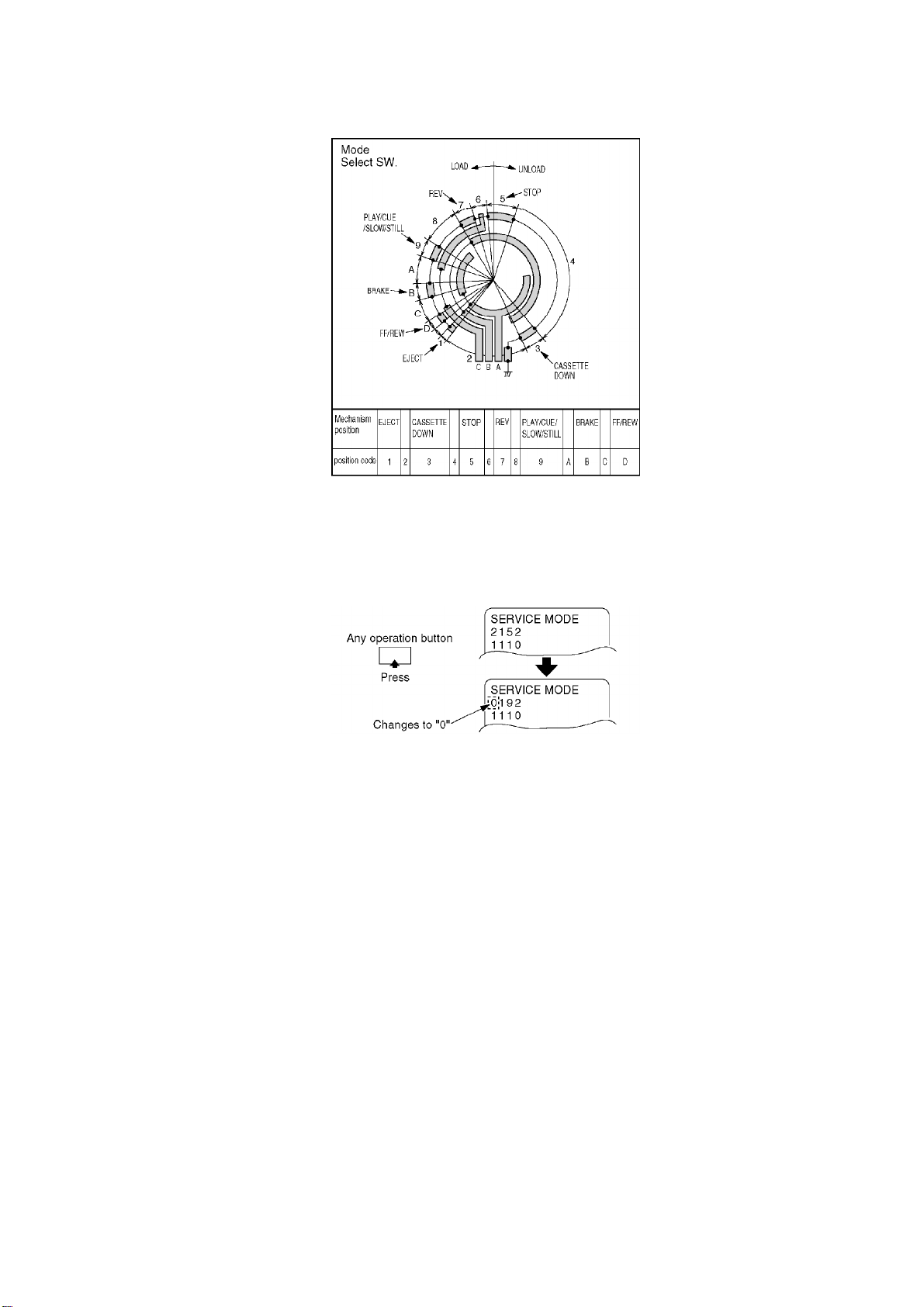

3. Press anyoperation button exceptforPOWERon eithertheunit,
ortheremote todetect that akeyhas beenpressed.
The1st digitchanges to"0"onlywhenkeyisdetected.
Fig. 1-6
Note:
When1to4listedinLock codeoccurs, theVCR stopsand all VCR
function buttonsexceptforpowerbecomenon-operational.
5.1.2. USAGE SCREENMODE
Function displayedon theTV monitor:
-thetotal elapsed"Poweron"time(indays)
-thetotal elapsed"Cylinderrotation"time(inhours)
1. Withpowerturnedon and no cassette, press STOP/EJECTbutton
on unitand 7keyon remote together.
TheUSAGESCREENwill bedisplayedon theTVMonitor.
Fig. 1-7
10

Note:
1. Afterreplacing theCylinderUnit, press COUNTERRESETbutton
on remote inthismode. OnlyTotal elapsed"Cylinderrotation"
time(inhours) will beclearedto0.
2. To release fromUsageScreenMode, press anyoperation button
on unitorinsertacassette tapeinthismode. Theunitwill return
tonormal operation mode.
5.1.3. SERVICE POSITION
5.1.3.1. Service Position
CAUTION:
HOTCIRCUIT(Primarycircuit) exists on theTV/VCR MainC.B.A.
Use extremecaretopreventaccidental shock whenservicing.
5.1.3.2. Service Position (1)
Fig. 2-1
5.1.3.3. Service Position (2)
Fig. 2-2
11

Note:
1. Itispossiblethat theS-TabSW. maynotworkcorrectlyinService
Position (2). (Recording cannotbedone). Inthiscase, shorttheS-
TabSW. Pinson thefoil sideoftheTV/VCR MainC.B.A. toturn
thisSW. on. Fig. 2-3
2. Whendisassembling/assembling, referto"CABINET SECTION"in
DISASSEMBLY/ASSEMBLYPROCEDURES.
5.1.4. HOTCIRCUIT
Primarycircuitexistson theTV/VCR MainC.B.A.
Thiscircuitisidentifiedas "HOT" on theC.B.A. and intheService Manual. Use extremecareto
preventaccidental shock whenservicing.
5.1.5. SERVICE MODE

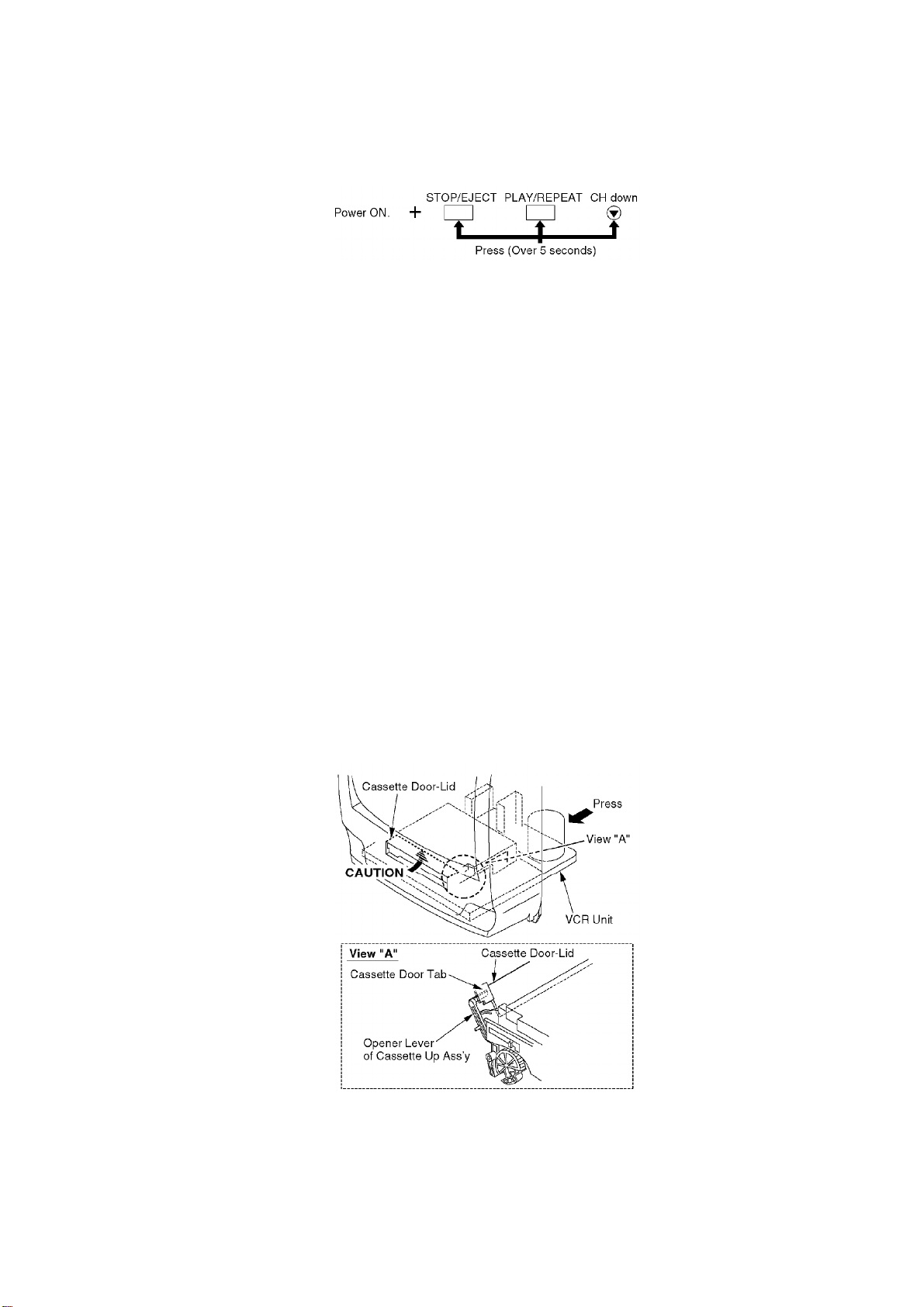

Inordertoinhibitdetection oftheSupply&Takeup PhotoTransistors, Reel Sensor, and Cylinder
Lock, press and holdSTOP/EJECT, PLAY/REPEAT, and CH downbuttonson theunittogether
12

over5secondsinpoweron condition.
Fig. 3
Theunitgoes intoservice mode.
Inthismode, Mechanism movementcanbeconfirmed. Whenremoving CassetteUpAss’y, itcan
beconfirmedwithoutacassette.
Torelease from thismode, press POWERbutton off or disconnectACPlug.
5.1.6. DEFEATINGTHE AUTOTRACKING
TodefeattheAutoTracking Function, place theinstrumentintheSTOP modeand place ajumper
betweenTP6003 and TP6009 on theTV/VCR MainC.B.A. Thetracking will beplacedintheneutral
position.
5.1.7. CAUTIONFORINSTALLATIONOFVCR UNIT
CAUTION:
OpenerLevermaybedamagedwhenVCR Unitisinstalled, with
Cassette Door-Lidand OpenerLeverofCassette UpAss’yset
incorrectly.
Install theVCR Unitas follows:
1. Swing theCassette Door-Lidall thewayopenuntil theCassette
DoortabclearstheOpenerLever.
2. Make surethat all guidetabsarealignedproperly. Then, press the
VCR Unitstraightin.
Fig. 4
5.1.8. HOWTOINITIALIZE MEMORY IC
AftertheMemoryIC(IC6004)or TV/VCR MainC.B.A. isreplaced, besuretosettheDefaultvalue
toMemoryICas shownin"MemoryICReference Table" below.
13

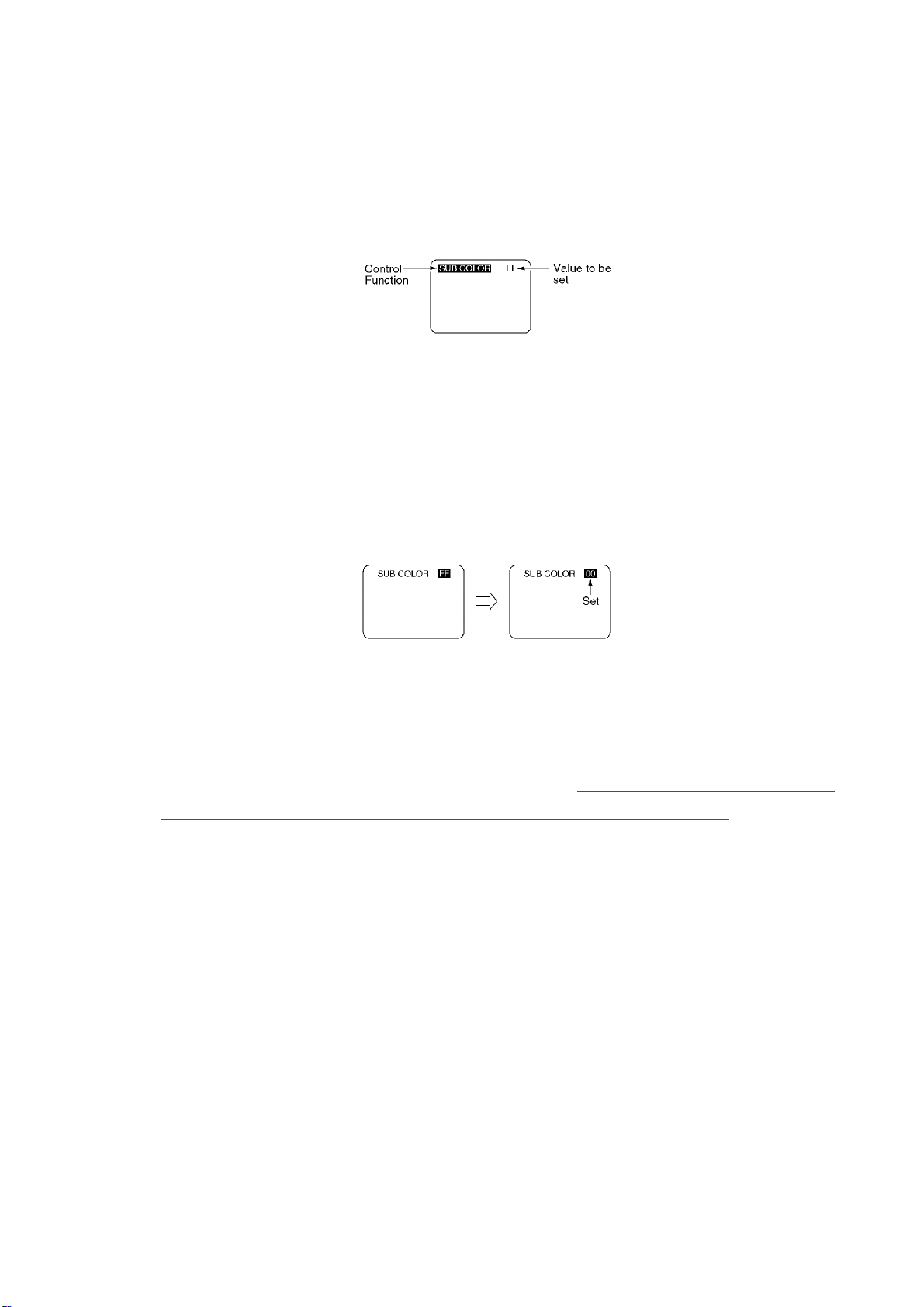

1. Press and holdSTOP, PLAY, and VOLDOWNbuttonson theunit
togetherover5secondswithno cassette inserted.
Theadjustmentoverlaywill appeartoEnterEVRAdjustmentmode.
Fig. 5-1
2. Set theDefaultvalueofall Control functionsusing aremote
control as shownin"MemoryICReference Table."
Note:
ForSelecting Control functionsand setting Defaultvalue, referto"
How to enter EVR adjustment mode"and "HOW TO ENTER EVR
PG SHIFTER ADJUSTMENT MODE"inELECTRICAL
ADJUSTMENTprocedures. Fig. 5-2
3. Press and holdSTOP, PLAY, and VOLDOWNbuttonson theunit
togetherover5secondsagainorpress thePOWERbutton OFF to
release EVRAdjustmentMode.
TheDefaultvaluewill bewrittentoMemoryIC(IC6004).
4. Perform all EVRAdjustments. (Referto"EVR (Electronic Variable
Register) ADJUSTMENT WITH THE REMOTE CONTROL"in
ELECTRICALADJUSTMENTprocedures.)
14

5.1.9. METHODFORLOADING/UNLOADINGOFMECHANISM
5.1.9.1. (Manual Method)
Turn theLoading Gearclockwise (for loading)or counterclockwise (for unloading)using
needlenose pliersetc.
Note:
Donotuse thismethod ifMechanismisjammedorlocked.
Fig. 6-1
5.1.9.2. (Electrical Method)
Apply+10.0V DC PowerSupplytotheLoading Motor terminals.
Loading
DC +toPortion "a," DC -toPortion "b"
Unloading
DC -toPortion "a," DC +toPortion "b"
CAUTION:
15

Beforeapplying DC PowerSupply, besuretocuttheMotorLeads
withacutter, etc.
Otherwise, theLoading MotorDriveIC(IC2501) maybedamaged.
Whenreconnecting theMotorLeads, solderat below / 320 °Cfor
less than3seconds. Fig. 6-2
Whenloading withoutacassette, pushPortion "a" on theHolderUnitofCassetteUpAss’yso
thattheLevercleartheFirstTaband Second Tab.
Fig. 6-3
5.1.10. HOWTOREMOVE AJAMMEDTAPE
CAUTION:
WiperArm Unitmaybedamagedorits spring maybeoutofplace
whenthejammedtapeisremovedbyforce.
Remove ajammedtapeas follows:
16

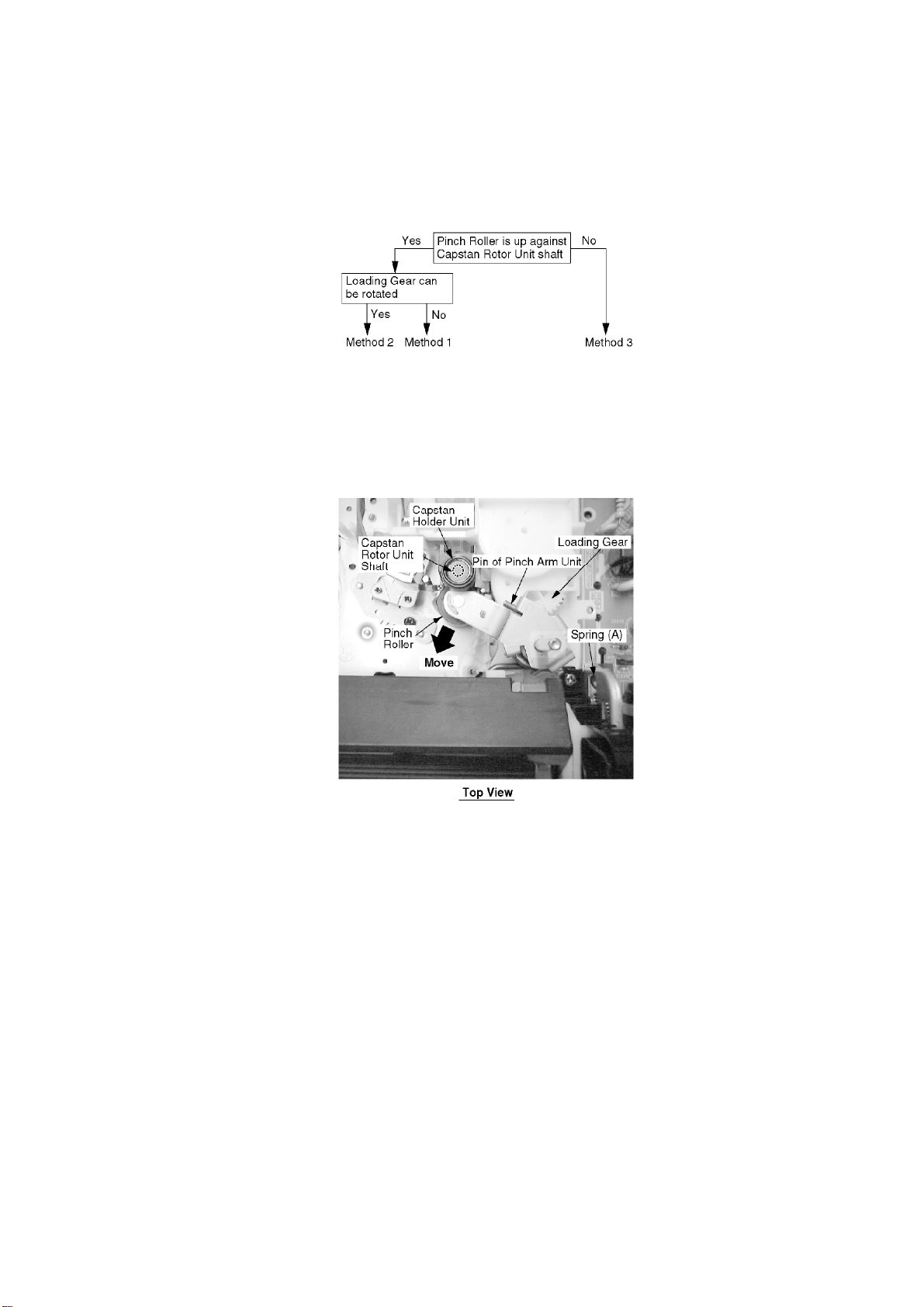

5.1.10.1. Manual Method
Whenatapejam isencountered, check thetapeloading condition and use thefollowing
proceduretoremove atapejam.
Fig. 7-1
5.1.10.1.1. Method -1:
1. MovethePinchRollerUnitoutbyunhooking thePinofPinchArm
Unitsothat thePinchRollerisseparatedfromtheCapstanRotor
Unitshaft. Fig. 7-2
2. Removethetapefromthetapepath.
3. Rewind thetapeintothecassette byrotating theCenterClutch
Unitcounterclockwise.
4. UnhookSpring (A)oftheDriveRack Arm.
5. RemoveScrew (A).
6. Lift theCassette UpAss’y. Whilepulling theCassette UpAss’yout
farenough sothat itclearstheDriveRack Arm, slidetheDrive
Rack Unitas indicatedbythearrow toremovethecassette tape
fromtheCassette UpAss’y.
7. Check thecause ofmechanical troubleand repair.
Fig. 7-3
17

5.1.10.1.2. Method -2:
1. Rotate Loading Motorcounterclockwise withneedlenose pliers,
etc. sothat thePinchRollerisseparatedfromtheshaft ofthe
CapstanRotorUnit.
2. Perform Step2through Step7ofMethod -1.
5.1.10.1.3. Method -3:
1. Perform Step2through Step7ofMethod -1.
Note:
Afterrepairing mechanical trouble, make surethat all gear
alignments arecorrect, especiallytheWiperArm Unitand Drive
Rack UnitofCassette UpAss’y. (Referto"EJECT Position
Confirmation"inDISASSEMBLY/ASSEMBLYPROCEDURES.)
5.1.10.2. Electrical Method
Electrical method canonlybeperformedwhenthemechanism ismovedbyrotating theLoading
Gear.
CAUTION:
1. Beforeapplying DC PowerSupply, besuretocuttheMotorLeads
withacutter, etc.
Otherwise, theLoading MotorDriveIC(IC2501) maybedamaged.
Whenreconnecting theMotorLeads, solderat below / 320 °Cfor
less than3seconds.
2. Ifloading does notstartinapprox. 2secondsafterDC Power
Supplyisapplied, DO NOTcontinuetoapplyDC PowerSupply.
Instead, perform "Manual Method."

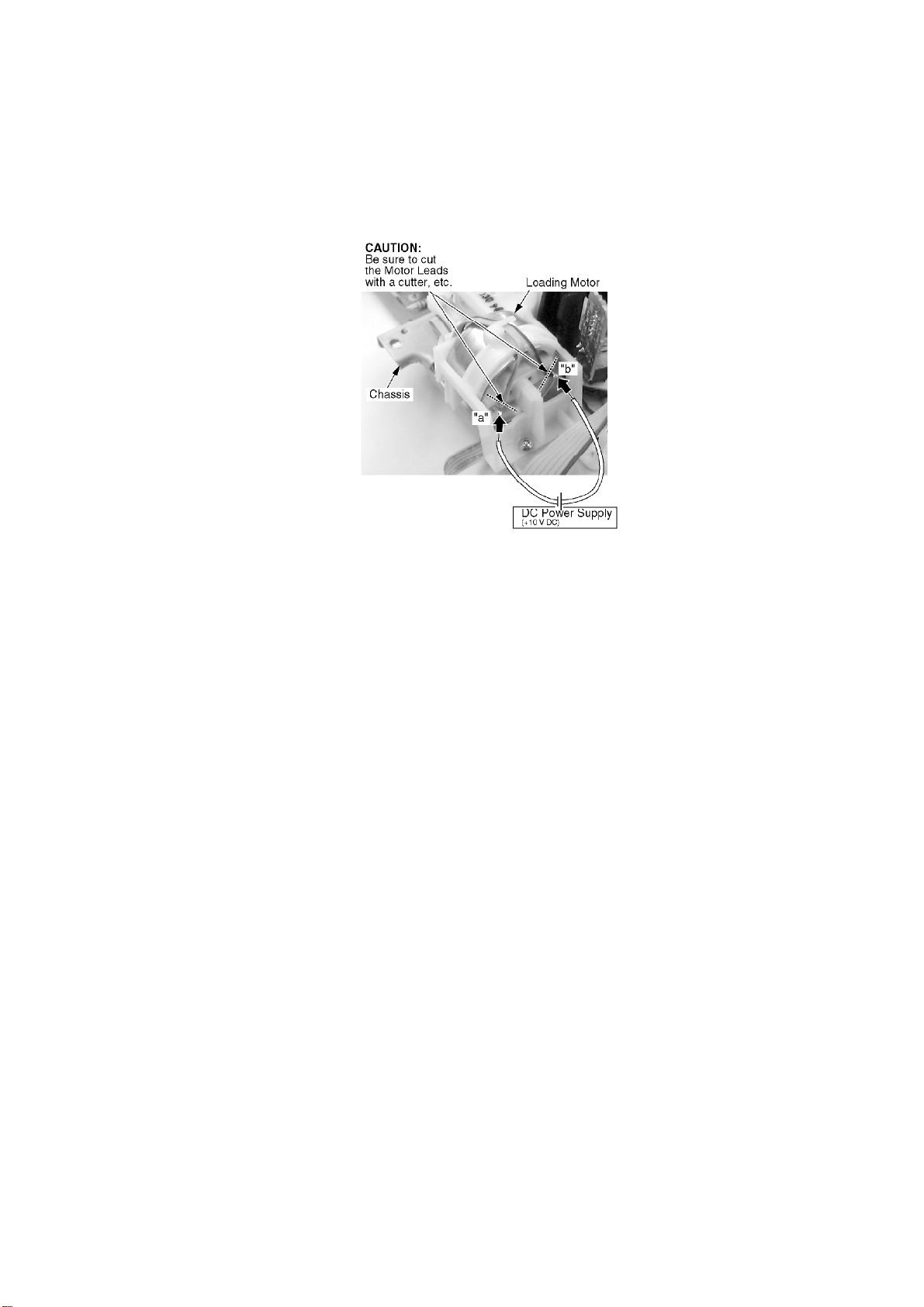

1. BesuretocuttheMotorLeadswithacutter, etc.
2. Apply+10.0VDC PowerSupplytotheLoading Motorterminals.
18

3. WhentheLoading Posts reachthefullyunloadedposition, remove
thePowerSupply. Fig. 8
4. Rewind thetapeintothecassette byturning theCenterClutchUnit
counterclockwise.
5. Eject thecassette byapplying +10.0VDC PowerSupplyagain.
5.1.11. WIRE AND LEAD POSITIONDIAGRAM
Fig. 9
19

5.1.12. HOWTOSETTRACKINGTOTHE NEUTRALPOSITION
Ejecting thecassettetapeand thenreinserting itwill resetthetracking totheNeutral position.
5.1.13. BLACK SCREWS ONTHE CHASSIS
Black Screwsareusedon theMechanism Chassistoidentifyscrewsthatrequireadjustment.
5.1.14. HOWTORESETALL COMBINATIONVCR MEMORY FUNCTIONS
Toreset(clear)theselectlanguage, channel autosetand setclock functionstotheirinitial
poweron condition (poweron, no cassetteinserted), holddownthePLAYand FF buttonson the
unittogetherfor morethan5seconds.
Powerwill shutoff.
5.1.15. HOWTOCONFIRMAUTOCLOCK SETFEATURE
1. Connect anRFcablefromtheoutputofoneunittotheinputofthe
20
