Panasonic CT-32SX12C User manual

®
®
Color Television
Operating Instructions
CT-32SX12C CT-36SX12C
TQB2AA0390-0 20804
PRINTEDINUSA
Télé-couleur
Manuel d’utilisation
TQB2AA0390-0 20804
IMPRIMÉ AUX ÉTATS-UNIS
For assistance, please call: 1-800-211-PANA (7262) or
send e-mail to: consumerproduct[email protected] (USA only)
CT-32SX12C CT-36SX12C

WARNING: To reduce the risk of electric shock do not remove cover or back.
No user-serviceable parts inside. Refer servicing to qualified service personnel.
The exclamation point within a
triangle is intended to tell the
user that important operating
and servicing instructions are
in the papers with the
appliance.
The lightning flash with arrow
head within a triangle is
intended to tell the user that
parts inside the product are a
risk of electric shock to
persons.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING
WARNING:TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO
NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.
ANY CHANGES OR MODIFICATIONS TO THIS TV
RECEIVER NOT EXPRESSLY APPROVED BY
MATSUSHITA ELECTRIC CORPORATION OF AMERICA
COULD CAUSE HARMFUL INTERFERENCE, WHICH
WOULD VOID THE USER’S AUTHORITY TO OPERATE
THIS EQUIPMENT.
FCC CAUTION:
THIS PRODUCT UTILIZES BOTH A CATHODE RAY TUBE (CRT) AND
OTHER COMPONENTS THAT CONTAIN LEAD. DISPOSAL OF THESE
MATERIALS MAY BE REGULATED IN YOUR COMMUNITY DUE TO
ENVIRONMENTAL CONSIDERATIONS. FOR DISPOSAL OR RECYCLING
INFORMATION PLEASE CONTACT YOUR LOCAL AUTHORITIES, OR THE
ELECTRONICS INDUSTRIES ALLIANCE: <HTTP://WWW.EIAE.ORG.>
ENVIRONMENTAL NOTICE:
Manufactured under license from BBE Sound, Inc.
Licensed by BBE Sound, Inc. under USP4638258 and 4482866.
BBE and BBE symbol are registered trademarks of BBE Sound, Inc.
High Definition Sound

T ABLE OF C ONTENTS
1 
Table of Contents
Congratulations.........................................................2
Customer Record ......................................................................2
Care and Cleaning.....................................................................2
Specifications ............................................................................2
Installation..................................................................3
Television Location....................................................................3
Optional Cable Connections......................................................3
AC Power Supply Cord..............................................................3
Cable / Antenna Connection......................................................3
Feature Chart .............................................................4
Auto Set Up Menu......................................................5

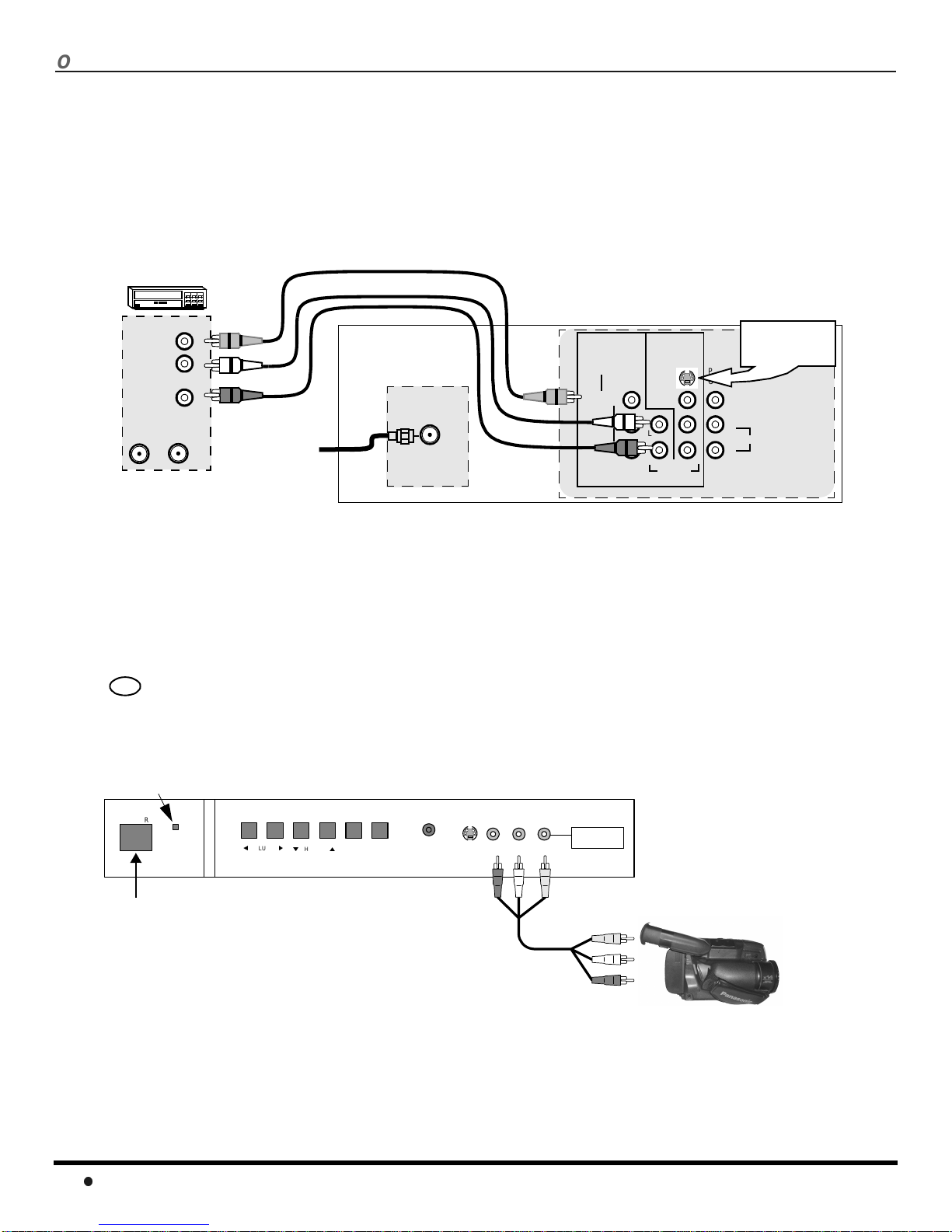

Optional Equipment Connections ...........................6
VCR Connection........................................................................6
Front Control Panel ...................................................................6
Cable Box Connection...............................................................7
VCR and Cable Box Connection...............................................7
Program Out Connection (PROG OUT)....................................8
Amplifier Connection (TO AUDIO AMP)....................................8

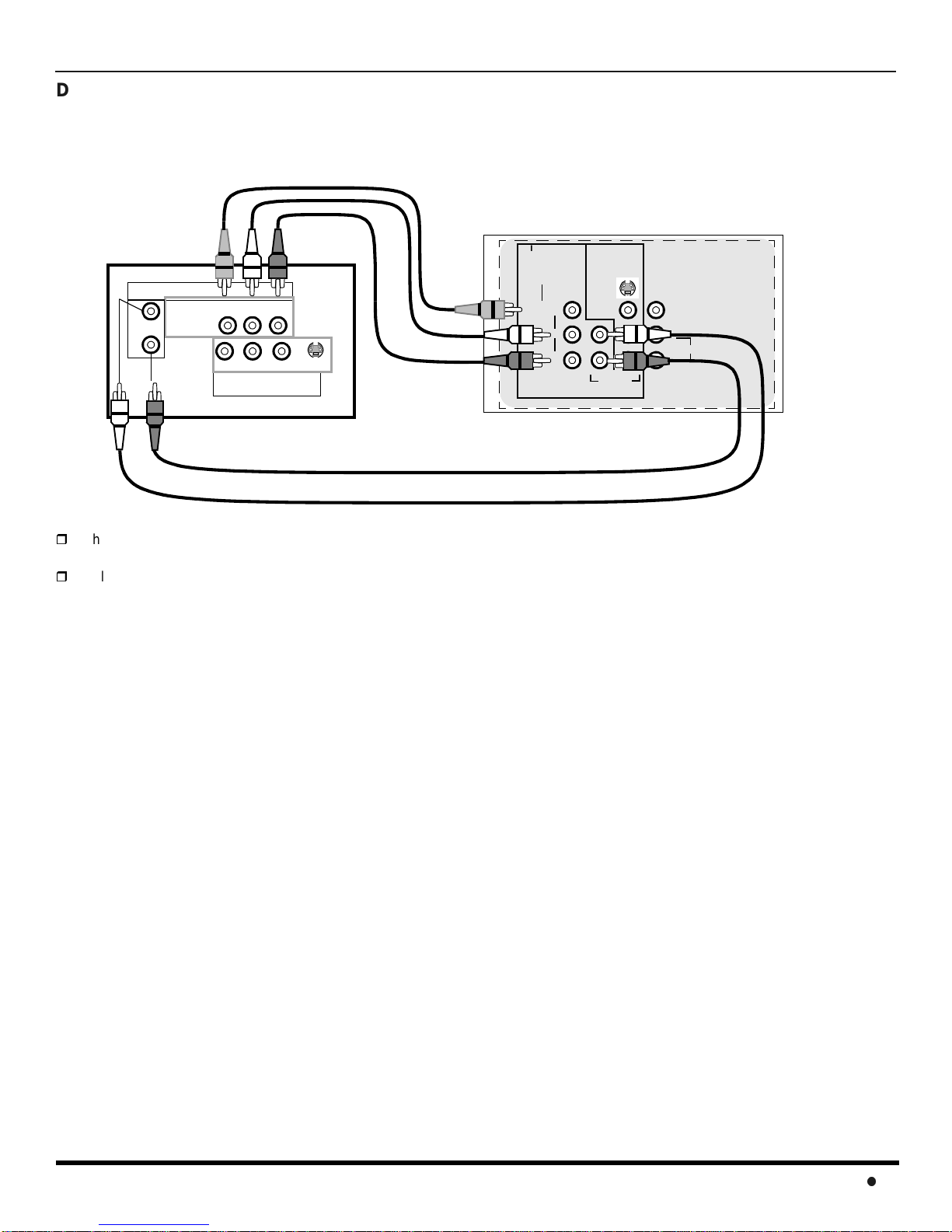

Digital TV - Set-Top Box or DVD Player Connection.................9
Remote Control Operation .....................................10
Battery Installation...................................................................10
Mode Operational Key Chart ..................................................11
Programming the Remote .......................................................12
Component Codes...................................................................13
Icon Menu Navigation .............................................15
Main Menu Icons......................................................16
Icon Menus..............................................................................16
Icon Menu Operation...............................................17
Set Up......................................................................................17
Picture .....................................................................................19
Timer .......................................................................................20
Audio .......................................................................................21
Channels .................................................................................22
Lock.........................................................................................23
V-Chip Menu Operation...........................................24
Troubleshooting Chart............................................29
Limited Warranty .....................................................30
Index .........................................................................31
Read these instructions completely before operating television.
Contents are subject to change without notice or obligation.
Copyright 2002 by Matsushita Electric Corporation of America. All rights reserved.
Unauthorized copying and distribution is a violation of law.

2 
C ONGRATULATIONS
Congratulations
Your new Panasonic Tau television is designed to provide state-of-the-art picture quality and features an innovative pure
flat picture tube. The new dolphin gray cabinet with compact, elegant styling is designed to give you many years of
enjoyment. It was thoroughly tested and tuned at the factory for best performance.
Customer Record
The model and serial number of this product are located on the back of the television. You should note the model and serial
number in the space provided and retain as a permanent record of your purchase. This will aid in identification in the event
of theft or loss.
Model
Number
Serial
Number
Care and Cleaning
Screen (Turn TV Off)
• Use a mild soap solution or window cleaner with a soft clean cloth. DO NOT USE ABRASIVE CLEANERS.
• Avoid excessive moisture and wipe dry.
Note: Do not spray any type of cleaning fluid directly on the screen.
Cabinet and Remote Control
 For cabinets and remote control, use a soft cloth dampened with water or a mild detergent solution. Avoid excessive moisture and
wipe dry.
 Do not use benzene, thinner or other petroleum based products.
Specifications
Specifications are subject to change without notice or obligation.
Power Source
CT-32SX12C (2.7A)
CT-36SX12C (2.7A) 120V AC, 60Hz
Channel Capability - 181 VHF-12; UHF-56; Cable-113
Video Input Jacks 1Vp-p, 75 Ohm, Phono Jack Type
Audio Input Jacks 500mV RMS 47K Ohm
Audio Output Jacks 0-2.0V RMS 4.7K Ohm
Componentinput(Y/P
B/P R)75 Ohms, Phono Jack Type
S-Video Input Jacks S-Video (Y-C) Connector

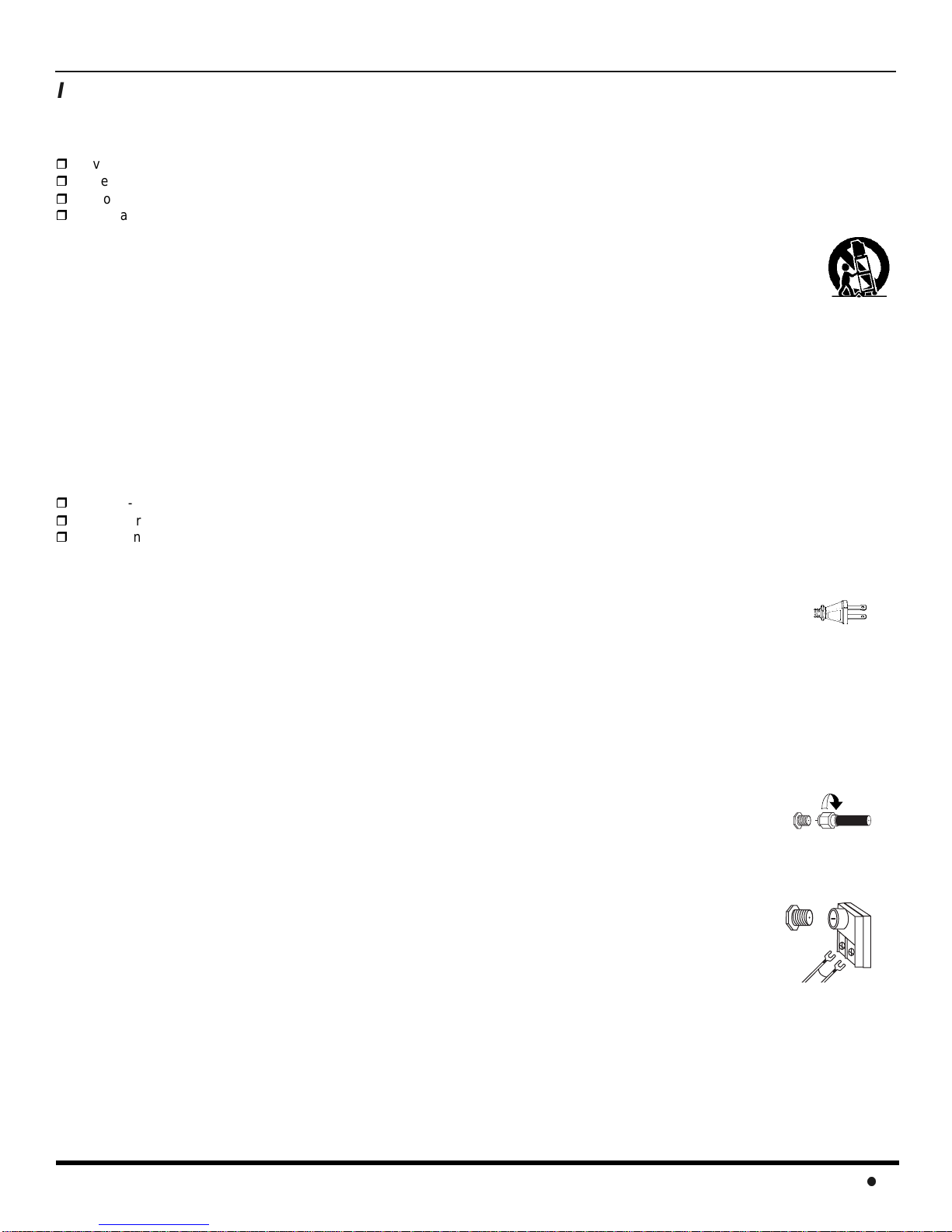

I NSTALLATION
3 
Installation
Television Location
Follow these recommendations before deciding the location of your television.
 Avoid excessive sunlight or bright lights, including reflections.
 Keep away from excessive heat or moisture. Inadequate ventilation may cause internal component failure.
 Fluorescent lighting may reduce remote control transmitting range.
 Keep away from magnetic equipment, including motors, fans and external speakers.
CAUTION: Use this television receiver only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or
sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from
tip-over. In order to avoid injury to children, never place your television receiver on a piece of furniture that is capable of
being tilted by a child leaning on it, pulling on it, standing on it, or climbing on it.
CT-32SX12C:
CAUTION: This television receiver for use only with PANASONIC TY-32SX31P stand. Use with other carts (or stands) is capable
of resulting in instability causing possible injury.
CT-36SX12C:
CAUTION: This television receiver for use only with PANASONIC TY-36SX31P stand. Use with other carts (or stands) is capable
of resulting in instability causing possible injury.
Optional Cable Connections
Shielded audio and video cables should be used between components. For best results:
 Use 75-ohm coaxial shielded cables.
 Use appropriate input and output connectors that match your component connectors.
 Avoid long cables to minimize interference.
AC Power Supply Cord
CAUTION: TO PREVENT ELECTRIC SHOCK MATCH WIDE BLADE OF PLUG TO WIDE SLOT OF AC OUTLET
AND FULLY INSERT. DO NOT USE A PLUG WITH A RECEPTACLE OR OTHER OUTLET UNLESS THE BLADE
CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
PROTECT POWER CORDS FROM BEING WALKED ON, ROLLED OVER, CRIMPED, BENT OR PINCHED,
PARTICULARLY AT PLUGS, CONVENIENCE RECEPTACLES, AND THE POINT WHERE THEY EXIT FROM THE APPARATUS.
Cable / Antenna Connection
For proper reception, either a cable or antenna connection is required.
Cable Connection
Connect the cable supplied by your local cable company.
Note: A cable converter box may be required for proper reception. Check with your local cable company for
compatibility requirements.
Antenna Connection
• For proper reception of VHF/UHF channels, an external antenna is required. For best reception, an
outdoor antenna is recommended.
• Connect home antenna to ANT on the back of television.
Note: Cable Mode is preset at the factory. Antenna users must change to TV mode in the Set Up Menu under
Prog Chan.
Polarized plug
75 Ohm VHF/UHF
on back of TV
Incoming Cable from
Cable Company
Incoming
C
able
f
rom
Home Antenna

4 
F EATURE C HART
Feature Chart
MODELS
CT-32SX12C
CT-36SX12C
Features
MENU LANGUAGE ENG/SPAN/FR
 
VIDEO PICTURE MEMORY  
CHANNEL INFO BANNER  
VIDEO INPUT SKIP  
75 OHM INPUT  
V-CHIP CAPABILITY  
CLOSED CAPTIONING  
VIDEO NORM  
AUDIO NORM  
STEREO  
BASS/TREBLE/BALANCE  
SURROUND  
AI SOUND  
BBE  
A/V IN
(REAR/FRONT) 3
(2/1) 3 (2/1)
AUDIO OUT  
A/V PROGRAM OUT  
S-VIDEO INPUT
(REAR/FRONT) 2
(1/1) 2 (1/1)
COMPONENT VIDEO INPUT  
HEADPHONE JACK
 
IMPORTANT INFORMATION REGARDING THE USE OF VIDEO GAMES, COMPUTERS, OR
OTHER FIXED IMAGE DISPLAYS.
WARNING: The marking or retained image on the picture tube resulting from viewing fixed
image is not an operating defect and as such is not covered by Warranty.
This television is designed to display constantly moving images on the screen. Continuous viewing
of stationary images such as letterbox pictures on standard screen TVs (with top/bottom bars), non-
expanded standard (4:3) pictures on wide screen TVs (with side bars shown on each side of an
image), stock market report bars (ticker running at the bottom of the screen), video game patterns,
fixed scoreboards, bright station logos, on-line (Internet) or repetitive computer style patterns should
be limited.
The extended use of fixed image program material can cause permanent picture tube damage,
shown as a “shadow image” viewable on normal programs. This type of irreversible picture tube
deterioration can be limited by performing the following steps:
• Do not display the fixed image for extended periods of time.
• Turn the power off when not in use.
A/V JACKS AUDIO SPECIAL FEATURES

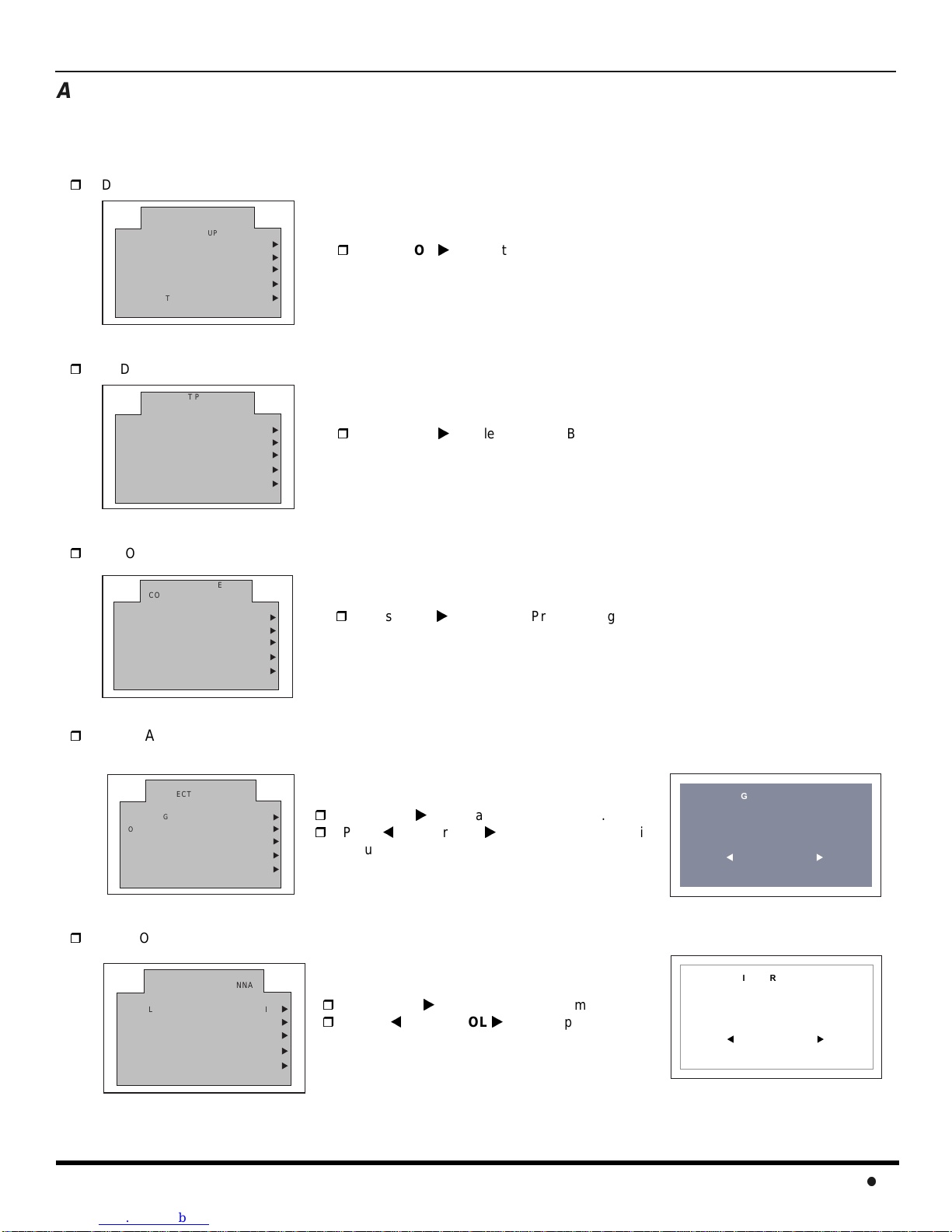

A UTO S ET U P M ENU
5 
Auto Set Up Menu
For your convenience, Auto Set up menu will be displayed on screen when the set is turned on for the first time. If needed,
follow the menus and procedures for setting up the features.
 IDIOMA/LANGUE - To change menu language to ENGLISH, SPANISH or FRENCH.
 MODE - To select TV (antenna) or CABLE mode depending on the signal source.
 AUTO PROGRAM - To automatically program all channels with a signal.

GEOMAGNETIC CORRECTION -This feature is used to adjust discoloration of the picture due to the earth’s
magnetic field in the area.
 TILT CORRECTION - This feature is used to adjust the tilt of the picture due to earth’s magnetic field in the area.
 Press VOL  to select English, Spanish or French.
IDIOMA/LANGUE ENGLISH
CABLEMODE
AUTO PROGRAM
PRESS ACTIONTO EXIT
u
u
u
AUTO SET UP
FIRST PLEASE
CONNECT THE ANTENNA
GEOMAGNETIC CORRECTION
u
TILT CORRECTION
u
 Press VOL  to select TV or CABLE.
IDIOMA/LANGUE ENGLISH
CABLEMODE
AUTO PROGRAM
PRESS ACTIONTO EXIT
u
u
u
AUTO SET UP
FIRST PLEASE
CONNECT THE ANTENNA
GEOMAGNETIC CORRECTION
u
TILT CORRECTION
u
 Press VOL  to start Auto Programming.
IDIOMA/LANGUE ENGLISH
CABLEMODE
AUTO PROGRAM
PRESS ACTIONTO EXIT
u
u
u
AUTO SET UP
FIRST PLEASE
CONNECT THE ANTENNA
GEOMAGNETIC CORRECTION
u
TILT CORRECTION
u
IDIOMA/LANGUE ENGLISH
CABLEMODE
AUTO PROGRAM
PRESS ACTIONTO EXIT
u
u
u
AUTO SET UP
FIRST PLEASE
CONNECT THE ANTENNA
GEOMAGNETIC CORRECTION
u
TILT CORRECTION
u
 Press VOL  to display adjustment menu.
 Press  VOL or VOL  to adjust discoloration in
picture.
GEOMAGNETIC CORRECTION
- - - - - - - - - - - - - - - - - -
0
t TO ADJUST u
PRESS ACTION TO EXIT
l
IDIOMA/LANGUE ENGLISH
CABLEMODE
AUTO PROGRAM
PRESS ACTIONTO EXIT
u
u
u
AUTO SET UP
FIRST PLEASE
CONNECT THE ANTENNA
GEOMAGNETIC CORRECTION
u
TILT CORRECTION
u
 Press VOL  to display adjustment menu.
 Press  VOL or VOL  to adjust picture tilt.
TILT CORRECTION
- - - - - - - - - - - - - - - - - -
0
t TO ADJUST u
PRESS ACTION TO EXIT
l

6 
O PTIONAL E QUIPMENT C ONNECTIONS
Optional Equipment Connections
VCR Connection
VCRs, video disc players, video game equipment, and DSS equipment can also be connected to the video inputs. See the
optional equipment manual for more information.
Note: Input 1 is a dual-purpose input. It is primarily intended for connection with 480i devices such as a DVD player using the
YP
B
P
R
component video jacks and Audio L & R jacks. However, it can also be connected to conventional composite
video sources such as a VCR, using only the Y/Video jack and Audio L & R jacks. The on-screen label will display
Component or Video 1 depending on which source is connected.
Note: The remote control must be programmed with supplied codes to operate the VCR.
Procedure
1. Connect equipment as shown to rear Audio/Video input jacks.
2. Select the Video mode by pressing TV/VIDEO button.
3. Operate optional equipment as instructed in equipment manual.
Front Control Panel
Press to select VIDEO 3 input mode.
Note: The front control panel located behind the customer control door can be used to access menus and switch video mode when
the remote control is not available.
A second VCR, Camcorder, a video disc player, video game equipment or DSS equipment can also be connected to the
video inputs. See the optional equipment manual for details.
Procedure
1. Connect equipment to front Audio/Video input jacks.
2. Press TV/VIDEO button to select VIDEO 3 input mode.
3. Operate optional equipment as instructed in equipment manual.
VCR
CABLES NOT SUPPLIED
TERMINALS ON BACK OF THE TV
S-VIDEO
AUDIO
VIDEO/Y
PB
PR
PROG
OUT
L
COMPONENT
ANT
TO AUDIO AMP
VIDEO INPUTS
L
R
AUDIO OUT
VIDEO OUT
ANT INANT OUT Incoming
Cable
Use either the
S-Video or Video
connection.
R
L
R
L
R
INPUT 1 INPUT 2
VIDEO
TV/VIDE
O
ACTION TV/VIDEO  CHANNEL 
 VOLUME 
POWER
HPJ S-VIDEO VIDEO L-AUDIO-R
INPUT 3
ON/OFF INDICATOR
POWER ON/OFF CAMCORDER
Note: The ON/OFF indicator LED (red) will be lit when set is on.
Note: The S-VIDEO connection provides higher quality picture. It
overrides VIDEO 3 connections. Use INPUT 3, AUDIO L
and R with S-VIDEO connection.

O PTIONAL E QUIPMENT C ONNECTIONS
7 
Cable Box Connection
Follow this diagram when connecting your television to a cable box only.
Note: The remote control must be programmed with supplied codes to operate the cable box.
Viewing a premium (scrambled) cable channel
Procedure
1. Tune the television to Channel 3 or 4 depending on the RF out setting of the cable box.
2. Using the cable box, tune to the premium cable channel you want to view.
VCR and Cable Box Connection
Follow this diagram when connecting your television to both a VCR and a cable box.
Note: The remote control must be programmed with supplied codes to operate the VCR and cable box.
Viewing a premium (scrambled) cable channel
Procedure
1. Tune the television to CH 3 or CH 4 depending on the Cable box RF out.
2. Using the cable box, tune to the premium cable channel you want to view.
Recording a premium (scrambled) cable channel
Procedure
1. Press the TV/VIDEO button on the remote control to select the video input (VIDEO 1, VIDEO 2, etc.) connected to your VCR.
2. Turn the VCR ON.
3. Tune the VCR to Channel 3 or 4, depending on your VCR.
4. Using your cable box, tune to the premium cable channel you want to record.
5. Begin recording.
CABLE BOX
CABLES NOT SUPPLIED
TERMINALS ON BACK OF THE TV
S-VIDEO
AUDIO
VIDEO/Y
PB
PR
PROG
OUT
L
COMPONENT
ANT
TO AUDIO AMP
VIDEO INPUTS
Incoming
Cable
R
L
R
L
R
INPUT 1 INPUT 2
VIDEO
ANT OUT
ANT IN
VCR
CABLES NOT SUPPLIED
TERMINALS ON BACK OF THE TV
S-VIDEO
AUDIO
VIDEO/Y
PB
PR
PROG
OUT
L
COMPONENT
ANT
TO AUDIO AMP
VIDEO INPUTS
L
R
AUDIO OUT
VIDEO OUT
ANT OUTANT IN
Incoming
Cable
R
L
R
L
R
INPUT 1 INPUT 2
VIDEO
CABLE BOX
ANT OUT
ANT IN

8 
O PTIONAL E QUIPMENT C ONNECTIONS
Program Out Connection (PROG OUT)
To use the television audio and video with optional equipment, connect the PROG OUT and TO AUDIO AMP connections on the back of
the television.
Notes: • When a component input video signal is connected to Video 1 (Y, P
B,
P
R
) terminals, and the TV main picture is Component, the Program
output video will be luminance signal (no color).
• When S-Video input signal is used for TV main picture, the Program output video signal will be luminance signal (no color).
Procedure
1. Connect optional equipment to PROG OUT and TO AUDIO AMP terminals.
2. PROG OUT terminal display is the same as onscreen display.
3. See optional equipment manual for further instructions for recording and monitoring.

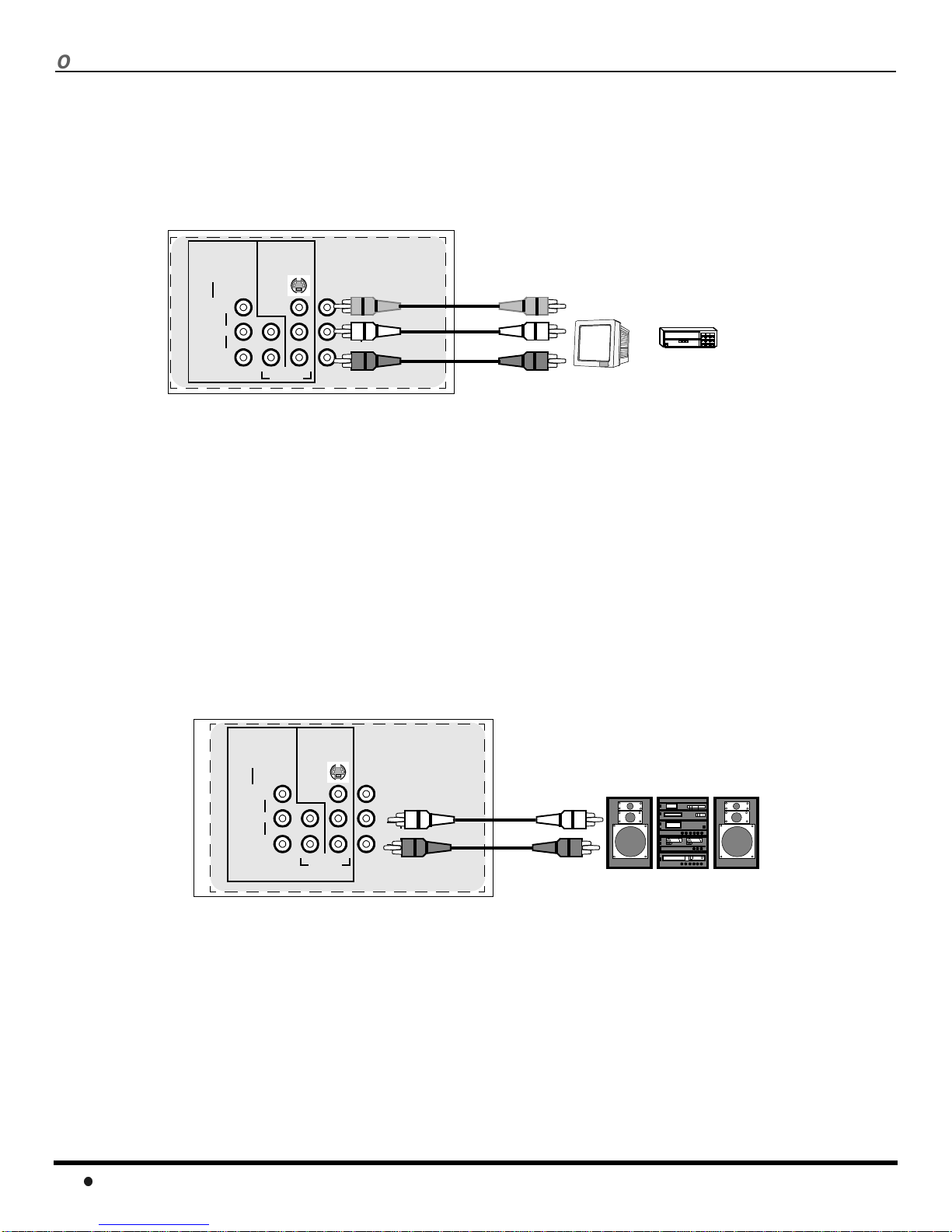

Amplifier Connection (To Audio Amp)
Connect to an external audio amplifier input for listening to a stereo system.
Note: TO AUDIO AMP terminals cannot be connected directly to external speakers.
Audio Adjustments
1. Select TV SPEAKERS ON from AUDIO menu.
2. Set amplifier volume to minimum.
3. Adjust TV volume to desired level.
4. Adjust amplifier volume to match the TV.
5. Select TV SPEAKERS OFF&VAO from AUDIO menu.
6. Volume, mute, bass, treble and balance are now controlled from the TV.
Note: In OFF&FAO the volume is controlled by the external amplifier.
CABLES NOT SUPPLIED
CONNECTIONS ON BACK OF TV
VCR
OR
MONITOR
S-VIDEO
AUDIO
VIDEO/Y
PB
PR
PROG
OUT
L
COMPONENT
TO AUDIO AMP
VIDEO INPUTS
R
L
R
L
R
INPUT 1 INPUT 2
VIDEO
CABLES NOT SUPPLIED
TERMINALS ON BACK OF TV
External Amplifier
S-VIDEO
AUDIO
VIDEO/Y
PB
PR
PROG
OUT
L
COMPONENT
TO AUDIO AMP
VIDEO INPUTS
R
L
R
L
R
INPUT 1 INPUT 2
VIDEO

O PTIONAL E QUIPMENT C ONNECTIONS
9 
Digital TV - Set-Top Box (DTV-STB) or DVD Player Connection
Use this diagram to connect the Panasonic DTV-STB (Digital TV-Set-Top Box) to the back of your TV.
Notes:
 There are three video inputs, Y, PB,andP
R. Separate component color inputs provide luminance and color separation. Use the
L (left) and R (right) audio inputs.
 Select DTV-STB to 480i output mode. TV set can receive 480i signal only.
TERMINALS ON BACK OF DTV-STB OR DVD PLAYER
DIGITAL TV OUTPUT
PR PB Y
MAIN
VIDEO
NTSC OUTPUT
R-AUDIO-L S-VIDEO
R-AUDIO-L
-VIDEO
TERMINALS ON BACK OF TV
CABLES NOT SUPPLIED
S-VIDEO
AUDIO
VIDEO/Y
PB
PR
PROG
OUT
L
COMPONENT
TO AUDIO AMP
VIDEO INPUTS
R
L
R
L
R
INPUT 1 INPUT 2
VIDEO

10 
R EMOTE C ONTROL O PERATION

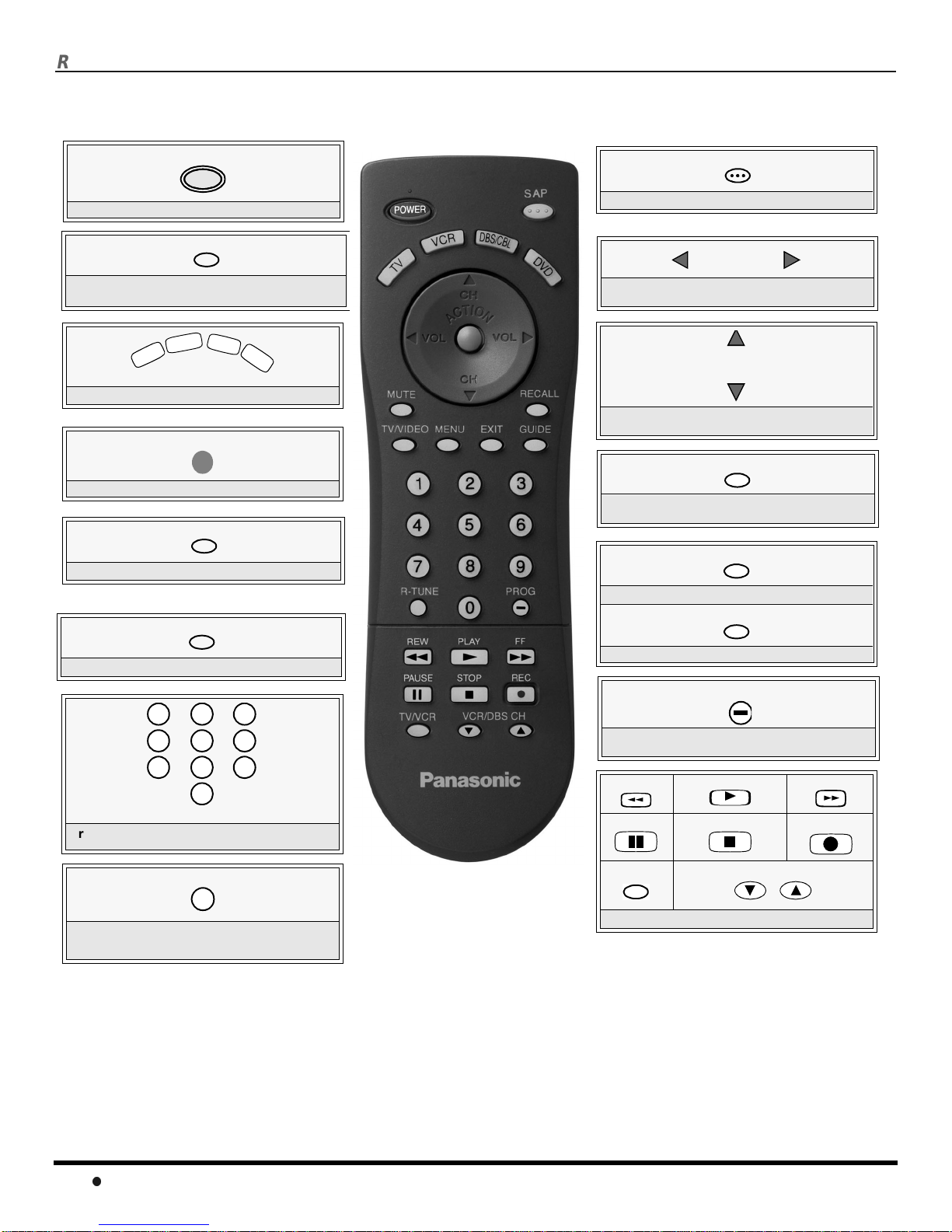

Remote Control Operation
POWER
Press to turn ON and OFF.
POWER
MUTE
Press to mute sound. Press to display and
cancel CC (Closed Caption).
SAP
Press to access second audio program.
TV/VIDEO
Press to select TV or Video mode.
Press to select remote operation.
TV
VCR
DBS/CBL
DVD
ACTION
Press to access menus.
Press to select next or previous channel and
navigate in menus.
CH
CH
Press to adjust TV sound and navigate in
menus.
VOLVOL
EXIT
DBS functions button.
GUIDE
DBS functions button.
REW PLAY FF
PAUSE STOP REC
TV/VCR VCR /DBS CH
Component function buttons

Press numeric keypad to select any channel.
7
4
1 2
5
8
0
9
6
3
R-TUNE
Press to switch to previously viewed
channel or video mode.
EUR7613Z10
Battery Installation
Use two AA batteries:
Remove battery cover by pushing in and up near arrow.
Install batteries matching (+) and (-) polarity signs.
Replace the battery cover.
Note: Incorrect installation can cause battery leakage and
corrosion that will damage the Remote Control.
Precautions
• Replace batteries in pairs.
• Do not mix battery types (zinc carbon
with alkaline).
• Do not recharge, heat, short-circuit,
disassemble, or burn batteries.
PROG
Press to enter minor number in a compound
number (DBS mode only).
RECALL
Press to display time, channel, sleep timer,
and other options.
MENU
Press to access DBS or DVD menus.

R EMOTE C ONTROL O PERATION
11 
Mode Operational Key Chart
This chart defines the keys that are operational in the selected component modes (TV, VCR, DBS, CABLE or DVD) after
programming (if needed).
KEY NAME TV MODE CABLE MODE DBS MODE VCR MODE DVD MODE
POWER POWER POWER POWER POWER POWER
SAP SAP ON/OFF - - - -
MUTE MUTE TV MUTE TV MUTE TV MUTE TV MUTE
TV/VIDEO INPUT SWITCH TV INPUT SWITCH TV INPUT SWITCH TV INPUT SWITCH TV INPUT SWITCH
MENU - - DBS MENU - -
ACTION ACTION - DBS MENU - -
CH 
CHANNEL UP CABLE CHANNEL UP DBS NAVIGATION UP -NEXT CHAPTER
CH 
CHANNEL DOWN CABLE CHANNEL DOWN DBS NAVIGATION DOWN -PREVIOUS CHAPTER
VOL 
VOL + TV VOL + DBS NAVIGATION RIGHT TV VOLUME + NAVIGATION RIGHT
 VOL VOL - TV VOL - DBS NAVIGATION LEFT TV VOLUME - NAVIGATION LEFT
RECALL DISPLAY TV DISPLAY DBS PROG. INFO ONSCREEN VCR
DISPLAY DVD DISPLAY
EXIT - - DBS EXIT - -
GUIDE - - DBS GUIDE - -
PROG - - DBS PROGRAM - -
1DIGIT 1 DIGIT 1 DIGIT 1 - -
2DIGIT 2 DIGIT 2 DIGIT 2 - -
3DIGIT 3 DIGIT 3 DIGIT 3 - -
4DIGIT 4 DIGIT 4 DIGIT 4 - -
5DIGIT 5 DIGIT 5 DIGIT 5 - -
6DIGIT 6 DIGIT 6 DIGIT 6 - -
7DIGIT 7 DIGIT 7 DIGIT 7 - -
8DIGIT 8 DIGIT 8 DIGIT 8 - -
9DIGIT 9 DIGIT 9 DIGIT 9 - -
0DIGIT 0 DIGIT 0 DIGIT 0 - -
R-TUNE PREVIOUS CHAN
OR VIDEO MODE CABLE PREVIOUS CHANNEL PREVIOUS DBS CHANNEL - -
<<REW VCR REWIND - - VCR REWIND SKIP SEARCH REW <<
PLAY VCR PLAY - - VCR PLAY DVD PLAY
FF >> VCR FF - - VCR FF SKIP SEARCH FF>>
PAUSE VCR PAUSE - - VCR PAUSE DVD STILL
STOP VCR STOP - - VCR STOP DVD STOP
RECORD VCR RECORD - - VCR RECORD -
TV/VCR TV/VCR SWITCH - - TV/VCR SWITCH OPEN/CLOSE
VCR/DBS
CH VCR CHANNEL DOWN -DBS CHANNEL DOWN VCR CHANNEL DOWN SLOW -
VCR/DBS
CH VCR CHANNEL UP -DBS CHANNEL UP VCR CHANNEL UP SLOW +

12 
R EMOTE C ONTROL O PERATION
Programming The Remote
The Universal Remote Control can be programmed to operate many manufacturers’ components, using the component
function buttons for VCR, DVD, CABLE or DBS. Follow the procedures for programming your Remote Control with or
without a code for the component.
Determine the manufacturer of the component and look in the table for the code.
Programming With a Code
Procedure
• Confirm that the external component is plugged in and operating.
• Turn the component off.
• Press and together, for at least 5 seconds.
• Press appropriate component button on the Remote Control VCR, DVD, CABLE or DBS.
• Enter the 3-digit component code using the Remote Control numeric keypad (0 ~ 9 buttons).
• Press the Remote Control to test the component. If the procedure was successful, the component will turn on.
Programming Without A Code
This procedure searches all codes and is called the “sequence method.”
• Confirm that the external component is plugged in and on.
• Turn the component off.
• Press and together, for at least 5 seconds.
• Press appropriate component button on the Remote Control.
•PressVOL  to move forward to the next code. Press  VOL to move backward.
• Press the Remote Control to test the component. If the procedure was successful, the component will turn on.
Note: Repeat the above steps until the component code is found. It may take many attempts before the correct code
is found.
• After the code is found, press to store the code.
Default Modes For Remote Control
Device Operates Default
TV TV (Panasonic Only) Panasonic TV Codes
VCR VCR (Preset) Panasonic VCR Codes
DBS DBS (Preset) Panasonic DBS Codes
CABLE CABLE (Preset) Panasonic DBS Codes
DVD DVD, CD (Preset) Panasonic DVD Codes
Helpful Hints: Unsuccessful Code
If the component does not operate with the Remote Control, repeat
the procedure using another code. (Some brands have multiple
codes).
If an incorrect code is entered, or if the procedure takes longer than
30 seconds, the programming will fail.
ACTION POWER
POWER
ACTION POWER
POWER
ACTION

R EMOTE C ONTROL O PERATION
13 
Component Codes
The Universal Remote Control is capable of operating many component brands after entering a code. Some components
may not operate because the codes are not available due to limited memory. The Universal Remote Control does not
control all features found in each model.
Write the code numbers from tables in this space. This will serve as a reference if you need
to program your Remote Control.
VCR DBS CABLE DVD
Brand Code
Admiral 335
Aiwa 332
Akai 314, 315, 316, 329
Audio Dynamic 311, 339
Bell & Howell 305, 313
Broksonic 320, 326
Canon 323, 325
CCE 343
Citizen 306
Craig 305, 306, 329
Curtis Mathes 324, 345
Daewoo 301, 324, 343
DBX 310, 311, 339
Dimensia 345
Emerson 303, 319, 320, 325, 326, 343
Fisher 305, 307, 308, 309, 313
Funai 320, 326, 334
GE 324, 333, 345
Goldstar 306
Gradiente 334
Hitachi 300, 323, 345
Instant Replay 323, 324
Jensen 339
JVC 310, 311, 334,339
Kenwood 306, 310, 311, 339
LXI 300, 305, 306,307, 308, 309
Magnavox 323, 324, 331
Marantz 310, 311, 339
Marta 306
Memorex 309, 324
MGA 338, 340, 341, 347,348
Minolta 300, 345
Mitsubishi 338, 340, 341, 347, 348
Multitech 304, 347
NEC 310,311, 334, 339
Olympic 323, 324
Optimus 306, 321, 328, 335
Brand Code
Orion 320, 326
Panasonic 321,322, 323, 324
J.C. Penney 300,305, 310, 311, 324, 339, 345
Pentax 300,311, 345
Philco 320, 323, 324, 326, 331, 343
Philips 323, 324, 331
Pioneer 323
Proscan 300, 301, 302, 323, 324, 331, 333,
345, 346
Quasar 321, 322, 323, 324
Radio Shack 305, 309, 324, 333, 336, 340
RCA 300, 301,302, 323, 324, 331, 333,
345, 346
Realistic 305, 309, 324, 336, 340
Samsung 302, 304, 333
Sansui 320, 326, 339, 352
Sanyo 305, 309, 313
Scott 301, 302, 304, 309, 320, 326, 338,
340, 347, 348
Sears 300, 305, 306, 307, 308
Sharp 335, 336
Shintom 317
Signature 2000 335
Singer 337
Sony 328, 329, 330
Sylvania 331, 324, 331
Tashiro 306
Tatung 310, 311, 339
Teac 310, 311, 339
Technics 321, 322, 323, 324
Teknika 324
Toshiba 301, 346
Vector Research 311
Wards 306, 309, 335, 336, 344
Yamaha 305, 310, 311, 339
Zenith 306,344
Codes For VCR

14 
R EMOTE C ONTROL O PERATION
Component Codes (contd.)
Brand Code
ABC 224
Archer 225, 232
Cableview 205, 232
Citizen 205, 222
Curtis 212, 213
Diamond 224, 225, 232
Eagle 229
Eastern 234
GC Brand 205,232
Gemini 222
General
Instrument/
Jerrold 211, 219, 220, 221, 222, 223, 224,
225, 226, 227
Hamlin 212, 218, 240, 241, 242, 245
Hitachi 203, 224
Macom 203, 204, 205
Magnavox 233
Memorex 230
Movietime 205, 232
Oak 202, 237,239
Panasonic 209, 210, 214
Philips 206, 207, 228, 229, 230
Pioneer 201, 216
Pulsar 205, 232
Brand Code
Denon 100
Ferguson 101
JVC 109
Mitsubishi 105
Nordmende 101
Panasonic 100
Philips 103
Pioneer 102
RCA 101
Brand Code
Puser 232
RCA 215
Realistic 232
Regal 212, 218, 240, 241, 242, 245
Regency 234
Rembrandt 205,232,237
Samsung 205
Scientific Atlanta 211, 212, 213
Slmark 201, 205
Sprucer 205, 210
Stargate 205, 232
Teleview 201, 205
Texscan 244
Tocom 235
Toshiba 204
Unika 225, 232
Universal 222, 232
Videoway 206
Viewstar 229, 230
Zenith 200, 217
Zenith / Drake
Satellite 200
Brand Code
Saba 101
Samsung 110
Sharp 108
Sony 104
Technics 100
Thomson 101
Toshiba 103
Yamaha 100
Zenith 107
Codes for Cable Box
Codes for DVD
Codes for DBS
Brand Code
Panasonic 104
Philips 101, 102
Primestar 108
Proscan 106, 109, 110, 113
RCA 106, 109, 110, 113
Sony 107
Star Choice 103, 108
Toshiba 100
Uniden 101, 102
Brand Code
Dish Network
(Echostar) 105, 115, 116
Echo Star 105
Express VU 105, 115
G.E. 106
G.I. (General
Instrument) 108
Gradiente 114
Hitachi 103, 111, 112
HNS (Hughes) 103
Magnavox 101, 102

I CON M ENU N AVIGATION
15 

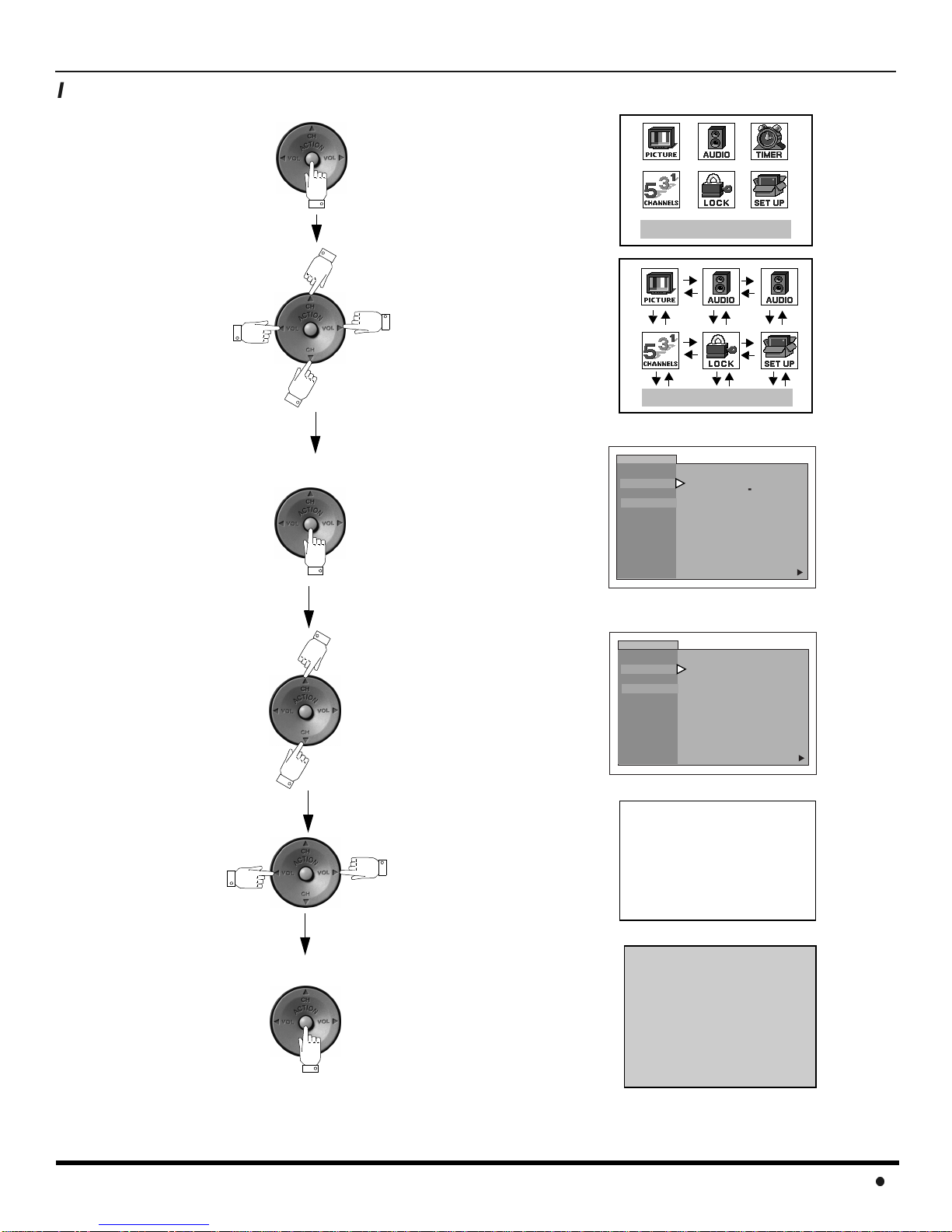

Icon Menu Navigation
Press to display the Icons.
Press to select desired icon.
Press to display selected
Icon features.
Press to select feature.
Press
VIDEO ADJ.
PICTURE PIC MODE VIVID
COLOR
TINT
BRIGHTNESS
SHARPNESS
NORMAL NO
u
-- -- -- I -- -- --
-- -- -- -- ---- -- -- -- -- -- I
-- -- -- I -- -- --
-- -- -- I -- -- --
-- -- -- I -- -- --
OTHER ADJ.
VIDEO ADJ.
PICTURE PIC MODE VIVID
COLOR
TINT
BRIGHTNESS
SHARPNESS
NORMAL NO
u
-- -- -- I -- -- --
-- -- -- -- ---- -- -- -- -- -- I
-- --
-- I -- -- --
-- -- -- I -- -- --
-- -- -- I -- -- --
OTHER ADJ.
to adjust or activate feature.
BRIGHTNESS 32 -- -- -- I -- -- --
Press repeatedly to exit menus.
NORMAL PICTURE
EXIT
EXIT

16 
M AIN M ENU I CONS

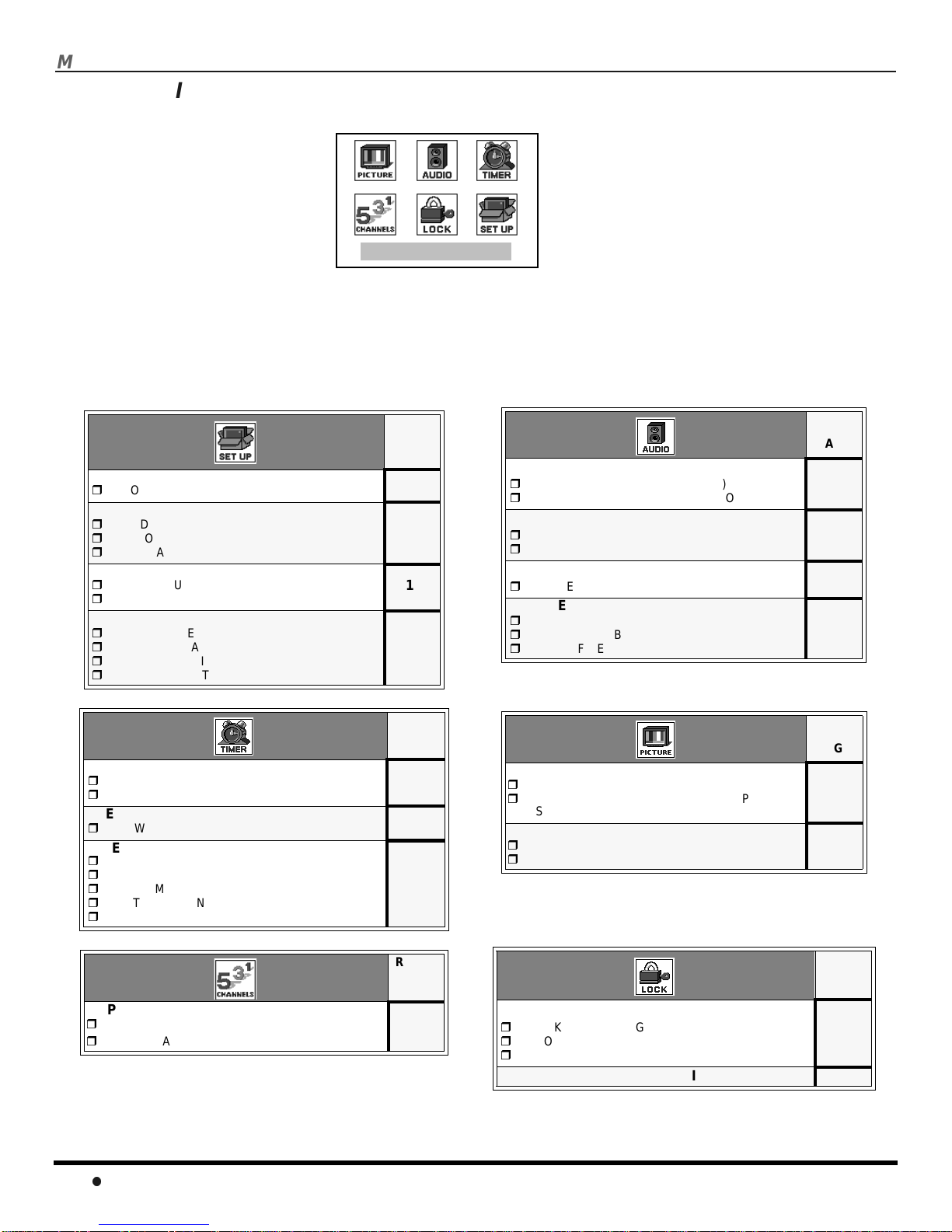

Icon Menus
These charts list all menus under each Icon and which pages to refer to for menus description.
REFER
TO
PAGE
IDIOMA/LANGUE
 MODE - (ENGLISH, FRANÇAIS, ESPAÑOL) 17
PROG CHAN
 MODE - (TV or CABLE)
 AUTO PROGRAM
 MANUAL PROGRAM
17
CC (CLOSED CAPTIONED)
 CC ON MUTE
 CC MODE 18
OTHER ADJ.
 AUTO POWER ON
 CHANNEL BANNER
 GEOMAGNETIC CORR
 TILT CORRECTION
18
19
REFER
TO
PAGE
CLOCK SET
 TIME
 DAY 20
SLEEP
 HOW LONG? 20
TIMER
 DAY
 ON TIME
 OFF TIME
 ENTER CHANNEL
 SET
20
REFER
TO
PAGE
CAPTION
 MANUAL CAPTION
 INPUT LABEL 22
REFER
TO
PAGE
AUDIO ADJ.
 MODE (STEREO, SAP or MONO)
 BASS, TREBLE, BALANCE OR NORMAL 21
OTHER ADJ.
 AI SOUND
 BBE 21
SURROUND
 MODE 21
SPEAKERS
 ON
 OFF & VARIABLE AUDIO OUT
 OFF & FIXED AUDIO OUT
21
REFER
TO
PAGE
VIDEO ADJ
 PIC MODE
 COLOR, TINT, BRIGHTNESS, PICTURE,
SHARPNESS or NORMAL 19
OTHER ADJ.
 COLOR TEMP
 VM 19
REFER
TO
PAGE
MODE
 LOCK SET - (OFF, GAME, CHANNEL or ALL)
 BLOCK PROGRAM
 HOW LONG?
23
V-CHIP OPERATION 24
Main Menu Icons
EXIT

I CON M ENU O PERATION
17 
Icon Menu Operation
SET UP
Note: Refer to page 15 for Icon Menu Navigation procedures.
IDIOMA/LANGUE (Menu Languages)
 MODE - In SET UP Menu, select IDIOMA/LANGUE to change menu language to ENGLISH, ESPAÑOL (Spanish)
or FRANÇAIS (French).
Prog Chan (Program Channels)
 MODE - To select TV (antenna) or CABLE mode depending on the signal source.
 AUTO PROGRAM - To automatically program all channels with a signal.
 MANUAL PROGRAM - To manually add or delete channels.
 Press VOL  to select English, Spanish or French.
SETUP
CC
IDIOMA/
LANGUE
PROG CHAN
OTHER ADJ.
MODE ENGLISH u
 Press VOL  to select TV or CABLE.
SETUP
CC
IDIOMA/
LANGUE
PROG CHAN
OTHER ADJ.
MODE
AUTO PROGRAM
MANUAL PROGRAM
u
u
u
CABLE
 Press VOL  to start AUTO PROGRAM.
SETUP
CC
IDIOMA/
LANGUE
PROG CHAN
OTHER ADJ.
MODE
AUTO PROGRAM
MANUAL PROGRAM
u
u
u
CABLE
 Press VOL  to display next menu.
Note: Use Remote numeric keypad to enter channel
numbers.
SETUP
CC
IDIOMA/
LANGUE
PROG CHAN
OTHER ADJ.
MODE
AUTO PROGRAM
MANUAL PROGRAM
u
u
u
CABLE
SET UP
MANUAL PROGRAM
t TO DELETE
u TO ADD
ENTER CHANNEL 3

18 
I CON M ENU O PERATION

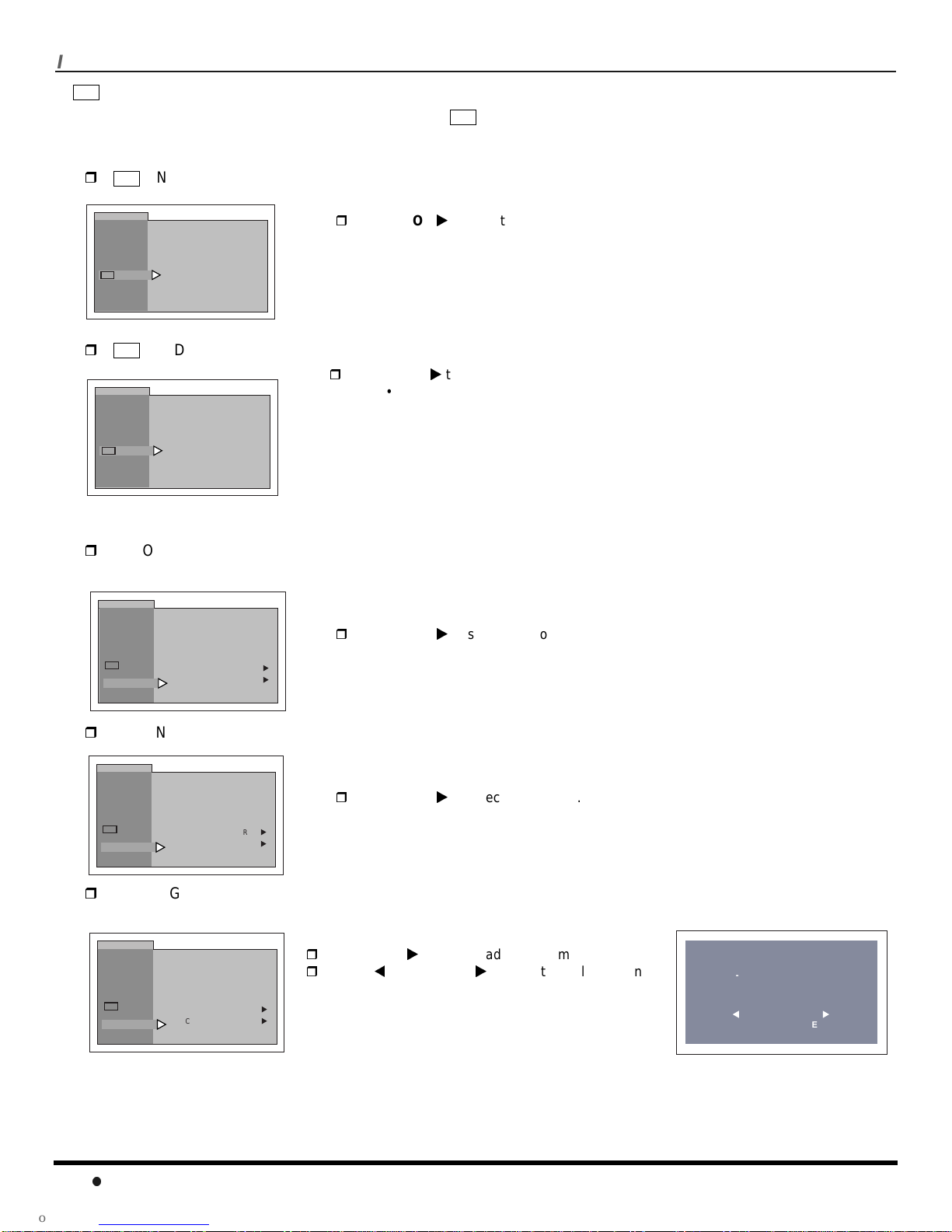

(Closed Captioning)
This television contains a built-in decoder that displays (Closed Captioned) text across the screen (white or colored
letters on black background). It allows the viewer to read the dialogue of a television program or other information. The
program viewed must include Closed Captioning for the feature to work.
 ON MUTE - Activates the Closed Caption feature when the MUTE button on the remote control is pressed.
 MODE - Activates the onscreen Closed Caption feature by selecting one of the following modes:
Other Adjustments
 AUTO POWER ON - Select SET to power up the TV at the same time as the Cable box or other components or
select OFF.
 CHANNEL BANNER - Select ON to display onscreen banner when changing channels.
 GEOMAGNETIC CORR - This feature is used to adjust discoloration of the picture due to the earth’s magnetic field
in the area.
CC
CC
CC
 Press VOL  to select C1, C2, or NO.
Note: This feature only functions when the Closed Caption Mode is OFF. The recommended
setupforClosedCaptiononMuteis:
•CCONMUTE:C1
•CCMODE:OFF
SETUP
IDIOMA/
LANGUE
PROG CHAN
OTHER ADJ.
CC CC MODE OFF
CC ON MUTE NO
CC
 Press VOL  to select:
• OFF - When Closed Caption is not desired.
• C1 - For video related information to be displayed, up to 4 lines onscreen at
a time. (It does not block relevant parts of the picture). Text may be in any
language.
• C2 - Another Closed Captioning mode for video related information to be
displayed.
Nota: C1 mode is recommended for viewing Closed Captioning.
SETUP
IDIOMA/
LANGUE
PROG CHAN
OTHER ADJ.
CC CC MODE OFF
CC ON MUTE NO
 Press VOL  to select OFF or SET.
SETUP
IDIOMA/
LANGUE
PROG CHAN
OTHER ADJ.
CC
AUTO POWER ON OFF
CHAN BANNER OFF
u
GEOMAGNETIC CORR
TILT CORRECTION
u
 Press VOL  to select OFF or ON.
Note: Press RECALL to display onscreen Channel Banner at any time.
SETUP
IDIOMA/
LANGUE
PROG CHAN
OTHER ADJ.
CC
AUTO POWER ON OFF
CHAN BANNER OFF
u
GEOMAGNETIC CORR
TILT CORRECTION
u
 Press VOL  to display adjustment menu.
 Press  VOL or VOL  to adjust discoloration in
picture.
SETUP
IDIOMA/
LANGUE
PROG CHAN
OTHER ADJ.
CC
AUTO POWER ON OFF
CHAN BANNER OFF
u
GEOMAGNETIC CORR
TILT CORRECTION
u
GEOMAGNETIC CORRECTION
- - - - - - - - - - - - - - - - - -
0
t TO ADJUST u
PRESS ACTION TO EXIT
l
