Panasonic TC-21Z88RB User manual

ORDERNO. MTV0301215C3
Colour Television
TC-21Z88RB
MX-5ZAChassis
SPECIFICATIONS
Specifications
Power Source : AC AUTO 110-240V, 50/60 Hz
Power Consumption : 108W
Aerial Impedance : 75 unbalanced
Coaxial type
Receiving System : 17 Systems
Receiving Channels:
VHF 1-11 PALB (Australia& N.Zealand)
1-12 PAL/SECAM D
1-12 NTSC M JAPAN
2-12 PAL/SECAM B, G
2-13 NTSC M U.S.A.
UHF 21-69 PALG I/SECAM B, G, K1
28-69 PALG (Australia)
13-56 PALD
13-52 NTSC M JAPAN
14-69 NTSC NTSC M U.S.A.
CATV S1-S41 (Hyper)
IntermediateFrequency:
Video 38.0MHz
Sound 31.5MHz (D, K, K1)
32 MHz (I)
32.5MHz (B, G)
33.5MHz (M)
1

Colour 33.57 MHz (PAL)
33.6MHz (SECAM)
33.75 MHz (SECAM)
34.42 MHz (NTSC)
Video/ AudioTerminals:
RAV In VideoIn1Vp-p75
AudioInApprox. 400mVrms
MonitorOut VideoOut 1Vp-p75
AudioOut Approx. 400mVrms
High Voltage: 28.0kV ±1.0
at zerobeam current
Picture Tube: A51JXS064X
51cm (21 inches)
Measureddiagonally,
90° deflection
AudioOutput : 16.0W
Dimensions: Height : 464.0mm
Width: 682.0mm
Depth: 496.0mm
Mass : 23.0kg(Net Wt.)
Specificationsare subject tochangewithout notice. / Mass
and dimensionsshownare approximate.
2003 Matsushita ElectricIndustrial Co., Ltd. All rights reserved.
Unauthorized copying and distribution isaviolation of law.
1. Safety Precautions
1.1. General Guide Lines
1. Itisadvisableto insert an isolation transformer inthe AC supply
before servicing thishot chassis.
2. When servicing, observe the original lead dress, especiallythe
lead dress inthe high voltage circuits. Ifashort circuitisfound,
replace all parts which have been overheated or damaged bythe
short circuit.
3. After servicing, see to itthat all the protective devices such as
2

insulation barriers, insulation papers, shields and isolation R-C
combinations, are properlyinstalled.
4. When the receiver isnot to be used for along period of time,
unplug the power cord from the AC cord outlet.
5. Potential, as high as 27.0kV ispresent when thisreceiver isin
operation. Operation of the receiver without the rear cover
involves the danger of ashock hazard from the receiver power
supply. Servicing shouldnot be attempted byanyone who isnot
thoroughlyfamiliar with the precautions necessarywhen working
on high voltage equipment. Alwaysdischarge the anode of the
picture tube to the receiver chassisbefore handling the tube.
After servicing make the following leakage current checks to
prevent the customer from being exposed to shock hazards.
1.2. Leakage Current ColdCheck
1. Unplug the AC cord and connect ajumper between the two
prongs on the plug.
2. Turn on the receiver’spower switch. / Measure the resistance
value, with an ohmmeter, between the jumper AC plug and each
exposed metalliccabinet part on the receiver, such as screw
heads, aerials, connectors, control shafts, etc. When the exposed
metallicpart has areturn path to the chassis, the reading should
be between 4M and 20 M . When the exposed metal does not
have areturn path to the chassis, the reading must be infinite.
1.3. Leakage Current Hot Check (Fig. 1)
1. Plug the AC cord directlyinto the AC outlet. Donot use an
isolation transformer for thischeck.
2. Check a2k non-inductive resistor and an AC/DC current meter,
inseries with each exposed metallicpart on the receiver inturn
and an earth such as awater pipe.
The current from anypoint shouldnot exceed 0.7mApeak AC or
2mADC. Inthe case of ameasurement being outside of these
limits specified, there isapossibilityof ashock hazard and the
receiver shouldbe repaired and rechecked before itisreturned to
the customer.
3

Fig. 1
,
1.4. X-Radiation
Warning:
The potential sources of X-Radiation inTV set are the EHTsection and the picture tube. When
using a picture tube test jigforservice, ensure that jigis capable of handling 28.0kV without
causing X-Radiation.
Note: It is important touse anaccurate periodicallycalibratedhigh voltage meter.
1. Set the brightness to minimum.
2. Use the remocon to get into Service Mode.
3. Measure the EHT. The meter reading shouldindicate 27.0±1.0kV. If
the meter indication isout of tolerance, immediate service and
correction isrequired to prevent the possibilityof premature
component failure.
4. To prevent the possibilityX-Radiation, itisessential to use the
specified picture tube, ifservice replacement becomes necessary.
1.5. MX-5ZAChassisBlock Diagram
2. Service Hints
2.1. Service Position for E-Board
1. Remove the back cover.
2. Stand the TV set as showninFig. 2.
3. Remove the A-Board from the TV set bypulling the mainboard
out as showninFigure 2.
Fig. 2
4

2.2. FactoryMode Adjustment
How to set :
To set the Factorymode, press Volume 0dac on the TV and Timer
Setting 30 min. on the remote control and press Volume (-) Down
button on the TV together press recall on the remote control. /
CHK shouldappear on right of TV screen. / To move from CHK1to
CHK2mode, etc. please follow below rotation :
To Set Self-Check :
Press the Volume Downbutton on TV then press the Off Timer
button on remote control.
2.3. Adjustment for White Balance
Preparation:
1. Receive the white balance pattern and aging shouldhave been
performed over 30 minutes.
2. Set the picture menu to DYNAMICNORMAL.
3. Degausse the CRTface.
4. Fixthe CRTcolour analyzer receiver unitto CRTface.
Adjustment of LowLight.
1. Adjustment Sub Bright, so that Y= 7.0± 1.0nit.
2. Adjustment R-CUTOFF, so that X= 0.245 ± 0.010 nit.
5

3. Adjustment G-CUTOFF, so that Y= 0.235 ± 0.010 nit.
Adjustment of High Light
1. Adjustment Sub Bright, so that Y= 155 nit.
2. Adjustment R-Drive, so that X= 0.270 ± 0.010 nit.
3. Adjustment B-Drive, so that Y= 0.275 ± 0.010 nit.
2.4. Adjustment for CRTCUTOFF
Preparation:
1. Connect the oscilloscope probe to TPL7.
2. Screen VRmin.
3. Set the data Sub Bright, Bright.
4. Inservice Mode at “Bright” dac press [5] infactorymode to enter
vertical line and adjust byvolume downor up button.
5. Adjust “Screen VR”until 1-HLine appears.
2.5. Adjustment Procedure
6

Item/ Preparation Adjustment Procedure
+B Voltage Confirm the DC voltage at the indicatedtest points,
as
:
1. Operate the TV set. TPA 12 : 140.5 ± 1.5V
2. Set control as follows : TPA 11 : 8 ± 1V
Brightness ........... minimum TPA 10 : 5 ± 1V
Contrast .............. minimum TPA 21 : 215 ± 15V
RFAGC
1. Receive a colourbarsignal at anRF
level of 69 +1-2 dBU with75 loaded. 1. Select “RFAGC” indication inCHK2, on Screen
by
control at factorymode.
2. Connect digital multimetertoRF
AGC at Tuner. 2. Set RFAGC byusing remote control Volume (+)
or
(-) button until voltage AGC at Tunerreaches 2.6 ±
0.1V
TPA 15 (Tunerpoint).
3. Increase RFsignal strengthby2dB, confirm AGC
at
voltage drop.
High Voltage
1. Receive the crosshatchpattern. 1. Connect a DC voltage metertoTPA 12 and
confirm
voltage is 140.5 ± 1.5V.
2. Set to0 Beam.
ScreenVR .......... minimum 2. Connect a high frequencyvoltmetertoheaterand
confirm
that voltage reads 6.0 ± 0.24 (VRMS).
Contrast .............. minimum
3. Normalize the brightness and contrast.
Item/ Preparation Adjustment Procedure
NTSC TINTCOLOUR
Connect a short jumperbetweenTPA
10 and TPA 20.
Press MainMenu and set systemto
use AV-NTSC (3.58 MHz).
DYNAMIC ................. Normal
Channel CLR Set ..... STD
1. Adjust Sub-Tint sothat No. 2, 3 and 4 becomes
level

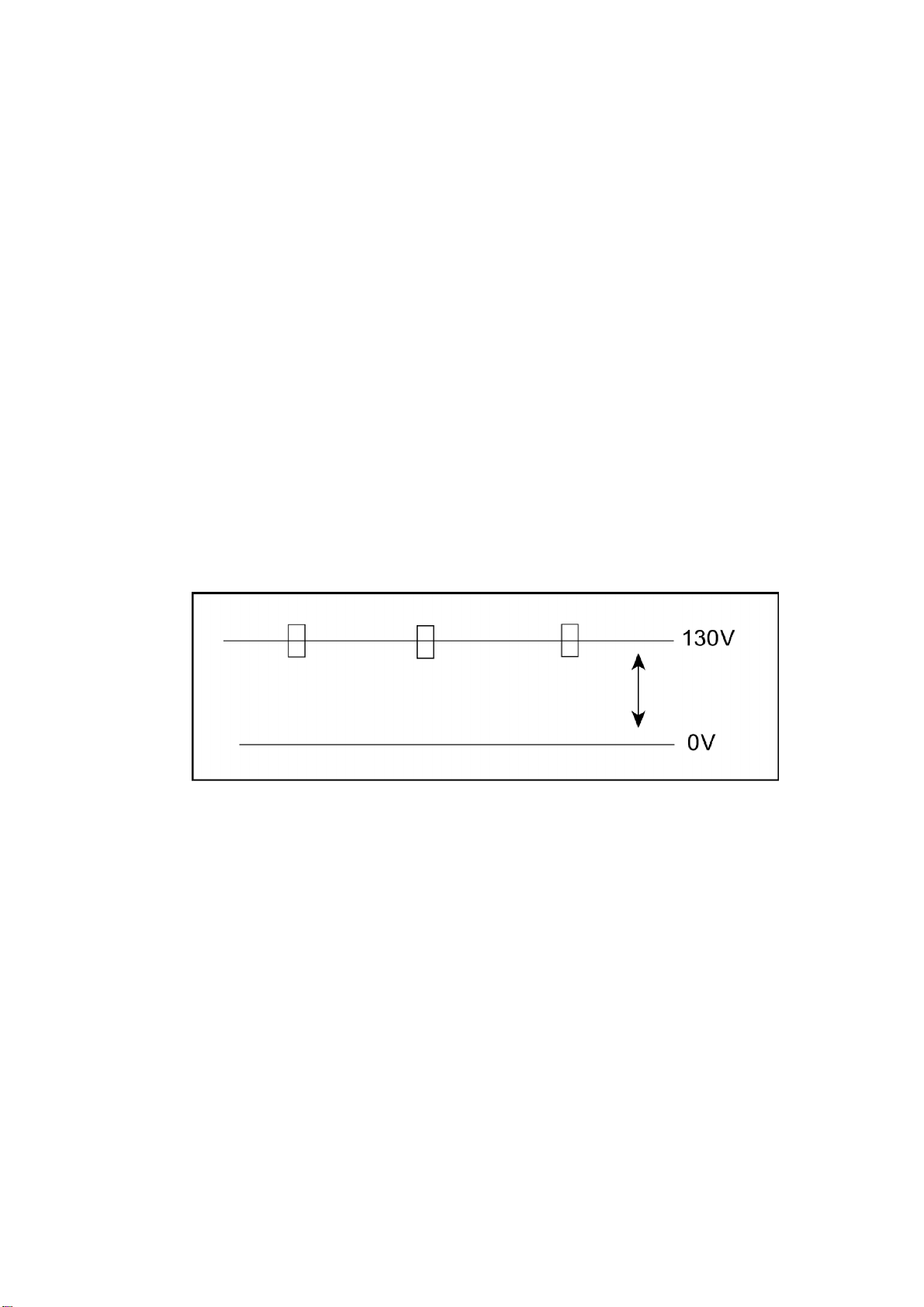

waveform is similartoFig. 3.
2. Confirm phase at Tint is changes more than± 30
by
control.
3. Confirm that colourlevel is maximumwhen
colour
adjustedtomaximumposition.
Note: Use remote control onlywhenadjusting
user
Sub-Tint.
7

Fig. 3
2.6. PALColour
1. Receive the PALB/G studiocolour bar pattern and adjust local
frequencyat the best tuned position.
2. PicMenu: DynamicNormal, Confirm Contrast -63, Sub Contrast -
21.
3. Channel colour set --------- STD
4. “CHK2” and press digitkey“5” (AKB OFF) also confirm OSD
become blue colour.
5. Connect TPA10 to TPA20.
6. Set (A)to 2.3± 0.2V byBRT(CHK2) at measurement point TPL 2
Fig. 4.
2.7. Adjustment
1. Connect oscilloscope probe to TPL 2(G OUT) with 10k series
resistor and adjust Contrast so that (B)as inFig. 4is2.4± 0.1V.
2. Adjust “Sub Colour” so that waveform as inFig. 4(1) 2.5± 0.1V.
3. Connect oscilloscope probe to TPL 1(ROUT) with 10k series
resistor and confirm waveform as inFig. 5is(2) 2.7± 0.4V.
4. Take out jumper TPA10 and TPA20.
5. Press digitkey“5” (AKB ON)and confirm the OSDbecome white
colour.
8

Before ColourPurity, Convergence and White Balance
adjustment are attempted,
V. Height, H. Centre and Focus adjustments must be completed.
ColourPurity
1. Set the Brightness and Contrast controlsto theirmaximum
positions.
2. Operate the TV set for 60 minutes.
3. Fullydegausse the picture tube byusing an external degaussing
coil.
4. Applyacrosshatch pattern signal and adjust the static
convergence magnets to the approximatelycorrect position.
5. Receive ablack and white signal.
6. Set the control as follows: / Red................minimum /
Green.............minimum / Blue...............minimum / Press the
Shipping button on the remote control twice to select CRT
Adjustment Mode to select low light.
7. Loosen the clamp screw for the Deflection Yoke AinFig. 10 and
move the Deflection Yoke as close to the puritymagnet as
possible.

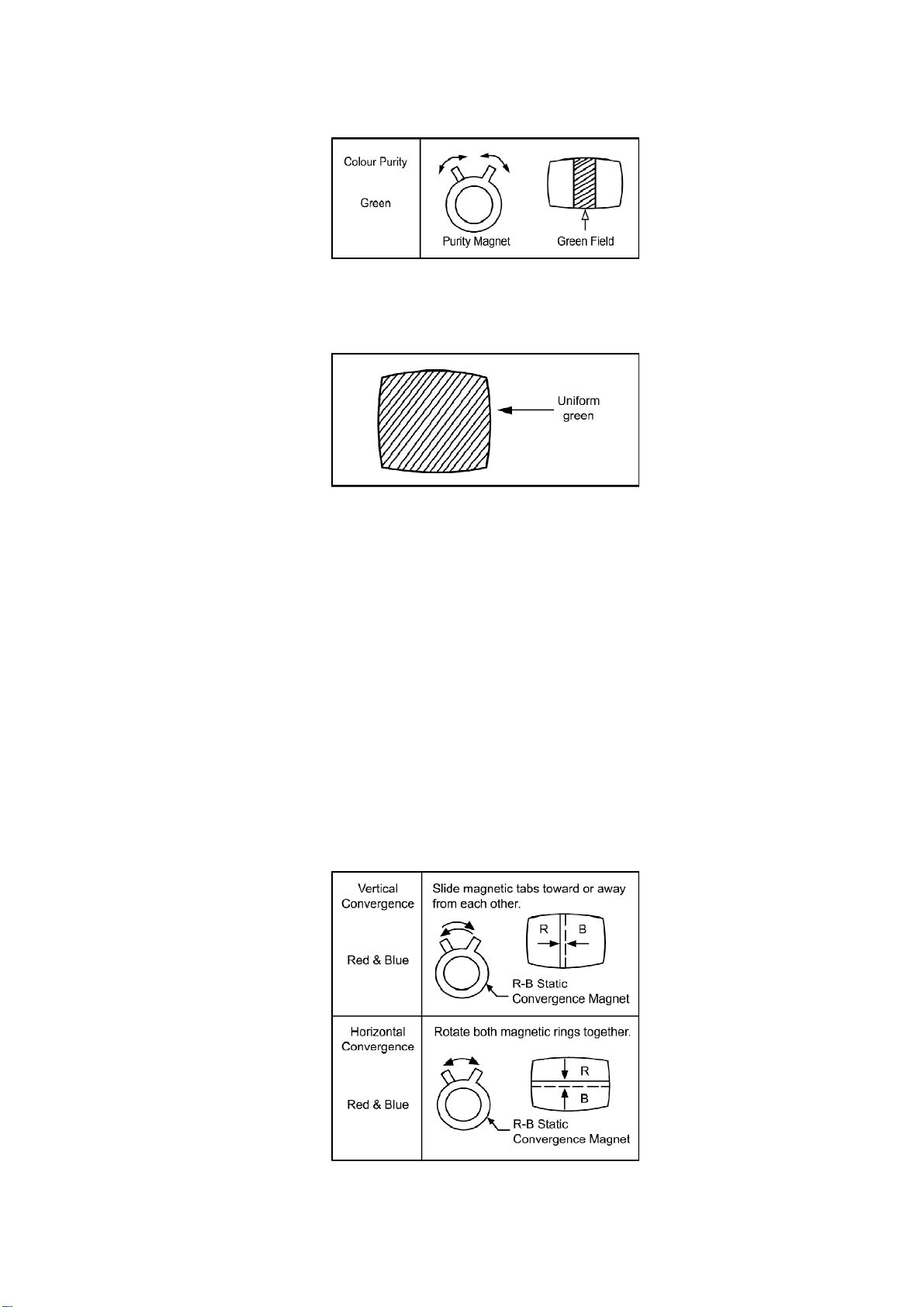

8. Adjust the puritymagneticrings so that avertical green fieldis
obtained at the centre of the screen.
Fig. 6
9

9. Slowlypush the Deflection Yoke and set itwhere auniform green
fieldisobtained. Fig. 21
10. Re-adjust the Low Light controlsto theircorrect settings and
make sure that auniform white fieldisobtained.
11. Tighten the clamp screw AinFig. 10.
Convergence
1. Applyacrosshatch pattern signal and Normalize Contrast control
to the maximum positions.
2. Adjust Brightness until the greyposition of the crosshatch
pattern just becomes black.
3. Adjust the Red and Blue line at the centre of the screen by
rotating the R-Bstatic. Fig. 8
10

4. Adjust Red and Blue with Green line at centre of the screen by
rotating (RB)-G staticconvergence magneticrings.
5. Lock convergence magnets with silicone sealer.
6. Remove the DYwedges and slightlytiltthe Deflection Yoke
verticallyand horizontallyto obtainthe good overall convergence.
Fig. 9
7. Fixthe Deflection Yoke byreinserting the DYwedges. Refer to
Fig. 10.
8. Ifpurityerror isfound, repeat “Colour Purity”adjustment.
Fig. 10
11

Fig. 11
Notes:
1. Wedge A, Band Cshouldbe inserted following the sequence of 1,
2and 3showninFig. 11.
2. The wedges shouldbe set 120° apart from each other.
3. Becertainthat three wedges are firmlyfixed and the Deflection
Yoke istightlyclamped inplace. / Otherwise the Deflection Yoke
mayshift its position and cause aloss of convergence and purity.
3. Conductor Views

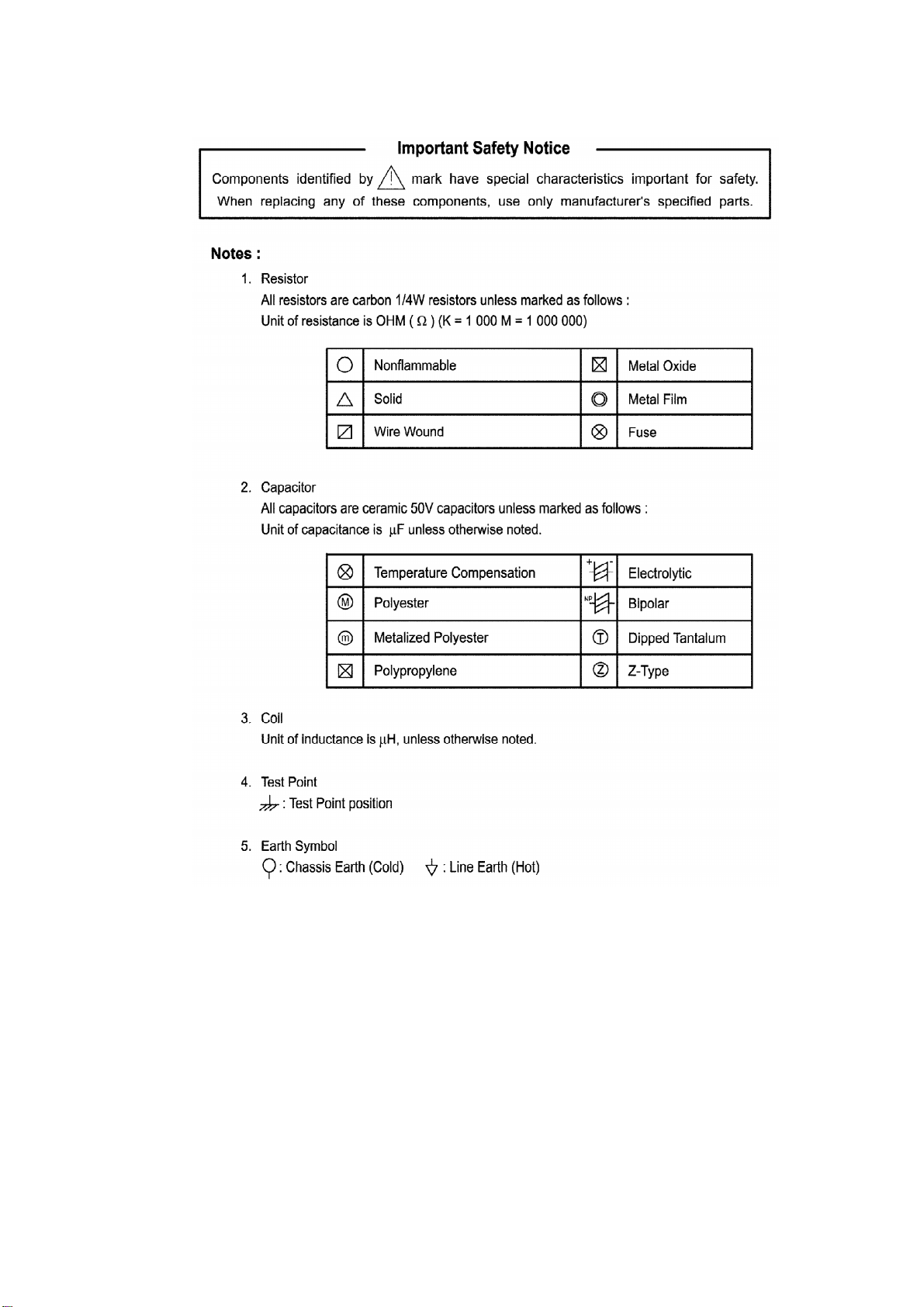

4. Schematic Diagram
12

13

4.1. ABOARD
4.1.1. A BOARD (1/4)
4.1.2. A BOARD (2/4)
4.1.3. A BOARD (3/4)
4.1.4. A BOARD (4/4)
4.2. LBOARD
4.2.1. LBOARD (1/2)
4.2.2. LBOARD (2/2)
4.3. ZBOARD
4.3.1. ZBOARD (1/2)
4.3.2. ZBOARD (2/2)
14

5. Part Location
6. Replacement Parts List
15

6.1. Replacement Parts List
Ref. No. PartNo. PartName& Description Remarks
1A51JXS064X PICTURETUBE
2EASG12D553A2 SPEAKER
EUR648081 REMOTECONTROL
JH291U-009 CONVERGENCEYOKE
KDY3NKE65F DEFLECTION YOKE
3A TBM4G0950 MODEL NAMEPLATE
(S’POREONLY)
3B TBM4G0951 MODEL NAMEPLATE
(M’EASTONLY)
4TBM4G3003 PANASONIC BADGE
5TBX4G89011 POWER BUTTON
TEK6935 DOOR SWITCH
TES4G206 COIL SPRING
THT4G1013R SCREW
6TKP4G11745 AC CORD BRACKET
TJS4G8100 AC PLUG ADAPTOR
(M’EASTONLY)
7TKP4G12961 DOOR
8TKU4G9820-1 BACK COVER ASSY
9TKY4GA1421-2 CABINETASSY
10 TLK4G9012A DEGAUSSING COIL
TMM4G502 RUBBER WASHER
TMM4G503 RUBBER WEDGE
16

Ref. No. PartNo. PartName& Description Remarks
NLA TNP4G216AM ABOARD
(S’POREONLY)
NLA TNP4G216AM.A ABOARD
(M’EASTONLY)
NLA TNP4G225AG L BOARD
NLA TNP4G230AA Z BOARD
TPC4G48206 CARTON
TPE4G14003 LAMI BAG
(S’POREONLY)
TPE4G14025 SETCOVER
TQB4G3309 FAN BAG
(S’POREONLY)
TQB4G3312 FAN BAG
(M’EASTONLY)
TSM10032-3 MAGNET
TSN63115-4 PURITYMAGNET
TSX4G111H1 AC POWER CORD
(S’POREONLY)
TSX4G112F1 AC POWER CORD
(M’EASTONLY)
TXFPD02AS03 CUSHION (BOTTOM)
TXFPD03AS03 CUSHION (TOP)
RESISTORS
R003 ERJ6GEYJ100 M 10OHM,J,1/10W
R004 ERG3FJ822H M8.2KOHM,J, 3W
R006 ERJ6GEYJ273 M 27KOHM,J,1/10W
R007 ERJ6GEYJ302 M 3KOHM,J,1/10W
R008 ERJ6GEYJ681 M 680OHM,J,1/10W
R011 ERJ6GEYJ103 M 10KOHM,J,1/10W
R012 ERJ6GEYJ332 M 3.3KOHM,J,1/10W
R021 ERJ6GEYJ273 M 27KOHM,J,1/10W
R022 ERJ6GEYJ473 M 47KOHM,J,1/10W
R116 ERJ6GEYJ222 M 2.2KOHM,J,1/10W
R117 ERJ6GEYJ682 M 6.8KOHM,J,1/10W
R118 ERJ6GEYJ103 M 10KOHM,J,1/10W
R119 ERJ6GEYJ103 M 10KOHM,J,1/10W
R120 ERJ6GEYJ680 M 68OHM,J,1/10W
R121 ERJ6GEYJ122 M 1.2KOHM,J,1/10W
R122 ERJ6GEYJ470 M 47OHM,J,1/10W
R555 ERQ14AJ2R0E F 2.0OHM,J, 1/4W
R557 ER050CKF1473 M 147KOHM,F, 1/2W
R558 ERDS2TJ223 C 22KOHM,J, 1/4W
R559 ERQ1CJP1R0S F 1OHM,J, 1W
R560 ERG1SJ102E M1KOHM,J, 1W
R601 ERJ6GEYJ153 M 15KOHM,J,1/10W
R602 ERJ6ENF3001 M 3KOHM, 1/10W
R603 ERJ6GEYJ393 M 39KOHM,J,1/10W
R604 ERJ6GEYJ101 M 100OHM,J,1/10W
R605 ERJ6GEYJ101 M 100OHM,J,1/10W
R606 ERJ6GEYJ101 M 100OHM,J,1/10W
R607 ERJ6GEYJ103 M 10KOHM,J,1/10W
R608 ERJ6GEYJ332 M 3.3KOHM,J,1/10W
R609 ERJ6GEYJ332 M 3.3KOHM,J,1/10W
17

Ref. No. PartNo. PartName& Description Remarks
R610 ERJ6GEYJ103 M 10KOHM,J,1/10W
R611 ERJ6GEYJ472 M 4.7KOHM,J,1/10W
R612 ERJ6GEYJ102 M 1KOHM,J,1/10W
R613 ERJ6GEYJ391 M 390OHM,J,1/10W
R614 ERJ6GEYJ392 M 3.9KOHM,J,1/10W
R616 ERJ6GEYJ392 M 3.9KOHM,J,1/10W
R617 ERJ6GEYJ181 M 180OHM,J,1/10W
R618 ERJ6GEYJ184 M 180KOHM,J,1/10W
R619 ERJ6GEYJ121 M 120OHM,J,1/10W
R620 ERJ6GEYJ121 M 120OHM,J,1/10W
R621 ERJ6GEYJ103 M 10KOHM,J,1/10W
R622 ERJ6GEYJ103 M 10KOHM,J,1/10W
R623 ERJ6GEYJ331 M 330OHM,J,1/10W
R624 ERJ6GEYJ103 M 10KOHM,J,1/10W
R625 ERJ6GEYJ222 M 2.2KOHM,J,1/10W
R626 ERJ6GEYJ104 M 100KOHM,J,1/10W
R627 ERJ6GEYJ683 M 68KOHM,J,1/10W
R628 ERJ6GEYJ563 M 56KOHM,J,1/10W
R629 ERJ6GEYJ154 M 150KOHM,J,1/10W
R630 ERJ6ENF1802 M 18KOHM, 1/10W
R631 ER050CKF5603 M 560KOHM,F, 1/2W
R632 ERJ6GEYJ820 M 82OHM,J,1/10W
R633 ERJ6GEYJ470 M 47OHM,J,1/10W
R634 ERJ6GEYJ822 M 8.2KOHM,J,1/10W
R635 ERJ6GEYJ561 M 560OHM,J,1/10W
R636 ERJ6GEYJ562 M 5.6KOHM,J,1/10W
R637 ERJ6GEYJ473 M 47KOHM,J,1/10W
R638 ERJ6GEYJ391 M 390OHM,J,1/10W
R639 ERJ6GEYJ101 M 100OHM,J,1/10W
R640 ERJ6GEYJ181 M 180OHM,J,1/10W
R641 ERJ6GEY0R00 M 0OHM,J,1/10W
R642 ERJ6GEYJ332 M 3.3KOHM,J,1/10W
R643 ERJ6GEYJ272 M 2.7KOHM,J,1/10W
R655 ERJ6GEYJ103 M 10KOHM,J,1/10W
R660 ERJ6GEYJ274 M 270KOHM,J,1/10W
R661 ERJ6GEYJ103 M 10KOHM,J,1/10W
R662 ERJ6GEYJ333 M 33KOHM,J,1/10W
R801 TAR26FJ2R2Z W2.2OHM, 15W
R806 ERJ6GEYJ132 M 1.3KOHM,J,1/10W
R807 ERJ6GEYJ152 M 1.5KOHM,J,1/10W
R809 ERX12SJR22E M0.22OHM,J, 1/2W
R811 ERJ6GEYJ681 M 680OHM,J,1/10W
R812 ERD75TAJ825 C 8.2MOHM,J, 3/4W
R814 ERJ6GEYJ332 M 3.3KOHM,J,1/10W
R817 ERG3FJ473H M47KOHM,J, 3W
R819 ERDS1TJ330 C 33OHM,J, 1/2W
R821 ERG3FJ333H M33KOHM,J, 3W
R823 ERDS1TJ274 C 270KOHM,J, 1/2W
R824 ERDS1TJ274 C 270KOHM,J, 1/2W
R3004 ERJ6GEYJ101 M 100OHM,J,1/10W
R3005 ERJ6GEYJ184 M 180KOHM,J,1/10W
R3006 ERJ6GEYJ184 M 180KOHM,J,1/10W
R3007 ERJ6GEYJ184 M 180KOHM,J,1/10W
R3008 ERJ6GEYJ184 M 180KOHM,J,1/10W
18

Ref. No. PartNo. PartName& Description Remarks
R3015 ERJ6ENF3300 M 330OHM, 1/10W
R3019 ERJ6GEYJ104 M 100KOHM,J,1/10W
R3020 ERJ6GEYJ104 M 100KOHM,J,1/10W
R3024 ERJ6GEYJ560 M 56OHM,J,1/10W
R3025 ERJ6GEYJ103 M 10KOHM,J,1/10W
R3132 ERJ6GEYJ471 M 470OHM,J,1/10W
R3133 ERJ6GEYJ471 M 470OHM,J,1/10W
CAPACITORS
C001 ECEA1CKA220 E22UF, 16V
C002 ECJ2VF1H104Z C 0.1UF, Z, 50V
C003 ECJ2VF1H103Z C 0.01UF, Z, 50V
C005 ECJ2VF1H104Z C 0.1UF, Z, 50V
C006 ECA1AM331B E330UF, 10V
C008 ECEA1HKA010 E1UF, 50V
C109 ECJ2VF1H103Z C 0.01UF, Z, 50V
C116 ECJ2VF1H103Z C 0.01UF, Z, 50V
C117 ECJ2VB1H103J C 0.01UF, 50V
C120 ECJ2VF1H103Z C 0.01UF, Z, 50V
C121 ECJ2VF1H103Z C 0.01UF, Z, 50V
C122 ECJ2VF1H103Z C 0.01UF, Z, 50V
C136 ECJ2VF1H103Z C 0.01UF, Z, 50V
C354 ECCF1H330JC C 33PF, J, 50V
C355 ECCF1H330JC C 33PF, J, 50V
C356 ECCF1H330JC C 33PF, J, 50V
C357 ECA160V33UE E 33UF, 160V
C359 ECQM4104KZ P0.1UF, K,400V
C368 ECKR1H122KB5 C 1200PF, K, 50V
C370 ECKW3D102KBP C 1000PF, K, 2KV
C371 ECEA1CN100U E10UF, 16V
C373 ECA2EM100B E10UF, 250V
C377 ECA1CM221B E220UF, 16V
C401 ECJ2VC1H222J C 2200PF, J, 50V
C402 ECA1VM222E E 2200UF, 35V
C403 ECA1HM220B E22UF, 50V
C406 ECA1HM101B E100UF, 50V
C408 ECQV1H274JL P0.27UF, J, 50V
C409 ECA1HM330B E33UF, 50V
C502 ECKR2H821KB5 C 820PF, K,500V
C504 ECJ2VB1H681K C 680PF, K, 50V
C506 L5SL4B100D C 10PF, 500V
C511 ECA1VM101B E100UF, 35V
C519 ECA2CM330B E33UF, 160V
C520 ECA0JM221B E220UF, 6.3V
C552 ECA2EM100B E10UF, 250V
C555 ECKR2H471KB5 C 470PF, K,500V
C558 ECA2CMR47B E0.47UF, 160V
C559 ECWH16103JVB P 0.01UF,J,1.6KV
C560 ECQM4273JZ P0.027UF, 400V
C561 ECWH16182JVB P 1800PF,J,1.6KV
C562 ECKW3D471JBN C 470PF, J, 2KV
C563 ECWF2394JSR P0.39UF, J,250V
C565 ECQP1H183JZ P0.018UF, J, 50V
C566 ECQM4472JZ P4700PF, J,400V
C567 ECQM4123JZ P0.012UF, J,400V
19

Ref. No. PartNo. PartName& Description Remarks
C570 ECJ2VC1H560J C 56PF, J, 50V
C601 ECEA1CKA101 E100UF, 16V
C602 ECUX1H104KBX C 0.1UF, K, 50V
C603 ECJ2VB1H472K C 4700PF, K, 50V
C863 ECKR2H331KB5 C 330PF, K,500V
C864 ECKR2H331KB5 C 330PF, K,500V
C865 F2A2C680A021 E68UF, 160V
C866 ECKW3D221JBP C 220PF, J, 2KV
C971 F1B1H103A013 C 0.01UF, 50V
C1101 ECJ2VF1H104Z C 0.1UF, Z, 50V
C1103 ECJ2VC1H331J C 330PF, J, 50V
C1104 ECEA1CKA101 E100UF, 16V
C1105 ECJ2VF1H104Z C 0.1UF, Z, 50V
C1106 ECJ2VF1H104Z C 0.1UF, Z, 50V
C1130 ECJ2VC1H560J C 56PF, J, 50V
C1131 ECA0JM221B E220UF, 6.3V
C1132 ECJ2VC1H560J C 56PF, J, 50V
C1203 ECJ2VF1H104Z C 0.1UF, Z, 50V
C1204 ECEA1CKA101 E100UF, 16V
C1205 ECA1CM101B E100UF, 16V
C2001 ECA1CM101B E100UF, 16V
C2002 ECJ1VF1C104Z C 0.1UF, Z, 16V
C2003 ECJ2ZF1C105Z C 1UF, Z, 16V
C2004 ECJ2ZF1C105Z C 1UF, Z, 16V
C2005 ECJ2ZF1C105Z C 1UF, Z, 16V
C2006 ECJ2ZF1C105Z C 1UF, Z, 16V
C2007 ECJ2VB1H332K C 3300PF, K, 50V
C2008 ECJ2VB1H332K C 3300PF, K, 50V
C2010 ECJ1VB1H332K C 3300PF, K, 50V
C2011 ECJ1VB1H332K C 3300PF, K, 50V
C2013 ECA1HM100B E10UF, 50V
C2014 ECEA1HKA010 E1UF, 50V
C2015 ECA1HM100B E10UF, 50V
C2016 ECA1CM220B E220UF, 16V
C2017 ECA1CM100B E10UF, 16V
C2020 ECA1HM3R3B E3.3UF, 50V
C2021 ECJ1VF1C104Z C 0.1UF, Z, 16V
C2024 ECA1HM100B E10UF, 50V
C2025 ECJ2ZF1C105Z C 1UF, Z, 16V
C2027 ECJ1VF1C104Z C 0.1UF, Z, 16V
C2028 ECA1CM101B E100UF, 16V
C2031 ECJ1VF1C104Z C 0.1UF, Z, 16V
C2038 ECJ1VC1H470J C 47PF, J, 50V
C2039 ECJ1VC1H010C C 1PF, C, 50V
C2040 ECJ1VC1H010C C 1PF, C, 50V
C2350 ECA1EM102B E1000UF, 25V
C2351 ECA1EM102B E1000UF, 25V
C2380 ECA1CM101B E100UF, 16V
C2381 ECA1CM221B E220UF, 16V
C2385 ECA1CM470B E47UF, 16V
C2801 ECEA1HKA010 E1UF, 50V
C2802 ECJ2VF1H224Z C 0.22UF, Z, 50V
C2804 ECJ2VF1H104Z C 0.1UF, Z, 50V
C2805 ECA1HMR47B E0.47UF, 50V
20
