Panasonic VIERA TX-40CX700E User manual

Operating Instructions
LCD Television
Thank you for purchasing this Panasonic product.
Please read these instructions carefully before operating this product and retain them
for future reference.
Please carefully read the “Safety Precautions” of this manual before use.
The images shown in this manual are for illustrative purposes only.
Please refer to Pan European Guarantee Card if you need to contact your local
Panasonic dealer for assistance.
English
Nederlands

For more detailed instructions, please refer to
[eHELP] (Built-in Operating Instructions).
How to use [eHELP] (p. 15)
Model No.
TX-40CX700E
TX-50CX700E
TX-55CX700E
English
Downloaded from www.vandenborre.be

English
2
Contents
Be Sure to Read
Important Notice··················································· 3
Safety Precautions ··············································· 4
Quick Start Guide
Accessories ························································ 7
Connections························································ 8
Identifying Controls··············································12
First time Auto Setup············································14
Using your VIERA
Watching TV·······················································15
How to Use eHELP··············································15
Viewing 3D images··············································16
Others
FAQs ································································17
Maintenance ······················································18
Specifications ·····················································18
For information about the trademarks, refer to
[eHELP] (Support > Licence).
Downloaded from www.vandenborre.be

English
3
Important Notice
Notice for DVB / Data broadcasting /
IPTV functions
This TV is designed to meet the standards (as of
August, 2014) of DVB-T / T2 (MPEG2 and MPEG4-
AVC(H.264)) digital terrestrial services, DVB-C
(MPEG2 and MPEG4-AVC(H.264)) digital cable
services.
Consult your local dealer for availability of DVB-T / T2
services in your area.
Consult your cable service provider for availability of
DVB-C services with this TV.
This TV may not work correctly with the signal which
does not meet the standards of DVB-T / T2 or DVB-C.
Not all the features are available depending on the
country, area, broadcaster, service provider and
network environment.
Not all CI modules work properly with this TV. Consult
your service provider about the available CI module.
This TV may not work correctly with CI module that is
not approved by the service provider.
Additional fees may be charged depending on the
service provider.
Compatibility with future services is not guaranteed.
Check the latest information on the available services
at the following website. (English only)
http://panasonic.net/viera/support
Panasonic does not guarantee operation and
performance of peripheral devices made by other
manufacturers; and we disclaim any liability or damage
arising from operation and/or performance from usage of
such other maker’s peripheral devices.
The recording and playback of content on this or any
other device may require permission from the owner
of the copyright or other such rights in that content.
Panasonic has no authority to and does not grant
you that permission and explicitly disclaims any right,
ability or intention to obtain such permission on your
behalf. It is your responsibility to ensure that your use
of this or any other device complies with applicable
copyright legislation in your country. Please refer to that
legislation for more information on the relevant laws and
regulations involved or contact the owner of the rights in
the content you wish to record or playback.
This product is licensed under the AVC patent portfolio
license for the personal and non-commercial use of a
consumer to (i) encode video in compliance with the
AVC Standard (“AVC Video”) and/or (ii) decode AVC
Video that was encoded by a consumer engaged in
a personal and non-commercial activity and/or was
obtained from a video provider licensed to provide AVC
Video. No license is granted or shall be implied for any
other use.
Additional information may be obtained from MPEG LA,
LLC.
See http://www.mpegla.com.
Transport only in upright position.
Downloaded from www.vandenborre.be

English
4

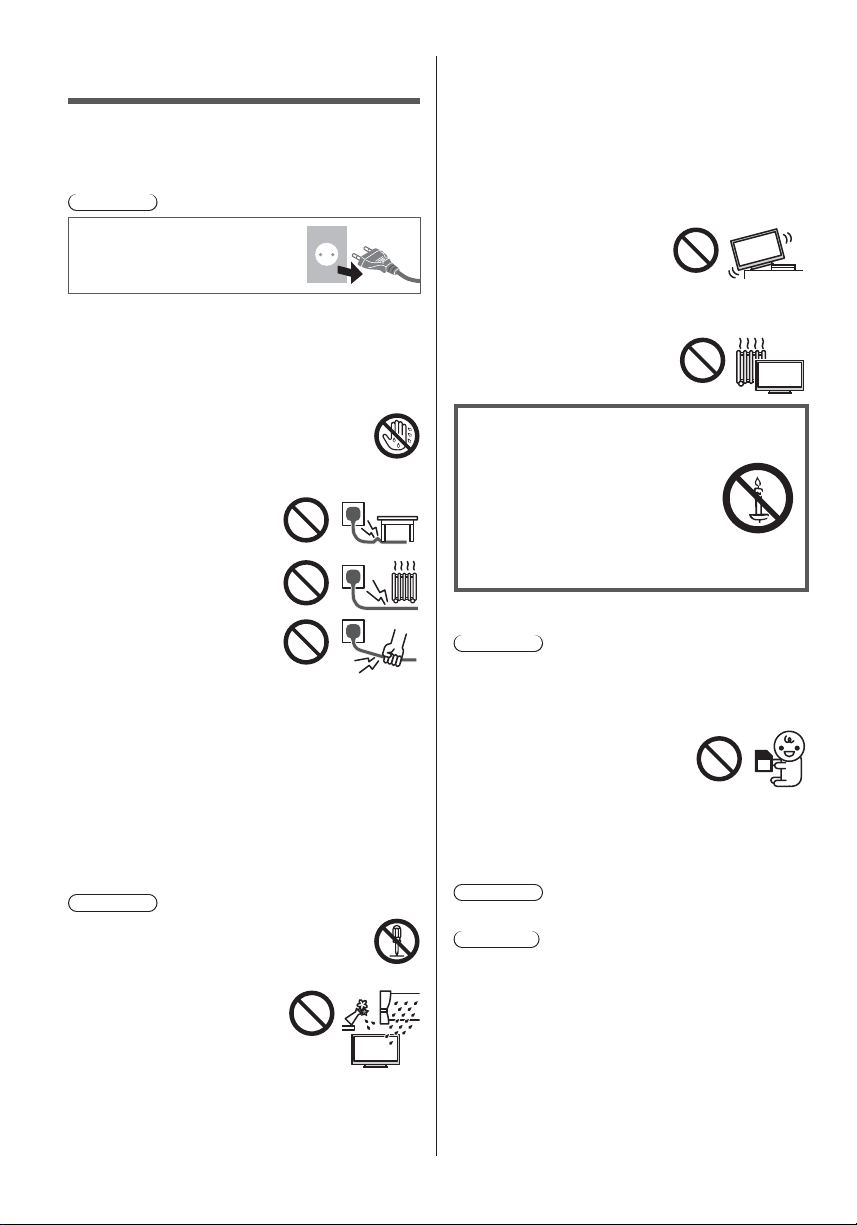

Safety Precautions
To help avoid risk of electrical shock, fire, damage or
injury, please follow the warnings and cautions below:
 Mains plug and lead
Warning
If you detect anything unusual,
immediately remove the mains
plug.
This TV is designed to operate on AC 220-240 V,
50 / 60 Hz.
Insert the mains plug fully into the mains socket.
Ensure that the mains plug is easily accessible.
Disconnect the mains plug when cleaning the TV.
Do not touch the mains plug with wet
hands.
Do not damage the mains lead.
• Do not place a heavy
object on the lead.
• Do not place the lead near
a high temperature object.
• Do not pull on the lead.
Hold onto the mains plug
body when disconnecting
the plug.
• Do not move the TV with the lead plugged into a
mains socket.
• Do not twist the lead, bend it excessively or stretch
it.
• Do not use a damaged mains plug or mains
socket.
• Ensure the TV does not crush the mains lead.
Do not use any mains lead other than that provided
with this TV.
 Take care
Warning
Do not remove covers and never modify
the TV yourself as live parts are accessible
when they are removed. There are no user
serviceable parts inside.
Do not expose the TV to rain
or excessive moisture. This
TV must not be exposed to
dripping or splashing water
and objects filled with liquid,
such as vases, must not be
placed on top of or above
the TV.
Do not insert foreign objects into the TV through the
air vents.
Do not use an unapproved pedestal / mounting
equipment. Be sure to ask your local Panasonic
dealer to perform the setup or installation of approved
wall-hanging brackets.
Do not apply any strong force or impact to the display
panel.
Ensure that children do not climb on the TV.
Do not place the TV on sloping
or unstable surfaces, and
ensure that the TV does not
hang over the edge of the
base.
This TV is designed for table-top use.
Do not expose the TV to direct
sunlight and other sources of
heat.
To prevent the
spread of fire, keep
candles or other
open flames away
from this product at
all times
 Suffocation / Choking Hazard
Warning
The packaging of this product may cause suffocation,
and some of the parts are small and may present a
choking hazard to young children. Keep these parts
out of reach of young children.
Do not allow children to handle
any small objects such as SD
Card. The small object could be
swallowed by young children.
Remove SD Card immediately
after use and store out of reach of
young children.
 Pedestal
Warning
Do not disassemble or modify the pedestal.
Caution
Do not use any pedestal other than the one provided
with this TV.
Do not use the pedestal if it becomes warped or
physically damaged. If this occurs, contact your
nearest Panasonic dealer immediately.
During setup, make sure that all screws are securely
tightened.
Ensure that the TV does not suffer any impact during
installation of the pedestal.
Ensure that children do not climb onto the pedestal.
Downloaded from www.vandenborre.be

English
5
Install or remove the TV from the pedestal with at
least two people.
Install or remove the TV according to the specified
procedure.
 Radio waves
Warning
Do not use the TV in any medical institutions or
locations with medical equipment. Radio waves may
interfere with the medical equipment and may cause
accidents due to malfunction.
Do not use the TV near any automatic control
equipment such as automatic doors or fire alarms.
Radio waves may interfere with the automatic
control equipment and may cause accidents due to
malfunction.
Keep at least 22 cm away from the TV if you have a
cardiac pacemaker. Radio waves may interfere with
the operation of the pacemaker.
Do not disassemble or alter the TV in any way.
 Built-in wireless LAN
Caution
Do not use the built-in wireless LAN to connect to any
wireless network (SSID*) for which you do not have
usage rights. Such networks may be listed as a result
of searches. However, using them may be regarded
as illegal access.
*
SSID is a name for identifying a particular wireless
network for transmission.
Do not subject the built-in wireless LAN to high
temperatures, direct sunlight or moisture.
Data transmitted and received over radio waves may
be intercepted and monitored.
The built-in wireless LAN uses 2.4 GHz and 5 GHz
frequency bands. To avoid malfunctions or slow
response caused by radio wave interference when
using the built-in wireless LAN, keep the TV away
from other devices that use 2.4 GHz and
5 GHz signals such as other wireless LAN devices,
microwave ovens, and mobile phones.
When problems occur due to static electricity, etc., the
TV might stop operating to protect itself. In this case,
turn the TV off at the Mains power On / Off switch,
then turn it back on.
Additional information for the wireless LAN and
access point may be on the following website.
(English only)
http://panasonic.net/viera/support
 Bluetooth®wireless technology
Caution
The TV uses the 2.4 GHz radio frequency ISM band
(Bluetooth®). To avoid malfunctions or slow response
caused by radio wave interference, keep the TV away
from the devices such as other wireless LAN devices,
other Bluetooth devices, microwaves, mobile phones
and the devices that use 2.4 GHz signal.

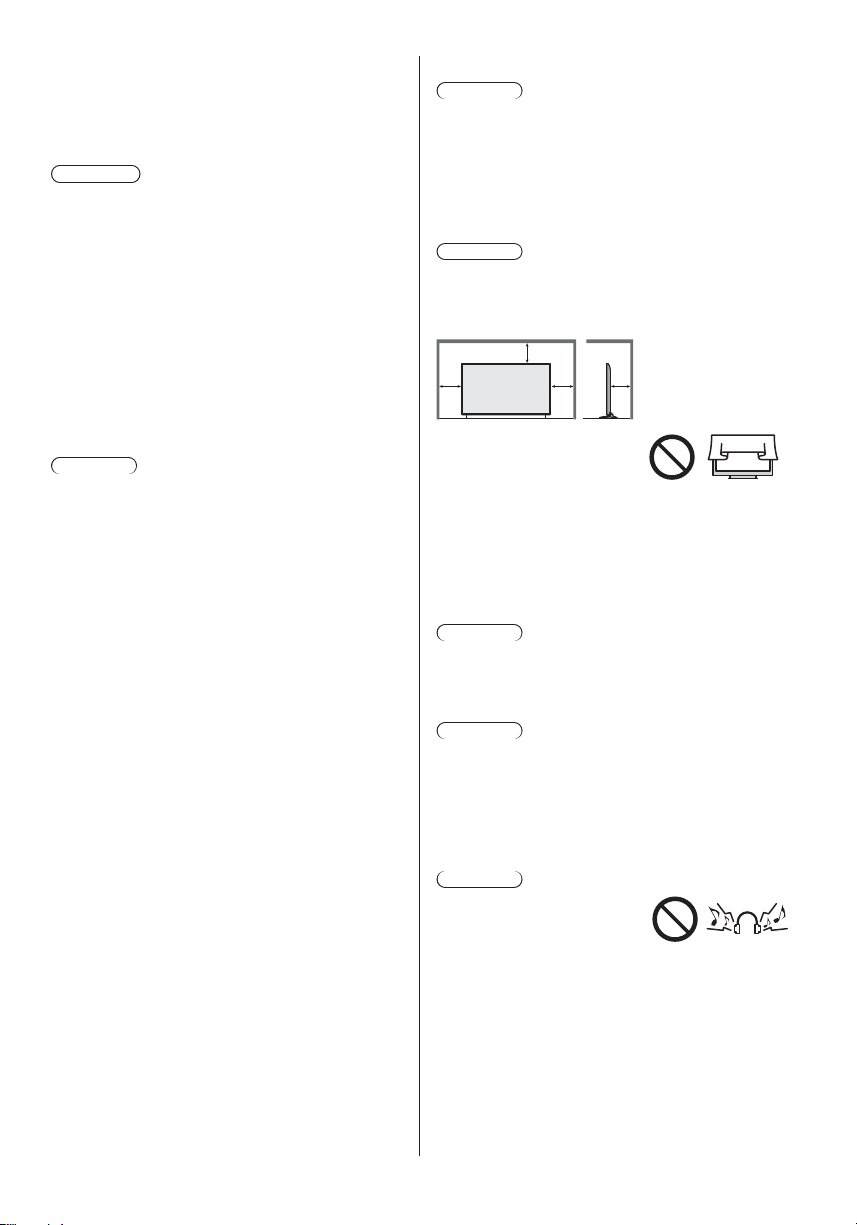

 Ventilation
Caution
Allow sufficient space around the TV in order to help
prevent excessive heat, which could lead to early failure
of some electronic components.
Minimum distance:
(cm)
10
10
10 10
Ventilation should not be
impeded by covering the
ventilation openings with
items such as newspapers,
tablecloths and curtains.
Whether you are using a pedestal or not, always
ensure the vents at the bottom of the TV are not
blocked and there is sufficient space to enable
adequate ventilation.
 Moving the TV
Caution
Before moving the TV, disconnect all cables.
Move the TV with at least two people.
 When not in use for a long time
Caution
This TV will still consume some power even in the Off
mode, as long as the mains plug is still connected to a
live mains socket.
Remove the mains plug from the wall socket when
the TV is not in use for a prolonged period of time.
 Excessive volume
Caution
Do not expose your ears to
excessive volume from the
headphones. Irreversible
damage can be caused.
If you hear a drumming noise in your ears, turn down
the volume or temporarily stop using the headphones.
Downloaded from www.vandenborre.be

English
6
 Battery for the Remote Control
Caution
Incorrect installation may cause battery leakage,
corrosion and explosion.
Replace only with the same or equivalent type.
Do not mix old and new batteries.
Do not mix different battery types (such as alkaline
and manganese batteries).
Do not use rechargeable batteries (Ni-Cd, etc.).
Do not burn or break up batteries.
Do not expose batteries to excessive heat such as
sunshine, fire or the like.
Make sure you dispose of batteries correctly.
Remove the battery from the unit when not using for
a prolonged period of time to prevent battery leakage,
corrosion and explosion.
 Viewing 3D Images
Caution
Pay special attention when children are viewing 3D
images. 3D images should not be viewed by children
younger than about 6 years old, as a guideline.
All children must be fully supervised by parents or
guardians who must ensure their safety and health
while they are viewing 3D images.
Stop viewing 3D images immediately if you feel tired,
feel unwell, experience any other uncomfortable
sensation or clearly see double images. Take an
appropriate break before continuing to view. When
you set the 3D effect by using [3D Adjustment], take
into account that the vision of 3D images varies
among different individuals.
Do not view 3D images if you have a history of
oversensitivity to light, heart problems or any other
medical conditions.
When viewing 3D images, your sense of distance
may be tricked or go wrong. Be careful not to hit the
TV screen or other people unintentionally. Ensure
there are no breakable objects around you to avoid
any accidental damage or injury.
The recommended viewing distance is at least
3 times of the image height. Do not view 3D images
from a distance shorter than recommended.
LCD Television
Declaration of Conformity (DoC)
“Hereby, Panasonic Corporation declares that this TV is
in compliance with the essential requirements and other
relevant provisions of the Directive 1999/5/EC.”
If you want to get a copy of the original DoC of this TV,
please visit the following website:
http://www.doc.panasonic.de
Authorized Representative:
Panasonic Testing Centre
Panasonic Marketing Europe GmbH
Winsbergring 15, D-22525 Hamburg, Germany
This TV is intended to be used in the following countries.
Albania, Andorra, Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland,
France, Germany, Greece, Hungary, Italy, Iceland,
Latvia, Liechtenstein, Lithuania, Luxembourg, Malta,
Monaco, Montenegro, Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden,
Switzerland, Turkey, Macedonia
The wireless LAN feature of this TV shall exclusively be
used inside buildings.
Downloaded from www.vandenborre.be

English
7

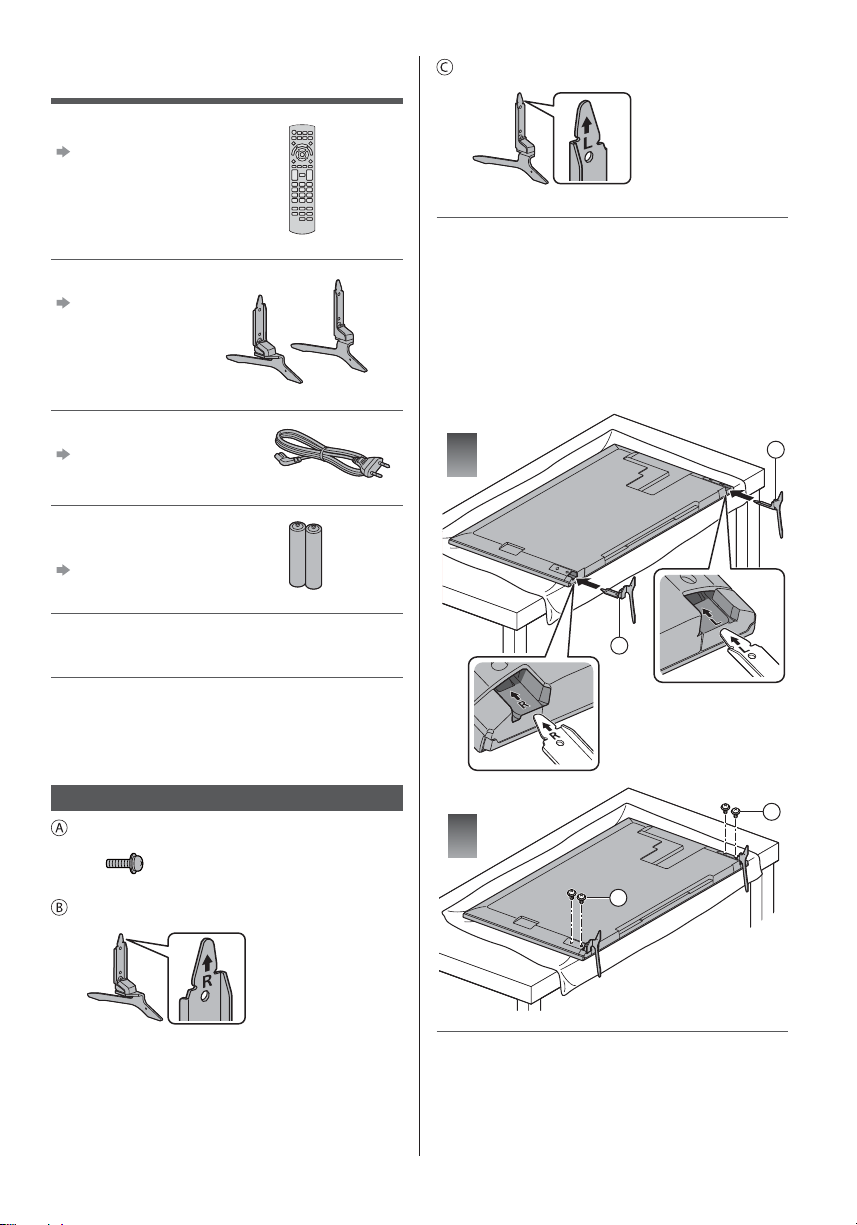

Accessories
Remote Control
(p. 12)
N2QAYB001010
Pedestal (2)
(p. 7)
R
L
Mains lead
(p. 9)
Batteries (2)
R6
(p. 13)
Operating Instructions
Pan European Guarantee Card
Accessories may not be placed all together. Take care
not to throw them away unintentionally.
For information about the optional accessories, refer
to [eHELP] (Support > Optional accessories).
Assembling / Removing the pedestal
Assembly screw (4)
M4 × 12
Pedestal (R)
Pedestal (L)
 Preparations
Take out the pedestal and the TV from the packing case
and put the TV onto a work table with the screen panel
down on the clean and soft cloth (blanket, etc.)
Use a flat and firm table bigger than the TV.
Do not hold the screen panel part.
Make sure not to scratch or break the TV.
 Assembling the pedestal
1C
B
2A
A
Removing the pedestal from the TV
Be sure to remove the pedestal in the following way
when using the wall-hanging bracket or repacking the
TV.
1Put the TV onto a work table with the screen panel
down on the clean and soft cloth.
Downloaded from www.vandenborre.be

English
8
2Remove the assembly screws from the TV.
3Pull out the pedestal from the TV. Connections
External equipment and cables shown are not
supplied with this TV.
Please ensure that the unit is disconnected from the
mains socket before attaching or disconnecting any
cables.
Check the terminal type and cable plugs are correct
for connection.
Use a fully wired HDMI compliant cable.
Use a fully wired SCART cable.
Keep the TV away from electronic equipment (video
equipment, etc.) or equipment with an infrared sensor,
otherwise distortion of image / sound may occur or
operation of other equipment may be affected.
Please also read the manual of the equipment being
connected.
Terminals
4
5
1
2
3
8 9 10
6
11
7
1 CI slot (p. 11)
2 SD Card slot
3 Headphone jack (p. 11)
4 USB 1 - 3 port
5 HDMI3
6 AV1 (SCART) (p. 9, 10)
7 AV2 (COMPONENT / VIDEO) (p. 10)
8 ETHERNET (p. 10)
Downloaded from www.vandenborre.be

English
9
9 Terrestrial / cable terminal (p. 9)
10 DIGITAL AUDIO
11 HDMI1 - 2 (p. 10, 11)
To watch content in 4K format, use HDMI terminal.
(p. 10)
Basic connections
 Mains lead
AC 220-240 V
50 / 60 Hz
Mains lead
(supplied)
Insert the mains plug firmly into place.
When disconnecting the mains lead,
be absolutely sure to disconnect the
mains plug from the mains socket
first.
 Aerial
TV
Cable
RF cable
Terrestrial aerial
For DVB-C, DVB-T, Analogue
DVB-via-IP client connection
This TV has DVB-via-IP client function and can connect
to DVB-via-IP server to watch broadcast streaming.
It is recommended to connect to DVB-via-IP server
with a LAN cable.
 Wired connection
TV
Cable
LAN cable (Shielded)
Use Shielded Twist Pair (STP) LAN cable.
DVB-via-IP server
RF cable
Terrestrial aerial
Satellite dish
 Wireless connection
Cable
Built-in wireless LAN
Access point
DVB-via-IP server
RF cable
Terrestrial aerial
Satellite dish
Depending on the network condition and broadcast,
this function may not be available.
For information about the connections, read the
manual of the DVB-via-IP server.
For details, refer to [eHELP] (Functions > DVB-via-
IP).
AV devices
 DVD Recorder / VCR
TV
Cable
RF cable
SCART cable
DVD Recorder / VCR
Terrestrial aerial
Downloaded from www.vandenborre.be

English
10
 DVD Recorder (VCR) / Set top box
TV
Cable
RF cable
SCART cable
HDMI cable
Satellite dish
Terrestrial aerial
DVD Recorder / VCR
Set top box
Network
A broadband network environment is required to be able
to use internet services.
If you do not have any broadband network services,
please consult your retailer for assistance.
Prepare the internet environment for wired connection
or wireless connection.
Setup of the network connection will start when first
using the TV. (p. 14)
 Wired connection
TV
Internet environment
LAN cable (Shielded)
Use Shielded Twist Pair (STP) LAN cable.
 Wireless connection
Internet
environment
Built-in wireless LAN
Access point
Connections for 4K compatible
equipment
TV
HDMI cable
4K compatible equipment
Connect the 4K compatible equipment to HDMI
terminal and you can watch contents of 4K format.
When connecting to HDMI terminal, use a 4K
compatible cable.
Other connections
 DVD Player
(COMPONENT equipment)
TV
(Listening)
(Viewing)
DVD Player
 Camcorder / Game equipment
(VIDEO equipment)
TV
(Listening)
(Viewing)
Camcorder / Game equipment
Downloaded from www.vandenborre.be

English
11

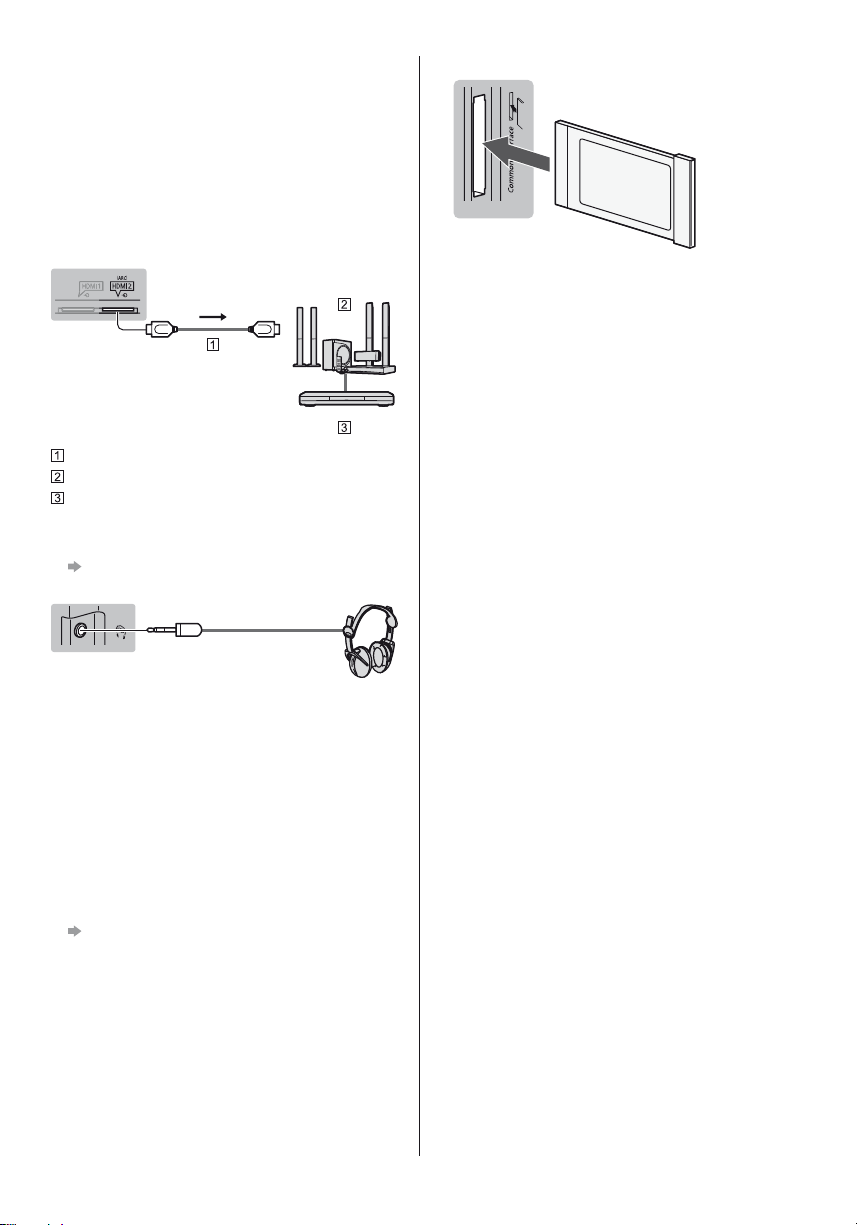

 Amplifier (listening with external speakers)
Use HDMI2 to connect the TV to an amplifier which
has ARC (Audio Return Channel) function.
If connecting to an amplifier without ARC function,
use DIGITAL AUDIO.
To enjoy multi-channel sound from external
equipment (e.g. Dolby Digital 5.1ch), connect the
equipment to the amplifier. For information about the
connections, read the manuals of the equipment and
amplifier.
TV
HDMI cable
Amplifier with speaker system
External equipment (DVD Player, etc.)
 Headphones
To adjust volume
[Headphone Volume] in the Sound Menu
TV
(M3 stereo mini plug)
 Common Interface
Turn the TV off with Mains Power On / Off switch
whenever inserting or removing the CI module.
If a smart card and a CI module come as a set, first
insert the CI module, then insert the smart card into
the CI module.
Insert or remove the CI module completely in the
correct direction as shown.
Normally encrypted channels will appear. (Viewable
channels and their features depend on the CI
module.)
If encrypted channels do not appear
[Common Interface] in the Setup Menu
There might be some CI modules in the market
with older firmware versions that do not work fully
interoperable with this new CI+ v1.3 TV. In this case,
please contact your content provider.
For details, refer to [eHELP] (Functions > Common
Interface), read the manual of the CI module, or
check with the content provider.
TV
CI module
 USB HDD (for recording)
Use USB 3 for connecting the USB HDD.
For details, refer to [eHELP] (Recording).
 VIERA Link
Use HDMI1 - 3 for VIERA Link connection.
For details, refer to [eHELP] (Functions > VIERA Link
“HDAVI Control™”).
Downloaded from www.vandenborre.be

English
12
Identifying Controls
Remote Control
1 Standby On / Off switch
2 TV Guide

3 [Main Menu]


4 Teletext button
5 Information

6 APPS

7 OK




8 [Option Menu]

9 Coloured buttons
(red-green-yellow-blue)


10 Volume Up / Down
11 Numeric buttons



12 [eHELP]

13 Input mode selection




14 Aspect

15 Subtitles

16 Exit

17 Netflix





18 HOME



19 Cursor buttons

20 Return

21 Channel Up / Down
22 Sound Mute On / Off
23 Last view


24 Operations for contents, connected equipment,
etc.
Downloaded from www.vandenborre.be

English
13
 Installing / Removing batteries





Indicator / Control panel




4
5
6
7
123

1 Remote control signal receiver


2 Ambient sensor



3 Power LED
Red:
Green:
Orange: 



4 Input mode selection

[Main Menu]


OK
5 Channel Up / Down

6 Volume Up / Down

7 Mains power On / Off switch

Downloaded from www.vandenborre.be

English
14
First time Auto Setup










1Plug the TV into a live mains socket
and turn the power on

2Select the following items


Please select your viewing environment.
Home Shop
 How to use the remote control



Select the language
Select [Home]





Set up the network connection
Select your country



Tick the TV signal mode to tune, and then select
[Start Auto Setup]









Auto Setup is now complete and the
TV is ready for viewing.


Note








[Auto Setup] in [Tuning Menu] (Setup Menu)

[Add TV Signal] in [Tuning Menu] (Setup Menu)

[Shipping Condition] in [System Menu] (Setup
Menu)
Downloaded from www.vandenborre.be

English
15

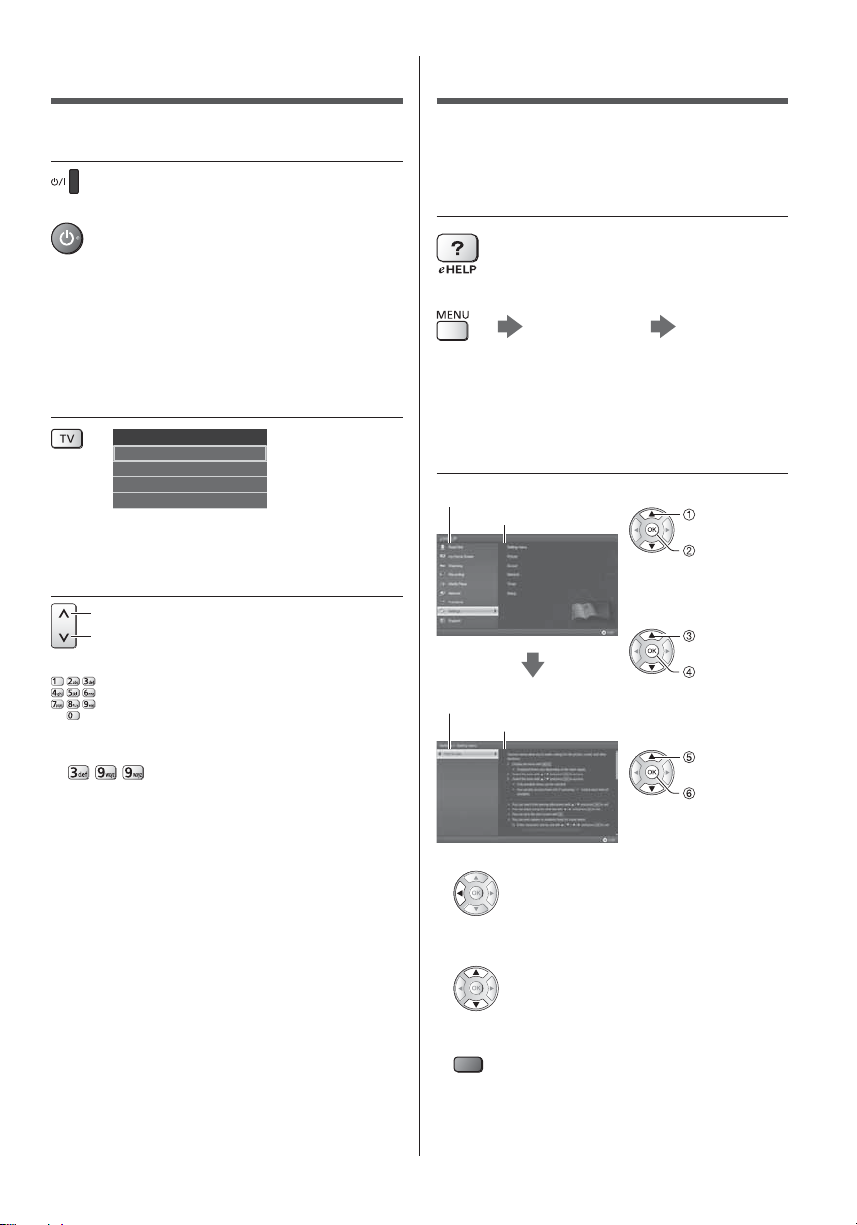

Watching TV
1Turn power on









2Select the mode
TV Selection
DVB-C
DVB-T
DVB-via-IP
Analogue


3Select a channel




399
How to Use eHELP



1Display [eHELP]

[Help] [eHELP]




2Select the category and item

 

















Downloaded from www.vandenborre.be

English
16
Viewing 3D images






*



*


To view the 3D images


 Playing back 3D-compatible Blu-ray disc
(Frame Sequential format)







 3D-supported broadcast


 3D photos and 3D videos taken by
3D-compatible Panasonic products

 2D images converted to 3D






1Turn the 3D Eyewear on and put it on


2View the 3D images



Note
















Downloaded from www.vandenborre.be

English
17
FAQs
Before requesting service or assistance, please follow
these simple guides to solve the problem.
For details, refer to [eHELP] (Support > FAQs).
The TV does not switch on
Check the mains lead is plugged into the TV and the
mains socket.
The TV goes into Standby mode
Auto power standby function is activated.
The remote control does not work or is intermittent
Are the batteries installed correctly? (p. 13)
Has the TV been switched on?
The batteries may be running low. Replace them with
new ones.
Point the remote control directly at the TV’s remote
control signal receiver (within about 7 m and a
30 degree angle of the signal receiver).
Situate the TV away from sunshine or other sources
of bright light so they do not shine on the TV’s remote
control signal receiver.
No image is displayed
Check the TV is turned on.
Check the mains lead is plugged into the TV and the
mains socket.
Check the correct input mode is selected.
Check the setting of [AV2] ([COMPONENT] /
[VIDEO]) in [Input Selection] to match the signal being
output by the external equipment.
Is [Backlight], [Contrast], [Brightness] or [Colour] in
the Picture Menu set to the minimum?
Check all required cables and connections are firmly
in place.
An unusual image is displayed
This TV has a built-in Self Test. Makes a diagnosis of
picture or sound problems.
[TV Self Test] (Help Menu)
Turn the TV off with Mains power On / Off switch,
then turn it on again.
If the problem persists, initialise all settings.
[Shipping Condition] in [System Menu] (Setup
Menu)
Parts of the TV become hot
Parts of the TV may become hot. These temperature
rises do not pose any problems in terms of
performance or quality.
When pushed with a finger, the display panel moves
slightly and makes a noise
There is a little gap around the panel to prevent
damage to the panel. This is not a malfunction.
Downloaded from www.vandenborre.be

English
18
Maintenance
First, remove the mains plug from the
mains socket.
Display panel, Cabinet, Pedestal
Regular care:
Gently wipe the surface of the display panel, cabinet,
or pedestal by using a soft cloth to remove dirt or
fingerprints.
For stubborn dirt:
(1) First clean the dust from the surface.
(2) Dampen a soft cloth with clean water or diluted
neutral detergent (1 part detergent to 100 parts
water).
(3) Wring out the cloth firmly. (Please note, do not let
liquid enter the TV inside as it may lead to product
failure.)
(4) Carefully wipe moisten and wipe away the stubborn
dirt.
(5) Finally, wipe away all the moisture.
Caution
Do not use a hard cloth or rub the surface too hard,
otherwise this may cause scratches on the surface.
Take care not to subject the surfaces to insect
repellent, solvent, thinner or other volatile substances.
This may degrade surface quality or cause peeling of
the paint.
The surface of the display panel is specially treated
and may be easily damaged. Take care not to tap or
scratch the surface with your fingernail or other hard
objects.
Do not allow the cabinet and pedestal to make
contact with a rubber or PVC substance for a long
time. This may degrade surface quality.
Mains plug
Wipe the mains plug with a dry cloth at regular intervals.
Moisture and dust may cause fire or electrical shock.
Specifications
 TV
Model No.
40-inch model :TX-40CX700E
50-inch model :TX-50CX700E
55-inch model :TX-55CX700E
Dimensions (W × H × D)
40-inch model
899 mm × 561 mm × 202 mm (With Pedestal)
899 mm × 516 mm × 46 mm (TV only)
50-inch model
1 121 mm × 695 mm × 242 mm (With Pedestal)
1 121 mm × 650 mm × 46 mm (TV only)
55-inch model
1 237 mm × 762 mm × 242 mm (With Pedestal)
1 237 mm × 717 mm × 54 mm (TV only)
Mass
40-inch model
13.0 kg Net (With Pedestal)
12.0 kg Net (TV only)
50-inch model
18.5 kg Net (With Pedestal)
17.5 kg Net (TV only)
55-inch model
21.0 kg Net (With Pedestal)
20.0 kg Net (TV only)
Power source
AC 220-240 V, 50 / 60 Hz
Panel
LED LCD panel
Sound
Speaker output
20 W (10 W + 10 W)
Headphones
M3 (3.5 mm) stereo mini Jack × 1
Connection terminals
AV1 input / output
SCART (Audio/Video in, Audio/Video out, RGB in)
AV2 input (COMPONENT / VIDEO)
VIDEO
RCA PIN Type × 1
1.0 V[p-p] (75 :)
Downloaded from www.vandenborre.be

English
19
AUDIO L - R
RCA PIN Type × 2
0.5 V[rms]
Y
1.0 V[p-p] (including synchronisation)
PB/CB, PR/CR
±0.35 V[p-p]
HDMI 1 / 2 / 3 input
TYPE A Connectors
HDMI1 / 3: 4K, 3D (3D content of 4K format is
not supported.), Content Type, Deep
Colour, x.v.Colour™
HDMI2: 4K, 3D (3D content of 4K format is not
supported.), Content Type, Audio Return
Channel, Deep Colour, x.v.Colour™
This TV supports “HDAVI Control 5” function.
Card slot
SD Card slot × 1
Common Interface slot (complies with CI Plus) × 1
ETHERNET
RJ45, IEEE802.3 10BASE-T / 100BASE-TX
USB 1 / 2 / 3
USB1 / 2: DC 5 V, Max. 500 mA [Hi-Speed USB
(USB 2.0)]
USB3: DC 5 V, Max. 900 mA [SuperSpeed USB
(USB 3.0)]
DIGITAL AUDIO output
PCM / Dolby Digital, Fibre optic
Receiving systems / Band name
Check the latest information on the available services at
the following website. (English only)
http://panasonic.net/viera/support
DVB-C
Digital cable services (MPEG2 and MPEG4-
AVC(H.264))
DVB-T / T2
Digital terrestrial services (MPEG2 and MPEG4-
AVC(H.264))
PAL B, G, H, I
SECAM B, G
SECAM L, L’
VHF E2 - E12
VHF A - H (ITALY)
CATV (S01 - S05)
CATV S11 - S20 (U1 - U10)
VHF H1 - H2 (ITALY)
UHF E21 - E69
CATV S1 - S10 (M1 - M10)
CATV S21 - S41 (Hyperband)
PAL D, K
SECAM D, K
VHF R1 - R2
VHF R3 - R5
VHF R6 - R12
UHF E21 - E69
PAL 525/60
Playback of NTSC tape from some PAL Video
recorders (VCR)
M.NTSC
Playback from M.NTSC Video recorders (VCR)
NTSC (AV input only)
Playback from NTSC Video recorders (VCR)
Aerial input
VHF / UHF
Operating conditions
Temperature
0 °C - 35 °C
Humidity
20 % - 80 % RH (non-condensing)
Built-in wireless LAN
Standard compliance and Frequency range*1
IEEE802.11a/n
5.180 GHz - 5.320 GHz, 5.500 GHz - 5.580 GHz,
5.660 GHz - 5.700 GHz
IEEE802.11b/g/n
2.412 GHz - 2.472 GHz
Security
WPA2-PSK (TKIP/AES)
WPA-PSK (TKIP/AES)
WEP (64 bit/128 bit)
Bluetooth wireless technology*2
Standard Compliance
Bluetooth 3.0
Frequency Range
2.402 GHz - 2.480 GHz
*1:
The frequency and channel differ depending on the
country.
*2:
Not all the Bluetooth compatible devices are
available with this TV. Up to 5 devices can be used
simultaneously. (except the 3D Eyewear)
Downloaded from www.vandenborre.be

English
20
Note
Design and Specifications are subject to change
without notice. Mass and Dimensions shown are
approximate.
For information about the power consumption, display
resolution, etc., refer to Product fiche.
For information about the open source software, refer
to [eHELP] (Support > Licence).
This equipment complies with the EMC standards
listed below.
EN55032, EN55020, EN55024, EN61000-3-2,
EN61000-3-3
 When using the wall-hanging bracket
Please contact your local Panasonic dealer to purchase
the recommended wall-hanging bracket.
Holes for wall-hanging bracket installation
Rear of the TV
a
b
40-inch model
a: 200 mm
b: 200 mm
50-inch model
55-inch model
a: 400 mm
b: 400 mm
(View from the side)
Depth of screw
40-inch model
minimum: 9 mm
maximum: 27 mm
50-inch model
minimum: 9 mm
maximum: 26 mm
55-inch model
minimum: 10 mm
maximum: 16 mm
Diameter: M6
Screw for fixing the TV onto the
wall-hanging bracket (not supplied with
the TV)
Downloaded from www.vandenborre.be
