Panasonic MCV7320 - UPRIGHT VACUUM-QKDR User manual

Operating
Instructions
VACUUM CLEANER
MC-V7320
Panasonic.
Before operating your vacuum cleaner, please read these instructions completely.

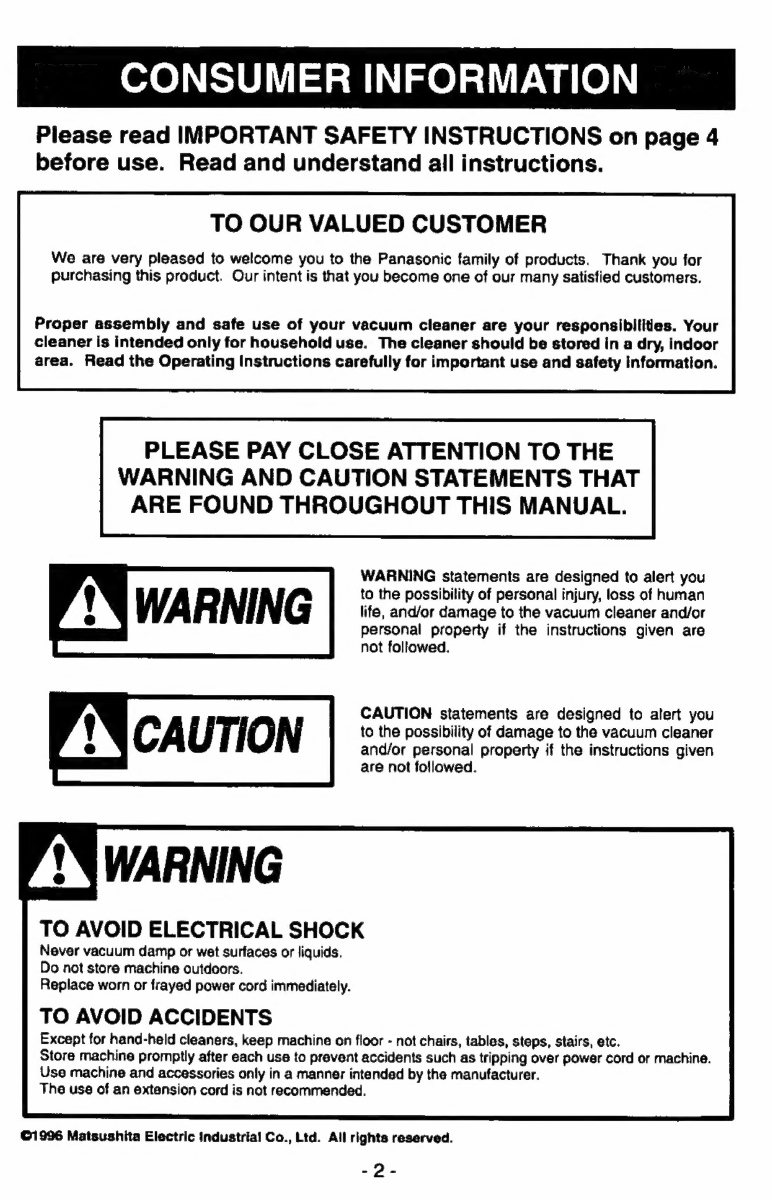

CONSUMER INFORMATION
Please read IMPORTANT SAFETY INSTRUCTIONS on page 4
before use. Read and understand all instructions.
TO OUR VALUED CUSTOMER
We are very pleased to welcome you to the Panasonic family of products. Thank you for
purchasing this product. Our intent is that you become one of our many satisfied customers.
Proper assembly and safe use of your vacuum cleaner are your responsibilities. Your
cleaner is intended only for household use. The cleaner should be stored in a dry, indoor
area. Read the Operating Instructions carefully for important use and safety information.
PLEASE PAY CLOSE ATTENTION TO THE
WARNING AND CAUTION STATEMENTS THAT
ARE FOUND THROUGHOUT THIS MANUAL.
life, and/or damage to the vacuum cleaner and/or
personal property if the instructions given are
not followed.
CAUTION statements are designed to alert you
C. A UTION to the possibility of damage to the vacuum cleaner
and/or personal property if the instructions given
are not followed.
WARNING statements are designed to alert you
A to the possibility of personal injury, loss of human
TO AVOID ELECTRICAL SHOCK
Never vacuum damp or wet surfaces or liquids.
Do not store machine outdoors.
Replace worn or frayed power cord immediately.
TO AVOID ACCIDENTS
Except for hand-held cleaners, keep machine on floor - not chairs, tables, steps, stairs, etc.
Store machine promptly after each use to prevent accidents such as tripping over power cord or machine.
Use machine and accessories only in a manner intended by the manufacturer.
The use of an extension cord is not recommended.
©1996 Matsushita Electric industrial Co., Ltd. All rights reserved.
-2-

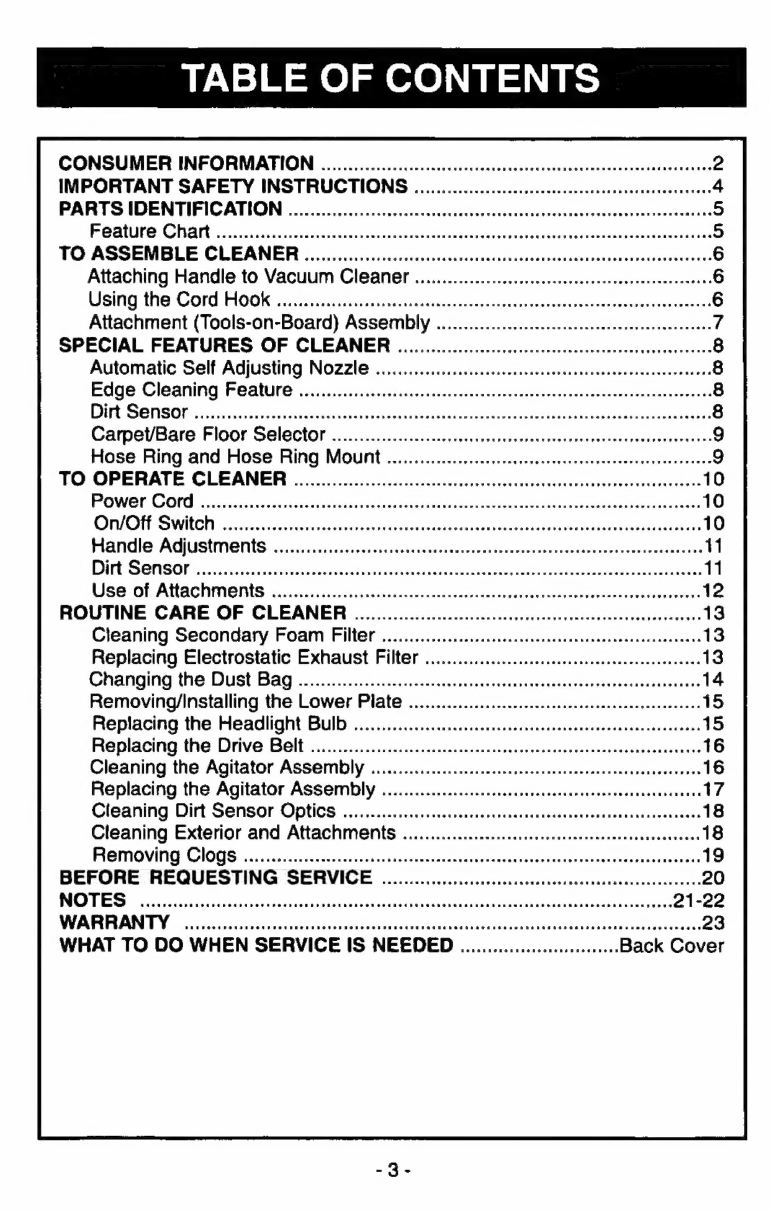

TABLE OF CONTENTS
Attaching Handle to Vacuum Cleaner
Using the Cord Hook
Attachment (Tools-on-Board) Assembly
SPECIAL FEATURES OF CLEANER
Automatic Self Adjusting Nozzle
Edge Cleaning Feature
Dirt Sensor
Carpet/Bare Floor Selector
Hose Ring and Hose Ring Mount
TO OPERATE CLEANER
Handle Adjustments
Dirt Sensor
ROUTINE CARE OF CLEANER
Cleaning Secondary Foam Filter
Replacing Electrostatic Exhaust Filter
Changing the Dust Bag
Removing/Installing the Lower Plate
Replacing the Headlight Bulb

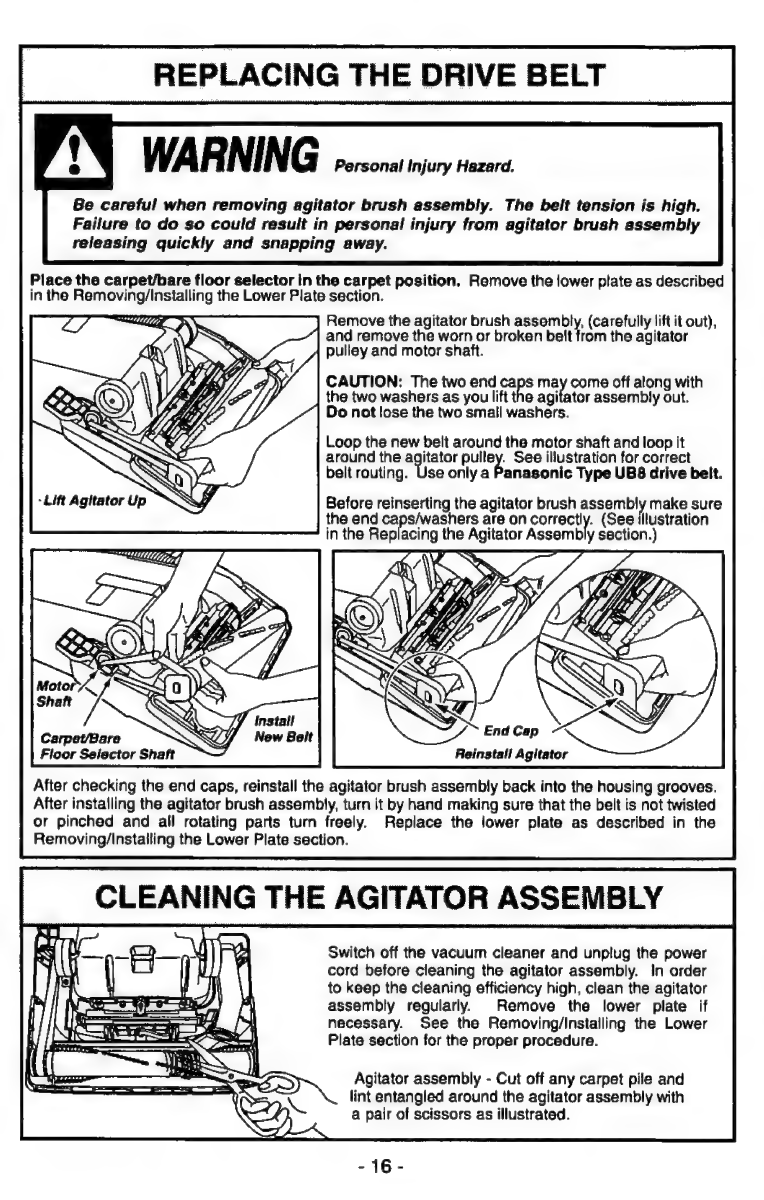

Replacing the Drive Belt
Cleaning the Agitator Assembly
Replacing the Agitator Assembly
Cleaning Dirt Sensor Optics
Cleaning Exterior and Attachments
Removing Clogs
BEFORE REQUESTING SERVICE

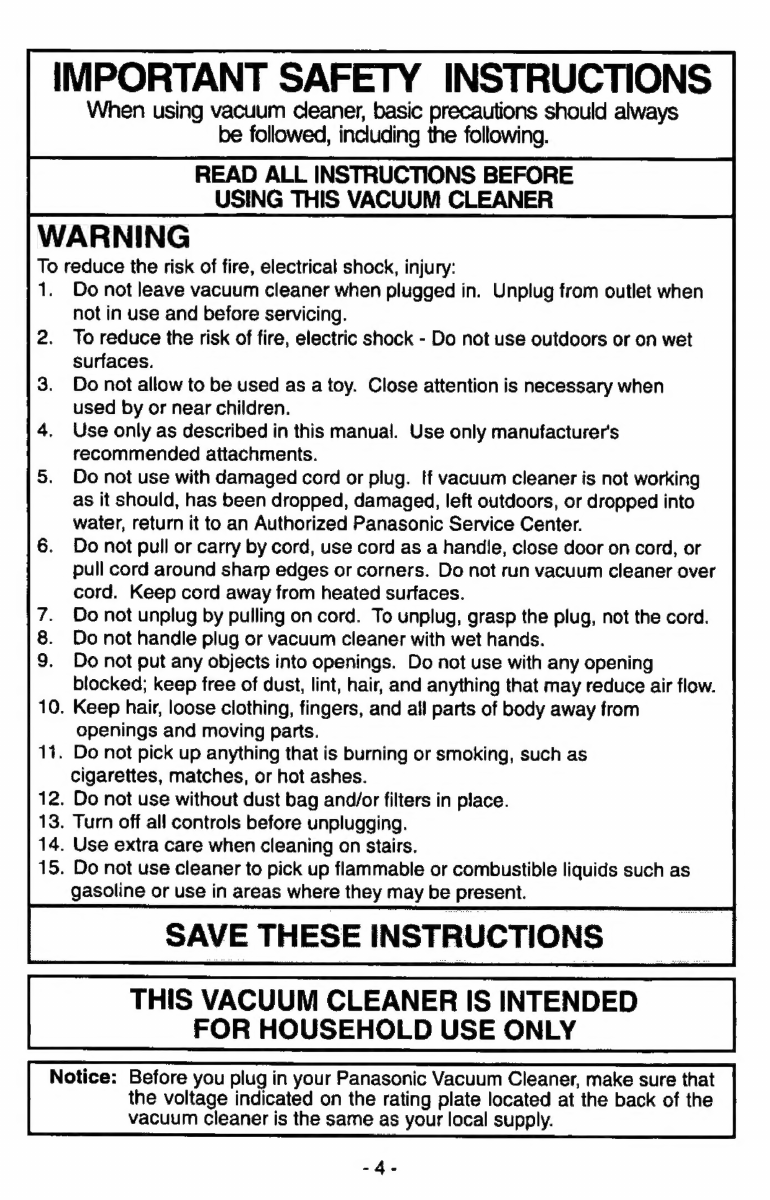

IMPORTANT SAFETY INSTRUCTIONS
When using vacuum cleaner, basic precautions should always
be followed, including the following.
READ ALL INSTRUCTIONS BEFORE
USING THIS VACUUM CLEANER
WARNING
To reduce the risk of fire, electrical shock, injury:
1. Do not leave vacuum cleaner when plugged in. Unplug from outlet when
not in use and before servicing.
2. To reduce the risk of fire, electric shock - Do not use outdoors or on wet
surfaces.
3. Do not allow to be used as a toy. Close attention is necessary when
used by or near children.
4. Use only as described in this manual. Use only manufacturer's
recommended attachments.
5. Do not use with damaged cord or plug. If vacuum cleaner is not working
as it should, has been dropped, damaged, left outdoors, or dropped into
water, return it to an Authorized Panasonic Service Center.
6. Do not pull or carry by cord, use cord as a handle, close door on cord, or
pull cord around sharp edges or corners. Do not run vacuum cleaner over
cord. Keep cord away from heated surfaces.
7. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
8. Do not handle plug or vacuum cleaner with wet hands.
9. Do not put any objects into openings. Do not use with any opening
blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
10. Keep hair, loose clothing, fingers, and all parts of body away from
openings and moving parts.
1%. Do not pick up anything that is burning or smoking, such as
cigarettes, matches, or hot ashes.
12. Do not use without dust bag and/or filters in place.
13. Turn off all controls before unplugging.
14. Use extra care when cleaning on stairs.
15. Do not use cleaner to pick up flammable or combustible liquids such as
gasoline or use in areas where they may be present.
SAVE THESE INSTRUCTIONS
Notice: Before you plug in your Panasonic Vacuum Cleaner, make sure that
the voltage indicated on the rating plate located at the back of the
vacuum cleaner is the same as your local supply.

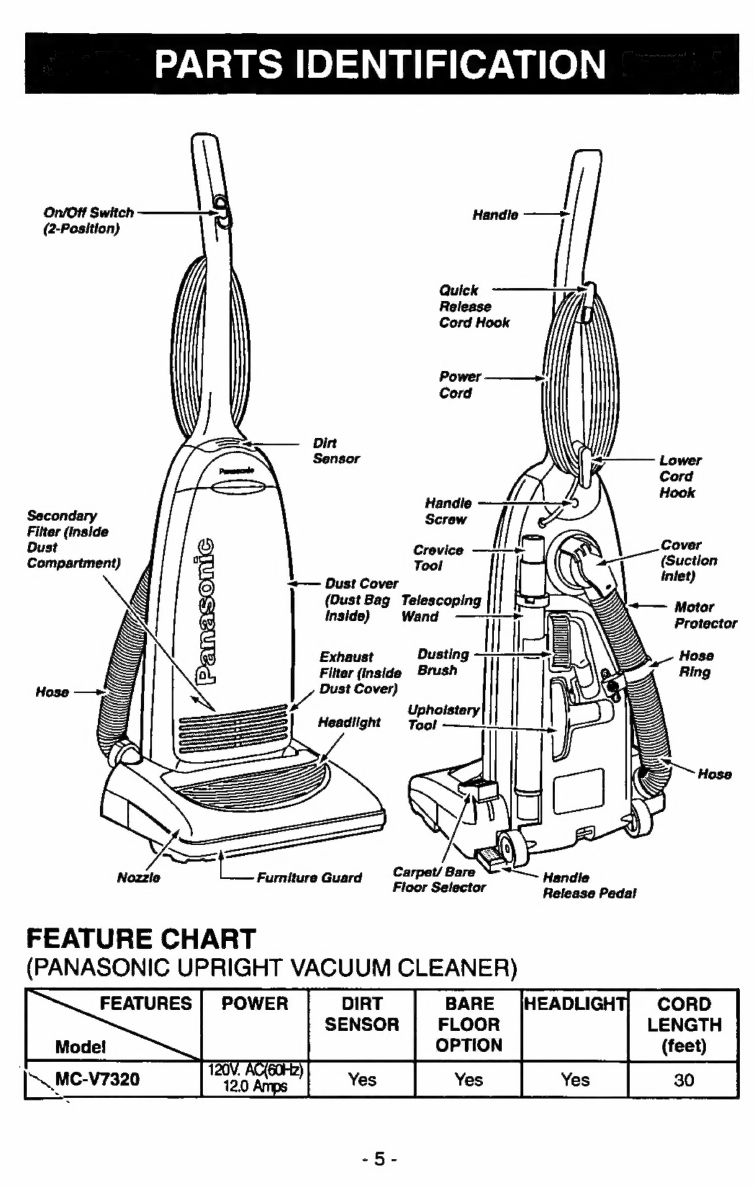

PARTS IDENTIFICATION
On/Oft Switch Handie ——
(2-Position) á
Quick ————— Tr
Release
Cord Hook
Power ————>»
Cord
Sensor me Lower
Cord
Handie —— man
Secondary
Screw
Filter
(inside
-
AN
c
Dust
Crevice
—~—>
Q
nab
Compartment)
Toot
N
acy
(Suet
on
~«—
Dust
Cover
ASS
nep
(Dust
Bag
Telescoping
|||
PET
S
~—
Motor
inside) Wand
Exhaust Dusting
Filter {inside Brush
Dust Cover)
Uphoistery
Headlight = Toot
=| Carpet/ Bare N-
Nozzle Furniture Guard arpet/ Bare “==. Handie
Floor Selector Release Pedal
FEATURE CHART
(PANASONIC UPRIGHT VACUUM CLEANER)
DIRT BARE j|HEADLIGH CORD
Yes
SENSOR FLOOR LENGTH
OPTION (feet)
Tae fe |e [| |

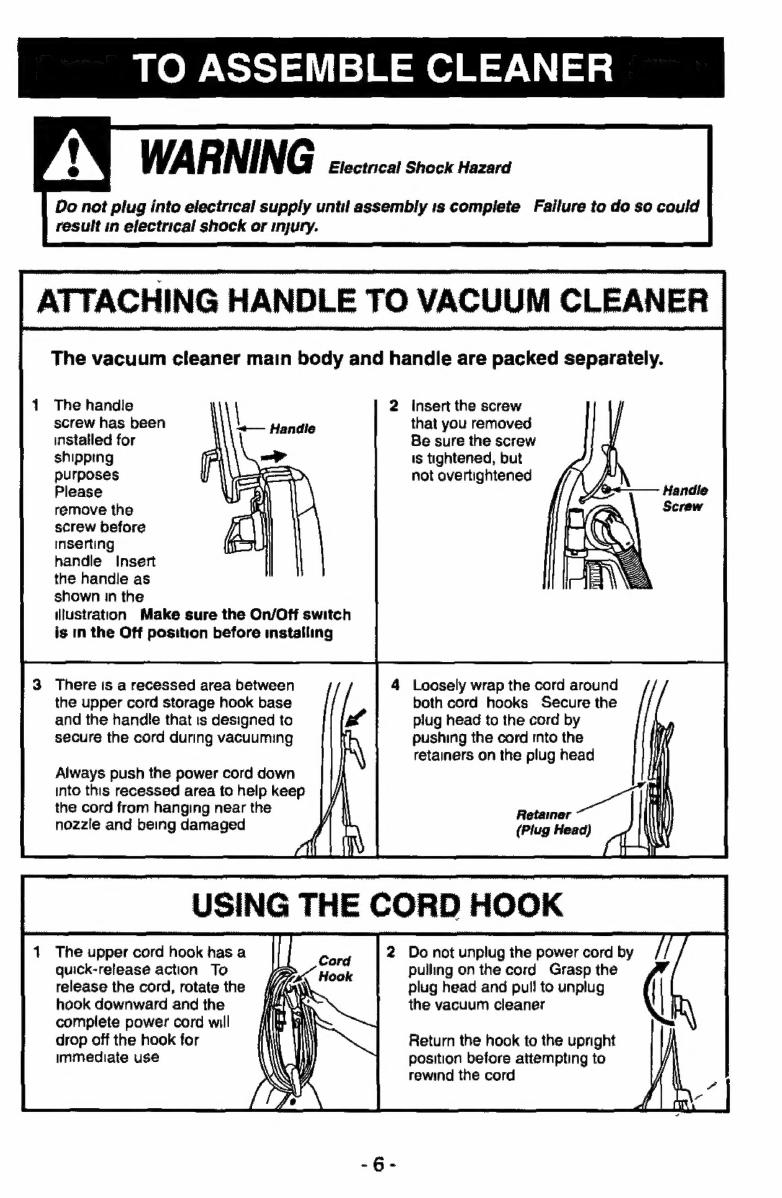

TO ASSEMBLE CLEANER
IN WARNING etecics sroc nazara
Do not plug into electrical supply until assembly ıs complete Failure to do so could
result in electrical shock or injury.
ATTACHING HANDLE TO VACUUM CLEANER
The vacuum cleaner main body and handle are packed separately.
The handle \ 2 insert the screw
screw has been 1e— Handle that you removed
instatled for Be sure the screw
shipping -i ıs tightened, but
purposes not overtightened
Please
remove the
screw before
inserting
handle Insert
the handle as
shown In the
illustration Make sure the On/Off switch
is in the Off position before installing
There is a recessed area between Loosely wrap the cord around
the upper cord storage hook base both cord hooks Secure the
and the handle that ts designed to plug head to the cord by
secure the cord during vacuuming pushing the cord into the
retainers on the plug head
Always push the power cord down
into this recessed area to help keep
the cord from hanging near the Retainer
nozzle and being damaged f (Plug Head)
1 The upper cord hook has a 2 Do not unplug the power cord by
quick-release action To ie pulling on the cord Grasp the
release the cord, rotate the WAAN plug head and pull to unplug
hook downward and the Re, the vacuum cleaner
complete power cord will be k
drop off the hook for Return the hook to the upright
immediate use ! position before attempting to
j rewind the cord

ATTACHMENT (Tools-on-Board) ASSEMBLY
Do not get the power cord caught under the nozzle when using the vacuum or
attachments as it can be damaged by the agitator as it revoives
ATTACHMENTS
St — eg 7}
Crevice
Too!
-— Upholstery Toot
The attachments should be conveniently positioned
in the back of the cleaner for easy access Assemble
the hose and attachments to the cleaner as follows
Insert the crevice tool, cleaning end down, into the
end of the telescoping wand nearest the locking ring
A slight twist of the crevice tool will lock it into place
Place the telescoping wand tn the back of the cleaner
with the locking nng and crevice tool up, and the bottom
resting on the ledge near the wheel
The hose nng should be inserted into the slot to holdin Tool
place only when vacuuming areas below the upper
cord hook
N
Agitator sl
(Underneath)

SPECIAL FEATURES OF CLEANER
Your Panasonic upright vacuum cleaner is
designed with an automatic self adjusting
nozzle. No manual adjustments are
required. The height of the nozzle is
instantly and automatically adjusted to any
carpet pile height. This self adjusting
feature allows the nozzle to float evenly
over all carpet pile surfaces.
Nozzle
Deep Pile Carpet
Shallow Pile Carpet e
The edge cleaning feature provides for
improved cleaning of carpets near walls and
furniture.
ene
7
oe Lee Se ee
enn n
The electronic sensor is a feature which will
detect particles as they pass through the
vacuum cleaner.
Red light indicates dirt is being picked up by
the cleaner. Green light indicates most of the
dirt has been picked up by the cleaner.
The dirt sensor indicators and sensor
sensitivity switch are located on the
front top of the switch cover. See the
Dirt Sensor section under To Operate
Cleaner section for operation.
CS OE creer antl
TiO
ae ee ae -s a coca et act
see ee pron.
Sensor
aR La CARN Switch

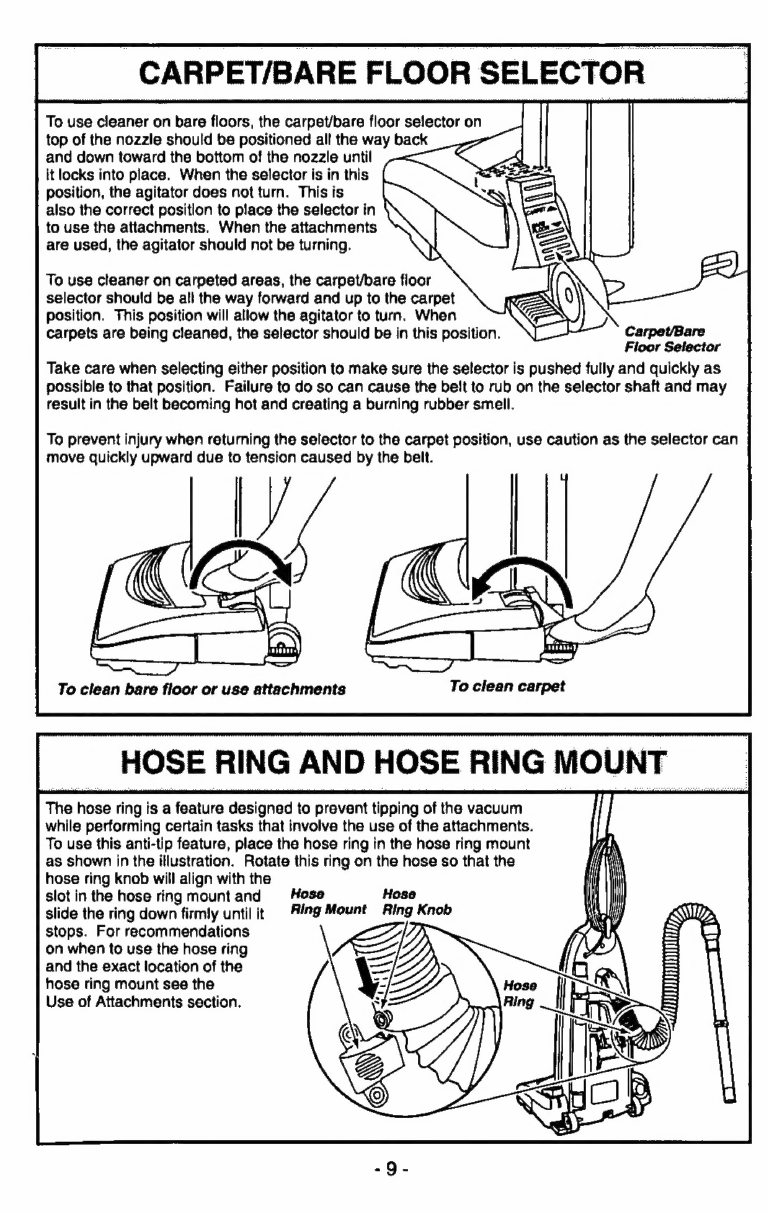

To use cleaner on bare floors, the carpet/bare floor selector on
top of the nozzle should be positioned all the way back
and down toward the bottom of the nozzle until
it locks into place. When the selector is in this
position, the agitator does not turn. This is
also the correct position to place the selector in
to use the attachments. When the attachments
are used, the agitator should not be turning.
To use cleaner on carpeted areas, the carpet/bare floor
selector should be all the way forward and up to the carpet
position. This position will allow the agitator to turn. When
carpets are being cleaned, the selector should be in this position.
Floor Selector
Take care when selecting either position to make sure the selector is pushed fully and quickly as
possible to that position. Failure to do so can cause the belt to rub on the selector shaft and may
result in the belt becoming hot and creating a burning rubber smell.
To prevent injury when returning the selector to the carpet position, use caution as the selector can
move quickly upward due to tension caused by the belt.
ed
The hose ring is a feature designed to prevent tipping of the vacuum
while performing certain tasks that involve the use of the attachments.
To use this anti-tip feature, place the hose ring in the hose ring mount
as shown in the illustration. Rotate this ring on the hose so that the
hose ring knob will align with the
slot in the hose ring mount and Hose Hose
slide the ring down firmly until it Ping Mount Ring Knob
stops. For recommendations
on when to use the hose ring
and the exact location of the
hose ring mount see the
Use of Attachments section.

TO OPERATE CLEANER
Do not use outlets above counters. Damage to items in the surrounding areas
could occur. Be sure the switch is in the off position while plugging the cord in.
POWER CORD |
NOTE: To reduce the risk of electrical shock, this vacuum has a polarized plug, (one blade is wider
than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the
outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet.
DO NOT CHANGE THE PLUG IN ANY WAY.
ON/OFF SWITCH __
. Plug the power cord into a 120V outlet.
. To start the vacuum cleaner, push the
switch to the ON position.
- To stop the vacuum cleaner, pull the
switch to the OFF position.
-410-

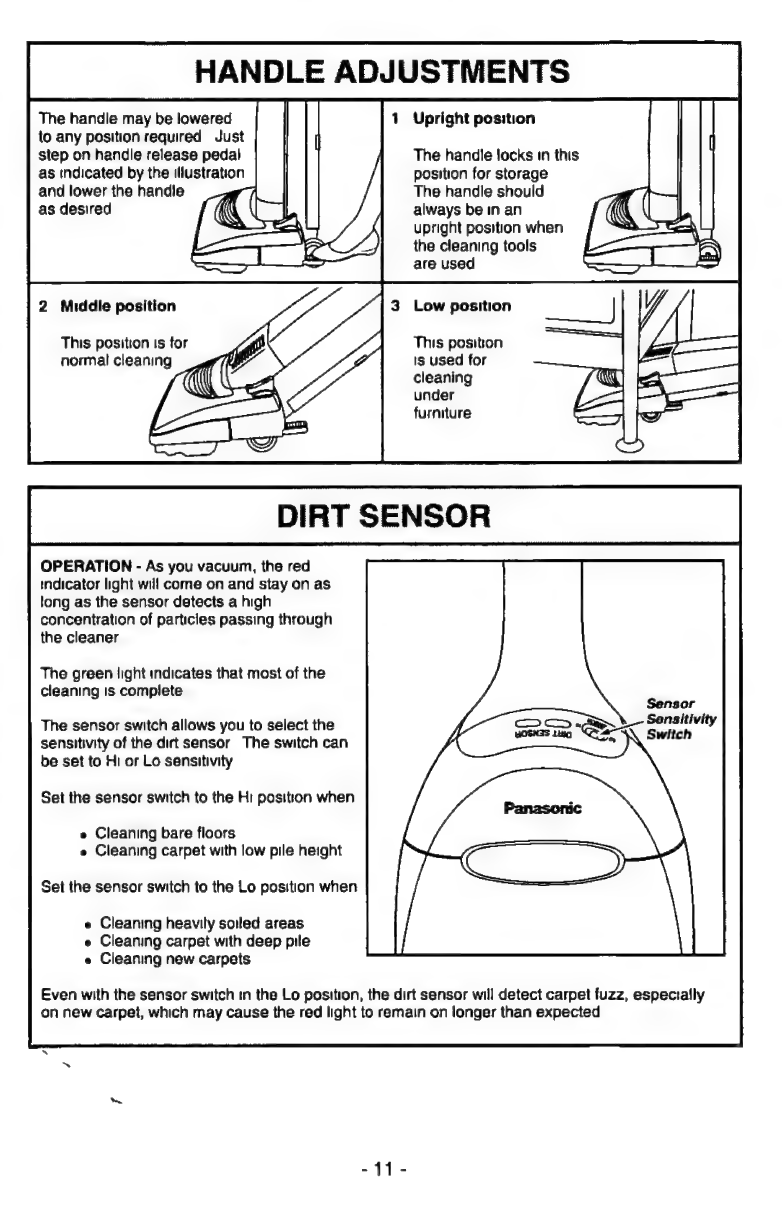

HANDLE ADJUSTMENTS
The handle may be lowered 1 Upright position
to any position required Just
step on handle release pedal The handle Socks in this
as indicated by the illustration position for storage
and lower the handie The handle should
ee
dosired
W
E
always
be
in
an
kE
EÀ
upright
position
when
i
the
cleaning
tools
=
are
used
2 Middle position Low position
~~
This position ıs for 4 This position
normal cleaning ww Is used for
i cleaning
under
furmture
OPERATION - As you vacuum, the red
indicator light wiil come on and stay on as
long as the sensor detects a high
concentration of particles passing through
the cleaner
The green light indicates that most of the
cleaning is complete
Sensor
Switch
The sensor switch allows you to select the ab Sensitivity
sensitivity of the dirt sensor The switch can
be set to Hi or Lo sensitivity
Set the sensor switch to the Hi position when
e Cleaning bare floors
e Cleaning carpet with low pile height
Set the sensor switch to the Lo position when
e Cleaning heavily soiled areas
e Clearung carpet with deep pile
e Cleaning new carpets
Even with the sensor switch tn the Lo position, the dirt sensor will detect carpet fuzz, especially
on new carpet, which may cause the red light to remain on longer than expected
-11-

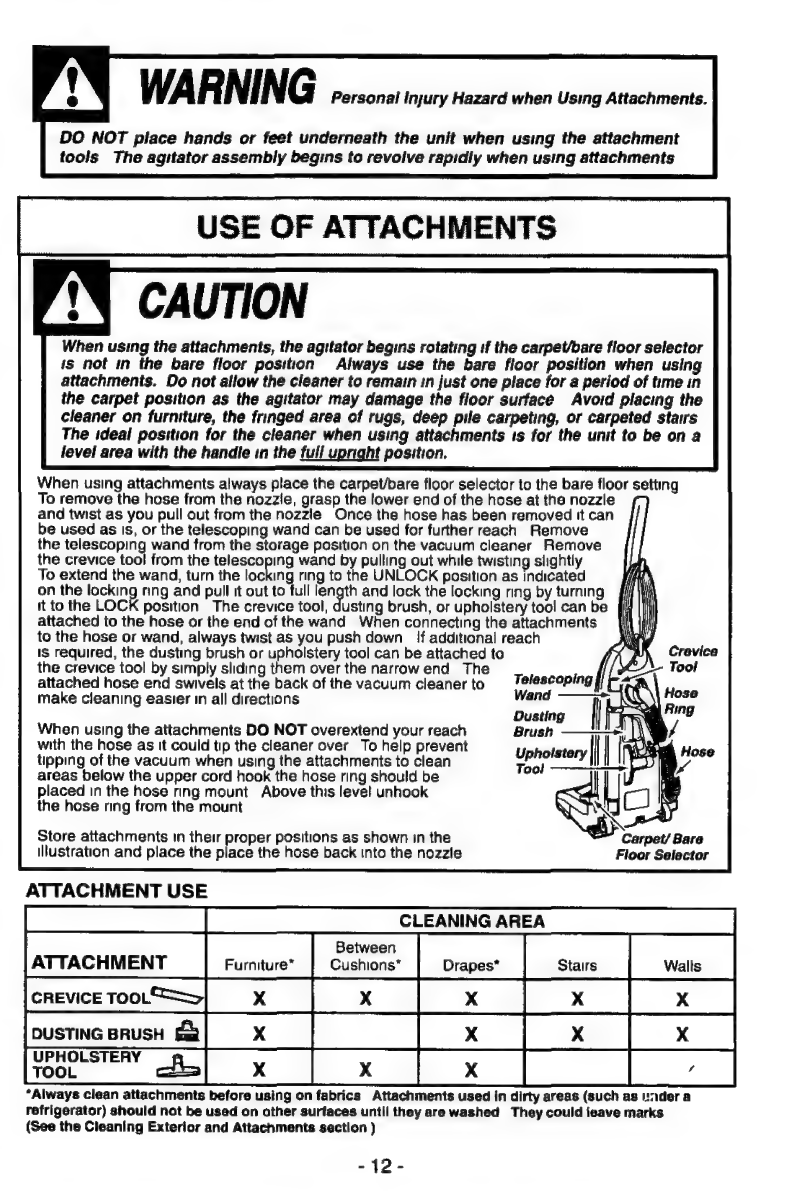

A WA RNI N G Personal injury Hazard when Using Attachments.
DO NOT place hands or feet underneath the unit when using the attachment
tools The agitator assembly begins to revolve rapidly when using attachments
71N CAUTION
When using the attachments, the agitator begins rotating if the carpet/bare floor selector
is not in the bare floor position Always use the bare floor position when using
attachments. Do not allow the cleaner to remain in just one place for a period of time in
the carpet position as the agitator may damage the floor surface Avoid placing the
cleaner on furniture, the fringed area of rugs, deep pile carpeting, or carpeted stairs
The ideal position for the cleaner when using attachments ts for the unit to be on a
level area with the handle tn the full upright positron.
When using attachments always place the carpet/bare floor selector to the bare floor setting
To remove the hose from the nozzle, grasp the lower end of the hose at the nozzle
and twist as you pull out from the nozzle Once the hose has been removed tt can
be used as Is, or the telescoping wand can be used for further reach Remove
the telescoping wand from the storage position on the vacuum cleaner Remove
the crevice tool from the Yrs wet wand by pulling out while twisting slightly
To extend the wand, turn the locking ring to the UNLOCK position as indicated
on the locking. ring and pull it out to full length and lock the locking ring by turning
it to the LOCK position The crevice tool, dusting brush, or upholstery tool can be
attached to the hose or the end of the wand When connecting the attachments
to the hose or wand, always twist as you push down /f additional reach
Is required, the dusting brush or upholstery tool can be attached to
the crevice tool by simply sliding them over the narrow end The
attached hose end swivels at the back of the vacuum cleaner to
make cleaning easier in all directions
When using the attachments DO NOT overextend your reach
with the hose as it could tip the cleaner over To help prevent
tipping of the vacuum when using the attachments to clean
areas below the upper cord hook the hose ring should be
placed in the hose ring mount Above this level unhook
the hose ring from the mount
Store attachments in their proper positions as shown in the
illustration and place the place the hose back into the nozzle
ATTACHMENT USE
a CLEANING AREA
Between
ATTACHMENT Furniture* Cushions* Drapes* Stairs Walls
crece too] x | o x o ox LX TK
ousrnc erus è| x j J x | x| x)
Carpet/ Bare
Floor Selector
TOOL
*Always clean attachments before using on fabrics Attachments used in dirty areas (such as lider a
refrigerator) should not be used on other surfaces until they are washed They could ieave marks
(See the Cleaning Exterior and Attachments sectlon )
-12-

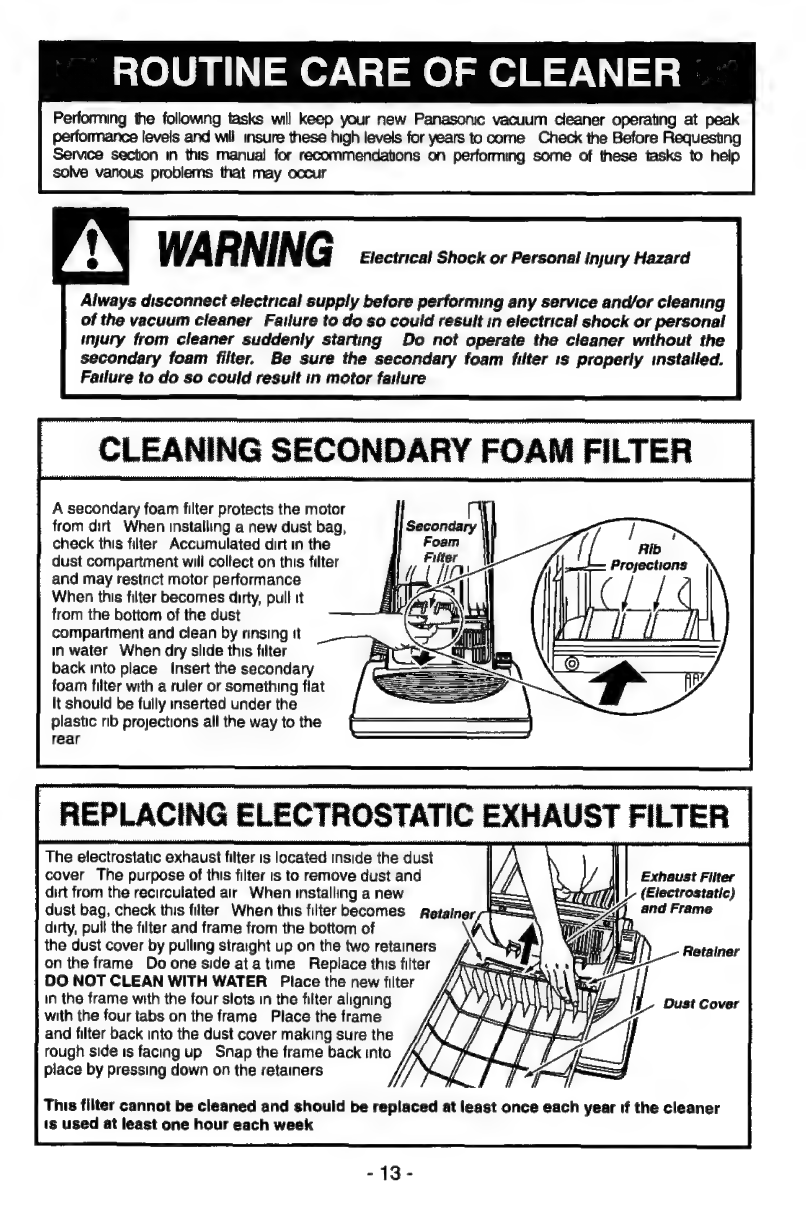

ROUTINE CARE OF CLEANER
Performing the followng tasks wil keep your new Panasonic vacuum cleaner operating at peak
performance levels and will insure these high levels for years to come Check the Before Requesting
Semice section in this manual for recommendations on performing some of these tasks to help
solve vanous problems that may occur
A WA R NIN G Electrical Shock or Personal injury Hazard
Always disconnect electrical supply before performing any service and/or cleaning
of the vacuum cleaner Failure to do so could result in electrical shock or personal
injury from cleaner suddenly starting Do not operate the cleaner without the
secondary foam filter. Be sure the secondary foam filter 1s properly installed.
Failure to do so could result in motor failure
CLEANING SECONDARY FOAM FILTER
A secondary foam filter protects the motor
from dirt When installing a new dust bag,
check this filter Accumulated dirt in the Rib
dust compartment will colfect on this filter ay Projections
and may restrict motor performance j Ik
When this filter becomes dirty, pull it
from the bottom of the dust
compartment and clean by rinsing it
in water When dry slide this filter
back into place Insert the secondary
foam filter with a ruler or something flat
It should be fully inserted under the
plastic rib projections all the way to the
rear
cover The purpose of this filter is to remove dust and
dirt from the recirculated air When installing a new
dust bag, check this filter When this filter becomes Retainer Ad
The electrostatic exhaust filter is located inside the dust
A Exhaust Filter
(Electrostatic)
= and Frame
dirty, pult the filter and frame from the bottom of Ori We
the dust cover by pulling straight up on the two retainers / > H ri =i Retainer
on the frame Do one side ata time Replace this filter
DO NOT CLEAN WITH WATER Piace the new filter ey
in the frame with the four slots in the filter aligning WHN Ae Dust Cover
with the four tabs on the frame Place the frame
and filter back into the dust cover makıng sure the K
rough side is facing up Snap the frame back into Meas
place by pressing down on the retainers
This filter cannot be cleaned and shouid be replaced at least once each year if the cleaner
is used at least one hour each week

CHANGING THE DUST BAG
Always operate the vacuum with a genuine Panasonic Type U3 (Standard) or U6
(Electrostatic) dust bag installed Panasonic dust bags may be ordered through
any authorized Panasonic dealer
t Pull outward on the Nt p 2. To remove the dust
dust cover grip,
located on the top
front of the dust
cover and remove
the cover
3 Spread out the end of the
new dust bag
NOTE Pull carefully so
as not to tear the bag at
the folds
Reinsert the tabs
provided on the end
of the dust cover into
the grooves on the
dust compartment
to allow the cover
to rotate closed
NOTE The dust
cover must be
completely
and correctly
installed for [i
proper V;
operation PLL j
5 j
P nen
bag, grasp the
cardboard portion
of the dust bag
and pull it out
Attach the new dust
bag onto the bag
holder by holding
the bag collar and
pushing back as
illustrated
Rotate the dust cover up
into the closed position
and press into place
NOTE The dust bag
should not be caught
between the
lower edge
of the dust
cover and
the gasket as
indicated by
the arrow In
the illustration

A WA R NIN G Electrical Shock or Personal Injury Hazard.
When the lower plate ıs removed for any reason, before reinstalling, be sure
that all electrical wires are routed in a manner that prevents them from coming into
contact with the lower plate, lower plate screws, or any moving parts Be sure
the wires are not pinched in any way when the lower plate is reinstalled.
REMOVING/INSTALLING THE LOWER PLATE
Before replacing any parts, disconnect the vacuum cleaner from the electrical outlet
Two Locking Tabs
the removal and installation of the lower plate
Always place paper under nozzle anytime the
lower plate is removed to protect the floor surface
To Remove Lower Plate
Start by placing the handle in the upnght position fal J
(See the Handle Adjustments section) Turn the {/ Yas
2]
te
vacuum cleaner over, exposing the underside cr
Release the lower plate by removing the two (2)
screws and pressing inward on the two (2) locking
tabs that secure the lower plate Remove the lower pla :
and brush or remove any residue that may exist in the belt area à
To Reinstall Lower Plate
Hook the front end of lower plate into the slots on the front of the nozzle housing Press the lower
plate into place until the locking tabs snap into place, then replace the two (2) lower plate screws
NOTE To insure maximum cleaning efficiency, the belt should be checked regularly to make
sure itis In good condition Check to see if the belt is stretched, cracked, or if
excessive slippage has occurred Replace it if necessary
REPLACING THE HEADLIGHT BULB
1 Remove the lower plate using the procedure
in the Removing/Installing the Lower Plate
section
Grasp the bulb socket, wiggle the socket back
and forth while pulling it up out of the nozzle
housing To remove the old bulb, push it in
toward the bulb socket while turning
counterclockwise, then remove
Install the new bulb by pushing it in toward
the bulb socket and tuming it clockwise Use
any standard bayonet base appliance bulb
rated at 15 Watts
CAUTION Do not use a bulb rated over
15 W During extended use, heat from the Bulb Socket Assembly
bulb could overheat surrounding plastic parts
Reinsert the bulb socket into the nozzle housing by pushing it back down into the slot
Replace the lower plate as outlined in the Removing/tnstalling the Lower Plate section

REPLACING THE DRIVE BELT
YN WARNING orcone nur nazora
8e careful when removing agitator brush assembly. The belt tension is high.
Failure to do so could result in personal injury from agitator brush assembly
releasing quickly and snapping away.
Place the carpet/bare floor selector in the carpet position. Remove the lower plate as described
in the Removing/Installing the Lower Plate section.
Remove the agitator brush assem bly (carefully lift it out),
and remove the worn or broken belt from the agitator
pulley and motor shaft.
CAUTION: The two end capa may come off along with
the two washers as you lift the agitator assembly out.
Do not lose the two small washers.
Loop the new belt around the motor shaft and loop it
around the agitator pulley. See illustration for correct
belt routing. Use only a Panasonic Type UBS drive belt.
Before reinserting the agitator brush assembly make sure
the end caps/washers are on correctly. (See illustration
in the Replacing the Agitator Assembly section.)
Floor Selector Shaft A Reinstall Agitator
After checking the end caps, reinstall the agitator brush assembly back into the housing grooves.
After installing the agitator brush assembly, turn it by hand making sure that the belt is not twisted
or pinched and ail rotating parts turn freely. Replace the iower plate as described in the
Removing/Installing the Lower Plate section.
Switch off the vacuum cleaner and unplug the power
cord before cleaning the agitator assembly. In order
to keep the cleaning efficiency high, clean the agitator
assembly regularly. Remove the lower plate if
necessary. See the Removing/Installing the Lower
Plate section for the proper procedure.
Agitator assembly - Cut off any carpet pile and
lint entangled around the agitator assembly with
a pair of scissors as illustrated.

REPLACING THE AGITATOR ASSEMBLY
1 When to replace the agitator assembly
The agitator assembly should be replaced when the brushes
are worn Brushes should be checked by holding a card
across the lower plate (see illustration) If the bristles on
the agitator assembly do not touch the card, you should
replace the agitator assembly for best cleaning results
How to replace the agitator assembly
Place the vacuum cleaner handle in the upright position
(See the Handle Adjustments section ) Remove the lower
plate as outlined in the Removing/Installing the Lower Plate section After the lower plate Is
removed, carefully lift up the agitator assembly until it clears both sides of the nozzle
housing While holding the agitator assembly up, remove the belt
CAUTION The two end caps may come off along with the two washers as you lift the
agitator assembly out Do not lose the two small washers Look at the exploded view of
the agitator assembly below for correct assembly of the parts
3 To replace the agitator assembly
Place the belt over the belt pulley on the agitator unit (NOTE There is a place for the belt
to fit on one end of the agitator assembly only) Replace both washers and end caps (see
illustration below for correct assembly) After assembling the belt, washers and end caps,
place the agitator assembly back into the nozzle housing by aligning each end cap
After completing the assembly, rotate the brush, turning it by hand to assure that
it rotates smoothly and the part is assembled correctly
Replace the lower plate as outlined in the Removing/Installing the Lower Plate section
End Capa
Washer
Beit Pulley
Agitator Unit
- 17-

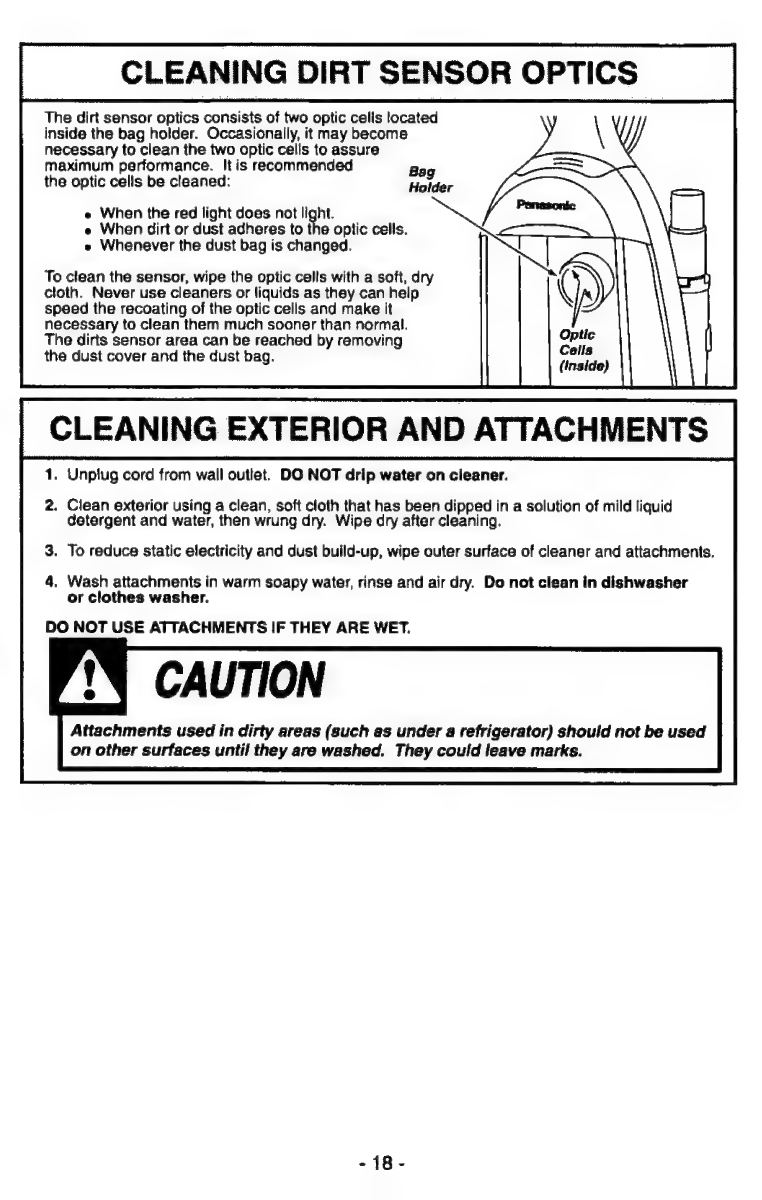

CLEANING DIRT SENSOR OPTICS —
The dirt sensor optics consists of two optic celis located
inside the bag holder. Occasionally, it may become
necessary to clean the two optic cells to assure
maximum performance. It is recommended Bag
the optic cells be cleaned: Holder
e When the red light does not light.
e When dirt or dust adheres to the optic cells.
» Whenever the dust bag is changed.
To clean the sensor, wipe the optic cells with a soft, dry
cloth. Never use cleaners or liquids as they can help
speed the recoating of the optic cells and make it
necessary to clean them much sooner than normal.
The dirts sensor area can be reached by removing
the dust cover and the dust bag.
. Unplug cord from wall outlet. DO NOT drip water on cleaner.
. Clean exterior using a clean, soft cloth that has been dipped in a solution of mild liquid
detergent and water, then wrung dry. Wipe dry after cleaning.
. To reduce static electricity and dust build-up, wipe outer surface of cleaner and attachments.
. Wash attachments in warm soapy water, rinse and air dry. Do not clean in dishwasher
or clothes washer.
DO NOT USE ATTACHMENTS IF THEY ARE WET.
Attachments used in dirty areas (such as under a refrigerator) should not be used
on other surfaces until they are washed. They could leave marks.
- 18-

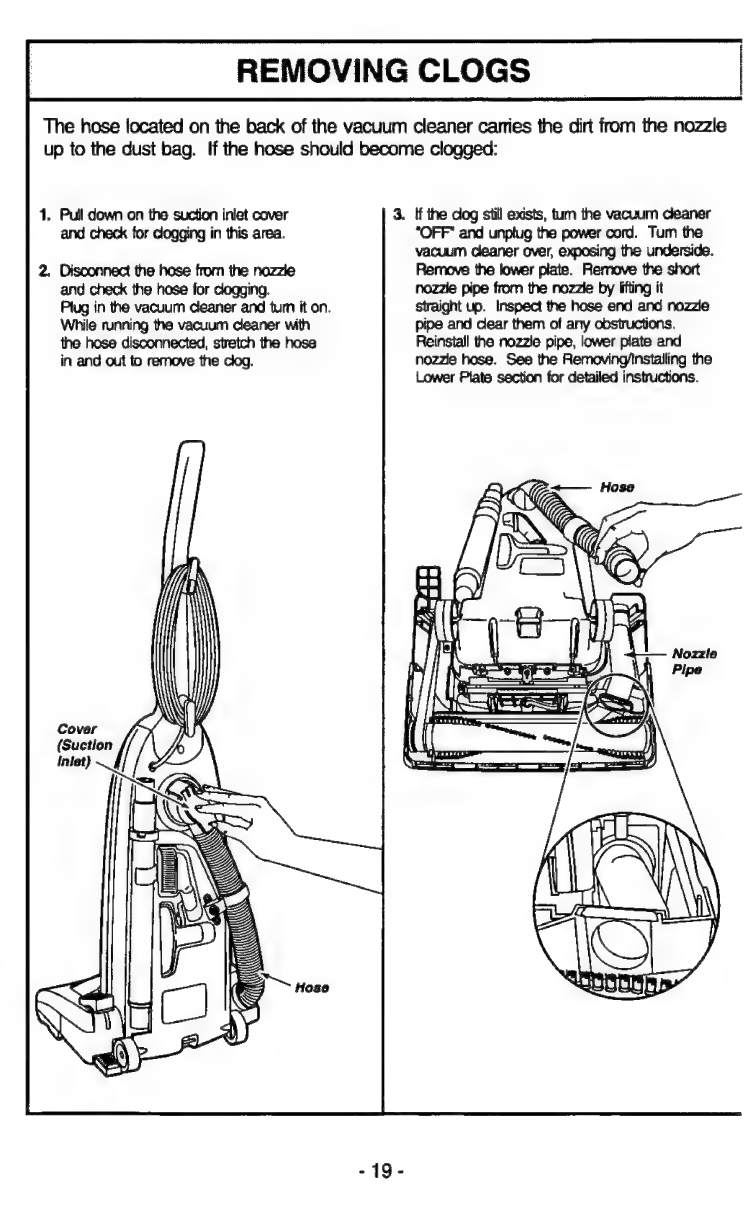

REMOVING CLOGS
The hase located on the back of the vacuum cleaner caries the dirt from the nozzle
up to the dust bag. If the hose should become clogged:
1. Pull down on the suction inlet cover 3. If the clog still exists, tum the vacuum cleaner
and check for dogging in this area. "OFF" and unplug the power cord. Tum the
vacuum Gleaner over, exposing the underside.
2. Disconnect the hose from the nozzle Remove the lower plate. Remove the short
and check the hose for cogging. nozzle pipe from the nozzle by ifting it
Plug in the vacuum cleaner and tum it on. straight up. Inspect the hose end and nozzie
pipe and clear them of any obstructions.
While running the vacuum cleaner with
the hose disconnected, stretch the hose Reinstall the nozzle pipe, lower plate and
in and out to remove the clog. nozzle hose. See the Removing/installing the
Lower Plate section for detailed instructions.
-19-

BEFORE REQUESTING SERVICE
A WAR, NIN G Electrical Shock or Personal Injury Hazard.
Disconnect the electrical supply before servicing or cleaning the unit. Failure to do
so could result in electrical shock or personal injury from cleaner suddenly starting.
Review this chart to find do-it-yourself solutions for minor performance
problems.
Any service needed, other than those described in these
Operating Instructions, should be performed by an authorized service
representative.
PROBLEM POSSIBLE CAUSE
Cleaner
will not run.
1. Unplugged at wall outlet.
. On/Off switch not turned on.
. Tripped circuit breaker/olown
fuse at household service panel.
Poor job of dirt
pickup.
. Full or clogged dust bag.
. Carpet/bare floor setting incorrect.
. Broken belt.
. Clogged hose or nozzie.
. Hose not inserted fully.
. Wom agitator assembly.
. Hole in hose.
. Dust cover improperly installed.
. Belt not installed on motor shaft.
POSSIBLE SOLUTION
1. Plug in firmly. Push On/Off switch
to On.
2. Push On/Off switch to On.
3. Reset circuit breaker or replace
fuse.
1. Change bag.
2. Set In the correct position.
3. Replace belt.
4, Clean hose or nozzle area.
5. Insert hose.
6. Replace agitator assembly.
7. Replace hose.
8. Properly install dust cover.
9. Install belt on motor shaft.
Bare floor option | 1. Belt improperly installed with bare | 1. Property install belt.
willl not work. floor selector in wrong position.
Light will
not work.
Dust escapes
the paper bag.
1. Bag Improperly installed.
2. Bag torn.
1, Burned out light bulb. 1. Replace light bulb.
1. Properly install bag.
2. Replace bag.
Dirt Sensor wili 1. Dirty optic cells. 1. Clean optic cells.
not work.
