Panasonic MC-UL712-KP47 User manual

© Panasonic Corporation 2012 Unauthorized copy-
ing and distribution is a violation of law.
Order Number VCB1203001CE
Vacuum Cleaner
Model No. MC-UL712-KP47
MC-UL710-WP47
Product Color :(K)Black
:(W)White
Destination:UK
TABLE OF CONTENTS
PAGE PAGE
1 Specifications ----------------------------------------------------- 2
2 Location of Controls and Components ------------------- 3
3 Troubleshooting Guide ----------------------------------------- 4
3.1. Troubleshooting quick reference chart --------------- 4
3.2. Inspection part/inspection method/remedy
according to the troubleshooting quick
reference guide.-------------------------------------------- 4
3.3. Safety Device----------------------------------------------- 6
4 Disassembly and Assembly Instructions ---------------- 7
4.1. Disassembly of the Body -------------------------------- 7
4.2. Replacement of the Fan Motor Unit ------------------ 9
4.3. Removal of the Nozzle Holder Unit -----------------11
4.4. Removal of the Switches ------------------------------12
4.5. Replacement of the Cord Set--------------------------13
4.6. Removal of the Handle Supporter Unit ------------- 14
4.7. Disassembly of the Nozzle Assy --------------------- 14
4.8. Removal of the Nozzle Motor Unit------------------- 15
4.9. Removal of the Nozzle Wand Unit ------------------ 15
4.10. Removal of the Lead Wire G Unit-------------------- 15
4.11. Body Wiring------------------------------------------------ 16
4.12. Nozzle Assy Wiring -------------------------------------- 16
5 Wiring Connection Diagram--------------------------------- 17
6 Exploded View and Replacement Parts List ----------- 18

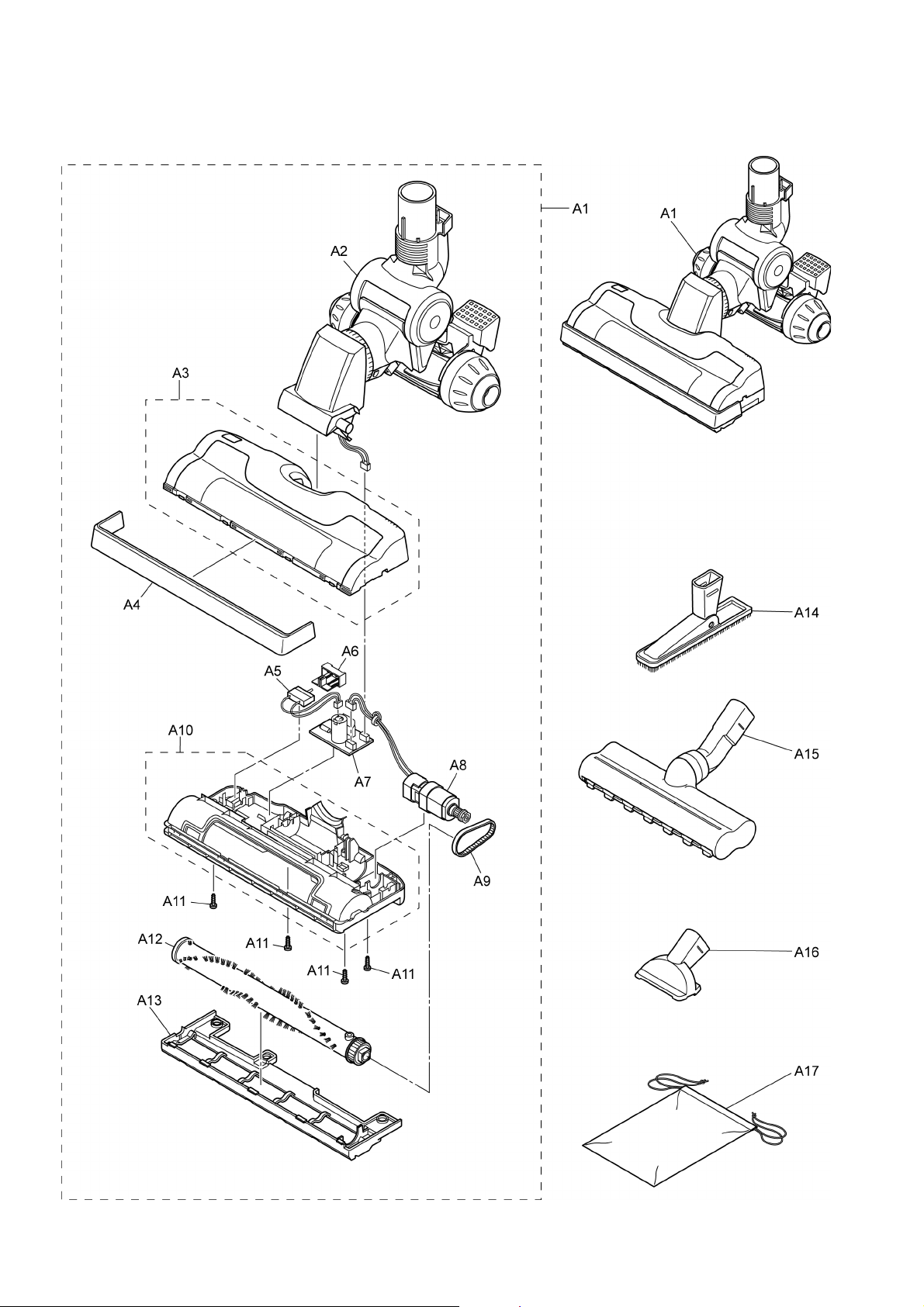

6.1. EXPLODED VIEW (ATTACHMENTS) -------------- 18
6.2. PARTS LIST (ATTACHMENTS) ---------------------- 19

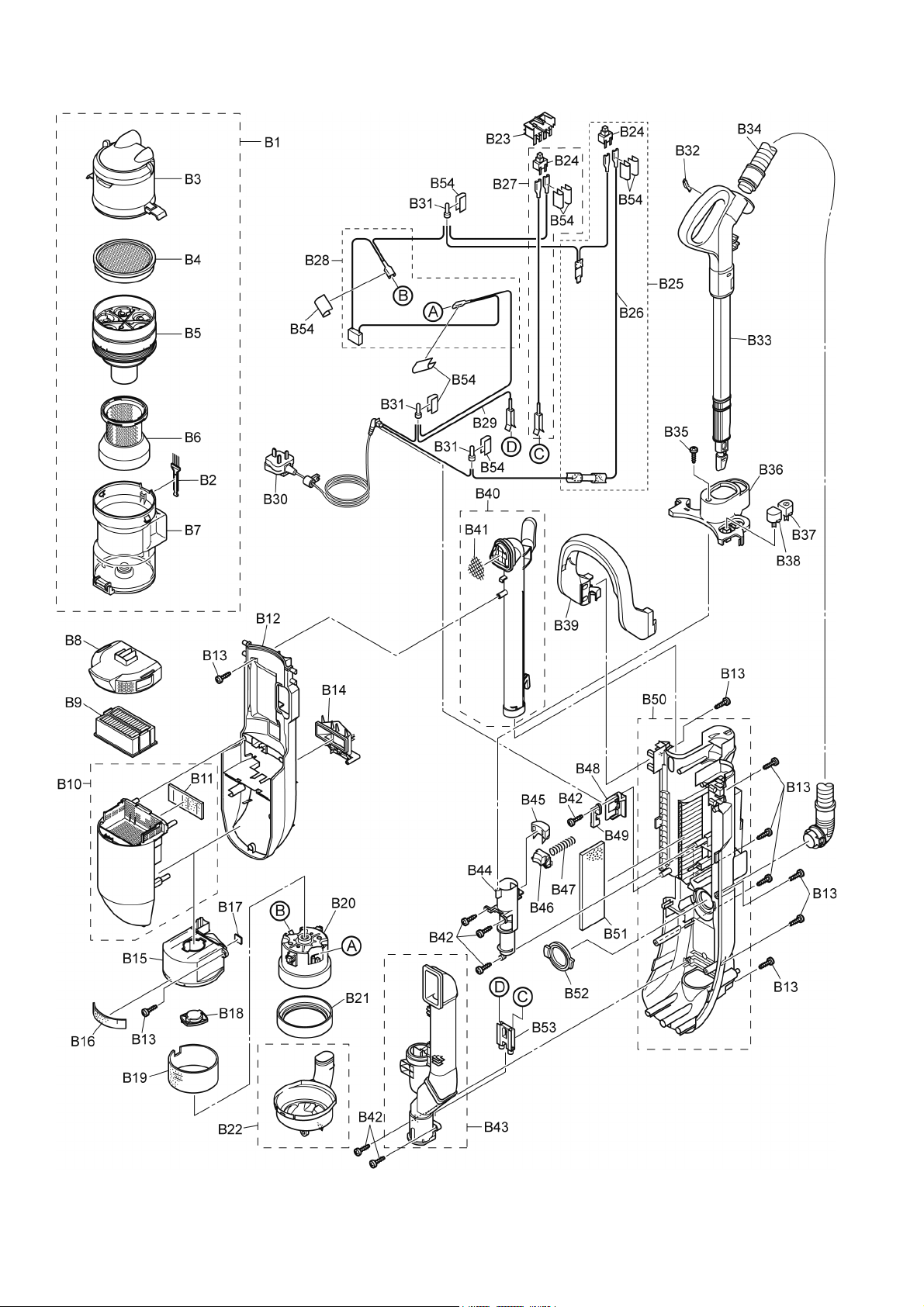

6.3. EXPLODED VIEW (BODY UNIT)-------------------- 20
6.4. PARTS LIST (BODY UNIT)---------------------------- 21
6.5. PARTS LIST (PACKING)------------------------------- 22

2
1 Specifications

3

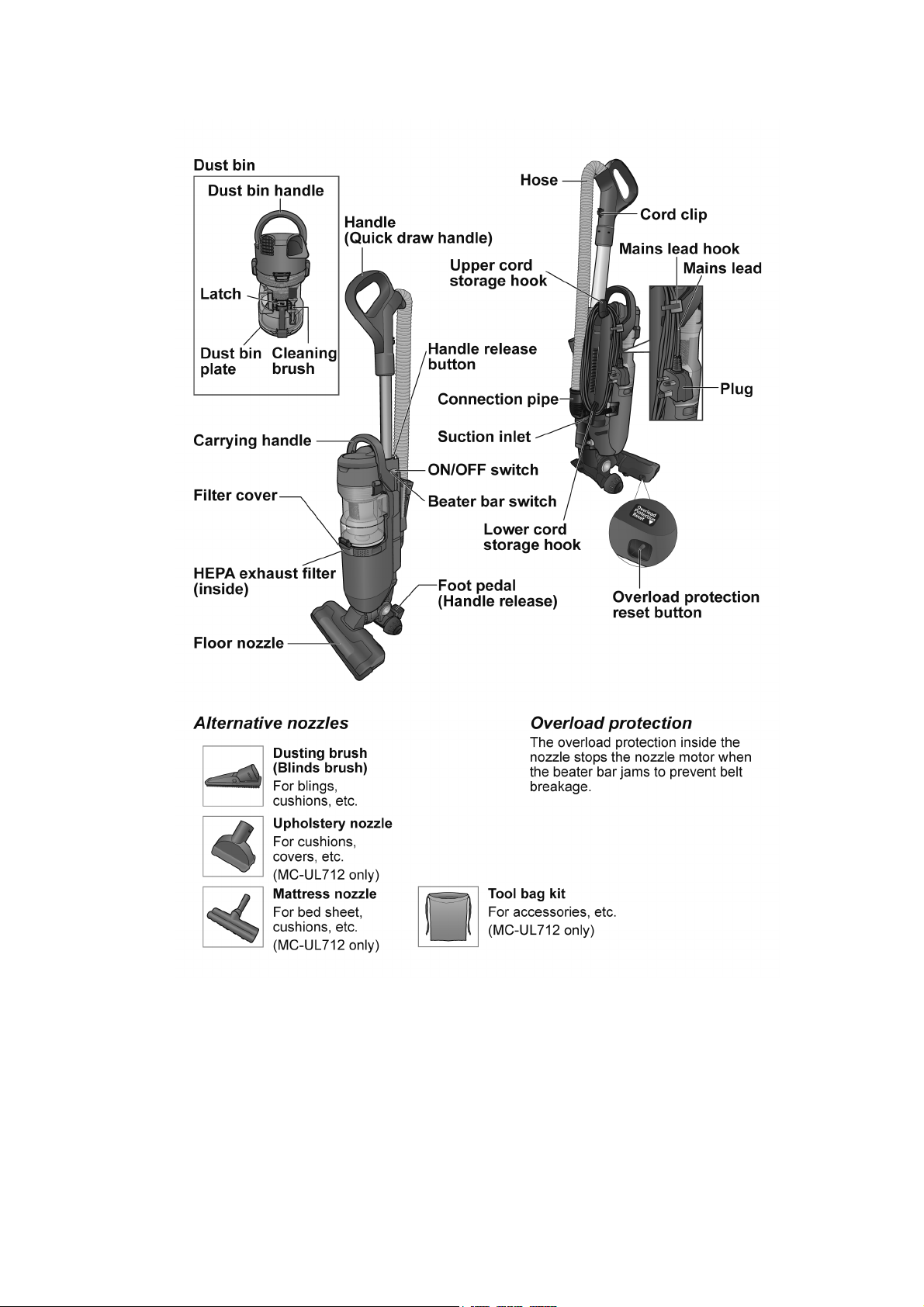

2 Location of Controls and Components

4
3 Troubleshooting Guide
3.1. Troubleshooting quick reference chart
3.2. Inspection part/inspection method/remedy according to the
troubleshooting quick reference guide.
Inspection
code Inspection part Inspection method Remedy
A Switch • Check the continuity of the switch(with Switch turned on). • If there is no continuity, replace the
Switch.
• To check continuity, remove the
Gasket V from the terminals.
After checking, fit new Gasket V.
AMC56L-1800P
• When replacing the Switch, fit the
Gasket V as shown in the figure to
the left.

5
B Fuse Unit • Check the continuity of the Fuse Unit.
• If blown, confirm that the Fan Motor Unit is not locked and that coil
burnout has not occurred.
• Replace the Fuse Unit.
• Replace the Fan Motor Unit.
• To check continuity, remove the
Gasket V from the terminals.
After checking, fit new Gasket V.
AMC56L-1800P
C Fan Motor Unit • Check continuity between the terminals of the Fan Motor Unit.
• Check the wear state of the carbon brushes (abnormal wear of just
one of the brushes etc.)
• Check there is no roughness on the faces of the commutator etc.
• Replace the Fan Motor Unit.
• When replacing the Fan Motor Unit,
be sure to change the Gasket V on
the terminals.
• To check continuity, remove the
Gasket V from the terminals.
After checking, fit new Gasket V.
AMC56L-1800P
D Dust Compartment
Unit
(Filters)
• Dispose of the dust in the Dust Compartment Unit.
• Clean each of the Filters.
• Clean or replace.
Filter Unit
Dust Compartment Filter Kit
E Hose Unit
Nozzle Assy
• Check for deformation, cracking, and blockage of the Hose Unit.
• Check for blockage of the Nozzle Assy.
• Replace the Hose Unit.
Remove the dust from the Hose
Unit, or Nozzle Assy.
F Belt • Check for missing teeth, tearing etc. • Replace the Belt
G P.C.B. E Unit
Lead Wire G Unit
• Check for cracking of the P.C.B, damage to the electronic
components, soldering defects, broken lines etc.
• Check the insertion state of connector housings.
• Check continuity between terminals A-B of the Lead Wire G Unit.
• Replace the P.C.B. E Unit.
• Replace the Lead Wire G Unit.
Inspection
code Inspection part Inspection method Remedy

6

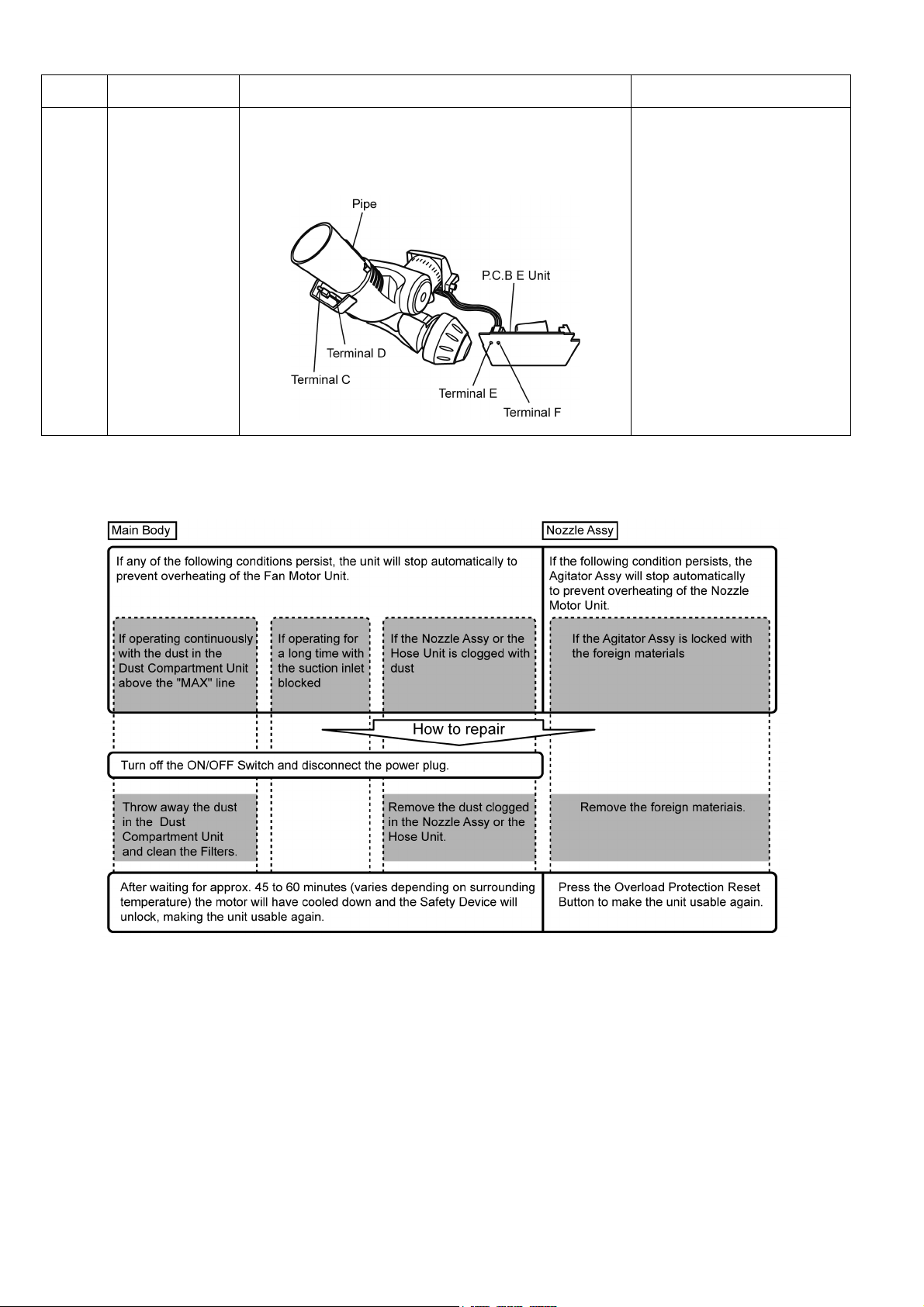

3.3. Safety Device
Under the following types of use, the Safety Device (Thermal Protector or Overload Protection) will trigger, stopping the unit and
preventing further operation.
H Nozzle Wand Unit • Insert the connector of the Nozzle Wand Unit into the P.C.B. E Unit
and check the continuity between the following terminals with the
pipe portion down.
• Terminal C-Terminal E
• Terminal D-Terminal F
• Replace the Nozzle Wand Unit.
Inspection
code Inspection part Inspection method Remedy

7
4 Disassembly and Assembly Instructions
* Attention
(1) When disassembling the vacuum cleaner, check the connections and wiring (pulling) of each component, and ensure
that everything is restored correctly once repairs are complete.
(2) Handle all disassembled components and packing with care, and be sure to replace any components that may be acci-
dentally damaged.
(3) Once repair operations are complete, always inspect the area around the repairs for any degradation, and ensure that
all components that were removed for repair have been replaced in the correct wiring configurations. It is also necessary
to test the operation of the vacuum cleaner and ensure that it is safe for subsequent use.
• Insulation resistance:
Must be at least 5MΩwhen a direct current of 500V is applied between the power plug terminals and the exterior of the motor.
• Dielectric strength:
Must be able to withstand 1250V of alternating current applied between the power plug terminals and the exterior of the motor for
one minute.
(4) Do not make changes to models, components, or materials during repairs and services.
(5) If a wiring unit has been supplied as a spare part, the wiring unit must be simply replaced as it is, without any addi-
tional repairs or connections made to even part of the wiring.
(6) Insert/remove the fast-on terminals by pushing/pulling them straight out without jiggling them or applying unneces-
sary force.
4.1. Disassembly of the Body
1. Lift the handle of the Dust Compartment Unit and remove
the Dust Compartment Unit.
2. Using a flathead screwdriver, release the Stopper at the
right side of the Handle Unit, then remove the Hose Unit
from the Handle Unit.

8

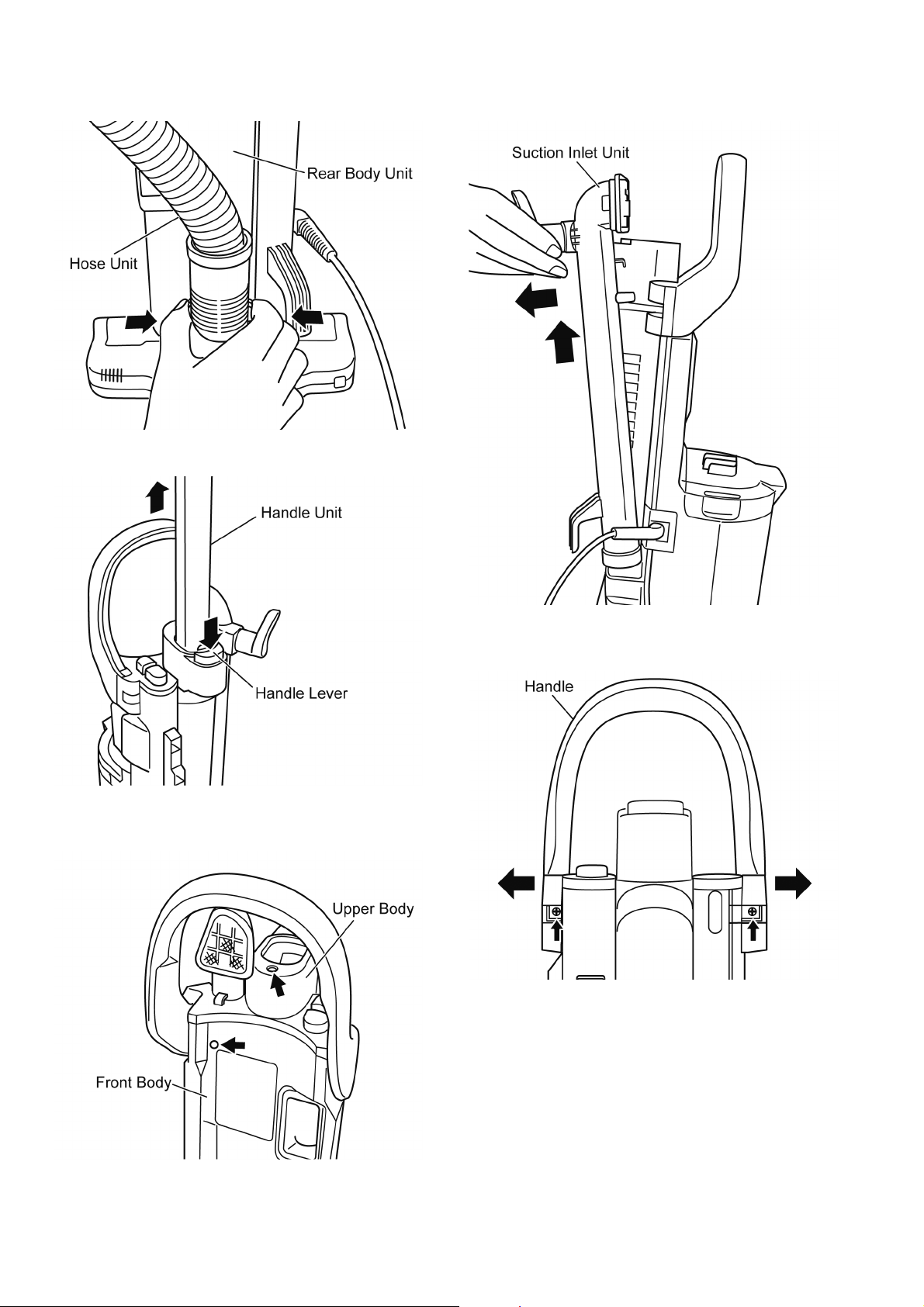

3. Remove the Hose Unit from the Rear Body Unit while
pressing the protrusion at the bottom of the Hose Unit.
4. Press the Handle Lever and pull off the Handle Unit.
5. Remove the 2 screws of the Upper Body and the Front
Body.
6. Lift up the Suction Inlet Unit a little, then bring it down to
the rear and remove it.
7. Remove the 2 screws of the Handle, then pull both ends
of the Handle out to the side and remove it.

9
8. Press the Floor Nozzle Removal Button and remove the
Nozzle Assy.
9. Remove the 5 screws of the Rear Body Unit.
10. Remove the Body Plate Unit.
4.2. Replacement of the Fan Motor
Unit
1. Refer to the "Disassembly of the Body" page and disas-
semble the Body.
2. Remove the screw.
3. Hold the Motor Case Set and the Curved Pipe Unit and
remove them.
*Be careful not to pull on the lead wire and break it.

10
4. Peel off Gasket S and the Packing U, then use a flathead
screwdriver to release the two Tab Portions between the
Motor Case Set and the Curved Pipe Unit.
5. Remove the Curved Pipe Unit, Motor Case Set, Motor
Support Rubber (Front), and the Motor Support Rubber
Unit (Rear).
6. Remove the Faston terminal of the Fan Motor Unit, and
then remove the Noise Suppressor Unit.
*Hold down the lock and remove.
*After attaching the Faston terminal, wrap with
Gasket V.
*When assembling, place the capacitor, thermal protector, and wire connector of the various lead wires in their origi-
nal positions.
*After engaging the Motor Case Set and the Curved Pipe Unit, stick Gasket S and the Packing U in their original posi-
tions. (If they cannot be reused, replace them.)

11
4.3. Removal of the Nozzle Holder Unit
1. Refer to the "Disassembly of the Body" page and disas-
semble the Body.
2. Refer to the "Replacement of the Fan Motor Unit" page
and remove the motor related parts.
3. Insert a flathead screwdriver into the Tab Portions (two at
the front left and right, and one at the rear right) located
between the Upper Body and the Front Body, and remove
the Upper Body.
4. Remove the Front Body and the Exhaust Unit from the
Rear Body Unit.
*When assembling the Exhaust Unit, place it aligned
at the position of the diagram.
5. Remove the 2 screws that attach the Nozzle Holder Unit.

12
6. Release the Tab Portion with a flathead screwdriver and
lift straight up, then remove the Nozzle Holder Unit.
*When assembling the Terminal Plate, be careful that
the protrusion at the Terminal Plate (at 2 positions)
does not ride up on the Boss of the Nozzle Holder
Unit.
4.4. Removal of the Switches
1. Refer to the "Disassembly of the Body" page and disas-
semble the Body.
2. Refer to the "Replacement of the Fan Motor Unit" page
and remove the motor related parts.
3. Refer to the "Removal of the Nozzle Holder Unit" page
and remove the Nozzle Holder Unit.
4. Remove the switches from the Switch Fitting Plate.
5. Remove the Faston terminals of the switches.
*Hold down the lock and remove.
*After attaching the Faston terminal, wrap with
Gasket V.

13
*When assembling, be sure that the lead wires of the
switches are wired as in the diagram.
*Place the Switch Fitting Plate in the position of the
diagram.
4.5. Replacement of the Cord Set
1. Refer to the "Disassembly of the Body" page and disas-
semble the Body.
2. Refer to the "Replacement of the Fan Motor Unit" page
and remove the motor related parts.
3. Refer to the "Replacement of the Nozzle Holder Unit"
page and remove the Front Body.
4. Remove the screw.
5. Release the Tab Portion between the Wire Bushing and
the Cord Retainer, and remove the Wire Bushing. Next,
pull out the Cord Set from the Cord Retainer.
*When assembling, orient the Cord Set as in the dia-
gram.

14
4.6. Removal of the Handle Sup-
porter Unit
1. Refer to the "Disassembly of the Body" page and disas-
semble the Body.
2. Refer to the "Replacement of the Fan Motor Unit" page
and remove the motor related parts.
3. Refer to the "Replacement of the Nozzle Holder Unit"
page and remove the Front Body.
4. Remove the 3 screws and remove the Handle Supporter
Unit.
4.7. Disassembly of the Nozzle
Assy
1. Release the locks at the 3 places of the diagram.
2. Remove the Brush Cover Unit and the Agitator Assy.
3. Remove the 4 screws.
4. While raising the Tabs (in 4 places) of the Floor Nozzle
Upper Assy that is located on the bottom face of the Noz-
zle (housing the Agitator Assy), free it from the Floor Noz-
zle Lower Unit.

15

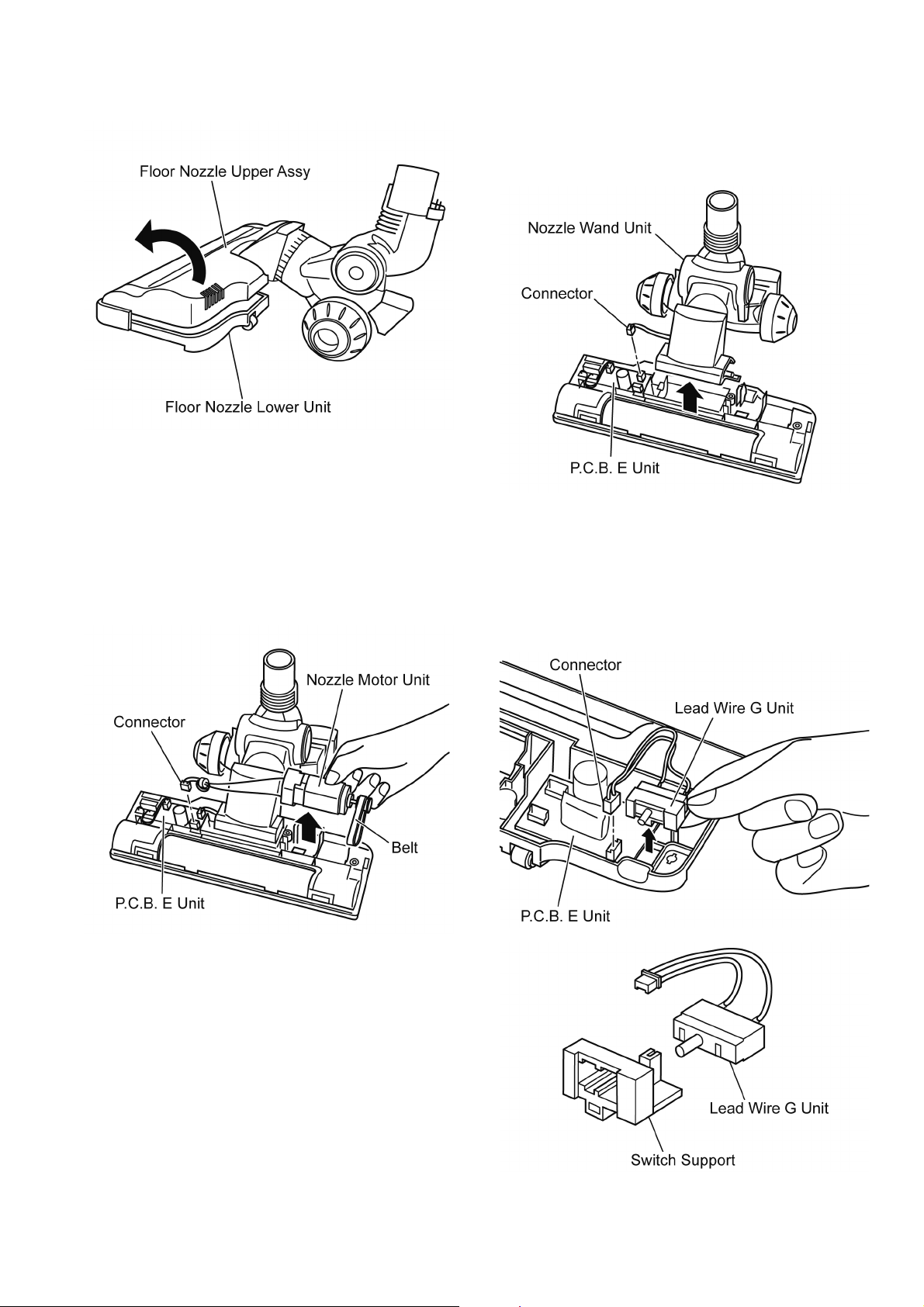

5. Return the Nozzle so that the front is up, and remove the
Floor Nozzle Upper Assy.
*When separating, be careful not to cause whitening
or damage of the tab fitting hooks of the Floor Nozzle
Upper Assy.
4.8. Removal of the Nozzle Motor
Unit
1. Remove the connector of the Nozzle Motor Unit that is
inserted in the P.C.B. E Unit, then remove the Nozzle
Motor Unit and the Belt.
*When assembling, be sure to place the lead wires in
their original positions. (See the wiring diagram)
4.9. Removal of the Nozzle Wand
Unit
1. Remove the connector of the Nozzle Wand Unit that is
inserted in the P.C.B. E Unit, then remove the Nozzle
Wand Unit.
*When assembling, be sure to place the lead wires in
their original positions. (See the wiring diagram)
4.10. Removal of the Lead Wire G
Unit
1. Remove the connector of the Lead Wire G Unit that is
inserted in the P.C.B. E Unit, then remove the Lead Wire
G Unit and the Switch Support.
*When assembling, be sure to place the lead wires in
their original positions. (See the wiring diagram)

16
4.11. Body Wiring
Firmly insert the lead wires into the grooves as in the diagram below.
4.12. Nozzle Assy Wiring
Firmly insert the lead wires into the grooves as in the diagram below.

17
5 Wiring Connection Diagram
When replacing the FAN MOTOR UNIT or SWITCHES, always cover the tab-on connecting terminals with Gasket V after making
the connections.

18
6 Exploded View and Replacement Parts List
6.1. EXPLODED VIEW (ATTACHMENTS)

19
6.2. PARTS LIST (ATTACHMENTS)
Safety Ref. No. Part No. Part Name & Description Pcs/Set Remarks
A1 AMV85PCV0K0P NOZZLE ASSY 1 (FLOOR NOZZLE)MC-UL712
A1 AMV85PCV0W0P NOZZLE ASSY 1 (FLOOR NOZZLE)MC-UL710
A2 AMV94RCV0K0P NOZZLE WAND UNIT 1
A3 AMV92QCV0K0P FLOOR NOZZLE UPPER ASSY 1 MC-UL712
A3 AMV92QCV0W0P FLOOR NOZZLE UPPER ASSY 1 MC-UL710
A4 AMV09RCV0K0P NOZZLE BUMPER 1
A5 AMV73VD2000P LEAD WIRE G UNIT 1 (OVERLOAD PROTECTION)
A6 AMV12ECV000P SWITCH SUPPORT 1
A7 AMV81VD2000P P.C.B E UNIT 1
A8 AMV13SD200CP NOZZLE MOTOR UNIT 1
A9 AMV28SCV000P BELT 1
A10 AMV97RCV0K0P FLOWER NOZZLE LOWER UNIT 1
A11 XTN4+16BFJ SCREW 4
A12 AMV92RCV0R0P AGITATOR ASSY 1 (BEATER BAR)
A13 AMV98QCV0K0P BRUSH COVER UNIT 1
A14 AMV88R5E020P DUSTING BRUSH UNIT 1
A15 AMV89QD2020P FLOOR NOZZLE ASSY A 1 (MATTRESS NOZZLE)MC-UL712 ONLY
A16 AMV86RD2020P UPHOLSTERY NOZZLE UNIT 1 MC-UL712 ONLY
A17 AMV75RD2000P TOOL STORAGE BAG 1 (TOOL BAG KIT)MC-UL712 ONLY

20
6.3. EXPLODED VIEW (BODY UNIT)
