Panasonic Quickdraw MC-V5247 User manual

Operating
Instructions
VACUUM CLEANER
MC-V5247
TTT
UY ТТТ
Panasonic.
Before operating your vacuum cleaner, please read these instructions completely.
CGeHZARSODUQDCO

CONSUMER INFORMATION
Please read IMPORTANT SAFETY INSTRUCTIONS on page 4 before
use. Read and understand all instructions.
TO OUR VALUED CUSTOMER
We are very pleased to welcome you to the Panasonic family of products. Thank you for
purchasing this product. Our intent is that you become one of our many satisfied customers.
Proper assembly and safe use of your vacuum cleaner are your responsibilities.
Your vacuum cleaner is intended only for household use. The cleaner should be stored in
8 dry, indoor area. Read the Operating Instructions carefully for Important use and safety
information.
Special care is required when vacuuming certain types of carpet or floor covering. Atways
check the carpet or floor covering man urer's recommended cleaning instruction
before vacuuming. í
PLEASE PAY CLOSE ATTENTION TO THE
WARNING AND CAUTION STATEMENTS THAT
ARE FOUND THROUGHOUT THIS MANUAL.
WARNING statements are designed to alert you
to the possibility of personal injury, loss of human
life, and/or damage to the vacuum cleaner and/or
personal property if the instructions given are not
followed.
CAUTION statements are designed to alert you
to the possibility of damage to the vacuum clean-
er and/or personal property if the instructions
given are not followed.
IN WARNING
TO AVOID ELECTRIC SHOCK
Never vacuum damp or wet surfaces or liquids..
DO NOT store machine outdoors.
Replace worn or frayed power cord immediately.
TO AVOID ACCIDENTS
Except for hand-held cleaners, keep machine on floor - not chairs, tables, steps, stairs, etc.
Store machine promptly after each use to prevent accidents such as tripping over power cord or machine.
Use machine and accessories only in a manner intended by the manufacturer.
The use of an extension cord is not recommended.
©1998 Matsushita Electric Industrial Co., Ltd. All rights reserved.
20a

TABLE OF CONTENTS
CONSUMER INFORMATION
IMPORTANT SAFETY INSTRUCTIONS
PARTS IDENTIFICATION
Feature Chart
TO ASSEMBLE CLEANER
Attaching Handle to Vacuum Cleaner
Using the Cord Hook
Attachments Assembly, Tools-on-Board
SPECIAL FEATURES OF CLEANER
Automatic Self Adjusting Nozzle
Edge Cleaning Feature
Motor Protector
Vac Gauge
TO OPERATE CLEANER
Power Cord
On/Off Switch
Handle Adjustments
Attachments
ROUTINE CARE OF CLEANER
Replacing Secondary Hepa Type Filter
Changing the Dust Bag
Removing/Installing the Lower Plate
Replacing the Headlight Bulb
Replacing the Belt
Cleaning the Agitator
Replacing the Brushes
Cleaning Exterior and Attachments
Removing Clogs

IMPORTANT SAFETY INSTRUCTIONS
When using vacuum cleaner, basic precautions should always
be followed, including the following:
READ ALL INSTRUCTIONS BEFORE
USING THIS VACUUM CLEANER
WARNING
To reduce the risk of fire, electric shock, injury:
1. DO NOT leave vacuum cleaner when plugged in. Unplug from outlet when
not in use and before servicing.
2. To reduce the risk of fire, electric shock - DO NOT use outdoors or on wet
Surfaces.
3. DO NOT allow to be used as a toy. Close attention is necessary when
used by or near children.
4. Use only as described in this manual. Use only manufacturer's recom-
mended attachments.
5. DO NOT use with damaged cord or plug. If vacuum cleaner is not working
as it should, has been dropped, damaged, left outdoors, or dropped into water,
return it to an authorized Panasonic Servicenter.
6. DO NOT pull or carry by cord, use cord as a handle, close door on cord, or
pull cord around sharp edges or corners. DO NOT run vacuum cleaner over
cord. Keep cord away from heated surfaces.
7. DO NOT unplug by pulling on cord. To unplug, grasp the plug, not the
cord.
8. DO NOT handle plug or vacuum cleaner with wet hands.
9. DO NOT put any objects into openings. DO NOT use with any opening
blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
10. Keep hair, loose clothing, fingers, and all parts of body away from openings
and moving parts.
11. DO NOT pick up anything that is burning or smoking, such as cigarettes,
matches, or hot ashes.
12. DO NOT use without dust bag and/or filters in place.
13. Turn off all controls before unplugging.
14. Use extra care when cleaning on stairs.
15. DO NOT use cleaner to pick up flammable or combustible liquids such as
gasoline or use in areas where they may be present.
SAVE THESE INSTRUCTIONS
THIS VACUUM CLEANER IS INTENDED
FOR HOUSEHOLD USE ONLY
Note: Before you plug in your Panasonic vacuum cleaner, make sure that the voltage
indicated on the rating plate located at the back of the vacuum cleaner is the same as
your local supply.

PARTS IDENTIFICATION
2
Handie ———*.
Quick
Release
Cord Hook —_»-
Switch
Cord
Hook
Zw
Handie =
Screw
"
]
Dust
Cover
ee
(босо
inlet)
e
)
\
»» Y
Secondary
Filter (Inside
Dust Cover)
Rating Plate Si.
Handle
===
-———
Nozzle
Release
[a
Pedal ——» 53 М
n Furniture
Guard
Headlight
FEATURE CHART !
(ANASONIC UPRIGHT VACUUM CLEANER)
CORD
grae
BOARD
wur
[Pine
|
m
|
m
|
om
|

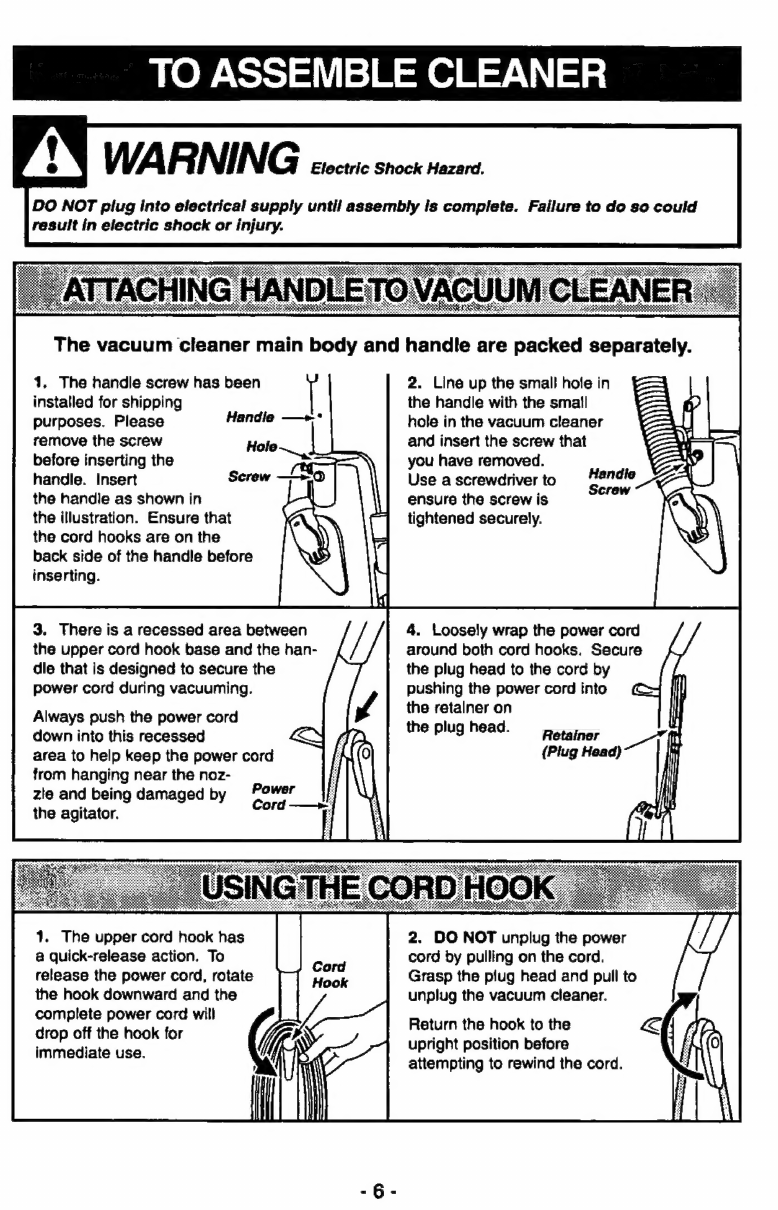

TO ASSEMBLE CLEANER
A WA RNIN G Electric Shock Hazard.
DO NOT plug into electrical supply until assembly is complete. Failure to do so could
resuit in electric shock or injury.
installed for shipping
purposes. Please
remove the screw
before inserting the
handle. Insert
the handle as shown in
the illustration. Ensure that
the cord hooks are on the
back side of the handle before
inserting.
1. The handle screw has been 1
Handle —»*
3. There is a recessed area between
the upper cord hook base and the han-
dle that is designed to secure the
power cord during vacuuming.
Always push the power cord
down into this recessed
area to help keep the power cord
from hanging near the noz-
zle and being damaged by
the agitator.
1. The upper cord hook has
a quick-release action. To
release the power cord, rotate
the hook downward and the
complete power cord will
drop off the hook for
immediate use.
2. Line up the small hole in
the handle with the small
hole in the vacuum cleaner
and insert the screw that
you have removed.
Use a screwdriver to
ensure the screw is
tightened securely.
4. Loosely wrap the power cord
around both cord hooks. Secure
the plug head to the cord by
pushing the power cord into
the retalner on
the plug head.
Retainer
(Plug Head)
2. DO NOT unplug the power
cord by pulling on the cord.
Grasp the plug head and pull to
unplug the vacuum cleaner.
Return the hook to the
upright position before
attempting to rewind the cord.

DO NOT get the power cord caught under the nozzie when using the vacuum or
attachments as it can be damaged by the agitator as it revolves.
ATTACHMENTS
tr
Dusti '
o P mg
1
Brush —> үң
Crevice
Raised Y Too!
‘ab 501 Hose
The attachments should be conveniently positioned
on the side of the cleaner for easy access. Assemble
the hose and attachments to the cleaner as follows:
Place the hose on the hose holder in front of the handle.
Attach the wand to the hose by aligning the two (2)
raised tabs on the wand with the “J” slots in the hose.
After guiding the tabs along the grooves, twist to lock
in place. >
Place the wand in the middle slot of the tool holder,
twisting and pushing down over the short hose to
assure a good connection.
Store the dusting brush in the front of the too! holder.
T Sp,
SAT
NM
yo
Place the crevice tool into the rear slot of the tool
holder.
Refer to the illustration in the PARTS IDENTIFICATION
section for correct attachment storage.
S
oe

SPECIAL FEATURES OF CLEANER
Your Panasonic upright vacuum cleaner is
designed with an automatic self adjusting
nozzle. No manual adjustments are
required. The height of the nozzle is
instantly and automatically adjusted to any
carpet pile height. This self adjusting
feature allows the nozzle to float evenly
over all carpet pile surfaces.
Nozzie Б
Deep Pile Carpet eO)
W If fJ] penon aan
iiie
The edge cleaning feature provides for
improved cleaning of carpets near walls
and furniture.
This vacuum has a motor protector which
automatically trips to protect the vacuum from
overheating. If a clog prevents the normal flow of air to
the motor the motor protector turns the motor off
automatically to allow the motor to coo! in order to
prevent possible damage to the vacuum. During this
time the headlight remains on. If this occurs, tum the
vacuum off and unplug the power cord from the outlet
to allow the vacuum to cool and the motor protector to
reset. Check for and remove clogs, if necessary,
as described in the REMOVING CLOGS sectlon.
Walt approximately thirty (30) minutes and plug the
vacuum in and turn back on to see if the motor
protector has reset. The motor protector will not reset If
the vacuum is not turned off even if the vacuum has cooled down.

The vac gauge located on the front of your vacuum cleaner
dust cover, indicates when the dust bag should be
changed. Change the dust bag when FULL is indicat-
gauge reading.
NOTE: If the vac gauge indicates FULL while the
dust bag is still empty, check to see if there are any
clogs as explained in the REMOVING CLOGS
section. The vac gauge indicator may not move
as expected when loose, fluffy dust is vacuumed.
ed in order to maintain the best cleaning efficiency.
When using some of the attachments they may
restrict airflow enough so that the vac gauge indi-
cates full. If this occurs remove attachment from
hose and then you should get a more accurate vac

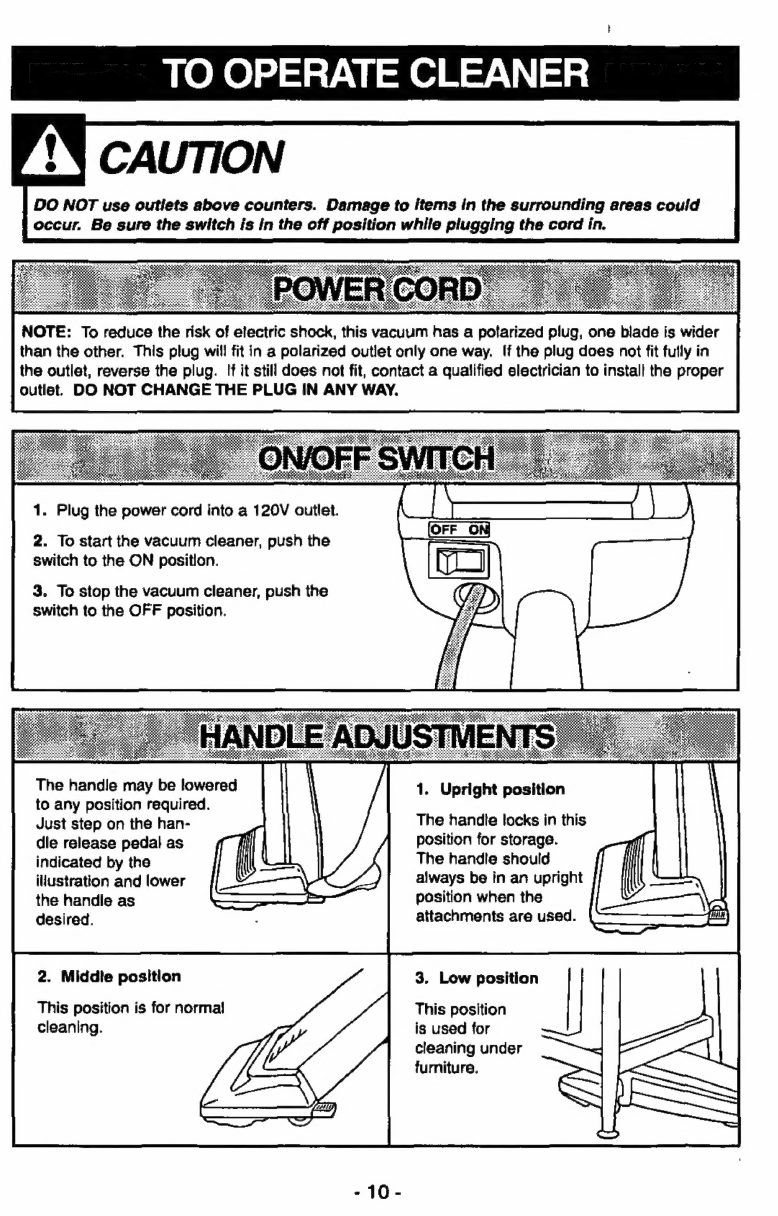

TO OPERATE CLEANER
DO NOT use outlets above counters. Damage to items in the surrounding areas could
occur. Be sure the switch is in the off position while plugging the cord in.
NOTE: To reduce the risk of electric shock, this vacuum has a polarized plug, one blade is wider
than the other. This plug will fit in a polarized outlet only one way. If the plug does not fit fully in
the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper
outlet. DO NOT CHANGE THE PLUG IN ANY WAY.
1. Plug the power cord into a 120V outlet.
2. To start the vacuum cleaner, push the
switch to the ON positlon.
3. To stop the vacuum cleaner, push the
Switch to the OFF position.
The handle may be lowered 1. Upright position
to any position required.
Just step on the han- The handle locks in this
dle release pedal as | position for storage.
indicated by tho The handle should
illustration and lower always be in an upright
the handle as position when the
desired.
К
attachments
are
used.
2. Middle position 3. Low position
This position is for normal This position
cleaning. is used for
cleaning under
furniture.
-10-

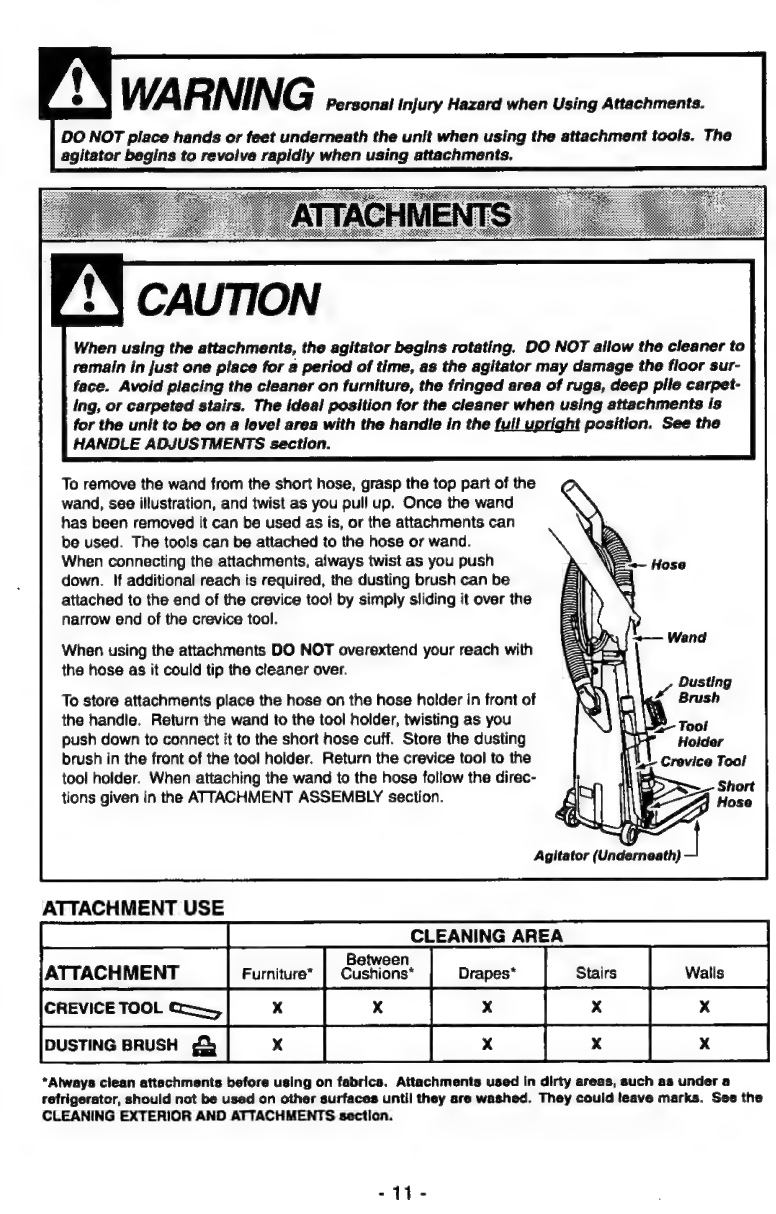

A WA RNIN G Personal injury Hazard when Using Attachments.
DO NOT place hands or feet underneath the unit when using the attachment tools. The
agitator begins to revolve rapidly when using attachments.
When using the attachments, the agitator begins rotating. DO NOT allow the cleaner to
remain in just one place for a period of time, as the agitator may damage the floor sur-
face. Avoid placing the cleaner on furniture, the fringed area of rugs, deep pile carpet-
ing, or carpeted stairs. The ideal position for the cleaner when using attachments is
for the unit to be on a level area with the handle in the full upright position. See the
HANDLE ADJUSTMENTS section.
To remove the wand from the short hose, grasp the top part of the
wand, see illustration, and twist as you pull up. Once the wand
has been removed it can be used as is, or the attachments can
be used. The tools can be attached to the hose or wand.
When connecting the attachments, always twist as you push
down. If additional reach is required, the dusting brush can be
attached to the end of the crevice too! by simply sliding it over the
narrow end of the crevice tool.
When using the attachments DO NOT overextend your reach with
the hose as it could tip the cleaner over.
Km
pet ss ==
\
To store attachments place the hose on the hose holder in front of
the handle. Return the wand to the tool holder, twisting as you
push down to connect it to the short hose cuff. Store the dusting
brush in the front of the tool holder. Return the crevice tool to the
tool holder. When attaching the wand to the hose follow the direc-
tions given in the ATTACHMENT ASSEMBLY section.
ATTACHMENT USE
Between
ceras] x | x | x | x [or >
*Always clean attachments before using on fabrics. Attachments used in dirty areas, such as under a
refrigerator, should not be used on other surfaces until they are washed. They could leave marks. See the
CLEANING EXTERIOR AND ATTACHMENTS sectlon.
- 11-

ROUTINE CARE OF CLEANER
Performing the following tasks will keep your new Panasonic vacuum cleaner operating at peak
performance levels and will ensure these high levels for years to come. Check the BEFORE
REQUESTING SERVICE section in this manual for recommendations on performing some of
these tasks to help solve various problems that may occur.
A WA Н NIN G Electric Shock or Personal Injury Hazard.
Always disconnect electrical supply before performing any service and/or cleaning of the
vacuum cleaner. Failure to do so could result in electric shock or personal injury from
cleaner suddenly starting. DO NOT operate the cleaner without the secondary filter. Be
sure the secondary filter is properly installed. Failure to do so could result in motor fail-
A secondary HEPA type filter protects the
motor from dirt. When installing a new dust
bag, check this filter. Accumulated dirt in
the dust compartment will collect on the fil-
ter and may restrict motor performance.
When the filter becomes dirty, pull it from
the bottom of the dust compartment
and replace it. DO NOT CLEAN
WITH WATER*. When replacing,
slide the filter back into place making
sure the white side is up. Insert the sec-
ondary HEPA type filter with a ruler or
something flat. it should be fully inserted
under the plastic rib projections all the
way to the rear.
Secondary HEPA
Typo Filter
ү! ч Up)
*This filter cannot be cleaned and should be replaced at least once each year i the
cleaner is used at least one hour each week.
-12-

атына A E pm

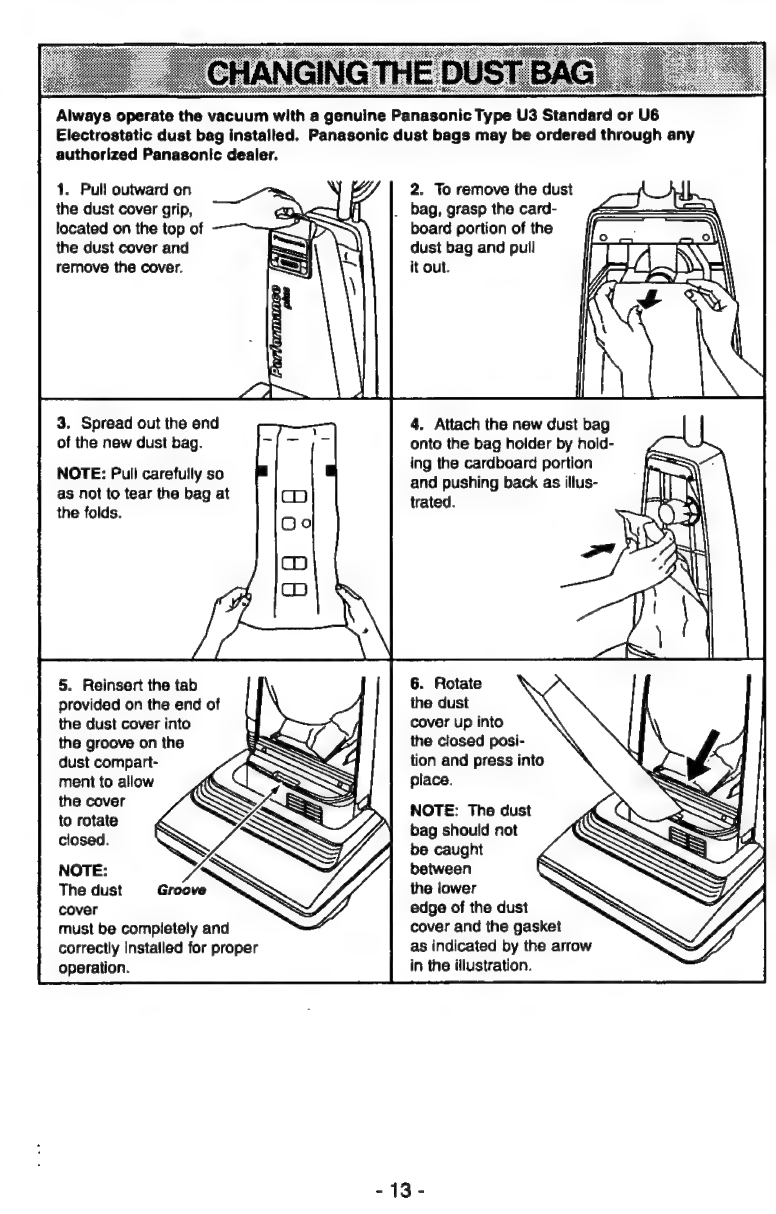

Always operate the vacuum with a genuine Panasonic Type U3 Standard or U6
Electrostatic dust bag installed. Panasonic dust bags may be ordered through any
authorized Panasonic dealer.
1. Pull outward on
the dust cover grip,
located on the top of
the dust cover and
remove the cover.
3. Spread out the end
of the new dust bag.
NOTE: Pull carefully so
as not to tear the bag at
the folds.
5. Reinsert the tab
provided on the end of
the dust cover into
the groove on the
dust compart-
ment to allow
the cover
to rotate
closed.
NOTE:
The dust Groove
cover
must be completely and
correctly installed for proper
operation.
2. To remove the dust
. bag, grasp the card-
board portion of the
dust bag and pull
it out.
4. Attach the new dust bag
onto the bag holder by hold-
ing the cardboard portion
and pushing back as illus-
trated.
6. Rotate
the dust
cover up into
the closed posi-
tion and press into
place.
NOTE: The dust
bag should not
be caught
between
the lower
edge of the dust
cover and the gasket
as indicated by the arrow
in the illustration.
-13-

A WAR NIN G Electric Shock or Personal injury Hazard.
When the lower plate is removed for any reason, before reinstalling, be sure that all elec-
trical wires are routed in a manner that prevents them from coming into contact with the
lower plate, lower plate screws, or any moving parts. Be sure that the wires are not
pinched in any way when the lower plate is reinstalled.
ct the
vacuum cleaner from the electrical outlet.
Replacing some of the parts in this section involves the
removal and installation of the lower plate. Always
place paper under nozzle anytime the lower plate is ES)
removed to protect the floor surface. 228
To Remove Lower Plate.
Start by placing the handle in the upright position, See the Lower
HANDLE ADJUSTMENTS section. Turn the vacuum cleaner Plate <>
over, exposing the underside. Release the lower plate by
pressing the two (2) latches that secure the lower plate inward, as shown in the
illustration. Remove the tower plate and remove any residue that may exist in the belt area.
To Reinstall Lower Plate.
Close the rear belt cover. Hook the front end of lower plate onto the tabs on the front of the noz-
zle housing. Press the lower plate into place and fasten by pushing the two (2) latches outward.
NOTE: To ensure maximum cleaning efficiency, the belt should be checked regularly to make
sure it is in good condition. Check to see if the belt is stretched, cracked, or if excessive slippage
has occurred. Replace if necessary.
NS vá se
1. Remove the lower plate using the procedure in
the REMOVING/INSTALLING THE LOWER PLATE
section.
2. Remove the bulb socket screw, grasp the bulb
socket, wiggle the socket back and forth while
pulling it up out of the nozzle housing. To remove Ё | t
the old bulb, push it in toward the bulb socket while f
turning counterclockwise, then remove. { |
3. Install the new bulb by pushing it in toward the A us — tha)
bulb socket and turning it clockwise. Use any stan- ME nel CI Img p осир
dard bayonet base appliance bulb rated at 130 Bulb Socket Assembly
Volts AC/15 Watts.
NOTE: Do not use a bulb rated over 130 Volts AC/15 Watts. During extended use, heat from the
bulb could overheat the surrounding plastic parts.
4. Reinsert the bulb socket Into the nozzle housing by pushing it back down Into the slot and
replace the bulb socket screw. Replace the lower plate as outlined in the
REMOVING/INSTALLING THE LOWER PLATE section.

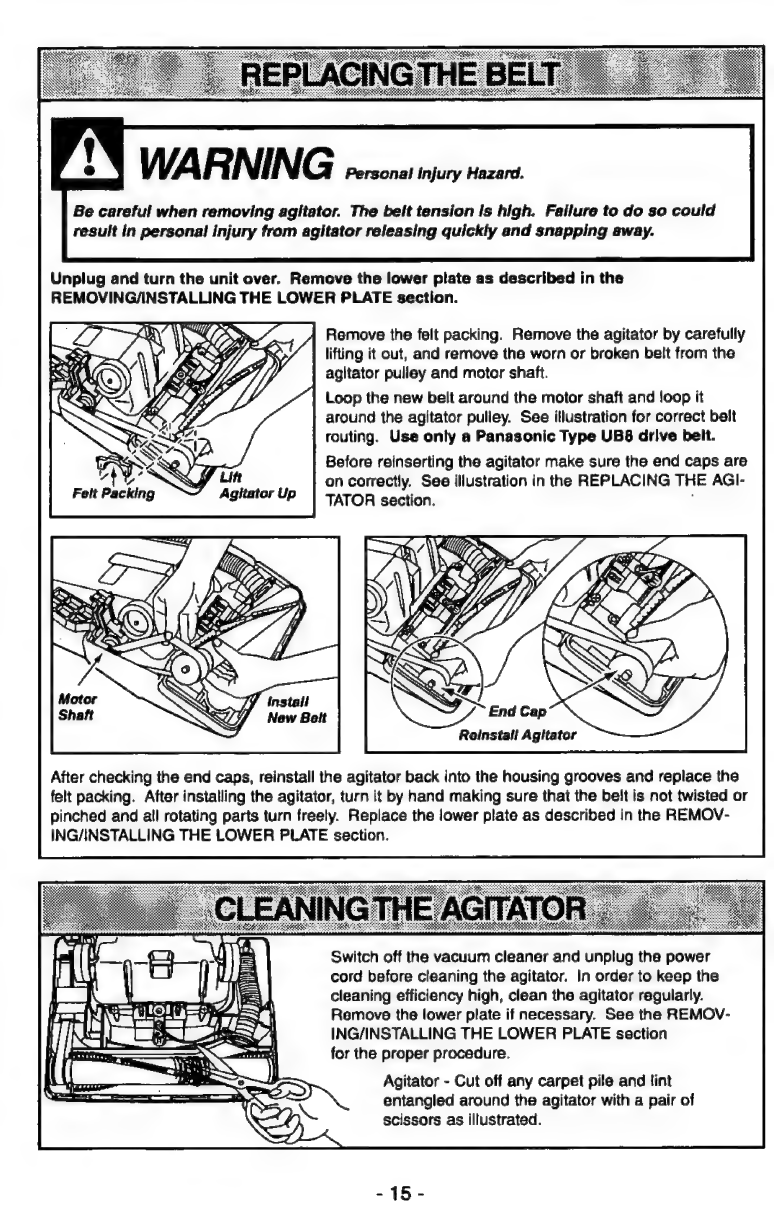

Be careful when removing agitator. The belt tension is high. Failure to do so could
result in personal injury from agitator releasing quickly and snapping away.
Unplug and turn the unit over. Remove the lower plate as described in the
REMOVING/INSTALLING THE LOWER PLATE section.
Remove the felt packing. Remove the agitator by carefully
lifting it out, and remove the worn or broken belt from the
agltator pulley and motor shaft.
Loop the new belt around the motor shaft and loop it
around the agitator pulley. See illustration for correct belt
routing. Use only a Panasonic Type UBB drive belt.
Before reinserting the agitator make sure the end caps are
on correctly. See illustration in the REPLACING THE AGI-
TATOR section.
Reinstall Agitator
After checking the end caps, reinstall the agitator back into the housing grooves and replace the
felt packing. After installing the agitator, turn it by hand making sure that the belt is not twisted or
pinched and all rotating parts turn freely. Replace the lower plate as described in the REMOV-
ING/INSTALLING THE LOWER PLATE section.
Switch off the vacuum cleaner and unplug the power
cord before cleaning the agitator. In order to keep the
i В, cleaning efficiency high, clean the agitator regularly.
rss = i= ADS Remove the lower plate if necessary. See the REMOV-
INS ا󰾯 ING/INSTALLING THE LOWER PLATE section
RIES) Î for the proper procedure.
Agitator - Cut off any carpet pile and lint
entangled around the agitator with a pair of
scissors as illustrated.
-15-

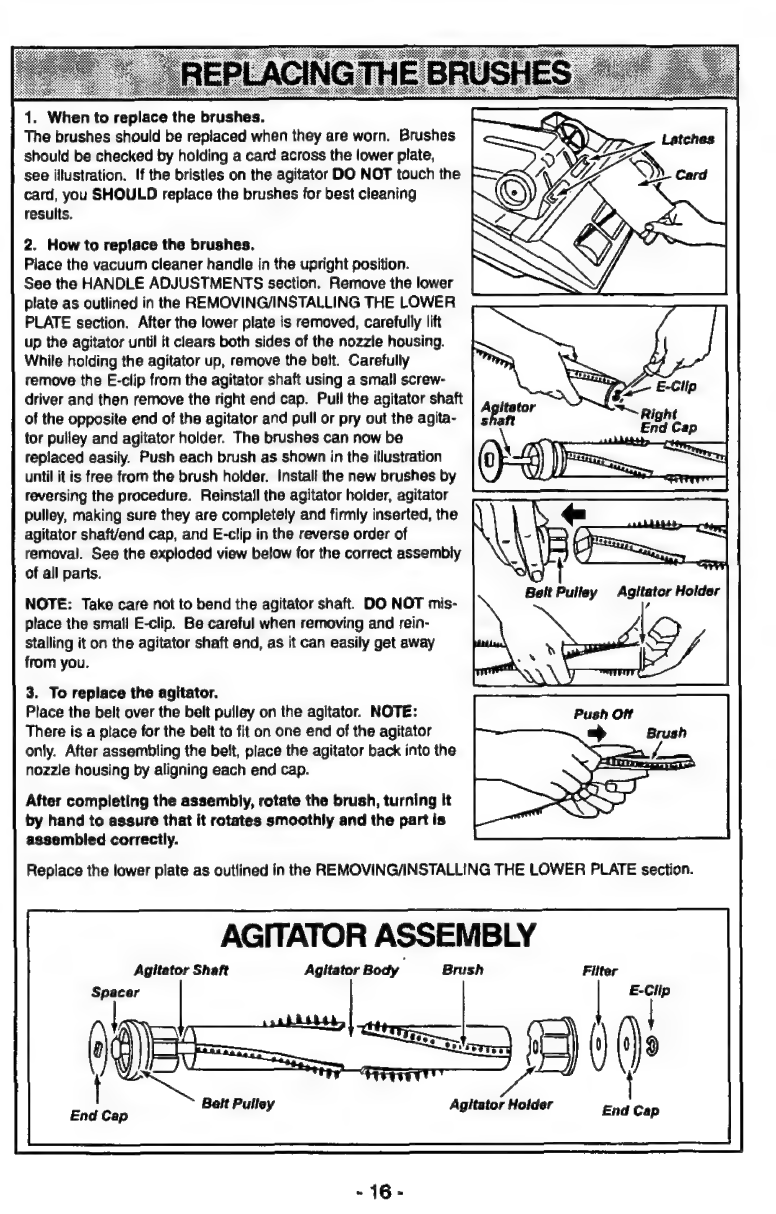

1. When to replace the brushes.
The brushes should be replaced when they are worn. Brushes
should be checked by holding a card across the lower plate,
see illustration. If the bristles on the agitator DO NOT touch the
card, you SHOULD replace the brushes for best cleaning
results.
2. How to replace the brushes.
Place the vacuum cleaner handle in the upright position.
See the HANDLE ADJUSTMENTS section. Remove the lower
plate as outlined in the REMOVING/INSTALLING THE LOWER
PLATE section. After the lower plate is removed, carefully lift
up the agitator until it clears both sides of the nozzle housing.
While holding the agitator up, remove the belt. Carefully
remove the E-clip from the agitator shaft using a small screw-
driver and then remove the right end cap. Pull the agitator shaft
of the opposite end of the agitator and pull or pry out the agita-
tor pulley and agitator holder. The brushes can now be
replaced easily. Push each brush as shown in the illustration
until it is free from the brush holder. Install the new brushes by
reversing the procedure. Reinstall the agitator holder, agitator
pulley, making sure they are completely and firmly inserted, the
agitator shaft/end cap, and E-clip in the reverse order of
removal. See the exploded view below for the correct assembly
of all parts.
NOTE: Take care not to bend the agitator shaft. DO NOT mis-
place the smali E-clip. Be careful when removing and rein-
stalling it on the agitator shaft end, as it can easily get away
from you.
3. To replace the agitator.
Place the belt over the belt pulley on the agitator. NOTE:
There is a place for the belt to fit on one end of the agitator
only. After assembling the belt, place the agitator back into the
nozzle housing by aligning each end cap.
After completing the assembly, rotate the brush, turning it
by hand to assure that it rotates smoothly and the part is
assembled correctly.
Replace the lower plate as outlined in the REMOVING/INSTALLING THE LOWER PLATE section.
AGITATOR ASSEMBLY
Agitator Shaft Agitator Body Brush
Spacer
End Cap Belt Pulley Agitator Holder End Cap
- 16 -

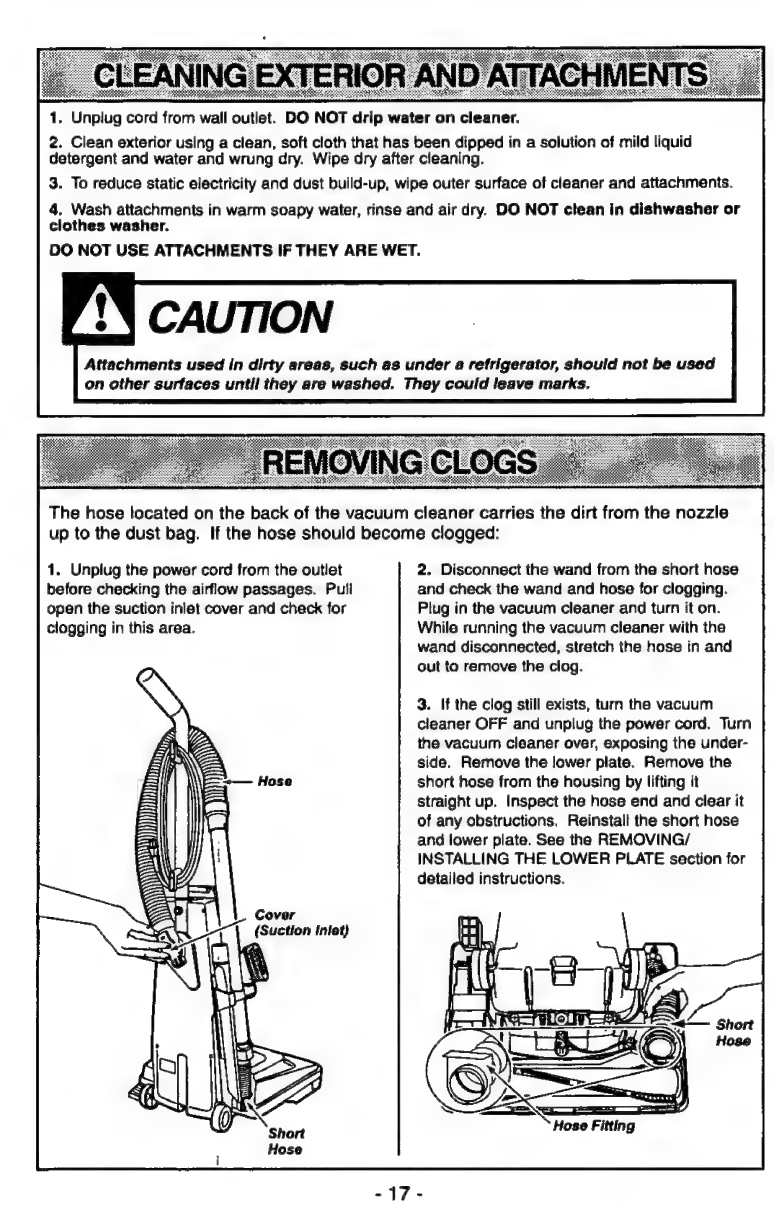

2. Clean exterior using a clean, soft cloth that has been dipped in a solution of mild liquid
detergent and water and wrung dry. Wipe dry after cleaning.
3. To reduce static electricity and dust build-up, wipe outer surface of cleaner and attachments.
4. Wash attachments in warm soapy water, rinse and air dry. DO NOT clean in dishwasher or
clothes washer.
DO NOT USE ATTACHMENTS IF THEY ARE WET.
Attachments used in dirty areas, such as under a refrigerator, should not be used
on other surfaces until they are washed. They could leave marks.
The hose located on the back of the vacuum cleaner carries the dirt from the nozzle
up to the dust bag. If the hose should become clogged:
2. Disconnect the wand from the short hose
1. Unplug the power cord from the outlet
and check the wand and hose for clogging.
before checking the airflow passages. Puli
open the suction inlet cover and check for Plug in the vacuum cleaner and turn it on.
clogging in this area. While running the vacuum cleaner with the
wand disconnected, stretch the hose in and
out to remove the clog.
3. If the clog still exists, turn the vacuum
cleaner OFF and unplug the power cord. Turn
the vacuum cleaner over, exposing the under-
side. Remove the lower plate. Remove the
short hose from the housing by lifting it
straight up. Inspect the hose end and clear it
of any obstructions. Reinstall the short hose
and lower plate. See the REMOVING/
INSTALLING THE LOWER PLATE section for
detailed instructions.
7
J
HN
ШШ
Y
Hose Fitting

BEFORE REQUESTING SERVICE
A WA RNIN G Electric Shock or Personal Injury Hazard.
Disconnect the electrical supply before servicing or cleaning the unit. Failure to do
so could result in electric shock or personal injury from cleaner suddenly starting.
Review this chart to find do-it-yourself solutions for minor performance
problems. Any service needed, other than those described in these
Operating Instructions, should be performed by an authorized service
representative.
PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION
1. Unplugged at wall outlet. 1. Plug in firmly. Push On/Off
Cleaner
will not run. switch to On.
2. On/Off switch not turned on. 2. Push On/Off switch to On.
3. Tripped circuit breaker/blown
fuse at household service panel.
3. Reset circuit breaker or replace
fuse.
4. Tripped motor protector.
4. Unplug vacuum, wait 30 minutes,
plug in and switch to ON.
Poor job of dirt | 1. Full or clogged dust bag.
pickup.
1. Change bag.
2. Broken belt. 2. Replace belt.
3. Clogged hose or nozzle. 3. Clean hose or nozzle area.
4. Hose not inserted fully. 4. Insert hose.
5. Worn brushes. 5. Replace brushes.
6. Hole in hose. 6. Replace hose.
7. Dust cover improperly installed. 7. Properly Install dust cover.
Dust escapes
the paper bag.
1. Bag improperly installed. 1. Properly install bag.
2. Bag torn. 2. Replace bag.
Light wil! 1. Burned out light bulb. 1. Replace light bulb.
not work.
- 18 -

WARRANTY
Panasonic Vacuum Cleaner
Limited Warranty
Panasonic Consumer Electronics Company or Panasonic Sales Company (collectively
referred to as "the warrantor") will repair this product with new or refurbished parts free
of charge, in the U.S.A. or Puerto Rico for one (1) year from the date of original pur-
chase in the event of a defect in materials or workmanship.
This Limited Warranty Excludes both Labor and Parts for the following items
which reguire normal replacement: Disposable Dust Bag, Filters, Belts, Light Bulbs,
Agitator Brushes and Batteries (if supplied).
Carry-in or mail-in service in the U.S.A. or Puerto Rico can be obtained during the war-
ranty period by contacting a Panasonic Services Company (PASC) Factory Servicenter
listed in the Servicenter Directory. Or call, toll free, 1-800-211-PANA (7262) to locate a
PASC Authorized Servicenter. Carry-in or mail-in service in Puerto Rico can be
obtained during the warranty period by calling the local Panasonic Sales Company tele-
phone number listed in the Servicenter Directory.
This warranty is extended oniy to the original purchaser. A purchase receipt or other
proof of date of original purchase will be required before warranty performance is ren-
dered.
This warranty only covers failures due to defects in materials and workmanship which
occur during normal use and does not cover damages which occur in shipment, or fail-
ures which are caused by products not supplied by the warrantor, or failures which
result from accident, misuse, abuse, neglect, mishandling, misapplication, fauity instal-
lation, improper operation or maintenance, alteration, modification, power line surge,
improper voltage supply, lightning damage, commercial use such as hotel, office,
restaurant or other business or rental use of the product, or service by anyone other
than a PASC Authorized Servicenter, or damage that is attributable to acts of God.
LIMITS AND EXCLUSIONS: |
There are no express warranties except as listed above.
THE WARRANTOR SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUEN-
TIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING
OUT OF ANY BREACH OF THIS WARRANTY. ALL EXPRESS AND IMPLIED WAR-
RANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE APPLICABLE WARRANTY
PERIOD SET FORTH ABOVE.
Some states do not allow the exclusion or limitation of incidental or consequentia! dam-
ages, or limitations on how long an implied warranty lasts, so the above exclusions or
limitations may not apply to you.
This warranty gives you specific legal rights and you may also have other rights which
vary from state to state. If a problem with this product develops during or after the war-
ranty period, you may contact your dealer or Servicenter. If the problem is not handled
to your satisfaction, then write to the Customer Satisfaction Center at the listed address
on the back cover.
-19-

WHAT TO DO WHEN SERVICE IS NEEDED
If your Panasonic Vacuum Cleaner needs service, look in the yellow pages of
the telephone book under HOME APPLIANCE SERVICE for your nearest
Panasonic Services Company ("PASC") Factory Servicenter, or PASC autho-
rized Servicenter, or call, 1-800-211-PANA (7262) toll free to find a convenient
servicenter. DO NOT send the product to the Executive or Regional Sales
offices. They are NOT equipped to make repairs.
If you ship the product
Carefully pack and send it prepaid, adequately insured and preferably in the original carton.
Attach a postage- paid letter to the outside of the carton, which contains a description of your
complaint. DO NOT send the product to the Executive or Regional Sales Offices. They are
NOT equipped to make repairs.
Customer's Record
Model No. Dealers Name
Serial No.
Dealers Address
Date of Purchase
PANASONIC CONSUMER ELECTRONICS PANASONIC SALES COMPANY,
COMPANY, DIVISION OF MATSUSHITA ELECTRIC MATSUSHITA ELECTRIC OF
CORPORATION OF AMERICA PUERTO RICO INC.
One Panasonic Way Ave. 65 de infanteria, Km 9.5
Secaucus, New Jersey 07094 San Gabriel Industrial Park
Carolina, Puerto Rico 00985
ACO1ZARSZOU
CO1ZARSOQUOO Printed in U.S.A.
-20-
