Panasonic Omnivision PV-V4020 User manual

Omnlvteiant^
Video Cassette Recorder
Operating Instructions
Models no. PV-V4020/PV-V4520
Please read these instructions carefully before
attempting to connect, operate or adjust this
product. Please save this manual.
Spanish Quick Use Quids is Included. (Gufa
para rapida consulta en aspafio-l esta inclufda.}
Quiqk Use Guide is on the back cover.
As an Energy Star* Partner,
Matsushita Electric Corporation of a\
America has d&iomvned that this product /^-^-y
or product modei meets the ENERGY "C^^JJUS
STAR® guittetirwa for energy efficiency.
iC JU
FRONT FANEL
CLOCK
1
lr-.r -J-i .'<n
mmm 3
Easy Taping,
LSQTP^IA
For assistance, call 1-600-21 1PANA(7262).

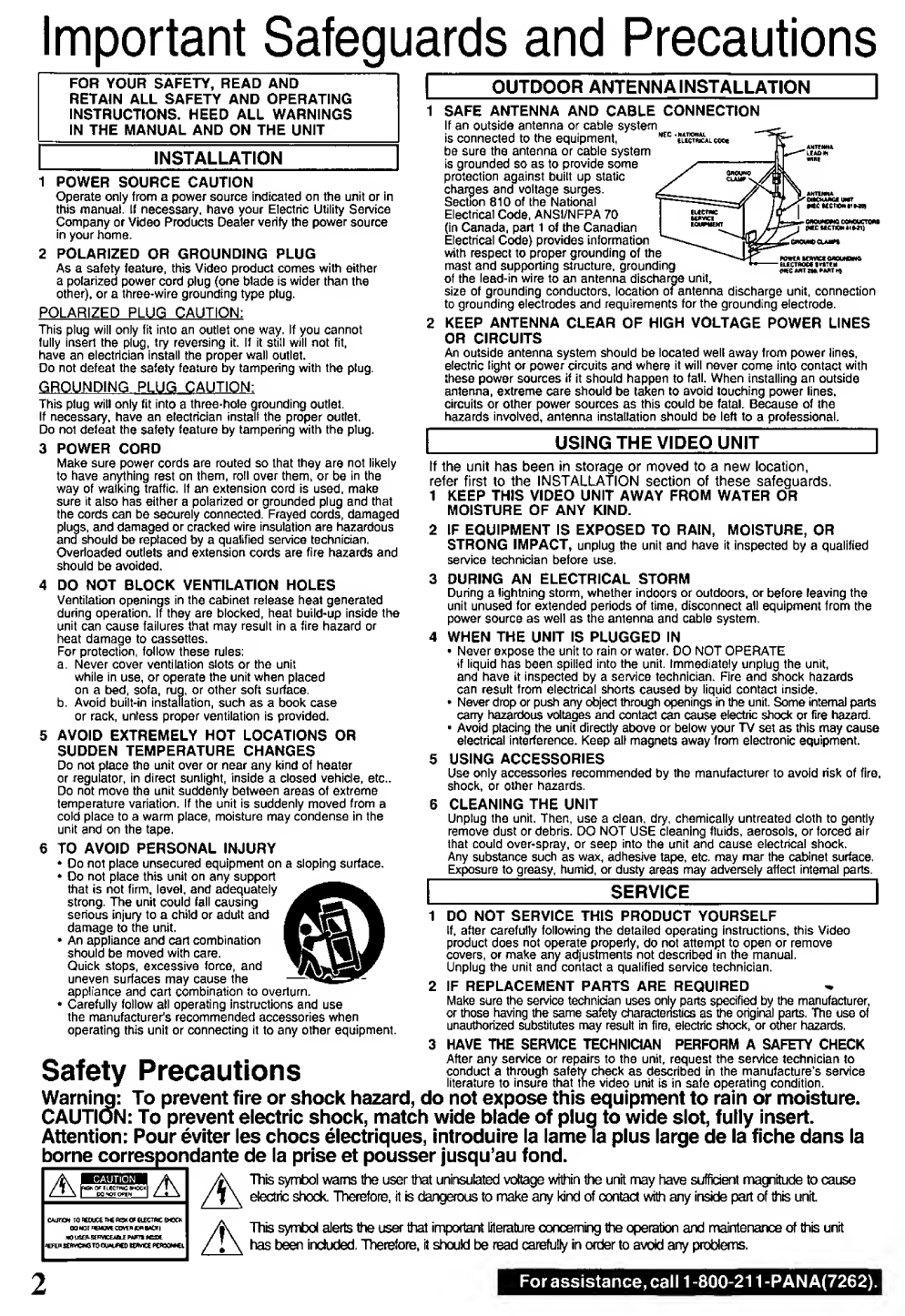

Important Safeguards and Precautions
FOR YOUR SAFETY, READ AND
RETAIN ALL SAFETY AND OPERATING
INSTRUCTIONS. HEED ALL WARNINGS
IN THE MANUAL AND ON THE UNIT
INSTALLATION
1POWER SOURCE CAUTION
Operate only from apower source indicated on the unit or in
this manual. If necessary, have your Electric Utility Service
Company or Video Products Dealer verify the power source
in your home.
2POLARIZED OR GROUNDING PLUG
As asafety feature, this Video product comes with either
apolarized power cord plug (one blade is wider than the
other), or athree-wire grounding type plug.
POLARIZED PLUG CAUTION:
This plug will only fit into an outlet one way. If you cannot
fully insert the plug, try reversing it. If it still will not fit,
have an electrician install the proper wall outlet.
Do not defeat the safety feature by tampering with the plug.
GROUNDING PLUG CAUTION:
This plug will only fit into athree-hole grounding outlet.
If necessary, have an electrician install the proper outlet.
Do not defeat the safety feature by tampering with the plug.
3POWER CORD
Make sure power cords are routed so that they are not likely
to have anything rest on them, roll over them, or be in the
way of walking traffic. If an extension cord is used, make
sure it also has either apolarized or grounded plug and that
the cords can be securely connected. Frayed cords, damaged
plugs, and damaged or cracked wire insulation are hazardous
and should be replaced by aqualified service technician.
Overloaded outlets and extension cords are fire hazards and
should be avoided.
4DO NOT BLOCK VENTILATION HOLES
Ventilation openings in the cabinet release heat generated
during operation. If they are blocked, heat build-up inside the
unit can cause failures that may result in afire hazard or
heat damage to cassettes.
For protection, follow these rules;
a. Never cover ventilation slots or the unit
while in use, or operate the unit when placed
on a bed, sofa, rug, or other soft surface.
b. Avoid built-in installation, such as a book case
or rack, unless proper ventilation is provided.
5AVOID EXTREMELY HOT LOCATIONS OR
SUDDEN TEMPERATURE CHANGES
Do not place the unit over or near any kind of heater
or regulator, in direct sunlight, inside aclosed vehicle, etc..
Do not move the unit suddenly between areas of extreme
temperature variation. If the unit is suddenly moved from a
cold place to awarm place, moisture may condense in the
unit and on the tape.
6TO AVOID PERSONAL INJURY
•Do not place unsecured equipment on asloping surface.
•Do not place this unit on any support
that is not firm, level, and adequately
strong. The unit could fall causing
serious injury to achild or adult and
damage to the unit.
•An appliance and cart combination
should be moved with care.
Quick stops, excessive force, and
uneven surfaces may cause the
appliance and cart combination to overturn.
•Carefully follow all operating instructions and use
the manufacturer's recommended accessories when
operating this unit or connecting it to any other equipment.
OUTDOOR ANTENNA INSTALLATION
SAFE ANTENNA AND CABLE CONNECTION
If an outside antenna or cable system
is connected to the equipment, wc 't*«3&iLwet
be sure the antenna or cable system
is grounded so as to provide some
protection against built up static
charges and voltage surges.
Section 810 of the National
Electrical Code. ANSI/NFPA 70
(in Canada, part 1of the Canadian
Electrical Code) provides information
with respect to proper grounding of the
mast and supporting structure, grounding
of the lead-in wire to an antenna discharge unit,
size of grounding conductors, location of antenna discharge unit, connection
to grounding electrodes and requirements for the grounding electrode,
KEEP ANTENNA CLEAR OF HIGH VOLTAGE POWER LINES
OR CIRCUITS
An outside antenna system should be located well away from power lines,
electric light or power circuits and where it will never come into contact with
these power sources if it should happen to tall. When installing an outside
antenna, extreme care should be taken to avoid touching power lines,
circuits or other power sources as this could be fatal. Because of the
hazards involved, antenna installation should be left to aprofessional.
ELfCTAOCC t'I'f.
USING THE VIDEO UNIT
If the unit has been in storage or moved to anew location,
refer first to the INSTALLATION section of these safeguards.
1KEEP THIS VIDEO UNIT AWAY FROM WATER OR
MOISTURE OF ANY KIND.
2IF EQUIPMENT IS EXPOSED TO RAIN, MOISTURE, OR
STRONG IMPACT, unplug the unit and have it inspected by aqualified
service technician before use.
3DURING AN ELECTRICAL STORM
During alightning storm, whether indoors or outdoors, or before leaving the
unit unused for extended periods of time, disconnect all equipment from the
power source as well as the antenna and cable system.
4WHEN THE UNIT IS PLUGGED IN
•Never expose the unit to rain or water. DO NOT OPERATE
if liquid has been spilled into the unit. Immediately unplug the unit,
and have it inspected by aservice technician. Fire and shock hazards
can result from electrical shorts caused by liquid contact inside.
*Never drop or push any object through openings in the unit. Some internal parts
carry hazardous voltages and contact can cause electric shock or fire hazard.
Avoid placing the unit directly above or below your TV set as this may cause
electrical interference. Keep all magnets away from electronic equipment.
5USING ACCESSORIES
Use only accessories recommended by the manufacturer to avoid risk of fire,
shock, or other hazards.
6CLEANING THE UNIT
Unplug the unit. Then, use a clean, dry, chemically untreated cloth to gently
remove dust or debris. DO NOT USE cleaning fluids, aerosols, or forced air
that could over-spray, or seep into the unit and cause electrical shock.
Any substance such as wax, adhesive tape, etc. may mar the cabinet surface.
Exposure to greasy, humid, or dusty areas may adversely affect internal parts.
SERVICE
1DO NOT SERVICE THIS PRODUCT YOURSELF
If, after carefully following the detailed operating instructions, this Video
product does not operate properly, do not attempt to open or remove
covers, or make any adjustments not described in the manual.
Unplug the unit ana contact aqualified service technician.
2IF REPLACEMENT PARTS ARE REQUIRED
Make sure the service technician uses only parts specified by the manufacturer,
or those having the same safety charactenstics as the original parts. The use of
unauthorized substitutes may result in fire, electric shock, or other hazards.
3HAVE THE SERVICE TECHNICIAN PERFORM ASAFETY CHECK
After any service or repairs to the unit, request the service technician to
conduct athrough safety check as described in the manufacture's service
literature to insure that the video unit is in safe operating condition.
Warning: To prevent fire or shock hazard, do not expose this equipment to rain or moisture.
CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert.
Attention: Pour eviter les chocs electriques, introduire la lame la plus large de la fiche dans la
jorne correspondante de la prise et pousser jusqu'au fond.
This symbol warns the user that uninsulated voltage within the unit may have sufficient magnitude to cause
electric shock. Therefore, it is dangerous to make any kind of contact with any inside part of this unit
This symbol alerts the user that important literature concerning the operation and maintenance of this unit
has been included. Therefore, it should be read carefully in order to avoid any problems.
Safety Precautions
ONOT WOK JQR VCH|
NOUSEft-SERVCEJiai PACTl KXE A
A
2For assistance, call 1-800-21 1-PANA(7262).

Table of Contents
Use
Now!
Important Safeguards and Precautions 2
Accessories 4
Loading the Batteries 4
Basic Connections (Antenna, VCR, TV) 4, 5
One Time VCR Setup (Language, VCR Output Channel, Channel, Clock) ..6, 7
Playback aTape (Slow Motion, Still Picture, Frame by Frame) 8
Record On aTape 9
•One Touch Recording 9
Enjoy
more!
Advanced Connections (Cabie/DSS) 10
Copying Your Tapes (Dubbing) 1
1
Timer Recording 12, 13
•Timer Recording •Review, Replace or Clear
Using VCR Buttons 12 Program Contents 13
Timer Recording Using VCR Plus+ System 14 -17
•Choose your connection type .. 14 •VCR Plus+System Channel Setup .. 16
•Cable Box Setup 15 •VCR Plus+ System Programming ., 17
Multi-Brand Control Feature 18, 19
Tape Operation (Search System) 20 -23
•Program End Search 20 •Repeat Play 23
•Index Scan 21 .Zero Search 23
•Auto Operation Functions 21 •Commercial Skip 23
•Direct Access 22
MTS Broadcast/ VHS Hi-Fi Stereo System 24, 25
(FOR model PV-V4520 only)
•Stereo/SAP/Mono Broadcast 24 •Select Audio Mode 25
Special VCR Features 26, 27
•Tape Position Display 26 •WeakSignal Display ON/OFF .... 27
•Remote Warning ON/OFF 26 •Auto Shut-Off 27
•VCR Lock 26
Other
Information!
Reset Language, Channels, Clock, VCR's Output Channel ... 28, 29
VCR &Cassette Information 30, 31
•ResetAIIVCRMeiroryFurKtfons...30 •HeadCleaning 31
•DST (Daylight Saving Time). ...30 •Cleaning the VCR 31
•Prevent Accidental Tape Erasure ..30 •Specifications 31
•Record/Playback Time 30 •Features for aQuality Picture .. 31
On Screen Displays (OSD) 32
•Function &Channel Display .... 32 •Blank Tape/ No Video Signal
•VCR Status &Clock Display ... 32 Indication 32
•Warning and Instruction Displays . . 32
Before Requesting Service 33
Service Center List 34
Warranty 35
Spanish (Espanol) Quick Use Guide 36, 37
Location of Controls 38, 39
Quick Use Guide (Playback, Recording) Back Cover
3

Before Using Basic Connection
Congratulations
on your purchase of one of the most sophisticated and
reliable products on the market today. Used properly,
it will bring you and your family years of enjoyment.
Please fill in the information below. The serial number
is on the tag located on the back of your VCR.
•Date of Purchase
•Dealer Purchased From
•Dealer Address
•Dealer Phone No.
•Model No
•Serial No. _
Accessories
Remote Control II Rattnries 2"A A"
LSSQ0206
LSSQ0205 {PV-V4020)
(PV-V4520) )
*) )
RF Coaxial Cable
VJAS0196
Model PV-V4520
remote is
shown here.
To order accessories, call toll free
1-800-332-5368.
Loading the Batteries
1) Open the cover.
2) Insert the
batteries as
marked.
3) Close the cover.
If your TV has AUDIO and VIDEO IN terminals, connect
them to VCR for higher quality picture and sound.
You can enjoy stereo sound even if your TV is not stereo
by connecting astereo amplifier to the VCR.
Connect VCR and TV with an AV Cable (not supplied) or a
RF Coaxial Cable (supplied) as shown in the figure below.
ANTENNA (See page 5)
CABLE TV
OUTDOOR ANTENNA INDOOR ANTENNA
or
1
VCR
Disconnect antenna
or cable from TV and
connect to VCR.
Rear View of
Model PV-V4520
is shown here a) AV CABLE'
(not supplied)
6d>>>^
LR
outO OO
VIDEO AUDIO
TV
2Connect VCR
to TV with RF
Coaxial Cable.
1) While connection b) (above) is sufficient, connection
a) offers better sound and picture (especially with
model PV-V4520, you can enjoy Hi-Fi STEREO sound).
2) For both connections a) and b) proceed as follows:
•To use VCR :VCR Power on, set TV to VIDEO.
•To watch TV :VCR Power off, select channel on.
3) Set VCR Output to channel 3or 4(not an active
station). (See page 6.)
For model PV-V4520, use the_L Audio OUT jack for
proper sound reproduction when connecting to a
monaural TV.
Battery replacement caution
•Do not mix old and new batteries.
•Do not mix alkaline with manganese batteries.
rWARNING
When using "Nut type" RF coaxial cables, tighten with fingers
only. Overtightening may damage terminals.
For assistance, call 1-800-211 -PANA(7262).

1Between ANT. and VCR
Case 1:Twin Lead Cable Only
To VCR Terminal
From Antenna
(Flat) Twin Lead
300 Ohm Cable
300-75 ohm
Transformer
(not supplied)
Case 2: Twin Lead &Coaxial Cables
(Round) 75 Ohm
coaxial Cable
UHF/VHF Band Mixer
(not supplied)
To VCR Terminal
Case 3: Two Twin Lead Cables
UHF/VHF Band Mixer
(not supplied)
300-75 ohm
Transformer
(not supplied) U£2
To VCR Terminal
If your TV has both post and plug-type
VHF terminals, the post connection is
recommended to minimize signal loss.
Note to CABLE system installer:
This reminder is provided to call the CABLE system installer's
attention to Article 820-40 of the NEC in USA (and to the Canadian
Electrical Code in Canada) that provides guidelines for proper
grounding and, in particular, specifies that the cable ground shall
be connected to the grounding system of the building, as close to
the point of cable entry as practical.
2Between VCR and TV
Case 1:Screw &Plug Type Terminal
TV
UHF/VHF Band
Separator
(not supplied)
RF Coaxial Cable
Case 2: Screw Type Terminal
75-300 ohm
Transformer
(not supplied) VHF
or
UHF
Case 3: Double Screw Type Terminal
TV
UHF/VHF Band
Separator
(not supplied)
=d3
ICase 4: Complex TV Terminal
TERMINALS ON BACK OF TV SET
Split out
ANT1
ANT2
•Connect to one of the ANT terminals and
select the same antenna number on the TV.
FCC Warning: Any unauthorized changes or modifications
to this equipment would void the user's authority to operate.

One Time VCR Setup
When VCR is turned on the first time,
setup mode is entered automatically. Process of Setup
Turn the TV and VCR on.
Press POWER*.
Set TV Channel toCH3.
•If using AV. Cable connection, set TV
to Video instead of channel. (See
connection a) on page 4.)
2SELECT LANGUAGE
PUSH CH A:ENGLISH
OPRIMIR CH T:ESPANOL
APP. VCR/ TV :FRANCA I
S
TO CHANGE VCR'S OUTPUT
CH, PUSH ACTTION KEY.
Display SELECT LANGUAGE.
This display appears for first time setup
only.
Select the language.
for English
for Spanish
(ESPANOL)
Press ACTION
IIF YOU PUSH ACTION KEY,
VCR'S OUTPUT CH SWITCHES
TO CH 4.
'IUI 1ICI 1
(FRANCAIS)
{} Press ACTION
*SE TUNE YOUR TV 1
1.
J] After 3seconds
When using connection b)
(see page 4), tuneTVtoVCR's
output channel.
If there is beat or noise on CH3,
change VCR's output channel to CH4
by pressing ACTION twice.
•Always tune TV to this channel to monitor the VCR.
•If you used audio/video jack connection, tune the TV to its video input.
•If wrong language is set, do "Reset All VCR Memory Functions"
steps on page 30.
3ECT HOOKUP
VCR^CABLE/DSS BOX»TV
VCRTV
SELECT
:
SET
END
aKEY
KEY
ACTION KEY
Select hookup.
1) Press AT
to select.
2) Press
to set.
If you selected "CABLE/ DSS BOX VCR TV," continue with step 4
and only the cable box output channel will be placed in memory.
If not, go to step 6.
4SELECT HOOKUP
CABLE /DSS BOXM/CR^TV
CABLE /DSS BOX OUTPUT CH
SELECT:
SET
END
ATKEY
4KEY
ACTION KEY
Select cable box
or DSS receiver
output channel.
1) Press AT
to select.
2) Press
to enter.
•If necessary, refer to cable box manual.
•If you used Audio/ Video jack connection to cable box, set "VIDEO OUT",
5Turn on cable box and set it to PBS
channel in your time zone.
•If you use DSS receiver, it must be turned off.
O<io
PAUSE CM SKIP SPEED SEARCH _
CD OOO-i
SLOW
E3
J)
CH A/
Model PV-V4520
remote is
shown here.
6For assistance, call 1-800-211 -PANA(7262).

'Important: If the remote control POWER, ACTION, PROG/VCR+, CHA/t, NUMBERED keys,
INPUT, SEARCH or ADD/DLT button does not work when pressed, press the VCR
button on the remote and try the button again.
6CHANNEL/ CLXK AUTO SET
CONNECT ANTENNA CABLE
AND IF YOU USE ACABLE
BOX, TUNE IT TO YOUR
LOCAL PBS CH THEN. ..
PLEASE PUSH CH UP KEY
Start Channel Auto Set
and Clock Auto Set.
Press CH .
CH AUTO SET PROCEEDING
AUTO CLOCK SET
PROCEED ING
[Case 1
)
H(Setup completed)
1/ 4/2000 TUE 12:00PM
DST :ON
SETTING :CH 02
AUTO CLOCK SET
COMPLETED
END :PUSH CH UP KEY
Press CH
to exit.
If your area observes DST (daylight
saving time), but the time is incorrect;
do the 'Time Zone Adjust" steps on page 29.
AOMXT
GD COD
OCUKTia RESET EHSPOY TMtPOSITKW
O'>O
PAUSE CM SKIP SPEED SEARCH.
CD OOOl
SLOW
SAPMffi
3CD ©f
VOL
GD CD-
SELECT/
SET
:PLAY
:STOP
«:REW
:FF
ACTION
CH
2)
IMPORTANT NOTE FOR
AUTO CLOCK SET
•Auto clock set is performed the
first time the VCR is turned off
each day. If used, a cable box
must be left on and tuned to the
PBS channel at the time VCR
power is turned off if you want auto
clock set to be done.
•If used, aDSS receiver must be
turned off for auto clock set.
•If Cable Box or DSS receiver is
connected to VCR via AudioA/ideo
jacks, an RF coaxial cable must
also be connected for auto clock
set and channel auto set features
to work.
(Case 2](Setup incomplete)
Clock Setup incomplete.
Set the clock manually.
1) Press ACTION.
AUTO CLOCK SET
IS INCOMPLETE
PUSH ACTION TO SET CLOCK
\l/
/|\
SET CLOCK
1/-/---
DST; ON
SELECT MONTH
SELECT
SET
END
AKEY
KEY
ACTION KEY
SET CLOCK
1/ 4/2000 TUE 12:
DST :ON
ET COMPLETED
SET
START KEY
:ACT ION KEY
2) Press AT to
select month.
3) Press to set.
•Likewise, set date, year, time,
DST (Daylight Saving Time).
To Make Corrections,
repeatedly press to move to
error, then correct.
4) Press ACTION.
(Clock starts.)
•To exit this
mode, press
ACTION again.
Model PV-V4520 remote is shown here.
•VCR calendar is accurately maintained to
Dec. 31, 2096 11:59PM.
•Channel auto set selects normal TV or Cable
channels depending on your VCR hookup.
•To reset Language, Channels, Clock or
VCR's Output Channel see pages 28 and 29.
Using AT^^ keys
You can also operate the menu
screen using VCR buttons.
When menu screens are
displayed, the PLAY, STOP,
REWIND, and FF buttons on
the VCR and remote function
as AT-^ only with no tape
inserted.
To exit the menu, repeat above
with or without tape inserted.
To display menu using VCR
buttons, press CH Aand CH
together.
7

Playback aTape
Check list before you begin.
All connections are made.
TV and VCR are plugged in.
OTV is turned on and tuned to CH3, 4or Video.
DRemote is in VCR mode.
1Insert acassette.
•VCR power comes on and "VCR"
appears on Multi Function Display.
Multi Function Display STOP/ EJECT
REW
PAUSE/
SLOW
CD CD CD
CD CD CD
CD CD CD
APMUT
CD CD (H)
taiffttm<x$n*v tape m&ti6h
Ot"'"i o
PAUSE CUSKIP SPEED SEARCH.
-€D OOCK
VOL CM !
J)
Model PV-V4520 remote is shown here.
•To prevent tape jam
Inspect your cassette tapes and
remove any loose or peeling labels.
r
Press PLAY.
•Or, if cassette has no record tab
(see page 30), auto playback begins.
•These features work best in SP or SLP
mode.
•The sound will be muted.
To Find aParticular Scene
Forward Search --> Press FF. {To release, press PLAY
or FF.)
Reverse Search --> Press REW. {To release, press PLAY
or REW.)
For Still (Freeze) picture --> Press PAUSE/SLOW.
(To release, press PLAY.)
For Frame by Frame picture --> Press PAUSE/SLOW in
Still mode.
(To release, press PLAY.)
For Slow Motion --> Press and hold PAUSE/SLOW in Still
mode. (To release, press PLAY.)
To reduce picture noise, see "Manual Tracking Control" on
page 31.
•After the VCR is in Still or Slow mode for 3minutes, it will
switch to Stop mode automatically to protect the tape and
the video head.
To stop -> Press STOP.
To rewind tape --> Press REW in Stop mode.
To fast forward tape -> -Press FF in Stop mode.
To eject tape —>Press EJECT on the remote or
STOP/ EJECT on the VCR.
Playback using VCR controls
11nsert acassette.
2Press PLAY.
IPress to stop and/ or eject tape.
8For assistance, call 1-800-21 1-PANA(7262).

Record On aTape •Important: If the remote control POWER, ACTION, PROG/VCR+, CH Aff,
NUMBEREDkeys, INPUT, SEARCH or ADD/DLTbutton does notwork when
pressed, press the VCR button on the remote and try the button again.
Check list before you begin.
DAll connections are made.
DTV is turned on and tuned to CH3 or 4or Video.
QCassette record tab is in place.
Remote in VCR mode.
Insert acassette.
•VCR power comes on and "VCR"
appears on Multi Function Display.
Select Channel.
Press CH /Y* or NUMBERED keys.
•To select "LINE," see page 11
.
•To select channels over 100,
first press 100 key, then enter
remaining two digits.
Select Recording speed.
(See page 30.)
Press SPEED.
•SP =Standard Play
LP =Long Play
SLP =Super Long Play
•Selected speed is displayed on TV
screen and Multi Function Display.
CD CD CD
CD CD CD
CD CD CD
*01VCLT
GD CD <3£)
Com" "ESET DISPLAY TȣEJ>t&T(0N
PAUSE WEED SEARCH.
C2TO OO'
SLOW
G3
CD ©|
fcH
PAUSE/
SLOW
SPEED
4
REC
Start Recording.
Press REC.
•To edit out unwanted portions,
press PAUSE/SLOW to pause
and to resume recording.
To stop -> Press STOP.
One Touch Recording
Press REC repeatedly to set the recording length
(30 min. ~4hours).
•The VCR turns itself off at the preset time.
cNormal Rec—*-0:30—*-1:00
4:00-«—3:00-*—2:00-4- 1:30J
Model PV-V4520 remote is shown here.
After the VCR has been in Pause mode
for 5minutes, it will stop automatically
to protect the tape and the video head.
Record One Program While Watching Another
Press VCR/TV-> "VCR" disappears on Multi Function Display
--> Select Channel at the TV.
Selecting Channel at the VCR (You cannot view
another channel during recording.)
Press VCR/TV--> "VCR" appears on Multi Function Display
--> Select Channel at the VCR (applies to connection b)
only. (See page 4)
rRecord using VCR controls
This video recorder, equipped with the HQ (High
Quality) System, is compatible with existing VHS
equipment. Only use those tapes with the IVHSI
mark. It is recommended that only cassette tapes
that have been tested and inspected tor use in 2,
4, 6, and 8hour VCR machines be used.
pSelect -| Insert AStart
Channel. acassette. Reco
Recording.
VCR/ TV IPress to stop.
9

Advanced Connections
Be sure to tune TV to VCR output channel. (The same one
you set on screen of TV: CH3 or CH4.)
All connections on these pages are made with 75 Ohm coaxial cables.
CATV Connection
With aCable Box (Cable Box-tVCR)
You Can You Cannot
/ANT i
1or •
\CATV /CABLE BOX
IN OUT
AUDIO
OOr
MONO _
OOL
JIDEO„
oo
INI OUT
IN FROM ANT,
AUDIO
VHF/UHF
OUT TO TV
(SP-
IN OUT
0«Oj
OLO
O OVIDEO
—@VHFAJHF
•record or view
any {including
scrambled)
!channel.
use VCR Remote
Control to select
channels using
Multi-brand
control feature.
VCR TV
•view channel
other than the one
selected for any
type of recording.
•do aTimer
recording of a
channel unless
you select it at the
cable box.
With aCable Box (VCR*Cable Box)
I
fAki-r ^
ior i
VCATV .'
TV
ROM ANT.J AUDIO in from j
OOr
MONO
OOIVHF/UHF
o
WDEOo«Ig™
IN1 OUT VS^~
CABLE BOX
IN OUT
AUDIO
IN OUT
0*0,
OLo
OOVIDEO
—@VHF/UHF i
VCR
view any
(including
scrambled)
channel.
use VCR Remote
Control to select
channels without
using Multi-brand
control feature.
record scrambled
channels.
With Two Cable Boxes VCR
ANT
or
CATV
CABLE BOX
IN OUT
OUT1
Ms) OUT 2
AUDIO IN FROM
OOr
MONO _
OOL
O O
INI OUT
10M ANT?]
VHF/UHF
OUT TO TV
2-Way Splitter CABLE BOX
IN OUT
A/BSwitch
IN 1IN 2
TV
.AUDIO
IN OUT
0*0,
OLO
OOVIDEO
I.©VHF/UHF
record and view
both scrambled
and unscrambled
channels if
additional
equipment is
added. This
connection
requires: two
converter boxes,
an A/B switch,
and a2-way
splitter.
•view channel
other than the one
selected for any
type o( recording.
*do aTimer
recording of a
channel unless
you select it at the
cable box.
DSS Connection
iSATELLITE i
T
/ANT \^
,or .DSS
vCATV 'RECE!VER
IN IN®
^OUT(|)
AUDIO IN FROM ANT? I
OOr (Sp"1
MONO
OOLVHF/UHF
°°©
—
IN1 OUT
VCR
AUDIO
IN OUT
o*c>
OLO
OOVIDEO
—@VHFAJHF
TV
record and view
any (including
scrambled)
channel.
use your VCR
Remote Control
to select
channels using
Multi-brand
control feature.
NOTE:
•view channel
other than the one
selected for any
type of recording.
•do aTimer
recording of a
channel unless
you select it at the
DSS box.
DSS receiver must be turned off to
view cable box or antenna programs.
10 For assistance, call 1-800-211 -PANA(7262).

Copying Your Tapes (Dubbing)
Connections you'll need to make.
For Model PV-V4020
rIN FROM ANT.
O
AUDIO
OVHF/UHF
VIDEO OUT TO TV
°^©
in 1OL/rs —
(JIN I^,
Playing (Source) VCR
For Model PV-V4520
\^AUDIO in from ant) 1
I
;O©'
<g^l vhf/uhf ;
;
1video ^" out to tv .;
IAUDIO
J^> O
jVIDEO
Jb O
^\JN_1_^OLrr^
IN FROM ANT.
®
VHF/UHF
OUT TO TV
Recording (Editing) VCR
OC)L
!ini oi/N ®
rIN FROM ANT^i I
.AUDIO
Or (g) !
,j£) OLVHF/UHF !
VIDEO OUT TO TV '
<IN 1OUT w
AUDIO IN
VHF/ O
UHF VIDEO IN -I
O!!
TV for Monitoring
VHF/
UHF
AUDIO IN
o
VIDEO IN
O
Playing (Source) VCR Recording (Editing) VCR
1insert pre-recorded
tape.
Insert blank tape
with record tab.
2Select LINE mode.
Press INPUT.
(See "Selecting the
Input Mode" below.)
PAUSE
CpVPand GD
SLOW
Put in Standby mode.
Press PLAY, then
PAUSE/SLOW at starting
point.
REC pause
and GQ
SLOW
Put in Standby mode.
Press REC, then
PAUSE/SLOW
immediately.
41<™? Start dubbing.
Press PLAY.
PAUSE
CD
SLOW
Start dubbing.
Press PAUSE/SLOW.
5Stop dubbing.
Press STOP. Stop dubbing.
Press STOP.
To Monitor Dubbing on Your TV
1Turn your TV on and tune to the Recording
VCR channel (CH3 or CH4).
2Set the VCR/ TV Selector on the Recording
VCR to "VCR."
Dubbing tapes protected with Copy Guard will have
poor quality results.
Selecting the Input Mode
Method 1:Press INPUT.
Channel Number <--> LINE
Method 2: Press CH A/Y.
Display will change as below.
1++2**3-«
c
^—LINE- (CABLE) (TV)
—»>125 or 69D
•"L" lights in Multi-Function Display (about 4sec.)
when LINE is selected.
(jCaution: Unauthorized exchanging and/or copying of copyrighted recordings may be copyright infringement^
11

Timer Recording
You can set up to 8programs to be recorded while you are away.
Display SET PROGRAM.
Press PROG/VCR+.*
2
3
4
12
Or to display Program screen from the Menu.
1) Press ACTION to display Menu.
2) Press AT and to select and set SET UP FEATURE.
3) Press to display Program screen.
4) Go to step 3.
•You may also use VCR buttons. See the bottom right
.
Check list before you begin.
L7J All connections are made.
(See pages 4-5.)
TV and VCRare plugged in and turned on.
VCR/TV selector is set to "VCR."
DClock is set to correct time.
DRecord tab in place, (See page 30.)
ORemote in VCR mode.
SET PROGRAM
VCR P1us+ PROGRAMMING
TIMER PROGRAMMING
SELECT:* KEY
SET >KEY
END :PR0G KEY
Display Program screen.
1) Press AT to select
TIMER PROGRAMMING
2) Press to display.
•If aprogram is already in
memory, press AT and
You cannot use the VCR buttons
when on "SET PROGRAM" screen.
to select an unused
program number.
I/ START STOP CH
SELECT START DATE
SLP
SELECT;
SET
END
ATKEY
KEY
PROG /ACT ION KEY
Set the recording DATE.
1) Press AW to select.
2) Press or <to set.
Example p8—931— 1—2 6
Today—7SELECTA/Selection Order
LwEEKLY WEEKLY
(SAT) (MON) WEEKLY _j
(SUN)
•1-31 =One time
•DAILY =MON-FRI
•WEEKLY =Same time once
aWeek
Repeat step 3to set:
DA,LYstart time, stop time Channel
(or LINE for outside source),
tape speed (SP, LP, SLP).
PDT START STOP
2::—
3:;__
4:
CH SPD
EEK5
CANCEL :ADD/DLT KEY
SELECT 1-8: ATKEY
ENTER >KEY
END :PROG/ACT ION KEY
End the program.
1) Press PROG/VCR+
(or ACTION).
To Enter More Programs
Press AT to select, and to display
ablank program number. Then repeat
step 3.
2) Press PROG/VCR+
(or action) again to
exit.
Multi Function Display
Set the timer.
Press POWER off.
•When recording
programs via acable
box, make sure the
cable box is left ON
and tuned to the
desired channel.
COUNTER BESET aSPUY TAPE POSITION
ocz> o
PAUSE CU5HP SPEED SEARCH-
CD OOO-l
SLOW CD ©j
VOL CH 5
GD CD! (B
5POWER
SELECT/
1SET
A:PLAY
l.T:STOP
4^:REW
:FF
1PROG/
:VCR+
4
1ACTION
4
Model PV-V4520 remote is shown here.
Timer Recording Using VCR
Buttons.
Using AY4^ keys
You can also operate the menu screen
using VCR buttons.
When menu screens are displayed, the
PLAY, STOP, REWIND, and FF buttons on
the VCR and remote function as AY-^
only with no tape inserted.
To exit the menu, repeat above with or
without tape inserted.
SB
On Remote On VCR
A:PLAY
:STOP
M:REW
:FF
To display menu using VCR burtons,
press CH Aand CH Ttogether.
For assistance, call 1-800-21 1-PANA(7262).

Important: If the remote control POWER, ACTION, PROG/VCR+, CHA/f, NUMBERED keys,
INPUT, SEARCH or ADD/DLT button does not work when pressed, press the VCR
button on the remote and try the button again.
Review, Replace or Clear Program Contents:
(Recording is not in progress)
1Repeat steps 1-2 on page 12.
2PDT START STOP CH SPD
1DAY 9:00A12:00A 08 S
2810:00P12:00P
310 8: OOP 9: OOP
4SU 9:00P10:00P
02 SP
10 SP
L1 LP
CANCEL :ADD/DLT KEY
SELECT 1-8: AKEY
ENTER :KEY
END :PR0G/ACTI0N KEY
Select program.
1) Press AT to
select number.
3To Replace program.
BATS I/ START STOP CH
?(DBXr\ SP
SELECT START DATE
SELECT:* KEY
SET :•« KEY
END :PROG/ACTION KEY
1) Press to display.
2) Press AT ^to
set new program
contents.
or
To Clear program...
PDT START STOP CH SPD
2810: OOP 1
2
3 10 8: OOP 9
4SU 9: OOP 10
OOP 02
OOP 10
OOP L
SELECT 1-8: A T KEY
ENTER :KEY
END :PR0G/ACTI0N KEY
ADD/DLT
(O)
1) Press ADD/DLT to
clear.
End the program.
1) Press PROG/VCR+
(or ACTION) .
•If there are programs,
press POWER off.
-Important notes when using aDSS receiver
When recording programs via aDSS receiver, the DSS
receiver must be left on.
When recording programs via an antenna or cable, the
DSS receiver must be turned off.
-To cancel Timer Recording^
(Recording is in progress)
Press POWER and then STOP
within 10 seconds to cancel the
Timer recording. (The TIMER
indicator goes out on Multi
Function Display.)
Multi Function Display
MUHTER BESET DISPLAY TAPt POSITION
CD '>O
PAUSE. CHSXIP SPEED SEARCH.
CD O O Ol
SLOW
SAPH-R CD Qj
VOL Ot 5
OCO1
SELECT/
2SET:PLAY
':STOP
3^:REW
:FF
4PROG/
VCR+
4ACTION
3ADD/
DELETE
Model PV-V4520 remote is shown here.
13

Timer Recording UsingVCR Plus+ System
VCR Plus+ System is ...
afeature that allows you to set most items of a
timer recording by simply entering aspecial code
number (PlusCode programming number) found
in TV GUIDE and selected newspaper TV listings.
Process of Recording
Setup Programming
Find the type of connection you usefrom thefollowing diagrams
and proceed to the page number indicated to begin set up.
Cable box -VCR*- TV connection
CABLEBOX
IN OUT i
f
.AUDIO IN FROM ANT) I
:OOr Gp^
MONO „
OOL
VIDEO^
:O O
^IN1 OUT ^[-
VHF/UHF
OUT TO TV
IN OUT i|
;OLOAUD,°!
!0 Ovideoi!
VHF/UHF
,
VCR
if
TV
DSS box -VCR* TV connection
"ON AIR or CATV ANT t
DSS
RECEIVER
IN IN®
^OUT^)
AUDIO
OOr
mono „
OOL
oo
IN1 OUT
ROM ANT? 1
VHF/UHF
OUT TO TV
J
|
iIN OUT ;
I
1:0*0 'I
iOL oAUDIO
|;
'OOvlDEO :
i
-
;@VHF/UHF 1
,
VCR TV
VCR TVconnection
~AUDIO IN FROM ANT) JI
OOr
MONO _
OOL
_VIDEOA
O O
INI OUT
VHF/UHF
OUT TO TV 1
m—
-
ol 0aud,°:'
OOVIDEO I
—©VHF/UHF I,
VCR TV
VCR* Cable box* TV connection
TV
AUDIO
OOr
MONO
OOLVHF/UHF
o™eoo-s™:
!INI OUT (®T
IN OUT
->.\
VCR
CABLE BOX
IN OUT
AUDIO
0*0
'OLO'
;0 Ovideo,
VHF/UHF !
Setup
on page
15n
Setup
on page
16 J
Programming
on page
17
14

•Important: If the remote control POWER, ACTION, PROG/VCR+, CHA/Y, NUMBERED keys,
INPUT, SEARCH or ADD/DLT button does not work when pressed, press the VCR
button on the remote and try the button again.
Cable Box Setup Process of Recording
Connection O
Display menu.
Press ACTION.*
©Sfrurj) c=> Programming
MENU
SET UP VCR
SET UP FEATURE
SET CLOCK
SET UP CHANNEL
IDIOMA/ LANGUE: ENGL ISH
VCR' SOUTPUT CH:3
SELECT
SET
END
:A KEY
KEY
:ACT ION KEY
Select SET UP CHANNEL.
1) Press AT to
select.
2) Press to
display.
SET UP CHANNEL
ANTENNA :CABLE
AUTO SET
WEAK SIGNAL DISPLAY :OFF
CABLE/DSS BOX SET UP
VCR Plus+ CH SET UP
SELECT
SET
END
AKEY
KEY
ACTION KEY
Select CABLE/DSS BOX
SET UP.
1) Press AT to
select.
2) Press to
display.
SELECT HOOKUP
CABLE/DSS BOX^-VCR^TV
VCP>CABLE/DSS BOXMV
VCR»TV
SELECT
SET
END
A T KEY
KEY
ACTION KEY
Select your hookup
method.
1) Press AT to
select.
2) Press to set.
•If CABLE/DSS BOX VCR TV,
go to step 5.
If other, press ACTION three
times and go to page 16.
SELECT HOOKUP
CABLE/DSS B0X>-VCP>TV
CABLE/DSS BOX OUTPUT CH
H3EB
SELECT
:
SET
END
aKEY
<* >KEY
ACTION KEY
Select cable box or DSS
receiver output channel.
1) Press AT to
select.
2) Press to
enter.
•If necessary, refer to your Cable
Box/DSS manual.
•It you are using AudioA/ideo jack
connections, select and set
"VIDEO OUT' as output channel.
End setup.
Press ACTION twice.
CCUITtflUBEt NSPW T*P( POSniON
PAUSE CM MP iff10 SEARCH
QOOO
SLOW
SAPfHI-fi CD (Dj
VOL CH i
GD CD! O
LJ)
2SELECT/
¥SET
*:PLAY
T:STOP
:FF
1ACTION
6
Model PV-V4520 remote is shown
here.
VCR Plus+ and PlusCode
are registered trademarks of
Gemstar Development
Corporation. The VCR Plus+
system is manufactured
under license from Gemstar
Development Corporation. J
15

Timer Recording Using VCR Plus+ System (continued)
It is necessary to program the VCR with local channel
information for proper VCR Plus+ System operation.
VCR Plus+ System Channel Setup
•At first, do Channel Setup Preparations below right.
Display menu.
Press ACTION.*
Select SET UP
CHANNEL.
1) Press AT
to select.
2) Press
to display.
Process of Recording
Connection t=> OProgramming
MENU
SET UP VCR
SET UP FEATURE
SET CLOCK
SET UP CHANNEL
IDIOMA/ LANGUE: ENGLISH
VCR' SOUTPUT CH:3
SELECT:* KEY
SET KEY
END :ACTI0N KEY
SET UP CHANNEL
ANTENNA :CABLE
AUTO SET
WEAK SIGNAL DISPLAY :OFF
CABLE/DSS BOX SET UP
VCR Plus-t- CH SET UP
SELECT
SET
END
AKEY
KEY
ACTION KEY
Select VCR Plus+
CHANNEL SETUP.
1) Press AT
to select.
2) Press
to display.
VCR Plus+ CH SET UP
GUIDE CH CABLE CH
EH
02
SELECT:* KEY
SET KEY
END :ACT ION KEY
VCR Plus+ CH SET UP
GUIDE CH CABLE CH
01 S
02
SELECT:* KEY
SET KEY
END :ACT ION KEY
Enter VCR Plus+
channels.
1) Press
to move
cursor to
right
column.
2) Press AT to change
CABLE CH number.
3) Press -4 to set.
4) Press AT to scroll
up/down GUIDE CH
column.
•Repeat step 4until list is
complete.
To Make Corrections,
press AT and to move to error, then AT to change,
or ADD/DLT to erase number.
End setup.
Press ACTION three times.
Make each entry within 5minutes or the VCR will exit this mode.
Once local channels have been programmed, they will stay in
memory, even in the case of apower failure.
16
2SELECT/
•SET
gA:PLAY
T:STOP
^:REW
:FF
CD CD CD
CD CD CD
CD CD CD
ADOW-T
©CD ®
COUKTCRBESET DISPLAY TAPE POSITION
OCD O
PAUSE CM5KIP sfEED SEARCH
,
BOO CK
SLOW
SAP/Hi-Fi ©Of
VOL CH 5
OCDS REC
ADD/DELETE
Model PV-V4520
remote is
shown here.
Channel Setup Preparations
In order to complete step 4(at left), make a
local channel list (see example below).
You will need the following:
•Aline up of normal TV and/ or Cable stations
and the channel number you receive them on.
•Alist of Guide (VCR Plus+) channel numbers for
the stations you receive found in TV Guide and
selected newspapers.
1Make a3-column chart. In the left column, write
the name of all the stations you receive.
2In the middle column, write each station's Guide
(VCR Plus+) number from TV Guide.
3In the right column, write the channel number
your TV receives the station on.
EXAMPLE ONLY
Broadcast or
Cable
Station Name
Assigned
Guide
(VCR P1us+)
channel no.
Channel no.
your TV
receives the
station on
HBO 33 15
Nickelodeon 38 20
CBS 04 04
\FOX 11

'Important: If the remote control POWER, ACTION, PROG/VCR+, CHA/T, NUMBERED keys,
INPUT, SEARCH or ADD/DLT button does not work when pressed, press the
VCR button on the remote and try the button again.
Check list before you begin.
DThe clock is set.
VCR Plus+ System Setup is complete (see pages 14-16).
VCR Plus+ System Programming
Process of Recording
Connection Setup O
/o) Display SET PROGRAM.
1Press PROG/VCR+.*
SET PROGRAM
VCH Plus+ PROGRAMMING
TIMER PROGRAMMING
SELECT:* KEY
SET >KEY
END :PROG KEY
Display VCR Plus+
screen.
1) Press AT
to select.
2) Press
to display.
VCR Plus+ SYSTEM
ENTER PLUSCODE NUMBER
\/
/\
USING 0-9 KEYS
To Make Corrections,
press <4 repeatedly to delete the
PlusCodeprogrammingnumber.
Enter PlusCode
programming number.
1) Press
Numbered
keys.
2) Press PROG/
VCR+ to lock
in the program.
VCR Plus+ SYSTEM
DAILY (MON-FRI
)
WEEKLY
SELECT;* KEY
SET KEY
END :PR0G KEY
Enter record frequency.
1)Press at to
select.
DATE START STOP CH
8SAT 10:00P 12:00P 02
TODAY
SELECT RECORD SPEED
SELECT
SET
END
A T KEY
*>KEY
PROG/ACTION KEY
Select record speed.
1) Press at to
change.
2) Press to set.
PDT START STOP CH SPD
1DAY 9:00A 12:OOA 08 SP
3;;__
4__; ;
CANCEL :ADD/DLT KEY
SELECT 1-8:a KEY
ENTER KEY
END :PROG/ACTION KEY
KUdlB RESET BSPW TAPE POSfVOH
OCZ) o
PAUSE WtSKIP SPEED SEARCH-
GOO Oi
SLOW
SAflMffl CD <Di
VOL CH S
(ED
2) Press to set.
6POWER
9SELECT/
.SET
3A:PLAY
:STOP
;^:REW
4FF
1PROG/
gVCR+
5
5ACTION
'3 NUMBERED
keys
ADD/
DELETE
Model PV-V4520 remote is shown
here.
End programming.
1) Press PROG/
VCR+ (or ACTION)
0(V& To cancel
-T press ADD/DLT.
2) Press PROG/
VCR+ (or ACTION)
again to exit.
Use normal Timer Recording steps if:
•the PlusCode programming number for a
program is not listed.
•you anticipate the program, such as a
sporting event, to run over the scheduled
stop time.
See page 13 to:
•cancel atimer recording in progress.
•replace program contents.
•review or clear program contents once set.
Important notes for DSS/Cable Box users
•When recording via DSS, the receiver,
must be left on.
•When recording via cable or antenna,
DSS receiver must be off.
Set timer. Press POWER off.
Multi Function Display
•Avoid overlapping program times.
•VCR PlusCode programming numbers
can not be used to program the VCR to
record DSS channels.
•You can obtain unlisted PlusCode
numbers by calling 1-900 -454 -7587.
Call costs approximately $.95 per minute.
17

Multi-Brand Control Feature
The Remote Control may be set up to control some TV or Cable/DSS Box functions.
Multi-Brand Control Setup
1Find your TV, Cable or DSS Receiver Brand
Code Number on following page.
2Setup for TV
<3 and
CD CD CD
CD CD CD
CD CD CD
CD
Setup for Cable or DSS
Set up remote.
Hold down TV and enter code
with NUMBERED keys.
Hold down DSS/CABLE and
enter code with NUMBERED keys.
•For rnrifi 1flD nr nmater, press the
100 key first, then remaining digit.
E.g. for 102, press 100, then press 0,
and then press 2.
3POWER
2TV or
DSS/ CABLE
Confirm code entry.
Press POWER to turn selected
unit ON or OFF.
•See table below for list of
controllable functions in each mode.
Please repeat Multi-Brand Control setup after replacing remote
control batteries.
The remote control will not operate all TVs, Cable Boxes, and
DSS receivers made by manufacturers listed. If you get no
results, your particular brand cannot be controlled.
«H*rwFesn nspw tape position
O(>o
PAUSE CMSMP SPEED SEARCH.
CD OOO-i
SLOW <B CDs
VOL CH 9
GD CO*
qNUMBERED
keys
Model PV-V4520 remote is shown here.
Using the Multi-Brand Control
After remote control is setup, you can select VCR, TV, or DSS/CABLE for the desired function.
Press VCR or TV or DSS/CABLE on the remote control.
This table shows which buttons are available for each mode.
Available
Mode
^^B^mons VCR TV CABLE/ DSS
VCR All Functions VOL UP/DOWN
TV VCR/TV, PLAY, STOP
EJECT, SAP/ Hi-Fi (PV-
V4520 only), DISPLAY,
FF.REW, PAUSE/SLOW,
REC, SPEED, COUNTER
RESET, TAPE POSITION,
CM SKIP
POWER, INPUT,
NUMBERED keys,
ENTER, CH UP/ DOWN,
VOL UP/DOWN
CABLE/ DSS VCR/TV, PLAY, STOP
EJECT, SAP/ Hi-Fi (PV-
V4520only), DISPLAY,
FF.REW, PAUSE/SLOW,
REC, SPEED, COUNTER
RESET, TAPE POSITION,
CM SKIP
VOL UP/ DOWN POWER, ENTER,
NUMBERED keys
{except 100key),
CH UP/ DOWN
In TV or DSS/ CABLE mode, it may be necessary to press ENTER after pressing NUMBERED keys for channel selection.
18 For assistance, call 1-800-211 -PANA(7262).

TV Brand Code Numbers
Panasonic 01, 02
Quasar 01, 02
RCA 03
GE 03
Zenith 04
Magnavox 05
Sylvania 05
Sharp 06, 07
Sony 08
Toshiba 09
Sanyo 10
Fisher 10
JVC 11
Hitachi 12
Mitsubishi 07, 13
Samsung 14
Gold Star 15, 16, 17
Cable Box Brand Code Numbers
Archer 05, 06, 01 ,44, 63, 91 ,126
Cabletenna 01, 44, 63, 91, 126
Cabteview 63, 44, 42, 30, 52, 04, 124, 126
Century 51, 44, 59, 75, 126
Citizen 63, 44, 42, 30, 52, 04, 124, 126
Curtis 08, 09, 61, 53, 87
Diamond 01, 44, 63, 91, 126
Drake 67
Eagle 13, 22, 58, 62, 20, 40, 26, 107
Eastern 28, 130
GC Brand 63, 44, 42, 30, 52, 04, 124, 126
Gemini 04, 124
General Electric 57,01
General Instruments.... 01, 02, 03, 04, 34, 55, 83, 106,
65, 67, 68, 115, 117, 118, 124, 91
Hamlin 14, 15, 28, 41, 102, 103, 104, 108, 130
Hitachi 31
Jasco 04, 124
Jerrold 01, 02, 03, 04, 34, 55, 83, 106,
65, 67, 68, 115, 117, 118, 124, 91
Macom 31
Magnavox 26, 112
Matsushita 16, 17, 97, 109
Movietime 32, 39, 42, 44, 126, 38, 40
NEC 38, 40, 32
NOVAVISION 08, 09, 61 ,53, 87
NSC 38, 40, 32
Oak 46, 11, 129
Oak Sigma 46, 11, 129
Panasonic 16, 17, 97, 109
Philips 07, 13, 20, 23, 24, 50, 128, 129
Pioneer 05, 06
Pulsar 63, 44, 42, 30, 52, 04, 124, 126
Quest 05, 06
Radio Shack 51, 44, 59, 75, 126
RCA 16, 17, 97, 109
Realistic 51, 44, 59, 75, 126
Recoton 51, 44, 59, 75, 126
Regal 14, 15, 28, 41, 102, 103, 104, 108, 130
Regency 28, 130
Rembrandt 01, 32, 39, 42, 44, 63, 126
Salora 68
Samsung 05, 32, 40, 42, 06
Scientific Atlanta 08, 09, 61, 53, 87
Sheritech 27
Signal 26, 112
SL Marx 32, 40, 42, 06, 43, 44, 52, 63, 126
Sprucer 16, 17, 97, 109
Standard Components 32, 39, 42, 44, 126
Stargate .... 32, 40, 63, 44, 42, 30, 52, 04, 06, 124, 126
Sylvania 19
Teknika 74
Telecaption 77, 127
Teleview 32, 40, 42, 06
Texscan 18, 19
Tocom 33, 34, 01, 42, 66, 91
Toshiba 36
Uniden Satelite 65
Unika 01, 44, 63, 91, 126
Universal 42, 43, 44, 52, 63, 126
Videoway 07, 23, 50, 129
Vid Tech 64
Vidtek 64
Viewstar 13, 22, 58, 62, 20, 40, 26, 107
Zenith 07, 23, 50, 129
DSS Brand Code Numbers
Toshiba 92 Panasonic 96
Hitachi/ Hughes 93 RCA 97
Magnavox/ Uniden 194 Sony 98, 105
Magnavox/ Uniden 295
iwmmm
•Due to changes in infra-red commands used by manufacturers, some brands have several codes.
If your unit does not respond to the first code, please try the next one.
•Some TV, Cable Box and DSS Box brands require you to turn on the power manually.
•Not all functions listed may be controlled by this remote control.
19

Tape Operation
Search System
Each time arecording is made, an invisible index mark is placed on the tape. When timer recordings are made,
program index and information are also included. These index marks can be used to access or scan recordings.
Program End Search
It is easy to locate the end of arecorded program allowing you to continue
recording where you left off.
Display SELECT SEARCH
MODE in Stop or Play mode.
Press SEARCH.*
iSEARCH
,
2SELECT SEARCH MODE
ZERO SEARCH
INDEX SEARCH
PROGRAM END SEARCH
SELEU1 :a KEY
SET >KEY
END :SEARCH KEY
Select PROGRAM END
SEARCH.
1) Press AW to select.
2) Press to
start search.
Examples of Program End Search operation.
Fiq.1 fProgram 1
|Program 2or BLANK
the current tape position i
Press SEARCH button ^End Point
m1
FF
Fig.2 Program 1iBLANK Program 2
the current tape position
Press SEARCH button
BLANK
End Point
FF
the current tape position
Press SEARCH button
Eig.3 Program 1
End Point 4
BLANK Program 2
FF
If search exceeds
few seconds in
BLANK area.
CD CD CD
CD CD CD
CD CD CD
CD CD CCD
COBTWRESCT EHSPIAV WEPOSITION
OCZ) o
PAUSE CMSWP SPEED SEARCH
,
GOO O-r
SAPfW-Fi CD CD
VOL CH
OCD
*| SEARCH
Model PV-V4520 remote is shown here.
If Program End Point (^]) is found.
The search continues slightly beyond the end point, then search and reverse search
and plays the last few seconds of the program and finally stops.
|Program 1Program 2(BLANK)
:he current tape position
Press SEARCH button SEARCH
FF PLAY, •REVERSE SEARCH
STOP
•If Program End Search is started
very close to an index mark, one
program may be skipped over.
•To cancel Program End Search,
press PLAY or STOP.
20 For assistance, call 1-800-211 -PANA(7262).
