Panasonic NA-F70B7 Product guide

Contents
Safety Precautions 2
Part Names 3
Operation Panel 4
Variety of Programs 5
Detergent 6
Washing 7
Washing Options 8
• Favorite
• Delicate
• Bed Sheets
• Air Dry
• Wash / Rinse / Spin
Convenient Functions 9
Maintenance 10
Installation 12
Error Display 14
Troubleshooting 15
16
Thank you for purchasing this
product.
- Read these instructions carefully for
optimum performance and safety
before use.
- Keep this manual for future reference.
Operating & Installation
Instructions
Fully Automatic Washing Machine
(Domestic use)
AWW9901A5900
A1704-1018
Printed in India
05-2019
Model No. NA-F70B7
NA-F65B7
NA-F62B7

2
Safety Precautions
May cause serious injury or death.
Avoid installation in humid place.
(To prevent re or electric shock)
Do not allow children to use on their
own.
●This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
●Children should be supervised to ensure that they
do not play with the appliance.
Observe the following about the
power plug and cord
(To prevent re or electric shock)
●Do not plug in or unplug the power cord with wet
hands.
●Do not hold or pull on the cord when removing the
plug from the socket.
●Do not use a power cord or plug that is damaged.
If the power cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly
qualied persons in order to avoid a hazard.
● Use a socket that satises the rating requirement
solely for this appliance. Do not use a plug adaptor
or extension cord.
● Always fully insert the power plug into the socket.
●Wipe the power plug periodically with a dry cloth.
(Accumulated dust collects moisture, which may
cause insulation failure, resulting in re.)
●Unplug the power cord before cleaning.
Never disassemble, repair or modify
the appliance yourself.
●In case of malfunction or failure, immediately stop
use, unplug the power cord, and ask your nearest
service centre for repair.
Keep away from re.
Do not put ammable materials or
clothes with such things attached in
the tub. Keep them away from the
appliance.
(To prevent explosion or re)
● For example: Kerosene, gasoline, benzine/thinner,
alcohol, etc.
Do not touch the tub until it
completely stops.
(To prevent injury)
●If the tub does not stop within 15 seconds when
the lid is opened during spin process, switch off the
appliance immediately and call a service person.
Provide a ground.
(To prevent electric shock by short circuit)
● Ask a service person to do the grounding work of
washing machine.
Read and follow these safety precautions.
WARNING

Safety Precautions Part Names
3
Part Names
May cause injury or property damage.
Do not wash, rinse, or spin
waterproof sheets or clothes.
(To prevent injury, damage to the main unit, walls, oor
or laundry, or water leakage if the appliance falls over
or oscillates extremely while spinning)
●Raincoats, wet suits, etc.
Locate away from direct sunlight or
heat.
(To prevent malfunction or deformation)
Observe the following
●New hose-sets supplied with the appliance are to be
used and old hose-sets should not be reused.
● Be careful not to get your ngers caught when
opening and closing the lid.
●Do not obstruct the openings of the bottom face with
carpet, etc.
●Do not insert your hands or feet under the main unit.
(To prevent injury by rotating parts.)
●Do not climb or put heavy objects on the appliance.
(To prevent deformation and breakage resulting in
injury)
● If the lid is broken, immediately stop using the
appliance.
(To prevent deformation and breakage resulting in
injury)
●Do not connect to the hot water supply.
●Do not directly pour hot water of 50 ºC or higher into
the tub.
● This appliance is only suitable for textiles labelled
washing machine washable.
Turn off the water faucet after
operation.
(To prevent water leakage)
External drain water
hose (P. 12)
Pulsator
Lint lter
(P. 10)
Lid
Operation
Panel (P. 4)
Softener
inlet
(P. 6)
Power cord
and plug
(P. 13)
Detergent
inlet (P. 6)
Adjustable leg
(P. 13)
Tub
Bleach / Liquid
detergent inlet
(P. 6)
Water supply valve (P. 13)

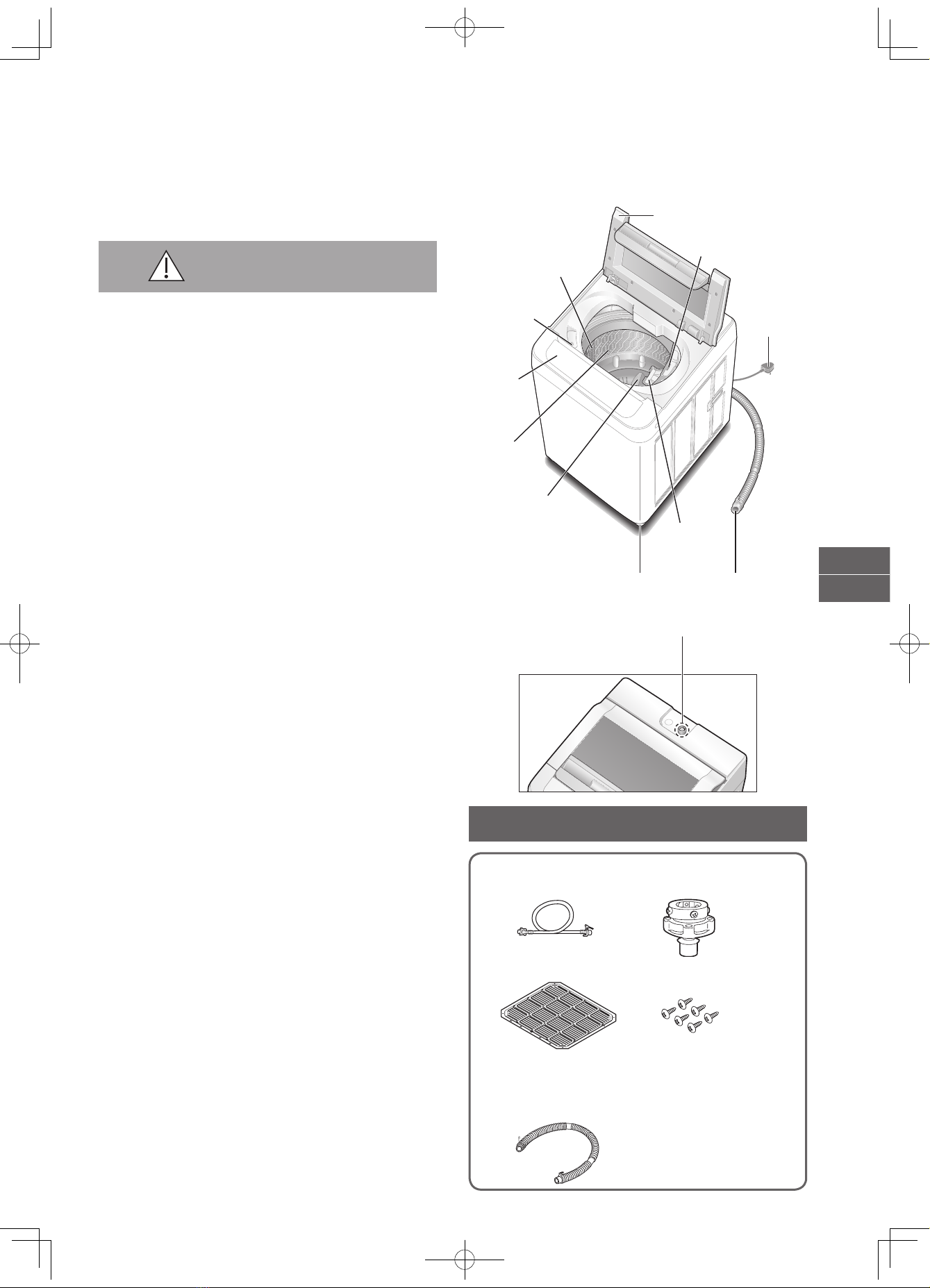

Accessories
●Water supply
hose (1)
●Water tap
adaptor (1)
● External drain
water hose (1)
●Bottom cover (1) ●Screw (6)
For the bottom cover
CAUTION

4
Operation Panel
Auto Restart lamp
In case of a power
failure during
operation, operation
will resume from the
point where it was
stopped when the
power is recovered.
The lamp lights up
when the operation
resumes.
Power On/Off
The power turns
off automatically if
you do not press
“Start”/“Pause”
within 10 minutes
after power-on.
Change water level
During the wash process,
press “Water Level” to
change the water level.
●Some water levels cannot
be selected depending
on the program.
●Press “Water Level” to
check the water level.
Water level/
remaining time
Water level/
water amounts
Indicates the selected program (No.)
After starting operation, indicates
the water level according to the
amount of laundry.
Indicates the approximate
remaining time (min).
Water
Level
Water amounts
NA-
F70B7
NA-
F65B7
NA-
F62B7
10 52 L 48 L 46 L
9 48 L 44 L
8 42 L
7 39 L
6 37 L
5 35 L
4 32 L
3 31 L
2 29 L
1 20 L
Program selection (P. 5)
Child Lock lamp (P. 9)
Start/Pause
Reserve
e.g.) 8 hours later
●Setting range: 2 - 24 hours later,
in one-hour increments.
(3 - 24 hours later for the Soak
program)
●Not available for the following
programs:
Delicate, Air Dry, Tub Hygiene
Change process settings
Change the combination of wash,
rinse and spin processes, and the
time length or number of times for
individual processes. (P. 9)
Flashing
(in progress)
Lighting
●After starting operation, you
can change settings only
during wash process by
pressing “Start/Pause”.

Operation Panel Variety of Programs
5
For clothes losing colour easily
Wash separately.
Pre-laundry check
To prevent damage to clothes, malfunction and
drainage failure
●Remove coins, pins, paper clips, nails, etc.
●Fasten buttons and close zippers.
●Do not wash items (such as paper diapers) other
than laundry.
●
●Use a brush to remove pet and human hair, sand,
etc.
●Tie strings, etc.
Laundry preparation and check
For delicate underwear only
Use laundry nets.
●Underwire brassieres
●Lacy clothes, lingerie and stockings
When using a net
●Do not overpack.
●Put the zipper's slider into the cover.
(To prevent damage to clothes and the main unit)
●Do not use the Air Dry program.
(To prevent uneven drying and wrinkles)
After loading clothes, press them
from above.
Forheavily stained clothes and stained white clothes
The following pretreatments are effective.
●
●Apply stain remover to stained areas.
Variety of Programs
Program Purpose Maximum capacity
NA-F70B7 NA-F65B7 NA-F62B7
1Normal*(P. 7) Everyday clothes
• Daily washing 7.0 kg6.5 kg6.2 kg
2Favorite*(P. 8)
Everyday clothes
• Washing with your saved preferred
settings
7.0 kg6.5 kg6.2 kg
3Quick (P. 7) Speedy washing for light soil 2.0 kg2.0 kg2.0 kg
4Jeans*(P. 7) Jeans & heavily soiled clothes
• Washing with powerful swirling water 7.0 kg6.5 kg6.2 kg
5Soak*(P. 7) Heavily soiled clothes
• Presoaking to wash 7.0 kg6.5 kg6.2 kg
6Delicate (P. 8) Delicates
• Washing delicates gently 3.5 kg3.5 kg3.5 kg
7Daily Wear
(P. 7) Daily Wears washing 1.2 kg1.2 kg1.2 kg
8Bed Sheets (P. 8) Bed sheets 4.2 kg4.2 kg4.2 kg
9Air Dry (90 min)
(P. 9)
2.0 kg2.0 kg2.0 kg
Tub drying ― ― ―
10 Tub Hygiene
(P. 11)
Tub cleaning
• Preventing black mould and smell ― ― ―
* Anti tangling
Disentangles clothes after spin operation. (Amount of laundry: 1 - 3.5 kg)
• Anti tangling will not work if you change the water level.
• To set to Off, press and hold “Wash” (2 short beeps). To set to On, do the same procedure (4 short beeps).

6
Detergent
Do not put detergent directly into the tub.
Detergent may remain undissolved.
NOTE
●If powder detergent is poorly soluble, put
detergent in the detergent inlet.
●Do not put in too much detergent.
●The level of foaming depends on condition such
as load size, degree of soiling, detergent type, and
water hardness.
Softener
● Softener is automatically released during the nal
rinse process.
●To add softener during operation, press “Pause”
rst.
●Up to about 40 ml can be added.
NOTE
●If “Pause” is pressed during spin cycle, the softener
will be added too early and its effectiveness will
decrease.
●The softener will not be added automatically if not
put in by the time wash process is complete.
Bleach
●Do not use whiten bleach (chlorine bleach) for
coloured clothes to prevent loss of colour.
●Do not use bleach for the Delicate program.
Detergent
Put in detergent, bleach or
softener at described location.
■Powder detergent/powder bleach
●Close the cover securely after putting in.
■Softener
■Liquid detergent/liquid bleach
●Attach the detergent inlet cover if it comes off.
NOTE
● Turn the tub by hand if it is difcult to put in the
detergent inlet or softener inlet. (P. 9)

Detergent Washing
7
Washing Preparation:
●Check if the washing machine is properly installed. (P. 12)
●Turn on the water faucet.
1After loading laundry
Turn the power on.
2Select a program.
(P. 5)
e.g.) Normal
program
■Timer reservation
3Start.
The pulsator moves without
water and measures the amount
of laundry (approx. 5 seconds).
Water level indication
(approx. 5 seconds)
Remaining time indication
●To check the water level
→Press “Water Level”.
4Put in detergent.
●Approx. 20 seconds after the water level is
displayed, water supply begins.
5Close the lid.
Operation ends with beeps.
operation. (P. 4)
●2 minutes after start, all indications
except “Reserve” turn off.
●
press “Reserve”.
●To cancel or change, press “On/Off”.
●The hours that can be set differ
depending on the program.
■After pressing “Start”
●You can change the water level until the end of
the wash process.
●You can change each of the “Wash”, “Rinse”
and “Spin” operation contents until the end of
the wash process. Press “Pause” beforehand.
●You cannot change the program.
● When using the Soak program, the remaining
time will be displayed (when 90 minutes or less).
23
Timer reservation 1

8
Washing Options
Favorite
Use this program to save your preferred settings.
1After loading laundry
Turn the power on.
2Select Favorite
program.
3Select the preferred setting.
4Start.
5Put in detergent.
6Close the lid.
Operation ends with beeps.
NOTE
● Not available for the following settings:
Reserve, Water Level

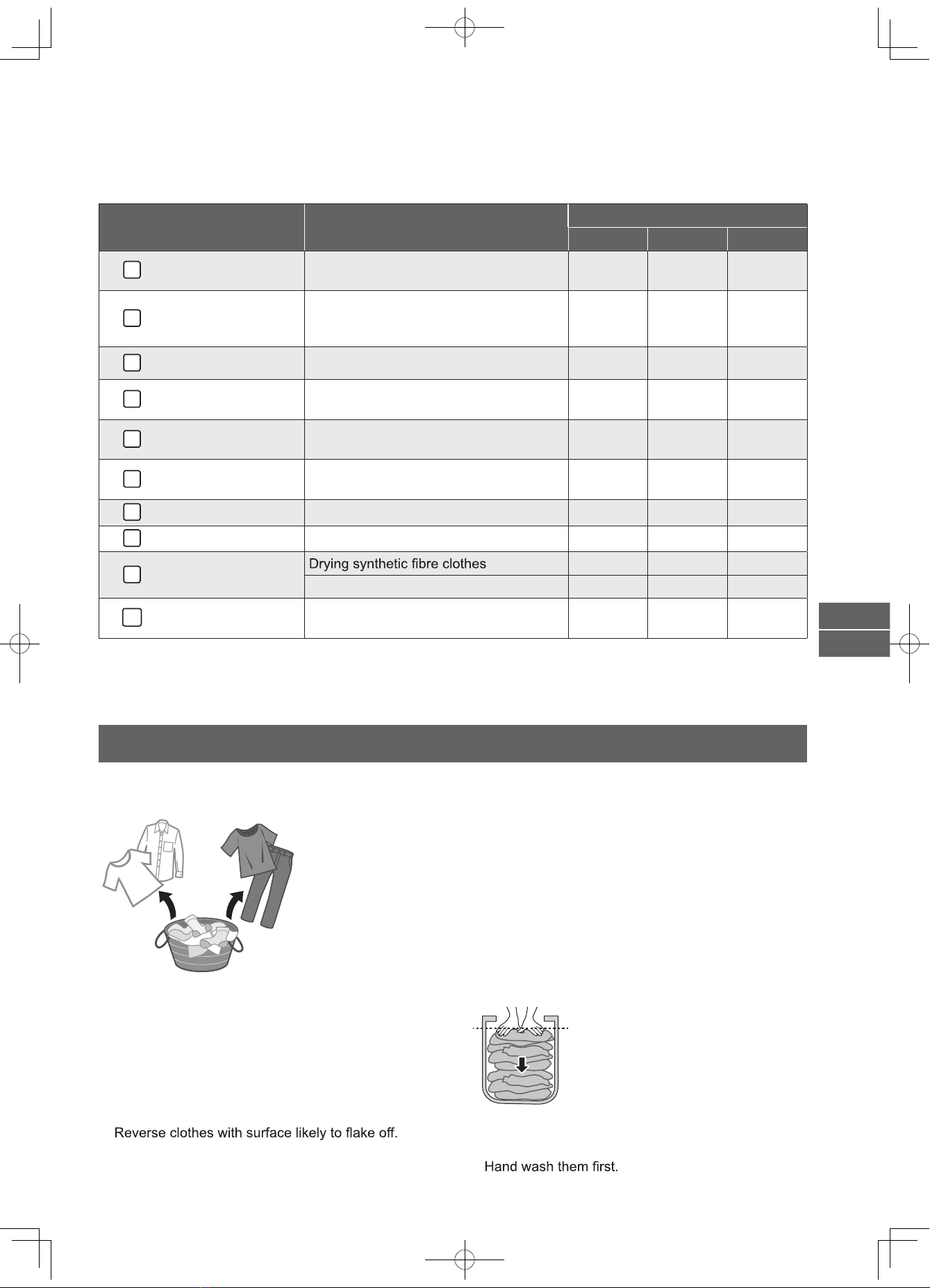

Delicate
Use this program to gently wash delicate clothes
and stylish garments.
Load laundry evenly.
● Load lighter items rst and press
them from above.
●Use laundry nets for delicate
underwear only.
●Amount that can be washed at
one time:
42 L 3.5 kg
37 L 2.0 kg
NOTE
●Do not use bleach.
●Use liquid delicate detergent.
● After operation ends, take out clothes immediately.
(To prevent wrinkles and colour staining)
Bed Sheets
■Washable bed sheets
• Material: 100 % synthetic bre or 100 % cotton
• Weight: 4.2 kgor less
• Bed sheets with a machine-washable tag
attached
●Put a bed sheet in the net and load it in the tub.
Roll ● The zipper part
should face up.
(To prevent
damage to the net)
NOTE
●Use liquid detergent.
● The water level indication shows the maximum and
cannot be changed.

Convenient FunctionsWashing Options
9
Air Dry
Water is removed from clothes by the air blown
from the tub rotation.
■Clothes that can be dried
• Material: Synthetic bre
• Weight: 2 kgor less
1After loading clothes and closing the lid
Turn the power on.
2
Select Air Dry program.
3Start.
After 90 minutes, drying
ends with beeps.
NOTE
● Clothes may not be sufciently dried depending on
the amount and type of clothes, the temperature, and
the installation condition of the washing machine.
●Since no heater is used for this function, you may
feel that clothes are cold and half dry.
Wash / Rinse / Spin
Preparation: Turn on the water faucet.
1After loading laundry
Turn the power on.
2According to your purpose
Change process settings.
3After closing the lid
Start.
Operation ends with
beeps .

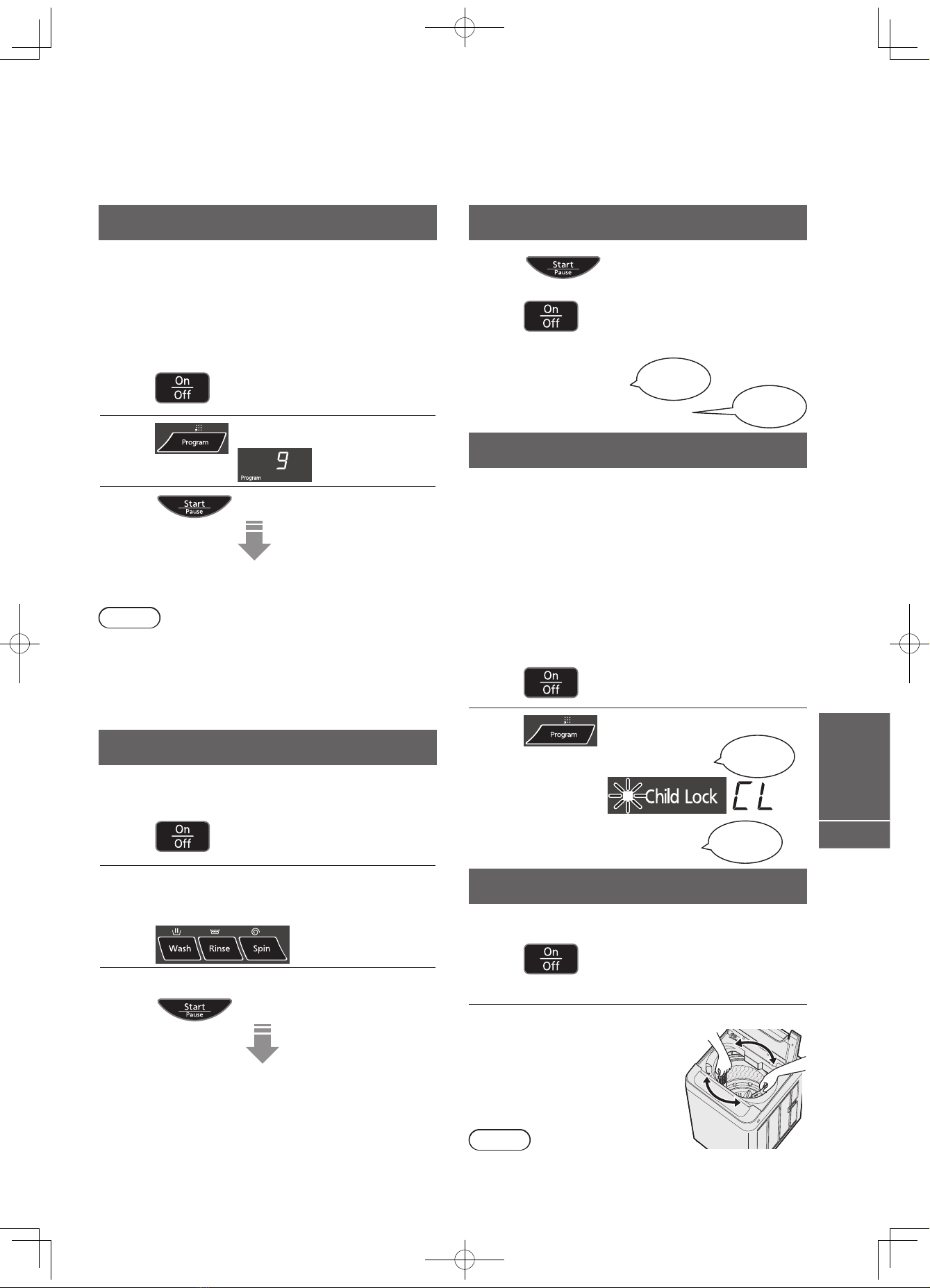

Convenient Functions
Cancelling end buzzer
1Pressing down,
press.
Then hold on for
3 seconds. 2 short
beeps
●To reset, do the same procedure.
4 short
beeps
Setting Child Lock
To prevent children from falling into the tub and
drowning, if the lid is opened while the washing
machine is operating, this function sounds a
buzzer until it is closed. Not closing it within
10 seconds ushes the water out.
● This function does not lock the lid and button
operations.
●When water is drained forcibly, “U 99” is displayed.
(P. 14)
1After closing the lid
Turn the power on.
2Press and hold for
5 seconds. 2 short
beeps
●To cancel, do the same procedure. 4 short
beeps
Turning the tub by hand
If it is difcult to reach the detergent inlet or lint lter.
1Turn the power on.
2When a clicking sound is heard
Turn the tub within
20 seconds.
NOTE
●If there is water in the tub, the tub cannot be turned.

10
Maintenance

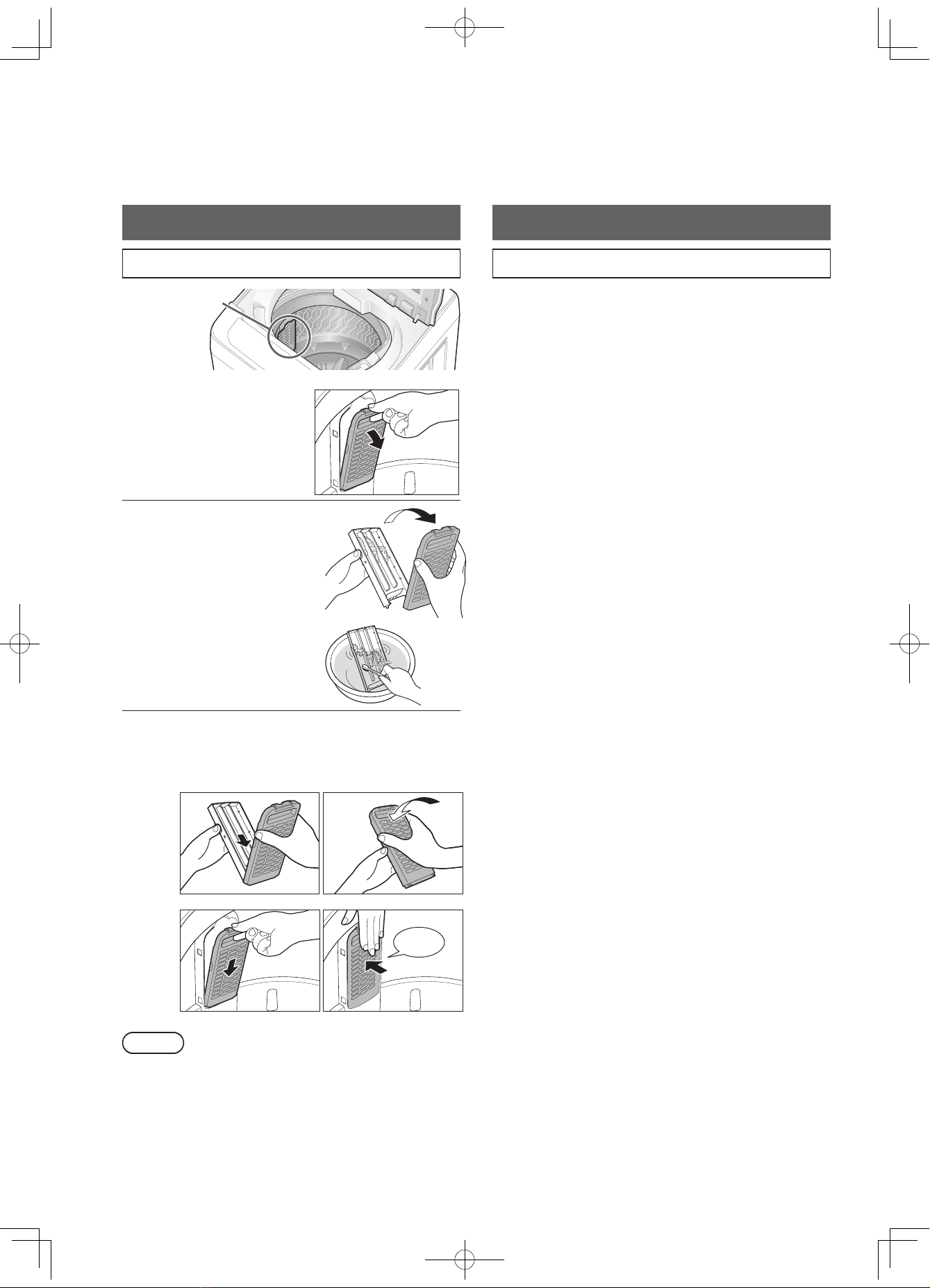

Lint lter
After each operation
Lint lter
1Remove the
lter.
2Open the lter
and remove
lint.
● If lint is difcult to
remove, soak and
wash the lter in
water.
3Attach the lter in its original
position.
1 2
3 4 Click
NOTE
● Do not wash laundry without the lter.
(To prevent damage to clothes)
● Turn the tub by hand if it is difcult to remove the
lter.
● If the lter is broken, purchase a new one at nearest
Panasonic Service Centre.
Main unit, lid
If stained with detergent or softener
Wipe with a soft cloth.
(To prevent damage to resin parts or metal corrosion)
●For heavy soil, wipe with a neutral kitchen detergent.
●Do not splash water.

Maintenance
11
Water supply lter
If water does not ow smoothly
●Follow the procedure below to prevent
splashing of water.
1After turning off the water faucet
Turn the
power on.
2Start.
3After approx. 40 seconds
Turn the power off.
4Loosen the nut
and remove the
hose.
5Remove the lter and remove
dirt on the lter.
Water supply lter
6Reattach the lter to its
original position.
Tub
Once a week <Air Dry>
1After operation ends
Run the Air Dry program without
loading laundry. (P. 9)
Once a month <Tub Hygiene>
Preparation: Turn on the water faucet.
1Without loading laundry
Turn the power on.
2Select the Tub
Hygiene program.
3Start.
When the tub is lled with water
Pause.
4Put bleach in the tub.
●Use whiten bleach
(chlorine bleach).
Approx. 200 ml
5After closing the lid
Start.
After approx. 2 hours
and a half, tub cleaning
ends.

12

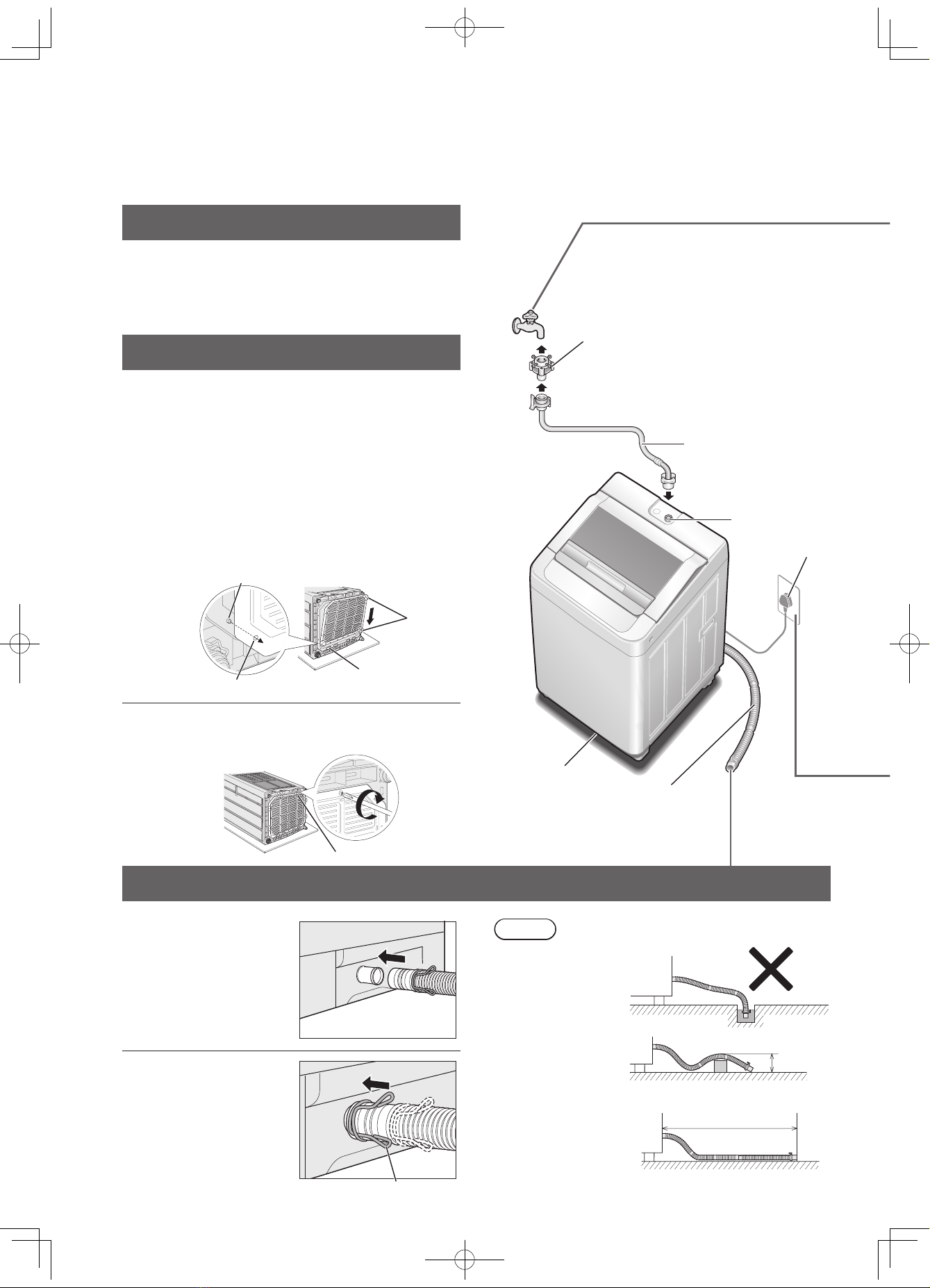

Installation
1. Check the location.
■Avoid the following locations for installation.
• Uneven or unstable locations
(on blocks, timbers, a table with wheels, etc.)
• Locations with a possibility of freezing
2. Attach the bottom cover.
Preparation: Set a cardboard, etc. and lay the
washing machine on it, avoiding
product damage and deformation.
(Face the front side down.)
1Insert the bottom cover along
the guides, and set 3 holes to
the corresponding
projections.
Projection
Hole
Guide
Hole
2Fix with screws.
(6 locations for right, left and top)
Screw hole
3. Attach the external drain water hose.
1Connect.
Insert all the way.
2Slide the
hose band
in the arrow
direction.
●Slide all the way
until it stops. Hose band
NOTE
●Do not put the
hose tip under
water.
●Do not raise the
hose higher than
10 cm above the
oor.
10 cm or
less
● Do not extend the
overall length to
more than 3 m.
3 m or less
Bottom cover
Water supply
hose
Water tap adaptor
Water
supply
valve
screw
External drain
water hose
Power
plug

Installation
13
Make sure to ask a service person for installation.
■Do not install by yourself.
■If the installation, test run and inspection of the washing machine are not carried out following this installation
method, Panasonic will not be liable for any accident or damage caused.

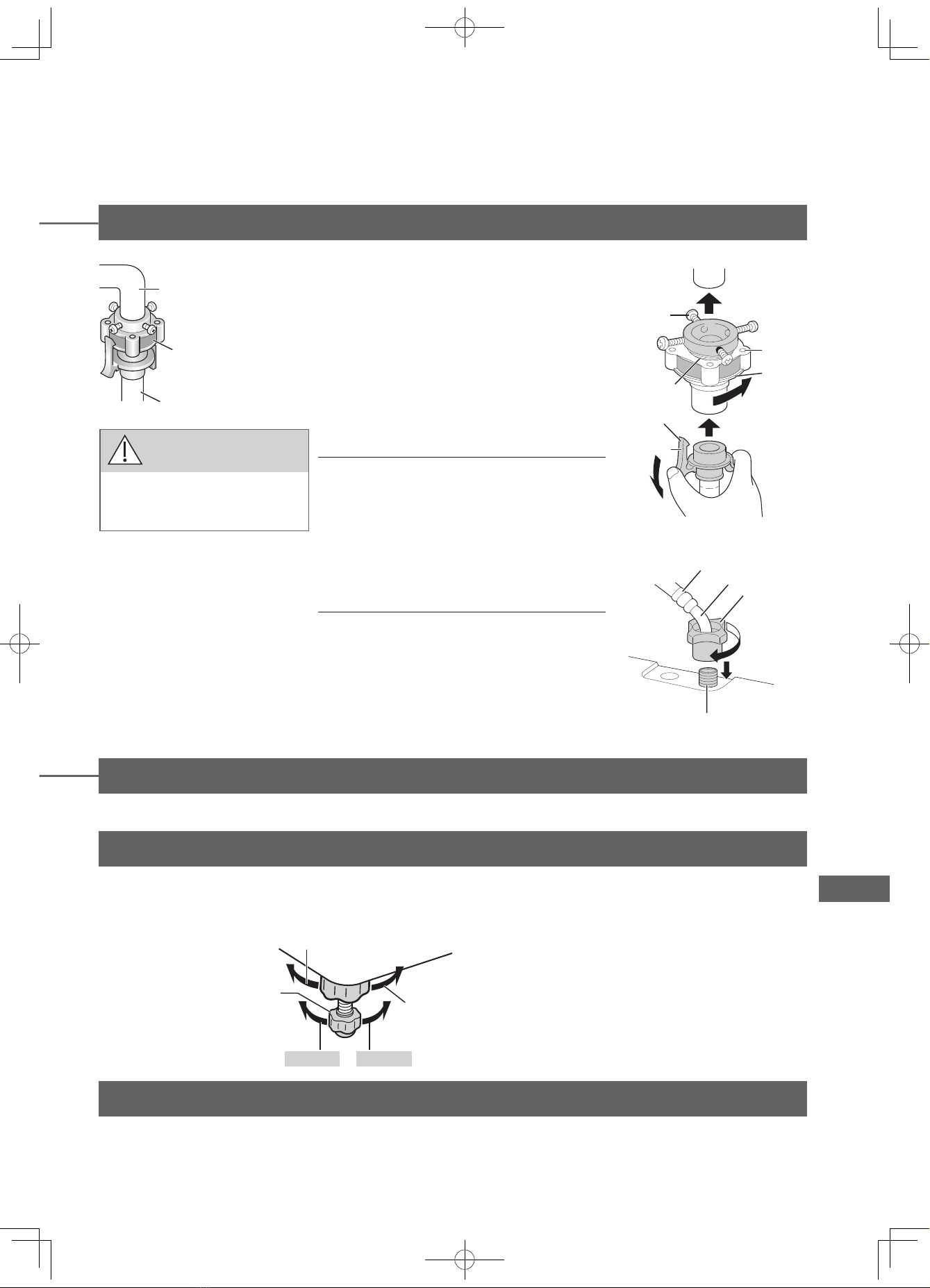

4. Connect the water tap adaptor and water supply hose.
Elbow
Water supply valve screw
Nut
Water supply hose
1Connect the water tap
adaptor to the water
faucet.
1
Turn part A to the left until approx.
4 mm of the thread becomes visible.
2Loosen the 4 screws.
3Connect to the faucet and tighten
the screws.
4
Turn part A to the right and tighten
securely. (To prevent water leakage)
2Connect the water
supply hose to the water
tap adaptor.
Insert the hose into the adaptor while
pushing down the lever, and hook
the claw of the lever on the ange of
the adaptor.
3Connect the water
supply hose to the water
supply valve screw.
1
Hold the elbow and tighten the nut.
2Check that the elbow is not loose.
Water faucet
Water supply hose
Water tap adaptor
CAUTION
● Tighten the nut rmly.
●Do not twist, squash, modify
or cut the hose.
Part A
Flange
Thread
Lever
Claw
Screw
5. Connect the power plug and grounding wire.
● Ask a service person to do the grounding work.
6. Check that the washing machine does not wobble.
■If the washing machine wobbles
3Turn to the right to
tighten.
1 Turn the adjustable leg knob to
the left to loosen.
2Turn the adjustable
leg to eliminate
wobble.
To lower
To raise
7. Perform a trial operation.
● Check that there is no water leakage, abnormal sounds or error display.

14
Error Display
● The buzzer sounds and “U”/“H” and a number are alternately displayed.
● Cancel Child Lock (P. 9) if it is set.
Error display Points to be checked
Water cannot drain.
Check the drain water hose for the following abnormalities:
●Is it crushed?
●Is it clogged with lint?
●Is the hose tip under water?
●Is it partially raised higher than 10 cm above the oor? (P. 12)
●Is the total length longer than 3 m (including the extension hose)? (P. 12)
When the above problems are solved, you can resume operation by opening and
closing the lid.
The lid is open.
●Did you try to run the washing machine with the lid open?
→Close the lid.
Spin or Air Dry is not possible.
●Are clothes concentrated on one side of the tub?
→Distribute the clothes evenly and close the lid.
●Is the washing machine installed on an unstable
or inclined surface?
→ You can resume operation by opening and
closing the lid.
Water cannot be supplied.
●Is the water faucet turned on?
●Water outage?
● Is the water supply lter clogged with dirt? (P. 11)
→You can resume operation by opening and closing the lid.
Water has been forcibly drained.
●Water has been forcibly drained because the lid was open for 10 seconds or more
with Child Lock (P. 9) set.
→ Unplug the power cord and plug it in again after 5 seconds.
Inspection is required.
●Turn off the water faucet just to be safe. Then, report the error displayed (2-digit
number after “H”) to a service person. Unplug the power cord.

Error Display
MEMO
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Troubleshooting
15
Troubleshooting
Symptoms Points to be checked
Time
Time indication increases or
does not change
● Time indication is approximate. Remaining time is corrected
during operation and displayed.
Operation time is longer than
the time indication.
Operation does not stop even
after the reservation time.
●The operation time may be longer if laundry is concentrated
on one side or the water supply or drainage is not good.
(P. 14 “U 11” “U 14”)
Main unit
No operation
●Power failure?
●Is the lid closed completely?
● Has the power fuse blown or the breaker tripped?
●Is the power plug inserted completely?
●Is the water faucet turned on?
●Did you press “Start”?
●Is the timer reservation set?
Wash
No water supply
●Is the water faucet turned on?
●Water outage?
● Is the water supply lter clogged with dirt? (P. 11)
Water is supplied in the
middle of wash process.
●If the water level drops, water is added automatically.
●With a large amount of laundry, water is added several times
automatically.
The water level is too high for
the amount of laundry.
●If laundry is wet or there is water in the tub before operation,
the water level may be higher.
The water level is too low for
the amount of laundry.
● With light clothes (of synthetic bre, etc.), the water level may
be lower.
Rinse/Spin
Operation started with rinse,
but water is not supplied.
●If there is no water in the tub, water is supplied after spin.
●If there is water in the tub, water is supplied after water
discharge.
Operation suddenly changes
to rinse process in the middle
of spin.
Only spin is desired, but
operation starts with rinse.
●If clothes are concentrated on one side of the tub, the washing
machine automatically corrects unevenness by starting rinse
process.
(Place clothes as evenly as possible.)
Irregular rotation during spin ●The tub rotation speed is adjusted to reduce foaming during
spin.
Others
Power failure/
The breaker has tripped.
●Operation will resume from the point where it was stopped
when the power is recovered (Auto Restart).
Water outage
●When water supply is recovered, remove the water supply
hose, release turbid water from the faucet, and then start the
washing machine.
Powder detergent remains
undissolved. ●Put the detergent in the detergent inlet. (P. 6)

16
NA-F70B7 NA-F65B7 NA-F62B7
Rated voltage 220 - 240 V
Rated frequency 50 Hz
Rated power consumption 430 W
Standard water amount 52 L 48 L 46 L
Maximum capacity
(Dry cloth)
7.0 kg6.5 kg6.2 kg
Product dimensions
525 mm (W) x 571 mm (D)
x 969 mm (H)
525 mm (W) x 571 mm (D) x 929 mm (H)
Product weight 31 kg30 kg
Pressure of tap water 0.03 - 0.9
MPa (0.3 - 9 kgf/cm2)
http://www.panasonic.com
© Panasonic India Pvt. Ltd. 2019
