Panasonic NA-W1350T User manual

NA-W1350T
NA-W1250N
TWIN-TUB ELECTRIC WASHING MACHINE (household use)
OPERATING INSTRUCTIONS
Please read these instructions and the warranty carefully
before use. Thereafter, keep them in a safe place and refer
to them as necessary.
CONTENTS
SAFETY PRECAUTIONS ................................................ 2
NAMES OF PARTS ......................................................... 4
HOW TO USE THE OPERATION PANELS .................... 5
HOW TO INSTALL .......................................................... 7
HOW TO WASH .............................................................. 9
HOW TO SOAK ............................................................. 16
HOW TO SPIN ............................................................... 17
CARE AND MAINTENANCE ......................................... 19
TROUBLESHOOTING .................................................. 20
REQUESTS AND THINGS TO ABIDE BY ..................... 22
Thank you very much for purchasing
Panasonic Washing Machine.

4
Spinner Cap
(To prevent clothes from springing out)
NAMES OF PARTS
1. Control Panel of Washing Tub,
Spinner Tub.
2. Inlet Hose Connector
3. Water Supply Selector
4. Wash Tub Lid
5. Wash Tub
6. Lint Filter
7. Pulsator
8. Drain Hose
9. Spinner Lid
10. Inner Lid
11. Spinner Tub
12. Power Cord
Accessories
Hose Holder Inlet Hose (Option)
Drain Hose
Hose Band

5

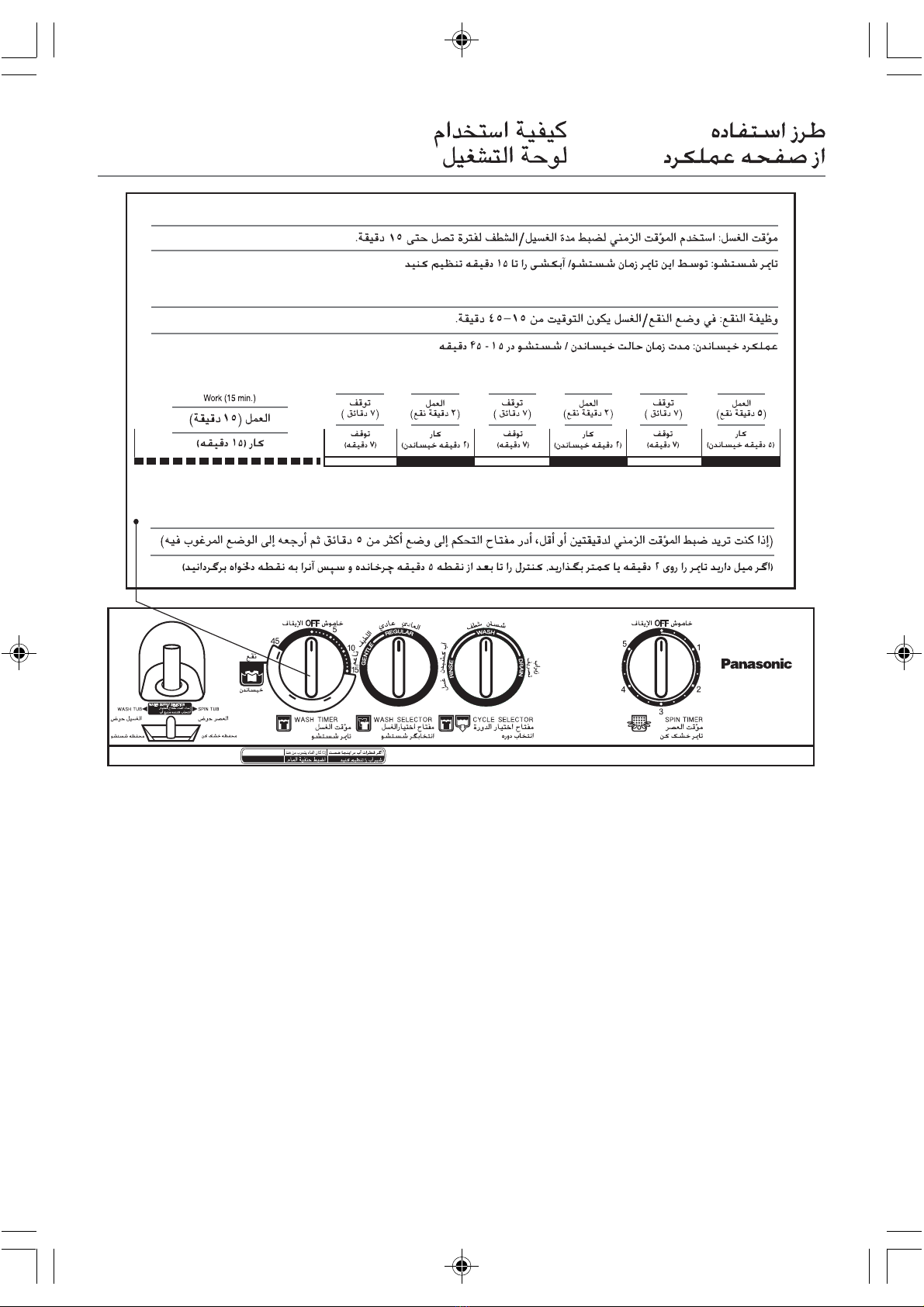

HOW TO USE THE
OPERATION PANELS
0 5' 10' 15' 45'SOAK
Work
(2 min. Soak)
SOAK
IF WATER DROPS HERE
ADJUST WATER TAP
SOAK FUNCTION: Soak/Wash mode timing at 15-45 minutes
WASH TIMER:
Use this timer to set washing/rinsing time up to 15 minutes
Work
(2 min. Soak)
Work
(5 min. Soak)
Stop
(7 min.)
(If you want to set the timer to 2 min. or less, turn the control beyond the 5-min. position and then
turn it back to the desired position)
Stop
(7 min.)
Stop
(7 min.)

6
2 types of Wash Selection
- REGULAR
- GENTLE
Water Supply Selector
- WASH TUB (LEFT)
- SPIN TUB (RIGHT)
WATER INLET
When the water spills out of the hole under the label, it means too
much water has supplied. Close the water tap and adjust the level.
This selector is to set for wash/rinse or drain
the water from the wash tub.
- WASH for washing.
- RINSE for overflow rinsing.
- DRAIN for drain the water from the wash tub.
This selector is to turn to your desired length of time for spin-dry
laundry by using 5 minutes (If you want to set the timer to 2 min.
or less, turn the selector beyond the 4-min. position, and then
turn it back to the desired position.
- Be careful of the water spills out onto the control panel.
- Do not place any wet clothes on the control panel.
- Do not use any chemical, thinner to wipe the machine.
HOW TO USE THE
OPERATION PANELS
SOAK
IF WATER DROPS HERE
ADJUST WATER TAP
WASH
DRAIN
DRAIN
RINSE
WASH
RINSE

7

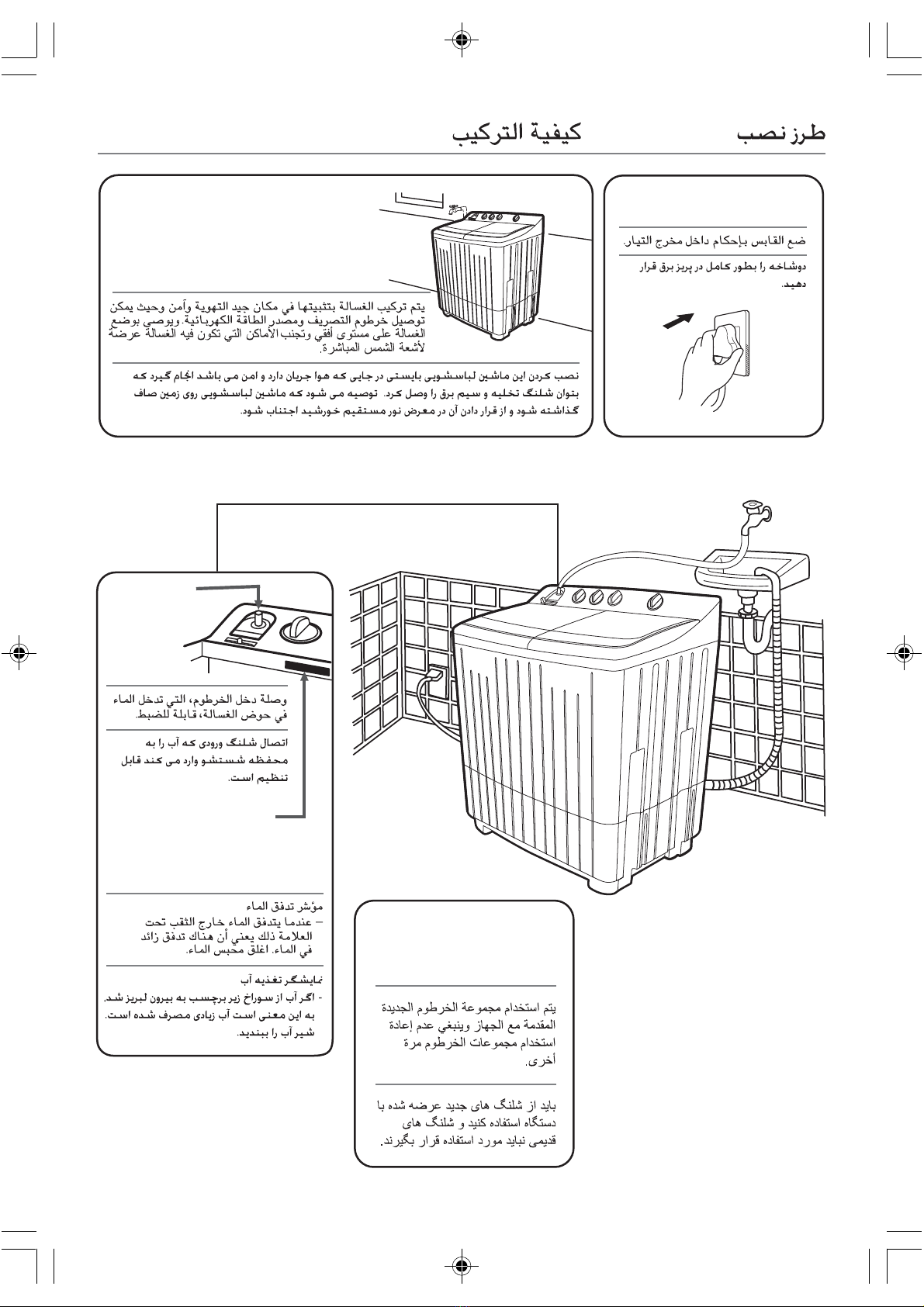

HOW TO INSTALL
Insert the power plug firmly into
the power outlet.
The feeding water indicator
The new hose-sets supplied
with the appliance are to be
used and the old hose-sets
should not be reused.
- When the water spills out of the
hole under the label, it means too
much water has supplied.
Close the water tap.
The inlet hose
connector, which
supply the water
into the
washing tub,
can be adjusted
Installing this Washer should be settled in a
well-ventilated, safe place and where can
connect the drain hose and the power supply.
It is recommended to place the washer on a level
floor and avoid a place where the washer can be
exposed to direct sunlight.

8
Fixation of Drain Hose
HOW TO INSTALL
Connect the included drain hose
to the drain hose connector on
the side of the washing machine.
Fix the drain hose and drain
hose connector on the side of
the washing machine by using
of Hose band.
Place the end of the drain hose in a sink at a height of no more than 1.2 meters.
• Position the washing machine on a flat, level surface, allowing a clearance at least 5 centimeters between the washing
machine and walls and other objects.
Drain Hose
Hose Band
Drain Hose connector

9
HOW TO WASH
1. Set the Cycle Selector to “WASH”
2. Fill the tub with water up to half of the water level line.
3. Put the clothes in the tub. Do not put an excessive amount of laundry, which specified in table 1 and 2, in the tub.
(See attached table 3 and 4 for NA-W1250N)
4. Put recommendable detergent mentioned in Table 5 and 6.
5. Set the WASH SELECTOR to “GENTLE” or “REGULAR”.
(Wash Selector is set upon the kind of clothes and the level of stained laundry)
6. When washing is completed, drain off the washing water by adjusting the Cycle Selector to “DRAIN” position.
7. After the washing water is discharged, turn the CYCLE SELECTOR switch to WASH position.
8. Fill the water overwhelms the clothes.
9. Set Wash Timer to 5 min. or 7 min. position to rinse.
10. When you finish washing, drain off the water from the tub by turning Cycle Selector to “DRAIN” position.
NA-W1250N

10
When using “Pre Wash” Detergent
CAUTION
Please use “Pre Wash” Detergent inside the Washing Machine as shown in Figure 1 & not outside of
the Washing Machine as shown in Figure 2.
Recommended practice
Using some type of “Pre Wash” Detergent outside the Washing Machine sometimes may cause
damage on the plastic part.
Fig.1 / / (✓) Fig.2 / / (✕)
Not recommended practice

4
10
4
5
10
4
12
12
12
500
500
90 13
82 10
74 7
4
61
11
Table 1: The amount of laundry (For NA-W1350T Only)
500
500
500
500
200
200
150
150
50
50
50
50
100
100
200
200
500
200
500
200
100
500
50
150
50
HOW TO WASH
NA-W1350T
NA-W1350T

12
NA-W1350T

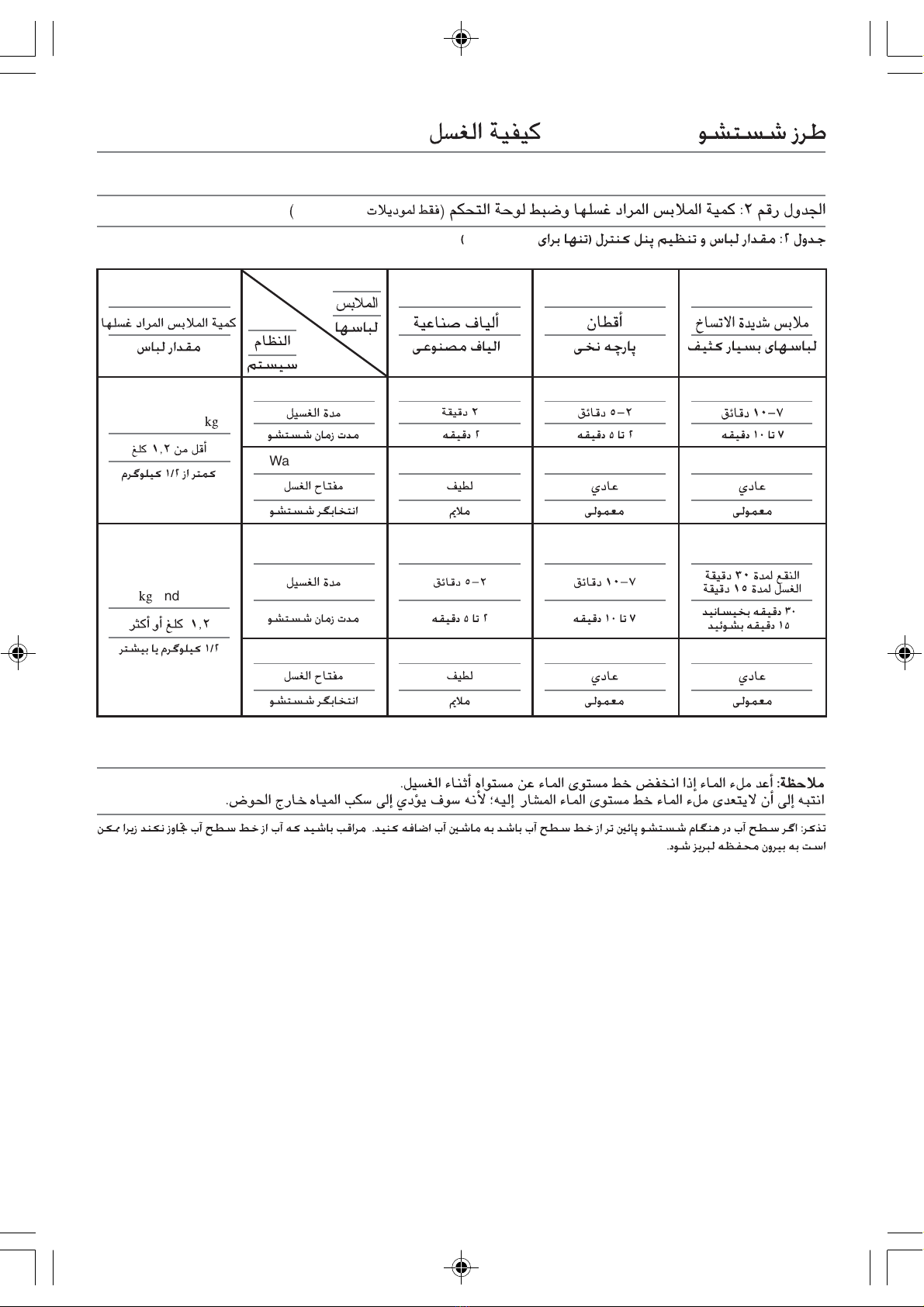

Table 2: The amount of the laundry and setting control panel (For NA-W1350T Only)
Amount of laundry
Less than 1.2 kg
Wash Selector
Washing time
Synthetic fiber Cotton
Heavy Stained Clothes
7-10 minutes
7-10 minutes
REGULAR REGULAR
Soak 30 minutes
Wash 15 minutes
2-5 minutes
2-5 minutes
2 minutes
GENTLE
Washing time
Note: Water level may be less than the water level line while washing, refill the water. Be careful not to fill exceed the
indicated water level line; it may cause the water spilling out from the tub.
System
Clothes
Wash Selector REGULAR REGULARGENTLE
1.2 kg and Above
NA-W1350T
HOW TO WASH

4
10
4
5
10
4
8
8
8
500
500
88 12
82 10
74 7
4
61
13

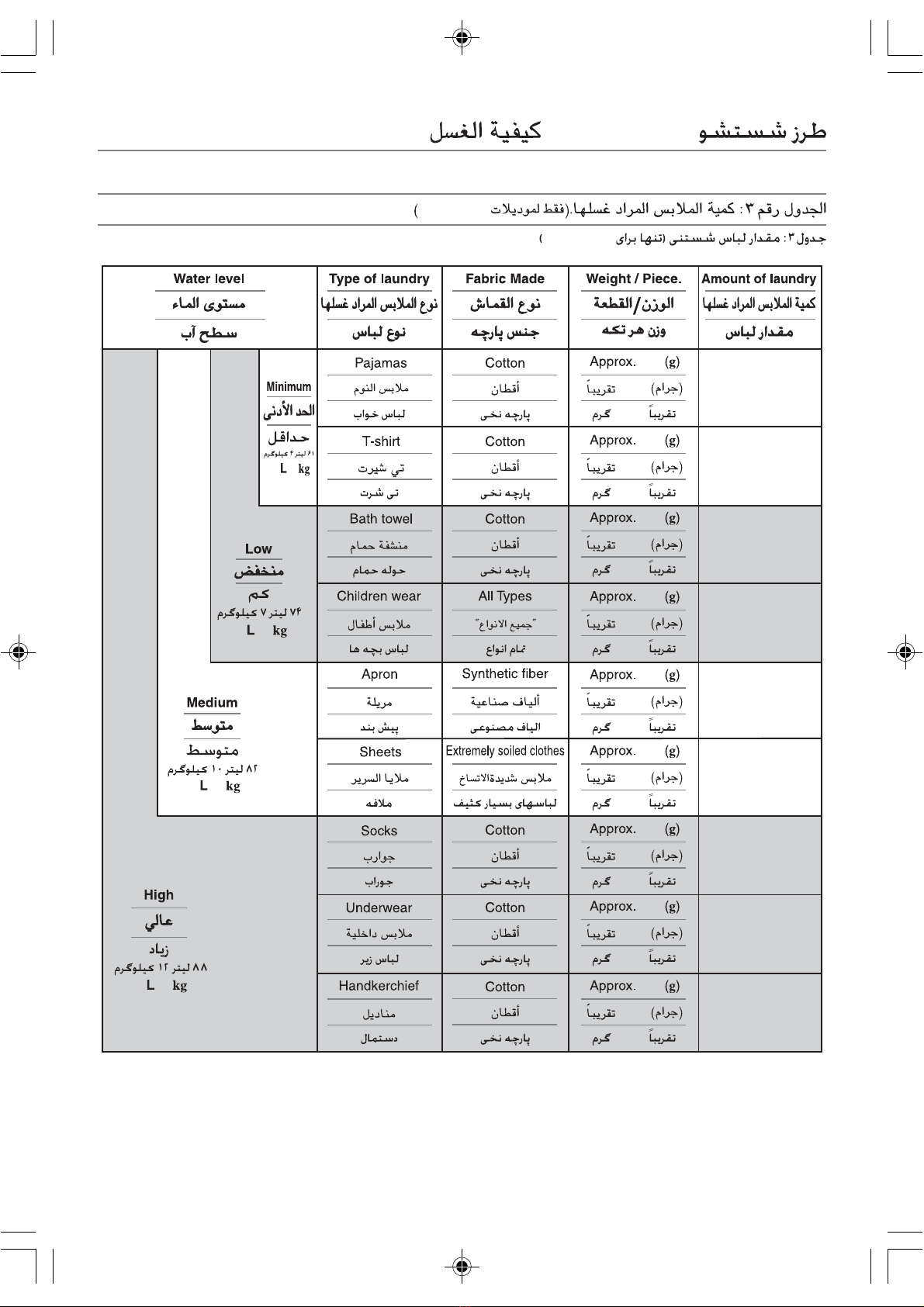

Table 3: The amount of laundry (For NA-W1250N Only)
500
500
500
500
200
200
150
150
50
50
50
50
100
100
200
200
500
200
500
200
100
500
50
150
50
NA-W1250N
NA-W1250N
HOW TO WASH

14
NA-W1250N

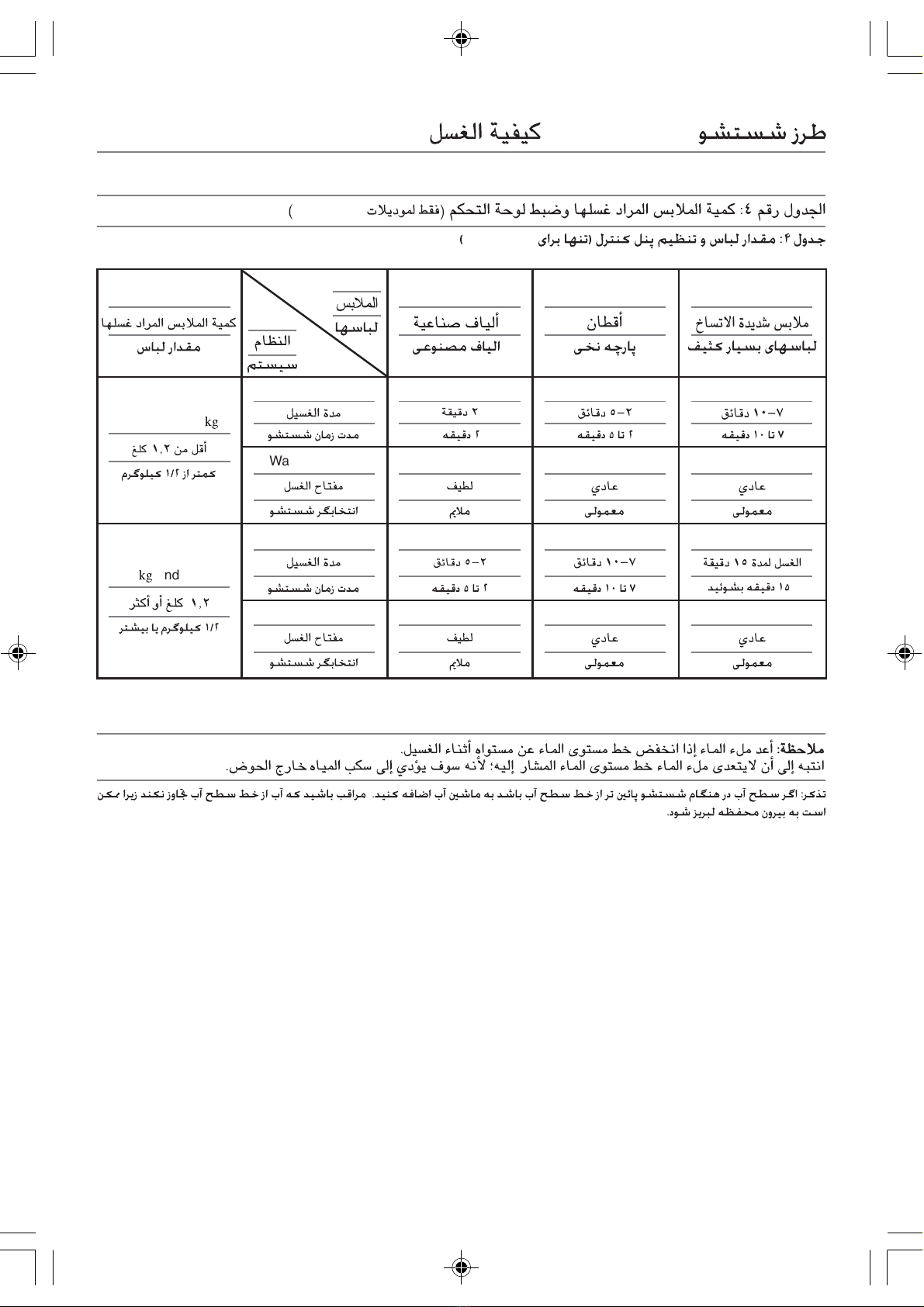

Table 4: The amount of the laundry and setting control panel (For NA-W1250N Only)
Amount of laundry
Less than 1.2 kg
Wash Selector
Washing time
Synthetic fiber Cotton
Heavy Stained Clothes
7-10 minutes
7-10 minutes
REGULAR REGULAR
Wash 15 minutes
2-5 minutes
2-5 minutes
2 minutes
GENTLE
Washing time
Note: Water level may be less than the water level line while washing, refill the water. Be careful not to fill exceed the
indicated water level line; it may cause the water spilling out from the tub.
System
Clothes
Wash Selector REGULAR REGULARGENTLE
NA-W1250N
1.2 kg and Above
HOW TO WASH

15
Detergent Quantity
Detergent Quantity used
according to the amount
specified on the
detergent package.
High (90 Liter)
Medium (82 Liter)
Low (74 Liter)
Minimum (61 Liter)
Water Level
NA-W1250N
NA-W1350T

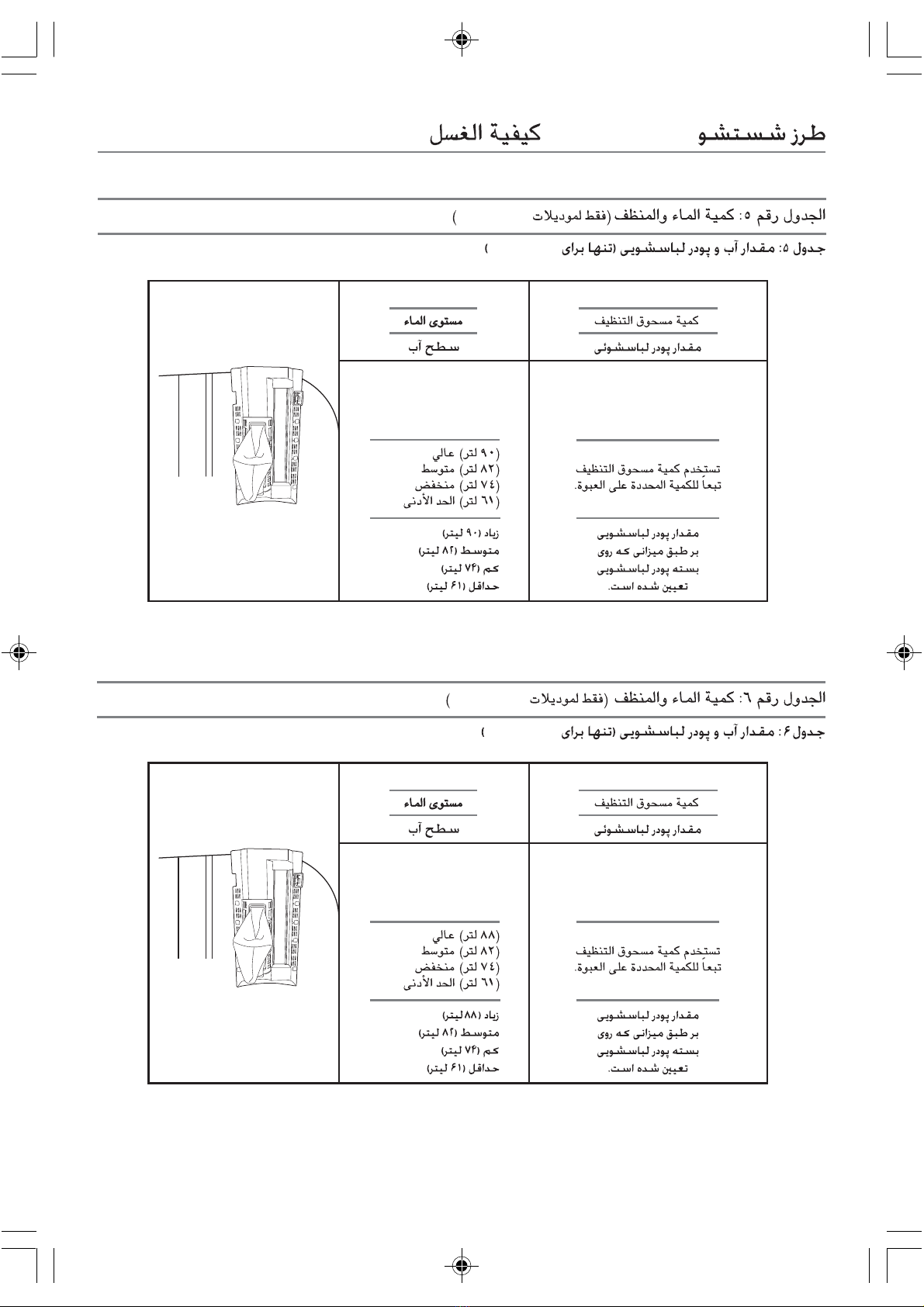

Table 6: The amount of water & detergent (For NA-W1250N Only)
Table 5: The amount of water & detergent (For NA-W1350T Only)
Detergent Quantity
Detergent Quantity used
according to the amount
specified on the
detergent package.
High (88 Liter)
Medium (82 Liter)
Low (74 Liter)
Minimum (61 Liter)
Water Level
NA-W1350T
NA-W1250N
HOW TO WASH

16
How the Soak Function operates
HOW TO SOAK
SOAK FUNCTION
Soak Function enhances the efficiency of the regular function, which helps to wash the clothes cleaner. Soak function will
be operated after the WASH TIMER switch is set to 45 min. position, then the washer will operate with soak function.
Soak function will run and stop alternately for 3 times until the 15th minute then the operation will reverse to regular
function. To set the time for regular or soak functions, turning the switch to your desired period of time.
Characteristics of Soak Function
1. Maximize the efficiency of the detergent. It allows the detergent penetrate into the fabric easily.
2. Soaking with water beforehand can help to clean out the stains and smell.
3. Do not use the brush otherwise it will damage the clothes.
4. Caring and preserving the fabric for long life extend.

17
HOW TO SPIN
Spinning
• Put the laundry into the spinner tub by putting the small-sized laundry in the bottom area to keep the balance of the tub.
• Place the SPINNER CAP in the tub as shown in the below figures.
• Close firmly the inner and outer lids of the spinner tub.
• Set the spinning time to 1-5 min. (See attached table 7)
Hints for Spinning
• If there is a sound from the spinner, open the spinner lid then try to lay the laundry evenly follows figure 1.
• If the lid is opened while the spinning function is working, the machine will stop within 5-10 seconds. If it is still running,
contact the service center.
• If the spinner lid is not closed, the machine will not work even the timing is set.
Figure 1: Right way of
laying the laundry
Figure 2: Wrong way of
laying the laundry
Figure 3: Right way of
placing the SPINNER CAP
Figure 4: Wrong way of
placing the SPINNER CAP

Table 7: Setting time for Spinning upon laundry Capacity : 9.0
18
Type of Laundry Spinning time
Working clothes 5 min.
Delicate clothes
(Thin synthetic fiber, waving cloth)
Underwear (Knitting clothes)
Sweater (Synthetic fiber) 1-2 min.
1 min.
3-5 min.
Bed sheet (Bath towel, etc) 5 min.
Final step
Empty the spinner tub; then turn the CYCLE SELECTOR switch to DRAIN to discharge the washing water and switch to
WASH. Then remove the power plug from the power outlet.
HOW TO SPIN
Outer Tub Cover
Inner Lid
Hook
In case of the laundry falling from the spinner tub
sRemove the power plug from the power outlet
sOpen the INNER LID and OUTER TUB COVER by start at lock
respectively . Pick up the laundry.
sWhile place back the OUTER TUB COVER, be sure to push it firmly
until the front hook is engaged securely.

19
3.
2.
1.
CARE AND MAINTENANCE
Be sure to remove the power plug from the power outlet before cleaning the machine and filter.
How to clean the Lint Filter
Rinse the dirt from the filter with water.
Pull out the lint filter from the lock.
By using fingers to press and pull out at the upper
part of the lint filter's side.
Set it back to the original position.
- insert the bottom first as shown in the figure
- press down and lock as the arrow.
The laundry or button is struck into the pulsator.
Unscrew the pulsator with screw driver by turning left then pull out the pulsator.
Then put it back after taking off the struck laundry.

20

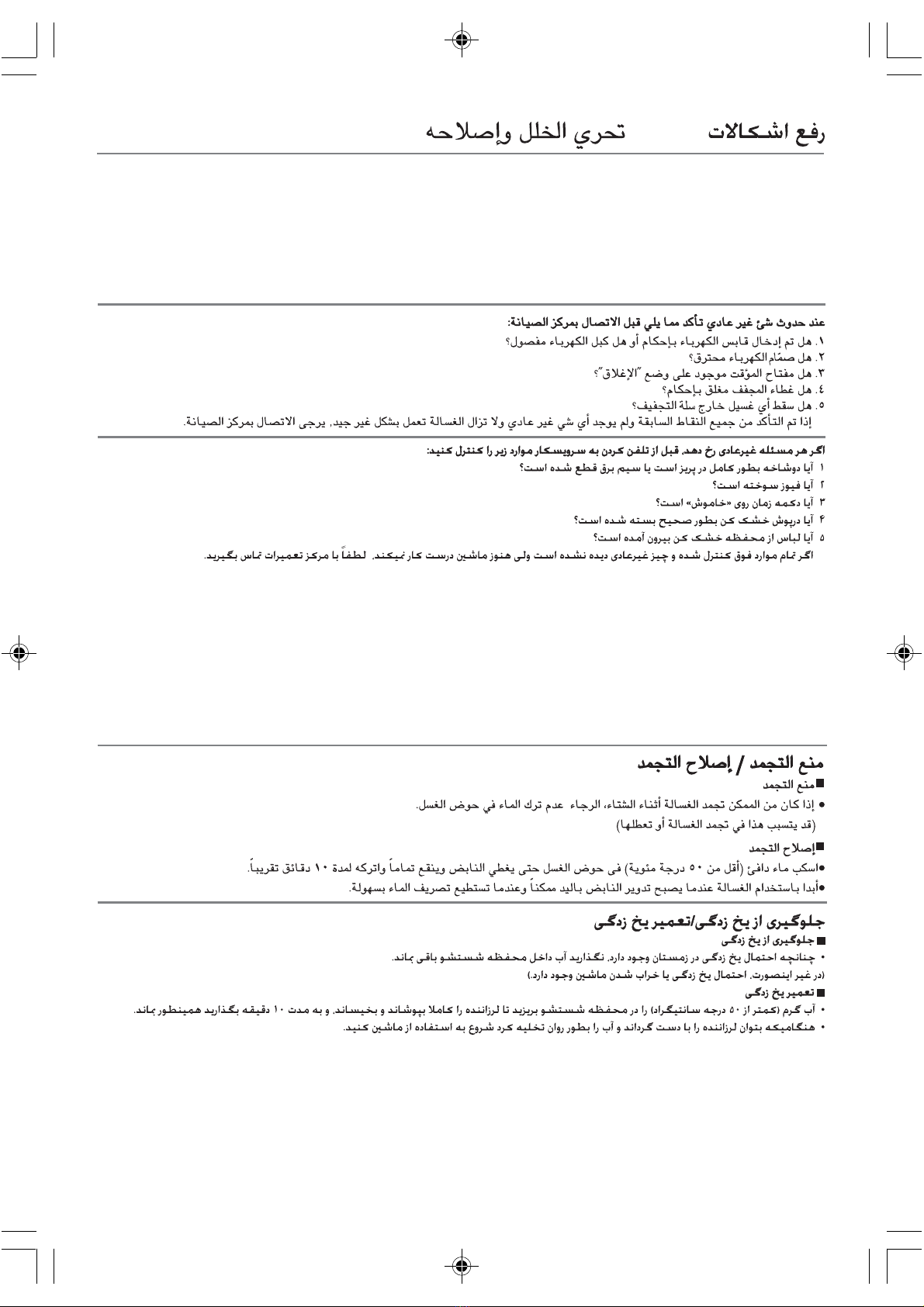

TROUBLESHOOTING
If any abnormality is found, check the following before calling for service:
1. Is the power plug inserted firmly or power cord disconnected?
2. Is the fuse blown?
3. Is the timing switch turned to “OFF” position?
4. Is the spinner lid closed properly?
5. Is there any laundry fallen out from the spinner tub?
If all the above points have been checked and no abnormality is found but the machine still work improperly,
please contact the service center.
PREVENTION OF FREEZING / FREEZING REPAIR
■PREVENTION OF FREEZING
• In case there is a possibility of freezing during the winter, please do not leave water in the wash tub of the machine.
(That will cause the machine to freeze or to breakdown.)
■FREEZING REPAIR
• Pour warm water (lower than 50°C) in the wash tub until the pulsator becomes thoroughly covered and soaked and
leave as such for about 10 minutes.
• Start using the machine when the pulsator can be turned around by hand and when you can drain the water
smoothly.
