Panasonic NA-FS16V5SSA Product guide

Contents
Safety Precautions 2
Part Names / Accessories 6
Before Washing 7
Operation Panel 8
Variety of Programs 10
Detergent 12
Washing 14
Washing Options
• Comforter
• Gentle Hand Wash
• Stain Master
• Super Dry 90
• Wash / Rinse / Spin
16
Contents of Programs 19
Convenient Functions 20
Maintenance 21
Installation 24
Error Display 28
Troubleshooting 29
Specifications 30
Thank you for purchasing this product.
- Read these instructions carefully for optimum
performance and safety before use.
- Keep this manual for future reference.
T1118-30720(SAUDI)
Printed in Thailand
07-2020
A
WW9901D2U03
Operating & Installation
Instructions
Fully Automatic Washing Machine
(Household Use)
Model No. NA-FS16V5SSA
AWW9901D2U03_EN.indd 1AWW9901D2U03_EN.indd 1 7/2/2563 BE 13:327/2/2563 BE 13:32

2
Safety Precautions
Read and follow these safety precautions.
WARNING
May cause serious injury or death.
Do not allow children to use on their own.
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
Children should be supervised to ensure that they do not play
with the appliance.
Observe the following about the power plug and cord.
(To prevent fire or electric shock)
Do not plug in or unplug the power cord with wet hands.
Do not hold or pull on the cord when removing the plug from the
socket.
Do not use a power cord or plug that is damaged. If the power
cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a
hazard.
Use a socket that satisfies the rating requirement solely for this
appliance. Do not use a plug adaptor or extension cord.
Always fully insert the power plug into the socket.
Wipe the power plug periodically with a dry cloth. (Accumulated
dust collects moisture, which may cause insulation failure,
resulting in fire.)
Unplug the power cord before cleaning.
AWW9901D2U03_EN.indd 2AWW9901D2U03_EN.indd 2 7/2/2563 BE 13:327/2/2563 BE 13:32

Safety Precautions
3
WARNING
Never disassemble, repair or modify the appliance
yourself.
In case of malfunction or failure (burnt odour smell, fume, etc.),
immediately stop use, unplug the power cord, and ask your
nearest service centre for repair.
Keep away from fire.
Do not put flammable materials or clothes with such
things attached in the tub.
Keep them away from the appliance.
(To prevent explosion or fire)
For example: Kerosene, gasoline, benzine/thinner, alcohol, etc.
Do not touch the tub until it completely stops.
(To prevent injury)
If the tub does not stop within 15 seconds when the lid
is opened during spin process, switch off the appliance
immediately and call a service person.
Be sure to provide a ground.
(To prevent electric shock if electricity leakage occurs.)
To establish a ground, ask a service person to do the grounding
work.
External water heater safety
Under certain conditions, hydrogen gas may be produced
in your hot water heater that has not been used for two
weeks or more. Hydrogen gas can be explosive under these
circumstances. To prevent the possibility of damage or injury,
you should turn on all hot water faucets in your home, and let
the water flow out for several minutes before connecting to your
washer. This will allow any built-up hydrogen gas to escape.
Since hydrogen gas is flammable, do not smoke or use an open
flame or start appliance during this process.
AWW9901D2U03_EN.indd 3AWW9901D2U03_EN.indd 3 7/2/2563 BE 13:327/2/2563 BE 13:32

4
Safety Precautions (continued)
CAUTION
May cause injury or property damage.
Do not wash, rinse, or spin waterproof sheets or
clothes.
(To prevent injury, damage to the main unit, walls, floor or laundry,
or water leakage if the appliance falls over or oscillates extremely
while spinning)
Raincoats, wet suits, etc.

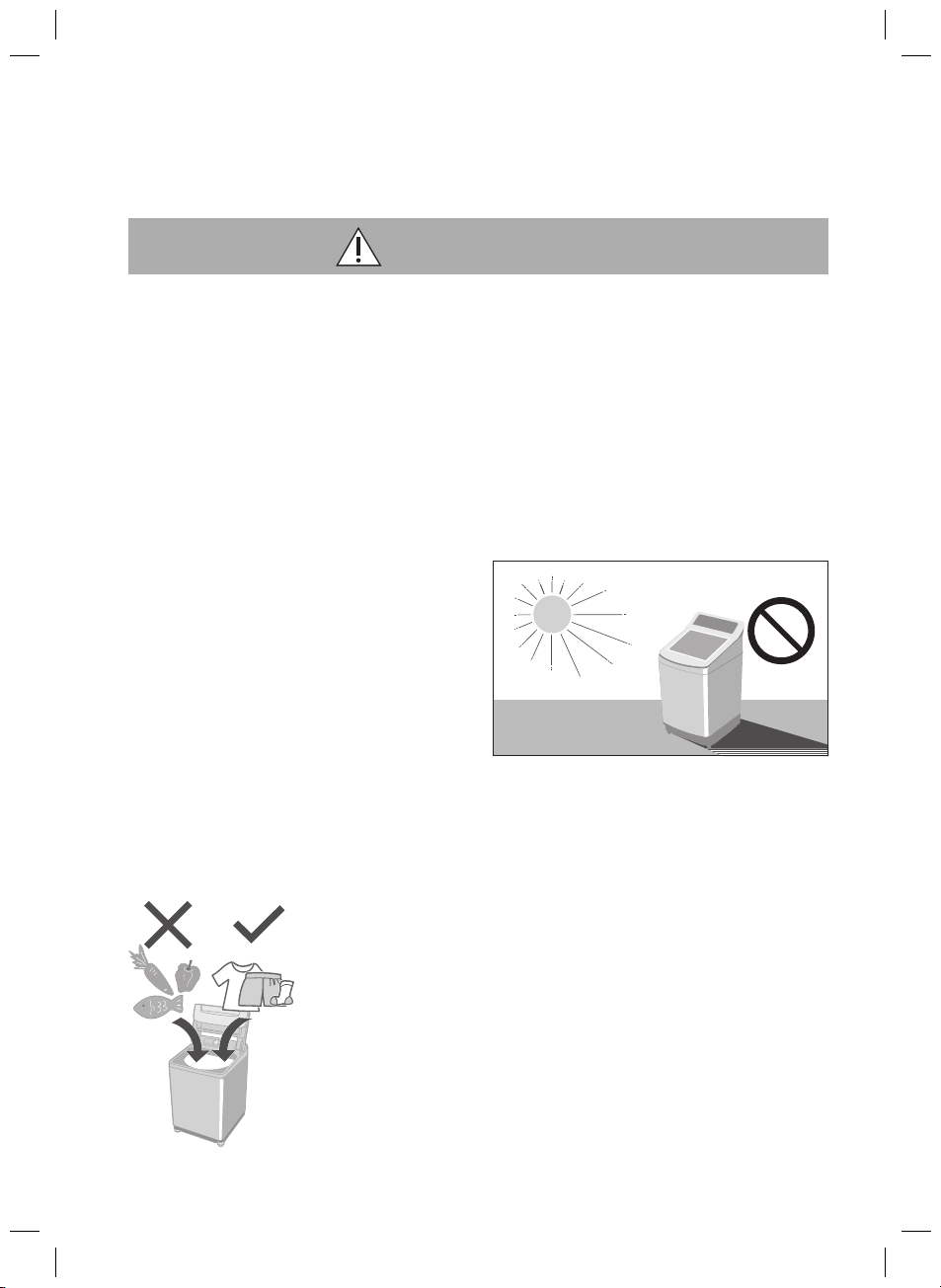

Locate away from direct sunlight or heat.
(To prevent malfunction or
deformation)
Turn off the water faucet after operation.
(To prevent water leakage)
For Machine-washable items only.
This appliance is intended to be used in household.
This appliance is not intended to be used in applications
such as:
- staff kitchen areas in shops, offices and other working
environments;
- farm houses;
- by clients in hotels, motels and other residential type
environments;
- bed and breakfast type environments;
- areas for communal use in blocks of flats or in
launderettes.
AWW9901D2U03_EN.indd 4AWW9901D2U03_EN.indd 4 7/2/2563 BE 13:327/2/2563 BE 13:32

Safety Precautions
5
CAUTION
Observe the following

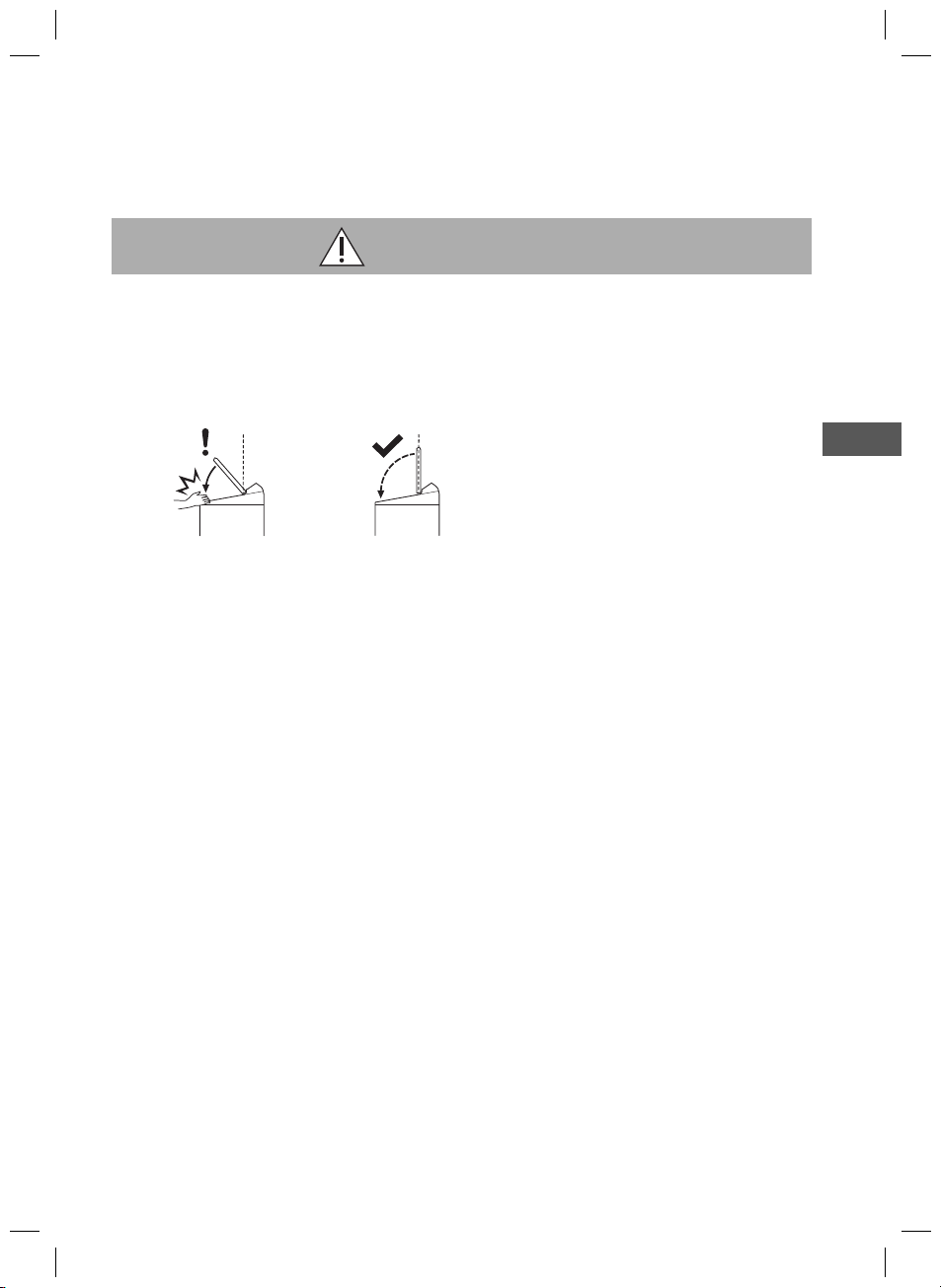

Be careful not to get your fingers caught.
Beware of sudden
lid closing.
Soft closing when
fully opened.
New hose-sets supplied with the appliance are to be used and
old hose-sets should not be reused.
Do not obstruct the openings of the bottom face with carpet, etc.
Do not insert your hands or feet under the main unit.
(To prevent injury by rotating parts.)
Do not climb or put heavy objects on the appliance.
(To prevent deformation and breakage resulting in injury)
If the lid is broken, immediately stop using the appliance.
(To prevent deformation and breakage resulting in injury)
Do not use water hotter than 60 ºC.
Do not make wrong connection for the HOT and COLD water
supply faucets.
Depending on the connected water heater, very hot water may
come out. Be careful not to burn yourself.
For maximum mass of dry cloth and pressure of tap water, see
P.30.
AWW9901D2U03_EN.indd 5AWW9901D2U03_EN.indd 5 7/2/2563 BE 13:327/2/2563 BE 13:32

6
Part Names / Accessories

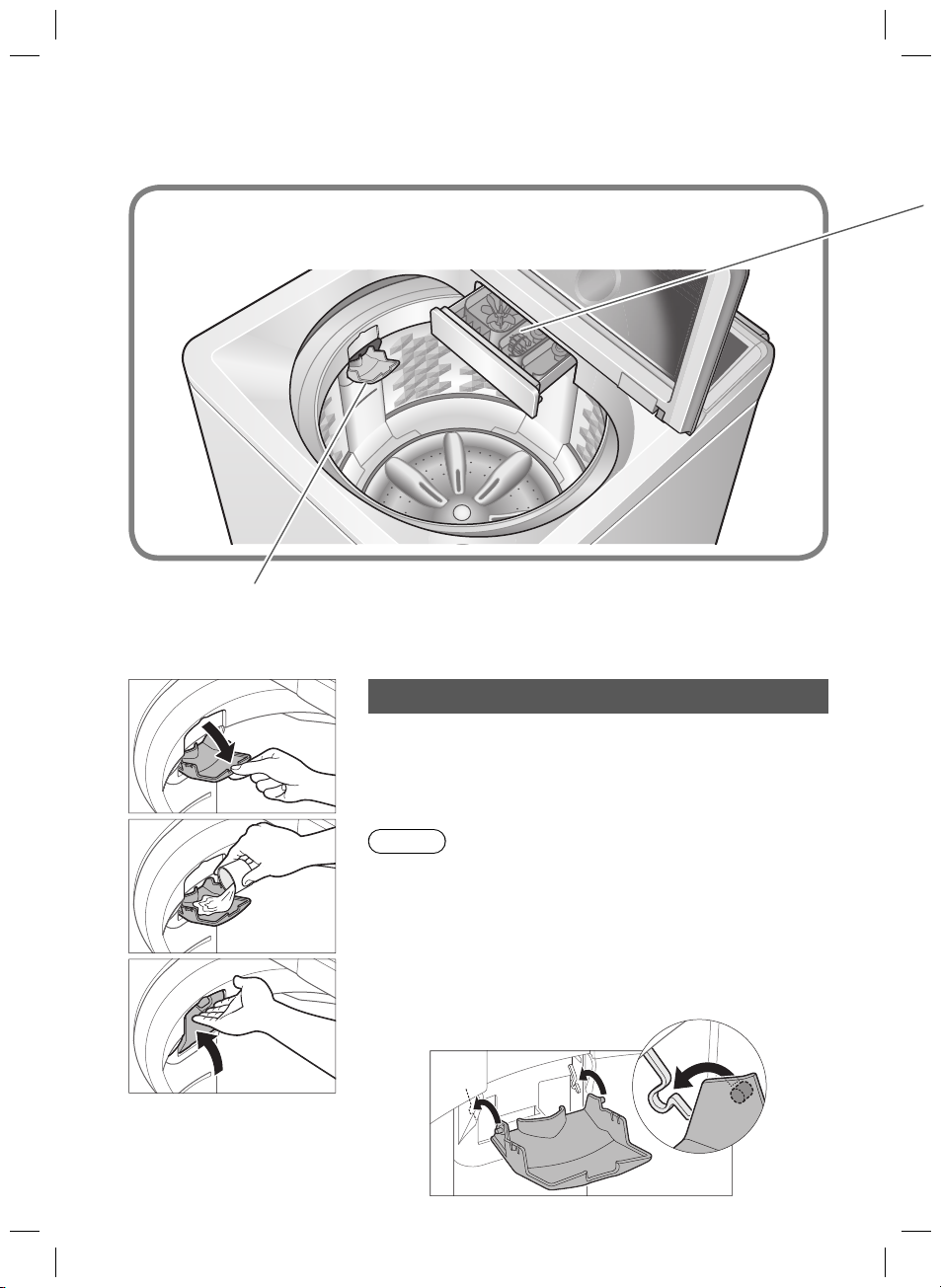

Lint filter
(P. 21)
Lid (Soft Closing)
Leveller (P. 27)
Power cord and
plug* (P. 27)
* The plug shape
varies with the
region.
Adjustable leg (P. 27)
Drain hose
(P. 25)
Detergent and
softener drawer
(P. 13)
Detergent/
Bleach inlet (P. 12)
Pulsator
Tub
Operation panel (P. 8) Water supply
valve (P. 27)
●COLD
●HOT
Accessories
Water supply
hose (2) (P. 26)
Washing board (1)
(P. 16)
Bottom cover (1) (P. 24)
Screw (1)
Drain hose (1)
Hose band (1) (P. 25) Hose holder (1)
Screw (1) (P. 25)
AWW9901D2U03_EN.indd 6AWW9901D2U03_EN.indd 6 7/2/2563 BE 13:327/2/2563 BE 13:32

Part Names / Accessories Before Washing
7
Before Washing
Laundry preparation and check
Wash separately for clothes
losing colour easily
Pre-laundry check
(To prevent damage to clothes,
malfunction and drainage failure)
Remove coins, pins, paper clips,
nails, etc.
Fasten buttons and close zippers.
Do not wash items (such as paper
diapers) other than laundry.
Reverse clothes likely to pill.
Use a brush to remove pet and
human hair, sand, etc.
Tie strings, etc.
Use laundry nets for delicates
Underwire brassieres, lacy clothes,
lingerie and stockings
Do not overpack.
Put the zipper's slider into the cover.
(To prevent damage to clothes and
the main unit)
Do not use the “Super Dry 90”
program. (To prevent uneven drying
and wrinkles)
For “Stain Master” program
(P. 10)
Recommended for removing stains.
Observe the instructions on the
care labels of clothes.
AWW9901D2U03_EN.indd 7AWW9901D2U03_EN.indd 7 7/2/2563 BE 13:327/2/2563 BE 13:32

8

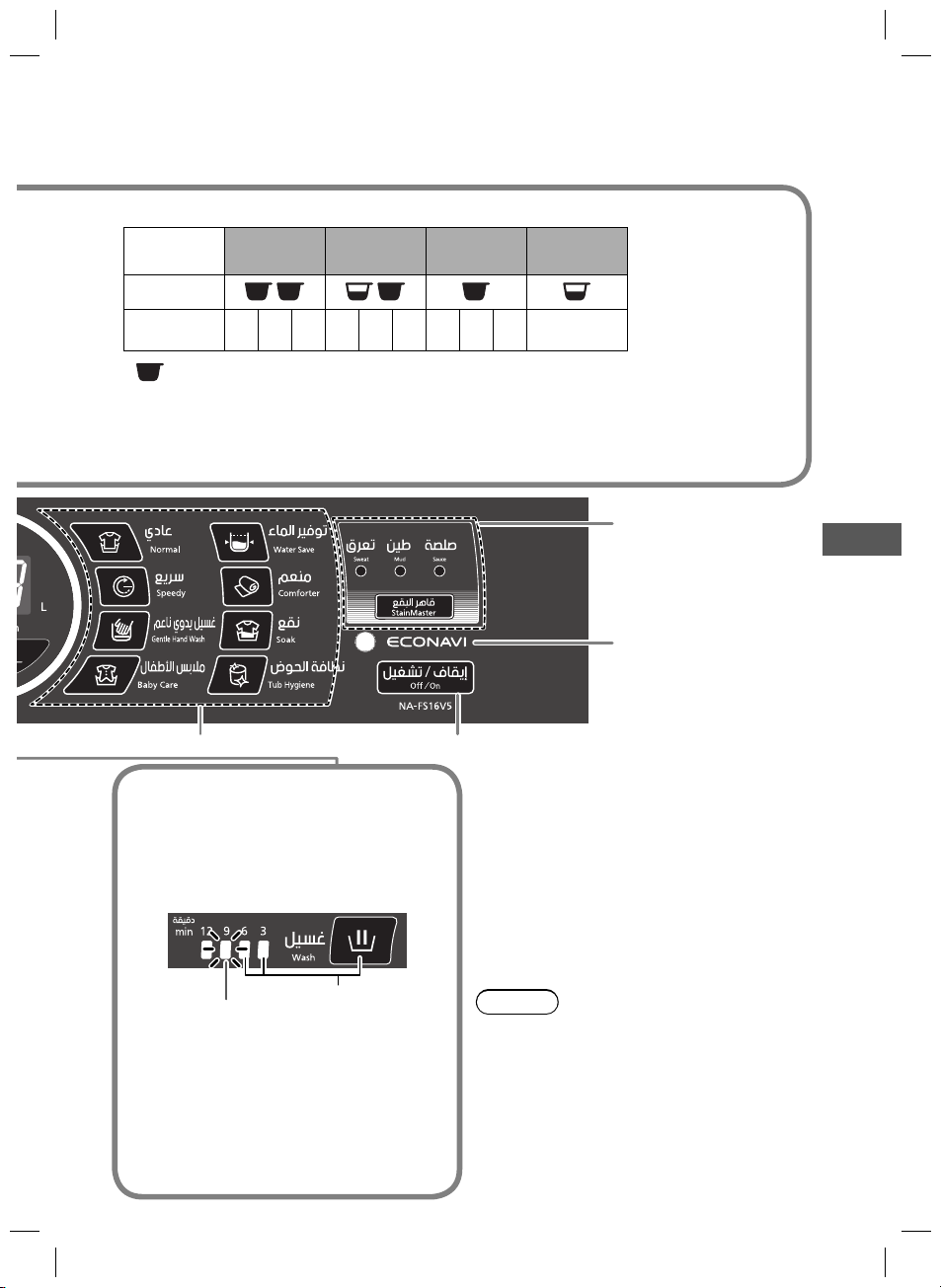

Operation Panel
Preset
Set the time to finish
washing (in hours).
( lights.)
e.g.) 8 hours
later
 Setting range:
2 - 24 hours later, in
one-hour increments.
(4 - 24 hours later for
the “Soak” program)
 Not available for the
following programs:
“Gentle Hand Wash”,
“Comforter”,
“Tub Hygiene”,
“Super Dry 90”
Change water amount
During the wash process,
press “Water Level” to
check and change the
water amount.
Some water amounts
cannot be selected
depending on the
program.
Water amount/remaining time
After starting
operation, indicates
the water amount
according to the
amount of laundry.
After approx.
5 seconds, indicates
the approximate
remaining time
(min).
Temp Setting
For washing, cold water can be mixed with hot
water. Press the button to select Hot/Warm/Cold.
(P. 14)
Do not use water hotter than 60 ºC.
 The estimated water temperature in the tub
during wash process (when hot water is 50 ºC,
and normal water is 20 ºC):
Hot approx. 40 ºC
Warm approx. 30 ºC
 Lamp indications
Lighted: Hot/Warm/Cold is set.
Flashing: Hot water is being supplied.
 Not available for the following programs:
Gentle Hand Wash, Tub Hygiene, Super Dry 90
 Temp setting for “Soak Program” in accordance
with standard SASO 2885 : - Cotton 60: Hot
- Cotton 40: Warm
Super Dry 90 (P. 18)
Child Lock lamp (P. 20) Start/Pause
AWW9901D2U03_EN.indd 8AWW9901D2U03_EN.indd 8 7/2/2563 BE 13:327/2/2563 BE 13:32

Operation Panel
9
NOTE
In case of a power failure during
operation, operation will resume
from the point where it was stopped
when the power is recovered
(Auto Restart).
The power turns off automatically
if you do not press “Start/Pause”
within 10 minutes after power-on.
Touch operation
Operation buttons are capacitive
(Except for the power Off/On and
Start/Pause buttons). Touch the
buttons directly with your bare
fingers.
When a towel containing water or
detergent touches an operation
button, the appliance may
malfunction.
Change process settings
Change the combination of wash,
rinse and spin processes, and the
time length or number of times for
individual processes. (P. 18)
Flashing (in progress)
Lighting
After starting operation, you can
change settings only during wash
process by pressing “Start/Pause”.
(The wash process setting of the
“Soak” and “Stain Master” program
cannot be changed.)
Water level/water amounts
Level High
10-8
Mid
7-5
Low
4-2
Extra Low
1
Detergent*
Water
amount (L) 99 88 81 74 66 59 52 46 38 33
* : 1 scoop of detergent
Water level for “Soak Program”
in accordance with standard SASO 2885 (Full load: 99 L / Half load: 74 L)
Each water level, except “Extra Low”, has three water amount options that
can be switched while the level is lighted by pressing “Water Level”.
e Program selection (P. 10) Power Off/On
ECONAVI (P. 15)
Stain Master (P. 17)
AWW9901D2U03_EN.indd 9AWW9901D2U03_EN.indd 9 7/2/2563 BE 13:327/2/2563 BE 13:32

10
Variety of Programs
Program Purpose
Normal (P. 14)
Everyday clothes
Daily washing
Speedy (P. 14) Speedy washing for light soil
Gentle Hand Wash (P. 16)
Delicates
 Washing delicates gently
Baby Care (P. 14)
Clothes for babies & people with
sensitive skin
Rinsing thoroughly
Water Save (P. 14)
Saving water
* To rinse thoroughly, use the “Normal” or
“Baby Care” program.
Comforter (P. 16) Comforters and Blankets
Soak (P. 14)
Heavily soiled clothes
Presoaking to wash
(P. 17)
Light stain
Heavy stain
Sweat Sweat stains
Mud Mud stains
Sauce Sauce stains (soya, tomato, etc.)
Super Dry 90 (P. 18) Drying synthetic fibre clothes
Tub drying
Tub Hygiene (P. 23)
Tub cleaning
Preventing black mould and smell
NOTE
 “Normal” program and “Water Save” program are recommended for a
normally soiled load at the rated capacity of this washing machine.
AWW9901D2U03_EN.indd 10AWW9901D2U03_EN.indd 10 7/2/2563 BE 13:327/2/2563 BE 13:32

Variety of Programs
11
Maximum capacity
16.0 kg
16.0 kg
2.5 kg
16.0 kg
16.0 kg
4.2 kg
16.0 kg
5.0 kg
3.0 kg
―
―
AWW9901D2U03_EN.indd 11AWW9901D2U03_EN.indd 11 7/2/2563 BE 13:327/2/2563 BE 13:32

12
Detergent
Detergent/
Bleach inlet
Bleach
Do not use whiten bleach (chlorine bleach) for
coloured clothes to prevent loss of colour.
Do not use bleach for the “Gentle Hand Wash”
program.
NOTE
 Turn the tub by hand if it is difficult to put in the
detergent/bleach inlet. (P. 20)
 Attach the detergent/bleach inlet cover if it
comes off.
 If the detergent/bleach inlet cover is wet, wipe
it before use. (Wet cover can cause detergent
clumps.)
Put in detergent, bleach and softener according to the water amount
 Follow the instructions on each package
AWW9901D2U03_EN.indd 12AWW9901D2U03_EN.indd 12 7/2/2563 BE 13:327/2/2563 BE 13:32

Detergent
13
Detergent and softener drawer
Powder detergent
Liquid detergent
Softener
Do not fill above
the MAX line.
(Approx. 100 ml)
NOTE
Do not put in too much
detergent.
For cleaning (P. 22)
Detergent
Do not put detergent directly into
the tub.
Detergent may remain undissolved.
NOTE
If powder detergent is poorly
soluble, put detergent in the
detergent/bleach inlet.
The level of foaming depends on
the condition such as load size,
degree of soiling, detergent type,
and water hardness.
Softener
Softener is automatically released
during the final rinse process.
To add softener during operation,
press “Pause” first.
When using concentrated softener,
dilute it with water before putting it
in.
Concentrated
softener Water
NOTE
Softener cannot be used with the
“Water Save” program.
Do not use separated or solidified
softener.
AWW9901D2U03_EN.indd 13AWW9901D2U03_EN.indd 13 7/2/2563 BE 13:327/2/2563 BE 13:32

14
Washing
1
After loading laundry
Turn the power on.
The “Normal” program is
selected when the power is
turned on.
2Select a program. (P. 10)
Temp Setting
Timer preset
3
Start.
The pulsator moves without
water and measures the
amount of laundry
(approx. 10 seconds).
Water amount indication
(approx. 5 seconds)
Remaining time indication
To check the water amount
→Press “Water Level”.
Preparation:
Check if the washing machine is properly installed. (P. 24)
Turn on the water faucet.
When using Temp Setting, turn on both hot and cold water faucets.
Timer presetTemp Setting 32 1
Press to select Hot/Warm/
Cold for washing. (P. 8)
Hot ←Warm ←Cold
Set how many hours later
to finish operation. (P. 8)
2 minutes after start, all
indications except turn off.
To confirm after the timer has
been set, press .
To cancel or change, press
.
The hours that can be set differ
depending on the program.
AWW9901D2U03_EN.indd 14AWW9901D2U03_EN.indd 14 7/2/2563 BE 13:327/2/2563 BE 13:32

Washing
15
4According to the water amount
indication
Put in detergent.
Approx. 20 seconds after the
water amount is displayed,
water supply begins.
5Close the lid.
Operation ends with beeps.
After pressing “Start”
You can change the water level
until the end of the wash process.
You can change each of the
“Wash”, “Rinse” and “Spin”
operation contents until the end of
the wash process. Press “Pause”
beforehand.
You cannot change the program.
ECONAVI
Available in the “Normal” program, this function automatically adjusts the
operation time and water amount according to the detected amount of
laundry and water temperature.
ECONAVI will not work if you change the water amount or process settings.
Lamp indications
Flashing: Detecting
Lighting: ECONAVI enabled
Off: ECONAVI disabled
* Test conditions:
• “Normal” program
• Comparison between ECONAVI-enabled operation (amount of laundry: 4.0 kg, water
temperature: above 35 ºC) and ECONAVI-disabled operation (amount of laundry: 16.0 kg
(rated capacity), water temperature: below 15 ºC)
• Test was conducted based on IEC60456 except for water temperature.
Switch on/off
1
2
3Press and hold for
3 seconds
4to select (On)
or (Off)
56 beeps
AWW9901D2U03_EN.indd 15AWW9901D2U03_EN.indd 15 7/2/2563 BE 13:327/2/2563 BE 13:32

16
Washing Options
Gentle Hand Wash
Use this program to gently wash
delicate clothes and stylish garments.
Attach the washing board.
1) Double up the
board and put it
in the base.
2) Align the
position
and open
the board.
3) Press the board circumference and fix it.
• Set the claws (4 places) securely.
Load the laundry.
Load laundry evenly.
• Load lighter items first and
press them from above.
• Use laundry nets for
delicate underwear only.
• Amount that can be
washed at one time:
Water Level Capacity
46 L 2.5 kg
38 L 1.2 kg
NOTE
Do not use bleach.
Use liquid delicate detergent.
After operation ends, take out
clothes immediately.
(To prevent wrinkles and colour
staining)
Comforter
Washable comforters and
blankets
• Material: 100 % synthetic fibre or
100 % cotton
• Weight: 4.2 kgor less
• Comforters and blankets with a
machine-washable tag attached
NOTE
Use liquid detergent.
The water amount indication shows
the maximum and cannot be
changed.
AWW9901D2U03_EN.indd 16AWW9901D2U03_EN.indd 16 7/2/2563 BE 13:327/2/2563 BE 13:32

Washing Options
17
Stain Master
Preparation:
Turn on the water faucet.
When using Temp Setting, turn on both hot and cold water faucets.
321
1
After loading laundry
Turn the power on.
2Select a
“Stain Master”
program. (P. 10)
Temp Setting (P. 8)
Timer Preset (P. 8)
3
Start.
4According to the water amount
indication
Put in detergent.
5Close the lid.
Operation ends with beeps.
NOTE
Amount that can be washed at one
time: Max. 5.0 kg
13
Maximum water amount
• Sweat: 81 L
• Others: 66 L
The following pretreatments are
effective for heavily stained clothes.
• Hand wash them first.
• Apply stain remover to stained
areas.
See “Laundry preparation and
check” before washing. (P. 7)
AWW9901D2U03_EN.indd 17AWW9901D2U03_EN.indd 17 7/2/2563 BE 13:327/2/2563 BE 13:32

18
Washing Options (continued)
Super Dry 90
Water is removed from clothes by the
air blown from the tub rotation.
Clothes that can be dried
• Material: Synthetic fibre
• Weight: 3.0 kgor less
1
After loading clothes
and closing the lid
Turn the power on.
2Press.
3
Start.
After 90 minutes, drying ends
with beeps.
NOTE
Clothes may not be sufficiently
dried depending on the amount and
type of clothes, the temperature,
and the installation condition of the
washing machine.
Since no heater is used for this
function, you may feel that clothes
are cold and half dry.
Wash / Rinse / Spin
Preparation:
Turn on the water faucet.
1
After loading laundry
Turn the power on.
2According to your
purpose
Change process
settings.
3Select water
temperature.
4
After closing the lid
Start.
Operation ends with beeps.
AWW9901D2U03_EN.indd 18AWW9901D2U03_EN.indd 18 7/2/2563 BE 13:327/2/2563 BE 13:32

Washing Options Contents of Programs
19
Program Total time
(min)
Wash
(min)
Rinse
(times)
Spin
(min)
Normal 65 12 2 5
Speedy 60 9 2 5
Gentle Hand Wash 45 12 2 1
Baby Care 75 12 2 7
Water Save 80 12 3 5
Comforter 80 12 2 3
Soak 185 *1 (Soak 12 min) + 2 *2 35
Sweat 60 10 *2 25
Mud 75 25 *2 25
Sauce 105 *1 (Soak 20 min) + 35 *2 25
Tub Hygiene 150 *1 (Soak 60 min) + 2 *2 2 30 *3
*1 Remaining time of 99 minutes or less will be displayed.
*2 The “12 min” lamp of Wash flashes.
*3 The “7 min” lamp of Spin flashes.
NOTE
Total time is approximate.
(When the standard water supply rate is 15 L / min and the water
temperature is 28 ºC)
Total time may increase depending on low water pressure, water temperature,
voltage, bad draining conditions, and the amount and type of clothes.
Contents of Programs
AWW9901D2U03_EN.indd 19AWW9901D2U03_EN.indd 19 7/2/2563 BE 13:327/2/2563 BE 13:32

20

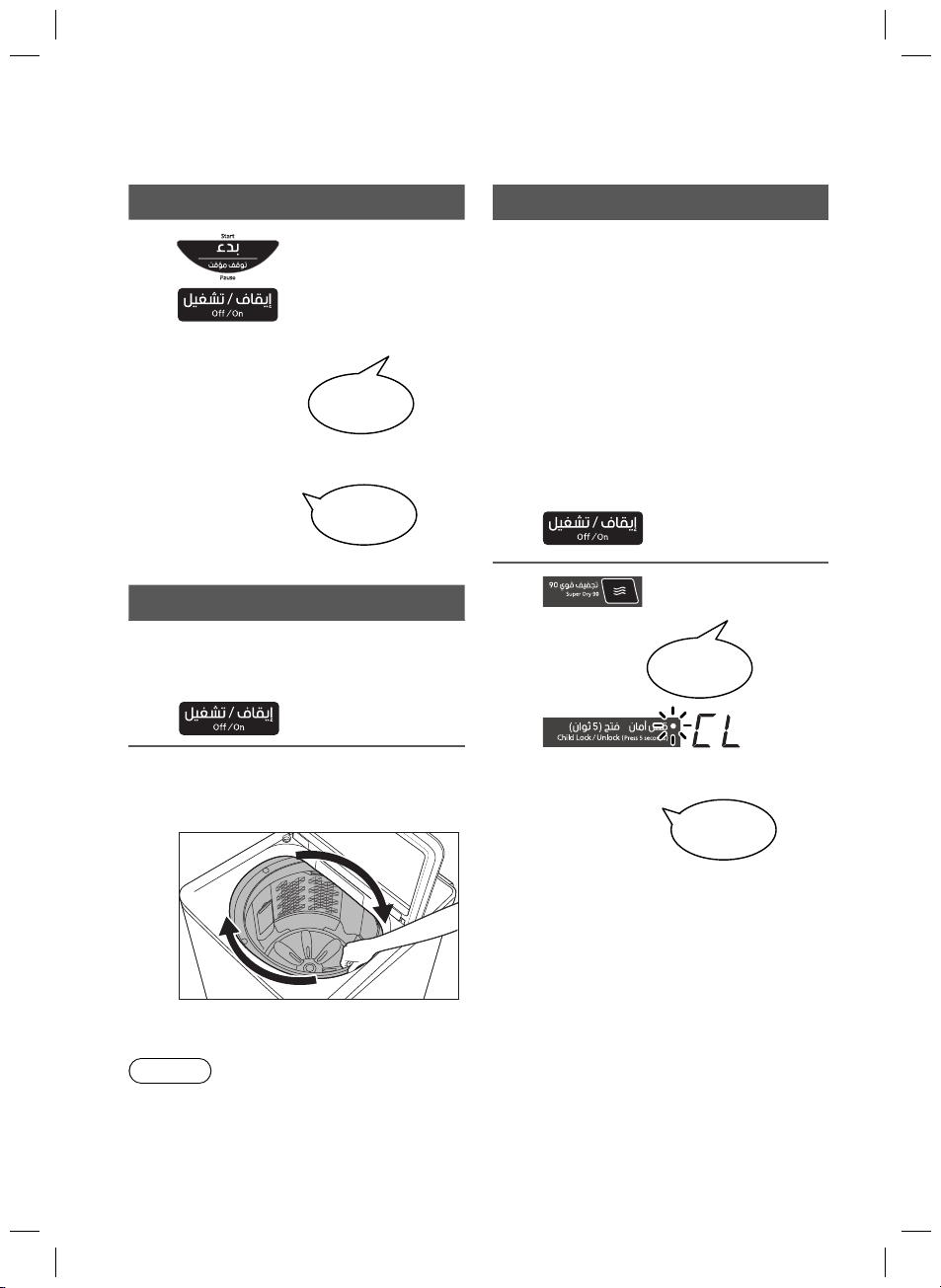

Convenient Functions
Cancelling end buzzer
1Pressing down,
press.
Then hold on for 3 seconds.
2 short
beeps
To reset, do the same
procedure.
4 short
beeps
Turning the tub by hand
If it is difficult to reach the detergent/
bleach inlet.
1
Turn the power on.
2When a clicking sound is heard
Turn the tub within
20 seconds.
Clockwise only
NOTE
If there is water in the tub, the tub
cannot be turned.
Setting Child Lock
To prevent children from falling into
the tub and drowning, if the lid is
opened while the washing machine
is operating, this function sounds a
buzzer until it is closed. Not closing it
within 10 seconds flushes the water
out.
This function does not lock the lid
and button operations.
When water is drained forcibly,
“U 99” is displayed. (P. 28)
1
After closing the lid
Turn the power on.
2Press and hold
for 5 seconds.
2 short
beeps
To cancel, do the same
procedure. 4 short
beeps
AWW9901D2U03_EN.indd 20AWW9901D2U03_EN.indd 20 7/2/2563 BE 13:327/2/2563 BE 13:32
