Panasonic NA-FS16V5 Product guide

Contents
Safety Precautions 2
Part Names / Accessories 6
Before Washing 7
Operation Panel 8
Variety of Programs 10
Detergent 12
Washing 14
Washing Options
• Comforter
• Gentle Hand Wash
• Stain Master
• Super Dry
(90 min)
• Wash / Rinse / Spin
16
Contents of Programs 19
Convenient Functions 20
Maintenance 21
Installation 24
Error Display 28
Troubleshooting 29
Specifications 30
Thank you for purchasing this product.
- Read these instructions carefully for optimum
performance and safety before use.
- Keep this manual for future reference.
T1118-0(SAUDI)
Printed in Thailand
11-2018
AWW9901D2U00
Operating & Installation
Instructions
Fully Automatic Washing Machine
(Household Use)
Model No. NA-FS16V5

2
Safety Precautions
Read and follow these safety precautions.
WARNING
May cause serious injury or death.
Do not allow children to use on their own.
zThis appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
zChildren should be supervised to ensure that they do not play
with the appliance.
Observe the following about the power plug and cord.
(To prevent fire or electric shock)
zDo not plug in or unplug the power cord with wet hands.
zDo not hold or pull on the cord when removing the plug from the
socket.
zDo not use a power cord or plug that is damaged. If the power
cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a
hazard.
zUse a socket that satisfies the rating requirement solely for this
appliance. Do not use a plug adaptor or extension cord.
zAlways fully insert the power plug into the socket.
zWipe the power plug periodically with a dry cloth. (Accumulated
dust collects moisture, which may cause insulation failure,
resulting in fire.)
zUnplug the power cord before cleaning.

Safety Precautions
3
WARNING
Never disassemble, repair or modify the appliance
yourself.
zIn case of malfunction or failure (burnt odour smell, fume, etc.),
immediately stop use, unplug the power cord, and ask your
nearest service centre for repair.
Keep away from fire.
Do not put flammable materials or clothes with such
things attached in the tub.
Keep them away from the appliance.
(To prevent explosion or fire)
zFor example: Kerosene, gasoline, benzine/thinner, alcohol, etc.
Do not touch the tub until it completely stops.
(To prevent injury)
zIf the tub does not stop within 15 seconds when the lid
is opened during spin process, switch off the appliance
immediately and call a service person.
Be sure to provide a ground.
(To prevent electric shock if electricity leakage occurs.)
zTo establish a ground, ask a service person to do the grounding
work.
External water heater safety
zUnder certain conditions, hydrogen gas may be produced
in your hot water heater that has not been used for two
weeks or more. Hydrogen gas can be explosive under these
circumstances. To prevent the possibility of damage or injury,
you should turn on all hot water faucets in your home, and let
the water flow out for several minutes before connecting to your
washer. This will allow any built-up hydrogen gas to escape.
Since hydrogen gas is flammable, do not smoke or use an open
flame or start appliance during this process.

4
Safety Precautions (continued)
CAUTION
May cause injury or property damage.
Do not wash, rinse, or spin waterproof sheets or
clothes.
(To prevent injury, damage to the main unit, walls, floor or laundry,
or water leakage if the appliance falls over or oscillates extremely
while spinning)
zRaincoats, wet suits, etc.
Locate away from direct sunlight or heat.
(To prevent malfunction or
deformation)
Turn off the water faucet after operation.
(To prevent water leakage)

Safety Precautions
5
CAUTION
Observe the following
zBe careful not to get your fingers caught.
Beware of sudden
lid closing.
Soft closing when
fully opened.
zNew hose-sets supplied with the appliance are to be used and
old hose-sets should not be reused.
zDo not obstruct the openings of the bottom face with carpet, etc.
zDo not insert your hands or feet under the main unit.
(To prevent injury by rotating parts.)
zDo not climb or put heavy objects on the appliance.
(To prevent deformation and breakage resulting in injury)
zIf the lid is broken, immediately stop using the appliance.
(To prevent deformation and breakage resulting in injury)
zThis appliance is only suitable for textiles labelled washing
machine washable.
zDo not use water hotter than 60 ºC.
zDo not make wrong connection for the HOT and COLD water
supply faucets.
zDepending on the connected water heater, very hot water may
come out. Be careful not to burn yourself.

6
Part Names / Accessories
Lint filter
(P. 21)
Lid (Soft Closing)
Leveller (P. 27)
Power cord and
plug* (P. 27)
* The plug shape
varies with the
region.
Adjustable leg (P. 27)
Drain hose
(P. 25)
Detergent and
softener drawer
(P. 13)
Detergent/
Bleach inlet (P. 12)
Pulsator
Tub
Operation panel (P. 8) Water supply
valve (P. 27)
●COLD
●HOT
Accessories
Water supply
hose (2) (P. 26)
• Length: 1.0 m
Washing board (1) Bottom cover (1) (P. 24)
Screw (1)
Water tap adaptor
(2) (P. 26)
Drain hose (1)
Hose band (1) Hose holder (1)
Screw (1)

Part Names / Accessories Before Washing
7
Before Washing
Laundry preparation and check
Wash separately for clothes
losing colour easily
Pre-laundry check
(To prevent damage to clothes,
malfunction and drainage failure)
zRemove coins, pins, paper clips,
nails, etc.
zFasten buttons and close zippers.
zDo not wash items (such as paper
diapers) other than laundry.
zReverse clothes likely to pill.
zUse a brush to remove pet and
human hair, sand, etc.
zTie strings, etc.
Use laundry nets for delicates
zUnderwire brassieres, lacy clothes,
lingerie and stockings
zDo not overpack.
zPut the zipper's slider into the cover.
(To prevent damage to clothes and
the main unit)
zDo not use the “Super Dry”
program. (To prevent uneven drying
and wrinkles)
For “Stain Master” program
(P. 10)
zRecommended for removing stains.
zObserve the instructions on the
care labels of clothes.

8

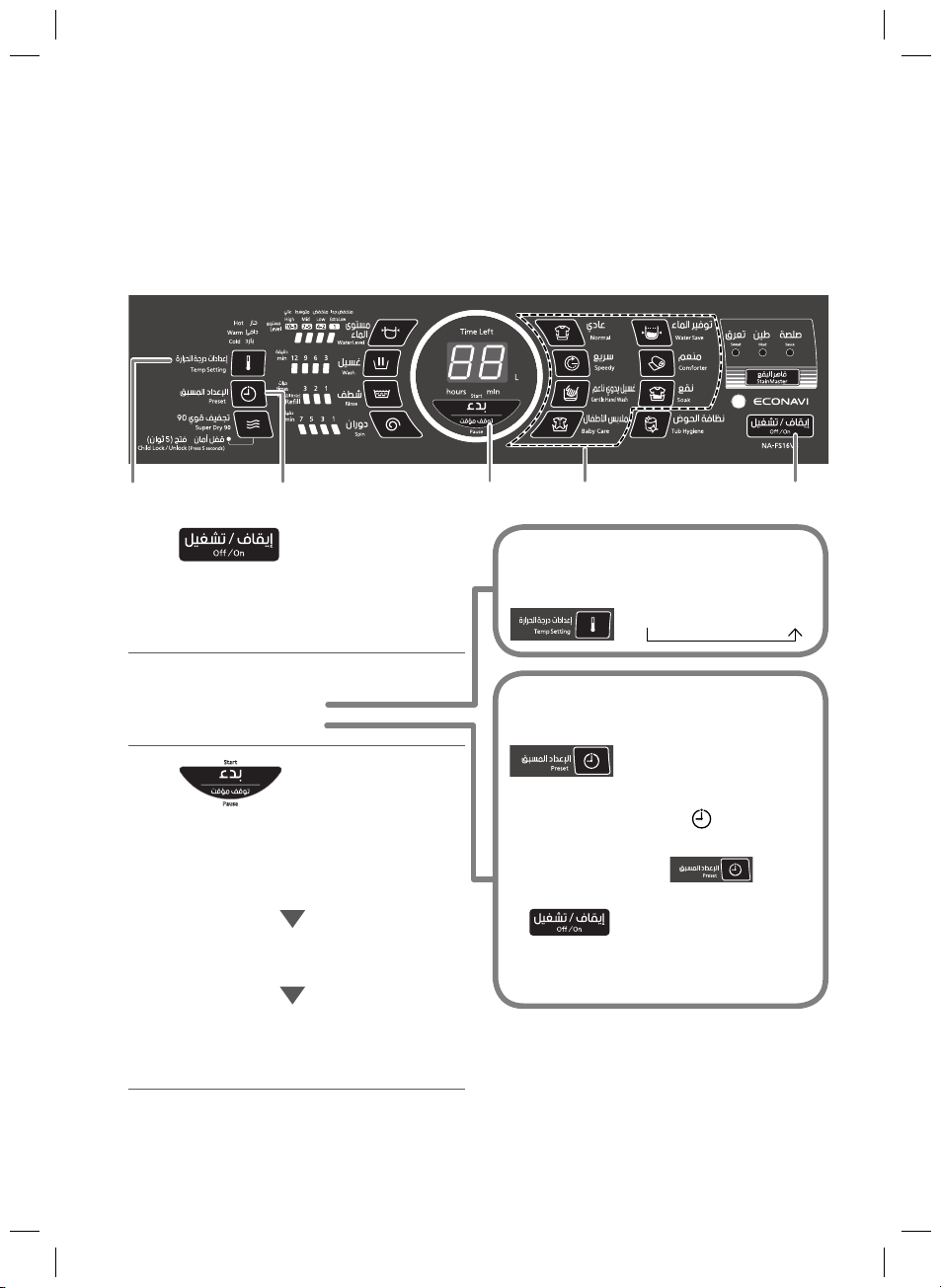

Operation Panel
Preset
Set the time to finish washing
(in hours). ( lights.)
e.g.) 8 hours later
zSetting range:
2 - 24 hours later, in one-hour
increments.
(4 - 24 hours later for the
“Soak” program)
zNot available for the
following programs:
“Gentle Hand Wash”,
“Comforter”, “Tub Hygiene”,
“Super Dry”
Change water amount
During the wash process,
press “Water Level” to
check and change the
water amount.
zSome water amounts
cannot be selected
depending on the
program.
Water amount/remaining time
After starting
operation, indicates
the water amount
according to the
amount of laundry.
After approx.
5 seconds, indicates
the approximate
remaining time
(min).
Temp Setting
For washing, cold water can be mixed
with hot water. Press the button to select
Hot/Warm/Cold. (P. 14)
Do not use water hotter than 60 ºC.
zThe estimated water temperature in
the tub during wash process (when hot
water is 50 ºC, and normal water is
20 ºC):
Hot approx. 40 ºC
Warm approx. 30 ºC
zLamp indications
Lighted: Hot/Warm/Cold is set.
Flashing: Hot water is being supplied.
zNot available for the following
programs:
Gentle Hand Wash, Tub Hygiene, Super Dry
Super Dry (P. 18) Child Lock lamp (P. 20) Start/Pause

Operation Panel
9
NOTE
zIn case of a power failure during
operation, operation will resume
from the point where it was stopped
when the power is recovered
(Auto Restart).
zThe power turns off automatically
if you do not press “Start/Pause”
within 10 minutes after power-on.
Touch operation
zOperation buttons are capacitive
(Except for the power Off/On and
Start/Pause buttons). Touch the
buttons directly with your bare
fingers.
zWhen a towel containing water or
detergent touches an operation
button, the appliance may
malfunction.
Change process settings
Change the combination of wash,
rinse and spin processes, and the
time length or number of times for
individual processes. (P. 18)
Flashing (in progress)
Lighting
zAfter starting operation, you can
change settings only during wash
process by pressing “Start/Pause”.
(The wash process setting of the
“Soak” and “Stain Master” program
cannot be changed.)
Water level/water amounts
Level High
10-8
Mid
7-5
Low
4-2
Extra Low
1
Detergent*
Water
amount (L) 99 88 81 74 66 59 52 46 38 33
* : 1 scoop of detergent
zEach water level, except “Extra Low”, has three water amount options that
can be switched while the level is lighted by pressing “Water Level”.
Program selection (P. 10) Power Off/On
ECONAVI (P. 15)
Stain Master (P. 17)

10
Variety of Programs
Program Purpose
Normal (P. 14)
Everyday clothes
zDaily washing
Speedy (P. 14) Speedy washing for light soil
Gentle Hand Wash (P. 16)
Delicates
z Washing delicates gently
Baby Care (P. 14)
Clothes for babies & people with
sensitive skin
zRinsing thoroughly
Water Save (P. 14)
Saving water
* To rinse thoroughly, use the “Normal” or
“Baby Care” program.
Comforter (P. 16) Comforters and Blankets
Soak (P. 14)
Heavily soiled clothes
zPresoaking to wash
(P. 17)
Light stain
Heavy stain
Sweat Sweat stains
Mud Mud stains
Sauce Sauce stains (soya, tomato, etc.)
Super Dry (90 min) (P. 18) Drying synthetic fibre clothes
Tub drying
Tub Hygiene (P. 23)
Tub cleaning
zPreventing black mould and smell
NOTE
z “Normal” program and “Water Save” program are recommended for a
normally soiled load at the rated capacity of this washing machine.

Variety of Programs
11
Maximum capacity
16.0 kg
16.0 kg
2.5 kg
16.0 kg
16.0 kg
4.2 kg
16.0 kg
5.0 kg
3.0 kg
―
―

12
Detergent
Detergent/
Bleach inlet
Bleach
zDo not use whiten bleach (chlorine bleach) for
coloured clothes to prevent loss of colour.
zDo not use bleach for the “Gentle Hand Wash”
program.
NOTE
z Turn the tub by hand if it is difficult to put in the
detergent/bleach inlet. (P. 20)
z Attach the detergent/bleach inlet cover if it
comes off.
z If the detergent/bleach inlet cover is wet, wipe
it before use. (Wet cover can cause detergent
clumps.)
Put in detergent, bleach and softener according to the water amount
z Follow the instructions on each package

Detergent
13
Detergent and softener drawer
Powder detergent
Liquid detergent
Softener
Do not fill above
the MAX line.
(Approx. 100 ml)
NOTE
zDo not put in too much
detergent.
zFor cleaning (P. 22)
Detergent
Do not put detergent directly into
the tub.
Detergent may remain undissolved.
NOTE
zIf powder detergent is poorly
soluble, put detergent in the
detergent/bleach inlet.
zThe level of foaming depends on
the condition such as load size,
degree of soiling, detergent type,
and water hardness.
Softener
zSoftener is automatically released
during the final rinse process.
zTo add softener during operation,
press “Pause” first.
zWhen using concentrated softener,
dilute it with water before putting it
in.
Concentrated
softener Water
NOTE
zSoftener cannot be used with the
“Water Save” program.
zDo not use separated or solidified
softener.

14
Washing
1
After loading laundry
Turn the power on.
zThe “Normal” program is
selected when the power is
turned on.
2Select a program. (P. 10)
Temp Setting
Timer preset
3
Start.
The pulsator moves without
water and measures the
amount of laundry
(approx. 10 seconds).
Water amount indication
(approx. 5 seconds)
Remaining time indication
zTo check the water amount
→Press “Water Level”.
Preparation:
zCheck if the washing machine is properly installed. (P. 24)
zTurn on the water faucet.
zWhen using Temp Setting, turn on both hot and cold water faucets.
Timer presetTemp Setting 32 1
Press to select Hot/Warm/
Cold for washing. (P. 8)
Hot ←Warm ←Cold
Set how many hours later
to finish operation. (P. 8)
z2 minutes after start, all
indications except turn off.
zTo confirm after the timer has
been set, press .
zTo cancel or change, press
.
zThe hours that can be set differ
depending on the program.

Washing
15
4According to the water amount
indication
Put in detergent.
zApprox. 20 seconds after the
water amount is displayed,
water supply begins.
5Close the lid.
Operation ends with beeps.
After pressing “Start”
zYou can change the water level
until the end of the wash process.
zYou can change each of the
“Wash”, “Rinse” and “Spin”
operation contents until the end of
the wash process. Press “Pause”
beforehand.
zYou cannot change the program.
ECONAVI
Available in the “Normal” program, this function automatically adjusts the
operation time and water amount according to the detected amount of
laundry and water temperature.
ECONAVI will not work if you change the water amount or process settings.
Lamp indications
zFlashing: Detecting
zLighting: ECONAVI enabled
zOff: ECONAVI disabled
* Test conditions:
• “Normal” program
• Comparison between ECONAVI-enabled operation (amount of laundry: 4.0 kg, water
temperature: above 35 ºC) and ECONAVI-disabled operation (amount of laundry: 16.0 kg
(rated capacity), water temperature: below 15 ºC)
• Test was conducted based on IEC60456 except for water temperature.
Switch on/off
1
2
3Press and hold for
3 seconds
4to select (On)
or (Off)
56 beeps

16
Washing Options
Gentle Hand Wash
Use this program to gently wash
delicate clothes and stylish garments.
Attach the washing board.
1) Double up the
board and put it
in the base.
2) Align the
position
and open
the board.
3) Press the board circumference and fix it.
• Set the claws (4 places) securely.
Load the laundry.
Load laundry evenly.
• Load lighter items first and
press them from above.
• Use laundry nets for
delicate underwear only.
• Amount that can be
washed at one time:
Water Level Capacity
46 L 2.5 kg
38 L 1.2 kg
NOTE
zDo not use bleach.
zUse liquid delicate detergent.
zAfter operation ends, take out
clothes immediately.
(To prevent wrinkles and colour
staining)
Comforter
Washable comforters and
blankets
• Material: 100 % synthetic fibre or
100 % cotton
• Weight: 4.2 kgor less
• Comforters and blankets with a
machine-washable tag attached
zPut a comforter or blanket in the net
and load it in the tub.
Roll
The zipper part should face up.
(To prevent damage to the net)
NOTE
zUse liquid detergent.
zThe water amount indication shows
the maximum and cannot be
changed.

Washing Options
17
Stain Master
Preparation:
zTurn on the water faucet.
zWhen using Temp Setting, turn on both hot and cold water faucets.
321
1
After loading laundry
Turn the power on.
2Select a
“Stain Master”
program. (P. 10)
Temp Setting (P. 8)
Timer Preset (P. 8)
3
Start.
4According to the water amount
indication
Put in detergent.
5Close the lid.
Operation ends with beeps.
NOTE
zAmount that can be washed at one
time: Max. 5.0 kg
13
zMaximum water amount
• Sweat: 81 L
• Others: 66 L
zThe following pretreatments are
effective for heavily stained clothes.
• Hand wash them first.
• Apply stain remover to stained
areas.
zSee “Laundry preparation and
check” before washing. (P. 7)

18
Washing Options (continued)
Super Dry (90 min)
Water is removed from clothes by the
air blown from the tub rotation.
Clothes that can be dried
• Material: Synthetic fibre
• Weight: 3.0 kgor less
1
After loading clothes
and closing the lid
Turn the power on.
2Press.
3
Start.
After 90 minutes, drying ends
with beeps.
NOTE
zClothes may not be sufficiently
dried depending on the amount and
type of clothes, the temperature,
and the installation condition of the
washing machine.
zSince no heater is used for this
function, you may feel that clothes
are cold and half dry.
Wash / Rinse / Spin
Preparation:
Turn on the water faucet.
1
After loading laundry
Turn the power on.
2According to your
purpose
Change process
settings.
3Select water
temperature.
4
After closing the lid
Start.
Operation ends with beeps.

Washing Options Contents of Programs
19
Program Total time
(approx.) Wash
Rinse Spin
Normal 65 min 12 min 2 times 5 min
Speedy 60 min 9 min 2 times 5 min
Gentle Hand Wash 45 min 12 min 2 times 1 min
Baby Care 75 min 12 min 2 times 7 min
Water Save 80 min 12 min 3 times 5 min
Comforter 80 min 12 min 2 times 3 min
Soak 165 min *1 (Soak 110 min) + 2 min *2 2 times 5 min
Sweat 60 min 10 min *2 2 times 5 min
Mud 75 min 25 min *2 2 times 5 min
Sauce 105 min *1 (Soak 20 min) + 35 min *2 2 times 5 min
Tub Hygiene 150 min *1 (Soak 60 min) + 2 min *2 2 times 30 min *3
*1 Remaining time of 99 minutes or less will be displayed.
*2 The “12 min” lamp of Wash flashes.
*3 The “7 min” lamp of Spin flashes.
NOTE
zTotal time is approximate.
(When the standard water supply rate is 15 L / min and the water
temperature is 28 ºC)
zTotal time may increase depending on low water pressure, water temperature,
voltage, bad draining conditions, and the amount and type of clothes.
Contents of Programs

20
Convenient Functions
Cancelling end buzzer
1Pressing down,
press.
Then hold on for 3 seconds.
2 short
beeps
zTo reset, do the same
procedure.
4 short
beeps
Turning the tub by hand
If it is difficult to reach the detergent/
bleach inlet.
1
Turn the power on.
2When a clicking sound is heard
Turn the tub within
20 seconds.
Clockwise only
NOTE
zIf there is water in the tub, the tub
cannot be turned.
Setting Child Lock
To prevent children from falling into
the tub and drowning, if the lid is
opened while the washing machine
is operating, this function sounds a
buzzer until it is closed. Not closing it
within 10 seconds flushes the water
out.
zThis function does not lock the lid
and button operations.
zWhen water is drained forcibly,
“U 99” is displayed. (P. 28)
1
After closing the lid
Turn the power on.
2Press and hold
for 5 seconds.
2 short
beeps
zTo cancel, do the same
procedure. 4 short
beeps
