Panasonic YC-500WX User manual

Operating Instructions
IGBT Controlled
AC/DCTIG arc welding power source
Model No. :YC-500 WX
`
●Thank you for your purchase of Panasonic welding power source.
●Before operating this product, please read the instructions carefully and save this manual
for future use.First of all please read “Safety precautions” or “Safety manual”.
●SPEC. No.：YC-500WX4HGX
Panasonic Welding Systems (Tangshan) Co., Ltd.
WTC017TEOPAA02

Table of Contents
1STANDARD ACCESSORIES......................................... I
2SAFETY ................................................................... II
2.1 WARNING SYMBOLS FOR SAFE USAGE............... II
2.2 SAFETY PRECAUTIONS ...................................... III
3RATED SPECIFICATIONS........................................... 1
3.1 SPECIFICATIONS TABLE....................................... 1
3.2 RATED DUTY CYCLE ............................................ 2
3.3 THERMAL PROTECTION ..................................... 2
4INSTALLATION AND POWER SUPPLY FACILITY........ 3
4.1 INSTALLATION SITE............................................. 3
4.2 POWER SUPPLY AND CONNECTING CABLE......... 3
4.3 REQUIRED EQUIPMENTS AND MATERIALS......... 4
4.4 SELECTION OF TUNGSTEN ELECTRODES ............ 4
4.5 FILER WIRE......................................................... 5
5OPERATION PANEL................................................. 6
6CONNECTIONS........................................................ 8
6.1 TIG WELDING..................................................... 8
6.2 DC STICK WELDING ............................................ 9
7METHOD OF OPERATION...................................... 10
7.1 OPERATING METHOD OF TIG WELDING........... 10
7.2 TORCH CABLE................................................... 12
7.3 OPERATION METHOD OF STICKWELDING........ 15
8MAINTENANCE AND INSPECTION .........................16
9PRECAUTIONS FOR FILTER.....................................17
10 CONNECTION WITH OTHER EQUIPMENTS .........19
10.1 SWITCH ON PBOARD........................................19
10.2 JIG TERMINAL AND EXAMPLE OF ITS USAGE.....20
11 TROUBLESHOOTING ..........................................21
12 CIRCUITDIAGRAM .............................................23
13 PARTS LAYOUT DRAWING..................................24
14 PARTS LIST.........................................................25
15 OUTLING DRAWING ..........................................27
16 CHARACTERISTICS OF INDIVIDUAL WELDING
METHODS.....................................................................28
16.1 A.C.HARD TIG....................................................28
16.2 A.C.SOFT TIG.....................................................28
16.3 MIX TIG.............................................................29
16.4 A.C.STD.TIG.......................................................29
16.5 D.C.TIG..............................................................30

I
1 STANDARD ACCESSORIES
Number
Name
Type
Member
Unit
1
Gas hose
TBV6X11
1
EA
2
Host Clamp
WHB12FJ
2
EA
3
Bolt
R9074.17M8X25
2
EA
4
Washer
R95D8
2
EA
5
Nut
R6170M8
2
EA
6
Filter
CJX3010-口口
1
EA
7
GLASS TUBE FUSE
61NR050H
1
EA

II
2 SAFETY
2.1WARNING SYMBOLS FOR SAFE USAGE
Each symbol describes things to be observed to prevent you and other personnel from hazardous conditions or
damage to property.
●The followings explains harzardous conditions or
damages that are classi-fied into the following three
levels.
●The following symbols indicates things to be
observed.
Thingsthat MUST NOT be
performed.
A hazardous situations including death or serious
personal injury is imminent.
Things that MUST be performed.
The potential for a hazardous accident including death
or serious personal injury is high.
Things attention must be paid to.
The potential for hazardous accident including light
personal injury and/or the potential for property
damage are high.
◆Disclaimer：
Panasonic Welding Systems（Tangshan）Co., Ltd., (hereinafter called “PWST”) and its affiliates (including any
subcontractor, sales company or agent) shall not assume or undertake any responsibility or liability of the
followings:
•Any problem arising out of, or directly or indirectly attributable to,the failure of user to carry out those normal
maintenance, normal adjustment and periodical check of this product.
•Any problem arising out of any force majeure, including but not limited to, act of god.
•Any malfunction or defect of this product that is directly or indirectly the result of any malfunction or defect of one
or more related parts or products that are not supplied by PWST. Or any problem arising out of, or directly or
indirectly attributable to, the combination of this product with any other product, equipment, devices or software
that is not supplied by PWST.
•Any problem arising out of, or directly or indirectly attributable to,user’s failure to strictly carry out or follow all of the
condition sand instructions contained in this instruction manual, or user’s misusage, mishandle, operational miss
or abnormal operation.
•Any problem arising out of this product or the use of it, the cause of which is other than the foregoing but is also
not attributable to PWST.
•Any claim of a third party that this product infringes the intellectual property rights of such third party that are
directly or indirectly caused by user’s use of this product and relate to the method of production.
●The description of this manual is based on the contents as of December,2020.
●The contents of this manual are subject to change without further notice.
●English version is the original instructions.

III
2.2SAFETY PRECAUTIONS
Welding power source
Observe the following instructions to
prevent the hazard.
(1)Never use the welding power source for other
thanwelding purpose. (e.g. Never attempt to use
thewelding power source for pipe thawing.)
(2)It is very important to comply with all instructions,
safetywarnings, cautions and notes mentioned.
Failure to do so can result in serious injury or even
death.
(3)Work of driving source at the input side,
selectingwork site, handling, storage and piping of
high pressure gas, storage of welded products and
also disposal of waste should be performed
according to the operating instructions and national,
state and localcodes and regulations.
(4)Prevent any unauthorized personnel to enter in
andaround the welding work area.
(5)Pacemaker wearers should consult their doctor
before going near arc welding. Magnetic fields can
affect pacemakers.
(6)Only educated and/or skilled persons who well
understand this welding power source should
install,operate, maintain and repair the unit.
(7)Only educated and/or skilled persons who well
understand the operating instructions of the unit
andare capable of safe handling should perform
operation of the unit.
Against electric shock
Observe the following instructions to
prevent the hazard.
(1)Do not touch live parts.
(2)Grounding of the case of the welding power and
basemetal or a jig electrically connected to the base
metalmust be performed by educated and/or skilled
persons.
(3)Before installation or maintenance work, turn
offpower at the power box, wait it for at least five
minutes to discharge capacitors. Significant voltage
may exist on capacitors after turning off power at
the power box so it is imperative to check to make
sure that no charged voltage present at capacitors
before touching any parts.
(4)Do not use undersized, worn, damaged or bare
wired cables.
(5)Connect cables firm and insulate connection parts.
(6)Keep all cases, panels and covers securely in
place.
(7)Do not handle the welding power source with torn
orwet gloves.
(8)Wear safety harness in case of working above floor
level.
(9)Turn off all equipment when not in use.
(10)Perform periodic checks without fail and repair or
replace any damaged parts before using the power
source.
Ventilation and protective equipment
Oxygen deficit, fume and gas
generated during welding can be
hazardous.
(1)When conducting welding in the bottom of the
tank,boiler or hold as well as legally-defined sites,
use a local exhauster specified by the applicable
laws and regulations (occupational safety and
health regulation, rules on preventing suffocation or
etc.) or wear protective breathing gear.
(2)To prevent dust injury or poisoning by the fume
generated during welding, use a local exhauster
specifiedby the applicable law (occupational safety
and healthregulation, rules on preventing injury by
inhaled dustor etc.), or wear protective breathing
gear.
(3)When conducting welding in a confined area,
makesure to provide sufficient ventilation or wear
protective breathing gear and have a trained
supervisorobserve the workers.
(4)Do not conduct welding at a site where
degreasing,cleaning or spraying is performed.
Conducting welding near the area where any of
these types of work isperformed can generate toxic
gases.
(5)When welding a coated steel plate, provide
sufficientventilation or wear protective breathing
gear. (Welding of coated steel plates generates
toxic fume and gas.)
Against fire, explosion or blowout
Observe the following cautions to
prevent fires explosion or
blowout.
(1)Remove any combustible materials at and near
thework site to prevent them from being exposed to
thespatter. If they cannot be relocated, cover them
with afireproofing cover.
(2)Do not conduct welding near combustible gases.
(3)Do not bring the hot base metal near combustible
materials immediately after welding.
(4)When welding a ceiling, floor or wall, remove all
flammables including ones located in hidden
places.
(5)Properly connect cables and insulate connected
parts. Improper cable connections or touching of
cables to any electric current passage of the base
metal, such as steel beam, can cause fire.
(6)Connect the base metal cable at a section closest
tothe welding part.
(7)Do not weld a sealed tank or a pipe that contains
agas.
(8)Keep a fire extinguisher near the welding site for
anemergency.

IV
Installing shielding (curtain etc.)
Arc flash, flying spatter, slugs, and
noise generated during welding can
damage your eyes, skin and
hearing.
(1)Install a protective curtain around the welding
manipulator site to prevent the arc flash from
entering the eyes of people in the surrounding area.
(2)When welding or monitoring welding, wear safety
glasses with sufficient light blocking structure or
use a protective mask designed for welding
operation.
(3)When welding or monitoring welding wear protective
clothing designed for welding operation, such as
leather gloves, leg cover and leather apron, and also
wear long-sleeve shirts.
(4)Be sure to wear noise-proof protective equipment if
the noise level is high.
Gas cylinder and gas flow regulator
Overturn of gas cylinder and
blowout of gas flow regulator can
cause injury.
(1)The gas cylinder must be handled properly according
to the applicable law and in-house standards.
(2)Use the gas flow regulator that is supplied or recom-
mended by our company.
(3)Read the instruction manual of the gas regulator prior
to using it, and observe the cautions in the manual.
(4)Secure the gas cylinder to a dedicated gas cylinder
stand.
(5)Do not expose the gas cylinder to high temperature.
(6)When opening the valve of the gas cylinder, do not
bring your face close to the discharge outlet.
(7)When the gas cylinder is not used, be sure to install a
protective cap.
(8)Do not hang the welding torch on the gas cylinder, or
touch the gas cylinder with the electrode.
(9)Do not attempt to disassemble or repair the gas
regulator. Such works require special knowledge.
Rotating parts
Rotating parts can cause injury.
(1)Keep away from rotating parts such as cooling fans，
and feed roller of the wire feeder, or hand, finger(s)，
hair or part of your clothes may be caught by the
parts resulting in injury.
(2)Keep all covers, panels and cases closed when
using the product.
(3)Maintenance work and repair should be perform only
by educated and/or skilled persons who thoroughly
understand welding machines.While
performing maintenance work or repair work, provide
fence or the like around the welding machine so that
unauthorized person can not come close carelessly.
Welding wire
Welding wire, especially wire tip part
can cause injury.
(1)Do not perform inching operation or pull the torch
switch with your eyes, face or body close to the end
of the welding torch - wire extends out from the
end of the welding torch and may stick into the
eye, face or body.
(2)In case of using a torch cable with the resin liner,
straighten the torch cable and reduce the preset
feed amount (current) to a half or less before
applying the wire inching.
(3)Performing wire inching while torch cable has been
bent extremely can cause the wire to pierce the
resin liner and cable. Make sure to replace any
damaged liner or cable with a new one, or
damaged liner/wire can cause gas leak or dielectric
degradation.
. Against insulation deterioration
Insulation deterioration can cause fire
of welding power source.
(1)Keep enough distance from welding power source
when performing welding or grinding work so as to
prevent spatters or iron particles from getting
into the power source.
(2)Perform check and maintenance work periodically
so as to prevent insulation deterioration due to
accumulated dust or dirt.
(3)When spatters or iron particles get into the welding
power source, turn off the power switches of the
welding power source and power distribution box,
and then blow out.
(4)Make sure to replace any damaged liner or cable
with a new one as use of damaged liner/cable may
cause gas leak or dielectric degradation.
(5)In order to avoid dust and dirt to be collected inside
of the power source, make sure not to leave the
panel and bolts (including eyebolts) open and
removed.

1
3 RATED SPECIFICATIONS
3.1SPECIFICATIONS TABLE
Type
YC-500WX
Rated input Voltage
V
400V±10%
Phase
——
Three phase
Rated input
kVA/kW
DC TIG
21.5/19
AC TIG
29.5/22.5
the power source efficiency
%
72.8%
the idle state power consumption
Watts(W)
152
Rated input
Hz
50/60
Rated duty cycle
%
60
No load voltage
V
Voltage reducing "NO":14
V
Voltage reducing "OFF":76.5
DC Output current
TIG
A
5~500
Stick
A
50~400
AC Output current
MIX TIG
A
20~500
A.C.STD.TIG
A
20~500
A.C.HARD.TIG
A
40~500
A.C.SOFT.TIG
A
20~330
Rated D.C output
voltage
TIG
V
10.2~30
Stick
V
22~36
Rated A.C output
voltage
MIX TIG
V
10.8~30
A.C.STD.TIG
V
10.8~30
A.C.HARD.TIG
V
11.6~30
A.C.SOFT.TIG
V
10.8~23.2
Initial/Crater
current
AC
MIX TIG
A
20~500
A.C.STD.TIG
A
20~500
A.C.HARD.TIG
A
40~500
A.C.SOFT.TIG
A
20~330
DC
TIG
A
5~500
Upslope time
S
0 or 0.1~5
Downslope time
S
0 or 0.2~10
Gas preflow time
S
0.3
Gas postflow time
S
2~20
Cleaning width
MIX TIG·AC(STD·HARD·SOFT)TIG
Pulse frequency
Low pulse
Hz
0.5~25
Middle pulse
10~500
Pulse width
%
15~85
MIX TIG frequency
Hz
0.5~10
Crater control process
——
"ON" "OFF" "REPEAT"
Outside dimension
mm
440（W）×635（D）×1046（H）
Insulation class
——
H(200℃)
EMC classification
——
Class A
Mass
kg
121
NOTE:
1.This equipment does not comply with IEC 61000-3-12. If it is connected to a public low voltage system,
It is the responsibility of the installer or user of the equipment to ensure, by consultation with the
distribution Network operator, that the equipment may be connected.
2.System maximum impedence requirements at the interface point of the users supply: Maximum
permissiblen System impedence 0.446 Ω.

2
3.2RATED DUTY CYCLE
The rated duty cycle of this welding machine is 60 %. This means that the machine can weld for a total of 6minutes
out of any 10 minutes at the rated current, and then must cool down during the remaining 4 minutes to prevent
overheating.
As shown on the right figure, the allowable duty cycle varies with the output current. A duty cycle on the curved line
can be calculated using the following formula.
2
Rated Output Current
Allowable Duty Cycle Rated Duty Cycle
Actual Ouput Current
（ ）
• Observe the lowest allowable duty cycle of the welding system components (typically either the welding machine
or the torch).
• Exceeding allowable duty cycle will cause the unit to stop automatically (with error displayed) or burning.
• If the ambient temperature is higher than 40 °C, limit the duty cycle to a level lower than the result of the formula.
• Output current values for pulsed welding are the average of the base and peak current values.
Allowable Duty Cycle vs. Output Current (10 minutes cycles, 40 °C ambient temperature)
Output current (A)
100% (387A)
0
50
100
387 450500
Duty cycle (%)
60%
100 200 300
For your reference:
Duty cycle:
The percentage ratio of loading time to full time. A cycle of the full time shall be 10 minutes.
Rated duty cycle:
means the rate of use when loading the rated output current intermittently at the rated input voltage of the rated
frequency. Regarding the engine-driven welding power unit, however, it means when driving it at the rated number
of revolution.
3.3THERMAL PROTECTION
Welding power source is equipped with a thermal switch at the radiator fin of IGBT to monitor the temperature.
The thermal switch is turned on when the welding power source goes into an abnormal temperature rise condition
due to over duty cycle or over output current, and stops the output.
(%)
(%)

3
4 INSTALLATION AND POWER SUPPLY FACILITY
4.1INSTALLATION SITE
(1) Locate indoors only, where the floor is capable of
supporting
the weight of the product.
(2) Avoid exposure to the direct sun light or the rain or
water
spray.
<Note>
If exposed to the rain or water spray, or dew
condensation
occurred, dry the product before using it.
(3) Ambient temperature
(a) During welding operation: -10 °C to 40 °C
(b) During transportation/storage: -20 °C to 55 °C
(4) Humidity relative to temperature
(a) Up to 50 % at 40 °C.
(b) Up to 90 % at 20 °C.
(5) Altitude above sea level: Up to 1 000 m.
(6) Inclination to installation surface: Max. 10 °
(7) Do not block cooling air intake of the welding power
source
• From the wall: 200 mm or more.
(8) Avoid wind to the arc. (Provide windshields.)
(9) Free from abnormal amounts of dust, acid,
corrosive gases
a、or substances
Note:
• When the product is installed on the floor where it is too low to operate, customers are required to prepare a table to mount
the product on.
• Such table should be provided with flanges on the mounting surface to prevent the product to slide off the table.
4.2POWER SUPPLY AND CONNECTING CABLE
When installing or transporting the cutting machine, wear long sleeve shirts, leather gloves and
safety shoes to prevent injury.
●Do not use this product in a vertical position
●Using it in the vertical position may reduce its cooling effect, and cause
any troubles like equipment burnout, etc.Therefore, make sure to use it in
the horizontal position (in the proper position).
●When transporting it, there is no problem if the lateral face with rubber
feet becomes the bottom face.

4
Item
Model
YC-500WX
Supply voltage
V
400
Phases
Three-phase
Facility
kVA
40 or more
Primary line current
A
approx.36.5
Input cable
mm2
14 or more
Output cable
mm2
60 or more
. N.B.
• Turn off the switch of the switch box when connection cable.
• Provide a switch box for every welder and use a specified fuse.
• Power supply cable should be14 mm2 or more insectional area if its length is more than 10m.
• If an engine generator is used, it should be provided with an inverter of capacity from three to five times of the
of the welder with compensating winding for thyristor equipment.
4.3REQUIRED EQUIPMENTS AND MATERIALS
Prepare the following equipment and materials for welding.
TIG welding
Torch for TIG welding(YT-30TSW2HAF)
Products to be purchased separately
Welding argon gas
Products to be purchased separately
Argon gas adjustor (YX-25AJ1)
Products to be purchased separately
Base metal side cable [Stick welding]
Products to be purchased separately
4.4SELECTION OF TUNGSTEN ELECTRODES
Use the following table as reference for tungsten electrodes.
EIectrode rod (dia.)
(mmφ）
1.0
1. 6
2.4
3.2
4.0
Welding current (A)
(DC welding)
15---80
70---150
150---250
250---400
400---500
Welding current (A)
(AC welding)
10---40
20---100
60---180
120---240
160---380
Tungsten electrode … … … YWTH (2% thoriated tungsten)
Use welding argon gas for TIG welding shield gas.
Impurities such as oxygen, moisture or nitrogen mixing into argon gas can deteriorate shieldability and lower
the quality of welding.

5
4.5FILER WIRE
Standard for selection of filler wire diameter
Welding current (A)
Filler wire diameter (mm)
10 - 20
1.0
20 - 50
1. 6
50 - 100
1.0 - 2.4
100 - 200
1.6 - 3.0
200 - 300
2.4 - 4.5
300 - 500
4.5 - 6.0

6
5 OPERATION PANEL
1.Power switch….......This switch performs the ON/OFF of input power.
2.Power display lamp …....... Will light with power switch "ON".
3.Warning display lamp
Temperature, cooling water….......Will light when the working rate is exceeded and when
there is water shortage of the water-cooled torch.
This will automatically return when the temperature drop or when the water level reaches the specified level.
Input over voltage….......Will light when the input voltage 1s abnormal
(Excessive or too low).
The welder will not operate unless the power switch is turned "OFF" once and switched "ON" again when this
warning display lamp goes on.
Remove the cause and switch back to "ON" again.

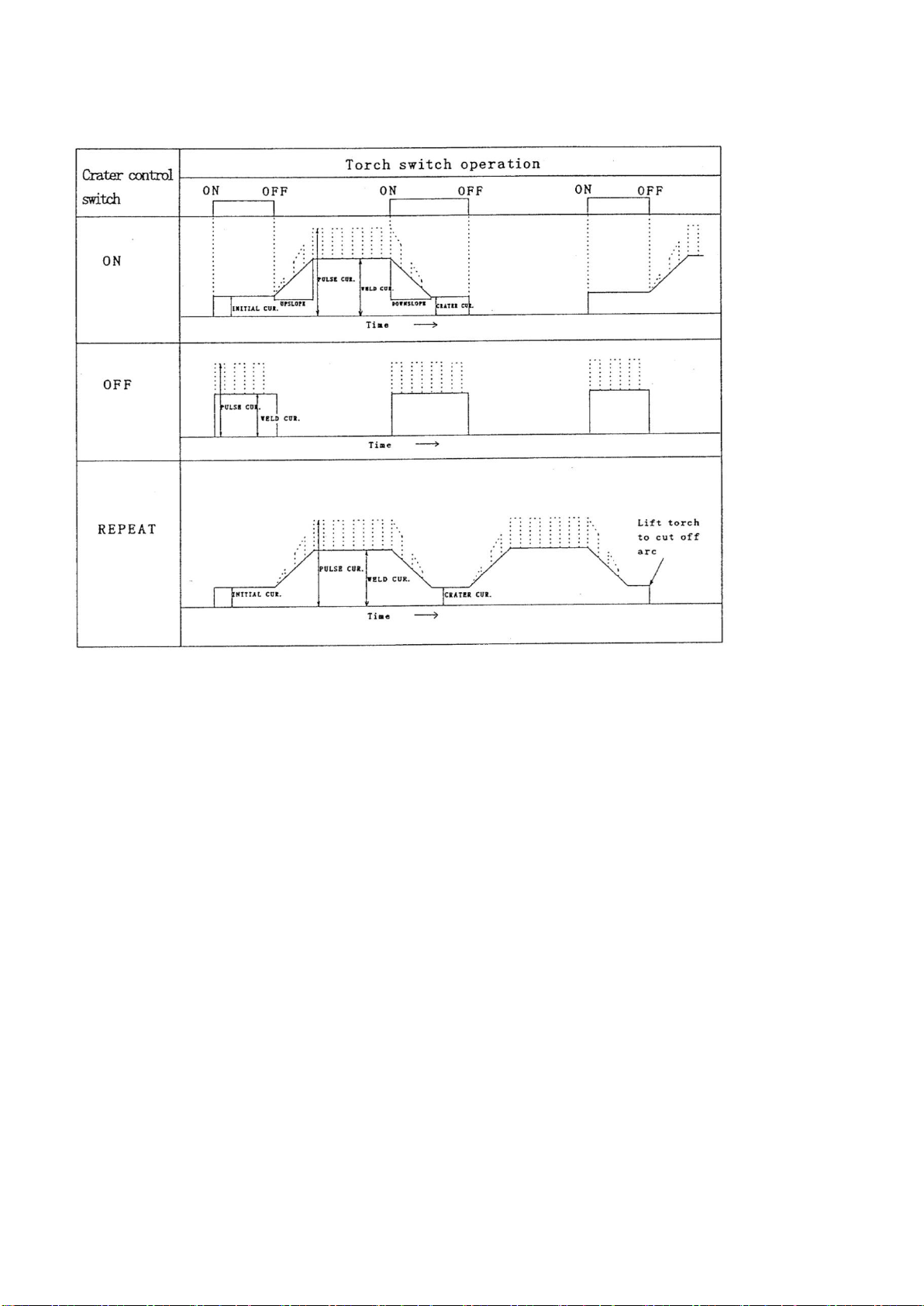

4.Crater control switch ….......This switch the crater control "ON"，"OFF","REPEAT" of crater control of TIG welding.
5.Initial current adjustor….......Regulates the initial current during "ON", "REPEAT" of crater control of TIG
welding.
6.Welding current adjustor….......Regulates the we lding current.
7.Crater current adjustor….......Regulates the crater current during "ON", "REPEAT "of crater control of TIG welding.

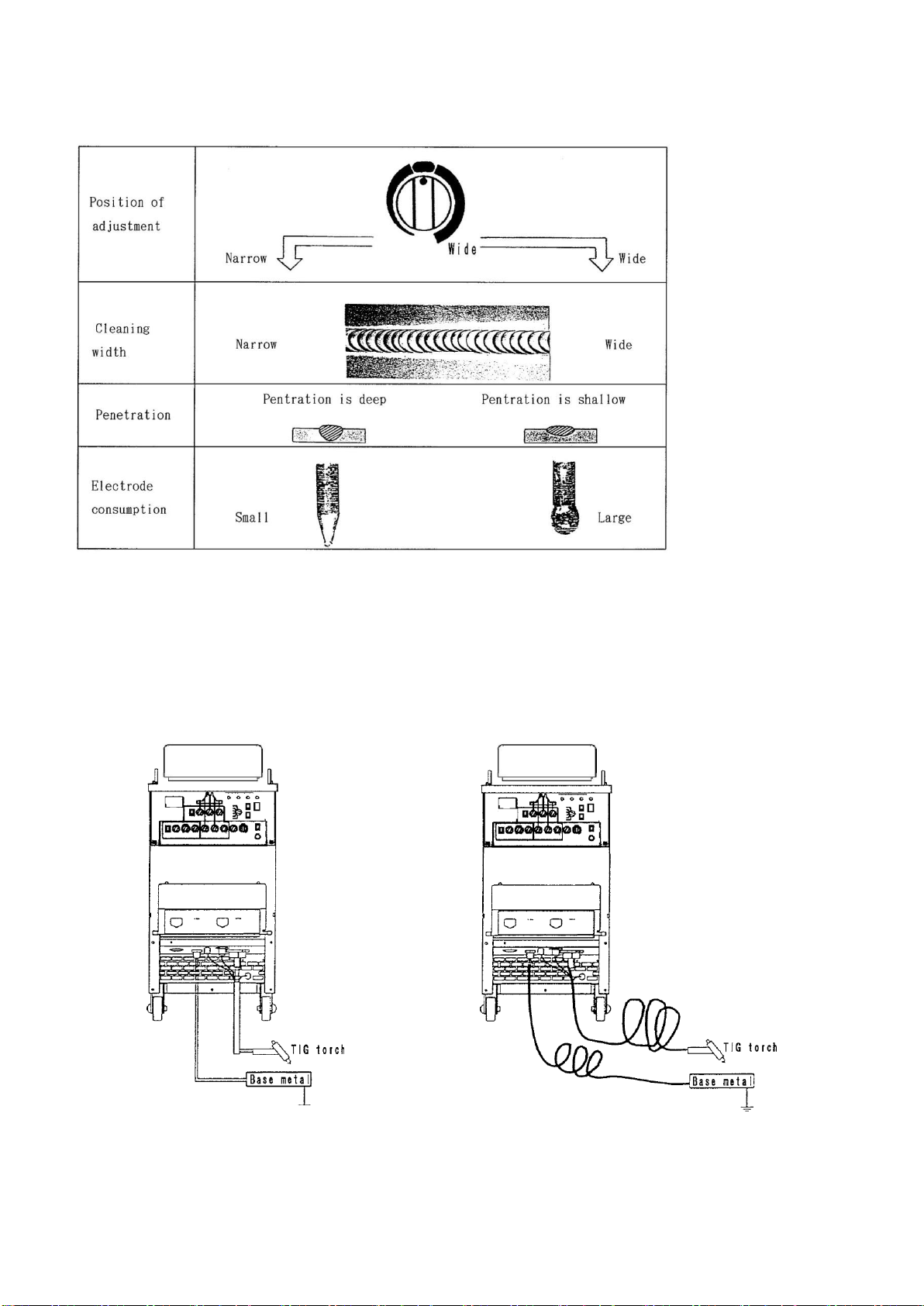

8.Cleaning width adjustor….......Regulates the strength of the arc cleaning action and cleaning width during AC TIG
welding or MIX TIG welding.
9.Welding method control
( 1 ). Sets to "MIX TIG welding" in case of MIX TIG welding switch
This MIX TIG welding outputs welding current by switching DC TIG and AC TIG at 0.1-- 2 sec. intervals.

7
A superb arc concentration is obtainable with this process, which is the optimum condition for fillet
welding of thin plate.
( 2).Sets to "AC STD. TIG welding" in case of AC STD. TIG welding.
(3).To use AC hard TIG welding, place the switch in the "AC HARD TIG" position. Output current of this
welding method forms pulse superposed waveform which gives deep penetration. AC Hard TIG welding
method is suitable for butt welding of works having wide roots gap.
(4).To use AC soft TIG welding, place the switch in the "AC SOFT TIG" position.
Output current of this welding method forms sine waveform which gives shallow penetration. The AC
soft TIG welding method is suitable for butt welding of thin plates. (Max. output current: 330A) When "TIG"
is selected, set values for initial, welding, crater and pulse current adjustors and their actual output
currents do not match. When "MIX TIG" is selected, set values for the individual current adjustors
and their output currents do not match due to its frequency. In both cases, refer to the
values at the ammeter.
(5)Sets to "DC TIG welding", in case of DC TIG welding.
(6)Sets to "DC stick welding", in case of DC stick welding. (MAX output current:400A)
10.Torch selection switch….......Selects either water- cooled or air- cooled to match the torch used
11.Selection switch… Set to "WELD" when performing ordinary welding, and to CHECK when regulating the
flow rate of argon gas
12.Pulse frequency control….......Selects a low pulse of(0.5~25Hz) or a middle pulse of (10-500Hz)when
switched from TIG welding to pulse TIG welding.
13.Pulse width adjustor….......It is used to adjust the pulse current rate in pulse welding. The pulse current
rate is time ratio of pulse current to the sum of welding(base )and pulse currents (Pulse/(Base+ pulse))
14.Upslope timer Adjusts the shifting time from initial current to welding current during TIG welding.
15.Pulse frequency adjustor…....... Adjusts the pulse frequency during pulse TIG welding.
16.Pulse current adjustor…....... Adjusts the pulse current during pulse TIG welding
17.Downslope timer….......Adjusts the shifting time from welding current to crater current during Tig welding
18.Gas postflow timer…....... Adjusts the postflow time after TIG welding.
19.MIX TIG frequency….......It is used to adjust frequency when AC and dc are switched adjustor in MiX TIG
welding.
20.Frequency ….......In AC(STD,HARD,SOFT) TIG welding, set the pulse(see) selector switch to OFF, and
then select a frequency. (It is factory set to LOW at shipment.) ●"LOW"side:70Hz( Cleaning width adjust
or ●"HIGH"side:100 Hz Set to the center position.) Arc is centered. It is effective to prevent no-arc
operation in build-up welding or welding at low welding speed, such as afterheat welding
21.Digital meter ….......Display current or voltage at digital mete
22.A-V display switch…....... Control the display of the digital meter.

8
6 CONNECTIONS
6.1TIG WELDING
Base metal
Water outlet
Output terminal
TIG tarch side
TIG tarch
cable
Torch switch
receptacle
Output terminal
Base metal side
Remote
controller
receptacle
Gas outlet
Distribution
box
Cooling
water unit
Water inlet
Gas hose
Gas inlet
NOTE: · Install the cooling water unit on the top panel of welder according to the instruction
manual of the cooling water unit.
This welder is operable without armeotecontroller.Incase of theuse,connect it
to the receptacle for the remote controller(Option).Then the control of welding and crater current
adjustments is automatically switched over to the remote controller side. While the remote
controller is set in, it is not possible to control welding or crater current adjustment from the welder.

9

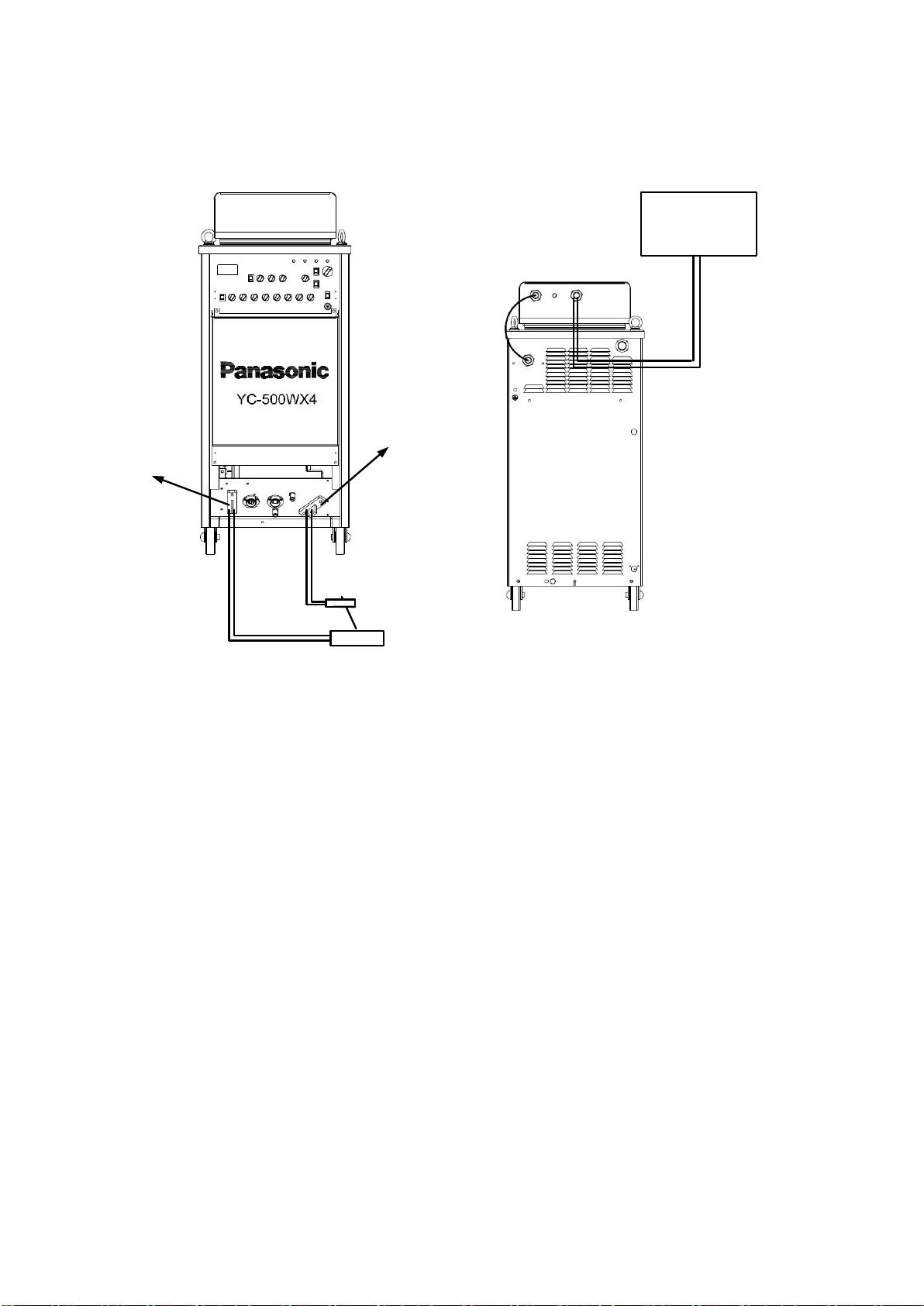

6.2DC STICK WELDING
Connect the holder and base metal cable according to the proper polarity of the stick welding rod used.
Base metal
Output terminal
(-)
Holder
Output terminal
(+)
Distribution
box

10
7 METHOD OF OPERATION
7.1OPERATING METHOD OF TIG WELDING
MIX TIG
A.C.STD.TIG
A.C.HARD.TIG
A.C.SOFT.TIG
D.C. TIG
Power lamp lights
Cooling fan rotates
Set the select SW to "Gas check"
Set to weld after Gas checking
Draw the torch near to the base metal and press the torch SW
Be sure to close the plug of the argon gas cylinder after finishing welding work.
Set the welding method select
switch located on the operation
panel.
Turn ON the distribution box
switch.
Turn ON the power switch on the
operation panel.
Check the gas flow rate.
Start welding work.
Welding work completed.
Turn OFF the power distribution
box switch.

11
Operating the crater control switch, torch switch and the pulsation switch will allow control of the welding current as
table below.
Solid line when pulsation SW is "OFF".
Broken line when pulse is "LOW", "MID".
Upslope time: 0 or 0.1~5 sec.
Downslope time: 0 or 0.2~10 sec.
*Perform adjustment of cleaning width according to the condition of weld piece in case of AC TIG welding or MIX
TIG welding.
(Refer to cleaning width adjustment page 12)

12
[Caution when performing AC TIG welding or MIX TIG welding.] Adjustment of cleaning width.
The strength (cleaning width) of the arc cleaning action can be controlled when performing AC TIG welding or MIX
TIG welding.
7.2TORCH CABLE
Use the torch cable and base metal side cable without coiling whenever practicable. When the output
overvoltage warning lamp lights up, lay the torch cable and the base metal side cable as straight as possible.
O
X

13
