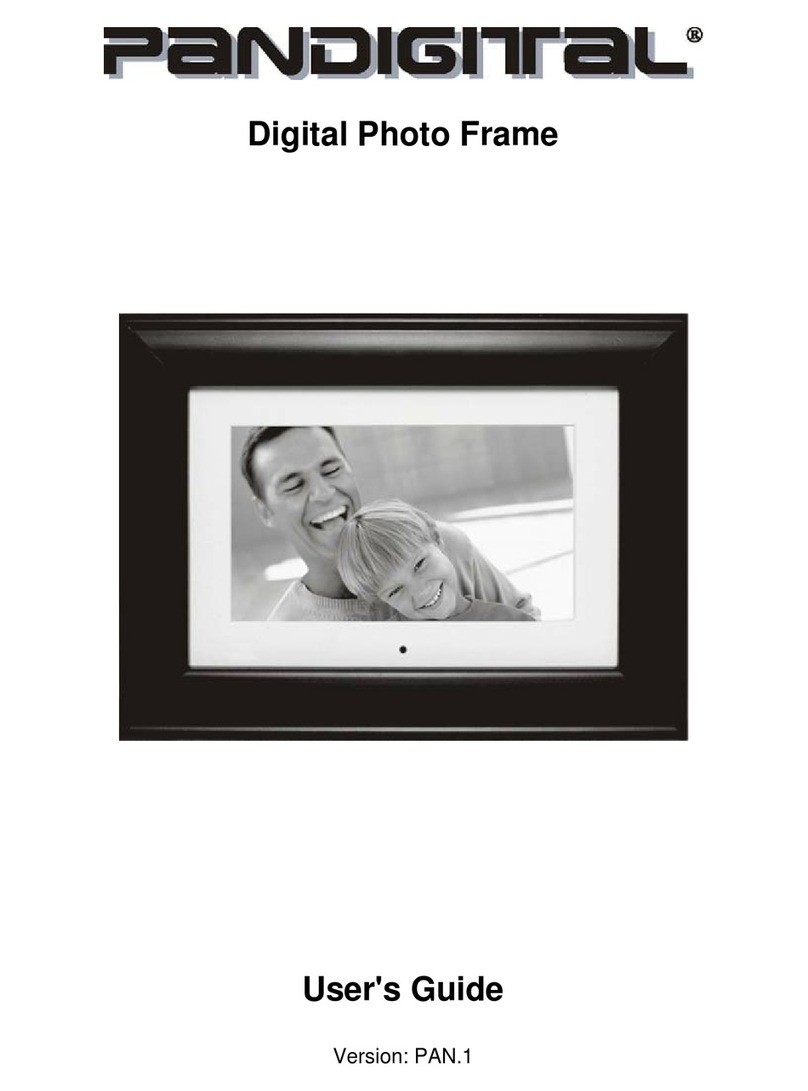

Pandigital UG-SCF-2 User manual

Digital Photo Frame
User's Guide
UG-SCF-2

Table of Contents
Important Safety Precautions 3
Cleaning the LCD Screen 3
Cleaning the Digital Photo Frame 3
Introduction 3
What's In the Box 4
Setting up the Digital Photo Frame 4
Using the Control Buttons and Remote Control 5
Use the Control Buttons 5
Use the Remote Control 6
Install and Replace the Remote Control Battery 6
Setting Up the Slideshow 7
Select Card Screen 7
Select Mode Screen 7
Thumbnails Screen 8
Display a Single Photo on the Full Screen 8
Rotate a Photo on the Full Screen 8
Enlarge a Photo on the Full Screen 8
Customizing the Slideshow 9
Set Up the Slideshow for All Photos 9
Set Up a Slideshow of Selected Photos Only 9
Play Music with the Slideshow 9
Watch a Video 9
Listen to Music 10
Control the Volume 10
Connect Speakers to the Digital Photo Frame 10
Copy Photos from a Memory card to Built-in Memory 11
Copy A Single Photo 11
Copy Multiple Photos 11
Deleting Photos from the Built-in Memory 12
Delete the Displayed Photo 12
Delete a Single Photo on the Thumbnails Screen 12
Delete Several or All Photos in the Built-in Memory 12
Setting Viewing Options 13
Displaying A Clock, Calendar, and Slideshow 15
Set the Internal Clock 15
Set the Alarm 15
Create a Schedule for Playing Slideshows 16
Turn Scheduled Slideshows On or Off 16
Changing the Decorative Frame 17
Copying Files from a Computer or Flash Drive 17
Connect to a Windows Computer 17
Disconnect the Digital Photo Frame from the Computer 19
Connect to a Macintosh 19
Connect a USB Flash Drive 19
Technical Specifications 20
Frequently Asked Questions 20
Limited Warranty 22
FCC Statement 23

Important Safety Precautions
Always follow these basic safety precautions when using your Digital Photo
Frame. This will reduce the risk
of fire, electric shock, and injury.
Warning:
Warning:
Do not expose this product to rain or moisture.
To preventthe risk of electricshock, donotremovethecover.
No user-serviceable parts are inside. Refer all servicing to
qualified personnel. .
1. The Digital Photo Frame is for indoor use only.
2. Unplug the Digital Photo Frame before performing care and
maintenance.
3. Do not block the ventilation holes on the back of the Digital Photo Frame
at any time.
4. Keep your Multimedia Digital Photo Frame out of direct sunlight and
heat sources.
5. Protect the power cord; ensure that it is not likely to be walked on or
pinched by items placed
on or against it. Pay particular attention to the
point where the cord attaches to the Digital Photo Frame.
6. Only use the AC adapter included with the Digital Photo Frame. Using
any other power adapter will void your warranty.
7. Unplug the power cord from the outlet when the unit is not in use.
Cleaning the LCD Screen
Treat the screen gently. The screen is made of glass and can be scratched
or broken.
1. To clean fingerprints or dust from the LCD screen, we recommend using
asoft, non-abrasive cloth such as acamera lens cloth to clean the LCD
screen.
2. If you use acommercial LCD Cleaning Kit, do not apply the cleaning
liquid directly to the LCD screen. Clean the LCD screen with cleaning
cloth moistened with the liquid.
Cleaning the Digital Photo Frame
Clean the outer surface of the Digital Photo Frame (excluding the screen)
with asoft cloth dampened with water.
Introduction
Welcome to the Pandigital Multimedia Photo Frame! Now you can display
3

yourdigital photos directlyfrom your memorycard, no computer is necessary.
Simply insert amemory card into the Digital Photo Frame, and turn on the
power. You'll
be treated to aslideshow of your photos. It's as easy as that.
You can also display individual photos, play music, and play background
music with your slideshows.
The Digital Photo Frame includes these key features:
1Displays digital photos (JPEG) without acomputer; simply insert a
compatible memory card to show photos and play MP3 music.
2Supports Secure Digital™, MultiMedia Card™, XD Card, Compact
FlashTM, Memory StickTM, MemoryStick ProTM, Memory Stick Duo™and
Memory Stick Pro Duo™memory cards,
3 Supports JPEG image files up to
16 Mega Pixels.
4 Includes control buttons
on the frame and an infrared remote control.
5Bright TFT active matrix LCD screen.
6USB 2.0 (Mini USB) high-speed connection to connect to your
PC.
7USB 1.1 (Host) to connect to your digital camera.
8Built-in Memory to store digital pictures.
To learn more about your Digital Photo Frame's features, and take full
advantage of them, please take afew minutes to read this User's Guide.
What's In the Box
1. Digital Photo Frame
2. AC PowerAdapter (12V, 2A)
3. This User's Guide and Quick Start Guide
4. Remote Control
5. USB Cable
6. Decorative Frame
7. Warranty Card
Setting up the Digital Photo Frame
The Digital Photo Frame is easy to set up. Just follow these steps:
1. Plug the AC Power Adapter into the Digital Photo Frame and into awall
outlet.
2. Insert amemory card into the appropriate slot.
Slot 1 - Compact Flash™
Slot 2 - Secure Digital™, MultiMedia Card™, Memory Stick™,
MemoryStick ProTM, Memory Stick DuoTM, Memory Stick Pro Duo™or
XD Memory Card™
4

EXIT .. Right Button
r---- ENTER
___ - ~Left Button
-- SD/MMC/MSIXD
(Slot 2)
iI.:--- CF 1111 (Slot 1)
USB Host
Mini USB
Brightness
Line Out
Power Switch
DC 12V
Adjustable Stand
Note: The card will only fit in one direction; do not force it. The card should
fit snugly when properly inserted.
1. Slide the POWER button on the left side of the Digital Photo Frame to
the ON position, the Digital Photo Frame will power on and automatically
start aslideshow
of the photos on the card. Slide the POWER button
downwards to power off.
2. To display photos individually, press the EXIT button on the remote
control
or on the top of the frame to open the Thumbnails Screen.
3. With the Thumbnails Screen displayed, use the direction arrows to
choose aphoto. Press ENTER on the top
of the Digital Photo Frame, or
the ENTER button on the remote control. The selected photo is displayed
on the Digital Photo Frame.
Note: Pull the plastic tab sticking out
of the remote control. It protects the
battery, and the remote control will not work unless it is removed.
4.
To restart the Slideshow, press ENTER again, or press the Slideshow
button on the remote control.
Using the Control Buttons and Remote Control
You can use all of the Digital Photo Frame's features with either the buttons
on top and left side
of the frame or using the remote control.
Use the Control Buttons
The control buttons are located on the left and top of the Digital Photo Frame.
The following table describes their actions.
5

Button Action
~Move
the selection up or left, display the previous photo,
or select the previous file.
ENTER Select
the highlighted option, start a slideshow, pause or
play.
~Move
the selection down or right, display the next photo
or select the next file.
EXIT
Exit the current display, or go back a screen.
SETUP
Open the onscreen menu.
Use the Remote Control
The remote control included with your Digital Photo Frame may look slightly
different from the one shown here, but it includes all
of the same buttons,
and functions
in the same way.
Up Arrow ---f---____,
Exit--+--t:
Left Arrow ---+- ..........
Enter IPlay I Pause---+------/
Volume - ----1-1f
Zoom ----1--\
t-t--- Setup
t-t--- Right Arrow
+---+--- Down Arrow
-j-t--- Volume +
+-t--- Slide Show
'-----+--- Rotate
?aNLJIGnraL
Olgllol Photo FfOfrl'_
Install and Replace the Remote Control Battery
1. Hold the Remote Control with the control buttons facing downward.
2. While pressing down on the ridged area ofthe battery cover, pull the tray
out.
3. Place a"CR2025" 3V Lithium battery on the tray with the positive +end
facing upward.
4. Close the tray.
6

Setting Up the Slideshow
You can control all of the Digital Photo Frame functions with the buttons on
the top
of the frame or with the remote control. To display the setup screen,
press the SETUP button on the Digital Photo Frame,
or press the Setup
button
on the remote control.
Select Card Screen
The Select Card Screen let you choose the type of memory card or built-in
memory.
1. Press the EXIT button repeatedly to back through the screens until you
see the Select Card Screen.
2. Press the LEFT or RIGHT arrow to select the desired memory card, or
the built-in memory. Ayellow highlight indicates the selected memory
source.
3. Press ENTER to make the selection. The Select Mode Screen opens.
Note: Card can be selected only when
it is inserted into card slot properly
and detected by the Digital Photo Frame.
Select Mode Screen
The Mode Selection Screen opens after you choose amemory source. Use
it to choose the type
of files to display or function to operate.
PHOTO Open the Thumbnails Screen.
MUSIC Open music file list and play music.
VIDEO Show motion JPEG AVI movies.
CLOCK Set and display current date/time and alarm.
7

1. Press the LEFT or RIGHT arrow on the Remote Control or the Digital
Photo Frame to select the desired file type or function; press ENTER to
make the selection.
2. If you select PHOTO, the Thumbnails Screen will open. It is described
below. Ifyou select MUSIC, ascreen will open and list all the music files.
If you select CLOCK, the clock and calendar screen will open.
3. To go back to the Select Mode Screen, press EXIT.
Thumbnails Screen
Use this screen to select asingle photo to display, copy from memory cards
to built-in memory or delete from built-in memory. Slideshow of selected or
all photos
on the selected memory source can be started in the Thumbnails
Screen too.
1. From the Select Mode screen, choose PHOTO and press ENTER. The
Thumbnails Screen opens.
2. Press the Arrow Buttons on the Remote Control or the Digital Photo
Frame until the desired photo
is highlighted. The memory source,
photo's filename and size, are displayed at the top of the screen. The
other number indicates how many screens of photos are
in the memory,
and which one
is currently displayed.
Display aSingle Photo on the Full Screen
You can choose asingle photo to display on the full screen, without a
Slideshow:
1. With the Thumbnails screen displayed, select aphoto and press ENTER
to display it
on the full screen.
2. Press the LEFT arrow button to return to the previous photo.
3. Press the RIGHT arrow button to display the next photo.
4. To return to Thumbnails Screen, press the EXIT button.
Rotate aPhoto on the Full Screen
You can rotate adisplayed photo on the full-screen by pressing ROTATE
on Remote Control. The full screen photo will be rotated by 90 degrees
counterclockwise
in each press of the ROTATE button.
Enlarge aPhoto on the Full Screen
You can magnify adisplayed photo on the full screen by pressing ZOOM
button
on Remote Control. The photo is magnified in size each time you
press the ZOOM button, until it returns to the normal size. While the photo
is enlarged, use the Arrow buttons to move the photo so you can see the
portions that aren't currently visible.
8

Customizing the Slideshow
The Digital Photo Frame can include all of the photos on the selected
memory source in the slideshow,
or you can select specific photos and for
the slideshow.
You can also add music to your slideshow.
Set Up the Slideshow for All Photos
With the Thumbnails Screen displayed, press the SLiDESHOW button on
the Remote Control
or the ENTER button twice on the frame, the slideshow
of all photos in the selected memory will begin.
Set Up aSlideshow of Selected Photos Only
Note: This needs your remote control to create acustom slideshow.
1. With the Thumbnails Screen displayed, use arrow buttons to highlight
aphoto; press +to select the photo or -to deselect
it. Acheck mark is
displayed at the upper-right corner
of the selected thumbnail photo.
2. Continue selecting photos in the same manner.
3. When all desired photos are selected, press SETUP on the Remote
Control or on the frame to open asetup menu.
4. Choose Start Slideshow and press ENTER.
5. Choose Selected from the menu to start your custom slideshow.
Play Music with the Slideshow
To play background music with aslideshow, copy MP3 files onto the same
memory card as your photos. The music will
playas the slideshow runs.
See (Copying Files from aComputer) for details on copying files.
You can
also choose amusic file to play without aSlideshow. Just select it from the
Music screen.
Note: Music files must be standard MP3 format and not from licensed
music download services.
Watch aVideo
You can watch video files on your Digital Photo Frame as well. It supports
the Motion JPEG (AVI) video format used by most digital cameras.
1. Insert amemory card with video files on it. The Card Selection Screen
opens. Choose the desired card.
2. Press ENTER. The Mode Selection screen opens.
3. UsetheArrow key to selectthe Video mode then press ENTER. Ascreen
listing all the video files opens.
4. Select the desired file and press ENTER. The Digital Photo Frame plays
the video.
9

5. Adjust the volume by using +and -buttons on the Remote Control.
6. Press direction buttons ( AT ...... )to select adifferent video file.
Listen to Music
If there are MP3 files on amemory card or in the built-in memory, you can
play them on the Digital Photo Frame.
1. Use the Remote Control to open the Select Mode screen (described
above) and select MUSIC. Anew screen opens and lists all the music
files on the selected card.
2. Use the LEFT or RIGHT arrow to choose afile to play.
3. Press the ENTER button to play the file.
4. To stop the music and return to the Music screen, press the EXIT
button.
Control the Volume
Use the Remote Control to adjust the volume on the Digital Photo Frame or
when playing MP3 files. Press +and -buttons to adjust the volume up and
down.
Connect Speakers to the Digital Photo Frame
The Digital Photo Frame has built-in speakers, but you can also connect it
to an external amplifier and speakers, if you wish.
Plug the speaker plug into the earphone jack located on the right side
of
Digital Photo Frame (Cable not included).
10
