Opticom Fanout Kit
Part Numbers: FO6CB, FO12CB
PRECAUTIONS
1. SAFETY GLASSES
WARNING: It is strongly recommended that
safety glasses be worn when handling bare
optical fiber. The bare fiber is very sharp and
can easily damage the eye.
2. DISPOSAL OF BARE FIBERS
WARNING: Pick up and discard all pieces of
bare fiber with sticky tabs. Do not let cut pieces
of fiber stick to clothing or drop in the work
area where they are hard to see and can
cause injury.
3. LASER LIGHT PROTECTION
WARNING: Laser light is invisible. The invisi-
ble light is powerful enough to damage your
eyes. Serious damage to the retina of the eye
is possible. Never look into the end of a fiber
which may have a laser coupled into it. Should
accidental eye exposure to laser light be sus-
pected, arrange for an eye examination imme-
diately.
4. CABLE HANDLING
WARNING: Fiber optic cable can be damaged
by excessive pulling, twisting, crushing or
bending stresses. Consult the appropriate
specification sheets as provided by your cable
vendor. Any damage may result in decreased
optical performance.

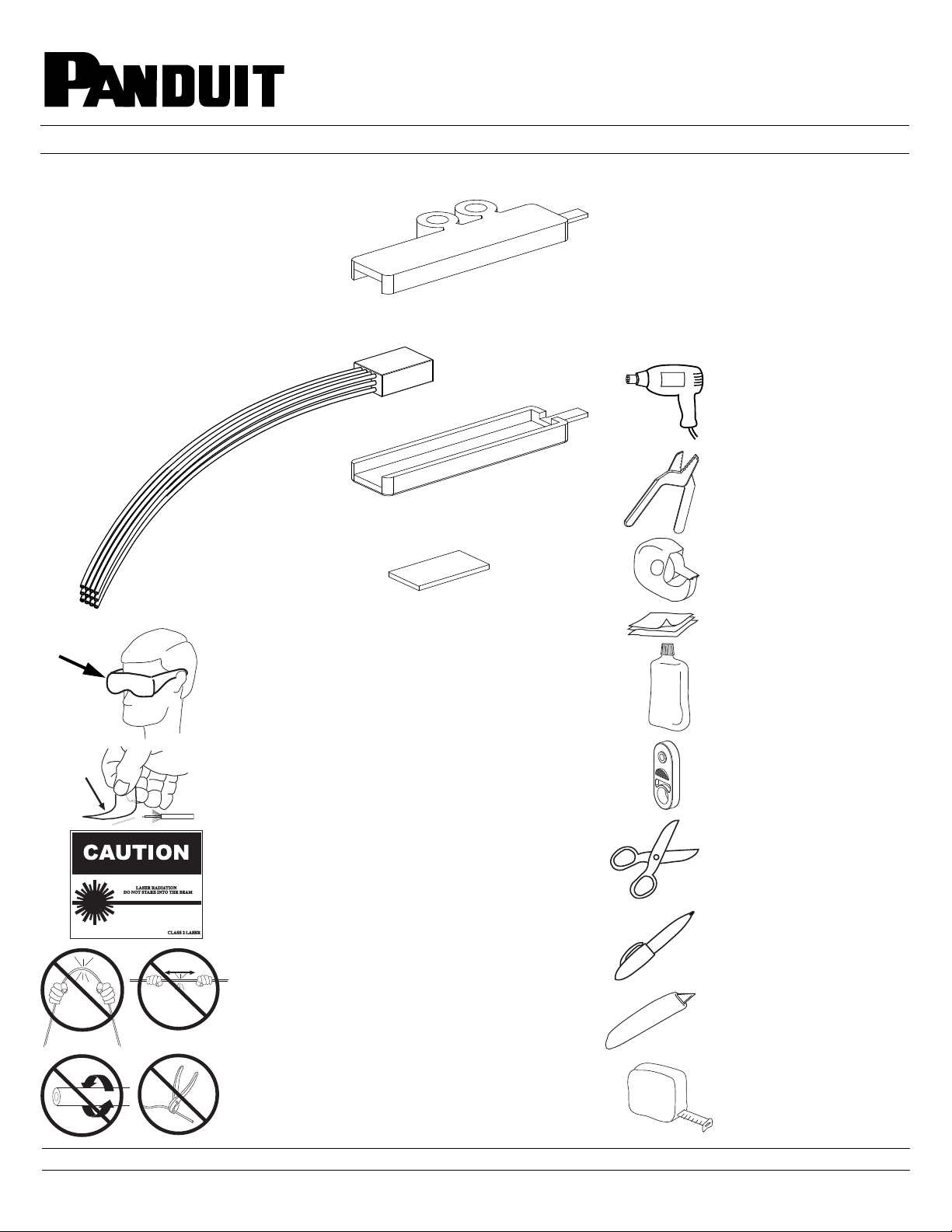

CONTENTS
HEAT GUN
CABLE JACKET
STRIPPER (CST-115)
ADHESIVE TAPE
LINT-FREE WIPES
(FWP-C)
GEL CLEANER
CABLE STRIPPING
TOOL (CJT)
ARAMID YARN
CUTTER (FKC)
MARKING PEN
(PFX-0)
UTILITY KNIFE
TAPE MEASURE
COVER
BASE
TUBE ASSEMBLY
1 METER (36")
DOUBLE SIDED TAPE
REQUIRED
TOOLS

E-mail:
[email protected]m
Phone:
866-405-6654
For Instructions in Local Languages
and Technical Support:
www.panduit.com/resources/install_maintain.asp
INSTALLATION INSTRUCTIONS
© Panduit Corp. 2017 FS047A
www.panduit.com
Page 2 of 2
ADHESIVE TAPE
1. Slide heat shrink tube over
cable.
2. Prepare cable according to
cable manufacturer’s
instructions. Make sure the
fibers are free of all gel.
3. Lay the cable on a table as
shown in Fig. 1.
4. Tape the furcation tube
assembly securely to the
edge of the table as shown
in Fig. 2.
5. Carefully thread each fiber
into the tube assembly.
Match the fiber colors to the
colors of the tubing.
6. When the tube assembly is
loaded, remove it from the
edge of the table.
7. Slide the tube assembly
toward the base making
sure that the fibers do not
bend, kink, or twist as
shown in Fig. 3.
8. Place the tube assembly
into the base.
9. Snap the cover on top of the
base.
10. Slide the heat shrink tube up
and use heat gun to shrink
to the housing.
11. Use the double sided tape
to mount the base as
needed.
Fig. 1
Fig. 2
Fig. 3
