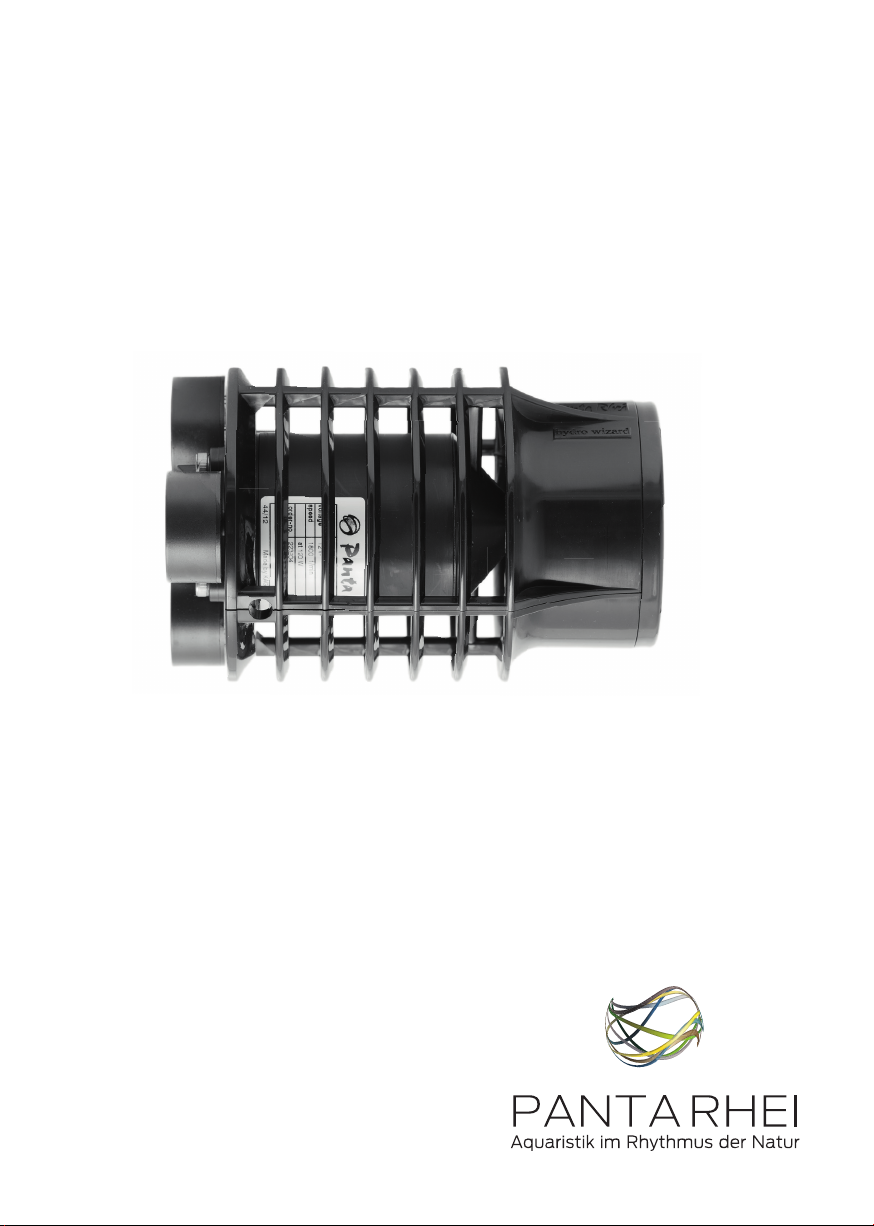

Panta Rhei Hydro Wizard ECM 63 User manual

Hydro Wizard®ECM 63
Operating manual

Version: 429789b
As of: 09.12.2019
Panta Rhei GmbH
Managing Director: Matthias Kählig
Langen Hop 5
30900 Wedemark - Brelingen
Telephone [phone]
Fax [phone]
Panta Rhei Galerie
Langen Hop 5
30900 Wedemark - Brelingen
MAIL: [email protected]
WEB: www.panta-rhei.shop
Natural Aquarium Technology
PAN T ARHEI

Hydro Wizard®
ECM 63

Operating manual
Hydro Wizard®ECM 63
Content
01) Scope of delivery .............................................7
02) Safety guidelines .............................................7
a) General safety guidelines....................................... 7
b) Protection against electric shock ........................9
03) Safety hints for handling magnets ......... 10
04) Intended use and scope of application . 10
05) General description........................................11
a) Functional description.............................................11
06) Commissioning...............................................12
a) Checks before commissioning.............................12
b) Installation of the pump ........................................13
07) Controller instructions ............................... 16
a) Controlling the Hydro Wizard®.................................................... 16
b) The information screen..........................................17
c) The menu screen..................................................... 18
d) The „make changes“ screen................................ 19

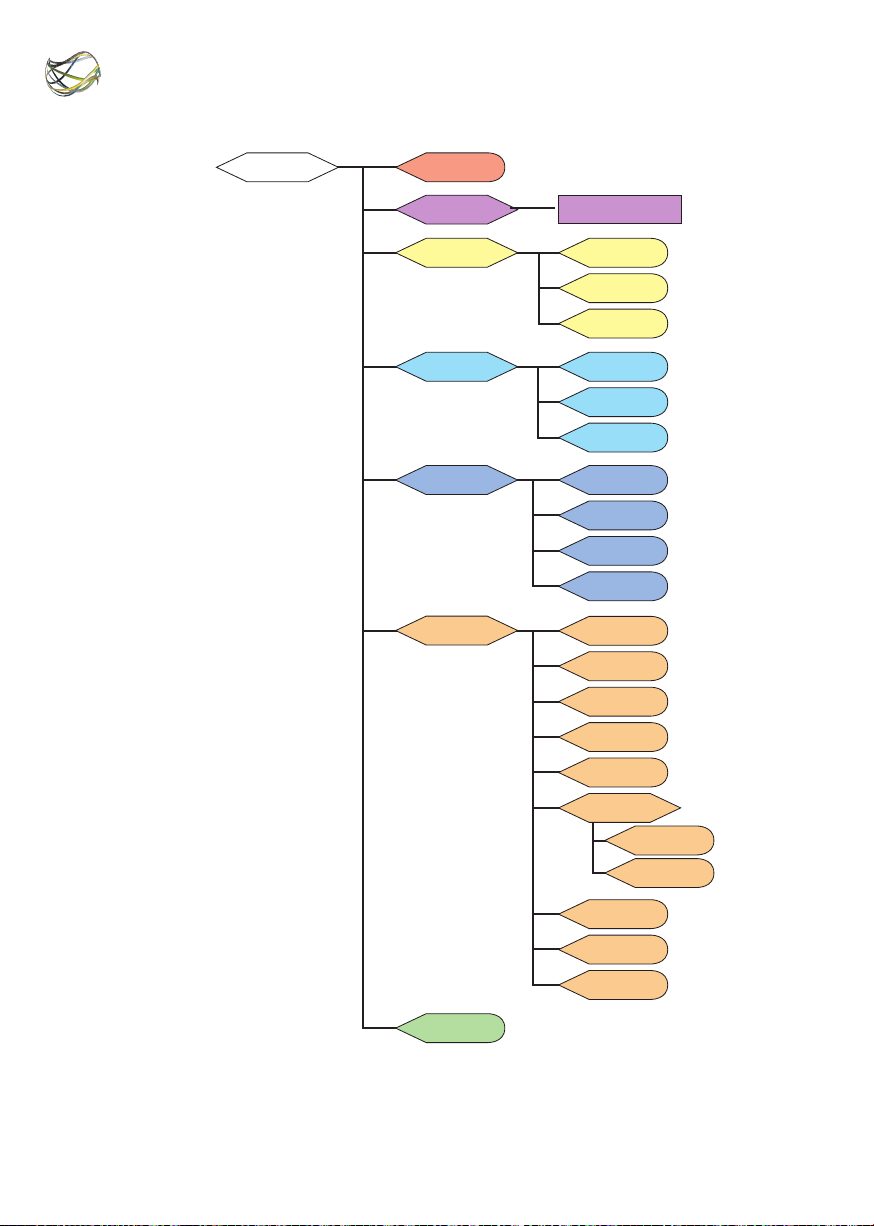

e) Menu structure........................................................ 20
f) Operation...................................................................22
08) Cleaning function ..........................................31
09) The pause / feed timer................................32
10) Unit settings ...................................................33
11) Cleaning and maintenance .......................35
a) General cleaning......................................................35
12) Assembly and disassembly.......................36
13) Troubleshooting............................................ 37

7
Operating manual Hydro Wizard®ECM 63
14) Disposal and environmental protection ..38
15) Warranty provisions.....................................39
a) Extent of warranty ................................................ 39
b) Warranty period ..................................................... 39
c) Warranty exclusions ............................................. 39
16) Technical data.............................................. 40
a) Pump characteristic curve ..................................40
b) Pump technical data.............................................. 41
c) Dimensions................................................................42
d) Mount dimensions ..................................................43
17) Optional accessories.................................. 44
18) Spare parts .....................................................45
Thank you very much for choosing this product! The
Hydro Wizard®ensures the exact simulation of na-
tural movements in the aquaculture and in aquaria.
What is special about the Hydro Wizard®compared
to other products is that a laminar fl ow – and not a
turbulent fl ow – is produced by the Hydro Wizard®.
A turbulent fl ow is not good for the fi sh. As a result
of the exact calculation of all components in the fl ow
simulation, the Hydro Wizard®is unrivalled until today
within the area of effi ciency and the environmentally
friendly scope of services.
Before the fi rst commissioning, please read this ope-
rating manual carefully – for your own safety, the sa-
fety of others and your animals. Store this manual in
a safe place, so that you can access the information
at any time.

Operating manual
Hydro Wizard®ECM 63
7
01) Scope of delivery
• Hydro Wizard®ECM 63 (1 piece)
• Controller (1 piece)
• Touchscreen pen (1 piece)
• Power supply (1 piece)
• Power cord (1 piece)
• Magnet holder (3 piece)
• Operating manual (1 piece)
02) Safety guidelines
a)General safety guidelines
Only connect the device in aquaria, garden ponds and in
their protection zones to an electrical outlet with residual
current device (earth leakage circuit breaker) with a rated
current of not more than 30 mA an (DIN VDE 0100). If you
have any questions concerning this, please contact an elec-
trically skilled person. If persons are in the tanks or ponds,
the pump must not be operated.
Before installation and commissioning, please ob-
serve the following instructions:
• The electrical connection is made to a safety
socket outlet with a mains voltage of 100-240
V~ 50/60 Hz; fuse at least 10 A.
• Only use in closed rooms for aquarist applica-
tions!
• The controller and the power supply must not
come into contact with water.
• In case of visible damage to the cables, the
drive must not be operated. Do not attempt to
repair the cable yourself.
• Do not use the cable for carrying or pulling the
drive. The cable must not be used for mounting
the drive.
• The pump must only be operated underwater.
Dry running will destroy the bearings. In the
!
!
!

Operating manual Hydro Wizard®ECM 63
8 9
event of non-compliance, warranty and liability
claims will expire.
• This device is not intended to be used by per-
sons (including children) with reduced physi-
cal, sensory or mental capabilities or a lack of
experience and/or knowledge – unless these
persons are supervised by a person responsib-
le for their safety or they receive instructions by
this person on how to use the device.
• The operator is responsible for the compliance
of local safety regulations.
• Within the working area, the user is liable to
third parties for damages caused by the use of
the device.
• The pump is exclusively suitable for pumping
seawater and freshwater. Pumping corrosive,
fl ammable or explosive liquids is not permitted.
The temperature of the pumped liquid must not
exceed 35 °C (95 °F).
• The working temperature of the device is bet-
ween 5 °C and 35 °C (41 - 95 °F).
• Do not work with a device that is damaged, in-
complete or modifi ed (without the permission
of the manufacturer). Before commissioning,
ensure by an expert that the required electrical
protective measures are available.
• Please read the instructions in the opera-
ting manual concerning the topic “Cleaning
and maintenance”. All measures beyond this,
opening the pump and the switchboards in par-
ticular, are not permitted. Always contact the
manufacturer in the event of repair.
!

Operating manual
Hydro Wizard®ECM 63
8 9
b)Protection against electric shock
After setting up the pump, the mains plug must be freely ac-
cessible at any time during the operation.
Before commissioning your new pump, have an expert che-
cked whether the
- grounding, protective multiple earthing and residual
current-operated protective circuit work properly follo-
wing the latest safety regulations
- electrical plug connections are kept dry
• Do not use the cables to remove the plug from
the socket. Protect the cables against heat, oil
and sharp edges. Do not bend the cables.
• Protect the cable and the electrical connections
against humidity. Make sure that the cable and
the electrical connections are in an area that
cannot be fl ooded.
• When working on the device, remove the mains
plug from the socket.
• The minimum immersion depth depends on the
set pumping capacity.
• The maximum operating depth is limited by the
cable length.
!
!

Operating manual Hydro Wizard®ECM 63
10 11
03)Safety hints for handling magnets
• The enclosed magnets are much stronger than
for example pin board magnets.
• Keep the magnets away from objects, which re-
act sensitively to magnetism (e.g. credit cards
and EC carts, computers). There is the danger
of irreparable damage. Maintain a safe distan-
ce of at least 75 cm (30 ”).
• The enclosed neodymium magnets may cause
crushing injuries on fi ngers and other extremi-
ties due to their enormous force. Never take
your hands, ferrous materials or other magnets
between the magnets.
• Keep the magnets away from pacemakers!
• As a result of the high magnetic force, surroun-
ding objects (e.g. knives) may be attracted in
an uncontrolled manner.
• Never put the holding magnet in direct contact
with the magnets on the “Hydro Wizard®housing”.
The magnets move towards each other in such a
strong way that the collision can hardly be cont-
rolled. Always keep the “Hydro Wizard®housing”
and the magnet support separately.
04) Intended use and scope of application
The Hydro Wizard®is used to generate laminar
fl ows in aquaria, ponds and similar waters. Ener-
gy-effi cient circulating of water is a basic function in
this connection. „Dead zones“ can thus be avoided.
With the controller (or the optional USB interface) it
is possible to generate wave simulations, in which
both, wave height and lenght, can be adjusted. The-
reby, wave height and wave length can be adjusted.
This is used to simulate courses of rivers, tides and
breakers. The Hydro Wizard®is designed for use in
freshwater and seawater.

Operating manual
Hydro Wizard®ECM 63
10 11
05)General description
Hydro Wizard®
Controller Power supply
a)Functional description
By rotation of the impeller, an area of low pressure
is generated which sucks in the medium from be-
hind through the fi ns of the basket and – past the
fl ow conditioner – ejects it again at the front.
4
1. Magnet support
2. Motor
3. Basket
4. Impeller
5. Flow conditioner
3
2
1
5

Operating manual Hydro Wizard®ECM 63
12 13
06)Commissioning
a)Checks before commissioning
• Is there a ground fault circuit interrupter connec-
ted upstream of the device?
• Are all cables free from damage? Cables must
neither be bend nor rolled up!
• Is the fl ow conditioner installed? The fl ow con-
ditioner also protects fi ngers from getting inju-
red by the impeller. Never use the pump wi-
thout without fi nger protection!
• Are there any objects in the drive that may
block the impeller?
• Before starting your Hydro Wizard®please
make sure, that there are no people inside the
tank!
• Make sure that the mains plug was disconnec-
ted before installing the drive in the tank!
• Pay attention to the safety instructions on pa-
ges 7 to 10.

Operating manual
Hydro Wizard®ECM 63
12 13

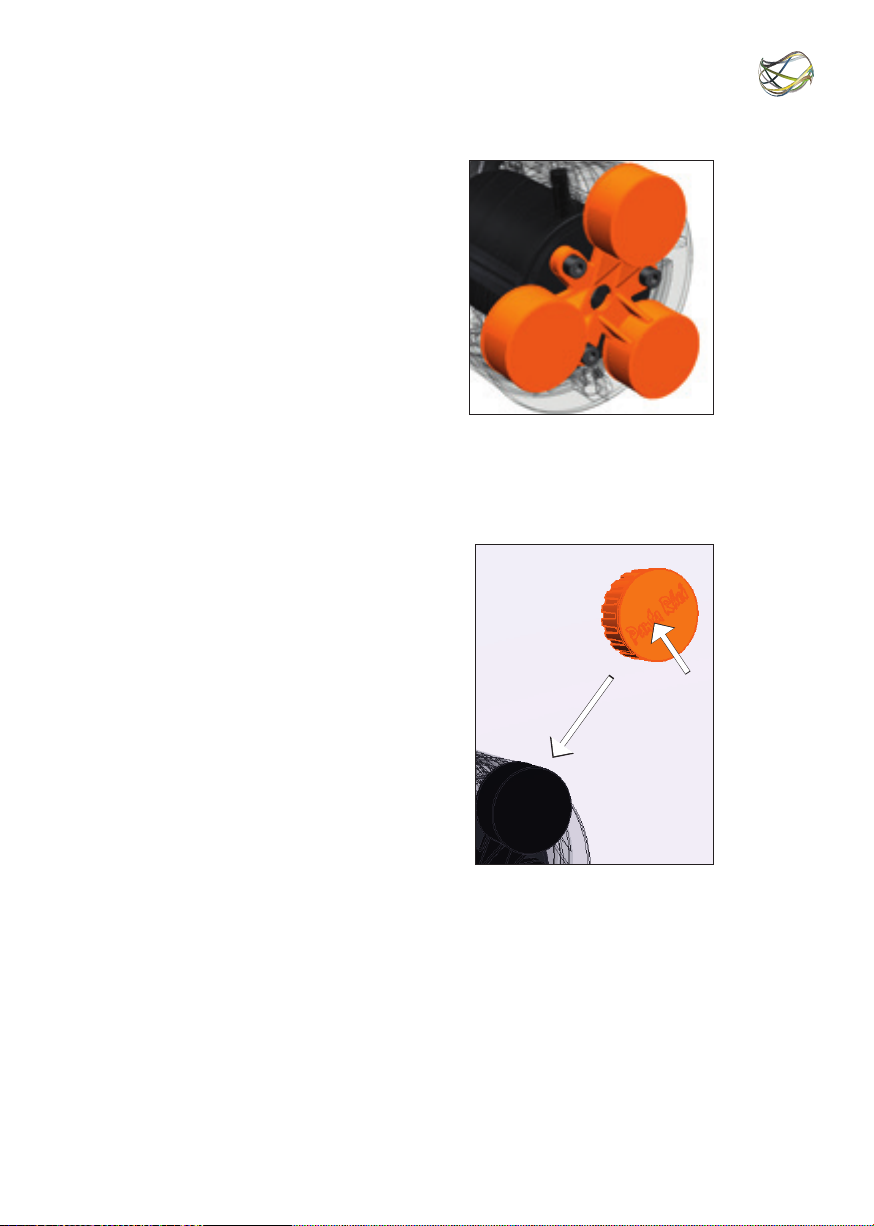

b)Installation of the pump
1. Installation step:
• Attach the pump
to the inside of the
pane – please ex-
clusively on the
intended points of
attachment of the
pump.
In order to do so,
use either the enclo-
sed magnet support
or the three threaded holes M5, on which the
magnet mount is mounted. The dimensions can
be found in the dimension drawing on page 43.
2. Installation step:
• In order to fi x the
pump, take the small
magnet and attach it
to outside of the pane
– on the point where
it meets the magnet
support of the inside
of the pane. For atta-
ching the outer mag-
net, we recommend
you to put the mag-
net far away from the
magnet support on the pane (1) and then slide it
carefully towards the magnet support (2).
Important notes:
• Putting the magnet directly on the magnet sup-
port may lead to crushing of the hand and may
possibly damage the tank! Furthermore, the
outer single magnets are not intended for use
in water. Water may penetrate, which leads to
the corrosion (rusting) of the magnets.
11
22

Operating manual Hydro Wizard®ECM 63
14 15
• Appropriate mounting material can be
purchased directly from Panta Rhei. Infor-
mation on this can be found on page 44 of
this operating manual. The dimensions can
be found in the dimension drawing on page
43. The Hydro Wizard®itself generates very
high axial forces. In addition, there are the
inertia forces of the moving water masses in
the tank. If you do not use Panta Rhei equip-
ment for mounting, please pay attention that
the support, on which the Hydro Wizard®
is assembled, can safely absorb a force of
approx. 80 N.
• During operation, the pump must be comple-
tely immersed into water. The drive should be
assembled in such a depth below the water
surface that no air is sucked in from the surfa-
ce during operation. Please pay attention that
the height of the water level is changing during
wave simulation.
• The drive can be directly assembled via a solid
ground in the tank. In case of a sandy ground,
a vacuum eff ect may be the result. In order to
avoid that, increase the distance to the ground.
Objects sucked in may emerge from the fl ow
conditioner at high speed and cause damage.
• It must be ensured that the intake basket is not
covered by plants and similar objects.
• The cable must be protected against animals
which are able to damage the cable.
• It is advisable to remove, from the inside, algae
and biofi lms from the aquarium pane on the
point, where the Hydro Wizard®is to attached,
in order to ensure better grip.

Operating manual
Hydro Wizard®ECM 63
14 15
3. Installation step:
• Connect the plug of the pump (right) and the
power supply (left) with the controller.
• Now connect the power cable with the power
supply and subsequently with a socket.
Important notes:
• When switching on for the fi rst time, the speed
of the drive should be increased slowly and,
while doing so, observing the fl ow eff ects in the
tank. Is something sucked in or are decorative
items or plants blown away? If this is the case,
choose a diff erent location of the pump or re-
duce the performance
• Choosing the wrong wave length (resonance)
in any aquarium can cause severe damage
and even break the tank. Further information
see page 23
!

Operating manual Hydro Wizard®ECM 63
16 17
!
07) Controller instructions
a)Controlling the Hydro Wizard®
The controller can be programmed with your fi nger, or
a non abrasive touch screen pen. All touch surfaces
can be easily reached with your fi nger. When activa-
ting a fi eld it will be displayed with a black background.
When the fi nger is removed it will be confi rmed.

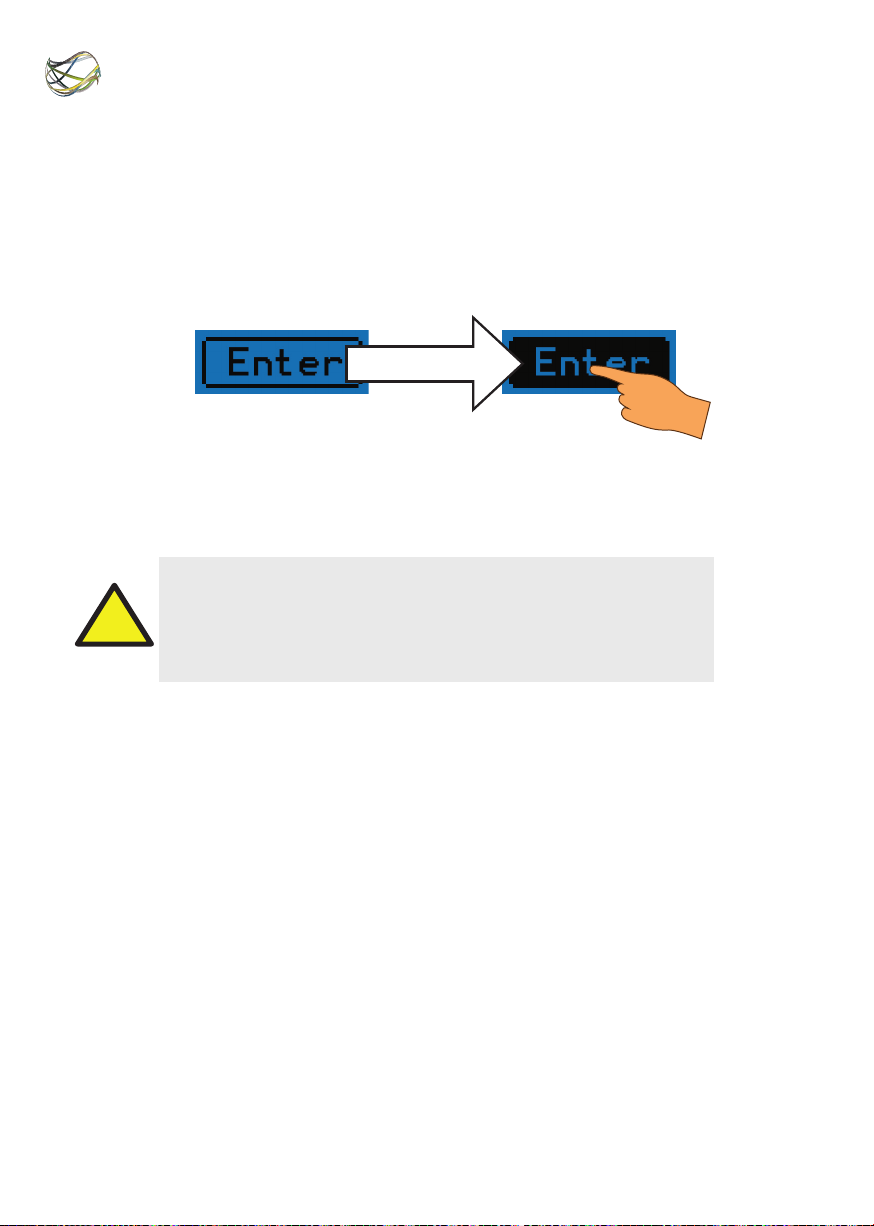

Figure 1: Touch screen surface confi rmation
The following will explain the most important fi elds of
the touch screen.
Caution: For maintenance ALWAYS disconnect the Hydro
Wizard®from the power grid.
Do not use any of the following stop functions to perform
maintenance on the Hydro Wizard®!

Operating manual
Hydro Wizard®ECM 63
16 17
i
b)The information screen
The information screen displays information about
the fl ow status of the Hydro Wizard®.
The upper part of the screen displays the fl ow mode.
The center part of the screen will display the most
important data about the fl ow mode.
Figure 2: Information screen in fl ow mode
When shipped the Hydro Wizard®will arrive in STOP mode
after it has been plugged in.
The STOP fi eld on the screen will stop the Hydro Wi-
zard®. The display will blink when stopped. Pushing
this fi eld again will restart the Hydro Wizard®.
The MENU fi eld will call up the main menu.
The center of the screen will allow you to quickly ac-
cess the settings in the mode that has been selected.
Figure 3: quick access to the settings
Display active
mode / stop
Display: flow
setting and perfor-
mance
time
Stop the
Hydro Wizard®
go to main menu

Operating manual Hydro Wizard®ECM 63
18 19
c)The menu screen
The menu screen is used to change and display the
settings of the Hydro Wizard®.
Figure 4: menu screen
The upper portion of the screen displays the fl ow
menu. The center portion shows the available sub-
menus. The middle one of the submenus has been
selected. To select a diff erent submenu use the ar-
rows at the bottom of the screen. The arrow at the
right enters that submenu, the arrow button on the left
returns to the menu above. To confi rm this selection
this item will get bigger to make them more visible.
Figure 5: confi rmed return button
The INFO button returns back to the info screen. The
STOP button will stop the Hydro Wizard®.
Display: active menu change to submenu
go back to
previous menu
Stop the
Hydro Wizard®
go to info
menu
go to lower menu item
Selected menu item
(in the center)
go to upper menu item
other menu items
are available but not
displayed
change to menu above
(selected)

Operating manual
Hydro Wizard®ECM 63
18 19
d)The „make changes“ screen
This screen is used to make changes to most of the
settings.
Figure 6: make changes screen
The left center fi eld displays the fl ow value. Above
and below are buttons to increase or decrease the
number by the smallest step possible.
On the right side is a fi eld that can be used like wheel,
it is used to increase or decrease the value smoothly
with no steps. The OK fi eld in the center of the wheel
is used to exit the make changes to settings screen.
number display increase
number
decrease
number
exit (OK)

Operating manual Hydro Wizard®ECM 63
20 21
e)Menu structure
Figure 7: menu structure with original display settings
Main menu
Info
Settings
Depends on mode
Mode
Pause Start
Duration
Quick access
Cleaning Automatic
Duration
Manual
Unit Time
Date
Language
Tooltip
Dimming
Active
Password
Turn
Restart
Reset
Password
Network Off
Master
Slave
Sync
